User Manual
Adjust the sound sensitivity of the
baby unit
You can choose to hear sounds from the baby
unit all the time, or to hear sounds that exceed
a certain level. You can use the parent unit to
adjust the microphone sensitivity of your baby
unit. The higher the sensitivity level, the more
sensitive the baby unit is in detecting sounds
for transmitting to the parent unit. The sound
sensitivity is preset to Level 5.
Sound sensitivity table for reference
Display Sensitivity Description
High sensitivity level
The parent unit speaker is
constantly on, and you will
hear all sounds (including
background noises) from
your baby’s room.
Medium high
sensitivity level
The parent unit speaker
turns on for soft babbling
and louder sounds from
your baby. It remains
quiet when your baby
sleeps soundly.
Medium sensitivity level
The parent unit speaker
turns on for loud babbling
and louder sounds from
your baby. It remains quiet
when your baby makes
soft sounds.
Medium low sensitivity
level
The parent unit speaker
turns on for crying and
louder sounds from your
baby. It remains quiet
when your baby makes
soft sounds.
Low sensitivity level
The parent unit speaker
turns on for loud crying or
screeching sounds from
your baby. It remains quiet
when your baby makes
soft sounds.
Press menu when the parent unit is not
in use.
Press select.
Press volume + or volume - to choose the
sensitivity level.
Press select to confirm your selection.
1.
2.
3.
4.
BC

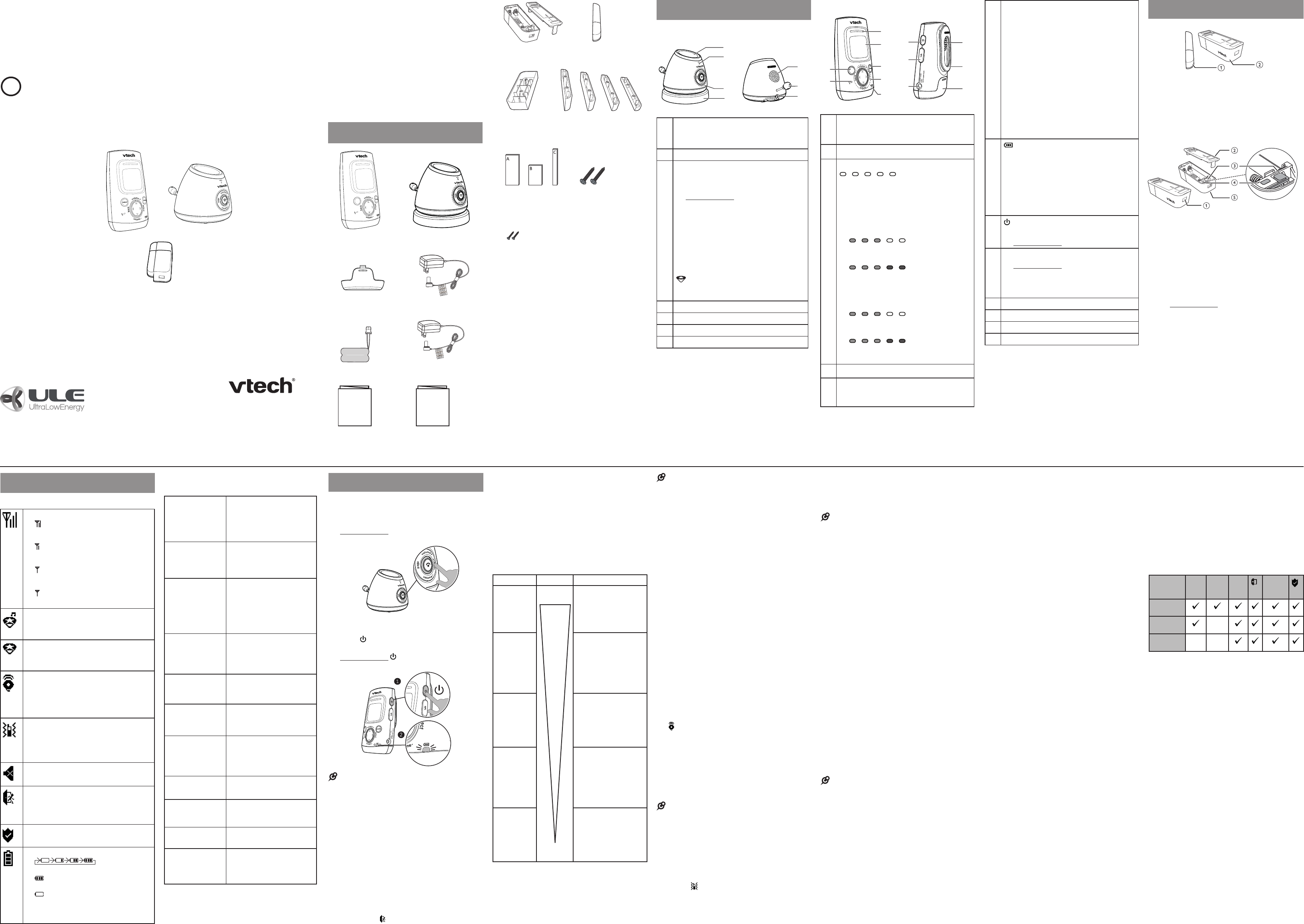

Baby unit overview
1Projector
When it is on, it projects some image
patterns to the user environment.
•
2Microphone
3Control key panel
power on
Press to power on.
Press and hold to power off.
page
Press to start or stop paging parent unit.
volume +
Press to increase the listening
volume or lullaby volume.
volume -
Press to decrease the listening
volume or lullaby volume.
Press to turn on or off the projector
and lullaby.
•
•
•
•
•
•
4Magnetic base
5Speaker
6Temperature sensor
7Power jack
Parent unit overview
1sensor alerts
Press to turn on or off the sensor alert
system.
•
2Microphone
3Visual sound indicator
The visual sound indicator has two
functions. One is to show the sound level
detected by the baby unit. The other
one is to show the volume level during
speaker volume setting.
Sound level detected by the baby unit
One to three green
lights indicate a moderate sound level
detected by the baby unit.
Additional red
lights indicate a higher sound level
detected by the baby unit (e.g. baby
crying loudly).
Speaker volume level
One to three green
lights indicate Level 1 to Level 3 of the
speaker volume setting.
Additional red
lights indicate Level 4 to Level 5 of
the speaker volume setting.
•
•
•
•
4LCD panel
5menu
Press to enter the settings menu
while idle.
•
Baby Monitor Overview 6Control key panel
select
While in a menu, press to choose an
item, or save a setting.
back
While in a menu, press to return to
the previous screen.
volume +
Press to increase the speaker volume.
While in a menu, press to scroll up.
volume -
Press to decrease the speaker
volume.
While in a menu, press to scroll down.
•
•
•
•
•
•
7 Battery level indicator
Light on when the parent unit is
connected to AC power.
Light flashes when the parent unit
battery is low and needs charging.
Light off when the parent unit battery is
fully charged, or when not connect to
AC power and with no battery installed .
•
•
•
8(On/off)
Press to power on.
Press and hold to power off.
•
•
9talk
Press and hold to talk to the baby
unit; release to stop talking.
While in a menu, press to return to
idle screen.
•
•
10 Power jack
11 Speaker
12 Belt clip
13 Battery compartment cover
What’s in the box
Power on or off the baby unit
Press power on to turn on the baby unit. The
power on lights up.
Press and hold power on again to power off
the baby unit. The power on turns off.
Power on or off the parent unit
Press to power on the parent unit. The
screen turns on.
Press and hold again to power off the
parent unit. The screen turns off.
NOTE
The parent unit powers on automatically once
it is connected to AC power or battery installed.
The baby unit also powers on automatically once
connected to AC power.
Adjust the speaker volume for baby unit
Press volume + or volume - on the baby
unit at any time.
Adjust the speaker volume for parent unit
You can adjust the speaker volume from
VOLUME 1 toto VOLUME 5, or turn it off. The
speaker volume is preset to VOLUME 3.
Press volume + or volume - when the
parent unit is not in use.
When the speaker volume is set to off, the
screen displays .
•
•
•
•
•
•
•
Using the baby monitor Press volume + or volume - to choose On
or Off.
Press select to confirm your selection. The
screen displays Saved and you hear a
confirmation tone.
NOTES
Each time you set the vibration alert to ON, the
parent unit vibrates briefly after you press select.
We recommend you not to turn on the vibration
alert and the lullaby at the same time, as the
lullaby will trigger the vibration alert frequently.
The vibration alert setting on each parent unit is
independent.
Projector
You can turn on or off the baby unit projector.
Press menu when the parent unit is not in use.
Press volume + or volume - to choose
Project, then press select.
Press volume + or volume - to choose On
or Off.
Press select to confirm your selection. The
screen displays Saved and you hear a
confirmation tone.
LCD language
You can select a language (English, French or
Spanish) to be used in all screen displays. The
language is preset to English.
Press menu when the parent unit is not in use.
Press volume + or volume - to choose
Language, then press select.
Press volume + or volume - to choose
English, Français or Español.
Press select to confirm your selection. The
screen displays Saved and you hear a
confirmation tone.
NOTE
The language setting on each parent unit is
independent.
Temperature
You can change the settings for the
temperature’s range, alerts, format.
Set the temperature range
You can set the desired minimum and maximum
room temperature of the baby unit.
Press menu when the parent unit is not in use.
Press volume + or volume - to choose
Temperature, then press select.
Press select to select Range.
Press volume + or volume - to adjust the
minimum temperature between 55 F and
59 F (11 C and 20 C), then press select.
3.
4.
•
•
•
1.
2.
3.
4.
1.
2.
3.
4.
•
1.
2.
3.
4.
NOTE
To enter the sensitivity menu of the parent unit,
the baby unit must be turned on.
Set date and time
You can set the date and time to be displayed
on the idle parent unit.
Press menu when the parent unit is not in use.
Press volume + or volume - to choose Set
date/time, then press select.
Press volume + or volume - to choose the
month, then press select.
Press volume + or volume - to choose the
day, then press select.
Press volume + or volume - to choose the
year, then press select.
Press volume + or volume - to choose the
hour, then press select.
Press volume + or volume - to choose the
minute, then press select.
Press select to confirm your selection. You
hear a confirmation tone.
Sound alert
Sound alert feature works only when the parent
unit is in mute.
If you turn on the sound alert, the parent unit beeps
when the baby unit detects sounds which light up
four sound level indicators on the parent unit.
When the sound alert of the parent unit is turned
on, displays. The sound alert is preset to Off.
Press menu when the parent unit is not in use.
Press volume + or volume - to choose
Sound alert, then press select.
Press volume + or volume - to choose On
or Off.
Press select to confirm your selection. The
screen displays Saved and you hear a
confirmation tone.
NOTE
The sound alert setting on each parent unit is
independent.
Vibration alert
You can turn on the vibration alert so that the
parent unit vibrates when the baby unit detects
sounds which light up four sound level indicators
on the parent unit.
When the vibration alert of the parent unit is
turned on, displays. The vibration alert is
preset to Off.
Press menu when the parent unit is not in use.
Press volume + or volume - to choose
Vibration alert then press select.
•
1.
2.
3.
4.
5.
6.
7.
8.
1.
2.
3.
4.
•
1.
2.
Congratulations
on purchasing your new VTech product. Before
using this product, please read
Important safety instructions.
For support, shopping, and everything new at
VTech, visit our website at
www.vtechphones.com.
Register online to get an additional
3-month warranty!
Visit www.vtechphones.com.
m
k
l
j
h
i
c
d
b
a
c
e
g
f
Sensor unit Magnet unit
Spacer for
sensor unit Spacers for
magnet unit
Double-sided
mounting tapes Screws x 2
P
Small screw x 2
Press volume + or volume - to adjust the
maximum temperature between 83 F and
86 F (21 C and 30 C), then press select.
Press select to confirm your selection. The
screen displays Saved and you hear a
confirmation tone.
Turn on or off the temperature alerts
You can turn on or off the alerts which reminds
you the current room temperature is beyond of
temperature range.
Press menu when the parent unit is not in use.
Press volume + or volume - to choose
Temperature, then press select.
Press volume + or volume - to choose
Alerts, then press select.
Press volume + or volume - to choose On
or Off.
Press select to confirm your selection. The
screen displays Saved and you hear a
confirmation tone.
Set the temperature format
You can set the temperature format to Celsius
or Fahrenheit.
Press menu when the parent unit is not in use.
Press volume + or volume - to choose
Temperature, then press select.
Press volume + or volume - to choose
Format, then press select.
Press volume + or volume - to choose
Celsius or Fahrenheit.
Press select to confirm your selection. The
screen displays Saved and you hear a
confirmation tone.
Sensor settings
You can change the settings for each individual
sensor paired to the baby unit.
Press menu when the parent unit is not in use.
Press volume + or volume - to choose
Sensor settings, then press select to enter
the sensor settings menu.
Turn the sensor alert on or off
You can turn on or off the sensor alert for each
individual sensor.
Press menu when the parent unit is not in use.
Press volume + or volume - to choose
Sensor settings, then press select to enter
the sensor settings menu.
Press select to select Set alert.
Press volume + or volume - to choose
the desired sensor, then press select.
4. Press volume + or volume - to choose On
or Off.
5. Press select to confirm your selection. The
screen displays Saved and you hear a
confirmation tone.
5.
6.
1.
2.
3.
4.
5.
1.
2.
3.
4.
5.
1.
2.
1.
2.
3.
•
Parent unit Baby unit
Battery compartment
cover Baby unit adapter
Battery Parent unit adapter
Parent unit display screen
messages
BATTERY LOW
AT PARENT
UNIT
The parent unit uses only
the rechargeable battery
pack and it needs to be
recharged.
BATTERY LOW
AT SENSOR X*
The sensor battery is low
and it needs to be replaced.
SENSOR X*
is open /
MOTION X*
detected
motion
The monitored door,
window, or medicine
cabinet is opened, or there
is a motion detected in the
monitored area.
NO LINK TO
BABY UNIT
When the link between the
parent unit and the baby
unit is lost continuously for
over 10 seconds.
PAGING All idle parent units are
being paged by the baby
unit.
Saved Your selection has been
saved.
SEARCHING... The parent unit is out of
range of the baby unit,
or the baby unit is out of
power.
TALKBACK The parent unit is talking to
the baby unit.
<X> new
event(s)
The number of new sensor
activity(ies).
68oF/20oCThe real-time temperature
of the baby unit.
90oF/32oC
TOO HOT /
TOO COLD
The temperature of the
baby unit is too high or too
low.
* Sensor X or Motion X refer to the sensor’s name.
X X refers to the system-assigned number of the
sensor. You can edit the sensor’s name to your
preferred name. See Rename the sensor.
High
sensitivity
Low
sensitivity
Level 5
Level 4
Level 3
Level 2
Level 1
User’s manual
User’s manual
Sensor notication
You can choose the type of notification to
receive when a sensor is triggered. The preset
alert notification is Msg, tone, voice.
Definitions of notification types:
Msg - The LCD display messages of alert on
the handset and telephone base.
Tone - The long alert tone that you will hear
prior to the voice announcement and LCD
display message.
Voice - The voice announcement of the alert, at
the handset and telephone base.
Alerts
type
Alert
tone
Voice
annc
LCD
msg
*Sensor
log
event
Msg, tone,
voice
Msg &
tone --
Message
only -- --
Press menu when the parent unit is not in use.
Press volume + or volume - to choose
Notifications, then press select.
Press volume + or volume - to choose
All alerts off, All alerts on, Msg & tone, or
Message only.
Press select to confirm the setting. The
screen displays Saved and you hear a
confirmation tone.
Sensor log
The sensor log menu appears when there is at
least one sensor paired to the baby unit.
The sensor log stores a maximum of 50 entries
for sensor activities from all sensors.
Press menu when the parent unit is not in use.
Press volume + or volume - to choose
Sensor log, then press select to view the
sensor log entries.
Rename the sensor
You can rename each individual sensor to a
customized name.
Press menu when the parent unit is not in use.
Press volume + or volume - to choose
Rename, then press select.
Press volume + or volume - to choose the
sensor to rename, then press select.
Press volume + or volume - to choose
the desired sensor, then press select.
4. Press volume + or volume - to choose a name.
5. Press select to confirm the name. The
screen displays Saved and you hear a
confirmation tone.
1.
2.
3.
4.
1.
2.
1.
2.
3.
•
sensor
alert
c
g
d
e
bf
a
sensor
alert
alert
sensor
User’s manual
DM271
DM271-102
Wireless Monitoring System
with Safe & Sound®
Digital Audio Monitor
Go to
www.vtechphones.com
to register your product
for enhanced warranty
support and the latest
VTech product news.
> 1 cm
(0.4 inch)
> 1 cm
(0.4 inch)
> 1 cm
(0.4 inch)
> 1 cm
(0.4 inch)
1 set for DM271-102
1 set for DM271/DM271-102
Installation
guide
Installation guide
1 – Magnet unit
2 – Sensor unit
Sensor unit overview
1 – Latch button
Press to open the battery compartment
case.
2 – Back cover
3 – Pair button
When the sensor has been
deregistered from the baby unit,
press and hold to enter the registration
mode.
4 – LED light
Flashes red when the sensor is in the
registration mode.
5 – Battery compartment case
•
•
•
P
P
P
P
Open/closed sensor overview
Parent unit display icons
Connection status
displays when strong signal
strength is detected between the
baby unit and the parent unit.
displays when moderate signal
strength is detected between the
baby unit and the parent unit.
displays when the weak link signal
strength is detected between the
baby unit and the parent unit.
flashes when the link between the
baby unit and the parent unit is lost.
•
•
•
•
Projector and lullaby
Displays when the lullaby and the
projector of the baby unit is on.
•
Projector only
Displays when the projector of the
baby unit is on.
•
Sound alert
Displays when the sound alert of the
parent unit is turned on.
Flashes when there are sounds
detected from the baby unit.
•
•
Vibration alert
Displays when the vibration alert of
the parent unit is turned on.
Flashes when there are loud sounds
detected from the baby unit.
•
•
Mute
Displays when the volume is turned off.•
Sensor
The door, window, or medicine cabinet
is opened; or there is a motion
detected in the monitored area.
•
Sensor alerts on
Sensor alert system is turned on•
Battery status
animates when
the battery is charging.
displays solid when the battery is
fully charged.
flashes when battery is in low
level and needs charging.
No battery icon displays when there
is no battery installed.
•
•
•
•
Parent unit display overview
What does this limited warranty cover?
The manufacturer of this VTech Product warrants to
the holder of a valid proof of purchase (“Consumer” or
“you”) that the Product and all accessories provided in
the sales package (“Product”) are free from defects in
material and workmanship, pursuant to the following
terms and conditions, when installed and used
normally and in accordance with the Product operating
instructions. This limited warranty extends only to the
Consumer for Products purchased and used in the
United States of America and Canada.
What will VTech do if the Product is not free from
defects in materials and workmanship during
the limited warranty period (“Materially Defective
Product”)?
During the limited warranty period, VTech’s authorized
service representative will repair or replace at
VTech’s option, without charge, a Materially Defective
Product. If we repair the Product, we may use new
or refurbished replacement parts. If we choose to
replace the Product, we may replace it with a new or
refurbished Product of the same or similar design.
We will retain defective parts, modules, or equipment.
Repair or replacement of the Product, at VTech’s
option, is your exclusive remedy. VTech will return the
repaired or replacement Products to you in working
condition. You should expect the repair or replacement
to take approximately 30 days.
How long is the limited warranty period?
The limited warranty period for the Product extends
for ONE (1) YEAR from the date of purchase. If VTech
repairs or replaces a Materially Defective Product under
the terms of this limited warranty, this limited warranty
also applies to the repaired or replacement Product for
a period of either (a) 90 days from the date the repaired
or replacement Product is shipped to you or (b) the time
remaining on the original one-year warranty; whichever
is longer.
What is not covered by this limited warranty?
This limited warranty does not cover:
Product that has been subjected to misuse,
accident, shipping or other physical damage,
improper installation, abnormal operation or
handling, neglect, inundation, fire, water or other
liquid intrusion; or
Product that has been damaged due to repair,
alteration or modification by anyone other than an
authorized service representative of VTech; or
Product to the extent that the problem experienced
is caused by signal conditions, network reliability, or
cable or antenna systems; or
Product to the extent that the problem is caused by
use with non-VTech accessories; or
Product whose warranty/quality stickers, product
serial number plates or electronic serial numbers
have been removed, altered or rendered illegible; or
1.
2.
3.
4.
5.
FCC Part 15
This equipment has been tested and found to comply
with the requirements for a Class B digital device under
Part 15 of the Federal Communications Commission
(FCC) rules. These requirements are intended
to provide reasonable protection against harmful
interference in a residential installation. This equipment
generates, uses and can radiate radio frequency
energy and, if not installed and used in accordance
with the instructions, may cause harmful interference
to radio communications. However, there is no
guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful
interference to radio or television reception, which can
be determined by turning the equipment off and on, the
user is encouraged to try to correct the interference by
one or more of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment
and receiver.
Connect the equipment into an outlet on a circuit
different from that to which the receiver is connected.
Consult the dealer or an experienced radio/TV
technician for help.
Changes or modifications to this equipment not
expressly approved by the party responsible for
compliance could void the user’s authority to operate
the equipment.
•
•
•
•
The RBRC® seal on the nickel-metal battery indicates
that VTech Communications, Inc. is voluntarily
participating in an industry program to collect and
recycle these batteries at the end of their useful lives,
when taken out of service within the United States and
Canada.
The RBRC® program provides a convenient alternative
to placing used nickel-metal batteries into the trash or
municipal waste, which may be illegal in your area.
VTech’s participation in RBRC® makes it easy for you to
drop off the spent battery at local retailers participating
in the RBRC® program or at authorized VTech product
service centers. Please call
1 (800) 8 BATTERY® for information on Ni-MH battery
recycling and disposal bans/restrictions in your
area. VTech’s involvement in this program is part of
its commitment to protecting our environment and
conserving natural resources.
RBRC® and 1 (800) 8 BATTERY® are registered
trademarks of Rechargeable Battery Recycling
Corporation.
The RBRC® seal
FCC and IC regulations
Limited warranty Product purchased, used, serviced, or shipped for
repair from outside the United States of America
or Canada, or used for commercial or institutional
purposes (including but not limited to Products
used for rental purposes); or
Product returned without a valid proof of purchase
(see item 2 on the next page); or
Charges for installation or set up, adjustment of
customer controls, and installation or repair of
systems outside the unit.
How do you get warranty service?
To obtain warranty service in the USA, please visit our
website at www.vtechphones.com or call
1 (800) 595-9511. In Canada, go to
www.vtechcanada.com or call 1 (800) 267-7377.
NOTE: Before calling for service, please review the
user’s manual - a check of the Product’s controls and
features may save you a service call.
Except as provided by applicable law, you assume the
risk of loss or damage during transit and transportation
and are responsible for delivery or handling charges
incurred in the transport of the Product(s) to the
service location. VTech will return repaired or replaced
Product under this limited warranty. Transportation,
delivery or handling charges are prepaid. VTech
assumes no risk for damage or loss of the Product
in transit. If the Product failure is not covered by this
limited warranty, or proof of purchase does not meet
the terms of this limited warranty, VTech will notify you
and will request that you authorize the cost of repair
prior to any further repair activity. You must pay for
the cost of repair and return shipping costs for the
repair of Products that are not covered by this limited
warranty.
What must you return with the Product to get
warranty service?
Return the entire original package and contents
including the Product to the VTech service location
along with a description of the malfunction or
difficulty; and
Include a “valid proof of purchase” (sales receipt)
identifying the Product purchased (Product model)
and the date of purchase or receipt; and
Provide your name, complete and correct mailing
address, and telephone number.
Other limitations
This warranty is the complete and exclusive
agreement between you and VTech. It supersedes
all other written or oral communications related to this
Product. VTech provides no other warranties for this
Product. The warranty exclusively describes all of
VTech’s responsibilities regarding the Product. There
are no other express warranties. No one is authorized
to make modifications to this limited warranty and you
should not rely on any such modification.
State/Provincial Law Rights: This warranty gives you
specific legal rights, and you may also have other rights,
which vary from state to state or province to province.
6.
7.
8.
1.
2.
3.
Frequency
control
Crystal controlled PLL synthesizer
Transmit
frequency
Baby unit: 1921.536-1928.448 MHz
Parent unit: 1921.536-1928.448 MHz
Channels 5
LCD 35 (x) x 21.2 (y) mm B&W LCD
Nominal
effective
range
Maximum power allowed by FCC and
IC. Actual operating range may vary
according to environmental conditions
at the time of use.
Power
requirement
Baby unit power adapter:
Input: 100-120V AC 150mA 60Hz
Output: 6V DC 600mA
Parent unit power adapter:
Input: 100-120V AC 150mA 60Hz
Output: 6V DC 400mA
Parent unit: 2.4V Ni-MH battery
Contact sensor:
2 x AAA batteries
Specifications are subject to change without notice.
© 2015 VTech Communications, Inc.
All rights reserved. 07/15. DM271_CIB_V1.0
Limitations: Implied warranties, including those of
fitness for a particular purpose and merchantability (an
unwritten warranty that the Product is fit for ordinary
use) are limited to one year from the date of purchase.
Some states/provinces do not allow limitations on
how long an implied warranty lasts, so the above
limitation may not apply to you. In no event shall
VTech be liable for any indirect, special, incidental,
consequential, or similar damages (including, but
not limited to lost profits or revenue, inability to use
the Product or other associated equipment, the cost
of substitute equipment, and claims by third parties)
resulting from the use of this Product. Some states/
provinces do not allow the exclusion or limitation of
incidental or consequential damages, so the above
limitation or exclusion may not apply to you.
Please retain your original sales receipt as
proof of purchase.
Technical specications
This baby monitor meets the California Energy
Commission (CEC) regulations for energy
consumption. Your baby monitor is set up to comply
with the energy-conserving standards right out of the
box.
Follow the instructions to install and charge the
battery. The CEC battery charging testing mode is
activated while charging.
Even if the parent unit is paired to baby units, the CEC
battery charging testing mode is activated while it is
powered off and charging.
California Energy Commission
battery charging testing mode
Mesures de sécurité importantes
Lorsque vous utilisez votre appareil, vous devriez
toujours suivre certaines mesures de précaution
de base afin de réduire les risques d’incendie,
d’électrocution et de blessures corporelles, dont ceux
qui suivent:
Observez toutes les instructions et mises en garde
inscrites sur l’appareil.
L’installation par un adulte est requise.
Ce produit a été conçu pour être un dispositif
d’appoint seulement. Il n’est pas le remplacement
d’une supervision responsable et adéquate par un
adulte et ne devrait pas être utilisé comme telle.
Ce produit n’est pas conçu pour être utilisé en tant
que moniteur médical.
N’utilisez pas cet appareil près de l’eau ni de toute
autre source d’humidité, par exemple, près d’une
baignoire, cuve à lessive, évier de cuisine, dans
un sous-sol humide ni près d’une piscine, dans un
soussol humide ou une douche.
MISE EN GARDE: Il peut y avoir un risque
d’explosion si vous utilisez le mauvais type de
piles pour l’unité du parent. N’utilisez que le
bloc-piles rechargeable inclus ou le bloc-piles de
rechange (BT166342/BT266342). N’incinérez pas
les piles. Celles-ci risqueraient d’exploser. Jetez
les piles usées selon les renseignements suivant
le sceau du RBRCMD.
N’utilisez que les adaptateurs inclus avec ce
produit. L’utilisation d’un adaptateur dont la
polarité ou la tension serait inadéquate risque
d’endommager sérieusement le produit et mettre
votre sécurité en péril.
Adaptateur de l’unité du bébé: Entrée 100-120V
CA 150 mA 60 Hz; Sortie : 6 V CC 600 mA.
Adaptateur de l’unité du parent: Entrée 100-120V
CA 150 mA 60 Hz; Sortie : 6 V CC 400 mA.
Lorsqu’ils sont branchés dans une prise de
courant, les adaptateurs secteur ont été conçus
pour être orientés correctement, soit à la
verticale ou au plancher. Les broches n’ont pas
été conçues pour supporter le poids du bloc
d’alimentation et le maintenir en place si celuici est
branché dans une prise au plafond, sous une table
ou dans un meuble.
Pour les PRODUITS À BRANCHER À UNE
PRISE DE COURANT, la prise de courant doit
être installée près du produit, afin d’assurer une
accessibilité sécuritaire à la prise de courant.
Débranchez ce produit de la prise de courant
avant de procéder au nettoyage. N’utilisez pas de
nettoyants en aérosols. Utilisez un chiffon humide
pour le nettoyer.
Débranchez les cordons d’alimentation avant de
remplacer le bloc-piles.
Ne coupez pas les cordons d’alimentation pour
remplacer les fiches, car ceci peut présenter un
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
11.
12.
For cETL compliance only danger potentiel.
Ne laissez aucun objet reposer ni appuyer sur le
cordon d’alimentation. N’installez pas cet appareil
dans un endroit où l’on risque d’écraser le cordon
d’alimentation ou de le piétiner.
Ne faites fonctionner cet appareil qu’avec le type
d’alimentation indiqué sur l’étiquette. Si vous
ne connaissez pas le type d’alimentation que
vous possédez à votre domicile, consultez votre
marchand ou votre compagnie locale d’électricité.
Ne surchargez pas les prises de courant murales
ni les rallonges électriques.
Ne placez pas cet appareil sur un chariot, meuble,
trépied, support de montage ni table chancelants.
Les trous et ouvertures du boîtier, situés à l’arrière
de l’appareil ou sous celui-ci, servent à aérer
l’appareil. Pour l’empêcher de surchauffer, ne
bloquez sous aucun prétexte ces ouvertures et
n’empêchez pas l’aération adéquate de l’appareil
en le plaçant sur un lit, divan, tapis ou toute autre
surface similaire. De même, ne le positionnez pas
à proximité ni au-dessus d’une source de chaleur
ou d’un calorifère. De plus, ne placez pas l’appareil
dans un endroit avant de vous assurer qu’il y ait
une bonne circulation d’air.
N’enfoncez jamais d’objets à travers les ouvertures
de cet appareil, car ils pourraient entrer en
contact avec des points de tension dangereux ou
causer des courts-circuits qui peuvent dégénérer
en incendies ou en risques d’électrocution. Ne
renversez jamais de liquide dans ce produit.
Afin de réduire les risques d’électrocution, ne
démontez pas cet appareil, mais apportez-le dans
un centre de service autorisé. L’ouverture du
boîtier ou le retrait de toutes pièces que contient
cet appareil, à l’exception de l’accès autorisé à
certaines portes ou ouvertures, risque de vous
exposer à des points de tension dangereux ou
d’autres dangers. Un remontage incorrect peut par
la suite présenter des risques d’électrocution.
Vous devriez tester la réception chaque fois que
vous mettez l’appareil en fonction.
Examinez les composantes afin de vérifier si
celles-ci ne sont pas endommagées.
Soyez avisé de la perte de la confidentialité
lorsque vous utilisez les ondes publiques. Les
conversations peuvent être entendues par d’autres
moniteurs de bébé, des téléphones sans fil, des
scanneurs, etc.
Les enfants devraient être supervisés afin de vous
assurer qu’ils ne jouent pas avec l’appareil.
Le produit n’est pas conçu pour être utilisé par des
personnes (incluant des enfants) aux capacités
physiques, sensorielles ou mentales réduites ou
qui manquent d’expérience et de connaissances,
à moins qu’on leur ait donné suffisamment
de supervision ou d’instructions relativement
à l’utilisation de l’appareil par une personne
responsable de leur sécurité.
CONSERVEZ CES INSTRUCTIONS
13.
14.
15.
16.
17.
18.
19.
20.
21.
22.
23.
24.
This device complies with Part 15 of the FCC rules.
Operation is subject to the following two conditions: (1)
this device may not cause harmful interference, and
(2) this device must accept any interference received,
including interference that may cause undesired
operation.
To ensure safety of users, the FCC has established
criteria for the amount of radio frequency energy
that can be safely absorbed by a user or bystander
according to the intended usage of the product. This
product has been tested and found to comply with the
FCC criteria. The baby unit shall be installed and used
such that parts of all persons’ body are maintained
at a distance of approximately 8 in (20 cm) or more.
The transmitter and antenna of the parent unit shall be
held at least 1 in (2.5 cm) from your face.
This Class B digital apparatus complies with Canadian
requirement:
CAN ICES-3 (B)/NMB-3(B)
Industry Canada
This device complies with Industry Canada licence-
exempt RSS standard(s).
Operation is subject to the following two conditions: (1)
this device may not cause harmful interference, and
(2) this device must accept any interference, including
interference that may cause undesired operation.
The term ‘’IC:‘’ before the certification/registration
number only signifies that the Industry Canada
technical specifications were met.
This product meets the applicable Industry Canada
technical specifications.
RF radiation exposure statement
The baby unit complies with FCC RF radiation
exposure limits set forth for an uncontrolled
environment. The baby unit should be installed and
operated with a minimum distance of 8 in (20 cm)
between the baby unit and all persons’ body. Use of
other accessories may not ensure compliance with
FCC RF exposure guidelines. This transmitter must
not be co-located or operating in conjunction with any
other antenna or transmitter. This equipment complies
also with Industry Canada RSS-102 with respect to
Canada’s Health Code 6 for Exposure of Humans to
RF Fields.
Mises en garde
Utilisez et entreposez le produit à une température
entre 0˚ C (32˚F) et 40˚C (104˚ F).
N’exposez pas cet appareil à des froids ou des
chaleurs extrêmes, ainsi qu’à la lumière directe
du soleil. Ne l’installez pas près d’une source de
chauffage.
Le bloc-piles ne doit pas être exposé à la chaleur
excessive telle que la lumière du soleil ou au feu.
Assurez-vous que le moniteur et le cordon de
l’adaptateur sont toujours hors de portée des
enfants, à au moins 1 mètre (3 pieds) de l’enfant ou
du berceau, pour éviter tout risque de strangulation.
Ne jamais placer le moniteur à l’intérieur du
berceau ou du parc de bébé. Ne jamais couvrir le
moniteur ou l’unité (s) portative avec un article tel
une serviette ou une couverture.
D’autres équipements électroniques peuvent
produire des interférences sur votre moniteur vidéo
et audio. Tentez d’installer votre moniteur vidéo ou
audio à l’écart des appareils électroniques tels que
des routeurs sans fil, radios, téléphones cellulaires,
interphones, moniteurs, téléphones, ordinateurs
personnels, électroménagers et téléphones sans
fil.
Stimulateurs cardiaques implantés dans
l’organisme
Les simulateurs cardiaques (ne s’applique qu’aux
dispositifs numériques sans fil):
L’organisme ‘Wireless Technology Research, LLC
(WTR)’, une firme de recherche indépendante,
a mené une évaluation pluridisciplinaire des
interférences entre les téléphones sans fil portatifs
et les stimulateurs cardiaques implantés dans
l’organisme. Appuyée par l’Administration des
aliments et drogues (FDA) des États-Unis, la firme
WTR recommande aux médecins:
Avis aux détenteurs de stimulateurs cardiaques
Vous devriez maintenir les dispositifs sans fil à au
moins six pouces du simulateur cardiaque.
Ils ne doivent PAS placer le téléphone sans fil
directement sur le stimulateur cardiaque, tel que
dans une poche de chemise, lorsque celui-ci est
en marche.
L’étude effectuée par l’organisme WRS n’a pas
identifié de risque pour les détenteurs de simulateurs
cardiaques causés par les gens qui utilisent dispositifs
sans fil à proximité de ceux-ci.
Champs électromagnétiques (EMF)
Ce produit de VTech est conforme à toutes les
normes se rapportant aux champs électromagnétiques
(EMF) standard. Si vous le manipulez correctement
en suivant les instructions de ce guide, son utilisation
sera sécuritaire pendant de nombreuses années,
selon les meilleures évidences scientifiques dont nous
disposons aujourd’hui.
1.
2.
3.
4.
5.
6.
•
•
Cautions
Use and store the product at a temperature
between 32oF and 104oF.
Do not expose the product to extreme cold,
heat or direct sunlight. Do not put the product
close to a heating source.
Batteries should not be exposed to excessive
heat such as bright sunshine or fire.
Make sure the baby unit(s) and the adapter
cord(s) are always out of reach of the baby,
at least 3 feet away from the baby or crib, to
avoid a possible strangulation hazard.
Never place the baby unit(s) inside the
baby’s crib or playpen. Never cover the baby
unit(s) or parent unit with anything such as a
towel or a blanket.
Other electronic products may cause
interference with your baby monitor. Try
installing your baby monitor as far away
from these electronic devices as possible:
wireless routers, radios, cellular telephones,
intercoms, room monitors, televisions,
personal computers, kitchen appliances and
cordless telephones.
Precautions for users of implanted cardiac
pacemakers
Cardiac pacemakers (applies only to digital
cordless devices):
Wireless Technology Research, LLC (WTR),
an independent research entity, led a
multidisciplinary evaluation of the interference
between portable wireless devices and
implanted cardiac pacemakers. Supported by
the U.S. Food and Drug Administration, WTR
recommends to physicians that:
Pacemaker patients
Should keep wireless devices at least six
inches from the pacemaker.
Should NOT place wireless devices directly
over the pacemaker, such as in a breast
pocket, when it is turned ON.
WTR’s evaluation did not identify any risk to
bystanders with pacemakers from other persons
using wireless devices.
Electromagnetic fields (EMF)
This VTech product complies with all standards
regarding electromagnetic fields (EMF). If handled
properly and according to the instructions in this
user’s manual, the product is safe to be used based
on scientific evidence available today.
1.
2.
3.
4.
5.
6.
•
•
To keep this product working well and looking good,
follow these guidelines:
Avoid putting it near heating appliances and devices
that generate electrical noise (for example, motors
or fluorescent lamps).
DO NOT expose it to direct sunlight or moisture.
Avoid dropping the product or treating it roughly.
Clean with a soft cloth.
DO NOT immerse the parent unit and the baby
unit in water and do not clean them under the tap.
DO NOT use cleaning spray or liquid cleaners.
Make sure the baby unit and parent unit are dry
before you connect them to the mains again.
When you are not going to use the baby monitor for
some time, remove the rechargeable battery from the
parent unit. Store the parent unit, the baby unit and
the adapters in a cool and dry place.
Below are the questions most frequently asked about
the baby monitor. If you cannot find the answer to your
question, visit our website at www.vtechphones.com
or call 1 (800) 595-9511 for customer service.
Why does the
baby monitor
not respond
normally?
Try the following (in the order
listed) for common cure:
1. Disconnect the power to the
baby unit and the parent units.
2. Remove the batteries in the
parent units. Then, install the
batteries again.
3. Wait a few minutes before
connecting power back to the
baby units and the parent unit.
4. Turn on the baby unit and the
parent units.
5. Wait for the parent units to
synchronize with the baby unit.
Allow up to one minute for this
to take place.
Why doesn’t
the screen of
the parent unit
go on when I
switch on the
unit?
Perhaps the rechargeable battery
of the parent unit is empty and the
parent unit is not connected to the
mains. Insert the appliance plug
into the parent unit and put the
adapter in a wall socket.
Why doesn’t the
power on light of
the baby unit go
on when I switch
on the unit?
Perhaps the baby unit is not
connected to the mains. Connect
the baby unit to the mains.
Why does the
baby monitor
produce a
high-pitched
noise?
The units may be too close to
each other. Make sure the parent
unit and the baby unit are at least
1 meter/3 feet away from each
other.
•
•
•
•
•
•
•
Frequently asked questions
When using your equipment, basic safety
precautions should always be followed to
reduce the risk of fire, electric shock and injury,
including the following:
Follow all warnings and instructions marked
on the product.
Adult setup is required.
This product is intended as an aid. It is not
a substitute for responsible and proper adult
supervision and should not be used as such.
This product is not intended for use as a
medical monitor.
Do not use this product near water. For
example, do not use it next to a bath tub,
wash bowl, kitchen sink, laundry tub or
swimming pool, or in a wet basement or
shower.
CAUTION: Use only the batteries indicated
in this manual. There may be a risk of
explosion if a wrong type of battery is used
for the parent unit. Use only the supplied
rechargeable battery or replacement battery
pack (BT166342/BT266342) for the parent
unit. Do not dispose of batteries in a fire.
They may explode. Dispose of used battery
according to the information in The RBRC®
seal.
Use only the adapters included with this
product. Incorrect adapter polarity or voltage
can seriously damage the product.
Baby unit power adapter: Input 100-120V AC
150mA 60Hz; Output: 6V DC 600mA;
Parent unit power adapter: Input 100-120V
AC 150mA 60Hz; Output: 6V DC 400mA.
The power adapters are intended to be
correctly oriented in a vertical or floor mount
position. The prongs are not designed to hold
the plug in place if it is plugged into a ceiling,
under-the-table or cabinet outlet.
For pluggable equipment, the socket-outlet
shall be installed near the equipment and
shall be easily accessible.
Unplug this product from the wall outlet
before cleaning. Do not use liquid or aerosol
cleaners. Use a damp cloth for cleaning.
Unplug the power cords before replacing
batteries.
Do not cut off the power adapters to replace
them with other plugs, as this causes a
hazardous situation.
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
11.
12.
Do not allow anything to rest on the power
cords. Do not install this product where the
cords may be walked on or crimped.
This product should be operated only from
the type of power source indicated on the
marking label. If you are not sure of the type
of power supply in your home, consult your
dealer or local power company.
Do not overload wall outlets or use an
extension cord.
Do not place this product on an unstable
table, shelf, stand or other unstable surfaces.
This product should not be placed in any
area where proper ventilation is not provided.
Slots and openings in the back or bottom
of this product are provided for ventilation.
To protect them from overheating, these
openings must not be blocked by placing the
product on a soft surface such as a bed, sofa
or rug. This product should never be placed
near or over a radiator or heat register.
Never push objects of any kind into this
product through the slots because they may
touch dangerous voltage points or create a
short circuit. Never spill liquid of any kind on
the product.
To reduce the risk of electric shock, do
not disassemble this product, but take it to
an authorized service facility. Opening or
removing parts of the product other than
specified access doors may expose you to
dangerous voltages or other risks. Incorrect
reassembling can cause electric shock when
the product is subsequently used.
20.You should test the sound reception every
time you turn on the units or move one of the
components.
21.Periodically examine all components
for damage.
22.Be aware of possible loss of privacy while
using public airwaves. Conversations may
be picked up by other nursery monitors,
cordless phones, scanners, etc.
23.Children should be supervised to ensure that
they do not play with the product.
24.The product is not intended for use by
persons (including children) with reduced
physical, sensory or mental capabilities,
or lack of experience and knowledge,
unless they have been given supervision or
instruction concerning use of the appliance
by a person responsible for their safety.
SAVE THESE INSTRUCTIONS
13.
14.
15.
16.
17.
18.
19.
Important safety
instructions
Why does
the parent
unit react too
quickly to other
sounds?
The baby unit also detects other
sounds than those of your baby.
Adjust the sensitivity level to a
lower level or adjust the speaker
volume on the parent unit.
Why does
the parent
unit vibrate
frequently when
the lullaby is
turned on?
The lullaby will trigger the
vibration alert frequently. Avoid
using lullaby and vibration alert at
the same time.
Why don’t I
hear a sound/
Why can’t I
hear my baby
cry?
The volume of the parent unit may
have set too low. Press volume +
to increase the volume level.
You may have set a low sound
sensitivity level. See Adjust the
sound sensitivity of the baby
unit to change the setting.
Why does the
parent unit
beep?
If the parent unit is in mute and the
sound alert feature is on, there is
sound detected from the baby unit.
The baby units may be out of
range. Move the parent unit
closer to the baby units (but not
less than 3 feet).
If the parent unit is powered
by the provided battery, it may
not have enough charge for the
parent unit to perform normally.
Charge the battery in the parent
unit for up to 11 hours.
Why can’t I
establish a
connection?
Why is the
connection lost
every now and
then? Why are
there sound
interruptions?
The baby units may be out of
range. Move the parent unit
closer to the baby units (but not
less than 3 feet).
Other electronic products may
cause interference with your baby
monitor. Try installing your baby
monitor as far away from these
electronic devices as possible.
The display shows
BATTERY LOW
AT SENSOR X.
Replace the batteries with new
ones.
The sensor
does not work
at all.
Make sure the batteries are installed.
It may be deregistered from the
baby unit.
Press and hold on the
baby unit for about 4 seconds
while idle to entering the
registration mode
Press and hold the pair button
on the sensor to enter the
registration mode.
The handset shows REGISTERED
and you hear a beep when the
registration process completes.
This process takes about 90
seconds to complete.
1.
2.
The sensor may be out of range.
Move the sensor closer to the
baby unit.
Storage
General product care
Test the sensor signal strength
You can turn on or off the sensor alert for each
individual sensor.
Press menu when the parent unit is not in use.
Press volume + or volume - to choose
Sensor settings, then press select to enter
the sensor settings menu.
Press volume + or volume - to choose
Sensor setup, then press select. The
screen displays To test the signal
strength between your Baby Unit and
sensor, press SELECT.
Press select. The screen displays Please
trigger your sensor now. Press SELECT
to continue.
Trigger the sensor (refer to Installation
Guide to trigger your sensor), and then
press select.
If the screen displays No signal. Press
SELECT to try again.. Press select,
and then return to step 3 to test again.
If the screen displays Weak signal.
Move your sensor closer to the Baby
Unit. Now press SELECT, adjust the
sensor’s location to improve the signal,
and then press select.
6. When the screen displays Good signal.
Good location for your sensor. Press
SELECT to nish., Press select. The
testing is complete.
Projector and lullaby
You can turn on the projector and lullaby on the
baby unit. The baby unit projects colorful images
to the environment, and plays the lullaby to
comfort your baby.
When the projector is turned on, or
displays on the parent unit screen. The baby
unit will play lullaby.
Press once to turn on the projector and
play lullaby. The interesting and colorful
images is projected at the same time.
Press again to stop playing the lullaby.
The baby unit keeps projecting the colorful
images.
Press for a third time to turn off the
projector. The interesting and colorful
images fade out.
1.
2.
3.
4.
5.
•
•
•
•
•
NOTES
The projector and lullaby will automatically turn off
after 15 minutes.
We recommend you not to turn on the vibration
alert and the lullaby at the same time, as the
lullaby will trigger the vibration alert frequently.
If the baby unit receives talkback from the parent
unit during lullaby playback, the lullaby will be
paused. It resumes after the talkback finishes.
Talk to the baby unit
You can broadcast messages from a parent unit
to the baby unit and the other parent unit. If you
have two parent units, you can use both of them
at the same time to talk to the baby unit.
Press and hold talk on the side of the parent
unit. The screen displays TALKBACK when
the voice connection to the baby unit is
made. Speak towards the mic on the parent
unit. Your voice is broadcast to the baby unit
and the other parent unit.
NOTES
If the speaker volume of the parent unit is set
to VOLUME OFF, it will be reset to the default
VOLUME 3 when you press and hold TALK.
When a parent unit is talking to the baby unit, it is
also broadcast to the other parent unit. However,
sounds from the baby unit cannot be transmitted
to the parent units at the moment.
Find/page the parent unit
Use this feature to find misplaced parent units.
Press page on the baby unit. All idle parent
units ring and display PAGING.
To end paging, press any key on the parent
unit, or press page on the baby unit.
NOTES
Paging rings all parent units even if the speaker
volume of parent unit is set to VOLUME OFF.
The baby unit cannot page any parent unit that is
turned off, out of range or talking to the baby unit.
•
•
•
•
•
•
1.
2.
•
•
