OPERATING RANGE
This cordless telephone operates within the maximum
power allowed by the Federal Communications Commission
(FCC). Even so,this handset and base can communicate
over only a certain distance — which can vary with the
locations of the base and handset,the weather,and the
construction of your home or office. For best performance,
keep the base antenna fully upright.
If you receive a call while you are out of range, the
handset might not ring — or if it does ring,the call might
not connect when you press P. Move closer to the
base,then press Pto answer the call.
If you move out of range during a phone
conversation, you might hear noise or interference. To
improve reception,move closer to the base.
If you move out of range without pressing O,your
phone will be left “off the hook.” To hang up properly,walk
back into range,periodically pressing O.
900 MHz
Cordless Telephone 9320/8220
Fold open this manual for information about this
telephone’s installation and operation. Please
also read
Part 1 — Important Product Information.
AT&T and the globe symbol are registered trademarks of AT&T Corp.licensed to Advanced American Telephones.
© 2001 Advanced American Telephones. All rights reserved.
Printed in China. Issue 1AT&T 05/01
USER’S MANUAL
Part 2
REVISED
5/17/01
![](/img.php?id=153521&img=bg2.png)
1
INSTALLATION
Standard
electrical
outlet
Modular
telephone
jack

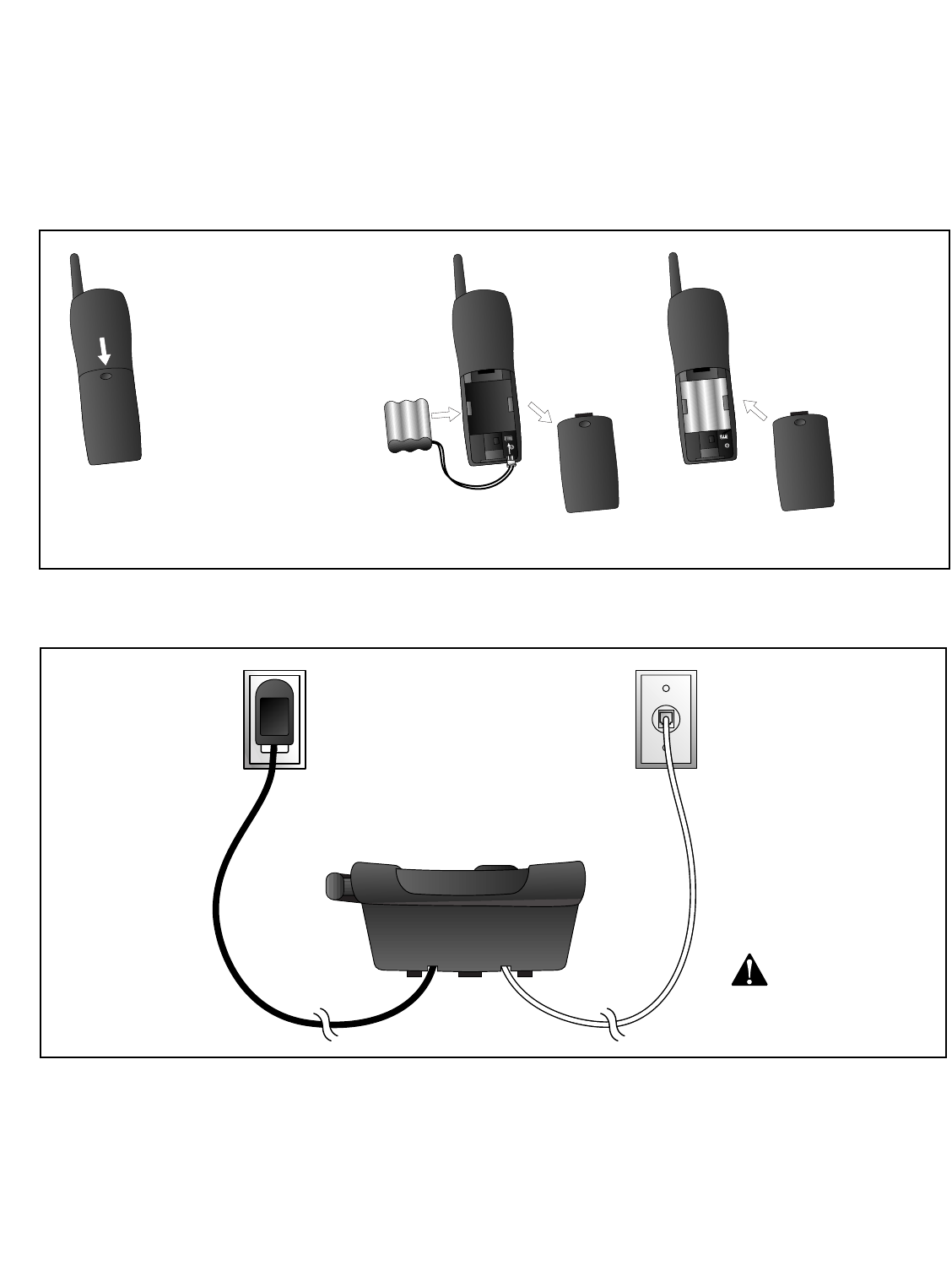

1 Connect the
telephone
line cord.
2 Connect the
power cord.
Before You Install
1 Choose a location for the base near an electrical
outlet and a telephone jack.
2 Install the handset battery.
This phone requires a modular telephone jack and a
standard electrical outlet (110v AC) not controlled by a wall
switch.
Table/Desk Installation
3 Charge the handset battery.
Place the handset in the base. Charge the battery for at
least 24 hours the first time. After the first charge,the
battery is typically fully charged overnight.
4 Check for dial tone.
After the batteries are charged,pick up the handset and
press P; you should hear a dial tone.
5 Set the dial mode.
If you have touch tone service,the phone is ready to
use as soon as the batteries are charged.
If you have dial pulse (rotary) service,you’ll need to
change the dial mode. When the phone is off,press
G,*,#,Mto set the dial mode to dial
pulse. To return to touch tone dialing,press G,
*,*,M.
Use only the power
cord supplied with
this product. If you
need a replacement,
call 1 800 222–3111.
b) Plug battery
pack connector
into handset.
Use only AT&T
battery 3301
(SKU# 91076).
d) Replace
cover by
sliding it
up into
place.
a) Remove
battery
compartment
cover by
pressing on
the indentation
and sliding
downward.
c) Place battery
pack and wires
in compartment.
![](/img.php?id=153521&img=bg3.png)
2
INSTALLATION

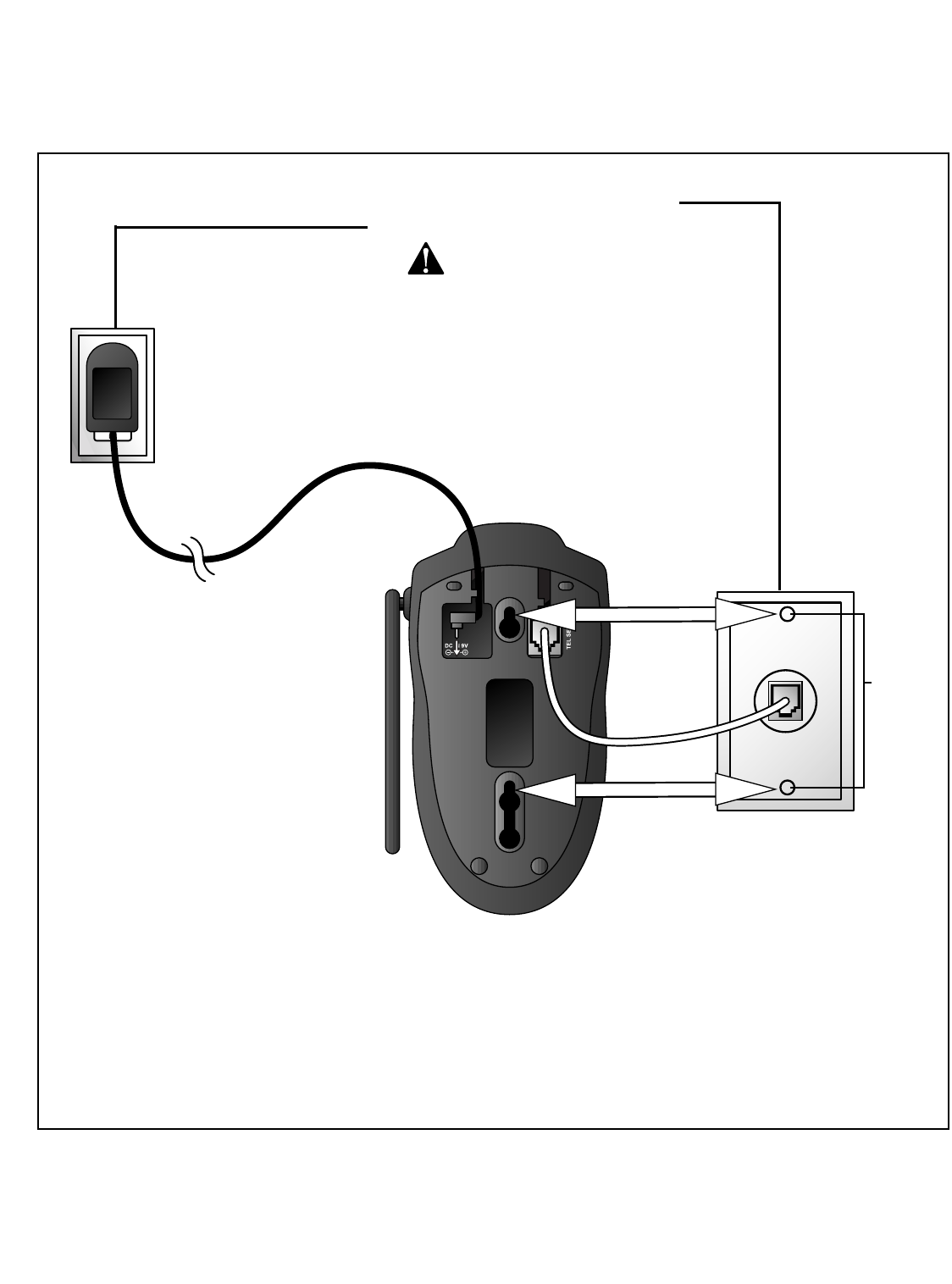

Wall Installation
1 Connect the telephone line cord.
2 Connect the power cord.
3 Mount the base on the wall.
Align holes on base with mounting
studs on wall jack.
Pull base down on mounting studs
until it locks into place.
4 Follow Steps 3–5 in “Table/Desk
Installation.”
Standard
electrical
outlet
Modular
telephone jack
Mounting
studs
Use only the power cord supplied
with this product. If you need a
replacement,call 1 800 222–3111.
![](/img.php?id=153521&img=bg4.png)
Charging the Handset Battery Pack
This battery should remain charged up to six days with the
ringer turned on and up to 12 days with the ringer off. A
fully charged battery provides an average talk time of about
six hours.
The battery pack needs charging when:
• A new battery is installed in the handset.
• The phone beeps twice when you press P.
• The phone light flashes slowly.
Place the handset in the base so the CHARGING light
turns on. The battery pack is typically fully charged in
eight hours.
You can keep the battery fully charged by returning the
handset to the base after each use.
If you repeatedly get a low battery indicator,even after
eight hours of charging,the battery should be replaced.
Use only AT&T battery 3301 (SKU# 91076).
CAUTION: Charge the battery provided with or
identified for use with this product only in
accordance with the instructions and limitations
specified in the User’s Manual,Part 1.
Replacing the Handset Battery Pack
1 Remove the battery compartment cover on the
handset by pressing on the indentation and sliding the
cover downward.
2 Lift out the old battery pack and disconnect.
3 Plug battery pack connector into handset. Place the
battery pack and wires in the compartment.
4 Replace the cover by sliding it up into place.
5 The new battery pack must be charged before
using the phone. Place the handset in the base and
allow it to charge for at least 24 hours the first charge.
The telephone might operate before that,but for best
performance,let the battery pack charge fully.
3
BATTERIES
INSTALLATION

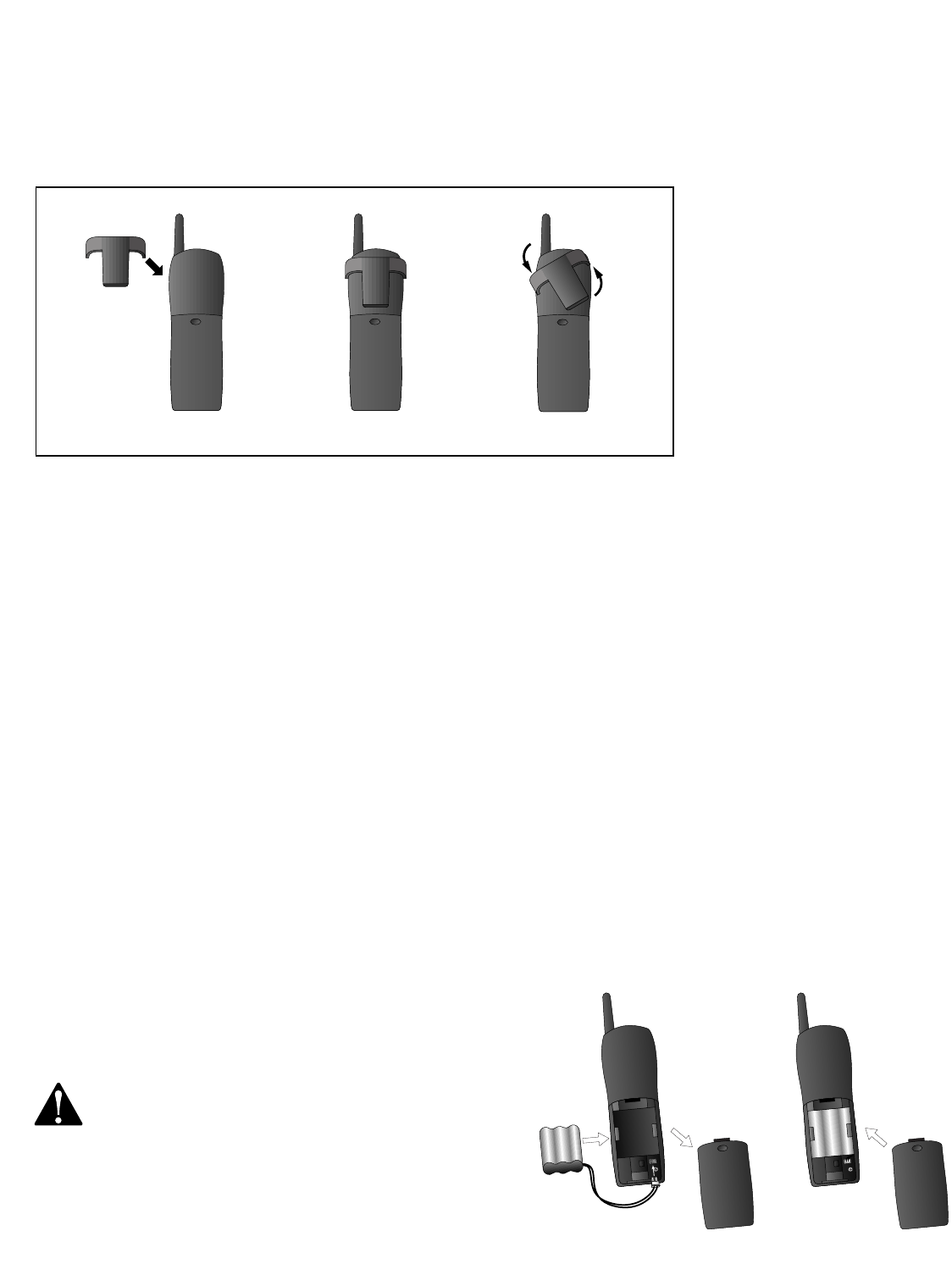

Attach the belt clip to the cordless handset (optional).
Belt Clip Installation
To attach To remove
![](/img.php?id=153521&img=bg5.png)
4

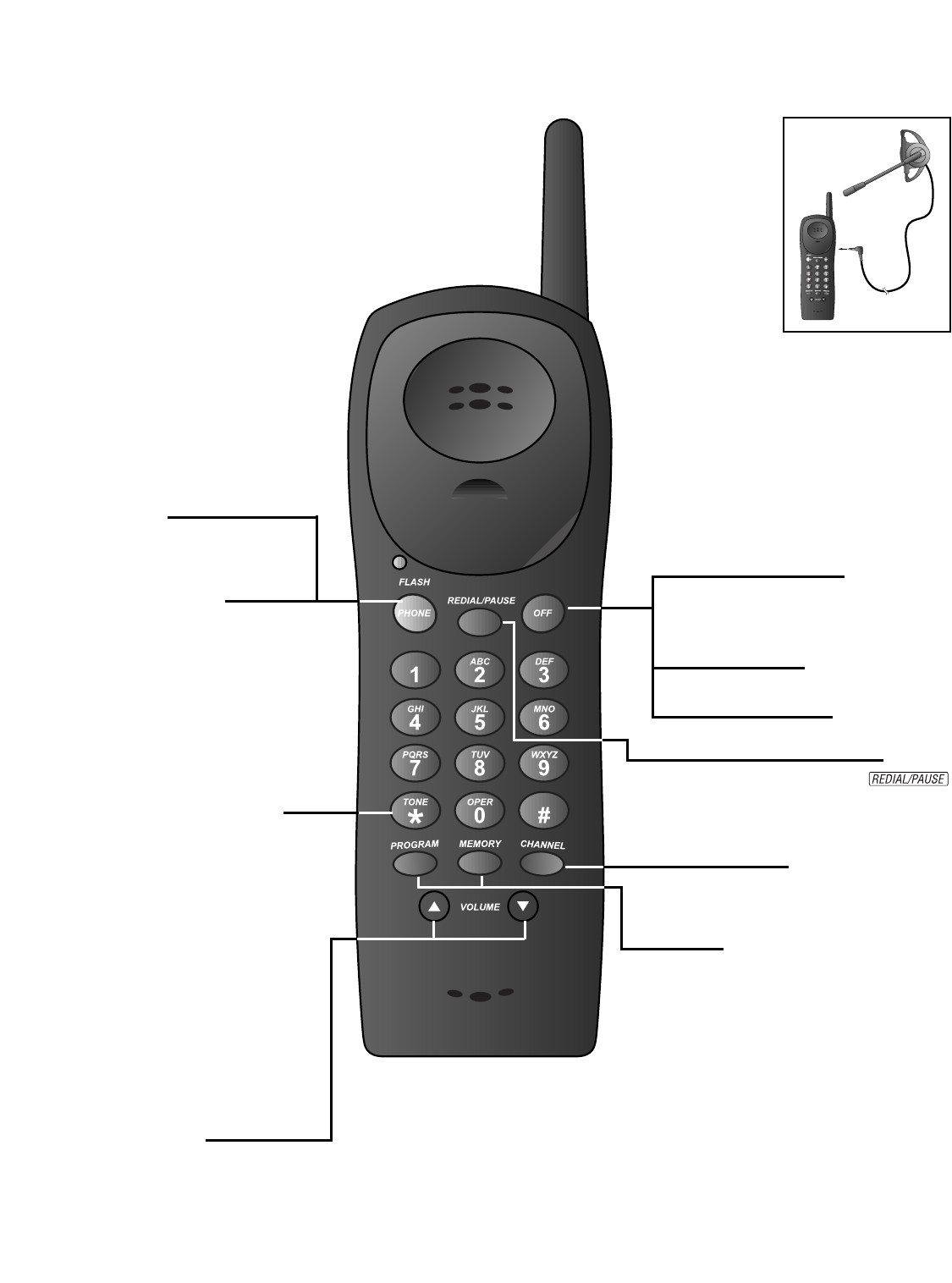

TELEPHONE OPERATION

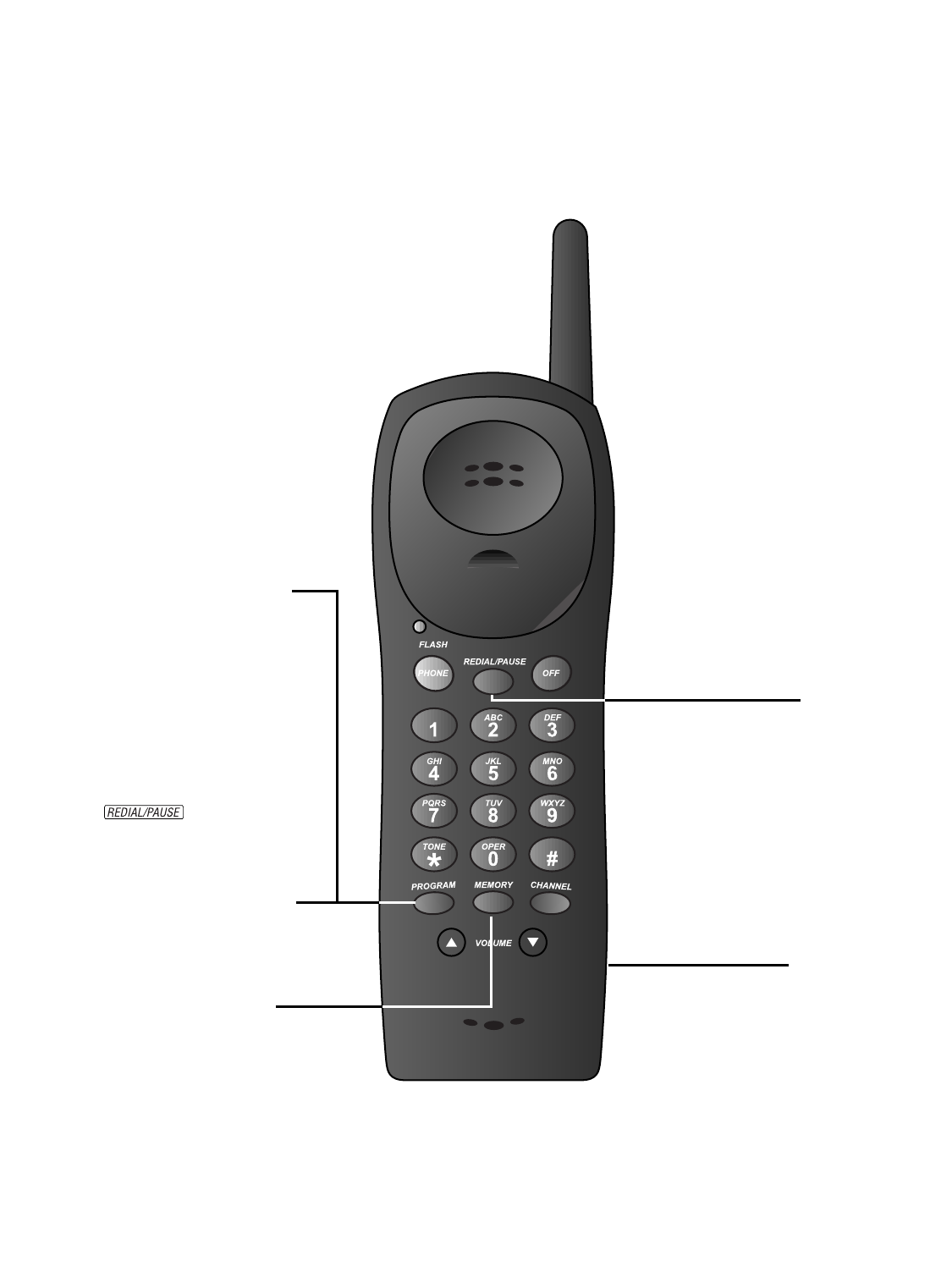

Handset Volume
Adjust volume of what you hear
through the handset.
Make a Call
Press and wait for light to
go on steadily.
Flash/Call Waiting
Access special telephone company
subscriber services.
Answer a Call
Lift handset from base
— OR —
Press any key.
Change Channel
Press to switch to a
clearer channel.
Redial
Press P,then press
to call the last number dialed (up
to 16 digits).
End a Call
Place handset in base
— OR —
Press O.
Exit programming
without saving.
Cancel a page.
Temporary Tone Dialing
Press to change from dial pulse to
touch tone dialing during a call.
This is useful if you have dial pulse
(rotary) service and need to send
touch tone signals for access to
telephone banking or long-distance
services.
1Dial the number.
2Press *. Buttons pressed after
this send touch tone signals.
3After you hang up,the phone
automatically returns to dial
pulse (rotary) service.
Headset Jack
You can use this telephone
hands-free when you install a
2.5 mm headset,included or
purchased separately.
Plug the headset into the jack
under the small rubber flap. Do
not force the connection,but
make sure the plug fits securely.
Handset Ringer Style/
Battery Save
Select from four different handset
ringer styles,or turn the ringer
off and extend battery life.
1Make sure the handset is off.
2Press G,#.
3Press 1,2,3or 4to select
your ringer style (you will
hear a sample),or press 5
to turn the ringer off.
4Press M.
When the ringer is off,select a
ringer style to turn it on again.
![](/img.php?id=153521&img=bg6.png)
5
TELEPHONE OPERATION

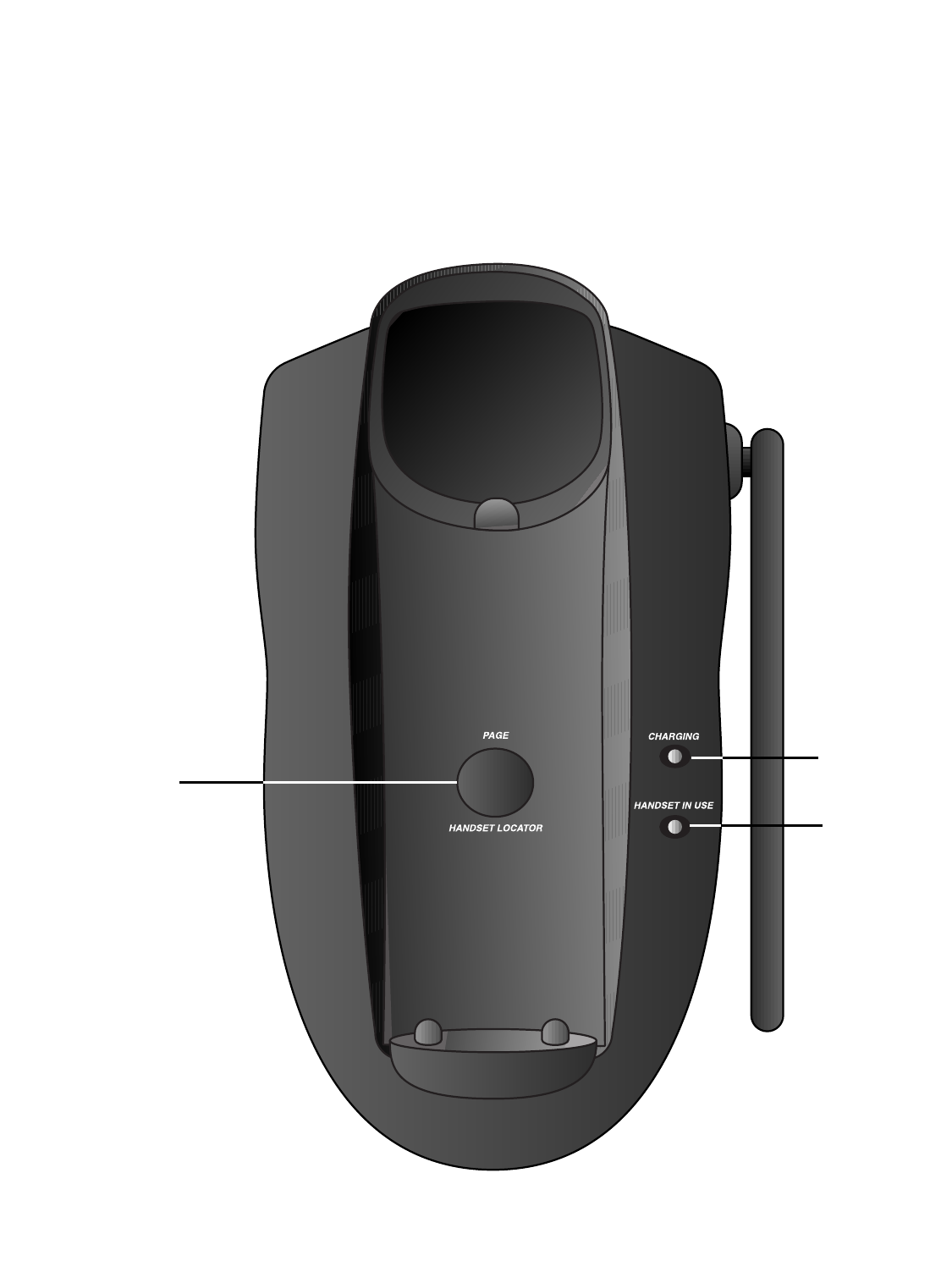

Page/Handset
Locator
Press once to page the
handset for up to one
minute
— OR —
Press twice to cancel.
Indicates handset
is charging in base
Indicates handset
is in use
![](/img.php?id=153521&img=bg7.png)
6
TELEPHONE MEMORY
Store a Pause
in a Memory Number
Press to store a two-second pause
in the dialing sequence. Each
press adds another two-second
pause and counts as one digit.
Store Memory Numbers
1Make sure the handset is off.
2Press G. The phone light
blinks.
3Press the number button (0–9)
where you want to store the
telephone number.
4Dial the telephone
number (up to 16 digits)
— OR —
Press to store the
last number dialed.
5Press M.
Directory Label
Use the included self-adhesive
directory label to keep a record
of the numbers (or names)
stored in memory. It’s best to
write on the label before
applying it to the phone.
This cordless phone can store 10 telephone numbers,each
up to 16 digits long. You can dial numbers stored in memory
just by pressing P, Mand a number button.
Dial Memory Numbers
1Press P.
2Press and release M,then
press the number button (0–9)
where the memory number is
stored.
Change/Replace a Stored
Memory Number
Store a new number in its place.
![](/img.php?id=153521&img=bg8.png)
7
IN CASE OF DIFFICULTY
If you have difficulty operating this phone,try the
suggestions below. For Customer Service,visit our website
at www.telephones.att.com or call 1 800 222–3111.
Please retain your receipt as your proof of purchase.
If the phone doesn’t work at all, check these
items first:
• Make sure the AC adapter is plugged into an outlet not
controlled by a wall switch.
• Make sure the telephone line cord is plugged firmly into
the base unit and the modular jack.
• Make sure the base antenna is fully upright.
• If the handset does not beep when you press P,the
battery might need charging.
• Make sure the battery pack is installed correctly.
• If you have dial pulse (rotary) service on your phone
line,make sure the dial mode is set to dial pulse (see
INSTALLATION).
If the above suggestions don’t solve the problem, try
re-initializing the handset and base:
1Disconnect the power to the base.
2Remove the handset battery pack.
3Wait a few minutes.
4Connect the power to the base.
5Insert the handset battery pack.
6Put the handset in the base to re-initialize.
If you hear a two-beep signal when you try to use
the handset:
• You might be out of range. Move closer to the base and
try again.
• If moving closer to the base doesn’t help,try following the
directions above for re-initializing the handset and base.
• The handset battery charge may have become low. Try
charging the handset battery.
If the phone does not ring when you receive a call:
• Make sure the handset ringer is on.
• Make sure the telephone line cord is connected firmly
to the base and the telephone jack.
• Make sure the AC adapter is plugged firmly into an
outlet not controlled by a wall switch.
• You might be too far from the base;move closer.
• You might have too many extension phones on your
telephone line to allow all of them to ring. Try
unplugging some of them.
If you hear noise or interference when using the phone:
• Make sure the base antenna is fully upright.
• You may be out of range. Move closer to the base.
• Press and release Cto change to another of the
30 channels available. If noise is exceptionally loud,
move closer to the base before changing channels.
• Household appliances plugged into the same circuit as
the base can sometimes cause interference. Try moving
the appliance or the base to another outlet.
• The layout of your home or office might be limiting the
operating range. Try moving the base to another
location,preferably on an upper floor.
• If the buttons don’t work,try placing the handset in the
base for at least 15 seconds.
If you hear other calls while using your phone:
• Press Cto change to another channel.
• Disconnect the base from the modular jack and plug in
a corded telephone. If you still hear other calls,the
problem is probably in your wiring or local service.
Call your local telephone service company.
If you lose a call after changing channels:
You were probably almost out of range. Move closer to the
base before changing channels. Before placing another call,
set the handset in the base for at least 15 seconds.
If you are unable to operate special telephone services
or other equipment requiring touch tone signals:
If you have dial pulse (rotary) service,follow the directions
under “Temporary Tone Dialing”in the TELEPHONE
OPERATION section of this manual.
