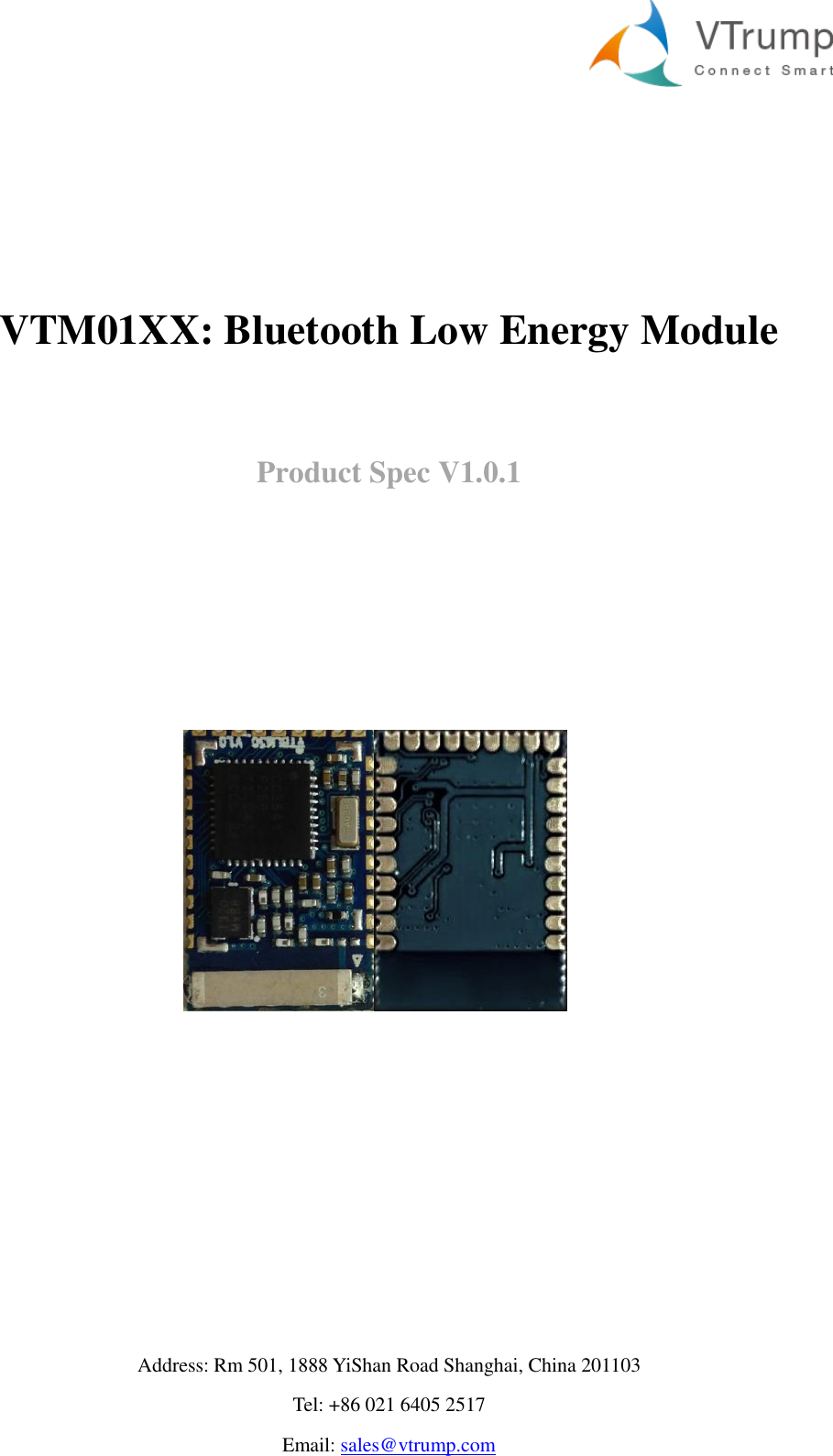

Address: Rm 501, 1888 YiShan Road Shanghai, China 201103 Tel: +86 021 6405 2517 Email: sales@vtrump.com VTM01XX: Bluetooth Low Energy Module Product Spec V1.0.1

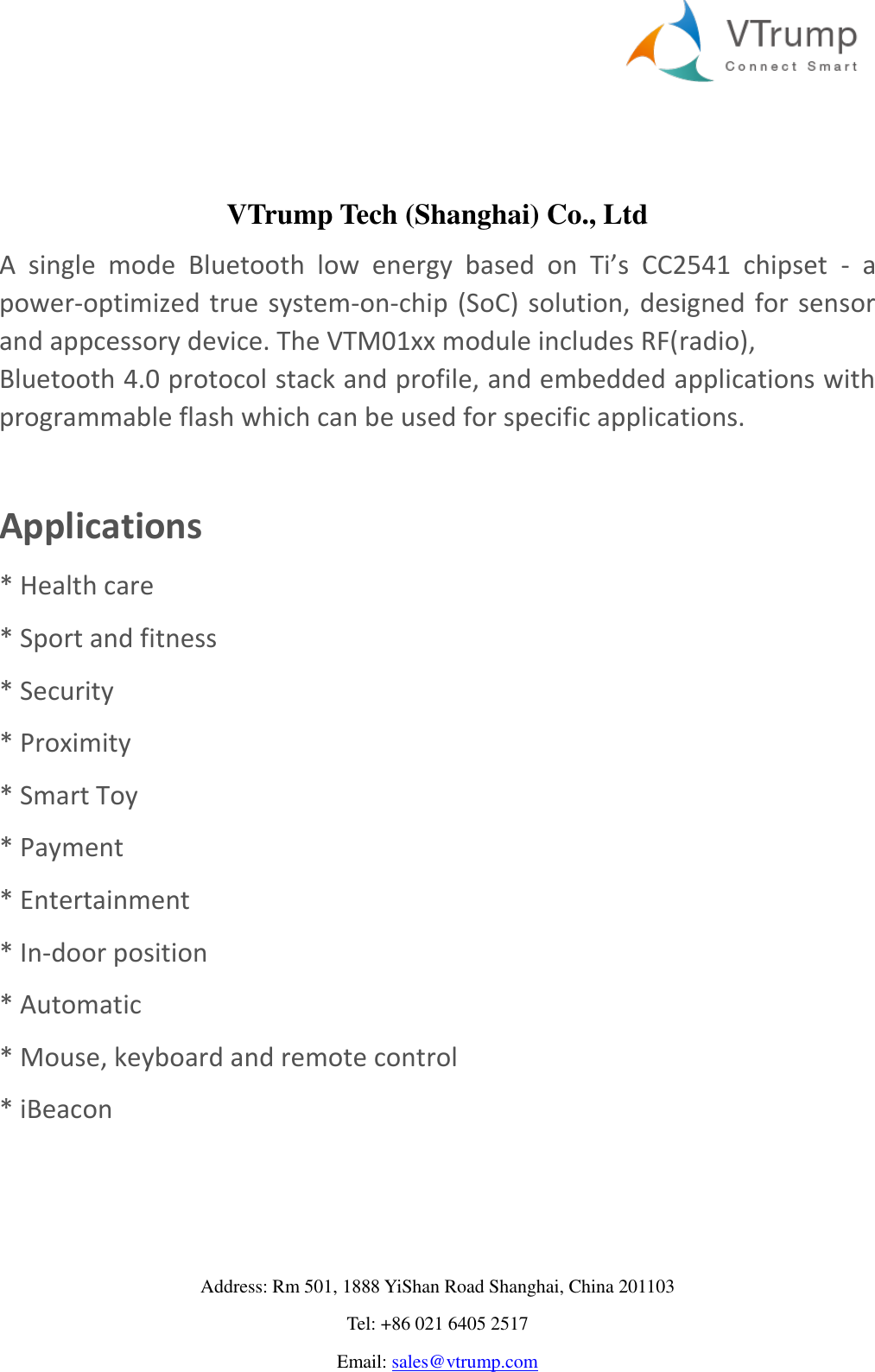

Address: Rm 501, 1888 YiShan Road Shanghai, China 201103 Tel: +86 021 6405 2517 Email: sales@vtrump.com VTrump Tech (Shanghai) Co., Ltd A single mode Bluetooth low energy based on Ti’s CC2541 chipset - a power-optimized true system-on-chip (SoC) solution, designed for sensor and appcessory device. The VTM01xx module includes RF(radio), Bluetooth 4.0 protocol stack and profile, and embedded applications with programmable flash which can be used for specific applications. Applications * Health care * Sport and fitness * Security * Proximity * Smart Toy * Payment * Entertainment * In-door position * Automatic * Mouse, keyboard and remote control * iBeacon

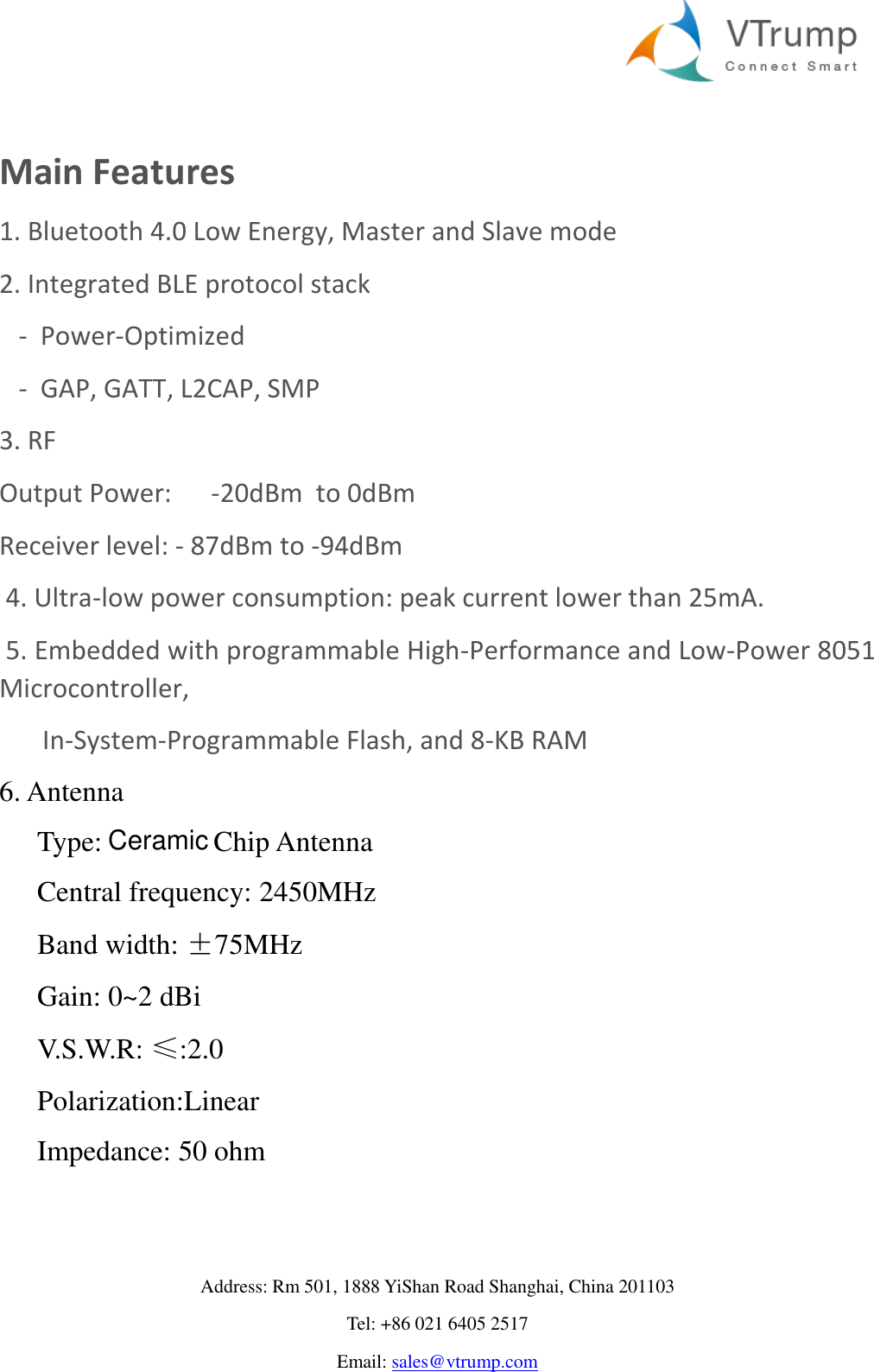

Address: Rm 501, 1888 YiShan Road Shanghai, China 201103 Tel: +86 021 6405 2517 Email: sales@vtrump.com Main Features 1. Bluetooth 4.0 Low Energy, Master and Slave mode 2. Integrated BLE protocol stack - Power-Optimized - GAP, GATT, L2CAP, SMP 3. RF Output Power: -20dBm to 0dBm Receiver level: - 87dBm to -94dBm 4. Ultra-low power consumption: peak current lower than 25mA. 5. Embedded with programmable High-Performance and Low-Power 8051 Microcontroller, In-System-Programmable Flash, and 8-KB RAM 6. Antenna Type: Chip Antenna Central frequency: 2450MHz Band width: ±75MHz Gain: 0~2 dBi V.S.W.R: ≤:2.0 Polarization:Linear Impedance: 50 ohm Ceramic

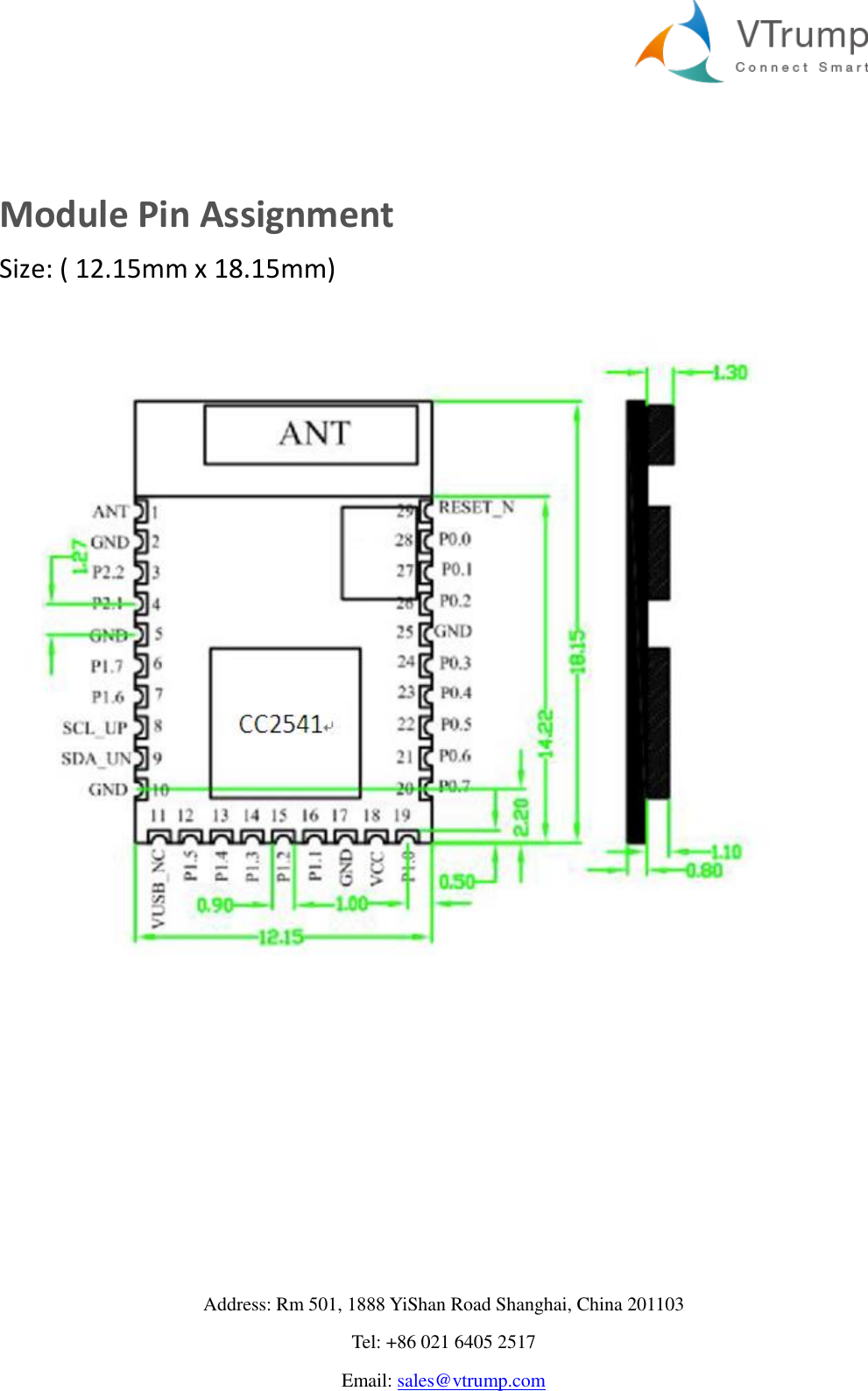

Address: Rm 501, 1888 YiShan Road Shanghai, China 201103 Tel: +86 021 6405 2517 Email: sales@vtrump.com Module Pin Assignment Size: ( 12.15mm x 18.15mm)

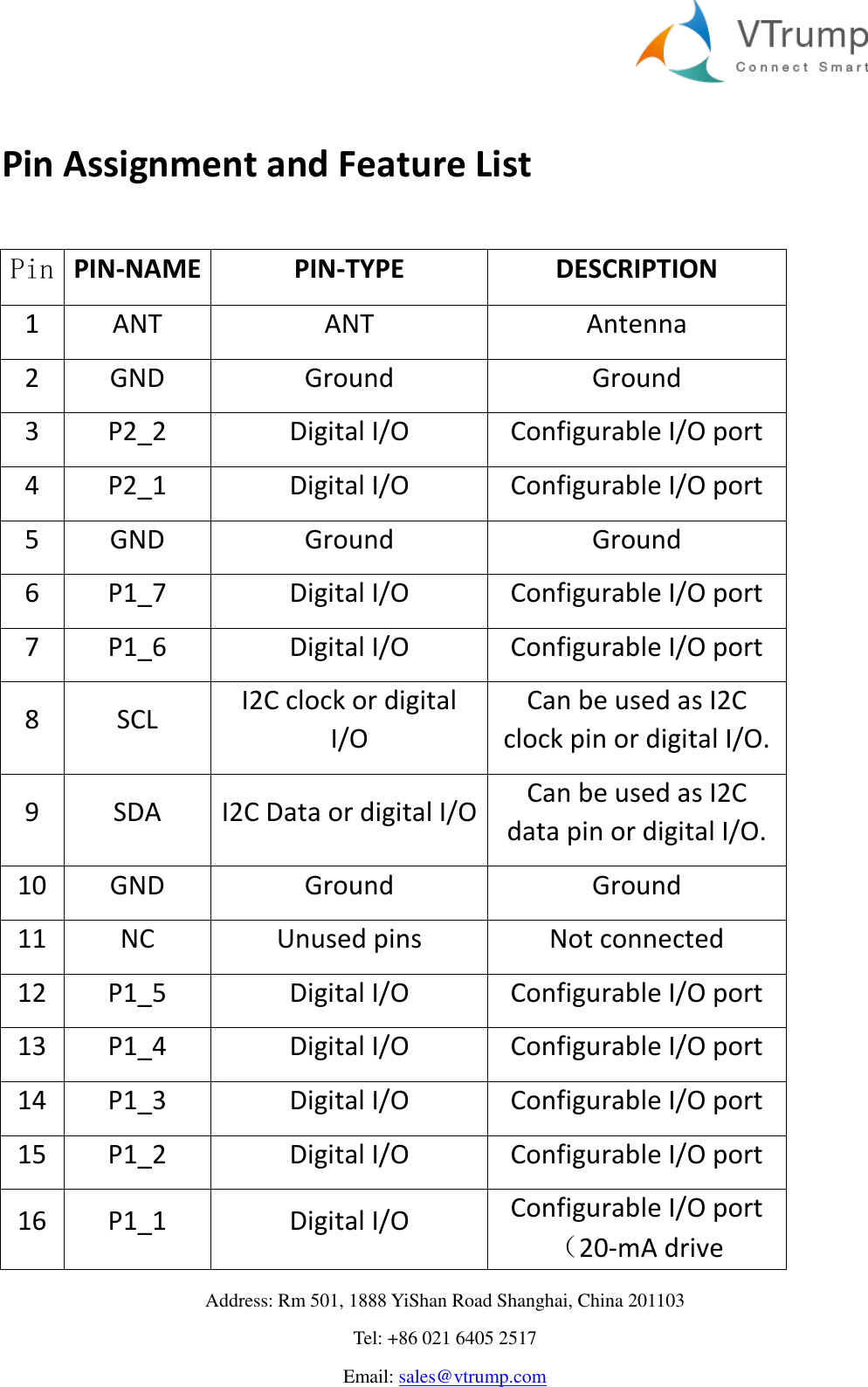

Address: Rm 501, 1888 YiShan Road Shanghai, China 201103 Tel: +86 021 6405 2517 Email: sales@vtrump.com Pin Assignment and Feature List Pin PIN-NAME PIN-TYPE DESCRIPTION 1 ANT ANT Antenna 2 GND Ground Ground 3 P2_2 Digital I/O Configurable I/O port 4 P2_1 Digital I/O Configurable I/O port 5 GND Ground Ground 6 P1_7 Digital I/O Configurable I/O port 7 P1_6 Digital I/O Configurable I/O port 8 SCL I2C clock or digital I/O Can be used as I2C clock pin or digital I/O. 9 SDA I2C Data or digital I/O Can be used as I2C data pin or digital I/O. 10 GND Ground Ground 11 NC Unused pins Not connected 12 P1_5 Digital I/O Configurable I/O port 13 P1_4 Digital I/O Configurable I/O port 14 P1_3 Digital I/O Configurable I/O port 15 P1_2 Digital I/O Configurable I/O port 16 P1_1 Digital I/O Configurable I/O port（20-mA drive

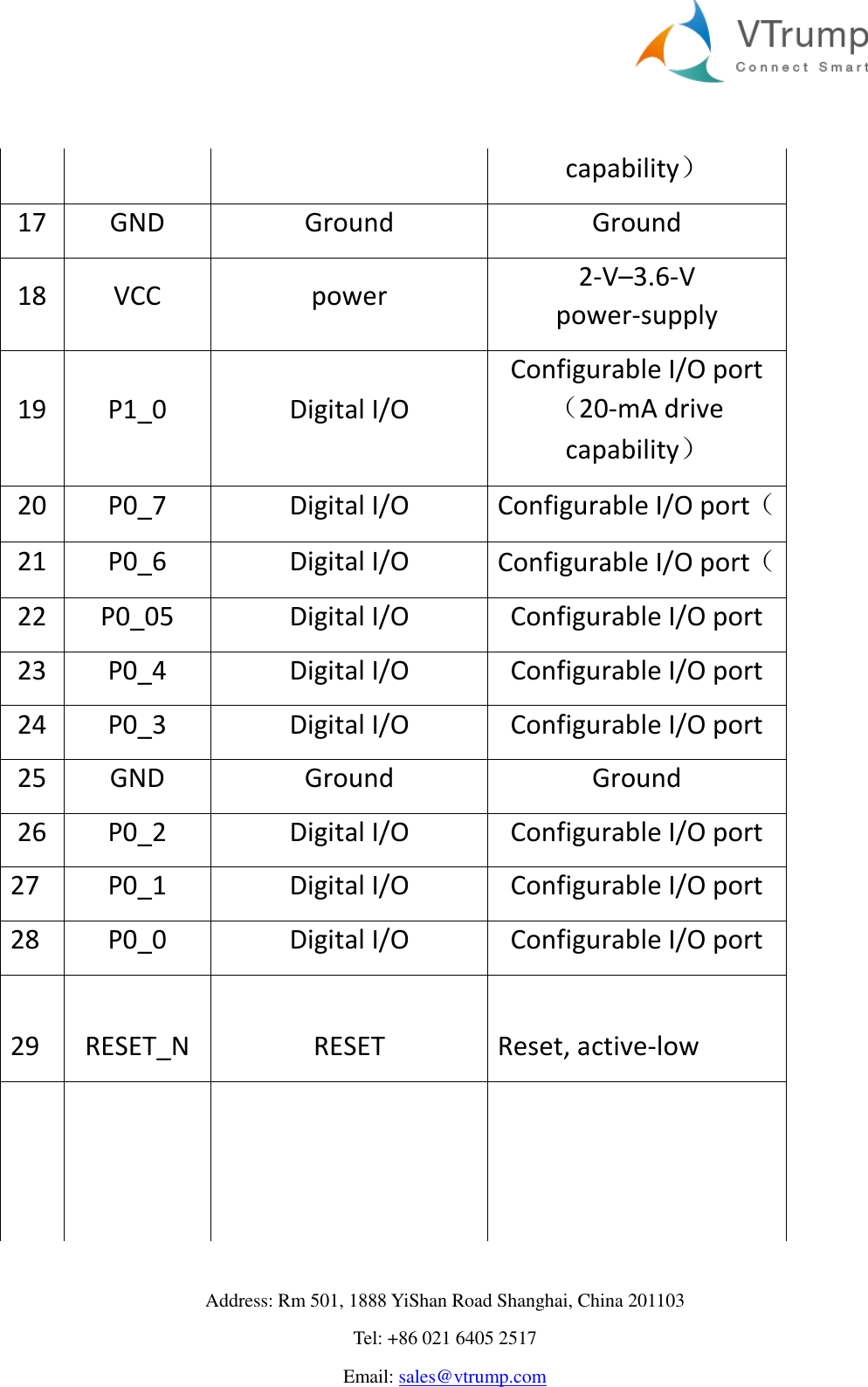

Address: Rm 501, 1888 YiShan Road Shanghai, China 201103 Tel: +86 021 6405 2517 Email: sales@vtrump.com capability） 17 GND Ground Ground 18 VCC power 2-V–3.6-V power-supply 19 P1_0 Digital I/O Configurable I/O port（20-mA drive capability） 20 P0_7 Digital I/O Configurable I/O port（ 21 P0_6 Digital I/O Configurable I/O port（ 22 P0_05 Digital I/O Configurable I/O port 23 P0_4 Digital I/O Configurable I/O port 24 P0_3 Digital I/O Configurable I/O port 25 GND Ground Ground 26 P0_2 Digital I/O Configurable I/O port 27 P0_1 Digital I/O Configurable I/O port 28 P0_0 Digital I/O Configurable I/O port 29 RESET_N RESET Reset, active-low

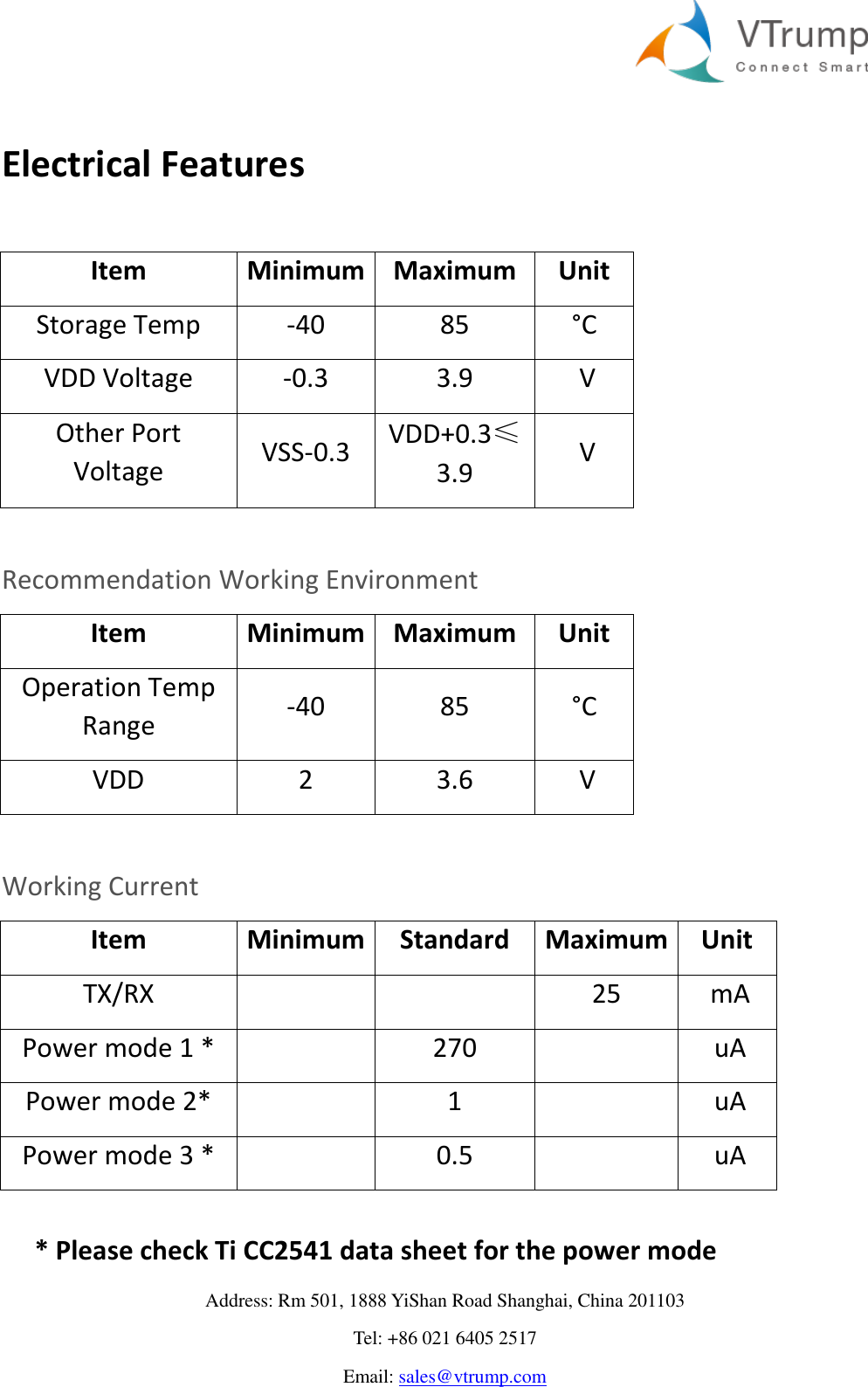

Address: Rm 501, 1888 YiShan Road Shanghai, China 201103 Tel: +86 021 6405 2517 Email: sales@vtrump.com Electrical Features Item Minimum Maximum Unit Storage Temp -40 85 °C VDD Voltage -0.3 3.9 V Other Port Voltage VSS-0.3 VDD+0.3≤3.9 V Recommendation Working Environment Item Minimum Maximum Unit Operation Temp Range -40 85 °C VDD 2 3.6 V Working Current Item Minimum Standard Maximum Unit TX/RX 25 mA Power mode 1 * 270 uA Power mode 2* 1 uA Power mode 3 * 0.5 uA * Please check Ti CC2541 data sheet for the power mode
Address: Rm 501, 1888 YiShan Road Shanghai, China 201103 Tel: +86 021 6405 2517 Email: sales@vtrump.com Typical Circuit VTM01 Module
Address: Rm 501, 1888 YiShan Road Shanghai, China 201103 Tel: +86 021 6405 2517 Email: sales@vtrump.com This device complies with part 15 of the FCC Rules. Operation is subject to the condition that this device does not cause harmful interference. This device is verified to comply with part 15 of the FCC Rules for use with cable television service. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Please note that changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. Please note that changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: —Reorient or relocate the receiving antenna. —Increase the separation between the equipment and receiver.

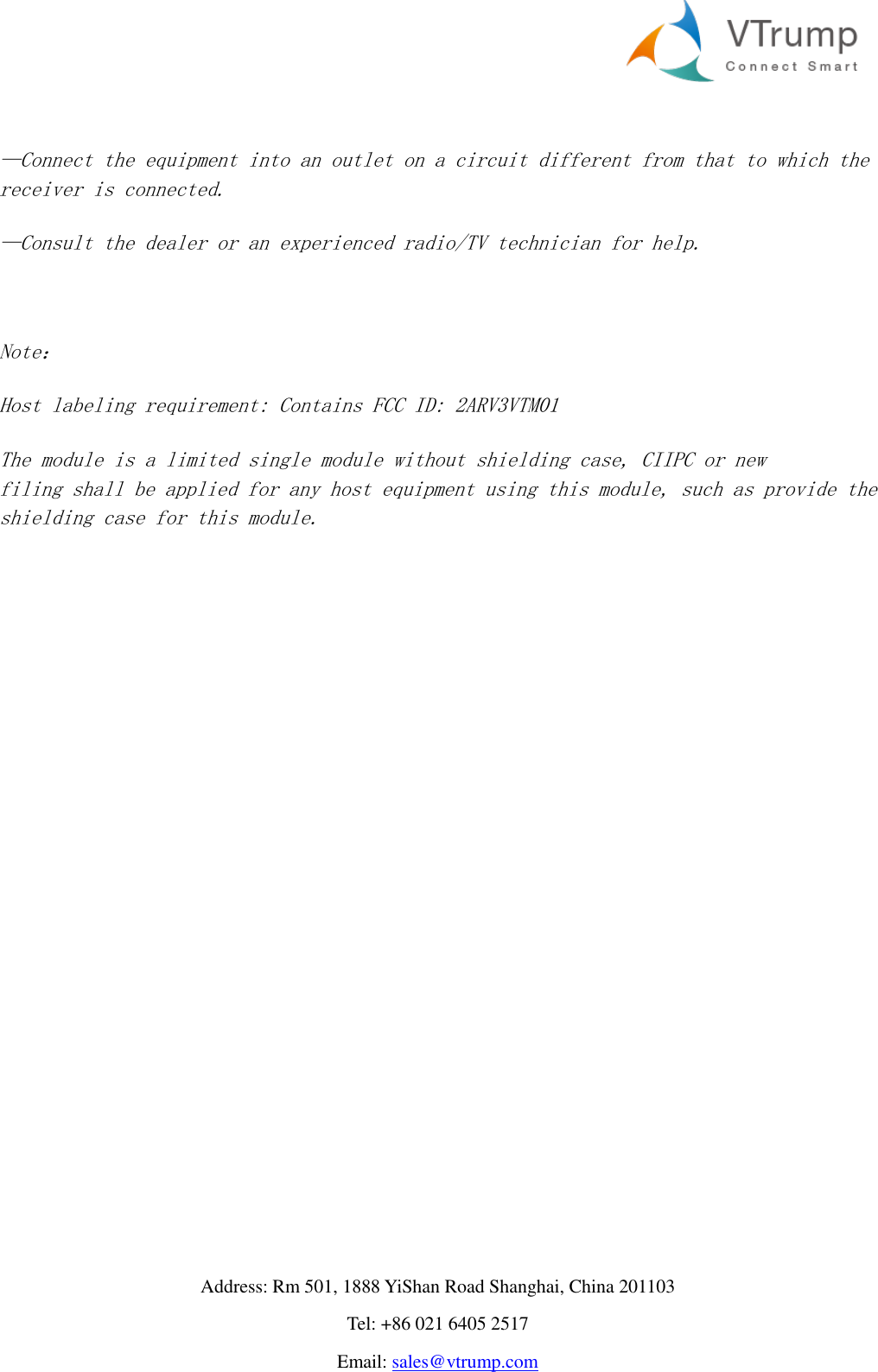

Address: Rm 501, 1888 YiShan Road Shanghai, China 201103 Tel: +86 021 6405 2517 Email: sales@vtrump.com —Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. —Consult the dealer or an experienced radio/TV technician for help. Note： Host labeling requirement: Contains FCC ID: 2ARV3VTM01 The module is a limited single module without shielding case, CIIPC or new filing shall be applied for any host equipment using this module, such as provide the shielding case for this module.
