VXiReveal™/Xplorer™QuickͲStartGuide



1



IMPORTANT:CHARGEHEADSETFULLYPRIORTOFIRSTUSE

PackageContents

1. Headset

2. 2EarHooks(1small,1large)

3. 4ContouredEarBuds(multiplesizes)

4. USBChargingCable

5. AutoAdapter

6. QuickͲStartGuide

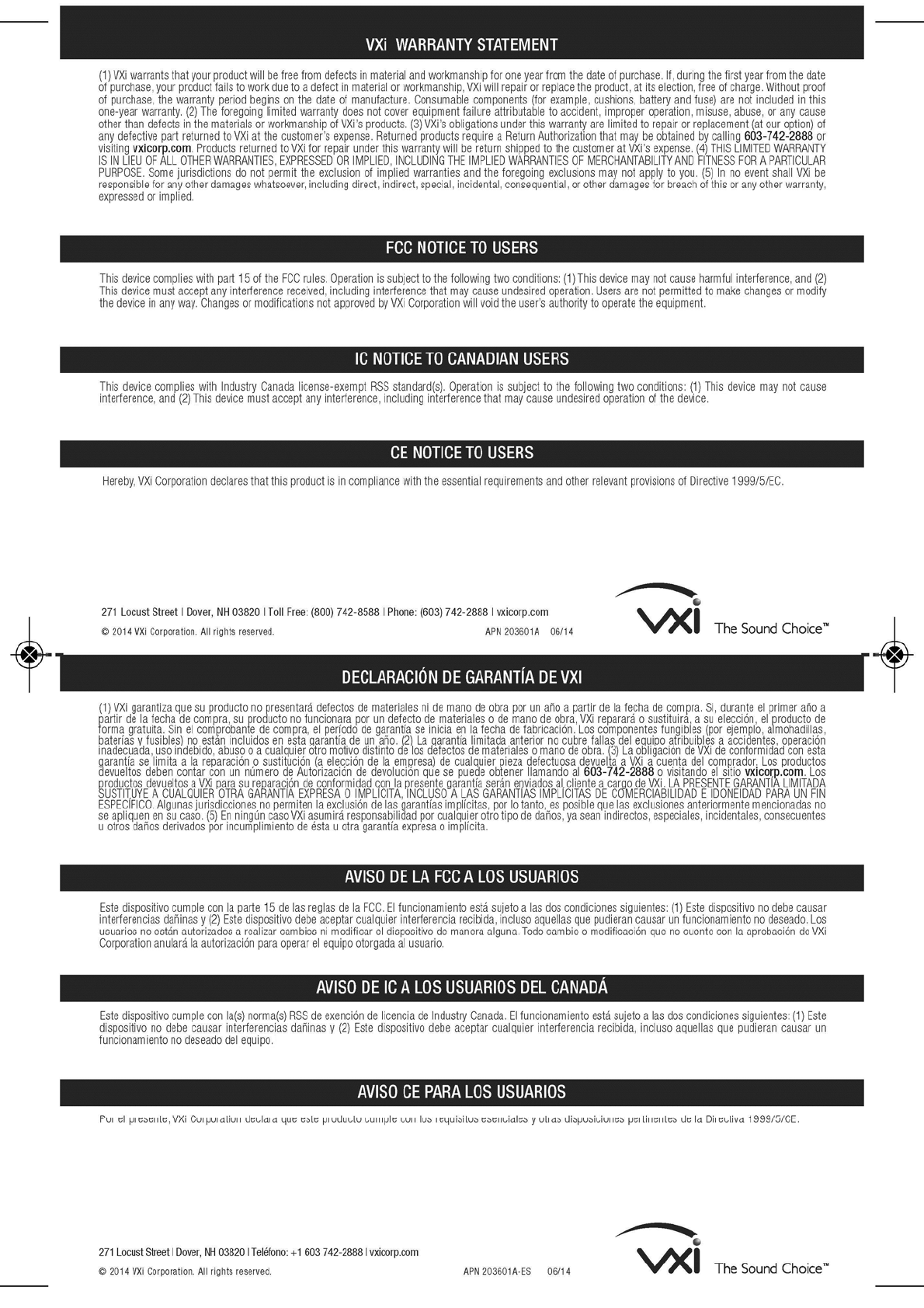

7. WarrantyandComplianceInsert



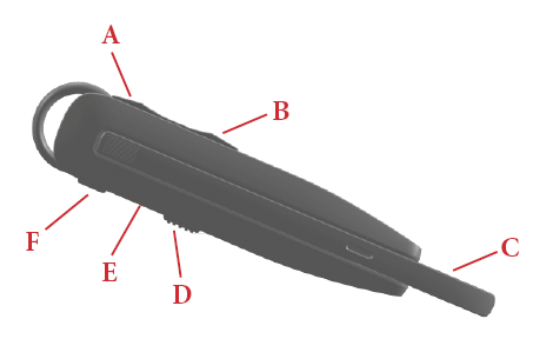

FeaturesandFunctions

A. VolumeUp/Mute

B. VolumeDown

C. ExtendableMicrophoneBoom

D. On/OffSwitch

E. IndicatorLights

F. MultifunctionButton(MFB)

G. NFCZone(picturedbelow)



IMPORTANTSAFETYNOTE:Prolongedexposuretohighvolumelevelscandamageyourhearing.Toavoidinjury,setthevolumeto

thelowestcomfortablelevel.Ifyouexperienceringinginyourears,orvoicessoundmuffled,stopusingtheheadset.Avoidturningup

thevolumetoblocknoisysurroundings.It’spossibleforyourearstoadapttovolumethatistoohigh,andthiscouldresultin

permanenthearingdamagewithoutanynoticeablediscomfort.

VXiReveal™/Xplorer™QuickͲStartGuide



2



WearingandAdjustingtheReveal

TogetthebestperformancefromournoiseͲcancelingtechnology,anglethemicrophoneboomtowardsthecornerofyourmouth.

Positioningisimportant;smalladjustmentsinmicrophoneplacementcanimproveperformance.

Theheadsetcanbewornoneitherear,withorwithouttheearhook.

Choosetheearbudthatbestfitsyourear.Toadjustthefit,rotatetheearbudsothatthestabilizerloop(ifapplicable)presses

againstthebackcurveofyourear.

UsingtheHeadsetinHighͲNoiseSituations

Themicrophoneboomisextendableforgreaterlevelsofnoisecancelationinnoisyenvironments.Simplyslidetheboominoroutas

needed.

Charging

Connectchargercordtotheheadset’sUSBchargingport.Theheadsetindicatorlightswillilluminateredwhenchargingandblue

whenfullycharged.

TurningHeadsetOn/Off

Slidetheswitchtoturntheheadsetonoroff.

OneͲTouchPairing(NFC)

1) ConfirmthatyourcellphoneisNFCͲcapable.

2) MakesurethatNFCisenabledonyourcellphone.

3) Turntheheadseton.

4) PlacetheNFCzoneofyourcellphoneagainsttheNFCzoneoftheheadsetandholdtogetherwhileyourcellphone

registerstheheadset.

5) Followthepromptsonyourcellphoneuntilitconfirmspairingissuccessful.



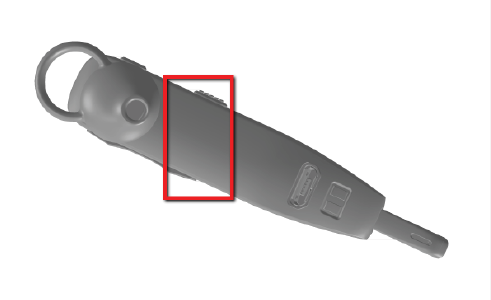

NFC Zone on headset (back of unit, just below earpiece receiver)



VXiReveal™/Xplorer™QuickͲStartGuide



3



Note:NFCandOneͲTouchPairingaredependentonyourcellphone.Thesizeandsensitivityofyourphone’sNFCzoneandhowto

connecttheheadsetmayvarybetweendevices.

ManualPairing

PlacingHeadsetintoPairingMode

Whenyouturntheheadsetonforthefirsttime,itwillgointopairingmodeautomatically.

Ifyouwanttopairtheheadsetwithanotherdevice,youwillneedtomanuallyputitintopairingmode:

1) Turntheheadsetonandmakesureitdoesnotconnecttoanotherdevice.

2) PressandholdtheMFBfor5seconds,untilthelightsalternateflashingbetweenredandblue.Youwillhearthevoice

prompt“Discovering”(inEnglish).

3) Headsetwillbevisibleforpairingtodevicesfor120seconds.

PairingtoaCellPhone

1) MakesurethatotherBluetoothdevicesareturnedofforoutofrange.

2) Placeheadsetintopairingmode.

3) PutyourcellphoneinBluetoothSearch/ScanModeperthemanufacturer’sinstructions.

4) Select“VXiReveal”or“VXiExplorer”topair.(Passcodeis“0000”ifneeded.)

5) Whenconnected,theheadsetwillgiveyouthevoiceprompt,“Yourheadsetisconnected”(inEnglish).

MultiͲPointMode

MultiͲpointmodeisthedefaultmodeforthisheadset.Itenablestheheadsettobesimultaneouslypairedandconnectedtotwo

devices.InmultiͲpointmode,theheadsetwillmonitorbothdevicesandallowyoutoswitchbetweenthemwhenthereisan

incomingcall.

TouseMultiͲPoint:

1) Paireachdeviceyouwishtousewiththeheadset.Powerofftheheadset.

2) EnableBluetooth,orpoweronbothpaireddevices,thenpowerontheheadset.

3) Youshouldhearthevoiceprompt“Yourheadsetisconnected”(inEnglish)twice,astheheadsetconnectstoeachdevice.



VXiReveal™/Xplorer™QuickͲStartGuide



4



QuickͲReferenceTable

FunctionButton/DurationofPress LEDIndicatorAudioIndicator VoiceIndicator

(inEnglish)

PowerOn/OffSlideSwitch(Green=On)

On = Threequick

blueflashes

Off=Fourquick

redflashes

Shorttone“Poweron”or“Power

off”

ManualPairingModePressandHoldMFB(5seconds)Redandblue,

alternatingflashNONE“Discovering”

VolumeUp VolumeUp(quickpress)NONESingletone NONE

VolumeDown VolumeDown(quickpress)NONESingletone NONE

Mute(On/Off) VolumeUp(1Ͳ2seconds)NONESingletone,remindertone

every10seconds NONE

AnsweraCall/Active

CallMFB(quickpress) Blueflash,once

persecondTworisingtones NONE

EndaCall MFB(quickpress) Blueflash,every4

seconds Twofallingtones NONE

TransferAudio VolumeDown(1Ͳ2seconds)NONENONENONE

LowBatteryn/aRed,fastflashLong,hightone@

20seconds“Batterylow”



MultipleDevicePairingandAdvancedFeatures

Theheadsetcanpairwithuptoeight(8)devices.However,onlytwo(2)devicesmaybeconnectedtotheheadsetatanytime

(MultiͲPoint).Formoreinformationonadvancedfeatures,pleaserefertothecompleteuserguide,availableonline.

Forthecompleteuserguide,technicalnotesandavailableaccessories,gotovxicorp.com.

271LocustStreet|Dover,NH03820|TollͲfree:800Ͳ742Ͳ8588|Phone:603Ͳ742Ͳ2888|vxicorp.com

PN203401/APN203404X

06/14


