Value Platforms M603-001 Set Top Box User Manual

Value Platforms Limited Set Top Box

User Manual

M603 設定安装手本 会員サイト機能仕様ドラフト CONFIDENTIAL

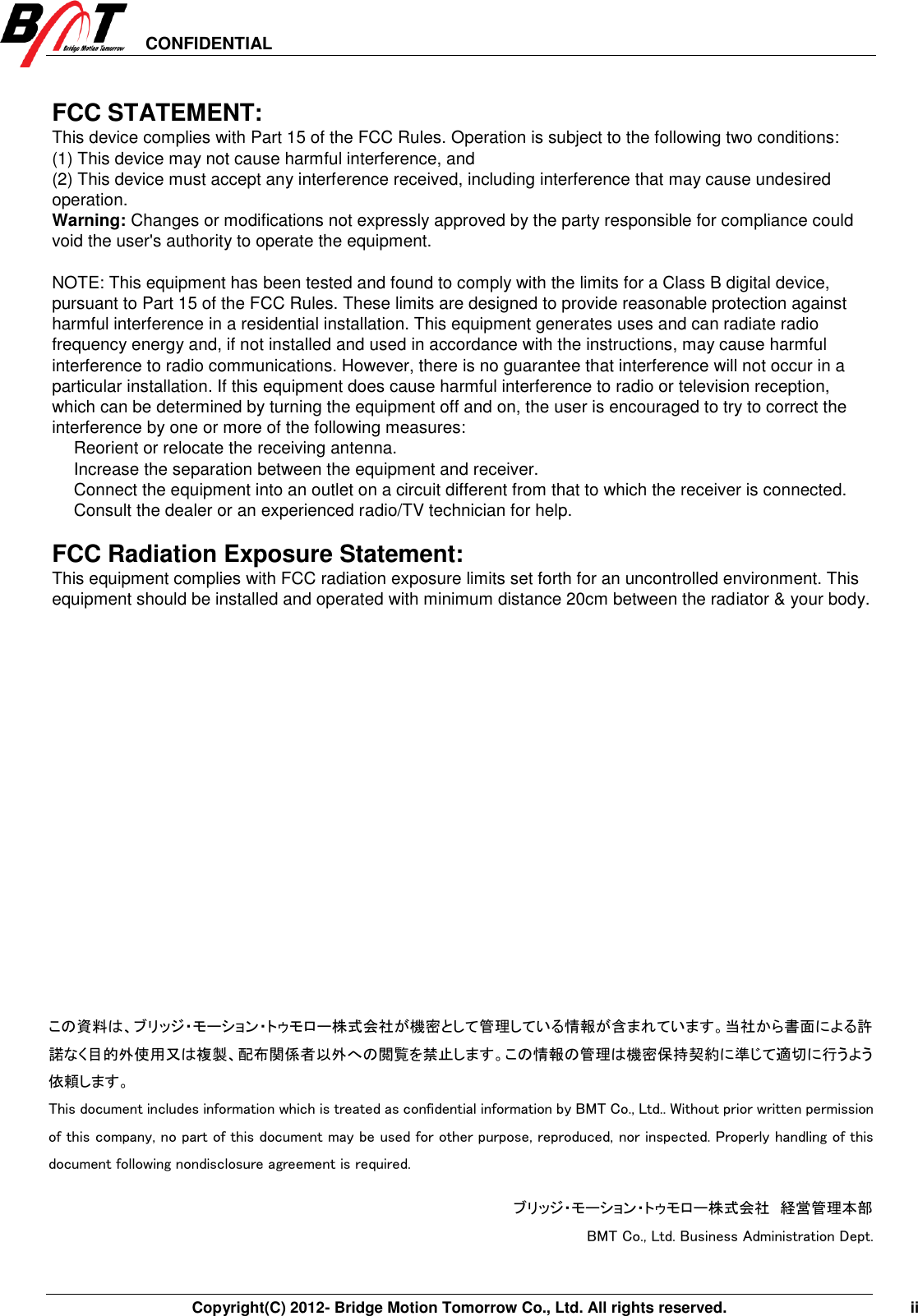

CONFIDENTIAL Copyright(C) 2012- Bridge Motion Tomorrow Co., Ltd. All rights reserved. ii FCC STATEMENT: This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. Warning: Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: Reorient or relocate the receiving antenna. Increase the separation between the equipment and receiver. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. Consult the dealer or an experienced radio/TV technician for help. FCC Radiation Exposure Statement: This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body. この資料は、ブリッジ・モーション・トゥモロー株式会社が機密として管理している情報が含まれています。当社から書面による許諾なく目的外使用又は複製、配布関係者以外への閲覧を禁止します。この情報の管理は機密保持契約に準じて適切に行うよう依頼します。 This document includes information which is treated as confidential information by BMT Co., Ltd.. Without prior written permission of this company, no part of this document may be used for other purpose, reproduced, nor inspected. Properly handling of this document following nondisclosure agreement is required. ブリッジ・モーション・トゥモロー株式会社 経営管理本部 BMT Co., Ltd. Business Administration Dept.

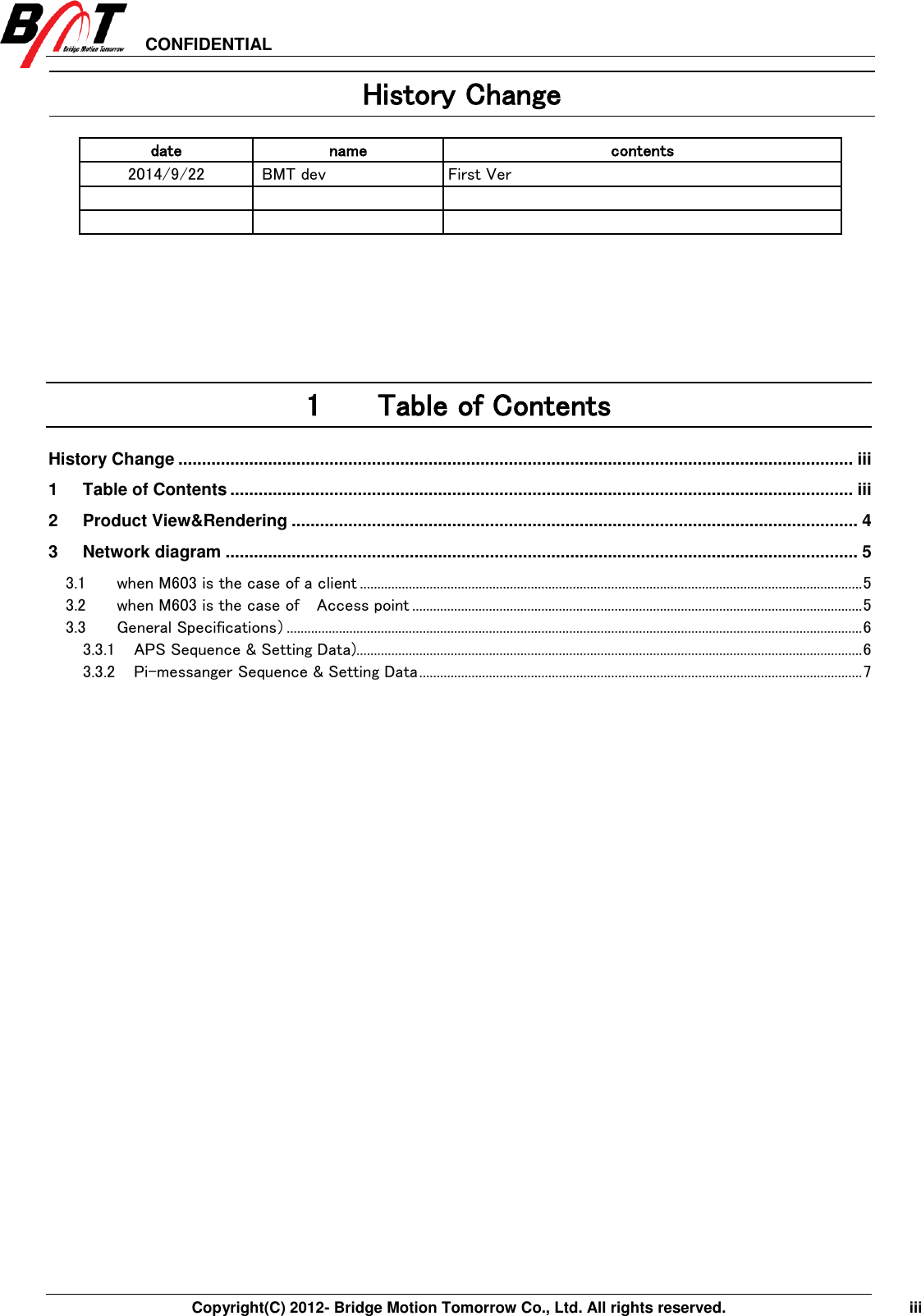

CONFIDENTIAL Copyright(C) 2012- Bridge Motion Tomorrow Co., Ltd. All rights reserved. iii History Change date name contents 2014/9/22 BMT dev First Ver 1 Table of Contents History Change ............................................................................................................................................... iii 1 Table of Contents .................................................................................................................................... iii 2 Product View&Rendering ........................................................................................................................ 4 3 Network diagram ...................................................................................................................................... 5 3.1 when M603 is the case of a client ................................................................................................................................................ 5 3.2 when M603 is the case of Access point ................................................................................................................................. 5 3.3 General Specifications） ..................................................................................................................................................................... 6 3.3.1 APS Sequence & Setting Data)................................................................................................................................................. 6 3.3.2 Pi-messanger Sequence & Setting Data ............................................................................................................................... 7

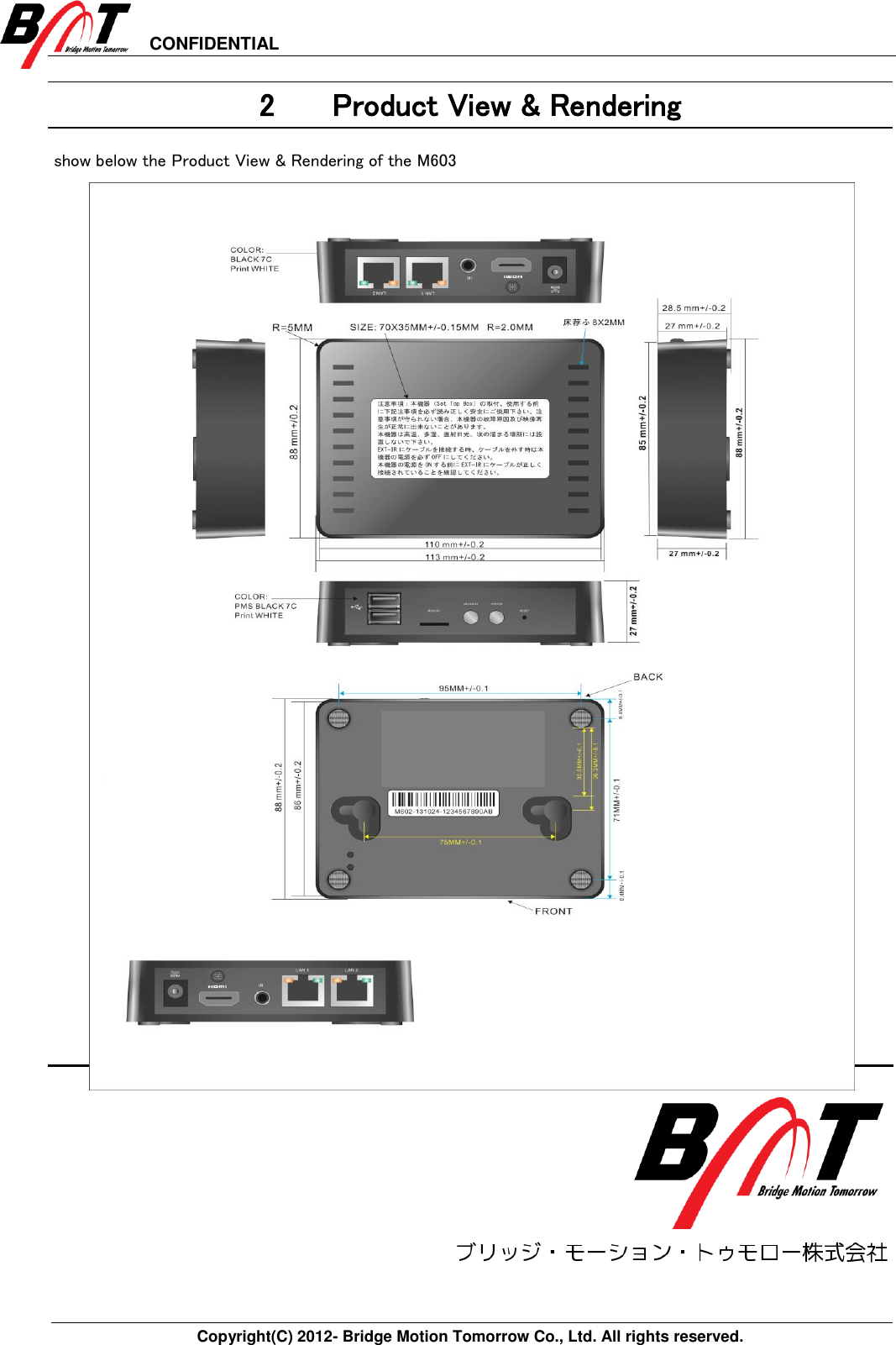

CONFIDENTIAL Copyright(C) 2012- Bridge Motion Tomorrow Co., Ltd. All rights reserved. 2 Product View & Rendering show below the Product View & Rendering of the M603

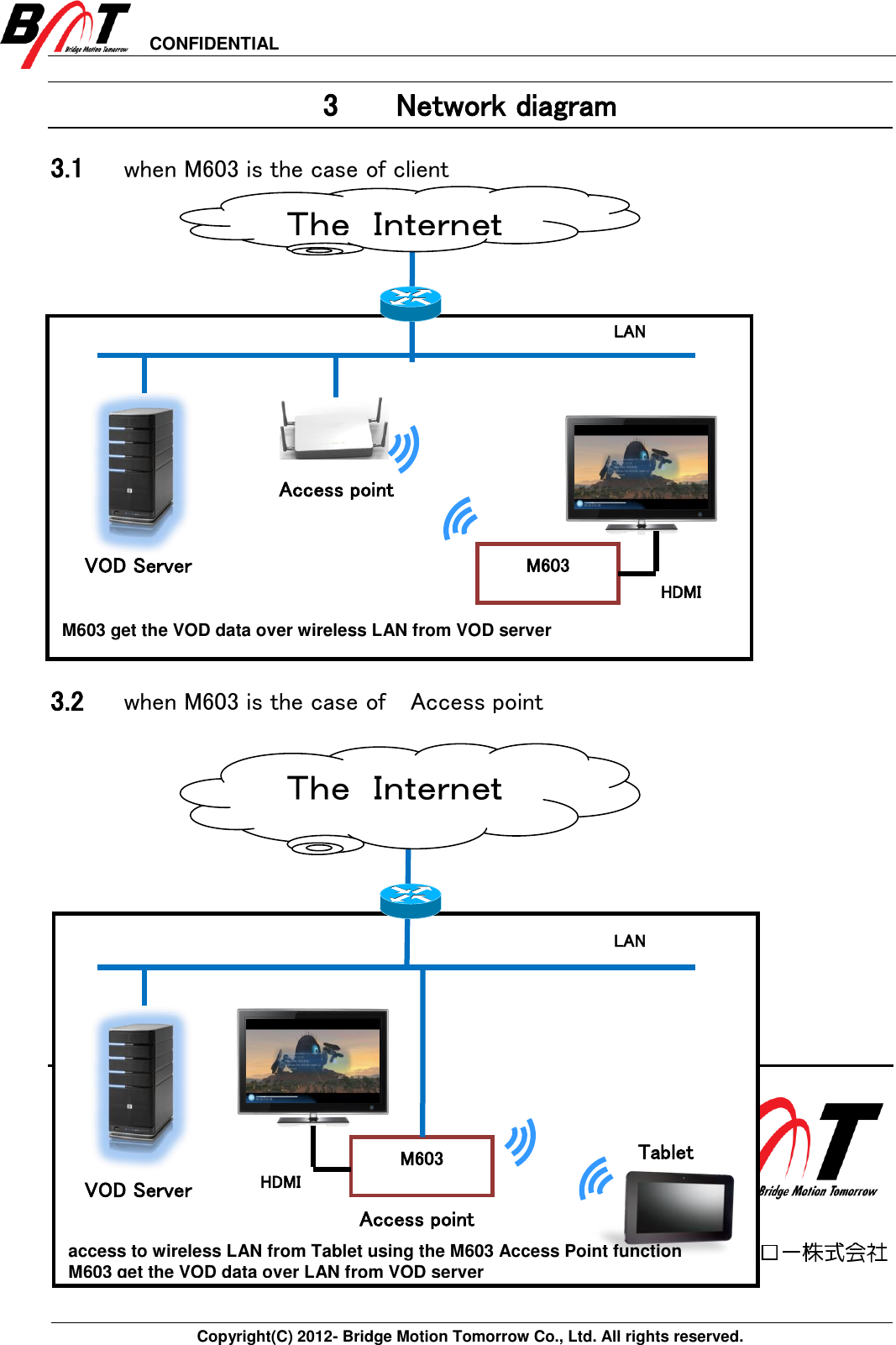

CONFIDENTIAL Copyright(C) 2012- Bridge Motion Tomorrow Co., Ltd. All rights reserved. 3 Network diagram 3.1 when M603 is the case of client 3.2 when M603 is the case of Access point M603 get the VOD data over wireless LAN from VOD server Ｔｈｅ Ｉｎｔｅｒｎｅｔ M603 Access point LAN VOD Server HDMI access to wireless LAN from Tablet using the M603 Access Point function M603 get the VOD data over LAN from VOD server Ｔｈｅ Ｉｎｔｅｒｎｅｔ LAN VOD Server M603 HDMI Access point Tablet
CONFIDENTIAL Copyright(C) 2012- Bridge Motion Tomorrow Co., Ltd. All rights reserved. 4 General Specifications） 4.1 APS Sequence & Setting Data) 4.1.1 Message Summary Message Direction Purpose Update Settings 1001 Server → M603 Update system settings 4.1.2 Update Settings This message send a variety of system settings to M603 devices, and the devices apply the settings.) Message Type: 1001 { “settings”: { SETTING-NAME : SETTING-VALUE, ... } “requestId”: “...” “rebootAfterFinish”: “true|false” } The setting value is as following(name-value pairs). They can be omitted when appropriate. requestID is optional. If present, the M603 devices shall send an acknowledgement message (type 18) to server to report the result. Name Description ipType “dynamic” or “static”. If ipType is “dynamic”, the ipAddress, mask, gateway and dns settings will be ignored. ipAddress IP Address of the device as string. Host name is not acceptable. mask IP adresss mask gateway Gateway IP address dns an array of IP addresses for name server(s). E.g. “dns”: [“4.4.4.4”, “8.8.8.8”] screenTrimming a non-negative numerical value for trimming level

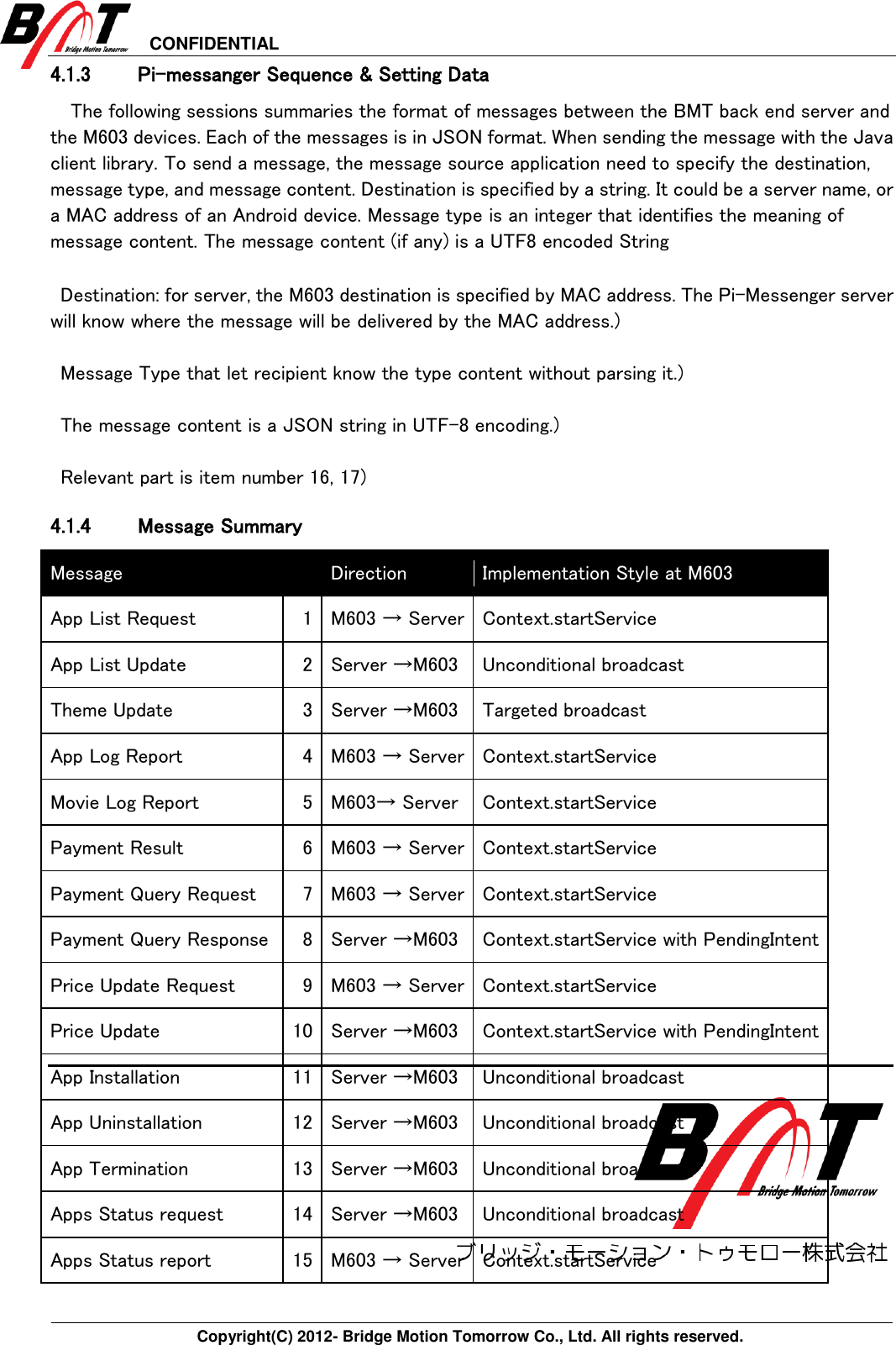

CONFIDENTIAL Copyright(C) 2012- Bridge Motion Tomorrow Co., Ltd. All rights reserved. 4.1.3 Pi-messanger Sequence & Setting Data The following sessions summaries the format of messages between the BMT back end server and the M603 devices. Each of the messages is in JSON format. When sending the message with the Java client library. To send a message, the message source application need to specify the destination, message type, and message content. Destination is specified by a string. It could be a server name, or a MAC address of an Android device. Message type is an integer that identifies the meaning of message content. The message content (if any) is a UTF8 encoded String Destination: for server, the M603 destination is specified by MAC address. The Pi-Messenger server will know where the message will be delivered by the MAC address.) Message Type that let recipient know the type content without parsing it.) The message content is a JSON string in UTF-8 encoding.) Relevant part is item number 16, 17) 4.1.4 Message Summary Message Direction Implementation Style at M603 App List Request 1 M603 → Server Context.startService App List Update 2 Server →M603 Unconditional broadcast Theme Update 3 Server →M603 Targeted broadcast App Log Report 4 M603 → Server Context.startService Movie Log Report 5 M603→ Server Context.startService Payment Result 6 M603 → Server Context.startService Payment Query Request 7 M603 → Server Context.startService Payment Query Response 8 Server →M603 Context.startService with PendingIntent Price Update Request 9 M603 → Server Context.startService Price Update 10 Server →M603 Context.startService with PendingIntent App Installation 11 Server →M603 Unconditional broadcast App Uninstallation 12 Server →M603 Unconditional broadcast App Termination 13 Server →M603 Unconditional broadcast Apps Status request 14 Server →M603 Unconditional broadcast Apps Status report 15 M603 → Server Context.startService
CONFIDENTIAL Copyright(C) 2012- Bridge Motion Tomorrow Co., Ltd. All rights reserved. Network settings request 16 Server →M603 Unconditional broadcast Network settings report 17 M603 → Server Context.startService Acknowledge 18 M603 → Server Context.startService Screen Off Request 19 Server →M603 Unconditional broadcast Reboot 20 Server →M603 Unconditional broadcast Firmware Update 21 Server →M603 Unconditional broadcast App List Report 22 Server →M603 Unconditional broadcast Launch Launcher 23 Server →M603 Unconditional broadcast ADT Alert 24 Server →M603 Unconditional broadcast Clear Personal Information 25 Server →M603 Unconditional broadcast Config Update 26 Server →M603 Unconditional broadcast Theme Update Message 27 M603 → Server Context.startService Screen Light Control 28 Server →M603 Unconditional broadcast Screen On Request 29 Server →M603 Unconditional broadcast - End of Document -
