Vantiva USA LHR01 Set Top Box User Manual DS LHR01 v2x

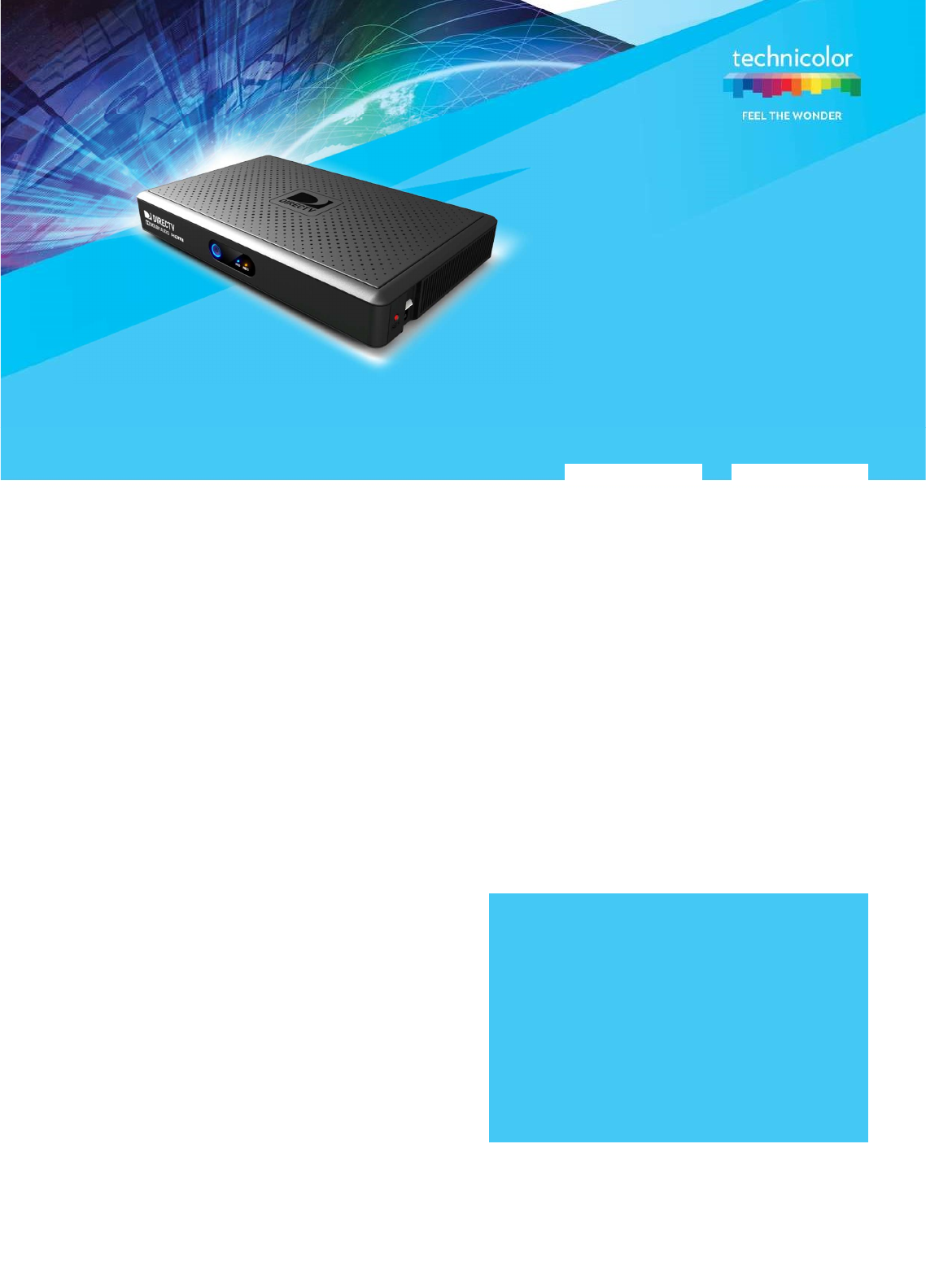

Technicolor Connected Home USA LLC Set Top Box DS LHR01 v2x
User Manual
LHR01-A-100 (Argentina)
LHR01-U-100 (Uruguay)
LHR01-C-100 (Chile)
LHR01-T-100 (Trinidad)
LHR01-O-100 (Venezuela,
Colombia, Ecuador, Perú)
Satellite Digital Video Recorder for
DIRECTV PanAmericana
Satellite
Video
Satellite Broadcast TV
The LHR01-100 DVR embeds a dual tuner with 2 DVB-
S/DVB-S2 demodulators for simultaneous recording and
watch capability on satellite channels.
HD Video
The set-top box supports HD broadcast services in up to
1080p/60 image quality video. The HD technology, or
1920x1080 pixels resolution, enables a vivid video
experience with more detail that is particularly appreciated
when viewing sports events on large screens. All content
can be decoded at up to 60 frames per second (fps) for a
smoother and more realistic reproduction of movement.
Digital Video Recording Service
Thanks to its two demodulators, the LHR01-100 is the ideal
DVR for background recording while watching another
channel.
Its 2.5-inch Hard Disk Drive (HDD) allows for flexibility in the
introduction of the DVR feature.
IP Connected Devices
The LHR01-100 is equipped with the latest generation IEEE
802.11n wireless standard to support IP connected services
such as Video on Demand (VoD), Over-The-Top (OTT)
services, apps and catch-up TV.
With its optimized antenna configuration, this enhanced
wireless solution enables seamless video streaming at even
higher throughput and better coverage over the much less
crowded 5 GHz band. It ensures compatibility as well with
deployed wireless equipment at 2.4 GHz.
Enhanced User Experience
The LHR01-100 benefits from a powerful 3000 DMIPS
processor with high bandwidth memory capability for
evolution to advanced services.
Its high-performance 3D Graphics capability allows for a
high-end user interface.
Features at a Glance
■ Dual satellite tuner
■ 2 DVB-S/DVB-S2 demodulators
■ HD 1080p/60 video decode and display
■ 2.5-inch hard drive for recording
■ Built-in dual band 2x2 IEEE 802.11n Wi-Fi
solution
■ Powerful and future-proof CPU at 3000 DMIPS
■ High performance 3D Graphics
■ Customizable with multiple software and CA
solutions
Trademarks and Disclaimers
The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of
HDMI Licensing LLC in the United States or other countries.
TECHNICOLOR WORLDWIDE HEADQUARTERS
1-5, rue Jeanne d’Arc - 92130 Issy-les-Moulineaux, France Tel:
+33 (0)1 41 86 50 00 - Fax: +33 (0)1 41 86 58 59
www.technicolor.com
SALES CONTACT
For more information please get in touch with your usual sales
representative or use the following email:
contactsales@technicolor.com
© Copyright 2017 Technicolor. All rights reserved. Photos and specifications are subject to change
without notice.
All trade names referenced are service marks, trademarks, or registered trademarks of their respective
Technical Specifications
Satellite channel interface
DVB-S/S2 demodulators 2
Modulation QPSK
8PSK
LNB power capability Up to 360 mA or 450 mA combined
LNB Control capability DiSEqC 1.x
LNB Control capability DIRECTV SWM compliant
Symbol rates 1 - 45 Mbaud (DVB-S)
2 - 45 Mbaud (DVB-S2)
Digital input frequency range 950 - 2150 MHz
Video decoder
Video decoding formats MPEG-4 H.264/AVC
MPEG-2
Video decoding capability Up to 1080p/60
Video output resolution Up to 1080p/60
Aspect ratio 4:3, 16:9, Pan & Scan, letterbox
Video scaling Variable
Audio decoder
Audio decoding formats MPEG-1 Audio Layer I, II (mono, dual
MPEG-2 Audio Layer II backward
Dolby Digital
AAC
OSD
Overlay Alpha blending with programmable stacking order of an
MPEG video plane, video still plane, RGB graphics plane and
background color
Graphics 3D (Open GL ES 2.0)
Wireless
Dual band non-concurrent wireless interface
IEEE 802.11n 2.4 GHz & IEEE 802.11n 5 GHz
2x2 MIMO antennas
System resources
Processor Single-core CPU (3000 DMIPS)
RAM 1 GB DDR3
Flash Memory 4 MB SNOR
128 MB SLC NAND flash
Hard Disk Drive 500 GB 2.5-inch SATA HDD
Software
Middleware solutions Wyplay
CAS Cisco Videoguard
Remote control
IR remote control
Carrier frequencies 38 kHz modulation
Protocols NEC and UEI LLP protocols
(Other protocols available on request)
Front panel
3 LEDs
1 button
Side panel
Smart card slot ISO-7816 compliant
ISO/IEC 7810:2003, Mini-SIM size

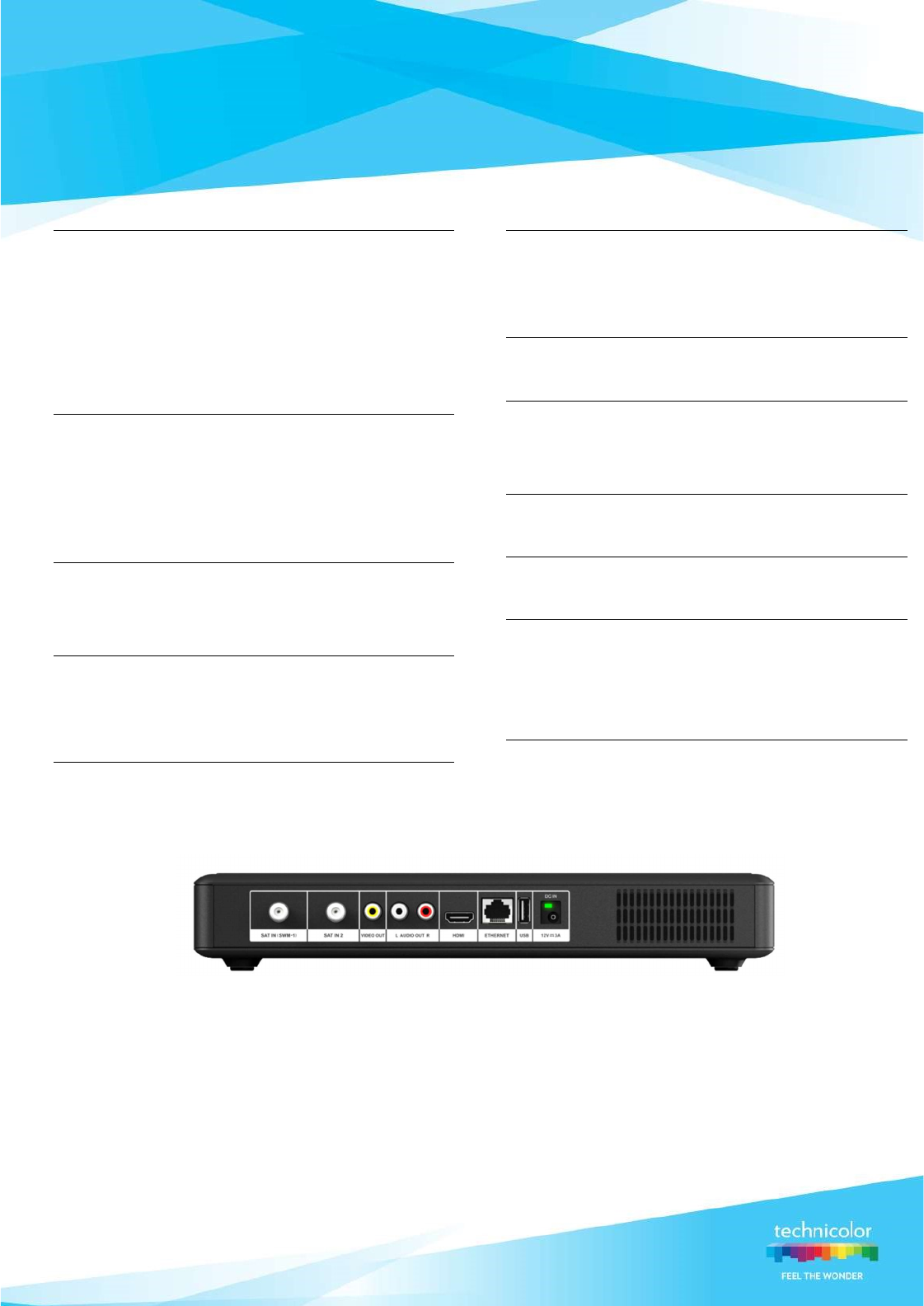

Back panel
Satellite input 2 F-type connectors, external threaded
HDMI output 1 HDMI type A receptacle
Analog outputs 3 RCA jacks (video, left, right)
USB 1 USB 2.0 master port
Ethernet 1 10/100 Base-T Ethernet LAN port
Power input 1 DC jack
General specifications
Power supply 12 VDC external PSU, 3A
PSU input voltage 100 - 240 VAC, 50 - 60 Hz (switched
mode power supply)
Power consumption < 36 W
Dimensions 305mm W x 190mm D x 40mm H
Operating temperature 0°C to +50°C
Federal Communication Commission Interference Statement
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC
Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This
equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions,
may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined
by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following
measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to
operate this equipment.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause
harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
This device and its antenna(s) must not be co-located or operating in conjunction with any other antenna or transmitter.
For product available in the USA/Canada market, only channel 1~11 can be operated. Selection of other channels is not possible.
This device is restricted to indoor use.
FCC Radiation Exposure Statement:
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed
and operated with minimum distance 20cm between the radiator & your body.
