MS 4150 RS
MP3
Owner’s manual and mounting instruction
Mode d’emploi et manuel d’installation
Bedienungs- und Einbauanleitung
Gebruiksaanwijzing en inbouwhandleiding
Istruzioni d’uso e d’installazione
www.vdodayton.com
English
Français
Deutsch
Nederlands
Italiano
Attention!
Only use this system when it is safe to do so. It is more important to
keep your eyes on the road and your hands on the wheel.
Due to constantly changing traffic conditions, we unfortunately
cannot guarantee 100 % precision under all circumstances.
Attention !
N’utilisez le système que si vous ne mettez pas en danger votre vie ou
celle des autres usagers de la route. Il est plus important de surveiller
le trafic routier et d’avoir les mains sur le volant que de lire les
informations apparaissant sur l’écran.
Étant donné que le sens de circulation a pu être changé entre temps,
nous ne pouvons pas vous garantir une exactitude à 100 % des
indications données.
Achtung!
Benutzen Sie das System nur, wenn die Sicherheit es zuläßt. Es ist
wichtiger, auf den Verkehr zu achten und die Hände am Lenkrad zu
lassen.
Aufgrund sich ständig ändernder Verkehrsführungen kann leider
keine 100 %ige Genauigkeit unter allen Umständen gewährleistet
werden.
Belangrijk!
Gebruik het systeem uitsluitend, als de veiligheid het toelaat. Het is belang-
rijker om op het verkeer te letten en de handen aan het stuur te houden.
Op grond van voortdurend veranderende verkeerssituaties kan helaas
geen 100 % nauwkeurigheid onder alle omstandigheden worden gegaran-
deerd.
Attenzione!
Usare questo sistema solo se il traffico lo ammette. E´ importante
tenere d´occhio la strada e le mani sul volante.
A causa dei cambiamenti continui della viabilità non si può garantire
una precisione assoluta in tutte le circostanze.
A
+12V
RR FR FL RL
SDVC
[A1]
[A2]
[A5] [A4] [A6] [A8] [A7]
[A3]
B
B'
A'
F
A
B
F
E
J
+30˚
-10˚
14
Remote CD ChangerTMC receiverTel. inPower Amplifier
MS 4150 RS MP3 Connector Overview
ISO chamber A:
Pin Connection
A1 Input digital speedometer signal / SDVC / GALA
A2 Switch input reversing signal (reversing light plus)
A3 Switch input telephone mute function
A4 + 12 V permanent positive; terminal 30
A5 Switch output for electronic antenna /relay motor antenna
A6 Switch input pilot light
A7 +12 V ignition positive / ACC; terminal 15 (without switch-off on starting engine)
A8 Battery negative; terminal 31
ISO chamber B (loudspeakers):
Pin Connection to loudspeaker
B1 + Rear right (RR+)
B2 – Rear right (RR-)
B3 + Front right (FR+)
B4 – Front right (FR-)
B5 + Front left (FL+)
B6 – Front left (FL-)
B7 + Rear left (RL+)
B8 – Rear left (RL-)
ISO chamber C:
Plug C1 / line out Plug C2 / telephone Plug C3 / CD changer
Pin Connection Pin Connection Pin Connection
C1 Rear left C7 D2B – C13 CD UART +
C2 Rear right C8 Telephone in C14 CD UART –
C3 Ground C9 Telephone Ref. C15 CD UART GND
C4 Front left C10 D2B + C16 + 12 V permanent
C5 Front right C11 RC3 – C17 + 12 V Switch output
C6 + 12 V Switch output C12 RC3 + C18 SPDIF Line
C19 SPDIF GND
C20 SPDIF GND
Fuse
14
36
25
710
912
811
13 16
15 18
14 17
19
20
C1 C2 C3
B
A
1
2
3
4
5
6
7
8
1
2
3
4
5
6
7
8
C
5
Illustrations . . . . . . . . . . . . . . . . . . . Page 3
Sommaire . . . . . . . . . . . . . . . . . . . Page 77
Instructions de montage . . . . . . . . . . . Page 85
Mode d’emploi . . . . . . . . . . . . . . . . Page 91
Récapitulatif des menus . . . . . . . . . . . Page 145
Abbildungen . . . . . . . . . . . . . . . . . . Seite 3
Inhalt . . . . . . . . . . . . . . . . . . . . . Seite 147
Einbauanleitung . . . . . . . . . . . . . . . Seite 155
Bedienungsanleitung . . . . . . . . . . . . Seite 161
Menü-Übersicht . . . . . . . . . . . . . . . Seite 215
Illustrations . . . . . . . . . . . . . . . . . . . Page 3
Contents. . . . . . . . . . . . . . . . . . . . . Page 7
Mounting instructions . . . . . . . . . . . . Page 15
Operating instructions . . . . . . . . . . . . Page 21
Menu overview . . . . . . . . . . . . . . . . Page 75
EnglishFrançais
Deutsch
Afbeeldingen . . . . . . . . . . . . . . . . Pagina 3
Inhoud . . . . . . . . . . . . . . . . . . . Pagina 217
Inbouwaanwijzing . . . . . . . . . . . . . Pagina 225
Gebruiksaanwijzing . . . . . . . . . . . . Pagina 231
Menu-overzicht . . . . . . . . . . . . . . Pagina 285
Nederlands
Figure . . . . . . . . . . . . . . . . . . . . . Pagina 3
Indice . . . . . . . . . . . . . . . . . . . . Pagina 287
Instruzioni per il montaggio . . . . . . . Pagina 295
Istruzioni d’uso. . . . . . . . . . . . . . . Pagina 301
Elenco delle opzioni . . . . . . . . . . . . Pagina 355
Italiano
6
Contents
GENERAL INFORMATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Notes on operating instructions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Class 1 laser product . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Theft protection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9
Safety instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
How does the navigation system work? . . . . . . . . . . . . . . . . . . . . . . . . . 11
The digital road map . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Route & Sound - Navigating and listening to an audio CD . . . . . . . . . . . . . . . 13
RDS (Radio Data System) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Notes on audio CDs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Notes on map CDs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

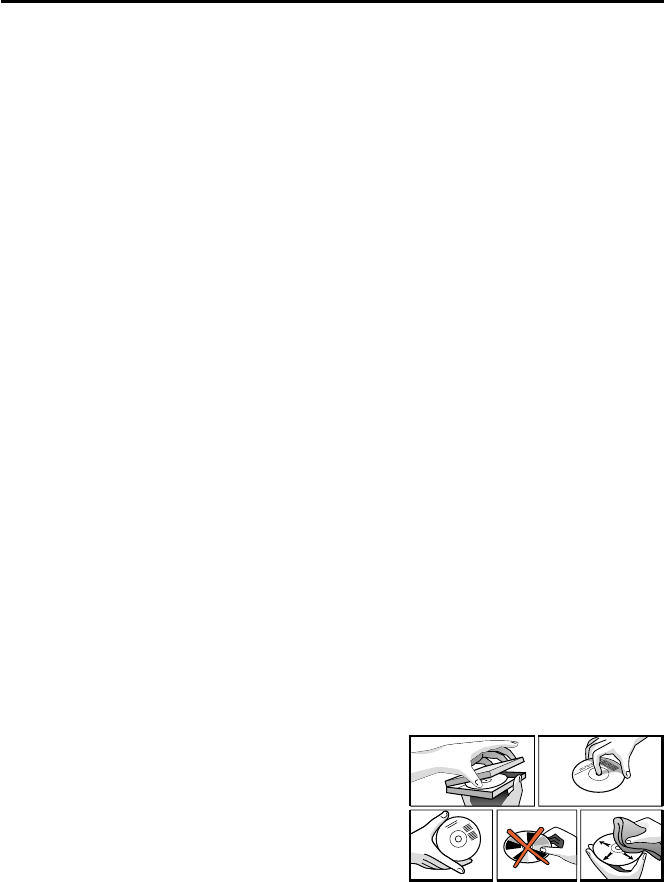

Handling CDs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
INSTALLATION INSTRUCTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
OPERATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Control elements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Inserting a CD . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .22
Removing a CD . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Switching on / off . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Volume . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Menu operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Entering letters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .23
“INFORMATION” MENU . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
The “INFORMATION” menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
SOUND SETTINGS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
The “SOUND” menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
RADIO . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
Listening to radio . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
Select waveband . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
Setting stations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .29
Presets . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
The “RADIO” menu. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
CD PLAYER. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
CD player . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
CD / MP3 playback . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
The “CD” menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
CD CHANGER . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .35
CD changer (accessories) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
CD changer playback . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
The “CD CHANGER” menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
INITIALISATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .37
The “INITIALISATION” menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
k
CONTENTS
7
English
C-IQ – INTELLIGENT CONTENT ON DEMAND. . . . . . . . . . . . . . . . . . . . . . . . 39
C-IQ - Your key to map, traffic and travel information . . . . . . . . . . . . . . . . . 39
NAVIGATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .44
Main control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44
Destination input . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45
Destination input menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45
Special destinations (POIs) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48
Via point input . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50
Guidance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .52
Route selection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56
Information during guidance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57
Traffic information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59
Dynamic guidance with TMC. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 61
Dynamic route planning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 63
Alternative route . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 64
Address manager . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65
Emergency menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 67
System settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 68
Loading software updates . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 71
TROUBLESHOOTING. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 72
TIPS & TRICKS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 74
Tips for convenient operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 74
MENU OVERVIEW . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 75
CONTENTS
8
Notes on operating instructions
The following reading aids are used to simplify these operating instructions:
☞requests you to perform an action.
:shows the unit’s reaction.
✎provides additional information
–identifies a list.
ASafety instructions and warnings contain important information for the safe use of the
unit. Failure to observe this information may result in a risk of damage or injury. Therefore,
please observe this information with particular care.
Class 1 laser product
CAUTION: Any inappropriate use of the device may
expose the user to invisible laser rays which exceed
the limits for Class 1 laser products.
Theft protection
The system has the following safety functions to prevent theft:
Security code

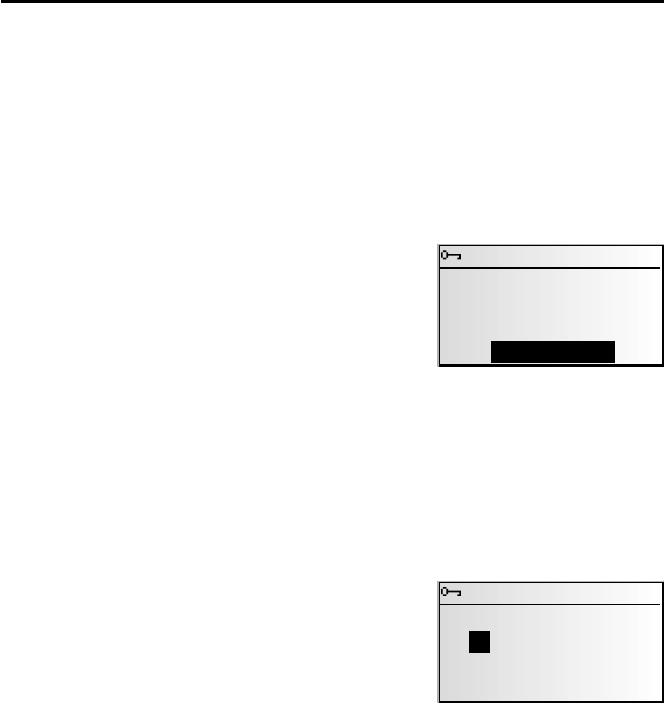

The navigation radio can be protected against theft with a security code. The unit is
disabled as soon as it is disconnected from the voltage supply (e.g. if it is stolen). It can
only be reactivated by entering the security correct code.
The security code can be activated/deactivated and changed. For further information
see “INITIALISATION”, option “Security Code” ➽page 38.
Anti-theft protection LED
When the navigation radio is switched off and the and the ignition key removed, the
red anti-theft protection LED above the POWER/VOLUME knob flashes.
The anti-theft LED is linked to the security code. It will not flash if the security code
has been deactivated.
Safety sticker
☞Affix the safety stickers provided to the vehicle windows so that they are clearly visible.
GENERAL INFORMATION
9
English
CLASS 1
LASER PRODUCT
Safety instructions
AThe use of the navigation radio by no means relieves the driver of his/her
responsibilities. The highway code must always be observed. Always observe the current
traffic situation.
AThe applicable traffic regulations and the prevailing traffic situation always take
precedence over the instructions issued by the navigation system if they contradict one
another.
AFor traffic safety reasons, use the navigation system menus only before starting a
journey or when the vehicle is stationary.
AFor reasons of safety please ensure that the operating panel is always flipped up
(closed) when driving.
AIn certain areas, one-way streets, turn off and entry prohibitions (e.g. pedestrian zones)
are not recorded. In areas such as these the navigation system will issue a warning. Pay
particular attention to one-way streets, turn off and entry restrictions.
AThe navigation system does not take the relative safety of the suggested routes into
consideration. Road blocks, building sites, height or weight restrictions, traffic or weather
conditions or other influences which affect the route safety or travel time are not taken
into consideration for the suggested routes. Use your own discretion in order to decide on
the suitability of the suggested routes.
AThe current legal road traffic speed limit always takes priority over the values stored
on the data CD. It is impossible to provide an assurance that the speed values of the
navigation system will always match those of the current traffic regulations in every
situation.
Always observe the relevant legal speed limits and traffic regulations. The vehicle
speedometer must always be given priority for display of the vehicle speed.
ADo not rely exclusively on the navigation system when attempting to locate an
emergency service (hospital, fire service, etc.). It cannot be guaranteed that all available
emergency services in your vicinity are stored in the database. Use your own discretion and
abilities to secure help in such situations.
GENERAL INFORMATION
10
How does the navigation system work?
The position and movements of the vehicle
are recorded by the navigation system’s
sensors. The distance travelled is determined
by the vehicle speedometer signal, rotary
motion in curves is detected by a gyro sensor
(inertial compass). The position is determined
via the GPS (Global Positioning System)
satellites.
The position can be calculated within a range
of approx. 10 m by comparing the sensor
signals with the digital map on the
navigation CD.
Important notes on the function of your navigation radio
In principle, the system is functional with poor GPS reception, although the accuracy of
the positioning may be impaired by poor or interrupted GPS reception or errors can
occur in the determination of the position, which result in incorrect position reporting.
Start-up characteristics
If the vehicle is parked for longer periods of time,
the satellites continue their orbit. After the
ignition is switched on, it may take several
minutes until the navigation system receives
signals from sufficient satellites for evaluation.
During the start-up sequence, it is possible that the navigation system will report:
“You are leaving the digitised area”. The navigation system assumes that the vehicle is
located outside a digitised area. If other roads exist in this area, the navigation system
may issue incorrect messages. The navigation system assumes that the vehicle is located
on another road.
Comments
After transport of the vehicle by train or ferry, the navigation system may require a
few minutes for exact positioning.
After disconnecting the vehicle battery, up to 15 minutes may be required for exact
positioning. For this, the vehicle must be outdoors and the system must be switched on
in order to receive transmissions from the GPS satellites.
GENERAL INFORMATION
11
English
The digital road map
To be able to plan a route to a destination address, the navigation system not only
requires the current position of the vehicle but also a digital road map containing the
destination address itself and the roads leading to the destination address. This digital
road map is on the map CD which you insert into the navigation computer.
The road system is stored on the map CD as a line model, i.e. even large junctions have
only one focal point that is approached by all roads in point-to-point fashion. Thus the
navigation system indicates the distance to the turn-off point as the distance to the
centre of the junction. This is why the distances indicated on main road signs may not
agree with those of the navigation system. The road signs indicate the distance to the
beginning of the exit.
Areas with limited road information
In some areas, not all of the information on a road is available on the map CD. Thus,
for example, turn-off prohibitions, information on the direction of travel in a one-way
street or prohibited entry into a pedestrian zone may be missing. The navigation
system will display a warning if you drive into such an area. Local traffic laws always
take precedence over navigation system instructions. Always observe the road signs
and motor vehicle traffic regulations.
Topicality of the map CD
Roughly 10 - 15% of the road system characteristics change each year. Due to these
constantly changing traffic conditions (construction of new roads, traffic calming, etc.)
we cannot guarantee that the digital road map will be in 100 % agreement with
existing traffic conditions. We recommend that you always use the most current
version of the map CD for navigation.
GENERAL INFORMATION
12
Real road network Digital line model
Route & Sound - Navigating and listening to an
audio CD
With the new generation of our navigation radio units, you may insert
a map CD, plan your route, then insert an audio CD and the system will
still guide you to your intended destination. The navigation computer
saves the road system in a defined area around the planned route
(corridor) in its main memory. Within this corridor, the map CD does not have to be
inserted in order for the navigation to function. As soon as you leave this corridor, a
message will appear automatically, prompting you to insert the map CD so that the
navigation computer can reload the data required for a new route.
■Expanded Route & Sound function
What is meant here is destination input without a map CD. If the new destination is
within the range of the map section (corridor) stored in the main memory, it is
possible to enter a new destination without the map CD.
What is meant by “corridor” ?
The navigation system plans a route and then loads a “belt” around the planned route
(the corridor) as map data from the map CD into the main memory.
Functional restrictions in corridor mode
Please note that some navigation system functions are not or only partially available
when the map CD (corridor mode) is not inserted.
In this event, the menu options appear grey (e.g. Alternative route, Route selection,
Traffic info away from the planned route).
It is only possible to load stored addresses if they are located within the corridor.
Route planning is only possible with roads located within the corridor. Even if a
destination address is located within the corridor and can be entered as a destination,
it may not be possible to plan a route to that destination. In this case, please insert the
map CD.
TMC traffic information is only available for the map region stored in the corridor.
Travel info and POIs can only be called up using the map CD.
Some C-IQ functions (in particular code entry) are only possible when the map CD is
inserted.
✎As soon as you insert the map CD, these functions are available again.
Leaving the corridor
If you leave the corridor, e.g. if you are not following the planned route, the
navigation system will attempt to guide you back into the corridor. The directional
arrow and the distance to the planned route will be displayed.
When leaving the corridor (more than approx. 3 km), the navigation system will
display only the directional arrow and the distance to the destination.
In this case, please insert the map CD so that the navigation system can plan a new
route to your destination.
GENERAL INFORMATION
13
English
RDS (Radio Data System)
Many FM stations transmit RDS information. The navigation radio evaluates the RDS
telegram and offers the following advantages:
–PS (Program Service Name): Display of station name,
–PTY (Program TYpe): Station selection by program type, ➽page 31
–AF (Alternative Frequency): Automatic re-tuning to best alternative frequency,
–TA (Traffic Announcement): Traffic announcements , ➽page 25
–EON (Enhanced Other Networks): Automatic fading in of traffic announcements on
other stations, ➽page 26
–NEWS: Fading in of messages and items of news, ➽page 25
–TMC (Traffic Message Channel): Traffic information for dynamic navigation,
➽page 25
Notes on audio CDs
You can play 12 cm audio CDs on your CD player. The use of 8 cm CDs (with or without
adapter) and of CDs with irregular shapes is not recommended.
Notes on map CDs
The navigation system is based on a C-IQ database, which is stored on a CD in encrypted
format. The CD contains map data for navigation as well as travel and traffic
information (TMC) for dynamic route planning. You can customise your navigation
package by activating specific components of the database.
For further information see “C-IQ - INTELLIGENT CONTENT ON DEMAND”, ➽page 39.
Support of compressed map data
As of version 2004/02, the map and travel info content is compressed on the map CDs
in order to make further useful C-IQ content available to you.
✎The new map CDs can then only be read using this operating software version or
higher.
Handling CDs
Avoid leaving fingerprints on the CD when
removing it.
Always store map and audio CDs in their protective
covers.
Always ensure that CDs are clean and dry before
inserting.
Protect CDs from heat and direct sunlight.
GENERAL INFORMATION
14
Rolf Egon Füchtenschnieder
and Band
IMPORTANT INFORMATION
Please read this information carefully and follow the all the instructions outlined
below. This will ensure the reliable operation and long service life of your navigation
radio.
Keep the packaging and operating instructions in a safe place in order to pass them on
to a subsequent owner in the event of selling the unit at a later date.
AOnly trained specialists may install the unit.
AObserve automotive industry quality standards.
AFire hazard! When drilling, care must be taken not to damage concealed wiring
harnesses, the fuel tank and fuel lines.
ANever drill into supporting or safety-relevant body parts.
AOnly install in vehicles with 12V on-board voltage and negative earth. Risk of
malfunction, damage and vehicle fire if installed in unsuitable vehicles (e. g. heavy goods
vehicles, buses).
AAlways observe correct assignment of vehicle connections. Incorrect assignment of the
connections may lead to damage of the unit or vehicle electrical system/electronics.
Connection in vehicles equipped with standard ISO
connectors
The navigation radio may be installed without major preparation in vehicles equipped
with ISO standard connectors. Some signals may have to be connected to ISO
connector A (refer to “Connection overview ISO chamber A”).
For vehicles with different connection requirements, ask your dealer for special leads
for a problem-free installation.
Connection in vehicles without standard ISO connectors
If no adapter leads are available for your vehicle, connect the navigation radio as
described in “Electrical connections”.
Taking safety precautions, Fig. 1
ABefore starting work, disconnect the earth lead from the negative terminal of the
vehicle battery in order to prevent short circuits. For this purpose, follow the vehicle
manufacturer’s safety instructions (alarm system, airbag, immobiliser, etc.).
Making the electrical connections
Route all wiring with care. For wiring details, refer to the connection diagram on the
back fold-out page and the following table.
Do not cut non-assigned wires. Instead, wind them together and secure to one side.
They may be required for retrofitting additional functions.
INSTALLATION INSTRUCTIONS
15
English
Connection overview, ISO chamber A, Fig. 2:
Pin Connection
A1 Input digital speedometer signal / SDVC
A2 Switch input reversing signal (reversing light plus)
A3 Switch input telephone mute function
A4 + 12 V permanent positive; terminal 30
A5 Switch output for electronic antenna /relay motor antenna
A6 Switch input pilot light
A7 +12 V ignition positive; terminal 15 (without switch-off on starting engine)
A8 Battery negative; terminal 31
AOnly connect electrical signals to suitable connecting points in the vehicle.
AIf separate connection is made directly to the battery, protect the positive lead with a
10 A fuse close to the battery (max. distance 10 to 15 cm).
■Digital speedometer signal (A1):
A digital speedometer is required for correct functioning of the navigation system.
Analogue speedometer signals are not supported by the system.
☞Connect pin A1 to the vehicle speedometer signal.
ANever collect the speedometer signal directly from the ABS control or the CAN bus.
Digital speedometer signal requirements:
Frequency: 0 Hz - 4 kHz square-wave signal (no inductive sensor)
Low - level:<1V
High - level:4V-24V
Notes: Many vehicles are equipped with a digital speedometer signal on one of the
radio connectors. Notes on vehicle-specific information regarding the speedometer
signal and the above-mentioned accessories can be obtained from your installation
service or from our Customer Help Desk.
Operation of the navigation system is possible without a speedometer signal.
However, in the absence of a speedometer signal the following functional restrictions
may arise:
–Inaccurate navigation
–Inaccurate or invalid information in trip computer
–Limitations with regard to SDVC (speed-dependent volume control)
If your vehicle is not equipped to produce a digital speedometer signal, an optional
speed sensor can be installed. This is available as an accessory from your installation
service.
Mechanical speedometer
A digital speedometer signal can be obtained through the installation of a VDO
X39-397-106-191 speed sensor in the speedometer drive shaft.
CAN bus
In many vehicles, speed, reversing and light information can be read out from the
vehicle’s CAN bus and converted into the appropriate signals for the navigation system
using an adapter.
Universal installation
If none of the above-mentioned options are possible, the wheel speed can be
converted into a digital speedometer signal by means of an MA 3400/00 magnetic field
sensor and magnetisation of a tyre.
INSTALLATION INSTRUCTIONS
16
■Reversing signal (A2):
☞Connect pin A2 to a suitable reversing signal point (positive lead of reversing lamp).
Note: Operation of the navigation system is not possible without a reversing signal.
The absence of a reversing signal may lead to inaccurate navigation.
■Telephone mute function (A3), optional:
☞Connect pin A3 to the mute function output of the car phone or the hands-free
unit. When the telephone is in use, the radio is muted or the telephone
conversation is amplified via the car loudspeakers. See also “Green connector C2”
on the following page.
■12 V permanent positive (A4):
☞Connect pin A4 to a suitable connector with 12 V permanent positive.
AThis connection should be rated for a current of at least 10 A.
■Electronic antenna / motor antenna (A5), optional:
☞Connect pin A5 to the supply lead of an electronic antenna or to the control lead of
a motor antenna.
ADo not use this connection to supply the antenna motor.
■Pilot lighting (A6), optional:
☞Connect pin A6 to a suitable connector of the low-beam positive lead.
✎When the low beam is switched on, the pilot lighting at the volume control is
illuminated, even when the radio is switched off.
■12 V ignition positive (A7):
☞Connect pin A7 to a suitable 12 V circuit switched through the ignition.
Connection overview ISO chamber B (loudspeakers), Fig. 3:
Pin Connection to loudspeaker
B1 + Rear right (RR+)
B2 - Rear right (RR-)
B3 + Front right (FR+)
B4 - Front right (FR-)
B5 + Front left (FL+)
B6 - Front left (FL-)
B7 + Rear left (RL+)
B8 - Rear left (RL-)
AUse only loudspeakers of 4 Ohms impedance.
ADo not connect the loudspeakers to earth.
ADo not connect the booster/amplifier directly to the loudspeaker outputs.
ADo not connect loudspeakers via an external fader.
To check the correct connection of the loudspeakers the function “Loudspeaker Test”
in the “INITIALISATION” menu can be performed.
INSTALLATION INSTRUCTIONS
17
English
Optional connections ISO chamber C, Fig. 4 - 6
■Line-out (yellow connector C1):
(adapter cable, accessories)
An amplifier with additional loudspeakers can be connected to the unit via this
connector.
■Telephone input (green connector C2):
(adapter cable, accessories)
☞Connect the loudspeaker output of your mobile phone or hands-free unit to lead C2.
✎For information about setting the telephone attributes, refer to “INITIALISATION”
in the operating instructions.
■TMC receiver (connector C2):
(adapter cable, accessories)
You can connect an MT 5011 dynamic TMC receiver to the unit.
For installation and connection details, refer to the TMC receiver installation
instructions.
Following connection, the TMC receiver must be registered with the navigation radio
in order to specify it as the TMC source for the navigation system.
☞Activate the “Ext. TMC Receiver” in the “Settings –> TMC source” menu, in
order to use the TMC receiver as the source for traffic announcements.
✎The new setting is only active after re-starting the system.
■Steering wheel remote control (connector C2):
(adapter cable, accessories)
In some vehicles, many radio functions can be controlled using the vehicle-specific
steering wheel remote control. In order for this to be possible, the steering wheel
remote control must be connected to the radio using an adapter cable. Ask your
dealer for the appropriate adapter cable.
■CD changer (blue connector C3):
You can connect a digital CD changer to the unit. Please contact the service
department or your dealer for information on suitable CD changers.
For connection details, refer to the CD changer installation instructions.
Installing the GPS antenna, Fig. 7
The GPS antenna may be installed in the passenger compartment, for example on the
dashboard or the rear shelf. The antenna needs to have unrestricted “visual contact”
to the sky.
☞Clean the mounting surface and attach the antenna with the double-sided adhesive
strip.
✎Vehicles with metallised windows should have the antenna installed on the boot
lid, on the roof or in the plastic bumper.
Note: To guarantee the functioning of the antenna, maintain a minimum distance of
10 cm to any metal parts (window frame, etc.) during installation.
INSTALLATION INSTRUCTIONS
18
Install installation bracket, Fig. 8 - 10
The navigation radio can be installed into a vehicle’s DIN radio slot using the
installation bracket provided.
■Note before installing, Fig. 13:
✎The radio must be installed horizontally. Deviations of - 10 to + 30 degrees can be
set in the “Mounting angle” menu (see “Initial operation”). Larger deviations may
result in malfunctions.
✎A rigid connection to the vehicle body is a prerequisite for correct functioning of
the system
☞Insert the installation bracket into the DIN slot and bend the appropriate metal tabs
inwards using a screwdriver (Fig. 10). Take care not to damage any hidden parts in
the dashboard.
Mounting the radio, Fig. 11
1. Connect the GPS antenna connector to the GPS antenna socket on the back of the
unit.
2. Insert antenna plug E into antenna socket. If necessary, use a suitable antenna
adapter. Use hook (J) on the back of the unit for secure attachment.
3. Insert ISO plug A (power supply) into the radio ISO socket A'.
4. Insert ISO plug B (loudspeakers) into the radio ISO socket B'.
If extensions are to be connected to the unit (optional):
5. Push all chamber C connectors together and plug them into the radio ISO socket C'.
Push the green connector C2 between the yellow connector C1 and the blue
connector C3. At least one of these connectors is required for C2 to engage into the
socket:
Yellow connector C1: Left chamber of ISO socket C1'.
Green connector C2: Centre chamber of ISO socket C2'.
Blue connector C3: Right chamber of ISO socket C3'.
6. Push the unit into the installation bracket until it engages.
Initial operation, Fig. 12
1. Reconnect the battery.
2. Restore complete functioning of the electrical system (clock, trip computer, alarm
system, airbag, immobiliser, etc.).
3. Switch on the ignition.
4. Insert the map CD in the radio. To register the system and enable map, travel guide
and/or traffic info, see the operating instructions, Section “C-IQ”.
5. Park the vehicle outdoors to ensure unimpeded GPS reception.
6. Switch on the ignition and the radio.
7. Press the NAV /NAVIGATION button and confirm the user information.
The main menu appears. The navigation radio will now initialise.
After connection of the power supply, the integrated GPS receiver requires
approximately 2 to 10 minutes until GPS reception is satisfactory.
k
INSTALLATION INSTRUCTIONS
19
English
■Setting the mounting angle
In order to ensure perfect functioning of the system, the navigation radio must be set
to the actual mounting angle in the instrument panel.
1. In navigation mode:
Select the “Mounting angle” option in the “System settings” menu.
2. Depending upon the installation, set the angle to between -10 and +30 degrees. The
system does not differentiate between negative and positive angles. Thus, even for a
mounting angle of e.g. -10 degrees, set a value of “10” in the menu.
■Loudspeaker test
To check that the loudspeakers are connected correctly, ➽page 37.
■Setting the time zone and time format
To set the desired time format (12 or 24-hour) and the time zone appropriate to your
location, ➽page 37.
Checking the vehicle functions
ACheck the safety-relevant vehicle functions only when the vehicle is stationary, or
moving at low speed. Only perform the check in an open area.
Brake system, alarm system, lights, immobiliser, speedometer, trip computer, clock.
Checking GPS reception and calibrating the system
Enter a destination and select “Guidance”. Call up the “GPS / Compass” information
menu via the guidance screen (see operating instructions) and check the number of
satellites. For a sufficiently exact location determination, the number should be
between 4 and 8.
As soon as adequate GPS reception is available, perform a short test drive (approx. 10
minutes) on digitised roads in order to calibrate the system. Calibration takes place
fully automatically. Turn off several times and drive through a number of junctions.
Then check whether the navigation system indicates the correct vehicle position in the
“Car position” information menu.
Note: The system can also be calibrated without C-IQ contents activated. However, no
directional information will be provided. The current vehicle position can then be
checked in the emergency menu (see operating instructions).
Removing the radio, Fig. 14
The radio can be released using the pair of U-shaped removal tools supplied.
☞Push both U-shaped tools into the small holes to the right and left of the unit front
until they are felt to engage.
☞Gently push the tools outwards and carefully pull the radio out of the installation
bracket using the tools.
INSTALLATION INSTRUCTIONS
20
Control elements
1o. . . . . . . . . . . . Release button for operating panel
2SOUND . . . . . . . . Opens the “SOUND” menu. ➽page 27.
3POWER/VOLUME . Press: Switching on / off
. . . . . . . . . . . . . . Turn: Setting the volume
4INFO . . . . . . . . . . Opens the “INFORMATION” menu. ➽page 25.
51 ... 6 . . . . . . . . . Radio mode: Preset button
. . . . . . . . . . . . . . Briefly press preset buttons : Select station memory,
. . . . . . . . . . . . . . Press and hold: Storing selected station on preset button
. . . . . . . . . . . . . . CD changer mode: Selection of CD 1 to 6 in the changer magazine.
6MENU . . . . . . . . . Opens the relevant settings menu, depending on the mode
. . . . . . . . . . . . . . (Radio, CD, CD changer, NAV)
7SCAN . . . . . . . . . . Turn: Moves the cursor in the menus.
. . . . . . . . . . . . . . Press: Confirms a selection in the menus.
. . . . . . . . . . . . . . For radio, CD and CD changer: Search and scan functions
8CLEAR . . . . . . . . . Deletes the last entry / Returns to the next higher menu level
9ALT-R. . . . . . . . . . Planning an alternative route in navigation mode. ➽page 23.
0NAV. . . . . . . . . . . Opens the navigation menu. ➽page 23.
q{. . . . . . . . . . . . Play back current direction and (if available) the current
. . . . . . . . . . . . . . TMC message. ➽pages 52, 54.
w. . . . . . . . . . . . . . Display
eCD•C . . . . . . . . . Switch to CD player, ➽page 34 / CD changer (only with
. . . . . . . . . . . . . . connected CD changer). ➽page 36.
rRADIO . . . . . . . . Switch to radio mode. ➽page 30.
BAND . . . . . . . . . Opens the “BAND SELECTION” menu (in radio-modus). ➽page 29.
tMUTE. . . . . . . . . . With mobile phone connected: Switch to telephone input
. . . . . . . . . . . . . . Without mobile phone connected: Muting the system.
OPERATION
21
SOUND CLEAR
MENU
MS 4150
POWER VOLUME SCAN
INFO
RADIO NAV
CD.C
BAND
14
36
25
MUTE ALT-R
1
2
3
8
7
6
4
11 10 912131415
5
English
Inserting a CD
1. Open the front panel.
2. Insert the CD into the drive (printed side up).
For audio CDs, playback starts automatically.
3. Close the front panel.
Removing a CD
1. Open the front panel.
2. Press the eject button.
3. Carefully remove the CD and close the front panel.
Switching on / off
☞Press the POWER/VOLUME knob to switch the unit on or off.
Volume
AWhen setting the volume, please make sure that traffic noises (horns, sirens, emergency
vehicles, etc.) are still audible.
☞Turn the POWER/VOLUME knob to set the volume.
Setting the volume of the navigation messages
The volume of navigation messages can be modified whilst a message is playing by
turning the POWER/VOLUME knob.
☞Press the {button to hear a navigation message and set the NAV volume.
Setting the volume of traffic announcements
The volume of traffic announcements can be set in the “INFORMATION” menu.
➽page 25.
MUTE
☞Press MUTE to activate/deactivate the mute function.
Notes:
The current navigation message can be played whilst the system is set to mute by
pressing the {button.
No traffic announcements or navigation messages are made when muting is activated.
Should you nevertheless wish to hear traffic announcements (with TA Scan activated)
and navigation information without the radio or CD playing, simply turn the volume
to zero on the unit. The announcements and information are then output at the
preset volume (“TA volume” or “NAV volume” in the “INFORMATION” menu).
22
OPERATION
Menu operation
Cursor
The currently selected line or field on the screen is
designated as the cursor. The cursor is identified by
an inverse field (bright letters on black background).
☞Move the cursor by turning the right rotary
control.
☞Confirm by pressing the right rotary control.
:To confirm, the cursor will be displayed briefly
as a frame around the selected field.
Currently non-available options appear grey.
Scroll bar
All menus display a scroll bar on the left side of the
screen. It shows the part of the menu in which to find
the cursor.
☞Move the cursor to a menu entry at the top or
bottom of the screen by turning the right rotary
control.
☞Turn the right rotary control further in the same
direction.
:The screen automatically displays the next menu items.
In all menus except the main control, the menu title changes to the “Return” option
when you move the cursor to the top of the screen.
☞Confirm “Return” by pressing the right rotary control to quit the menu
or
☞Turn the right rotary control further to the left to move upwards in the menu.
✎You can also quit a menu by pressing the CLEAR button.
Entering letters
Characters are entered by selecting letters from a list.
In the following, this type of entering will simply be
called “typewriter”.
☞Move the cursor to the desired letter by turning
the right rotary control.
☞Confirm by pressing the right rotary control.
Non-selectable letters are displayed as dots and will
be passed over automatically by the cursor.
k
23
OPERATION
System settings
Guidance screen
Dyn. route sett.
Measuring units
Language
Return
Guidance screen
Dyn. route sett.
Language
Measuring units
City:W_
A...E... .....O..
...U...Y...
I
¡‰
g¯Z®–
English
Options for entering characters
The line at the bottom of the display displays command symbols which allow you to
perform the following functions:
c: Destination country selection (in this case, “D” for Germany).
ƒ: Save an address in the personal address book.
‰: Jump to menu “Special dest.”. ➽page 48.
¡: Delete the character entered last.
Š: Direct input of road name without previously entering the name of the city
(depending on map CD).
Z: Cancel entry and return to the start of the destination entry.
¯: Display a list of database items.
®: End of destination input and automatic start of guidance.
–: Accept the data entries and go to the next input step.
o: Accept the data entries (e. g. when entering a CD title).
Depending on information already entered, one or more options may not be selectable
(grey).
Intelligent “typewriter”
When you enter names of cities and roads or special destinations, the system compares
the character string already entered with all database entries on the map CD.
Once you select a character, you will notice that only certain letters remain displayed.
The navigation system automatically completes entries if only one possible entry is left.
Different input methods
The database allows you to enter the different parts of compound city or road names in
varying sequence. Thus, you may begin entering “Frankfurt am Main” by inputting
“FRANKFURT” or “MAIN”.
✎The input methods depend on the map CD inserted. Not all map CDs support this
function.
Entering special characters
✎The typewriter provides the space and the period and, depending upon the
language selected, certain country-specific accented characters. If you have selected
a system language for which accented characters for the names of cities and roads
are not supported, you can enter the name without accented characters (e.g.
“MUNCHEN” instead of “MÜNCHEN”).
✎For “ß”, enter “ss”.
24
OPERATION
The “INFORMATION” menu
The “INFORMATION” menu allows you to configure
the type and amount of information the unit will
receive via the radio data system (RDS).
☞Press the INFO button.
:The “INFORMATION” menu is displayed.
The following options are available:
TMC Scan (Traffic Message Channel)
If you activate this function, the automatic search will only look for stations
transmitting TMC information and will ensure that you receive as much TMC data as
the unit can find.
TMC data are used in navigation mode for dynamic route planning and dynamic guidance.
An increasing number of RDS stations transmit these TMC data. See also “Behaviour of
TMC and TA” on the following page.
✎TMC is not yet available in all countries.
✎Stations with Pay TMC (subject to a fee) content are not supported and are ignored
during the search.
✎If an MT 5011 TMC receiver is installed, “TMC Scan” setting in the Info menu has no
influence on navigation.
Only the TMC data received by the TMC receiver is used for dynamic route planning,
provided this is activated in the “Settings -> TMC Source” menu.
TA Scan (Traffic Announcements)
Activate this function if you wish to hear traffic announcements (TA). See also “Behaviour
of TMC and TA” on the following page.
✎If the radio has not been set to a station with TA, you will hear a warning tone and
the radio will automatically search for a station transmitting traffic announcements.
News
Activate this function, if you wish to listen to news, e. g. even when a CD is playing or
when the unit is set to mute. Using the RDS-EON function, the unit can also receive the
news from other stations.
✎News broadcasts may be interrupted by traffic announcements.
✎The “News” function is not yet available in all countries.
Ann. level (Announcement level)
Set the volume difference for traffic announcements, news and alerts to the current
volume setting.
Guid. level (Guidance level)
Setting the guidance level controls the volume of announcements (in navigation
mode). Possible settings range from OFF to 8. If it is set to “OFF”, no audible
navigation information will be heard. Switching the unit off and then on again
removes this setting and the value is reset to “1”.
“INFORMATION” MENU
25
INFORMATION
TA Scan
News
Ann. Level: 2
TMC Scan
English
Behaviour of TMC and TA
If you switch on TMC Scan, you ensure that the radio will only search for stations
transmitting TMC data during the automatic search.
If the reception quality of the TMC station deteriorates drastically, the unit will
indicate this by outputting a warning message.
If you do not need guidance or are listening to an audio CD, yet you do not wish to go
without current traffic announcements, switch on the TA Scan function. In that case
the radio will play the traffic announcements even if it is in CD or CD changer mode or
muted.
Depending on the selected function and the station, the radio display will show the TA
or TMC status:
Station transmitting ... Displayed message …
with setting in the “INFORMATION” menu:
TA Scan ON TMC Scan ON Both ON Both OFF
No TA No TMC - * u- * No display
No TA TMC yt t t
TA No TMC xuu x
TA TMC x t t t
* In this case the unit will immediately start searching for the next strongest TA station
signal.
■Traffic announcements from other stations - EON
With the RDS function EON (Enhanced Other Networks) you will hear traffic
announcements even if the set station does not transmit its own traffic information
but is operating on a network with other stations.
If you have activated TA Scan, stations with EON will be treated like TA stations, i.e.
the search will also stop at these stations.
✎When a traffic announcement is made, the unit switches to a traffic information
station linked to EON. The program name of the traffic information station is
displayed during the traffic announcement. After the announcement, the unit
returns to the previous program.
26
“INFORMATION” MENU
The “SOUND” menu
In the “SOUND” menu, you can set your navigation
radio’s sound and several other sound reproduction
parameters to your own preferences.
The sound settings for bass and treble/tone are valid
for the currently active sound source (radio, CD or
CDC).
☞Press the SOUND button.
:The “SOUND” menu is displayed.
The following options are available:
Sound settings
☞Select the desired option by turning the right
rotary control.
☞Press the right rotary control in order to activate
the setting.
☞Move the slide control to the desired setting by
turning the right rotary control.
☞Press the right rotary control in order to store
the setting.
–Bass: Setting the bass (low tones).
–Treble: Setting the treble (high tones).
–Bal.: Setting of volume balance left <–> right.
–Fader: Setting the volume distribution rear <–> front.
Slide control left: rear
Slide control right: front
✎Sound settings cannot be performed for navigation information, traffic
announcements and telephone operation.
Loudness
☞Activate this function to increase low and high tones at low volume settings.
✎Selecting one of the pre-set sound styles deactivates the loudness function.
Sound Style
☞Select one of the pre-set sound styles.
☞Select “User” to retain your own bass and treble settings.
✎For each sound source, the sound style is stored separately.
k
SOUND SETTINGS
27
SOUND
Sound Settings
Loudness
Sound Style
SDVC: 2
SOUND SETTINGS
Bass
Treble
Balance
Fader
English
SDVC (speed-dependent volume increase)
To compensate for environmental noise, the volume for audible information increases
as a function of the speed.
☞Choose a setting for the speed-dependent increase of the volume.
☞Select OFF to deactivate the function or select 1to 5to choose the desired volume
increase. 1 is the lowest, 5 the highest volume increase.
Sound Setup
Setting one of the following functions:
–Sound Reset: Reset the sound setting to the factory-set
values and switch off loudness.
–Leveller: Activate this function to equalise volume differences
between the various sound sources.
–Loud Low: Set the enhancement of low tones at loudness.
–Loud High: Set the enhancement of high tones at loudness.
–Bass Freq: Select the transitional frequency for the low tones.
–Treb Freq: Select the transitional frequency for the high tones.
Initialisation
See “INITIALISATION” ➽page 37.
28
SOUND SETTINGS
Listening to radio
If the unit is not yet in radio mode:
☞Press the RADIO button.
Select waveband
In radio mode:
☞Press the RADIO button again.
☞Select the desired waveband and press the right rotary control.
✎The following wavebands are available: FM A, FM B, FM AST (Autostore) MW,
MW AST (Autostore), SW and LW. Six stations can be stored for each waveband.
FM AST and MW AST can only be stored with the Autostore function.
Setting stations
Stations can be set or searched for in various manners:
Automatic search
☞Turn the right rotary control to the right or left in order to tune to the
next station with a strong signal in the currently selected waveband.
✎If “TA Scan” is activated, the radio will search only for stations from which
traffic announcements can be received.
✎If “TMC Scan” is activated, the radio will search only for stations from
which traffic information can be received.
Scanning receivable stations - SCAN
☞Press the right rotary control in order to briefly play all the receivable stations in the
currently selected waveband.
☞Press the control again in order to stop the scanning process.
k
RADIO
29
t
RADIO 6FM A DX
13:29
105.9
FFH
Frequency
Time of day
Waveband
Station name
(only for RDS stations)
Selected search sensitivity
(during automatic search tuning)
Preset number
CD symbol flashing: Route being
planned. Do not remove map CD!
TA/TMC: Traffic Announcement /
TMC (see “INFORMATION” menu)
Selected search type
English
Setting frequency manually
☞Activate “Manual tuning” in the radio menu. ➽next page.
☞Slowly turn the right rotary control to the right or left in order to change
the reception frequency step-by-step.
☞Turn the control quickly by a few notches in order to start a fast search.
Press the control to stop the search.
☞Press the control again to return to the automatic search.
✎After 50 seconds, the radio switches back to automatic waveband tuning.
Presets
You can store 6 stations for each waveband on the preset buttons from 1 to 6.
☞Tune to the desired waveband and station.
☞Press the desired preset button until you hear a confirmation tone.
✎The station selected is stored on the preset button.
✎Stations cannot be stored manually in the FM AS and MW AS wavebands, these are
used exclusively for the Autostore function. ➽“RADIO” menu.
Recalling stored stations
☞Tune to the desired waveband.
☞Press one of the preset buttons in order to recall the desired station.
The “RADIO” menu
In radio mode:
☞Press the MENU button.
:The “RADIO” menu is displayed.
The following functions are available:
RDS Memo (only in FM)
Searches for all currently available RDS stations and
stores them in alphabetic order in the station list.
☞Activate this function to refresh the RDS Memo.
✎Refreshing the RDS Memo may require up to 30 seconds.
Autostore
☞Activate this function to automatically store up to 6 FM/AM stations with strong
signals on the FM AS or AM AS waveband.
Station list (only in FM)
☞Select a station from the alphabetically sorted stations list (RDS Memo).
Preset list
☞Select a previously stored station from the preset list for the selected waveband,
FM, MW, SW or LW.
30
RADIO
RADIO
RDS Memo
Autostore
Station list
Preset list
Manual Tuning
☞Select this option to set a frequency manually, for example, if the desired station
cannot be set using the automatic search function. See previous page for this
function.
PTY Search (only in FM)
This function allows you to search for stations of the desired program type.
☞Select the desired program type from the list.
☞Press the right rotary control to start the PTY search.
✎PTY is not supported by all RDS-stations and is not available in all countries.
Radio Setup
☞Set one of the following functions:
■Search Level:
Setting the search level.
☞Select “LO” if you want automatic waveband tuning to only search for local stations
(strong signals).
☞Select “DX” to also search for distant stations..
■Tuner Grid:
☞Select “EUR” or “USA” depending on which continent you are currently in.
AIf you change the tuner grid, all station memories and the stations in RDS Memo will be
deleted!
■AF re-tuning (only in FM)
The radio continuously checks a series of alternate frequencies (AF) for the selected
station and automatically chooses the best frequency.
☞Deactivate this function only if you hear brief interruptions of transmission or if the
unit automatically switches to an undesired station (e.g. to an other regional
station belonging to the selected station).
Initialisation
See “INITIALISATION” ➽page 37.
31
RADIO
English
CD player
You can play 12 cm audio CDs and discs with MP3 files on your CD player.
AWe strongly recommend only playing 12 cm CDs. Please do not use 8 cm CDs (neither
with nor without adapter).
ADo not insert DVDs or shaped CDs in the CD player. If you ignore these
recommendations, you risk damaging your unit.
✎The system may not be able to play copy-protected audio CDs which do not
correspond to the Compact Disc Audio Standard or play them properly.
■CD formats
The following CD formats are supported by the CD player:
–CD Audio (CD-DA in accordance with Red Book Standard)
–CD-ROM (in accordance with Yellow Book)
–CD-ROM XA (Mode 2, form 1, in accordance with Green Book)
–CD-R/RW (in accordance with Orange Book part 2/3)
–CD Text with CD Audio (in accordance with Red Book)
–CD Mixed Mode (in accordance with Light-Yellow Book)
–Multisession CD (in accordance with Multisession CD Specification 1.0)
■Requirements
In order to be played, MP3 files must meet the following requirements:
–MP3 files must have the “.mp3” file extension
–Bit rates: up to max. 320 kbit/s, constant or variable bit rate
–Sampling frequencies: up to max. 48 kHz
■CD Text display
For audio CDs with CD Text, the text information
(album title, artist and track) will be shown in the
display.
32
CD PLAYER
Rock Mix
x
10:44
Madonna
Ray Of Light
T05
Selected search and playback mode
Track number
CD Audio:
MP3:
CD title
(only with CD text)
directory name
02:59
Elapsed track time
CD-Audio:
MP3:
Track and artist
(only with CD text)
File name or ID3 tag
(if available)
Rock Mix
x
14:41
Madonna
Ray Of Light
T05
00:46
■ID3 tag display
For MP3 CDs, the currently selected directory and
below it the ID3 tag (title and artist) of the current
piece of music will be displayed.
✎When a new track is played, the file name is
shown briefly first, followed by the ID3 tag.
✎The file name can be displayed briefly at any time
by pressing the CLEAR button.
✎If there is no ID3 tag, only the file name is displayed.
✎If playing MP3 files in the CD’s master directory, “CD-CA” (CD Compressed Audio)
will be displayed as the directory name.
CD / MP3 playback
If the unit is not yet in CD mode:
☞Press the CD•C button once or twice until “CD PLAYER” is displayed.
✎Once inserted, the CD will start to play automatically.
✎If, after using the navigation CD, you insert the same Audio CD you were using
previously, play will continue from the point where you left off.
✎With MP3 or mixed mode CDs, it may take a while for the directory structure to be
read, depending on the complexity of the file structure and the number of files.
■Playing mixed mode CDs
With mixed mode CDs (combinations of audio and data, e.g. MP3), the audio tracks
are assigned to their own directory, which is then displayed with “CD-DA” (CD Digital
Audio). This directory is played first.
Skip track (previous/next)
☞Turn the right rotary control to the right or left in order to select the
next or the previous track.
✎If the right rotary control is turned one detent position anti-clockwise after the first
10 seconds of a track, the CD player jumps to the beginning of the current track.
Selecting MP3 directories (previous/next)
☞Press the right rotary control to switch the rotary control function to
change directory.
☞Turn the right rotary control to the right or left in order to select the next or the
previous directories on the MP3 CD.
☞Press the control again to return the rotary control to its original skip track
function.
k
33
CD PLAYER
Flag
x
14:41
The Race
Yello
T123
01:43
English
The “CD” menu
In CD player mode:
☞Press the MENU button.
:The “CD” menu is displayed.
The following functions are available:
Manual Search
☞Activate this function in order to perform a manual search using the
right rotary control.
☞Turn the right rotary control one notch to the right or left in order to start the first
level of the fast search forwards or backwards.
☞Turn the rotary control again one notch to the right or left in order to start the
second, faster search level.
☞Press the right rotary control to stop the fast search.
☞Press the control again to return to the skip track function.
✎During the manual search, you will hear the CD at increased speed.
✎The function of the right rotary control is switched back to the skip track function
50 seconds after the last time the manual search is used.
Random
☞Activate this function to listen to the tracks on the current CD in random
order.
☞Press the right rotary control to return to normal playback.
Repeat Track
☞Activate this function to repeat the current track.
☞Press the right rotary control to return to normal playback.
Track Scan
☞Activate this function to scan all tracks on the inserted CD for 10 seconds
each.
☞Press the right rotary control to stop scan mode and return to normal playback.
CD Setup
☞Set one of the following functions.
–Compression: If activated, this function will reduce the volume for loud sections and
increase it for quieter sections.
–Comp Rate: Select the degree of loudness decrease/increase when compression is
switched on.
Initialisation
See “INITIALISATION” ➽page 37.
34
CD PLAYER
CD
Manual Search
Random
Repeat Track
Track Scan
CD changer (accessories)
A digital CD changer can be connected to the navigation radio.
AWe strongly recommend only playing 12 cm CDs. Please do not use 8 cm CDs (neither
with nor without adapter).
ADo not load navigation CDs into the CD changer.
ADo not insert DVDs or shaped CDs in the CD changer magazine. If you ignore these
recommendations, you risk damaging your unit.
✎The system may not be able to play copy-protected audio CDs which do not
correspond to the Compact Disc Audio Standard or play them properly.
CD changer playback
If the unit is not yet in CD changer mode:
☞Press the CD•C button once or twice until “CD changer” is displayed.
:Playback of the last played CD resumes.
✎If you changed or removed the CD magazine in the meantime, playback will begin
with the first CD in the magazine.
Selecting a CD
☞Press one of the preset buttons from 1 to 6, in order to select the desired CD from
the CD magazine,
or:
☞Press the right rotary control to switch the rotary control function to
change CD.
☞Turn the right rotary control to the right or left in order to select the next or the
previous CD in the magazine.
☞Press the control again to return the rotary control to its original skip track
function.
Skip track (previous/next)
☞Turn the right rotary control to the right or left in order to select the
next or the previous track.
✎If the right rotary control is turned one detent position anti-clockwise after the first
10 seconds of a track, the CD player jumps to the beginning of the current track.
35
CD CHANGER

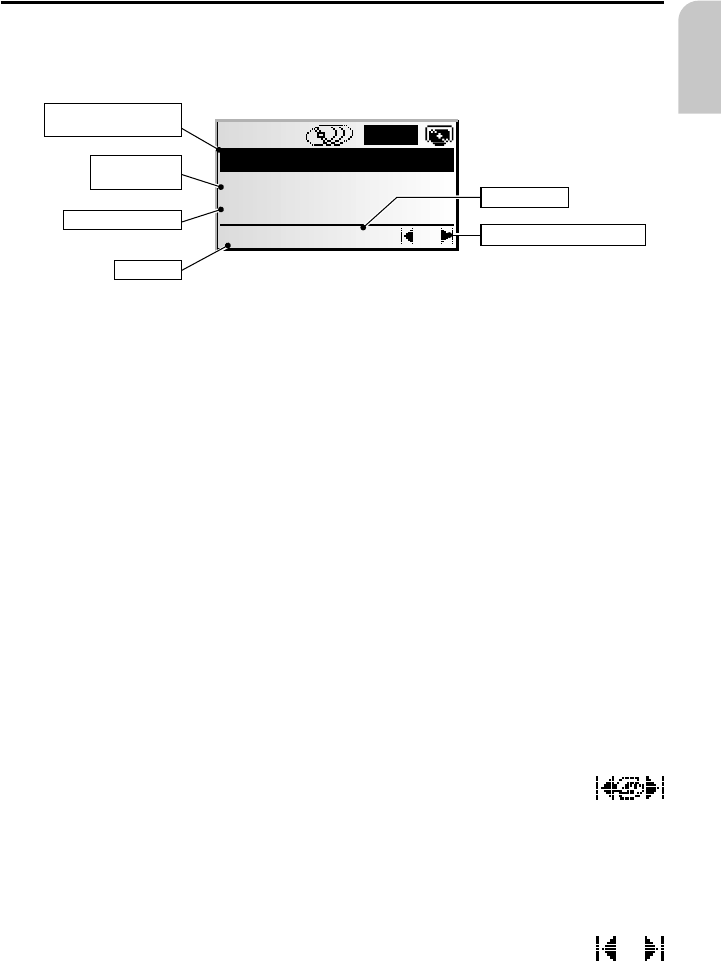

CD CHANGER
t
16:38
Disc:
T13
4
Selected search and playback mode
Track number
CD title (only with CD Text or
if CD title has been entered)
Track and artist
(only with CD text)
Selected CD in magazine 02:38
Elapsed track time
English
The “CD CHANGER” menu
In CD changer mode:
☞Press the MENU button.
:The “CD CHANGER” menu is displayed.
The following functions are available:
Manual Search
☞Activate this function in order to perform a manual search using the
right rotary control.
☞Turn the right rotary control one notch to the right or left in order to start the first
level of the fast search forwards/backwards.
☞Turn the rotary control again one notch to the right or left in order to start the
second, faster search level.
☞Press the right rotary control to stop the fast search.
☞Press the control again to return to the skip track function.
✎During the manual search, you will hear the CD at increased speed.
✎The function of the right rotary control is switched back to the skip track function
50 seconds after the last time the manual search is used.
Random
☞Activate this function to listen to the tracks on the currently selected CD
in random order.
☞Press the right rotary control to return to normal playback.
Repeat Track
☞Activate this function to repeat the current track.
☞Press the right rotary control to return to normal playback.
Track Scan
☞Activate this function to scan all tracks of the current CD for 10 seconds
each.
☞Press the right rotary control to stop scan mode and return to normal playback.
CD Title
☞Assign a name with up to 13 characters to the CD currently playing. The CD will be
recognised automatically by the CD changer, and the CD changer will display the CD
title.
✎If your CDs have CD text, you can also overwrite the CD title displayed.
✎Up to 50 CD titles can be stored automatically in the title memory. Once the
memory is full, you will have to first select a title to be deleted before you can enter
a new one.
Changer Setup:
☞Set one of the following functions.
–Compression: If activated, this function will reduce the volume for loud sections and
increase it for quieter sections.
–Comp Rate: Select the degree of loudness decrease/increase. This function is only
available with compression activated.
Initialisation
See “INITIALISATION” ➽page 37.
36
CD CHANGER
CD CHANGER
Manual Search
Random
Repeat Track
Track Scan
The “INITIALISATION” menu
☞Select “Initialisation” in one of the following
menus: “RADIO”, “INFORMATION”, “CD” or “CD
CHANGER”.
:The “INITIALISATION” menu is displayed.
The “INITIALISATION” menu allows you to adjust the
navigation radio to your needs.
The following functions are available:
Telephone
☞Adapt your unit’s telephone input to your car phone:
–NONE: No car phone is connected to the unit.
–MUTE: Playback on the current source is automatically interrupted when your car
phone is in use. For this purpose, the car phone’s muting signal must be connected
to the device (see installation instructions).
–IN: Playback on the current source is automatically interrupted and the incoming
call is played through the car loudspeakers. For this purpose, the car phone’s
muting signal and audio output must be connected to the device (see installation
instructions).
Tel Signal:
☞Adapt your unit’s telephone input to the muting signal of your car phone:
–Low: Muting signal “active low”. Radio switches to mute at 0 V.
–High: Muting signal “active high”. Radio switches to mute at 12 V.
Tel. Level:
☞Adapt the car phone’s volume to the navigation radio’s telephone input.
✎The volume adjustment can be set to between -30 and +30.
Beep Type:
☞Select a confirmation/alert sound. You have the choice between 4 different sounds.
Beep Level:
☞Set a level between 1 and 5 for the confirmation/alert sound.
Startup Vol.:
☞This is where you set the maximum start-up volume, between 5 and 40.
✎When you switch on the unit, the volume will always be set to this level if the
volume was louder than this level when you switched off.
Clock Settings
Setting the time format and the time zone:
–Clock Format: Select between 12 or 24 hour format.
–Timezone (only for GPS clock): Set the time difference to UTC (equivalent to
Greenwich Mean Time, London).
k
INITIALISATION
37
English
INITIALISATION
Beep Level: 1
Startup Vol.: 32
On Off Logic
Clock Settings
On Off logic
☞Activate this function to limit the operation of the device to one hour after the
ignition key is removed.
Display
Setting the display contrast and the display brightness.
☞Set the contrast and brightness for the display between 0 and 31 as required.
Loudspeaker Test
☞Activate this function to control the loudspeaker connections and positions.
✎You will hear several consecutive confirmation tones in turn from one of the four
loudspeakers.
☞Switch the unit off to terminate the loudspeaker test.
Security Code (anti-theft protection code)
You must enter the code in order to open the menu for activating, deactivating or
changing the code. The number of entry attempts is unlimited.
In the factory settings, the code is set to “0000” and deactivated.
You can activate the code and change the numbers.
Proceed as follows to enter the security code:
☞Enter the first digit by turning the right rotary control.
☞Press the control to confirm.
☞Enter the next three digits as described above.
✎If you confirm an incorrect digit, you can delete it by pressing CLEAR.
✎Following a voltage supply interruption to the unit (e.g. removal) with an active
code, the unit is blocked following ten incorrect entries of the code. The unit can
only be reactivated by taking it to a Service department along with proof of
ownership. This service is subject to a fee.
■Code active
☞Activate this function if you wish to protect the device with the security code.
✎If the power supply is interrupted (e.g. if the unit is removed), the navigation radio
will be disabled once the supply is restored and can only be reactivated by entering
the security code.
✎If the security code has been activated, when the ignition key is removed, the
anti-theft LED will flash on the front of the unit.
■Change code
☞Enter a sequence of digits of your choice as the new security code.
☞Make a note of the code and keep it in a safe place (not in the vehicle!).
38
INITIALISATION
C-IQ - Your key to map, traffic and travel information
With your navigation radio you get several CDs containing all the available map data
of Europe, plus digital travel guide products and TMC data (for dynamic navigation).
The information or products on the CDs are encrypted and, if required and after expiry
of an activation period, can be activated*using an access code, subject to payment of a
fee.
Your advantages:
–You only pay for the information that you actually use.
–You only pay for the time that you actually use.
–After the first activation, you will automatically receive subsequent CD updates.
–You are always in possession of the latest information.
–Activation can be obtained conveniently via the Internet at www.C-IQ.net or via the
C-IQ Service Centre Hotline (see further information about C-IQ).
*) the automatic update service (regular dispatch of updated CDs at least once a year
within a period of activation) is only available upon registration and does not apply to
unlimited C-IQ activations. Register via www.C-IQ.net or by telephoning the C-IQ
Service Centre.
Activation options
The CD contains the latest version of the road map software available at the time of
production.
It also contains travel guide information for a number of countries as well as traffic
information for dynamic route planning via TMC (in countries which offer this service).
You can activate
–the road data
–individual travel guides and if required
–traffic information
for a number of countries for a certain period of time (see also the preview in this
chapter). Your C-IQ Service will be happy to provide more information about the
various access options available.
Information on C-IQ:
Code-entry for the activation C-IQ content only works when the map CD (CD-ROM) is
inserted.
For trouble-free use of C-IQ content, it is imperative that the current date is received
by the navigation system. This is only possible if at least one GPS satellite is being
received (see “GPS / Compass” information screen).
39
C-IQ – INTELLIGENT CONTENT ON DEMAND
English
Registering the navigation system
In order to activate other C-IQ products, you must register your navigation system with
C-IQ Service. This also ensures that you will receive updated CDs on a regular basis, and
will therefore always be using the latest maps (does not apply to unlimited activation).
Registering the system also provides you with additional anti-theft protection. If a unit
is registered with C-IQ Service as stolen, C-IQ Service will not issue any new activation
codes for C-IQ contents.
To register your navigation system, you need the Navi ID. In a small number of cases,
the Initial ID or version number of your map software is also required.
You can access this data as follows:
☞Press the NAV button.
☞In the main control, select “C-IQ”.
☞Select “Navi ID”.
:The 8-digit Navi ID, the map CD currently loaded
and the version number of the navigation
software are displayed.
☞To read out the Initial ID, move the cursor to
“Initial ID” and confirm your selection by pressing the right rotary control.
✎The “Z” symbol will take you back to the previous menu and you can access help
for the current C-IQ topic by selecting “?”.
☞Make a note of the Navi ID. You can now contact C-IQ Service and register your system.
Activating products
Once you have received your enable code, enter it into the system.
☞In the main control menu, select “C-IQ” then “Code Input”.
☞The cursor appears automatically on the first digit
of the code.
☞Press the right rotary control to activate each digit
in the code.
☞Next, turn the right rotary control to select the
correct code digit and confirm your selection by
pressing the right rotary control.
✎You may change any of the code digits at any time by moving the cursor to the
required position in the code and pressing the right rotary control.
☞Once the code is complete, the cursor will automatically move to “OK”. Confirm by
pressing the right rotary control.
☞Once you have entered a correct code, the system will display information about
the C-IQ products you have just activated.
✎The system will inform you if an incorrect code has been entered, and/or if your
system software is not capable of processing the encrypted information.
☞In these cases, select either “OK”or “C-IQ Service”, if you wish to establish contact,
and confirm by pressing the right rotary control.
It is possible to operate the system without activation. Destinations can be entered.
Navigation information, however, will only be provided for activated areas and for
activated services.
40
C-IQ – INTELLIGENT CONTENT ON DEMAND
Navi ID
Initial IDZ?
Navi ID: 8Q6S 7ED4
CD EUR 2003/01 NT
SW ID: 0046
Code Input
OK Quit ?
8QR5-Z4AK
G __-____6
My C-IQ
You have the choice of obtaining information about your activation status at any time.
☞Select “My C-IQ” in the “C-IQ” menu.
☞Select “Active products” if you wish to find out more about the products you
have activated.
☞Select “Starting soon” if you wish to view details of products you have received
which will soon be active.
☞Select “Expiring soon” if you wish to find out which service products you currently
have in use and for how long they will continue to be available.
☞Select “Revocated products” to view a list of products which have been revocated.
Prepaid C-IQ
You can purchase country maps for navigation and/or travel info products (e.g. hotel
and restaurant guides) at a flat rate and in advance for use on a daily basis, but
without having to specify the actual days concerned. This means that you can always
have the correct data at your fingertips for making short trips abroad or taking a
weekend trip. With the “prepaid” service the information must be activated on the
calendar day on which it is to be used. Once you have purchased your prepaid days
from the C-IQ Service (www.C-IQ.net or 00800 99 33 33 33) they can be activated in the
navigation system in the normal manner by means of an access code. Please ensure
that the corresponding map CD has been inserted. For more detailed information
concerning this option contact the C-IQ Service.
☞Enter the activation code (access code) which you obtained for your prepaid C-IQ
product.
☞Select “Prepaid C-IQ” in the “C-IQ” menu.
☞Select “Prepaid Navigation” or “Prepaid Travelinfo”, depending on the type of
C-IQ content you wish to activate.
✎The status of your prepaid content will be displayed. It indicates the number of
remaining days of use.
☞You can access a list of content for the selected category via the Lsymbol.
✎The “Z” symbol will take you back to the previous menu and you can access help
for the current C-IQ topic by pressing “?”.
☞Select the product you require from the list in order to activate it for the current
calendar day.
41
C-IQ – INTELLIGENT CONTENT ON DEMAND
English
Preview
Together with your map and travel information software you will also receive the
opportunity to inspect different products free of charge before ordering them. You
can have the system display the status of this preview:
☞Select “Preview” in the “C-IQ” menu.
:You will see the status of your preview options. It contains the number of map and
travel information products that you are still able to test free of charge.
☞You can access a list of possible preview products via the Lsymbol.
☞Select the product you require from the list in order to test it for the period of time
indicated.
C-IQ Settings
Set up your system so that you are informed about the status of your activated C-IQ
products automatically and in good time:
☞Select “C-IQ Settings” in the ”C-IQ” menu.
☞Select the number of days (between 1 and 10) you wish to be informed in advance
of the expiry or start of the products you have activated.
☞You can use “Expiring soon” and “Starting soon” to select whether you wish to
be informed in advance and, if so, which products you wish to be informed about.
☞Select “Return” to go back to the previous menu.
✎If you wish to be informed about the expiry or start of C-IQ products when the
system starts up, you can view a list of corresponding products via the Lsymbol.
C-IQ Info
Here you will find general information about the C-IQ products on the map CD you
have loaded.
☞Select “C-IQ Info” in the “C-IQ” menu.
✎This option is only supported by certain map CDs.
C-IQ Service
Here you will find information about your C-IQ Service:
☞Select “C-IQ Service” in the “”C-IQ” menu.
☞Select “Z” to go back to the previous menu.
☞Select “PC-IQ” to establish telephone contact with the C-IQ Service Centre.
✎The “PC-IQ” option is only active if a telephone module is connected to the
navigation system (this function is in preparation).
42
C-IQ – INTELLIGENT CONTENT ON DEMAND
Info Points function
Visual and audible indication of important points along your route. Different
providers of travel and traffic information have optimised these specifically for
navigation systems. This includes information about fixed speed camera installations
or other safety relevant information (e.g. schools, kindergartens, etc.) and places of
interest to tourists. If you have activated such a product by means of a C-IQ access
code, the Info Points function can be activated and deactivated.
The Info Points function can be activated as follows:
☞In the “Settings” menu , select “Info Points”.
☞Visual display of Info Points can be switched on using the “Active” option.
☞With the “Audible Warning” option, you can additionally activate an audible
signal announcing an Info Point.
:As you approach an Info Point, the navigation system displays a corresponding
message about the appropriate point.
✎“i” will give you more details about this Info Point. With some categories (e.g. in
the case of hotels and restaurants), it is possible to transfer the Info Point directly
into the guidance facility and plan a route to it.
✎Using the Info Points function in conjunction with the fixed speed camera
information will help you increase your awareness as you drive through areas which
have been classified by the authorities as particularly relevant to safety. Although
every care has been taken, comprehensive coverage cannot be guaranteed.
43
C-IQ – INTELLIGENT CONTENT ON DEMAND
English
Main control
A map CD must be inserted into the CD player for some of the functions in navigation
mode.
If the unit is not yet in navigation mode:
☞Press the NAV button.
:The navigation main control is displayed.
The following items are available in the main control:
Destination input
Opens the “Destination input” menu. Here, a
destination address can be entered for guidance.
➽page 45.
Via point input
Opens the “Via point input” menu. Here via points (stops) can be entered on your
way to the destination address. ➽page 50.
Guidance
This option provides access to the guidance screen and activates the guidance
function. Additionally, access to various information screens such as current car
position, trip computer, or traffic information is available. ➽page 52.
Traffic info
Use this option to access information about current traffic conditions analysed by the
navigation radio via RDS-TMC. ➽page 59.
✎To do this, you must have C-IQ Traffic info data activated.
Address manager
Opens the “Address manager” menu. The address manager enables management of
frequently used addresses for destinations and via points. ➽page 65.
C-IQ
Use this option to manage your C-IQ data. ➽page 39.
Emergency
Opens the “Emergency” menu. Here, information on the current position of the car
and geographic position (GPS position) is obtained. ➽page 67.
Stop guidance
Use this option to switch off the navigation display and the audible information. The
system’s navigation functions remain active in the background.
☞Press the NAV button to reactivate the navigation.
Settings
Opens the “System Settings” menu. In this menu, many navigation settings can be
customised. ➽page 68.
Games
Pass the time with one of the available games. (For your safety, of course, only when the
vehicle is stationary.)
44
NAVIGATION
Main control
Destination input
Via point input
Guidance
Traffic info
Destination input
Destinations may be entered in several ways:
–Entering city, road and house number or junction by means of the “typewriter.” See
the following page.
–Loading an address stored in the personal address book. ➽page 65.
–Recall one of the last 20 addresses used for guidance.
–Selecting a specific destination (e. g. hotel, petrol station, railway station) from the
database on the map CD. ➽page 48.
–Entering the geographic coordinates (GPS position) directly, e. g. when the
destination is not on a digitised road. ➽page 49.
–Transferring a destination from the travel guide information (contained on certain
map CDs)
Destination input menu
☞In the main control, select “Destination input”.
:The “Destination input” menu is displayed.
In the destination input menu, the following choices
are available:
New address
Input country, city, road, number or junction or special
facility.
Load address
Loading an address stored in the address book.
Last destin.
Load one of the last 10 addresses used for guidance.
Info on car pos.
Loading a special facility in the vicinity of the current car position (depending on the
loaded map CD, hotels, restaurants, petrol stations, rest stops, garages, etc. may be
available for this purpose).
Geo. Long-/Latit
Entering a destination by means of GPS coordinates (geographic latitude and longitude).
Travel info
If you have enabled a C-IQ Travel Info product (e.g. Varta, Michelin, etc.) you can
search specifically for particular facilities and transfer them directly as the destination.
Entering a new address
An input wizard will help you enter a new address. It will lead you step by step
through all the necessary entries such as country, city, road, house number or junction
and required routing criterion.
✎Destination input functions via post codes, Quick Access, house numbers and travel
info is only supported if the map CD is inserted.
✎Destination input functions via post codes and Quick Access are not supported by all
map CDs.
NAVIGATION
45
English
Destination input
New address
Last destin.
Info on car pos.
Load address
1st step: City or postal code
☞Select “New address” in the destination input menu.
:The display automatically shows “City:” and the
typewriter window, the name of the last
destination city is already displayed.
☞If you want to enter a destination address in the
city shown, simply select “–” (only available if
map CD is inserted),
or:
☞Enter a new city name or postal code via the
“typewriter”,
or:
☞Select the ¯list symbol and choose an entry in the database.
✎If several database entries have the same name, the cursor automatically moves to
the ¯symbol. Select the required entry type from the list.
☞Confirm your selection with “–”.
■Change country
✎The currently selected country appears as a country code in the bottom left of the
typewriter window when a city is entered.
☞If you wish to change the destination country,
move the cursor to the country code and confirm
your entry.
:The list of countries stored on the current map CD
appears.
✎Countries not currently activated appear in “< >”.
☞Select the required country from the list.
✎You can also enter destinations in countries which have not been activated. You
will then only receive directions until you reach the border of that country.
■QXS - Quick Access (to destination addresses via road names)
This function is particularly useful for reducing the input time for unusual road names.
If the loaded map CD supports this function, the quick access symbol Šwill appear in
the window for entering the city name.
☞Select the Šsymbol in the typewriter window.
☞Enter the road name.
:Once the complete road name has been entered, only the initial letters of the cities
in which a road with that name is located will appear in the typewriter window.
☞If necessary, you should now enter the required city name and confirm your entry
with “–”.
NAVIGATION
46
Country
<ESPAÑA>
FRANCE
<ITALIA>
UNITED KINGDOM
City:W_
A...E... .....O..
...U...Y...
I
¡‰
g¯Z®–
2nd step: Road
:Once the city has been entered the input wizard automatically jumps to the
“Road:” input menu.
☞Enter the name of the road using the “typewriter” or select a name from the list
using ¯.
3rd step: House number or junction
If house numbers are available for a selected road, they can be entered with a separate
input menu. If no house numbers are available, the system automatically jumps to the
“Junction” input menu.
If no junction is available, this step will be skipped.
:After confirming the road name with “–”, the input menu for the house number
or junction appears.
☞Enter the required house number or junction.
✎Within the database, certain ranges of house numbers are combined, the entered
house number being in such a range. In such a case, the navigation system will lead
you to the entered house number range.
✎In some cases, the navigation system will also correct your entry. If for example you
have entered house number 83 but only numbers up to 51 are stored on the map
CD, the system will automatically correct this to 51.
✎If a house number was entered when inputting the destination, you will only be
guided to the selected street if the map CD is not inserted (corridor mode).
4th Step: Route selection
The required criterion for route planning can be modified even after all data for the
destination has been entered.
A detailed description of the route criteria can be found under “Route selection” on
page 56.
Once the route criteria are selected, the system jumps to the guidance screen and
begins planning the route. Within only a few seconds you will begin to receive
guidance information.
Directly to guidance
While using the input wizard, you can, at any time, jump to guidance, e.g. if certain
information on the destination address is unavailable (house number, junction) or if
you wish to be guided to the city or town limits only. In that case, proceed as follows:
☞Enter at least the name of a city as described earlier.
☞After input, select the ®symbol in the lower line of the input menu.
:The guidance screen appears.
✎The route is being planned.
For further information about guidance, see the chapter entitled “Guidance” on page 52.
NAVIGATION
47
English
Special destinations (POIs)
You may also input the destination address by selecting special facilities (POI = Points
of Interest) stored in the database. These include e.g.:
–airports,
–hotels,
–petrol station,
–car repair garages
–car parks, etc.
Depending upon the information already entered in the destination input screen, a list
of general interest facilities appears which are present on the current map CD.
✎Destination input via POI s is only supported if the map CD is inserted.
Special facilities of national importance
☞Select “New address” and use the input wizard to select the required country.
☞Then, select the ‰symbol in the lower line of the input menu.
:A list of the categories of points of national interest is shown.
☞Select the required category (e.g. AIRPORT, FERRY...).
:If more than four facilities are stored for the selected category, the “typewriter”
will be displayed.
✎For up to four stored facilities, the list will appear immediately.
☞Enter the name of the required facility or select the ¯symbol for the list display.
☞Confirm the input using “–” or select an entry from the list.
Special facilities in connection with the destination
☞Select “New address” and use the input wizard to enter the required country and
the name of the required destination.
☞Then, select the ‰symbol in the lower line of the input menu.
:A list of categories of special facilities is shown.
✎For smaller towns, it may be that only the “CITY CENTRE” option is available. If you
select this option, the navigation system will guide you to the city centre.
☞Select the required category (e.g. HOTEL, PETROL STATION...).
:If more than four facilities are stored for the selected category, the “typewriter”
will be displayed.
✎For up to four stored facilities, the list will appear immediately.
☞Enter the name of the required facility or select the ¯symbol for the list display.
☞Confirm the input using “–” or select an entry from the list.
NAVIGATION
48
Special facilities in the vicinity of the current position
You may also set a destination address by selecting a special facility in the vicinity of
the current vehicle location.
☞Select “Info on car pos.” in the destination input menu.
:A list of categories of special facilities is shown.
☞Select the required category.
:A list of facilities pertaining to the selected
category, located in the vicinity of the current
vehicle location, appears. Additionally, distance
and direction to the facilities are shown.
☞Proceed as described on the previous page.
Note:
You will always see a list of facilities from “Info on car pos.”, even if there is no
facility from the selected category directly at the car position.
The facilities list is sorted by distance to the car position, i.e. the facility closest to the
car position will be first in the list.
Destination input via GPS coordinates
If you know the GPS coordinates of a destination, you
may enter them directly.
☞In the main menu, select “Destination input”
☞Select “Geo. Long-/Latit” in the “Destination
input” menu.
:The GPS coordinates input menu appears.
☞Mark the desired coordinate using the cursor.
Confirm by pressing the right rotary control.
☞Next, set the required values for degrees, minutes, seconds and north/south or
east/west. Confirm the destination input with “OK”.
:The navigation system compares the GPS coordinates you entered with the data on
the current map CD and plans the route.
Notes:
If the destination is beyond the digitised roads, the system will guide you along digitised
roads as far as possible. The system will then display the linear direction and the distance
to the destination.
If the GPS coordinates you entered should be outside the limits of the current map CD,
the system will display an error message.
Destination input via GPS coordinates is only supported if the map CD is inserted.
NAVIGATION
49
English
Railway station
BAHNHOF WILHELMSDO
24 km
BAHNHOF USINGEN
26 km
Quit
GPS coordinates
OK
50°34'06" North
08°30'18" East
Via point input
If you wish to visit other locations en route to the
entered destination address, these can be stored as
via points. The navigation system then plans the route
to include the via points in the given sequence before
the destination address is reached.
When you reach a via point, you will hear “You have
arrived.” The navigation system will immediately begin
to plan the route to the next via point or the final
destination.
In the address manager or on the “Via points” information screen you can delete
via points you have not reached yet or which you do not wish to visit any longer.
➽page 58 or 65.
☞In the main control, select “Via point input”.
:The “Via point input” menu appears.
The following options are available in the “Via point input” menu:
New address
Input country, city, road, number or junction or special facility as via point.
Load address
Loading an address stored in the address book as a via point.
Last destin.
Recall one of the 10 addresses last used for guidance to load as a via point.
Info on car pos.
Loading a special facility in the vicinity of the current position of the car.
Geo. Long-/Latit
Entering a destination by means of GPS coordinates (geographic latitude and longitude).
Travel info
If you have enabled a C-IQ Travel Info product (e.g. Varta, Michelin, etc.) you can search
specifically for particular facilities and transfer them directly as the via point.
The input of a via point is identical to the input of a destination address.
Viapoint input is limited in the same way as destination input when the map CD is not
inserted.
NAVIGATION
50
Via point input
New address
Last destin.
Info on car pos.
Load address
Delete via points not reached
Via point which you have not reached or which are no longer desirable to you must be
deleted from the via point list so that the navigation system may plan the route to the
next via point or to the final destination. If a not reached via point is not deleted, the
system will continue to try and guide you to this via point.
Via points can be deleted in the address manager or on the “Via points” information
screen, ➽page 65 or page 58.
Notes:
The maximum number of stored via points is 25.
The via points are targeted in the order in which they are entered.
For guidance to the via points, the system automatically uses the route planning
criterion for the final destination.
It is possible to enter new via points en route to the final destination at any time.
Once a via point has been reached (“destination reached”), it is deleted from the list
of via points.
If you enter a new destination you will be asked whether you also wish to delete the
via point list. If you answer “No,” the remaining via points will be retained for the new
destination address.
Via points are not stored in the list of last destinations (destination input and viapoint
input).
Via points cannot be stored with “Store address” in the address manager.
NAVIGATION
51
English
Guidance
Guidance screen
The guidance screen appears as soon as you activate the guidance.
The guidance screen displays the following information:
1Road direction arrow: The arrow indicates the course of the road.
2Simplified presentation of the next turn-off prompt (early warning).
3Status field. Display of the following possible information:
- Remaining driving distance
- Remaining travel time
- Estimated time of arrival
- Current time
- Speed limit on the current route section.
You can configure the status field in the “System settings -> Guidance screen”
menu. ➽page 69.
4Option field. Move the cursor to the required symbol and confirm:
Z: Return to the main control
ª: To “Alternative route” menu. ➽page 64.
U: Display and select route criterion. ➽page 56.
I: To information screens. ➽page 57.
5Distance to the next change in direction.*
6You are in an area with incomplete map information.
7Road into which to turn at the next announcement.
8CD symbol
Flashing black: The navigation computer is loading map data for the navigation
corridor. The map CD should not be removed during this time.
Once a minimum amount of data for the corridor has been loaded, a message will
be displayed saying that the map CD can be removed.
Flashing grey: Please insert the map CD (the navigation computer needs to reload
the map data).
NAVIGATION
52
250 m
AVORY RD 16.6km Accident
ªª
ZZ
IU IU
5,6 km
14:45
!6600 m
7
5
2
3
6
11
4
89
10
1
9Stationary traffic display: As soon as any traffic obstructions reported by TMC
pertain to the planned route, a brief message appears, indicating the distance to
the nearest obstruction and its type.
This function can be activated/deactivated from the menu “Settings -> Guidance
screen”. ➽page 69.
0As you approach a crossroads or junction, the detailed turn-off prompt will be
displayed here.
In addition, directional changes are announced with audible messages.
qSpeed warning: Appears when you reach or exceed the legal speed limit for the
route section you are currently driving on. ➽page 68.
AWARNING: No responsibility is accepted for the correctness of the speed limit
information provided by the navigation system; it may not always reflect the currently valid
regulations. Always observe the applicable legal speed limits and traffic regulations. The
vehicle speedometer must always be given priority for display of the vehicle speed.
* Units displayed are dependent upon the system configuration. Refer to page 68, chapter
“System settings.”
NAVIGATION
53
English
Audible messages
During guidance, the navigation radio will provide acoustic routing information in
addition to the symbols on the guidance screen. Commonly, the directive to turn into
another road consists of two voice messages:
an early warning
e.g. “Right turn ahead”
and
the instruction to turn
e.g. “Turn right in 200 metres”
“Turn now” advice
In addition to information regarding turning, the system also provides “turn now”
advice, which is output directly at the turn-off point.
✎The “Turn now” advice can be deactivated in the “System settings - Language”
menu.
Improved acoustic guidance information
In many countries, “speaking” road signs are available for main road slip roads (e.g.:
“Take exit number 7 and follow the B 429”).
Repeating voice message
Did you miss the last guidance message or didn’t you fully understand it?
☞Press the {button.
:You will hear the current guidance message.
Did you ignore the last message?
If you did not follow the last guidance message or if you were not able to follow it
due to traffic conditions (road works, etc.), the system will, within a few seconds, plan
a new route from the current position of your car to your destination.
Convenient resumption of guidance
Following a stopover (ignition off) the navigation radio can continue the previous
guidance upon request.
NAVIGATION
54
ª
Z
IU
7,6 km
14:45
2200 m
AVORY RD.
250 m
ª
Z
IU
5,6 km
14:45
AVORY RD.
Road direction arrow
On longer route segments without junctions or
crossroads, an arrow is displayed indicating the course
of the road over the next 100 m or so. In addition, a
reduced diagram of the next turn-off prompt appears
on the left, above the route direction arrow. Thus,
the driver is always warned in advance of the next
change of direction.
Shortly before the change of direction, the detailed
turn-off prompt appears.
Guidance beyond digitised roads
If you leave a digitised road, the arrow pointing to
the nearest digitised road will appear automatically.
☞If that is the case, continue in the direction of
the arrow until you reach a digitised road.
As soon as you return to a digitised road, you will
receive destination guidance again.
Areas with limited road information
In some areas, not all of the information on a road is available on the map CD. Thus,
for example, turn-off prohibitions, information on the direction of travel in a one-way
street or prohibited entry into a pedestrian zone may be missing. The navigation radio
will display a warning if you drive into such an area. Local traffic laws always take
precedence over navigation system instructions.
At the top left of the guidance screen, you will see the !symbol, as long as you are in
an area with limited road information.
AAlways observe the road signs and motor vehicle traffic regulations.
NAVIGATION
55
English
B49
ª
Z
IU
7,6 km
14:45
5400 m
200 m
5,6km
11:23
ª
Z
IU
Route selection
During guidance, you may also modify the route criterion and activate or deactivate
dynamic route planning. The system will then plan a new route taking into account
the new setting of the current position of your car.
☞In the guidance screen, select the symbol for route selection (on the basis of the
setting in the destination input U,V,Wor X).
The following options are available for route class:
–Fast: If you prefer a fast route
–Short: If you prefer a short route
–Main roads: If you prefer expressways
–No main roads: Avoids expressways
In addition, you can bypass toll roads, ferries and tunnels when planning your route:
☞Activate the required option if you want to use as few toll roads, ferries or tunnels
as possible.
:A check mark appears in front of the option.
✎Availability of these functions depends on the map data used. If route planning is
not possible without the selected exceptions, toll roads, ferries and tunnels are
included in route planning.
■Dynam. route
For activation of dynamic route planning, ➽page 69.
✎The route selection function is only available if the map CD is inserted.
NAVIGATION
56
Route selection
Dynam. route
Fast
Short
Main roads
Information during guidance
During guidance, you can call up several information
screens:
☞Move the cursor to the ™symbol and confirm.
☞The list of information menus appears.
The following information menus are available:
Route list
This option is available as soon as a route has been
planned.
The list of segments of the planned route appears.
☞You can scroll through the list by turning the right
rotary control.
☞Confirm the required entry by pressing in order to
view the complete road name.
☞Select “Return” to quit the road list.
Event on the route
This information menu is only available if the radio is
receiving a station transmitting traffic information
and if one or more traffic obstructions are reported
on your route.
A list of segments for which traffic obstructions have
been reported appears. The list is sorted on the basis
of the location of each obstruction on the route.
☞Select a report in order to access detailed
information about the traffic obstruction.
More detailed information about this function can be found in the “Traffic info”
chapter on page 59.
Car position
Display of current vehicle location with country code,
city, road, and, if available, house number.
If you are located beyond a digitised road, the screen
will display the GPS position (geographic longitude
and latitude).
✎The GPS position can be accessed at any time via
the “Emergency” option in the main control.
NAVIGATION
57
English
Travel data
Route list
Event on the route
Destination
Via points 2
Route list
B277 0.5km
Ab Anschl 0.7km
A45 18.8km
B49 0.3km
Event on the route
A67 -> 109km
B43A -> 126km
Return
OAKRIDGE
PARK AVENUE
GB
Displaying/deleting via points
If via points have been entered for the current
destination, the “Via points” option will be active.
The number of via points still to be reached also
appears.
☞Select the required via point from the list in order
to view details or delete it.
Destination
Display of current destination address with Name (if
entered), country code, city, road, and junction.
GPS / Compass
Display of the following information:
1. GPS reception status: Displays the number of GPS
satellites received. With an unobstructed view of
the sky, up to 8 satellites may be displayed.
2. Current driving direction (compass). The arrow
always points north.
3. Date and time
Trip computer
The following information appears in the “Trip
computer” information menu:
–Current speed
–Average speed
–Maximum speed so far
–Distance travelled
–Time travelled
■Resetting values:
☞Confirm with “O”.
☞Confirm the deletion with “Yes”.
☞All trip computer values are reset to zero.
■Speed warning:
You can enter a speed above which an alarm will sound. To set the speed limit, see
“Speed” on page 68.
NAVIGATION
58
Via points
WETZLAR >
DARMSTADT >
D
Return
SIEMENS VDO
WETZLAR
PHILIPSSTRASSE
House number: 1
15.03.2003 8:12
7
Return
Trip computer
55 km/h
36 km/h
167 km/h
435 km
Traffic information
Use the “Traffic info” option in the main control to
obtain information about traffic conditions in three
different categories:
–At the car position
–At the destination
–On the route
✎To access traffic information, the radio must be tuned to an RDS TMC station.
✎Please note that the selected RDS-TMC station may not provide any traffic
information relating to your destination if the destination is located outside the
station range.
✎You must have C-IQ Traffic info contents activated to ensure this function.
■At position
All traffic obstructions in the vicinity of the current position of your car transmitted by
the RDS-TMC station are displayed here.
■At destination
All traffic obstructions in the vicinity of the selected destination transmitted by the
RDS-TMC station are displayed here.
■On the route
All traffic obstructions on the route are displayed.
✎If no traffic information is received or there are no traffic obstructions on the route,
the corresponding menu items will be greyed out.
Viewing details relating to traffic information
☞Select the required traffic report from one of the three lists (“At position”, “At
destination”, “On the route”) in order to view details relating to traffic
information.
:The first details screen appears:
The following information is available:
–Road affected
–Distance to the start of the segment in which the
traffic obstruction is located;
–Length of the section in which the traffic
obstruction is located;
–Type of obstruction (e.g. road works, stationary
traffic, closed road).
As soon as you enter the segment affected by the traffic obstruction, the
distance-to-go information will disappear.
k
NAVIGATION
59
English
Traffic info
At position
At destination
On the route
On the route
Roadworks
A6
R60 km
8.6 km
☞By turning the right rotary control, you can access
two further screens containing details about the
selected traffic obstruction.
:The second details screen indicates the section in
which the traffic obstruction is located and the
third, the information about the obstruction
provided by the TMC provider.
:If there are traffic obstructions on the route, the
navigation system will also show you the estimated
delay that they are likely to cause. This is shown in
the third details screen.
☞Press the right rotary control in order to return to
the list of road obstructions.
TMC traffic information independent of radio station
(with optional MT 5011 TMC receiver)
With the optionally available MT 5011 dynamic TMC receiver, you are always informed
of the current traffic situation. The MT 5011 receives the current local TMC traffic
information regardless of the radio station being listing to.
☞Activate the “Ext. TMC Receiver“ in the “Settings –> TMC source” menu, in
order to use the TMC receiver as the source for traffic announcements.
✎The new setting is only active after re-starting the system.
✎The TMC traffic announcements received by the TMC receiver are then used
exclusively for navigation, regardless of the radio and Info menu settings.
Selecting a TMC station:
☞In the navigation main menu, select “Traffic info”.
☞Select “TMC Provider” in the “Traffic info” menu.
☞Select the Lsymbol.
☞The list of available TMC stations is displayed.
☞Select the desired station from the list.
✎If the selected TMC station can no longer be received, the TMC receiver switches to
“Automatic” and searches for the TMC station with the strongest signal.
✎Select “Automatic” for the station with the best reception to be automatically
selected for evaluation of the TMC data.
☞Every time the ignition is switched off, “Automatic” mode is activated
automatically.
NAVIGATION
60
A6
Mannheim ->
Heilbronn
Viernheimer Kreuz
Mannheim
TMC Provider
2 km queuing
traffic
Calculated delay:
9 minutes
Dynamic guidance with TMC
With RDS TMC (Traffic Message Channel), the current traffic situation is taken into
account when planning the route to your destination. You will be informed, for example,
of accidents, congestion or construction sites as soon as such a traffic situation occurs.
If you approach the traffic obstruction, the automatic detour option is activated and
the navigation system will plan, if required, an alternative route.
✎TMC has not yet been introduced in all countries and is not supported by all RDS
stations.
✎In order to be able to use dynamic guidance with TMC, you must have enabled C-IQ
data with Traffic info.
How TMC traffic announcements are made
If TMC messages are available for your planned route, they will also be announced as
voice messages.
Repeat announcement
☞Press the {button.
:You will hear the current destination guidance message and the most recent TMC
message.
TMC traffic information on the guidance screen
If a traffic obstruction occurs ahead of you on the
planned route, you will see information about the
obstruction on the top line of the guidance screen.
Information appears regarding the type of traffic
obstruction and the distance to the start of the
segment in which it is located. Details about the
traffic obstruction can be accessed via the “Event on
the route” information menu. ➽page 57.
As you approach the traffic obstruction, the detour
option is activated. You will hear an audible signal
and the cursor will jump automatically to the top line
of the guidance screen.
✎The display of the traffic obstruction in the top
line of the screen can be deactivated. ➽page 68.
NAVIGATION
61
English
†43km Stationary
30 m
ª
Z
IU
86 km
21:48
†5,7km Stationary
ª
Z
IU
23 km
21:57
3400 m
Bypassing a traffic obstruction locally
When you approach the last exit before reaching a traffic obstruction, the navigation
system will alert you and offer you the option of planning a detour route.
As soon as a traffic obstruction is detected on your route and the detour option is
displayed on the guidance screen:
☞Confirm the detour option in the top line of the guidance screen.
:The detour menu is displayed.
☞Confirm “Plan a detour?” with “Yes,” if you wish to bypass the traffic obstruction.
☞Select “No,” if you do not wish to plan a detour.
:If you answer “Yes”, the navigation system will
plan a new route in a matter of seconds. A details
screen will soon appear (diversion, time delay/
saving).
☞Confirm the planned detour with “Yes” or reject
it with “No”.
✎“L” can be used to display a road list for the
detour.
✎If you reject the planned detour, the direct route (which might go through the
traffic obstruction) will be planned.
✎This function is only available if the map CD is inserted.
NAVIGATION
62
Accept alteration?
Alternative route
Distance: +9.0 km
Time: +13 min
Yes No
L
Dynamic route planning
Unlike dynamic guidance, which provides information about traffic conditions on your
route and on request about local traffic conditions, dynamic route planning takes into
account the whole of the current traffic situation in a configurable area (horizon) in
the vicinity of the current position of the car. If a traffic obstruction (e.g. stationary
traffic) is reported via TMC for the planned route, the navigation system will analyse
the information and calculate the anticipated delay.
If there is a traffic problem on the planned route, you will be informed of this by the
navigation system and may decide whether the system should take a detour by
changing the route in order to avoid the segment concerned or whether it would be
more sensible just to drive through the problem. You should base your decision on the
anticipated delay calculated by the system.
✎The delay is calculated by the navigation system on the basis of the data transmitted
by the TMC station, which may not actually reflect the current situation.
✎This function is only available if the map CD is inserted.
Dynamic route planning can be activated in the “Route selection” menu. ➽page 56.
In addition, you may select criteria on which dynamic route planning should be based
in the “Settings - Dyn. route sett.” menu. ➽page 69.
■Automatic mode for dynamic route planning
Fully automatic dynamic route planning allows you to concentrate on what is
important. The navigation system plans the route, taking into account the current
traffic situation without you noticing.
☞Activate the “Automatic” option in the “Settings –> Dyn. route sett.” menu.
✎When Automatic mode is activated, no information is displayed regarding present
traffic problems. The route is always calculated based on the current traffic
situation received via TMC.
✎Automatic mode is switched off in the factory settings.
NAVIGATION
63
English
Alternative route
During guidance, you can cause the navigation system to plan an alternative route.
Use this function if, for example, you want to avoid stationary traffic not reported via
TMC or if you wish to plan an alternative route.
The alternative route will be calculated for a selectable distance from the current
position of the car.
✎This function is only available if the map CD is inserted.
☞Press the ALT-R button.
or:
☞move the cursor to the ªsymbol in the guidance
screen and confirm by pressing the right rotary
control.
☞If you agree with the displayed distance, confirm
with “OK”.
:The system is planning an alternative route for the
entered distance. A details screen will soon appear
(diversion, time delay/saving).
☞Confirm the planned alternative route with “Yes”
or reject it with “No”.
✎“L” can be used to display a road list for the
detour.
✎If you reject the alternative route, the navigation
system will plan a new route to the destination
from the current position of the car.
:The display shows the guidance screen again.
Cancel procedure
☞Move the cursor to “Quit” and press the right rotary control to confirm.
Change distance
If you wish to change the distance displayed, proceed as follows:
☞Move the cursor to the displayed distance.
☞Press the right rotary control.
☞Change the displayed distance in the range of 1 to 50 km by turning the right rotary
control.
☞Press the right rotary control again.
☞Confirm with “OK”.
✎The system will suggest an alternative route for the planned trip as described
above.
NAVIGATION
64
Accept alteration?
Alternative route
Distance: +9.0 km
Time: +13 min
Yes No
L
Alternative route
10 km
OK Return
Address manager
The navigation radio offers the opportunity of storing at least 30 destination addresses
in a personal address book. In the address book, you can store your destinations
separately under the categories “Private” and “Business”. The “Home” and “Work”
shortcuts, which can be programmed with your home address and business address
respectively, are also available here.
☞Select “Address manager” in the main menu and
confirm the selection.
:The address manager is displayed.
The following options are available:
Storing addresses in the address book.
If you have not yet entered a destination address:
☞Enter the data of the required destination address (city, road, junction or special
facility) into the destination menu.
☞In the main control, select the “Address manager” option.
☞Next, select “Store address”.
☞Select which address books the address should be stored in (private, business, home
or work).
:The name input menu appears.
☞Using the “typewriter,” enter any string of up to 15 characters as the name for the
address. Complete the input with “o”.
✎If you do not wish to enter a name, select “o” directly.
:The address is now stored in the selected address book.
Delete address
Addresses that are no longer needed should be deleted from the address book to ensure
sufficient space for new addresses.
☞Select “Delete address” in the address manager.
☞Select which address book the address should be deleted from (private, business,
home or work).
:A list of the destination addresses stored in the selected address book is displayed.
☞Select an address to be deleted from the list and confirm your selection.
:The selected address is deleted from the address book.
Delete via points
If via points have been entered for the current destination, you can display the via
point list and delete via points from it.
☞Select “Delete via points” in the address manager.
:A list of the stored via points appears.
☞Select a via point to be deleted from the list and confirm your selection.
:The selected via point is deleted.
✎Via points can also be deleted in the “Via points” information menu, ➽page 58.
NAVIGATION
65
English
Address manager
Store address
Delete address
Delete via points
Store current loc.
Store current loc.
Would you like to store a favourite restaurant in the destination memory? You can
store the current position of your car as follows:
☞Select “Store current loc.” in the address manager.
☞Select which address books the address should be stored in (private, business, home
or work).
:The name input menu appears.
☞Enter a name and complete the input with “o”.
✎If you do not wish to enter a name, select “o” directly.
:The current vehicle location is stored as an address.
Deleting list of last destinations
☞Select “Delete last dest.” in the address manager.
:The list of destinations last used for guidance is displayed.
Renaming addresses
If you wish to change the name of a destination address, select the “Rename address”
option in the address manager.
☞Select which address book the address should be edited in (private, business, home
or work).
☞Select the address to be edited from the list and enter a new name for it.
☞Confirm your entry with “o”.
✎The address will be stored under the new name in the address book.
Comments:
30 entries is the guaranteed minimum of entries for the address book. This total can
be up to 200, depending on the data entered (e.g. with or without a name, etc.)
If there is no address in the address book, the “Delete address” option cannot be
selected.
If no via points have been entered for the current destination, the “Delete via
points” option cannot be selected.
Once the address book is full, options “Store address” and “Store current loc.”
are no longer selectable.
NAVIGATION
66
Emergency menu
☞In the main control, select “Emergency”.
:The “Emergency” menu is displayed.
The following options are available in the
“Emergency” menu:
GPS position
Display of the current geographic vehicle location as calculated by the Global
Positioning System. Longitude, altitude and elevation above sea level (provided
adequate GPS reception is available) will be displayed.
Car position
Display of current vehicle location with country code, city and street. This option is
only available if you are on a digitised road.
NAVIGATION
67
English
Emergency
GPS position
Car position
System settings
To customise the navigation functions to your own
needs, you can change several settings.
☞In the main control, select “Settings”.
:The “System settings” menu is displayed.
The following information screens are available:
Speed
In the “Speed” menu, you can configure the following settings:
■Speed correction
The navigation radio uses an average cruising speed to calculate the remaining travel
time and the estimated time of arrival. If required, you can adapt this speed to your
actual average speed.
However, we do not recommend you deviate significantly from the standard value of
100%.
☞Move the cursor to the value after “Correction”.
☞Press the right rotary control.
☞Set the required speed correction.
☞To save the setting press the right rotary control again.
■Speed info
Display of the legal speed limit applicable to the current route segment in the
guidance screen, provided the map CD inserted supports this function. With an
additional audible warning, the reaching or exceeding of this speed limit is indicated
by means of an audible signal.
☞Select “Speed info” to activate the display for the legal speed limit.
✎The speed limit for the current route section stored on the map CD appears in the
status field of the guidance screen.
When the speed limit is reached, the symbol for the speed limit also appears with
unfilled lines. As soon as the speed limit is exceeded, the symbol appears filled in.
✎If no speed limit value is included on the map CD for the current route section or if
there is no speed limit, “--- km/h” is displayed in the guidance screen.
✎Availability of the legal speed limit depends on the map CD used and on the
relevant country.
AWARNING: No responsibility is accepted for the correctness of the speed limit
information provided by the navigation system; it may not always reflect the currently valid
regulations. Always observe the applicable legal speed limits and traffic regulations. The
vehicle speedometer must always be given priority for display of the vehicle speed.
NAVIGATION
68
System settings
Guidance screen
Dyn. route sett.
Language
Speed
■Limit (xx/h)
This enables you to specify a value manually so that a speed warning will be given if
you exceed this speed (useful if using winter tyres, for example).
☞Select “Limit (xx/h)” and set the desired limit for the fixed speed warning.
☞Select “OFF,” if you wish to deactivate the speed warning.
■Aud. Warning
☞Select “Aud. warning” to activate and deactivate the audible speed warning for
the legal and manually set speed limit.
Guidance screen
Here you can select the information which should appear on the guidance screen.
■Show event
☞Select whether traffic obstructions on your route should appear in the top line of
the guidance screen or not.
■Remain. distance
☞Select whether the distance-to-go to the destination or via point should appear in
the status field of the guidance screen or not.
■Times
☞Select which times should appear in the status field of the guidance screen. The
following options are available:
–Current time
–Time of arrival
–Remaining time
–No time display
Dyn. Route sett.
Settings for dynamic route planning
This setting is only possible when “Dyn. route” is activated in the route selection
menu, a TMC station is received (on the radio or via an optional TMC receiver) and a
map CD is inserted.
■Re-route lev.
Use this setting to specify whether the navigation system should plan a detour in the
event of traffic obstructions or not. Five levels are available. The lowest level (1) means
that the direct route should go through the stationary traffic depending on the
conditions and the anticipated delay. If the highest level is selected, an alternative
route should be planned in most cases.
✎Level 3 is a standard setting for dynamic route planning. It is the factory setting
(default).
■Horizon
This setting determines the radius in which the navigation system should take traffic
obstructions into account when planning your route. Select a value between 25 and
150 km.
k
NAVIGATION
69
English
■Delay
Use this value to indicate the anticipated delay time due to a traffic obstruction at or
above which the navigation system should suggest that a new route be planned. Select
a value between 5 and 60 minutes.
✎The anticipated delay is calculated on the basis of the data received from the TMC
station and may deviate from the actual situation.
■Automatic
Switches the automatic mode for dynamic route planning on/off.
✎Automatic mode is switched off in the factory settings.
Language
☞Choose one of the two languages loaded in the system,
or:
☞Select “Other language” to replace one of the two loaded languages with another
language from the system software CD (included).
☞Select the language to be replaced.
:You will be prompted to insert the software CD.
☞Insert the language CD in the CD player of the radio.
☞Follow the system instructions for loading other languages.
✎Some of the extended voice information may not be available for all voices. We
therefore recommend only loading the voice designated as “new” in the desired
language from the software CD.
■Turn now advice
If this option is activated, an additional prompt (e.g. “Now turn right”) will be output
directly before a turn-off.
✎This prompt is activated by default.
Measuring units
☞Choose between the following units of measurement for distance:
–Metric: Display in kilometres and metres.
–Anglo: Display in miles and yards.
–American: Display in miles, half and quarter miles and feet.
Default settings
Select this option in order to reset all user-defined settings to their default values. All
entries in the address book will remain stored.
Mounting angle
To adapt the navigation computer to the mounting angle of the radio in the
dashboard (gyro-sensor compensation). This adjustment need only be made once after
the installation of the radio. See “Setting the mounting angle”, ➽page 20.
NAVIGATION
70
Service
For diagnosing hardware and software problems (code-protected).
The option “Service” is exclusively reserved for service work on the navigation radio
performed by an authorised service company.
System information
The “System information” menu displays information about the software and
hardware version (for service purposes).
Info Points
To activate/deactivate the Info Points function. ➽page 43.
✎In order to be able to use the Info Points function, you must have C-IQ Info Points
data activated.
TMC source
If an external TMC receiver is connected to the navigation radio:
☞Activate the “Ext. TMC Receiver” option to use the TMC receiver as the source for
traffic messages.
☞Activate the “Radio” option to use the internal tuner of the navigation radio as the
source for traffic messages.
✎This new setting will not be activated until you re-start the system (switch off the
system for 1 minute).
Loading software updates
In order to extend the range of functions provided by the unit, you can load new
software versions from a software update CD, if available for your navigation radio:
☞Switch on the radio.
☞Open the front and remove the CD if still inserted.
☞Insert the software update CD into the CD player.
☞A safety check appears. Confirm the check with “Yes,” if you want to overwrite the
existing operating software.
:The new operating software is then loaded automatically. The loading progress is
indicated by a bar.
AOn no account must the ignition or radio be switched off during the loading procedure,
even if no displays appear on the monitor for a while.
:Once loading is complete, you will be prompted to remove the software update CD.
☞Please confirm the completion of the loading procedure with “OK”.
:The radio will then switch itself off automatically.
☞Wait approx. 1 minute before switching the radio back on.
✎The navigation radio is now ready for operation with the new operating software.
✎You may need to change the system language according to your requirements.
NAVIGATION
71
English
In rare instances, your navigation radio may not function the way you expect it to. Before
calling the service department, please read the operating instructions thoroughly and go
through the following check list; it may be possible to quickly remedy an apparent
malfunction.
Symptoms Possible cause / remedy
General
Navigation radio not functioning. No display. • Check the fuse (unit and vehicle) and the connections (see installation
instructions).
Audio or map CD rejected by the unit. The CD may be dirty.
• Clean the CD with a special CD cleaning fluid.
System switches off the sound during driving or
display shows “PHONE IN/MUTE”.
Speedometer signal connected to the wrong pin of the power supply
connector.
• See pin setting ISO chamber A in the installation instructions.
The operating panel of the unit feels warm. No error. The unit always generates some heat.
The display shows “Temperature too high” and
the volume is lowered.
An integrated safety circuit prevents the temperature in the unit from
exceeding a certain value.
• Allow the unit to cool (set lower volume) and wait until “Temperature too
high” disappears from the display.
The egg timer appears and the CD cannot be
ejected.
• Disconnect the power supply from the unit for at least one minute then
reconnect it. If this does not work, return the unit to the Service department.
The telephone is not being detected even
though it has been connected to the radio.
• Call up the initialisation menu, select “Telephone ON” and select “12 V” for
Nokia hands-free units.
Unit not functioning / Not suitable for some
VW/Audi vehicles
Some VW and Audi vehicles have different power supply connector pin
assignments (ISO chamber A).
• Please ask your dealer for a suitable adapter.
Display still showing “INIT”. Will not function. The unit is faulty.
• Take it to the Service department.
Radio
Poor radio reception. • Check if the antenna is completely extended and correctly connected.
• Verify that the supply power negative pole (brown lead) is correctly
connected to earth (vehicle chassis).
If the unit is being installed in VW and Audi vehicles, you will need a power
supply adapter for the antenna.
• Use a suitable adapter (e.g. Votex).
The display shows the frequency instead of the
station name.
The unit is set to a station that does not transmit RDS signals or the
transmitter is too weak.
The required station cannot be set with
automatic search.
The required station is too weak.
• Set required station manually (manual tuning).
• Check if the antenna is completely extended and correctly connected.
“TA Scan” or “TMC Scan” has been activated. The radio only tunes to stations
with traffic news or TMC information.
• You may need to deactivate the “TA Scan” or “TMC Scan” function.
Tuner standard (tuner grid) wrongly set (EUR / USA).
• Check the “Tuner Grid:” option in the “Radio” menu.
The display shows “Tune to next TA station”
and a warning tone sounds.
“TA Scan” is switched on, the selected station, however, is too weak or does
not transmit traffic announcements (TA).
• Deactivate the “TA Scan” function or set another station.
No traffic announcements are being made (CD,
CDC).
• Activate the “TA Scan” function in the “Information” menu.
CD player / MP3 / CD changer
Distorted sound / skips during CD play. Player cannot read CD. CD is damaged or soiled.
CD player does not work. In cold weather conditions, condensation may occur on the laser.
• Wait approximately 5 minutes until the condensation evaporates.
No sound during CD play. Some CDs contain multimedia data which is not recognised by the unit.
• Select the next track until music is heard.
Problems with new copy-protected audio CDs. Some copy protection procedures are incompatible with accepted standards for
audio CDs.
This is not a fault on the unit.
72
TROUBLESHOOTING
Symptoms Possible cause / remedy
Navigation
Display shows “Please insert map CD”. The map CD is required for some functions in navigation mode.
• Insert the C-IQ map CD into the radio CD drive with the label facing upwards.
The number of satellites in the “GPS/Compass”
information menu is 0.
• Ensure that the GPS antenna is not being obstructed by any objects.
• Move the vehicle outdoors if you are in a garage, a car park or a tunnel.
The directions cannot be heard or are very
quiet.
• Press the Info button and set the required Nav volume.
Guidance is not accurate. An inaccuracy of approx. 30 m is within the tolerance limits.
• Please contact your authorised dealer if greater inaccuracies frequently
occur.
The displayed distance to the turning point is calculated to the centre of the
junction (especially for extended junctions and main road exits).
Displayed position does not correspond to
actual vehicle position.
Bad GPS reception for an extended period (e.g. as a result of poor reception
conditions). The position is corrected automatically when adequate GPS
reception returns.
• If necessary wait a few minutes.,
Directions do not correspond to the actual
traffic conditions.
It is possible that the car position calculated by the navigation system is
incorrect at this instant.
The routing may have been changed and does not correspond with the
information stored on the map CD.
The time in the “GPS/Compass” information
menu is incorrect.
• Set the correct time zone in the “INITIALISATION - CLOCK SETTINGS” menu.
Estimated time of arrival displayed on the
guidance screen is incorrect.
• Check the time zone in the “INITIALISATION - CLOCK SETTINGS” menu
(if GPS clock is set).
C-IQ
During guidance, no traffic information is
displayed, even though the selected radio
station is transmitting TMC data.
You do not have a C-IQ Traffic info product activated.
• Contact C-IQ service to activate C-IQ Traffic info contents.
No more directions shortly after crossing the
border. Only the direction arrow is appearing in
the guidance screen.
You are travelling in a country for which you do not have activated C-IQ map
contents.
• Contact C-IQ Service to activate map data for the required country.
Display shows “Please insert correct CD”. • Check that you have inserted a map CD which contains C-IQ data. Map CDs
without C-IQ will not be accepted by the system.
For more information, please contact the service department or your dealer.
Subject to technical modifications and errors.
73
English
TROUBLESHOOTING
Tips for convenient operation
■Cross-border guidance
Owing to the high data volume, the European navigation data is stored on several CD
ROMs (map CDs). In order to nevertheless achieve cross-border guidance, the most
important European cities and roads (Major Roads Europe) are additionally stored on
the map CDs at present. In order to enable cross-border navigation, the C-IQ content
must be activated for the destination and transit countries. Alternatively, route
planning can be performed without activation of this feature if the route is covered by
the connecting road network (Major Roads Europe). In this case, no visual and audible
guidance is available after crossing the border into a deactivated country.
✎For continuous cross-border guidance, it is imperative that the relevant C-IQ content
is activated.
The following alternative input methods requiring the map data from two or more
map CDs are available for activating route planning:
Alternative 1:
Insert the map CD for the destination country. Start route planning and follow the
directional arrow displayed to the next digitised road. As soon as you have reached
the connecting road network, the directional arrow disappears and visual and audible
guidance begins.
Alternative 2:
Insert the map CD for your current location. Start route planning. Owing to the data
volume, you can only enter a destination which is covered by the connecting road
network. When approaching the destination, insert the map CD for the destination
country. Then enter details of the destination and start route planning again.
✎Please note that the connecting road network is used exclusively for route planning
when the navigation CD of the actual location is not inserted.
Alternative 3:
Plan your travel route to a desired border crossing using the navigation CD ROM for
your current location. After crossing the border, insert the map CD of your current
location and start route planning to your destination or to the next border crossing.
74
TIPS & TRICKS
75
MENU OVERVIEW
SOUND
SOUND SETTINGS
RDS MEMO
AUTOSTORE
STATION LIST
PRESET LIST
MANUAL TUNING
PTY SEARCH
RADIO SETUP
INITIALIZATION
TMC SCAN
TA SCAN
NEWS
ANN. LEVEL
GUID. LEVEL
Compression
Comp. rate
CD SETUP
INITIALIZATION
MANUAL SEARCH
REPEAT TRACK
RANDOM
SCAN
LOUDNESS
SOUND STYLE
SDVC
SOUND SETUP
INITIALIZATION
Bass
Treble
Balance
Fader
Rock
User
Flat
Jazz
Vocal
Pop
Classic
Sound reset
Leveller
Loud low
Loud high
Bass freq.
Treb freq.
RADIO BAND
FM A
FM B
FM AST
MW
MW AST
SW
LW
RADIO - Menu
INFO
Telephone
Tel signal
Tel. level
Beep type
Beep level
INITIALIZATION
Start vol.
Clock settings
On off logic
Display
Loudspeaker test
Security code
Clock format
Timezone
CD·C·MP3
Menu
English
76
MENU OVERVIEW
NAV
DESTINATION INPUT
VIA POINT INPUT
GUIDANCE
TRAFFIC INFO
ADDRESS MANAGER
C-IQ
Travel info
Long-/Latitude
Info on car pos.
Last destin.
Load address
New address
Country
City
Road
Number / Junction
Route selection
EMERGENCY
STOP GUIDANCE
SETTINGS
GAMES
Speed
Route list
Event on the route
Destination
Car position
GPS / Compass
Trip computer
Guidance screen
Dyn. route sett.
Language
Measuring units
Default settings
Mounting angle
Service
Show event
Remain. distance
Current time
Time of arrival
Remaining time
No time display
Speed info System info
Info points
TMC source
Prepaid navigation
Prepaid travel info
Code input
My C-IQ
Preview
Prepaid
C-IQ settings
Navi ID
C-IQ info
C-IQ service
Store address
Delete address
Store current loc.
Delete last dest.
Rename address
Delete via points
A2C53105374
043653105374
08/2004 ri
Car Multimedia Systems.
VDO Dayton. The Car Brand.

Navigation menu
