AGILE MMDS
UPCONVERTER
MA4061
12W POWER
AMPLIFIER
MA4070B
INSTALLATION AND OPERATION GUIDE
FOR SYSTEM OPERATORS
WaveCom Electronics Inc
MA4061/MA4070 Manual; MAN1L2301 Rev02 (Oct 2001)
Approved: R. L.
ii
Proprietary to WaveCom Electronics Inc.
All rights reserved.
No part of this publication may by reproduced in any form or by any means or used to make any derivative work (such as translation,
transformation or adaptation) without written permission from WaveCom Electronics Inc.
WaveCom Electronics Inc. reserves the right to revise this publication and to make changes in content from time to time without obligation
on the part of WaveCom Electronics Inc. to provide notification of such revision or change.
WaveCom Electronics Inc. provides this guide without warranty of any kind, either implied or expressed, including, but not limited to, the
implied warranties of merchantability and fitness for a particular purpose. WaveCom Electronics Inc. may make improvements or
changes in the product(s) described in this manual at any time.
MA4061/MA4070 Manual; MAN1L2301 Rev02 (Oct 2001); Approved: R. L.
Specifications subject to change without notice — Printed in Canada
WaveCom Electronics Inc
MA4061/MA4070 Manual; MAN1L2301 Rev02 (Oct 2001)
Approved: R. L.
iii
Thank-you for purchasing this product
and welcome to WaveCom!
You have chosen an innovative solution from a leading
technology design center in the ongoing TV & data delivery
revolution.
No doubt you’ve been thinking that the future of your television delivery system includes new technologies like
Digital TV, Internet Over Cable, Wireless Cable. By selecting WaveCom, you are benefiting from the
same design powerhouse that since 1988 has created custom RF and digital products for technology leaders
like Nortel Networks, Diva Systems and Cisco Systems.
WaveCom designs and manufactures:
✔
✔✔
✔Agile CATV Modulators ✔
✔✔
✔256 QAM Upconverters ✔
✔✔
✔Digital Video Modulators
✔
✔✔
✔Frequency Translators ✔
✔✔
✔Spread Spectrum Devices ✔
✔✔
✔Off-Air Demodulators
✔
✔✔
✔Video-On-Demand Products ✔
✔✔
✔Wireless Cable MMDS ✔
✔✔
✔Wireless Cable LMDS
✔
✔✔
✔Frequency Stackers ✔
✔✔
✔MMDS Transceivers ✔
✔✔
✔Satellite Receivers
and more! Designs to fill the market needs of the CATV industry – both foreign and domestic.
For additional product or corporate information, contact us:
On the web at: www.WaveCom.ca
By sending email to: sales@WaveCom.ca
By telephone: (306) 955-7075
By fax: (306) 955-9919
By snail mail: WaveCom Electronics Inc.
222 Cardinal Cres.
Saskatoon, SK Canada S7L 6H8
WaveCom's Corporate Mandate
is to be a leading worldwide designer and manufacturer of state-of-the-
art communications equipment and components. Through the
remarkable success of our customers and business partners,
WaveCom innovations are achieving this goal.
WaveCom Electronics Inc
MA4061/MA4070 Manual; MAN1L2301 Rev02 (Oct 2001)
Approved: R. L.
iv
SAFETY PRECAUTIONS
1. Before installing and operating this equipment, read all Safety, Installation and Operating sections. Retain
this manual for future reference.
2. Follow all instructions — Failure to do so may result in damage to the unit or severe personal injury.
3. Servicing should not be attempted by the user. There are no user serviceable parts inside. Refer all
servicing to factory qualified personnel.
4. Shock Hazard — An electrical shock hazard exists when the chassis cover is removed as is required to set
internal controls. Always disconnect power from the unit before removing the cover.
5. Cleaning — Do not use liquid or aerosol cleaners. Use a damp cloth for cleaning.
Warning Do not work on the system or connect or disconnect cables during periods of lightning activity.
LES PRÉCAUTIONS DE SÉCURITÉ
1. Avant d'installer ou d'opérer cet équipement, lisez, toutes les sections de sécurités, d'installations et
d'opérations. Gardez ce manuel comme source de référence.
2. Suivez toutes instructions - si non, vous risquez d'endommager la machine ou de vous blesser
sérieusement.
3. N'essayez, pas de réparer cet équipement vous même. Référez toutes revisions nécessaire au personnel
qualifié de la manufacture.
4. Risque de choc - Il y a un risque de décharge électrique qui existe quand la couverture du châssis est
enlevée, comme est nécessaire pour ajuster les contrôlcs internes. Il faut toujours couper l'électricité avant
d'enlever le couvercle pour faire aucun ajustage.
5. Le nettoyage - n'utilisez pas de nettoyeurs aérosols ou liquides. Utilisez un tissu humide pour nettoyer.
Attention Ne pas travailler sur le système ni brancher ou débrancher les câbles pendant un orage du
foudre.
☛ Caution: To comply with FCC RF exposure requirements in section 1.1307, any antenna
which is connected to an MA4061/MA4070 requires a minimum distance of 1.5 meters
between it and all persons.
☛ Im
p
ortant Installation Instructions
WaveCom Electronics Inc
MA4061/MA4070 Manual; MAN1L2301 Rev02 (Oct 2001)
Approved: R. L.
v
INDEX
1.0 GENERAL INFORMATION........................................................................................................7
1.1 System Overview..................................................................................................................................... 7
1.2 MA4061B Module Features .................................................................................................................... 7
1.3 MA4070B Module Features .................................................................................................................... 7
1.4 System Features....................................................................................................................................... 7
1.5 Specifications........................................................................................................................................... 8
2.0 INSTALLATION...........................................................................................................................9
2.1 Unpacking the Unit.................................................................................................................................. 9
2.2 Operating Environment............................................................................................................................ 9
2.3 Power Requirements................................................................................................................................ 9
2.4 Rack Mounting ........................................................................................................................................ 9
2.5 Module Installation/Replacement .......................................................................................................... 10
3.0 OPERATION...............................................................................................................................11
3.1 Front Panel Description ......................................................................................................................... 11
3.2 Front Panel Operating Modes................................................................................................................ 15
3.3 Remote Control Operating Instructions ................................................................................................. 18
4.0 REAR PANEL CONNECTIONS................................................................................................19
4.1 MA4010B - Power/Control Module...................................................................................................... 19
4.2 MA4061B - MMDS Upconverter Card................................................................................................. 21
4.3 MA4070B - Power Amplifier................................................................................................................ 21
5.0 STATUS CODES ........................................................................................................................23
5.1 MA4061B Status Codes ........................................................................................................................ 23
5.2 MA4070B Status Codes ........................................................................................................................ 24
5.3 MA4010B Power/Control Module Status Codes...................................................................................25
6.0 ERROR CODES..........................................................................................................................27
6.1 MA4061B Error Codes.......................................................................................................................... 27
6.2 MA4070B Error Codes.......................................................................................................................... 28
6.3 MA4010B Power/Control Module Error Codes ....................................................................................29
7.0 DETAILED REMOTE CONTROL.............................................................................................31
7.1 Operation ............................................................................................................................................... 31
7.2 Message Format..................................................................................................................................... 31
7.3 Command Structure............................................................................................................................... 31
WaveCom Electronics Inc
MA4061/MA4070 Manual; MAN1L2301 Rev02 (Oct 2001)
Approved: R. L.
vi
7.4 Response Structure ................................................................................................................................ 33
7.5 Detailed Command Descriptions and System Responses ...................................................................... 34
7.6 CRC Calculation.................................................................................................................................... 41
8.0 WARRANTY AND SERVICE POLICIES.................................................................................43
8.1 Warranty Statement ............................................................................................................................... 43
8.2 Service Policies: How to Return an Item for Service............................................................................. 43
8.3 Repair Charges and Warranty Exemptions............................................................................................ 43
APPENDIX A – CRC – 16 Calculations Table.................................................................................44
WaveCom Electronics Inc
MA4061/MA4070 Manual; MAN1L2301 Rev02 (Oct 2001)
Approved: R. L.
7
1.0 GENERAL INFORMATION
1.1 System Overview
The MA4061B is a fully agile commercial quality IF upconverter for MMDS and LMDS applications. Advanced
design permits full frequency agility over the 2500 to 2686 MHz frequency band while still maintaining a phase
noise specification which exceeds the requirement of 64 QAM. The MA4061B is a modular circuit card
designed for use with the WaveCom MA4000 Series. The MA4070B is a solid state, fixed gain 12W power
amplifier for MMDS applications. Each MA4000 card chassis with common MA4010 power supply can contain
up to 2 MA4061B independent frequency agile upconverters, and complementing MA4070B Power Amps in a
4U rack mount configuration. Up to 10 MA4061B’s can also be configured in a MA4000 chassis. This
advanced cost effective upconverter offers high performance, flexibility and space efficiency.
1.2 MA4061B Module Features
• Front panel selectable output frequency from 2500 to 2686 in 62.5 kHz steps
• RF output muted when changing output configuration or phase lock alarm
• High reliability, state of the art design using microstrip MMIC and surface mount technology; conservative
component derating and 100% burn in help ensure reliable operation
• Low power consumption
• Input IF AGC ensures very stable output level, even if input varies
1.3 MA4070B Module Features
• 2W linear transmit power for 64 QAM modulation
• May be operated as high as 7W with video
• High reliability, state of the art design using microstrip MMIC and surface mount technology; conservative
component derating and 100% burn in help ensure reliable operation
• Low power consumption
1.4 System Features
• Local control via LCD and 4 soft touch push buttons
• Remote frequency and level agile via RS232/RS485
• Fully phase locked synthesized oscillators referenced to a TCXO for exceptional frequency stability
• Durable design is reflected in the stainless steel chassis and lexan labels
• International internal switching power supply (100 to 240 VAC)
• Front panel displays IF/RF power
WaveCom Electronics Inc
MA4061/MA4070 Manual; MAN1L2301 Rev02 (Oct 2001)
Approved: R. L.
8
1.5 Specifications
IF INPUT - MA4061B
IF Frequency (center of the band) 44.00 MHz
Channel Pass Band 6 MHz (custom BW possible)
IF Input Level 25 to 35 dBmV (total power)
Impedance 75 ohm
IF AGC enable/disable
RF OUTPUT - MA4061B
Output Frequency Range 2500 to 2686 MHz
Frequency Step Size 62.5 kHz
Output Level -15 dBm to 3 dBm (adjustable)
Frequency Response (Over any 5 MHz band) ±0.5 dB
Spurious Products (2500 to 2686 MHz) -60 dBc
Frequency Stability (10 to 40°C) ±3 kHz (MA4010 TCXO 1 ppm)
C/N In Band -60 dBc (4 MHz BW)
Phase Noise -94 dBc/Hz at 10 kHz offset
Output Return Loss (2500 to 2686 MHz) -20 dB
MA4070B
Output Frequency 2500 to 2600 MHz
(any 100 MHz band available from 2500 to 2700 MHz)
Output Power 12 W (1 dB compression point)
Up to 7 W at sync tip (video)
2 W average (64 QAM digital)
Gain 34 dB ±2 dB, fixed
Gain Stability ±0.5dB (10 to 40° C)
Gain Flatness ±0.3 dB over 6 MHz
Mute Level -60 dBc
Spurious
Inband -55 dBc
Out of Band -55 dBc
Sync Pulse Compression 2 IRE max (analog video, 7 W)
Spectral Sideband Regrowth -35 dBc max (64 QAM, 2 W)
Input Impedance 50 ohm
Output connector N female
Front Panel Indicators DC Power, RF High, RF Low, High Reverse Power
MISCELLANEOUS
Remote Control Interface RS232/RS485
Remote Control Connector RJ45 (in and out)
Operating Temperature 10 to 40°C (50 to 104°F)
IF Input Connector F female (75 ohm)
RF Output Connector SMA female (50 ohm)
MA4010 Power Supply 100 to 240 VAC; 50/60 Hz
Shipping Weight
MA4000 chassis with MA4010 PS 18 lbs. (8.2 kg)
MA4061 Modulator Card (each) 1.2 lbs. (0.6 kg)
MA4070B Power Amplifier Module (each) 6.2 lbs. (2.8 kg)
Dimensions (MA4000 chassis) 19" (w) x 13.7" (d) x 7" (h) (48.3 x 34.8 x 17.8 cm)
Mounting (MA4000 chassis) Standard 19" rack - 4U (7.0")
OTHER FEATURES
Local and Remote Control
RF Output Muting with Visual Indicator
OPTIONS
MA4070B Power/Control Module (MA4011D and/or MA4012D)
FP1 - Frequency Plan 2.5 GHz to 2.6 GHz 2R1 - Additional PS4011D (100 to 240 VAC) Power Supply Module
FP2 - Frequency Plan 2.6 GHz to 2.7 GHz 2R2 - Additional PS4012D (-48 VDC) Power Supply Module
Chassis
8F1 - Front Intake - Fan Tray
Specifications subject to change without notice.
WaveCom Electronics Inc
MA4061/MA4070 Manual; MAN1L2301 Rev02 (Oct 2001)
Approved: R. L.
9
2.0 INSTALLATION
2.1 Unpacking the Unit
Carefully remove the equipment from its packing material and set it on a solid surface, such as a table or
desk. If it appears damaged in any way, notify the carrier, and keep all packing materials for inspection by the
carrier’s agent.
2.2 Operating Environment
The MA4001B chassis includes an active cooling fan tray which forces cooling air from the bottom through to
the top of the chassis. (See options (p 8) for selection of front air intake – rear air intake is factory default). For
adequate ventilation, a space of 1U (1.75”) should be left in the rack, directly above the MA4001B chassis for
warm air exhaust. It is designed to operate at temperatures ranging from 10 to 40oC (50 to 104oF). As with all
electrical equipment, operation at excessive temperature accelerates the deterioration of components. For this
reason, measures should be taken to prevent the build up of excessive heat in the rack.
2.2.2 Antenna Requirements
The MA4070B is used with a user-supplied antenna. Please consult table 2.2A for further information. Mount
the antenna according to the manufacturer’s instructions.
T
TT
TABLE
ABLE ABLE
ABLE 2.2
2.22.2
2.2A
AA
A: A
: A: A
: ANTENNA
NTENNA NTENNA
NTENNA L
LL
LIST
ISTIST
IST
Transceiver Power Antenna Type Antenna Gain Safe Distance
(Watts) (dBm) (dBi) (meters)
1.41 31.5 Omni 10 0.3353
1.41 31.5 Omni 15 0.5962
1.41 31.5 Cardioid Horizontal 20 1.0602
1.41 31.5 Cardioid Vertical 20 1.0602
A self-adhesive RF exposure label is supplied with each MA4070B unit for the user to affix to their antenna.
To operate the MA4070B in compliance with FCC regulations, you must apply the included label on to the
antenna. Peel off the protective backing from the label and affix it to the front of the antenna such that the
label is readable from a distance of 3 feet.
☛ Caution: To comply with FCC RF exposure regulations in section 1.1307, a minimum
seperation distance of 1.5 meters is required between this antenna and all persons.
2.3 Power Requirements
The equipment has an international auto-ranging internal power supply which allows it to be powered from any
100 to 240 VAC; 50 to 60 Hz source.
Check the total current consumption of all equipment on the same line before applying power to the MA4000B
system. Avoid sharing an AC source that feeds heavy motors or other equipment, which require large current
drains.
2.4 Rack Mounting
The MA4000 system is designed for standard rack mounting in a 19” equipment rack. It requires 4U (7.00”) of
vertical rack space. It should be installed in a rack allowing access to the back of the unit. The upconverter
should be isolated from strong RF radiation emanating from local equipment in the rack. Power line transients
that may cause damage to the unit should be avoided.
WaveCom Electronics Inc
MA4061/MA4070 Manual; MAN1L2301 Rev02 (Oct 2001)
Approved: R. L.
10
2.5 Module Installation/Replacement
1. Power off the chassis using the rear panel AC switch
2. Disconnect the RF cables from the rear of the corresponding module
3. Using a screwdriver, loosen the corresponding front panel captive screws until the module is free to pull forward
4. Insert the replacement module and retighten the front panel captive screws
5. Turn on the AC power switch
6. Configure the output frequency and configure IF/RF levels
7. Reconnect the rear panel RF cables
WaveCom Electronics Inc
MA4061/MA4070 Manual; MAN1L2301 Rev02 (Oct 2001)
Approved: R. L.
11
3.0 OPERATION
3.1 Front Panel Description

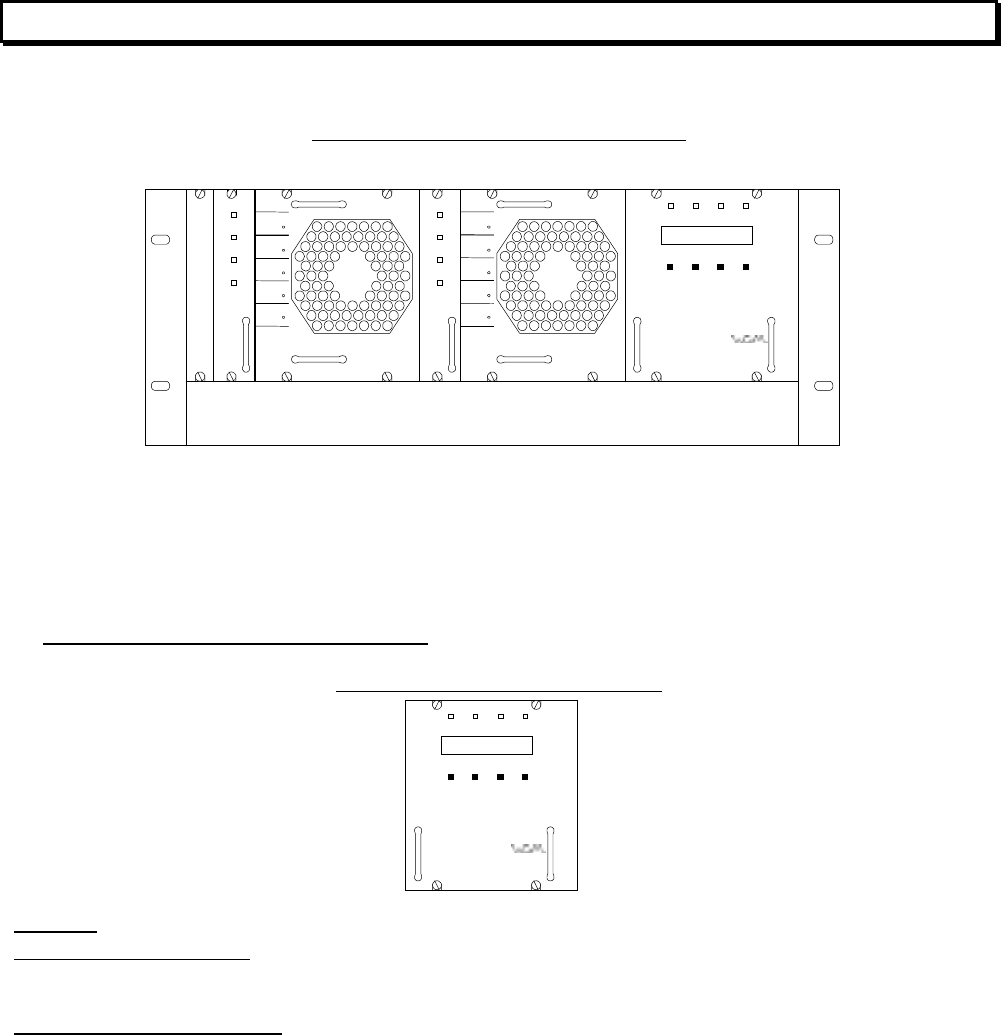

D
DD
DIAGRAM
IAGRAM IAGRAM
IAGRAM 3.1
3.13.1
3.1A
A A
A : F
: F: F
: FRONT
RONT RONT
RONT P
PP
PANEL
ANEL ANEL
ANEL –
––
– MA4200 S
MA4200 S MA4200 S
MA4200 SYSTEM
YSTEMYSTEM
YSTEM
As shown in Diagram 3.1A, the power/control module front panel has an LCD display, four soft touch push
buttons, and 4 indicator LEDs. All other modules have 4 indicator LEDs. Modules are configured using push
buttons on the power supply module, or via the remote interface. If no configuration adjustments are being
made via the front panel controls, the display back light will shut off after a five minute time out. Pressing any
of the front panel buttons will re-enable the back light.
3.1.1 MA4010B Power/Control Module
D
DD
DIAGRAM
IAGRAM IAGRAM
IAGRAM 3.1
3.13.1
3.1B
B B
B : F
: F: F
: FRONT
RONT RONT
RONT P
PP
PANEL
ANEL ANEL
ANEL –
––
– MA4010B
MA4010B MA4010B
MA4010B
DISPLAY
The first line on the display is the Mode Information Line. It shows the settings for the currently selected
module. The possible operating modes depend upon the currently selected module (See Section 3.2, Front
Panel Operating Modes (pp 15 to 17) for a detailed description of the available modes).
The second line on the display is the Status Information Line. The Status Line is divided as follows:
The two leftmost characters are “mX” where X is replaced by the currently selected module address. The
module addresses are assigned starting with module A in the leftmost slot in the chassis and module K in the
Power Supply. The modules in between are lettered B through J. When used with the MA4070B Power Amp
Modules, the MA4061B Upconverter Modules can only be installed in slots A and F. The MA4070B Power
Amp Modules can only be installed in slots B thru E and slots G thru J (as shown in Diagram 3.1A).
The next two characters are “sXX” where “XX” indicate the status code for the currently selected module.
Refer to Section 5.0, Status Codes (pp 23 to 25) for a list of current status codes.
The next two characters are “eXX” where “XX” indicates the error code for the currently selected module.
(This code is only displayed when it is non-zero). Refer to Section 6.0, Error Codes (pp 27 to 29) for the list of
current error codes.
A B C D E F G H I J K
MMDS
POWER AM PLIFIER
WaveCom M A4070B
DC
POWE
R
RF
HIGH
A
LAR
M
RF
LOW
A
LAR
M
HIGH
REV
POWE
R
A
LAR
M
UNI
T
SELEC
T
MMDS
POWER AM PLIFIER
WaveCom M A4070B
DC
POWE
R
RF
HIGH
A
LAR
M
RF
LOW
A
LAR
M
HIGH
REV
POWE
R
A
LAR
M
UNI
T
SELEC
T
WaveC om
MA4061B
POWE
R
MODUL
E
SELEC
T
A
LAR
M
MMDS DIGITAL
UPCONVERTER
RF
ENABLED
WaveC om
MA4061B
POWE
R
MODUL
E
SELEC
T
A
LAR
M
MMDS DIGITAL
UPCONVERTER
RF
ENABLED
POWE
R
A
LAR
M
MODUL
E
SELEC
T
A
U
X
DOW
N
UP MODUL
E
SELEC
T
MOD
E
WAVECOM
ELECT RONICS INC
SYSTEM 40 00
POWER SUPPL Y
WaveCom M A4010B
POWE
R
A
LAR
M
MODUL
E
SELEC
T
A
U
X
DOW
N
UP MODUL
E
SELEC
T
MOD
E
WAVECOM
ELECTRO NICS INC
SYSTEM 4000
POWER SUPPLY
WaveCom MA4010B
WaveCom Electronics Inc
MA4061/MA4070 Manual; MAN1L2301 Rev02 (Oct 2001)
Approved: R. L.
12
The final three characters indicate if local front panel control of the MA4001B chassis is enabled (“L/R”) or
disabled (“_R_”). Remote control of the chassis is always available.
MODULE SELECT BUTTON
The MODULE SELECT button allows the user to select the module to display and/or control (the MODULE
SELECT LED will be lit on the selected module, and the LCD display will indicate the module address in the
status line).
MODE BUTTON
The MODE button allows the user to cycle through each of the various modes for the selected module.
UP/DOWN BUTTONS
The UP/DOWN arrow buttons adjust the settings for the currently selected mode of the selected module.
POWER ON LED
When the green POWER ON indicator is illuminated, the module has been correctly installed and powered on.
ALARM LED
A constant Alarm LED on the MA4010B indicates a critical alarm condition. Detailed alarm information is
available by selecting the module from the front panel and observing the status and error codes on the LCD
display.
MODULE SELECT LED
When the green MODULE SELECT indicator is illuminated, it indicates that the corresponding module has
been selected from the front panel or via the remote control interface.
AUX LED
This LED is reserved for future use.
WaveCom Electronics Inc
MA4061/MA4070 Manual; MAN1L2301 Rev02 (Oct 2001)
Approved: R. L.
13

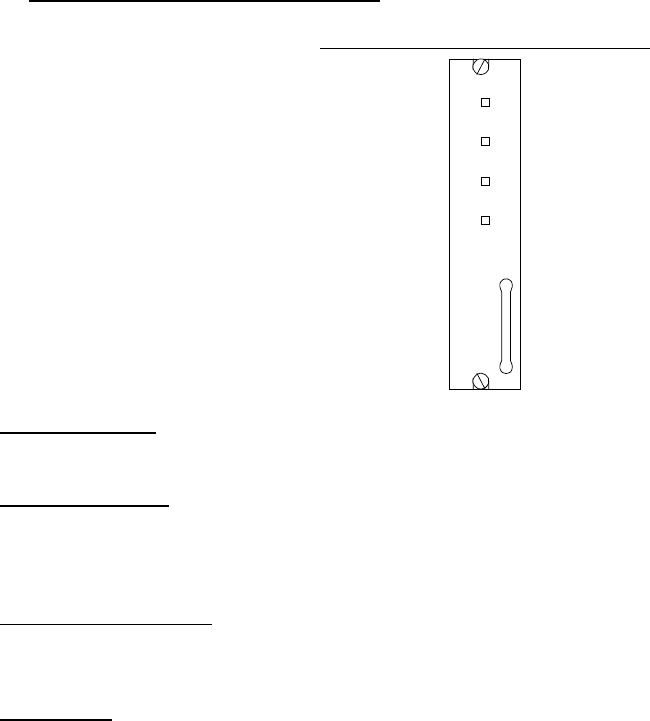

3.1.2 MA4061B – Upconverter Card
D
DD
DIAGRAM
IAGRAM IAGRAM
IAGRAM 3.1
3.13.1
3.1C
C C
C : F
: F: F
: FRONT
RONT RONT
RONT P
PP
PANEL
ANEL ANEL
ANEL –
––
– MA4061B
MA4061B MA4061B
MA4061B
POWER ON LED
When the green POWER ON indicator is illuminated, the module has been correctly installed and powered on.
RF ENABLED LED
When the green RF ENABLED indicator is illuminated, the internal output circuitry is enabled to provide an RF
output. The RF ENABLED indicator does not necessarily indicate the presence of an output, it only reflects
that the module is capable of an RF output if an IF input is applied and the levels configured.
MODULE SELECT LED
When the green MODULE SELECT indicator is illuminated, it indicates that the corresponding module has
been selected from the front panel or via the remote control interface.
ALARM LED
The red MA4061 ALARM indicator has two modes. A flashing Alarm LED indicates a non-critical alarm
condition (i.e. soft alarm). A constant Alarm LED indicates a critical alarm condition (i.e. hard alarm). Detailed
alarm information is available by selecting the corresponding module from the front panel and observing the
status and error codes on the LCD display.
WaveCom
MA4061B
POWER
MODULE
SELECT
A
LARM
MMDS DIGITAL
UPCONVERTER
RF ENABLED
WaveCom Electronics Inc
MA4061/MA4070 Manual; MAN1L2301 Rev02 (Oct 2001)
Approved: R. L.
14
3.1.3 MA4070B – Power Amplifier
D
DD
DIAGR
IAGRIAGR
IAGRAM
AM AM
AM 3.1
3.13.1
3.1D
D D
D : F
: F: F
: FRONT
RONT RONT
RONT P
PP
PANEL
ANEL ANEL
ANEL –
––
– MA4070B
MA4070B MA4070B
MA4070B
DC POWER LED
When the green DC POWER indicator is illuminated, the module has been correctly installed and powered on.
UNIT SELECT LED
When the green UNIT SELECT indicator is illuminated, the corresponding module has been selected from the
front panel or via the remote control interface.
RF HIGH ALARM LED
When the RF HIGH ALARM LED is illuminated, detected power levels have exceeded acceptable limits.
Limits will depend on whether default or custom thresholds are set.
RF LOW ALARM LED
When the RF LOW ALARM LED is illuminated, detected power levels have exceeded acceptable limits.
Limits will depend on whether default or custom thresholds are set.
HIGH REV POWER ALARM LED
When the HIGH REV POWER ALARM LED is illuminated, detected power levels have exceeded acceptable
limits. Limits will depend on whether default or custom thresholds are set.

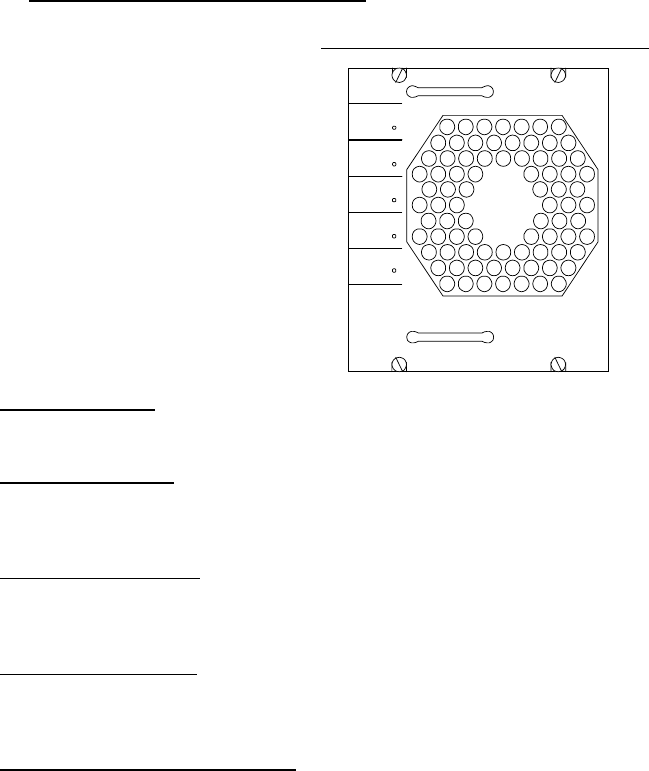

MMDS
POWER AMPLIFIER
WaveCom MA4070B
DC
POWER
RF HIGH
ALARM
RF LOW
ALARM
HIGH REV.
POWER
ALARM
UNIT
SELECT
WaveCom Electronics Inc
MA4061/MA4070 Manual; MAN1L2301 Rev02 (Oct 2001)
Approved: R. L.
15
3.2 Front Panel Operating Modes
3.2.1 MA4061 Upconverter Modes
FREQUENCY
When this mode is selected, the display will read: Frq XXXX.XXXX MHz
The displayed frequency is the current configured Output Frequency. To adjust the output frequency, use the
UP/DOWN arrow buttons. Single stepping will allow 62.5 kHz adjustment, while holding the buttons depressed
will change the frequency more quickly.
☛ The displayed frequency represents the center of the band.
☛
During frequency change, the output is muted and the RF ENABLED indicator is turned off
for 5 seconds to avoid undesirable interference.
AUTO IF
When this mode is selected, the display will read: IF AGC Enabled
or
IF AGC Disabled
Pressing the Up or Down buttons will toggle the display between Enabled and Disabled. When enabled, the
MA4061 will automatically optimize the IF level and ensure it is within a pre-set threshold range (default ±0.5
dB). When disabled, the IF level can be manually adjusted as described in the next section.
☛
The Auto IF mode should only be used for continuous IF inputs (non-bursty).
☛
If the IF level is not within ±4.0 dB of the optimum level during Auto IF mode, the output
will be muted to avoid undesirable interference, and the Alarm LED will be on.
☛ At the time of shipping, the AUTO IF is enabled.
IF LEVEL ADJUST
When this mode is selected, the display will read: IFPwr ±
±±
±XX.X dB
The display indicates the approximate IF power level measured at the internal IF power detector. To adjust the
IF level, use the UP/DOWN arrow buttons. To configure the MA4061 Upconverter for optimum performance,
the IF level should be adjusted to read approximately 0.0 dB (-0.5 to +0.5). An IF level less than 0 dB will
degrade noise performance and a level above 0 dB will promote intermodulation products.
☛ The IF level can only be adjusted if the Auto IF mode is disabled.
RF OUTPUT LEVEL ADJUST
When this mode is selected, the display will read: RFPwr ±
±±
±XX.X dBm
The display indicates the approximate RF output power level measured by the internal RF power detector. To
adjust the RF level, use the UP/DOWN arrow buttons. The RF output level may be set within the range of -15
dBm to +3 dBm.
☛ Ensure that the IF level is correctly set before adjusting the RF level.
WaveCom Electronics Inc
MA4061/MA4070 Manual; MAN1L2301 Rev02 (Oct 2001)
Approved: R. L.
16
OUTPUT ENABLE/DISABLE
When this mode is selected, the display will read: Output Enabled
or
Output Disabled
Pressing the Up or Down buttons will toggle the display between Enabled and Disabled. When enabled, the
RF output from the MA4061 Upconverter is enabled. When disabled, the RF output from the MA4061
Upconverter is disabled.
☛ An RF output is only present when there is a valid IF input configured as described in the
previous sections. This means that at the time of shipping, the output is disabled until a
valid input is applied.
IF AND RF ALARM THRESHOLD SETTING
The IF and RF alarm threshold can be configured by the user via remote control.
Default settings are as follows: IF +4, -4 dB, alarm function enabled
RF -15, +4 dBm, alarm function enabled
The IF and RF alarms can be independently enabled or disabled via remote control. Refer to Section 7.5,
Detailed Command Descriptions and System Responses (pp 34 to 40) for instructions on how to adjust these
settings.
DEFAULT SETTINGS
At the time of shipping from factory, the default settings of the MA4061 are:
AUTO IF AGC enabled
IF & RF Thresholds enabled
Output is disabled (until a vaild input is supplied)
The default status code at the time of shipping is s0E. Once a valid input is applied, this status will change.
3.2.2 MA4070 Upconverter Modes
FORWARD POWER ADJUST
When this mode is selected, the display will read: Fwd Pwr XX.X dB
The display indicates the approximate RF power level measured before the output. To adjust the RF level, use
the UP/DOWN arrow buttons. The RF output level may be set within the range of +20 dBm to +40 dBm.
☛ The RFlevel can only be adjusted if a MA4061 is in the preceding slot
REVERSE POWER
When this mode is selected, the display will read: Rev Pwr XX.X dBm
The display indicates the approximate RF power level returned to the card from mismatched connections,
etc. The detector measures from +20dBm to +40dBm
WaveCom Electronics Inc
MA4061/MA4070 Manual; MAN1L2301 Rev02 (Oct 2001)
Approved: R. L.
17
OUTPUT ENABLE/DISABLE
When this mode is selected, the display will read: Output Enabled
or
Output Disabled
Pressing the Up or Down buttons will toggle the display between Enabled and Disabled. When enabled, the
RF output from the MA4070 Power Amplifier is enabled. When disabled, the RF output from the MA4070
Power Amplifier is disabled.
☛ An RF output is only present when there is a valid IF input configured as described in the
previous sections. This means that at the time of shipping, the output is disabled until a
valid input is applied.
FORWARD AND REVERSE ALARM THRESHOLD SETTING
The IF and RF alarm threshold can be configured by the user via remote control.
Default settings are as follows: ForwardHigh +41 dB, alarm function enabled
ForwardLow +20 dB, alarm function enabled
ReverseHigh +40 dBm, alarm function enabled
The alarms can be independently enabled or disabled via remote control. Refer to Section 7.5, Detailed
Command Descriptions and System Responses (pp 34 to 40) for instructions on how to adjust these settings.
3.2.3 MA4010B Power/Control Module Modes
ADDRESS
When this mode is selected, the display will read: Address XXX
☛ The displayed address is the currently selected MA4001B chassis Address. A different
address can be selected by pressing the Up or Down buttons. The MA4001B chassis has
an address from 001 - 999. The address is only used for remote control and monitoring
purposes. The factory default address is 999.
RS232/RS485 SELECT
When this mode is selected, the display will read: RS232 Selected
or
RS485 Selected
Pressing the Up or Down buttons will toggle the display between RS232 and RS485.
☛ The Remote Interface Connector Pinout will change depending upon the Interface Type
selected. Please refer to Section 4.1, Power/Control Module Rear Panel Connection (pp
19, 20) for details.
WaveCom Electronics Inc
MA4061/MA4070 Manual; MAN1L2301 Rev02 (Oct 2001)
Approved: R. L.
18
3.3 Remote Control Operating Instructions
The MA4000 system may be controlled via the RS232/RS485 Remote Interface connector. (Refer to Section
4.1, Power/Control Module Rear Panel Connections (pp 19, 20) for the connector pin-out).
The input data rate can be 9600, 14400, or 28800 baud. The MA4000 System Controller will automatically
determine which data rate is in use and adjust accordingly. There are no user settings relating to baud rate
selection.
For additional information refer to Section 7.0, Detailed Remote Control (pp 31 to 41).
WaveCom Electronics Inc
MA4061/MA4070 Manual; MAN1L2301 Rev02 (Oct 2001)
Approved: R. L.
19
4.0 REAR PANEL CONNECTIONS
D
DD
DIAGRAM
IAGRAM IAGRAM
IAGRAM 4.0
4.04.0
4.0A
AA
A: R
: R: R
: REAR
EAR EAR
EAR P
PP
PANEL
ANEL ANEL
ANEL –
––
– MA4200 S
MA4200 S MA4200 S
MA4200 SYSTEM
YSTEMYSTEM
YSTEM

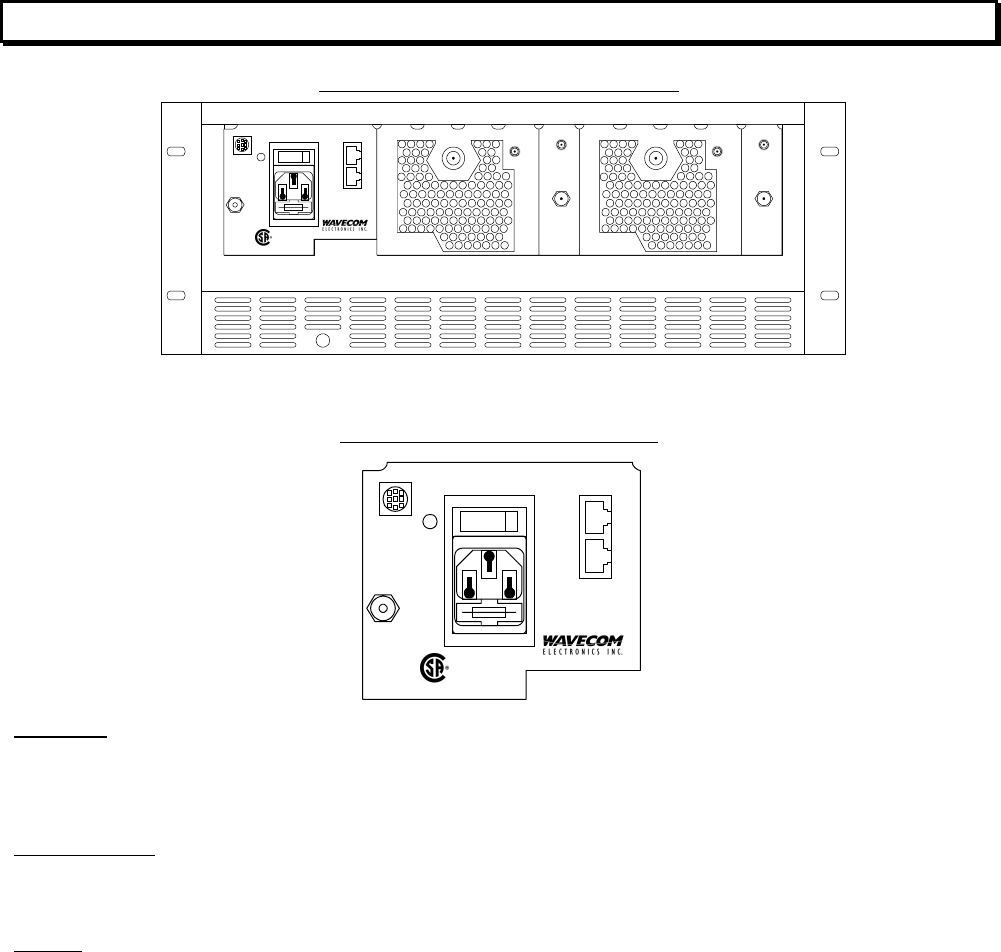

4.1 MA4010B - Power/Control Module
D
DD
DIAGRAM
IAGRAM IAGRAM
IAGRAM 4.1
4.14.1
4.1A
A A
A : R
: R: R
: REAR
EAR EAR
EAR P
PP
PANEL
ANEL ANEL
ANEL –
––
– MA4010B
MA4010B MA4010B
MA4010B
AC INPUT
The AC input accepts input voltages from 100 to 240 VAC. The fuse is internal to the IEC holder. If the fuse
requires replacement, ensure the voltage and current rating is correct. The AC power switch may be used for
turning the power on and off to the entire chassis.
10 MHZ REF IN
If this option is installed, it will allow the user to use an external 10 MHz reference. When a signal of the
specified level is present, it will override the internal reference and automatically use the external reference.
ALARM
This connector is reserved for future use.
REMOTE
INTERFACE
MADE IN CANADA
100-240VAC, 4A MAX.
50-60Hz
FUSE 5A, 250V
ALARM
10MHz
REF IN
RS232/RS485
NRTL/C
RF OUT
IF IN
MMDS DIGITAL
UPCONVERTER
WaveCom
MA4061B
RF OUT
IF IN
MMDS DIGITAL
UPCONVERTER
WaveCom
MA4061B
RF OUT RF IN
MMDS
POWER AMPLIFIER
WaveCom MA4070B
RF OUT RF IN
MMDS
POWER AMPLIFIER
WaveCom MA4070B
REMOTE
INTERFACE
MADE IN CANADA
100-240VAC, 4A MAX.
50-60Hz
FUSE 5A, 250V
ALARM
10MHz
REF IN
RS232/RS485
NRTL/C
WaveCom Electronics Inc
MA4061/MA4070 Manual; MAN1L2301 Rev02 (Oct 2001)
Approved: R. L.
20
REMOTE INTERFACE

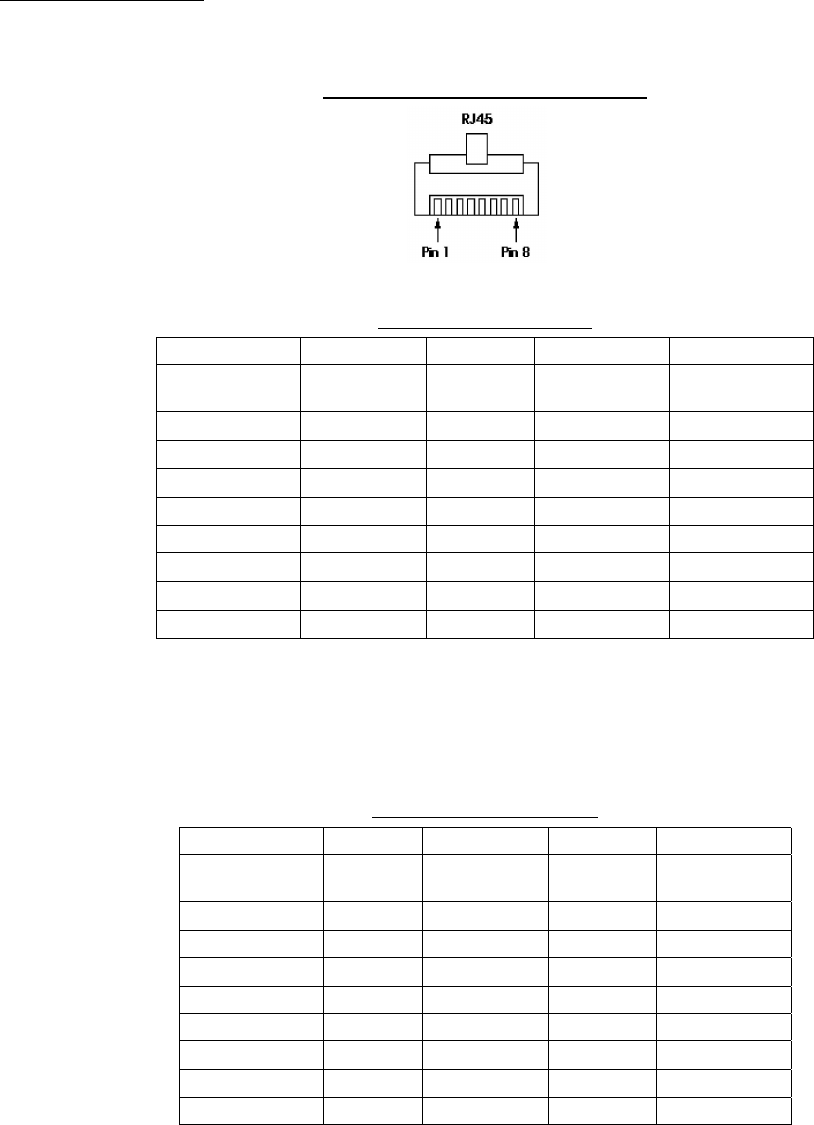

The Remote Interface connector is a dual RJ45. Both sockets in the connector are identical. The pin-out for
the matching RJ45 plug is shown in the following table and diagram:
D
DD
DIAGRAM
IAGRAM IAGRAM
IAGRAM 4.1
4.14.1
4.1B
B B
B : RJ45 P
: RJ45 P: RJ45 P
: RJ45 PLUG
LUG LUG
LUG C
CC
CONNECTIONS
ONNECTIONSONNECTIONS
ONNECTIONS
T
TT
TABLE
ABLE ABLE
ABLE 4.1
4.14.1
4.1A
A A
A : RS232 P
: RS232 P: RS232 P
: RS232 PIN
ININ
IN-
--
-OUT
OUTOUT
OUT
Terminal Upconverter
RJ45 Pin Signal Direction Signal RJ45 Pin
1 CTS
← CTS 1
2 DSR
← DSR 2
3 RXD
← TXD 3
4 RXD/GND — RXD/GND 4
5 TXD/GND — TXD/GND 5
6 TXD
→ RXD 6
7 DTR
→ DTR 7
8 RTS
→ RTS 8
☛ Note: The above pin-out allows a straight through RJ45 cable to be used for
connection between the terminal and the MA4001B chassis. It is also possible to
use an RJ45 - DB25 adapter to connect to a PC or similar RS232 standard serial
port.
T
TT
TABLE
ABLE ABLE
ABLE 4.1
4.14.1
4.1B
BB
B:
: :
: RS485 P
RS485 PRS485 P
RS485 PIN
ININ
IN-
--
-OUT
OUTOUT
OUT
Terminal Upconverter
RJ45 Pin Signal Direction Signal RJ45 Pin
1 NC
NC 1
2 NC NC 2
3 A
↔ A 3
4 GND — GND 4
5 GND — GND 5
6 B
↔ B 6
7 NC NC 7
8 NC NC 8
☛ Note: The above pin-out allows connection to an RS485 communications bus. If
desired, an RS485 - RS232 converter and an RJ45 - DB25 adapter can be used
to connect to a PC or similar RS232 serial port.
WaveCom Electronics Inc
MA4061/MA4070 Manual; MAN1L2301 Rev02 (Oct 2001)
Approved: R. L.
21

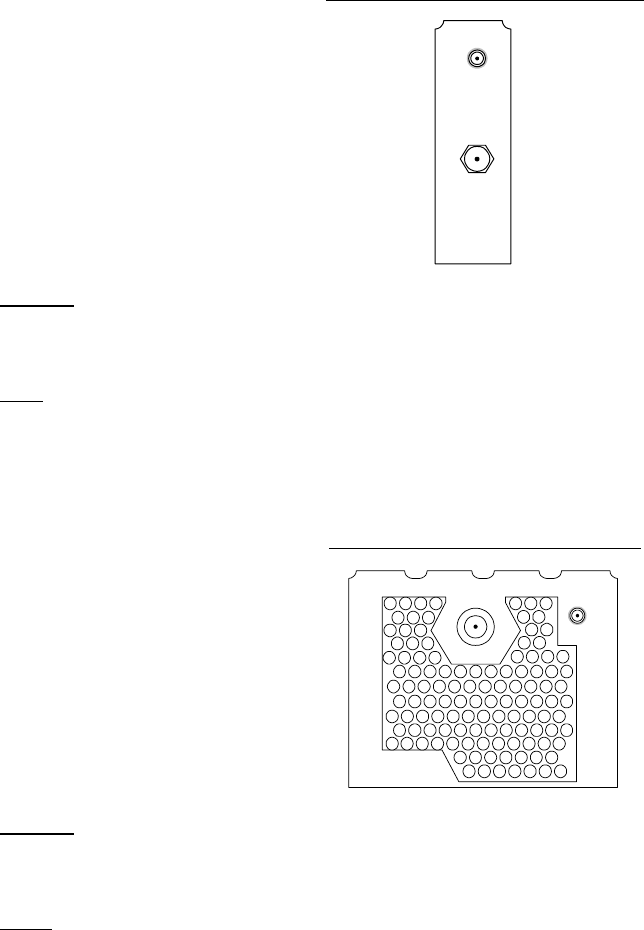

4.2 MA4061B - MMDS Upconverter Card
D
DD
DIAGRAM
IAGRAM IAGRAM
IAGRAM 4.2
4.24.2
4.2A
A A
A : R
: R: R
: REAR
EAR EAR
EAR P
PP
PANEL
ANEL ANEL
ANEL –
––
– MA4061B
MA4061B MA4061B
MA4061B
RF OUT
The RF out SMA connector provides the RF output signal from 2500 to 2686 MHz with a level of -15 to 4 dBm.
The impedance is 50 ohm.
IF IN
The IF Input F connector accepts an input signal at 44 MHz with up to a 6 MHz bandwidth from a 75 ohm
source. The level should be from +25 to +35 dBmV.
4.3 MA4070B - Power Amplifier
D
DD
DIAGRAM
IAGRAM IAGRAM
IAGRAM 4.3
4.34.3
4.3A
AA
A: R
: R: R
: REAR
EAR EAR
EAR P
PP
PANEL
ANEL ANEL
ANEL –
––
– MA4070B
MA4070B MA4070B
MA4070B
RF OUT
The RF output N connector provides the RF output signal from 2500 to 2600 MHz or 2600 to 2686 MHz. The
impedance is 50 ohm.
RF IN
The RF Input SMA connector accepts an input signal at 2500 to 2686 MHz with up to a 6 MHz bandwidth from
a 50 ohm source.
RF OUT RF IN
MMDS
POWER AMPLIFIER
WaveCom MA4070B
RF OUT
IF IN
MMDS
G
UPCONVERTE
R
WaveCom
MA4061B
WaveCom Electronics Inc
MA4061/MA4070 Manual; MAN1L2301 Rev02 (Oct 2001)
Approved: R. L.
22
WaveCom Electronics Inc
MA4061/MA4070 Manual; MAN1L2301 Rev02 (Oct 2001)
Approved: R. L.
23
5.0 STATUS CODES
5.1 MA4061B Status Codes
The status code is displayed on line 2 of the LCD display. It consists of an ‘s’ character followed by a 2 digit
hexadecimal number. The following tables can be used to interpret the meaning of the digits.
T
TT
TABLE
ABLE ABLE
ABLE 5.1
5.15.1
5.1A
AA
A: M
: M: M
: MOST
OST OST
OST S
SS
SIGNIFICANT
IGNIFICANT IGNIFICANT
IGNIFICANT D
DD
DIGIT
IGIT IGIT
IGIT D
DD
DESCRIPTION
ESCRIPTIONESCRIPTION
ESCRIPTION
Digit Description Digit Description
0 None 8 Reserved
1 Backup Relay Enabled 9 Reserved
2 Reserved A Reserved
3 Reserved B Reserved
4 Reserved C Reserved
5 Reserved D Reserved
6 Reserved E Reserved
7 Reserved F Reserved
T
TT
TABLE
ABLE ABLE
ABLE 5.1
5.15.1
5.1B
BB
B: L
: L: L
: LEAST
EAST EAST
EAST S
SS
SIGNIFICANT
IGNIFICANT IGNIFICANT
IGNIFICANT D
DD
DIGIT
IGIT IGIT
IGIT D
DD
DE
EE
ESCRIPTION
SCRIPTIONSCRIPTION
SCRIPTION
Digit Description
0 None
1 Output is disabled
2 IF AGC is enabled
3 IF AGC is enabled, Output is disabled
4 IF Threshold Detection is enabled
5 IF Threshold Detection is enabled, Output is disabled
6 IF Threshold Detection is enabled, IF AGC is enabled
7 IF Threshold Detection is enabled, IF AGC is enabled, Output is disabled
8 RF Threshold Detection is enabled
9 RF Threshold Detection is enabled, Output is disabled
A RF Threshold Detection is enabled, IF AGC is enabled
B RF Threshold Detection is enabled, IF AGC is enabled, Output is disabled
C RF Threshold Detection is enabled, IF Threshold Detection is enabled
D RF Threshold Detection is enabled, IF Threshold Detection is enabled, Output is disabled
E RF Threshold Detection is enabled, IF Threshold Detection is enabled, IF AGC is enabled
F RF Threshold Detection is enabled, IF Threshold Detection is enabled, IF AGC is enabled, Output is
disabled
WaveCom Electronics Inc
MA4061/MA4070 Manual; MAN1L2301 Rev02 (Oct 2001)
Approved: R. L.
24
5.2 MA4070B Status Codes
The status code is displayed on line 2 of the LCD display. It consists of an ‘s’ character followed by a 2 digit
hexadecimal number. The following tables can be used to interpret the meaning of the digits.
T
TT
TABLE
ABLE ABLE
ABLE 5.2
5.25.2
5.2A
AA
A: M
: M: M
: MOST
OST OST
OST S
SS
SIGNIFICANT
IGNIFICANT IGNIFICANT
IGNIFICANT D
DD
DIGIT
IGIT IGIT
IGIT D
DD
DESCRIPTION
ESCRIPTIONESCRIPTION
ESCRIPTION
Digit Description Digit Description
0 None 8 Reserved
1 Reserved 9 Reserved
2 Reserved A Reserved
3 Reserved B Reserved
4 Reserved C Reserved
5 Reserved D Reserved
6 Reserved E Reserved
7 Reserved F Reserved
T
TT
TABLE
ABLE ABLE
ABLE 5.2
5.25.2
5.2B
BB
B: L
: L: L
: LEAST
EAST EAST
EAST S
SS
SIGNIFICANT
IGNIFICANT IGNIFICANT
IGNIFICANT D
DD
DIGIT
IGIT IGIT
IGIT D
DD
DESCRIPTION
ESCRIPTIONESCRIPTION
ESCRIPTION
Digit Description
0 None
1 Output is disabled
2 Forward Power High Threshold Detection is enabled
3 Forward Power High Threshold Detection is enabled, Output is disabled
4 Forward Power Low Threshold Detection is enabled
5 Forward Power Low Threshold Detection is enabled, Output is disabled
6 Forward Power Low Threshold Detection is enabled, Forward Power High Threshold Detection is enabled
7 Forward Power Low Threshold Detection is enabled, Forward Power High Threshold Detection is enabled,
Output is disabled
8 RF Threshold Detection is enabled
9 RF Threshold Detection is enabled, Output is disabled
A RF Threshold Detection is enabled, Forward Power High Threshold Detection is enabled
B RF Threshold Detection is enabled, Forward Power High Threshold Detection is enabled, Output is disabled
C RF Threshold Detection is enabled, Forward Power Low Threshold Detection is enabled
D RF Threshold Detection is enabled, Forward Power Low Threshold Detection is enabled, Output is disabled
E RF Threshold Detection is enabled, Forward Power Low Threshold Detection is enabled, Forward Power
High Threshold Detection is enabled
F RF Threshold Detection is enabled, Forward Power Low Threshold Detection is enabled, Forward Power
High Threshold Detection is enabled, Output is disabled
WaveCom Electronics Inc
MA4061/MA4070 Manual; MAN1L2301 Rev02 (Oct 2001)
Approved: R. L.
25
5.3 MA4010B Power/Control Module Status Codes
The status code is displayed on line 2 of the LCD display. It consists of an ‘s’ character followed by a 2 digit
hexadecimal number. The following tables can be used to interpret the meaning of the digits.
T
TT
TABLE
ABLE ABLE
ABLE 5.3
5.35.3
5.3A
AA
A: M
: M: M
: MOST
OST OST
OST S
SS
SIGNIFI
IGNIFIIGNIFI
IGNIFICANT
CANT CANT
CANT D
DD
DIGIT
IGIT IGIT
IGIT D
DD
DESCRIPTION
ESCRIPTIONESCRIPTION
ESCRIPTION
Digit Description Digit Description
0 None 8 Reserved
1 Reserved 9 Reserved
2 Reserved A Reserved
3 Reserved B Reserved
4 Reserved C Reserved
5 Reserved D Reserved
6 Reserved E Reserved
7 Reserved F Reserved
T
TT
TABLE
ABLE ABLE
ABLE 5.3
5.35.3
5.3B
BB
B: L
: L: L
: LEAS
EASEAS
EAST
T T
T S
SS
SIGNIFICANT
IGNIFICANT IGNIFICANT
IGNIFICANT D
DD
DIGIT
IGIT IGIT
IGIT D
DD
DESCRIPTION
ESCRIPTIONESCRIPTION
ESCRIPTION
Digit Description Digit Description
0 None 8 Reserved
1 Local Control Locked Out 9 Reserved
2 Reserved A Reserved
3 Reserved B Reserved
4 Reserved C Reserved
5 Reserved D Reserved
6 Reserved E Reserved
7 Reserved F Reserved
WaveCom Electronics Inc
MA4061/MA4070 Manual; MAN1L2301 Rev02 (Oct 2001)
Approved: R. L.
26
WaveCom Electronics Inc
MA4061/MA4070 Manual; MAN1L2301 Rev02 (Oct 2001)
Approved: R. L.
27
6.0 ERROR CODES
6.1 MA4061B Error Codes
When the error code is non-zero, it is displayed on line 2 of the LCD display. It consists of an ‘e’ character
followed by a 2 digit hexadecimal number. The following table can be used to interpret the meaning of the
digits.
T
TT
TABLE
ABLE ABLE
ABLE 6.1
6.16.1
6.1A
AA
A: M
: M: M
: MOST
OST OST
OST S
SS
SIGNIFICANT
IGNIFICANT IGNIFICANT
IGNIFICANT D
DD
DIGIT
IGIT IGIT
IGIT D
DD
DESCRIPTION
ESCRIPTIONESCRIPTION
ESCRIPTION
Digit Description
0 None
1 Fixed LO Error
2 IF AGC Error
3 IF AGC Error, Fixed LO Error
4 IF Threshold Error
5 IF Threshold Error, Fixed LO Error
6 IF Threshold Error, IF AGC Error
7 IF Threshold Error, Fixed LO Error
8 RF Threshold Error
9 RF Threshold Error, Fixed LO Error
A RF Threshold Error, IF AGC Error
B RF Threshold Error, IF AGC Error, Fixed LO Error
C RF Threshold Error, IF Threshold Error
D RF Threshold Error, IF Threshold Error, Fixed LO Error
E RF Threshold Error, IF Threshold Error, IF AGC Error
F RF Threshold Error, IF Threshold Error, IF AGC Error, Fixed LO Error
T
TT
TABLE
ABLE ABLE
ABLE 6.1
6.16.1
6.1B
BB
B: L
: L: L
: LEAST
EAST EAST
EAST S
SS
SIGNIFICANT
IGNIFICANT IGNIFICANT
IGNIFICANT D
DD
DIGIT
IGIT IGIT
IGIT D
DD
DESCRIPTION
ESCRIPTIONESCRIPTION
ESCRIPTION
Digit Description
0 None
1 Output is Muted
2 Hard Alarm condition
3 Hard Alarm condition, Output is Muted
4 Soft Alarm condition
5 Soft Alarm condition, Output is Muted
6 Soft Alarm condition, Hard Alarm condition
7 Soft Alarm condition, Hard Alarm condition, Output is Muted
8 Variable LO Error
9 Variable LO Error, Output is Muted
A Variable LO Error, Hard Alarm condition
B Variable LO error, Hard Alarm condition, Output is Muted
C Variable LO Error, Soft Alarm condition
D Variable LO Error, Soft Alarm condition, Output is Muted
E Variable LO Error, Soft Alarm condition, Hard Alarm condition
F Variable LO Error, Soft Alarm condition, Hard Alarm condition, Output is Muted
WaveCom Electronics Inc
MA4061/MA4070 Manual; MAN1L2301 Rev02 (Oct 2001)
Approved: R. L.
28
6.2 MA4070B Error Codes
T
TT
TABLE
ABLE ABLE
ABLE 6.2
6.26.2
6.2A
AA
A: M
: M: M
: MOST
OST OST
OST S
SS
SIGNIFICANT
IGNIFICANT IGNIFICANT
IGNIFICANT D
DD
DIGIT
IGIT IGIT
IGIT D
DD
DESCRIPTION
ESCRIPTIONESCRIPTION
ESCRIPTION
Digit Description
0 None
1 Reverse Power Threshold Error
2 Reserved
3 Reverse Power Threshold Error, Reserved
4 Reserved
5 Reverse Power Threshold Error, Reserved
6 Reserved
7 Reverse Power Threshold Error, Reserved
8 Reserved
9 Reverse Power Threshold Error, Reserved
A Reserved
B Reverse Power Threshold Error, Reserved
C Reserved
D Reverse Power Threshold Error, Reserved
E Reserved
F Reverse Power Threshold Error, Reserved
T
TT
TABLE
ABLE ABLE
ABLE 6.2
6.26.2
6.2B
BB
B: L
: L: L
: LEAST
EAST EAST
EAST S
SS
SIGNIFICANT
IGNIFICANT IGNIFICANT
IGNIFICANT D
DD
DIGIT
IGIT IGIT
IGIT D
DD
DESCRIPTION
ESCRIPTIONESCRIPTION
ESCRIPTION
Digit Description
0 None
1 Hard Alarm condition
2 Soft Alarm condition
3 Soft Alarm condition, Hard Alarm condition
4 Forward Power High Threshold Error
5 Forward Power High Threshold Error, Hard Alarm condition
6 Forward Power High Threshold Error, Soft Alarm condition
7 Forward Power High Threshold Error, Soft Alarm condition, Hard Alarm condition
8 Forward Power Low Threshold Error
9 Forward Power Low Threshold Error, Hard Alarm condition
A Forward Power Low Threshold Error, Soft Alarm condition
B Forward Power Low Threshold Error, Soft Alarm condition, Hard Alarm condition
C Forward Power Low Threshold Error, Forward Power High Threshold Error
D Forward Power Low Threshold Error, Forward Power High Threshold Error, Hard Alarm
condition
E Forward Power Low Threshold Error, Forward Power High Threshold Error, Soft Alarm
condition
F Forward Power Low Threshold Error, Forward Power High Threshold Error, Soft Alarm
condition, Hard Alarm condition
WaveCom Electronics Inc
MA4061/MA4070 Manual; MAN1L2301 Rev02 (Oct 2001)
Approved: R. L.
29
6.3 MA4010B Power/Control Module Error Codes
When the error code is non-zero, it is displayed on line 2 of the LCD display. It consists of an ‘e’ character
followed by a 2 digit hexadecimal number. The following table can be used to interpret the meaning of the
digits.
T
TT
TABLE
ABLE ABLE
ABLE 6.3
6.36.3
6.3A
AA
A: M
: M: M
: MOST
OST OST
OST S
SS
SIGNIFICANT
IGNIFICANT IGNIFICANT
IGNIFICANT D
DD
DIGIT
IGIT IGIT
IGIT D
DD
DESCRIPTION
ESCRIPTIONESCRIPTION
ESCRIPTION
Digit Description Digit Description
0 None 8 Reserved
1 5 Volt Supply Under voltage 9 Reserved
2 Reserved A Reserved
3 Reserved B Reserved
4 Reserved C Reserved
5 Reserved D Reserved
6 Reserved E Reserved
7 Reserved F Reserved
T
TT
TABLE
ABLE ABLE
ABLE 6.3
6.36.3
6.3B
BB
B: L
: L: L
: LEAST
EAST EAST
EAST S
SS
SIGNIFICANT
IGNIFICANT IGNIFICANT
IGNIFICANT D
DD
DIGIT
IGIT IGIT
IGIT D
DD
DESCRIPTION
ESCRIPTIONESCRIPTION
ESCRIPTION
Digit Description
0 None
1 Hard Alarm condition
2 Reserved
3 Reserved
4 Reserved
5 24 Volt Supply Under voltage, Hard Alarm
6 Reserved
7 Reserved
8 Reserved
9 10 Volt Supply Under voltage, Hard Alarm
A Reserved
B Reserved
C Reserved
D 10 Volt Supply Under voltage, 24 Volt Supply Under voltage, Hard Alarm
E Reserved
F Reserved
WaveCom Electronics Inc
MA4061/MA4070 Manual; MAN1L2301 Rev02 (Oct 2001)
Approved: R. L.
30
WaveCom Electronics Inc
MA4061/MA4070 Manual; MAN1L2301 Rev02 (Oct 2001)
Approved: R. L.
31
7.0 DETAILED REMOTE CONTROL
7.1 Operation
The MA4001B chassis may be controlled via the RS232/RS485 Remote Interface connector. (See Section
4.1, Power/Control Module Rear Panel Connections (pp 19, 20) for the connector pin-out).
The input data rate can be 9600, 14400, or 28800 baud. The MA4000 System Controller will automatically
determine which data rate is in use and adjust accordingly. There are no user settings relating to baud rate
selection.
7.2 Message Format
All messages to the MA4000 system controller consist of a sequence of ASCII characters. Messages must
meet the following guidelines in order to be correctly interpreted by the controller.
• There can be no more than 75 ms between consecutive message bytes.
• After receiving the entire message, the MA4000 System Controller will require approximately 200 ms to process and
respond to the message.
• Only one message can be processed at a time, consequently the user must wait for a reply before sending a new
message.
• Commands sent to an invalid chassis address will be discarded without a response.
7.3 Command Structure
The command structure consists of a sequence of ASCII characters terminated by a carriage return. All ASCII
characters are case-insensitive unless otherwise indicated. Commands are to be in one of the following two
general formats:
<start>ADD<sp>MOD<sp>CC<sp>CRC<cr>
or
<start>ADD<sp>MOD<sp>CC<sp>PARM<sp>CRC<cr>
<start> ASCII Asterisk character
<sp> ASCII Space character
<cr> ASCII Carriage Return character
ADD = Address (3 ASCII characters)
Addresses are 3 digit numbers. Three digits (including leading zeros) are required to correctly define an
address.
MOD = Module (1 ASCII character)
A = Module A (Leftmost module)
B = Module B
.
.
J = Module J (Next to Power Control Module)
CC = Command Code (2 or 3 ASCII characters)
WaveCom Electronics Inc
MA4061/MA4070 Manual; MAN1L2301 Rev02 (Oct 2001)
Approved: R. L.
32
MA4061B Command Codes
FL = Load Frequency IAS = Set IF AGC Threshold
AI = Set IF Attenuation IAE = Enable IF AGC Threshold
AR = Set RF Attenuation IAD = Disable IF AGC Threshold
OE = Enable Output RTS = Set RF Threshold
OD = Disable Output RTD = Disable RF Threshold
ITS = Set IF Threshold RTE = Enable RF Threshold
ITD = Disable IF Threshold SU = Unit Status Request
ITE = Enable IF Threshold LE = Enable Local Control
LD = Disable Local Control
MA4070B Command Codes
OE = Enable Output FPHS = Forward Power High Set
OD = Disable Output FPHE = Forward Power Hi Enable
SU = Unit Status Request FPHD = Forward Power High Disable
SC = Configuration Status Request FPLS = Forward Power Low Set
LE = Enable Local Control FPLE = Forward Power Low Enable
LD = Disable Local Control FPLD = Forward Power Low Disable
RPS = Reverse Power Threshold Set
RPE = Reverse Power Threshold Enable
RPE = Reverse Power Threshold Disable
CRC = CRC-16 checksum (3 characters)
The checksum is preferred, but not required. If the checksum is used, the first character is an ASCII “V” followed by
the low and high bytes respectively of the computed CRC 16 checksum (the checksum characters are not
necessarily ASCII). The checksum is to be computed on all characters after the initial <start> character up to, and
including, the first “V” character in the CRC section. If the checksum is not used, the 3 characters should be ASCII
“NNN” (they must be uppercase).
PARM is one or more characters, and is command specific.
WaveCom Electronics Inc
MA4061/MA4070 Manual; MAN1L2301 Rev02 (Oct 2001)
Approved: R. L.
33
7.4 Response Structure
The response structure will consist of a sequence of ASCII characters, terminated by a carriage return.
Responses will be in one of the two following general formats:
<start>ADD<sp>R<sp>RC<sp>CRC<cr>
or
<start>ADD<sp>R<sp>RC<sp>PARM<sp>CRC<cr>
There will be one response returned for all commands.
<start> ASCII Asterisk character
<sp> ASCII Space character
<cr> ASCII Carriage Return character
ADD = Address (3 characters)
The address of the unit that is responding to the command.
R = ASCII “R” character (1 character)
Indicates that this is a response to a previous message.
RC = Response Code (3 characters)
OK = Command Accepted
MOD = Command Denied because the addressed module is invalid
ERR = Command Denied because of Syntax Error
CRC = Command Denied because of CRC-16 error
CRC = CRC-16 checksum (3 characters)
The response checksum is always valid. The first character will be an ASCII “V” followed by the low and
high bytes respectively of the computed CRC 16 checksum (the checksum characters are not necessarily
ASCII). The checksum will be computed on all characters after the initial <start> character up to, and
including, the first “V” character in the CRC section.
PARM is one or more characters, and is command specific.
WaveCom Electronics Inc
MA4061/MA4070 Manual; MAN1L2301 Rev02 (Oct 2001)
Approved: R. L.
34
7.5 Detailed Command Descriptions and System Responses
7.5.1 MA4061B Upconverter Detailed Command Descriptions and System Responses
This section defines each of the command codes and the associated parameters for the MA4061B
Upconverter module.
FL - Load Frequency
Description: Loads the frequency for the specified module.
Parameters: Desired frequency in MHz, in the form XXXX.XXXX. Leading zeros are optional, but not required. The
decimal point and four trailing characters are required. Valid input frequencies are between 2500.0000
MHz and 2686.0000 MHz. Valid trailing characters are multiples of 0.0625 MHz, all others will be
denied.
Example: *999<sp>A<sp>FL<sp>2500.0625<sp>CRC<cr>
Response: OK or MOD or ERR or CRC
AI - Set IF Attenuation
Description: Sets the IF attenuation for the specified module.
Parameters: Desired IF attenuation in dB, in the form XX.XX. Leading zeros are optional, but not required. The
decimal point and two trailing characters are required. Valid attenuation values are between 0 dB and
25 dB in 0.25 dB steps. Valid trailing characters are 00, 25, 50 or 75.
Example: *999<sp>A<sp>AI<sp>10.50<sp>CRC<cr>
Response: OK or MOD or ERR or CRC
AR - Set RF Attenuation
Description: Sets the RF attenuation for the specified module.
Parameters: Desired RF output attenuation in dB, in the form XX.XX. Leading zeros are optional, but not required.
The decimal point and two trailing characters are required. Valid attenuation values are between 0 dB
and 39.75 dB in 0.25 dB steps. Valid trailing characters are 00, 25, 50 or 75.
Example: *999<sp>A<sp>AR<sp>4.25<sp>CRC<cr>
Response: OK or MOD or ERR or CRC
ITS - Set IF Threshold
Description: Sets the IF thresholds for the specified module.
Parameters: Desired IF thresholds in dB, in the form X.X<sp>-X.X. Leading zeros are optional, but not required. The
decimal point and trailing character is required. The first parameter is the positive threshold and can
range between 4.0 and 0.0 dB. The second parameter is the negative threshold and can range
between 0.0 and -4.0 dB. The trailing character can range between 0.0 and 0.9.
Example: *999<sp>A<sp>ITS<sp>1.5<sp>-1.5<sp>CRC<cr>
Response: OK or MOD or ERR or CRC
ITE - Enable IF Threshold
Description: Enables IF Threshold detection for the specified module.
Parameters: None
Example: *999<sp>A<sp>ITE<sp>CRC<cr>
Response: OK or MOD or ERR or CRC
WaveCom Electronics Inc
MA4061/MA4070 Manual; MAN1L2301 Rev02 (Oct 2001)
Approved: R. L.
35
ITD - Disable IF Threshold
Description: Disables IF Threshold detection for the specified module.
Parameters: None
Example: *999<sp>A<sp>ITD<sp>CRC<cr>
Response: OK or MOD or ERR or CRC
IAS - Set Auto IF Threshold
Description: Sets the Auto IF Thresholds for the specified module.
Parameters: Desired IF thresholds in dB, in the form X.X<sp>-X.X. Leading zeros are optional, but not required. The
decimal point and trailing character is required. The first parameter is the positive threshold and can
range between 4.0 and 0.0 dB. The second parameter is the negative threshold and can range
between 0.0 and -4.0 dB. The trailing character can range between 0.0 and 0.9.
Example: *999<sp>A<sp>IAS<sp>1.5<sp>-1.5<sp>CRC<cr>
Response: OK or MOD or ERR or CRC
IAE - Enable Auto IF
Description: Enables Auto IF Mode for the specified module.
Parameters: None
Example: *999<sp>A<sp>IAE<sp>CRC<cr>
Response: OK or MOD or ERR or CRC
IAD - Disable Auto IF
Description: Disables Auto IF Mode for the specified module.
Parameters: None
Example: *999<sp>A<sp>IAD<sp>CRC<cr>
Response: OK or MOD or ERR or CRC
RTS - Set RF Threshold
Description: Sets the RF Thresholds for the specified module.
Parameters: Desired RF thresholds in dBm, in the form XX.X<sp>XX.X. Leading zeros are optional, but not
required. The decimal point and trailing character is required. The first parameter indicates the high
threshold, and the second indicates the low threshold. The trailing character can range between 0.0
and 0.9.
Example: *999<sp>A<sp>RTS<sp>60.0<sp>50.0<sp>CRC<cr>
Response: OK or MOD or ERR or CRC
RTE - Enable RF Threshold
Description: Enables RF Threshold detection for the specified module.
Parameters: None
Example: *999<sp>A<sp>RTE<sp>CRC<cr>
Response: OK or MOD or ERR or CRC
RTD - Disable RF Threshold
Description: Disables RF Threshold detection for the specified module.
Parameters: None
Example: *999<sp>A<sp>RTD<sp>CRC<cr>
Response: OK or MOD or ERR or CRC
WaveCom Electronics Inc
MA4061/MA4070 Manual; MAN1L2301 Rev02 (Oct 2001)
Approved: R. L.
36
OE - Enable Output
Description: Turns on the Output from the specified module.
Parameters: None
Example: *999<sp>A<sp>OE<sp>CRC<cr>
Response: OK or MOD or ERR or CRC
OD - Disable Output
Description: Turns off the Output from the specified module.
Parameters: None
Example: *999<sp>A<sp>OD<sp>CRC<cr>
Response: OK or MOD or ERR or CRC
LE - Enable Local Control
Description: Enables local control of the MA4001B chassis. The module address must indicate a valid module even
though the command does not change any module settings.
Parameters: None
Example: *999<sp>A<sp>LE<sp>CRC<cr>
Response: OK or MOD or ERR or CRC
LD - Disable Local Control
Description: Disables local control of the MA4001B chassis. The module address must indicate a valid module
even though the command does not change any module settings.
Parameters: None
Example: *999<sp>A<sp>LD<sp>CRC<cr>
Response: OK or MOD or ERR or CRC
WaveCom Electronics Inc
MA4061/MA4070 Manual; MAN1L2301 Rev02 (Oct 2001)
Approved: R. L.
37
SU - Status Unit Request
Description: The Status Unit Request command returns the factory model and revision history for the specified
module. The detailed contents of the reply are shown in the response section.
Parameters: None
Example: *999<sp>A<sp>SU<sp>CRC<cr>
Response: OK or MOD or ERR or CRC
If the response is OK, then the following parameters will also be returned in the order shown below. (Note: X
may be replaced by any valid character. All other characters will be as shown).
T
TT
TABLE
ABLE ABLE
ABLE 7.5.1
7.5.17.5.1
7.5.1A
A A
A : R
: R: R
: RESPONSE
ESPONSE ESPONSE
ESPONSE P
PP
PARAMETERS FOR
ARAMETERS FOR ARAMETERS FOR
ARAMETERS FOR S
SS
STATUS
TATUS TATUS
TATUS U
UU
UNITS
NITS NITS
NITS R
RR
REQUEST
EQUESTEQUEST
EQUEST
Parameter (Units) Format Example
Model XXXXXXXXXXX Upconverter
Module SN XXXXXXX 0123456
Hardware Revision XXX 010 (i.e. Rev 1.0)
Microcontroller Revision XXX 010 (i.e. Rev 1.0)
PLD Revision XXX 010 (i.e. Rev 1.0)
Miscellaneous 16 chars
7.5.2 MA4070B Upconverter Detailed Command Descriptions and System Responses
This section defines each of the command codes and the associated parameters for the MA4070B Power
Amplifier module.
OE - Enable Output
Description: Turns on the Output from the specified module.
Parameters: None
Example: *999<sp>A<sp>OE<sp>CRC<cr>
Response: OK or MOD or ERR or CRC
OD - Disable Output
Description: Turns off the Output from the specified module.
Parameters: None
Example: *999<sp>A<sp>OD<sp>CRC<cr>
Response: OK or MOD or ERR or CRC
LE - Enable Local Control
Description: Enables local control of the MA4001B chassis. The module address must indicate a valid module even
though the command does not change any module settings.
Parameters: None
Example: *999<sp>A<sp>LE<sp>CRC<cr>
Response: OK or MOD or ERR or CRC
WaveCom Electronics Inc
MA4061/MA4070 Manual; MAN1L2301 Rev02 (Oct 2001)
Approved: R. L.
38
LD - Disable Local Control
Description: Disables local control of the MA4001B chassis. The module address must indicate a valid module
even though the command does not change any module settings.
Parameters: None
Example: *999<sp>A<sp>LD<sp>CRC<cr>
Response: OK or MOD or ERR or CRC
SU - Status Unit Request
Description: The Status Unit Request command returns the factory model and revision history for the specified
module. The detailed contents of the reply are shown in the response section.
Parameters: None
Example: *999<sp>A<sp>SU<sp>CRC<cr>
Response: OK or MOD or ERR or CRC
If the response is OK, then the following parameters will also be returned in the order shown below. (Note: X
may be replaced by any valid character. All other characters will be as shown).
T
TT
TABLE
ABLE ABLE
ABLE 7.5.2
7.5.27.5.2
7.5.2A
A A
A : R
: R: R
: RESPONSE
ESPONSE ESPONSE
ESPONSE P
PP
PARAMETERS FOR
ARAMETERS FOR ARAMETERS FOR
ARAMETERS FOR S
SS
STATUS
TATUS TATUS
TATUS U
UU
UNITS
NITS NITS
NITS R
RR
REQUEST
EQUESTEQUEST
EQUEST
Parameter (Units) Format Example
Model XXXXXXXXXXX MA4070
Module SN XXXXXXX 0123456
Hardware Revision XXX 010 (i.e. Rev 1.0)
Microcontroller Revision XXX 010 (i.e. Rev 1.0)
Miscellaneous 16 chars
WaveCom Electronics Inc
MA4061/MA4070 Manual; MAN1L2301 Rev02 (Oct 2001)
Approved: R. L.
39
SC - Status Configuration Request
Description: The Status Configuration Request command returns the active configuration, including error codes and
alarm status for the addressed module. It also returns the current status of the power supply module.
The detailed contents of the reply are shown in the response section.
Parameters: None
Example: *999<sp>A<sp>SC<sp>CRC<cr>
Response: OK or ERR or CRC or MOD
If the response is OK, then the following parameters will also be returned in space delimited format in the
order shown below. (Note: X may be replaced by any valid character. All other characters will be as shown).
Error codes are the last two digits reported on the status code line. Refer to Section 6.0, Error Codes (pp 27
to 29) for more details.
T
TT
TABLE
ABLEABLE
ABLE7.5.2
7.5.27.5.2
7.5.2B
B B
B : R
: R: R
: RESPONSE
ESPONSE ESPONSE
ESPONSE P
PP
PARAMETERS FOR
ARAMETERS FOR ARAMETERS FOR
ARAMETERS FOR S
SS
STATUS
TATUS TATUS
TATUS C
CC
CONFIGURATION
ONFIGURATION ONFIGURATION
ONFIGURATION R
RR
REQUEST
EQUESTEQUEST
EQUEST
Parameter (Units) Format Example
MA4070 Status Code XXXX 0101
MA4070 RF Power (dBm) XXX.X 35.5
MA4070 RF Reverse Power (dBm) XX.X < 20
FPHS – Forward Power High Set
Description: Sets the Forward Power High for the specified module. When the Forward Power High is enabled, and
the RF Power is above the threshold limit, a non-critical alarm will be triggered.
Parameters: Desired RF Thresholds in dBm, in the form XX.X. The decimal point and trailing characters are
required. The trailing character can range between 0.0 and 0.9
Example: *999<sp>B<sp>FPHS<sp>38.0<sp>CRC<cr>
Response: OK or MOD or ERR or CRC
FPHE – Enable Forward Power High
Description: Enables the Forward Power High for the specified module. When the Forward Power High is enabled,
and the RF Power is above the threshold limit, a non-critical alarm will be triggered.
Parameters: None
Example: *999<sp>B<sp>FPHE<sp>CRC<cr>
Response: OK or MOD or ERR or CRC
FPHD – Disable Forward Power High
Description: Disables the Forward Power High for the specified module.
Parameters: None
Example: *999<sp>B<sp>FPHD<sp>CRC<cr>
Response: OK or MOD or ERR or CRC
WaveCom Electronics Inc
MA4061/MA4070 Manual; MAN1L2301 Rev02 (Oct 2001)
Approved: R. L.
40
FPLS – Set Forward Power Low
Description: Sets the Forward Power Low for the specified module. When the Forward Power Low is enabled, and
the RF Power is below the threshold limit, a non-critical alarm will be triggered.
Parameters: Desired RF Thresholds in dBm, in the form XX.X. The decimal point and trailing characters are
required. The trailing character can range between 0.0 and 0.9
Example: *999<sp>B<sp>FPLS<sp>34.0<sp>CRC<cr>
Response: OK or MOD or ERR or CRC
FPLE – Enable Forward Power Low
Description: Enables the Forward Power Low for the specified module. When the Forward Power Low is enabled,
and the RF Power is below the threshold limit, a non-critical alarm will be triggered.
Parameters: None
Example: *999<sp>B<sp>FLPE<sp>CRC<cr>
Response: OK or MOD or ERR or CRC
FPLD – Disable Forward Power Low
Description: Disables the Forward Power Low for the specified module.
Parameters: None
Example: *999<sp>B<sp>FPLD<sp>CRC<cr>
Response: OK or MOD or ERR or CRC
RPS – Set Reverse Power Threshold
Description: Sets the Reverse Power Threshold for the specified module. When the Reverse Power Threshold is
enabled, and the RF Power is above the threshold limit, a non-critical alarm will be triggered.
Parameters: Desired RF Thresholds in dBm, in the form XX.X. The decimal point and trailing characters are
required. The trailing character can range between 0.0 and 0.9
Example: *999<sp>B<sp>RPS<sp>25.0<sp>CRC<cr>
Response: OK or MOD or ERR or CRC
RPE – Enable Reverse Power Threshold
Description: Sets the Reverse Power Threshold for the specified module. When the Reverse Power Threshold is
enabled, and the RF Power is above the threshold limit, a non-critical alarm will be triggered.
Parameters: None
Example: *999<sp>B<sp>RPE<sp>CRC<cr>
Response: OK or MOD or ERR or CRC
RPD – Disable Reverse Power Threshold
Description: Disables the Reverse Power Threshold for the specified module.
Parameters: None
Example: *999<sp>B<sp>RPD<sp>CRC<cr>
Response: OK or MOD or ERR or CRC
WaveCom Electronics Inc
MA4061/MA4070 Manual; MAN1L2301 Rev02 (Oct 2001)
Approved: R. L.
41
7.6 CRC Calculation
The CRC calculations are performed using a table driven approach. The polynomial used is
X^16+X^15+X^2+1.
Only the basic algorithm and lookup table will be described here. Sample code is available on request. For
further information, this approach is described in detail in the following paper:
Perez, Aram; Byte-wise CRC Calculations, IEEE Micro, June 1983, pp. 40 - 50
The algorithm for the CRC calculation is as follows:
Exclusive-OR the input byte with the low-order byte of the CRC register to get X.
Shift the CRC register 8 bits to the right.
Exclusive-OR the CRC register with the contents of the table, using X as an index.
Repeat steps 1 - 3 for all message bytes.
☛ Note: The CRC register is 16 bits long, and should be cleared to 0 before beginning the
calculations.
For the transmit message: After all the message bytes have been processed, the CRC is tagged on to the
end of the message with the least significant byte first.
For the received message: After all the received message bytes have been processed, the resulting CRC
should be zero. If it is not zero, at least one bit error has occurred. If it is zero, it is assumed that no errors
have occurred.
WaveCom Electronics Inc
MA4061/MA4070 Manual; MAN1L2301 Rev02 (Oct 2001)
Approved: R. L.
42
WaveCom Electronics Inc
MA4061/MA4070 Manual; MAN1L2301 Rev02 (Oct 2001)
Approved: R. L.
43
8.0 WARRANTY AND SERVICE POLICIES
8.1 Warranty Statement
WaveCom warrants its products to be free from defects in workmanship or materials for a period of two years.
The warranty begins on the date of the original shipment from WaveCom to its customer. No claim may be
allowed for expenses incurred in installation or use. No other expressed or implied warranties shall apply to
the goods sold. WaveCom is not responsible for delayed shipments, other loss beyond WaveCom’s control,
or consequential damages of any kind arising in connection with the use of its products. This warranty is a
return-to-factory warranty only. During the warranty period WaveCom will at its option, replace, repair or
refund the price paid for any item which is returned for service. This warranty does not apply to physically or
environmentally abused units.
8.2 Service Policies: How to Return an Item for Service
Before returning any item for service, an R.M.A. (Returned Material Authorization) number must be assigned
by WaveCom. A unique R.M.A. number will be assigned for each item being returned. When requesting an
R.M.A. number, please be prepared to provide the model, WaveCom serial number, original invoice number,
your purchase order number and an adequate fault description. R.M.A. service is available Monday to Friday
from 8:30 a.m. to 4:30 p.m. CST (statutory holidays excepted).
To obtain an R.M.A. number you may: Call: (306) 955-7075, press ‘0’ for Operator or ‘2’ for Service Dept
Or Fax: (306) 384-0086 — Attention: R.M.A. Request
Once an R.M.A. number has been assigned, please refer to it in all correspondence and make certain that all
applicable R.M.A. numbers are clearly marked on the outside of each package being returned. You must also
ensure that each product is shipped to WaveCom in its original shipping container (or equivalent) via Prepaid
carrier, with appropriate insurance and customs documentation (where required). WaveCom will not accept
collect shipments, damaged shipments or shipments unaccompanied by an R.M.A. number.
Items will be returned from WaveCom to the customer via prepaid ground carrier. Any alternate means of
shipment must be requested by the customer and will be subject to additional charges.
Please ship authorized returning items to: Repair Center
WaveCom Electronics Inc.
202 Cardinal Crescent
Saskatoon, SK Canada S7L 6H8
8.3 Repair Charges and Warranty Exemptions
Items returned beyond the warranty period or items that do not qualify for warranty service are subject to
additional out-of-warranty repair charges. Descriptions of these charges and warranty exemptions are below:
1) Repair turnaround time is typically 5-10 working days after receipt of the item at WaveCom. A Flat Rate Repair Charge will apply to all
out-of-warranty items. Flat Rate Repair Charges are subject to change without notice.
2) Any faults due to customer error (ie - incorrect set-up or configuration settings) are subject to the current Test Fee and will be exempt
from warranty.
3) Items returned with inadequate fault descriptions are subject to the current Test Fee and are exempt from warranty.
4) In the event that no fault is found, the item is subject to the current Test Fee and will be exempt from warranty.
5) Any product exhibiting external damage (either from shipping, improper handling or use) will be subject to inspection. If said damages
are determined to be the cause of failure, the item will be exempt from warranty. All repairs to correct the external damage are
subject to Time & Materials Charges (parts and labor at current rates).
6) Items with damage caused by unauthorized repairs or by external devices are subject to current out-of-warranty Flat Rate Repair
Charges and are exempt from warranty.
7) All products returned for Factory Optioning are subject to the applicable current Option Charge plus Test Fee. Factory-optioned
products carry the balance of the original warranty or a 90 day warranty, whichever is greater.
All out-of-warranty repairs must be approved by the customer in writing. No repairs will be made until the
customer’s Purchase Order or Out-Of-Warranty Repair Authorization is received.
WaveCom Electronics Inc
MA4061/MA4070 Manual; MAN1L2301 Rev02 (Oct 2001)
Approved: R. L.
44
APPENDIX A – CRC – 16 CALCULATIONS TABLE
All values in the table are in Hex format.
X TERM E
NTRY
0 0
1 C0C1
2 C181
3 140
4 C301
5 3C0
6 280
7 C241
8 C601
9 6C0
A 780
B C741
C 500
D C5C1
E C481
F 440
10 CC01
11 CC0
12 D80
13 CD41
14 F00
15 CFC1
16 CE81
17 E40
18 A00
19 CAC1
1A CB81
1B B40
1C C901
1D 9C0
1E 880
1F C841
20 D801
21 18C0
22 1980
23 D941
24 1B00
25 DBC1
26 DA81
27 1A40
28 1E00
29 DEC1
2A DF81
2B 1F40
2C DD01
2D 1DC0
2E 1C80
2F DC41
30 1400
31 D4C1
32 D581
X TERM E
NTRY
33 1540
34 D701
35 17C0
36 1680
37 D641
38 D201
39 12C0
3A 1380
3B D341
3C 1100
3D D1C1
3E D081
3F 1040
40 F001
41 30C0
42 3180
43 F141
44 3300
45 F3C1
46 F281
47 3240
48 3600
49 F6C1
4A F781
4B 3740
4C F501
4D 35C0
4E 3480
4F F4441
50 3C00
51 FCC1
52 FD81
53 3D40
54 FF01
55 3FC0
56 3E80
57 FE41
58 FA01
59 3AC0
5A 3B80
5B FB41
5C 3900
5D F9C1
5E F881
5F 3840
60 2800
61 E8C1
62 E981
63 2940
64 EB01
65 2BC0
X TERM E
NTRY
66 2A80
67 EA41
68 EE01
69 2EC0
6A 2F80
6B EF41
6C 2D00
6D EDC1
6E EC81
6F 2C40
70 E401
71 24C0
72 2580
73 E541
74 2700
75 E7C1
76 E681
77 2640
78 2200
79 E2C1
7A E381
7B 2340
7C E101
7D 21C0
7E 2080
7F E041
80 A001
81 60C0
82 6180
83 A141
84 6300
85 A3C1
86 A281
87 6240
88 6600
89 A6C1
8A A781
8B 6740
8C A501
8D 65C0
8E 6480
8F A441
90 6C00
91 ACC1
92 AD81
93 6D40
94 AF01
95 6FC0
96 6E80
97 AE41
98 AA01
X TERM E
NTRY
99 6AC0
9A 6B80
WaveCom Electronics Inc
MA4061/MA4070 Manual; MAN1L2301 Rev02 (Oct 2001)
Approved: R. L.
45
9B AB41
9C 6900
9D A9C1
9E A881
9F 6840
A0 7800
A1 B8C1
A2 B981
A3 7940
A4 BB01
A5 7BC0
A6 7A80
A7 BA41
A8 BE01
A9 7EC0
AA 7F80
AB BF41
AC 7D00
AD BDC1
AE BC81
AF 7C40
B0 B401
B1 74C0
B2 7580
B3 B541
B4 7700
B5 B7C1
B6 B681
B7 7640
B8 7200
B9 B2C1
BA B381
BB 7340
BC B101
BD 71C0
BE 7080
BF B041
C0 5000
C1 90C1
C2 9181
C3 5140
C4 9301
C5 53C0
C6 5280
C7 9241
C8 9601
C9 56C0
CA 5780
CB 9741
CC 5500
CD 95C1
CE 9481
CF 5440
D0 9C01
X TERM E
NTRY
D1 5CC0
D2 5D80
D3 9D41
D4 5F00
D5 9FC1
D6 9E81
D7 5E40
D8 5A00
D9 9AC1
DA 9B81
DB 5B40
DC 9901
DD 59C0
DE 5880
DF 9841
E0 8801
E1 48C0
E2 4980
E3 8941
E4 4B00
E5 8BC1
E6 8A81
E7 4A40
E8 4E00
E9 8EC1
EA 8F81
EB 4F40
EC 8D01
ED 4DC0
EE 4C80
EF 8C41
F0 4400
F1 84C1
F2 8581
F3 4540
F4 8701
F5 47C0
F6 4680
F7 8641
F8 8201
F9 42C0
FA 4380
FB 8341
FC 4100
FD 81C1
FE 8081
FF 4040
222 Cardinal Crescent
Saskatoon, Saskatchewan
S7L 6H8
Canada
Tel: (306) 955-7075
Fax: (306) 955-9919
www.WaveCom.ca
sales@WaveCom.ca
