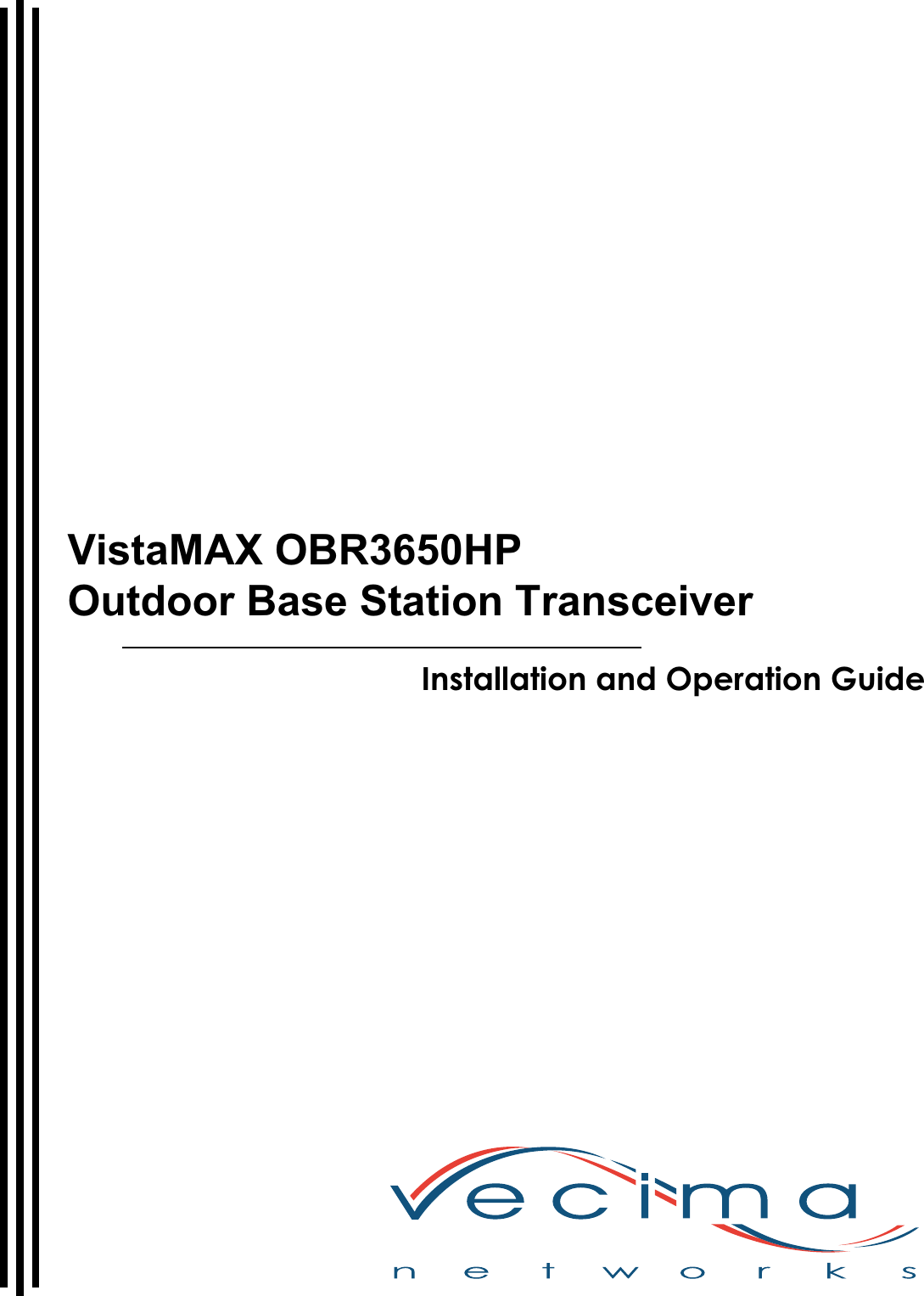

Installation and Operation GuideVistaMAX OBR3650HPOutdoor Base Station Transceiver
Proprietary to Vecima Networks Inc.(C) Vecima Networks Inc., 2009Permission to Reproduce Except as otherwise specifically noted, the information in this publication may be reproduced, in part or in whole and by any means, without chargeor further permission from Vecima Networks Inc., provided that due diligence is exercised in ensuring the accuracy of the information reproduced; thatVecima Networks Inc. is identified as the source; and that the reproduction is not represented as an official version of the information reproduced.This publication is also available electronically on the World Wide Web at the following address: www.vecima.comVecima Networks Inc. reserves the right to revise this publication and to make changes in content from time to time without obligation on the part ofVecima Networks Inc. to provide notification of such revision or change.Vecima Networks Inc. provides this guide without warranty of any kind, either implied or expressed, including, but not limited to, the implied warrantiesof merchantability and fitness for a particular purpose. Vecima Networks Inc. may make improvements or changes in the product(s) described in thismanual at any time.Specifications subject to change without notice.Document:Approved:OBR3650HP_ml_r01_sdC.W.

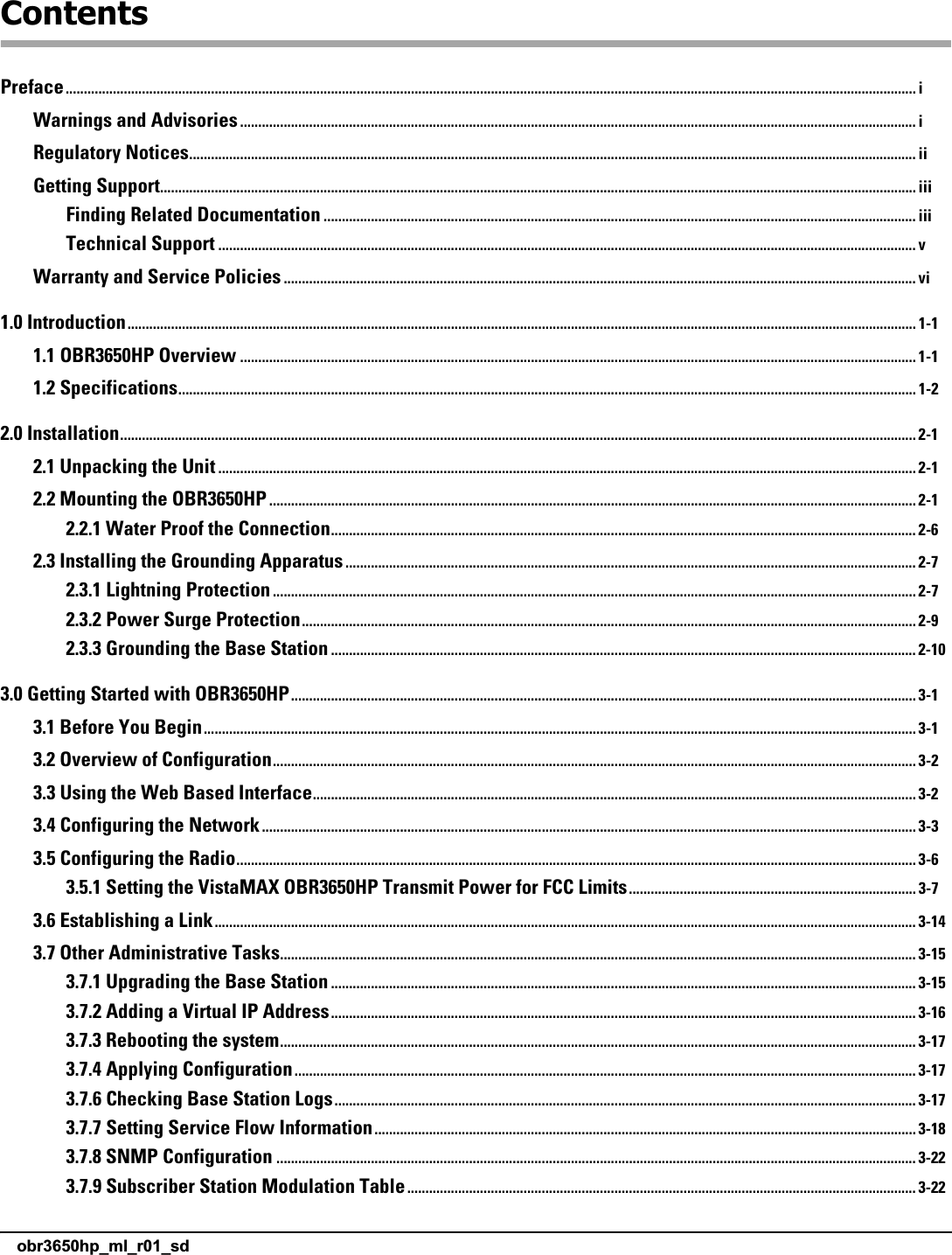

obr3650hp_ml_r01_sdContentsPreface.......................................................................................................................................................................................................................................... iWarnings and Advisories.......................................................................................................................................................................................... iRegulatory Notices........................................................................................................................................................................................................ iiGetting Support................................................................................................................................................................................................................ iiiFinding Related Documentation ................................................................................................................................................................... iiiTechnical Support ................................................................................................................................................................................................ vWarranty and Service Policies .............................................................................................................................................................................. vi1.0 Introduction......................................................................................................................................................................................................................... 1-11.1 OBR3650HP Overview .......................................................................................................................................................................................... 1-11.2 Specifications........................................................................................................................................................................................................... 1-22.0 Installation........................................................................................................................................................................................................................... 2-12.1 Unpacking the Unit ................................................................................................................................................................................................ 2-12.2 Mounting the OBR3650HP .................................................................................................................................................................................. 2-12.2.1 Water Proof the Connection................................................................................................................................................................. 2-62.3 Installing the Grounding Apparatus............................................................................................................................................................. 2-72.3.1 Lightning Protection................................................................................................................................................................................. 2-72.3.2 Power Surge Protection......................................................................................................................................................................... 2-92.3.3 Grounding the Base Station ................................................................................................................................................................. 2-103.0 Getting Started with OBR3650HP............................................................................................................................................................................ 3-13.1 Before You Begin.................................................................................................................................................................................................... 3-13.2 Overview of Configuration................................................................................................................................................................................. 3-23.3 Using the Web Based Interface...................................................................................................................................................................... 3-23.4 Configuring the Network.................................................................................................................................................................................... 3-33.5 Configuring the Radio........................................................................................................................................................................................... 3-63.5.1 Setting the VistaMAX OBR3650HP Transmit Power for FCC Limits............................................................................... 3-73.6 Establishing a Link................................................................................................................................................................................................. 3-143.7 Other Administrative Tasks............................................................................................................................................................................... 3-153.7.1 Upgrading the Base Station ................................................................................................................................................................. 3-153.7.2 Adding a Virtual IP Address................................................................................................................................................................. 3-163.7.3 Rebooting the system............................................................................................................................................................................... 3-173.7.4 Applying Configuration........................................................................................................................................................................... 3-173.7.6 Checking Base Station Logs................................................................................................................................................................ 3-173.7.7 Setting Service Flow Information..................................................................................................................................................... 3-183.7.8 SNMP Configuration ................................................................................................................................................................................ 3-223.7.9 Subscriber Station Modulation Table............................................................................................................................................ 3-22
obr3650hp_ml_r01_sd3.7.10 Checking Base Station Status.......................................................................................................................................................... 3-223.7.11 SS Table........................................................................................................................................................................................................ 3-233.7.12 PKM AUTH Table ..................................................................................................................................................................................... 3-233.7.13 PKM TEK Table.......................................................................................................................................................................................... 3-23A1 Molex® Backshell Installation............................................................................................................................................................................... A-1A1.1 Molex® Backshell Components ................................................................................................................................................................ A-2A1.2 Initial Placement of the Backshell............................................................................................................................................................ A-3A1.3 Attaching the RJ45 Connector...................................................................................................................................................................... A-4A1.4 Completing the Backshell Installation.................................................................................................................................................... A-7B1 Installing the Antenna - Points to Consider...................................................................................................................................................... B-1B1.1 Planning the Installation........................................................................................................................................................................ B-1B1.2 Safety Considerations.............................................................................................................................................................................. B-1B1.3 Evaluating the Mounting Location.................................................................................................................................................... B-1

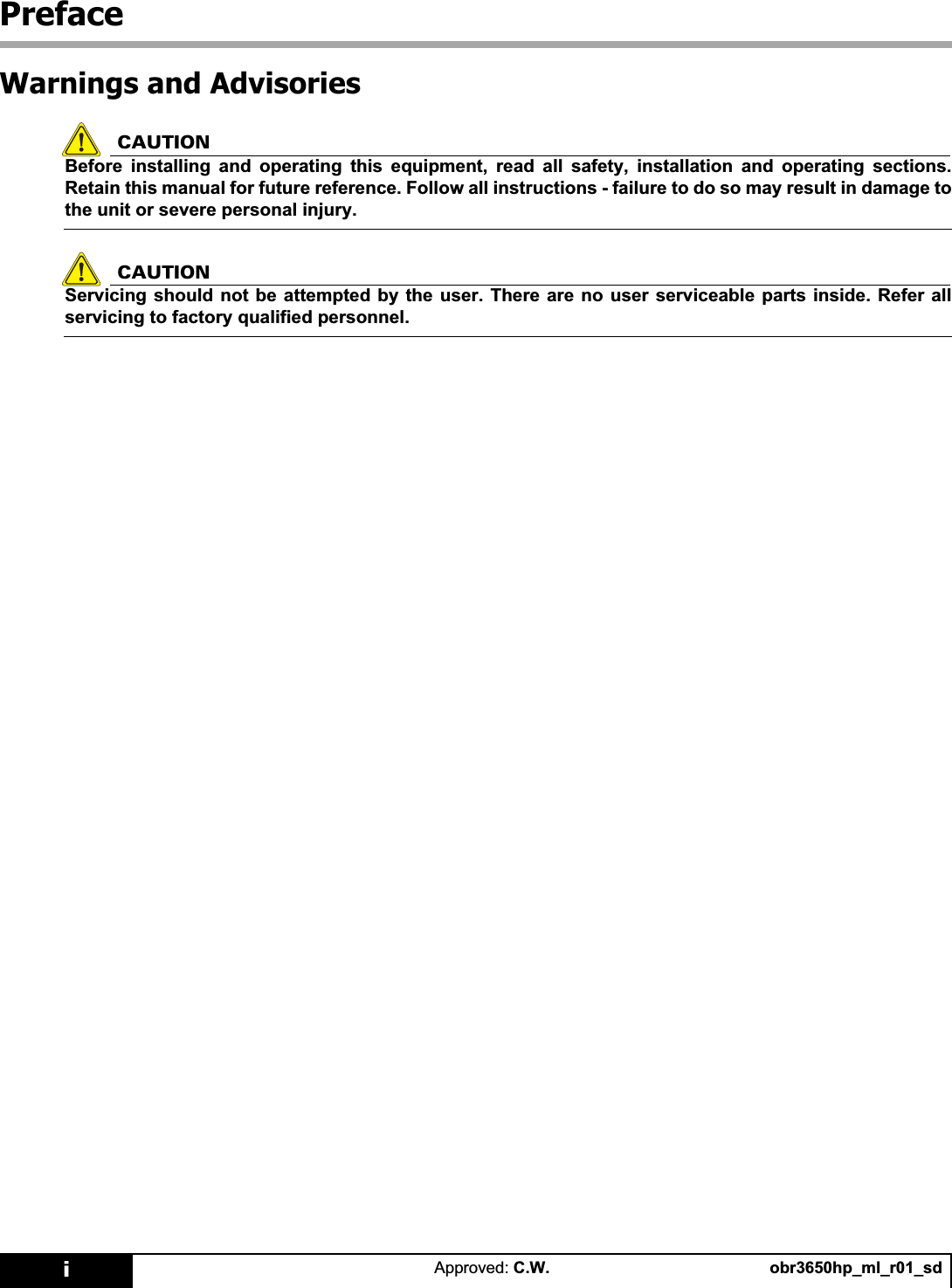

obr3650hp_ml_r01_sdApproved: C.W.iPrefaceWarnings and AdvisoriesCAUTIONBefore installing and operating this equipment, read all safety, installation and operating sections.Retain this manual for future reference. Follow all instructions - failure to do so may result in damage tothe unit or severe personal injury.CAUTIONServicing should not be attempted by the user. There are no user serviceable parts inside. Refer allservicing to factory qualified personnel.

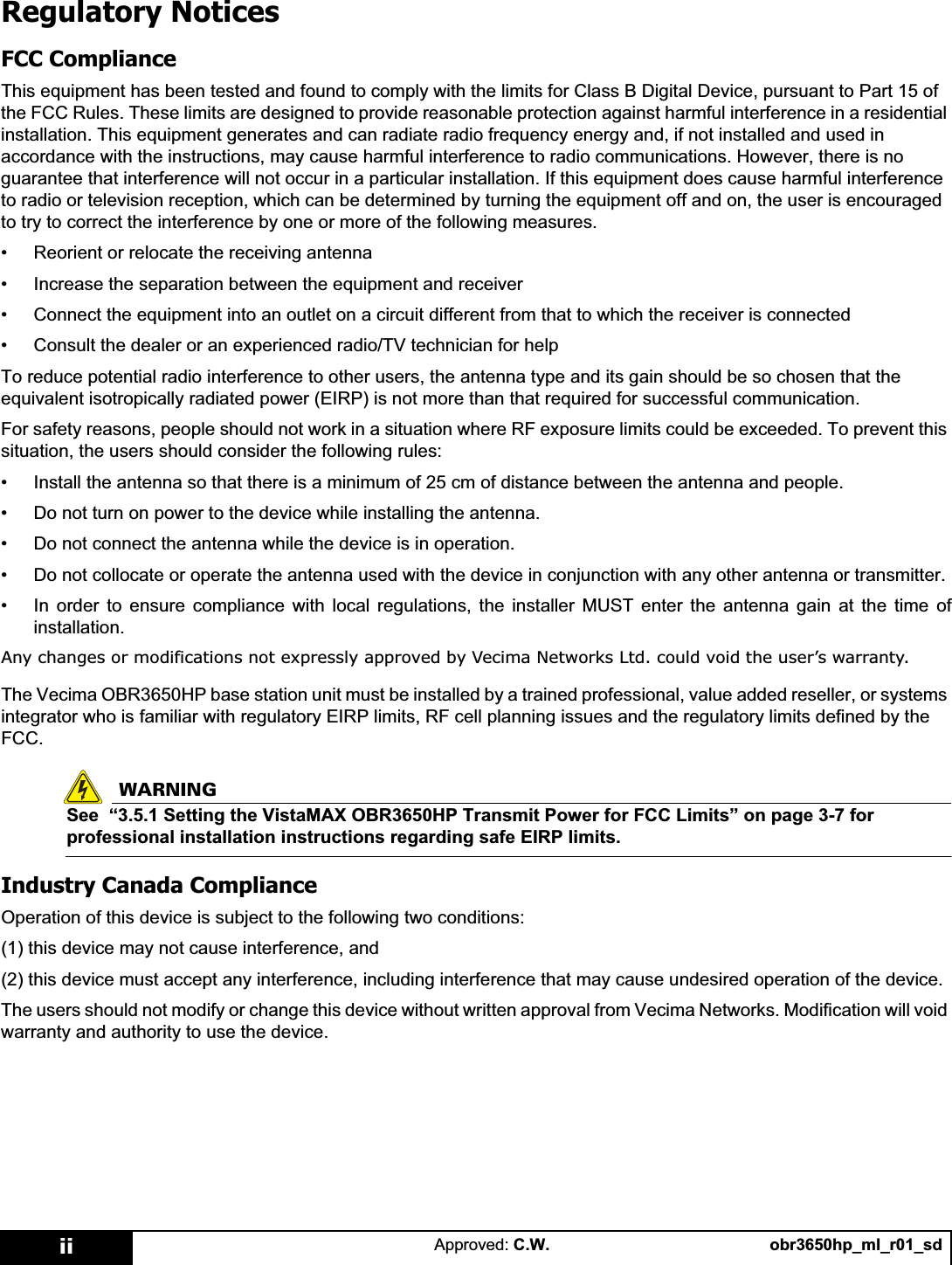

obr3650hp_ml_r01_sdApproved: C.W.iiRegulatory NoticesFCC ComplianceThis equipment has been tested and found to comply with the limits for Class B Digital Device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures. • Reorient or relocate the receiving antenna • Increase the separation between the equipment and receiver • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected • Consult the dealer or an experienced radio/TV technician for help To reduce potential radio interference to other users, the antenna type and its gain should be so chosen that the equivalent isotropically radiated power (EIRP) is not more than that required for successful communication.For safety reasons, people should not work in a situation where RF exposure limits could be exceeded. To prevent this situation, the users should consider the following rules:• Install the antenna so that there is a minimum of 25 cm of distance between the antenna and people.• Do not turn on power to the device while installing the antenna.• Do not connect the antenna while the device is in operation.• Do not collocate or operate the antenna used with the device in conjunction with any other antenna or transmitter.• In order to ensure compliance with local regulations, the installer MUST enter the antenna gain at the time ofinstallation.Any changes or modifications not expressly approved by Vecima Networks Ltd. could void the user’s warranty.The Vecima OBR3650HP base station unit must be installed by a trained professional, value added reseller, or systems integrator who is familiar with regulatory EIRP limits, RF cell planning issues and the regulatory limits defined by the FCC.WARNINGSee “3.5.1 Setting the VistaMAX OBR3650HP Transmit Power for FCC Limits” on page 3-7 for professional installation instructions regarding safe EIRP limits.Industry Canada ComplianceOperation of this device is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device.The users should not modify or change this device without written approval from Vecima Networks. Modification will void warranty and authority to use the device.

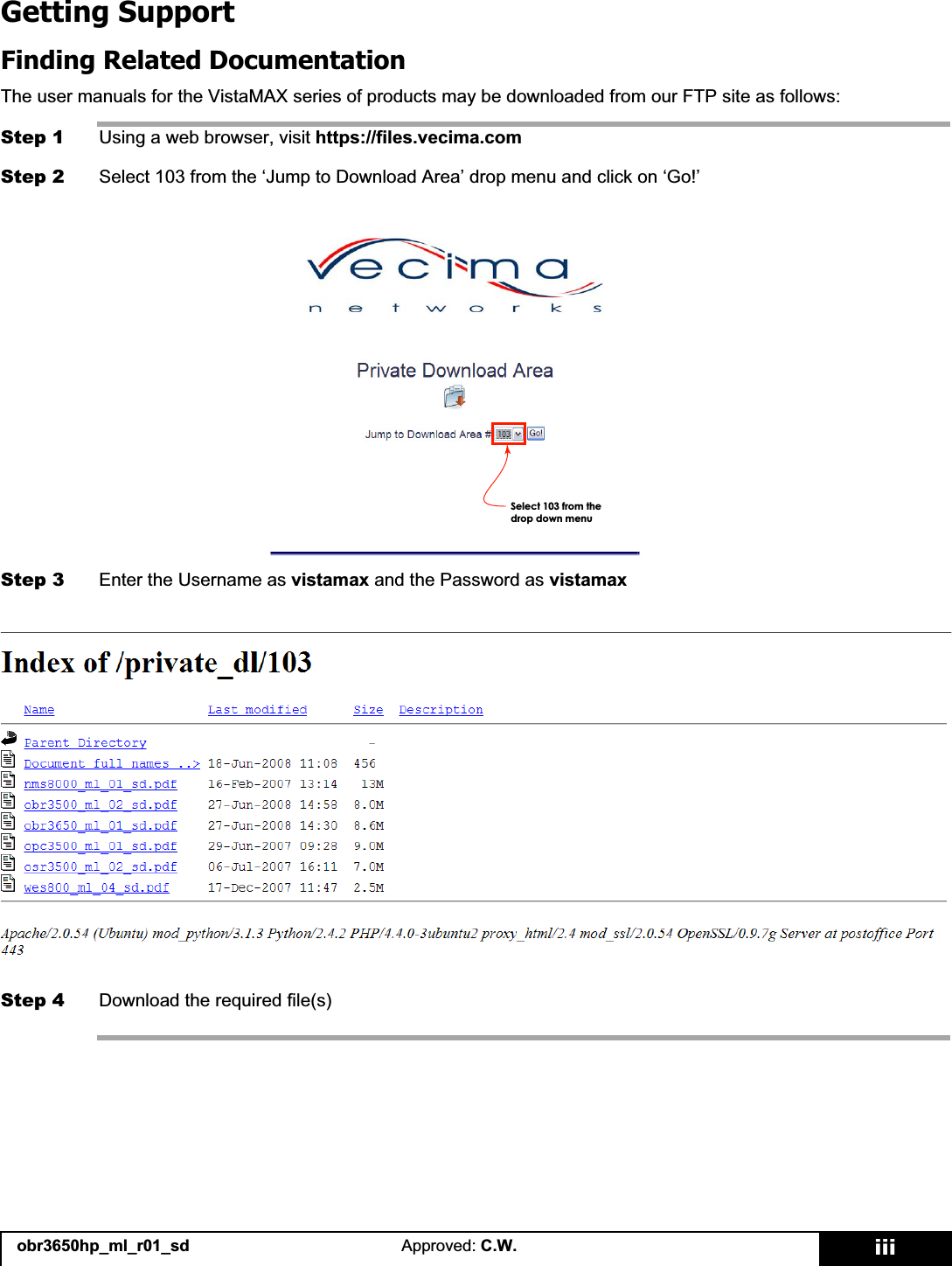

obr3650hp_ml_r01_sd Approved: C.W. iiiGetting SupportFinding Related DocumentationThe user manuals for the VistaMAX series of products may be downloaded from our FTP site as follows:Step 1 Using a web browser, visit https://files.vecima.comStep 2 Select 103 from the ‘Jump to Download Area’ drop menu and click on ‘Go!’Step 3 Enter the Username as vistamax and the Password as vistamaxStep 4 Download the required file(s)6HOHFWIURPWKHGURSGRZQPHQX

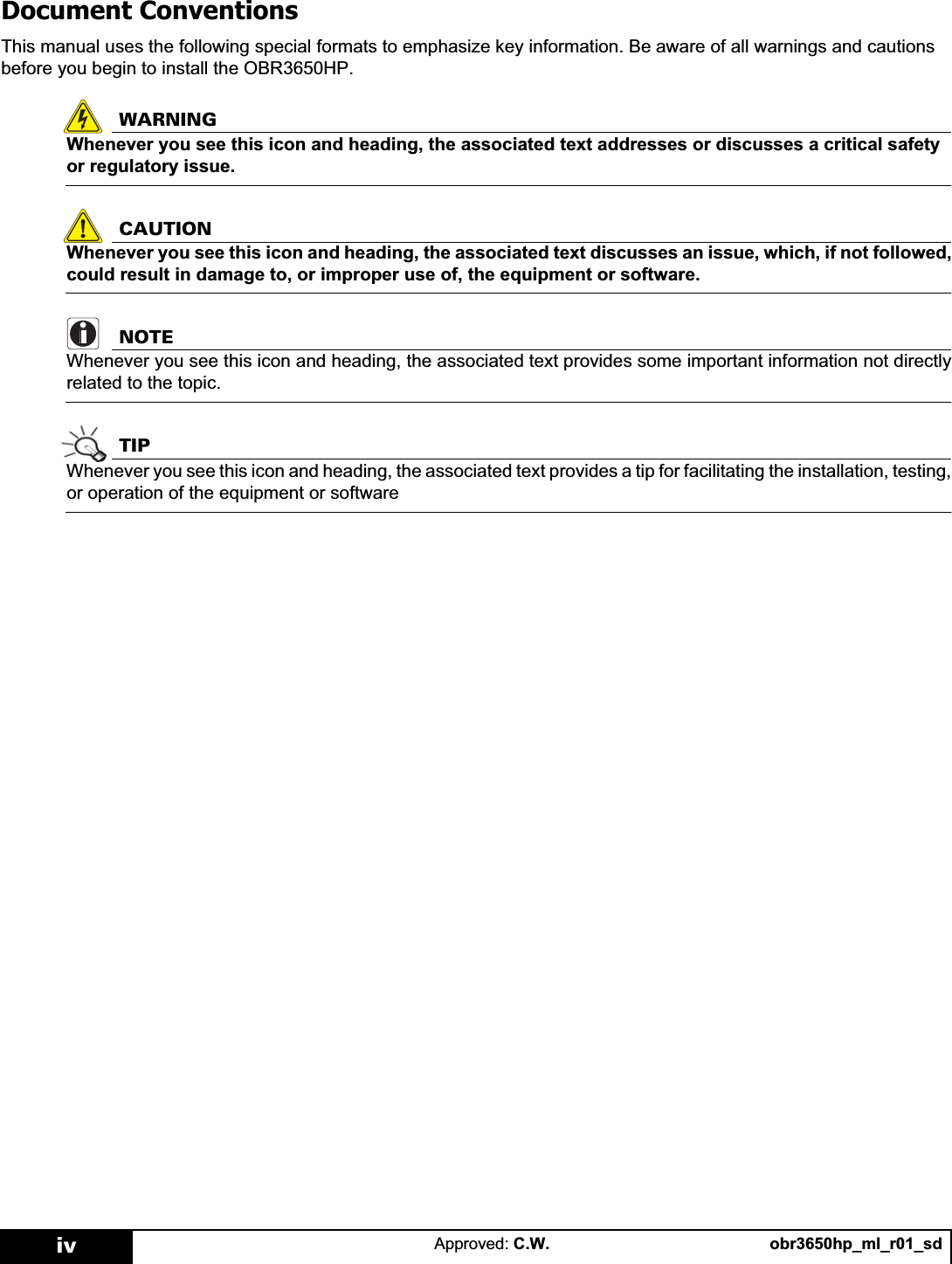

obr3650hp_ml_r01_sdApproved: C.W.ivDocument ConventionsThis manual uses the following special formats to emphasize key information. Be aware of all warnings and cautions before you begin to install the OBR3650HP.WARNINGWhenever you see this icon and heading, the associated text addresses or discusses a critical safety or regulatory issue.CAUTIONWhenever you see this icon and heading, the associated text discusses an issue, which, if not followed,could result in damage to, or improper use of, the equipment or software.NOTEWhenever you see this icon and heading, the associated text provides some important information not directlyrelated to the topic.TIPWhenever you see this icon and heading, the associated text provides a tip for facilitating the installation, testing,or operation of the equipment or software
obr3650hp_ml_r01_sd Approved: C.W. vTechnical SupportVisit the Vecima Networks Web page at www.vecima.com.• Get the latest announcements from Vecima Networks.• Download product related software, manuals, application notes, or other information about Vecima products.For technical support:Contact technical support by telephone or email.• Email: support@vecima.com• Telephone: +1 306 955 7075, press "2" for technical support.Be prepared to provide your model number and phone number.

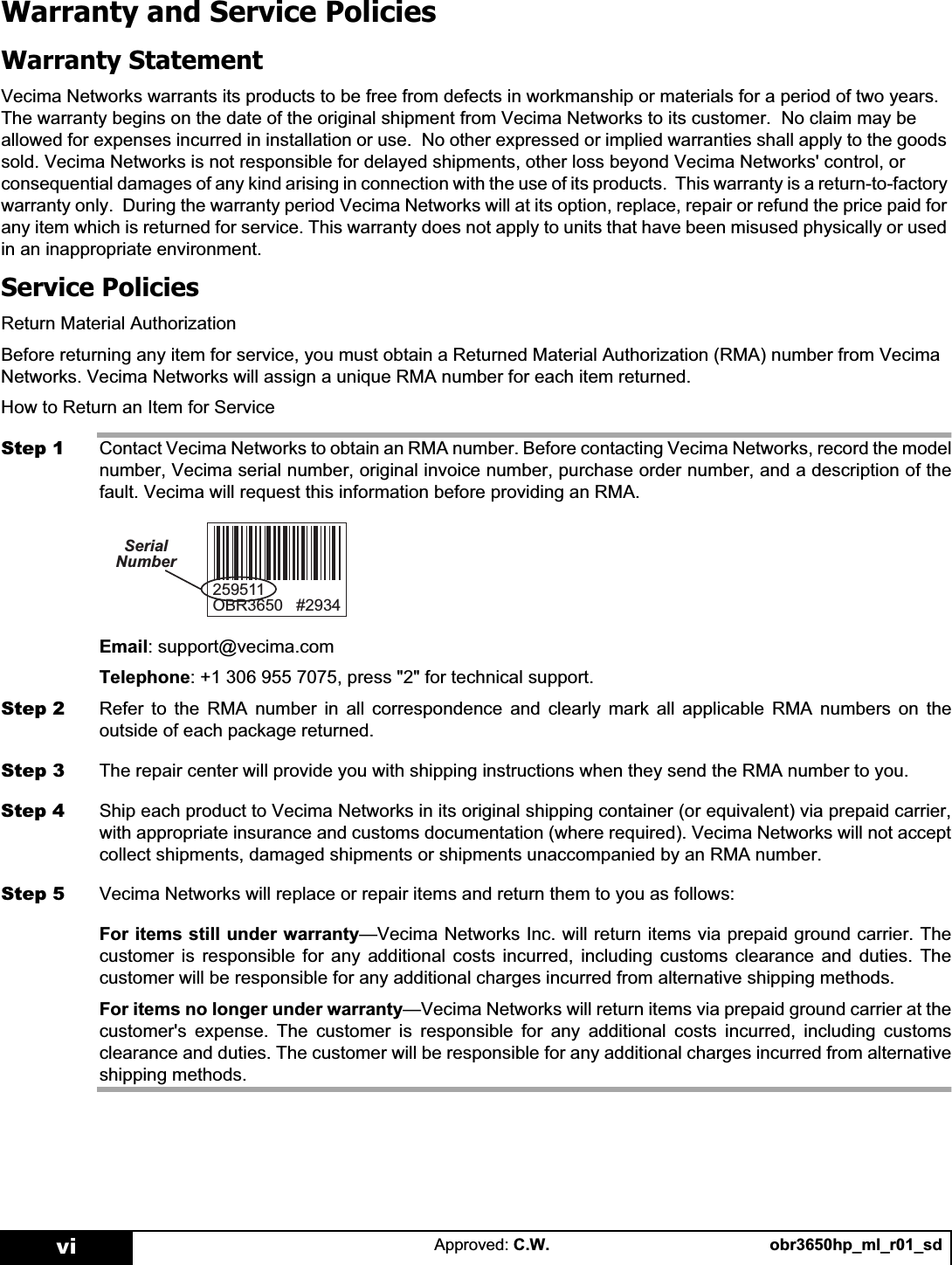

obr3650hp_ml_r01_sdApproved: C.W.viWarranty and Service PoliciesWarranty StatementVecima Networks warrants its products to be free from defects in workmanship or materials for a period of two years. The warranty begins on the date of the original shipment from Vecima Networks to its customer. No claim may be allowed for expenses incurred in installation or use. No other expressed or implied warranties shall apply to the goods sold. Vecima Networks is not responsible for delayed shipments, other loss beyond Vecima Networks' control, or consequential damages of any kind arising in connection with the use of its products. This warranty is a return-to-factory warranty only. During the warranty period Vecima Networks will at its option, replace, repair or refund the price paid for any item which is returned for service. This warranty does not apply to units that have been misused physically or used in an inappropriate environment.Service PoliciesReturn Material AuthorizationBefore returning any item for service, you must obtain a Returned Material Authorization (RMA) number from Vecima Networks. Vecima Networks will assign a unique RMA number for each item returned. How to Return an Item for ServiceStep 1 Contact Vecima Networks to obtain an RMA number. Before contacting Vecima Networks, record the modelnumber, Vecima serial number, original invoice number, purchase order number, and a description of thefault. Vecima will request this information before providing an RMA.Email: support@vecima.comTelephone: +1 306 955 7075, press "2" for technical support.Step 2 Refer to the RMA number in all correspondence and clearly mark all applicable RMA numbers on theoutside of each package returned.Step 3 The repair center will provide you with shipping instructions when they send the RMA number to you.Step 4 Ship each product to Vecima Networks in its original shipping container (or equivalent) via prepaid carrier,with appropriate insurance and customs documentation (where required). Vecima Networks will not acceptcollect shipments, damaged shipments or shipments unaccompanied by an RMA number.Step 5 Vecima Networks will replace or repair items and return them to you as follows:For items still under warranty—Vecima Networks Inc. will return items via prepaid ground carrier. Thecustomer is responsible for any additional costs incurred, including customs clearance and duties. Thecustomer will be responsible for any additional charges incurred from alternative shipping methods.For items no longer under warranty—Vecima Networks will return items via prepaid ground carrier at thecustomer's expense. The customer is responsible for any additional costs incurred, including customsclearance and duties. The customer will be responsible for any additional charges incurred from alternativeshipping methods.2%56HULDO1XPEHU

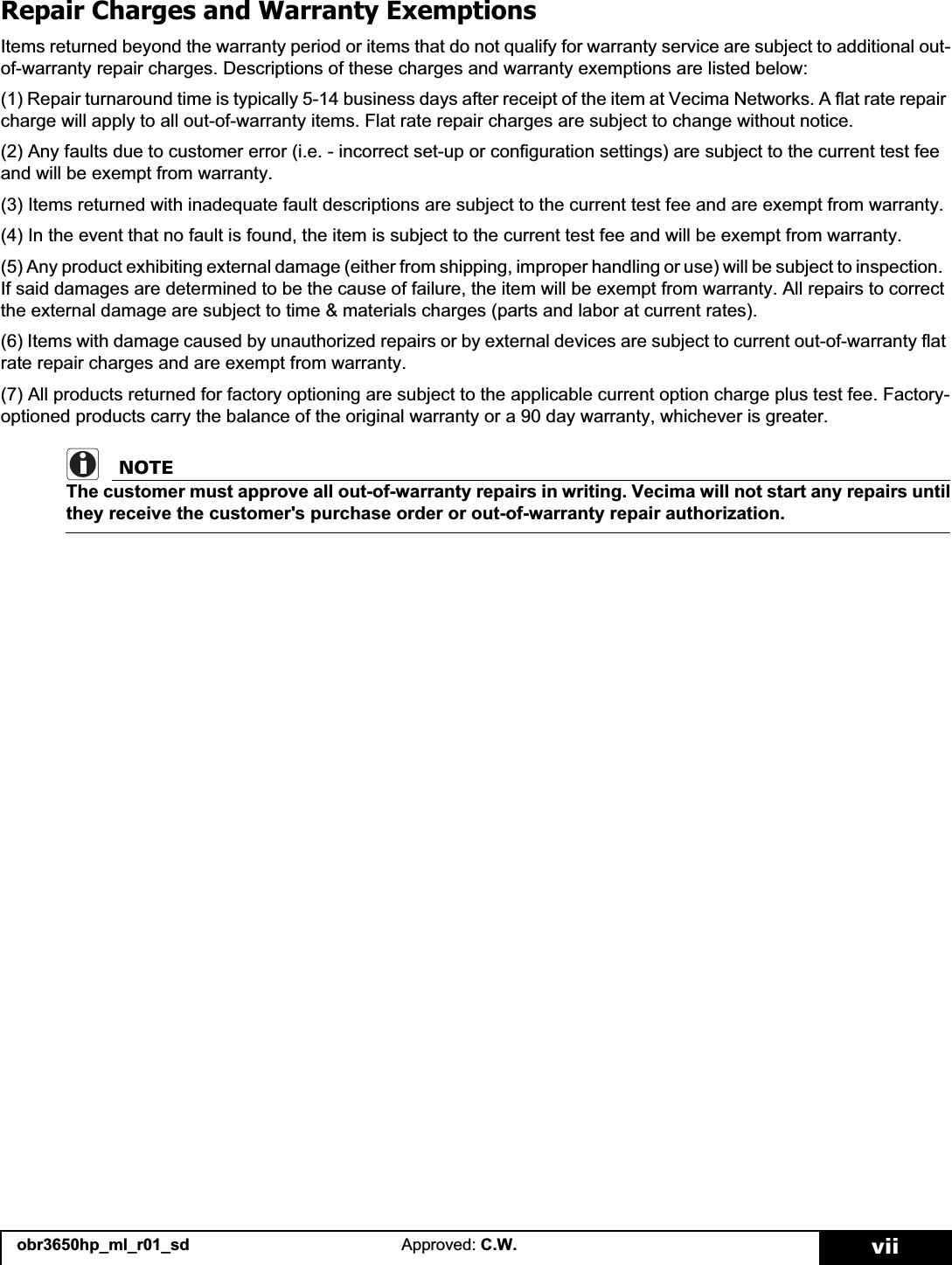

obr3650hp_ml_r01_sd Approved: C.W. viiRepair Charges and Warranty ExemptionsItems returned beyond the warranty period or items that do not qualify for warranty service are subject to additional out-of-warranty repair charges. Descriptions of these charges and warranty exemptions are listed below:(1) Repair turnaround time is typically 5-14 business days after receipt of the item at Vecima Networks. A flat rate repair charge will apply to all out-of-warranty items. Flat rate repair charges are subject to change without notice.(2) Any faults due to customer error (i.e. - incorrect set-up or configuration settings) are subject to the current test fee and will be exempt from warranty.(3) Items returned with inadequate fault descriptions are subject to the current test fee and are exempt from warranty.(4) In the event that no fault is found, the item is subject to the current test fee and will be exempt from warranty.(5) Any product exhibiting external damage (either from shipping, improper handling or use) will be subject to inspection. If said damages are determined to be the cause of failure, the item will be exempt from warranty. All repairs to correct the external damage are subject to time & materials charges (parts and labor at current rates).(6) Items with damage caused by unauthorized repairs or by external devices are subject to current out-of-warranty flat rate repair charges and are exempt from warranty.(7) All products returned for factory optioning are subject to the applicable current option charge plus test fee. Factory-optioned products carry the balance of the original warranty or a 90 day warranty, whichever is greater.NOTEThe customer must approve all out-of-warranty repairs in writing. Vecima will not start any repairs untilthey receive the customer's purchase order or out-of-warranty repair authorization.
obr3650hp_ml_r01_sdApproved: C.W.viiiThis page intentionally left blank

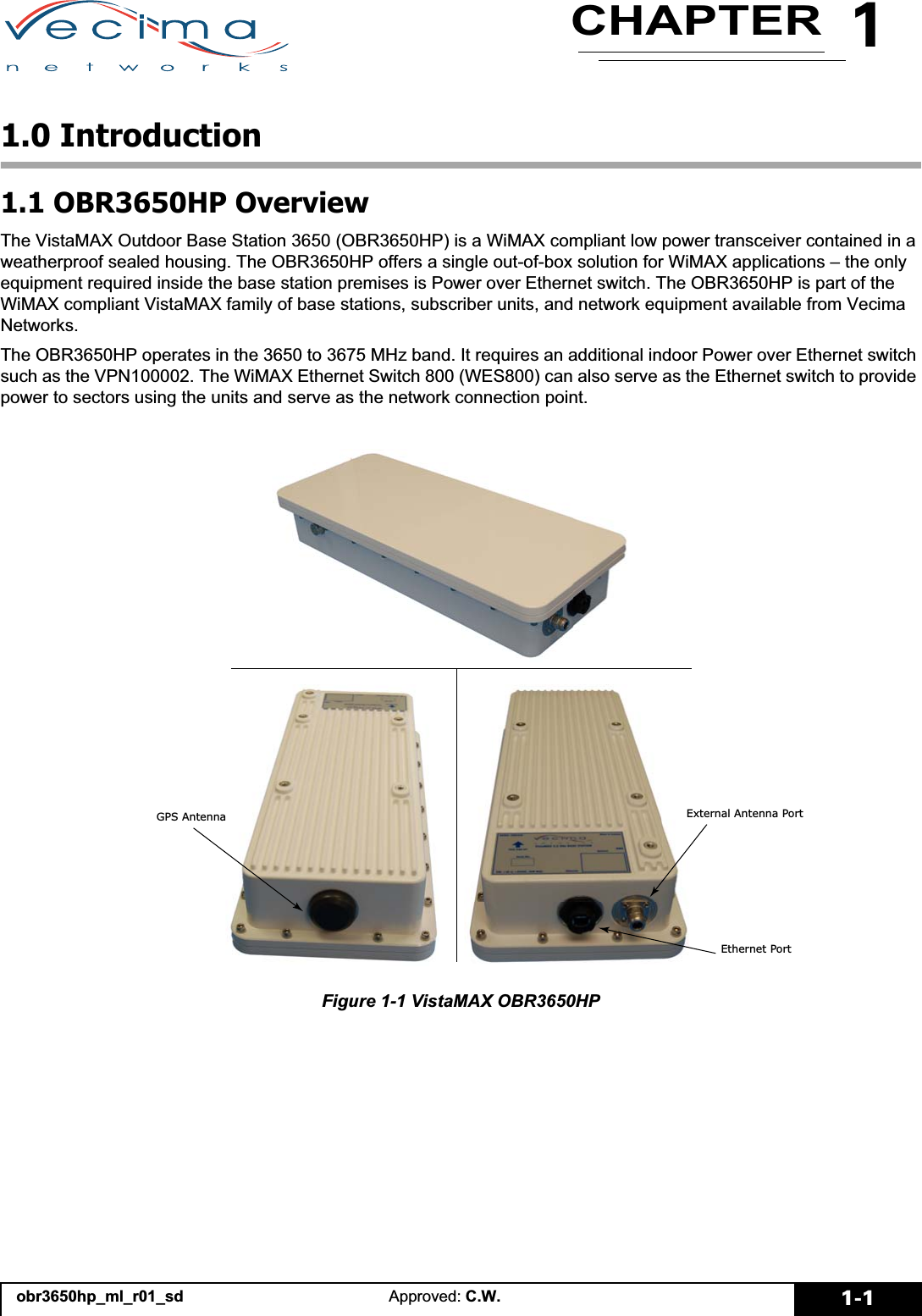

1CHAPTERobr3650hp_ml_r01_sd Approved: C.W. 1-11.0 Introduction1.1 OBR3650HP OverviewThe VistaMAX Outdoor Base Station 3650 (OBR3650HP) is a WiMAX compliant low power transceiver contained in a weatherproof sealed housing. The OBR3650HP offers a single out-of-box solution for WiMAX applications – the only equipment required inside the base station premises is Power over Ethernet switch. The OBR3650HP is part of the WiMAX compliant VistaMAX family of base stations, subscriber units, and network equipment available from Vecima Networks.The OBR3650HP operates in the 3650 to 3675 MHz band. It requires an additional indoor Power over Ethernet switch such as the VPN100002. The WiMAX Ethernet Switch 800 (WES800) can also serve as the Ethernet switch to provide power to sectors using the units and serve as the network connection point.Figure 1-1 VistaMAX OBR3650HP*36$QWHQQD(WKHUQHW3RUW([WHUQDO$QWHQQD3RUW

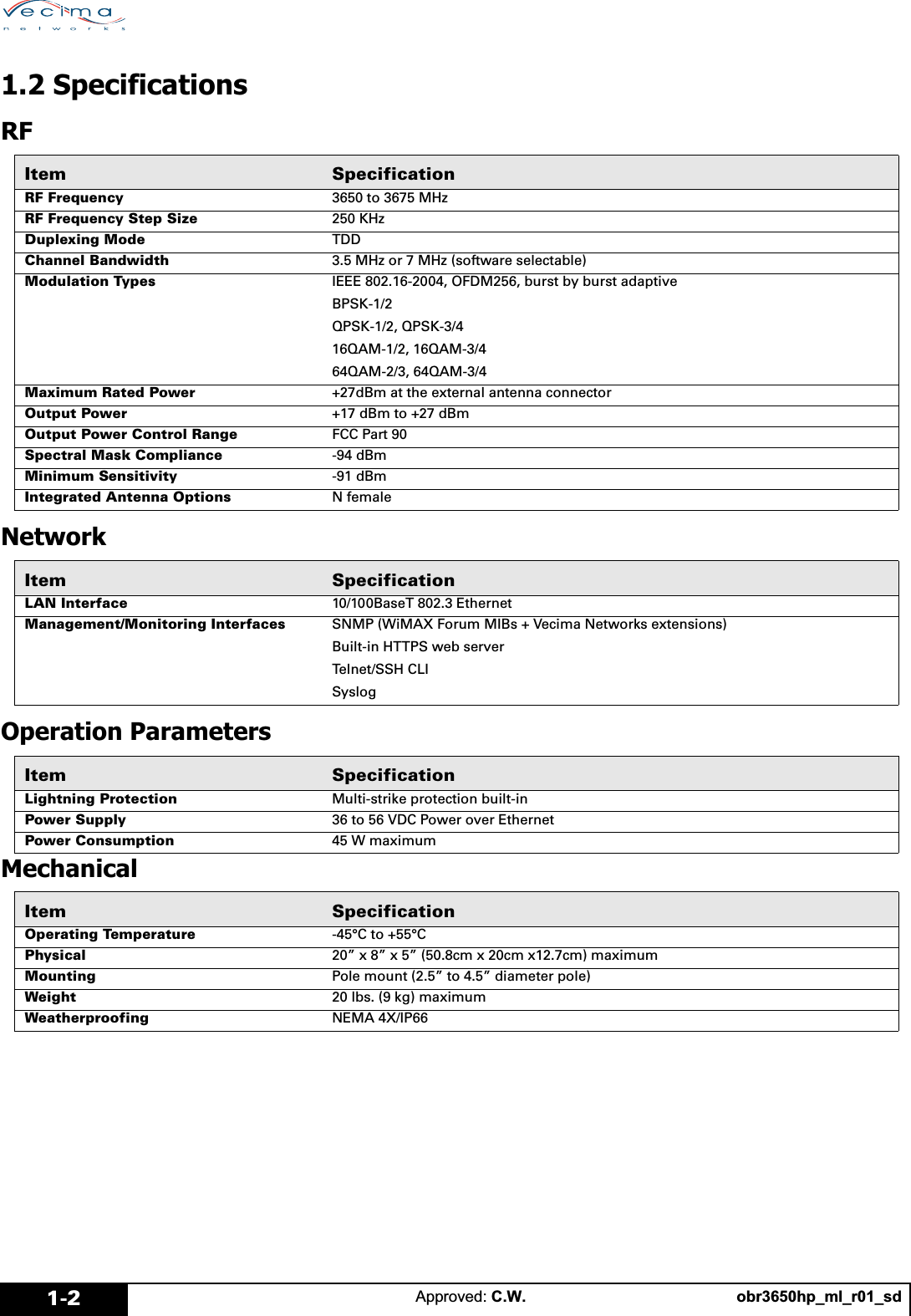

obr3650hp_ml_r01_sdApproved: C.W.1-21.2 SpecificationsRFNetworkOperation ParametersMechanicalItem SpecificationRF Frequency 3650 to 3675 MHzRF Frequency Step Size 250 KHzDuplexing Mode TDDChannel Bandwidth 3.5 MHz or 7 MHz (software selectable)Modulation Types IEEE 802.16-2004, OFDM256, burst by burst adaptiveBPSK-1/2QPSK-1/2, QPSK-3/416QAM-1/2, 16QAM-3/464QAM-2/3, 64QAM-3/4Maximum Rated Power +27dBm at the external antenna connectorOutput Power +17 dBm to +27 dBmOutput Power Control Range FCC Part 90Spectral Mask Compliance -94 dBmMinimum Sensitivity -91 dBmIntegrated Antenna Options N femaleItem SpecificationLAN Interface 10/100BaseT 802.3 EthernetManagement/Monitoring Interfaces SNMP (WiMAX Forum MIBs + Vecima Networks extensions)Built-in HTTPS web serverTelnet/SSH CLISyslogItem SpecificationLightning Protection Multi-strike protection built-inPower Supply 36 to 56 VDC Power over EthernetPower Consumption 45 W maximumItem SpecificationOperating Temperature -45°C to +55°CPhysical 20” x 8” x 5” (50.8cm x 20cm x12.7cm) maximumMounting Pole mount (2.5” to 4.5” diameter pole)Weight 20 lbs. (9 kg) maximumWeatherproofing NEMA 4X/IP66

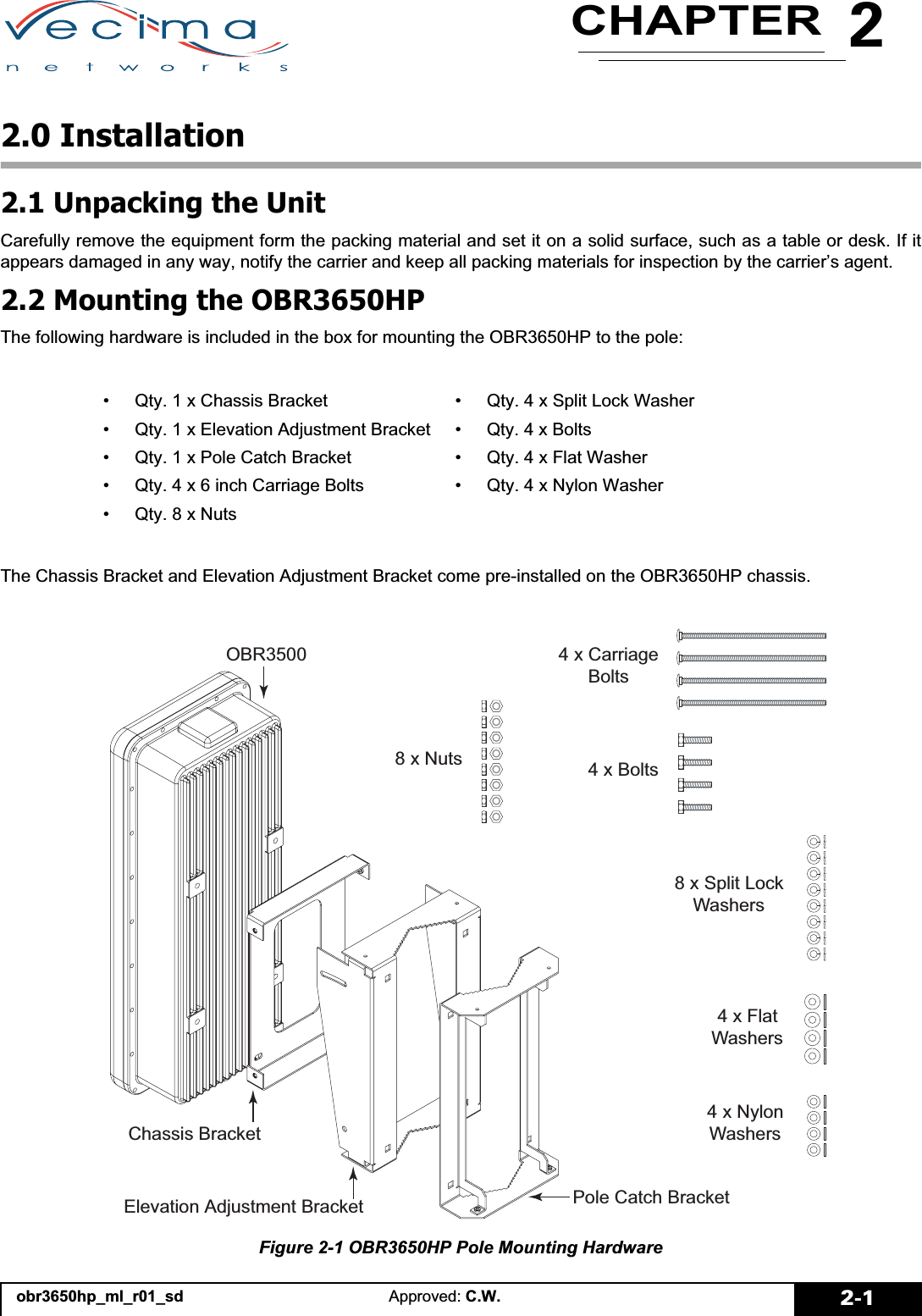

2CHAPTERobr3650hp_ml_r01_sd Approved: C.W. 2-12.0 Installation2.1 Unpacking the UnitCarefully remove the equipment form the packing material and set it on a solid surface, such as a table or desk. If itappears damaged in any way, notify the carrier and keep all packing materials for inspection by the carrier’s agent.2.2 Mounting the OBR3650HPThe following hardware is included in the box for mounting the OBR3650HP to the pole:The Chassis Bracket and Elevation Adjustment Bracket come pre-installed on the OBR3650HP chassis.Figure 2-1 OBR3650HP Pole Mounting Hardware• Qty. 1 x Chassis Bracket • Qty. 4 x Split Lock Washer• Qty. 1 x Elevation Adjustment Bracket • Qty. 4 x Bolts• Qty. 1 x Pole Catch Bracket • Qty. 4 x Flat Washer• Qty. 4 x 6 inch Carriage Bolts • Qty. 4 x Nylon Washer• Qty. 8 x Nuts&KDVVLV%UDFNHW(OHYDWLRQ$GMXVWPHQW%UDFNHW 3ROH&DWFK%UDFNHW2%5 [&DUULDJH%ROWV[1XWV[6SOLW/RFN:DVKHUV[)ODW:DVKHUV[1\ORQ:DVKHUV[%ROWV

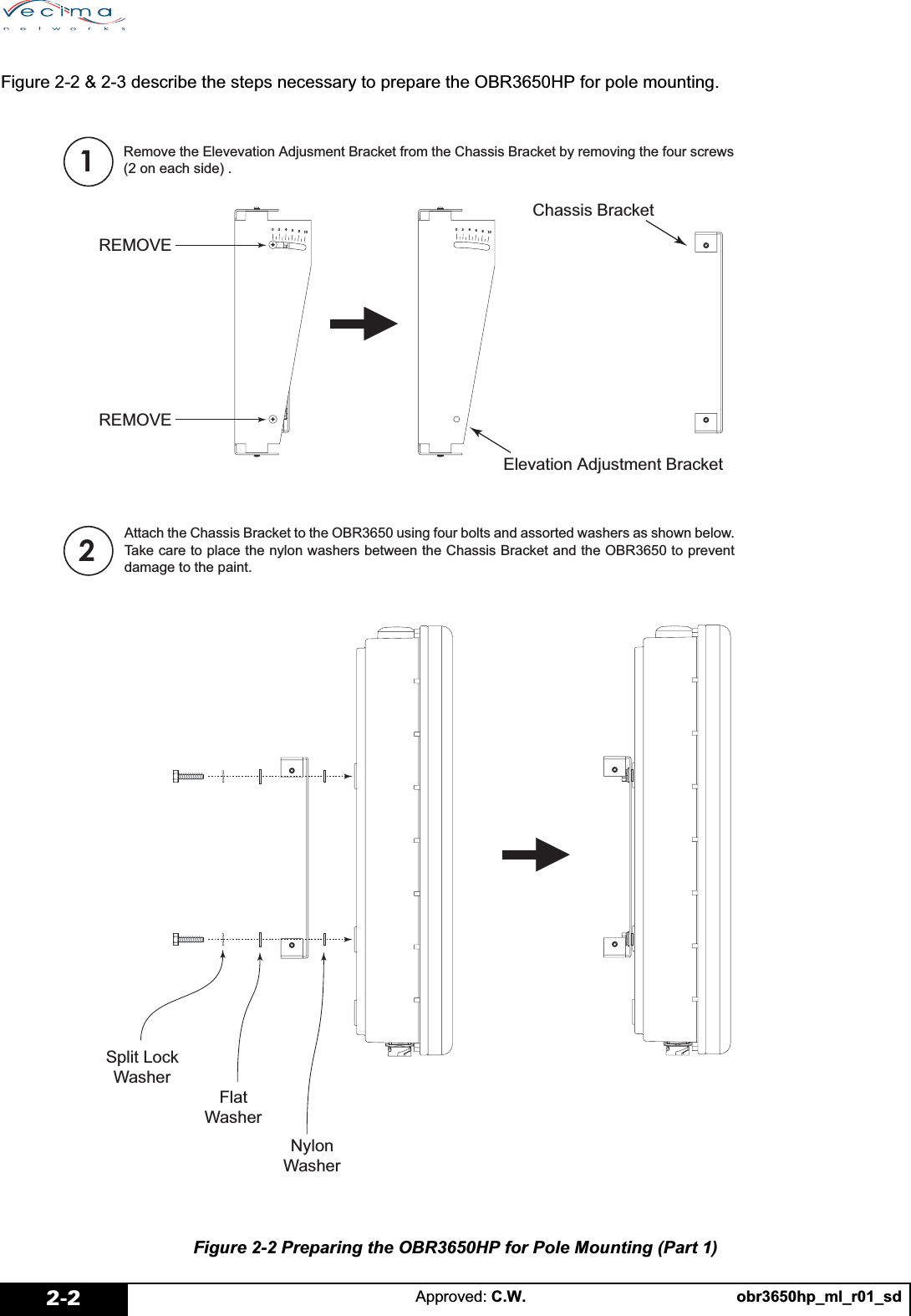

obr3650hp_ml_r01_sdApproved: C.W.2-2Figure 2-2 & 2-3 describe the steps necessary to prepare the OBR3650HP for pole mounting.Figure 2-2 Preparing the OBR3650HP for Pole Mounting (Part 1)5HPRYHWKH(OHYHYDWLRQ$GMXVPHQW%UDFNHWIURPWKH&KDVVLV%UDFNHWE\UHPRYLQJWKHIRXUVFUHZVRQHDFKVLGH5(029(5(029(&KDVVLV%UDFNHW(OHYDWLRQ$GMXVWPHQW%UDFNHW$WWDFKWKH&KDVVLV%UDFNHWWRWKH2%5XVLQJIRXUEROWVDQGDVVRUWHGZDVKHUVDVVKRZQEHORZ7DNHFDUHWRSODFHWKHQ\ORQZDVKHUVEHWZHHQWKH&KDVVLV%UDFNHWDQGWKH2%5WRSUHYHQWGDPDJHWRWKHSDLQW6SOLW/RFN:DVKHU)ODW:DVKHU1\ORQ:DVKHU

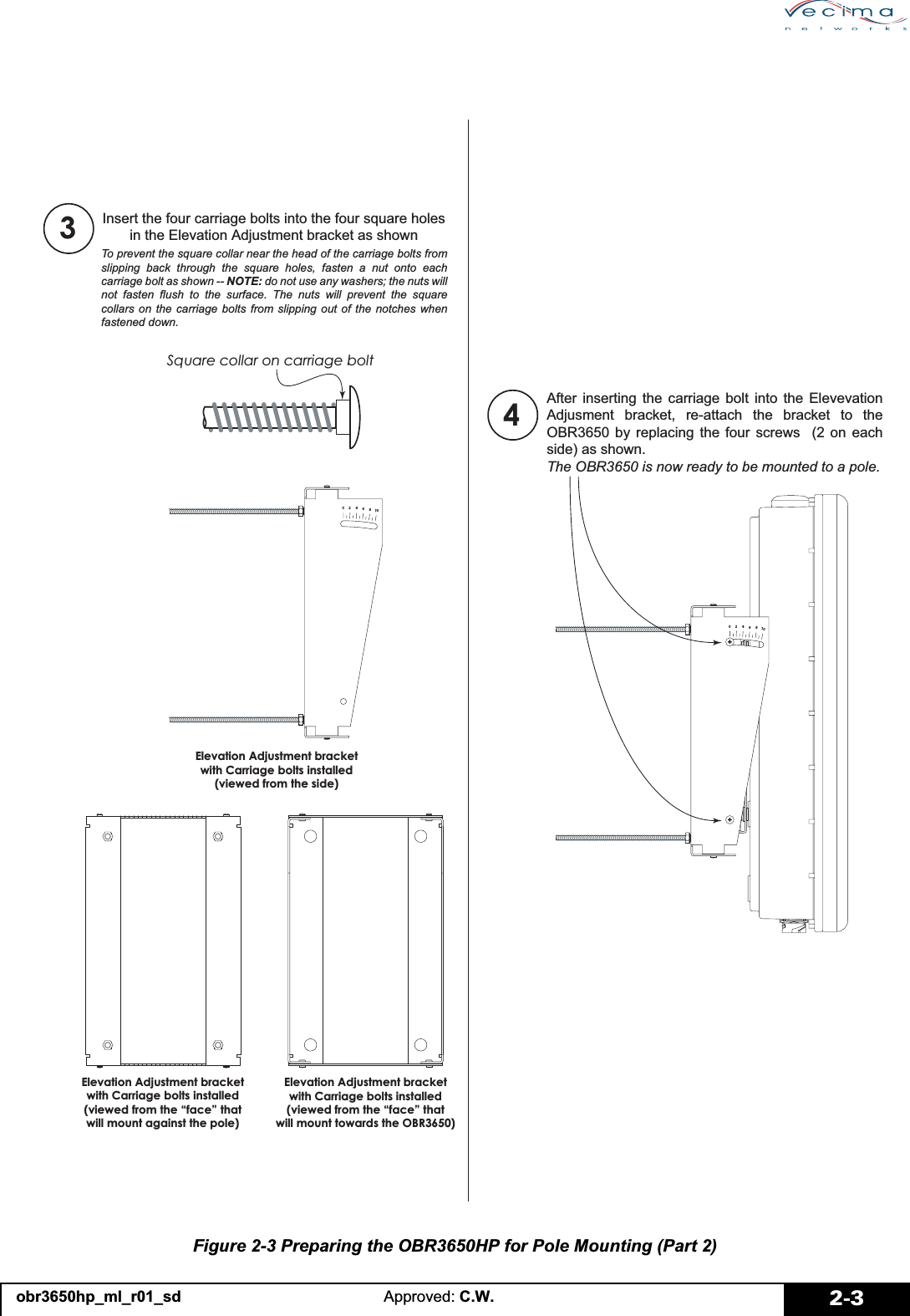

obr3650hp_ml_r01_sd Approved: C.W. 2-3Figure 2-3 Preparing the OBR3650HP for Pole Mounting (Part 2),QVHUWWKHIRXUFDUULDJHEROWVLQWRWKHIRXUVTXDUHKROHVLQWKH(OHYDWLRQ$GMXVWPHQWEUDFNHWDVVKRZQ(OHYDWLRQ$GMXVWPHQWEUDFNHWZLWK&DUULDJHEROWVLQVWDOOHGYLHZHGIURPWKHVLGH(OHYDWLRQ$GMXVWPHQWEUDFNHWZLWK&DUULDJHEROWVLQVWDOOHGYLHZHGIURPWKH´IDFHµWKDWZLOOPRXQWDJDLQVWWKHSROH(OHYDWLRQ$GMXVWPHQWEUDFNHWZLWK&DUULDJHEROWVLQVWDOOHGYLHZHGIURPWKH´IDFHµWKDWZLOOPRXQWWRZDUGVWKH2%56TXDUHFROODURQFDUULDJHEROW7RSUHYHQWWKHVTXDUHFROODUQHDUWKHKHDGRIWKHFDUULDJHEROWVIURPVOLSSLQJ EDFN WKURXJK WKH VTXDUH KROHV IDVWHQ D QXW RQWR HDFKFDUULDJHEROWDVVKRZQ127(GRQRWXVHDQ\ZDVKHUVWKHQXWVZLOOQRW IDVWHQ IOXVK WR WKH VXUIDFH 7KH QXWV ZLOO SUHYHQW WKH VTXDUHFROODUVRQWKH FDUULDJH EROWV IURP VOLSSLQJ RXW RI WKH QRWFKHV ZKHQIDVWHQHGGRZQ$IWHU LQVHUWLQJ WKH FDUULDJH EROW LQWR WKH (OHYHYDWLRQ$GMXVPHQW EUDFNHW UHDWWDFK WKH EUDFNHW WR WKH2%5 E\ UHSODFLQJ WKH IRXU VFUHZV   RQ HDFKVLGHDVVKRZQ7KH2%5LVQRZUHDG\WREHPRXQWHGWRDSROH

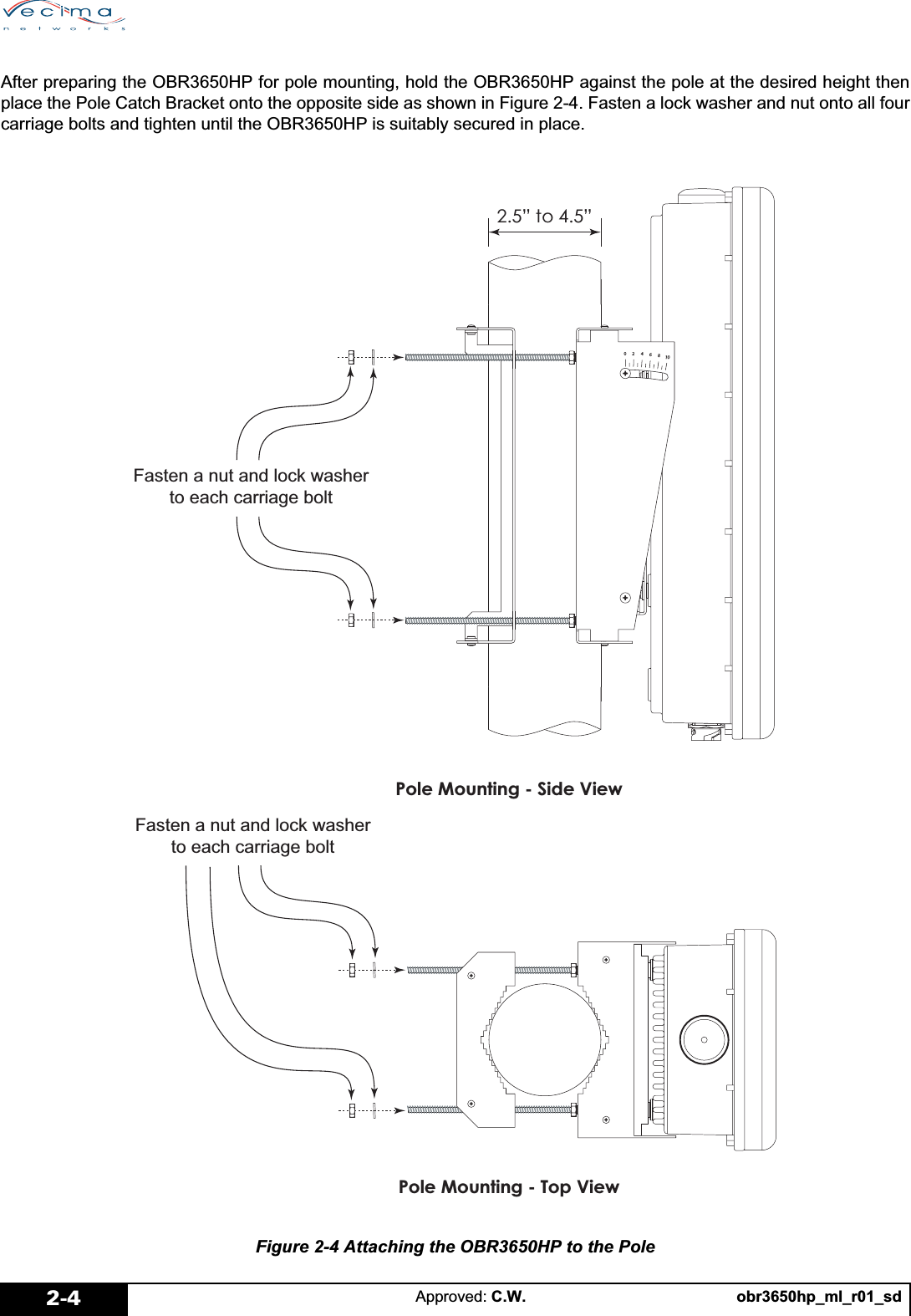

obr3650hp_ml_r01_sdApproved: C.W.2-4After preparing the OBR3650HP for pole mounting, hold the OBR3650HP against the pole at the desired height thenplace the Pole Catch Bracket onto the opposite side as shown in Figure 2-4. Fasten a lock washer and nut onto all fourcarriage bolts and tighten until the OBR3650HP is suitably secured in place.Figure 2-4 Attaching the OBR3650HP to the Pole3ROH0RXQWLQJ6LGH9LHZ3ROH0RXQWLQJ7RS9LHZµWRµ)DVWHQDQXWDQGORFNZDVKHUWRHDFKFDUULDJHEROW)DVWHQDQXWDQGORFNZDVKHUWRHDFKFDUULDJHEROW
obr3650hp_ml_r01_sd Approved: C.W. 2-5Once the OBR3650HP is mounted to the pole, the Elevation Angle may be adjusted as necessary and the unit may beconnected to the network via a CAT5E cable with a standard RJ45 connector on one end and a special Molex®backshell with RJ45 connector on the other end.NOTEIf not using a pre-made cable assembly (such as a CAT5CABLE/OD/25, CAT5CABLE/OD/50, CAT5CABLE/OD/75 or CAT5CABLE/OD/10 from Vecima Networks), then a cable assembly will have to made using theMolex® backshell included with the OBR3650HP. Please see Appendix 1 for details on how to install theMolex® backshell.Figure 2-5 Connecting the OBR3650HP to the NetworkµWRµ7RFRQQHFWWKH(WKHUQHWFDEOHLQVHUWDQGWZLVWFORFNZLVHWRORFNLQWRSODFH&RQQHFWWKHRWKHUHQGRIWKH(WKHUQHWFDEOHLQWRWKHQHWZRUNYLDVXUJHVXSSUHVVRU7RDGMXVWWKHHOHYDWLRQDQJOHRIWKH2%5ORRVHQWKHVHIRXUVFUHZVDQGWLJKWHQZKHQWKHGHVLUHGDQJOHLVDFKLHYHG

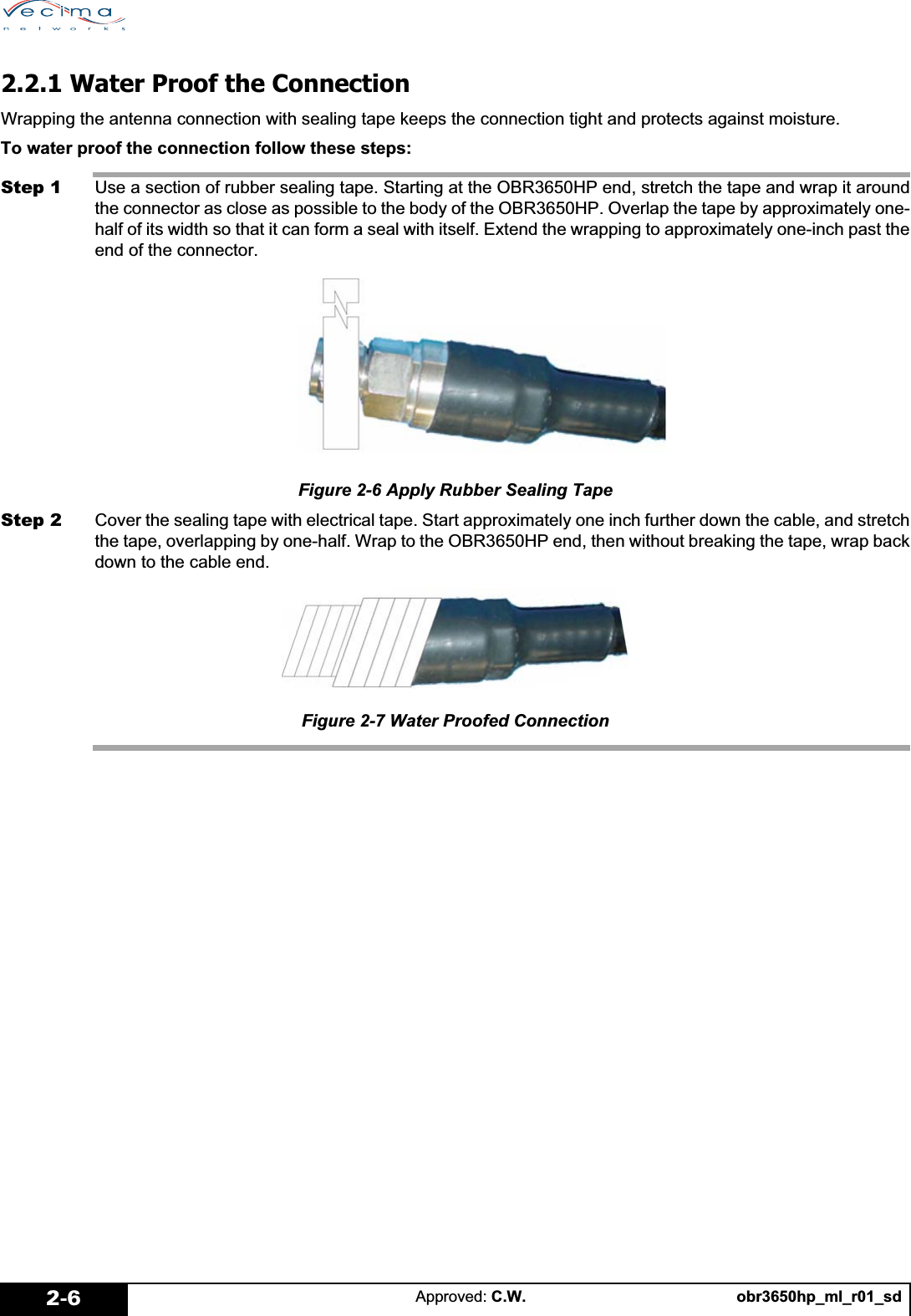

obr3650hp_ml_r01_sdApproved: C.W.2-62.2.1 Water Proof the ConnectionWrapping the antenna connection with sealing tape keeps the connection tight and protects against moisture.To water proof the connection follow these steps:Step 1 Use a section of rubber sealing tape. Starting at the OBR3650HP end, stretch the tape and wrap it aroundthe connector as close as possible to the body of the OBR3650HP. Overlap the tape by approximately one-half of its width so that it can form a seal with itself. Extend the wrapping to approximately one-inch past theend of the connector.Figure 2-6 Apply Rubber Sealing TapeStep 2 Cover the sealing tape with electrical tape. Start approximately one inch further down the cable, and stretchthe tape, overlapping by one-half. Wrap to the OBR3650HP end, then without breaking the tape, wrap backdown to the cable end.Figure 2-7 Water Proofed Connection

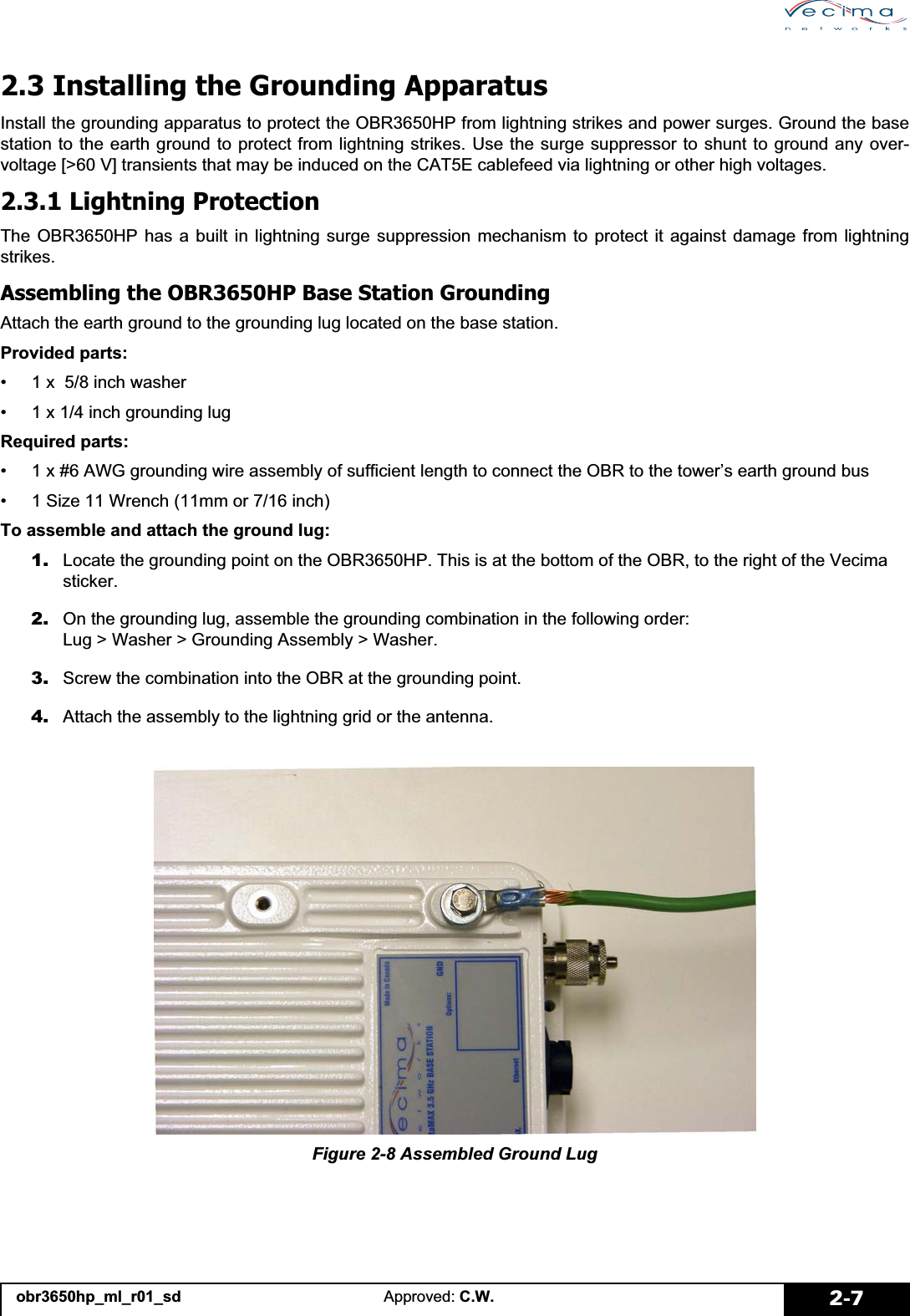

obr3650hp_ml_r01_sd Approved: C.W. 2-72.3 Installing the Grounding ApparatusInstall the grounding apparatus to protect the OBR3650HP from lightning strikes and power surges. Ground the basestation to the earth ground to protect from lightning strikes. Use the surge suppressor to shunt to ground any over-voltage [>60 V] transients that may be induced on the CAT5E cablefeed via lightning or other high voltages. 2.3.1 Lightning ProtectionThe OBR3650HP has a built in lightning surge suppression mechanism to protect it against damage from lightningstrikes.Assembling the OBR3650HP Base Station GroundingAttach the earth ground to the grounding lug located on the base station.Provided parts:• 1 x 5/8 inch washer• 1 x 1/4 inch grounding lugRequired parts:• 1 x #6 AWG grounding wire assembly of sufficient length to connect the OBR to the tower’s earth ground bus• 1 Size 11 Wrench (11mm or 7/16 inch)To assemble and attach the ground lug:1. Locate the grounding point on the OBR3650HP. This is at the bottom of the OBR, to the right of the Vecima sticker.2. On the grounding lug, assemble the grounding combination in the following order: Lug > Washer > Grounding Assembly > Washer.3. Screw the combination into the OBR at the grounding point.4. Attach the assembly to the lightning grid or the antenna.Figure 2-8 Assembled Ground Lug
obr3650hp_ml_r01_sdApproved: C.W.2-8Grounding the Base StationVecima Networks requires that the OBR3650HP be connected to the tower grounding system as shown in Figure 2-11.Figure 2-9 Grounding the OBR3650HPCAUTIONVecima Networks requires that the CAT5E cable to the OBR3650HP is connected to a lightning surgeprotector at the entrance to the building, prior to connection to the WES800 Ethernet Switch as shownin Figure 2-10.&RQQHFWWR7RZHU*URXQGLQJ6\VWHPPLQLPXP$:*ZLUH*URXQG&RQQHFWLRQ2%55($5$EROWIRUFRQQHFWLQJWKHJURXQGLQJZLUHWRWKH2%5LVLQFOXGHG
obr3650hp_ml_r01_sd Approved: C.W. 2-92.3.2 Power Surge ProtectionUse the surge suppressor to protect your equipment and secure your data from power surges.To connect the Cablefeed Shield to the Surge Suppressor Ground Lug1. Remove the suppressor unit cover.2. Thread the Ethernet cable through the right side opening to the suppressor.3. Measure five (5) inches from the end of the cable that you threaded through the right side opening.4. Lightly score the cable at the five inch mark.5. Carefully slice the edge of the insulation.Note: Do NOT cut the metal shield that surrounds the wires.6. Slowly snip or slice the insulation down to the five (5) inch scoring.7. Remove the insulation from the cable.8. Gently twist the metal shield to form metal ground strip.9. Make a straight-through cable with the wires. Remember: be careful not to damage the metal ground strip.10. Undo the grounding bolt on the right side of the suppressor.11. Wrap the grounding strip onto the grounding bolt.12. Screw the grounding bolt back into the side of the suppressor.13. Thread the cable that connects to the Power over Ethernet through the left opening on the suppressor.14. Strip the wires and make it a straight-through cable.15. Connect the cables to their perspective ports.16. Replace the cover of the suppressor.17. Finish connecting the network. See “2.3.3 Grounding the Base Station”Figure 2-10 Assembled Surge Suppressor
obr3650hp_ml_r01_sdApproved: C.W.2-102.3.3 Grounding the Base StationVecima recommends grounding the base station using one of the following procedures depending on your configuration.If you are unsure which procedure to use, use procedure B.Procedure A: Grounding the base station so that the building and the tower share thesame earth ground:1. Connect the chassis of the OBR3650HP to the tower via the grounding lug on the back of the unit. See “2.3.3Grounding the Base Station”.2. Use a shielded CAT5 cablefeed to connect the OBR base station to the surge suppressor.3. Use an inline surge suppressor for all OBR3650HP cablefeed installations. Connect the shield of the cablefeed to the ground lug of the surge suppressor. The purpose of the surge suppressor is to shunt to ground any over voltage [>60] transients that may be induced on the CAT5E cablefeed via lightning or other high voltages.Figure 2-11 Base Station Grounding - building ground is same as tower ground

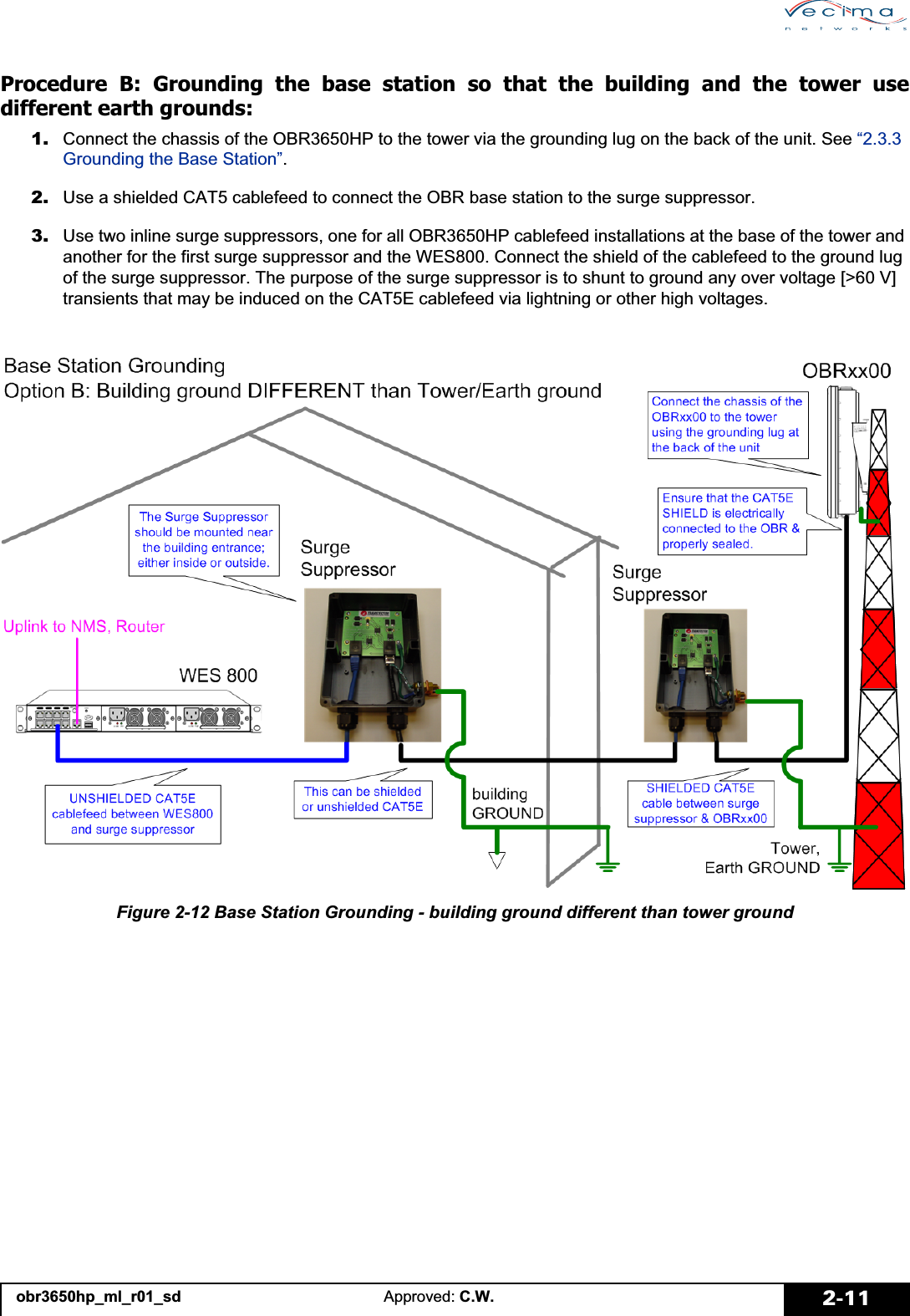

obr3650hp_ml_r01_sd Approved: C.W. 2-11Procedure B: Grounding the base station so that the building and the tower usedifferent earth grounds:1. Connect the chassis of the OBR3650HP to the tower via the grounding lug on the back of the unit. See “2.3.3 Grounding the Base Station”.2. Use a shielded CAT5 cablefeed to connect the OBR base station to the surge suppressor.3. Use two inline surge suppressors, one for all OBR3650HP cablefeed installations at the base of the tower and another for the first surge suppressor and the WES800. Connect the shield of the cablefeed to the ground lug of the surge suppressor. The purpose of the surge suppressor is to shunt to ground any over voltage [>60 V] transients that may be induced on the CAT5E cablefeed via lightning or other high voltages.Figure 2-12 Base Station Grounding - building ground different than tower ground

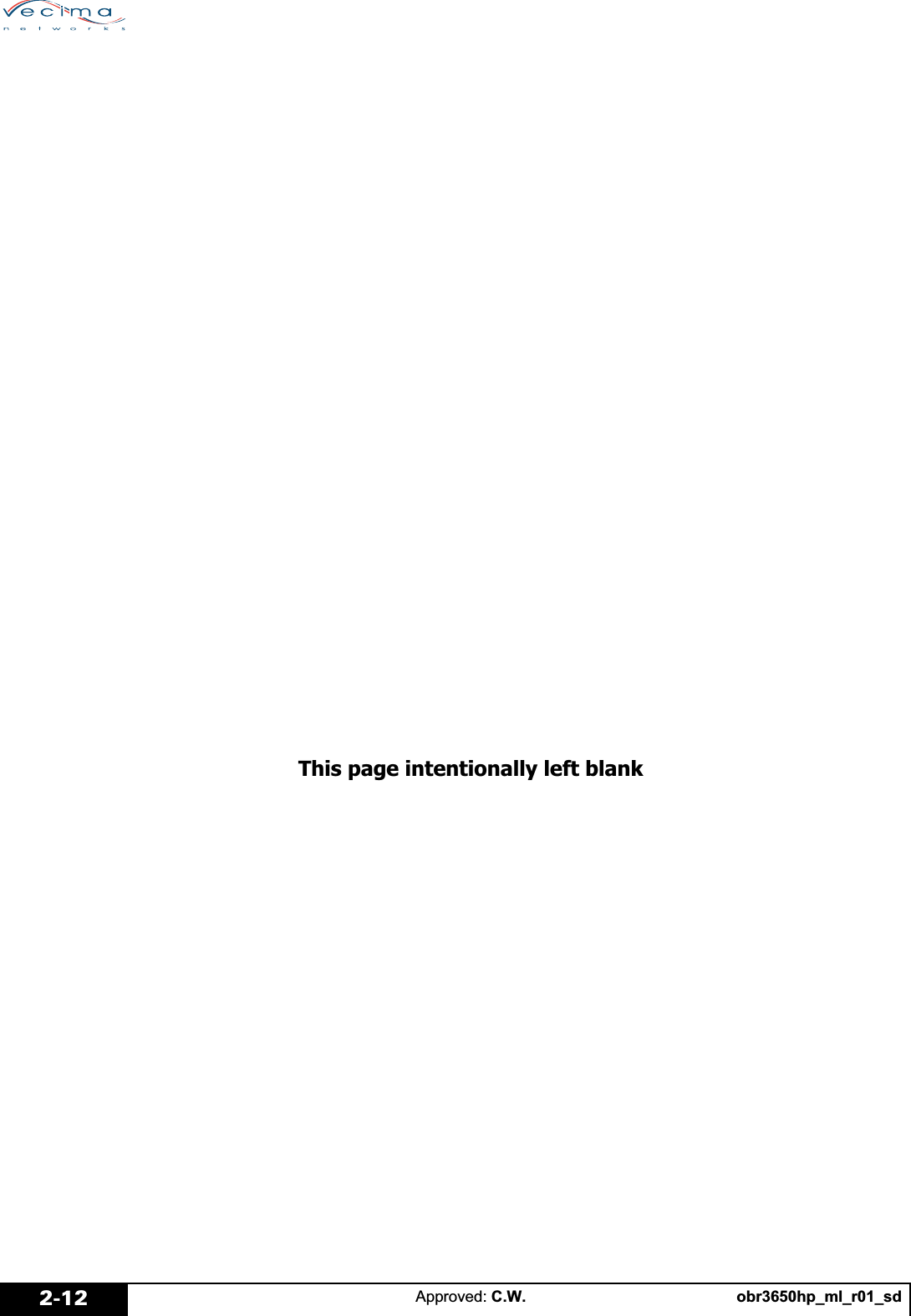

obr3650hp_ml_r01_sdApproved: C.W.2-12This page intentionally left blank

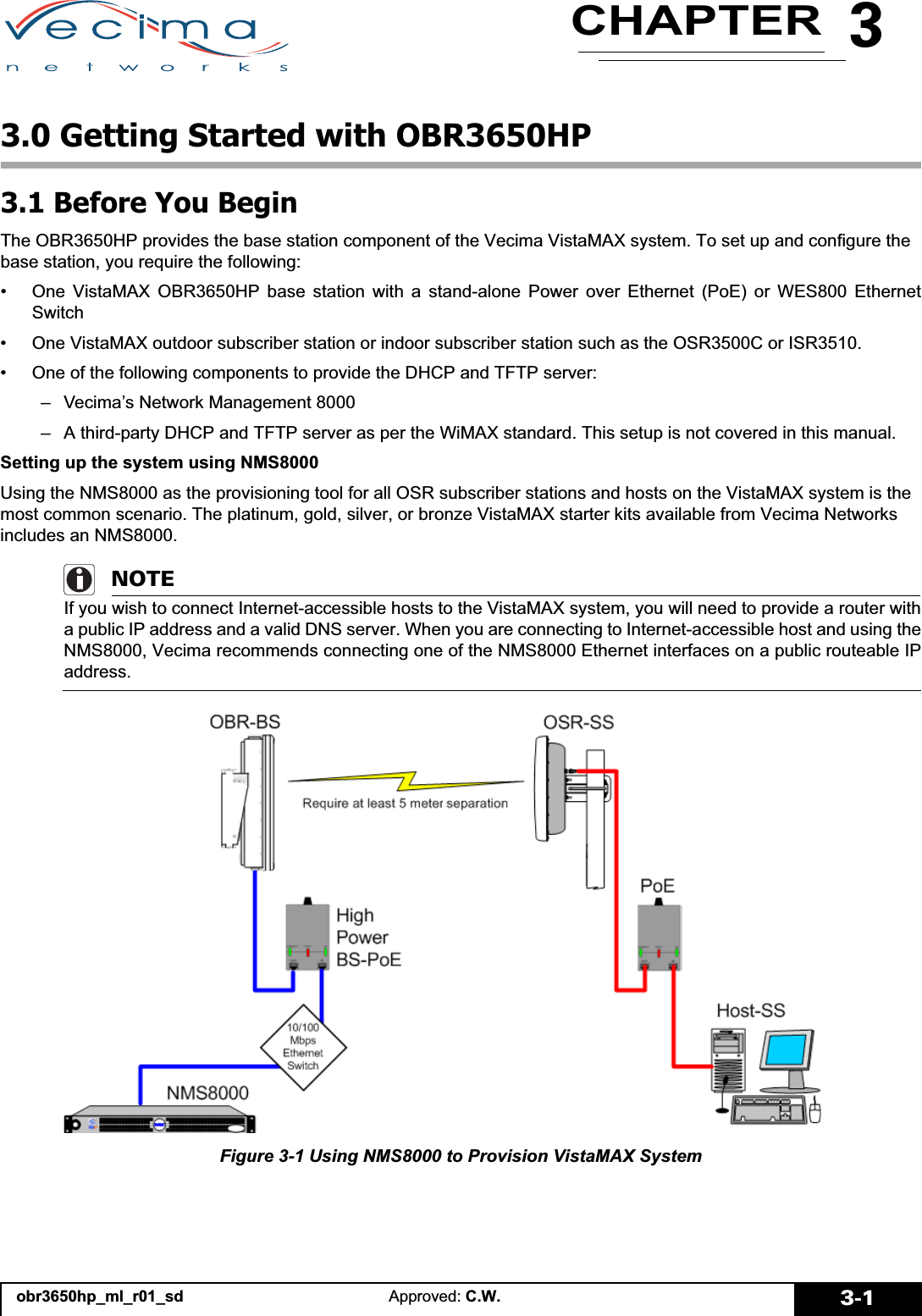

3CHAPTERobr3650hp_ml_r01_sd Approved: C.W. 3-13.0 Getting Started with OBR3650HP3.1 Before You BeginThe OBR3650HP provides the base station component of the Vecima VistaMAX system. To set up and configure the base station, you require the following:• One VistaMAX OBR3650HP base station with a stand-alone Power over Ethernet (PoE) or WES800 EthernetSwitch• One VistaMAX outdoor subscriber station or indoor subscriber station such as the OSR3500C or ISR3510.• One of the following components to provide the DHCP and TFTP server:– Vecima’s Network Management 8000– A third-party DHCP and TFTP server as per the WiMAX standard. This setup is not covered in this manual.Setting up the system using NMS8000Using the NMS8000 as the provisioning tool for all OSR subscriber stations and hosts on the VistaMAX system is the most common scenario. The platinum, gold, silver, or bronze VistaMAX starter kits available from Vecima Networks includes an NMS8000.NOTEIf you wish to connect Internet-accessible hosts to the VistaMAX system, you will need to provide a router witha public IP address and a valid DNS server. When you are connecting to Internet-accessible host and using theNMS8000, Vecima recommends connecting one of the NMS8000 Ethernet interfaces on a public routeable IPaddress.Figure 3-1 Using NMS8000 to Provision VistaMAX System

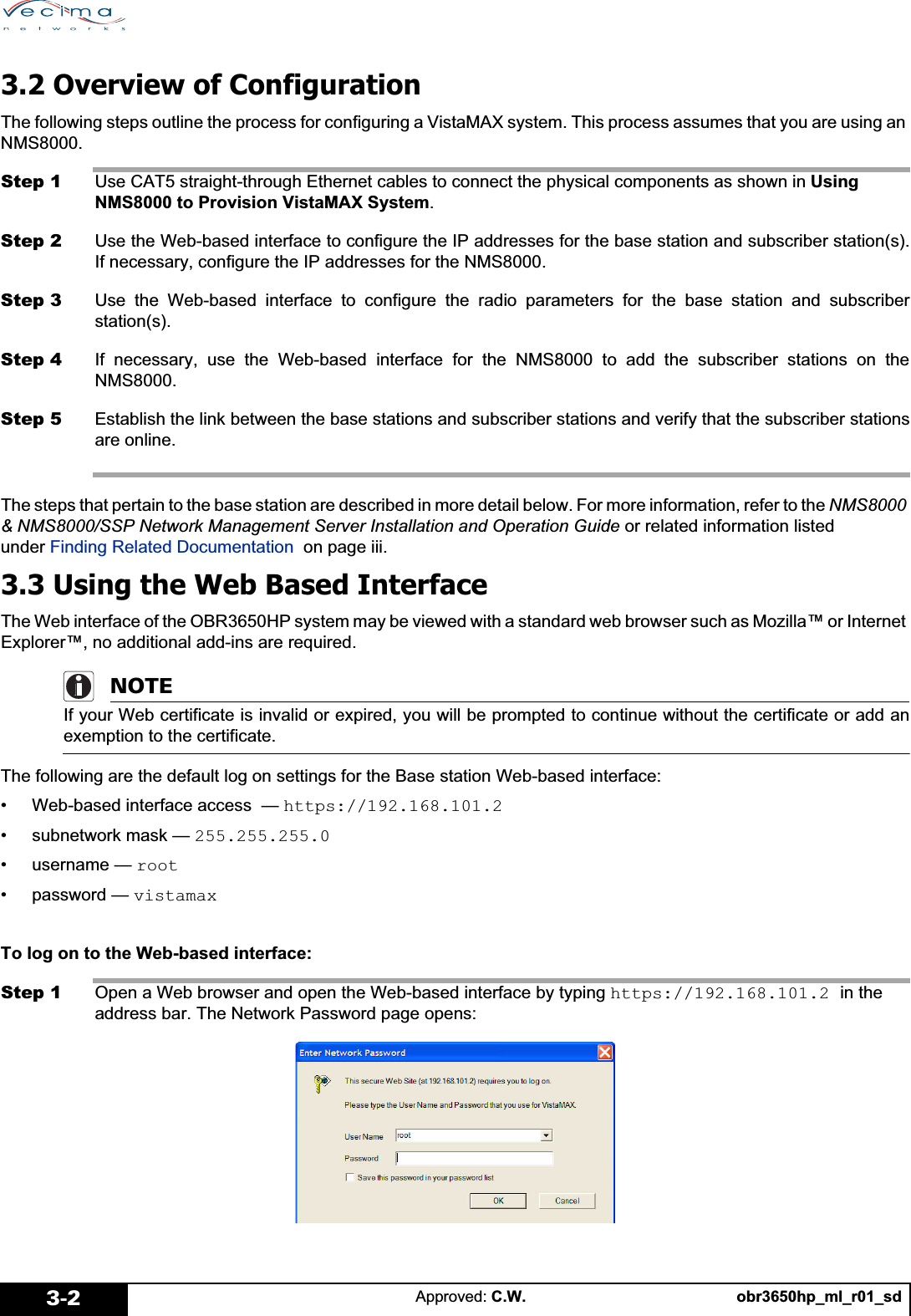

obr3650hp_ml_r01_sdApproved: C.W.3-23.2 Overview of ConfigurationThe following steps outline the process for configuring a VistaMAX system. This process assumes that you are using an NMS8000.Step 1 Use CAT5 straight-through Ethernet cables to connect the physical components as shown in Using NMS8000 to Provision VistaMAX System.Step 2 Use the Web-based interface to configure the IP addresses for the base station and subscriber station(s).If necessary, configure the IP addresses for the NMS8000.Step 3 Use the Web-based interface to configure the radio parameters for the base station and subscriberstation(s).Step 4 If necessary, use the Web-based interface for the NMS8000 to add the subscriber stations on theNMS8000.Step 5 Establish the link between the base stations and subscriber stations and verify that the subscriber stationsare online.The steps that pertain to the base station are described in more detail below. For more information, refer to the NMS8000 & NMS8000/SSP Network Management Server Installation and Operation Guide or related information listed under Finding Related Documentation on page iii.3.3 Using the Web Based InterfaceThe Web interface of the OBR3650HP system may be viewed with a standard web browser such as Mozilla™ or Internet Explorer™, no additional add-ins are required.NOTEIf your Web certificate is invalid or expired, you will be prompted to continue without the certificate or add anexemption to the certificate.The following are the default log on settings for the Base station Web-based interface:• Web-based interface access — https://192.168.101.2• subnetwork mask — 255.255.255.0•username — root• password — vistamaxTo log on to the Web-based interface:Step 1 Open a Web browser and open the Web-based interface by typing https://192.168.101.2 in the address bar. The Network Password page opens:

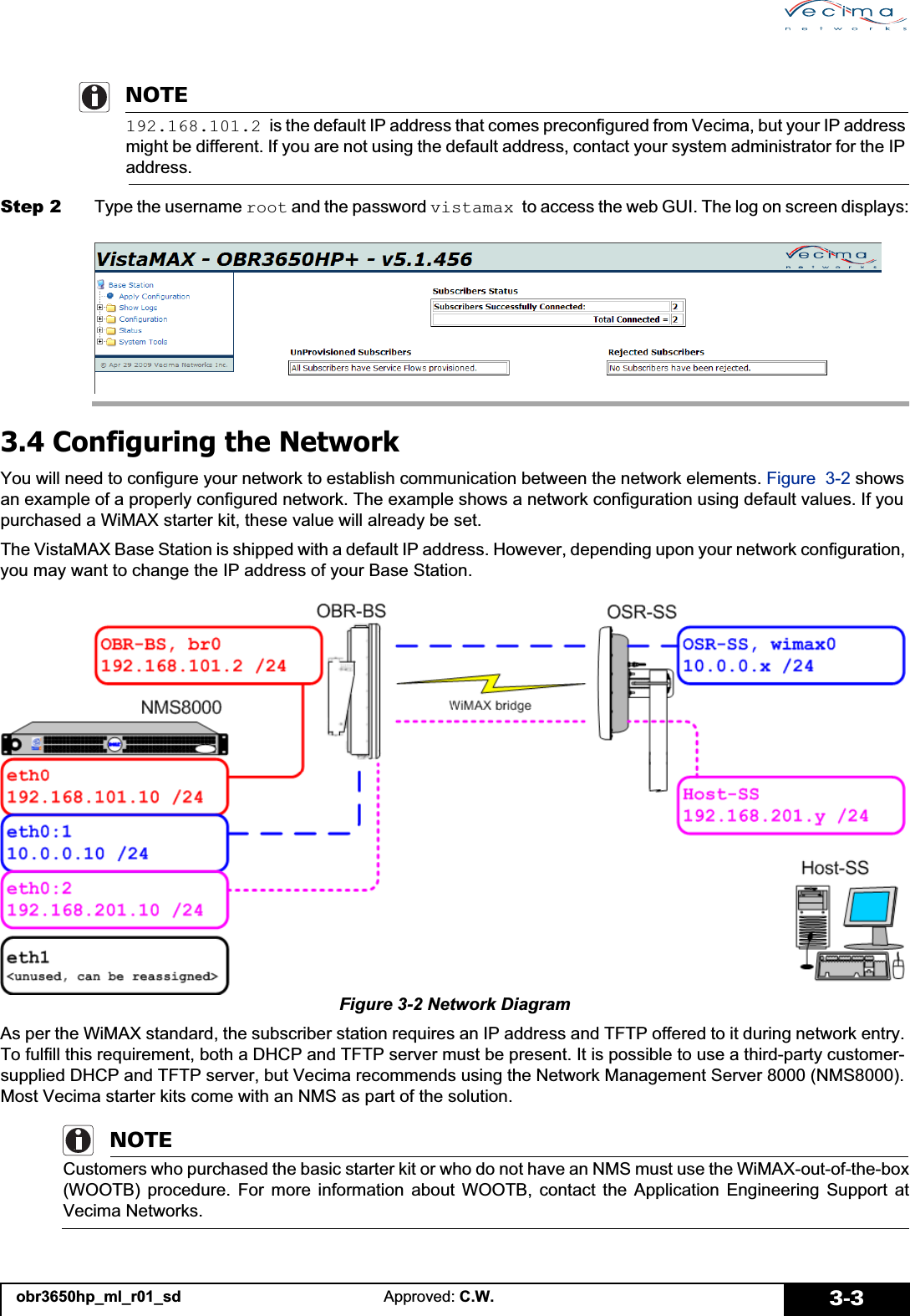

obr3650hp_ml_r01_sd Approved: C.W. 3-3NOTE192.168.101.2 is the default IP address that comes preconfigured from Vecima, but your IP address might be different. If you are not using the default address, contact your system administrator for the IP address.Step 2 Type the username root and the password vistamax to access the web GUI. The log on screen displays:3.4 Configuring the NetworkYou will need to configure your network to establish communication between the network elements. Figure 3-2 shows an example of a properly configured network. The example shows a network configuration using default values. If you purchased a WiMAX starter kit, these value will already be set.The VistaMAX Base Station is shipped with a default IP address. However, depending upon your network configuration, you may want to change the IP address of your Base Station.Figure 3-2 Network DiagramAs per the WiMAX standard, the subscriber station requires an IP address and TFTP offered to it during network entry. To fulfill this requirement, both a DHCP and TFTP server must be present. It is possible to use a third-party customer-supplied DHCP and TFTP server, but Vecima recommends using the Network Management Server 8000 (NMS8000). Most Vecima starter kits come with an NMS as part of the solution.NOTECustomers who purchased the basic starter kit or who do not have an NMS must use the WiMAX-out-of-the-box(WOOTB) procedure. For more information about WOOTB, contact the Application Engineering Support atVecima Networks.

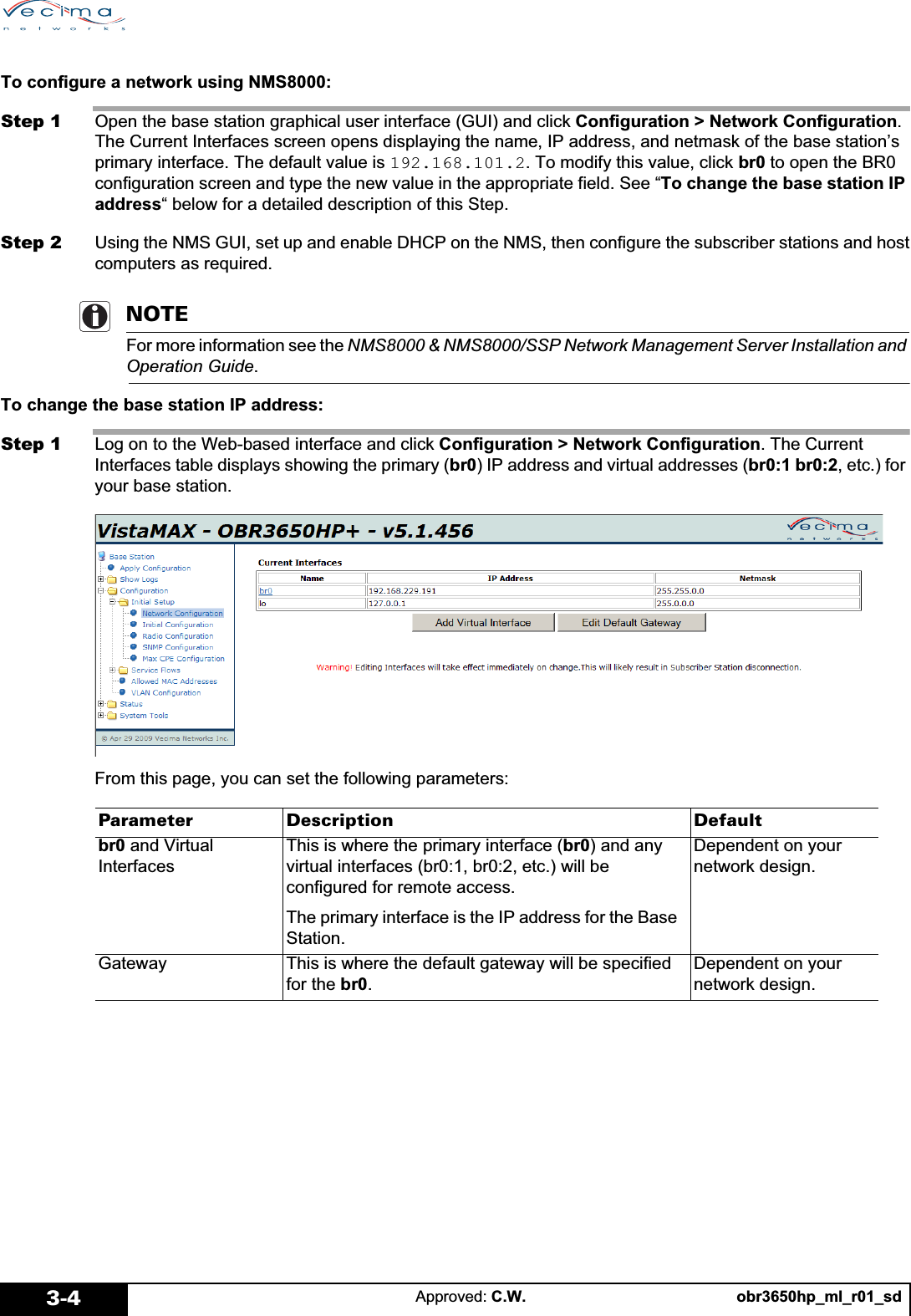

obr3650hp_ml_r01_sdApproved: C.W.3-4To configure a network using NMS8000:Step 1 Open the base station graphical user interface (GUI) and click Configuration > Network Configuration.The Current Interfaces screen opens displaying the name, IP address, and netmask of the base station’s primary interface. The default value is 192.168.101.2. To modify this value, click br0 to open the BR0 configuration screen and type the new value in the appropriate field. See “To change the base station IP address“ below for a detailed description of this Step.Step 2 Using the NMS GUI, set up and enable DHCP on the NMS, then configure the subscriber stations and hostcomputers as required. NOTEFor more information see the NMS8000 & NMS8000/SSP Network Management Server Installation and Operation Guide.To change the base station IP address:Step 1 Log on to the Web-based interface and click Configuration > Network Configuration. The Current Interfaces table displays showing the primary (br0) IP address and virtual addresses (br0:1 br0:2, etc.) for your base station.From this page, you can set the following parameters:Parameter Description Defaultbr0 and Virtual InterfacesThis is where the primary interface (br0) and any virtual interfaces (br0:1, br0:2, etc.) will be configured for remote access.The primary interface is the IP address for the Base Station.Dependent on your network design.Gateway This is where the default gateway will be specified for the br0.Dependent on your network design.

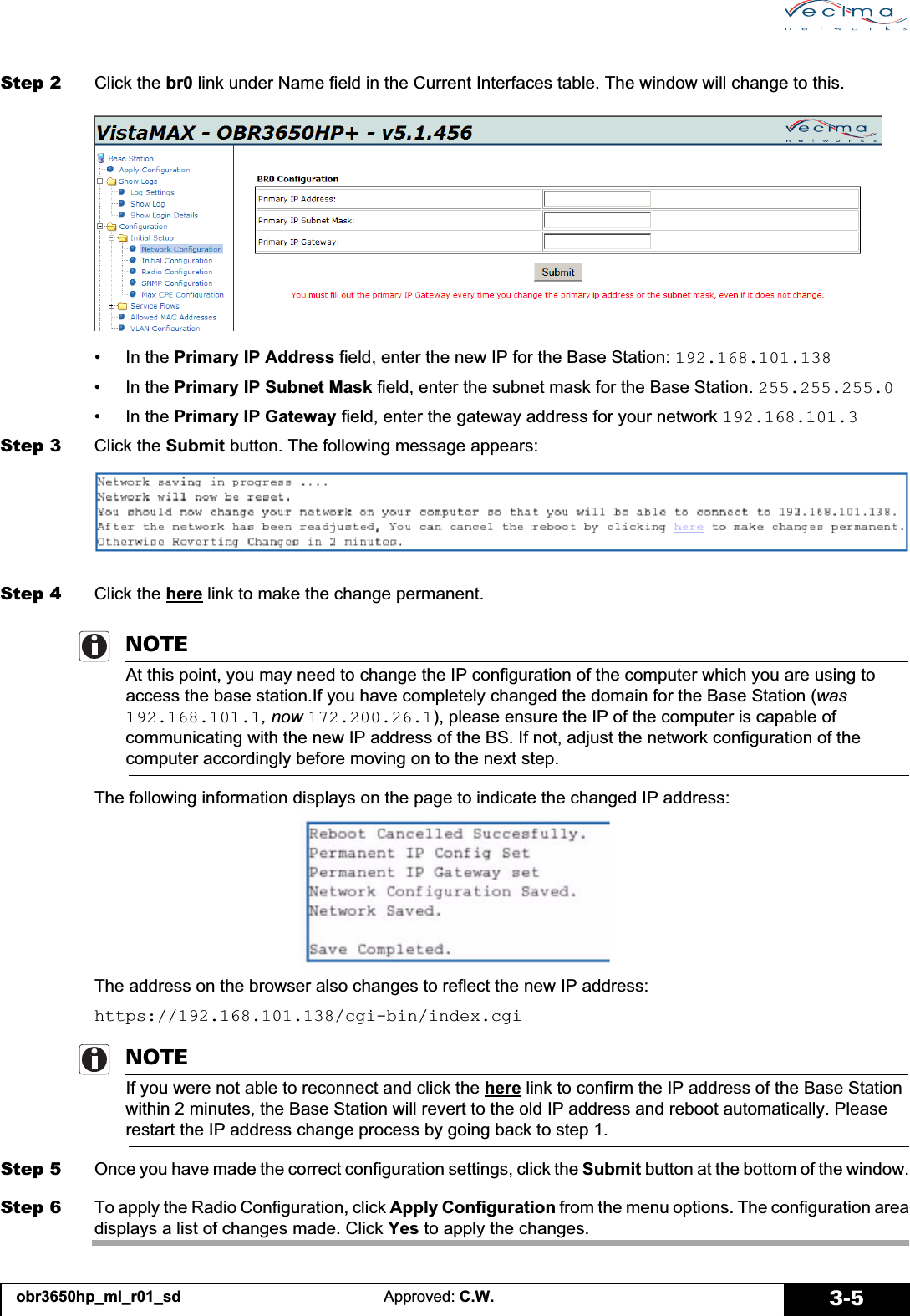

obr3650hp_ml_r01_sd Approved: C.W. 3-5Step 2 Click the br0 link under Name field in the Current Interfaces table. The window will change to this.• In the Primary IP Address field, enter the new IP for the Base Station: 192.168.101.138• In the Primary IP Subnet Mask field, enter the subnet mask for the Base Station. 255.255.255.0• In the Primary IP Gateway field, enter the gateway address for your network 192.168.101.3Step 3 Click the Submit button. The following message appears:Step 4 Click the here link to make the change permanent.NOTEAt this point, you may need to change the IP configuration of the computer which you are using to access the base station.If you have completely changed the domain for the Base Station (was192.168.101.1, now 172.200.26.1), please ensure the IP of the computer is capable of communicating with the new IP address of the BS. If not, adjust the network configuration of the computer accordingly before moving on to the next step. The following information displays on the page to indicate the changed IP address:The address on the browser also changes to reflect the new IP address:https://192.168.101.138/cgi-bin/index.cgiNOTEIf you were not able to reconnect and click the here link to confirm the IP address of the Base Station within 2 minutes, the Base Station will revert to the old IP address and reboot automatically. Please restart the IP address change process by going back to step 1.Step 5 Once you have made the correct configuration settings, click the Submit button at the bottom of the window.Step 6 To apply the Radio Configuration, click Apply Configuration from the menu options. The configuration areadisplays a list of changes made. Click Yes to apply the changes.

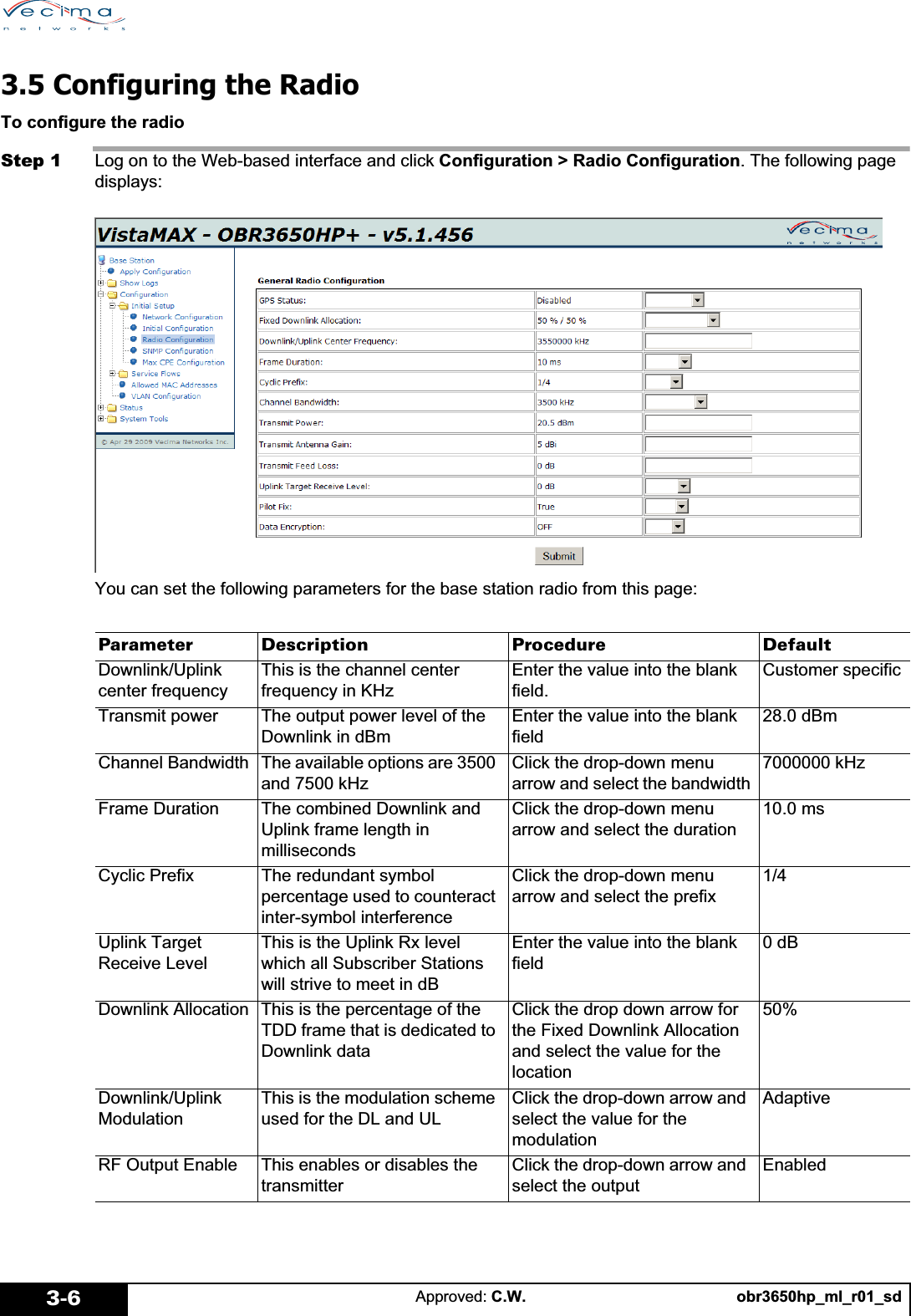

obr3650hp_ml_r01_sdApproved: C.W.3-63.5 Configuring the RadioTo configure the radioStep 1 Log on to the Web-based interface and click Configuration > Radio Configuration. The following page displays:You can set the following parameters for the base station radio from this page:Parameter Description Procedure DefaultDownlink/Uplinkcenter frequencyThis is the channel center frequency in KHzEnter the value into the blank field.Customer specificTransmit power The output power level of the Downlink in dBmEnter the value into the blank field28.0 dBmChannel Bandwidth The available options are 3500 and 7500 kHzClick the drop-down menu arrow and select the bandwidth7000000 kHzFrame Duration The combined Downlink and Uplink frame length in millisecondsClick the drop-down menu arrow and select the duration10.0 msCyclic Prefix The redundant symbol percentage used to counteract inter-symbol interferenceClick the drop-down menu arrow and select the prefix1/4Uplink Target Receive LevelThis is the Uplink Rx level which all Subscriber Stations will strive to meet in dBEnter the value into the blank field0 dBDownlink Allocation This is the percentage of the TDD frame that is dedicated to Downlink dataClick the drop down arrow for the Fixed Downlink Allocation and select the value for the location50%Downlink/UplinkModulationThis is the modulation scheme used for the DL and ULClick the drop-down arrow and select the value for the modulationAdaptiveRF Output Enable This enables or disables the transmitterClick the drop-down arrow and select the outputEnabled

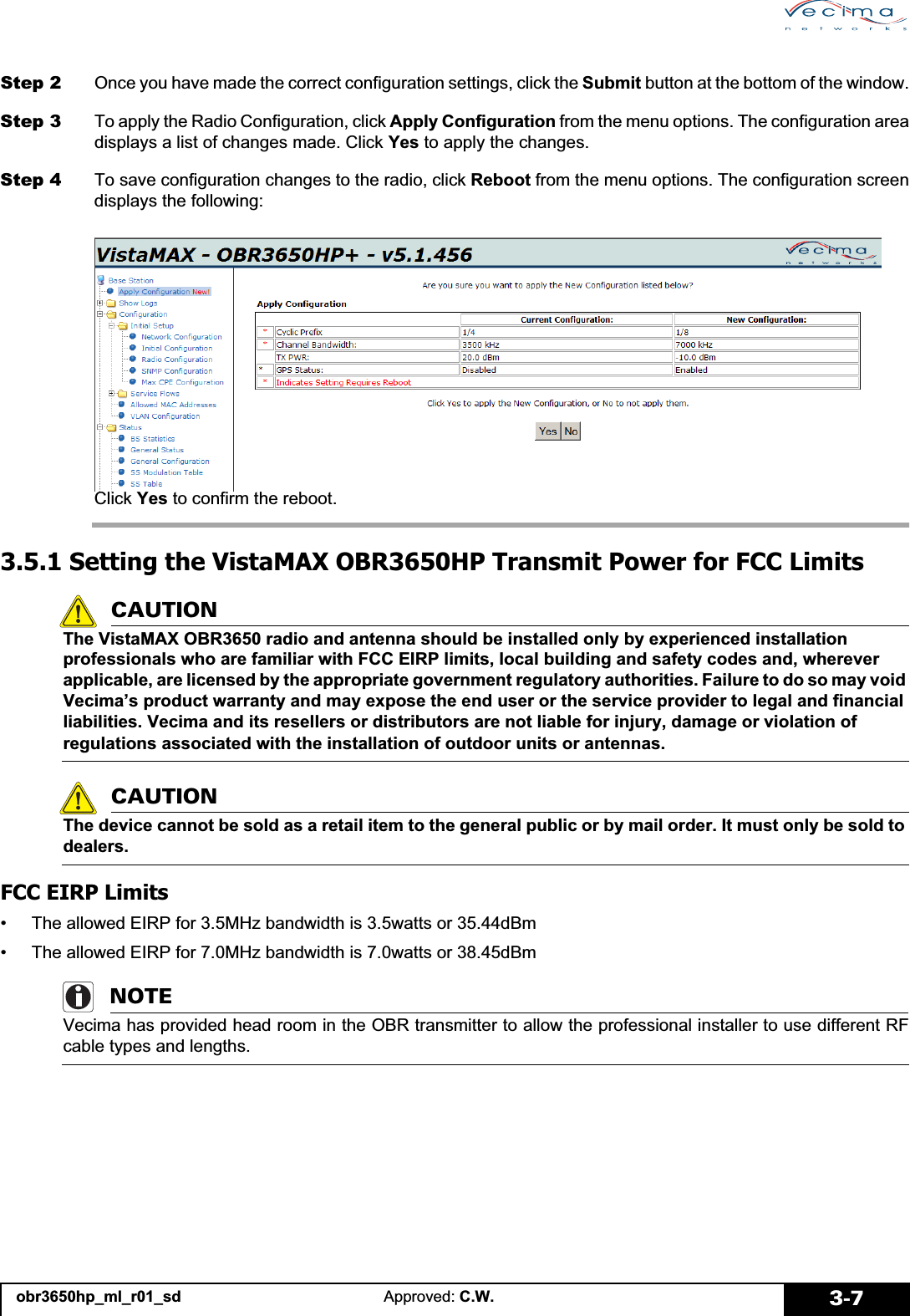

obr3650hp_ml_r01_sd Approved: C.W. 3-7Step 2 Once you have made the correct configuration settings, click the Submit button at the bottom of the window.Step 3 To apply the Radio Configuration, click Apply Configuration from the menu options. The configuration areadisplays a list of changes made. Click Yes to apply the changes.Step 4 To save configuration changes to the radio, click Reboot from the menu options. The configuration screendisplays the following:Click Yes to confirm the reboot.3.5.1 Setting the VistaMAX OBR3650HP Transmit Power for FCC LimitsCAUTIONThe VistaMAX OBR3650 radio and antenna should be installed only by experienced installation professionals who are familiar with FCC EIRP limits, local building and safety codes and, wherever applicable, are licensed by the appropriate government regulatory authorities. Failure to do so may void Vecima’s product warranty and may expose the end user or the service provider to legal and financial liabilities. Vecima and its resellers or distributors are not liable for injury, damage or violation of regulations associated with the installation of outdoor units or antennas.CAUTIONThe device cannot be sold as a retail item to the general public or by mail order. It must only be sold to dealers.FCC EIRP Limits• The allowed EIRP for 3.5MHz bandwidth is 3.5watts or 35.44dBm• The allowed EIRP for 7.0MHz bandwidth is 7.0watts or 38.45dBmNOTEVecima has provided head room in the OBR transmitter to allow the professional installer to use different RFcable types and lengths.

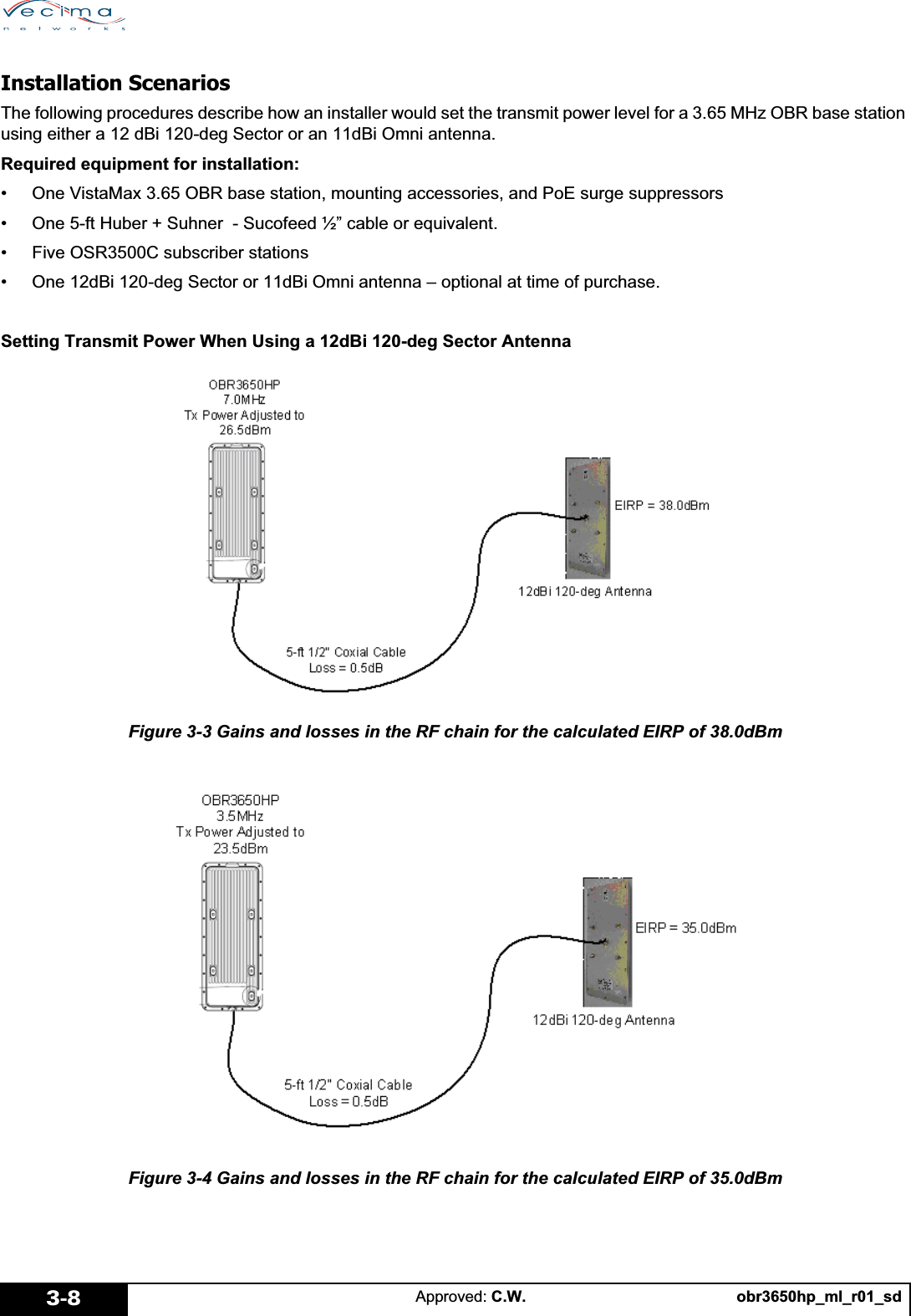

obr3650hp_ml_r01_sdApproved: C.W.3-8Installation ScenariosThe following procedures describe how an installer would set the transmit power level for a 3.65 MHz OBR base station using either a 12 dBi 120-deg Sector or an 11dBi Omni antenna.Required equipment for installation:• One VistaMax 3.65 OBR base station, mounting accessories, and PoE surge suppressors• One 5-ft Huber + Suhner - Sucofeed ½” cable or equivalent.• Five OSR3500C subscriber stations• One 12dBi 120-deg Sector or 11dBi Omni antenna – optional at time of purchase.Setting Transmit Power When Using a 12dBi 120-deg Sector AntennaFigure 3-3 Gains and losses in the RF chain for the calculated EIRP of 38.0dBmFigure 3-4 Gains and losses in the RF chain for the calculated EIRP of 35.0dBm

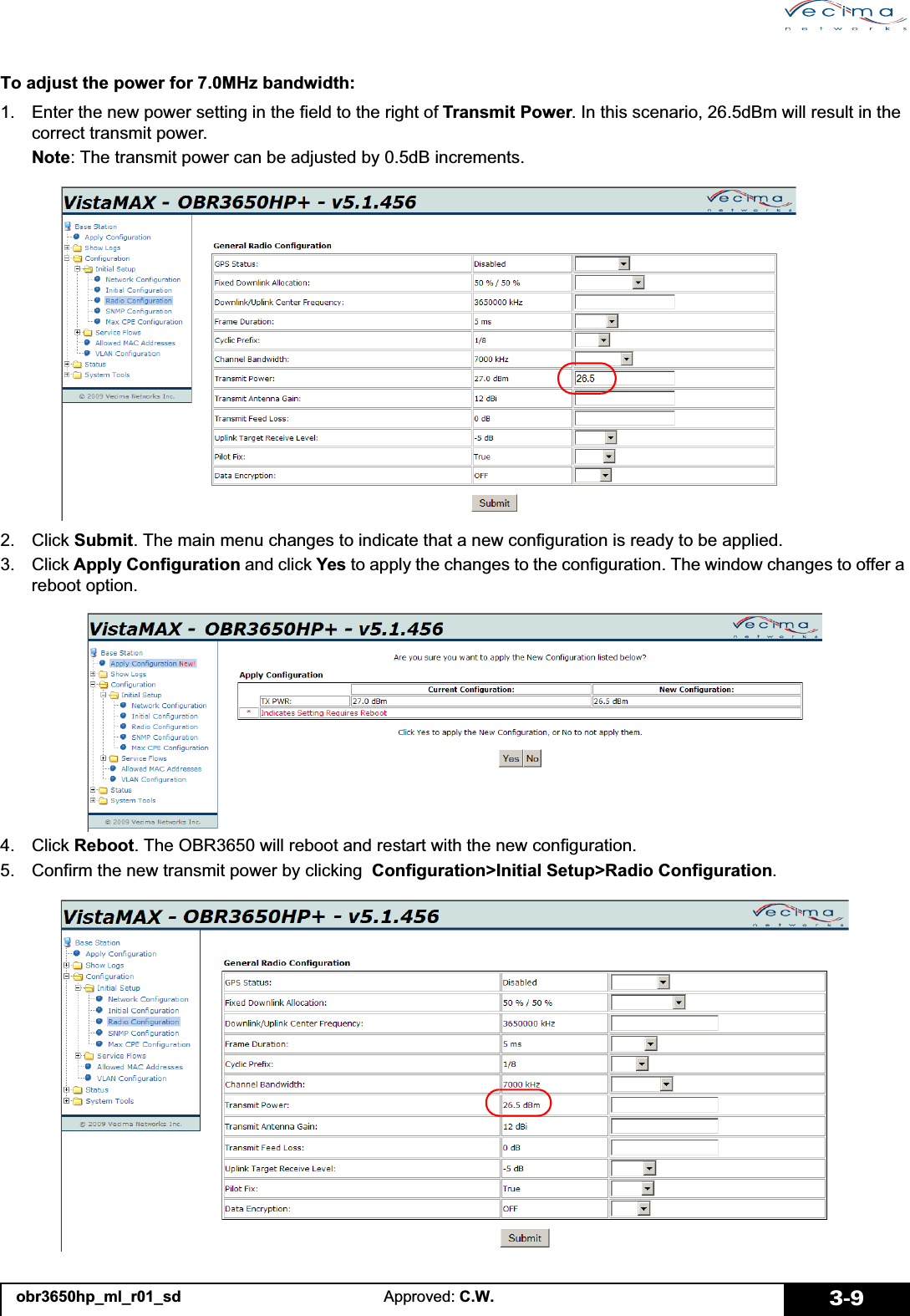

obr3650hp_ml_r01_sd Approved: C.W. 3-9To adjust the power for 7.0MHz bandwidth:1. Enter the new power setting in the field to the right of Transmit Power. In this scenario, 26.5dBm will result in the correct transmit power.Note: The transmit power can be adjusted by 0.5dB increments.2. Click Submit. The main menu changes to indicate that a new configuration is ready to be applied.3. Click Apply Configuration and click Yes to apply the changes to the configuration. The window changes to offer a reboot option.4. Click Reboot. The OBR3650 will reboot and restart with the new configuration.5. Confirm the new transmit power by clicking Configuration>Initial Setup>Radio Configuration.

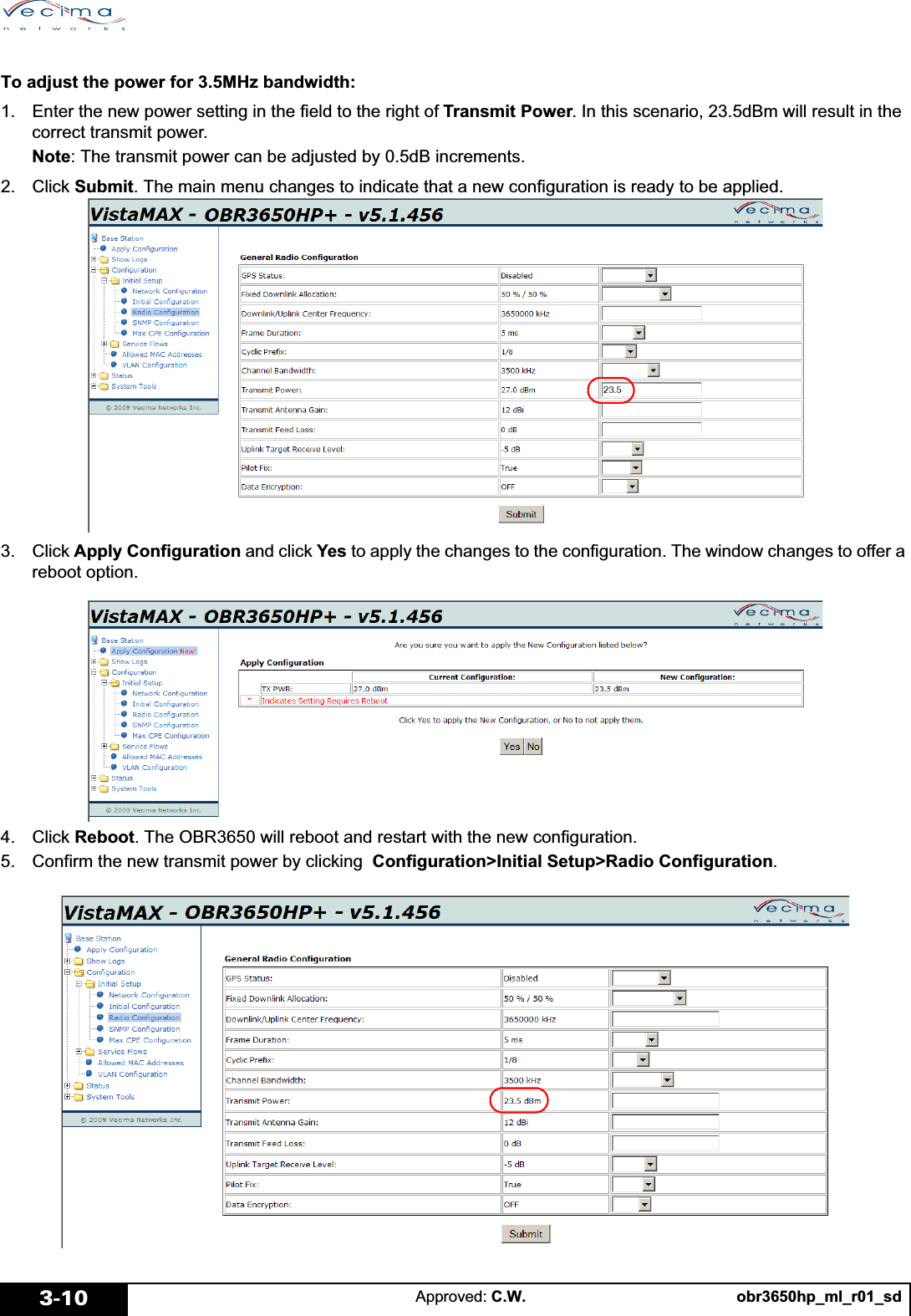

obr3650hp_ml_r01_sdApproved: C.W.3-10To adjust the power for 3.5MHz bandwidth:1. Enter the new power setting in the field to the right of Transmit Power. In this scenario, 23.5dBm will result in the correct transmit power.Note: The transmit power can be adjusted by 0.5dB increments.2. Click Submit. The main menu changes to indicate that a new configuration is ready to be applied.3. Click Apply Configuration and click Yes to apply the changes to the configuration. The window changes to offer a reboot option.4. Click Reboot. The OBR3650 will reboot and restart with the new configuration.5. Confirm the new transmit power by clicking Configuration>Initial Setup>Radio Configuration.

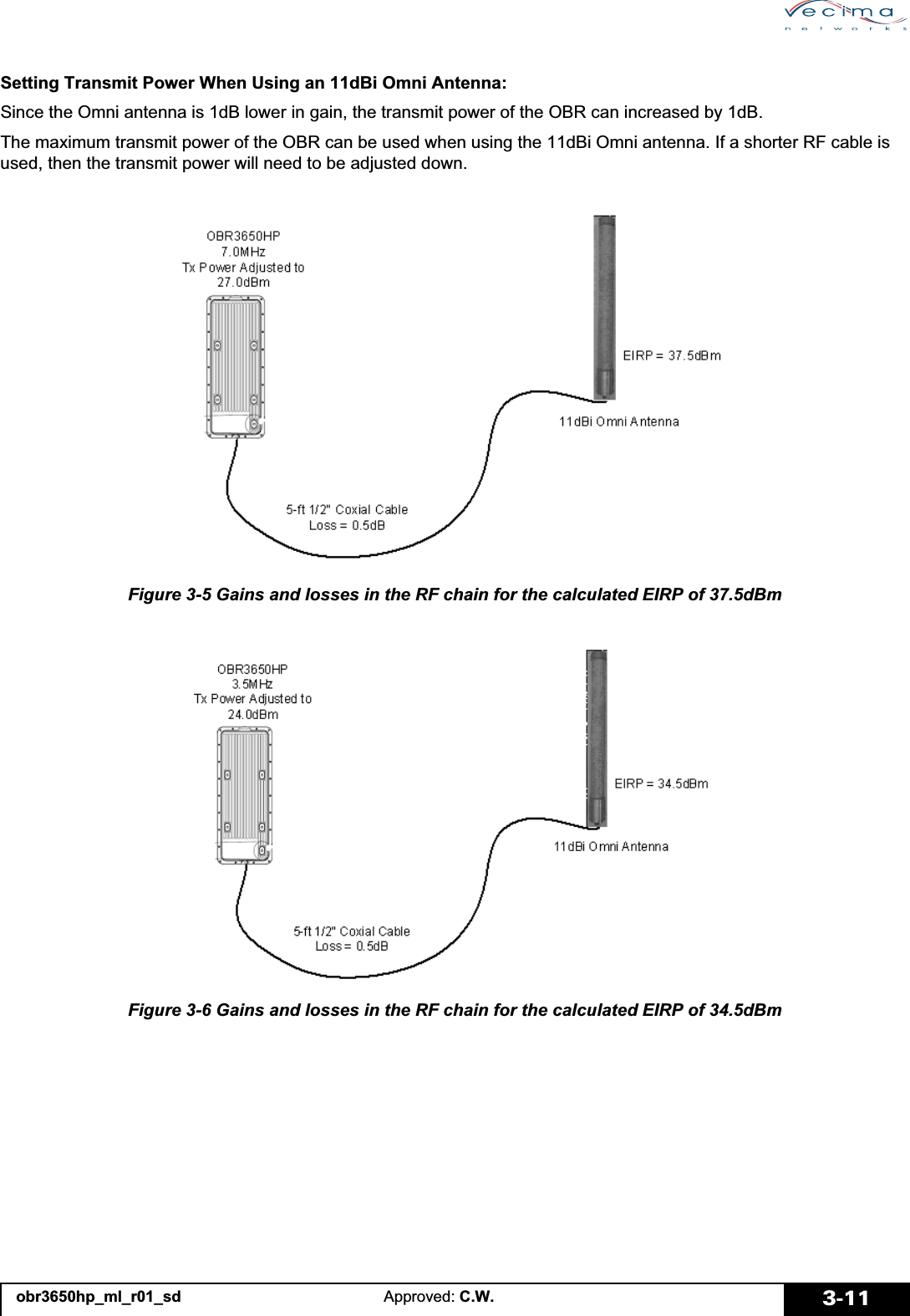

obr3650hp_ml_r01_sd Approved: C.W. 3-11Setting Transmit Power When Using an 11dBi Omni Antenna:Since the Omni antenna is 1dB lower in gain, the transmit power of the OBR can increased by 1dB. The maximum transmit power of the OBR can be used when using the 11dBi Omni antenna. If a shorter RF cable is used, then the transmit power will need to be adjusted down.Figure 3-5 Gains and losses in the RF chain for the calculated EIRP of 37.5dBmFigure 3-6 Gains and losses in the RF chain for the calculated EIRP of 34.5dBm

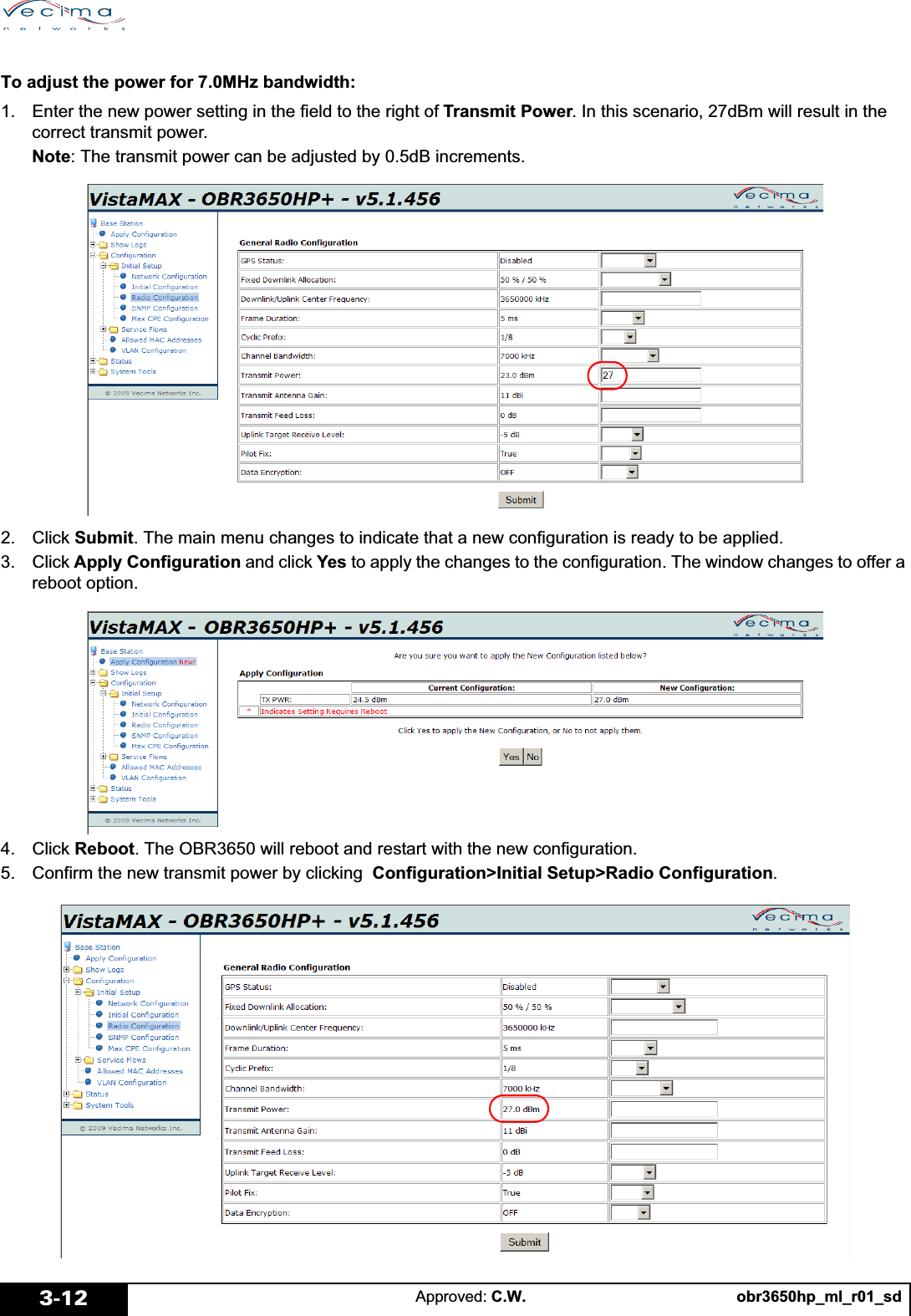

obr3650hp_ml_r01_sdApproved: C.W.3-12To adjust the power for 7.0MHz bandwidth:1. Enter the new power setting in the field to the right of Transmit Power. In this scenario, 27dBm will result in the correct transmit power.Note: The transmit power can be adjusted by 0.5dB increments.2. Click Submit. The main menu changes to indicate that a new configuration is ready to be applied.3. Click Apply Configuration and click Yes to apply the changes to the configuration. The window changes to offer a reboot option.4. Click Reboot. The OBR3650 will reboot and restart with the new configuration.5. Confirm the new transmit power by clicking Configuration>Initial Setup>Radio Configuration.

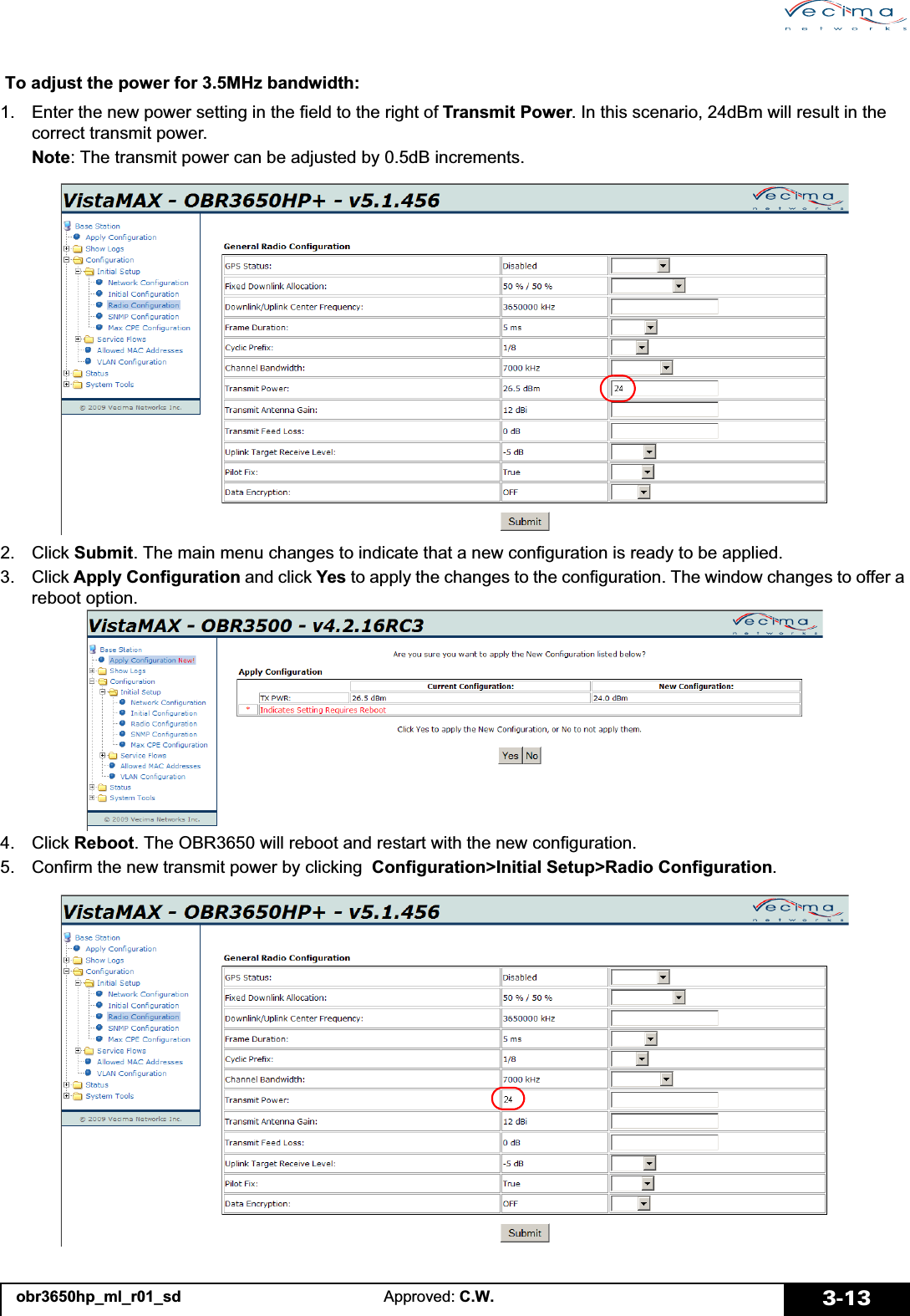

obr3650hp_ml_r01_sd Approved: C.W. 3-13To adjust the power for 3.5MHz bandwidth:1. Enter the new power setting in the field to the right of Transmit Power. In this scenario, 24dBm will result in the correct transmit power.Note: The transmit power can be adjusted by 0.5dB increments.2. Click Submit. The main menu changes to indicate that a new configuration is ready to be applied.3. Click Apply Configuration and click Yes to apply the changes to the configuration. The window changes to offer a reboot option.4. Click Reboot. The OBR3650 will reboot and restart with the new configuration.5. Confirm the new transmit power by clicking Configuration>Initial Setup>Radio Configuration.

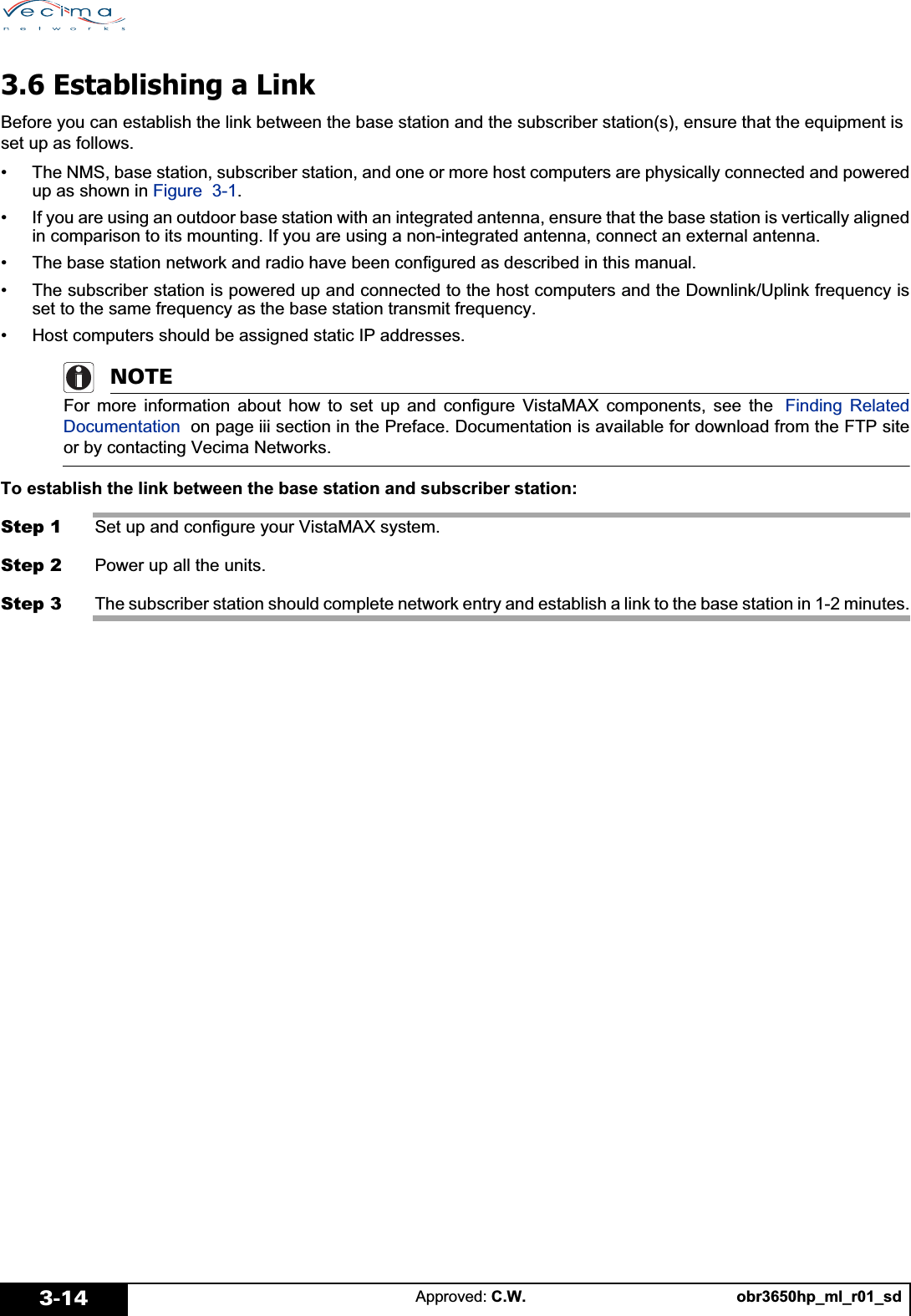

obr3650hp_ml_r01_sdApproved: C.W.3-143.6 Establishing a LinkBefore you can establish the link between the base station and the subscriber station(s), ensure that the equipment is set up as follows.• The NMS, base station, subscriber station, and one or more host computers are physically connected and poweredup as shown in Figure 3-1.• If you are using an outdoor base station with an integrated antenna, ensure that the base station is vertically alignedin comparison to its mounting. If you are using a non-integrated antenna, connect an external antenna.• The base station network and radio have been configured as described in this manual.• The subscriber station is powered up and connected to the host computers and the Downlink/Uplink frequency isset to the same frequency as the base station transmit frequency.• Host computers should be assigned static IP addresses. NOTEFor more information about how to set up and configure VistaMAX components, see the Finding RelatedDocumentation on page iii section in the Preface. Documentation is available for download from the FTP siteor by contacting Vecima Networks.To establish the link between the base station and subscriber station:Step 1 Set up and configure your VistaMAX system.Step 2 Power up all the units.Step 3 The subscriber station should complete network entry and establish a link to the base station in 1-2 minutes.
obr3650hp_ml_r01_sd Approved: C.W. 3-153.7 Other Administrative Tasks3.7.1 Upgrading the Base StationIn order to make sure that the Base Station is able to function properly, upgrades may need to be made to the system.To upgrade the base station through the Web GUI:Step 1 From the System Tools menu, click Upgrade BS Software. The following page displays:Step 2 Choose one of the following methods to upgrade your base station.NOTEThe Base Station upgrade might take about five minutes to complete.If ThenThe upgrade file is located on a web server 1) Enter the address of the web server plus the path to the file in the upgrade line. 1) Click Upgrade.The upgrade file is located on the tftp server in the tftproot folder. 1) Type the URL and path for the certificate. For example:tftp://<ip of NMS>/<version>/<file> 2) Click Upgrade.The upgrade file has been downloaded to your computer 1) Click the Browse button at the end of the Enter PathSelect the file that will be used for the upgrade. 3) Click the Open button. 4) Click Upgrade.

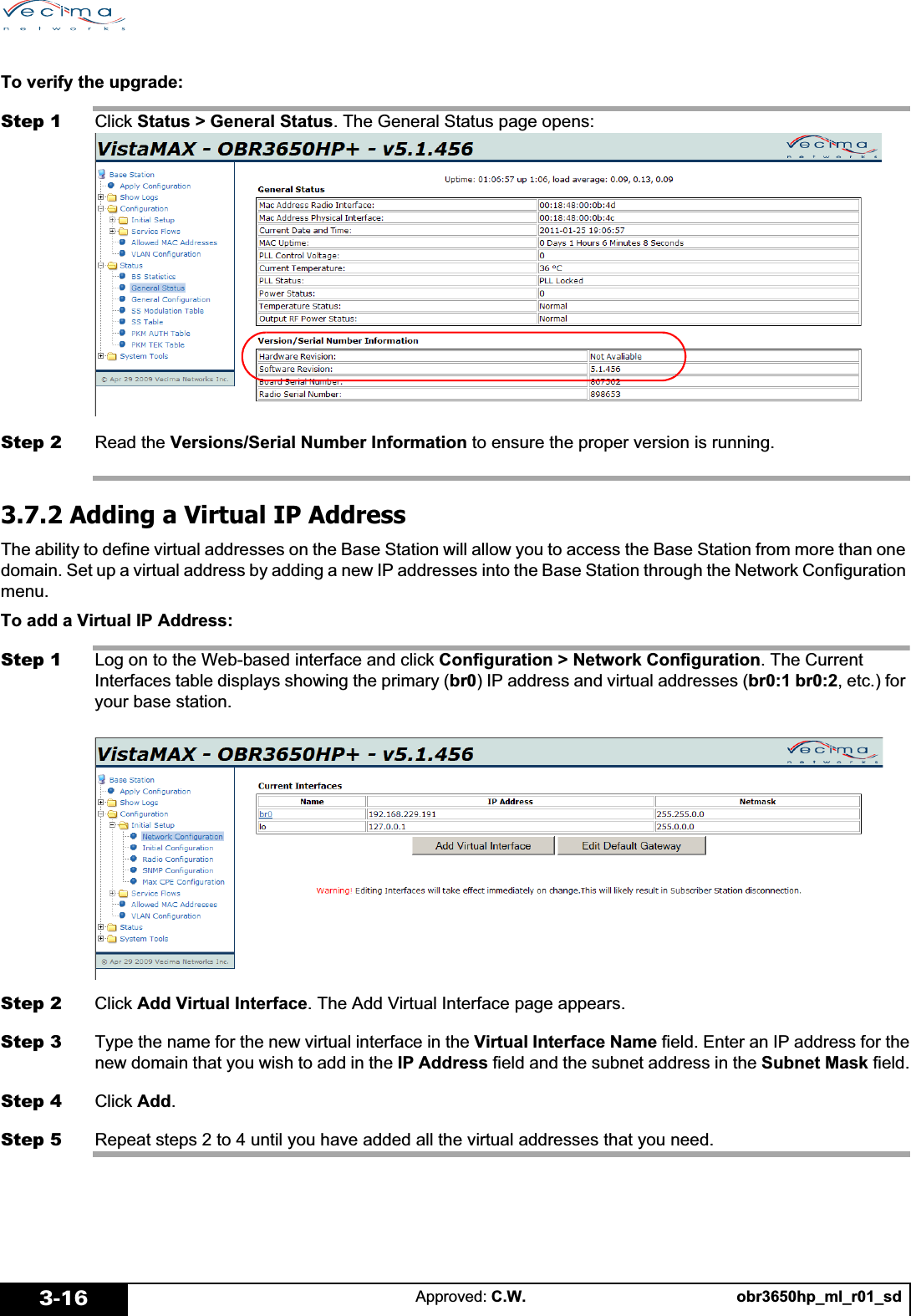

obr3650hp_ml_r01_sdApproved: C.W.3-16To verify the upgrade:Step 1 Click Status > General Status. The General Status page opens:Step 2 Read the Versions/Serial Number Information to ensure the proper version is running.3.7.2 Adding a Virtual IP AddressThe ability to define virtual addresses on the Base Station will allow you to access the Base Station from more than one domain. Set up a virtual address by adding a new IP addresses into the Base Station through the Network Configuration menu.To add a Virtual IP Address:Step 1 Log on to the Web-based interface and click Configuration > Network Configuration. The Current Interfaces table displays showing the primary (br0) IP address and virtual addresses (br0:1 br0:2, etc.) for your base station.Step 2 Click Add Virtual Interface. The Add Virtual Interface page appears.Step 3 Type the name for the new virtual interface in the Virtual Interface Name field. Enter an IP address for thenew domain that you wish to add in the IP Address field and the subnet address in the Subnet Mask field.Step 4 Click Add.Step 5 Repeat steps 2 to 4 until you have added all the virtual addresses that you need.

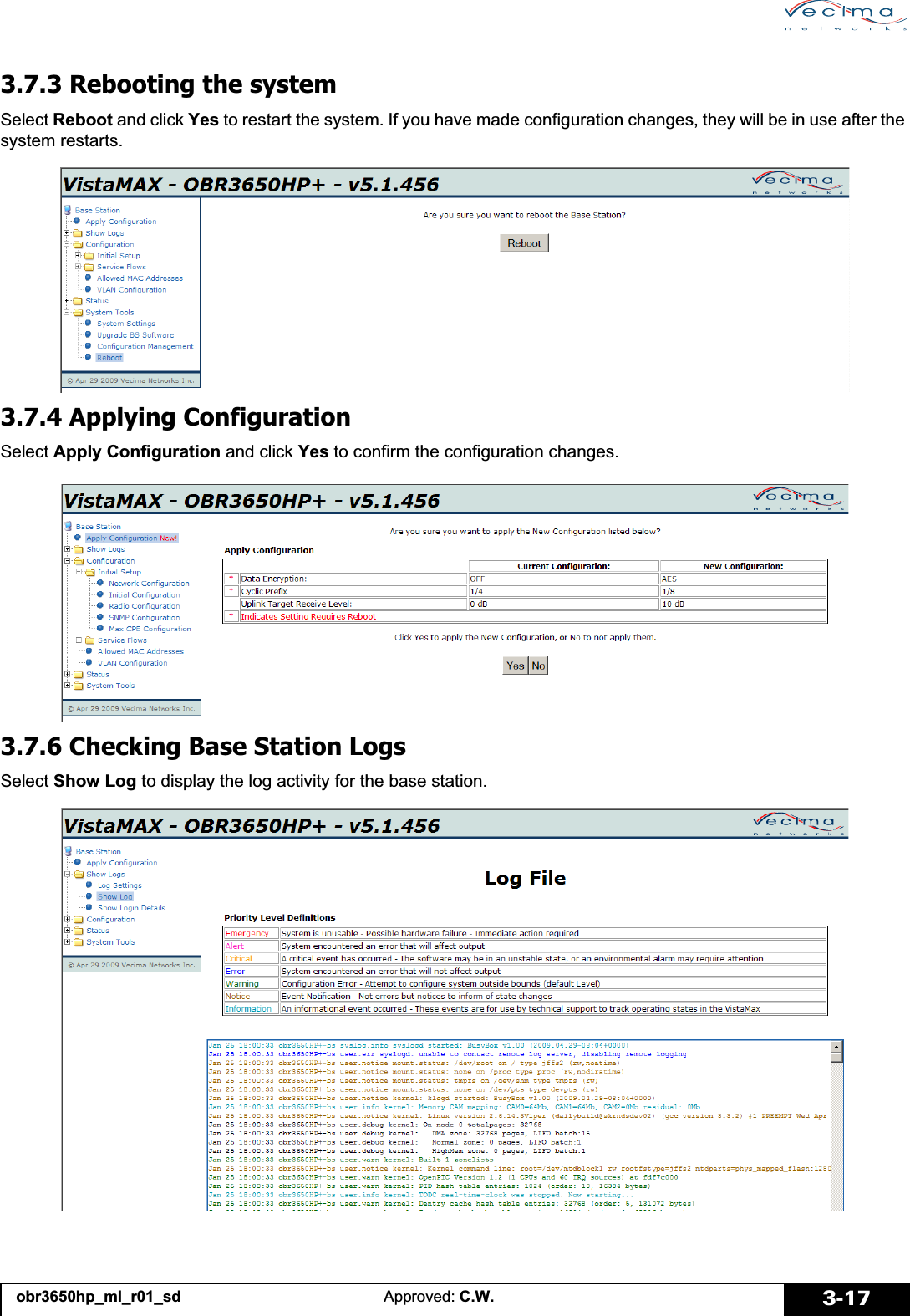

obr3650hp_ml_r01_sd Approved: C.W. 3-173.7.3 Rebooting the systemSelect Reboot and click Yes to restart the system. If you have made configuration changes, they will be in use after the system restarts.3.7.4 Applying ConfigurationSelect Apply Configuration and click Yes to confirm the configuration changes.3.7.6 Checking Base Station LogsSelect Show Log to display the log activity for the base station.

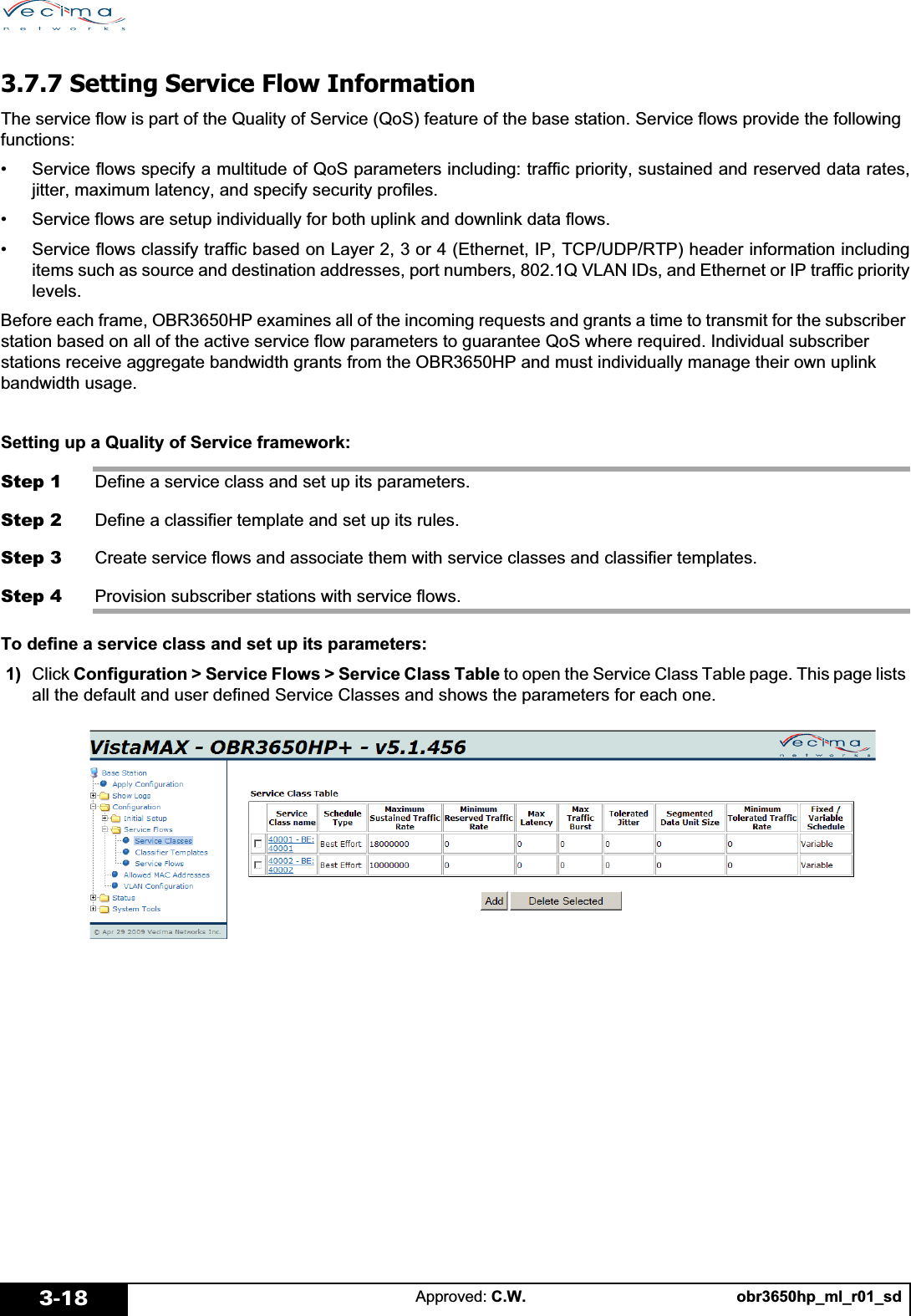

obr3650hp_ml_r01_sdApproved: C.W.3-183.7.7 Setting Service Flow InformationThe service flow is part of the Quality of Service (QoS) feature of the base station. Service flows provide the following functions:• Service flows specify a multitude of QoS parameters including: traffic priority, sustained and reserved data rates,jitter, maximum latency, and specify security profiles.• Service flows are setup individually for both uplink and downlink data flows.• Service flows classify traffic based on Layer 2, 3 or 4 (Ethernet, IP, TCP/UDP/RTP) header information includingitems such as source and destination addresses, port numbers, 802.1Q VLAN IDs, and Ethernet or IP traffic prioritylevels.Before each frame, OBR3650HP examines all of the incoming requests and grants a time to transmit for the subscriber station based on all of the active service flow parameters to guarantee QoS where required. Individual subscriber stations receive aggregate bandwidth grants from the OBR3650HP and must individually manage their own uplink bandwidth usage.Setting up a Quality of Service framework:Step 1 Define a service class and set up its parameters.Step 2 Define a classifier template and set up its rules.Step 3 Create service flows and associate them with service classes and classifier templates.Step 4 Provision subscriber stations with service flows.To define a service class and set up its parameters: 1) Click Configuration > Service Flows > Service Class Table to open the Service Class Table page. This page lists all the default and user defined Service Classes and shows the parameters for each one.

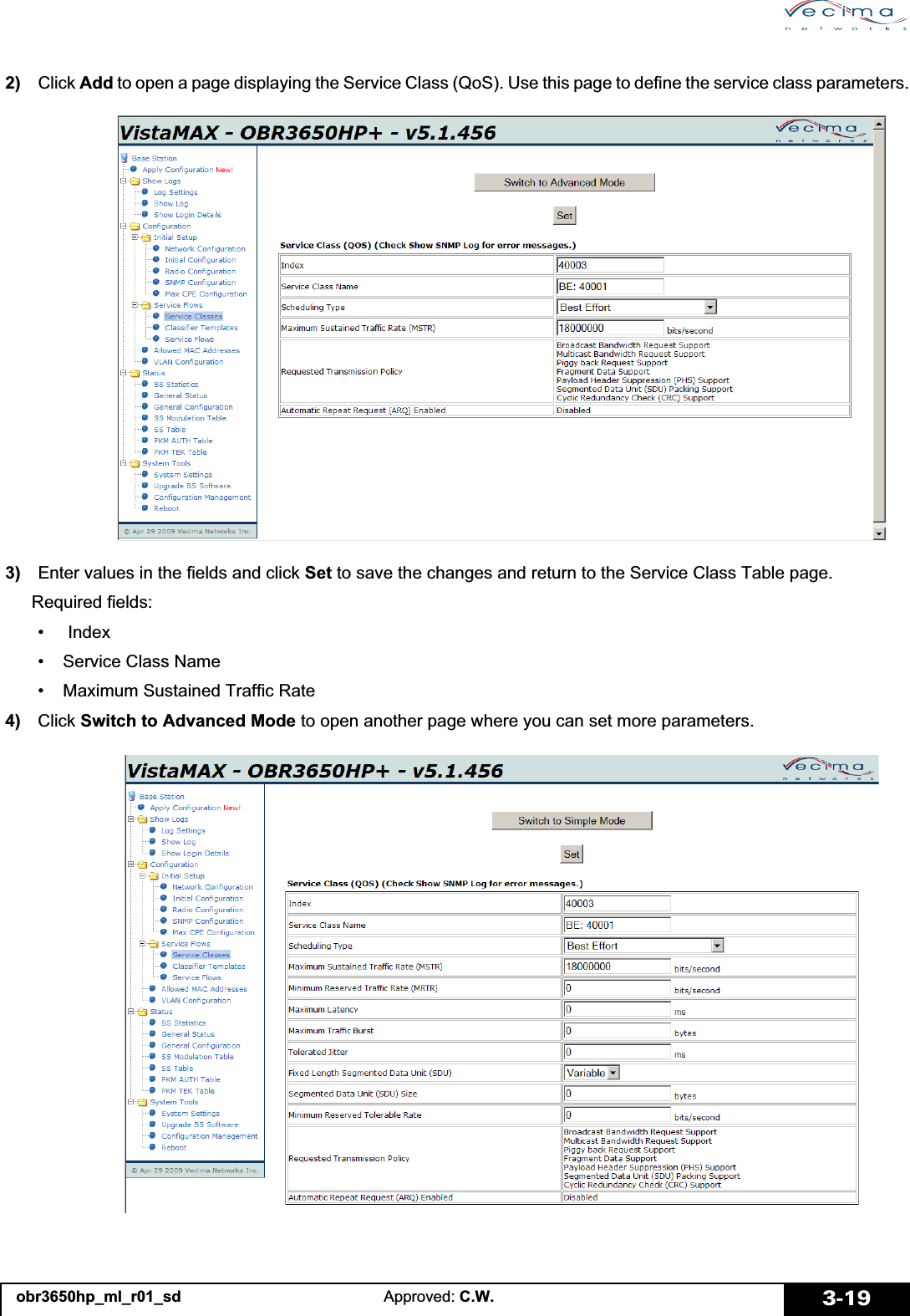

obr3650hp_ml_r01_sd Approved: C.W. 3-19 2) Click Add to open a page displaying the Service Class (QoS). Use this page to define the service class parameters. 3) Enter values in the fields and click Set to save the changes and return to the Service Class Table page. Required fields:• Index• Service Class Name• Maximum Sustained Traffic Rate 4) Click Switch to Advanced Mode to open another page where you can set more parameters.
obr3650hp_ml_r01_sdApproved: C.W.3-20To define a classifier template and set up its rules. 1) Click Configuration > Service Flows > Classifier Templates to open the Classifier Template Table page. Use this page to define the classifier templates. 2) Click Add to open the Classifier Rule Entry page and set up classifier templates for later use. 3) Enter values in the fields and click Set to save the changes.Required fields:• Priority• Destination Port Start• Destination Port End

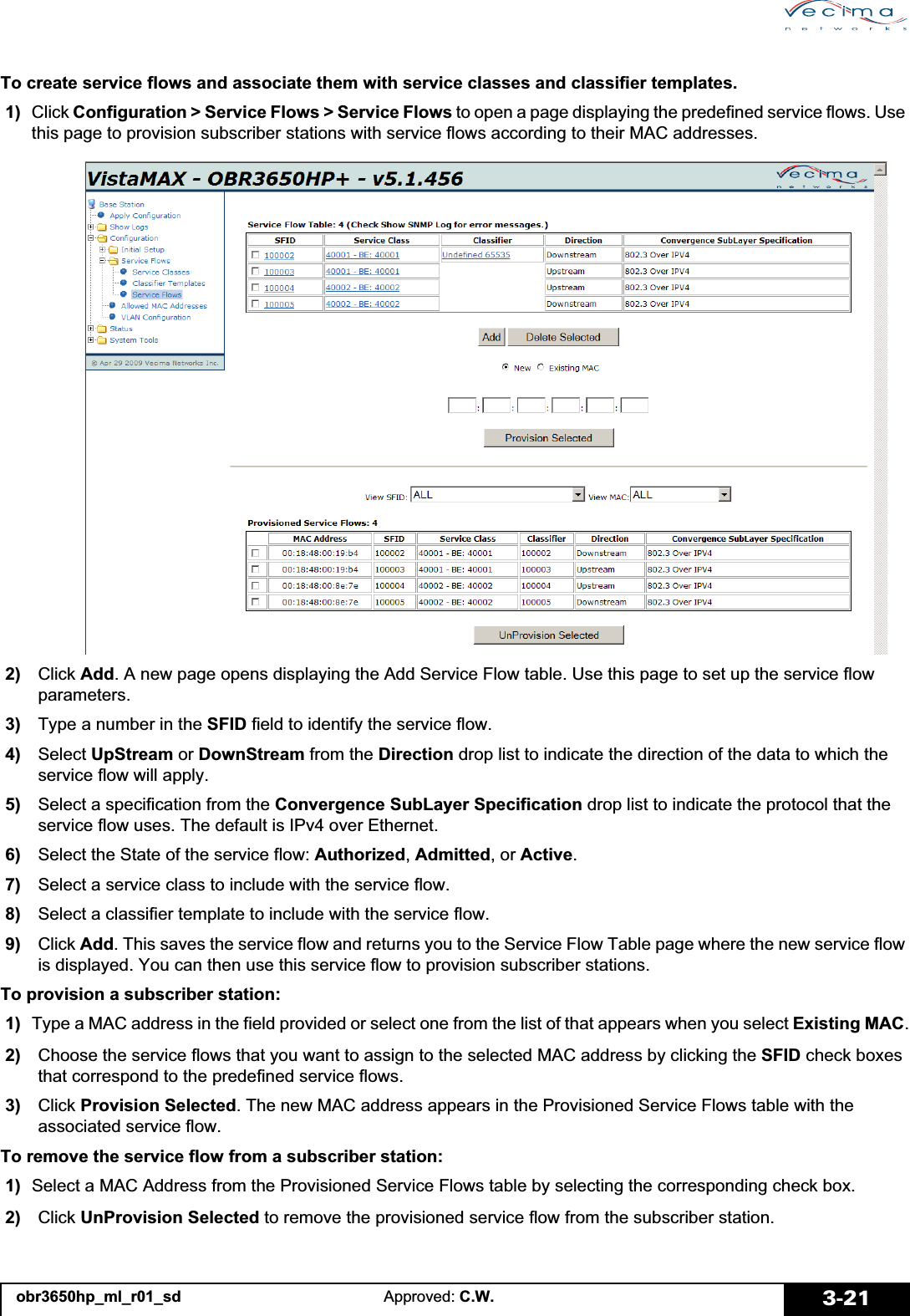

obr3650hp_ml_r01_sd Approved: C.W. 3-21To create service flows and associate them with service classes and classifier templates. 1) Click Configuration > Service Flows > Service Flows to open a page displaying the predefined service flows. Use this page to provision subscriber stations with service flows according to their MAC addresses. 2) Click Add. A new page opens displaying the Add Service Flow table. Use this page to set up the service flow parameters. 3) Type a number in the SFID field to identify the service flow. 4) Select UpStream or DownStream from the Direction drop list to indicate the direction of the data to which the service flow will apply. 5) Select a specification from the Convergence SubLayer Specification drop list to indicate the protocol that the service flow uses. The default is IPv4 over Ethernet. 6) Select the State of the service flow: Authorized,Admitted, or Active. 7) Select a service class to include with the service flow. 8) Select a classifier template to include with the service flow. 9) Click Add. This saves the service flow and returns you to the Service Flow Table page where the new service flow is displayed. You can then use this service flow to provision subscriber stations.To provision a subscriber station: 1) Type a MAC address in the field provided or select one from the list of that appears when you select Existing MAC. 2) Choose the service flows that you want to assign to the selected MAC address by clicking the SFID check boxes that correspond to the predefined service flows. 3) Click Provision Selected. The new MAC address appears in the Provisioned Service Flows table with the associated service flow.To remove the service flow from a subscriber station: 1) Select a MAC Address from the Provisioned Service Flows table by selecting the corresponding check box. 2) Click UnProvision Selected to remove the provisioned service flow from the subscriber station.

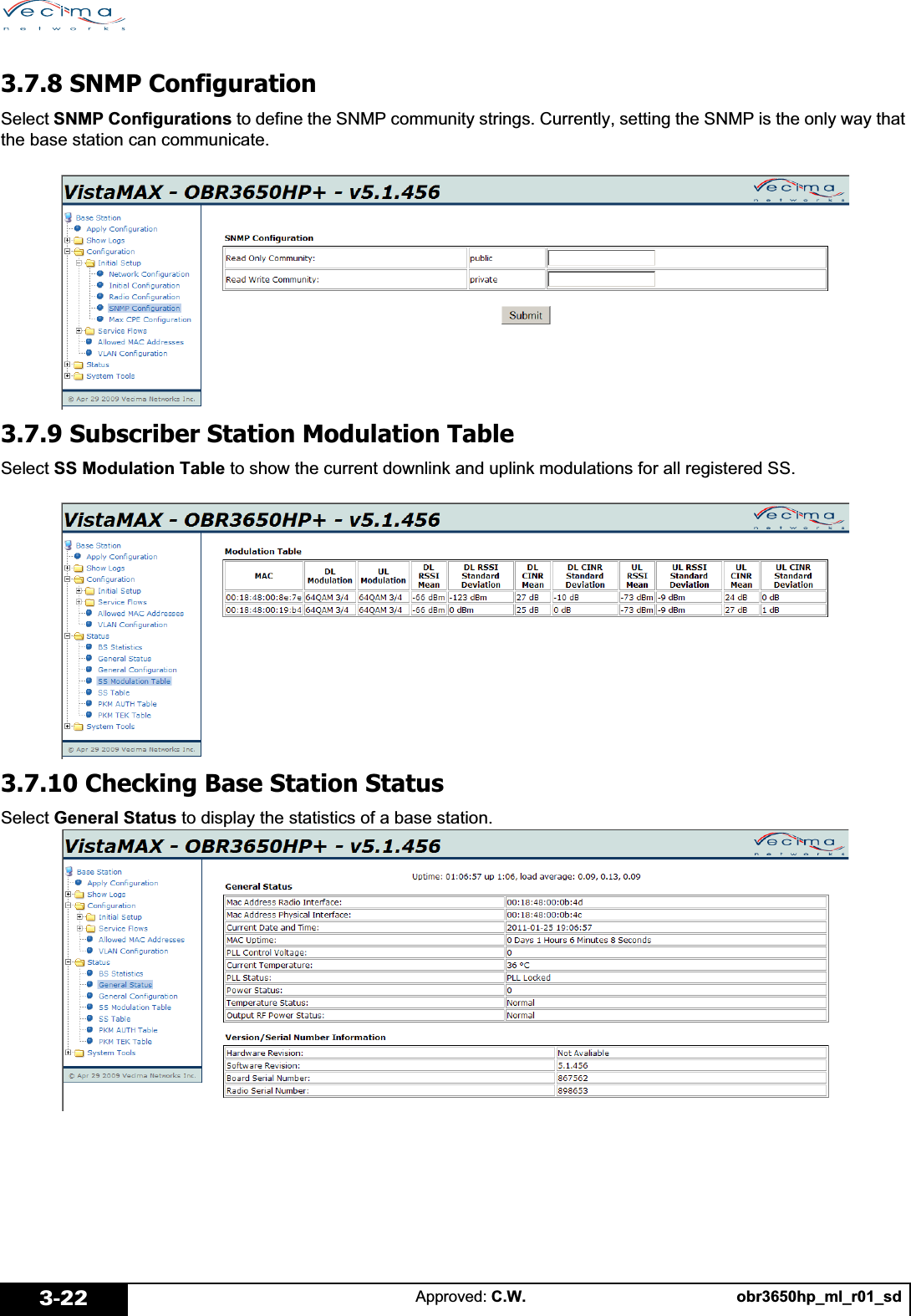

obr3650hp_ml_r01_sdApproved: C.W.3-223.7.8 SNMP ConfigurationSelect SNMP Configurations to define the SNMP community strings. Currently, setting the SNMP is the only way that the base station can communicate.3.7.9 Subscriber Station Modulation TableSelect SS Modulation Table to show the current downlink and uplink modulations for all registered SS.3.7.10 Checking Base Station StatusSelect General Status to display the statistics of a base station.

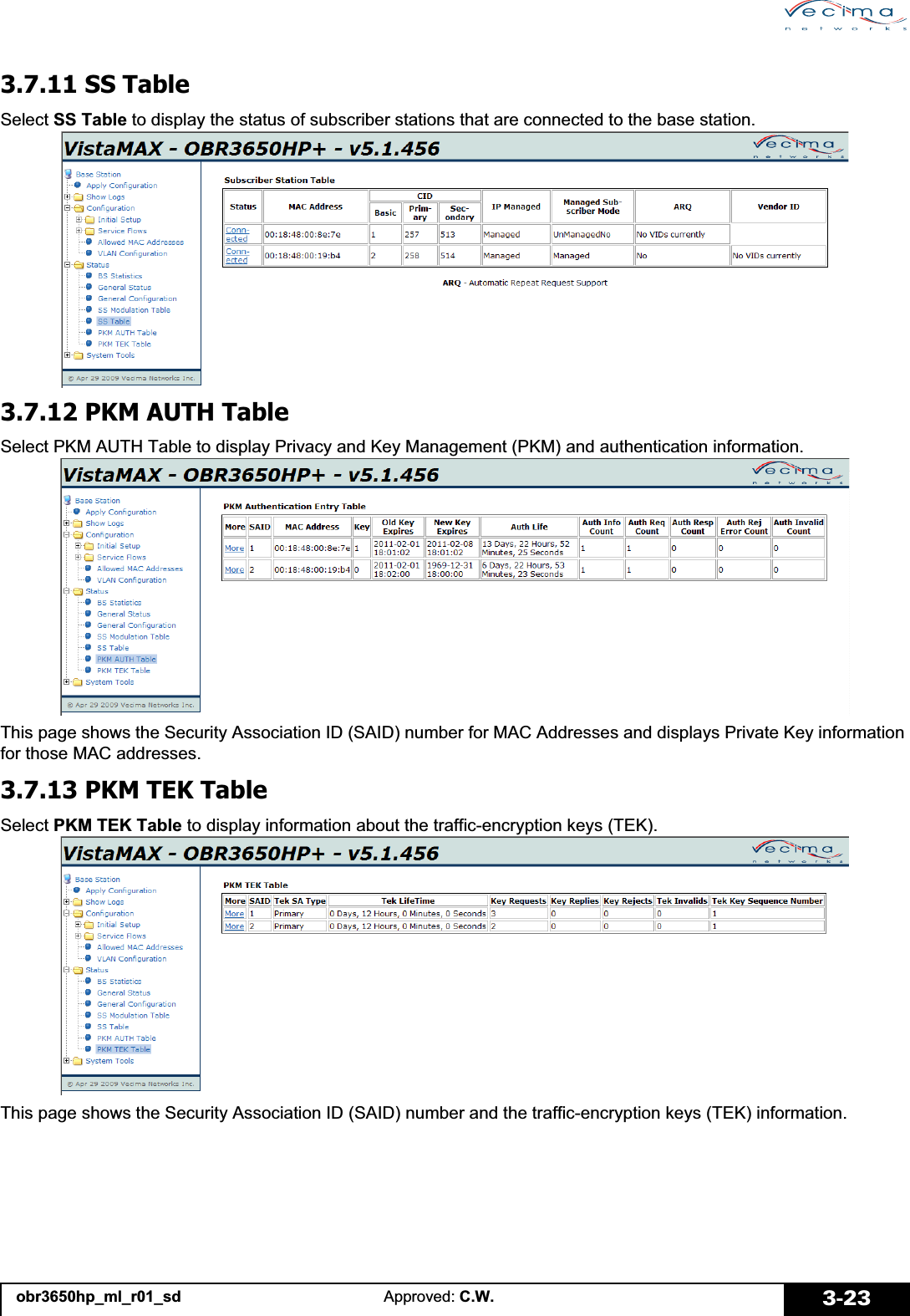

obr3650hp_ml_r01_sd Approved: C.W. 3-233.7.11 SS TableSelect SS Table to display the status of subscriber stations that are connected to the base station.3.7.12 PKM AUTH TableSelect PKM AUTH Table to display Privacy and Key Management (PKM) and authentication information.This page shows the Security Association ID (SAID) number for MAC Addresses and displays Private Key information for those MAC addresses.3.7.13 PKM TEK TableSelect PKM TEK Table to display information about the traffic-encryption keys (TEK).This page shows the Security Association ID (SAID) number and the traffic-encryption keys (TEK) information.

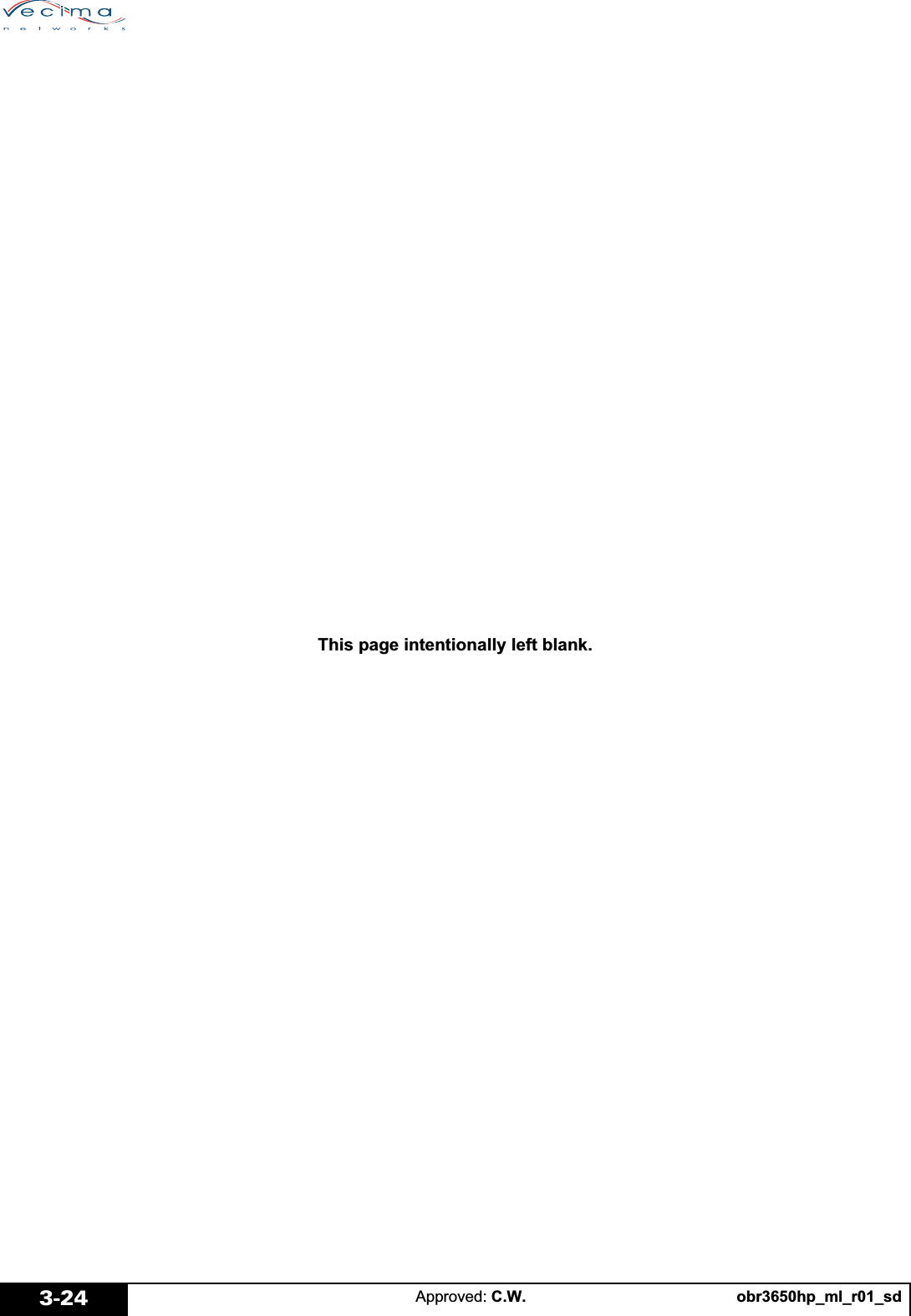

obr3650hp_ml_r01_sdApproved: C.W.3-24This page intentionally left blank.

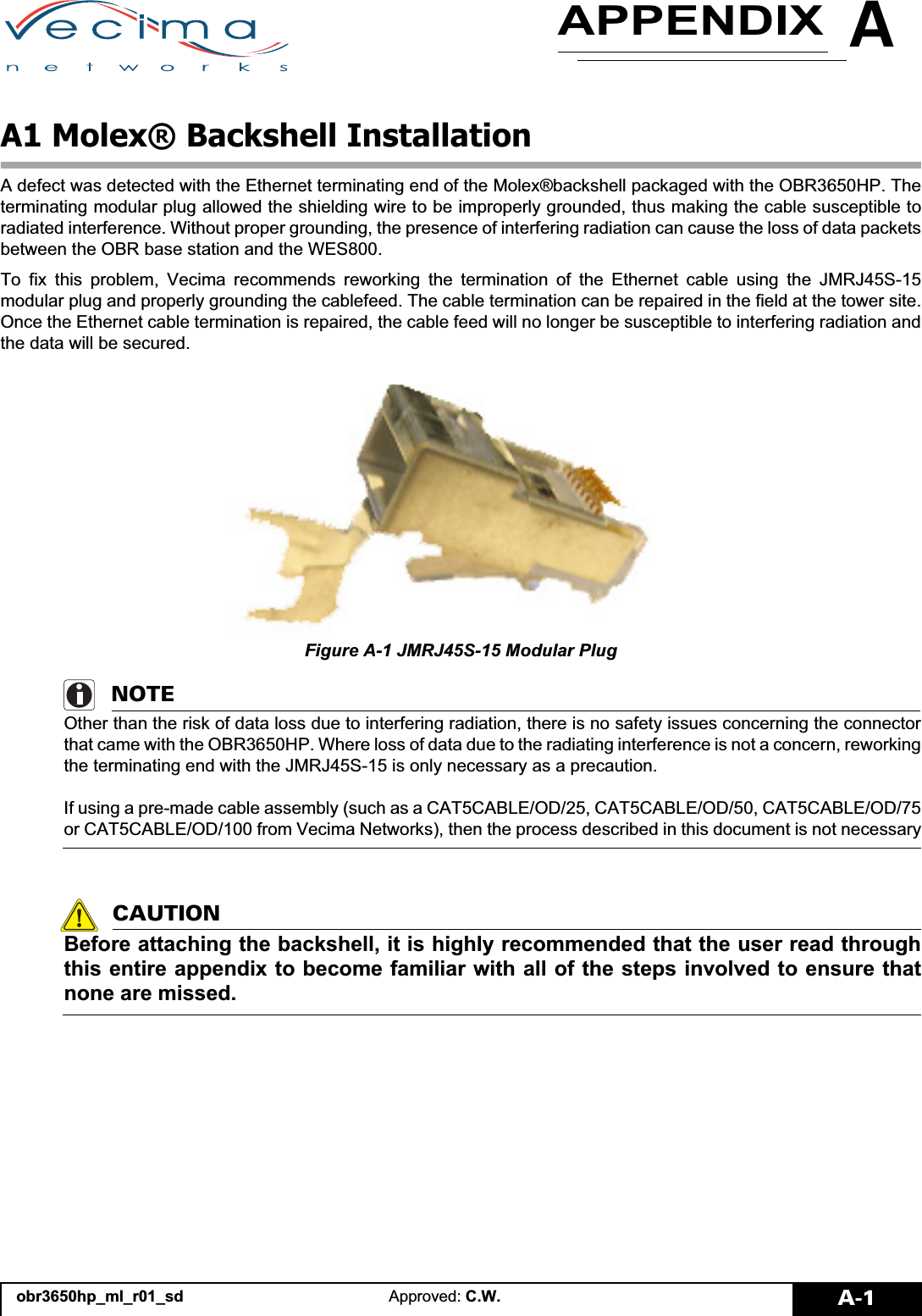

Aobr3650hp_ml_r01_sd Approved: C.W. A-1APPENDIXA1 Molex® Backshell InstallationA defect was detected with the Ethernet terminating end of the Molex®backshell packaged with the OBR3650HP. Theterminating modular plug allowed the shielding wire to be improperly grounded, thus making the cable susceptible toradiated interference. Without proper grounding, the presence of interfering radiation can cause the loss of data packetsbetween the OBR base station and the WES800.To fix this problem, Vecima recommends reworking the termination of the Ethernet cable using the JMRJ45S-15modular plug and properly grounding the cablefeed. The cable termination can be repaired in the field at the tower site.Once the Ethernet cable termination is repaired, the cable feed will no longer be susceptible to interfering radiation andthe data will be secured.Figure A-1 JMRJ45S-15 Modular PlugNOTEOther than the risk of data loss due to interfering radiation, there is no safety issues concerning the connectorthat came with the OBR3650HP. Where loss of data due to the radiating interference is not a concern, reworkingthe terminating end with the JMRJ45S-15 is only necessary as a precaution.If using a pre-made cable assembly (such as a CAT5CABLE/OD/25, CAT5CABLE/OD/50, CAT5CABLE/OD/75or CAT5CABLE/OD/100 from Vecima Networks), then the process described in this document is not necessaryCAUTIONBefore attaching the backshell, it is highly recommended that the user read throughthis entire appendix to become familiar with all of the steps involved to ensure thatnone are missed.

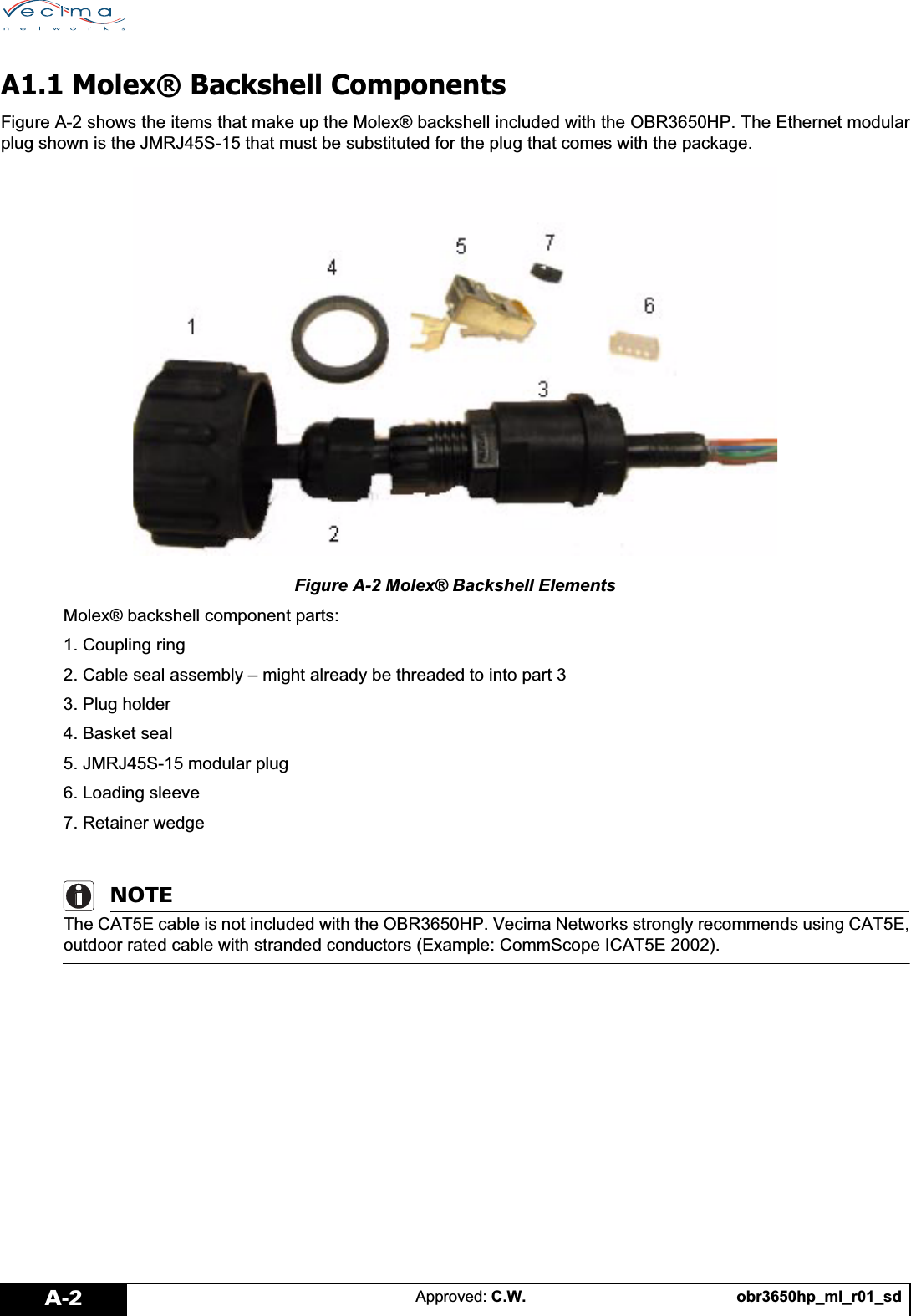

obr3650hp_ml_r01_sdApproved: C.W.A-2A1.1 Molex® Backshell ComponentsFigure A-2 shows the items that make up the Molex® backshell included with the OBR3650HP. The Ethernet modularplug shown is the JMRJ45S-15 that must be substituted for the plug that comes with the package.Figure A-2 Molex® Backshell ElementsMolex® backshell component parts:1. Coupling ring2. Cable seal assembly – might already be threaded to into part 33. Plug holder4. Basket seal5. JMRJ45S-15 modular plug6. Loading sleeve7. Retainer wedgeNOTEThe CAT5E cable is not included with the OBR3650HP. Vecima Networks strongly recommends using CAT5E,outdoor rated cable with stranded conductors (Example: CommScope ICAT5E 2002).

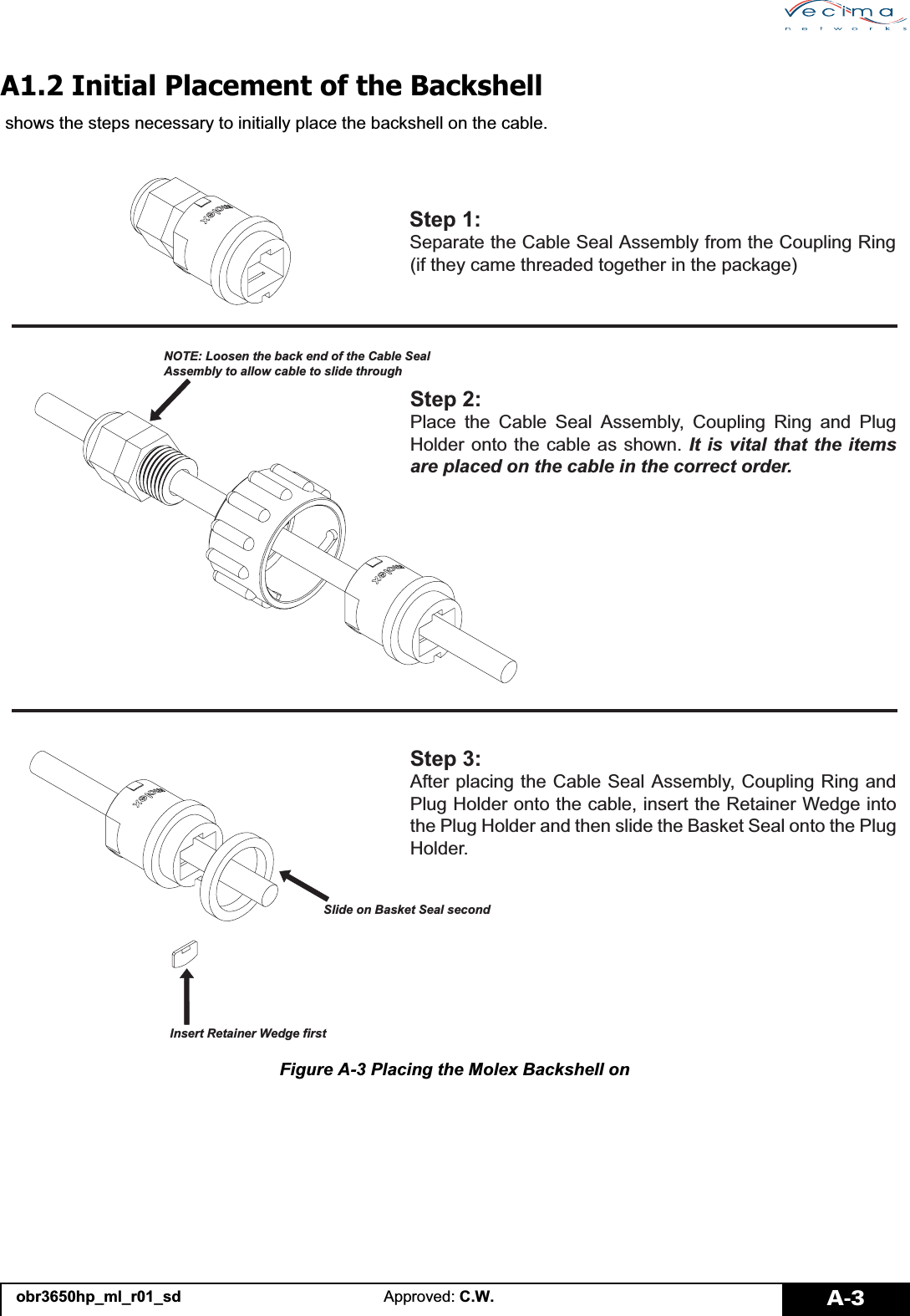

obr3650hp_ml_r01_sd Approved: C.W. A-3A1.2 Initial Placement of the Backshell shows the steps necessary to initially place the backshell on the cable.Figure A-3 Placing the Molex Backshell on6WHS6HSDUDWHWKH&DEOH6HDO$VVHPEO\IURPWKH&RXSOLQJ5LQJLIWKH\FDPHWKUHDGHGWRJHWKHULQWKHSDFNDJH6WHS3ODFH WKH &DEOH 6HDO $VVHPEO\ &RXSOLQJ 5LQJ DQG 3OXJ+ROGHURQWRWKHFDEOHDVVKRZQ,WLVYLWDOWKDWWKHLWHPVDUHSODFHGRQWKHFDEOHLQWKHFRUUHFWRUGHU127(/RRVHQWKHEDFNHQGRIWKH&DEOH6HDO$VVHPEO\WRDOORZFDEOHWRVOLGHWKURXJK6WHS$IWHUSODFLQJWKH&DEOH6HDO$VVHPEO\&RXSOLQJ5LQJDQG3OXJ+ROGHURQWRWKHFDEOHLQVHUWWKH5HWDLQHU:HGJHLQWRWKH3OXJ+ROGHUDQGWKHQVOLGHWKH%DVNHW6HDORQWRWKH3OXJ+ROGHU,QVHUW5HWDLQHU:HGJHILUVW6OLGHRQ%DVNHW6HDOVHFRQG

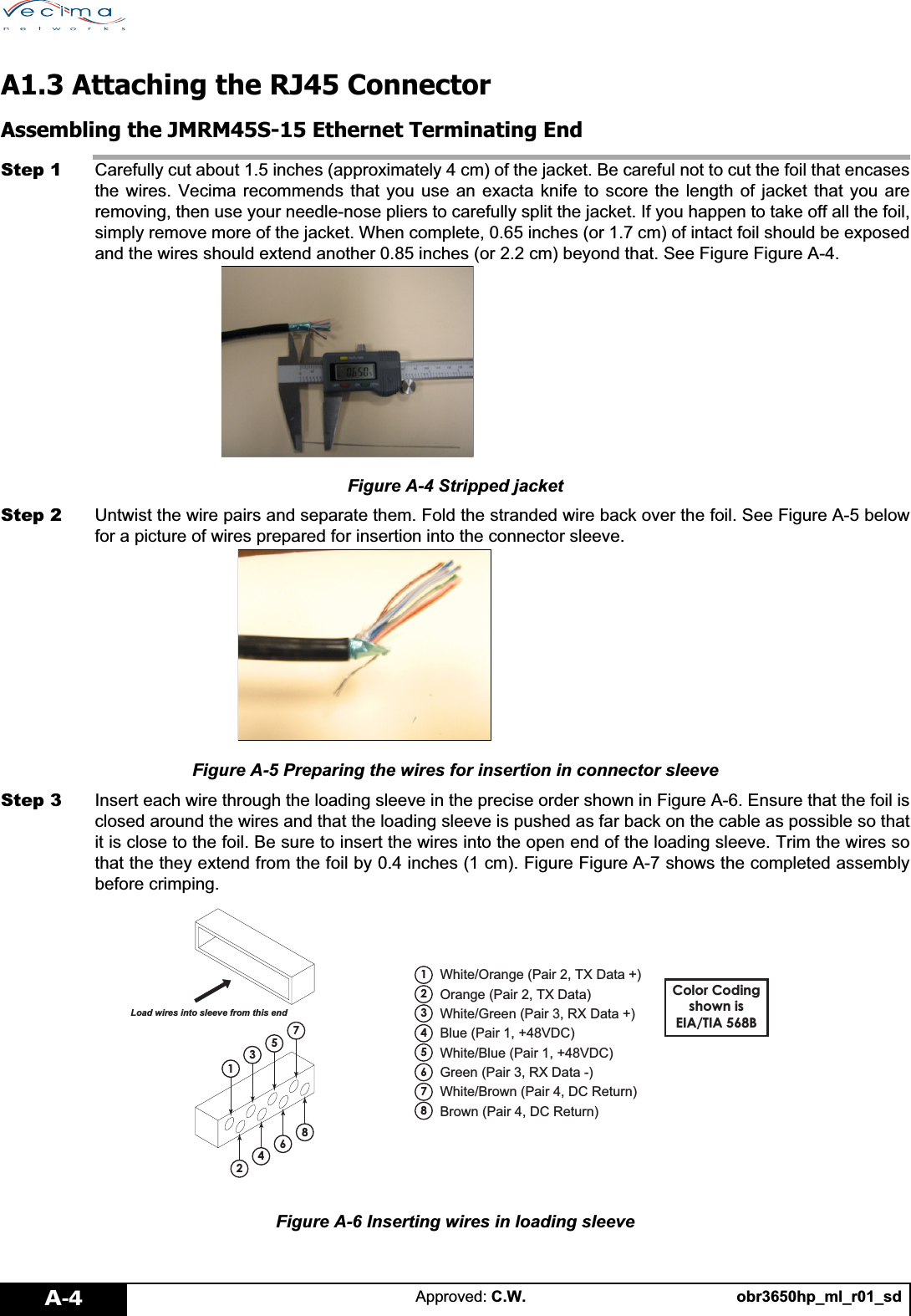

obr3650hp_ml_r01_sdApproved: C.W.A-4A1.3 Attaching the RJ45 ConnectorAssembling the JMRM45S-15 Ethernet Terminating EndStep 1 Carefully cut about 1.5 inches (approximately 4 cm) of the jacket. Be careful not to cut the foil that encasesthe wires. Vecima recommends that you use an exacta knife to score the length of jacket that you areremoving, then use your needle-nose pliers to carefully split the jacket. If you happen to take off all the foil,simply remove more of the jacket. When complete, 0.65 inches (or 1.7 cm) of intact foil should be exposedand the wires should extend another 0.85 inches (or 2.2 cm) beyond that. See Figure Figure A-4.Figure A-4 Stripped jacketStep 2 Untwist the wire pairs and separate them. Fold the stranded wire back over the foil. See Figure A-5 belowfor a picture of wires prepared for insertion into the connector sleeve.Figure A-5 Preparing the wires for insertion in connector sleeveStep 3 Insert each wire through the loading sleeve in the precise order shown in Figure A-6. Ensure that the foil isclosed around the wires and that the loading sleeve is pushed as far back on the cable as possible so thatit is close to the foil. Be sure to insert the wires into the open end of the loading sleeve. Trim the wires sothat the they extend from the foil by 0.4 inches (1 cm). Figure Figure A-7 shows the completed assemblybefore crimping.Figure A-6 Inserting wires in loading sleeve/RDGZLUHVLQWRVOHHYHIURPWKLVHQG:KLWH2UDQJH3DLU7;'DWD2UDQJH3DLU7;'DWD:KLWH*UHHQ3DLU5;'DWD%OXH3DLU9'&:KLWH%OXH3DLU9'&*UHHQ3DLU5;'DWD:KLWH%URZQ3DLU'&5HWXUQ%URZQ3DLU'&5HWXUQ&RORU&RGLQJVKRZQLV(,$7,$%

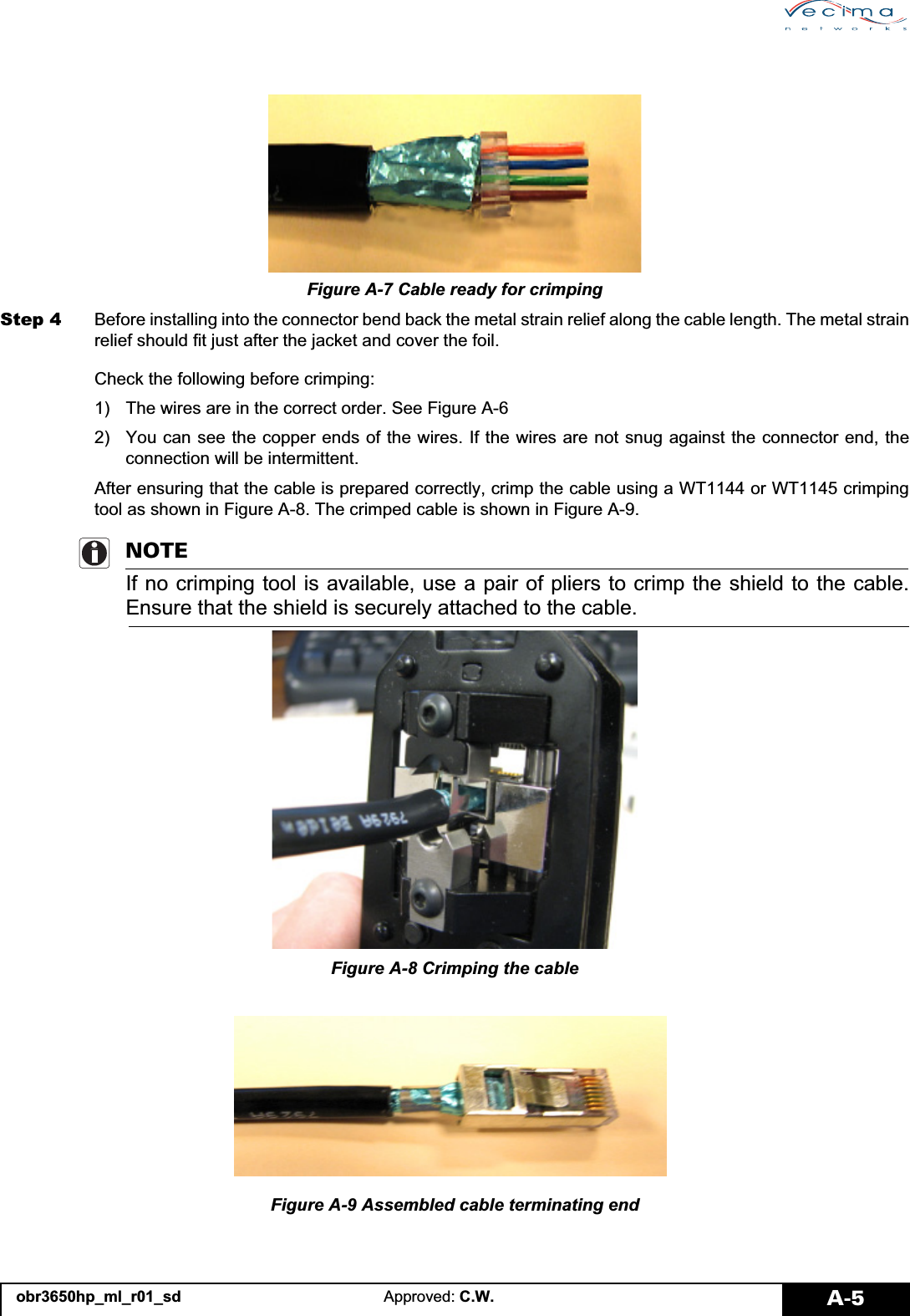

obr3650hp_ml_r01_sd Approved: C.W. A-5Figure A-7 Cable ready for crimpingStep 4 Before installing into the connector bend back the metal strain relief along the cable length. The metal strainrelief should fit just after the jacket and cover the foil.Check the following before crimping:1) The wires are in the correct order. See Figure A-62) You can see the copper ends of the wires. If the wires are not snug against the connector end, theconnection will be intermittent.After ensuring that the cable is prepared correctly, crimp the cable using a WT1144 or WT1145 crimpingtool as shown in Figure A-8. The crimped cable is shown in Figure A-9.NOTEIf no crimping tool is available, use a pair of pliers to crimp the shield to the cable.Ensure that the shield is securely attached to the cable.Figure A-8 Crimping the cableFigure A-9 Assembled cable terminating end

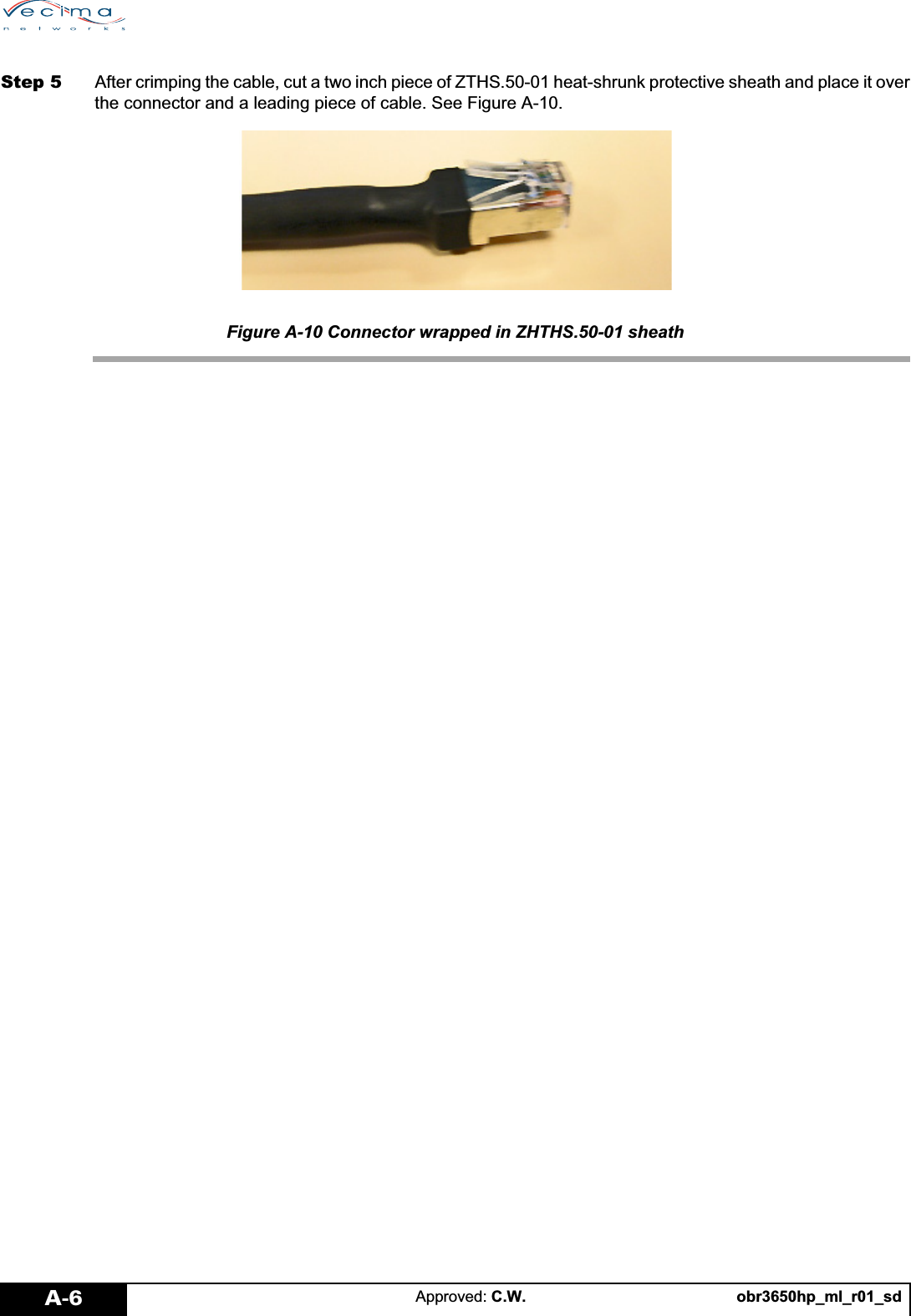

obr3650hp_ml_r01_sdApproved: C.W.A-6Step 5 After crimping the cable, cut a two inch piece of ZTHS.50-01 heat-shrunk protective sheath and place it overthe connector and a leading piece of cable. See Figure A-10.Figure A-10 Connector wrapped in ZHTHS.50-01 sheath

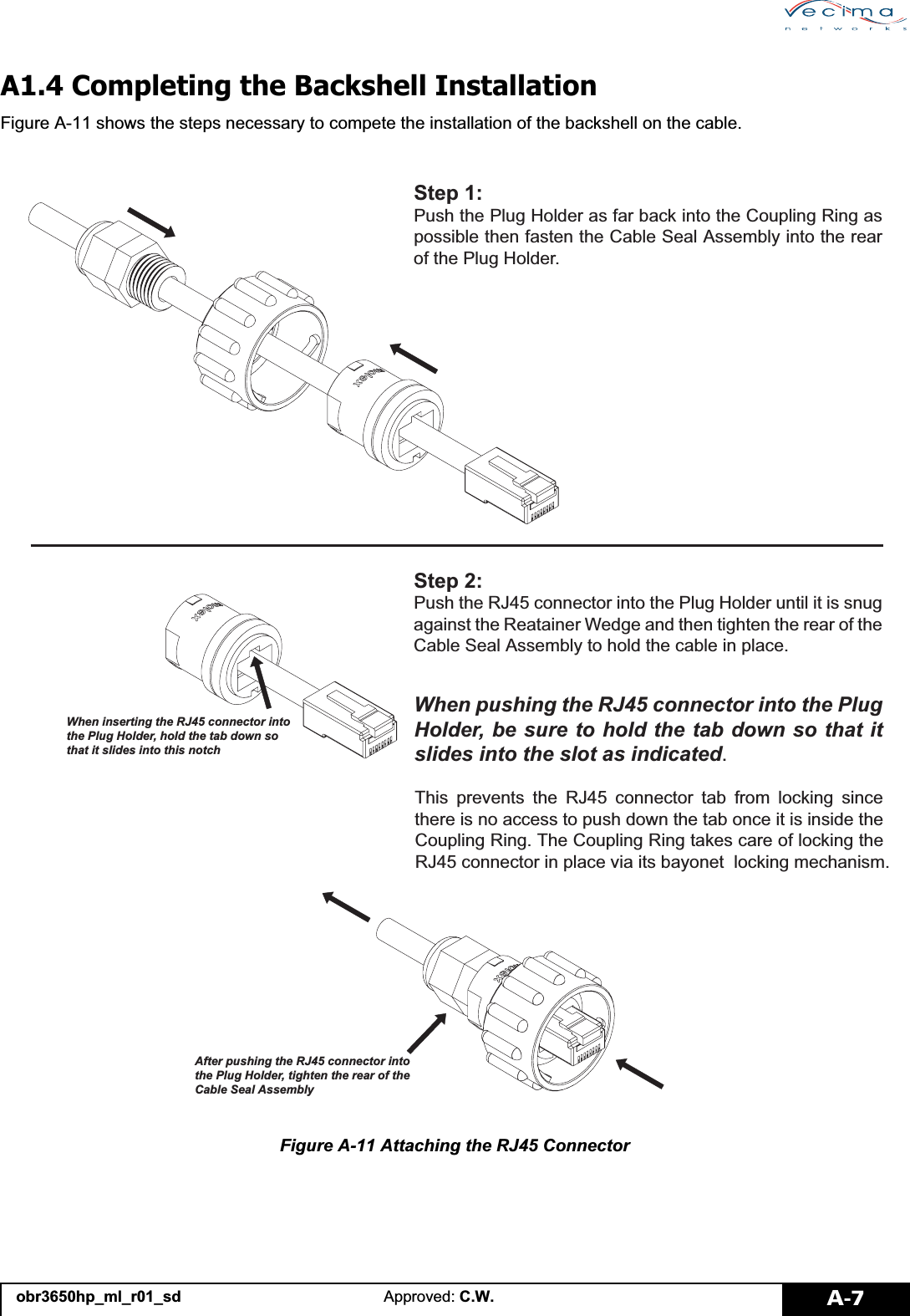

obr3650hp_ml_r01_sd Approved: C.W. A-7A1.4 Completing the Backshell InstallationFigure A-11 shows the steps necessary to compete the installation of the backshell on the cable.Figure A-11 Attaching the RJ45 Connector6WHS3XVKWKH3OXJ+ROGHUDVIDUEDFNLQWRWKH&RXSOLQJ5LQJDVSRVVLEOHWKHQIDVWHQWKH&DEOH6HDO$VVHPEO\LQWRWKHUHDURIWKH3OXJ+ROGHU$IWHUSXVKLQJWKH5-FRQQHFWRULQWRWKH3OXJ+ROGHUWLJKWHQWKHUHDURIWKH&DEOH6HDO$VVHPEO\6WHS3XVKWKH5-FRQQHFWRULQWRWKH3OXJ+ROGHUXQWLOLWLVVQXJDJDLQVWWKH5HDWDLQHU:HGJHDQGWKHQWLJKWHQWKHUHDURIWKH&DEOH6HDO$VVHPEO\WRKROGWKHFDEOHLQSODFH:KHQLQVHUWLQJWKH5-FRQQHFWRULQWRWKH3OXJ+ROGHUKROGWKHWDEGRZQVRWKDWLWVOLGHVLQWRWKLVQRWFK:KHQSXVKLQJWKH5-FRQQHFWRULQWRWKH3OXJ+ROGHUEHVXUHWRKROGWKHWDEGRZQVRWKDWLWVOLGHVLQWRWKHVORWDVLQGLFDWHG7KLV SUHYHQWV WKH 5- FRQQHFWRU WDE IURP ORFNLQJ VLQFHWKHUHLVQRDFFHVVWRSXVKGRZQWKHWDERQFHLWLVLQVLGHWKH&RXSOLQJ5LQJ7KH&RXSOLQJ5LQJWDNHVFDUHRIORFNLQJWKH5-FRQQHFWRULQSODFHYLDLWVED\RQHWORFNLQJPHFKDQLVP

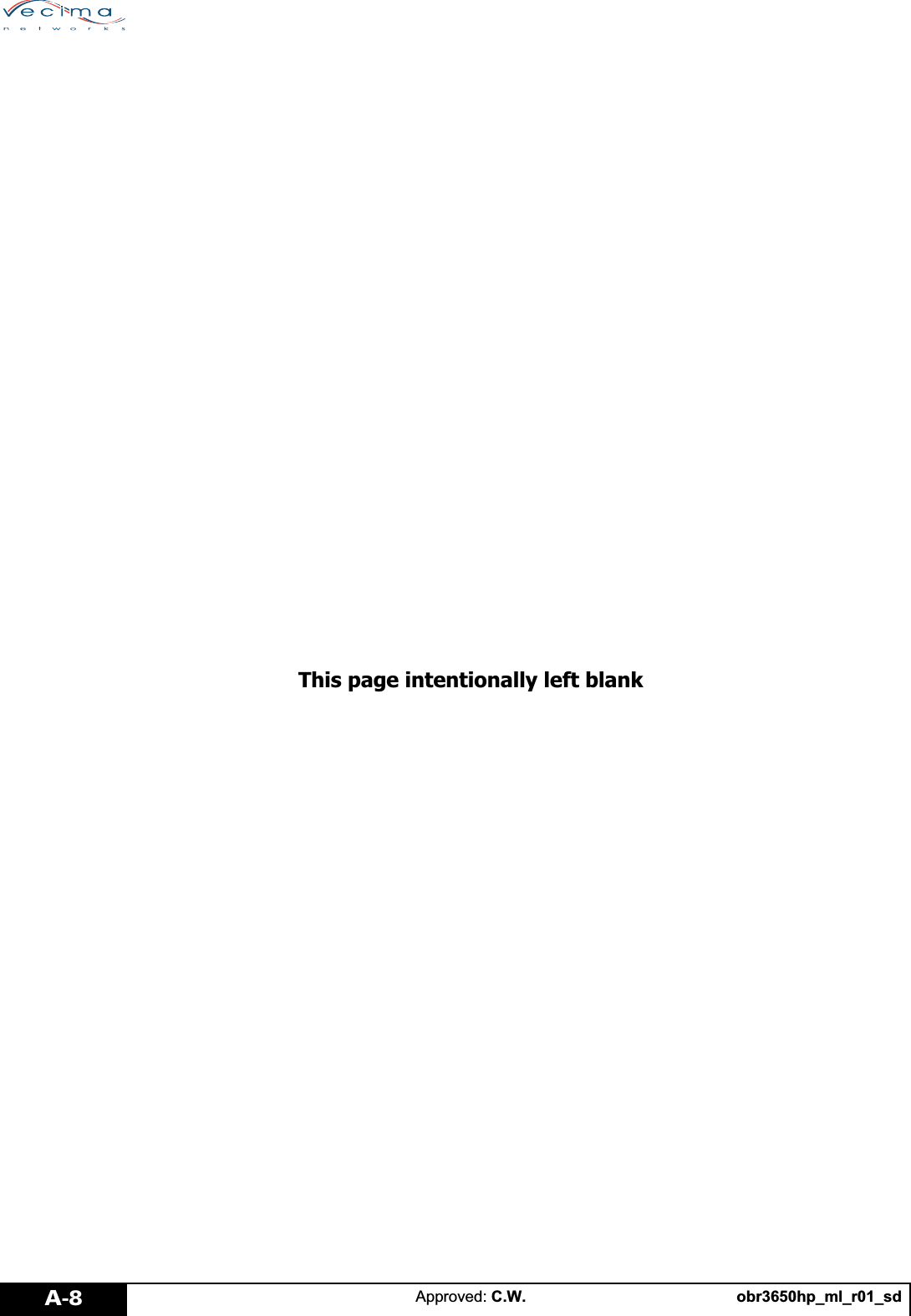

obr3650hp_ml_r01_sdApproved: C.W.A-8This page intentionally left blank
BAppendixobr3650hp_ml_r01_sd Approved: C.W. B-1B1 Installing the Antenna - Points to ConsiderImproperly installed antennas will add cost, time, and frustration to your operation. Taking some time to plan a properinstallation will have long term benefits.B1.1 Planning the InstallationConsider the following points when planning an installation:• The antenna should support proper grounding and lightning protection.It is usually far easier to bring the coax into the building where the AC power enters the building; because this is theeasiest and cheapest way to properly bond the cable entrance to the AC ground (coax is easier and cheaper to workwith than #6 AWG copper). Any lightning energy coming in on the coax will be also shared and spread over to theAC ground system, and there will be no voltage differential between the two ground systems. • The antenna should be able to send and receive a strong signal. The simplest method is to presurvey the proposed location with an antenna and transceiver that are connected viaa temporary string of coaxial cable to a power inserter. The assembly can be mounted to any pole and hand–heldto determine the presence of signal using the integrated beeper.• The antenna should support your plan for cableruns.Cableruns that are too long might decrease the efficiency of signal transmission. Cableruns should be able tosupport proper grounding and surge protection. Make sure that you have determined the entire wiring route & needsbefore drilling holes in the structure and attaching mounting hardware.CAUTIONTo comply with RF exposure requirements, the integrated antenna or any external antenna which isconnected to an OBR3650HP requires a minimum distance of 1.5 meters between it and all persons.B1.2 Safety ConsiderationsBefore you begin your installation, read all critical safety warnings.• Do not put the antenna under a power line. The power line can cause interference, and also exposes the Installationto unnecessary site hazards.• All Installations must meet building and electrical codes. Note that some municipalities have restrictions orcommunity covenants regarding towers and antenna structures. Check first.• Do not install the antenna in high winds or in stormy weather, particularly if lightning is present. • Remember to assemble the antenna hardware at a safe location before climbing up to the antenna mount.• Depending on your location, you may need two or more people to install the antenna and mount. B1.3 Evaluating the Mounting LocationYou can mount the antenna to a variety of surfaces.• The antenna should have a clear line-of-sight to the subscriber station. Do not put the antenna where it will beblocked by people, animals or vehicles. Consider how time and the season will affect the line-of-sight. For example, will foliage from growing trees interferewith the line-of-sight? Will wind or ice add strain to the mounting assembly?

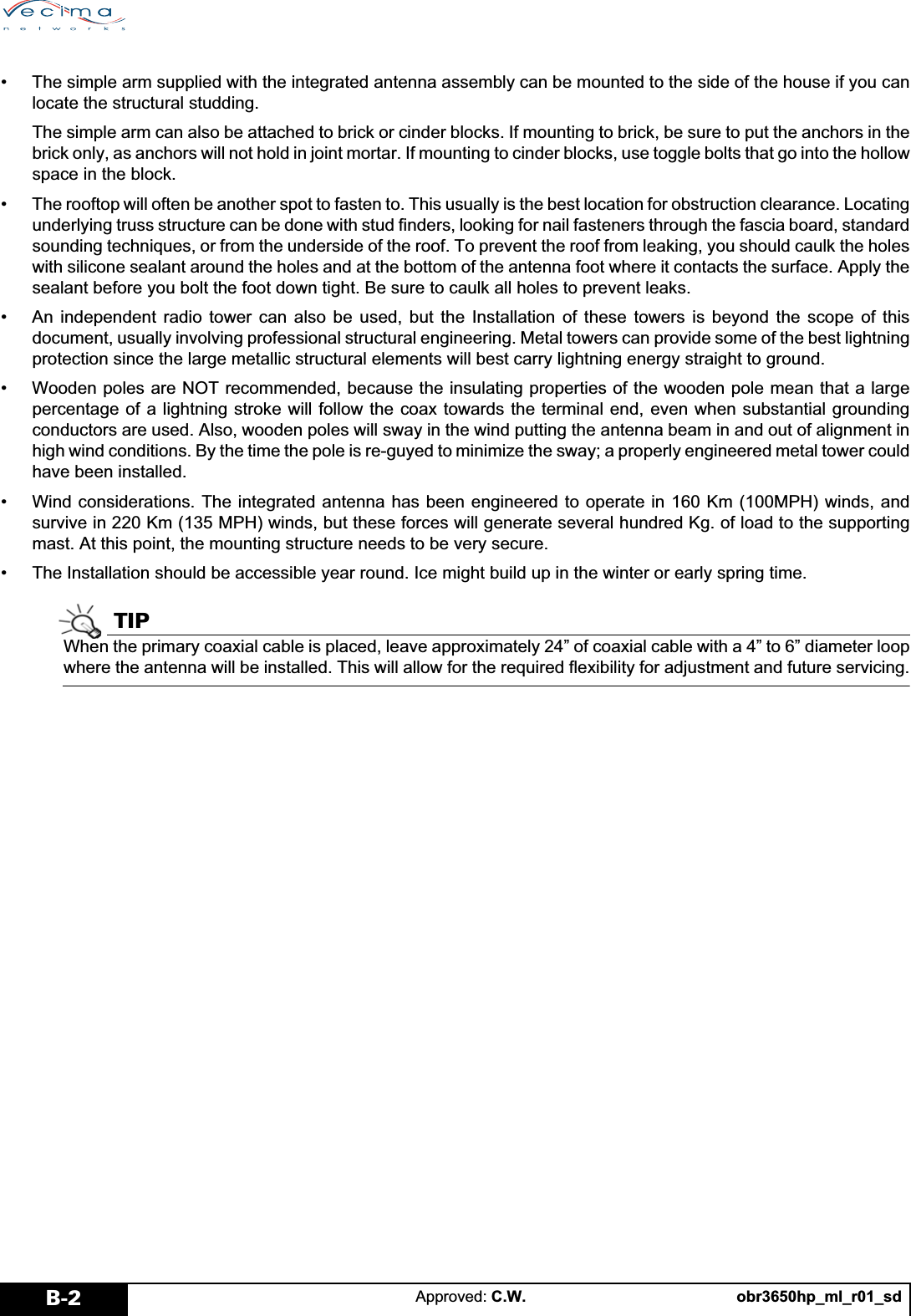

obr3650hp_ml_r01_sdApproved: C.W.B-2• The simple arm supplied with the integrated antenna assembly can be mounted to the side of the house if you canlocate the structural studding.The simple arm can also be attached to brick or cinder blocks. If mounting to brick, be sure to put the anchors in thebrick only, as anchors will not hold in joint mortar. If mounting to cinder blocks, use toggle bolts that go into the hollowspace in the block.• The rooftop will often be another spot to fasten to. This usually is the best location for obstruction clearance. Locatingunderlying truss structure can be done with stud finders, looking for nail fasteners through the fascia board, standardsounding techniques, or from the underside of the roof. To prevent the roof from leaking, you should caulk the holeswith silicone sealant around the holes and at the bottom of the antenna foot where it contacts the surface. Apply thesealant before you bolt the foot down tight. Be sure to caulk all holes to prevent leaks.• An independent radio tower can also be used, but the Installation of these towers is beyond the scope of thisdocument, usually involving professional structural engineering. Metal towers can provide some of the best lightningprotection since the large metallic structural elements will best carry lightning energy straight to ground.• Wooden poles are NOT recommended, because the insulating properties of the wooden pole mean that a largepercentage of a lightning stroke will follow the coax towards the terminal end, even when substantial groundingconductors are used. Also, wooden poles will sway in the wind putting the antenna beam in and out of alignment inhigh wind conditions. By the time the pole is re-guyed to minimize the sway; a properly engineered metal tower couldhave been installed.• Wind considerations. The integrated antenna has been engineered to operate in 160 Km (100MPH) winds, andsurvive in 220 Km (135 MPH) winds, but these forces will generate several hundred Kg. of load to the supportingmast. At this point, the mounting structure needs to be very secure.• The Installation should be accessible year round. Ice might build up in the winter or early spring time.TIPWhen the primary coaxial cable is placed, leave approximately 24” of coaxial cable with a 4” to 6” diameter loopwhere the antenna will be installed. This will allow for the required flexibility for adjustment and future servicing.
