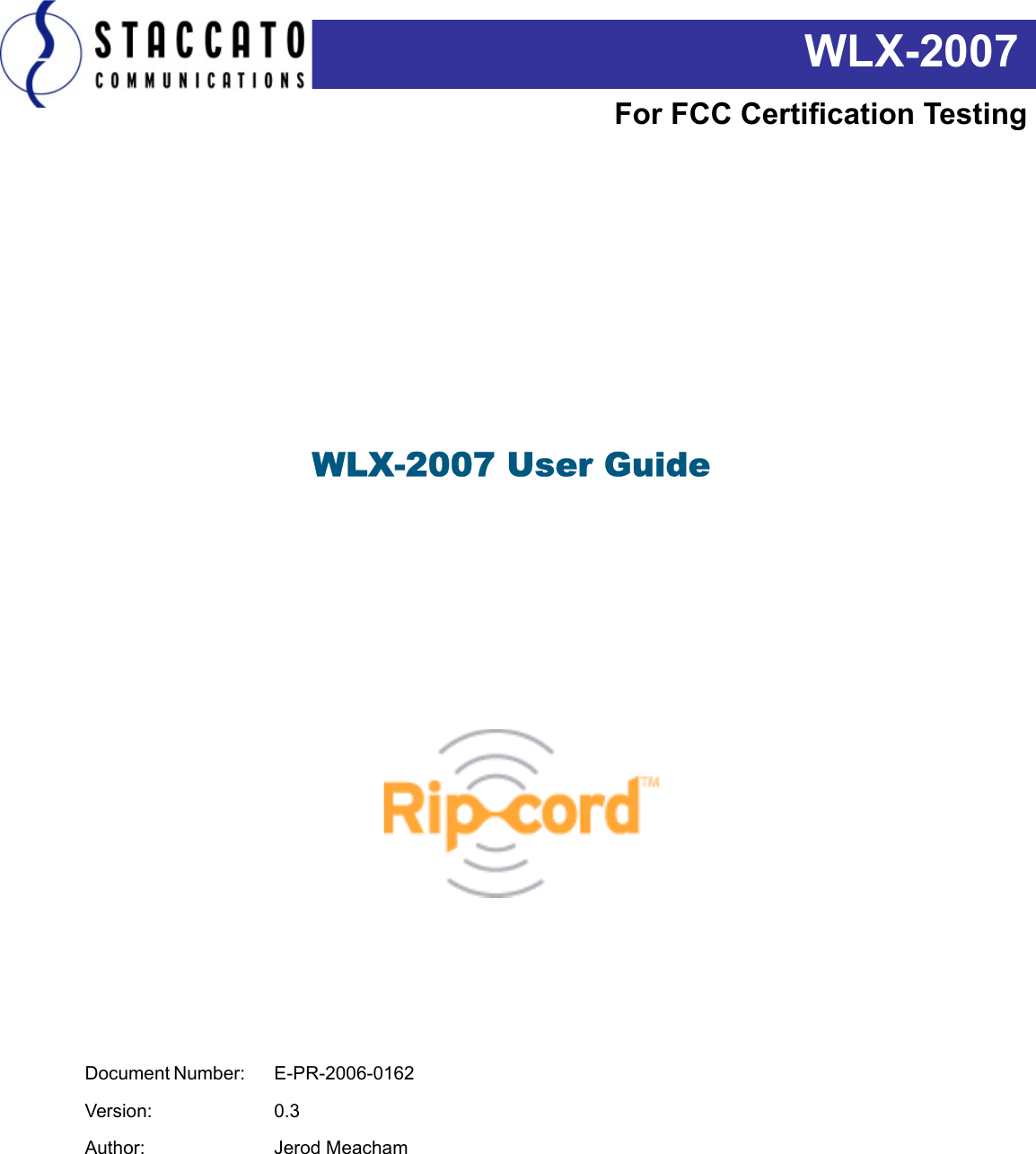

WLX-2007 User Guide Document Number: E-PR-2006-0162Version: 0.3Author: Jerod Meacham WLX-2007For FCC Certification Testing

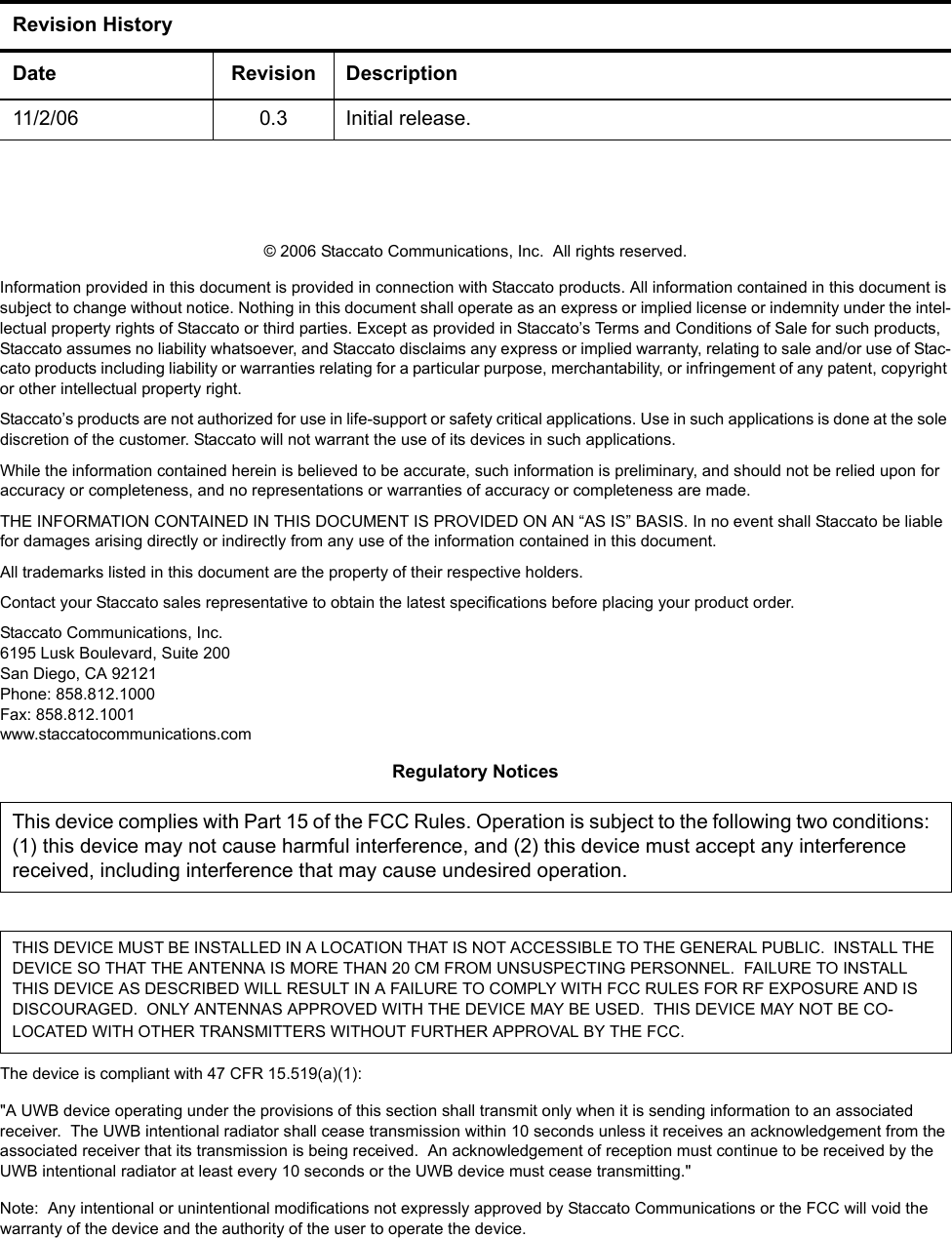

© 2006 Staccato Communications, Inc. All rights reserved.Information provided in this document is provided in connection with Staccato products. All information contained in this document is subject to change without notice. Nothing in this document shall operate as an express or implied license or indemnity under the intel-lectual property rights of Staccato or third parties. Except as provided in Staccato’s Terms and Conditions of Sale for such products, Staccato assumes no liability whatsoever, and Staccato disclaims any express or implied warranty, relating to sale and/or use of Stac-cato products including liability or warranties relating for a particular purpose, merchantability, or infringement of any patent, copyright or other intellectual property right.Staccato’s products are not authorized for use in life-support or safety critical applications. Use in such applications is done at the sole discretion of the customer. Staccato will not warrant the use of its devices in such applications.While the information contained herein is believed to be accurate, such information is preliminary, and should not be relied upon for accuracy or completeness, and no representations or warranties of accuracy or completeness are made.THE INFORMATION CONTAINED IN THIS DOCUMENT IS PROVIDED ON AN “AS IS” BASIS. In no event shall Staccato be liable for damages arising directly or indirectly from any use of the information contained in this document.All trademarks listed in this document are the property of their respective holders.Contact your Staccato sales representative to obtain the latest specifications before placing your product order.Staccato Communications, Inc.6195 Lusk Boulevard, Suite 200San Diego, CA 92121Phone: 858.812.1000Fax: 858.812.1001www.staccatocommunications.comRegulatory NoticesThe device is compliant with 47 CFR 15.519(a)(1):"A UWB device operating under the provisions of this section shall transmit only when it is sending information to an associated receiver. The UWB intentional radiator shall cease transmission within 10 seconds unless it receives an acknowledgement from the associated receiver that its transmission is being received. An acknowledgement of reception must continue to be received by the UWB intentional radiator at least every 10 seconds or the UWB device must cease transmitting."Note: Any intentional or unintentional modifications not expressly approved by Staccato Communications or the FCC will void the warranty of the device and the authority of the user to operate the device.Revision HistoryDate Revision Description11/2/06 0.3 Initial release.This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.THIS DEVICE MUST BE INSTALLED IN A LOCATION THAT IS NOT ACCESSIBLE TO THE GENERAL PUBLIC. INSTALL THE DEVICE SO THAT THE ANTENNA IS MORE THAN 20 CM FROM UNSUSPECTING PERSONNEL. FAILURE TO INSTALL THIS DEVICE AS DESCRIBED WILL RESULT IN A FAILURE TO COMPLY WITH FCC RULES FOR RF EXPOSURE AND IS DISCOURAGED. ONLY ANTENNAS APPROVED WITH THE DEVICE MAY BE USED. THIS DEVICE MAY NOT BE CO-LOCATED WITH OTHER TRANSMITTERS WITHOUT FURTHER APPROVAL BY THE FCC.
WLX-2007 User Guide Page iDoc. No. E-PR-2006-0162 v0.3 Staccato CommunicationsContents1.0 Introduction ........................................................................................................... 11.1 Purpose........................................................................................................... 11.2 Intended Audience .......................................................................................... 11.3 Conventions .................................................................................................... 11.4 Document Structure and Use.......................................................................... 11.5 Technical Support ........................................................................................... 12.0 Overview ................................................................................................................ 22.1 System Requirements..................................................................................... 33.0 Installation ............................................................................................................. 43.1 Software Installation........................................................................................ 43.2 Hardware/Driver Installation............................................................................ 94.0 Operation ............................................................................................................. 14Acronyms and Definitions.................................................................................. 17Document References ........................................................................................ 18Contact Information ............................................................................................ 19

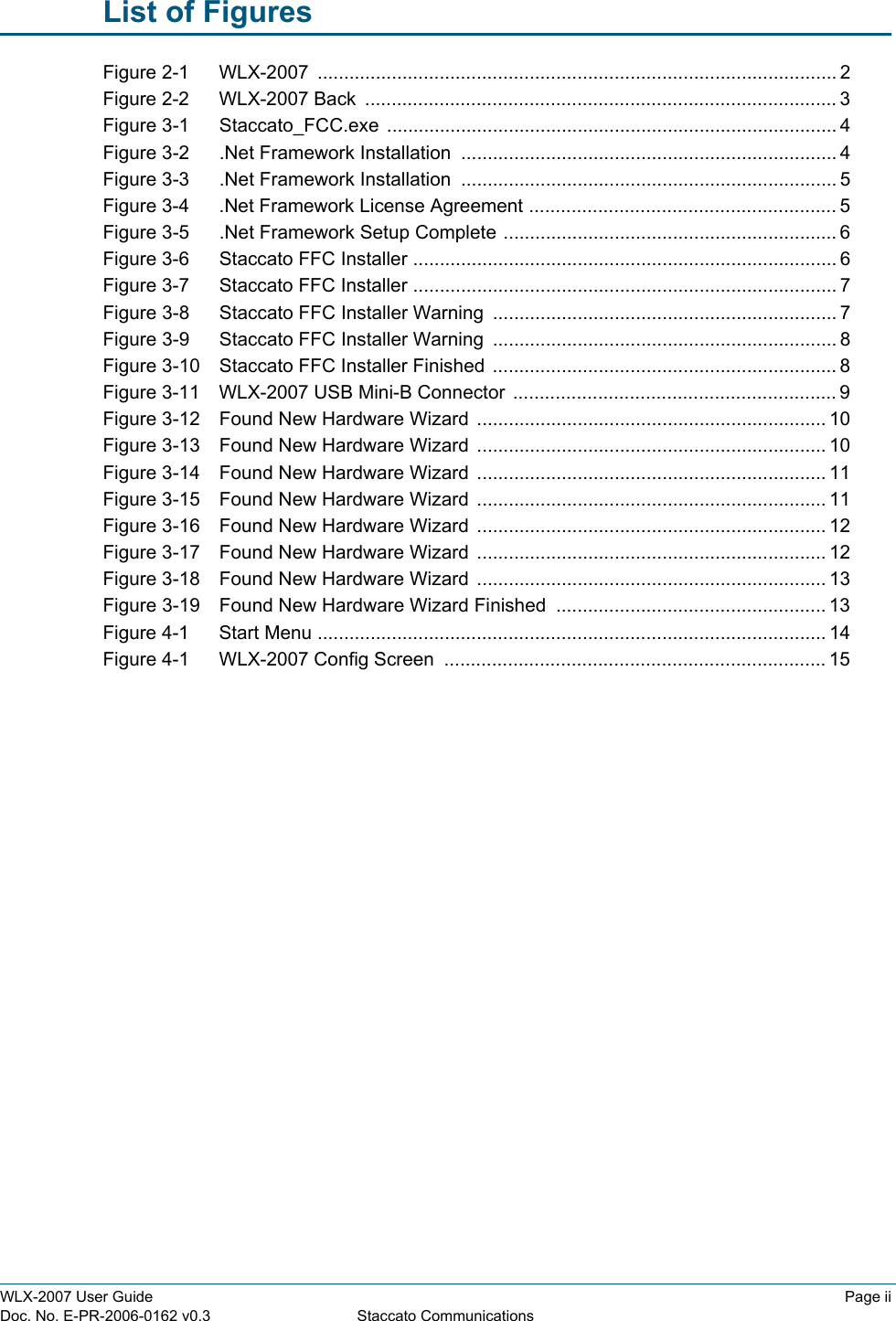

WLX-2007 User Guide Page iiDoc. No. E-PR-2006-0162 v0.3 Staccato CommunicationsList of FiguresFigure 2-1 WLX-2007 .................................................................................................. 2Figure 2-2 WLX-2007 Back ......................................................................................... 3Figure 3-1 Staccato_FCC.exe ..................................................................................... 4Figure 3-2 .Net Framework Installation ....................................................................... 4Figure 3-3 .Net Framework Installation ....................................................................... 5Figure 3-4 .Net Framework License Agreement .......................................................... 5Figure 3-5 .Net Framework Setup Complete ............................................................... 6Figure 3-6 Staccato FFC Installer ................................................................................ 6Figure 3-7 Staccato FFC Installer ................................................................................ 7Figure 3-8 Staccato FFC Installer Warning ................................................................. 7Figure 3-9 Staccato FFC Installer Warning ................................................................. 8Figure 3-10 Staccato FFC Installer Finished ................................................................. 8Figure 3-11 WLX-2007 USB Mini-B Connector ............................................................. 9Figure 3-12 Found New Hardware Wizard .................................................................. 10Figure 3-13 Found New Hardware Wizard .................................................................. 10Figure 3-14 Found New Hardware Wizard .................................................................. 11Figure 3-15 Found New Hardware Wizard .................................................................. 11Figure 3-16 Found New Hardware Wizard .................................................................. 12Figure 3-17 Found New Hardware Wizard .................................................................. 12Figure 3-18 Found New Hardware Wizard .................................................................. 13Figure 3-19 Found New Hardware Wizard Finished ................................................... 13Figure 4-1 Start Menu ................................................................................................ 14Figure 4-1 WLX-2007 Config Screen ........................................................................ 15

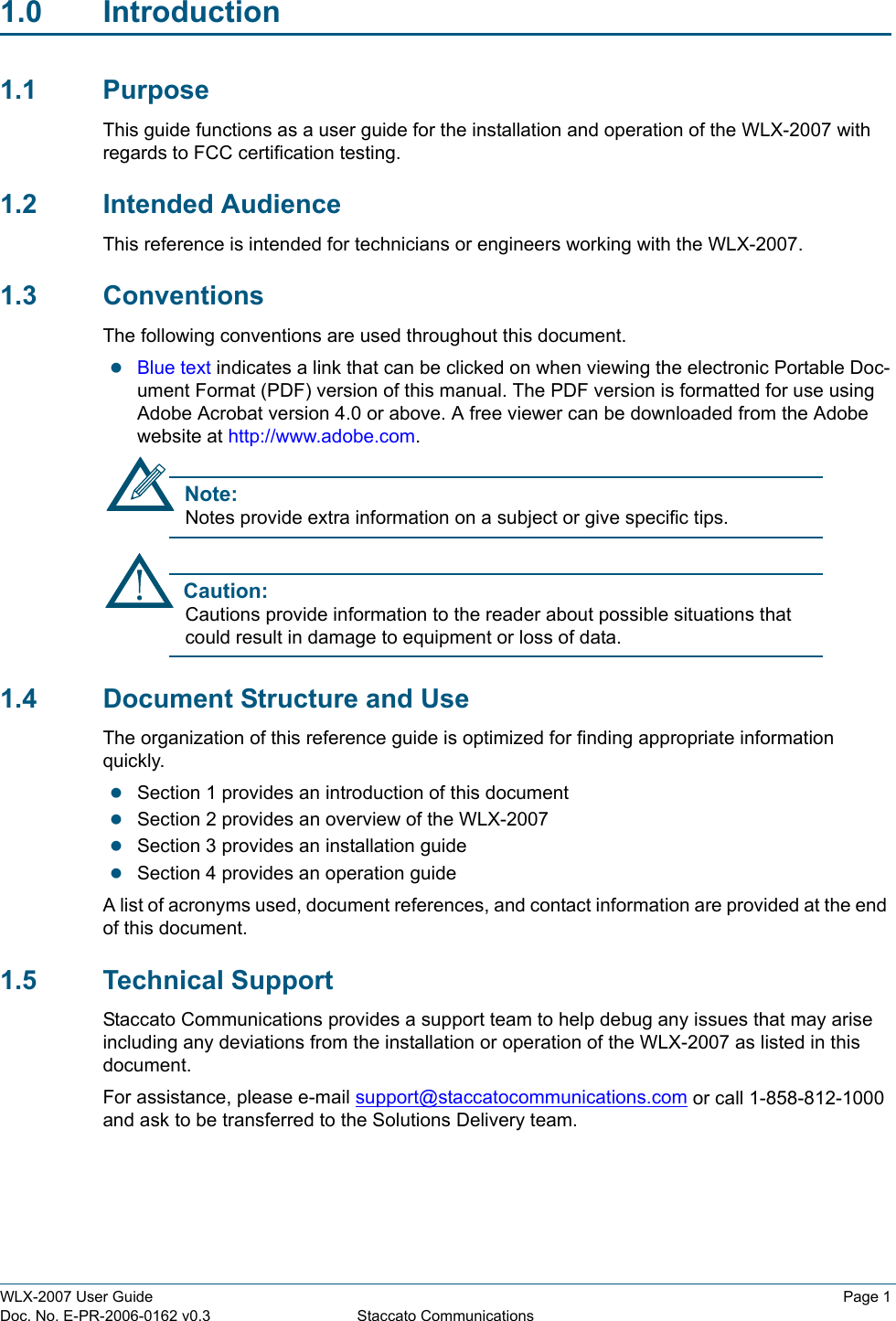

WLX-2007 User Guide Page 1Doc. No. E-PR-2006-0162 v0.3 Staccato Communications1.0 Introduction1.1 PurposeThis guide functions as a user guide for the installation and operation of the WLX-2007 with regards to FCC certification testing. 1.2 Intended AudienceThis reference is intended for technicians or engineers working with the WLX-2007. 1.3 ConventionsThe following conventions are used throughout this document.zBlue text indicates a link that can be clicked on when viewing the electronic Portable Doc-ument Format (PDF) version of this manual. The PDF version is formatted for use using Adobe Acrobat version 4.0 or above. A free viewer can be downloaded from the Adobe website at http://www.adobe.com. Note:Notes provide extra information on a subject or give specific tips.Caution:Cautions provide information to the reader about possible situations that could result in damage to equipment or loss of data.1.4 Document Structure and UseThe organization of this reference guide is optimized for finding appropriate information quickly. zSection 1 provides an introduction of this documentzSection 2 provides an overview of the WLX-2007zSection 3 provides an installation guidezSection 4 provides an operation guideA list of acronyms used, document references, and contact information are provided at the end of this document.1.5 Technical SupportStaccato Communications provides a support team to help debug any issues that may arise including any deviations from the installation or operation of the WLX-2007 as listed in this document. For assistance, please e-mail support@staccatocommunications.com or call 1-858-812-1000 and ask to be transferred to the Solutions Delivery team.

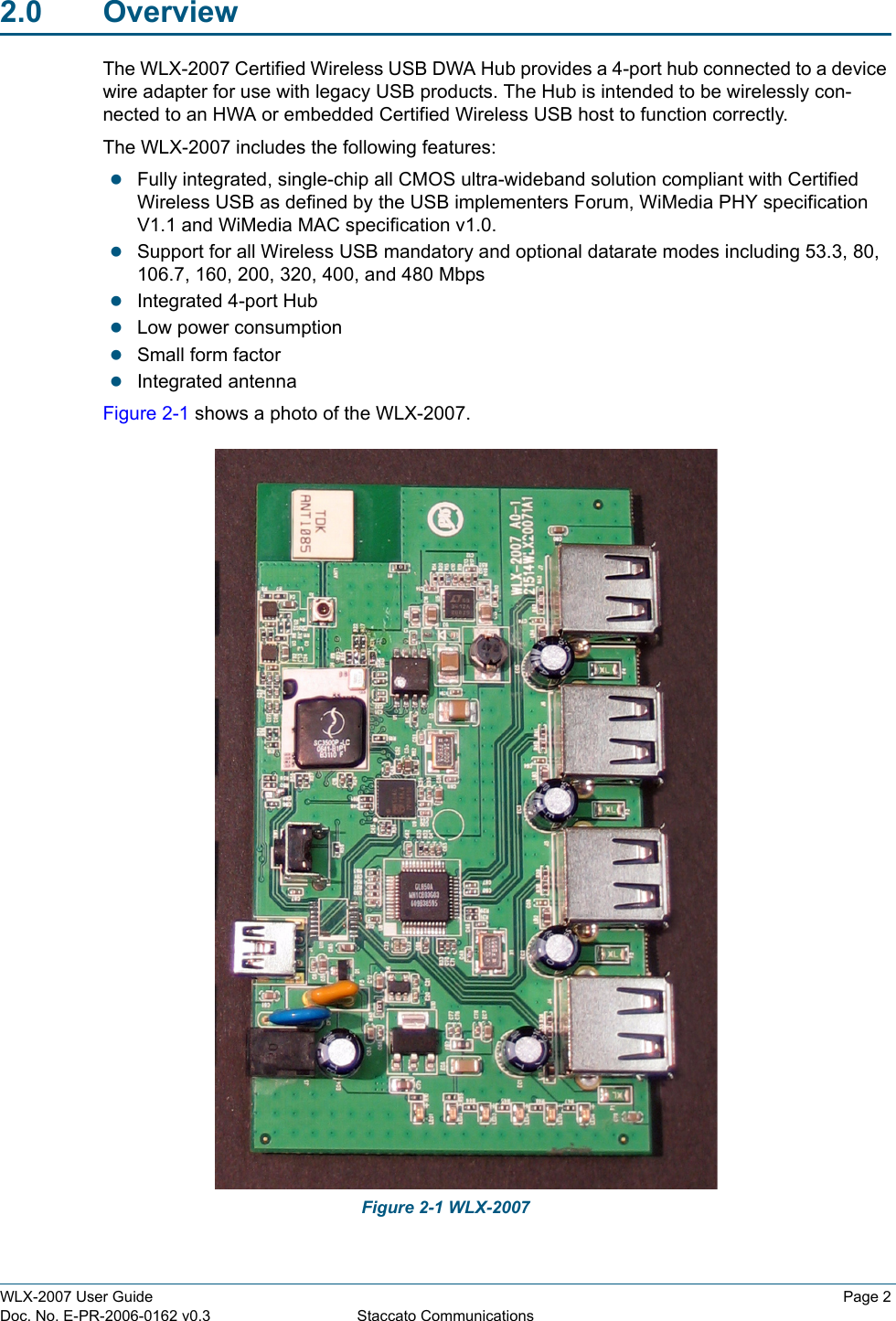

WLX-2007 User Guide Page 2Doc. No. E-PR-2006-0162 v0.3 Staccato Communications2.0 OverviewThe WLX-2007 Certified Wireless USB DWA Hub provides a 4-port hub connected to a device wire adapter for use with legacy USB products. The Hub is intended to be wirelessly con-nected to an HWA or embedded Certified Wireless USB host to function correctly. The WLX-2007 includes the following features:zFully integrated, single-chip all CMOS ultra-wideband solution compliant with Certified Wireless USB as defined by the USB implementers Forum, WiMedia PHY specification V1.1 and WiMedia MAC specification v1.0.zSupport for all Wireless USB mandatory and optional datarate modes including 53.3, 80, 106.7, 160, 200, 320, 400, and 480 MbpszIntegrated 4-port HubzLow power consumptionzSmall form factorzIntegrated antennaFigure 2-1 shows a photo of the WLX-2007. Figure 2-1 WLX-2007

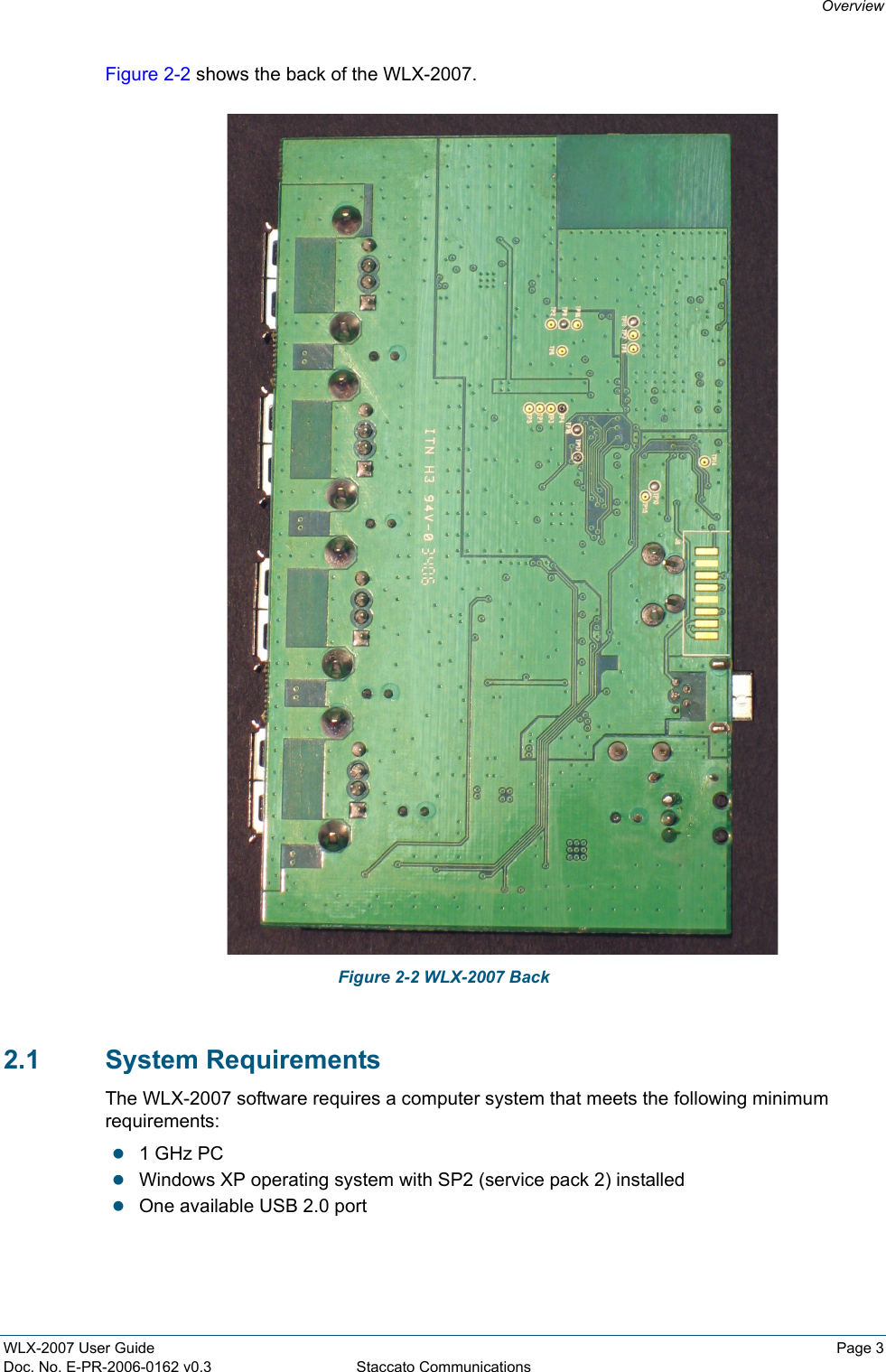

OverviewWLX-2007 User Guide Page 3Doc. No. E-PR-2006-0162 v0.3 Staccato CommunicationsFigure 2-2 shows the back of the WLX-2007. Figure 2-2 WLX-2007 Back2.1 System RequirementsThe WLX-2007 software requires a computer system that meets the following minimum requirements:z1 GHz PCzWindows XP operating system with SP2 (service pack 2) installedzOne available USB 2.0 port

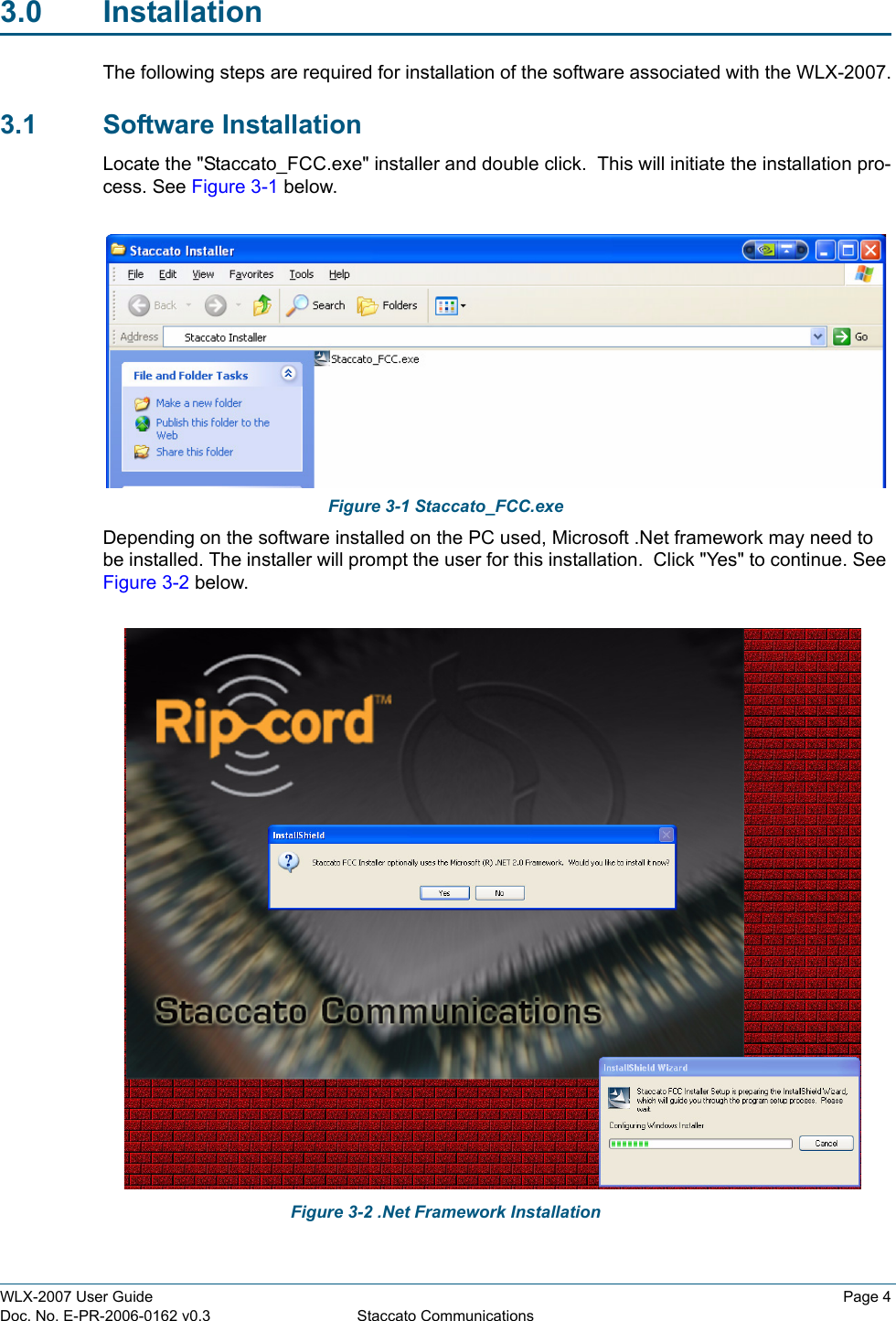

WLX-2007 User Guide Page 4Doc. No. E-PR-2006-0162 v0.3 Staccato Communications3.0 InstallationThe following steps are required for installation of the software associated with the WLX-2007.3.1 Software InstallationLocate the "Staccato_FCC.exe" installer and double click. This will initiate the installation pro-cess. See Figure 3-1 below.Figure 3-1 Staccato_FCC.exeDepending on the software installed on the PC used, Microsoft .Net framework may need to be installed. The installer will prompt the user for this installation. Click "Yes" to continue. See Figure 3-2 below.Figure 3-2 .Net Framework Installation

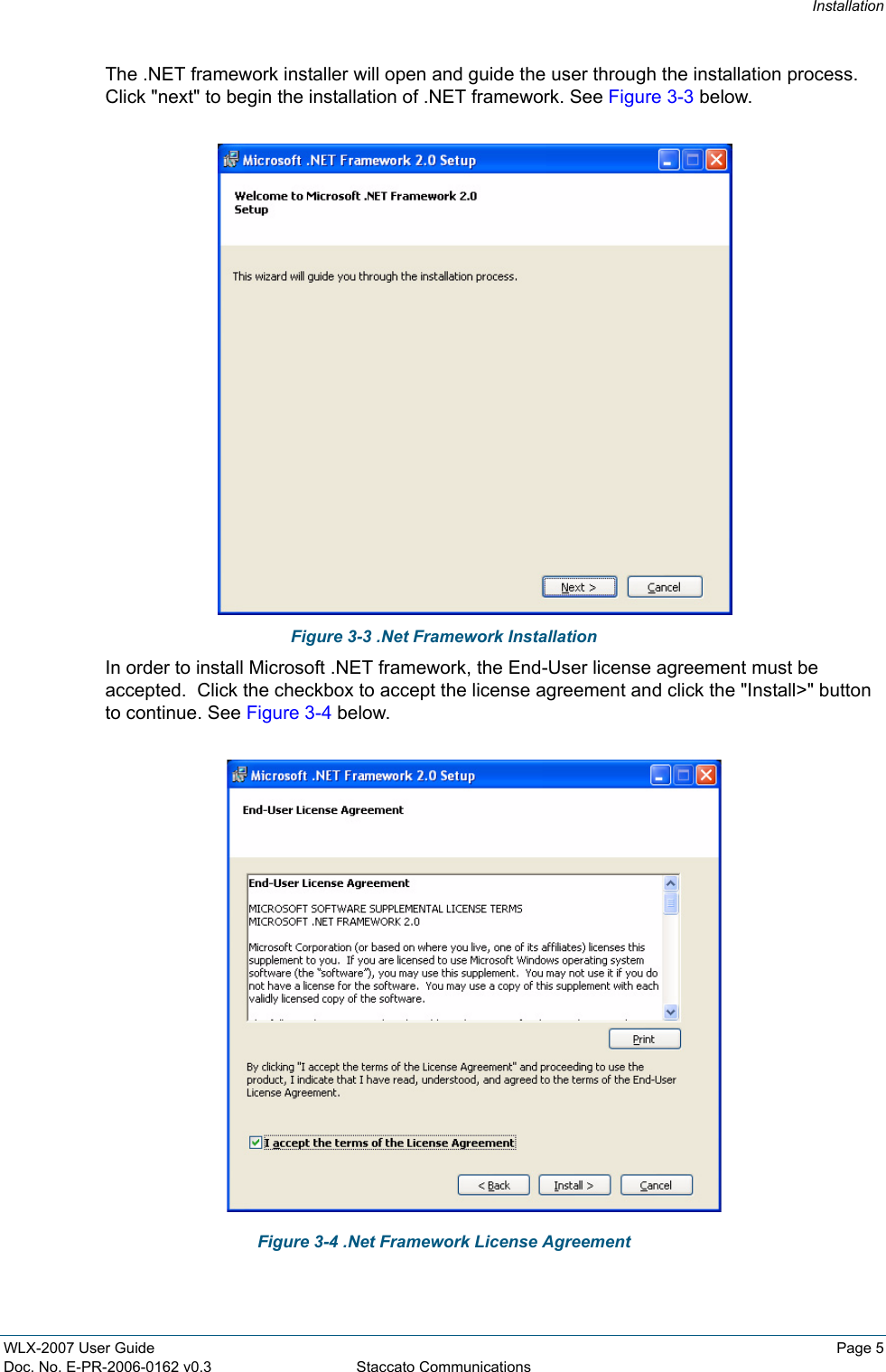

InstallationWLX-2007 User Guide Page 5Doc. No. E-PR-2006-0162 v0.3 Staccato CommunicationsThe .NET framework installer will open and guide the user through the installation process. Click "next" to begin the installation of .NET framework. See Figure 3-3 below.Figure 3-3 .Net Framework InstallationIn order to install Microsoft .NET framework, the End-User license agreement must be accepted. Click the checkbox to accept the license agreement and click the "Install>" button to continue. See Figure 3-4 below.Figure 3-4 .Net Framework License Agreement
InstallationPage 6 WLX-2007 User GuideStaccato Communications Doc. No. E-PR-2006-0162 v0.3Once the installation of the .NET framework is complete the image will look like Figure 3-5 shwon below. Click "Finish" to close the .NET installer and return to the Staccato Communica-tions installer to continue the installation process.Figure 3-5 .Net Framework Setup CompleteThe Staccato FCC Installer will now load. Click "Next" to continue. See Figure 3-6 below.Figure 3-6 Staccato FFC Installer

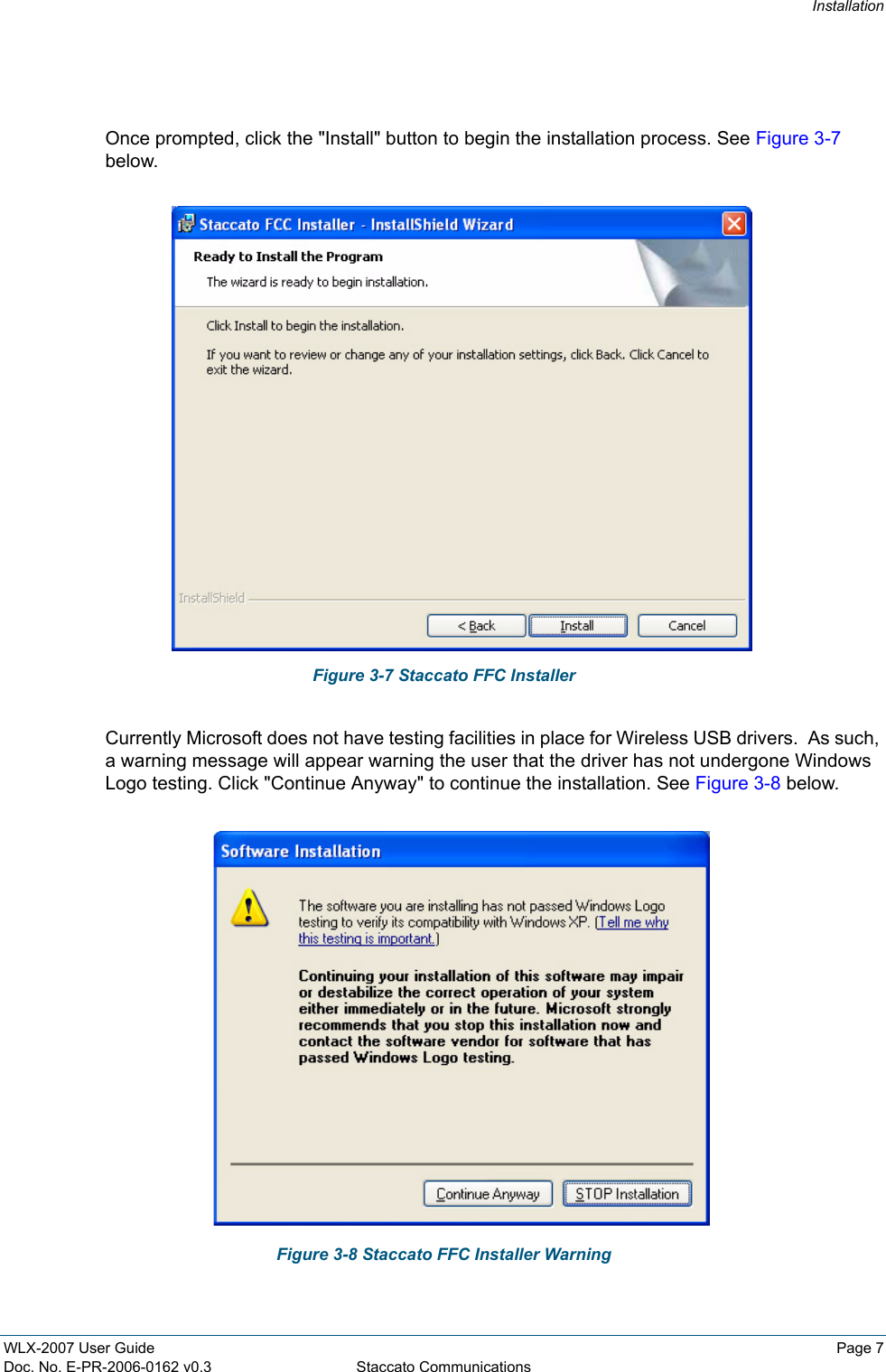

InstallationWLX-2007 User Guide Page 7Doc. No. E-PR-2006-0162 v0.3 Staccato CommunicationsOnce prompted, click the "Install" button to begin the installation process. See Figure 3-7 below.Figure 3-7 Staccato FFC InstallerCurrently Microsoft does not have testing facilities in place for Wireless USB drivers. As such, a warning message will appear warning the user that the driver has not undergone Windows Logo testing. Click "Continue Anyway" to continue the installation. See Figure 3-8 below.Figure 3-8 Staccato FFC Installer Warning
InstallationPage 8 WLX-2007 User GuideStaccato Communications Doc. No. E-PR-2006-0162 v0.3A second driver must be loaded in order for the software to function and as such, another warning will appear. Like before, click "Continue Anyway" to continue the installation. See Fig-ure 3-9 below.Figure 3-9 Staccato FFC Installer WarningOnce the installer has completed, the following window will be shown. Click "Finish" to close the installer. At this point an icon will be placed on the desktop and in the start menu under the "Staccato FCC" folder. See Figure 3-10 below.Figure 3-10 Staccato FFC Installer Finished

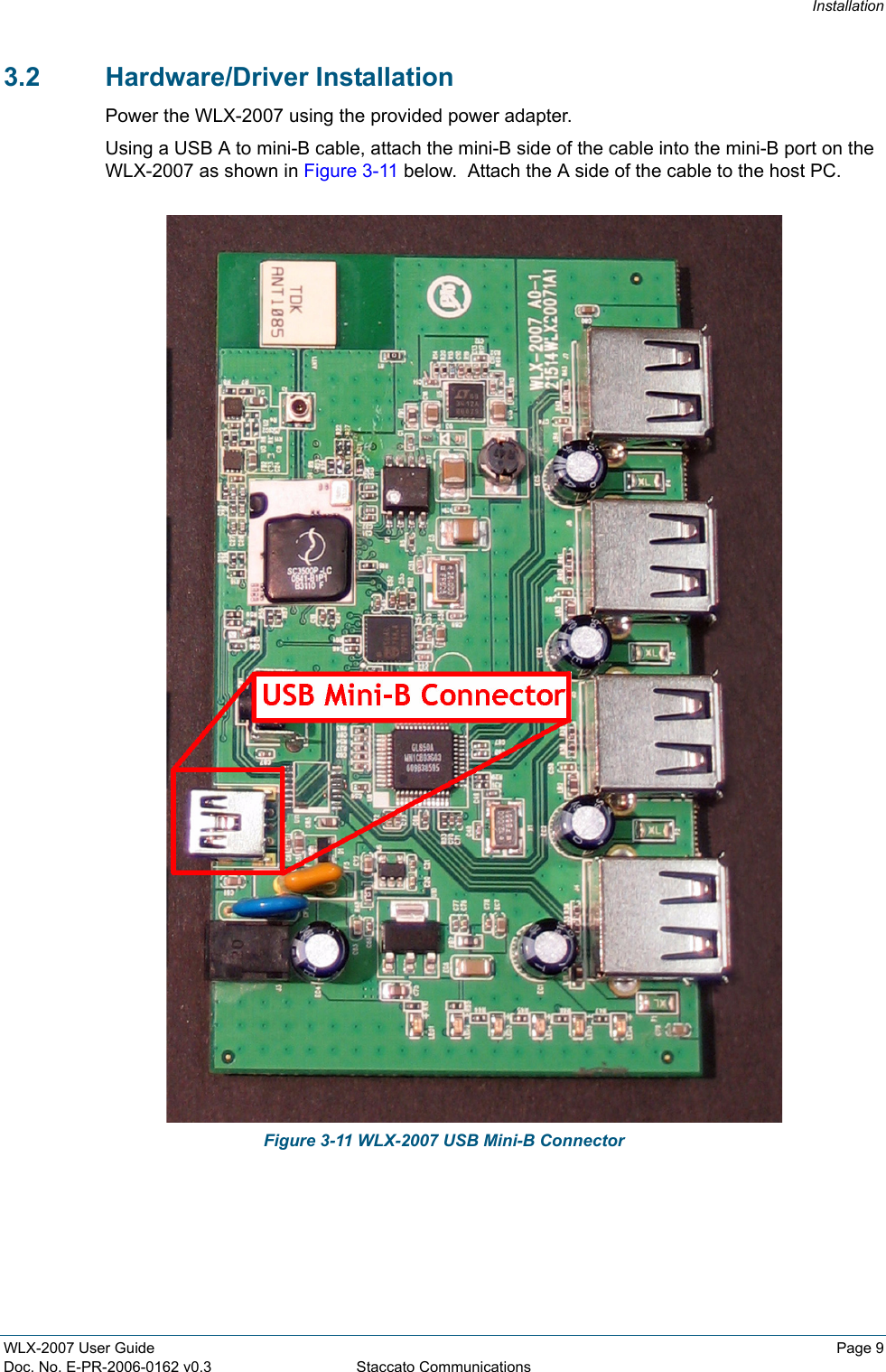

InstallationWLX-2007 User Guide Page 9Doc. No. E-PR-2006-0162 v0.3 Staccato Communications3.2 Hardware/Driver InstallationPower the WLX-2007 using the provided power adapter.Using a USB A to mini-B cable, attach the mini-B side of the cable into the mini-B port on the WLX-2007 as shown in Figure 3-11 below. Attach the A side of the cable to the host PC. Figure 3-11 WLX-2007 USB Mini-B Connector
InstallationPage 10 WLX-2007 User GuideStaccato Communications Doc. No. E-PR-2006-0162 v0.3Windows will detect new hardware. There are two drivers that need to be loaded for the WLX-2007. The first of the two drivers is called the "Staccato Wireless USB Host Wire Adapter". When the found new hardware wizard is shown, select "No, not this time" in response to con-necting to windows update then click "Next". See Figure 3-12 below.Figure 3-12 Found New Hardware WizardChoose to install the software automatically and click next.See Figure 3-13 below.Figure 3-13 Found New Hardware Wizard

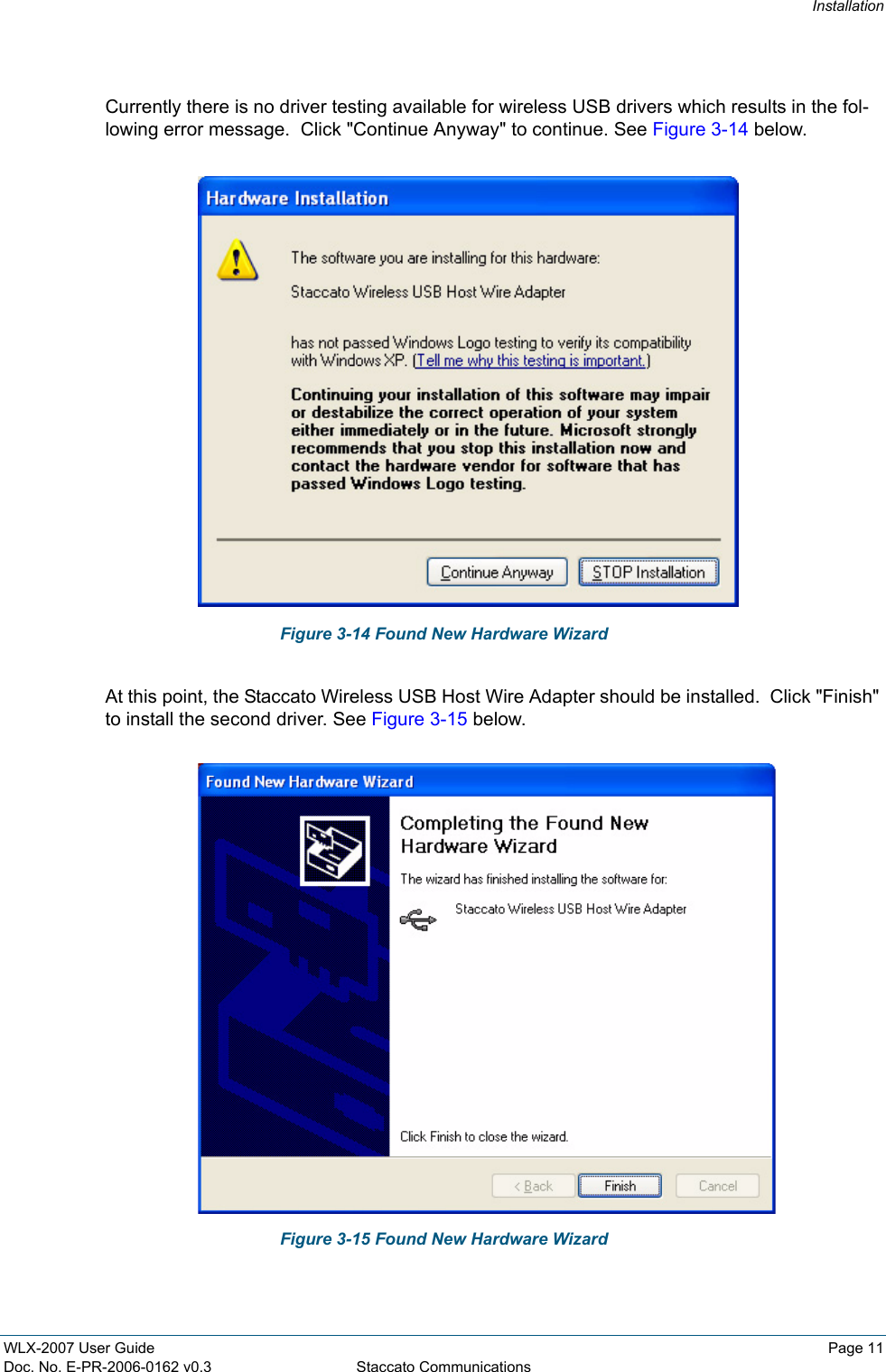

InstallationWLX-2007 User Guide Page 11Doc. No. E-PR-2006-0162 v0.3 Staccato CommunicationsCurrently there is no driver testing available for wireless USB drivers which results in the fol-lowing error message. Click "Continue Anyway" to continue. See Figure 3-14 below.Figure 3-14 Found New Hardware WizardAt this point, the Staccato Wireless USB Host Wire Adapter should be installed. Click "Finish" to install the second driver. See Figure 3-15 below.Figure 3-15 Found New Hardware Wizard

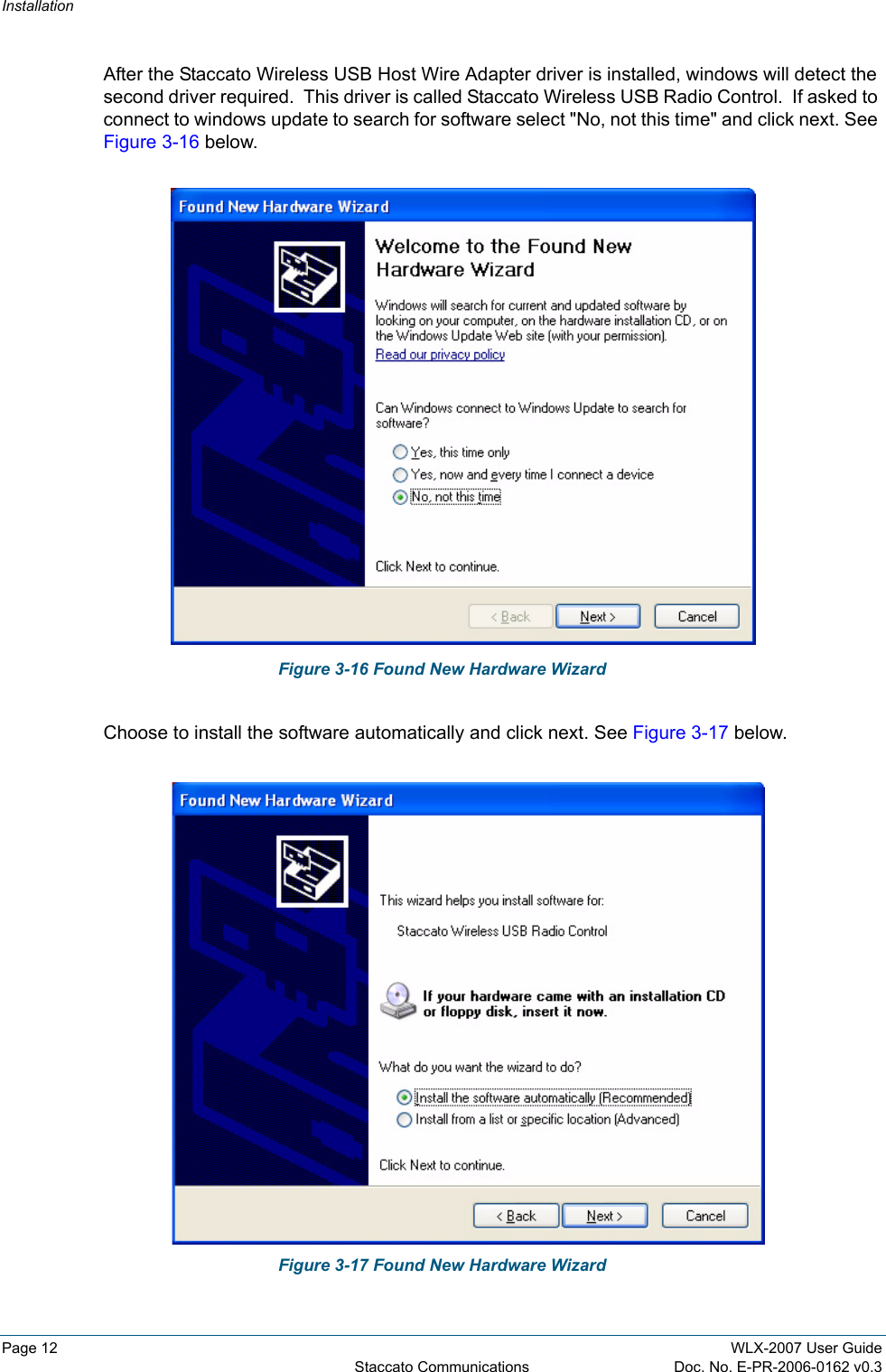

InstallationPage 12 WLX-2007 User GuideStaccato Communications Doc. No. E-PR-2006-0162 v0.3After the Staccato Wireless USB Host Wire Adapter driver is installed, windows will detect the second driver required. This driver is called Staccato Wireless USB Radio Control. If asked to connect to windows update to search for software select "No, not this time" and click next. See Figure 3-16 below.Figure 3-16 Found New Hardware WizardChoose to install the software automatically and click next. See Figure 3-17 below.Figure 3-17 Found New Hardware Wizard
InstallationWLX-2007 User Guide Page 13Doc. No. E-PR-2006-0162 v0.3 Staccato CommunicationsCurrently there is no driver testing available for wireless USB drivers which results in the fol-lowing error message. Click "Continue Anyway" to continue. See Figure 3-18 below.Figure 3-18 Found New Hardware WizardAt this point, the Staccato Wireless USB Radio Control driver should be installed. Click "Fin-ish" to complete the process. See Figure 3-19 below.Figure 3-19 Found New Hardware Wizard Finished
WLX-2007 User Guide Page 14Doc. No. E-PR-2006-0162 v0.3 Staccato Communications4.0 OperationPrior to operation, the WLX-2007 should be powered and connected via USB cable to the PC. Ensure that the "Staccato Wireless USB Host Wire Adapter" and "Staccato Wireless USB Radio Control" drivers are properly loaded. These drivers are visible in the Windows Device Manager under "Universal Serial Bus Controllers" when viewing in "Devices by type" mode selected from the "View" dropdown menu.In order to start the graphical user interface to control the operation of the WLX-2007, double click on the "Ripcord Diag FCC" icon on the desktop. Alternatively, Ripcord Diag FCC can be selected from the start menu. It is located in the "Staccato FCC" folder as shown in Figure 4-1 below. Figure 4-1 Start Menu

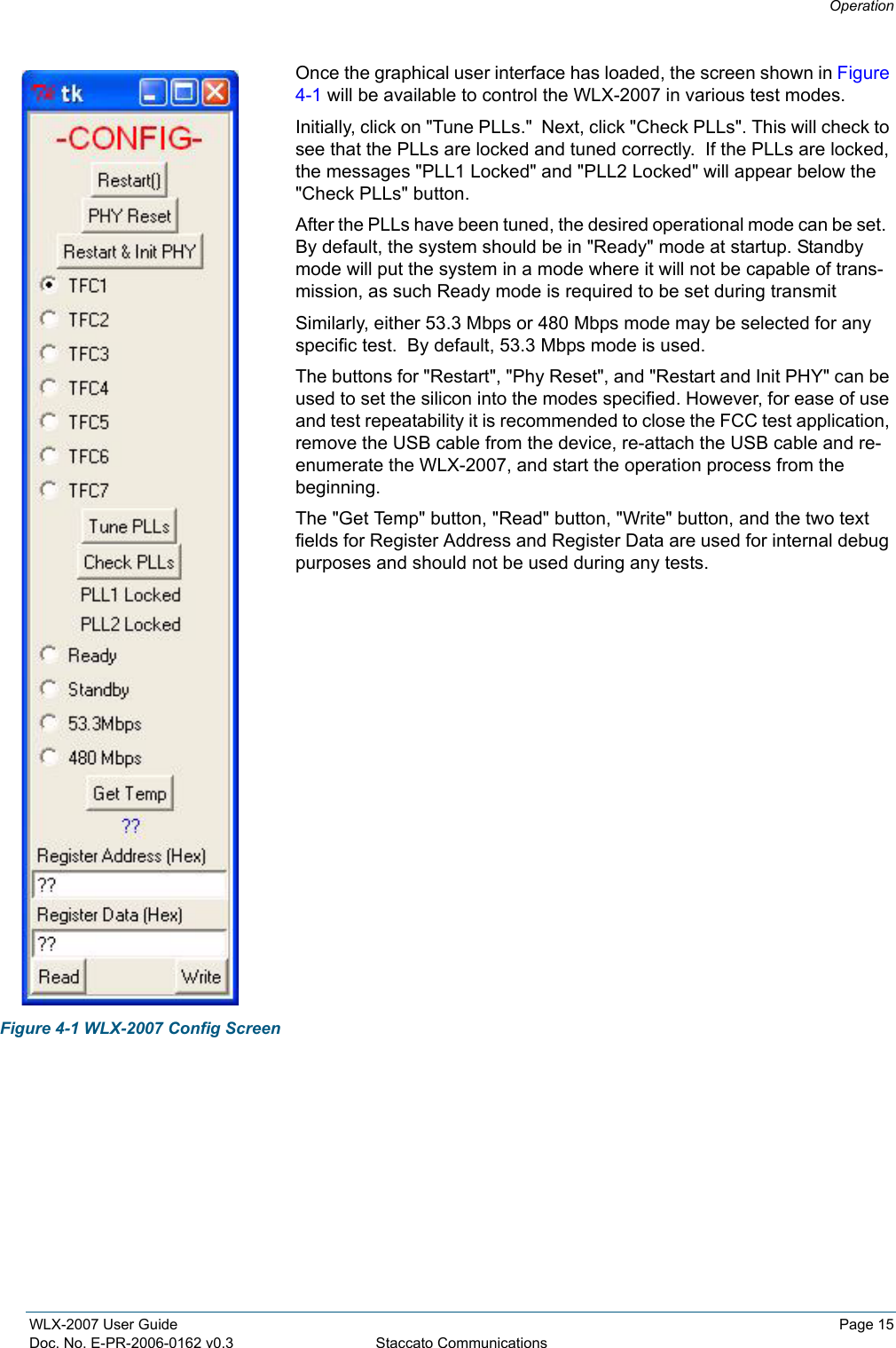

OperationWLX-2007 User Guide Page 15Doc. No. E-PR-2006-0162 v0.3 Staccato CommunicationsOnce the graphical user interface has loaded, the screen shown in Figure 4-1 will be available to control the WLX-2007 in various test modes. Initially, click on "Tune PLLs." Next, click "Check PLLs". This will check to see that the PLLs are locked and tuned correctly. If the PLLs are locked, the messages "PLL1 Locked" and "PLL2 Locked" will appear below the "Check PLLs" button.After the PLLs have been tuned, the desired operational mode can be set. By default, the system should be in "Ready" mode at startup. Standby mode will put the system in a mode where it will not be capable of trans-mission, as such Ready mode is required to be set during transmitSimilarly, either 53.3 Mbps or 480 Mbps mode may be selected for any specific test. By default, 53.3 Mbps mode is used.The buttons for "Restart", "Phy Reset", and "Restart and Init PHY" can be used to set the silicon into the modes specified. However, for ease of use and test repeatability it is recommended to close the FCC test application, remove the USB cable from the device, re-attach the USB cable and re-enumerate the WLX-2007, and start the operation process from the beginning.The "Get Temp" button, "Read" button, "Write" button, and the two text fields for Register Address and Register Data are used for internal debug purposes and should not be used during any tests.Figure 4-1 WLX-2007 Config Screen
OperationPage 16 WLX-2007 User GuideStaccato Communications Doc. No. E-PR-2006-0162 v0.3

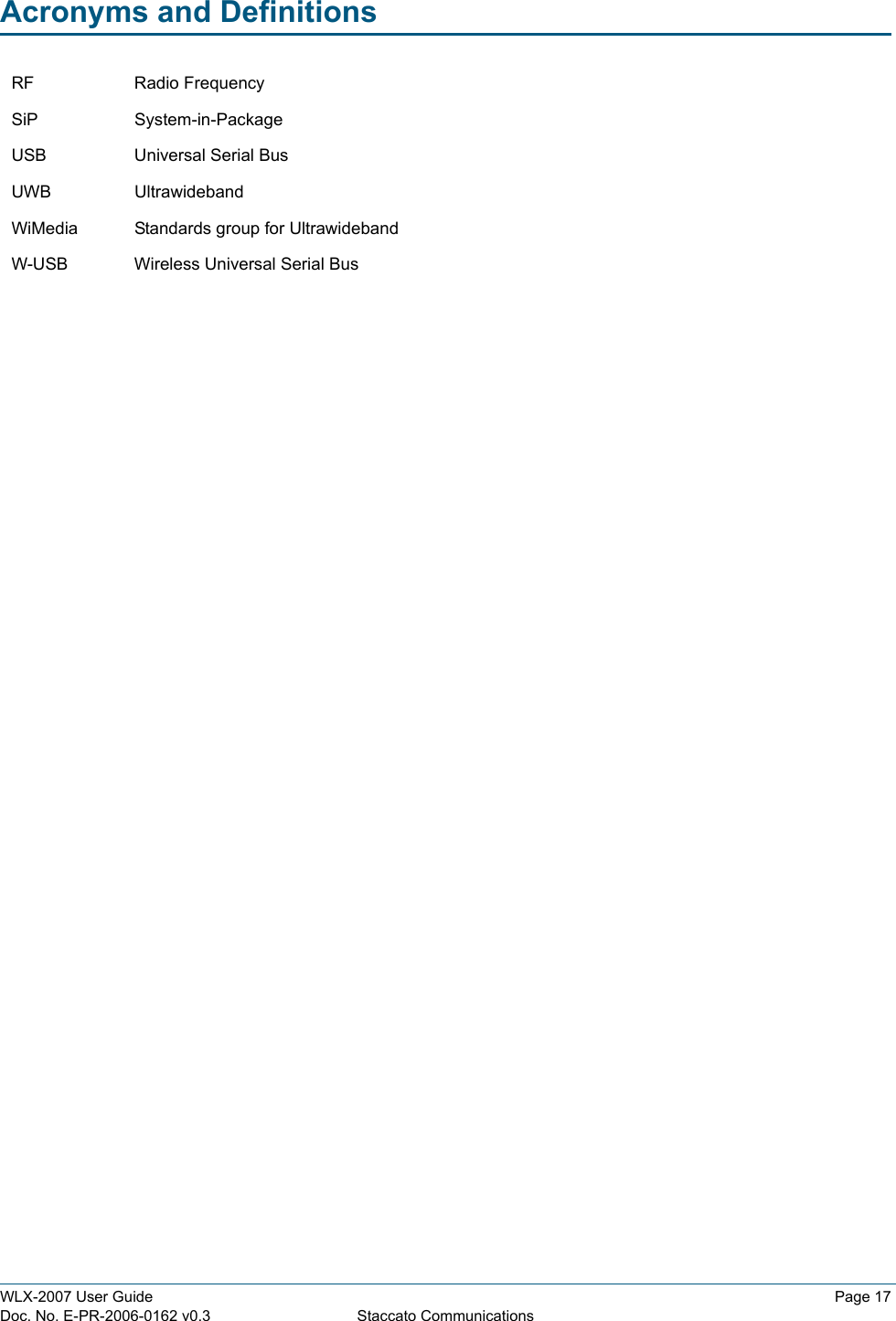

WLX-2007 User Guide Page 17Doc. No. E-PR-2006-0162 v0.3 Staccato CommunicationsAcronyms and DefinitionsRF Radio FrequencySiP System-in-PackageUSB Universal Serial BusUWB UltrawidebandWiMedia Standards group for UltrawidebandW-USB Wireless Universal Serial Bus

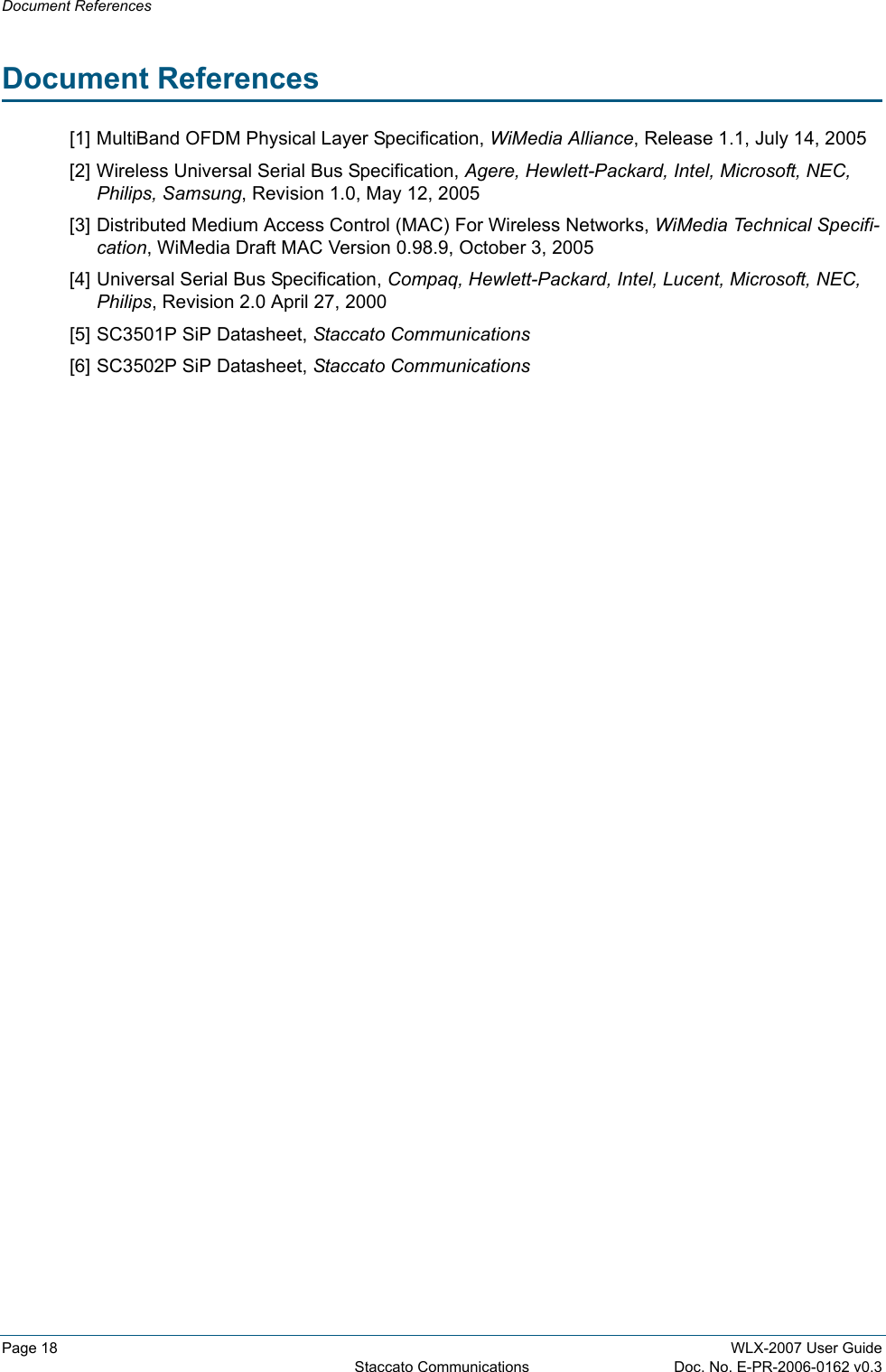

Document ReferencesPage 18 WLX-2007 User GuideStaccato Communications Doc. No. E-PR-2006-0162 v0.3Document References[1] MultiBand OFDM Physical Layer Specification, WiMedia Alliance, Release 1.1, July 14, 2005[2] Wireless Universal Serial Bus Specification, Agere, Hewlett-Packard, Intel, Microsoft, NEC, Philips, Samsung, Revision 1.0, May 12, 2005[3] Distributed Medium Access Control (MAC) For Wireless Networks, WiMedia Technical Specifi-cation, WiMedia Draft MAC Version 0.98.9, October 3, 2005[4] Universal Serial Bus Specification, Compaq, Hewlett-Packard, Intel, Lucent, Microsoft, NEC, Philips, Revision 2.0 April 27, 2000[5] SC3501P SiP Datasheet, Staccato Communications[6] SC3502P SiP Datasheet, Staccato Communications

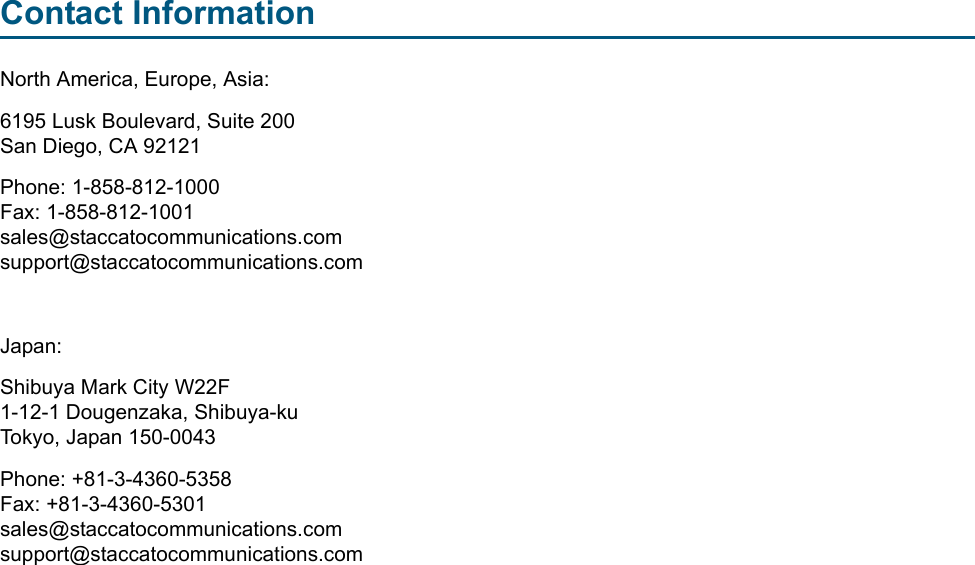

Contact InformationNorth America, Europe, Asia:6195 Lusk Boulevard, Suite 200San Diego, CA 92121Phone: 1-858-812-1000 Fax: 1-858-812-1001sales@staccatocommunications.comsupport@staccatocommunications.comJapan:Shibuya Mark City W22F1-12-1 Dougenzaka, Shibuya-kuTokyo, Japan 150-0043Phone: +81-3-4360-5358Fax: +81-3-4360-5301sales@staccatocommunications.comsupport@staccatocommunications.com
