Venstar SKYPORT8 WiFi Thermostat User Manual

Venstar Inc WiFi Thermostat Users Manual

Users Manual

Owner’s Manual
& Installation
Instructions
7 Day Programmable • Up to 2-heat & 2-cool
with
Wi-Fi
and local
API
FCC Compliance Statement
This equipment has been tested and found to comply with the limits for an
intentional radiator, pursuant to Part 15, subpart C of the FCC rules. These limits
are designed to provide reasonable protection against harmful interference
in a residential installation. This equipment generates, uses and can radiate
radio frequency energy and, if not installed and used in accordance with
the instructions, may cause harmful interference in radio communications.
However, there is no guarantee that the interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and
on, the user is encouraged to try to correct the interference by one or more of the
following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that of the
receiver.
• Consult the dealer or an experienced radio or TV technician for help.
Notice: Only peripherals complying with FCC limits may be attached to this
equipment. Operation with noncompliant peripherals or peripherals not
recommended by Venstar, is likely to result in interference to radio and TV
reception. Changes or modifications to the product, not expressly approved by
Venstar could void the user’s authority to operate the equipment.
FCC - INDOOR Mobile Radio Information:
To comply with FCC/IC RF exposure limits for general population / uncontrolled
exposure, the antenna(s) used for this transmitter must be installed to provide a
separation distance of at least 20 cm from all persons and must not be co-located
or operating in conjunction with any other antenna or transmitter.

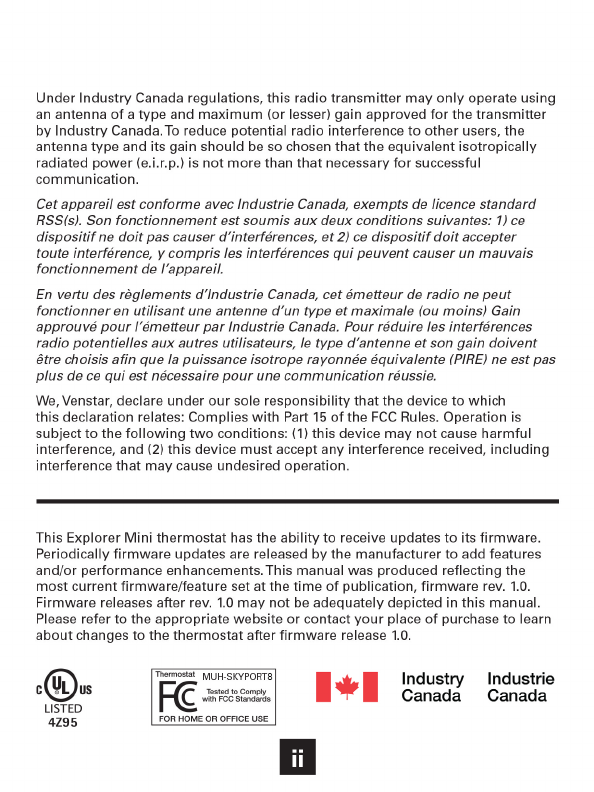

This Device complies with Industry Canada License-exempt RSS standard(s).
Operation is subject to the following two conditions: 1) this device may not
cause interference, and 2) this device must accept any interference, including
interference that may cause undesired operation of the device.
Follow the Installation Instructions before proceeding. Set the
thermostat mode to “OFF” prior to changing settings in setup
or restoring Factory Defaults.
CAUTION
i
Table of Contents
Front Panel .................................................................................1
Display ........................................................................................2
Quick Start ................................................................................4
Basic Operation ........................................................................5
Installation Instructions ..........................................................6
User Setup: Backlight Operation .........................................12
Service Filter .....................................................13
Installer Setup .........................................................................14
Programming a Daily Schedule ...........................................19
About Advanced Features & Operation ..............................22
Advanced Setup Table ...........................................................26
Follow Installation Instructions carefully. Disconnect
Power to the Heater/Air Conditioner before removing
the old thermostat and installing the new thermostat.
CAUTION
IMPORTANT
© Copyright 2017, All Rights Reserved T2000
iii
Fix at the end
Auto-Changeover: A mode in which the thermostat will turn on the
heating or cooling based on room temperature demand.
Cool Setpoint: The warmest temperature that the space should rise
to before cooling is turned on (without regard to deadband).
Deadband: The number of degrees the thermostat will wait, once a
setpoint has been reached, before energizing heating or cooling.
Differential: The forced temperature difference between the heat
setpoint and the cool setpoint.
Heat Setpoint: The coolest temperature that the space should drop
to before heating is turned on (without regard to deadband).
Icon: The word or symbol that appears on the thermostat display.
Mode: The current operating condition of the thermostat (i.e. Off,
Heat, Cool, Auto, Program On).
Non-Programmable Thermostat: A thermostat that does not have the
capability of running Time Period Programming.
Programmable Thermostat: A thermostat that has the capability of
running Time Period Programming.
Temperature Swing: Same as Deadband.
Time Period Programming: A program that allows the thermostat
to automatically adjust the heat setpoint and/or the cool setpoint
based on the time of the day.
iv
Glossary of Terms
Installation Instructions
1
Remove and Replace the old thermostat
To install the thermostat properly, please follow these step by step
instructions. If you are unsure about any of these steps, call a qualified
technician for assistance.

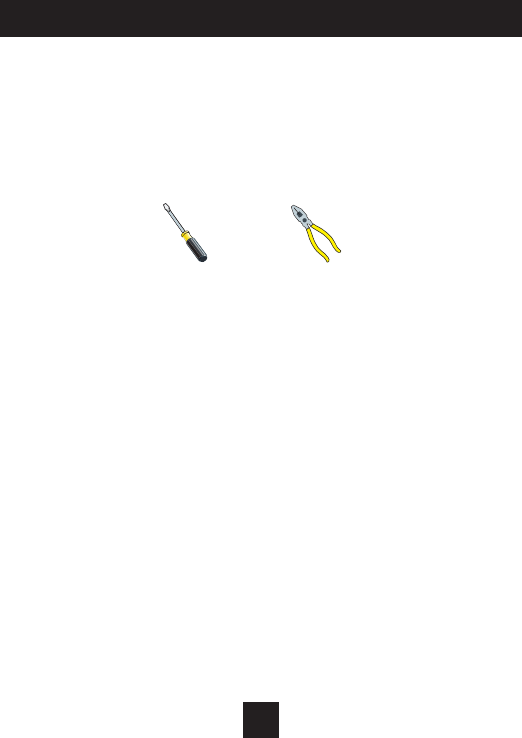

• Installationtools:Smallatbladescrewdriver,Phillipsscrewdriver,
wire cutters and wire strippers.
• MakesureyourHeater/AirConditionerisworkingproperlybefore
beginninginstallationofthethermostat.
• Carefullyunpackthethermostat.Savethescrews,anybrackets,
and instructions.
• TurnoffthepowertotheHeating/AirConditioningsystematthemain
fusepanel.Mostresidentialsystemshaveaseparatebreakeror
switchfordisconnectingpowertothefurnace.
• Removethecoveroftheoldthermostat.Ifitdoesnotcomeoffeasily,
checkforscrews.
• Loosenthescrewsholdingthethermostatbaseorsubbasetothewall
and lift away.
• Ifyouhaveasmartphonehandy,takeaphotoofthewiringforfuture
reference.
• Disconnectthewiresfromtheoldthermostat.Tapetheendsofthe
wiresasyoudisconnectthem,andmarkthemwiththeletterofthe
terminal for easy reconnection to the new thermostat.
• Keeptheoldthermostatforreferencepurposes,untilyournew
thermostatisfunctioningproperly.
Installation Instructions
2
Wire Connections
Iftheterminaldesignationsonyouroldthermostatdonotmatchthose
on the new thermostat, refer to the chart below or the wiring diagrams
that follow.
Wire from the Install on the
old thermostat Function new thermostat
terminal marked connector marked
G or F Fan G
Y1, Y Cooling Y1
W1, W Heating W1/O/B
Rh, R, M, Vr, A Power R
C Common C
O/B Rev. Valve W1/O/B*
W2 2nd Stage Heat W2
Ck1 Dry Contact Switch CK
CKGND Dry Contact Switch R
* O/B is used if your system is a Heat Pump.
SCALE 1 : 1
Installation Instructions
3
The Explorer Mini Thermostat Backplate
R 24 VAC return
G Fan relay
W1/O/B 1st stage heat circuit
W2 2nd stage heat circuit
Y1 1st stage compressor relay
Y2 2nd stage compressor relay
C 24 VAC common
CK Dry Contact
IMPORTANT: This thermostat requires both R (24 VAC Return) and C (24 VAC
Common) wires be connected to the backplate terminals to operate properly.

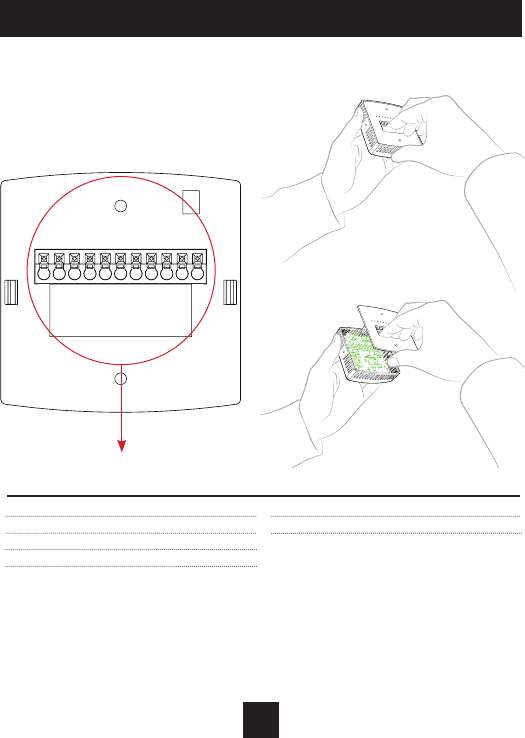

To remove the thermostat backplate:
Gently separate the display from the
basebypullingfromthecenter.
R
G
Y1
Y2
W1/O/B
W2
C
CK
Installation Instructions
4

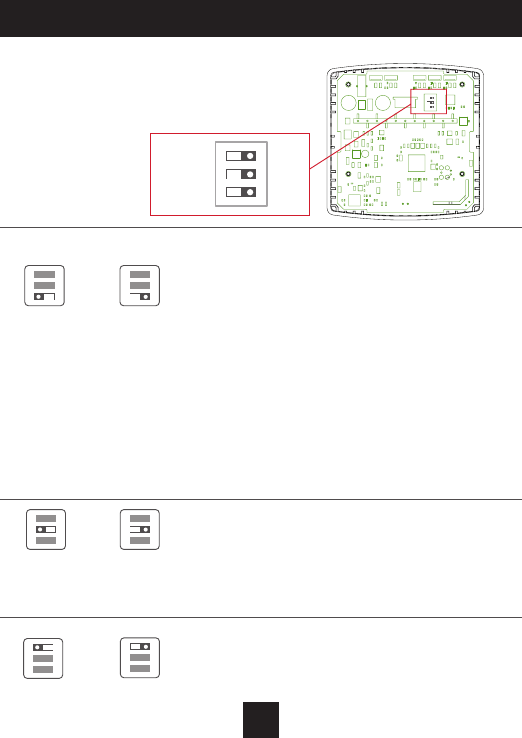

Check Dip Switch
Ensure which switch is correct for your
system.Dipswitchesarelocatedontheback
of the thermostat.
GAS/EL HP
OR
GAS/EL HP
ON
1 2 3
ON
1 2 3
OR
OBBO
ON
1 2 3
ON
1 2 3
GAS ELEC
OR
GAS ELEC
ON
1 2 3
ON
1 2 3
1
GAS
O
GAS/EL
ELEC
B
HP
ON
23
1
GAS
O
GAS/EL
ELEC
B
HP
ON
23
1. When GAS/EL or HP is set for GAS/EL:
Thisswitch(GASorELEC)controlshowthe
thermostatwillcontroltheFan(G)terminalin
heatingmode.WhenGASischosen,thethermostat
willnotenergizetheFan(G)terminalinheating.
WhenELECischosenthethermostatwillenergize
thefaninheating.
2. When GAS/EL or HP is set for HP:
Thisswitch(GASorELEC)denestheAuxHeattype.
WhenGASischosen,theauxiliaryheatwillnotbe
allowedtorunduringheatpumpoperation.When
usingaDualFuelsystem,setthisswitchforGAS.
WhenELECischosen,uptotwostagesofauxiliary
strip heat will be allowed to run.
For Heat Pump Only
WhentheGAS/ELorHPdipswitchisconguredfor
HP,thisdipswitch(OorB)mustbesettocontrol
theappropriatereversingvalve.IfOischosen,the
W1/O/Bterminalwillenergizeincooling.IfBis
chosen,theW1/O/Bterminalwillenergizeinheating.
Thisdipswitchconguresthethermostattocontrol
aconventionalgas/electricsystemoraheatpump.
Ifyoursystemisanythingotherthanaheatpump,
leavethisswitchsetforGAS/EL.
SCALE 1 : 1
5
Installation Instructions

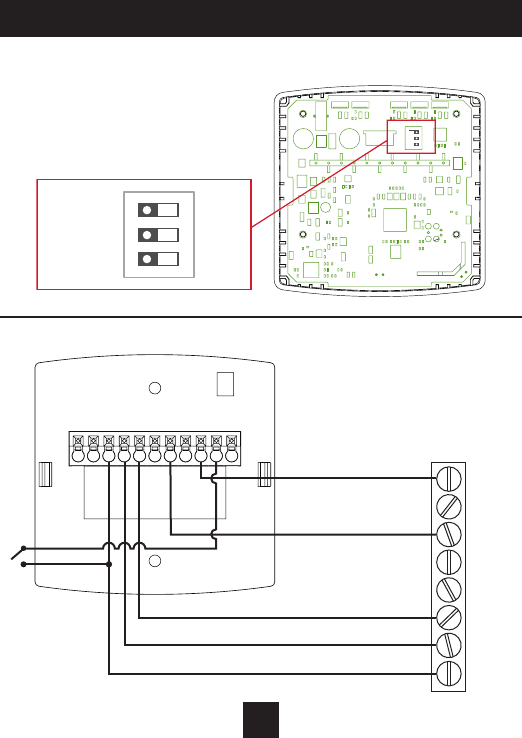

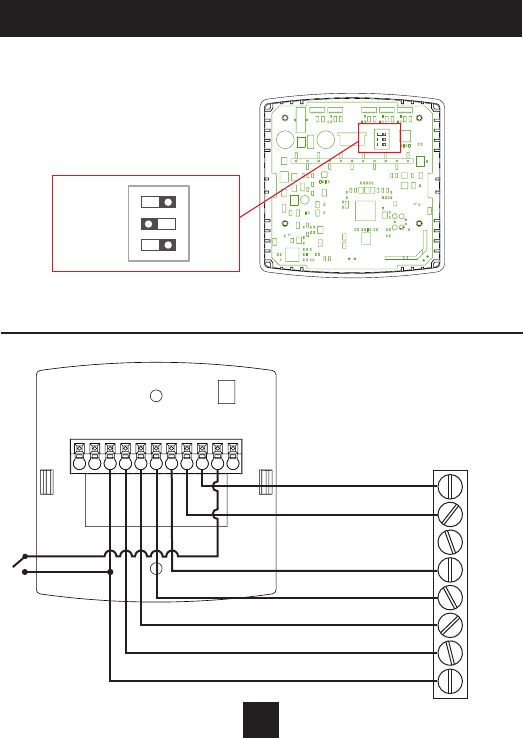

1 Stage Heat, 1 stage Cool
1
GAS
O
GAS/EL
ELEC
B
HP
ON
23
1
GAS
O
GAS/EL
ELEC
B
HP
ON
23
Dip Switch Settings
R
G
Y1
Y2
W1/O/B
W2
C
CK
C
W2
W1
O or B
Y2
Y1
G
R
Thermostat
HVAC
Equipment
SCALE 1 : 1
6
Installation Instructions
2 Stage Heat, 2 Stage Cool
1
GAS
O
GAS/EL
ELEC
B
HP
ON
23
1
GAS
O
GAS/EL
ELEC
B
HP
ON
23
Dip Switch Settings
R
G
Y1
Y2
W1/O/B
W2
C
CK
C
W2
W1
O or B
Y2
Y1
G
R
Thermostat
HVAC
Equipment
SCALE 1 : 1
7
Installation Instructions
Single Stage Heat Pump with AUX Heat
1
GAS
O
GAS/EL
ELEC
B
HP
ON
23
1
GAS
O
GAS/EL
ELEC
B
HP
ON
23
Dip Switch Settings
*Reversingvalvechoice,OorB,isdependantonthetypeofvalveinstalled
in the heat pump.
R
G
Y1
Y2
W1/O/B
W2
C
CK
C
W2
W1
O or B
Y2
Y1
G
R
Thermostat
HVAC
Equipment
*
SCALE 1 : 1
8
Installation Instructions
Dual Stage Heat Pump with AUX Heat
1
GAS
O
GAS/EL
ELEC
B
HP
ON
23
1
GAS
O
GAS/EL
ELEC
B
HP
ON
23
Dip Switch Settings
*Reversingvalvechoice,OorB,isdependantonthetypeofvalveinstalled
in the heat pump.
R
G
Y1
Y2
W1/O/B
W2
C
CK
C
W2
W1
O or B
Y2
Y1
G
R
Thermostat
HVAC
Equipment
*
9
Installation Instructions

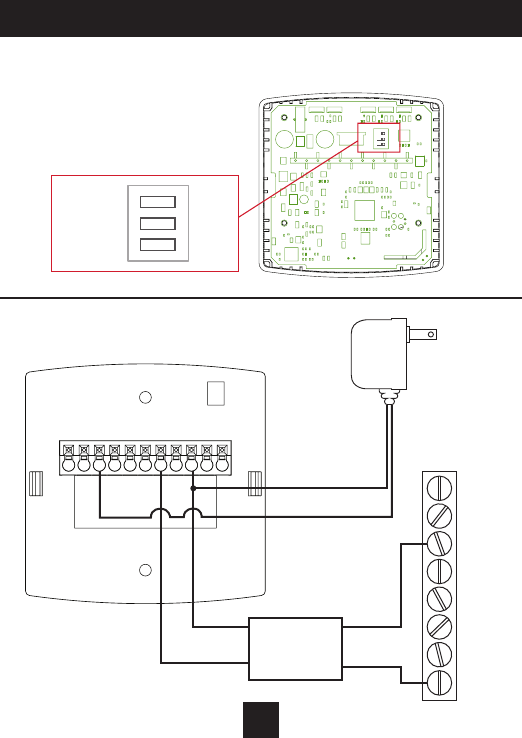

Heat Only - with Venstar 2-Wire Kit - ACC0436
1
GAS
O
GAS/EL
ELEC
B
HP
ON
23
1
GAS
O
GAS/EL
ELEC
B
HP
ON
23
Dip Switch Settings
SCALE 1 : 1
R
G
Y1
Y2
W1/O/B
W2
C
CK
C
W2
W1
O or B
Y2
Y1
G
R
Thermostat
HVAC
Equipment
BROWN WHITE
BLACK
Input
120VAC
BLACK
RED
ORANGE
24 VAC
Isolation
Relay
10
Atminimummtherst3tasksbelowmustbecompletedtoaccessyour
thermostatremotelyfromabrowser.The4thstepisoptional(highly
recommended)andonlyisneededtoaccessyourthermostat(s)froma
mobiedevice.
These steps are:
1. SuccessfulconnectiontoalocalWi-FiAccessPointwithinternet
access.
2. ConrmreceiptofaSkyportgeneratedvericationemail(thisonly
occursonceduringtheSkyportaccountsetup).
3. A6-digitcodeobtainedfromthethermostatissuccessfullyentered
intoaSkyportaccount.
4. SuccessfullydownloadandinstalltheVenstarSkyportapponyour
mobiledevice(s).
Your thermostat operates on the 2.4 Ghz, Wi-Fi b/g/n band.
Wi-Fi Symbol Legend
Whentheonlythe‘dot’oftheWi-Fisymbolappears=not
connected to an access point.
WhenthefullWi-Fisymbolappears=connectedtoan
access point.
WhenthefullWi-Fisymbolappearsandthe‘dot’ofthesymbolis
ashing=connectedtoSkyport.
Connect to Wi-Fi Overview
11
Connect to Wi-Fi Overview
ICON
Wi-Fi Setup
The Venstar Configurator App is needed to configure the Wi-Fi
Settings of this thermostat
• Download the Venstar Configurator App
fromyourmobiledevice’sAppStore.
• Open the Venstar Configurator App
- ChoosetheExplorerMinithermostatbyslidingthe
 thermostatpicturesatthetopoftheapps’display
 totheleftuntilyouseeapictureoftheExplorerMini.
- PressandholdtheFANbuttonofthethermostatfor
 approximately5secondstoenterWi-Fisetupscreens.
- PressthecoolerbuttontosetupWi-Fi.
- FollowtheinstructionsthatappearontheVenstar
 ConguratorApp.
Connect to Skyport
AlthoughthereismorethanonewaytocreateaSkyportaccount,the
steps below illustrate account creation from a browser. To create a
Skyportaccountathermostatmustbejoinedtotheaccount.
IfthethermostatisconnectedtothelocalWi-FiAccessPoint,butyou
donothaveaSkyportaccount,youmaycreateanaccountandjointhe
thermostattotheaccountbydoingthefollowing:
1.Openyourbrowserto:http://venstar.skyportcloud.com
2. Select“Createaccountnow”
3. Follow on screen instructions to create an account and add a
thermostattotheSkyportaccount.
Create Account Now
12
Connect to Wi-Fi Overview
Join a Thermostat to Skyport
IfthethermostatisconnectedtothelocalWi-Fiaccesspointbutnotyet
joinedtoanexistingSkyportaccount,youmayjointhethermostattothe
accountbydoingthefollowing:
1. LogintoyourSkyportaccount.
2. Selectthe“Location”youwanttoaddathermostatinto.
3. Selectthe“Thermostattab”.
4. Select“+Addthermostat”.Ascreenwill‘pop-up’askingfora
sixdigitcode.
5. PresstheFANbuttononthethermostatfor5seconds.
6. PresstheWarmerbuttononthethermostat.
7. Asixdigitcodewillappearonthethermostat’sdisplay.
8. EnterthesixdigitcodeintoyourSkyportaccount.
Wi-Fi Status Screens
Pressandholdthefanbuttononthethermostatfor5seconds.When
“Wi-FiSetup”appearsonthedisplay,presstheMODEbutton.Pressing
theupordownbuttonwillsequencethroughthefollowinginformation:
• APName
• APSignalStrength
• IPAddress
• SkyportStatus
• APIStatus

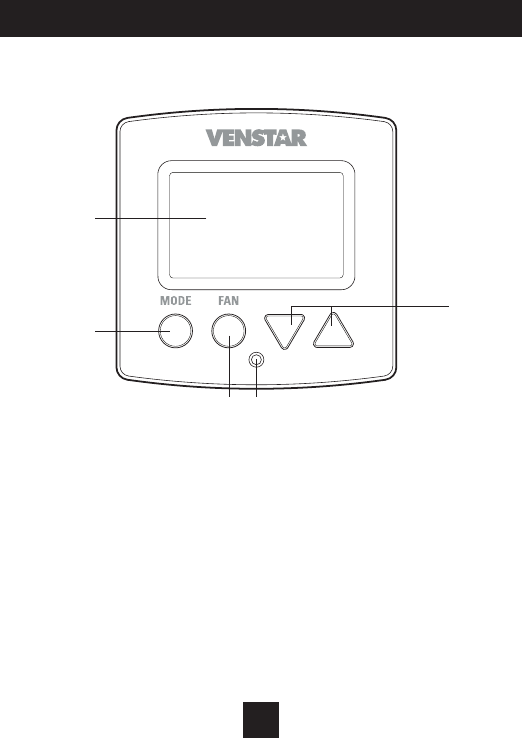

Front Panel
13
1 Backlit Display
2 Up/Warmer, Down/Cooler Buttons
3 Mode Button
4 Fan Button
5 Heat or Cool Indicator
Heat = Red, Cool = Green
1
3
2
4 5

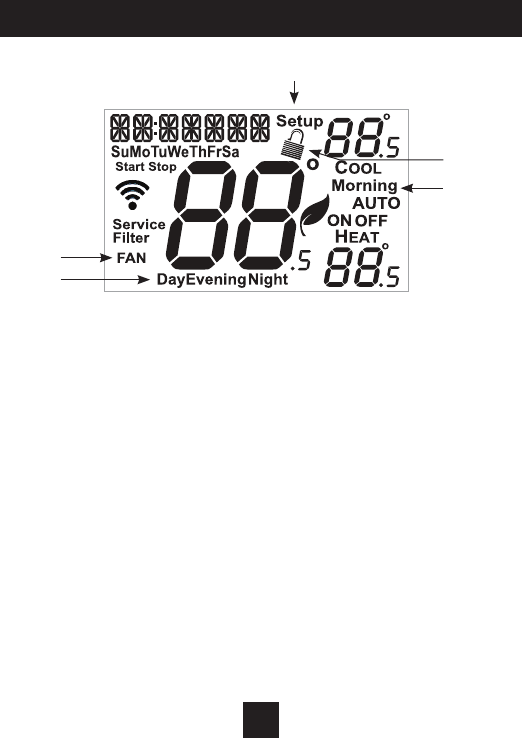

Display
14

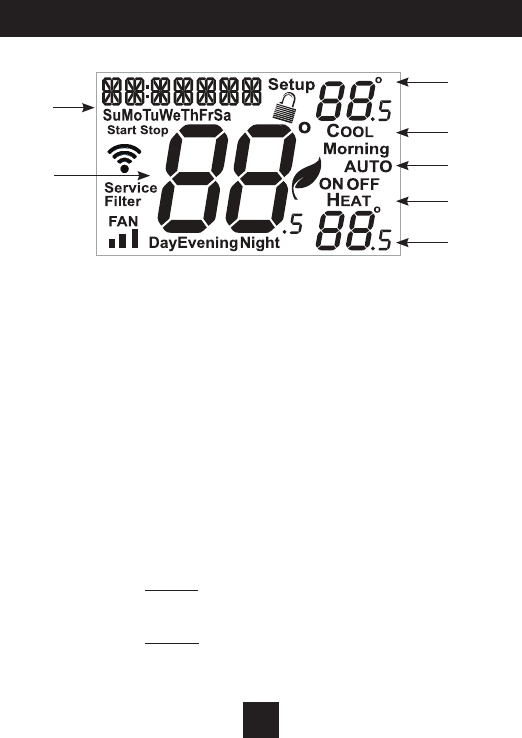

1 ModeIndicators
 Selectstheoperationalmodeoftheequipment.
HEAT-Indicatestheheatingmode.
COOL-Indicatesthecoolingmode.
AUTO-Indicatesthesystemwillautomaticallychangeover
between heat and cool modes as the temperature
 varies.
OFF -Indicatesheatingandcoolingareturnedoff.
2 ClockwithDayoftheWeek
Indicatesthecurrenttimeandday.Thisclockisalsousedto
programthetimeperiodschedules.
3 RoomTemperatureDisplay
Indicates current room temperature.
4 DesiredSetTemperature
Indicates desiredroomtemperature(s).
2
3
4
1
1
1
4
Display
15
5 Morning, Day, Evening & Night icons
Indicatesthedaypartofthetimeperiodprogram.
6 Setup icon
Indicates the thermostat is in the setup mode.
7 Fan icon
WhenonlytheFaniconisdisplayed,thefanisalways
on.IftheFANisnotonthedisplay,thentheFANisin
Automodeandwillrunonlywhennecessarytoheat
or cool.

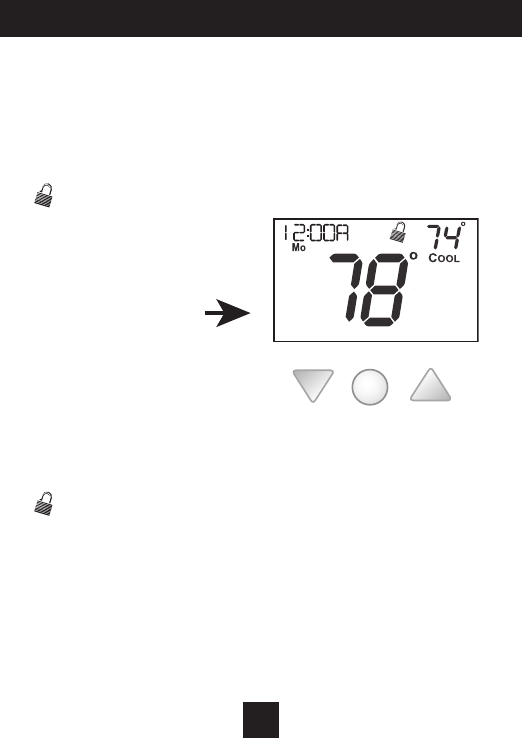

8 Locked icon
Indicatesthethermostat’scontrolbuttonshave
beenlocked.
6
5
5
8
7
Basic Operation
16

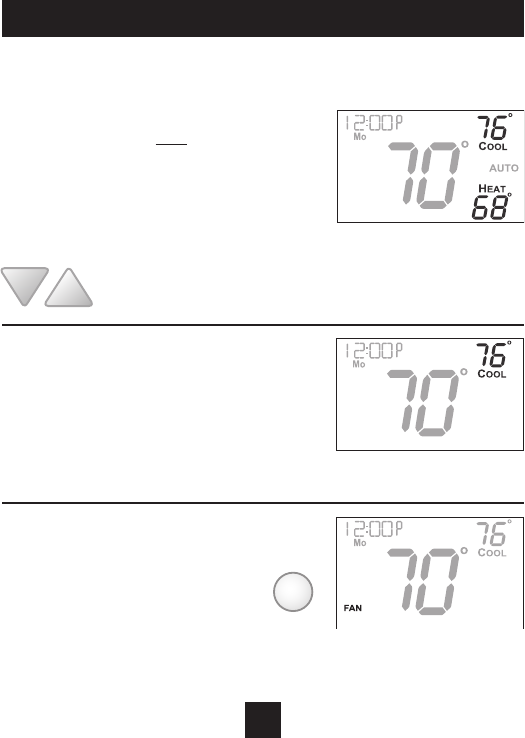

Selecting Your Desired Temperature (adjusting the setpoints)
Heat or Cool Mode
Using the Fan Button
Auto-Changeover Mode
PressingtheWARMERorCOOLERbuttonsin
Automodewilladjustboth the heat and cool
setpointssimultaneously.Toadjusttheheat
andcoolsetpointsindividually,chooseHEAT
modetoadjusttheheatsetpoint,andCOOL
modetoadjustthecoolsetpoint,thenreturn
toAUTOmode.
PressingtheUPorDOWNbuttonsin
HeatorCoolmodewilladjustonlythe
heat or cool set temperature.
Adjustthedesiredset
temperature with these
buttons
Fan indicates constant fan
operation. You may turn the fan
onevenifthethermostatisinthe
Offmode.PressingtheFANbutton
togglesthisfeatureonoroff.
FAN
How to Change Settings in the Setup Screens
To enter the setup screens, press the MODE button, and
simultaneously press FAN button for 5 seconds. Release the buttons
when you see “Setup” on the display. Use the WARMER or COOLER
buttons to adjust the value of your selection. Press MODE to advance
to the next setup step. Press MODE and FAN together again to leave
the setup screens.
User Setup
17
FANMODE
press together for
5 seconds

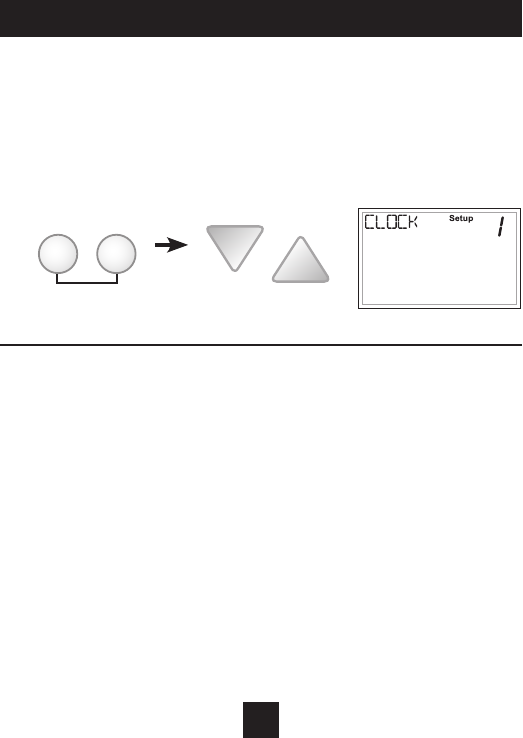

Setting the Clock and Day (setup step 1 & 2)
WhenyourthermostatisconnectedtoSkyportCloudServices,thetimeandday
oftheweekarecontrolledbySkyport.Thereisnolocaladjustment,Skyportalso
adjuststhetimeforDaylightSavingsTimeaswell.
TosetthetimeanddaywhennotconnectedtoSkyport;enterthesetupscreens
bypressingtheModebuttonandsimultaneouslypressingtheFanbuttonfor
5 seconds.
Setupstep1adjuststheclock.UsetheWarmer/UporCooler/Downbuttonsto
adjustthetime.
PresstheModebuttontoadvancetostep2.
SelectthedayoftheweekusingtheWarmer/UporCooler/Downbuttons.
LeavethesetupscreensbyagainpressingtheModebuttonandsimultaneously
pressingtheFanbuttonfor5seconds.
Backlight (Setup Steps 3-6)

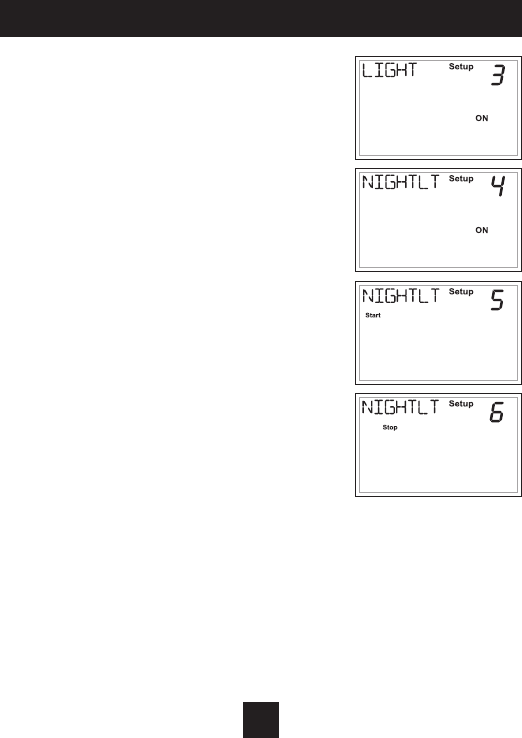

Backlight (setup step 3)
Off - Backlight turns on only with a button
press and turns off after 8 seconds.
On - Backlight is on continuously.
Night Dimmer (setup step 4) - Selecting On
allows for turning off the backlight of the
display during specific times of the day,
usually at night.
Night Dimmer Start Time (setup step 5) -
12:00 am to 12:00 am
Night Dimmer Stop Time (setup step 6) -
12:00 am to 12:00 am
User Setup: Backlight Operation
18
These setup steps allow the user to monitor FAN runtimes and program
service alerts. Service alerts appear on the display. If the thermostat is joined
to a Skyport account, then the user may be alerted by Skyport Cloud Services
when to change the filter.
Runtime hours
or days appear in
the clock display.
Press and hold FAN
to clear reset runtime.

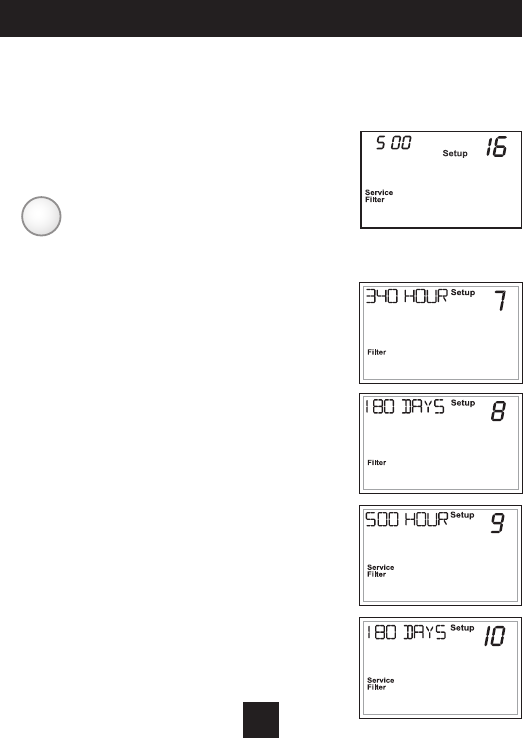

Service Filter Runtime (Setup Steps 7-10)
Current Service Filter Runtime Hours (Setup Step 7)
- This counter keeps track of the number of hours of
fan runtime in the Heating mode, Cooling mode, and
in stand alone Fan operation.
Press FAN to reset.
Current Service Filter Calendar Days (Setup Step 8)
- This counter displays the total number of calendar
days that have elapsed since the counter was reset
to help the user track Fan runtime.
Press FAN to reset.
Set Service Filter Runtime Hours (Setup Step 9) -
This timer allows the user to specify the number
of hours the fan will run before the “Replace Filter”
alert will be displayed. Press COOLER continuously
until OFF is displayed to disable this alert.
Set Service Filter Calendar Days (Setup Step 10) -
This timer allows the user to specify the number of
calendar days that will elapse before the “Replace
Filter” alert will be displayed. Press COOLER
continuously until OFF is displayed to disable
this feature.
User Setup: Service Filter
19
FAN

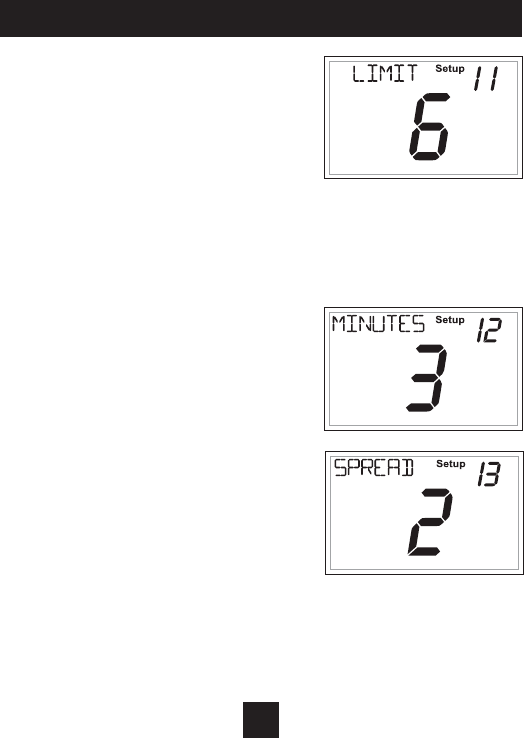

Cycles Per Hour (Setup Step 11)
TheCyclesPerHoursettingmaylimitthe
numberoftimesperhouryourHVACunit
mayenergize.Forexample,atasetting
of6cyclesperhourtheHVACunitwill
onlybeallowedtoenergizeonceevery
10minutes.TheCyclesPerHourlimit
maybeoverriddenandresetbypressing
theWARMERorCOOLERbuttonsonthe
thermostat.SettingsareNoLimit,2,3,4,5,
or 6 cycles per hour.
Compressor Minimum
Off Minutes (Setup Step 12)
This feature allows the user to set a
minimum off time for the compressor.
Settingsare5mins.,3mins.,or0mins.
Minimum Heat/Cool
Setpoint Difference (Setup Step 13)
This feature allows the user to set the
minimumgapbetweenHeatandCool
setpointsinAUTOmode.Selectfrom0to6
degrees.
Installer Setup
20

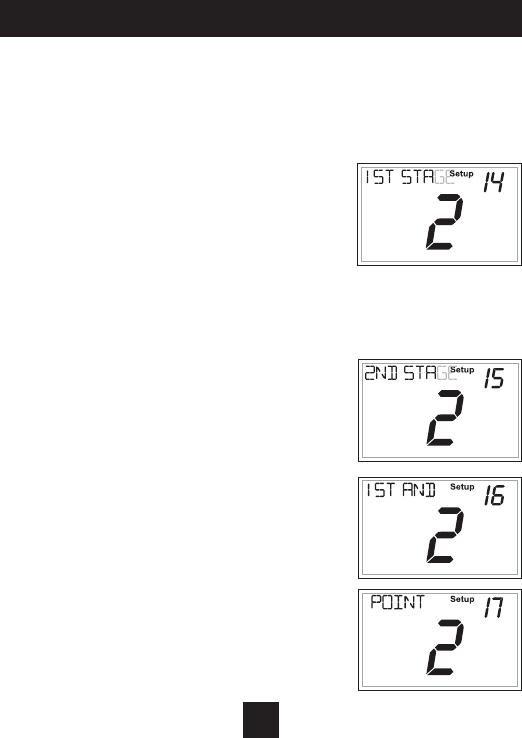

Deadband Settings (setup steps 14 - 17)
The Deadband is the number of degrees or
minutes that the thermostat waits before it
initiates the stages of heating or cooling.
1st Stage Deadband (Setup Step 14)
Speciesthetemperaturedifferencebetween
the room temperature and the desired setpoint
beforetherststageofheatingorcooling
isallowedtoturnon.(1-6degrees)For
example, if the heat setpoint is 68˚ and the 1st
Stagedeadbandissetto2degrees,theroom
temperature will need to reach 66˚ before the
heat turns on.
2nd Stage Deadband (Setup Step 15)
Speciestheadditionaltemperaturedifference
aftertherststageturnsonbeforethesecond
stageisactivated.(0˚-10˚)
Minutes Between 1st and 2nd Stage
(Setup Step 16)
Speciestheminimumtime(inminutes)afterthe
rststageturnsonbeforethesecondstagecan
turnon.(0˚-60˚)
Second Stage Turnoff Point (Setup Step 17)
Specieswhethersecondstagewillturnoffat
rststagedeadbandorremainonuntiltheroom
temperaturedemandissatised.Choose
betweenDeadbandorSetpoint.
Installer Setup
21

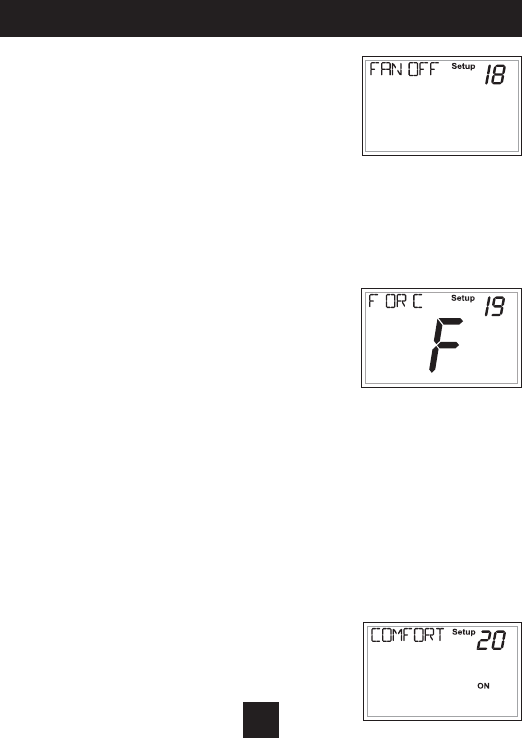

Fan Off Delay in Seconds (setup step 18)
This feature allows the user to increase the
coolingorelectricstripheatingefciencyofthe
system.Thethermostatmaybeprogrammedto
continuerunningthefanafteracallforcooling
orelectricstripheatinghasbeensatised.This
delay can be set for 0, 30, 60, 90, or 120 seconds.
If set to 0, the fan will not run after a call for
coolingorelectricstripheatinghas
been satisfied.
Fahrenheit or Celsius (setup step 19)
This feature allows the thermostat to display
temperatureinFahrenheitorCelsius.
Comfort Recovery (setup step 20)
WithComfortRecoveryon,thethermostatwillattempttoreachthe
Morningsetpointtemperatureattheexacttimeprogrammedinto
thethermostat.ComfortRecovery,onlyworkswhenthethermostat
enterstheMorningperiodfromtheNightPeriod.Forexample,ifthe
NightPeriodissetfor11pmat65°Fheatingand85°Fcooling,andthe
MorningPeriodissetfor6amat72°Fheatingand75°Fcooling,the
thermostatwillturnthesystemonbefore6aminanefforttobringthe
temperaturetoitscorrectsettingatexactly6am.Thethermostatlearns
fromexperience,howearlytoturnon,sopleaseallow4-8daysaftera
programchangeorafterinitialinstallationtogive
ComfortRecoverytimetoadjust.Ifusedwitha
heat pump, electric strip heat will be disabled
whileComfortRecoveryisactive.
Installer Setup
22

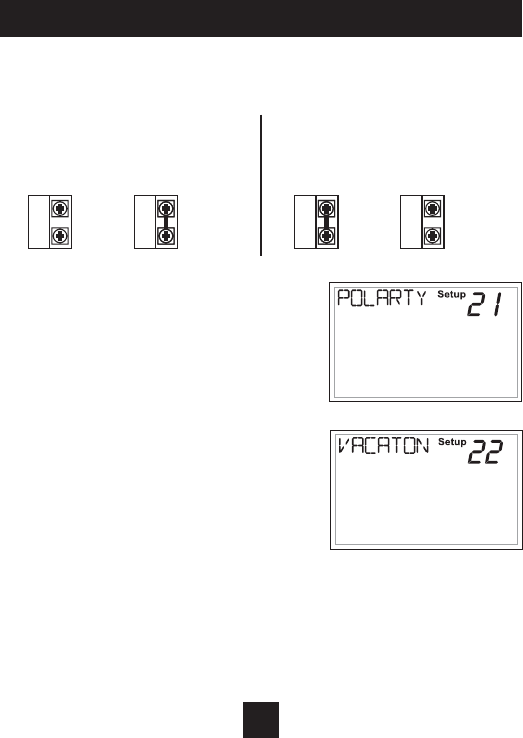

Dry Contact Operation
Dry Contact Polarity (setup step 21)
Open (Normally Open)-Thedry
contact is open until the connected
deviceclosesthecircuit.
Closed (Normally Closed)-The
dry contact is closed until the
connecteddeviceopensthecircuit.
Dry
Contact
Dry
Contact
Dry
Contact
Dry
Contact
Installer Setup
23
Condensate Dry Contact Use
(setup step 22)
Ifselectedwhenthedrycontactisactive,
thethermostatwilllockoutthecompressor
terminal(s)and“CONDENSATEPAN
OVERFLOW”willappearonthedisplay.
VACATION-IfVACATIONisselectedwhen
thedrycontactisactive,thethermostatwill
beforcedintoAWAY/unoccupiedsettings.
Installer Setup

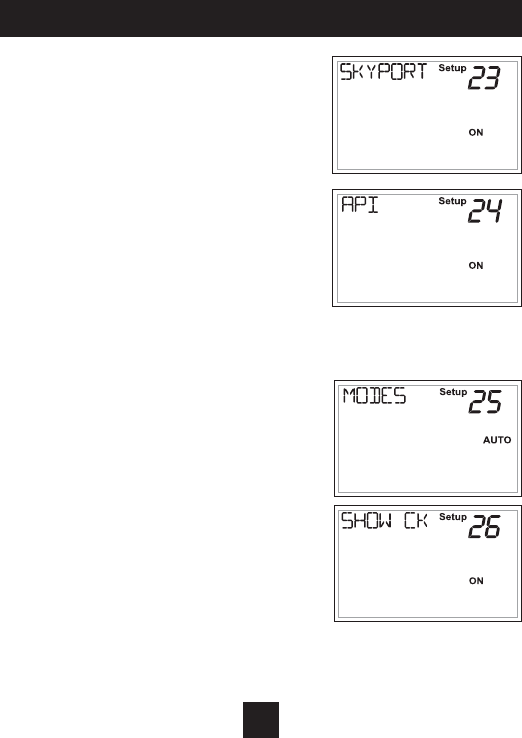

Skyport Cloud Services
(setup step 23)
IfsettoON,thethermostatmay
communicateandreceivedatafrom
theSkyportCloudServices.
Local API (setup step 24)
TurningonthelocalAPIallows3rd
party software to interface with the
thermostat such as a home
automation system.
NOTE: It is permissable to enable
both Skyport and the local API at the
same time.
Available Modes (setup step 25)
This setup step may restrict the use
ofthisthermostatto:Heatonlyor,
Coolonly,orHeatandCool,orAuto
changeoveroperation.
Show Clock (setup step 26)
Thissetupstepwillallowforremovalof
theclockanddayoftheweekfromthe
display.OFFremovesthetimeandday
from the display.
24
Installar Setup
25
Locking/Unlocking the Keypad
Topreventunauthorizeduseofthethermostat,thefrontpanel
buttonsmaybedisabled.Todisable,or‘lock’thekeypad,press
andholdtheMODEbutton.WhileholdingtheMODEbutton,
presstheWARMERandCOOLERbuttonstogether.
The icon will appear on the display, then release the buttons.
Press all three
buttons in the order
outlined above for
keypad lockout
To unlockthekeypad,pressandholdtheMODEbutton.While
holdingtheMODEbutton,presstheWARMERandCOOLER
buttonstogether.
The icon will disappear from the display, then release the
buttons.
WARMER
COOLER MODE
MODE
Programming a Daily Schedule
26
To enter Time Period Programming screens,
Press and hold MODE and UP until
the scrolling prompt appears.
Select Day of Week to program -
PresstheWARMERorCOOLERbuttonstochoosethedayofthe
week.PressMODEtoadvancetothenextstep.
Programming a Daily Schedule
This thermostat features four programmable time periods per
24 hour day: Morning, Day, Evening, and Night. The start time
for each time period is adjustable. The stop time for each time
period is the start time for the next period. Each time period, or
day part may be individually disabled.
Select the Day to Program - PresstheWARMERorCOOLER
buttonstoselectthedesiredDayoftheWeek.
Enable/Disable Morning Period - PresstheWARMERorCOOLER
buttonstoselectONorOFF.IfthedefaultONisselected,then
theMorningperiodwillruncompletewiththeModeandSet
Pointsselected.IfOFFisselectedthentheMorningdaypartwill
beskippedandthethermostatwillusethenextdaypartthatis
enabled.
MODE
Programming a Daily Schedule
27
Select Morning Mode - PresstheWARMERorCOOLERbuttons
toselectthedesiredmode,whichincludesOFF.PressMODEto
advancetothenextstep.
Select Morning Start Time - PresstheWARMERorCOOLER
buttonstoadjustthetimeofdaydesired.PressMODEto
advancetothenextstep.
Select Morning Cool Setpoint - PresstheWARMERorCOOLER
buttonstoadjustthecoolsetpointdesired.Thisstepwillappear
ifCoolorAutoModewasselectedinthestepwheretheMorning
modeisspecied.PressMODEtoadvancetothenextstep.
Select Morning Heat Setpoint - PresstheWARMERorCOOLER
buttonstoadjusttheheatsetpointdesired.Thisstepwillappear
ifHeatorAutoModewasselectedinthestepwherethe
Morningmodeisspecied.PressMODEtoadvancetothe
next step.
Repeat Enable, Mode, Start Time and Setpoint programming for
Day, Evening, and Night.
“Copy Current Day to Next Day” isavailable-PresstheUP
buttontoCopythecurrentday’sprogramtothenextday.Press
Modeagaintocontinuecopyingthefollowingday.
Press and hold the MODE/WARMER Buttons to exit Time Period
Programming at any time.
About Advanced Features & Operation
28
Deadband Operation
Controls up to two Heat and two Cool stages.
The 1st Stageofheatorcoolisturnedonwhen:
(A)Thetemperaturespreadfromthesetpointisequaltoorgreater
than:the setpoint plus the 1st stage deadband.This1ststagedead-
bandisadjustablefrom1-6degreesandthedefaultistwodegrees.
The 2nd Stageofheatorcoolisturnedonwhen:
(A)The1stStagehasbeenonforaminimumoftwominutes
(defaultsetting).
AND
(B)Thetemperaturespreadfromthesetpointisequaltoorgreater
than:the setpoint plus the 1st stage deadband, plus the 2nd stage
deadband.This2ndstagedeadbandisadjustablefrom0-10
degrees.

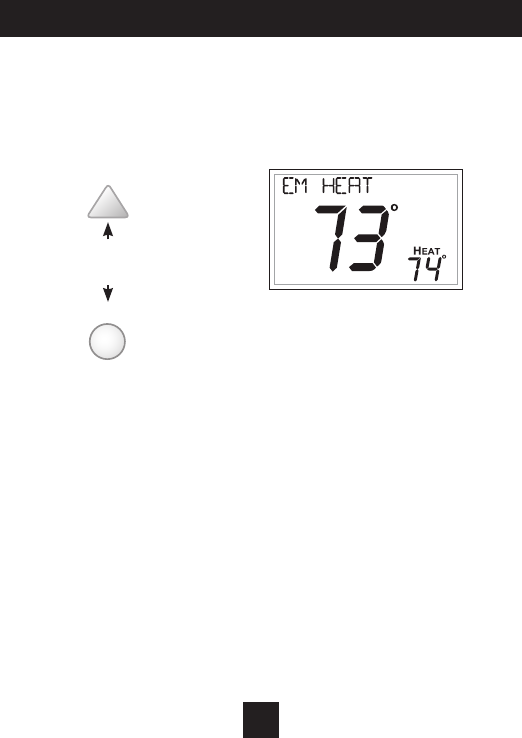

Emergency Heat
OnlyavailableifyouhaveaHeatPumpinstalled.Toinitiatethe
Emergency Heat feature, press the FANbutton.WhileholdingtheFAN
button press the UPbutton.TheCoolsetpointdisplaywillread‘EM
HEAT’(EmergencyHeat).
DuringEmergencyHeatoperationthethermostatwillturnonthefan
andthe2ndstageofheatwhenthereisademandforheat.Alsoduring
EmergencyHeat,the1ststageofheatingorcoolingwillbeunavailable.
Exit Emergency Heat
FollowthesamestepsasenteringEmergency HeatbypressingtheFAN
and UPbuttons.DuringEmergencyHeat,onlyOFFandHEATmodesare
availablebypressingtheMODE button.
About Advanced Features & Operation
29
FAN
Press for
Emergency Heat
About Advanced Features & Operation
30

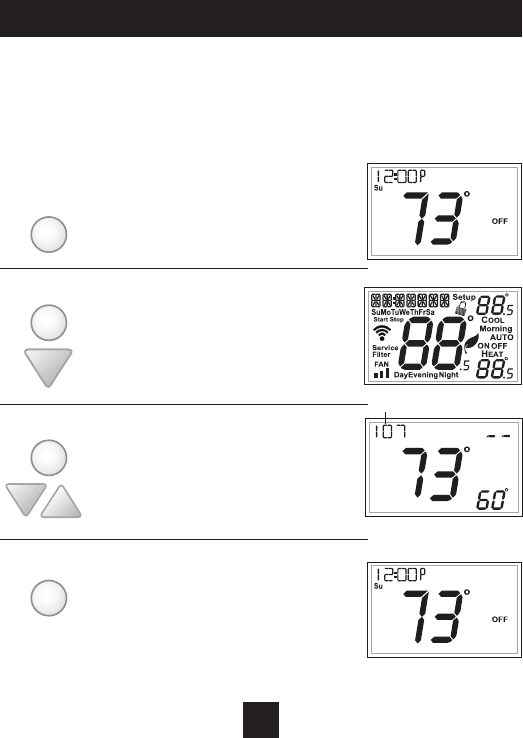

1 Place the thermostat in the OFF mode.
2 Press and hold the MODE button. While
holding the MODE button, press and
hold the DOWN button for 5 seconds.
All icons will appear on the display.
3 Press the MODE button once. The ther-
mostat temperature will be displayed
and may be calibrated using the UP or
DOWN buttons.
4 After calibration is complete, press the
MODE button once to save your changes
and return to normal operation.
MODE
MODE
MODE
MODE
Calibration
Undernormalcircumstancesitwillnotbenecessarytoadjust
the calibration of the temperature sensor. If calibration is
required,pleasecontactatrainedHVACtechniciantocorrectly
performthefollowingprocedure.
Softwareversion
About Advanced Features & Operation
31

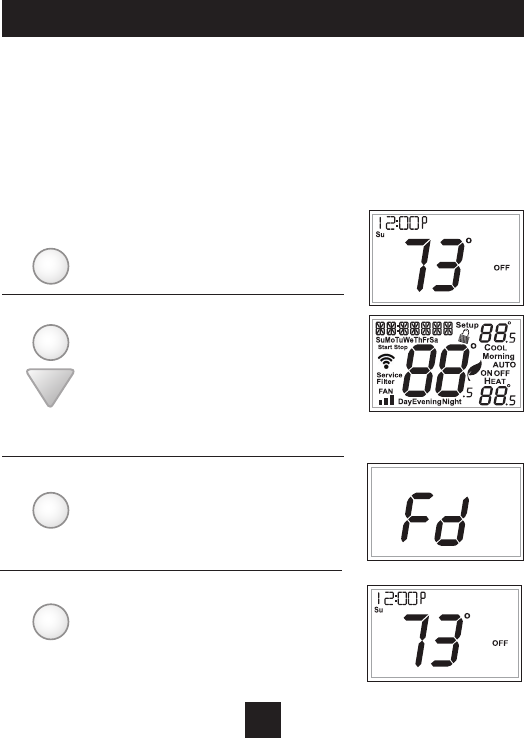

Factory Defaults
If,foranyreason,youdesiretoreturnallthestoredsettingsback
tothefactorydefaultsettings,followtheinstructionsbelow.
WARNING: This will reset all Time Period and Advanced
Programming to the default settings. Any information entered
prior to this reset will be permanently lost.
1 Placethethermostatinthe
OFFmode.
2 PressandholdtheMODE
button.Whileholdingthe
MODEbutton,pressand
holdtheDOWNbuttonfor
5seconds.Alliconswill
appear on the display.
3 Afteralloftheiconsappear,
releasetheMODEandDOWN
buttons. Then press and hold
theFANbuttonfor5seconds.
4 AfterthelettersFdappearon
thedisplay(FactoryDefault),
releasetheFANbutton.Press
theMODEbuttontwiceto
return to normal operation.
MODE
FAN
MODE
MODE
Advanced Setup Table
32
FD = Factory Default Setting
Step# Description Pg# Range FD
1 Set Clock 17 12A - 12A
2 Set Day of Week 17 Monday - Sunday
3 Backlight 18 On, Off, 6pm-6am Off
4 Night Dimmer 18 On/Off Off
5 Night Dimmer Start Time 18 12A - 12A 8:00PM
6 Night Dimmer Stop Time 18 12A - 12A 6:00AM
7 Current Service Filter Runtime Hours 19 0-1999 Hours 0
8 Current Service Filter Calendar Days 19 0-1999 Hours 0
9 Set Service Filter Runtime Hours 19 0-1999 Hours 0
10 Set Service Filter Calendar Days 19 0-720 Days 0
11 Cycles Per Hour 20 No Limit, 2, 3, 4, 5, 6 6
12 Compressor Minimum Off Minutes 20 0, 3, 5 Minutes 5
13 Min. Heat/Cool Setpoint Difference 20 0 - 6 Degrees 2
14 1st Stage Deadband 20 1 - 6 Degrees 2
15 2nd Stage Deadband 21 0 - 10 Degrees 2
16 Minutes Between 1st and 2nd Stage 21 0 - 60 Minutes 2
17 2nd StageTurnoff Point 21 Deadband, Setpoint Deadband
18 Fan Off Delay 22 0, 120 Seconds 0
19 F/C 22 Fahrenheit(F),Celsius(C) F
20 Comfort Recovery 22 On, Off Off
21 Dry Contact Polarity 23 Open, Closed Open
22 Dry Contact Use 23 CondensatePan,Vacation Vacation
23 Skyport 24 On, Off On
24 Local API 24 On, Off Off
25 Available Modes 24 Heat,Cool,HeatorCool,Auto Auto
26 Remove Clock 24 On, Off On
Warranty
One-Year Warranty - This Product is warranted to be free from defects in material and
workmanship. If it appears within one year from the date of original installation, whether or
not actual use begins on that date, that the product does not meet this warranty, a new or
remanufactured part, at the manufacturer’s sole option to replace any defective part, will
be provided without charge for the part itself provided the defective part is returned to the
distributor through a qualified servicing dealer.
THIS WARRANTY DOES NOT INCLUDE LABOR OR OTHER COSTS incurred for diagnosing,
repairing, removing, installing, shipping, servicing or handling of either defective parts or
replacement parts. Such costs may be covered by a separate warranty provided by the installer.
THIS WARRANTY APPLIES ONLY TO PRODUCTS IN THEIR ORIGINAL INSTALLATION LOCATION AND
BECOMES VOID UPON REINSTALLATION.
LIMITATIONS OF WARRANTIES – ALL IMPLIED WARRANTIES (INCLUDING IMPLIED WARRANTIES
OF FITNESS FOR A PARTICULAR PURPOSE AND MERCHANTABILITY) ARE HEREBY LIMITED IN
DURATION TO THE PERIOD FOR WHICH THE LIMITED WARRANTY IS GIVEN. SOME STATES DO
NOT ALLOW LIMITATIONS ON HOW LONG AN IMPLIED WARRANTY LASTS, SO THE ABOVE MAY
NOT APPLY TO YOU. THE EXPRESSED WARRANTIES MADE IN THIS WARRANTY ARE EXCLUSIVE
AND MAY NOT BE ALTERED, ENLARGED, OR CHANGED BY ANY DISTRIBUTOR, DEALER, OR OTHER
PERSON WHATSOEVER.
ALL WORK UNDER THE TERMS OF THIS WARRANTY SHALL BE PERFORMED DURING NORMAL
WORKING HOURS. ALL REPLACEMENT PARTS, WHETHER NEW OR REMANUFACTURED, ASSUME
AS THEIR WARRANTY PERIOD ONLY THE REMAINING TIME PERIOD OF THIS WARRANTY. THE
MANUFACTURER WILL NOT BE RESPONSIBLE FOR:
1. Normal maintenance as outlined in the installation and servicing instructions or owner’s
manual, including filter cleaning and/or replacement and lubrication.
2. Damage or repairs required as a consequence of faulty installation, misapplication, abuse,
improper servicing, unauthorized alteration or improper operation.
3. Failure to start due to voltage conditions, blown fuses, open circuit breakers or other damages
due to the inadequacy or interruption of electrical service.
4. Damage as a result of floods, winds, fires, lightning, accidents, corrosive environments or other
conditions beyond the control of the Manufacturer.
5. Parts not supplied or designated by the Manufacturer, or damages resulting from their use. 6.
Manufacturer products installed outside the continental U.S.A., Alaska, Hawaii, and Canada.
7. Electricity or fuel costs or increases in electricity or fuel costs for any reason whatsoever
including additional or unusual use of supplemental electric heat.
8. ANY SPECIAL INDIRECT OR CONSEQUENTIAL PROPERTY OR COMMERCIAL DAMAGE OF ANY
NATURE WHATSOEVER. Some states do not allow the exclusion of incidental or consequential
damages, so the above may not apply to you.
This warranty gives you specific legal rights and you may also have other rights which may vary
from state to state.
Printed on recycled paper.
P/N 88-1192 4/17

Navigation menu
