Users Manual
OVERVIEW
This Wi-Fi module is intended to be installed in a compatible Explorer thermostat. Please consult Venstar.com for a complete
listing of compatible thermostats.
At minimum, the rst 4 tasks of the 5 below must be successfully completed to access your thermostat remotely from a browser.
The 5th step is optional, although highly recommended, and is only needed to access your thermostat from a compatible
mobile device using the Skyport app.
model: ACC-VWF2
Wi-Fi Module Installation Instructions
THE 5 TASKS ARE:
1. Installation of the module into a Explorer thermostat.
2. Connection to a local Wi-Fi access point with Internet access. This is made easy with the help of the
Venstar Congurator app. (Downloaded from your mobile device’s app store)
3. Creation of a Skyport account with conrmation of a Skyport Messenger generated verication email.
4. A 6-digit code obtained from the thermostat entered into a Skyport account.
5. Download and install the Venstar Skyport app on your mobile device from your device’s app store.
INSTALLATION OF THE MODULE

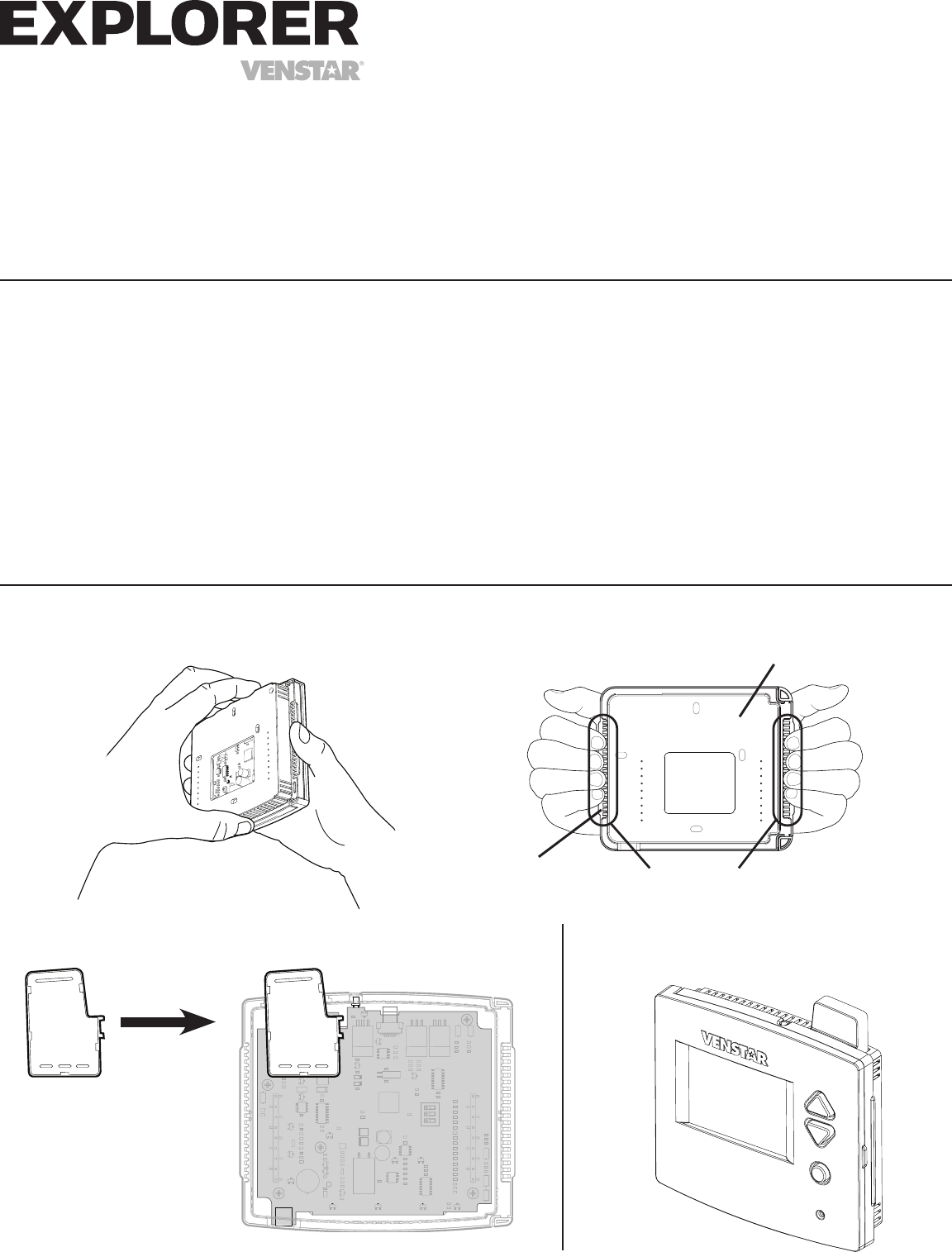

1. Separate the front housing from the backplate of the thermostat. Backplate
Front Housing Finger Pull Areas
2. Install the Wi-Fi module as shown onto the printed circuit board.
1
GAS
O
GAS/EL
ELEC
B
HP
ON
23
3. Carefully press the front housing with installed
WiFi module back on to the backplate.
by
®
WI-FI SETUP
The Wi-Fi module must be installed and recognized by the thermostat before starting the Wi-Fi setup. If just the
dot of the (Wi-Fi symbol) is present on the display, then the thermostat recognizes that the Wi-Fi module is
installed. After a successful connection to a local access point is completed, the entire Wi-Fi symbol appears
on the display. This Wi-Fi module requires the Venstar Congurator App for setup. Please go to
your mobile device’s App Store and download the Venstar Congurator App.
Then follow the steps below.
Congurator
app icon

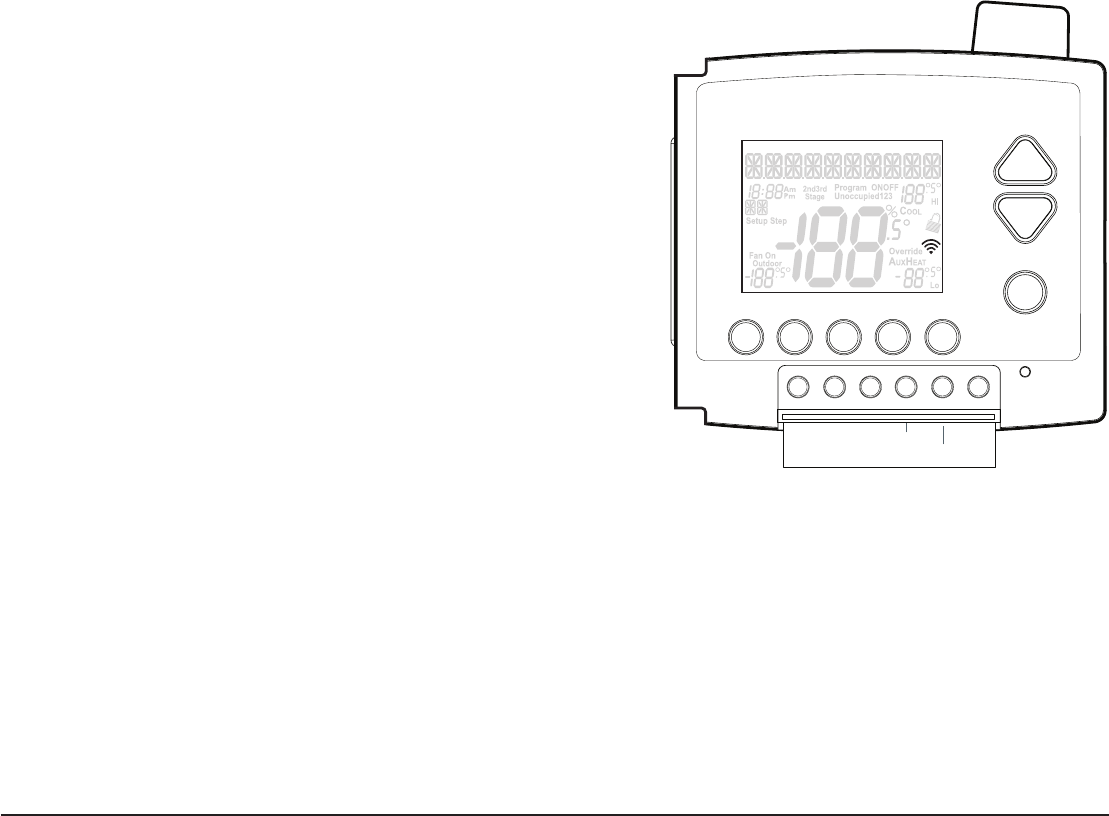

WiFi symbol
1. Open the Venstar Congurator App on your mobile device.
a. Select “Setup Wi-Fi” on the Congurator App.
2. Press the Accessory Setup button on the thermostat
to enter Wi-Fi or Skyport setup.
3. Press the Cooler button on the thermostat to congure
Wi-Fi settings.
4. Press “Continue” on the Congurator App then leave the
Venstar Congurator App on your mobile device and
go to the settings of your mobile device.
a. Select Wi-Fi.
b. Select “THERMOSTAT-xxxx” from the list.
c. Enter the password: “123456789” on your mobile device
for the thermostat.
d. When the mobile device is associated to the thermostat return
to the Venstar Congurator App and select “Continue”.
5. Select the access point of your building or home displayed on
your mobile device. Your thermostat will communicate through
this access point.
6. Enter your password for this access point and select “Done”
in the upper right corner to accept your password
7. Press “Continue” in the lower right corner to complete the setup.
When completed, the scrolling display of the thermostat will conrm successful
Wi-Fi connection in addition the full Wi-Fi symbol will appear on the display.
ACCESSORY
STATUS ACCESSORY
SETUP
SKYPORT SETUP
Although there is more than one way to create a Skyport account, the steps below illustrate account creation from a browser.
To create a Skyport account a thermostat must be joined to the account.
1. Open your browser to: http://venstar.skyportcloud.com
2. Select “Create Account Now”.
3. Follow onscreen directions to create an account and add a thermostat to the Skyport account.
If the thermostat is connected to the local Wi-Fi access point but not yet joined to a Skyport account, you may join the thermostat
to an account by doing the following:
1. Log in to your Skyport account.
2. Select the “Location” you want to add a thermostat into.
3. Select the “Thermostat tab”.
4. Select “+ Add Thermostat”. A screen will ‘pop-up’ asking for a six digit code.
5. Press the Accessory Setup button on the thermostat.
6. Press the Warmer button on the thermostat.
7. A six digit code will appear on the thermostat’s display.
8. Enter the six digit code into your Skyport account.
ACCESSORY STATUS BUTTON FUNCTIONS
To view connected wireless sensors:
1. Press the Accessory Status button
2. Press the Cooler button
3. Press the Mode button to step through connected wireless sensors
At any time press the Accessory button to return to normal operation.
To view Wi-Fi status screens:
1. Press the Accessory Status button
2. Press the Warmer button
3. Press the Mode button to view status the status screens below:
a. Wi-Fi status
b. Signal strength
c. Access point name
d. IP address
e. MAC address
f. Skyport status
g. Local API status (Enabled, Disabled)
h. Module version
At any time press the Accessory Status button to return to normal operation.
The Explorer thermostat and WiFi module have the ability to receive updates to its rmware. Periodically rmware updates are released
by the manufacturer to add features and/or performance enhancements. This installation sheet was produced reecting the most current
rmware/feature set at the time of publication. Subsequent rmware releases may not be adequately depicted in this installation sheet.
Please refer to www.venstar.com or contact your place of purchase to learn about changes that are incorporated into rmware releases.
This module is compatible with most 2.4 GHz, Wi-Fi b/g/n band access points.
ACCESSORY
STATUS ACCESSORY
SETUP
WARRANTY
One-Year Warranty - This Product is warranted to be free from defects in material and workmanship. If it appears within one year from the date of original installation,
whether or not actual use begins on that date, that the product does not meet this warranty, a new or remanufactured part, at the manufacturer’s sole option to replace
any defective part, will be provided without charge for the part itself provided the defective part is returned to the distributor through a qualied servicing dealer.
THIS WARRANTY DOES NOT INCLUDE LABOR OR OTHER COSTS incurred for diagnosing, repairing, removing, installing, shipping, servicing or handling of either
defective parts or replacement parts. Such costs may be covered by a separate warranty provided by the installer.
THIS WARRANTY APPLIES ONLY TO PRODUCTS IN THEIR ORIGINAL INSTALLATION LOCATION AND BECOMES VOID UPON REINSTALLATION.
LIMITATIONS OF WARRANTIES – ALL IMPLIED WARRANTIES (INCLUDING IMPLIED WARRANTIES OF FITNESS FOR A PARTICULAR PURPOSE AND
MERCHANTABILITY) ARE HEREBY LIMITED IN DURATION TO THE PERIOD FOR WHICH THE LIMITED WARRANTY IS GIVEN. SOME STATES DO NOT ALLOW
LIMITATIONS ON HOW LONG AN IMPLIED WARRANTY LASTS, SO THE ABOVE MAY NOT APPLY TO YOU. THE EXPRESSED WARRANTIES MADE IN THIS
WARRANTY ARE EXCLUSIVE AND MAY NOT BE ALTERED, ENLARGED, OR CHANGED BY ANY DISTRIBUTOR, DEALER, OR OTHER PERSON WHATSOEVER.
ALL WORK UNDER THE TERMS OF THIS WARRANTY SHALL BE PERFORMED DURING NORMAL WORKING HOURS. ALL REPLACEMENT PARTS, WHETHER
NEW OR REMANUFACTURED, ASSUME AS THEIR WARRANTY PERIOD ONLY THE REMAINING TIME PERIOD OF THIS WARRANTY.
THE MANUFACTURER WILL NOT BE RESPONSIBLE FOR:
1. Normal maintenance as outlined in the installation and servicing instructions or owner’s manual, including lter cleaning and/or replacement and lubrication.
2. Damage or repairs required as a consequence of faulty installation, misapplication, abuse, improper servicing, unauthorized alteration or improper operation.
3. Failure to start due to voltage conditions, blown fuses, open circuit breakers or other damages due to the inadequacy or interruption of electrical service.
4. Damage as a result of oods, winds, res, lightning, accidents, corrosive environments or other conditions beyond the control of the Manufacturer.
5. Parts not supplied or designated by the Manufacturer, or damages resulting from their use.
6. Manufacturer products installed outside the continental U.S.A., Alaska, Hawaii, and Canada.
7. Electricity or fuel costs or increases in electricity or fuel costs for any reason whatsoever including additional or unusual use of supplemental electric heat.
8. ANY SPECIAL INDIRECT OR CONSEQUENTIAL PROPERTY OR COMMERCIAL DAMAGE OF ANY NATURE WHATSOEVER. Some states do not allow the
exclusion of incidental or consequential damages, so the above may not apply to you.
This warranty gives you specic legal rights and you may also have other rights which may vary from state to state.
Venstar Inc. - Made in China - 11/17 - Patents Pending Explorer WiFi Module model ACC-VWF2 P/N 88-1267 Rev. 3
