Verifone RF350 RFID Device User Manual Rf350 c

VeriFone Inc RFID Device Rf350 c

Users Manual

VeriFone Indoor VeriPASS
Terminal Installation Guide
P/N: 55295
Revision A
VeriFone Indoor VeriPASS Terminal Installation Guide
August 15, 1999
VeriFone®, a division of Hewlett-Packard
4988 Great America Parkway
Santa Clara, CA 95054-1200
Telephone: 408-496-0444
http://www.verifone.com
Printed in the United States of America.
© 1999 by VeriFone, a division of Hewlett-Packard
All rights reserved.
No part of this publication covered by the copyrights herein may be
reproduced or copied in any form or by any means — graphic,
electronic, or mechanical, including photocopying, taping, or
information storage and retrieval systems — without written permission
of the publisher.
The content of this document is subject to change without notice. The
information contained herein does not represent a commitment on the
part of VeriFone, a division of Hewlett-Packard.
Publications are not stocked at the address given above. Requests for
VeriFone publications should be made to your VeriFone representative.
VeriFone is a registered trademark of Hewlett-Packard Company. All
other products mentioned in this manual are trademarks or registered
trademarks of their respective owners.
VeriFone Indoor VeriPASS
Terminal Installation Guide
Revision History
Revision Date Comments
A August 15, 1999 Initial release of software
and documentation.
FCC Compliance
This equipment has been tested and found to comply with the limits
for a Class B digital device, pursuant to Part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against
harmful interference in a residential installation. This equipment
generates, uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause
harmful interference to radio communications. However, there is
no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to
radio or television reception, which can be determined by turning
the equipment off and on, the user is encouraged to try to correct
the interference by one or more of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and
receiver.
Connect the equipment into an outlet on a circuit different
from that to which the receiver is connected.
Consult the dealer or an experienced radio/TV technician
for help.
Safety Instructions
Read all instructions contained in this guide before making
any equipment connections.
Save these instructions for later use.
Unplug the unit before servicing or cleaning. Do not use
liquid or aerosol cleaners. Use only a damp cloth for
cleaning.
Do not use any attachments not specifically recommended
by VeriFone as they may result in the risk of fire, electric
shock, or injury to persons.
Do not use the unit near water.
Do not place the unit on an unstable cart, stand, or table.
The unit may fall, causing serious personal injury and/or
damage to the equipment.
Contents i
Contents
1. Introduction . . . . . . . . . . . . . . . . . . . . . . . . . .1
2. Unpacking. . . . . . . . . . . . . . . . . . . . . . . . . . . .3
3. Installation . . . . . . . . . . . . . . . . . . . . . . . . . . .5
Installation Procedures. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Equipment Power Up. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
4. Specifications. . . . . . . . . . . . . . . . . . . . . . . . .9
Power Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Operating Environment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Service and Repair . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Cleaning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
ii Contents
Introduction 1
1Introduction
This document provides the information necessary to install your
VeriFone Indoor VeriPASS Terminal System.
The VeriFone Indoor VeriPASS Terminal System is a self-contained
device, when properly installed, becomes an integral part of the
Ruby SuperSystem. It has the ability to read a retail customer’s tag
when placed near an antenna mounted on the face of the equipment.
Information from the tag is processed and transferred to the Ruby.
n

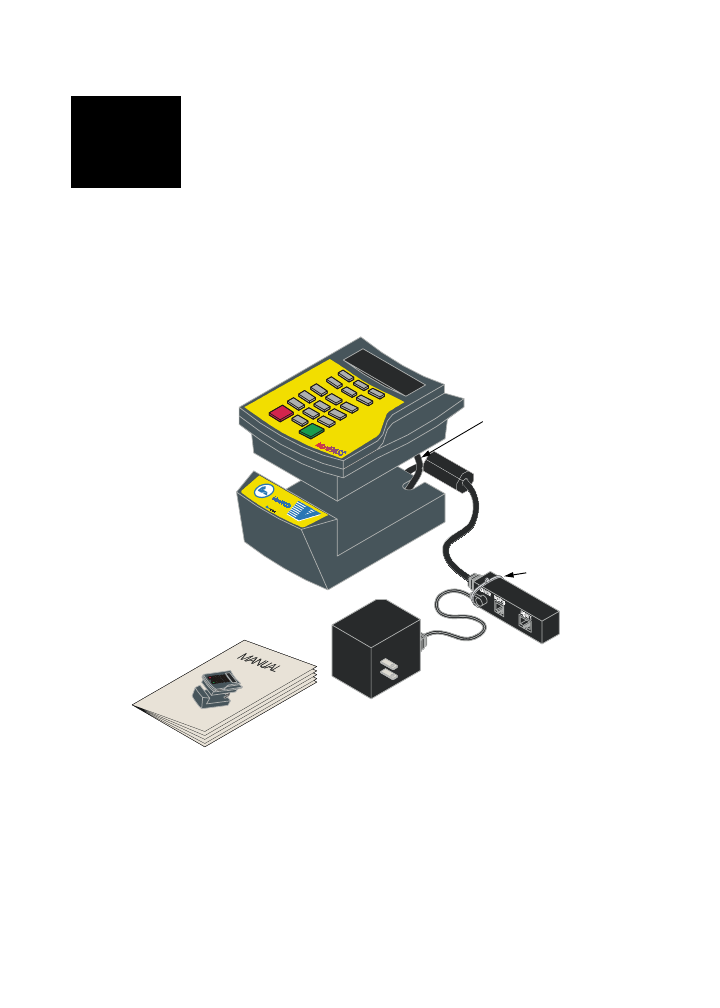

mobilind.wmf 125%
Multicable
Optional Power Supply*
VeriFone Indoor
Everest
Base Unit
Base Cable
Ferrite Bead
Cable Tie
VeriPASS Terminal
Installation
Manual
(VFI P/N: 04250-05)
* Optional Power Supply not required
when used with a Ruby SuperSystem
2 Introduction
Unpacking 3
2Unpacking
Carefully inspect the shipping carton and its contents for any
damage that may have occurred during shipment. If anything
appears damaged, immediately file a claim with the shipping
company or carrier and notify your VeriFone representative.
Warning: Never use damaged equipment. A shock or fire
hazard may exist if equipment is energized in a
damaged condition.
Remove the following items from the shipping carton:
VeriFone Indoor VeriPASS Terminal Unit with attached
Mulitcable
Power Supply (optional)
Ferrite Bead
Remove any protective plastic wrapping from the components and
place the components on a table or countertop.
Retain the shipping carton and any packing material in case it is
necessary to move components from one location to another or to
return the equipment for service.
4 Unpacking
Installation 5
3Installation
Unpack equipment in accordance with instructions listed in Chapter
2.
Warning: To reduce the risk of fire, do not place this unit near
any heat producing source.
When selecting a location for your VeriFone Indoor VeriPASS
Terminal equipment, avoid areas having:
Direct sunlight or objects that produce heat.
Moist areas.
Excessive dust.
Electrical “noise” or devices that cause excessive voltage
variations such as air conditioners, fans, or high frequency
security systems.
Installation Procedures
Note: If not present, install the Ferrite Bead on the
Multicable, as close to the Base Unit as possible. This
filters out any interference generated by the
equipment. Refer to the diagram on page 1 for
location.
Use the following procedure to install and power up the VeriFone
Indoor VeriPASS Terminal in a VFI Ruby environment.
6 Installation
1. Ensure power to the Ruby is disconnected
2. Place the unit close to the Ruby.
3. Uncoil the Multicable and ensure that it does not kink or is
not placed under heavy equipment.
4. Mount the unit on a custom stand, if applicable.
5. Insert the RS232 cable connector from the Ruby into the
Multicable jack labeled PORT 1.
6. Apply power to the Ruby.
Equipment Power Up
The Verifone VeriPASS Terminal is powered from the Ruby
Terminal through a serial cable. This feature eliminates the need for
an optional power supply.
Note: The VeriPASS Terminal may be powered by an
optional external power supply (VeriFone P/N:
04250-05).
Use the following procedures to power up the VeriFone Indoor
VeriPASS Terminal unit using the optional power supply:
PORT 1
Multicable Ruby
Ferrite Bead
VeriFone
Indoor
VeriPASS
Terminal
Serial Cable
P/N: 13836-01
Com Port*
* Consult VASC Service Manual to
determine the correct com port for
your application.
Installation 7
1. Insert the Power Cable connector into the Multicable jack
labeled POWER.
Note: Use a locally available cable tie to secure the Power
Cable jack to the Multicable connector as shown in
the diagram on page 1. This configuration maintains
the integrity of the connection and provides additional
connection security.
Warning: When the optional Power Supply is plugged into the
AC power outlet, voltage is immediately available to
the VeriFone Indoor VeriPASS Terminal. Avoid
handling the exposed power cable connector.
Note: The AC power outlet should be easily accessible
should the user desire quick power disconnect.
2. Connect the Power Supply to the AC power outlet or
appropriately configured power connector.
3. Verify the customer display is activated.
4. Verify the logo illuminates momentarily when power is
applied.
5. Verify the display is illuminated and the display is
activated.
Warning: To turn off your VeriFone Indoor VeriPASS Terminal,
always unplug the power supply from the AC power
outlet first. This eliminates the presence of voltage at
the Multicable power receptacle and the potential
shock hazard.
8 Installation
Specifications 9
4Specifications
Power Requirements
Input: 120VAC 60Hz 18 W
Output: 12VDC 1000 mA
Operating Environment
Temperature: 0 to 40oC (32 to 104oF)
Humidity: 20% to 90%, noncondensing
Service and Repair
Do not, under any circumstances, attempt to repair, service, or
adjust your VeriFone Indoor VeriPASS Terminal equipment. If you
have any problems with your unit, contact your VeriFone
Authorized Service Contractor.
Note: Changes or modifications not expressly approved by
VeriFone could void the user's authority to operate
this equipment.
10 Specifications
Cleaning
Warning: Disconnect power before cleaning this equipment.
Routine cleaning can be accomplished by removing dust or dirt
with a clean, damp cloth and mild soap or detergent. Use a cloth
dampened with alcohol for more stubborn stains.
Warning: Never use thinner, trichloroethylene, or ketone based
solvents to clean this equipment or cabling as they
may deteriorate plastic parts.
