This is an unvented gas-fired heater.

It uses air (Oxygen) from the room

in which it is installed. Provisions for

adequate combustion and ventila-

tion air must be provided. Refer to

Page 7.

UVS27R, UVS27M

Vent Free Gas Heaters

Models: 4030 - 4036, 4040 - 4046,

4085 - 4087, 4090 - 4092

20007068 9/05 Rev. 3

INSTALLER / CONSUMER SAFE-

TY INFORMATION

WARNING: If the information in this

manual is not followed exactly, a

fire or explosion may result causing

property damage, personal injury or

loss of life.

Please read this manual before in-

stalling and using appliance.

Homeowner’s Installation

and Operating Manual

INSTALLER: DO NOT DISCARD THIS MANUAL - LEAVE FOR HOMEOWNER

D

E

S

I

G

N

C

E

R

T

I

F

I

E

D

—Do not store or use gasoline or

other flammable vapors and liq-

uids in the vicinity of this or any

other appliance.

—WHAT TO DO IF YOU SMELL GAS

• Do not try to light any appli-

ance.

• Do not touch any electrical

switch; do not use any phone

in your building.

• Immediately call your gas sup-

pler from a neighbor’s phone.

Follow the gas suppler’s in-

structions.

• If you cannot reach your gas

supplier, call the fire depart-

ment.

Installation and service must be

performed by a qualified installer,

service agency or the gas supplier.

7068

PinStar fa

cover

1/04

410 Admiral Blvd. • Mississauga, Ontario, Canada L5T 2N6 • 905-670-7777

www.majesticproducts.com • www.vermontcastings.com

CFM Specialty Home Products

2

UVS27 Vent-Free Gas Heater

20007068

Installation and Operating Instructions

Shell Dimensions .................................................................................................................4

Clearance Requirements .....................................................................................................5

Hearth Requirements .......................................................................................................... 5

Gas Specifications ...............................................................................................................6

Gas Inlet and Manifold Pressures ....................................................................................... 6

High Elevations ...................................................................................................................6

Odor During Operation ........................................................................................................6

Vent Free Features ..............................................................................................................7

Fresh Air Requirements ....................................................................................................... 7

Assembly Procedures

Unpack the Firebox ............................................................................................................. 9

Install Optional Fan Kit ........................................................................................................ 9

Install ON/OFF Switch .......................................................................................................10

Thermostat Connections ................................................................................................... 10

Glass & Catalyst Installation ..............................................................................................10

Connect the Gas Supply LIne ...........................................................................................12

Install Log Set ....................................................................................................................12

Complete the Installation ...................................................................................................13

Operation

Your First Fire ....................................................................................................................15

Pilot and Burner Inspection ............................................................................................... 15

Flame & Temperature Adjustment .....................................................................................15

Flame Characteristics ........................................................................................................15

Lighting Instructions ..........................................................................................................16

Troubleshooting ................................................................................................................. 17

Maintenance

Firebox Cleaning and Inspection .......................................................................................19

Cleaning Procedure ...........................................................................................................19

Glass Replacement ...........................................................................................................19

Care of Cast Iron ...............................................................................................................19

Catalytic Combustor ..........................................................................................................20

Replacement Parts ......................................................................................................................21

Optional Accessories

Fan Kits 24

Glass / Catalyst Kit ............................................................................................................24

Remote Controls ...............................................................................................................24

Warming Shelf ................................................................................................................... 24

Warranty .......................................................................................................................................25

PLEASE READ THE INSTALLATION & OPERATING INSTRUCTIONS BEFORE USING APPLIANCE.

Thank you and congratulations on your purchase of a Vermont Castings stove.

IMPORTANT: Read all instructions and warnings carefully before starting installation. Failure to follow these

instructions may result in a possible fire hazard and will void the warranty.

Table Of Contents

Proposition 65 Warning: Fuels used in gas, woodburn-

ing or oil fired appliances, and the products of combus-

tion of such fuels, contain chemicals known to the State

of California to cause cancer, birth defects and other

reproductive harm.

California Health & Safety Code Sec. 25249.6

3

UVS27 Vent-Free Gas Heater

20007068

Installation & Operating Instructions

In order to ensure safe and effective installation, this unit

must be installed only by a qualified agency, individual, firm,

corporation or company that is experienced in the instal-

lation, repair and servicing of this type of appliance and is

familiar with the building codes and installation techniques

appropriate in your area. Contact your hearth products

dealer or local gas supplier for the name of a qualified ser-

vice person.

In the Commonwealth of Massachusetts, all gas fittings and

installation of this heater shall only be done by a licensed

gas fitter or licensed plumber.

IMPORTANT: Read this owner’s manual carefully and

completely before trying to assemble, operate, or ser-

vice this heater. Improper use of this heater can cause

serious injury or death from burns, fire, explosion,

electrical shock, and carbon monoxide poisoning.failure

to follow instructions may result in property damage,

bodily injury or loss of life. This manual contains impor-

tant user information. Keep this manual with the heater

after installation is complete.

FOR SAFE INSTALLATION AND OPERATION,

PLEASE NOTE THE FOLLOWING:

1. Use only Natural Gas with UVS27RN/MN. Use only

Propane with UVS27RP/MP. Do not use any other

fuels.

2. Install only in accordance with the National Fuel

Gas Code, ANSIZ223.1/NFPA54-latest edition. (Ex-

ception: Do not derate this appliance for altitude.

This appliance has been tested and listed for use

in altitudes up to 10,000 feet.)

3. Use only the installation instructions provided by

the manufacturer for this appliance. Installation

and repair should be done by a qualified service

person. The appliance should be inspected before

use and at least annually by a professional service

person. More frequent cleaning may be required

due to excessive lint from carpeting, bedding

material, etc. It is imperative that control compart-

ments, burners and circulating air passageways of

the appliance be kept clean.

4. Warning: Any change to this heater or its controls

can be dangerous. DO NOT make modifications to

any heater or associated parts.

5. DO NOT install this heater in a bedroom or bath-

room.

6. Due to high surface temperatures, DO NOT install

this heater

• in a recreational vehicle,

• where curtains, furniture, clothing or other

flammable objects are less than 36 inches from

the front, top or sides of the heater,

• in high traffic areas,

• in windy or drafty areas.

7. DO NOT place clothing or other flammable mate-

rial on or near the appliance.

8. DO NOT obstruct the top grille at all. Doing so will

cause high levels of carbon monoxide that will

lead to death.

9. This heater needs fresh, outside air ventilation to

operate properly. See Fresh Air Requirements on

pages 6 and 7.

10. If heater shuts off, heater may not have enough

fresh air ventilation. Provide more fresh air. If

heater keeps shutting off, refer to Troubleshoot-

ing.

11. DO NOT operate this heater

• where flammable liquids or vapors are used

or stored

• under dusty conditions.

12. The heater becomes very hot when operating.

Alert children and adults to stay away from hot

surfaces to avoid burns or clothing ignition. The

heater will remain hot for a time after shutdown.

Allow surface to cool before touching.

13. Carefully supervise young children when they are

in the room with the heater.

14. Do not use the heater if any part has been ex-

posed to or under water. Immediately call a quali-

fied service technician to inspect the room heater

and to replace any part of the control system and

any gas control which has been under water.

15. DO NOT operate the heater if any log is broken or

damaged.

16. Turn heater off and let cool before servicing. Only

a qualified service person should service and

repair heater.

17. DO NOT operate this appliance with the safety

screen removed. If the safety screen is removed

from the appliance for service or cleaning, it must

be replaced before operating the heater.

NOTE: If any of the original wire as supplied with the ap-

pliance must be replaced, it must be replaced with a wire

of at least 105°F temperature rating.

Carbon Monoxide Poisoning: Early signs of carbon

monoxide poisoning resemble the flu, with headaches,

dizziness, or nausea. If you have these signs, the heater

may not be working properly. Get fresh air at once! Have

the heater serviced. Some people are more affected by

carbon monoxide than others. These include pregnant

women, people with heart or lung disease or anemia,

those under the influence of alcohol, and those at high

altitudes.

CARBON MONOXIDE POISONING

MAY LEAD TO DEATH!

4

UVS27 Vent-Free Gas Heater

20007068

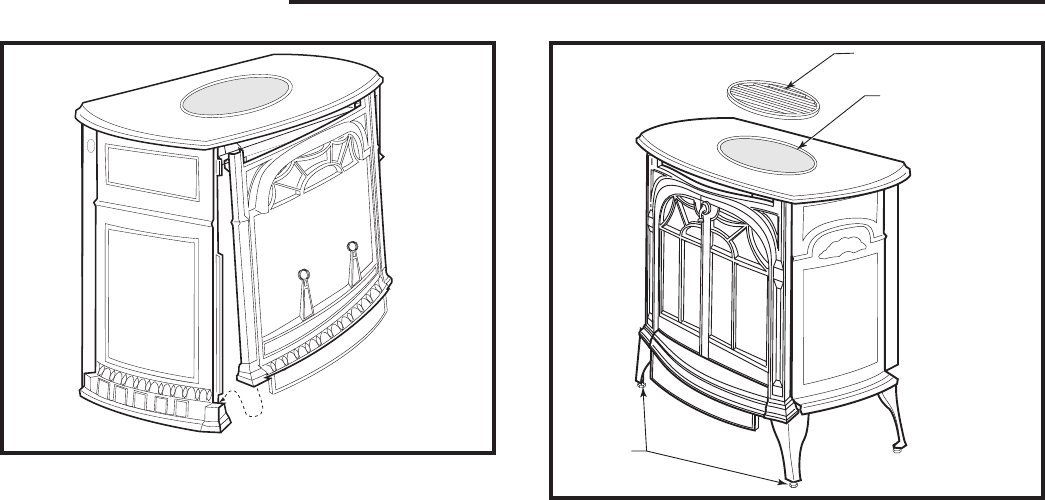

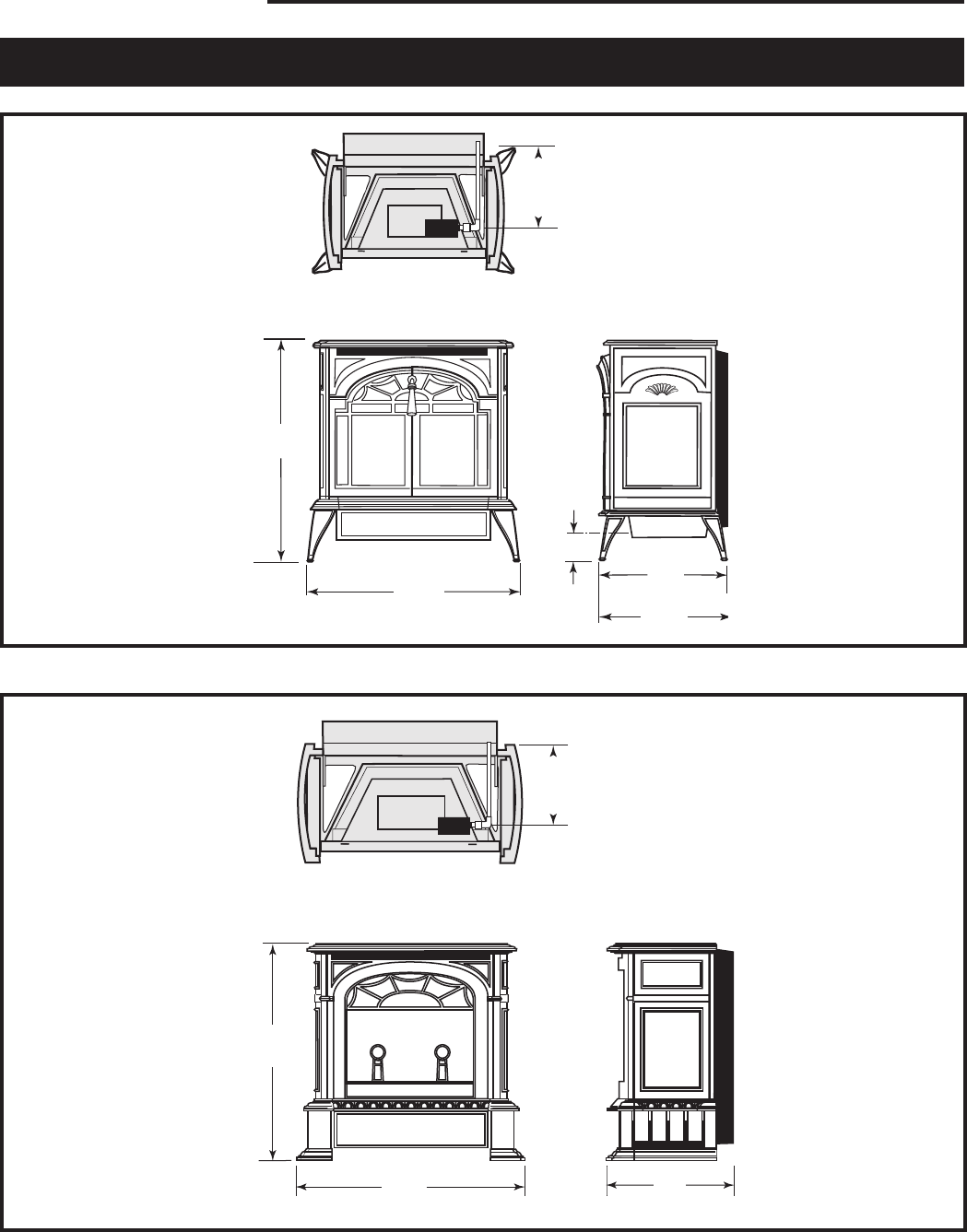

Shell Dimensions

Drawing Not to Scale

Fig. 1 UVS27 freestanding shell dimensions.

Freestanding Stove

7068

C

L

5004

UVS

Hearthmount specs

1/02

5"

(140 mm)

25"

(641 mm)

26"

(673 mm)

"

(416 mm)

5004

Fig. 2 UVS27 Hearthmount specifications.

Drawing Not to Scale

Hearthmount

C

L

C

L

5004

UVS27

Freestanding specs

1/02

9"

(229 mm)

26"

(680 mm)

25"

(635 mm)

3"

(76 mm)

Valve Inlet

14"

(368 mm)

Valve Inlet

15"

(379 mm)

5

UVS27 Vent-Free Gas Heater

20007068

Hearth Requirements

The Freestanding Stove and Hearthmount Shell must

be installed on rigid flooring. If the appliance is installed

on any combustible surface other than wood flooring,

such as carpet or tile, a metal or wood panel must be

installed to extend the full length and width of the unit.

• Do not install this heater in a bathroom or bed-

room.

• Installation of this heater must conform with local

codes or, in the absence of local codes, with the

National Fuel Gas Code, ANSI Z223.1 / NFPA54.

• This heater creates warm air currents. These

currents move heat to wall surfaces next to the

heater. Installing the heater next to vinyl or cloth

wall coverings or operating the heater where im-

purities in the air such as tobacco smoke exist,

may discolor walls.

• Do not use a blower insert, heat exchanger

insert or other accessory not approved for use

with this heater.

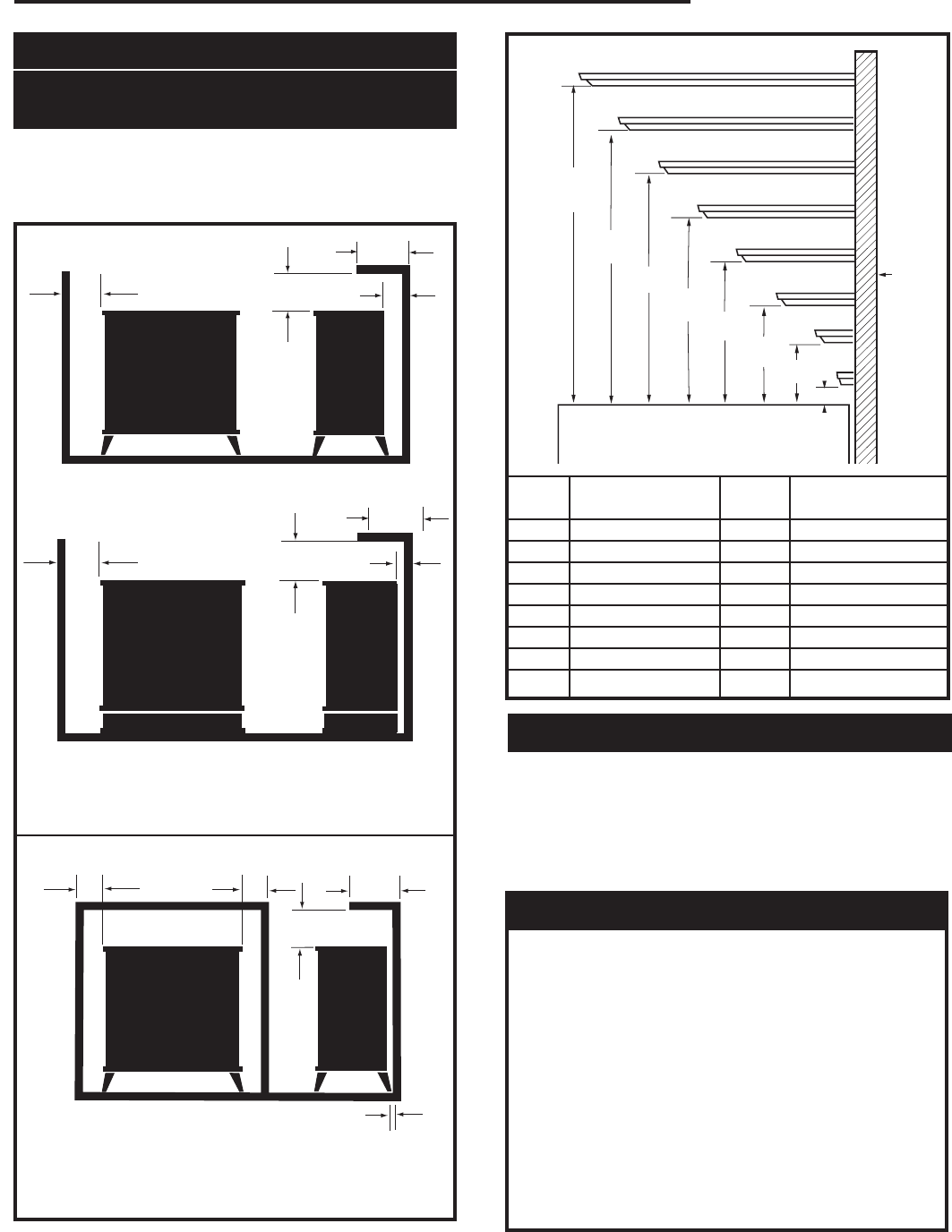

Clearance Requirements

Minimum Clearances to

Combustible Materials

Maintain clearance, (empty space), between combus-

tible materials and the heater as specified below for the

appropriate firebox shell being installed.

WARNING

B

A

C

D

ST101

Min. Clrnc

4/15/99 djt

B

A

C

D

ST102

Min. Clrnc

4/15/99 djt

Freestanding Stove

Hearthmount

ST101

ST102

A: Mantel/Trim* ......................... 35” (889 mm) / 2” (51 mm)

B: Side Wall/Trim* ............................................. 2” (51 mm)

C: Rear Wall ....................................................... 0” (0 mm)

D: Max. Mantel Width ................................... 13” (330 mm)

B

A

C

D

ST103

Min. Clrnc

4/15/99 djt

B

Alcove Clearances

A: Ceiling ...................................................... 35” (889 mm)

B: Side Wall ...................................................... 2” (51 mm)

C: Rear Wall ....................................................... 0” (0 mm)

D: Max. Alcove Depth ................................... 13” (330 mm)

ST103

FP599a

stove mantel heights

9/27/99 djt

S

T

U

V

W

X

Y

Z

A

B

C

D

E

F

G

H

ST599a

Mantel Mantel from

Ref. Shelf Depth Ref. Stove Top

A 13” (330mm) S 35” (889 mm)

B 11¹⁄₄” (286 mm) T 30” (762 mm)

C 9³⁄₈” (241 mm) U 25” (635 mm)

D 7¹⁄₂” (191 mm) V 20” (508 mm)

E 5³⁄₄” (146 mm) W 15” (381 mm)

F 4” (102 mm) X 10” (254 mm)

G 2¹⁄₄” (57 mm) Y 5” (127 mm)

H 1” (25 mm) Z 2” (51 mm)

6

UVS27 Vent-Free Gas Heater

20007068

Gas Specifications

Max. Min.

Input Input

Model Fuel Gas Control BTU/h BTU/h

UVS27RN Nat Millivolt 28,000 19,500

UVS27RP Prop Millivolt 28,000 19,500

UVS27MN Nat Millivolt 28,000 19,500

UVS27MP Prop Millivolt 28,000 19,500

Firebox weight / shipping 110 lbs.

The installation of your Vermont Castings stove

must conform with local codes, or in the absence of

local codes, with the National Fuel Gas Code ANSI

Z223.1/NFPA 54 - latest edition. (EXCEPTION: Do

not derate this appliance for altitude up to 4,500 feet

(1,370m). Maintain the manifold pressure at 3.5” w.c.

for Natural Gas and 11.0” w.c. for LP Gas.

UVS27R & UVS27M Vent-Free

Certified to:

ANSI Z21.11.2a-2001

Unvented Heaters

High Elevations

Input ratings are shown in BTU per hour and are

certified without deration from elevations up to

4,500 feet (1,370m) above sea level.

Nuisance outages may occur at altitudes above

4,500 feet (1,370m) if dirt, dust, lint and/or cob-

webs are allowed to accumulate on burner and/

or ODS pilot. Monthly inspection and cleaning

is recommended for altitudes above 4,500 feet

(1,370m)

For elevations above 4,500 feet (1,370m), instal-

lations must be in accordance with the current

ANSI Z223.1/NFPA 54 and/or local codes having

jurisdiction.

WARNING: Improper installation, adjust-

ment, alteration, service or maintenance

can cause injury or property damage. Refer

to this manual for correct installation and

operational procedures. For assistance or

additional information consult a qualified

installer, service agency, or the gas supplier.

Odor During Operation

Neither natural gas nor propane gas give off an odor

when burned. The nature of a vent free combustion

system, however, is such that odors may occasional-

ly be produced during heater operation when impuri-

ties exist in the immediate area. Cleaning solutions,

paint, solvents, cigarette smoke, candles, adhesives,

new carpet or textiles, etc., all can create fumes.

These fumes may mix with combustion air and can

create odor. Such odors will disappear over time,

however the condition can be alleviated by opening a

window or otherwise providing additional ventilation

to the area.

Inlet Minimum 5.5” w.c. 11” w.c.

Inlet Maximum 14” w.c. 14” w.c.

Manifold Pressure 3.5” w.c. 10” w.c. (MP)

11” w.c. (RP)

Gas Inlet and Manifold Pressures

Natural LP (Propane)

This appliance may be installed in an af-

termarket* manufactured (mobile) home,

where not prohibited by state or local

codes.

This appliance is to be used only with the

type of gas specified on the rating plate

which is attached to the rear panel. This

appliance is not convertible for use with

other gases.

*Aftermarket: Completion of sale, not for purpose of resale, from

the manufacturer.

7

UVS27 Vent-Free Gas Heater

20007068

Provide For Adequate Ventilation

Any space within a home can be classified in the follow-

ing categories:

1) Unusually Tight Construction

2) Confined Space

3) Unconfined Space

First, determine which classification defines the intend-

ed space.

Unusually Tight Construction

You must provide additional fresh air if the space falls

into this classification. Unusually Tight Construction is

defined as construction wherein:

a. walls and ceilings exposed to the outside atmo-

sphere have a continuous water vapor retarder with a

rating of one perm or less with openings gasketed or

sealed and

b. weather stripping has been added on openable win-

dows and doors and

c. caulking or sealants are applied to areas such as

joints around window and door frames, between sole

plates and floors, between wall-ceiling joints, between

wall panels, at penetrations for plumbing, electrical, and

gas lines, and at other openings.

If your home meets all of the three criteria above, you

must provide supplemental fresh air for the appliance

from outside the home as detailed on page 7, B.

If your home does not meet the above criteria, follow

the procedure below.

Determine if You Have a Confined

or Unconfined Space

Use the following formula to determine if you have a

confined or unconfined space.

Space is defined as the room in which you will install

the heater plus any adjoining rooms with doorless pas-

sageways or ventilation grilles between the rooms.

The National Fuel Gas Code defines a confined space

as a space whose volume is less than 50 cubic feet per

1,000 BTU per hour, (4.8 m3 per kw), of the aggregate

input rating of all appliances installed in that space and

an unconfined space as a space whose volume is not

less than 50 cubic feet per 1,000 BTU per hour, (4.8 m3

per kw), of the aggregate input rating of all appliances

installed in that space. Rooms communicating directly

with the space in which the appliances are installed,

through openings not furnished with doors, are consid-

ered a part of the unconfined space.

1. Determine the volume of space, (length x width x

height). Include adjoining rooms connected by doorless

passageways or ventilating grilles.

Vent Free Features

The UVS27, Models 4030, 4036. 4040, 4046, 4085,

4090, is an unvented gas heating appliance tested and

listed to the ANSI standard Z21.11.2b-2002. This ap-

pliance is specifically configured to burn either Natural

Gas or Propane fuel, as indicated on the metal rating

plate attached to the rear shroud. The UVS27 is not fuel

convertible.

The stove is shipped fully assembled and ready for

installation.

The UVS27M is equipped with an SIT control for

manual use only.

The UVS27R is equipped with a Honeywell control

valve that allows thermostatic control, on/off switch or a

remote switch (not supplied).

Both models incorporate variable regulators that al-

low you to adjust burner heat output between HIGH,

(28,000 BTU), and LOW, (19,500 BTU). See the Opera-

tion Section for details.

The standing pilot incorporates an Oxygen Depletion

System (ODS/pilot) designed to shut off the appliance if

enough fresh air is not available.

This heater must have fresh air for proper opera-

tion. If not, poor fuel combustion could result. Read

the following instructions to insure proper fresh

air for this and other fuel-burning appliances in

your home.

Fresh Air Requirements for Combustion

and Ventilation

WARNING

Modern construction standards have resulted in homes

that are highly energy-efficient and that allow little heat

loss. Your home needs to breathe, however, and all

fuel-burning appliances within it require fresh air in

order to function properly and safely. Exhaust fans,

clothes dryers, fireplaces, and other fuel burning appli-

ances all use the air inside the building. If the available

fresh air is insufficient to meet the demands of these

appliances, problems can result.

The UVS27R/M Unvented heater has specific fresh air

requirements. You must determine that these fresh

air requirements will be met within the space where

the appliance will be installed. The following informa-

tion will help you insure that adequate fresh air is avail-

able for the heater to function properly.

8

UVS27 Vent-Free Gas Heater

20007068

Example:

A room that is 18’ x 12’ x 8’ has a volume of 1728

cubic feet, ( length x width x height). An adjoining open

kitchen that is 10’ x 12’ x 8’ has a volume of 960 cubic

feet. An adjoining open dining room is 12’ x 12’ x 8’ with

a volume of 1152 cubic feet. The total space volume is

3840 cubic feet. (1728 + 960 + 1152).

2. Divide the volume of space by 50 cubic feet. The

result is the maximum BTU/Hr that the space can sup-

port.

Example:

3840 divided by 50 = 76.8 or 76,800 BTU/Hr.

3. Add the BTU/Hr ratings of all fuel-burning appliances

installed in the same space, including the following:

Gas Water Heater Gas Furnace

Gas Fireplace Logs Unvented Gas Heater

Vented Gas Heater* Other Gas Appliances*

* Do not include Direct Vent appliances as these

utilize outside air for combustion and vent to the

outdoors.

Example:

Gas Range 55,000 BTU/Hr

Unvented Heater +33,000 BTU/Hr

Total 88,000 BTU/Hr

4. Compare the maximum BTU/Hr rating the space can

support with the total BTU/Hr used by the appliances.

Example:

76,800 BTU/Hr - max. the space can support

88,000 BTU/Hr - total used by appliances

In this example, the maximum BTU/Hr that the space

can support is less than the total used by the appli-

ances, the space is considered to be Confined space.

Additional air must be provided to meet the require-

ments of the Unvented heater.

WARNING

This heater shall not be installed in a confined

space or unusually tight construction unless

provisions are made for adequate combustion

and ventilation air.

WARNING

If the area in which the heater may be operated

is smaller than that defined as an unconfined

spaceof if the building is of unusually tight

constructins, provide adequate combustion and

ventilation air by one of the methods described

in the National Fuel Gas Code, ANSI Z223.1,

NFPA 54, Section 5.3 or applicable codes.

A confined space may be ventilated in two ways:

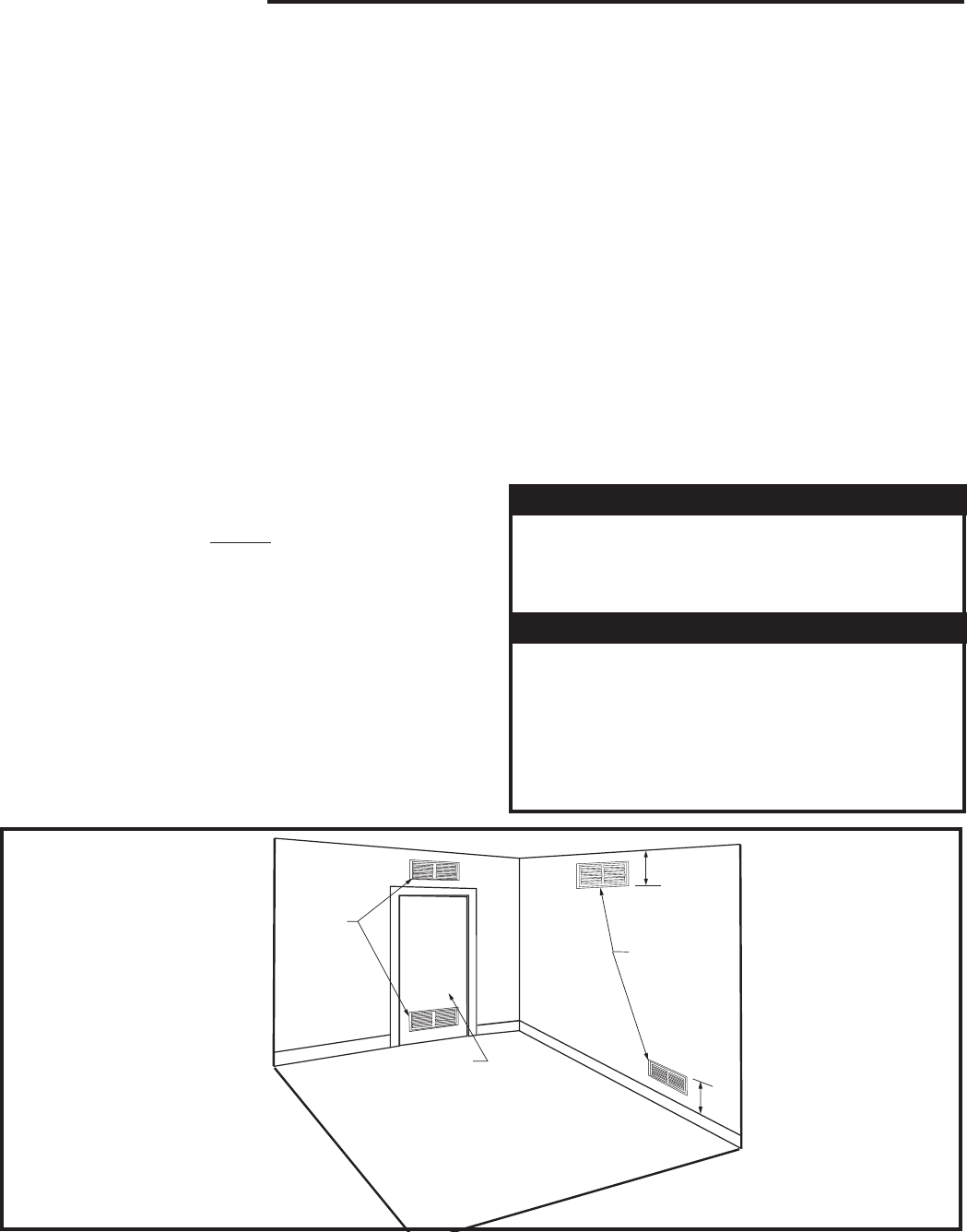

A) Open up or provide at least two ventilating grilles to

an adjoining unconfined space. Use any of the options

illustrated in Figure 3.

Each of the two grilles must provide an opening of

at least 50 square inches, with all opening dimensions

being at least 3”. One grille must be located within 12”

of the ceiling; the other within 12” of the floor. (If the

total exceeds 100,000 BTU/Hr, additional grilles will be

required.)

B) Vent the room directly to the outdoors. (Provide

one square inch of opening for each 4,000 BTU/hr.

If the total BTU/Hr used by the appliances is less than

the maximum BTU/Hr the space is able to support,

the room meets the Unconfined space criteria and no

further ventilation is required.

For further information on ventilation guidelines and

sizing specifications follow the National Fuel Gas Code

NFPA 54/ANSI Z223.1 Section 5.3.

vent370-2

Ventilation options

3/26/99 djt

12”

12”

Option 3 -

Vents to

Adjoining

Room

Option 1

Vents to Ad-

joining Room

Option 2

- Remove

Door to

Adjoining

Rooms

VO370-2

Fig. 3 Vent options to provide additional air.

9

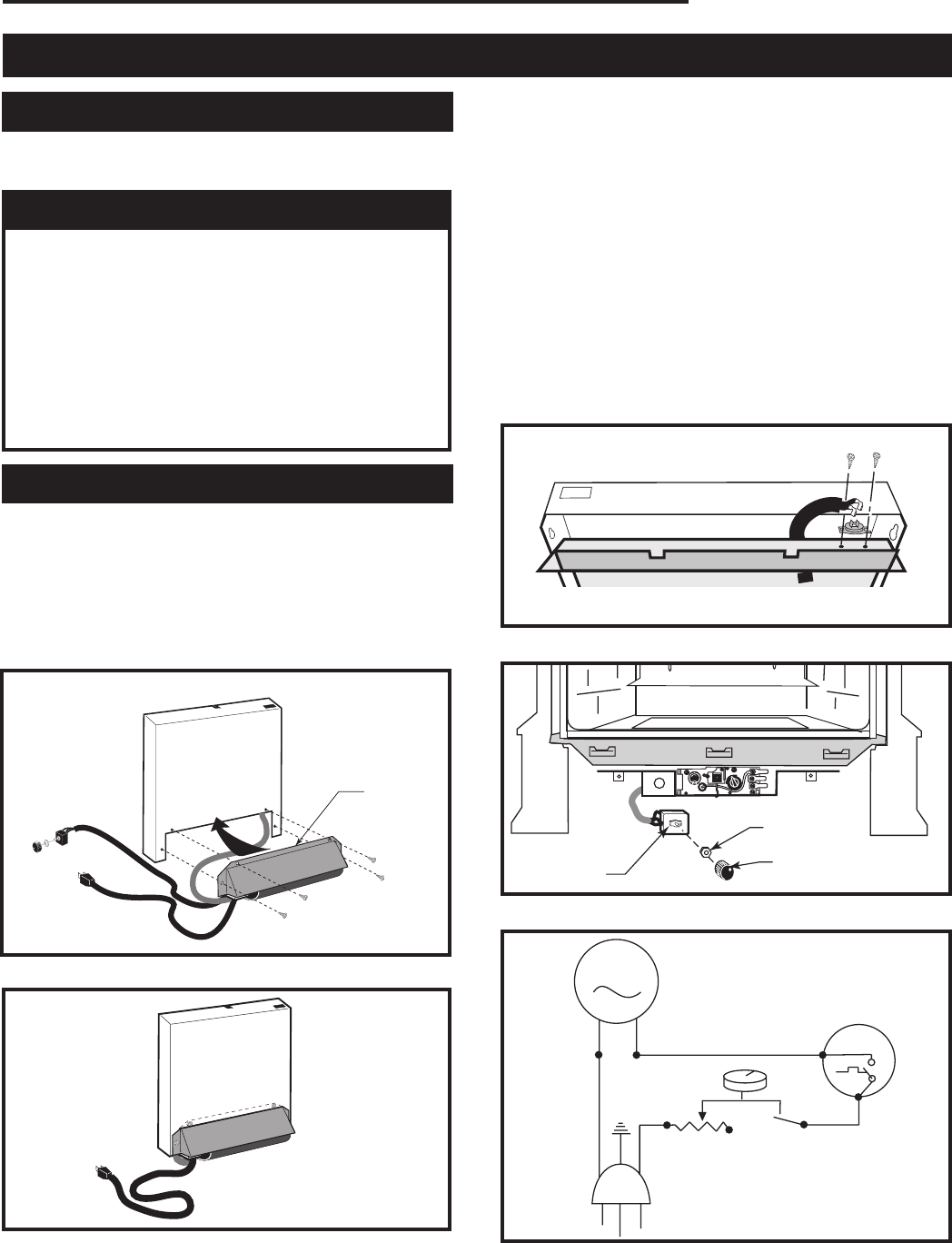

UVS27 Vent-Free Gas Heater

20007068

Assembly Procedures

CAUTION

Porcelain enamelled surfaces are fragile. Handle

porcelain enamelled castings tenderly. Familiarize

yourself with the assembly steps before you begin

and proceed with deliberation and care. If possible,

have assistance available.

Place enamelled castings on a soft, cushioned sur-

face until you are ready to assembly.

Avoid contact between the castings and other hard

surfaces or objects.

Unpack the Stove

The UVS27 is shipped fully assembled on its back.

Unpack the stove and carefully set it upright.

Install Optional Fan Kit

1. Remove shroud assembly by loosening two (2) hex

head bolts on lower inside of shroud. Lift shroud as-

sembly up and away from stove.

2. Attach the fan to the rear shroud by engaging the

upper flange of the fan skirt under the lower edge of

the shroud and secure the skirt with the four screws

and one star washer provided. (Figs. 4, 5)

FK104

Install cover plate

Rheostat

Retaining Nut

Control Knob FK104

Fig. 7 Attach rheostat to bracket.

MOTOR

SNAPSTAT

ON/OFF

RHEOSTAT

WHT

WHT

BLK

BLK

BLK

GRN

BLK

ST236

FK26 wiring diagram

12/99

ST236

Fig. 8 Fan wiring diagram.

ST345a

Fig. 5 Correct position of fan skirt installation.

3. Feed the snapstat wire lead up between the in-

ner and outer rear shroud panels and secure the

snapstat to the upper right side of the inner shroud.

(Fig. 6)

4. Secure the snapstat wire harness to the shroud

panel using the wire tie provided.

5. Replace shroud and tighten the two (2) hex head

nuts on lower inside of shroud.

6. Route the rheostat control switch and wire forward

under the stove. Use the wire tie to secure the fan

and rheostat wire harnesses together to the tubing

under the bottom heat shield.

7. Install the rheostat onto the bracket to the left of the

valve. (Fig. 7)

ST344a

pinnacle

install fan

2/4/00

Upper

Flange

ST344a

Fig. 4 Place upper flange behind lower edge of shroud.

ST345a

pinnacle

fan in place

12/18/03

ST346a

Fig. 6 Attach snapstat to inner shroud.

ST346a

install FK28

snapstat

12/18/03

10

UVS27 Vent-Free Gas Heater

20007068

Glass & Catalyst Installation

CAUTION: Air shutter on Natural Gas units

must be adjusted when installing glass and

catalyst for proper operation. LP units do

not use an air shutter.

1. Remove screen. (Fig. 12) Remove rear, left and right

log bracket assembly by unfastening the two screws

which hold the burner in place.

Thermostat Wire / Gauge Maximum Run

18 40 feet

20 25 feet

22 16 feet

Thermostat Connection (Optional)

Use only a thermostat rated for 500 - 750 millivolts.

Do not use low voltage (24V) thermostats.

Check the table below for the appropriate gauge ther-

mostat wire to use for the length of lead required in your

installation.

1. Install the wall thermostat in the desired location and

run the wires to the stove location. Terminate these

leads with 1/4” female connectors.

2. Connect the thermostat wires to the valve. (Fig. 11)

OFF ON

Thermostat

(Optional)



Thermopile

Black

Black

Millivolt

Gas Valve

St124b

on/off/switch

wiring

1/11/00 djt

TP/TH

TP

TH

On/Off Switch Wiring

Optional Thermostat/Remote Wiring

ST124b

ST124c

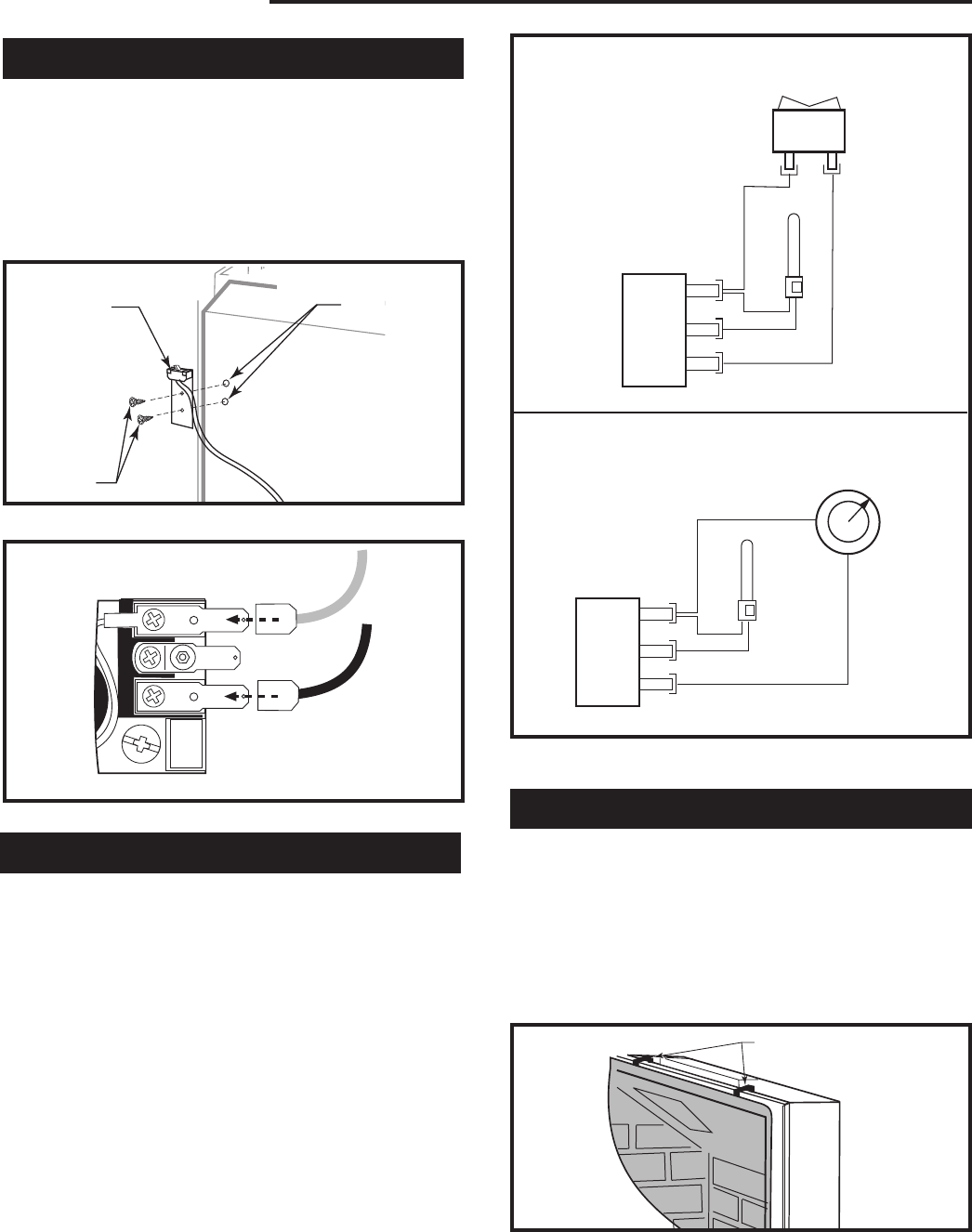

Fig. 11 ON/OFF switch and optional Thermostat/Remote

wiring.

Thermostat/Remote

(Optional)



Thermopile

Black

Black

Millivolt

Gas Valve

St124c

Thermostat

wiring

1/11/00 djt

TP/TH

TP

TH

ST713

UVS27

screen removal

1/02

ST713

Fig. 12 Remove screen.

Screen Hooks

Install ON/OFF Switch

The switch assembly parts are found in the parts bag.

1. Attach switch assembly to left rear side of stove

shroud using two screws and existing holes in

shroud. (Fig. 9)

2. Run wires down back of stove, under bottom of rear

shroud to valve.

3. Attach wires to valve terminals. (Fig. 10)

TP TH

TPTH

ST228

attach switch

wires to valve

12/99

ST228

Fig. 10 Attach switch wires to valve.

ST315

attach switch assy

1/31/00 djt

Existing

Holes

Switch As-

sembly

Screws ST315

Fig. 9 Attach switch assembly to rear shroud.

11

UVS27 Vent-Free Gas Heater

20007068

2. Hold the burner at the right hand side and lift to clear

the right burner leg. Then pull to the right to clear the

injectors on the left hand side.

3. Turn burner upside down and remove air shutter.

Turn air shutter upside down and replace on burner.

(Fig. 13)

4. Replace burner. Slide the burner in at an angle

with left side lower than the right side. Slide the left

side onto the injectors, making sure the burner leg

remains at a 90° angle to the base. (Fig. 14) Lower

the right hand side down in to place. Make sure

the burner is as far left as possible and the injector

shoulders are inside the burner.

ST667

RNVOD

air shutter

converting

from NG to Lp

6/4/01 djt

Air Shutter as Shipped from Factory

Bottom of Burner Pan

ST667

Fig. 13 Remove air shutter, turn upside down and replace.

Air Shutter Turned Upside Down

ST353a

injector orifice

replace

3/21/00 djt

90°

Left Burner Leg

Injector Orifices

ST353a

Fig. 14 Be sure injector orifices remain at 90° to the base.

6. Slide the catalyst through the grille opening. Set

catalyst on top of firebox. Secure with two (2) screws

and washers. (Fig. 15)

7. Shoulder bolts provided in catalyst kit must be in-

stalled on top of firebox. Use nut to secure in place.

(Fig. 15)

8. Install glass frame assembly by resting the bottom

edge of the frame on support brackets below the

front opening of the firebox. Rotate the top edge of

the assembly toward the firebox, and center it. Fas-

ten by “rotating” the cams over the top left and right

edges of the frame. (Fig. 16)

5. Replace rear, left and right log bracket assembly and

replace logs.

ST709

UVS pin

top install

1/29/02 djt

Shoulder

Bolts

ST709

Fig. 15 Install shoulder bolts and set catalytic combustor in

place.

Catalytic Combustor

NOTE: Shown with top

removed for clarification.

ST711

Fig. 16 Rotate cams into place to hold glass frame assembly

in place.

NOTE: Shown with top

removed for clarification.

ST709

UVS pin

top install

1/29/02 djt

12

UVS27 Vent-Free Gas Heater

20007068

Install Log Set

1. Remove the logs from their packaging, and inspect

each piece for damage. DO NOT INSTALL DAM-

AGED LOGS.

2. Install the rear log by placing it on the sheet metal

shelf at the back of the firebox. (Fig. 17) The log

should touch the back wall of the firebox and be

centered.

3. Install the right log by placing it on the sheet metal

bracket behind the grate with the right end of the log,

“the thicker end”, touching the grate and the right

side the firebox. Swing the left end of the log “paint-

ed end”, backward until it comes in contact with the

branch on the rear log. Set the log down over the

bent tab on the right. When the log is in place it rests

on the tab mentioned earlier and the tip of it comes

in contact with the branch on the rear log. (Fig. 17)

This appliance should only be connected

by a qualified gas technician. Test to

confirm manifold pressures as specified

below.

The UVS27 and its individual shutoff valve must

be disconnected from the gas supply piping dur-

ing any pressure testing of that system at test

pressures in excess of 1/2 psig (3.5 kPa).

The UVS27 must be isolated from the gas supply

piping system by closing its individual manual

shutoff valve during any pressure testing of the

gas supply piping system at test pressure equal

to or less than 1/2 psig.

There must be a gas shutoff between the stove

and the supply.

In order to connect Natural Gas, use a fitting

with 1/2” NPT on the valve side and 1/2” natural

gas supply line with an input of 28,000 BTUs at a

manifold pressure of 3.5” between minimum inlet

supply of 5.5” w.c. and maximum of 14.0” w.c.

In order to connect Propane, use a fitting with 1/2”

NPT on the valve side and 1/2” propane gas sup-

ply line with an input of 28,000 BTUs at a manifold

pressure of 11.0” between a minimum inlet sup-

ply of 11.0” w.c. and maximum of 14.0” w.c.

CAUTION

Connect the Gas Supply Line

Check the Rating Plate attached by a steel cable to the

firebox, to confirm that you have the appropriate firebox

for the type of fuel to be used.

The appliance should have a main gas valve provided

in an accessible location for turning on or shutting off

the gas to the main burner.

This appliance should only be connected by a

qualified gas technician. Test to confirm manifold

pressures as specified below.

The UVS27 and its individual shutoff valve must be

disconnected from the gas supply piping during

any pressure testing of that system at test pres-

sures in excess of 1/2 psig (3.5 kPa).

The UVS27 must be isolated from the gas supply

piping system by closing its individual manual

shutoff valve during any pressure testing of the gas

supply piping system at test pressure equal to or

less than 1/2 psig.

There must be a gas shutoff between the stove and

the supply.

In order to connect Natural Gas, use a fitting with

3/8” NPT nipple on the valve side and 1/2” natural

gas supply line with an input of 28,000 BTUs at a

manifold pressure of 3.5” and minimum inlet supply

for adjustment of 5.5” w.c.

In order to connect Propane, use a fitting with 3/8”

NPT nipple on the valve side and 1/2” propane gas

supply line with an input of 28,000 BTUs at a mani-

fold pressure of 11.0” and minimum inlet supply for

adjustment of 11.0” w.c.

Gas connection should be made in accordance with

current National Fuel Gas Code, ANSI Z223.1/NFPA

54. Since some municipalities have additional local

codes, be sure to consult you local authority.

Connect the gas supply and test for leaks. Use a 50/50

solution of liquid soap and water to test for leaks at gas

fittings and joints. NEVER test with an open flame.

Light the pilot according to the directions on Psage 17,

before going to the next step.

13

UVS27 Vent-Free Gas Heater

20007068

LG224

UVS27

logs in place

1/30/02 djt

LG224

Fig. 18 UVS27 logs in place.

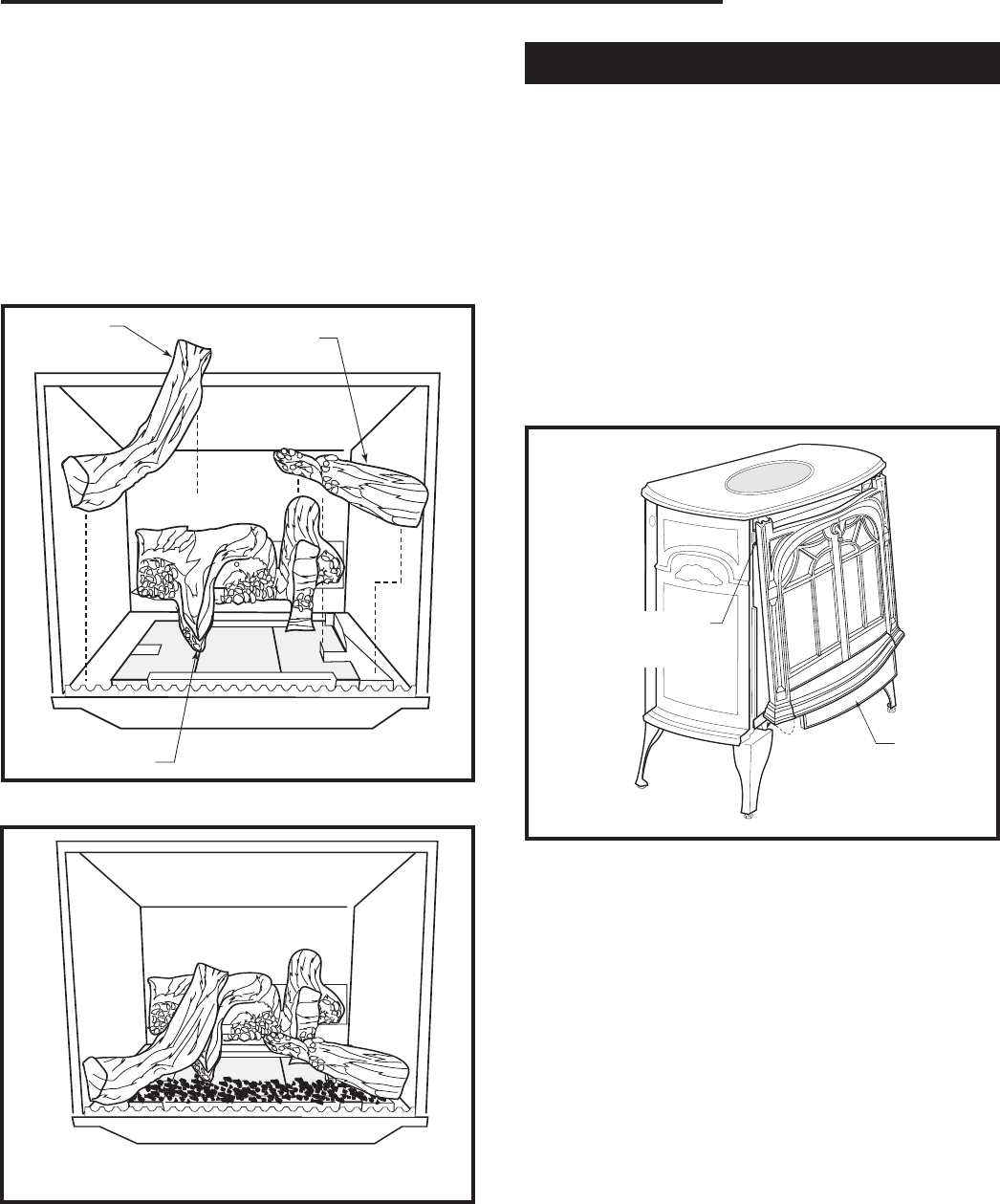

LG223

UVS27

log placement

1/30/02 djt

LG223

Fig. 17 Install rear, left and right logs.

Left Log Right Log

Rear Log

4. Install the left log by placing it on the sheet metal

bracket behind the grate with the left end of the log,

“the thicker end” touching the grate and the left end

of the firebox. Lay the log into the recessed area

on the left branch of the rear log. When the log is

in place, it will rest on the left branch of the rear log

toward the left side of the branch.

5. Loosely sprinkle the lava rocks directly on top of the

burner just behind decorative grate. (Fig. 18) Do not

place lava rocks toward back of burner. The lava

rock is shipped inside the bag assembly.

Complete the Installation

1. Install the screen frame by sliding the hooks over the

top front edge of the firebox and resting the bottom

on the support brackets. If the catalyst has been in-

stalled, place the glass front on the stove by resting

the bottom edge of the frame on support brackets

below the front opening of the firebox. Rotate the top

edge of the assembly toward the firebox, and center

it. Rotate the right and left cams towards the back of

the firebox to secure glass frame in place.

2. Grasp the front plate by the window bars and lift

into position engaging the two steel tabs behind the

adjacent bosses in the side plates. (Fig. 19) Seat the

front against the sides so the tabs at the bottom lip

engage with the notches in the stove legs.

On the Pinnacle, the front tabs will engage behind the

notched cutouts in the base of either side plate. (Fig.

20)

When properly installed, the bottom of the front plate

cannot be pulled away form the sides without lifting it.

NOTE: Be sure the control door can swing out. It

should close against the steel tab stop.

If installing the optional warming shelf, you may find it

easiest to attach it to the top plate before placing the

top in position on the stove. Follow the instructions sup-

plied with the kit.

ST112a

front plate install

fully assembled

1/04

Engage steel tabs

behind the cast

iron bosses

Control Door

Bottom Tabs engage

notch in the leg.

ST112b

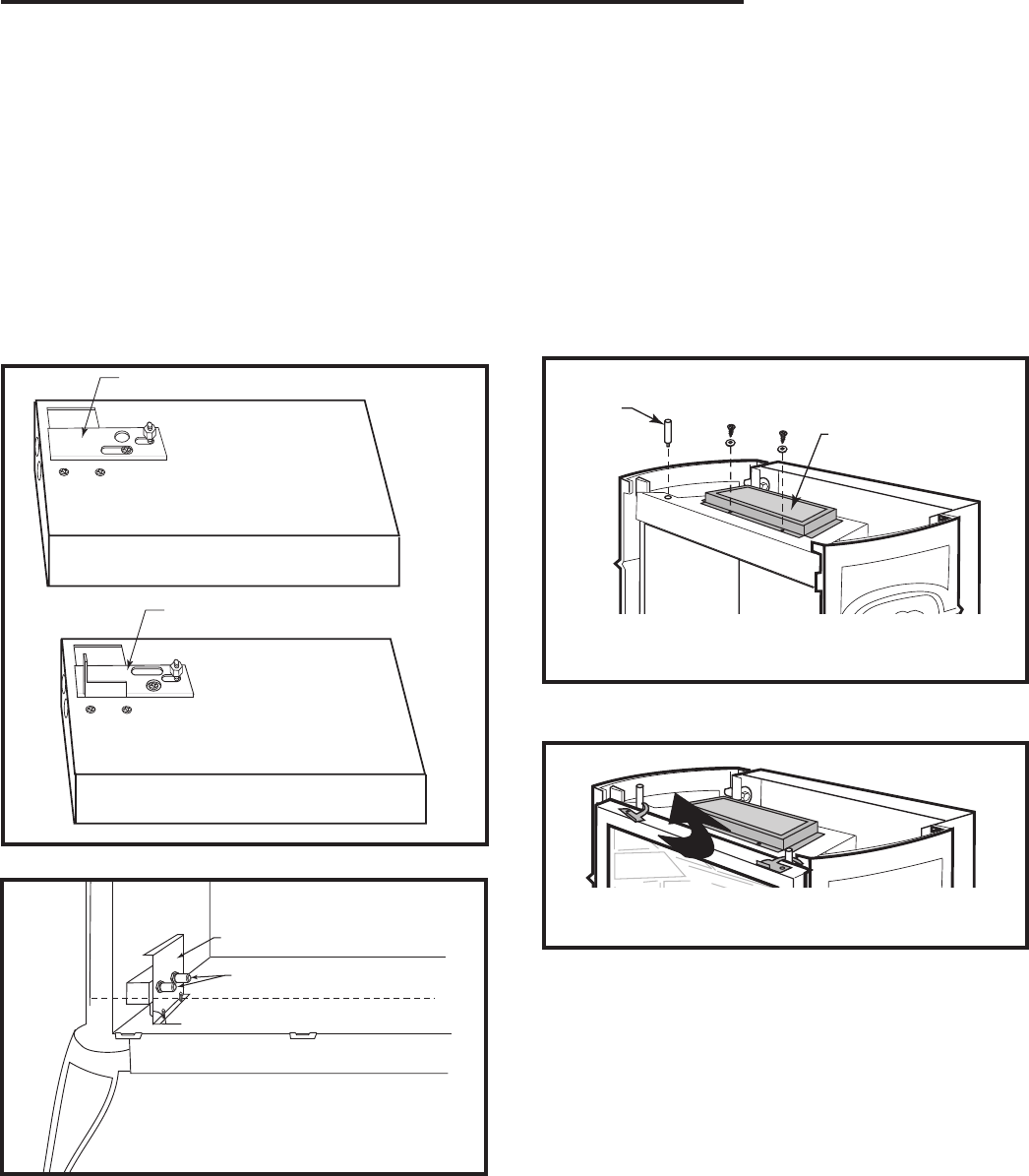

Fig. 19 Install the Front Plate. Your Front may look different

from that shown.

14

UVS27 Vent-Free Gas Heater

20007068

3. Lay the screen and top grille in place.

This completes assembly of the Stardance Freestand-

ing and Pinnacle Hearthmount shells.

ST113a

Hearthmount assy

4/20/99 djt

ST113a

Bottom Tabs engage notch

in the base.

Fig. 20 Engage the Hearthmount Front with the notch in the

bse of each side plate.

ST114a

top install

12/18/03 djt

Grille

Levelling

Screws

ST114b

Fig. 21 Install the Top Plate and Grille.

Screen

15

UVS27 Vent-Free Gas Heater

20007068

Operation

Your First Fire

Read these instructions carefully and familiarize

yourself with the burner controls shown on Page 17.

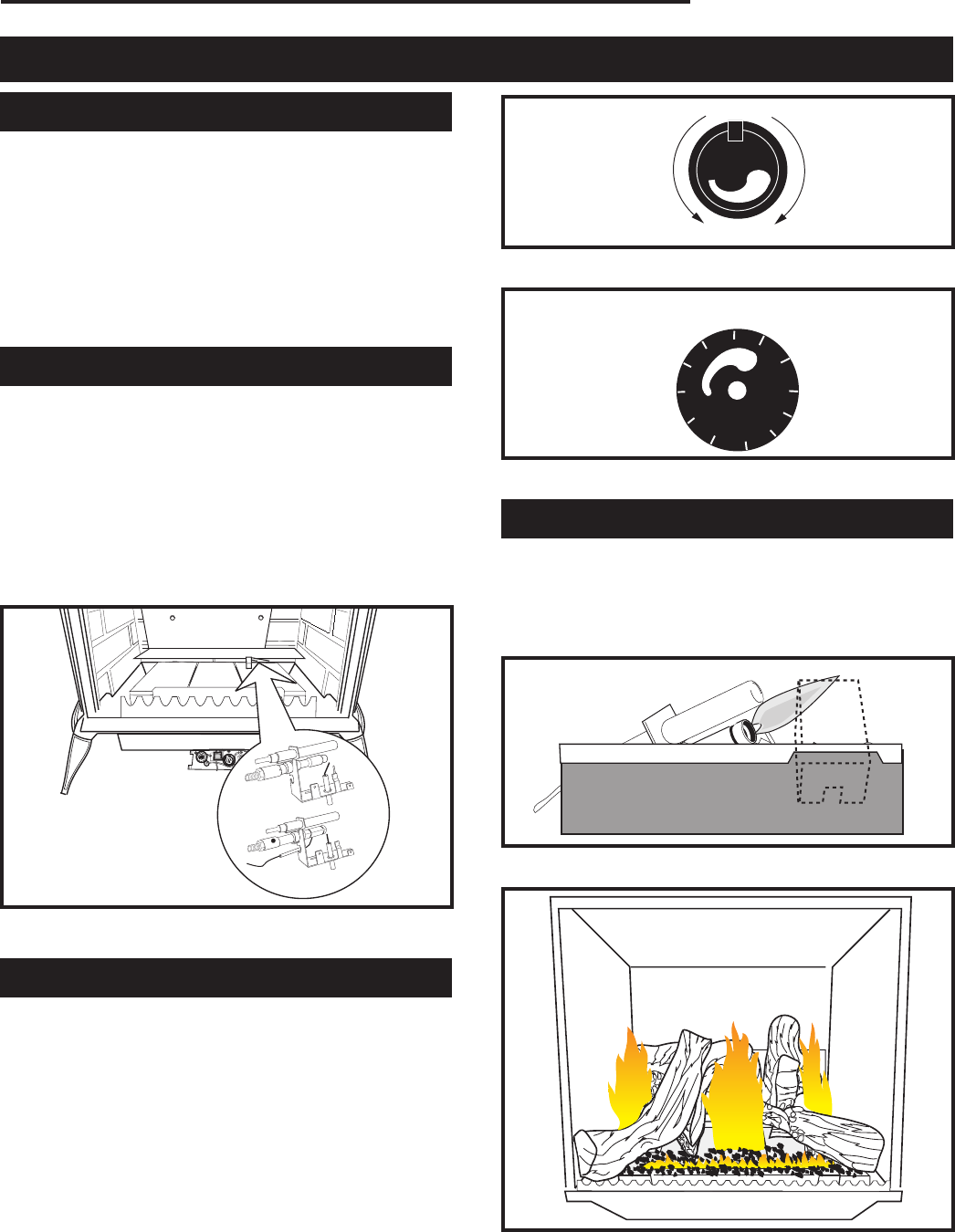

Locate the pilot assembly, Figure 22. Follow the lighting

instructions on Page 16 exactly.

During the first fire, it is not unusual to smell some

odor associated with new logs, paint and metal being

heated. Odors should dissipate within the first eight to

ten hours, however, you can open a window to provide

fresh air to alleviate the condition.

Pilot and Burner Inspection

Each time you light your heater check that the pilot

flame and burner flame patterns are as shown in Fig-

ures 25 and 26. If flame patterns are incorrect, turn the

heater off. Contact your dealer or a qualified gas techni-

cian for assistance. Do not operate the heater until the

pilot flame is correct.

Follow regular maintenance procedures as described

on Page 19.

ST673

RUVSOD

Pilot assembly location

7/249/01 djt

Natural

Pilot

LP Pilot

ST673

Fig. 22 Pilot assembly location.

Flame & Temperature Adjustment

RN/RP Models

For units equipped with ‘HI/LO’ valves the flame adjust-

ment is accomplished by rotating the ‘HI/LO’ adjustment

knob located near the center of the gas control valve.

(Figs. 23, 24)

LO

HI

Turn

counterclockwise

to decrease

flame height

Turn clockwise

to increase

flame height

HV102

Honeywell hi/lo knob

4/5/99 djt

HV102

Fig. 23 Flame adjustment knob for Honeywell Valve.

HI

OFF

PILOT

LO

HV117

Eurosit control

knob

2/19/02 djt

Turn

counterclockwise

to increase

flame height

Turn clockwise

to decrease

flame height

SIT 630

HV117

Fig. 24 Flame adjustment knob for Eurosit Valve.

Flame Characteristics

It is important to periodically perform a visual check of

the pilot and burner flames. Compare them to the picto-

rial illustrated below. (Figs. 25, 26) If the flame patterns

appear abnormal contact a qualified service provider for

service and adjustment.

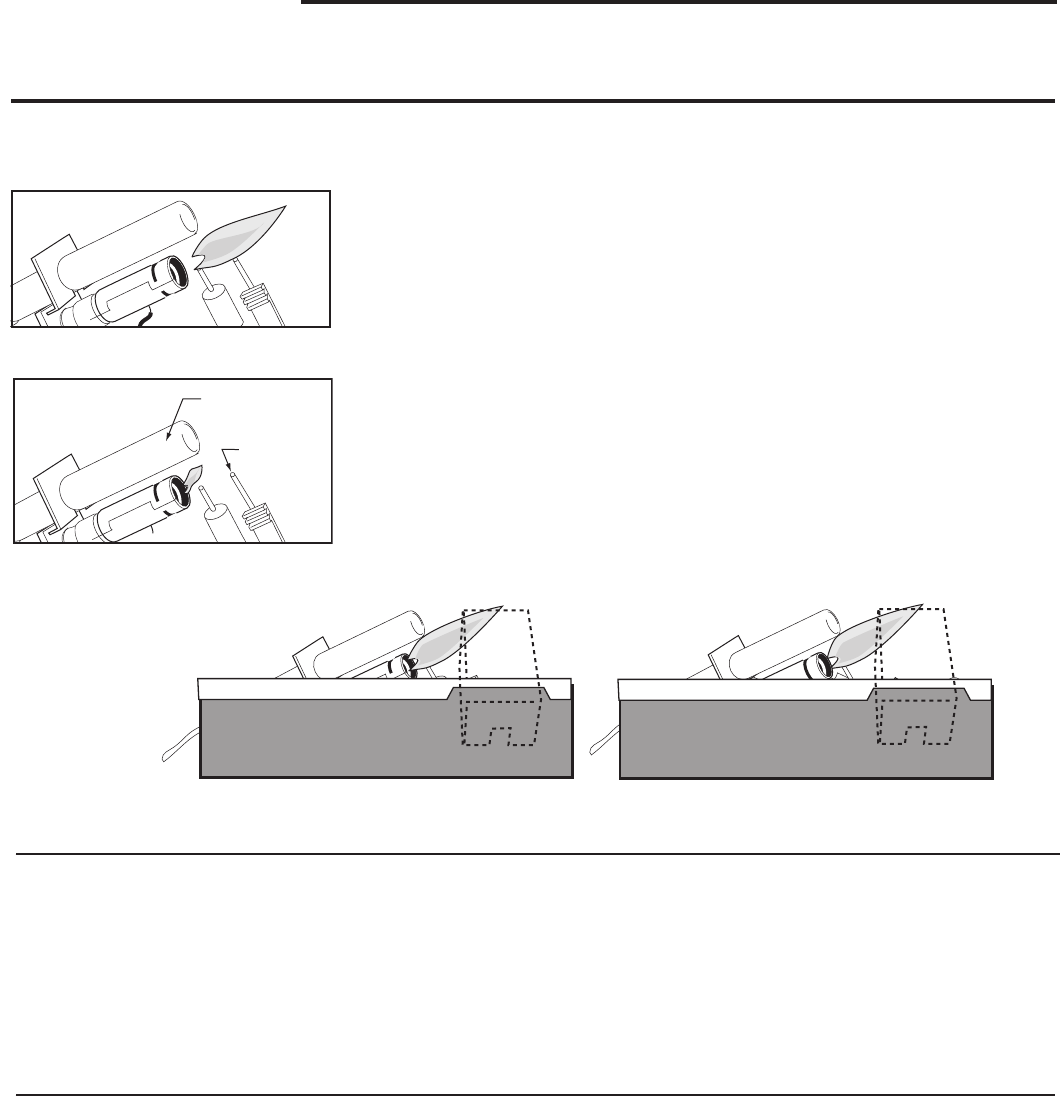

ST198

Fig. 25 Correct pilot flame appearance.

ST198

pilot flame detail

11/99

LG224

UVS27

logs in place

1/30/02 djt

LG225

Fig. 26 Correct burner flame pattern.

16

UVS27 Vent-Free Gas Heater

20007068

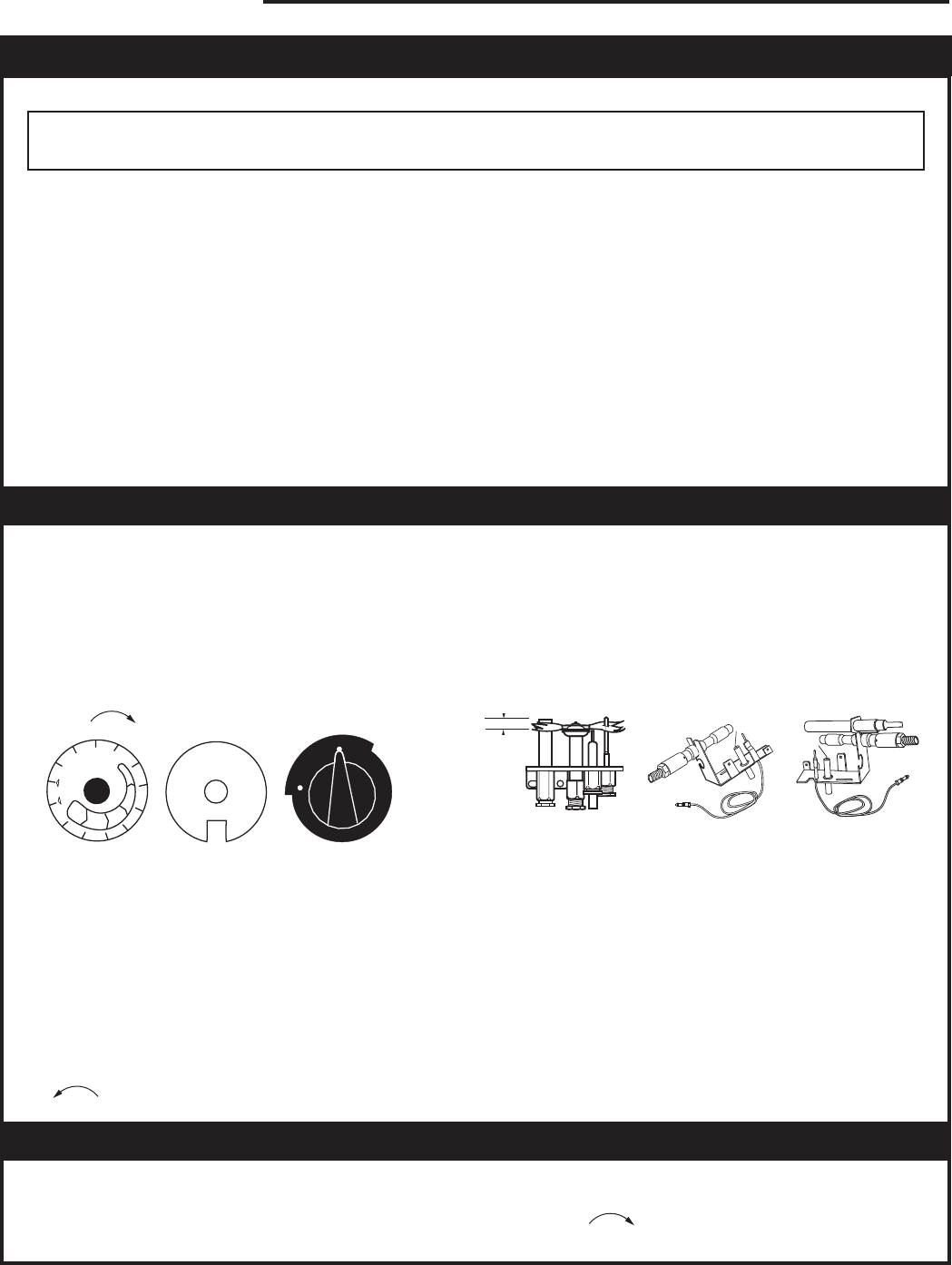

3. Open control access panel.

4. Push in gas control knob slightly and turn clock-

wise to “OFF”. Do not force.

5. Close control access panel.

1. STOP! Read the safety information above.

2. Turn off all electrical power to the fireplace.

3. For MN/MP/TN/TP appliances ONLY, go on to

Step 4. For RN/RP appliances turn the On/Off

switch to “OFF” position or set thermostat to low-

est level.

4. Open control access panel.

5. Push in gas control knob slightly and turn clock-

wise to “OFF”.

10. Push the control knob all the way in and hold.

Immediately light the pilot by repeatedly depress-

ing the piezo spark ignitor until a flame appears.

Continue to hold the control knob in for about one

(1) minute after the pilot is lit. Release knob and it

will pop back up. Pilot should remain lit. If it goes

out, repeat steps 5 through 8.

FOR YOUR SAFETY READ BEFORE LIGHTING

• If you cannot reach your gas supplier, call the

Fire Department

C. Use only your hand to push in or turn the gas

control knob. Never use tools. If the knob will not

push in or turn by hand, do not try to repair it, call a

qualified service technician. Applying force or any

attempted repair may result in a fire or explosion.

D. Do not use this fireplace if any part has been under

water. Immediately call a qualified service techni-

cian to inspect the heater and to replace any part of

the control system and any gas control which has

been under water.

A. This heater has a pilot which must be lit manu-

ally. When lighting the pilot follow these

instructions exactly.

B. BEFORE LIGHTING smell all around the heater

area for gas. Be sure to smell next to the floor

because some gas is heavier than air and will

settle on the floor.

WHAT TO DO IF YOU SMELL GAS

• Do not try to light any fireplace

• Do not touch any electric switch

• Do not use any phone in your building

• Immediately call your gas supplier from a neigh-

bor’s phone. Follow the gas supplier’s instruc-

tions.

To Turn Off Gas To Heater

Lighting and Operating Instructions

1. Turn the On/Off switch to Off position or set the

thermostat to lowest setting. (R Models only)

2. Turn off all electric power to the fireplace if serv-

ice is to be performed.

Lighting Instructions

6. Wait five (5) minutes to clear out any gas. Then

smell for gas, including near the floor. If you

smell gas, STOP! Follow “B” in the safety infor-

mation above. If you do not smell gas, go to the

next step.

7. Remove glass door before lighting pilot. (See

Glass Frame Removal section).

8. Visibly locate pilot by the main burner.

9. Turn knob on gas control counterclockwise

to “PILOT”.

• If knob does not pop up when released, stop

and immediately call your service technician or

gas supplier.

• If after several tries, the pilot will not stay lit,

turn the gas control knob to “OFF” and call your

service technician or gas supplier.

11. Replace glass door.

12. Turn gas control knob to “ON” position.

13. For RN/RP appliances turn the On/Off switch to

“ON” position or set thermostat to desired setting.

14. Turn on all electrical power to the fireplace.

WARNING:If you do not follow these instructions exactly, a fire or explosion

may result causing property damage, personal injury or loss of life.

PILOT

ON

OFF

ON

P

I

L

O

T

O

F

F

O

F

F

FP1067

lighting instruction

knobs

3/9/01 djt

5

4

3

2

1

O

F

F

P

i

l

o

t

Euro SIT SIT NOVA Honeywell

3/8" - 1/2"

FP1068

Lighting instructions

Pilots

17

UVS27 Vent-Free Gas Heater

20007068

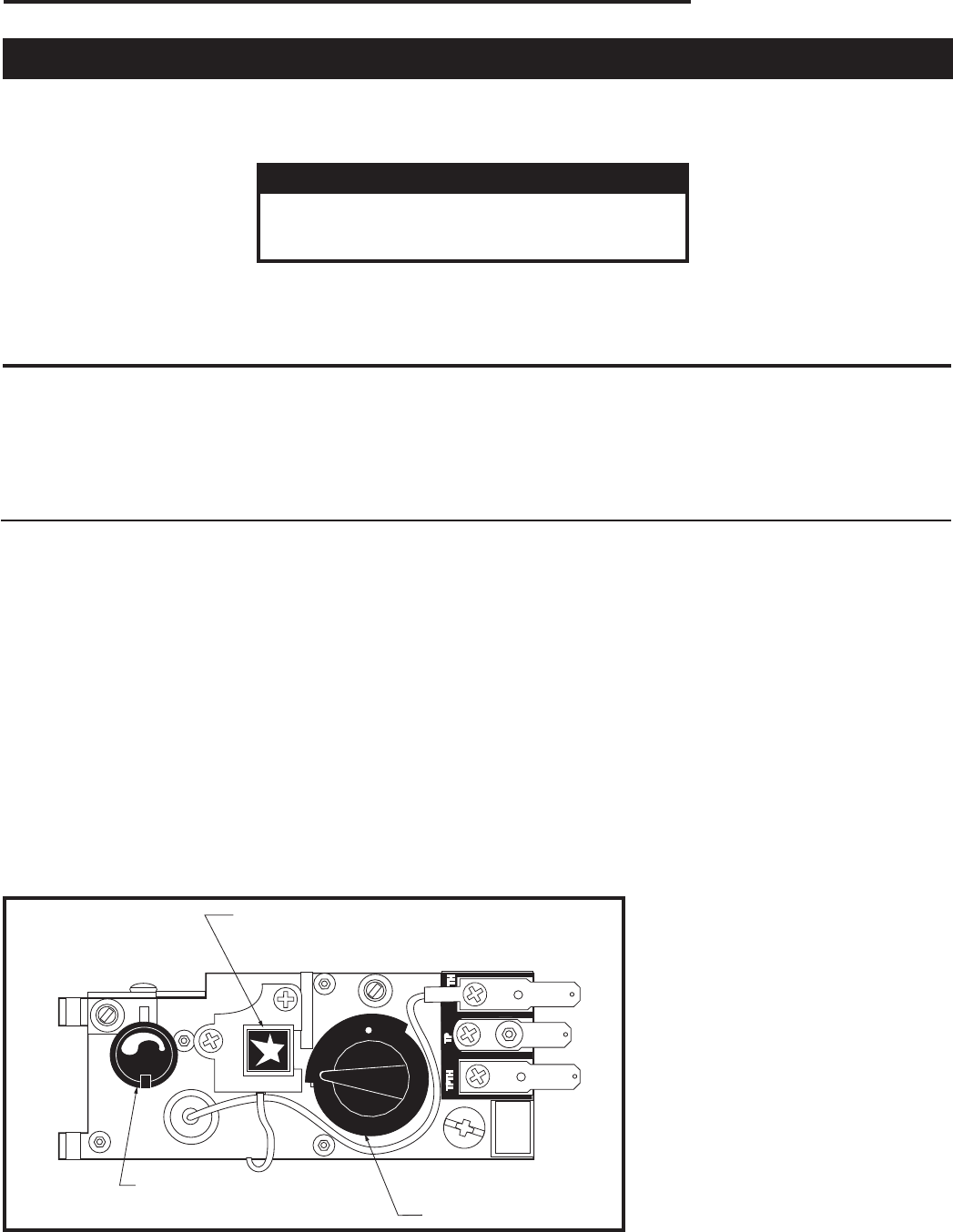

Troubleshooting

Follow these procedures in the order presented.

WARNING

TURN OFF HEATER AND ALLOW TO COOL

COMPLETELY BEFORE SERVICING.

CONDITION POSSIBLE CAUSE SOLUTION

No spark at pilot when Ignitor is

operated.

1. Ignition Electrode is disconnected

from ignition wire, broken or incor-

rectly positioned.

2. Ignitor wire is broken.

3. Bad Piezo Ignitor.

1. Inspect and re-connect, replace

or repair as necessary.

2. Replace wire.

3. Replace Piezo Ignitor.

The Ignitor Electrode sparks,

but Pilot does not light.

1. Gas supply is turned off or supply

line shut-off valve is closed.

2. Control Knob is not in PILOT posi-

tion.

3. Control Knob not pressed in while

in PILOT position.

4. Air present in gas lines.

5. Inlet supply pressure is not within

correct settings.

6. Other conditions that should be

identified only by a qualified gas

technician.

1. Turn on gas supply or open sup-

ply line shut-off valve.

2. Turn Control Knob to PILOT.

3. Press Control Knob in while in

the PILOT position.

4. Continue holding in Control Knob

and repeat ignition procedure

until air is bled from the lines.

5. Call local gas supplier. Adjust

inlet supply pressure to specifica-

tion: NG; 5.5” w.c.-14.0”w.c. LP;

11.0” w.c.-14.0”w.c.

6. Call qualified gas technician.

PILOT

ON

OFF

PILOT

ADJ

L

O

H

I

HV104

Honeywell Valve

with pilot 2

7/9/99 djt

Piezo Ignitor

Regulator

Pilot / Main Control

HV104

Fig. 27 Honeywell valve assembly.

18

UVS27 Vent-Free Gas Heater

20007068

Troubleshooting cont’d.

CONDITION POSSIBLE CAUSE SOLUTION

Pilot lights but flame goes out

when Control Knob is released.

1. Control Knob not fully depressed

or held in long enough.

2. Gas supply line shut-off valve is

not fully open.

3. Thermocouple connection is

loose at the Control Valve.

4. Pilot flame does not touch the

Thermocouple.

This can be caused by:

A) Incorrect gas pressure, and/or

B) other conditions that should

be identified only by a qualified

service technician.

5. Thermocouple is damaged.

6. Control Valve is damaged.

1. Depress Control Knob fully and

hold in for a full 30 seconds.

2. Fully open gas supply line shut-

off valve.

3. Inspect and tighten securely.

4. A) Call local gas supplier. Adjust

inlet supply pressure to specifica-

tion: NG; 5.5” w.c.-14.0”w.c. LP;

11.0” w.c.-14.0”w.c.

B)Call local gas service techni-

cian.

5. Call local gas service technician.

6. Call local gas service technician.

Correct LP Pilot Flame. Correct NG Pilot Flame.

Pilot lights but Main Burner does

not.

1. Gas supply line shut-off valve is

not fully open.

2. Foreign material is blocking

Burner ports.

3. Main Burner orifice is clogged.

4. Thermostat or remote switch not

activated on JUVS.

5. Bad Thermopile.

1. Fully open gas supply line shut-

off valve.

2. Insptect and clear debris away

from Burner ports.

3. Call local gas service technician.

4. Set thermostat to higher tem-

perature or check remote switch.

5. Call local gas service technician.

Main Burner shuts off and Pilot

flame goes out while in operation.

1. Insufficient fresh air.

2. Incorrect inlet supply pressure.

1. Determine that adequate ventila-

tion exists to provide sufficient

fresh air. Open a window or pro-

vide additional ventilation. (See

Fresh Air Requirements, Pages

6-7)

2. Call local gas supplier. Adjust

inlet supply pressure to specifica-

tion: NG; 5.5” w.c.-14.0”w.c. LP;

11.0” w.c.-14.0”w.c.

ST121a

JUV

Pilot flame wrong 2

9/25/00 djt

Pilot flame is weak - does not touch

Thermocouple.

Pilot flame is lifting.

Thermopile

Thermo-

couple

ST121a

ST674

RUVSOD

Pilot flame 2

7/24/01 djt

19

UVS27 Vent-Free Gas Heater

20007068

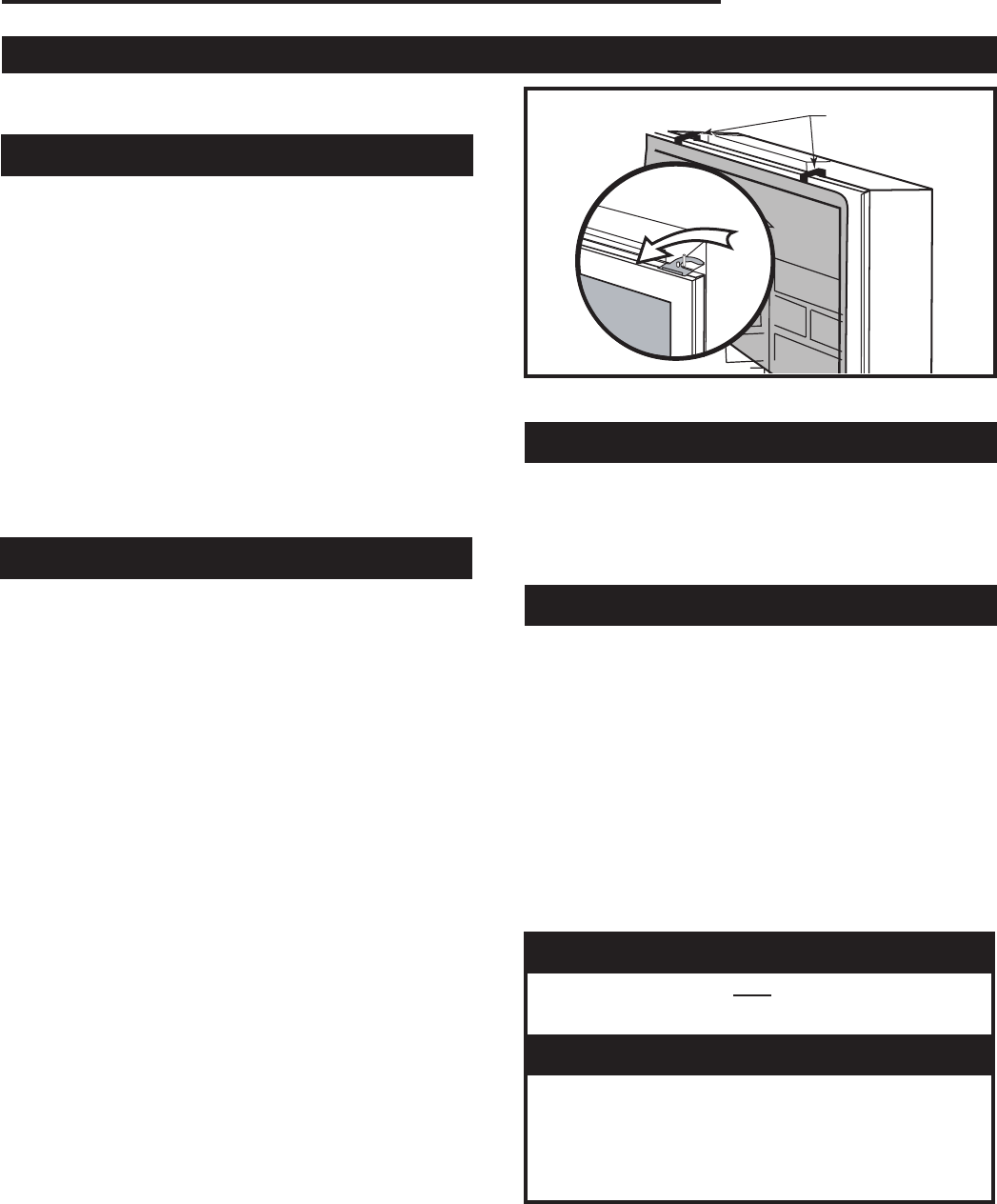

The following procedures will help ensure that your

heater continues to perform safely and efficiently.

Firebox Cleaning and Inspection

Cleanliness is critical to correct operation of the

heater. The log set, burner, valve controls and air

circulation areas must all be kept free of dust and

unobstructed by debris. Inspect these areas before

each use and clean whenever accumulation is evi-

dent. Follow the simple procedure outlined below.

Frequent cleaning may be necessary in living environ-

ments subject to excessive carpet lint or pet hair. For

example, if you live with a dog that sheds continuously,

you will need to inspect the burner area frequently and

clean it as often as the accumulation requires. In ex-

treme conditions, it may be necessary to clean the

burner and log set monthly or bi-weekly.

This appliance should be inspected and thoroughly

cleaned annually by a qualified gas technician.

Cleaning Procedure

1. Turn the burner OFF and let the heater cool com-

pletely before cleaning.

2. Lift the Front plate up and then swing the bottom out

to disengage it from the heater shell. (Page 13, Fig.

19)

3. Remove the screen by lifting up and away from the

unit. Or, if so equipped, remove the glass panel by

rotating the two cams toward the front of the firebox.

Lift the panel up and off of the firebox frame. (Fig.

28)

4. Carefully inspect the log set for damage. Contact

your local dealer if any damage is evident. DO NOT

OPERATE THE HEATER WITH A DAMAGED OR

LOOSE LOG SET.

Use a soft-bristled brush vacuum cleaner attachment

to remove dust or debris from the log set, pilot and

burner. Use care as the log set is fragile.

5. Inspect the catalytic combustor at the top of the

firebox. Replace the combustor if any damage or

deterioration is evident.

6. Replace the screen or glass panel and the front

plate. DO NOT OPERATE THE HEATER WITH

THE SCREEN / GLASS PANEL OR FRONT PLATE

REMOVED.

Maintenance

Glass Replacement

If so equipped, do not operate this appliance with the

glass panel cracked, broken, or removed. Replace

damaged glass only with an approved CFM Specialty

Home Products ceramic glass panel. Follow the Clean-

ing Procedure instructions regarding parts removal.

Care of Cast Iron

An occasional dusting with a dry rag will help keep the

painted surfaces looking new. Use high-temperature

stove paints, available through your local dealer, to

touch-up areas as needed. Clean areas to be painted

with a wire brush and be sure to cover the log set,

burner and valve assembly. Apply the paint sparingly;

two light coats of paint will give better results than a

single heavy coat.

Porcelain enamel surfaces should be cleaned

with a soft, damp cloth. Do not use abrasive cleaning

agents. If necessary, use only a cleaning agent formu-

lated specifically for use on porcelain enamel surfaces.

ST712

UVS27

screen removal

1/02

Fig. 28 Remove the screen or glass panel.

Screen Hooks

Glass Latch

ST712

WARNING

Turn the burner Pilot OFF before applying paint.

NEVER paint pilot or around pilot area.

Dust and debris accumulation can result in poor

performance. Inspect the Valve compartment,

burner parts and log set frequently and Clean

these parts monthly or as often as accumula-

tion warrants.

WARNING

20

UVS27 Vent-Free Gas Heater

20007068

Catalytic Combustor

The combustor should be cleaned annually to ensure

optimal performance. Follow the procedure below.

Remove the Combustor Module

1. Be sure the heater is COLD.

2. Remove the screws and washers holding the com-

bustor in place. Lift combustor up and out.

Clean the Combustor Module

1. Clean the outer surface of the filter with the brush

attachment of your vacuum cleaner to remove loose

dirt.

2. Submerge the filter in a mild soapy water solution.

Rinse thoroughly with distilled water.

3. Replace in heater when dry.

Replace the Combustor Module

1. Replace combustor on top of firebox.

2. Secure with screws and washers removed earlier.

Refer to Page 11, Figure 15.

21

UVS27 Vent-Free Gas Heater

20007068

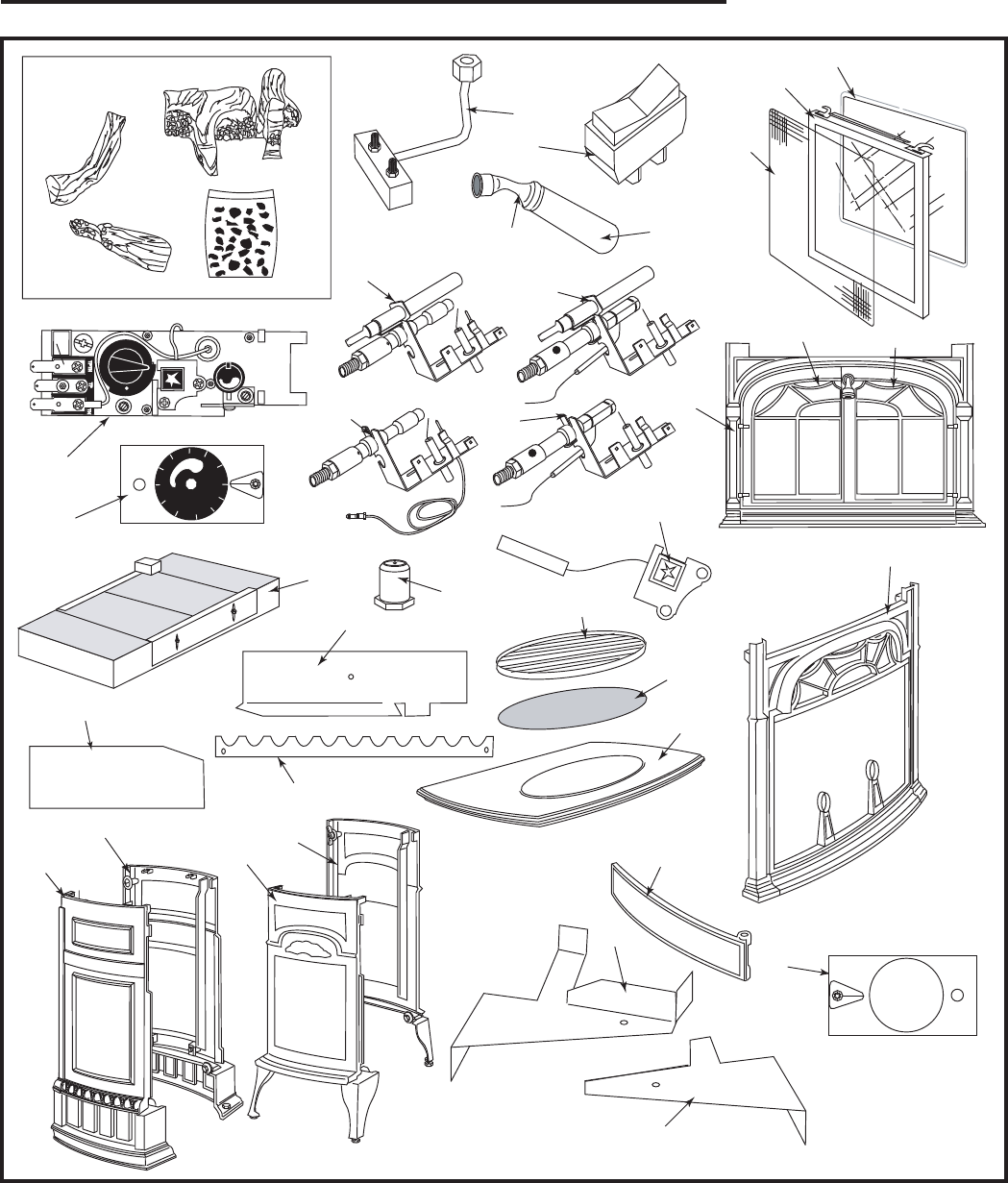

PILOT

ON

OFF

PILOT

ADJ

L

O

H

I

1a

1b

1c

2a,b

6

8

5

21

19

20

4

11

12

13

7

15

9a,b

18

22

3

16a,b,c,d

10a

10b

14a,b

17

1d

HI

OFF

PILOT

LO

9c,d

10c 10d

23

24

25

26

27

29

30

31

32

7068

UVS27

fa parts

CFM Specialty Home Products reserves the right to make changes in design, materials, specifications, prices and discontinue colors and products

at any time, without notice.

5004

UVS27R, UVS27M Vent Free Gas Heaters

Models 4030 - 4036, 4040 - 4046, 4085 - 4087, 4090 - 4092

22

UVS27 Vent-Free Gas Heater

20007068

UVS27R, UVS27M Vent Free Gas Heaters

Models 4030 - 4036, 4040 - 4046, 4085 - 4087, 4090 - 4092 (continued)

Ref. Description UVS27

1. Gas Log Assembly - UVS27 20005005

1a. Log #V40 Rear UVS27 20005006

1b. Log #V42 Left UVS27 20005008

1c. Log #V41 Right UVS27 20005007

1d. Lava Rocks Burner 57897

2a. Manifold Assy. - UVS27R 20003739

2b. Manifold Assy. - UVS27M 20004935

3. Damper Steel Handle/Screw (Stardance Operable Door Only) 5004265

4. Handle Package, Ceramic w/Screw (Stardance Operable Door Only) 0004342

5. Trim ON/OFF Switch 53606

6. Screen UVS27 20005009

7. Glass Frame Assembly - SDV30 30000127

8. Glass w/Gasket (Comes with UVGODCFK) 20005018

9a. Valve NG Honeywell - VS84212003 10000235

9b. Valve LP Honeywell - VS84212011 10000242

9c. Valve MN Eurosit 0.630.564 20001354

9d. Valve MP Eurosit 0.630.563 20001355

10a. Oxygenerator, NG OP #8204 55464

10b. Oxygenerator, LP OP #8404 55465

10c. Oxygenerator, NG OP #8202 20004435

10d. Pilot ODS TP OP #8402 20001357

11. Front, Stardance OP DR (Stardance Only) Refer to Enamel Parts Chart Page 24

12. Door, Left - Stardance Refer to Enamel Parts Chart Page 24

13. Door, Right - Stardance Refer to Enamel Parts Chart Page 24

14a. Burner Housing Assy. - JUV NG 20003130

14b. Burner Housing Assy. - LP 20004995

15. Bracket, Rear Log - JUV 20003274

16a. Orifice Hood #69 (.0292”) - Front - LP 30000513

16b. Orifice Hood #54 (.055”) - Front - NG 20000130

16c. Orifice Hood #54 (.055”) - Rear - LP 20000130

16d. Orifice Hood #44 (.086”) - Rear - NG 30000334

17. Ignitor Piezo - Honeywell #396079 20000062

18. Gasket, Base Pan Inner 20002566

19. Bracket Support Right Log 20004920

20. Bracket Support Left Log 20005022

21. Grate Decorative Burner 20003022

22. Grille, UV30 30000393

23. Mesh, Grille - UV30 30000508

24. Top, Stardance UV/PDV Refer to Enamel Parts Chart Page 24

25. Front, HM-VC Refer to Enamel Parts Chart Page 24

26. Door, Control - FS/HM Refer to Enamel Parts Chart Page 24

27. Cover, Valve w/Piezo 51851

28. Catalyst, RUV (not shown) (Comes with UVGODCFK) 30000506

29. Left End - Hearthmount Refer to Enamel Parts Chart Page 23

30. Right End - Hearthmount Refer to Enamel Parts Chart Page 23

31. Left End - Freestanding Refer to Enamel Parts Chart Page 23

32. Right End - Freestanding Refer to Enamel Parts Chart Page 23

23

UVS27 Vent-Free Gas Heater

20007068

UVS27R, UVS27M Vent Free Gas Heaters

Models 4030 - 4036, 4040 - 4046, 4085 - 4087, 4090 - 4092 (continued)

Shell Enamel Part Numbers - Hearthmount Models: 4085 - 4087, 4090 - 4092

Color Top Left End Right End Front Control Door

Classic 1301083 30001282 30001281 1301129 1301087

Sand 1321083 30001303 30001302 1321129 1321087

Midnight 1341083 30001310 30001309 1341129 1341087

Shell Enamel Part Numbers - Freestanding Models: 4030 - 4036, 4040 - 4046

Color Top Left End Right End Front (OP) Left Door Right Door

Classic 30001278 30001280 30001279 30001496 30001139 30001138

Red 30001285 30001287 30001286 30001261 30001263 30001262

Sand 30001299 30001301 30001300 30001267 30001269 30001268

Midnight 30001306 30001308 30001307 30001270 30001272 30001271

Green 30001292 30001294 30001293 30001264 30001266 30001265

Moonlight 30001319 30001321 30001320 30001314 30001316 30001315

Suede Brown 30002554 30002547 30002548 30002550 30002552 30002551

24

UVS27 Vent-Free Gas Heater

20007068

Optional Accessories Available

Fan Kits

FK28 Fan Assembly

The FK28 fan kit helps distribute heated air from within

the firebox out into the room. The fan is controlled by a

snapstat that turns power on and off as the firebox tem-

perature rises above and falls below a preset tempera-

ture. A rheostat provides for variable fan speeds.

Specifications

115 Volt / 60Hz / .75 Amps

Maintenance

The fan itself does not require regular maintenance,

however periodic cleaning of the fan and the surround-

ing area is required.

Installation

Refer to Assembly Section, Page 9 for installation

instructions.

Glass / Catalyst Kit UVGODCFK

The glass panel replaces the standard screen. The

catalytic combustor installs easily into the upper mani-

fold above the firebox.

Remote Controls

The remote control allows you to turn the heater on or

off from anywhere in the room. Remote controls are

available for the UVS27R only. Refer to Figure 17,

Page 12 for wiring diagram.

Model Function/s Controlled

MRC1 ON/OFF

MRC2 ON/OFF and Temperature

MRC3 ON/OFF and Temperature control

with a digital display and a pro

grammable 24 hour clock

IMT Wall mounted thermostat control

Warming Shelf

Warming shelves add versatility to your stove. The

warming shelf can be used to keep foods warm at

mealtime.

Model

Pinnacle Stardance

Shell Shell Color

2702 2702 Classic Black

n/a 2704 Red

n/a 2706 Green

n/a 2711 Moonlight Blue

2764 2764 Sand

2765 2765 Midnight

The shelf installation is done in three stages. First you

attach the shelf loosely to the stove, leaving the screws

loose enough to allow final adjustments. Then, you po-

sition the shelf and adjust the brackets so the shelf fits

correctly. Finally, you tighten the screws.

Refer to the instructions included with each warming

shelf for complete installation procedures.

25

UVS27 Vent-Free Gas Heater

20007068

26

UVS27 Vent-Free Gas Heater

20007068

27

UVS27 Vent-Free Gas Heater

20007068

BASIC WARRANTY

CFM Specialty Home Products (hereinafter referred to collectively as

the Company) warrants that your new Vermont Castings or Majestic

Gas Fireplace/Stove is free from manufacturing and material defects

for a period of one year from the date of purchase, subject to the

following conditions and limitations.

EXTENDED LIFETIME WARRANTY

The heat exchanger, where applicable, and combustion chamber

of every Vermont Castings or Majestic gas product is warranted for

life against through wall perforation. All appliances equipped with an

Insta-Flame Ceramic Burner have limited lifetime coverage on the

ceramic burner plaque. Warrantees are made to the original owner

subject to proof of purchase and the conditions and limitations listed

on this Warranty Document

COMPONENT WARRANTY

CAST IRON: All external and internal cast iron parts are warranted for a

period of three years.

Note: On porcelain enamel finished external parts and accessories

The Company offers no Warranty on chipping of enamel surfaces.

Inspect all product prior to accepting it for any damage to the

enamel.

The salt air environment of coastal areas or a high humidity

environment can be corrosive to the porcelain enamel finish. These

conditions can cause rusting of the cast iron beneath the porcelain

enamel finish, which will cause the finish to flake off.

Dye lot variations with replacement parts and/or accessories can

occur and are not covered by warranty.

GLASS DOORS: Glass doors are covered for a period of one year.

Glass doors are not warranted for breakage due to misuse or accident.

Glass doors are not covered for discoloration or burned in stains due to

environmental issues, or improper cleaning and maintenance.

BRASS PLATED PARTS AND ACCESSORIES: Brass parts should be

cleaned with Lemon oil only. Brass cleaners cannot be used. Mortar

mix and masonry cleaners may corrode the brass finish. The Company

will not be responsible for, nor will it warrant any brass parts which are

damaged by external chemicals or down draft conditions.

GAS VALVES: Gas valves are covered for a period of one year

ELECTRONIC AND MECHANICAL COMPONENTS: Electronic and

mechanical components of the burner assembly are covered for one

year. All steel tube burners are warranted for one year.

ACCESSORIES: Unless otherwise noted all components and CFM

Specialty Home Products company supplied accessories are covered

for a period of one year.

CONDITIONS AND LIMITATIONS

• This new Vermont Castings or Majestic product must be installed by

a competent, authorized, service contractor. A licensed technician, as

prescribed by the local jurisdiction must perform any installation/service

work. It must be installed and operated at all times in accordance with

the Installation and Operating instructions furnished with the product.

Any alteration, willful abuse, accident, or misuse of the product shall

nullify this warranty.

• This warranty is non-transferable, and is made to the original owner,

provided that the purchase was made through an authorized supplier

of the Company.

• The customer must pay for any Authorized Dealer in-home travel fees

or service charges for in-home repair work. It is the dealers option

whether the repair work will be done in the customer’s home or in the

dealer’s shop.

• If upon inspection, the damage is found to be the fault of the manufacturer,

repairs will be authorized at no charge to the customer parts and/or

labor.

• Any part and/or component replaced under the provisions of this

warranty is covered for six months or the remainder of the original

warranty, whichever is longest.

• This warranty is limited to the repair of or replacement of part(s) found

to be defective in material or workmanship, provided that such part(s)

have been subjected to normal conditions of use and service, after

said defect is confirmed by the Company’s inspection.

• The company may, at its discretion, fully discharge all obligations

with respect to this warranty by refunding the wholesale price of the

defective part(s)

• Any installation, labor, construction, transportation, or other related

costs/expenses arising from defective part(s), repair, replacement,

or otherwise of same, will not be covered by this warranty, nor shall

the Company assume responsibility for same. Further, the Company

will not be responsible for any incidental, indirect, or consequential

damages except as provided by law.

• SOME STATES DO NOT ALLOW FOR THE EXCLUSION OR

LIMITATIONS OF INCIDENTAL AND CONSEQUENTIAL DAMAGES

OR LIMITATIONS ON HOW LONG AN IMPLIED WARRANTY

LASTS, SO THE ABOVE LIMITATIONS MAY NOT APPLY TO YOUR

CIRCUMSTANCES. THIS WARRANTY GIVES YOU SPECIFIC

RIGHTS AND YOU MAY HAVE OTHER RIGHTS WHICH VARY FROM

STATE TO STATE.

• All other warranties-expressed or implied- with respect to the product,

its components and accessories, or any obligations/liabilities on the

part of the Company are hereby expressly excluded.

• The Company neither assumes, nor authorizes any third party to

assume on its behalf, any other liabilities with respect to the sale of

this Vermont Castings or Majestic product

• The warranties as outlined within this document do not apply to chimney

components or other non CFM Specialty Home Products accessories

used in conjunction with the installation of this product..

• Damage to the unit while in transit is not covered by this warranty but

is subject to claim against the common carrier. Contact the dealer

from whom you purchased your fireplace/stove (do not operate the

appliance as this might negate the ability to process the claim with the

carrier).

• The Company will not be responsible for:

a) Down drafts or spillage caused by environmental conditions such

as near-by trees, buildings, roof tops, hills, or mountains.

b) Inadequate ventilation or negative air pressure caused by

mechanical systems such as furnaces, fans, clothes dryers, etc.

• This warranty is void if:

a) The fireplace has been operated in atmospheres contaminated by

chlorine, fluorine, or other damaging chemicals.

b) The fireplace has been subjected to prolonged periods of dampness

or condensation

c) Any damages to the fireplace, combustion chamber, heat exchanger

or other components due to water, or weather damage, which is the

result of but not limited to, improper chimney/venting installation.

d) Any alteration, willful abuse, accident, or misuse of the product

has occurred.

IF WARRANTY SERVICE IS NEEDED…

1) Contact your supplier. Make sure you have your warranty,

your sales receipt, and the model/serial number of your

CFM Specialty Home Products product.

2) DO NOT ATTEMPT TO DO ANY SERVICE WORK

YOURSELF.

LIMITED LIFETIME WARRANTY

PRODUCT COVERED BY THIS WARRANTY

All Vermont Castings gas stoves, gas inserts, and gas fireplaces, and all Majestic or Northern Flame

brand gas fireplaces equipped with an Insta-Flame Ceramic Burner, or standard steel tube burner.

410 Admiral Blvd. • Mississauga, Ontario, Canada L5T 2N6 • 905-670-7777

www.majesticproducts.com • www.vermontcastings.com

CFM Specialty Home Products
