INSTALLER / CONSUMER

SAFETY INFORMATION

PLEASE READ THIS MANUAL

BEFORE INSTALLING AND USING

APPLIANCE.

WARNING!

IF THE INFORMATION IN THIS

MANUAL IS NOT FOLLOWED

EXACTLY, A FIRE OR EXPLOSION

MAY RESULT CAUSING

PROPERTY DAMAGE, PERSONAL

INJURY OR LOSS OF LIFE.

FOR YOUR SAFETY

Installation and service must be

performed by a qualified installer, service

agency or the gas suppler.

WHAT TO DO IF YOU SMELL GAS:

• Do not try to light any appliance.

• Do not touch any electric switch; do

not use any phone in your building.

• Immediately call your gas supplier from

your neighbor’s phone. Follow the gas

supplier’s instructions.

• If you cannot reach your gas supplier,

call the fire department.

DO NOT STORE OR USE GASO-

LINE OR OTHER FLAMMABLE

VAPORS AND LIQUIDS IN THE

VICINITY OF THIS OR ANY OTHER

APPLIANCE.

This appliance may be installed in an after

market permanently located manufactured

(mobile) home where not prohibited by

local codes.

This appliance is only for use with the

type of gas indicated on the rating plate.

This appliance is not convertible for use

with other gases unless a certified kit is

used.

Stardance

Direct Vent/Natural Vent

Gas Heater

Model SDV30: 3900-3916, 3940-

3956

7065

SDV

fully assembled cover

1/6/04

Homeowner’s Installation

and Operating Manual

CERTIFIED

D

E

S

I

G

N

C

E

R

T

I

F

I

E

D

20007065 1/07 Rev. 13

INSTALLER: Leave this manual with the appliance.

CONSUMER: Retain this manual for future reference.

2

Stardance Direct Vent/Natural Vent Gas Heater

20007065

PLEASE READ THE INSTALLATION & OPERATING INSTRUCTIONS BEFORE USING APPLIANCE.

Thank you and congratulations on your purchase of a Vermont Castings stove.

IMPORTANT: Read all instructions and warnings carefully before starting installation. Failure to follow these

instructions may result in a possible fire hazard and will void the warranty.

Installation & Operating Instructions .............................................................................................3

Stove Dimensions ................................................................................................................4

Installation Requirements .....................................................................................................5

Locating the Stove ...............................................................................................................5

Clearance Requirements .....................................................................................................5

Parallel & Corner Installation ................................................................................................6

Wall and Ceiling Clearances ................................................................................................6

Hearth Requirements ...........................................................................................................6

Gas Specifications................................................................................................................7

Gas Inlet and Manifold Pressures ........................................................................................7

Horizontal & Termination - Direct Vent ONLY .......................................................................7

Vertical Termination - Direct Vent ONLY ...............................................................................8

Vent Termination Clearances ...............................................................................................8

General Venting Information - Termination Location ..........................................................10

Termination Clearances .....................................................................................................11

Venting Requirements - Natural Vent ONLY ......................................................................11

Venting Requirements and Options - Direct Vent ONLY ....................................................12

Assembly Procedures

Install the Optional Fan ......................................................................................................13

Venting System Assembly - Direct Vent .............................................................................14

Install Vent Adapter Pipe ....................................................................................................14

Side Wall Termination Assembly ........................................................................................15

Vent Termination Below Grade ...........................................................................................17

Vertical (Through the Roof) Vent Assembly .......................................................................17

Venting System Assembly - Natural Vent ...........................................................................18

Install the Vent Pipe ...........................................................................................................19

Install the Log Set ..............................................................................................................19

Connect Gas Supply Line ..................................................................................................19

Burner Information..............................................................................................................20

Air Shutter Adjustment & Instructions .................................................................................20

Complete the Assembly .....................................................................................................21

Install ON/OFF Switch ........................................................................................................21

Thermostat Connection (Optional) .....................................................................................22

Install the Front Plate .........................................................................................................22

Operation

Your First Fire .....................................................................................................................23

Pilot and Burner Information ..............................................................................................23

Flame & Temperature Adjustment / Flame Characteristics ................................................23

Lighting and Operating Instructions ...................................................................................24

Troubleshooting - Honeywell #8420 Gas Control System ..................................................25

Instructions for RF Comfort Control Valve ..........................................................................26

Fuel Conversion Instructions ..............................................................................................30

Maintenance

Annual System Inspection ..................................................................................................33

Logset and Burner/Cleaning and Inspection ......................................................................33

Care of Cast Iron ................................................................................................................33

Cleaning the Glass .............................................................................................................33

Glass Replacement ............................................................................................................33

Gasket Replacement ..........................................................................................................34

Inspect the Vent System Annually ......................................................................................34

Check the Gas Flame Regularly ........................................................................................34

Stove Disassembly .............................................................................................................34

Wiring Diagram ...................................................................................................................35

Replacement Parts .........................................................................................................................36

Optional Accessories ....................................................................................................................39

Warranty ..........................................................................................................................................42

Energuide ........................................................................................................................................44

Table of Contents

3

Stardance Direct Vent/Natural Vent Gas Heater

20007065

General Information

The Stardance Direct Vent/Natural Vent Room Heater, Model

Nos. 3900-3916, 3940-3956 is a vented gas appliance listed

to the ANSI standard Z21.88b-2002 and CSA-2.33b-2002 for

Vented Room Heaters, and CSA 2.17-M91, Gas-Fired Appli-

ances For Use at High Altitudes.

The installation of the Stardance Direct Vent/Natural Vent Room

Heater must conform with local codes, or in the absence of lo-

cal codes, with National Fuel Gas Code, ANSI Z223.1/NFPA 54

— latest edition and CSA B-149.1 Installation Code. (EXCEP-

TION: Do not derate this appliance for altitude. Maintain the

manifold pressure at 3.5” w.c. for Natural Gas and 10.0” w.c.

for LP gas at maximum input.) Refer to Page 32 (RF only).

This appliance is only for use with the type of gas indicated on

the rating plate. This appliance is not convertible for use with

other gases unless a certified kit is used.

Installation and replacement of gas piping, gas utilization

equipment or accessories, and repair and servicing of

equipment shall be performed only by a qualified agency.

The term “qualified agency” means any individual, firm,

corporation, or company that either in person or through

a representative is engaged in and is responsible for (a)

installation or replacement of gas piping, or (b), the con-

nection, installation, repair, or servicing of equipment, who

is experienced in such work, familiar with all precautions

required, and has complied with all the requirements of the

authority having jurisdiction.

The Stardance Direct Vent/Natural Vent Room Heater

should be inspected before use and at least annually by a

qualified service agency. It is imperative that control com-

partments, burners, and circulating air passageways of the

appliance be kept clean.

The Stardance Direct Vent/Natural Vent Room Heater and its

individual shut-off valve must be disconnected from the gas

supply piping during any pressure testing of that system at test

pressures in excess of 1/2 psig (3.5 kPa).

The Stardance Direct Vent/Natural Vent Room Heater must

be isolated from the gas supply piping system by closing its

individual manual shutoff valve during any pressure testing of

the gas supply piping system at test pressures equal to or less

than 1/2 psig.

‘Direct Vent’ describes a sealed combustion system in which

incoming outside air for combustion and outgoing exhaust enter

and exit through two separate concentric passages within the

same sealed vent system. The system does not use room air

to support combustion. The Direct Vent system permits the

gas appliance to be vented directly to the outside atmosphere

through the side of the house or vertically through the roof.

Conventional venting systems (Natural Vent) take air from the

room for combustion and vent the exhaust vertically through the

roof to the atmosphere.

This appliance is approved for bedroom installations in the U.S.

and Canada.

This appliance may be installed in an aftermarket* manufac-

tured (mobile) home, where not prohibited by state or local

codes.

WARNING: Operation of this heater when not connected

to a properly installed and maintained venting system can

result in carbon monoxide (CO) poisoning and possible

death.

The Stardance Direct Vent/Natural Vent Room Heater, when

installed, must be electrically grounded in accordance with

local codes or, in the absence of local codes, with the National

Electrical Code ANSI/NFPA 70, (latest edition), or of the current

Canadian Electrical Code C22.1.

Due to high temperatures this appliance should be located

out of traffic and away from furniture and draperies.

WARNING: This appliance is hot while in operation. Keep

children, clothing, and furniture away. Contact may cause

burns or ignition of combustible materials.

Children and adults should be alerted to the hazards of

high surface temperatures and should stay away to avoid

burns or clothing ignition. Young children should be care-

fully supervised when they are in the same room as the

appliance.

Clothing or other flammable materials should not be placed

on or near the appliance.

Any safety screen, glass or guard removed for servicing an

appliance must be replaced prior to operating the appli-

ance.

The appliance area must be kept clear and free from com-

bustible materials, gasoline, and other flammable vapors

and liquids.

The flow of combustion and ventilation air must not be

obstructed. The installation must include adequate acces-

sibility and clearance for servicing and proper operation.

WARNING: Do not operate the Room Heater with the glass

panel removed, cracked or broken. Replacement of the

panel should be done by a licensed or qualified service

person.

Do not use this appliance if any part has been under water.

Immediately call a qualified service technician to inspect

the appliance and to replace any part of the control system

and any gas control which has been under water.

Do not burn wood, trash or any other material for which

this appliance was not designed. This appliance is de-

signed to burn either natural gas or propane only.

This gas appliance must not be connected to a chimney

flue serving a separate solid-fuel burning appliance.

CAUTION: Label all wires prior to disconnection when

servicing controls. Wiring errors can cause improper and

dangerous operation.

Verify proper operation after servicing.

Proposition 65 Warning: Fuels used in gas, woodburning or

oil fired appliances, and the products of combustion of such fu-

els, contain chemicals known to the State of California to cause

cancer, birth defects and other reproductive harm.

California Health & Safety Code Sec. 25249.6

* Aftermarket: Completion of sale, nor for purpose of resale,

from the manufacturer.

4

Stardance Direct Vent/Natural Vent Gas Heater

20007065

Stardance Direct Vent / Natural Vent Dimensions

9"

(229 mm)

C

LValve

Inlet

26"

(680 mm)

25"

(635 mm)

14"

(355 mm)

3"

(76 mm)

C

L

7065

Stardance fully assembled

dimensions

1/6/04 djt

Valve Inlet

Attention

The Stardance stove is shipped from the factory as a Direct Vent Gas Heater. This heater

may be converted into a Natural Vent unit in the field. If a Natural Vent heater is desired,

the Vermont Castings Z31D00 FSDHAG Draft Hood must be directly installed to the top

of the unit according to the installation instructions. The Draft Hood Adapter is available

in the 7FSDHASK stove kit or as a separate item.

When the Stardance stove is converted to Natural Vent, it uses 4” vent pipe. For aes-

thetic purposes the CFM direct vent system may be used up to the ceiling.

5

Stardance Direct Vent/Natural Vent Gas Heater

20007065

Clearance Requirements

Minimum Clearances to Combustible

Materials

Measure side clearances as shown in Figures 3 and 4

from the outer edge of the cast iron stove top. Measure

rear clearances from the outermost surface of the steel

rear skirt.

The Stardance heater is approved for installation into

an alcove constructed of combustible materials to the

dimensions and clearances shown on the next page.

The same clearances apply in a standard parallel instal-

lation.

Installation Requirements

The installation must conform with local codes or, in

the absence of local codes, with the National Fuel Gas

Code, ANSI Z223.1/NFPA 54 - latest edition. (EXCEP-

TION: Do not derate this appliance for altitude. Main-

tain the manifold pressure at 3.5 inches w.c. for Natural

Gas, and 10 inches w.c. for Propane).

In Canada, installation must be in accordance with the

current CSA B-149.1 Installation Codes and/or local

codes.

The installation should be done by a qualified ser-

vice person who is familiar with the building codes

and installation techniques appropriate for your

area to accomplish a safe and effective installation.

Your dealer or your local gas supplier will be able to

refer a qualified service person.

WARNING: Due to high temperatures, the HEATER

should be located out of traffic and away from fur-

niture and draperies.

The surface of the Heater Is hot when it is in use.

Young children should be watched carefully when

they are in the same room when the Heater is in

use, and they should be taught to avoid the hot

surface. Keep any objects that can burn well away

from the Heater, and observe the recommended

clearances that follow.

Locating the Stove

In choosing a location for the stove, consider:

• The location of outside walls;

• Where additional heat is needed:

• Where family members gather most often;

• The vent system requirements.

NOTE: We do not recommend the use of wallpaper

next to this stove. Over time, radiant heat may cause

the wallpaper to shrink, or may adversely affect the

binders in the wallpaper adhesive.

A

B

E

C

D

ST207a

Stardance

Stove locations

9/28/00 djt

Fig. 2 Possible stove locations.

ST207

Warning:

• Always maintain required clearances

(air spaces) to nearby combustibles to prevent

fire hazard. Do not fill air spaces with insula-

tion. All venting components must maintain a

1” (25 mm) clearance to combustible materials.

Maintain a 6” (150 mm) clearance when using a

single wall pipe.

• The gas appliance and vent system must be

vented directly to the outside of the building

and never be attached to a chimney serving a

separate solid fuel or gas-burning appliance.

Each direct vent appliance must use its own

separate vent system. Common vents are pro-

hibited.

• Refer to the manufacturer’s instructions in-

cluded with the venting system for complete

installation procedures.

6

Stardance Direct Vent/Natural Vent Gas Heater

20007065

ST128b

Stardance

flue centerline

9/28/00 djt

C

L

C

L

B

D

C

A

Parallel Installation: Minimum Clearance

and Flue Centerline, Direct Vent and

Natural Vent

ST128b

Stove Clearances: A: 4” (102 mm)

B: 4” (102 mm)

Pipe Centerlines: C: 15¹⁄₂” (395 mm)

D: 9” (229 mm)

Fig. 3 Parallel installation, minimum back and side clear-

ances, and flue centerlines.

Corner Installation:

Minimum Clearance and Flue Centerline,

Direct Vent and Natural Vent

ST129b

Stardance

corner specs

9/28/00 djt

A

A

B

B

Stove Clearance: A: 4” (102 mm)

Pipe Centerline: B: 14¹⁄₂” (370 mm)

ST129b

Fig. 4 Corner installation, minimum corner clearance and flue

centerline.

Wall Centerline from Floor

ST131b

Stardance

wall thimble

9/28/00 djt

A

Direct Vent Only

ST131b

Effective Minimum

Wall Thimble 56” (1480 mm) (CFM Pipe)

Centerline 52” (1378 mm) (Simpson Duravent Pipe)

Fig. 5 Minimum wall thimble centerline.

Wall and Ceiling Clearances

A

C

D

ST101b

Stardance

Direct Vent

Min. Clrnc

9/28/00 djt

B

ST101b

A: Rear Wall 4” (102 mm)

B: Min. Clearance 45¹⁄₄” (1154 mm)*

C: Min. Alcove Height 72” (1830 mm)

D: Max. Alcove Depth 48” (1220 mm)

Sidewall Clearance 4” (102 mm)

Fig. 5 Dimensions and clearances to ceiling or alcove.

Hearth Requirements

The Stardance Heater must be installed on rigid floor-

ing. When the heater is installed directly on any com-

bustible surface other than wood flooring, a metal or

wood panel extending the full width and depth of the

unit must be used as the hearth. There are no other

hearth requirements.

7

Stardance Direct Vent/Natural Vent Gas Heater

20007065

Weight: Fully assembled; 202 lbs.

Gas Specifications

Max. Min.

Input Input

Model Fuel Gas Control BTU/h BTU/h

SDV30RN Nat Millivolt 28,000 20,000

SDV30RP Prop Millivolt 28,000 19,000

SDV30RFN Nat Comfort Control 28,000 20,000

SDV30RFP Prop Comfort Control 28,000 19,500

Gas Inlet and Manifold Pressures

Natural LP (Propane)

Inlet Minimum 5.5” w.c. 11.0” w.c.

Inlet Maximum 14.0” w.c. 14.0” w.c.

Manifold Pressure 3.5” w.c. 10” w.c.

Stardance Direct Vent / Natural Vent

Certified to:

ANSI Z21.88-2005 / CSA 2.33-2005

Vented Gas Fireplace Heaters

The installation of your Vermont Castings stove must

conform with local codes, or in the absence of local

codes, with the National Fuel Gas Code ANSI Z223.1/

NFPA 54 - latest edition, or CSA B149.1 Installation

code. (EXCEPTION: Do not derate this appliance for

altitude up to 4,500 feet (1,370m). Maintain the mani-

fold pressure at 3.5” w.c. for Natural Gas and 10.0”

w.c. for LP Gas.

High Elevations

Input ratings are shown in BTU per hour and are cer-

tified without deration for elevations up to 4,500 feet

(1,370m) above sea level.

For elevations above 4,500 feet (1,370m) in USA,

installations must be in accordance with the current

ANSI Z223.1/NFPA 54 and/or local codes having

jurisdiction.

In Canada, please consult provincial and/or local au-

thorities having jurisdiction for installations at eleva-

tions above 4,500 feet (1,370m).

WARNING: Improper installation, adjustment,

alteration, service or maintenance can cause in-

jury or property damage. Refer to this manual for

correct installation and operational procedures.

For assistance or additional information consult

a qualified installer, service agency, or the gas

supplier.

Horizontal Termination -

Direct Vent ONLY

The vent must rise vertically a minimum of 24” (610mm)

off the top of the unit, before the first elbow. The hori-

zontal run may extend up to 20’ (6m) and include a

vertical rise of up to 40’ (12m). (Fig. 7) Horizontal

termination must also meet the criteria shown in Figures

9 through 11.

• Approved vent systems must terminate above and

including the heavy line in Figure 7.

• Two 45˚ elbows may be substituted for each single

90˚ elbow.

• With a rise between 2’ - 5’, one 90˚ or two 45˚ el-

bows may be used.

20

19

18

16

15

14

13

12

11

10

9

8

7

6

5

4

3

2

1

0

12 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20

Vertical Run (in feet)

(Measured from the appliance flue collar to the top of the vent pipe.)

Horizontal Run (in feet)

21

22

23

24

25

26

27

28

29

30

31

32

33

34

35

36

37

38

39

40

ST134a

FDV28

Horizontal 

vent run

12/3/99 djt

areas modified

1/11/00 djt

ST134a

Fig. 7 Horizontal vent termination window.

May use up to

three 90° Elbows

One 90°

Elbow Unacceptable

Venting Configureation

8

Stardance Direct Vent/Natural Vent Gas Heater

20007065

Vertical Termination - Direct Vent ONLY

A vertical vent system must terminate no less than 8’

(2.44m) and no more than 40’ (12m) above the appli-

ance flue collar. A 2Z\v” restrictor plate (supplied) must

be used where specified in all vertically terminated vent

systems. (Fig. 8) NOTE: The restrictor plate supplied

with the vertical termination should be discarded. Install

restrictor plate supplied with stove directly at stove

outlet. A vertically terminated vent system must also

conform to the following criteria:

• No more than three 90˚ elbows may be used.

• Two 45˚ elbows may be substituted for one 90˚ el-

bow. No more than six elbows may be used.

• Vent must rise a minimum of 2 feet before offset is

used.

• Termination height must conform to roof clearance

as specified in Figure 9.

20

19

18

16

15

14

13

12

11

10

9

8

7

6

5

4

3

2

1

0

20

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19

Vertical Run (in feet)

(Measure from the appliance flue collar to the top of the vent pipe.)

Horizontal Run (in feet)

21

22

23

24

25

26

27

28

29

30

31

32

33

34

35

36

37

38

39

40

ST132a

FDV28

Vertical

vent run

12/3/99 djt

area

modified

1/11/00 djt

ST132a

Fig. 8 Vertical vent termination window.

*The restrictor Plate is used on Direct Vent Installations

Only.

All Vertical Termina-

tions in this area

Require use of the

2¹⁄₄” Restrictor Plate*

Vertical Terminations

must be within this

area

No Restrictor Plate

Unacceptable Venting

Configuration

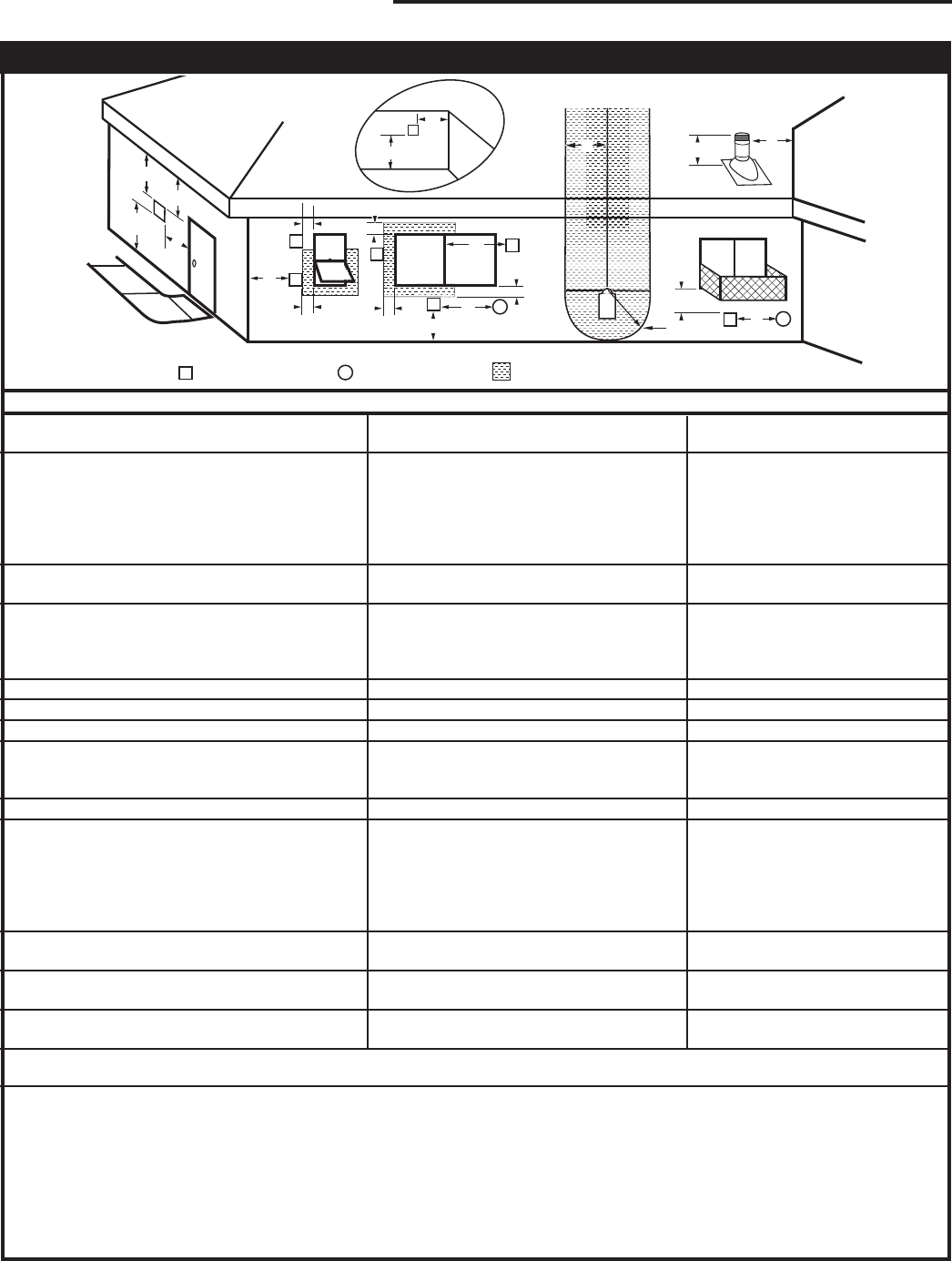

Vent Termination Clearances

When planning the installation, consider the location

of the vent terminal and clearances. Some of the most

common clearances to keep in mind are shown in Fig-

ure 10.

Important: All vent clearances must be maintained.

Check your vent termination clearances against

Figures 9 through 11.

The vent should be placed so that people cannot be

burned by accidentally touching the vent surfaces when

the stove is operating.

The vent termination should be located where it cannot

be damaged by such things as automobile doors, lawn

mowers or snowblowers and it should be located away

from areas where it could become blocked by snow,

etc.

Some considerations are:

• Obstructions or impediments to venting.

• Nearby combustible materials that could come into

contact with combustion exhaust gases.

• Other nearby openings {within 12” (305mm)} through

which exhaust gas could reenter the building.

• All vegetation within 3’ ((76mm) that may interfere

with the draft.

Other factors that influence where the installation will

be sited include the location of outside walls, where

additional heat may be desired in the home, where the

family members gather most regularly, and perhaps

most importantly, the distance limitations of the venting

system.

IMPORTANT

Direct Vent Only

• The horizontal termination must not be recessed

into the exterior wall or siding.

• Horizontal vent runs must be level toward the vent

termination.

• Clearances around the vent termination must be

maintained.

• For installations using Simpson DuraVent pipe,

parallel installations with minimum wall clearance

have restricted access for connecting the Hori-

zontal Vent Cap straps to the vent pipe. See the

maker’s instructions for recommended installation

procedures.

9

Stardance Direct Vent/Natural Vent Gas Heater

20007065

Vent Termination Clearances

Your stove is approved to be vented either through the

side wall, or vertical through the roof.

• CFM Corporation does not require any opening for

inspection of vent pipe.

• Only CFM Corporation and Simpson DuraVent vent-

ing components specifically approved and labelled

for this stove may be used.

• Minimum clearances between vent pipes and com-

bustible materials is one (1”) inch (25 mm), except

where stated otherwise.

• Venting terminals shall not be recessed into a wall or

siding.

• Horizontal venting must be installed on a level plane

without an inclining or declining slope.

There must not be any obstruction such as bushes,

garden sheds, fences, decks or utility buildings within

24” from the front of the termination hood.

Do not locate termination hood where excessive snow

or ice build up may occur. Be sure to check vent termi-

nation area after snow falls, and clear to prevent ac-

cidental blockage of venting system. When using snow

blowers, make sure snow is not directed towards vent

termination area.

Location of Vent Termination

It is imperative the vent termination be located observ-

ing the minimum clearances as shown on this page.

10

Stardance Direct Vent/Natural Vent Gas Heater

20007065

General Venting Information - Termination Location

V

V

V

V

V

V

V

X

X

X

D

E

B

B

B

C

B

M

B

A

J

K

F

L

VENT TERMINATION AIR SUPPLY INLET AREA WHERE TERMINAL IS NOT PERMITTED

H

I





Operable

Operable Fixed

Closed

V

B

CFM145a

DV Termin Location

5/01/01 Rev. 12/05/01

sta

INSIDE

CORNER DETAIL

V

A

G

N

N

CFM145a

A = Clearance above grade, veranda, porch, 12” (30cm) 12” (30cm)

deck, or balcony

B = Clearance to window or door that may be 6” (15cm) for appliances 6” (15cm) for appliances

opened < 10,000Btuh (3kW), 12” (30cm) < 10,000 Btuh (3kW), 9”

for appliances > 10,000 Btuh (3kW) and (23cm) for appliances > 10,000

< 100,000 Btuh (30kW), 36” (91cm) Btuh (3kW) and < 50,000 Btuh

for appliances > 100,000 Btuh (30kW) (15kW), 12” (30cm) for

appliances > 50,000 Btuh (15kW)

C = Clearance to permanently closed window 12” (305mm) recommended to 12” (305mm) recommended to

prevent window condensation prevent window condensation

D = Vertical clearance to ventilated soffit located

above the terminal within a horizontal 18” (458mm) 18” (458mm)

distance of 2’ (610mm) from the center

line of the terminal

E = Clearance to unventilated soffit 12” (305mm) 12” (305mm)

F = Clearance to outside corner see next page see next page

G = Clearance to inside corner (see next page) see next page see next page

H = Clearance to each inside of center line 3’ (91cm) within a height of 15’ (5m) 3’ (91cm) within a height of 15’

extended above meter/regulator assembly above the meter/regulator assembly (5m) above the meter/regulator

assy

I = Clearance to service regulator vent outlet 3’ (91cm) 3’ (91cm)

J = Clearance to nonmechanical air supply inlet 6” (15cm) for appliances < 10,000 6” (15cm) for appliances

to building or the combustion air inlet to any Btuh (3kW), 12” (30cm) for < 10,000 Btuh (3kW), 9”

other appliances appliances > 10,000 Btuh (3kW) and (23cm) for appliances > 10,000

< 100,000 Btuh (30kW), 36” (91cm) Btuh (3kW) and < 50,000 Btuh

for appliances > 100,000 Btuh (30kW) (15kW), 12” (30cm) for

appliances > 50,000 Btuh (15kW)

K = Clearance to a mechanical air supply inlet 6’ (1.83m) 3’ (91cm) above if within 10

feet (3m) horizontally

L = Clearance above paved sidewalk or paved 7’ (2.13m)† 7’ (2.13m)†

driveway located on public property

M = Clearance under veranda, porch, deck or 12” (30cm)‡ 12” (30cm)‡

balcony

N = Clearance above a roof shall extend a minimum of 24” (610mm) above the highest point when it passes through the roof

surface, and any other obstruction within a horizontal distance of 18” (450mm).

1 In accordance with the current CSA-B149 Installation Codes

2 In accordance with the current ANSI Z223.1/NFPA 54 National Fuel Gas Codes

† A vent shall not terminate directly above a sidewalk or paved driveway which is located between two single family dwellings and

serves both dwellings

‡ only permitted if veranda, porch, deck or balcony is fully open on a minimum 2 sides beneath the floor:

NOTE: 1. Local codes or regulations may require different clearances.

2. The special venting system used on Direct Vent units are certified as part of the appliance, with clearances tested and

approved by the listing agency.

3. CFM Corporation assumes no responsibility for the improper performance of the appliance when the venting system does not

meet these requirements.

Canadian Installations1 US Installations2

Fig. 9 Vent termination clearances.

11

Stardance Direct Vent/Natural Vent Gas Heater

20007065

Fig. 10 Termination clearances.

Venting Requirements - Natural Vent Only

FP567

NVBR/NVBC VENTING RUNS

11/12/97

Venting Runs

Horizontal Run (in feet)

Vertical Run (in feet)

(Measured from top of the unit before any elbow)

A: Vertical installations up to 36 feet (12m) in

height. Up to an 18 ft. horizontal vent run can be

installed within the vent system using a

maximum of two 90-degree elbows or four

45-degree elbows.

B: Vertical installations up to 36 feet (12m) in

height. Up to a 24 ft. horizontal vent run can be

installed within the vent system using a

maximum of two 45-degree elbows.

(Ratio = 2/3, Hor./Vert.)

= Acceptable venting configuration

= Unacceptable venting configuration







































A

B

NOTE: When venting staight vertical, without any

elbow, a minimum of 8 ft. vertical is required

off the top of the stove.

Fig. 11 Vent termination window - Natural Vent ONLY. NOTE: When using the FSDHAG, the restrictor plate

supplied with the stove is not used.

Outside Corner

Inside Corner

Termination Clearances

Termination clearances for buildings with combustible and noncombustible exteriors.

G =

Combustible

6" (152 mm)

Noncombustible

2" (51 mm)

F =

Combustible

6" (152 mm)

Noncombustible

2" (51 mm)

G

Balcony -

with no side wall

M =

Combustible &

Noncombustible

12" (305 mm)

M

Balcony -

with perpendicular side wall

M = 24" (610 mm)

P = 20” (508 mm)

M

F

Alcove Applications*

C

D

C

E

V

V

Combustible &

Noncombustible

V

V

V

E = Min. 6” (152 mm) for

non-vinyl sidewalls

Min. 12” (305 mm) for

vinyl sidewalls

O = 8’ (2.4 m) Min.

O

P

584-15

No.

of Caps DMin. CMax.

1 3’ (.9 mm) 2 x DActual

2 6’ (1.8 m) 1 x DActual

3 9’ (2.7 m) 2/3 x DActual

4 12’ (3.7 m) 1/2 x DActual

DMin. = # of Termination caps x 3

CMax. = (2 / # termination caps) x DActual

*NOTE: Termination in an alcove space (spaces open only on one side and with an overhang) is permitted with the dimensions

specified for vinyl or non-vinyl siding and soffits. 1. There must be a 3’ (914 mm) minimum between termination caps. 2. All

mechanical air intakes within 10’ (1 m) of a termination cap must be a minimum of 3’ (914 mm) below the termination cap. 3. All

gravity air intakes within 3’ (914 mm) of a termination cap must be a minimum of 1’ (305 mm) below the termination cap.

12

Stardance Direct Vent/Natural Vent Gas Heater

20007065

Venting Requirements and Options -

Direct Vent ONLY

Approved Vent System Components

The Stardance Heater must be vented to the outdoors

through an adjacent exterior wall or through the roof.

The venting system must be comprised of the appropri-

ate listed venting components specified on this page.

These parts are available from DuraVent Corporation or

your Vermont Castings Dealer.

See Figure 4 for dimensions relevant to the standard

minimum-vent kits.

Simpson DuraVent Components

Minimum Horizontal Vent Kit 2792

Starter Pipe Assembly

(incl. inner & outer sections) 2768*

90° Elbow, Blk. 990B*

45° Elbow, Gal. 945

6” Straight, Blk. 908B*

9” Straight, Blk. 907B

11” - 14B\,” Adjustable Straight Section 911B

12” Straight 906

24” Straight 904B*

36” Straight 903B

48” Straight 902

Horizontal Vent Cap 984*

Wall Plate 940*

Vinyl Siding Shield 950

Snorkel Termination - 14” 982

Snorkel Termination - 36” 981

Wall Strap 988

Cathedral Ceiling Support Box 941

Storm Collar 953

Firestop Spacer 963

Flashing 0/12 - 6/12 943

Flashing 6/12 - 12/12 943S

Steel Chimney

Kit A 931

Kit B 932

Kit C 933

Masonry Chimney Kit 934

Vertical Termination Cap (High Wind) 991

Vertical Termination Cap (Low Profile) 980

*Included in Minimum Horizontal Vent Kit #2792

All DuraVent Straight vent pipe sections have a net

length 1¹⁄₂” (37mm) less than the nominal dimension;

i.e., a 6” (152mm) Straight pipe section has an effective

length of 4¹⁄₂” (115mm).

CFM Vent Components

The following kits are available to meet the needs of

most installations. All pipe has a 7” outer diameter and

includes a 4” diameter inner section. A (CG) designa-

tion indicates the part is finished in Charcoal Gray paint.

Consult your dealer about other vent parts that may be

appropriate to complete the installation.

Min. Through the Wall Vent Kit 7TFSSK

(1) 90-Degree Elbow (CG)

(1) 24” Straight pipe (CG)

(1) 24” - 42” Adjustable Straight Pipe

(1) Side Wall Termination

(1) Firestop

(1) Zero-clearance sleeve

(1) Hardware package

(1) Finishing plate (CG)

(1) Finishing collar (CG)

(4) Charcoal Gray flue pipe rings

Starter Kit for Below Grade Installation 7TDVSKS

(1) Snorkel Termination (7TDVSNORK)

Vertical Termination Kit, 1/12-6/12 Pitch 7TDVSKVA

(1) Combination Horizontal Offset / Roof Support

(1) Vertical Termination

(1) Storm Collar

(1) 1/12-6/12 Flashing

(1) Finishing Plate (CG)

(1) Finishing Collar (CG)

(1) Polished Brass Flue Pipe Ring

(1) Hardware Package

Vertical Termination Kit, 7/12-12/12 Pitch 7TDVSKVB

(1) 7/12 - 12/12 Flashing

and all of the other Vertical Termination parts.

Vertical Termination, Flat Roof 7DVSKVF

(1) Flat Flashing

and all of the other Vertical Termination parts.

Twist Lock 12” Straight Pipe (CG) 7TFSDVP12

(1) 12” Non-adjustable Pipe

Twist Lock 12”-18” Straight Pipe (CG) 7TFSDVP1218

(1) 12” - 18” Adjustable Pipe

Twist Lock 24” Straight Pipe (CG) 7TFSDVP24

(1) 24” Non-adjustable Pipe

Twist Lock 48” Straight Pipe (CG) 7TFSDVP48

(1) 48” Nonadjustable Pipe

Twist Lock 45-Degree Elbow (CG) 7TFSDVT45

for vertical offsets

(1) 45-degree Elbow

Draft Hood Adapter FSDHAG

NV Stove Kit 7FSSK

(1) 7” Diameter Polished Brass Trim Ring

(1) 48” Nonadjustable Pipe (CG)

(1) 24” Nonadjustable Pipe (CG)

(1) Finishing Plate

(1) Finishing Collar (CG)

(1) 90 Degree Elbow (CG)

Stove Kit 7FSDHASK

Includes all parts in the 7FSSK plus the Draft Hood Adapter

FSDHAG

Combination Offset/Roof Support 7DVCS

Attic Insulation Shield 7DVAIS

7” Charcoal Gray Pipe Rings, (4) 7FSDRG

7” Polished Brass Pipe Rings (4) 7FSDRP

Wall Thimble 942G

NOTE: Direct vent pipe may be used on the Natural

Vent system from the top of the draft hood adapter to

the ceiling.

13

Stardance Direct Vent/Natural Vent Gas Heater

20007065

Install the Optional Fan

If you are installing the optional convection Fan Kit

#2767 (FK26), continue here. If you are not installing a

Fan Kit, go to Page 14, Venting System Assembly.

1. The fan kit includes a Blower Assembly and a Rheo-

stat Assembly, connected by a cable. (Fig. 12) The

Blower Assembly mounts to the bottom rear of the

stove, and the Rheostat mounts to the valve bracket

to the left of the valve. The assembly includes a

‘snapstat’ which automatically turns the fan On (or

Off) above (or below) approximately 109˚. The Rheo-

stat also provides a range of fan speed settings from

Off (which overrides the snapstat function) to High.

Unpack and inspect the Blower assembly. Confirm

the fan spins freely.

WARNING

This appliance is equipped with a three-prong

(grounded) plug for your protection against shock

hazard and should be plugged directly into a prop-

erly grounded three-prong receptacle. Do not cut or

remove the grounding prong from this plug.

4. The rheostat control switch attaches to the left side

of the valve bracket at the front of the stove. (Fig. 15)

• Remove retaining nut from shaft of rheostat. (if

preinstalled)

• Insert the rheostat through the hole in the back

of the left side of the valve bracket, aligning the

locator pin with the smaller hole in that bracket.

• Thread the retaining nut onto the shaft of the

rheostat, tightening with a wrench. Do not over-

tighten.

• Attach the control knob to the rheostat shaft.

• Use the wire tie to secure the fan and rheostat

wire harnesses together.

ST473

Fan parts

#2767 FK26

9/29/00

Not Used on RF Models

Not Used on

Stardance

Snapstat Bracket

Snapstat/

Extension

Assembly

Rheostat

Assembly

Not Used

on RF

Models

Connect to PC Board on

RF Models Only

Blower

Assembly

ST473

Fig. 12 Fan kit components.

2. Remove the rear skirt insert panel at the bottom of

the Rear Skirt (Fig. 13) and fasten the blower assem-

bly to the firebox back with the two Phillips pan-head

bolts originally installed in the firebox back. (‘1’, Fig.

14)

NOTE: Steps 3 and 4 do not apply when the RF

valve is used. After attaching blower assembly to the

firebox, run the spliced female leads to the front of

the stove and attach to back of RF valve. (Page 28,

Fig. 51)

3. Attach the snapstat assembly to the snapstat bracket

with two sheet-metal screws. (‘2’, Fig. 15) Attach the

snapstat bracket to the stove with a hex-head bolt

passing through the bracket and into the stove base.

(‘3’, Fig. 14)

ST313

fk26

install fan kit

rear skirt insert

1/24/00

Rear Skirt

Sheet Metal

Screws

Rear Skirt

Insert ST313

Fig. 13 Remove rear skirt insert.

ST314

Fk26ce

attach fan

1/24/00

Star Washer

Sheet Metal Screws

Phillips

Pan Head

Bolts

Star

Washer

NOTE: Shown

without shell for

clarification

Snapstat

Bracket

Snapstat

1/4” - 20

Hex Bolt

3

2

1

ST314

Fig. 14 Attach the fan assembly and the snapstat.

ST347a

JUV

FK28 

rheostat install

9/21/00

Rheostat Retaining

Collar

Rheostat Knob ST347a

Fig. 15 Attach the fan rheostat.

14

Stardance Direct Vent/Natural Vent Gas Heater

20007065

Venting System Assemlby - Direct Vent

General Information

The Stardance is approved for installation only with the

vent components listed on Page 12. Follow the vent

component instructions exactly.

For U.S. installations: The venting system must con-

form with local codes and/or the current National Fuel

Gas Code, ANSI Z223.1/NFPA 54.

For Canadian installations: The venting system must

conform to the current CSA B149.1 installation code.

Install the Vent Adapter Pipe

(CFM Corporation Vent Components)

1. Install the Restrictor Plate. Consult the ‘Vent Run

Specifications’ on Page 8 to determine whether the

restrictor plate is needed. If so, put the restrictor

plate in place within the inner flue collar as shown in

Figure 16.

ST210

install restrictor plate

12/4/99 djt

ST210

Fig. 16 Install the restrictor plate only if required for the vent-

ing configuraiotn. Refer to Page 8.

2. Attach Inner Starter Pipe, (found in with the log-

set), to the next section of inner pipe.

• Run a bead of sealant about 1/2” from the upper

end of the Inner starter pipe and join the two sec-

tions together.

• Drill three pilot holes into the Inner Starter and

secure the assembly with three sheet metal screws.

(Fig. 17)

3. Dry fit the Inner Pipe assembly to the stove for

the purpose of determining the center line of the

pipe on the wall.

• Side Wall Terminations: Dry fit the outer elbow

with the vertical outer vent and confirm the centerline

alignment with the wall thimble opening.

4. Attach the Inner Vent Assembly to the stove.

• Run a bead of sealant around the bottom end of

the starter pipe and attach the assembly to the stove

using three 1/4-20 x 3/8” Phillips screws provided in

the parts bag. (Fig. 18)

ST211

attach inner pipe

to next section

12/4/99 djt

CEMENT

First Section of Vent

Pipe

3” Inner

Starter PIpe

#8 x 1/2” Sheet

Metal Screws

ST211

Fig. 17 Connect the inner starter with the next section of in-

ner vent pipe.

ST212

attach inner assy

12/4/99 djt

CEMENT

ST212

Fig. 18 Attach inner assembly to flue collar.

5. Install the Outer Adapter Pipe. Apply a 1/4” bead

of cement around the inside wall of the pipe, about

1” from the end. Insert the pipe over the stove flue

collar, keeping the vertical seam oriented to the back

of the stove. Also, be sure to align holes on the pipe

with the holes on the flue collar of the firebox. Fasten

the pipe to the holes in the flue collar with the #12 x

1/2” sheet metal screws provided. (Fig. 19)

ST213

install outer adpater

12/6/99 djt

ST213

Fig. 19 Fasten outer pipe with #12 x 1/2” sheet metal screw.

15

Stardance Direct Vent/Natural Vent Gas Heater

20007065

Install the Vent Adapter Pipe

(Simpson Dura-Vent Components)

1. Install the Restrictor Plate. Consult the ‘Vent Run

Specifications’ on Page 8 to determine whether the

restrictor plate is needed. If so, put the restrictor

plate in place within the inner flue collar. (Fig. 16)

2. Discard the inner starter pipe shipped with the log-

set. Using the starter pipe assembly listed on Page

7, slide the inner section out to allow access.

• Run a bead of sealant around the bottom end of

the starter pipe and attach the assembly to the stove

using three 1/4-20 x 3/8” Phillips screws provided in

the parts bag. (Fig. 20)

3. Install the Outer Adapter Pipe. Apply a 1/4” bead of

cement around the outside surface, about one inch

from the crimped end. (Fig. 21) Orient the vertical

seam to the rear, and insert the crimped end of the

outer pipe into the flue collar. Fasten with three sheet

metal screws provided.

ST355

dura vent

attach inner assy

4/7/00 djt

CEMENT

1/4-20 x

3/8 Phillips

Screws

Inner Adapter

Pipe

ST355a

Fig. 20 Simpson Dura-Vent - install inner adapter pipe.

ST356

4/7/00 djt

ST356a

Fig. 21 Simpson Dura-Vent - install outer adapter pipe.

Side Wall Termination Assembly

1. Locate the vent opening on the wall. Refer to Fig-

ure 4, Page 6, to determine the opening centerline.

It may be necessary to first position the stove and

measure to find the hole location. Depending on

whether the wall is made of combustible materials,

cut the opening to the size shown in Figure 23. Com-

bustible wall openings must be framed as shown in

Figure 22.

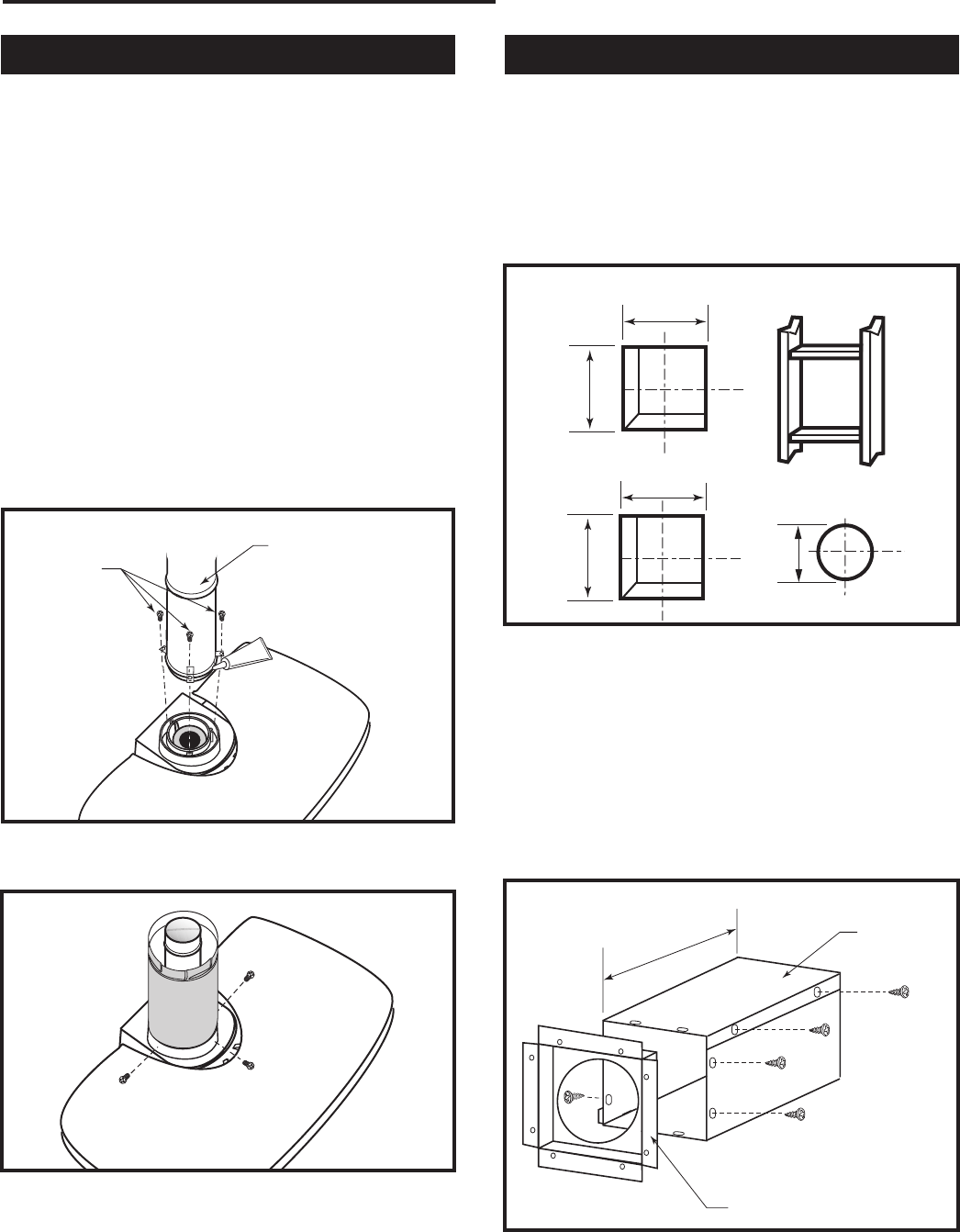

VO584-100

Vent Opening

2/99 djt

CFM System 9³⁄₈”

(240mm)

9³⁄₈”

(240mm)

Combustible Wall

Framing Detail

DuraVent

System

10”

(254 mm)

7¹⁄₂”

(191 mm)

Noncombustible Wall

VO584-100

Fig. 22 Locate vent opening.

2. Measure the wall thickness and cut the wall sleeve

sections to proper length (MAXIMUM 12”). Assemble

the sleeve with the #8 sheet metal screws supplied.

Attach the firestop plate to the sleeve end with the

holes. (Fig. 23) NOTE: The wall sleeve is required

in combustible walls only.

3. Install the Wall Firestop/Sleeve assembly into the

wall cutout and fasten the firestop to the wall cutout

framing members. (Fig. 23)

ZCS103 

Zero Clearance Sleeve

& Firestop

12/6/99 djt

12”

(305 mm)

Max. Length Sleeve

#8 Sheet

Metal Screws

Firestop

ZCS103

Fig. 23 Assemble the wall sleeve and firestop.

16

Stardance Direct Vent/Natural Vent Gas Heater

20007065

For DuraVent pipe only: Install vent pipe by aligning

the locking system together, sliding the pipes togeth-

er and twisting clockwise.

• Install 90° elbow. Twist lock as before.

• Slide the wall plate over horizontal run before at-

taching the horizontal run to the elbow. Fasten wall

plate to wall.

4. For CFM Vent Pipe only: If necessary, measure

to determine the vertical length (X) of pipe required

from the adapter pipe to the wall cutout centerline,

including a 2” overlap at the joint. (Fig. 24) use a

hacksaw or tin snips to trim the pipe as needed.

ST214a

measure vertical vent

12/6/99 djt

X

ST214a

Fig. 24 Determine the vertical pipe length.

5. Install first the inner then the outer straight pipe

section(s), trimmed end down, to the point of the el-

bow. Drill 3 holes through each joint and fasten with

sheet metal screws.

6. Seal and install the elbow using 3 sheet metal

screws at each joint.

7. Measure, and cut if needed, the appropriate length of

pipe section needed to make the connection through

the wall. Include a 2” overlap; i.e. from the elbow

to the outside wall face, about 2” or the distance

required if installing a second 90° elbow. (Fig. 25)

8. Slip the wall plate and trim collar over the interior end

of the horizontal pipe and install into the wall sleeve.

Seal the joint inside the wall plate if needed to keep

cold air from being drawn into the home.

9. Seal the ends and connect the horizontal pipe to the

elbow. Fasten the wall plate to the pipe with three

sheet metal screws. Slide the trim collar up against

the wall plate to cover the screws. (Fig. 26)

10. For both CFM and DuraVent Systems: Install

the vent terminal. (Fig. 27) Apply high temperature

sealant one inch from the ends of the inner and outer

collars. Guide the inner and outer vent termination

collars into the adjacent pipes. Double check that

the vent pipes overlap the collars by 2”. Fasten the

termination to the wall with the screws provided, and

caulk the joint with weatherproof sealant.

11. For CFM only: Install Charcoal Gray Pipe Rings

(#7FSDRG) or Polished Brass Pipe Rings (#7FS-

DRP) at pipe joints, if desired.

ST215

measure thru wall

12/6/99 djt

X

ST215

Fig. 25 Measure the horizontal length.

ST216

install pipe thru wall

12/6/99 djt

Wall

Sleeve

Trim Collar

Wall Plate

ST216

Fig. 26 Install the horizontal pipe and wall plate parts.

ST217

install wall terminal

12/6/99 djt

Recessed Wall

Caulk Plate Joint with

Weatherproof Sealant ST217

Fig. 27 Install the vent terminal.

17

Stardance Direct Vent/Natural Vent Gas Heater

20007065

Vent Termination Below Grade

Install Snorkel Kit #7FSDVSKS when it is not possible

to meet the required vent termination clearances of 12”

(305mm) above grade level. The snorkel kit will allow

installation depth of down to 7” (178mm) below grade

level. The seven inches is measured from the center of

the horizontal vent pipe as it penetrates the wall. If the

venting system is installed below grade, a window

well must be installed with adequate and proper

drainage. (Fig. 28)

NOTE: Be sure to maintain side wall clearances and

vent run restrictions. Refer to Figures 5, 6, 7, and 8.

1. Establish the vent hole through the wall.

2. Remove soil to a depth of approximately 16”

(400mm) below the base of the snorkel. Install a

window well (not supplied). Refill the hole with 12”

(305mm) of coarse gravel and maintain a clearance

of at least 4” (100mm) below the snorkel. (Fig. 32)

3. Install the vent system as described on Pages 14-17.

4. Be sure to make a watertight joint around the vent

pipe joint at the inside and outside wall joints.

5. Apply high temperature sealant around the inner

and outer snorkel collars. Join the pipes and fasten

the snorkel termination to the wall with the screws

provided.

6. Level the soil to maintain a 4” clearance below the

snorkel.

If the foundation is recessed, use extension brackets

(not supplied) to fasten the lower portion of the snor-

kel. Fasten the brackets to the wall first, and then

fasten to the snorkel with self-tapping #8 x 1/2” sheet

metal screws. Extend the vent pipes out as far as the

protruding wall face. (Fig. 29)

ST218

install snorkel

12/6/99 djt

Waterproof Seal

Around PIpe

Firestop

Wall Screws

and Anchors

Snorkel

Termination

Cap

Drain

Window Well

ST218a

Fig. 28 Snorkel kit installation.

ST219

snorkel detail

12/6/99 djt

Recessed Wall

Sheet Metal

Screws and

Bracket

Wall Screws and

Anchor

Waterproof Seal

Around Pipe

Firestop

Finishing Collar

7” Pipe

Wall Plate

ST219

Fig. 29 Use extension brackets to mount snorkel against

recessed wall.

Vertical (Through the Roof)

Vent Assembly

Note that all vertically terminated installations must

include the restrictor plate included with the stove.

Refer to Page 8, Figure 8.

Make certain the vent system conforms to all other

requirements for vertical termination as specified on

Page 8.

This installation will require you to first determine the

roof pitch and use the appropriate vent components.

Refer to Pages 8 and 10, Figures 8 and 9.

1. Locate the final position of the stove, observing all

clearances for both the vent and the stove.

2. Plumb to the center of the inner (4”) flue collar from

the ceiling above, and mark that location.

3. Cut the opening:

CFM System: 9³⁄₈” x 9³⁄₈” (240 x 240mm)

DuraVent System: 10” x 10” (254 x 254mm)

4. Plumb any additional opening through the roof or

other construction that may be needed. In all cases,

the opening must provide a minimum of 1” (25mm)

clearance to the vent pipe.

5. Place the stove in its final position.

6. Install firestop(s) #7DVFS and Attic Insulation Shield

#7DVAIS as needed. (Fig. 30) If there is a room

above ceiling level, a firestop must be installed on

both the bottom and top sides of the ceiling joists.

If an attic is above ceiling level, an attic insulation

shield must be installed.

7. Install the appropriate roof support and flashing,

making certain that the upper flange of the flashing

base is below the shingles. (Fig. 31)

8. Install appropriate pipe sections until the vent run

reaches above the flashing. The enlarged ends of

the vent sections always face downward.

18

Stardance Direct Vent/Natural Vent Gas Heater

20007065

9. Install the storm collar and seal around the joints.

(Fig. 31)

10. Add additional vent lengths to achieve the proper

overall height.

11. Apply cement to the inner and outer termination col-

lars and install the terminal cap.

ST222

vent thru ceiling

12/99

#7DVAIS

Attic Insulation

Shield

#7DVFS

Firestop in

Upper Floor

#7DVFS

Firestop in

Ceiling

Use Four

8dNails

ST222

Fig. 30 Install firestops and attic insulation shield.

ST221

vent thru roof

12/99

Sealant

Storm Collar

Use three #5 sheet

metal screws at

each joint

Upper

edge of

flange

goes under

upper

shingles

Flashing

#7DVSKV

(A, B, or F)

RoofSupport ST221

Fig. 31 Roof support and flashing.

Venting System Assembly - Natural Vent

General Information

The Stardance Heater is shipped from the factory as a

Direct Vent Heater. It may be converted to a Natural

Vent heater by installing the Vermont Castings Model

Z31D00 FSDHAG Draft Hood Adapter.

The Stardance Heater is approved for installation as

a Natural Vent. CFM Direct Vent pipe could be used

directly after the Draft Hood Adapter up to the ceiling,

then B-vent pipe must be used. Do not mix types of

B-vent pipe; use components from one maker or the

other. Follow the vent component maker’s instructions

exactly. The heater will also accept standard or enam-

elled 7” (178mm) diameter pipe, around the Type B

venting, for decorative purposes only. (Fig. 32)

NOTE: The restrictor plate supplied with the stove

is not used for Natural Vent applications.

ST358

Decorative

pipe around b-vent

4/26/00 djt

CFM Direct Vent

System may be

used after Draft

Hood up to the

ceiling

Decorative

7” Pipe

4” B-vent

Pipe

Draft Hood

Adapter

ST358

Fig. 32 Decorative 7” pipe may be fitted around the B-vent

pipe.

The Stardance stove, when installed as a Natural vent

heater, includes a vent safety switch. (Page 36, Figure

66) Operating the stove when it is not connected to a

properly installed and maintained venting system, or

tampering with or disconnecting the vent safety switch,

can result in carbon monoxide (CO) poisoning and pos-

sible death.

For U.S. installations: The venting system must con-

form with local codes and/or the current National Fuel

Gas Code, ANSI Z22.1.

For Canadian installations: The venting system must

conform to the current CSA B149.1 installation code.

19

Stardance Direct Vent/Natural Vent Gas Heater

20007065

Install the Vent Pipe

Apply a bead of sealant around bottom end of inner

starter pipe (found in bag with logset) and attach to

stove. Apply a bead of sealant around top of inner

starter pipe and install the Z31D00 FSDHAG Draft

Hood according to Draft Hood instructions. (Fig. 33)

Attach the first section of venting to the draft hood. De-

pending on the length of the individual venting sections

and the lengths of the decorative pipe (if installed), you

may need to slip the decorative pipe over the venting

sections before attaching upper sections to lower ones.

The sections of decorative pipe should be oriented with

their seams (if any) toward the wall; sections usually

do not need to be fastened at each joint, other than

slip sections. If the layout includes a slip section, this

should be the last section of pipe visible in the room, at

the ceiling. Complete the venting according to the vent

maker’s instructions.

Install the Log Set

1. Remove the logs from their packaging, and inspect

each piece for damage. DO NOT INSTALL DAM-

AGED LOGS.

2. Install the rear log centering it side to side on the

sheet metal shelf at the back of the firebox. (Fig. 34)

The log will touch both sides and the back wall of the

firebox.

3. Install the right log by engaging hole on bottom with

pin on the rear log. (Fig. 34) Then set right bottom

side on the burner so the edge of the log touches the

right side of the firebox. The right log does not use

the locator pins on the burner to stay in place.

LG141

Stardance

Install logs 1

12/11/00 djt

Left Log Right

Log

Decorative Grate

Rear Log

LG141

Fig. 34 Install the back, left and right logs.

4. Install the left log by engaging hole on bottom with

pin on rear log. (Fig. 34) Then set left bottom side

on the burner so the edge of the log touches the left

side of the firebox.

5. Loosely sprinkle the lava rocks directly on top of the

burner in front of and between the decorative grate

and the right and left logs. Use the lava rock to cover

brackets on the burner. (Fig. 35)

LG142

Stardance

Install logs 2

12/11/00 djt

Lava Rock LG142

Fig. 35 Completed log installation.

Connect the Gas Supply Line

Check the Rating Plate attached by a steel cable to the

firebox, to confirm that you have the appropriate firebox

for the type of fuel to be used. The Stardance may be

converted from one gas to another using the appropri-

ate Fuel Conversion Kit listed on Page 39.

CAUTION

This appliance should only be connected

by a qualified gas technician. Test to

confirm manifold pressures as specified

below.

The Stardance Heater and its individual shutoff

valve must be disconnected from the gas supply

piping during any pressure testing of that system

at test pressures in excess of 1/2 psig (3.5 kPa).

The Stardance Heater must be isolated from the

gas supply piping system by closing its indi-

vidual manual shutoff valve during any pressure

testing of the gas supply piping system at test

pressure equal to or less than 1/2 psig.

There must be a gas shutoff between the stove

and the supply.

In order to connect Natural Gas, use a fitting with

3/8” NPT nipple on the valve side and 1/2” natural

gas supply line with an input of 28,000 BTUs at a

manifold pressure of 3.5” and minimum inlet sup-

ply for adjustment of 5.5” w.c.

In order to connect Propane, use a fitting with

3/8” NPT nipple on the valve side and 1/2” pro-

pane gas supply line with an input of 28,000 BTUs

at a manifold pressure of 10.0” and minimum inlet

supply for adjustment of 11.0” w.c.

20

Stardance Direct Vent/Natural Vent Gas Heater

20007065

In the U.S.; Gas connection should be made in ac-

cordance with current National Fuel Gas Code, ANSI

Z223.1/NFPA 54. Since some municipalities have

additional local codes, be sure to consult your local

authority.

In Canada; consult the local authority and CSA-B149.1

installation code.

Always check for gas leaks with a mild

soap and water solution. Do not use an

open flame for leak testing.

Light the pilot according to the directions on Page 25,

before going to the next step.

Burner Information

The appliance must only use the gas specified on the

rating plate, unless converted using a Vermont Castings

Fuel Conversion Kit. To convert from LP to Natural Gas

use Kit #000-5021. To convert from Natural Gas to LP

use Kit #000-5022.

Conversion instructions are provided with each kit and

beginning on Page 31 in this manual.

THIS APPLIANCE SHOULD BE CONNECTED TO

THE GAS SUPPLY ONLY BY A QUALIFIED GAS

SERVICE TECHNICIAN.

THERE MUST BE A GAS SHUT-OFF BETWEEN

THE STOVE AND THE SUPPLY.

In order to connect Natural Gas, use a fitting with 3/8”

NPT nipple on the valve side and 1/2” natural gas sup-

ply line with an input of 28,000 BTUs at a manifold pres-

sure of 3.5” and minimum inlet supply for adjustment of

5.5” w.c.

In order to connect Propane, use a fitting with 3/8”

NPT nipple on the valve side and 1/2” propane gas

supply line with an input of 28,000 BTUs at a manifold

pressure of 10.0” and minimum inlet supply for adjust-

ment of 11.0” w.c.

Air Shutter Adjustment

The Stardance is shipped from the factory with the air

shutter adjusted to the minimum allowed opening. Refer

to Table 1. Based on the altitude where the stove is

located, a shutter adjustment is acceptable to provide a

mixed balance of flame color/glow. To adjust the shutter

opening, follow the steps below.

NOTE: The air shutter may only be adjusted to a more

open position. The factory setting is the minimum allow-

able air shutter opening. (Figs. 38 & 39)

Table 1. Air Shutter Adjustment

Minimum rear injector air inlet openings.

Model Natural Gas LP

Direct Vent 1/2” 1/2”

Natural Vent 1/2” 1”

Air Shutter Adjustment Instructions

To adjust the air shutter, the following procedures

should be followed:

1. Remove stove front. Lift stove front up and then

swing bottom out and away to disengage from the

stove body. (Fig. 36)

2. Swing open the swiveling latches at the top left and

right corners of the glass frame. (Page 35, Fig. 62)

ST474

Stardance

Remove Front

10/3/00

ST474a

Fig. 36 Remove stove front.

3. Pull the top edge of the glass and frame assembly

away from the firebox, and lift it off its supports on

the bottom of the firebox face. Place the assembly

out of the way on a flat, padded surface such as a

counter protected by a towel.

4. Take the logset out of the firebox if previously in-

stalled.

5. Remove the rear log bracket by unfastening the

screw. (Fig. 37)

6. Remove the right and left log bracket assembly by

unfastening the two screws which hold the burner in

place. (Fig. 37)

7. Hold the burner at the right hand side and lift to clear

the right burner leg. Then pull to the right to clear the

injectors on the left hand side.

ST350

Jefferson

air shutter adj

3/20/00 djt

Remove Screws Rear Log Bracket

Pilot

Left & Right Log

Bracket Assembly ST350

Fig. 37 Remove rear log bracket and left and right log

bracket assembly.

21

Stardance Direct Vent/Natural Vent Gas Heater

20007065

8. The air shutter is located on the bottom of the burner

to the left. Unfasten the two nuts holding the shutter

in place. The shutter may be adjusted between the

factory adjusted 1/2” to fully open. Reassemble the

shutter to allow the rear injector air inlet to close from

the minimum 1/2” opening to fully open. (Fig. 39) You

may have to try more than once to find the correct air

shutter opening for best results depending on your

altitude.

ST352

jefferson

air shutter

new position

3/20/00 djt

Refer to

Table 1

Air Shutter

(Original Position)

Burner

ST352

Fig. 38 Air shutter in original from-the-factory position.

ST351

jefferson

air shutter

original position

3/20/00 djt

Rear Injector Air Inlet

Burner

Air Shutter

(May be adjusted up to fully open)

Front Injector

Air Inlet

ST351

Fig. 39 Air shutter adjusted.

9. Refasten the two nuts and assemble the burner into

the unit by sliding the burner in at an angle with the

left side lower than the right side. Slide the left side

onto the injectors. Lower the right hand side down

into place. Make sure the burner is as far left as pos-

sible and the injector shoulders are inside the burner.

NOTE: It is very critical to keep the left burner leg,

which holds the injectors, at a 90° angle to the base.

(Fig. 40) This keeps the orifices aligned with tubes

on the inside of the burner. Failure to do so could

affect the flame appearance and performance of the

unit.

10.Refasten the right and left log bracket assembly.

11.Refasten the rear log bracket.

12.Replace logs.

13.Replace glass and stove front.

Follow lighting instructions on Page 25. Check flame

color appearance. NOTE: Allow stove to burn for at

least 1/2 hour to establish full flame color.

Should color need further adjustment, repeat steps 1

- 12 for air shutter adjustment.

ST353

air shutter adjust

burner replace

3/20/00 djt

90°

Left Burner Leg

Injector Shoulder

ST353

Fig. 40 Be sure to maintain 90° angle at left burner leg.

Complete the Assembly

• Open the swiveling latches (cams) on the top left and

right corners of the glass frame.

• Position the glass and frame against the firebox by

placing the bottom edge on the brackets on the bot-

tom face of the firebox.

• Swing the assembly against the firebox, and close

the latches firmly against the pins protruding from the

firebox top.

Install ON/OFF Switch

The switch assembly parts are found in the parts bag.

1. Attach switch assembly to left rear side of stove

shroud (when facing shroud) using two screws and

existing holes in shroud. (Fig. 41)

2. Run wires down back of stove, under bottom of rear

shroud to valve.

3. Attach wires to valve terminals. (Fig. 42)

ST315

attach switch assy

1/31/00 djt

Switch

Assembly Existing Holes

Screws ST315

Fig. 41 Attach switch assembly to rear shroud.

PILOT

ADJ

TP TH

TPTH

ST228

attach switch

wires to valve

12/99

ST228

Fig. 42 Attach switch wires to valve.

22

Stardance Direct Vent/Natural Vent Gas Heater

20007065

Thermostat Connection (optional)

Use only a thermostat rated for 500 millivolts.

Check the table below for the appropriate gauge ther-

mostat wire to use for the length of lead required in your

installation.

Thermostat

Wire / Gauge Maximum Run

18 20 feet

16 20 - 40 feet

14 up to 60 feet

1. Install the wall thermostat in the desired location and

run the wires to the stove location. Terminate these

leads with 1/4” female connectors.

2. Connect the thermostat wires to the valve. (Fig. 42)

Install the Front Plate

Hold the front plate by the window bars and lift it into

position, engaging the two steel tabs on the top corners

behind the adjacent bosses in the side plates. (Fig. 43)

Then seat the Front against the sides so the tabs at the

bottom lip engage with the notches in the stove legs.

When properly installed, the bottom of the Front Plate

cannot be pulled away from the sides without also lifting

it .

ST474

Stardance

Front

10/3/00

Engage steel tabs

gehind the cast

iron bosses

Control Door

Bottom tabs engage

notch in the leg. ST474

Fig. 43 Install the front plate.

This completes assembly of the Stardance stove.

23

Stardance Direct Vent/Natural Vent Gas Heater

20007065

Operation

The Stardance is operated with the operable door front

plate in place with the doors open or closed. To open

the front doors, insert the handle into the door latch stub

and turn it to the left and up. (Fig. 44) When not in use,

the handle may be stored in the handle holder on the

right side of the rear shroud. (Fig. 47)

ST261

Stardance

operable doors

1/31/01

Clockwise

to Open

Counterclockwise

to Close

ST621

Fig. 44 To open the front doors, turn handle clockwise.

ST624

handle holder

2/6/01

Handle

Holder

ST624

Fig. 45 When not in use, store handle in the handle holder.

Your First Fire

Read these instructions carefully and familiarize your-

self with the burner controls. Locate the pilot assembly,

Figure 46. Follow the lighting instructions on Page 24

exactly.

During the first fire, it is not unusual to smell some odor

associated with new logs, paint and metal being heated.

Odors should dissipate within an hour or so, however,

you can open a window to provide fresh air to alleviate

the condition.

Pilot and Burner Inspection

Each time you light your heater check that the pilot

flame and burner flame patterns are as shown in Figure

54. If flame patterns are incorrect, turn the heater off.

Contact your dealer or a qualified gas technician for as-

sistance. Do not operate the heater until the pilot flame

is correct.

Follow regular maintenance procedures as described

on Page 33.

ST477

Stardance

pilot location

10/4/00

ST476

Fig. 46 Pilot assembly location.

Flame & Temperature Adjustment

For stoves equipped with HI/LO valves, flame adjust-

ment is accomplished by rotating the HI/LO adjustment

knob located near the center of the gas control valve.

(Fig. 47)

LO

HI

Turn

counterclockwise

to decrease

flame height

Turn clockwise

to increase

flame height

HV102

Honeywell hi/lo knob

4/5/99 djt

Fig. 47 Flame adjustment knob for Honeywell valve.

Flame Characteristics

It is important to periodically perform a visual check

of the pilot and the burner flames. Compare them to

Figure 48. If any of the flames appear abnormal, call a

service person.

CO105c

Pilot flame

4/10/00 djt

LG142

Stardance

Install logs 2

12/11/00 djt

Red Glow

LG143

CO105c

Fig. 48 Correct pilot and burner flame patterns.

24

Stardance Direct Vent/Natural Vent Gas Heater

20007065

3. Open control access panel.

4. Push in gas control knob slightly and turn clock-

wise to “OFF”. Do not force.

5. Close control access panel.

1. STOP! Read the safety information above.

2. Turn off all electrical power to the fireplace.

3. For MN/MP/TN/TP appliances ONLY, go on to

Step 4. For RN/RP appliances turn the ON/OFF

switch to “OFF” position or set thermostat to

lowest level.

4. Open control access panel.

5. Push in gas control knob slightly and turn clock-

wise to “OFF”.

10. Push the control knob all the way in and hold.

Immediately light the pilot by repeatedly depress-

ing the piezo spark ignitor until a flame appears.

Continue to hold the control knob in for about one

(1) minute after the pilot is lit. Release knob and it

will pop back up. Pilot should remain lit. If it goes

out, repeat steps 5 through 8.

FOR YOUR SAFETY READ BEFORE LIGHTING

Follow the gas supplier’s instructions.

• If you cannot reach your gas supplier, call

the Fire Department

C. Use only your hand to push in or turn the gas

control knob. Never use tools. If the knob will not

push in or turn by hand, do not try to repair it, call a

qualified service technician. Applying force or any

attempted repair may result in a fire or explosion.

D. Do not use this fireplace if any part has been under

water. Immediately call a qualified service techni-

cian to inspect the heater and to replace any part of

the control system and any gas control which has

been under water.

A. This heater has a pilot which must be lit manu-

ally. When lighting the pilot follow these instruc-

tions exactly.

B. BEFORE LIGHTING smell all around the

heater area for gas. Be sure to smell next to

the floor because some gas is heavier than air

and will settle on the floor.

WHAT TO DO IF YOU SMELL GAS

• Do not try to light any fireplace

• Do not touch any electric switch

• Do not use any phone in your building

• Immediately call your gas supplier from a

neighbor’s phone.

To Turn Off Gas To Heater

Lighting and Operating Instructions

1. Turn the ON/OFF switch to Off position or set

the thermostat to lowest setting.

2. Turn off all electric power to the fireplace if

service is to be performed.

Lighting Instructions

6. Wait five (5) minutes to clear out any gas. Then

smell for gas, including near the floor. If you

smell gas, STOP! Follow “B” in the safety infor-

mation above. If you do not smell gas, go to the

next step.

7. Remove glass door before lighting pilot. (See

Glass Frame Removal section).

8. Visibly locate pilot by the main burner.

9. Turn knob on gas control counterclockwise

to “PILOT”.

• If knob does not pop up when released, stop

and immediately call your service technician or

gas supplier.

• If after several tries, the pilot will not stay lit,

turn the gas control knob to “OFF” and call your

service technician or gas supplier.

11. Replace glass door.

12. Turn gas control knob to “ON” position.

13. For RN/RP appliances turn the ON/OFF switch to

“ON” position or set thermostat to desired setting.

14. Turn on all electrical power to the fireplace.

WARNING:If you do not follow these instructions exactly, a fire or explosion

may result causing property damage, personal injury or loss of life.

Euro SIT SIT NOVA Honeywell

PILOT

ON

OFF

ON

P

I

L

O

T

O

F

F

O

F

F

FP1067

lighting instruction

knobs

3/9/01 djt

5

4

3

2

1

O

F

F

P

i

l

o

t

3/8" - 1/2"

FP1068

Lighting instructions

Pilots

25

Stardance Direct Vent/Natural Vent Gas Heater

20007065

Troubleshooting / Honeywell #8420 Gas Control System

NOTE: Before troubleshooting the gas control system, be sure the external gas shutoff is in the “ON” position.

WARNING: REMOVE THE GLASS PANEL BEFORE PERFORMING ANY GAS CONTROL SERVICE WORK.

SYMPTOM POSSIBLE CAUSES CORRECTIVE ACTION

1. Spark ignitor will not

light

2. Pilot will not stay lit

after carefully fol-

lowing the lighting

instructions

3. Pilot lights, no gas to

burner, valve knob

ON, remote switch

(rocker switch) ON

4. Frequent pilot out-

age

A. Defective or misaligned elec-

trode at the pilot

B. Defective ignitor (push button)

A. Defective pilot generator (ther-

mocouple)

B. Defective automatic valve op-

erator

A. Remote switch or wires defec-

tive

B. Thermopile may not generate

sufficient voltage

C. Plugged burner orifice

D. Defective automatic valve op-

erator

A. Pilot flame may be too low or

high, (blowing or lifting), caus-

ing the pilot to drop out

B. Possible blockage of the vent

terminal

Using a match, light pilot. If pilot lights, turn off pilot

and push the ignitor button again. If pilot will not light,

check gap at electrode and pilot - it should be 1/8” to

have a strong spark.

Push piezo ignitor button. Check for spark at elec-

trode and pilot. If there is no spark at the pilot, and

electrode wire is properly connected, replace ignitor.

Check pilot flame. It must impinge on the thermo-

couple or thermopile. NOTE: This pilot burner as-

sembly uses both a thermocouple and a thermopile.

The thermocouple operates the pilot flame. Tighten

the thermocouple. The thermopile operates the main

valve (ON and OFF). Clean and/or adjust pilot for

maximum flame impingement on thermocouple and

thermopile.

Turn valve knob to ‘Pilot’. Maintain flow to pilot; mil-

livolt meter should read greater than 10mV. If the

reading is okay and the pilot does not stay on, re-

place the gas valve. NOTE: An interrupter block (not

supplied) must be used to conduct this test.

Check rocker switch and wires for proper connection.

Use jumper wires across terminals at rocker switch.

If burner lights, replace rocker switch. If okay, use

jumper wires across rocker switch wires at the valve;

if burner lights, wires are faulty or connections are

bad.

1. Be sure wire connections from thermopile at gas

valve terminals are tight and thermopile is fully

inserted into pilot bracket.

2. One of the rocker switch wires may be grounded.

Remove rocker switch wires from valve terminals.

If burner now stays lit, trace rocker switch wiring

from ground. It may be grounded to the appliance

or the gas supply line.

3.

Check the thermopile with a millivolt meter. Take

reading at thermopile (“TP” and “TP/TH”) terminals

of gas valve. Should read 325 millivolts minimum

while holding valve knob depressed in PILOT po-

sition and with rocker switch OFF. Replace faulty

thermopile if reading is below specified minimum.

Check burner orifices for debris, and remove.

Turn knob to ON, place rocker switch to ON, millivolt

meter should read greater than 10 mV. If the read-

ing is okay and the burner does not light, replace the

valve.

Clean and/or adjust pilot flame for maximum flame

impingement on thermocouple and thermopile.

Check the vent terminal for blockage.

26

Stardance Direct Vent/Natural Vent Gas Heater

20007065

Instructions for RF Comfort Control Valve

The Comfort Control valve allows remote control of tem-

perature, fan and flame appearance.

NOTE: The antenna should hang in free air away form

grounded metal.

Operation

1. If the manual switch is in remote position, switch it to

LOCAL. (Fig. 49)

2. Turn the pilotstat knob counterclockwise from OFF to

the PILOT position, push the knob down, and hold in

position. The pilot valve opens and allows gas to flow

to the pilot burner.

3. Push plunger on the piezo until the pilot burner is lit.

When the pilot burner is lit, the LED on the control

will come on after approximately 40 seconds and

will provide 1 short blink continuously in the normal

mode. When the light turns off which will be approxi-

mately 10 seconds after it has been continuously

red, the receiver/valve is fully powered.

FP1037

Honeywell

comfort valve

3/22/00 djt

LOCAL

REMOTE

ON

•

PILOT

OFF

•

LED

Motor Top Cap Piezo Ignitor

Local/Remote

Switch Pilotstat

Knob

LED

Plug

Antenna FP1037

Fig. 49 Comfort control valve.

4. Release the knob. The shaft will move upward. The

pilot burner should now stay burning. If the pilot

burner goes out, repeat step 2.

5. Turn the knob counterclockwise to the ON position. If

the manual switch is in the LOCAL position, the main

burner will turn on immediately.

6. ON the initial use of a transmitter, a recognition

operation is required between the receiver/valve and

transmitter. Change the switch from LOCAL to RE-

MOTE. Press the fan or flame button on the transmit-

ter within 30 seconds. The LED will blink indicating

the transmitter will now work with the receiver/valve.

If the switch continues in the REMOTE position, the

transmitter will now control the main valve, flame

modulation level and fan control.

7. If the manual switch is in the LOCAL position, the

valve will be at the highest fixed pressure setting and

the fan will be at the highest fixed speed. The trans-

mitter will control the fan only.

Shut Off Procedure

If the manual switch is in the REMOTE position, the

transmitter can shut off the main burner and fan. How-

ever, the control is still on and a command from the

transmitter can turn on the main burner or fan.

To shut off the system, turn the pilotstat knob clockwise

to the OFF position. This action closes the main gas

and safety valves. The transmitter cannot turn on the

main burner or fan.

Transmitter Operation

Off Mode

In the OFF mode, the fireplace flame and fan are

off, the display will show OFF and displays the room

temperature. If the receiver is in REMOTE mode, the

fireplace will shut off.

FP1039

comfort valve

transmitter

3/27/00 djt

Mode

Auto

On

Off

Countdown

Timer

Fan

Display

Room Temperature

Set Temperature

Flame Height Level

Fan Speed Level

Countdown Timer

Low Battery

Flame

Up

Increase Flame Height,

Fan Speed Timer, or

Set Point

Down

Decrease Flame, Fan

Speed Timer or Set

Point

FP1039

Fig. 50 Transmitter diagram.

On (Manual) Mode

In the ON mode, the room temperature, flame and fan

levels will be shown. MANUAL will appear next to both

the flame and fan icons.

When the control is in the ON mode, the flame and fan

levels, and delay timer are changed with the up and

down buttons. To change the flame level, press the

flame button followed by an arrow key. To change the

fan level, press the fan key followed by an arrow key.

Pushing the arrow key once will change the level by

one unit.

Delay Timer Mode

The shut off delay timer has a maximum of 2 hours and

a minimum of zero minutes. To change the timer level,

press the time key followed by an arrow key. Pushing

the key once will change the timer by 10 minutes.

27

Stardance Direct Vent/Natural Vent Gas Heater

20007065

Auto Mode

In the AUTO mode, the room temperature, set tem-

perature, flame and fan levels will be shown. AUTO will

appear next to both the flame and fan icons.

When the control is in the AUTO mode, the main burner

will turn on/off or modulate based on the heat needed

to maintain the set temperature. The flame level will

change automatically to optimize the heat output

needed to maintain the set temperature. To change the

set temperature, press the up or down key. Pushing a

key once will change the temperature by one degree.

In the AUTO mode, the fan speed will increase with

increasing flame height or decrease with decreasing

flame height. “AUTO” is displayed next to the flame and

fan icons.

Fan Override During Auto Mode

If a lower or higher fan speed is desired when operating

in the AUTO mode, the fan speed can be overridden by

pushing the fan button followed by the up or down key.

Pushing a key once will change the fan level by one

unit. In this mode “AUTO” is displayed next to the flame

icon and “MANUAL” is displayed next to the fan icon.

Change Between F/C Temperature Units

Push the up and down arrow keys simultaneously for

at least 3 seconds to toggle between Fahrenheit and

Celsius units.

Disable Thermostat Function

To disable the thermostat function in the AUTO mode,

push the time and down keys simultaneously for at least

3 seconds.

To Change Batteries

1. Remove cover on the backside of the transmitter.

Install 3 AAA batteries as shown and reattach cover.

2. Once steps 1-3 in OPERATION are completed,

receiver/valve and transmitter are now ready. Press

any button on transmitter for recognition process to

occur between the receiver/valve and transmitter.

3. Use functions as described in TRANSMITTER sec-

tion.

Troubleshooting

1. Locate LED light on valve.

2. LED will blink after every valid command received by

the transmitter; this is not an error.

3. Failure codes may occur anytime after pilot burner is

lit.

4. Sequence is failure code followed by light not blink-

ing for 30 seconds.

5. In the event of multiple failure codes, next failure

code follows previous failure code by approximately

3 seconds.

If an Error Code 3 is observed while performing the

testing, complete the following:

1. Make sure the spade connectors are pushed all the

way on. If rhe Error Code 3 is still showing, then go

to the next step.

2. Switch the front two thermopile leads with the back

two. Be sure the white lead is connected to the

spade with the white dot next to it. If the Error Code

3 is still showing, replace the thermopiles.

If an Error Code 8 is observed while performing the

testing, complete the following:

1. Confirm the valve is not in REMOTE mode.

• If the valve is producing Error Code 8 and in RE-

MOTE mode, the valve is defective and should be

replaced.

• If the valve is in LOCAL mode and producing Error

Code 8, then go to the next step.

2. Slide the Remote/Local switch to REMOTE and

teach the valve a transmitter (see item 6, page 32).

The Error Code will clear itself after approximately

1.5 minutes and return to normal operation.

LED Count Service Action

8 Replace valve

7 Confirm stepper motor connection exists

5 Confirm fan connection exists and works

4 Confirm gas type; jumper in place

3 Replace thermopiles

2 Turn fan ON

NOTE: Some keys are not active.

FAN

Antenna



Red

White

Red

White

FP1038

comfort valve

wiring diagram

3/24/00 djt

Pilot

Assembly

Fan

White Dots

Valve

(Bottom View)

FP1038

Fig. 51 Comfort valve wiring diagram.

28

Stardance Direct Vent/Natural Vent Gas Heater

20007065

Comfort Valve System Control Sequence of Operation with Transmitter

Set manual switch

to local or remote

five minute wait

period

Light pilot burner

Did the LED stop

blinking?

Review LED

failure analysis

Release pilotstat

knob

Turn pilotstat knob

from PILOT to ON

Cycle switch once

and leave in remote.

Pressy any key on

transmitter for

recognition operation

Choose Manual or

Remote path. Set

switch to manual or

remote.

Yes

Local Path

If manual switch is

set to LOCAL, did

main burner light and

fan turn on?

Move switch from

local to remote.

Press any key on

transmitter. Move

switch back to

local.

Turn pilotstat knob

to PILOT to turn off

main burner.

Turn pilotstat knob

to OFF to turn valve

completely off.

Yes

If the manual switch

is set to REMOTE,

press the mode but-

ton to display “ON”.

Does transmitter con-

trol the main burner

and fan?

Move switch from

manual to remote.

Press any key on

transmitter.

Does transmitter

change levels of flame

height, fan speed?

Set levels of flame

height and fan to “0:

to shut off main burner

and fan.

Turn pilotstat knob

to OFF to turn valve

completely off.

Yes

No

On Path

29

Stardance Direct Vent/Natural Vent Gas Heater

20007065

If the manual switch is set

to REMOTE, press the

mode button to display

AUTO on the transmitter.

Does the transmitter dis-

play the room and tempera-

ture setting?

Auto Path

Move switch from

LOCAL to REMOTE.

Press any key within

30 seconds.

If the setting is above

room temperature on the

transmitter, does the main

valve and fan turn on?

If the settings is below

room temperature on the

transmitter, does the main

valve and fan turn off?

Turn pilotstat knob to OFF

to turn valve completely

off.

No

No

30

Stardance Direct Vent/Natural Vent Gas Heater

20007065

Fuel Conversion Instructions

WARNING! This conversion kit shall be installed

by a qualified service agency in accordance with

the manufacturer’s instructions and all applicable

codes and requirements of the authority having

jurisdiction. If the information in these instruc-

tions is not followed exactly, a fire, explosion

or production of carbon monoxide may result

causing property damage, personal injury or loss

of life. The qualified service agency is respon-

sible for the proper installation of this kit. The

installation is not proper and complete until the

operation of the converted appliance is checked

as specified in the manufacturer’s instructions

supplied with the kit.

CAUTION: The gas supply shall be shut off prior

to disconnecting the electrical power, before pro-

ceeding with the conversion.

ST226

attach gas line

12/8/99 djt

PILOT

ON

OFF

PILOT

ADJ

L

O

H

I

Gas Supply Inlet

Main Gas

Line

ST226

Fig. 52 Attach the gas line to the left side of the valve.

Conversion Precautions

Before proceeding, turn control knob on valve to OFF

and turn gas supply OFF. Turn OFF any electricity that

may be going to the appliance.

Conversion Procedure

1. Remove stove front. Lift stove front up and then

swing bottom out and away to disengage from the

stove body. (Page 33, Fig. 63)

2. Swing open the swiveling latches at the top left and

right corners of the glass frame. (Page 34, Fig. 64)

3. Pull the top edge of the glass and frame assembly

away from the firebox face. Place the assembly out

of the way on a flat, padded surface such as a coun-

ter protected by a towel.

4. Remove the logset from the firebox.

5. Remove the rear log bracket by unfastening the

screw. (Fig. 53)

6. Remove the right and left log bracket assembly by

unfastening the two screws which hold the burner in

place. (Fig. 53)

7. Hold the burner at the right hand side and lift to clear

the right burner leg. Then pull to the right to clear the

injectors on the left hand side.

8. Remove injector orifices from left burner leg using

1/2” wrench. (Fig. 60)

9. Install conversion orifices. (Refer to Table 2)

Models 3900, 3910 (R Models) Only

Honeywell Valve

10. Remove cap from Hi-Lo knob. This can be accom-

plished by lifting the plastic cap off the screw. (Fig.

54)

11. Remove the screw from center of Hi-Lo knob with

small screwdriver turning counterclockwise. (Fig. 54)

ST350

Jefferson

air shutter adj

3/20/00 djt

Remove Screws Rear Log Bracket

Pilot

Left & Right Log

Bracket Assembly ST350

Fig. 53 Remove the rear log bracket and left and right log

bracket assembly.

CO100

Gas conversion

HI-LO knob

3/15/99 djt

L

O

H

I

L

O

H

I

Cap

Hi/Lo

Knob

Lift Open

Center Screw CO100

Fig. 54 Remove center screw from Hi/Lo knob.

12.Insert blue painted screw when converting to natural

gas and red painted screw when converting to LP.

13. Tighten screw (do not over tighten), replace cap.

SIT 820 Valve

14. Using TORX T20 bit, remove and discard the three

(3) pressure regulator mounting screws (A), pressure

regulator tower (B) and the spring and diaphragm

assembly (C). (Fig. 55)

15. Insure the rubber gasket (D) is properly positioned

and install the new HI/LO pressure regulator assem-

bly to the valve using the new screws (E) supplied

with the kit. Tighten the screws securely. (Ref. torque

= 25 in/lb) (Fig. 56)

16. Install the enclosed conversion label (F) to the valve

body where it can easily be seen. (Fig. 57)

31

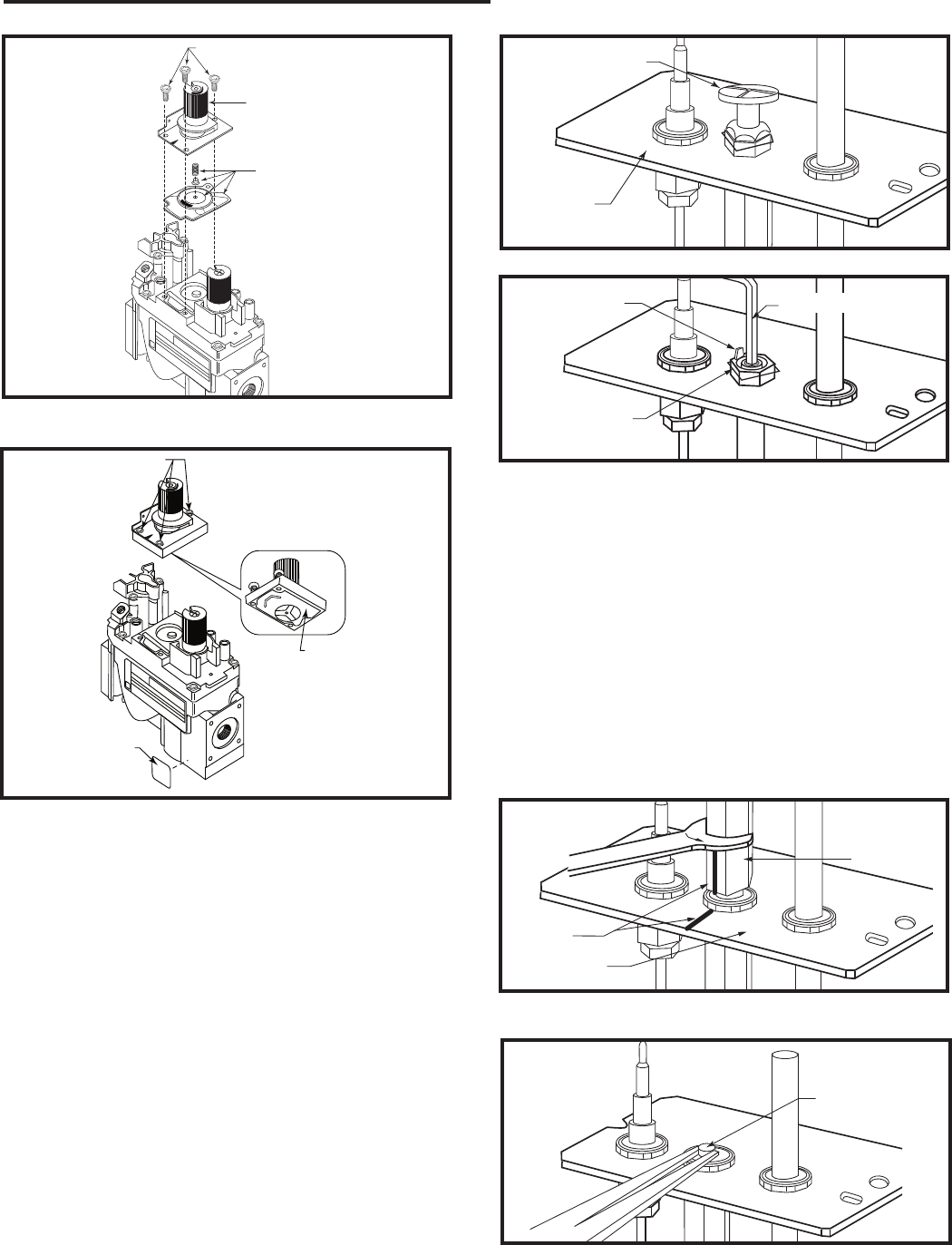

Stardance Direct Vent/Natural Vent Gas Heater

20007065

FC107

SIT820

valve conversion

10/03

A

B

C

O

F

F

P

I

L

O

T

O

Fig. 55 Remove mounting screws, pressure regulator tower

and spring and diaphragm assembly.

FC107

D

E

F

FC108

SIT

regulator

conversion

10/03

O

F

F

P

I

L

O

T

O

FC108

Fig. 56 Replace regulator.

Pilot Orifice Conversion

1. Locate pilot. (Fig. 53)

2. Replace pilot orifice.

Pilot Type 1

• Remove pilot hood by lifting up. (Fig. 57) Do not

remove snap ring to remove pilot hood. NOTE: It is

not necessary to remove the pilot tube for conver-

sion.

• Remove pilot orifice with Allen wrench. (Fig. 58)

• Install the conversion orifice.

• Reinstall pilot hood. Be sure to align hood with

index tab.

CO105a

gas conversion

Pilot 

1/28/00 djt



Pilot Hood

Pilot

Bracket

CO105a

Fig. 57 Remove pilot hood.

CO106a

DV360/580

Gas Conversion

Pilot2

1/28/00 djt

Index Tab

Snap Ring

CO106a

Fig. 58 Remove pilot orifice.

Allen Wrench

Pilot type 2

• Loosen pilot hood turning counterclockwise using a

7/16” wrench. (Fig. 59) NOTE: You may use pen-

etrating oil to prevent pilot hood threads from seizing

up.

• Remove pilot orifice with needlenose pliers. (Fig.

60) NOTE: Use a wrench to hold pilot tube in place

while removing the orifice.

• Install the conversion orifice.

• Reinstall pilot hood and tighten until mark on pilot

hood aligns with mark on pilot bracket.

NOTE: Be sure burner leg remains at a 90° angle to

firebox base after conversion.

CO105

Gas Conversion

Pilot

2/15/99 djt

Pilot

Index

Marks

Pilot Bracket

CO105

Fig. 59 Remove pilot hood. (Your pilot may have a different

appearance.)

CO106a

Gas Conversion

Pilot (Vermont)

7/19/99 djt

Pilot Orfice

CO106b

Fig. 60 Remove pilot orifice.

32

Stardance Direct Vent/Natural Vent Gas Heater

20007065

Models 3940, 3950 (RF Models) Only

16. Follow procedure for pilot type 2 to replace pilot

orifice.

17. Remove and replace plug on lower right hand side

of the valve; Red for LP and Blue for NG. (Page 26,

Fig. 49)

18. Remove motor top cap. Depress and turn center

plunger until arrow points to correct screw. Red for

LP and Blue for NG. NOTE: Plunger will “snap” into

NG position when arrow is close to blue screw. It will

not “snap” at LP (Red) position. (Fig. 61)

19. Insure manifold pressure remains between 3.2”

- 3.5” w.c. for NG and 9,5” - 10” w.c. for LP. To adjust

the manifold pressure, for NG, using a torque #10

key turn the blue screw clockwise to increase the

manifold pressure. Turn the screw counterclockwise

to decrease the pressure. Use the red screw to

adjust LP.

20. Replace motor top cap.

All Models

21. Replace burner. Slide the burner in at an angle

with left side lower than the right side. Slide the left

side onto the injectors, making sure the burner leg

remains at a 90° angle to the base. Lower the right

hand side down in to place. Make sure the burner is

as far left as possible and the injector shoulders are

inside the burner.

NOTE: It is very critical to keep the left burner leg,

which holds the injectors, at a 90° angle to the base.

(Fig. 62) This keeps the orifices aligned with the

tubes inside burner. Failure to do so could affect the

flame appearance and performance of the unit.

22.Place conversion label on valve.

23.Reinstall the right and left log bracket assembly.

24.Reinstall the rear log bracket.

25.Replace logs.

26.Replace glass and stove front.

Conversion is complete.

FP1037b

comfort valve

convert

3/6/01 djt

LOCAL

REMOTE

ON

•

PILOT

OFF

•

LED

Motor Top Cap

Center

Plunger

Blue - NG Red - LP

Valve

FP1037b

Fig. 61 Depress and turn center plunger.

ST353a

injector orifice

replace

3/21/00 djt

90°

Left Burner Leg

Injector Orifice

ST353a

Fig. 62 Remove and replace injector orifices.

Table 2. Injector Orifice Size Matrix

Conversion to Natural Gas Input (Btu/h)

Kit # Front Part # Rear Part # Minimum Maximum

000-5021 #54 / .055” 30000514 #44 / .086” 30000334 19,000 28,000

000-5011

Conversion to LP Input (Btu/h)

Kit # Front Part # Rear Part # Minimum Maximum

000-5022 #69 / .029” 30000513 #54 / .055” 30000514 20,000 28,000

000-5012

33

Stardance Direct Vent/Natural Vent Gas Heater

20007065

Maintenance

Your Stardance Gas Heater will provide years of service

with minimal upkeep. The following procedures will help

ensure that your stove continues to function properly.

Annual System Inspection

Have the entire heater and venting system inspected

annually by a qualified gas technician. Replace any

worn or broken parts.

Logset and Burner /

Cleaning and Inspection

Cleanliness is critical to the proper function of the

heater. The logset and burner must all be kept free of

dust and unobstructed by debris. Inspect these areas

before each use and clean as necessary.

1. Turn the burner OFF and let the heater cool com-

pletely before cleaning.

2. Lift the Stove Front up and then swing the bottom

out to disengage it from the heater shell. (Fig. 64)

3. Carefully remove the glass and frame assembly and

place it out of the way on a flat, padded surface such

as a counter protected by a towel.

4. Carefully inspect the Logs for damage. Contact your

local dealer if any damage is evident. DO NOT OP-

ERATE THE HEATER WITH DAMAGED LOGS.

5. Use a soft bristled brush to sweep dust or debris

from the Logs, Pilot and Burner. Use care as the logs

are fragile and susceptible to damage. DO NOT USE

A VACUUM TO CLEAN THE LOGS OR BURNER.

6. Replace the glass panel and frame assembly.

7. Replace the Stove Front.

Care of Cast Iron

An occasional dusting with a dry rag will help keep the

painted surfaces looking new. Use high-temperature

stove paints, available through your local dealer, to

touch-up areas as needed. Clean areas to be painted

with a wire brush and be sure to cover the logs, burner

and valve assembly, glass and frame assembly. Apply

the paint sparingly; two light coats of paint will give bet-

ter results than a single heavy coat.

Clean porcelain enamel surfaces with a soft, damp

cloth. Do not use abrasive cleaning agents. If neces-

sary, use only a cleaning agent formulated especially

for use on porcelain enamel surfaces.

CAUTION

TURN THE PILOT OFF BEFORE PAINTING. AL-

LOW THE HEATER TO COOL COMPLETELY BE-

FORE PAINTING.

Cleaning the Glass

WARNING: Allow the glass cool completely before

attempting to clean.

It will be necessary to clean the glass periodically. Dur-

ing start-up, condensation, which is normal, forms on

the inside of the glass and causes lint, dust and other

airborne particles to cling to the glass surface. Also

initial paint curing may deposit a slight film on the glass.

It is therefore recommended that the glass be cleaned

two or three times with a non-ammonia household

cleaner and warm water (we recommend gas fireplace

glass cleaner). After that the glass should be cleaned

two or three times during each heating season depend-

ing on the circumstances present.

Clean glass after first two weeks of opera-

tion.

Glass Replacement

Replace glass only with CFM Corporation approved

parts. Refer to Page 36 for Replacement Parts. Refer to

Figure 63 and previous instructions for removal of the

damaged glass frame.

ST474

Stardance

Remove Front

10/3/00

ST474a

Fig. 63 Remove the stove front.

34

Stardance Direct Vent/Natural Vent Gas Heater

20007065

ST208

glass swivel latch

12/99

ST208

Fig. 64 Release the latches to release the glass frame.

Gasket Replacement

The Stardance Gas Heater uses a ‘tadpole’ type gasket

to seal between the glass panel and the frame. In time,

this gasket can become brittle and compressed and

should be replaced. New gasket is available from your

dealer.

Shut off the gas supply and allow the stove to cool.

Wear safety goggles and a dust mask.

1. Remove the Front, Glass Frame and Glass Panel.

(Figs. 63 & 64) Remove the old gasket. Use a

razor blade to separate the glass and gasket from

the frame, and to clean the glass of any remaining

cement or bits of gasket. Use a cold chisel if neces-

sary.

2. Determine the correct length of gasket by laying it

out around the edge of the glass. Allow an extra 1

- 2” (25-50mm). Mark the spot to be cut. Use a utility

knife.

3. Starting on a long edge, remove about 6” of the pro-

tective paper strip and apply the flat adhesive face

of the gasket around the outside-facing edge of the

panel. Continue around the panel, applying a bout 6”

at a time and being careful to not stretch the mate-

rial. Do not overlap the gasket ends. (Fig. 65)

4. Apply a thin bead of high temperature silicone rubber

sealant along the inside corner of the glass frame, all

around the perimeter. Place the flat gasketed side of

the glass panel back into the steel frame. Pinch the

rounded inside-facing gasket material to bulk it up.

5. Replace the glass frame and front panel as previ-

ously described.

ST179

glass gasket detail

ST179

Fig. 65 Wrap the gasket material around the outside iedge of

the glass.

Inspect the Vent System Annually

Have the vent system inspected annually by a qualified

technician. Shut off the main gas supply before inspect-

ing the system. Both the inner exhaust pipe and the out-

er combustion supply pipe must be checked to confirm

that they are unblocked and in good condition.

Check the Gas Flame Regularly

To ensure that the stove is operating properly, check the

flames periodically to confirm that they match Figure 64.

The flames will be blue during the first 15-20 minutes of

operation, and will gradually turn to yellow after that.

Do not use your stove if the flame pattern differs from

that shown here. Contact your Vermont Castings dealer

or a qualified technician for help.

LG142

Stardance

Install logs 2

12/11/00 djt

Red

Glow

LG143

Fig. 66 Correct flame pattern.

Stove Disassembly

If there is ever a need to remove the firebox assem-

bly from the stove shell, support the firebox with solid

stands about 6” (152mm) tall under the left and right

outer edges of the firebox base. Do not set the firebox

assembly directly on the floor; this can damage the

control valve and/or the gas lines from the valve to the

firebox.

Before removing the firebox from the shell, disconnect

the on/off switch wires from the valve. If the assembly

includes the optional fan, disconnect the fan rheostat.

If the installation includes a wall thermostat, disconnect

the thermostat leads from valve.

Disconnection and reconnection to the gas line should

only be done by a qualified gas service technician.

Upon reinstallation, the vent system must be sealed to

the firebox as shown in the installation section, Page

14. Also be sure the logs are placed in the firebox cor-

rectly, as shown in Page 19, Figures 34 & 35.

35

Stardance Direct Vent/Natural Vent Gas Heater

20007065

OFF ON

Thermostat

(Optional)



Thermopile

Black

Black

Millivolt

Gas Valve

St124b

on/off/switch

wiring

1/11/00 djt

TP/TH

TP

TH

Wiring Diagrams

ST124b

On/Off Switch

Wiring

Thermostat

(Optional)



Thermopile

Black

Black

Millivolt

Gas Valve

St124c

Thermostat

wiring

1/11/00 djt

TP/TH

TP

TH

Optional Thermostat

Wiring

ST124c

Fig. 67 On/Off switch and optional thermostat circuit.

NOTE: IF ANY OF THE ORIGINAL WIRE, AS

SUPPLIED WITH THE APPLIANCE, MUST BE

REPLACED, IT MUST BE REPLACED WITH TYPE

SF-2, 200°C WIRE OR ITS EQUIVALENT.

Thermocouple

Safety Limit

Switch

Valve

ST665

Safety Limit

Switch wiring

5/29/01 djt

ST665

Fig. 68 Draft hood adapter wiring.

FAN JUNCTION BOX

FAN

POWER

CORD

Strain Relief

Chassis Ground

BLK

GRN

GRN

WHT

ON / OFF

Rheostat

Chassis

Ground

RHEOSTAT / SNAPSTAT

BOX

Snapstat

BLK

BLK

BLK

BLK

BLK

WHT

ST153

rdv connections diag.

10/99

MOTOR

SNAPSTA

T

ON/OFF

RHEOSTA

T

WHT

WHT

BLK

BLK

BLK

GRN

BLK

ST236

FK26 wiring diagram

12/99

Schematic Diagram

ST234

ST153

Fig. 69 Stardance fan circuit.

36

Stardance Direct Vent/Natural Vent Gas Heater

20007065

1a

1b

1c

PILOT

ON

OFF

PILOT

ADJ

L

O

H

I

CEMENT

2

56

7

19

8a,b

20

4

18

21

7065

Stardance

fully assembled

parts

1/6/04 djt

25a,b,

c,d

31

24

32

LOCAL

REMOTE

ON

•

PILOT

OFF

•

LED

9a,b

26 33

35 34

10a

11 12 13

14

16

15

10b

10c

17

30

27

28

29

36

3

22

23

38

39

40

41

42

48a,b

49

CFM Corporation reserves the right to make changes in design, materials, specifications, prices and discontinue colors and products at any time,

without notice.

Stardance Direct Vent/Natural Vent Gas Heater (SDV30)

Models 3900-3916, 3940-3956

Ref. Description SDV30

1. Gas Log Assembly - SDV30 20003458

1a. Log Rear (V21) 20003459

1b. Log Right (V22) 20003460

1c. Log Left (V23) 20003461

37

Stardance Direct Vent/Natural Vent Gas Heater

20007065

2. Gasket Cement 1206122

3. Manifold Assembly 20003739

4. Lava Rocks Burner 57897

5. Gasket, Glass - Med. Knit - RDV40 1203702

6. Glass, DV25 1601691

7. Glass Frame Assembly - SDV30 30000127

8a. Valve RN Honeywell VS8420E 2038 (Serial #’s up to 8738)* 10001782

8b. Valve RP Honeywell VS8420E 2020 (Serial #’s up to 8738)** 10001759

9a. Valve Gas Honeywell Convertible RFN RV8310E 20003719

9b. Valve Gas Honeywell Convertible RFP RV8310E 20003720

10a. Pilot Assembly 3Way N/DV RN 0.199.706 10002264

Pilot Assembly 3Way N/DV RP 0.199.703 10002265

10b. Pilot, PSE - NA175 20001115

Pilot, PSE - LP175 20001116

10c. Pilot Assembly 3Way DV/RFN CS3003A2009 20002266

Pilot Assembly 3Way DV/RFP CS3003A2017 20002268

11. Thermocouple 24” 53373

7531137

12. Electrode Ignitor w/Cable SIT24 10001297

13. Pilot Top Convertible 10002266

14. Thermopile 18” RS 51827

7533113

15. Nut Electrode SIT #0.974.144 57886

16. Tubing Pilot w/Fittings 1/8 x 24” 10001296

17. Thermopile - PSE for RF Pilots 20002400

18. Burner Housing Assembly NG/LP 20002214

19. Switch ON/OFF - RN/RP Models 30000874

20. Grate, Burner - JDV 20002167

21. Wiring Harness - FSDV32 RN/JDV 10002582

22. Right Log Bracket 20005259

23. Left Log Bracket 20005258

24. Door, Control - FS/HM 1301087

25a. Orifice Hood #69 - Front - LP 30000513

25b. Orifice Hood #54 - Front - NG 20000130

25c. Orifice Hood #54 - Rear - LP 20000130

25d. Orifice Hood #44 - Rear - NG 30000334

26. Top, Stardance DV Refer to Enamel Parts Chart Page 38

27. Nut, Hex Jam 3/8 -16 TOPLK-Z 1203290

28. Pawl Assy, Ash Door - ENC 5004025

29. Front Steel Handle/Shaft - NI/VER 30002717

30. Handle Pkg, Ceramic w/Screw 0004345

31. Gasket, Base Pan - JDV 20002282

32. Gasket, Base Pan Inner 20002566

33. Front, Stardance OP Dr Refer to Enamel Parts Chart Page 38

Stardance Direct Vent/Natural Vent Gas Heater (SDV30)

Models 3900-3916, 3940-3956 (continued)

Ref. Description SDV30

*When converting to SIT valve, must order RP275

**When converting to SIT valve, must order RP269

38

Stardance Direct Vent/Natural Vent Gas Heater

20007065

Stardance Direct Vent/Natural Vent Gas Heater (SDV30)

Models 3900-3916, 3940-3956 (continued)

Ref. Description SDV30

34. Door, Right - Stardance Refer to Enamel Parts Chart Page 38

35. Door, Left - Stardance Refer to Enamel Parts Chart Page 38

36. Sensor 1450 CMG-8184-0032 10002013

37. Draft Hood Final Assembly (not shown) 20005228

38. Gasket, HE Door 1203687

39. Left End Refer to Enamel Parts Chart Page 38

40. Right End Refer to Enamel Parts Chart Page 38

41. Transmitter Honeywell RF 20002047

42. FK26 Fan Subassembly (RF only) 30000879

43. Switch Bracket (not shown) 53821

44. Starter Pipe (not shown) 30000245

45. Rear Shroud (not shown) 20003802

46. 2¹⁄₄” Restrictor (not shown) 1409170

47. 1/4” Fiberglass Gasket 1203560

48a. Valve Nova SIT820.662 RN (Serial #’s starting with 8738) 20010563

48b. Valve Nova SIT820.653 RP (Serial #”s starting with 8738) 20010645

49. Ignitor Piezo w/Nut SIT 52464

50. Bracket Piezo Ignitor (not shown) 20010876

Fuel Conversion Kits

Conversion Kit, NG to LP - JDV/SDV30R Kit #000-5022

Conversion Kit, NG to LP - SDV30RFN (DB) Kit #000-5012

Conversion Kit, LP to NG - JDV/SDV30R Kit #000-5021

Conversion Kit, LP to NG - SDV30RFP (DB) Kit #000-5011

Shell Enamel Part Numbers

Color Top Left End Right End Front OP Left Door Right Door

Classic 30001276 30001280 30001279 30001496 30001139 30001138

Biscuit 30003305 30003300 30003301 30003302 30003304 30003303

Bordeaux 30001283 30001287 30001286 30001261 30001263 30001262

Chestnut Brown 30003313 30003308 30003309 30003310 30003312 30003311

Ebony 30001304 30001308 30001307 30001270 30001272 30001271

Forest Green 30001290 30001294 30001293 30001264 30001266 30001265

Midnight Blue 30001317 30001321 30001320 30001314 30001316 30001315

Sand 30001297 30001301 30001300 30001267 30001269 30001268

Suede Brown 30002549 30002547 30002548 30002550 30002552 30002551

Vermont

Classic Green 30003321 30003316 30003317 30003318 30003320 30003319

39

Stardance Direct Vent/Natural Vent Gas Heater

20007065

Optional Accessories

Fan Kits

FK26 Fan

The FK26 fan helps distribute heated air from within

the firebox out into the room. The fan is controlled by a

snapstat that turns power on and off as the firebox tem-

perature rises above and falls below a preset tempera-

ture. A rheostat provides for variable fan speeds.

Specifications

115 Volt / 60Hz / .75 Amps

Maintenance

The fan itself does not require regular maintenance,

however, periodic cleaning of the fan and the surround-

ing area is required.

Installation

Refer to Page 13 for installation instructions.

Remote Controls

The remote control allows you to turn the heater on or

off from anywhere in the room. Refer to Page 40 for wir-

ing diagrams. These remotes for use with RN/RP model

gas stoves.

Model Functions Controlled

RC1 ON/OFF

RC2 ON/OFF and Temperature

IMTFK Wall mounted thermostat control

Screen Kit

An optional screen, S30SK, for use with the operable

doors is available to allow the doors to be left in the

open position.

Warming Shelf

Warming shelves add versatility to your stove; they can

be used to keep foods warm at mealtime.

Model Color

2702 Classic Black

2684 Biscuit

2685 Chestnut Brown

2688 Vt. Classic Green

2704 Bordeaux

2706 Forest Green

2764 Sand

2765 Ebony

2711 Midnight Blue

2712 Suede Brown

The shelf installation is done in three stages. First you

attach the shelf loosely to the stove, leaving the screws

loose enough to allow final adjustments. Then, you po-

sition the shelf and adjust the brackets so the shelf fits

correctly. Finally, you tighten the screws.

Refer to the instructions included with each warming

shelf for complete installation procedures.

Decorative Rings

7” brass or charcoal gray rings are available to add a

decorative touch to the exposed stove pipe.

Model Description

7FSDRG/4 7” Charcoal Gray Rings (4)

7FSDRP/4 7” Polished Brass Rings (4)

40

Stardance Direct Vent/Natural Vent Gas Heater

20007065

41

Stardance Direct Vent/Natural Vent Gas Heater

20007065

42

Stardance Direct Vent/Natural Vent Gas Heater

20007065

BASIC WARRANTY

CFM Corporation (hereinafter referred to collectively as the Company)

warrants that your new Vermont Castings or Majestic Gas Fireplace/

Stove is free from manufacturing and material defects for a period of

one year from the date of purchase, subject to the following conditions

and limitations.

EXTENDED LIFETIME WARRANTY

The heat exchanger, where applicable, and combustion chamber

of every Vermont Castings or Majestic gas product is warranted for

life against through wall perforation. All appliances equipped with an

Insta-Flame Ceramic Burner have limited lifetime coverage on the

ceramic burner plaque. Warrantees are made to the original owner

subject to proof of purchase and the conditions and limitations listed

on this Warranty Document

COMPONENT WARRANTY

CAST IRON: All external and internal cast iron parts are warranted for a

period of three years.

Note: On porcelain enamel finished external parts and accessories

The Company offers no Warranty on chipping of enamel surfaces.

Inspect all product prior to accepting it for any damage to the

enamel.

The salt air environment of coastal areas or a high humidity

environment can be corrosive to the porcelain enamel finish. These

conditions can cause rusting of the cast iron beneath the porcelain

enamel finish, which will cause the finish to flake off.

Dye lot variations with replacement parts and/or accessories can

occur and are not covered by warranty.

GLASS DOORS: Glass doors are covered for a period of one year.

Glass doors are not warranted for breakage due to misuse or accident.

Glass doors are not covered for discoloration or burned in stains due to

environmental issues, or improper cleaning and maintenance.

BRASS PLATED PARTS AND ACCESSORIES: Brass parts should be

cleaned with Lemon oil only. Brass cleaners cannot be used. Mortar

mix and masonry cleaners may corrode the brass finish. The Company

will not be responsible for, nor will it warrant any brass parts which are

damaged by external chemicals or down draft conditions.

GAS VALVES: Gas valves are covered for a period of one year

ELECTRONIC AND MECHANICAL COMPONENTS: Electronic and

mechanical components of the burner assembly are covered for one

year. All steel tube burners are warranted for one year.

ACCESSORIES: Unless otherwise noted all components and CFM

Corporation company supplied accessories are covered for a period of

one year.

CONDITIONS AND LIMITATIONS

• This new Vermont Castings or Majestic product must be installed by

a competent, authorized, service contractor. A licensed technician, as

prescribed by the local jurisdiction must perform any installation/service

work. It must be installed and operated at all times in accordance with

the Installation and Operating instructions furnished with the product.

Any alteration, willful abuse, accident, or misuse of the product shall

nullify this warranty.

• This warranty is non-transferable, and is made to the original owner,

provided that the purchase was made through an authorized supplier

of the Company.

• The customer must pay for any Authorized Dealer in-home travel fees

or service charges for in-home repair work. It is the dealers option

whether the repair work will be done in the customer’s home or in the

dealer’s shop.

• If upon inspection, the damage is found to be the fault of the

manufacturer, repairs will be authorized at no charge to the customer

parts and/or labor.

• Any part and/or component replaced under the provisions of this

warranty is covered for six months or the remainder of the original

warranty, whichever is longest.

• This warranty is limited to the repair of or replacement of part(s) found

to be defective in material or workmanship, provided that such part(s)

have been subjected to normal conditions of use and service, after

said defect is confirmed by the Company’s inspection.

• The company may, at its discretion, fully discharge all obligations

with respect to this warranty by refunding the wholesale price of the

defective part(s)

• Any installation, labor, construction, transportation, or other related

costs/expenses arising from defective part(s), repair, replacement,

or otherwise of same, will not be covered by this warranty, nor shall

the Company assume responsibility for same. Further, the Company

will not be responsible for any incidental, indirect, or consequential

damages except as provided by law.

• SOME STATES DO NOT ALLOW FOR THE EXCLUSION OR

LIMITATIONS OF INCIDENTAL AND CONSEQUENTIAL DAMAGES

OR LIMITATIONS ON HOW LONG AN IMPLIED WARRANTY

LASTS, SO THE ABOVE LIMITATIONS MAY NOT APPLY TO YOUR

CIRCUMSTANCES. THIS WARRANTY GIVES YOU SPECIFIC

RIGHTS AND YOU MAY HAVE OTHER RIGHTS WHICH VARY FROM

STATE TO STATE.

• All other warranties-expressed or implied- with respect to the product,

its components and accessories, or any obligations/liabilities on the

part of the Company are hereby expressly excluded.

• The Company neither assumes, nor authorizes any third party to

assume on its behalf, any other liabilities with respect to the sale of

this Vermont Castings or Majestic product

• The warranties as outlined within this document do not apply to

chimney components or other non CFM Corporation accessories used

in conjunction with the installation of this product..

• Damage to the unit while in transit is not covered by this warranty but

is subject to claim against the common carrier. Contact the dealer

from whom you purchased your fireplace/stove (do not operate the

appliance as this might negate the ability to process the claim with the

carrier).

• The Company will not be responsible for:

a) Down drafts or spillage caused by environmental conditions such

as near-by trees, buildings, roof tops, hills, or mountains.

b) Inadequate ventilation or negative air pressure caused by

mechanical systems such as furnaces, fans, clothes dryers, etc.

• This warranty is void if:

a) The fireplace has been operated in atmospheres contaminated by

chlorine, fluorine, or other damaging chemicals.

b) The fireplace has been subjected to prolonged periods of

dampness or condensation

c) Any damages to the fireplace, combustion chamber, heat

exchanger or other components due to water, or weather damage,

which is the result of but not limited to, improper chimney/venting

installation.

d) Any alteration, willful abuse, accident, or misuse of the product

has occurred.

IF WARRANTY SERVICE IS NEEDED…

1) Contact your supplier. Make sure you have your warranty,

your sales receipt, and the model/serial number of your

CFM Corporation product.

2) DO NOT ATTEMPT TO DO ANY SERVICE WORK

YOURSELF.

LIMITED LIFETIME WARRANTY

PRODUCT COVERED BY THIS WARRANTY

All Vermont Castings gas stoves, gas inserts, and gas fireplaces, and all Majestic brand gas fireplaces equipped with

an Insta-Flame Ceramic Burner, or standard steel tube burner.

43

Stardance Direct Vent/Natural Vent Gas Heater

20007065

GARANTIE DE BASE

La société CFM Corporation (ci-après la « Société ») garantit votre

nouveau poêle/foyer au gaz Vermont Castings ou Majestic contre

tous défauts de fabrication et de matières premières pour une

période d’un an à compter de la date d’achat, sous réserve des

conditions et limitations suivantes.

GARANTIE À VIE PROLONGÉE

L’échangeur de chaleur, s’il y a lieu, ainsi que la chambre à com-

bustion de tout produit à gaz de la société Vermont Castings ou

Majestic sont garantis pour la vie contre la perforation des parois.

Tous les produits équipés d’un brûleur en céramique Insta-Flame

comprennent une garantie à vie limitée de la plaque du brûleur en

céramique. Les garanties sont accordées à l’acheteur d’origine,

le tout sujet à une preuve d’achat et aux conditions et limitations

suivantes :

GARANTIE DES COMPOSANTS

FONTE : Toutes les pièces en fonte externes et internes sont garanties

pour une période de trois ans.

Nota : Dans le cas des pièces et accessoires externes au fini en émail

de porcelaine, la Société n’offre aucune garantie quant à l’écaillage

des surfaces en émail. Avant d’accepter un produit, inspectez-le afin

de vous assurer que les surfaces en émail ne sont pas endomma-

gées.

L’atmosphère saline des zones côtières ou les environnements à

forte humidité peuvent provoquer la corrosion du fini en émail de

porcelaine. Ces conditions peuvent également faire rouiller la fonte

sous le fini en émail de porcelaine, provoquant ainsi l’écaillement de

la couche de fini.

Dans le cas des pièces et (ou) des accessoires de remplacement,

les variations de lots de teinture sont possibles, mais elles ne sont

pas couvertes par la garantie.

PORTES EN VERRE : Les portes en verre sont couvertes pour une

période d’un an. Les portes en verre ne sont pas garanties contre le

bris causé par un mauvais usage ou un accident. Les portes en verre

ne sont pas couvertes contre la décoloration ni contre les taches

imprégnées attribuables à des conditions environnementales ou à un

nettoyage et un entretien inadéquats.

PIÈCES ET ACCESSOIRES PLAQUÉS EN LAITON : Les pièces en

laiton ne doivent être nettoyées qu’avec de l’essence de citron. Les

nettoyants pour le laiton ne doivent pas être utilisés, et les agents net-

toyants pour le mortier et la maçonnerie peuvent provoquer la corrosion

du fini laiton. La Société ne pourra être tenue responsable des domma-

ges à toute pièce en laiton occasionnés par des conditions chimiques

externes ou le refoulement, et elle n’offre aucune garantie à cet égard.

SOUPAPES À GAZ : Les soupapes à gaz sont couvertes pour une

période d’un an.

COMPOSANTS ÉLECTRONIQUES ET MÉCANIQUES : Les compo-

sants électroniques et mécaniques du brûleur sont couverts pendant un

an. Tous les brûleurs en acier sont garantis pendant un an.

ACCESSOIRES : À moins d’indication contraire, tous les composants

et accessoires fournis par CFM Corporation sont couverts pendant une

période d’un an.

CONDITIONS ET LIMITATIONS

• Ce nouveau produit Vermont Castings ou Majestic doit être installé

par un entrepreneur de service autorisé et compétent. L’installation/le

service doivent être assurés par un technicien breveté, conformé-

ment à la juridiction locale. Le produit doit être installé et utilisé en

tout temps selon les instructions d’installation et de fonctionnement

fournies avec le produit. Toute altération ou tout abus volontaire,

accident ou mauvais usage du produit annulera cette garantie.

• Cette garantie n’est pas transférable et est offerte à l’acheteur

d’origine, à condition que l’achat ait été effectué par l’entremise d’un

détaillant autorisé de la Société.

• Le client doit assumer les frais de déplacement à domicile de tout

détaillant autorisé ou les frais de service relatifs à toute réparation

effectuée à domicile. Le détaillant peut à son choix effectuer les

réparations chez le client ou à son atelier.

• Si, lors de l’inspection, on constate que les dommages sont la faute

du fabricant, les réparations, les pièces et la main-d’œuvre seront

autorisées sans frais pour le client.

• Toute pièce et (ou) tout composant remplacé en vertu des dispo-

sitions de la présente garantie est couvert pour une période de six

mois ou jusqu’à l’expiration de la garantie originale, selon la dernière

des éventualités à survenir.

• Cette garantie est limitée à la réparation ou au remplacement

de toute pièce trouvée défectueuse en matières premières ou

main-d’oeuvre, à condition que ladite pièce ait été sujette aux con-

ditions normales d’usage et de service, après que ledit défaut a été

confirmé par une inspection par la Société.

• La Société peut, à sa discrétion, se décharger entièrement de toutes

obligations se rapportant à cette garantie en remboursant le prix de

gros de toute pièce défectueuse.

• Tous les frais/dépenses d’installation, de main-d’oeuvre, de cons-

truction, de transport ou autres causés par toute pièce défectueuse,

une réparation, un remplacement ou autre, ne seront pas couverts

en vertu de la présente garantie, et la Société n’assume aucune

responsabilité pour ceux-ci. De plus, la Société ne pourra être tenue

responsable de tous dommages fortuits ou indirects, sauf là où prévu

par la loi.

• CERTAINS PROVINCES NE PERMETTENT PAS L’EXCLUSION

OU LES LIMITATIONS RELATIVES AUX DOMMAGES CONSÉCU-

TIFS OU INDIRECTS QUANT À LA DURÉE DE TOUTE GARANTIE

IMPLICITE, SI BIEN QU’IL EST POSSIBLE QUE LES LIMITATIONS

CI-DESSUS NE S’APPLIQUENT PAS DANS VOTRE CAS. LA PRÉ-

SENTE GARANTIE VOUS DONNE DES DROITS SPÉCIFIQUES,

ET IL EST POSSIBLE QUE VOUS AYEZ D’AUTRES DROITS QUI

PEUVENT VARIER D’UN ÉTAT À L’AUTRE.

• Toute autre garantie, expresse ou implicite, en ce qui a trait au pro-

duit et ses composants et accessoires, ou toute obligation/responsa-

bilité de la part de la Société sont expressément exclues en vertu des

présentes.

• La Société n’assume et n’autorise personne à assumer, en son nom,

toute responsabilité en ce qui a trait à la vente de ce produit Vermont

Castings ou Majestic.

• Les garanties, telles qu’elles sont décrites dans le présent document,

ne s’appliquent pas aux composants de cheminée ni à d’autres ac-

cessoires CFM Corporation utilisés conjointement avec l’installation

de ce produit.

• Les dommages causés à l’unité tandis qu’elle est en transit ne sont

pas couverts par la présente garantie, mais pourront être l’objet

d’une réclamation contre le transporteur général. Communiquez avec

le détaillant chez qui vous avez acheté votre foyer/poêle (n’utilisez

pas l’appareil étant donné que cela pourrait annuler toute réclamation

contre le transporteur).

• La Société n’engagera aucune responsabilité quant :

a) au refoulement de cheminée ou débordement causé par les

conditions environnementales (arbres, édifices, toits, coteaux ou

montagnes adjacents);

b) à une ventilation inadéquate ou une pression d’air négative

causée par des systèmes mécaniques comme les fournaises, les

ventilateurs, les sécheuses, etc.

• Cette garantie est nulle si :

a) le foyer a été utilisé dans une atmosphère contaminée par du

chlore, du fluor ou tout autre produit chimique;

b) le foyer est assujetti à de longues périodes d’humidité ou de

condensation;

c) des dommages sont causés au foyer, à la chambre de combus-

tion, à l’échangeur de chaleur ou aux autres composants par de

l’eau ou par la température qui est le résultat mais sans y être

limité, d’une mauvaise installation de cheminée/ventilation;

d) toute altération ainsi que tout abus volontaire, accident ou mau-

vais usage du produit annule la présente garantie.

SI UN SERVICE SOUS GARANTIE EST REQUIS…

1) Communiquez avec votre détaillant. Assurez-vous que vous avez

votre garantie, votre reçu de caisse ainsi que le numéro de modèle/

série de votre produit CFM Corporation.

2) NE TENTEZ PAS D’EFFECTUER DES RÉPARATIONS VOUS-

MÊME.

GARANTIE À VIE LIMITÉE

PRODUIT COUVERT PAR LA PRÉSENTE GARANTIE

L’ensemble des cuisinières à gaz, des poêles encastrables et des foyers à gaz Vermont Castings, ainsi que l’ensem-

ble des foyers à gaz de marque Majestic équipés d’un brûleur en céramique Insta-Flame ou d’un brûleur en acier

standard.

Efficiency Ratings

Model EnerGuide Ratings

Fireplace Efficiency (%)

SDV30RN 63.0

SDV30RP 63.0

SDV30RFN 63.0

SDV30RFP 63.0

410 Admiral Blvd. • Mississauga, Ontario, Canada L5T 2N6

800-668-5323 • www.cfmcorp.com

CFM Corporation
