EVX-531

Operating Manual

prOgraMMable FunctiOns/Features

 IP57Submersible(1m/30min.)

 3ProgrammableFunctionKeys

 2-ToneEncode/Decode

 MDC-1200®Encode/Decode

 Scan

 GroupScan

 DualWatch

 FM-Scan(Follow-MeScan)

 TAScan

 Privacy

 VOX

 TalkAround

 Emergency

 LoneWorker

 TXSaveDisable

 ARTS(AutoRangeTranspondSystem)

 ARTSII

FCC ID: AXI11133020

IC: 10239A-11133020







 BatteryPackInstallationandRemoval...............4

 BatteryCharging..................................................4

 LowBatteryIndication........................................5

 BeltClipInstallationandRemoval.....................6





 PreliminarySteps.................................................8

 OperationQuickStart..........................................8

 AutomaticTime-OutTimer...............................10

 

 ProgrammableKeyFunctions..........................11

 DescriptionofOperatingFunctions.................13









cOntents



Younowhaveatyourngertipsavaluablecommunicationstool-aVertexStandardtwo-wayradio!Rugged,reliable

andeasytouse,yourVertexStandardradiowillkeepyouinconstanttouchwithyourcolleaguesforyearstocome,

withnegligiblemaintenancedown-time.Pleasetakeafewminutestoreadthismanualcarefully.Theinformation

presentedherewillallowyoutoderivemaximumperformancefromyourradio,incasequestionsariselateron.



r Therearenoowner-serviceablepartsinsidetheradio.Allservicejobsmustbereferredtoanauthorized

VertexStandardServiceRepresentative.

r Inordertomaintainthespeciedwaterintegrityperformance,periodicmaintenanceisrecommended.

r Shouldtheradiosustainasevereshock(e.g.ifitisdropped),thewaterintegritymaybecompromised,

requiringservice.Shouldthisoccur,contactyourAuthorizedVertexStandardDealer.

FCC ID: AXI11133020

IC: 10239A-11133020

EVX-531 OpErating Manual 1

Important Notice for North American Users Regarding 406 MHz Guard Band

The U.S. Coast Guard and National Oceanographic and Atmospheric Administration have requested the

cooperation of the U.S. Federal Communications Commission in preserving the integrity of the protected

frequency range 406.0 to 406.1 MHz, which is reserved for use by distress beacons. Do not attempt to pro-

gram this apparatus, under any circumstances, for operation in the frequency range 406.0 - 406.1 MHz if

the apparatus is to be used in or near North America.

Warning - Frequency band 406 - 406.1 MHz is reserved for use ONLY as a distress beacon by the US Coast

Guard and NOAA. Under no circumstance should this frequency band be part of the pre programmed oper-

ating frequencies of this radio.

IntroductIon

The EVX-531 is full-featured Hand-Held Digital/Analog Transceiver designed for business communications in the

VHF/UHF Land Mobile bands. This transceiver is designed for reliable business communications in a wide variety

of applications with a wide range of operating capability provided by their leading-edge design.

The EVX-531 allows to 32-channel capacity and 2 groups. Important channel frequency data is stored in the ash

memory on the CPU, and is easily programmable by Vertex Standard dealers using a personal computer and the

Vertex Standard Programming Cable and CE142 Software.

The pages which follow will detail the many advanced features provided in the EVX-531 transceiver. After reading

this manual, you may wish to consult with your Network Administrator regarding precise details of the congura-

tion of this equipment for use in your application.

FCC ID: AXI11133020

IC: 10239A-11133020

EVX-531 OpErating Manual

WarnIng! Fcc rF ExposurE rEquIrEmEnts

This Radio has been tested and complies with the Federal Communications Commission (FCC) RF exposure limits

for Occupational Use/Controlled exposure environment. In addition, it complies with the following Standards and

Guidelines:

 FCC 96-326, Guidelines for Evaluating the Environmental Effects of Radio-Frequency Radiation.

 FCC OET Bulletin 65 Edition 97-01 (2001) Supplement C, Evaluating Compliance with FCC Guidelines for

Human Exposure to Radio Frequency Electromagnetic Fields.

 ANSI/IEEE C95.1-1992, IEEE Standard for Safety Levels with Respect to Human Exposure to Radio Frequen-

cy Electromagnetic Fields, 3 kHz to 300 GHz.

 ANSI/IEEE C95.3-1992, IEEE Recommended Practice for the Measurement of Potentially Hazardous Electro-

magnetic Fields - RF and Microwave.

WARNING:

This radio generates RF electromagnetic energy during transmit mode. This radio is designed for and clas-

sied as Occupational Use Only, meaning it must be used only during the course of employment by indi-

viduals aware of the hazards, and the ways to minimize such hazards. This radio is not intended for use by

the General Population in an uncontrolled environment.

CAUTION:

To ensure that your expose to RF electromagnetic energy is within the FCC allowable limits for occupa-

tional use, always adhere to the following guidelines:

 This radio is NOT approved for use by the general population in an uncontrolled exposure environment.

This radio is restricted to occupational use, work related operations only where the radio operator must

have the knowledge to control his or her RF exposure conditions.

FCC ID: AXI11133020

IC: 10239A-11133020

EVX-531 OpErating Manual

WarnIng! Fcc rF ExposurE rEquIrEmEnts

 When transmitting, hold the radio in a vertical position with its microphone 2 inches (5 cm) away from

your mouth and keep the antenna at least 2 inches (5 cm) away from your head and body.

 The radio must be used with a maximum operating duty cycle not exceeding 50%, in typical Push-to-

Talk congurations.

DO NOT transmit for more than 50% of total radio use time (50% duty cycle). Transmitting more than

50% of the time can cause FCC RF exposure compliance requirements to be exceeded. To keep the Body

Worn conguration with the Vertex Standard CLIP-20 belt-clip, reduce the maximum operating duty

cycle still more.

The radio is transmitting when the red LED on the top of the radio is illuminated. You can cause the ra-

dio to transmit by pressing the P-T-T button.

 SAR compliance for body-worn use was only demonstrated for the specic belt-clip (CLIP-20). Other

body-worn accessories or congurations may NOT comply with the FCC RF exposure requirements and

should be avoided.

 When operate the radio with the Vertex Standard CLIP-20 belt-clip, make the transmission time as short

as possible, to keep the Body Worn conguration.

 Always use Vertex Standard authorized accessories.

 The information listed above provides the user with the information needed to make him or her aware of

RF exposure, and what to do to assure that this radio operates with the FCC RF exposure limits of this

radio.

 Electromagnetic Interference/Compatibility

During transmissions, this radio generates RF energy that can possibly cause interference with other de-

vices or systems. To avoid such interference, turn off the radio in areas where signs are posted to do so.

Do not operate the transmitter in areas that are sensitive to electromagnetic radiation such as hospitals,

health care facilities, aircraft, and blasting sites.

FCC ID: AXI11133020

IC: 10239A-11133020

EVX-531 OpErating Manual

BEForE You BEgIn

 To remove the battery, turn the radio off and re-

move any protective cases. Slide the Battery Pack

Latch on the bottom of the radio toward the front

panel while sliding the battery down about 1/2

inch (1.5 cm). Then lift the battery out from the

radio.

Do not attempt to open any of the re-

chargeable Lithium-Ion packs, as they

could explode if accidentally short-circuited.

Battery Pack Installation and Removal

 To install the battery pack, align the battery pack

to the radio with an offset about 1/2 inch (1.5 cm)

from the top edge of battery compartment, then

slide the battery pack upward until it locks in

place with a “Click.”

Battery Charging

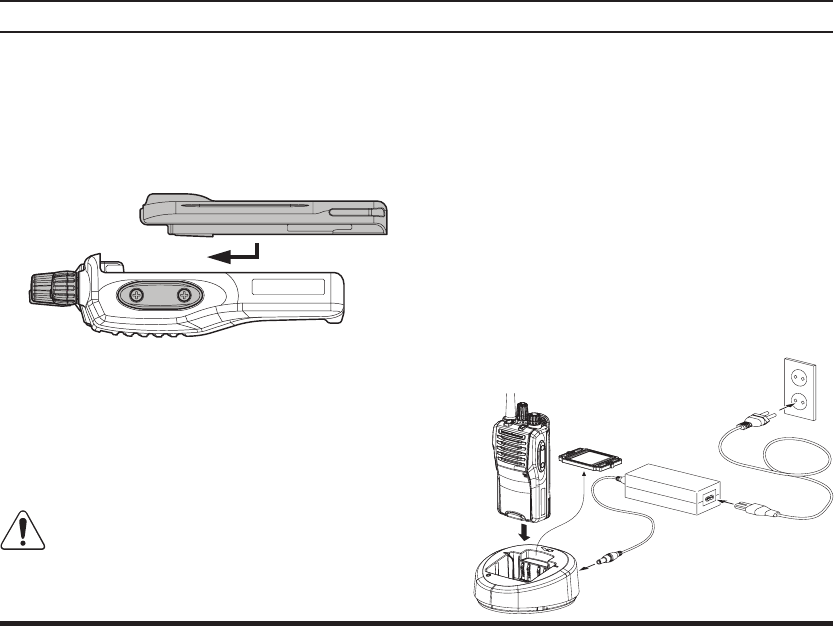

 Remove the Spacer Plate from the nest of the

optional CD-58 Desktop Charger, if the Battery

Spacer is installed.

 Insert the DC plug from the optional PA-55 AC

Adapter into the DC jack on the rear panel of the

optional CD-58 Desktop Charger, and then con-

nect the AC power cable between the AC jacks on

the PA-55 AC Adapter and the AC line outlet.

 Insert the battery pack into the CD-58 Desktop

Charger while aligning the slots of the battery

pack with the guides in the nest of the CD-58;

refer to the following illustration for details on

PA-55

CD-58

Spacer Plate

FCC ID: AXI11133020

IC: 10239A-11133020

EVX-531 OpErating Manual

BEForE You BEgIn

proper positioning of the battery pack. If charging

with the transceiver attached, turn the transceiver

off. The antenna jack should be at the left side

when viewing the charger from the front.

 If the battery pack is inserted correctly, the LED

indicator will glow red. A fully-discharged battery

pack will charge completely in 1.5 - 3.0 hours

(depending on the battery pack being charged).

 When charging is completed, the LED indicator

will change to green.

 Disconnect the battery pack from the CD-58

Desktop Charger and unplug the PA-55 AC

Adapter from the AC line outlet.

1) Always use the Vertex Standard FNB-

V133LI or FNB-V134LI Lithium-Ion Bat-

tery Pack.

2) Use only the Vertex Standard CD-58 Desktop

Charger and the Vertex Standard PA-55 AC Adapter.

3) To reduce the risk of explosion, recharge the bat-

teries outside of hazardous locations.

4) Perform the battery charging where the ambient

temperature range +41 °F to +104 °F (+5 °C to +40

°C). Charge out of this range could cause damage

to the battery pack.

5) Battery Pack shall not be exposed to excessive

heat such as sunshine, re, or the like.

6) Risk of explosion if battery is replaced by an in-

correct type. Dispose of used batteries according to

the instructions

7) For further details and cautions of the charging,

refer to the Operating Manual of the CD-58 Desk-

top Charger.

Low Battery Indication

As the battery discharges during use, the voltage

gradually becomes lower. When the battery voltage

becomes to low, substitute a freshly charged battery

and recharge the depleted pack. The LED indicator

on the top of the radio will blink red when the battery

voltage is low.

CAUTION

Danger of explosion if battery is replaced

with an incorrect battery. Replace only with

the same or equivalent type.

FCC ID: AXI11133020

IC: 10239A-11133020

EVX-531 OpErating Manual

Belt Clip Installation and Removal

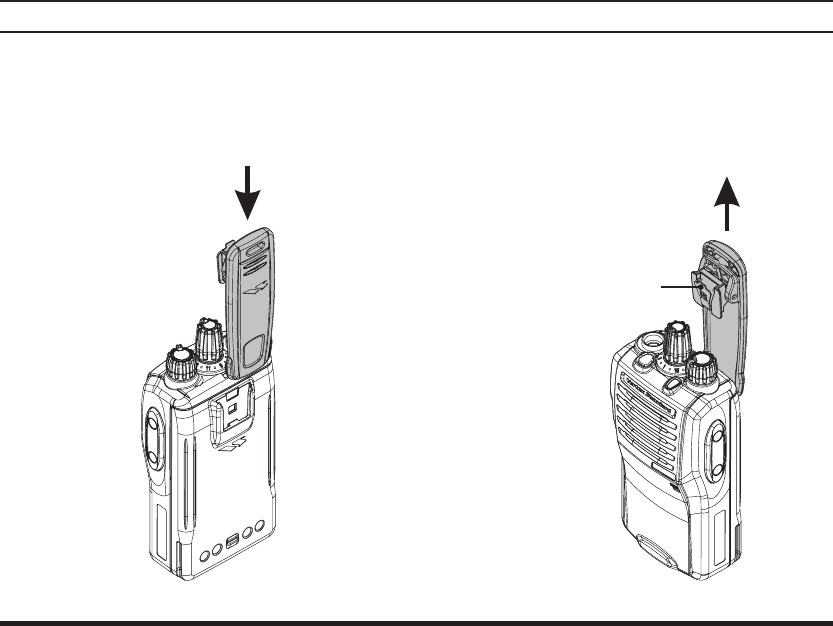

 To install the Belt Clip: align the Belt Clip to

the groove of the Battery pack, then press the

Belt Clip downward until it locks in place with a

“Click.”

BEForE You BEgIn

 To remove the Belt Clip: use a flat head screw

driver to press the Belt Clip Tab away from the

battery pack to unlock the Belt Clip, then slide

the Belt Clip upward to remove it.

Belt Clip Tab

FCC ID: AXI11133020

IC: 10239A-11133020

EVX-531 OpErating Manual

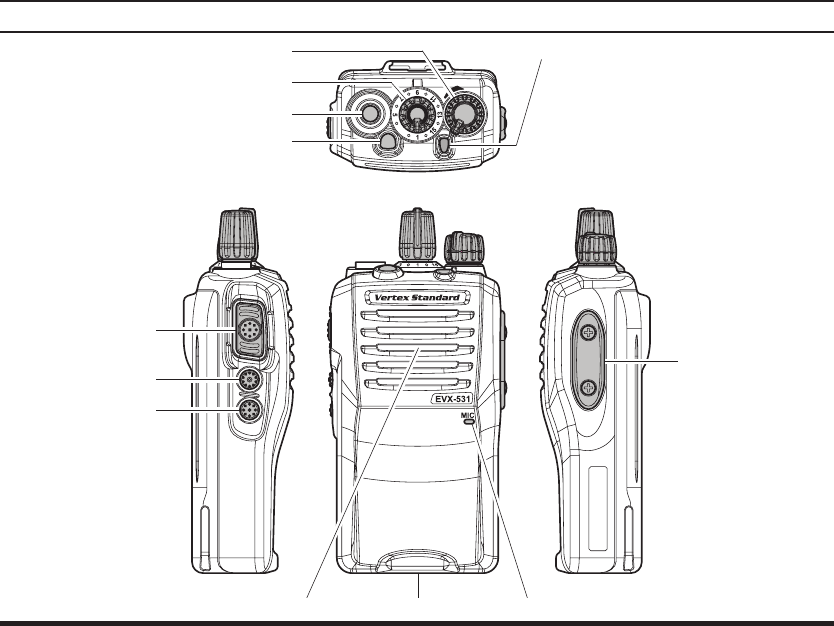

PTT Switch

SIDE-1 Button

SIDE-2 Button

MIC/SP Jack

(External MIC/SP)

Speaker Microphone

LED Indicator (Programmable)

Default settings are:

Steady Red:

Transmitting in progress (Analog)

Steady Blue:

Transmitting in progress (Digital)

Blinking Green:

Busy Channel

Steady Green:

Tone Squelch in defeated condition

Antenna Jack

TOP SEL Key

CH (Channel) Selector

VOL/PWR Knob

Battery Pack Latch

controls & connEctors

FCC ID: AXI11133020

IC: 10239A-11133020

EVX-531 OpErating Manual

opEratIon

Operation Quick Start

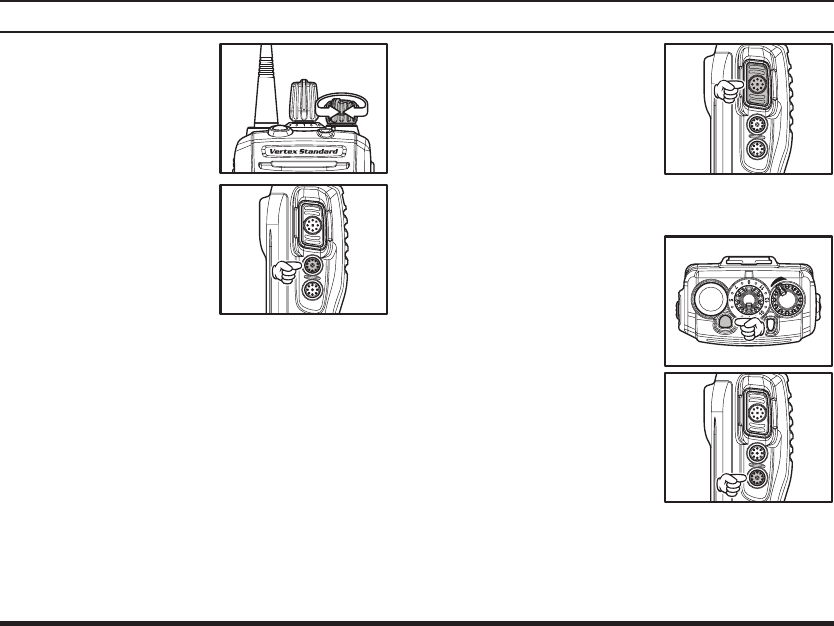

 Tu r n t he top pan e l’s

VOL/PWR knob clock-

wise to turn the radio

on.

 Turn the top panel’s CH

Selector knob to choose

the desired operating

channel. The radio an-

nounces the channel

number, if the Channel

Announcement Feature is worked.

 If you want to select the operating channel from

a different Channel Group, press the Program-

mable key (assigned to the “group up” function)

to change the Channel Group you want before

selecting the operating channel.

Preliminary Steps

 Install a charged battery pack onto the transceiver,

as described previously.

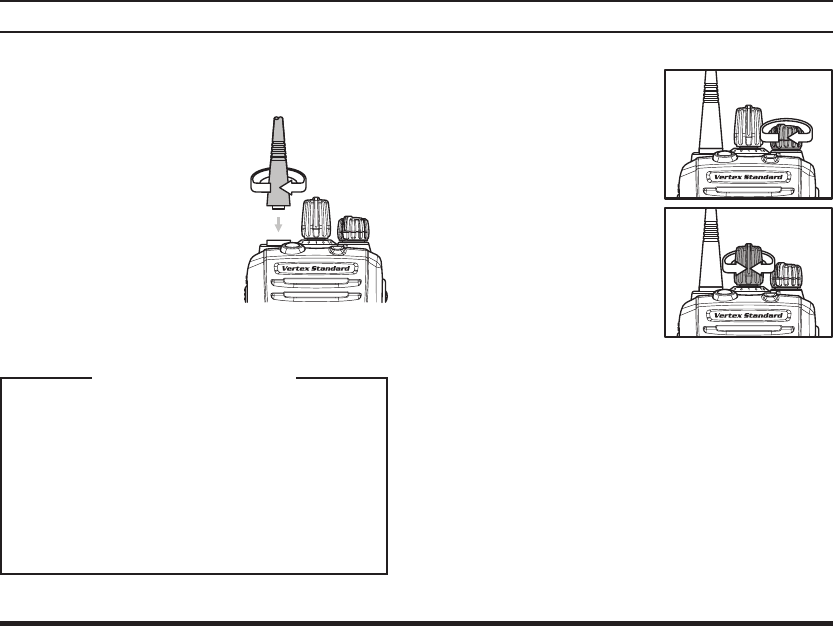

 Screw the supplied antenna

onto the Antenna jack.

Never attempt to operate

this transceiver without an

antenna connected.

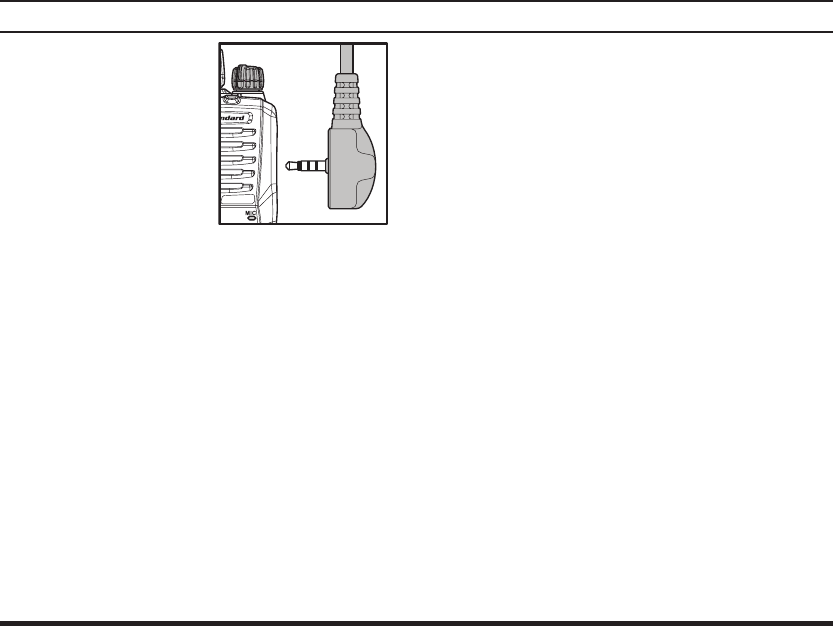

 If you have a Speaker/Mi-

crophone, we recommend

that it not be connected un-

til you are familiar with the basic operation of the

EVX-531.

IMPORTANT NOTE

Water resistance of the transceiver (IP57: 1

meter / 30 minutes) is assured only when the

following conditions:

 Battery pack is attached to the transceiver;

 Antenna is connected to the antenna jack;



and MIC/SP cap is installed in the MIC/

SP jack.

FCC ID: AXI11133020

IC: 10239A-11133020

EVX-531 OpErating Manual

 Rotate the VOL/PWR

knob to set the volume

le ve l. If n o signal is

present on the analog

channel, press and hold

in the SIDE-1 button

(under the PTT switch)

more than 2 seconds;

background noise will

now be heard, and you

may use this to set the

VOL/PWR knob for the

desired audio level. Press and hold the SIDE-1

button more than 2 seconds (or press the SIDE-1

button twice) to quiet the noise and resume nor-

mal (quiet) monitoring.

opEratIon

 To transmit, monitor the

channel and make sure it

is clear.

Press and hold the PTT

switch. Speak into the

microphone area of the

front panel grille in a normal voice level. To re-

turn to the Receive mode, release the PTT switch.

 Press the (Orange) TOP

SEL k e y or SIDE-2

button to activate one

of the pre programmed

functions which may

have been enabled at the

time of programming

by the dealer. See the

next section for details

regarding the available

features.

FCC ID: AXI11133020

IC: 10239A-11133020

EVX-531 OpErating Manual

opEratIon

 If a Speaker/Microphone

is available, remove the

plastic cap and its two

mounting screws from

the right side of the

transceiver, then align

the connector of the

Speaker/Microphone

on the radio; secure the connector pin using the

screws supplied with the Speaker/Microphone.

Hold the speaker grille up next to your ear while

receiving. To transmit, press the PTT switch on

the Speaker/Microphone, just as you would on

the main transceiver’s body, and speak into the

microphone on a normal voice level.

Note 1): Save the original plastic cap and its

mounting screws. They should be reinstalled

when not using the Speaker/Microphone.

2) When you press the PTT switch on the Speak-

er/Microphone, it disables the internal micro-

phone, and vice versa.

 If the Busy Channel Lockout feature has been

programmed on a channel, the radio will not

transmit when a carrier is present. Instead, the ra-

dio will generate short beep three times. Release

the PTT switch and wait for the channel to be

clear of activity.

 If the BCLO (Busy Channel Lockout), CTCSS

Lockout, or Digital Coded Squelch (DCS) Lock-

out has been programmed on a channel, the radio

can transmit only when there is no carrier being

received (BCLO) or when the carrier being re-

ceived includes the correct CTCSS tone or DCS

code.

Automatic Time-Out Timer

If the selected channel has been programmed for au-

tomatic time-out, you must limit the length of each

transmission. While transmitting, a beep will sound

10 seconds before time-out. Another beep will sound

just before the deadline; the top panel’s red LED (“TX”

indicator) will disappear and transmission will cease

soon thereafter. To resume transmitting, you must re-

lease the PTT switch and wait for the “penalty timer”

to expire.

VX-200

FCC ID: AXI11133020

IC: 10239A-11133020

EVX-531 OpErating Manual

advancEd opEratIon

Programmable Key Functions

The EVX-531 provides the programmable TOP

SEL, SIDE-1, and SIDE-2 function keys.

These Programmable Function keys can be custom-

ized, via programming by your Vertex Standard deal-

er, to meet your communications/network require-

ments.

The possible Programmable key programming fea-

tures are illustrated on the next page, and their func-

tions are explained beginning after page 13. For fur-

ther details, contact your Vertex Standard dealer.

In this chapter, the following icons are used to indi-

cate features supported in either the “Analog” mode

or “Digital” mode:

: Indicates a “Analog” mode only feature.

: Indicates a “Digital” mode only feature.

For features that are available in both “Analog” and

“Digital” modes, no icon is shown.

For future reference, check the box next to each func-

tion that has been assigned to the Programmable key

on your particular radio, and keep it handy.

FCC ID: AXI11133020

IC: 10239A-11133020

EVX-531 OpErating Manual

advancEd opEratIon

FunctIon

programmaBlE KEY

(prEss KEY / prEss and Hold KEY)

TOP SEL SIDE-1 SIDE-2

None / / /

Monitor / / /

Monitor -Momentarily- /--- /--- /---

Low Power / / /

Privacy / / /

SQL OFF / / /

SQL OFF -Momentarily- /--- /--- /---

Beep Off / / /

Whisper / / /

VOX / / /

CH Announcement / / /

VOX Anti-Trip / / /

Emergency /--- /--- /---

Lone Worker / / /

Group Change / / /

PRI-2 / / /

PRI-2 Set / / /

FunctIon

programmaBlE KEY

(prEss KEY / prEss and Hold KEY)

TOP SEL SIDE-1 SIDE-2

PRI-2 Disable / / /

Scan / / /

Group Scan / / /

Dual Watch / / /

FM Scan

(Follow-Me Scan)

///

TA Scan / / /

SCAN Set / / /

Talk Around (TA) / / /

RESET / / /

Call 1 / / /

Call 2 / / /

Call 3 / / /

Speed Dial / / /

Call / / /

Duty / / /

TX Save Disable / / /

Lock / / /

FCC ID: AXI11133020

IC: 10239A-11133020

EVX-531 OpErating Manual

advancEd opEratIon

Description of Operating Functions

sql oFF

Press (or press and hold) the assigned programmable

key to open the SQL to hear background noise (unmute

the audio).

sql oFF -momEntarIlY-

Opens the SQL to hear background noise (unmute

the audio) while pressing the assigned programmable

key.

BEEp oFF

Press (or press and hold) the assigned Programmable

key to disable the radio beeps temporarily. Again

press (or press and hold) the assigned Programmable

key to enable the radio beeps.

WHIspEr

Press (or press and hold) the assigned Programmable

key to increase the microphone gain; thus you can

speak in a low voice (whisper) temporarily. Again

press (or press and hold) the assigned Programmable

key to resume normal microphone gain.

monItor

Press (or press and hold) the assigned Programmable

key to cancel any signaling features; the LED indica-

tor will glow green.

monItor -momEntarIlY-

Cancel any signaling features while pressing the as-

signed programmable key.

loW poWEr

Press (or press and hold) the assigned Programmable

key to set the radio’s transmitter to the “Low Power”

mode, thus extending battery life. Press (or press and

hold) the key again to return to “Normal” transmit

power when in difcult terrain.

prIvacY

Press (or press and hold) the assigned Programmable

key to toggle the Privacy feature “On” and “Off”.

The privacy feature keep the secrecy of your commu-

nication contents.

FCC ID: AXI11133020

IC: 10239A-11133020

EVX-531 OpErating Manual

advancEd opEratIon

vox

Press (or press and hold) the assigned programmable

key to turn the VOX function “On” or “Off”. You

may disable the VOX function temporarily by press-

ing the PTT switch.

vox antI-trIp

Press (or press and hold) the assigned Programmable

key to toggle the VOX Anti-Trip feature “On” and

“Off”.

When the VOX Anti-Trip feature is set to “On”, the

transceiver does not activate the transmitter section

from the receiver audio and own beep sound.

EmErgEncY

The EVX-531 include an “Emergency” feature which

may be useful for alerting another party monitoring

on the same frequency as your transceiver’s channel.

Press the assigned Programmable key to initiate an

emergency call on the pre-dened channel. For fur-

ther details contact your Vertex Standard dealer.

lonE WorKEr

Press (or press and hold) the assigned Programmable

key to toggle the Lone Worker feature “On” and “Off”.

The Lone Worker feature is designed to emit an

alarm for 30 seconds when the Lone Worker Timer

(programmed by your Vertex Standard dealer) has ex-

pired. If the user does not reset the timer by pressing

the PTT switch, the radio switches to the Emergency

mode.

group cHangE

The EVX-531 has two Channel Groups.

Press (or press and hold) the assigned Programmable

key to change the Channel Group to the opposite

Group. Once the desired Group is reached, rotate the

CH Selector knob to select the desired channel within

the selected Group.

prI-2

Press (or press and hold) the assigned programmable

key to recall the pre-programmed priority channel di-

rectly. This is pre-programmed by your Vertex Stan-

dard dealer.

FCC ID: AXI11133020

IC: 10239A-11133020

EVX-531 OpErating Manual

advancEd opEratIon

prI-2 sEt

Press (or press and hold) the assigned programmable

key to toggle the current channel to the priority chan-

nel 2 “enable” and “disable”.

prI-2 dIsaBlE

Press (or press and hold) the assigned programmable

key to disable the priority channel 2 of the group tem-

porarily.

scan

The Scanning feature is used to monitor multiple

signals programmed into the transceiver. While scan-

ning, the transceiver will check each channel for the

presence of a signal, and will stop on a channel if a

signal is present.

To activate scanning:

 Press (or press and hold) the assigned Program-

mable key to activate scanning.

 The scanner will search the channels of each

channel, looking for active ones; it will pause

each time it nds a channel on which someone is

speaking.

 Press (or press and hold) the assigned Program-

mable key again to disable scanning. Operation

will revert to the programmed revert channel.

Note: Your dealer may have programmed your radio

to stay on one of the following channels if you press

the PTT switch during scanning pause:

 “Scan Pause” channel (“Talk Back”)

 “Last Busy” channel

 “Priority-2” channel

 “User Programmed” channel (“Select Channel”)

The channel which dened in the CH Selector

knob.

FCC ID: AXI11133020

IC: 10239A-11133020

EVX-531 OpErating Manual

group scan

The Scanning feature is used to monitor multiple

channels programmed into the transceiver. While

scanning, the transceiver will check each channel of

the programmed group for the presence of the signal,

and will stop on a channel if a signal is present.

Press (or press and hold) the assigned programmable

key to activate the scanning on the selected groups.

dual WatcH

The Dual Watch feature is similar to the SCAN fea-

ture, except that only two channels are monitored:

 The current operating channel; and

 The Priority-2 channel.

To activate Dual Watch:

 Press (or press and hold) the assigned Program-

mable key.

 The scanner will search the two channels; it will

pause each time it nds a channel on which some-

one is speaking.

To stop Dual Watch:

 Press (or press and hold) the assigned Program-

mable key.

 Operation will revert to the “Dual Watch Revert”

channel.

Fm scan (FolloW-mE scan)

The FM Scan feature checks a User-assigned Priority

Channel regularly as you scan other channels. Thus,

if only Channels 1, 3, and 5 (of the 8 available chan-

nels) are designated for “Scanning”, the user may

nonetheless assign Channel 2 as the “User-assigned”

Priority Channel via the FM Scan.

To activate FM Scan, rst select the channel you want

to designate as the “User-Assigned Priority Channel”

and press (or press and hold) the assigned program-

mable key. Then rotate the CH Selector knob to re-

call to the “Scanning Start” channel which has been

programmed by your dealer to activate the scanner.

When the scanner stops on an “Active” channel, the

User-assigned Priority Channel will automatically be

checked every few seconds; if activity is found on the

User-assigned Priority Channel, the radio will switch

between it and the Dealer-Assigned Priority Channel,

if any.

advancEd opEratIon

FCC ID: AXI11133020

IC: 10239A-11133020

EVX-531 OpErating Manual

advancEd opEratIon

ta scan

Press (or press and hold) the assigned Programmable

key to toggle the TA (Talk Around) scan feature “On”

and “Off”.

While TA scan is proceeding, the transceiver will

search both the transmit and receive frequencies.

When a signal is encountered on the receive frequen-

cy, the EVX-531 will pause until the signal disap-

pears. When a signal is encountered on the transmit

frequency, the transceiver will check for activity on

the receive frequency every few seconds (interval

programmed by your Vertex Standard dealer).

Note: The TA Scan feature does not activate on the

Simplex Channel.

scan sEt

Press (or press and hold) the assigned Programmable

key to add/delete the current channel to/from your

scanning list.

When the scanner is stopped, you may remove the

channel from the scan list temporarily by pressing (or

press and holding) this key.

talK around (ta)

Press (or press and hold) the assigned Programmable

key to activate the Talk Around feature when you are

operating on duplex channel systems (separate re-

ceive and transmit frequencies, utilizing a “repeater”

station). The Talk Around feature allows you to by-

pass the repeater station and talk directly to a station

that is nearby. This feature has no effect when you are

operating on “simplex” channels, where the receive

and transmit frequencies are already the same.

Note that your dealer may have mode provision for

“Talk Around” channels by programming “repeater”

and “Talk Around” frequencies on two adjacent chan-

nels. If so, the key may be used for one of the other

Pre-Programmed Functions.

Note: The Talk Around feature does not activate on

the Simplex Channel.

rEsEt

Press (or press and hold) the assigned programmable

key to reset the RFC (Ready for Communication)

condition.

FCC ID: AXI11133020

IC: 10239A-11133020

EVX-531 OpErating Manual

advancEd opEratIon

call 1 to call 3

Press (or press and hold) the assigned Programmable

key to send a 2-tone sequential tone group which is

pre-dened.

spEEd dIal

Press (or press and hold) the assigned Programmable

key to prepare the Speed Dial function. Press the PTT

switch within 5 seconds of releasing the key to send a

DTMF tone which is pre-dened.

call

Press (or press and hold) the assigned programmable

key to send a 2-tone sequential tone.

tx savE dIsaBlE

Press (or press and hold) the assigned Programmable

key to disable the Transmit Battery Saver, if you are

operating in a location where high power is almost

always needed.

The Transmit Battery Saver helps extend battery life

by reducing transmit power when a very strong signal

from an apparently nearby station is being received.

Under some circumstances, though, your hand-held

radio may not be heard well at the other end of the

communication path, and high power may be neces-

sary at all times.

locK

Press (or press and hold) the assigned Programmable

key to lock the CH Selector knob, Programmable

keys, and PTT switch. The precise lockout congura-

tion is programmed by your Vertex Standard Dealer.

FCC ID: AXI11133020

IC: 10239A-11133020

EVX-531 OpErating Manual

locK

In order to prevent accidental channel change or

inadvertent transmission, various aspects of the

CH Selector knob, Programmable keys, and PTT

switch may be locked.

The precise lockout conguration is programmed by

your Dealer.

To locked out the key locking, turn the radio off.

Now, press and hold the PTT and SIDE-2 key while

turning the radio on again.

To cancel locking, repeat this process.

artstm

(auto rangE transpond sYstEm)

This system is designed to inform you when you and

another ARTSTM-equipped station are within commu-

nication range.

During ARTSTM operation, when the radio receives

an incoming ARTSTM signal, a short beep will sound.

If you move out of range for more than two minutes,

your radio senses that no signal has been received;

a short triple-beep will sound. If you subsequently

move back into communication range, as soon as the

other station transmits, a short beep will sound again.

artsIItm

(auto rangE transpond sYstEm)

The ARTSIITM system is enhanced feature of the

ARTSTM which can be nding out the communication

range of the radio individually by using the MDC-

1200® Encode/Decoder.

FCC ID: AXI11133020

IC: 10239A-11133020

EVX-531 OpErating Manual20

optIonal accEssorIEs

FNB-V133LI

7.4V, 1380 mAh Li-Ion Battery Pack

FNB-V134LI

7.4V, 2300 mAh Li-Ion Battery Pack

CD-58

Desktop Charger

PA-51

AC Adapter

MH-66A4B

Submersible Speaker Microphone

MH-81A4B

Over-the-head VOX Compatible Headset

ATU-16B

UHF Antenna (400-420 MHz)

ATU-16C

UHF Antenna (420-450 MHz)

ATU-16D

UHF Antenna (450-470 MHz)

ATU-16F

UHF Antenna (470-520 MHz)

CSS450

Channel Selector Stopper

CLIP-20

Belt Clip

CE142

PC Programming Software

FIF-12

USB Programming Interface

CT-106

Connection Cable for FIF-12

CT-27

Radio to Radio Cloning

Cable

Availability of accessories may vary; some acces-

sories are supplied standard per local requirements,

others may be unavailable in some regions. Check

with your Vertex Standard Dealer for changes to

this list.

FCC ID: AXI11133020

IC: 10239A-11133020

Part15.21:ChangesormodicationstothisdevicenotexpresslyapprovedbyVertexStandardcouldvoid

theuser’sauthorizationtooperatethisdevice.

TheAMBE+2TMvoicecodingTechnologyembodiedinthisproductisprotectedbyintellectualproperty

rightsincludingpatentrights,copyrightsandtradesecretsofDigitalVoiceSystems,Inc.Thisvoicecoding

TechnologyislicensedsolelyforusewithinthisCommunicationsEquipment.TheuserofthisTechnology

isexplicitlyprohibitedfromattemptingtodecompile,reverseengineer,ordisassembletheObjectCode,or

inanyotherwayconverttheObjectCodeintoahuman-readableform.

U.S.Pat.Nos. #5,870,405,#5,826,222,#5,754,974,#5,701,390,#5,715,365,#5,649,050,#5,630,011,

#5,581,656,#5,517,511,#5,491,772,#5,247,579,#5,226,084and#5,195,166.

FCC ID: AXI11133020

IC: 10239A-11133020

VertexStandardLMR,Inc.

Allrightsreserved.

Noportionofthismanual

maybereproduced

withoutthepermissionof

VertexStandardLMR,Inc.

Vertex Standard LMR, Inc.

FCC ID: AXI11133020

IC: 10239A-11133020

Vertex Standard USA 11133020 HANDHELD TRANSCEIVER User Manual

Vertex Standard USA, Inc. HANDHELD TRANSCEIVER

User Manual

Navigation menu

Namespaces

Views

Navigation
