Operating Manual
VX-800
VERTEX STANDARD CO., LTD.
4-8-8 Nakameguro, Meguro-Ku, Tokyo 153-8644, Japan
VERTEX STANDARD
US Headquarters
17210 Edwards Rd., Cerritos, CA 90703, U.S.A.
International Division
8350 N.W. 52nd Terrace, Suite 201, Miami, FL 33166, U.S.A.
YAESU EUROPE B.V.
P.O. Box 75525, 1118 ZN Schiphol, The Netherlands
YAESU UK LTD.
Unit 12, Sun Valley Business Park, Winnall Close
Winchester, Hampshire, SO23 0LB, U.K.
YAESU GERMANY GmbH
Am Kronberger Hang 2, D-65824 Schwalbach, Germany
VERTEX STANDARD HK LTD.
Unit 5, 20/F., Seaview Centre, 139-141 Hoi Bun Road,
Kwun Tong, Kowloon, Hong Kong
Contents
Controls & Connectors ......................................................................................................................................................1
Before You Begin ................................................................................................................................................................2
Battery Pack Installation and Removal...........................................................................................................................2
Low Battery Indication ...................................................................................................................................................2
Operation ............................................................................................................................................................................3
Preliminary Steps ............................................................................................................................................................3
Operation Quick Start .....................................................................................................................................................3
Advanced Operation ..........................................................................................................................................................6
Soft key and Toggle switch Functions ............................................................................................................................6
Description of Operating Functions .............................................................................................................................8
ARTS (Auto Range Transpond System) .......................................................................................................................13
DTMF Paging System ..................................................................................................................................................13

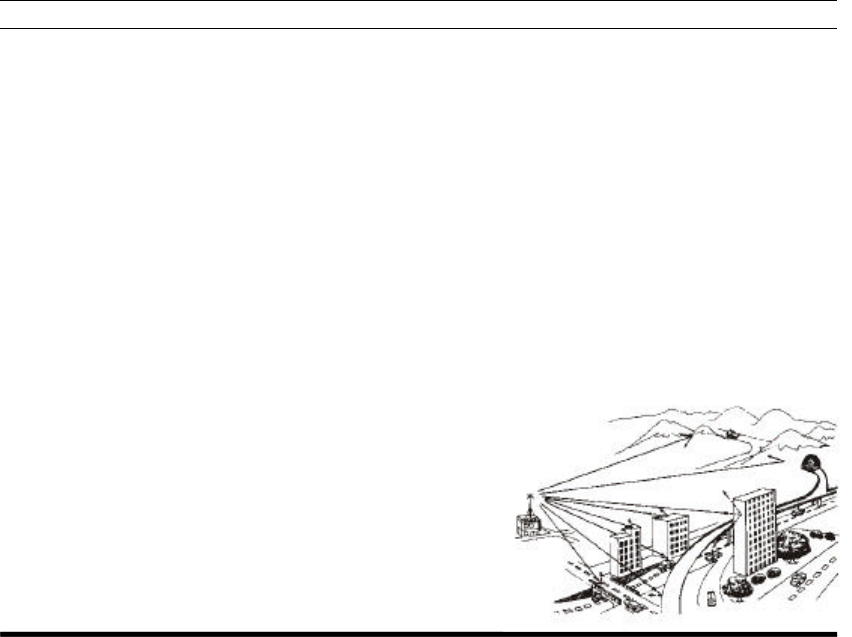

Understanding Radio Waves ...........................................................................................................................................14
Specifications ....................................................................................................................................................................15
Accessories & Options .....................................................................................................................................................16
Congratulations!
You now have at your fingertips a valuable communications tool-a two-way radio !
Rugged, reliable and easy to use, your radio will keep you in constant touch with
your colleagues for years to come, with negligible maintenance down-time.
Please take a few minutes to read this manual carefully. The information presented here will allow you to
derive maximum performance from your radio, in case questions arise later on.
We're glad you joined the team. Call on us anytime, because communications is
our business. Let us help you get your message across.
VX-800 OPERATING MANUAL 1

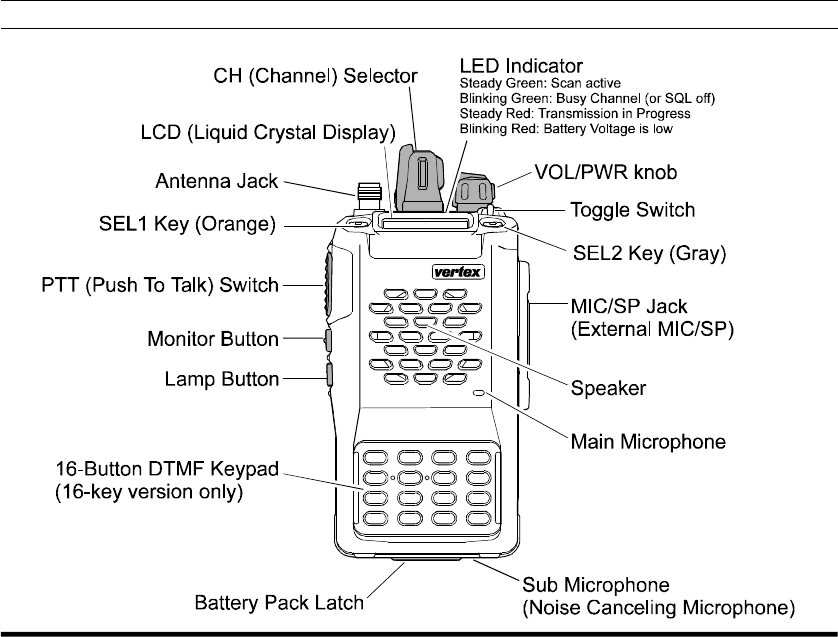

CONTROLS & CONNECTORS
VX-800 OPERATING MANUAL
2
BEFORE YOU BEGIN

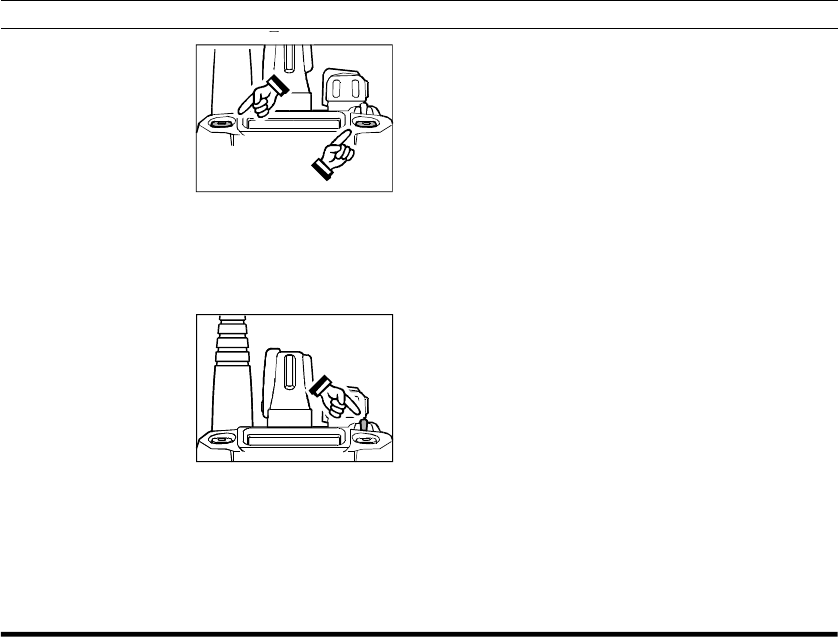

Battery Pack Installation and Removal
rTo install the battery, hold the transceiver with
your left hand, so your palm is over the speaker
and your thumb is on the top of the belt clip. In-
sert the battery pack into the battery compartment
on the back of the radio while tilting the Belt Clip
outward, then close the Battery Pack Latch until
it locks in place with a “Click.”
rTo remove the battery, turn the radio off and re-
move any protective cases. Open the Battery Pack
Latch on the bottom of the radio, then slide the
battery downward and out from the radio while
unfolding the Belt Clip.
Do not attempt to open any of the re-
chargeable Lithium-Ion and Ni-Cd packs,
as they could explode if accidentally short-
circuited.
Low Battery Indication
rAs the battery discharges during use, the voltage
gradually becomes lower. When the battery volt-
age reaches 6.0 volts, it is time to substitute a
freshly charged battery and recharge the depleted
pack. The LED indicator on the top of the radio
will blink red when the battery voltage is low (6
Volts or lower).
rAvoid recharging Ni-Cd batteries often with little
use between charges, as this can degrade the
charge capacity. We recommend that you carry
an extra, fully-charged pack with you so the op-
erational battery may be used until depletion (this
“deep cycling” technique promotes better long-
term battery capacity).
Notice !
There are no owner-serviceable parts inside the
transceiver. All service jobs must be referred to
an authorized Service
Representative. Consult your Authorized
Dealer for installation of
optional accessories.
VX-800 OPERATING MANUAL 3
OPERATION
Preliminary Steps
rInstall a charged battery
pack onto the transceiver,
as described previously.

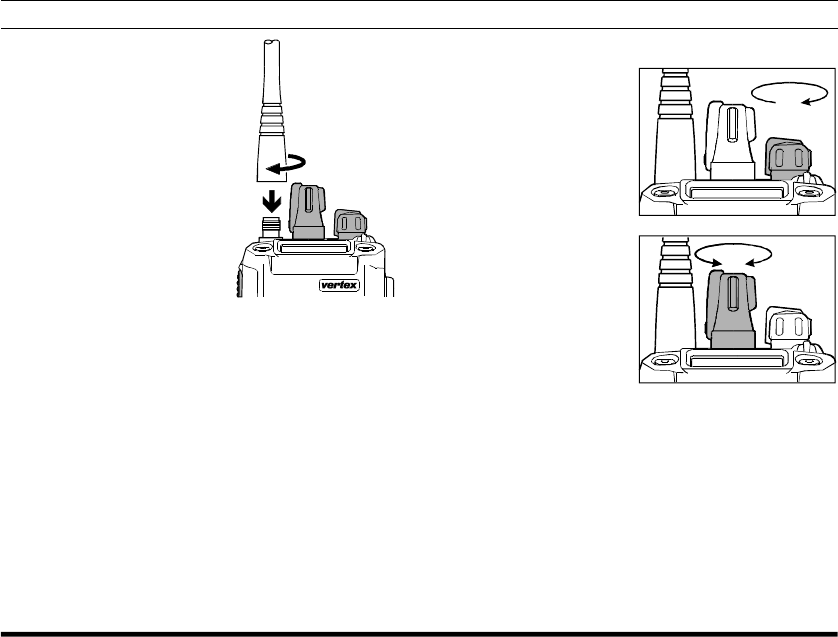

rScrew the supplied an-
tenna onto the Antenna
jack. Never attempt to op-
erate this transceiver
without an antenna con-
nected.
rIf you have a Speaker/Mi-
crophone, we recommend
that it not be connected until you are familiar with
the basic operation of the VX-800.
Operation Quick Start
rTurn the top panel’s
VOL/PWR knob
clockwise to turn on
the radio on.
rPull and turn the top
panel's CH selector
knob to choose the
desired operating
channel. A channel
name will appear on
the LCD. If you want
to select the operating channel from a different
Memory Channel Group, pressing the Soft key
(assigned to the Memory Group Up or Down
function) to select the Memory Channel Group
to be you want before selecting the operating
channel. A group name will appear on the LCD
whenever the Soft key is pressed.
Note: Some models are programmed so that the
operating channels are selected by the
Soft key and the memory channel group
VX-800 OPERATING MANUAL
4
is selected by the channe selector knob.
For further details, contact your
dealer..

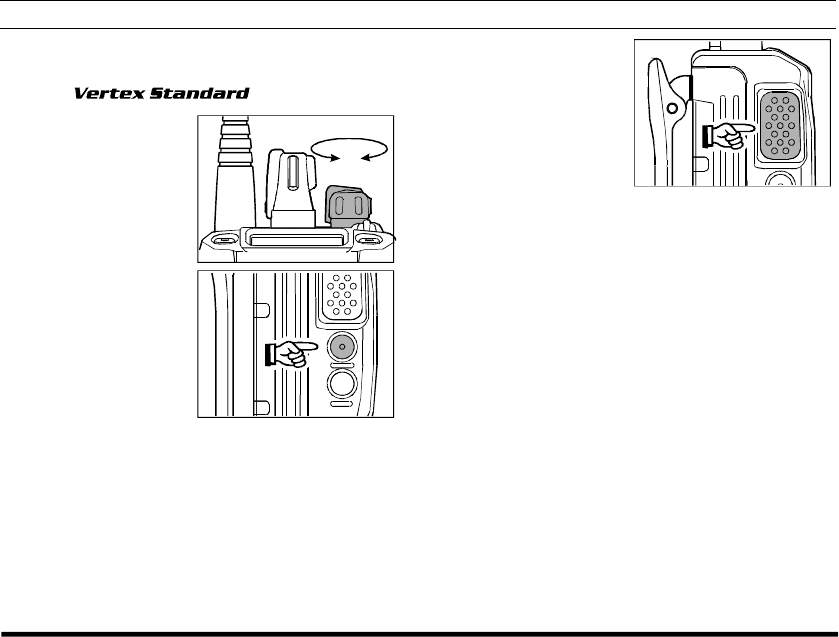

rRotate the VOL/
PWR knob to set the
volume level. If no
signal is present, press
and hold in the Moni-
tor button (the center
button on the left side)
more than 2 seconds;
background noise will
now be heard, and
you may use this to set
the VOL/PWR knob
for the desired audio
level.
Press and hold the Monitor button more than 2 sec-
onds (or press the Monitor button twice) to quiet
the noise and resume normal (quiet) monitoring.
OPERATION
rTo transmit, press
and hold the PTT
switch. Speak into
the microphone area
of the front panel
grille (lower right-
hand corner) in a nor-
mal voice level. To return to the Receive mode,
release the PTT switch.
rPress the Soft key (if assigned to the Scan func-
tion) or switch the Toggle Switch to the assigned
“Scan” position (when so programmed by your
dealer) to start the scanner. The scanner rapidly
steps through each of the dealer-programmed
channels, looking for incoming calls.
VX-800 OPERATING MANUAL 5
OPERATION
rPress the top panel’s
SEL1/SEL2 key to
activate one of the
preprogrammed func-
tions which may have
been enabled at the
time of programming
by the dealer. Similarly, when using the 16-key
version, the [A], [B], [C], and [D] function keys
activate one of these functions, if programmed
by the dealer. See the next section for details re-
garding the available features.
rSwitch the top panel’s
Toggle Switch to the
[A], [B] or [Center]
position to activate
one of the pre-pro-
grammed functions
which may have been
enabled at the time of programming by the dealer.
When this switch is in the [A (left)], [B (right)]
or [Center] position, the feature programmed (by
your dealer) to that switch position will be acti-
vated. See the next section for details regarding
the available features.
rPress the DTMF keys on the telephone keypad
while pressing the PTT switch to send DTMF
tones (16-key version only).
rIf a Speaker/Microphone is available, remove the
plastic cap and its two mounting screws from the
right side of the transceiver, then align the con-
nector of the Speaker/Microphone on the trans-
ceiver body; secure the connector pin using the
screws supplied with the Speaker/Microphone.
Hold the speaker grille up next to your ear while
receiving. To transmit, press the PTT switch on
the Speaker/Microphone, just as you would on
the main transceiver’s body, and speak into the
microphone on a normal voice level.
Note: Save the original plastic cap and its mount-
ing screws. They should be reinstalled when
not using the Speaker/Microphone.
VX-800 OPERATING MANUAL
6
ADVANCED OPERATION
Soft Key and Toggle Switch Functions
The VX-800 includes the [SEL1], [SEL2], [MON],
and [LAMP] Keys, and the Toggle Switch, while
the 16-key version additionally provides [A], [B],
[C], [D] function Keys. The Soft key and Toggle
Switch functions can be customized, via program-
ming by your dealer, to meet
your communications/network requirements. Some
features may require the purchase and installation of
optional internal accessories. The possible Soft key
and Toggle Switch programming features are illus-
trated at the right, and their functions are explained
on page 8. For further details, contact your
dealer. For future reference,
check the box next to each function that has been
assigned to the Soft key and Toggle Switch on your
particular radio, and keep it handy.
Toggle Switch (Position)
A B
None
Channel Scan
Dual Watch
High/Low Power
Talk Around
TX Save Disable
LCD Invert
Encryption Disable*
Lock
Follow-Me Scan
Group recall Shortcut
Functions center
* requires DTMF/Encryption Unit
Group 1
Group 2
Group 3
Group 1
Group 2
Group 3
Group 1
Group 2
Group 3
VX-800 OPERATING MANUAL 7
ADVANCED OPERATION
None
Channel Scan
Dual Watch
High/Low Power
Talk Around
TX Save Disable
LCD Invert
Encryption Disable*
Follow-Me DW
Call/Reset*
Speed Dial*
Emergency*
Group Up
Group Down
Channel Up
Channel Down
Monitor
Lamp
SEL2 MON LAMP
A B C D
SEL1
Soft Key
Functions
* requires DTMF/Encryption Unit
VX-800 OPERATING MANUAL
8
ADVANCED OPERATION
Description of Operating Functions
Channel Scan
The Scanning feature is used to monitor multiple
signals programmed into the transceiver. While
scanning, the transceiver will check each channel
for the presence of a signal, and will stop on a chan-
nel if a signal is present.
One key or switch may be assigned to the Scan
function, as follows:
rOne of the Soft keys may be assigned for Scan
operation; or
rThe Toggle switch may have one position as-
signed to the Scan function.
To activate scanning:
lPress the assigned Soft key, or set the Toggle
switch to the assigned position.
lThe scanner will search the channels, looking for
active ones; it will pause each time it finds a chan-
nel on which someone is speaking.
To stop scanning:
lPress the assigned Soft key, or set the Toggle
switch to a different position.
lOperation will revert to the channel to which the
CH knob is set.
Note: Your dealer may have programmed your radio
to stay on one of the following channels if you
press the PTT switch during scanning pause:
l Current channel (“Talk Back”)
l “Last Busy” channel
l “Priority” channel
l “Home” channel
l “Scan Start” channel
Dual Watch
The Dual Watch feature is similar to the Scan
feature, except that only two channels are monitored:
rThe current operating channel; and
rThe “Priority” channel.
To activate Dual Watch:
lPress the assigned Soft key, or set the Toggle
switch to the assigned position.
lThe scanner will search the two channels; it will
pause each time it finds a channel on which
someone is speaking.
To stop scanning:
lPress the assigned Soft key, or set the Toggle
switch to a different position.
lOperation will revert to the channel to which
the CH knob is set.
VX-800 OPERATING MANUAL 9
TX Save Disable
Press the assigned Soft key or switch the Toggle
Switch to the assigned position to disable the Trans-
mit Battery Saver, if you are operating in a loca-
tion where high power is almost always needed.
The Transmit Battery Saver helps extend battery
life by reducing transmit power when a very
strong signal from an apparently nearby station
is being received. Under some circumstances,
though, your hand-held radio may not be heard
well at the other end of the communication path,
and high power may be necessary at all times.
LCD Invert
Press the assigned Soft key or switch the Toggle
Switch to the assigned position inverts the LCD
display to backward-facing readout (the backward
display is convenient for viewing when wearing
the transceiver on your belt). Press the assigned
Soft key again or switch the Toggle Switch to
the other Position-return the LCD display to
frontward-facing readout.
ADVANCED OPERATION
High/Low Power
Press the assigned Soft key or switch the Toggle
Switch to the assigned position to set the radio’s
transmitter to the “Low Power” mode, thus ex-
tending battery life. Press the assigned Soft key
again or switch the Toggle Switch to the other
Position to return to “High Power” operation
when in difficult terrain.
Talk Around
Press the assigned Soft key or switch the Toggle
Switch to the assigned position to activate the Talk
Around feature when you are operating on du-
plex channel systems (separate receive and trans-
mit frequencies, utilizing a “repeater” station).
The Talk Around feature allows you to bypass
the repeater station and talk directly to a station
that is nearby. This feature has no effect when
you are operating on “simplex” channels, where
the receive and transmit frequencies are already
the same.
Note that your dealer may have made provision
for “Talk Around” channels by programming “re-
peater” and “Talk Around” frequencies on two
adjacent channels. If so, the key may be used for
one of the other Pre-Programmed Functions.
VX-800 OPERATING MANUAL
10
ADVANCED OPERATION
Encryption Disable
Press the assigned Soft key or switch the Toggle
Switch to the assigned position to turn off the op-
tional voice encryption unit temporarily, for use
when an incorrect setting of (or failure in) the
encryption system at one end of the communica-
tion path has made it impossible to talk to the
other station.
Remember that disabling the encryption will mean
that your transmissions are no longer secure. Re-
turn to the encrypted mode as soon as possible, and
do not discuss any critical or confidential informa-
tion while in the non-encrypted mode of operation.
Lock
Switch the Toggle Switch to lock the top-panel
keys; this can be enabled to prevent radio settings
from being disturbed.
Follow-Me Scan
“Follow-Me” Scan feature checks a User-assigned
Priority Channel regularly as you scan the other
channels. Thus, if only Channels 1, 3, and 5 (of
the 8 available channels) are designated for “Scan-
ning,” the user may nonetheless assign Channel
2 as the “User-assigned” Priority Channel via the
“Follow-Me” feature.
To activate “Follow-Me” scanning, first select the
channel you want to designate as the “User-As-
signed Priority Channel” and Switch the Toggle
Switch to the assigned position. Then turn the CH
selector knob to the “Scanning Start” channel
which has been programmed by your dealer to
activate the scanner. When the scanner stops on
an “Active” channel, the User-assigned Priority
Channel will automatically be checked every few
seconds; if activity is found on the User-assigned
Priority Channel, the radio will switch between
it and the Dealer-Assigned Priority Channel, if
any.
Follow-Me DW
To set up a “Dual Watch” frequency pair using the
“Follow-Me” feature, select a channel using the CH
selector knob. Now press the assigned Soft key;
pressing the assigned Soft key locks the current
channel as the User-assigned Priority Channel. Now
rotate the CH selector knob to another channel (not
the “Scanning Start” channel). Your radio will now
switch back-and-forth between the currently-se-
lected channel (shown on the CH selector knob)
and the User-assigned Priority Channel.
VX-800 OPERATING MANUAL 11
previously) pass through more than one Group
during the scanning process (normally, scanning
is performed within the current group only). To
include the current Group in the scanning loop,
press and hold in the assigned Soft key for
one second.
To remove a Group from Group Scan, press and
hold in the assigned Soft key again for one second.
Multi-Group Scanning is only possible if you are
using the “User Scan” list.
The VX-800 has two scanning “lists:” the “Dealer
Scan” list and the “User Scan” list. The “Dealer
Scan” list is a fixed group of stations which will
be included when scanning is activated. The “User
Scan” list is a different list, initially arranged by
the Dealer, which may be modified by the User
(if, for example, you want to delete one or more
of these channels from the scanning list).
To edit the User Scan list, press and hold the soft
key (assigned to the Group Up/Down function)
to delete the current Memory Group from the
Scanning. Alternatively, press and hold the “Scan”
Soft key for one second to delete the Current
Memory channel from the Scanning.
ADVANCED OPERATION
During “Follow-Me” scanning (after you have
pressed the key), you can set up the “Dual Watch”
feature by rotating the CH selector knob to an-
other channel. The radio will then scan back and
forth between the original User-assigned Priority
Channel and the newly-selected channel.
The Priority Channel you have assigned (before
pressing the key) will be retained in memory un-
til you change it.
Channel Group Selection
The VX-800 is capable of separating its 200
memory channels into any of ten Groups. There
is no limit as to the number of channels which
may be assigned to each Group. The Dealer will
have made the Group assignment at the time of
channel programming. At the same time, one of
the Soft Keys will be assigned as the Channel
Group Selection key.
To change Channel Groups, press the assigned
soft key to step through the available Groups. Once
the desired Group is reached, rotate the CH selec-
tor knob to select the desired channel within the
selected Group.
You may wish to have the Scanner (described
VX-800 OPERATING MANUAL
12
When you delete a Group or channel, “-SKIP-”
will appear on the LCD for one second after press-
ing the Soft key. To restore a particular channel
to your scanning list, press and hold in the Soft
key again for one second; “-STOP-” will appear
on the LCD for one second after pressing the Soft
key.
Call/Reset
This feature, if enabled, allows the user to change
the 3-digit Page Call code, used to call other simi-
larly-equipped stations. Press the Dealer-assigned
soft key, followed by the three digits represent-
ing the Page Call code of the station you wish to
call. Three tones will be heard after the last key is
pressed (the new code will now be transmitted).
The receiver squelch of the other station will be
opened, and you can begin communication.
Speed Dial
Your Dealer may have pre-programmed Auto-Dial
telephone number memories into your radio.
To dial a number, press the numbered key corre-
sponding to the Auto-Dial memory number list
provided by your Dealer while pressing the PTT
switch. Once the telephone number has begun
(you will hear the tones in the speaker), you can
release the PTT switch.
Emergency
The VX-800 includes an “Emergency” feature
which may be useful if you have someone moni-
toring on the same frequency as your transceiver’s
channel. For further details contact your nearest
dealer..
ADVANCED OPERATION
VX-800 OPERATING MANUAL 13
ADVANCED OPERATION
ARTS (Auto Range Transpond System)
This system is designed to inform you when you and
another ARTS-equipped station are within commu-
nication range.
During ARTS operation, your radio automatically
transmits for about 1 second every 25 seconds (the
interval is programmed by the Dealer) in an attempt
to shake hands with the other station.
If you move out of range for more than two minutes,
your radio senses that no signal has been received, a
ringing beeper will sound, and "OUT OF SERVICE"
will scroll on the LCD. If you subsequently move
back into range, as soon as the other station trans-
mits, your beeper will sound, and "IN SERVICE"
will scroll on the LCD.
DTMF Paging System
This system allows paging and selective calling, us-
ing DTMF tone sequences.
When your radio is paged by a station bearing a tone
sequence which matches yours, your radio's squelch
will open and the alert ringer will sound (unless you
have disabled it, as described previously).
The three-digit code of the station which paged you
will be displayed on your radio's LCD.
VX-800 OPERATING MANUAL
14
UNDERSTANDING RADIO WAVES
Radio waves travel from one point to another by sev-
eral different means. The general term for these meth-
ods of wave travel is “propagation”. You may know
that “shortwave” signals can be propagated over dis-
tances of several thousand miles by reflection off of
the upper regions of the atmosphere.
Your hand-held transceiver, on the other hand, oper-
ates on the so-called VHF (Very-High Frequency)
or UHF (Ultra-High Frequency) bands. On these
bands, radio waves usually do not reflect off of the
atmosphere. Instead, the radio waves behave almost
as light: they travel in a straight line, and when they
meet a building or obstruction, they go no further in
that direction.
Therefore, it is important that you be as high and free
from obstructions as possible to cover the greatest dis-
tance when using your radio. If you operate from in-
side a car or building, any metal around you can absorb
much of the signal, both transmitted and received. Cov-
erage may therefore be very poor under those condi-
tions. However, if you must operate from indoors, mov-
ing next to a window will improve communications.
In view of the factors just discussed, you can easily see
the potential benefit of holding the radio up high near
your mouth while transmitting. In this way the antenna
is high and clear, and coverage is best.
On final note regarding propagation is useful in im-
proving coverage. Because radio waves at VHF/UHF
are similar to light waves, they do reflect, to varying
degrees, off of hills, buildings, and the like. In a crowded
urban area, with many close buildings close together,
many reflections may occur, and interfere with one
another, causing variations in signal strength at differ-
ent locations.
Therefore, if a signal is weak and you walk a few feet
in any direction, reception may suddenly become clear,
because a particular reflection path may become domi-
nant. Reflections are frequently useful, as they can al-
low for communications between two stations over a
highly obstructed path.
VX-800 OPERATING MANUAL 15
SPECIFICATIONS (TYPE USA)
GENERAL VX-800 (VHF)VX-800 (UHF)
Frequency Range:134-160, 148-174 MHz 450-485 MHz
Number of Channels:200 channels 200 channels
Channel Spacing:12.5/25/30 kHz 12.5/25/30 kHz
Battery Voltage:7.4 VDC 7.4 VDC
Temperature Range:–30°C to +60°C –30°C to +60°C
Frequency Stability:±2.5 ppm ±2.5 ppm
Case Size (WHD): 58 x 110 x 28.9 mm w/FNB-V62LI 58 x 110 x 28.9 mm w/FNB-V62LI
Weight (approx.): 300 grams with FNB-V62LI, antenna, belt clip 300 grams with FNB-V62LI, antenna, belt clip
RECEIVER
Circuit Type:Double-conversion superheterodyne Double-conversion superheterodyne
IFs:22.05 MHz & 450 kHz 44.25 MHz & 450 kHz
12-dB SINAD Sensitivity:0.25 µV 0.25 µV
Squelch Sensitivity:0.25 µV 0.25 µV
Selectivity:75 dB (25 kHz)/70 dB (12.5 kHz) 75 dB (25 kHz)/68 dB (12.5 kHz)
Intermodulation:75 dB (25 kHz)/68 dB (12.5 kHz) 75 dB (25 kHz)/65 dB (12.5 kHz)
Spurious Rejection:75 dB 75 dB
AF Output:0.5 W @ 16 W, 3 % THD (BTL output) 0.5 W @ 16 W, 3 % THD (BTL output)
TRANSMITTER
Power Output:5.0/2.5/1.0/0.25 W (Selectable) 5.0/2.5/1.0/0.25 W (Selectable)
Modulation System:Direct FM Direct FM
Maximum Deviation:±5 kHz (25 kHz)/±2.5 kHz (12.5 kHz) ±5 kHz (25 kHz)/±2.5 kHz (12.5 kHz)
FM Noise:45 dB (25 kHz)/40 dB (12.5 kHz) 45 dB (25 kHz)/40 dB (12.5 kHz)
Spurious Emission:70 dB below carrier 70 dB below carrier
AF Distortion (@ 1 kHz): < 3 % < 3 %
Microphone Type:2-k W condenser 2-k W condenser
Specifications are subject to change without notice or obligation.
VX-800 OPERATING MANUAL
16
This device complies with Part 15 of the FCC rules. Operation is subject to the condition that this device
does not cause harmful interference.
Availability of accessories may vary; some accessories are supplied as standard per local requirements, others
may be unavailable in some reqions. Check with your Vertex Standard Dealer for changes to the above list.
ACCESSORIES & OPTIONS
FVP-25 Encryption/DTMF Pager Unit
F2D-8 2-Tone Decode Unit
FNB-V57 7.2 V 1100 mAh Ni-Cd Battery
FNB-V57IS Intrinsically-Safe 7.2 V 1100 mAh Ni-Cd Battery
FNB-V62LI 7.4 V 1600 mAh Lithium-Ion Battery
FBA-25 Battery Case
VAC-800 Rapid Desktop Charger (for FNB-V57, FNB-V57IS, FNB-V62LI)
NC-77B 120 VAC Compact Wall Charger for FNB-V57/-V57IS
NC-77C 230-240 VAC Compact Wall Charger for FNB-V57/-V57IS
NC-77F 220 VAC Compact Wall Charger for FNB-V57/-V57IS
NC-77U 230 VAC Compact Wall Charger for FNB-V57/-V57IS
VTP-50 VX-Trunk Unit
MH-50A7A Speaker/Microphone
CT-70 CT-29 to Radio Programming Cable
CT-71 PC Programming Cable
CT-72 Radio to Radio Programming Cable
ATV-6A/B/C/XL VHF Antenna, A: 134~151 MHz (Stubby), B: 150~163 MHz (Stubby),
C: 161~174 MHz (Stubby), XL: 134~174 MHz (Untuned)
ATU-6C/D UHF Antenna, C: 440~470 MHz , D: 450~485 MHz
This device complies with Part 15 of the FCC rules. Op-
eration is subject to the condition that this device does
not cause harmful interference.
Copyright 2001
VERTEX STANDARD CO., LTD.
All rights reserved.
No portion of this manual
may be reproduced
without the permission of
VERTEX STANDARD CO., LTD.
Printed in Japan
E12677500
