User manual



S5017UserManual



1

Warnings

Notfollowingthesesimpleguidelinesmaybedangerousorillegal.Readthecomplete

userguideforfurtherinformation.



TURNONSAFELY

Donotturnonthephonewhenwirelessphoneisprohibitedorwhenitmaycause

interferenceordanger.



ROADSAFETY

Obeyallroadsafetylaws.Alwaysusebothofyourhandstooperatethevehiclewhile

driving.



INTERFERENCE

Allwirelessphonesmaybesensitivetointerference,whichmayaffectperformance.



TURNOFFINHOSPITALS

Followallrestrictions.Turnoffthephonenearmedicalequipment.



TURNOFFONAIRCRAFTS

Followallrestrictions.Wirelessdevicescancauseinterferenceonaircrafts.



TURNOFFWHENREFUELING

Donotusethephoneat/nearrefuelingstations.Donotusenearfuelorchemicals.



USESENSIBLY

Onlyqualifiedpersonnelmayinstallorrepairthisproduct.

2



ENHANCEMENTSANDBATTERIES

Useonlyappropriateenhancementsandbatteries.Donotconnectincompatible

products.



WATER‐RESISTANCE

Yourphoneisnotwater‐resistant.Keepitdry.



BACKUPCOPIES

Remembertomakeback‐upcopiesorkeepawrittenrecordofallimportantinformation

storedinyourphone.



CONNECTINGTOOTHERDEVICES

Whenconnectingtoanyexternaldevice,readitsuserguidefordetailedsafety

instructions.Donotconnectwithincompatibleproducts.



3

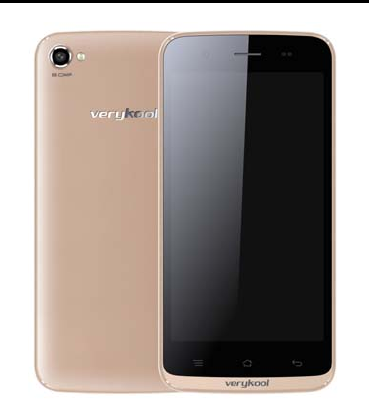

YourPhone

Thephoneappearanceisshownasbelow.Thepictureisforreferenceonly;yourphonemaybedifferent.Please

takeyouractualphoneasthestandard.

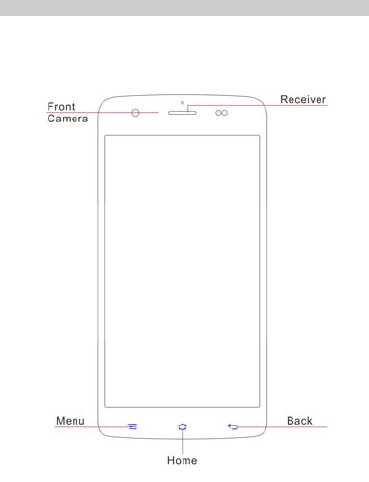

FrontView



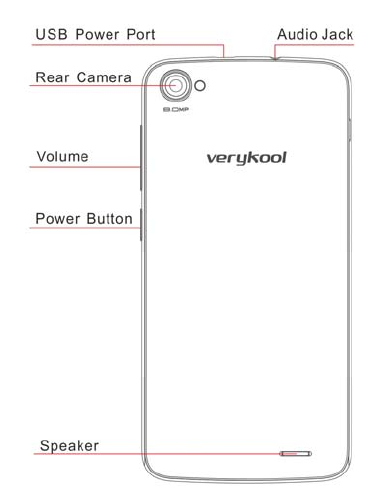

BackView

4



5

KeypadDescriptions



KeyDescription

PowerKeyLongpressthekeytoturnonthephone.

Inthepoweronstatus,pressthekeytolockkeypadandscreen;longpressthekey

toshowphoneoptions.

OptionKeyPressthekeytoenteroptionmenu.

HomeKeyPressthekeytoreturntostandbymode.

Longpressthekeytoshowrecentlist.

BackKeyInthemenumode,pressthekeytogobacktouppermenu.

VolumeKeysToadjustincomingcallringtonevolume.

Duringacall,playingmusic,video,orlisteningtoradio,pressthekeystoadjust

volume.



StarttoUse

InstallMemoryCardandSIMCard

Whenyouapplyforanetwork,youwillgetaplug‐inSIMcard.SIM(SubscriberIdentityModule)cardthat

containsphonenumber,serviceprojectsandcanbeusedtostorephonenumbersandpersonalinformation.

 

6



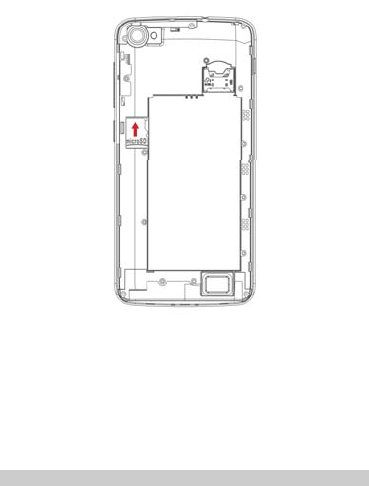

PleaseinserttheSIMcardaccordingtothemarkonthephone.MakesurethattheclippedcorneroftheSIM

cardandthemetalliccontactsarefacingthecorrectdirection.SlidetheSIMcardintotheslotuntilitdoesn't

moveupanyfurther.



ThedirectioninwhichthemicroSDcardhastobeinsertedintothedesignatedslotisshownbyanlabelonthe

phone.



Tip:ForadditionalmediastorageinsertamicroSDcard.



7



Attention:DonotbendorscratchSIMcard,donotletitcontactwithstaticelectricity,dustorwater.

KeepallSIMcardswherechildrencannotreachortouch.

Note:KeeptheSIMcardchipcontactsfacedownward.MaketheSIMcardfitscardslot.



RemoveMemoryCardandSIMCard

Note:Ifthephoneisturnedon,longpressPowerKeyabout3secondsuntilittipsphoneoptionsandselect

PoweroffandthenpressOKtoturnoffthephone.Then,removethebattery,SIMcardandmemorycard.

Donotplugorremovememorycardinbootstate,otherwiseitwillcausedamagetothefilesystem.



ChargetheBattery

1. Beforecharging,checkthebatteryslottoensurethebatteryhasbeeninstalledcorrectly.

2. Plugoneendofthechargerintophone.

3. Connectanotherendofthechargertothesocket.

8

4. Startcharging.Itcanbechargedwhetherpoweronorpoweroff.

▪ Inpoweronstate,whenthebatteryicononscreenstartrollingmeansitisbeencharged.Whenthe

iconisfullandstoprollingmeanschargeiscompleted.

▪ Inpoweroffstate,thebatteryicononscreenstartrollingmeansitisbeencharged.Whentheiconis

fullandstoprollingmeanschargeiscompleted.

5. Unplugthechargerfromthesocket.

6. Disconnectthechargerandphone.



Turnon/offthePhone



Holddownthepower

buttontoturnthephone

on.



Holddownthepower

button,thentouchPower

offtoturnthephoneoff

9

UseTouchScreen

 Press:Usefingertopressthedesiredoptiontoconfirmselectionorstartanapplication.

 Longpress:Longpressthescreenincurrentoperationinterface,icon,orinputarea;youcanopenthe

optionmenuincurrentinterface.

 Slide:Slidethefingeronscreenhorizontallyorvertically.Forexample,slidethescreeninstandby

modeormainmenuhorizontallytochangemenupage.

 Drag:Usefingertolongpressdesireditem,dragittoanywhereonscreen.Forexample,youcandrag

theiconinmainmenutostandbyscreen.

HomeScreen



StatusBar

Thestatusbarshowsyourphone’sstatusandnotifications.(Notificationsaredescribedonthenextpage.)

NotificationiconsStatusicons



Phone status bar and

notifications

Slide left or right to see

more panels

Touch to enter web

Touch to enter message

Touch to enter main menu

Touch to enter people

Touch to enter dial pad

10



Statusicons

Thefollowingstatusiconsmayappearonyourscreen:

IconStatementIconStatement



SIMNetwork

signallevel

Headsetis

inserted



Indicatesbattery

capacity

Bluetoothis

activated

UnreadmessagesWi‐Fiisconnected

MissedcallsAirplanemodeis

activated

AlarmisactivatedUSBisconnected

MakeaCall

1. Instandbymodeorinmainmenu,pressthedialicon toenterdialpanel,pressnumberson

screentoenterphonenumber.

2. PressdialiconatbottomandselectSIMcardtodialthenumber.Yo ucanalsopressvideodial

icontomakeavideocall.

3. Pressendicontocancelthecall.

11



 Youneedtounlockthephoneifthekeypadandscreenislocked.

 Youcanmakecallsthroughcalllog,contacts,andmessages.

 Duringacall,pressVolumeKeystoadjustthevolume.

 Yourphonesupportsintelligentdial.Wheninputnumbers,thephonewillsearchthe

correspondingcontactinphonebookorcalllog.



AnsweraCall

Whenthereisanincomingcall,youcan:

▪ Dragtheicontowardrighttoanswerthecall.

▪ Dragtheicontowardlefttodeclinethecall.

▪ DragtheiconupwardtorejectthecallwithSMS.



EmergencyService

YoucancallemergencyservicenumberdirectlywithoutSIMcard.Differentnetworksusedifferentemergency

numbers,pleasequeryyournetworkoperator.



12

InputMethod

Yourphonehasthebuilt‐ininputmethod.Ineditmode,longpress  toshowInputoptionsandsetinput

languagesandAndroidkeyboardsettings.

InputEnglish

Presstheon‐screenkeypadtoentercorrespondingletters.

InputNumber

Press“?123”, youcaninputnumbersdirectlybypressthenumbericons.Longpressthelettericonswith

number,orafterlongpress,slidefingertothenumberstoinput.

InputSymbol

Press“?123”toentersymbollist.Pressthedesiredsymboltoinput.

Longpress“.…”toshowsymbollist,slidefingertothedesiredsymboltoinput.

Applicationscreen

Instandbymode,pressthelaunchertoenterapplicationscreen.

 



Touch to enter app tray.

Touch an app to launch it

13

1. Browser

YoucanuseyourphonetoaccessWirelessApplicationProtocol(WAP)sitesanduseWAP‐basedservices.To

browseWAPpages,youmustsubscribetothedataservicefromyourserviceproviderandconfigureyour

phone'srelevantsettings.

SelectthewebsitelistonscreenorinputURLinaddressbartovisit.



2. Games

Your phonehasseveralbuilt‐ingames,youcanselecttoplay.



3. Calculator

Thecalculatorcanexecutesimplecalculations.Slidethescreentowardleftorright,youcanchangethe

calculatorinBasicpanelandAdvancedpanel.



4. Calendar

Inthecalendar,youcancheckschedulesforcurrentmonth.Ithasalarmforthedatewithschedule.Selectone

datetocheckallschedulesforthatday,oryoucaneditordeletetheschedules.



5. VerykoolServices

YourphonehasseveralVerykoolservicessuchasverykool,andverykoolDevice.Youcanselecttouse.



6. Camera

Byusingthecameraapplication,youcantakephotosorrecordsforaroundpeopleoreventsanytime.Pressthe

Cameraiconinmainmenutoenter.Presstheshooticonorrecordicontotakephotosorrecords.

PresstheiconsonscreenorOptionKeytosetparametersofthecameraorrecorder.



7. Clock

Intheclockinterface,youcanchecktimeanddate.Pressthealarmicon,youcanaddnewalarmclockorturn

on/offexistedalarmclocks.

Intheclockinterface,youcanalsopresstheiconstoentercountdownfunction,stopwatch,citiessettings,

nightmode,andsettings.

8. Downloads

Tocheckalldownloadsapplications.



9. Email

YoucanuseEmailtosendandreceiveemails.

14

SetupEmailAccount

Accordingtothetipsonscreentoinputemailaddressandpassword,andpressNext.YoucanpressManual

setuptosetupserverinformationmanually.



CheckEmails

IntheInbox,selecttheemailyouwanttochecktoenter.Presstheiconsatbottomtodelete,reply,addto

favorite.

ComposeandSendEmail

IntheInbox,pressnewmailicontocreatenewemail.Inputreceiveremailaddress,subject,andcontent,and

thenpresssendicontosendtheemail.

DeleteAccounts

IntheInbox,pressOptionKeytoselectSettings.Selecttheaccountyouwanttodeleteandthenselect

Removeaccountintheoptionlist.PressOKtoconfirmanddeletetheaccount.



10. FileManager

Inthismenu,youcanselecttocheckPhonestorageandSDcard.



11. FMRadio

SelectFMRadiointhemainmenuandplugearphonetoenter.PressPowericontoturnon/offtheradio.Press

settingiconandselectSearch,thephonewillsearchavailablechannelsandsaveinthelist.Presstheiconson

screentooperatetheFMradio.



15

12. Gallery

YoucanuseGallerytoviewormanageimagesandvideos.



13. GoogleService

AvailabilityofGoogleapplications,services,andfeaturesmayvaryaccordingtoyourcountryorcarrier.Please

followlocallawsandregulationstousethem.

Whenyouturnonyourmobilephoneforthefirsttime,touchaGoogleservicessuchasGmail,Google,Maps,

PlayMusic,PlayStore,PlayNewsstand,Keep,orYouTube,andyoumaybepromptedtosignintoyour

Googleaccount.

Ensurethatyourmobilephonehasanactivedataconnection(3G/GPRS)beforeyousignintoyourGoogle

account.

IfyoualreadyhaveaGoogleaccount,enteryourusernameandpassword.



14. Messaging

SelectMessaginginthemainmenuorstandbymodetoenter.Selectnewmessageiconatleftdowncornerto

createnewSMSorMMSandsend.

1. Enterreceiver’snumberoraddnumberfromcontacts.

2. Presstoinputmessagecontent.

3. Ifyouwanttosendpictureorvideofile,press+toaddpictures,videosandaudio.Themessagewill

shifttomultimediamessageautomatically.

4. PresssendiconandselectSIMcardtosendthemessage.



15. Music

SelectMusicinmainmenu.PressArtists,Albums,Songs,andPlaylistsatthetopofscreentochangecategory.

Selectoneaudiofiletoplaythemusic.Presstheiconsonscreentooperatetheaudioplayer.

16



16. People

InthePeople,presssearchicontosearchcontact,pressaddnewicontoaddnewcontact.PressOptionKeyto

enter:

DeleteContact

Selectoneormorecontacts,thenpressOKtodeleteallselectedcontacts.

ContactstoDisplay

SelectAllcontacts,contactsonSIMcard,Phone,orCustomizethecontactstodisplay.

Import/Export

CopythecontactsfromSIMcards,phone,phonestorageorSDcard,andthenselectlocationtocopy.

Accounts

SelectwhethertoAuto‐syncappdata.

MemoryQuery

TocheckthememoryofphoneandSIMcards.

JoinContacts

Youcanusethisfunctiontojoinsamecontacts.



17. Phone

Presstheiconsonscreentoinputnumbersinsequence.Afterinputtingnumbers,pressdialiconandselect

SIM1/2todial.Pressvideocallicon,youcanmakevideocallwithyourphone.Presstheiconsatthetopscreen,

youcanentercalllogorcontact.

18. Search

Inputkeywordinsearchbar,thephonewillmatchapplicationsorcontactsfirst.Ifthereisnoresult,pressthe

arrowicononrighttolinktonetworkandsearch.

17



19. Settings

Wireless&Networks

Inthismenu,youcanselectandsetSIMmanagement,WLAN,Bluetooth,Datausage,underMore...‐Airplane

mode,VPN,Tethering&portablehotspot,Mobilenetworks,andUSBInternet.

 WLAN

YoucanconnecttoawirelessLAN(WLAN),useittoaccessanddownloadwithhighspeed.

InMenu/Settings/WIRELESS&NETWORKS,slidetheiconbesideWLANtowardrighttoturnonWLAN.Press

WLANtocheckavailableWLANnetworks.Selectoneopennetwork,youcanaccesstothenetworkdirectly.If

thenetworkyouselectedisencrypted,youneedtoinputpassword.

 Bluetooth

ThephonesupportsBluetooth.Itcanexchangeinformationbetweendevicesincludingmobilephones

wirelessly.ThroughBluetooth,youcansyncphoneandcomputer,exchangedatawithotherBluetoothdevices,

andcanconnecttoBluetoothearphone.

InMenu/Settings/WIRELESS&NETWORKS,slidetheiconbesideBluetoothtowardrighttoturnonBluetooth

andset.Beforetransmitdata,youmayneedtomatchwithotherBluetoothdevices.

Device

Inthismenu,youcansetaudioprofilesanddisplay,checkstorageandbattery,andmanageapps.

Personal

 Location

Selectwhethertoaccesstomylocation,whethertoturnonGPSsatellites,orwhethertouseWLAN&mobile

networklocation.

 Security

YoucanselectSCREENSECURITY,ENCRYPTION,SIMCARDLOCK,PASSWORDS,DEVICEADMINISTRATION,

andCREDENTIALSTORAGEinthismenu.

 Language&Input

SelectandsetLanguage,keyboard&inputmethods,speech,andmouse/trackpad.

 Backup&Reset

Inthismenu,selectFactorydataresetandthenselectResetphonetoclearalldatainthephonememory.

SelectDRMresettodeleteallDRMlicenses.

Accounts

 AddAccount

ToaddnewaccountofCorporate,Email,orGoogle.

System

 Date&Time

Settimeanddateforthephone.

 ScheduledPowerOn&Off

Settimetopoweron/offthephoneautomatically.

 Accessibility

Tosetaccessibilityfunctionsforthephone.

18

 DeveloperOptions

Selectwhethertoturnonthisfunctionandchoosetheoptionsinthelist.

 AboutPhone

Tocheckstatus,legalinformation,etc.

 SystemUpdate

ThroughWLANandhigh‐speedwirelessnetwork,youcanwirelesslyupgrade,convenientstayathometo

updatethelatestsoftware,havebetterexperiencetothemobilephoneofnewfeatures,andhaveabetter

experiencewiththeoptimizedfunctionality.

selectAutoSystemUpdatetosetupdatecheckinterval.



20. SoundRecorder

Thephonesupportssoundrecordfunction,recordedfileswillbesavedwithdifferentquality.



21. ToDo

Inthismenu,youcancheckto‐doitemsordoneitems.Press+orTaptoaddnewToDotoaddnewitem.

Whenfinishtheitem,pressDONEtosave.



22. VideoPlayer

YoucanuseVideoPlayertoviewormanagevideos.

23. VoiceSearch

YoucanusethevoicesearchfunctiontosearchviaGooglesearch.Beforeusingthisfunction,youneedto

checkthenetworksettings.

Widgets

Inthewidgetslist,youcanselectdesiredwidgettoaddtoidlescreen.

CareandMaintenance

 BatteryCare

•You rdeviceispoweredbyarechargeablebattery.Whenthepowerisweak,pleasechargethebattery.In

ordertoextendthelifespanofthebattery,useallthebattery'spowerbeforerecharging.

•Unplugthechargerfromtheelectricalplugandthedevicewhennotinuse.Donotleavethebattery

connectedtoachargermorethanaweek.Overchargingmayshortenitslifespan.

•Extremetemperaturescanaffecttheabilityofyourbatterytocharge.Batteryneedsthefittemperature.If

thesurroundingtemperatureisover40°C,thebatterycannotbecharged.

•Usethebatteryonlyforitsintendedpurpose.Neveruseanychargerorbatterythatisdamaged.

Donotshort‐circuitthebattery.Accidentalshort‐circuitingcanoccurwhenametallicobjectsuchasacoin,clip,

orpencausesdirectconnectionofthepositive(+)andnegative(‐)terminalsofthebattery.(Theselooklike

metalstripsonthebattery.)Short‐circuitingtheterminalsmaydamagethebatteryortheconnectingobject.

19

•Leavingthebatteryinhotorcoldplaces,suchasinaclosedcarinsummerorafreezerinwinterconditions,

willreducethecapacityandlifetimeofthebattery.Alwaystrytokeepthebatterybetween59°Fand77°F(15°C

and25°C).Ahotorcoldbatterymaynotfunctiontemporarily,evenwhenthebatteryisfullycharged.

•Batteryperformanceisparticularlylimitedintemperaturesbelowfreezing.

•Donotdisposeofbatteriesinafire!Disposeofbatteriesaccordingtolocalregulations.Pleaserecyclewhen

possible.Cellphonesarenotconsideredhouseholdwaste.

 Mobilephonemaintenance

•Keepthedevicedry.Precipitation,humidity,andalltypesofliquidsormoisturecancontainmineralsthatwill

corrodeelectroniccircuits.Ifyourdevicedoesgetwet,removethebatteryandallowthedevicetodry

completelybeforereplacingit.

•Donotuseorstorethedeviceindusty,dirtyareas.Itsmovingpartsandelectroniccomponentscanbe

damaged.

•Donotstorethedeviceinhotareas.Hightemperaturescanshortenthelifeofelectronicdevices,damage

batteries,andwarpormeltcertainplastics.

•Donotstorethedeviceincoldareas.Whenthedevicereturnstoitsnormaltemperature,moisturecanform

insidethedeviceanddamageelectroniccircuitboards.

•Donotattempttoopenthedeviceotherthanasinstructedinthisguide.

•Donotdrop,knock,orshakethedevice.Roughhandlingcanbreakinternalcircuitboardsandfinemechanics.

•Donotuseharshchemicals,cleaningsolvents,orstrongdetergentstocleanthedevice.

•DonotpaintthedevicePaintcanclogthemovingpartsandpreventproperoperation.

•Useonlythesuppliedoranapprovedreplacementantenna.Unauthorizedantennas,modifications,or

attachmentscoulddamagethedeviceandmayviolateregulationsgoverningradiodevices.

Alloftheabovesuggestionsapplytoyourdevice,battery,charger,oranyenhancement.Ifanydeviceisnot

workingproperly,takeittothenearestauthorizedservicefacilityforservice.

Caution:Themanufacturerassumesnoresponsibilityfortheconsequencesoftheusersdoesnotcomply

withtheabovesuggestionsormisuseofthephone.

Thepicturesinusermanualonlyforreference,pleasetakeyouractualphoneasthe

standard.

§ 15.19 Labelling requirements.

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:

(1) This device may not cause harmful interference, and (2) this device must accept any interference

received, including interference that may cause undesired operation.

§ 15.21 Information to user.

Any Changes or modifications not expressly approved by the party responsible for compliance could

void the user's authority to operate the equipment.

§ 15.105 Information to the user.

20

Note: This equipment has been tested and found to comply with the limits for a Class B digital device,

pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection

against harmful interference in a residential installation. This equipment generates uses and can

radiate radio frequency energy and, if not installed and used in accordance with the instructions, may

cause harmful interference to radio communications. However, there is no guarantee that interference

will not occur in a particular installation. If this equipment does cause harmful interference to radio or

television reception, which can be determined by turning the equipment off and on, the user is

encouraged to try to correct the interference by one or more of the following measures:

-Reorient or relocate the receiving antenna.

-Increase the separation between the equipment and receiver.

-Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

-Consult the dealer or an experienced radio/TV technician for help.

Specific Absorption Rate (SAR) information:

This Mobile phone meets the government's requirements for exposure to radio waves. The guidelines

are based on standards that were developed by independent scientific organizations through periodic

and thorough evaluation of scientific studies. The standards include a substantial safety margin

designed to assure the safety of all persons regardless of age or health.

FCC RF Exposure Information and Statement The SAR limit of USA (FCC) is 1.6 W/kg averaged over

one gram of tissue. Device types: s5017 (FCC ID: WA6S5017) has also been tested against this SAR

limit. The highest SAR value reported under this standard during product certification for use at the ear

is 0.45 W/kg and when properly worn on the body is 1.23 W/kg. This device was tested for typical

body-worn operations with the back of the handset kept 10 mm from the body. To maintain compliance

with FCC RF exposure requirements, use accessories that maintain a 10 mm separation distance

between the user's body and the back of the handset. The use of belt clips, holsters and similar

accessories should not contain metallic components in its assembly. The use of accessories that do not

satisfy these requirements may not comply with FCC RF exposure requirements, and should be

avoided.

Body-worn Operation

This device was tested for typical body-worn operations. To comply with RF exposure requirements, a

minimum separation distance of 10 mm must be maintained between the user’s body and the handset,

including the antenna. Third-party belt-clips, holsters, and similar accessories used by this device

should not contain any metallic components. Body-worn accessories that do not meet these

requirements may not comply with RF exposure requirements and should be avoided. Use only the

supplied or an approved antenna.

FCC Hearing-Ai d Compatibility (HAC)

The (s5017) has been tested for hearing aid compatibility. This device has an M4 and T3 rating. When

some wireless devices are used near some hearing devices such as hearing aids and implants, users

may detect a buzzing or humming noise. Some hearing devices are more immune than others to this

interference noise. Wireless devices may also vary in the amount of interference they generate.

21

The ratings for compatibility of digital wireless devices with hearing aids are described in the American

National Standards Institute (ANSI) C63.19 standard:

M-Rating: Phones rated M3 or M4 meet FCC requirements and are likely to generate less interference

with hearing devices than phone that are not labeled. M4 is the better/higher of the two ratings. (s5017)

is rated M4.

T-Rating: Phones rated T3 or T4 meet FCC requirements and are likely be more usable with hearing

devices’ telecoil than unrated phones. T4 is the better/higher of the two ratings.

(s5017) is rated T3.

The more immune the hearing aid device is, the less likely one is to experience interference noise from

the wireless phone. Hearing aid devices may also be rated. Adding the rating of the hearing aid and the

phone would determine probable usability:

1. Any combined rating equal to or greater than six offers the best use.

2. Any combined rating equal to five is considered normal use.

The ratings are not guarantees. Results will vary depending on the user’s hearing device and hearing

loss. If your hearing device happens to be vulnerable to interference, you may not be able to use this

device successfully. Trying out this device with your hearing device is the best way to evaluate it for

your personal needs. This device has been tested and rated for use with hearing aids for some of the

wireless technologies that it utilizes. However, there may be some newer wireless technologies used in

this phone that have not been tested yet for use with hearing aids. It is important to try the different

features of this phone thoroughly and in different locations, using your hearing aid or cochlear implant,

to determine if you hear any interfering noise. Consult your service provider or the manufacturer of this

phone for information on hearing aid compatibility.

For information about hearing aids and digital wireless phones

FCC Hearing Aid Compatibility and Volume Control:

http://www.fcc.gov/cgb/dro/hearing.html

Gallaudet University, RERC:

https://fjallfoss.fcc.gov/oetcf/eas/reports/GenericSearch.cfm

VeryKool USA S5017 Mobile Phone User Manual

VeryKool USA Inc Mobile Phone

Contents

User manual

Navigation menu

Namespaces

Views

Navigation
