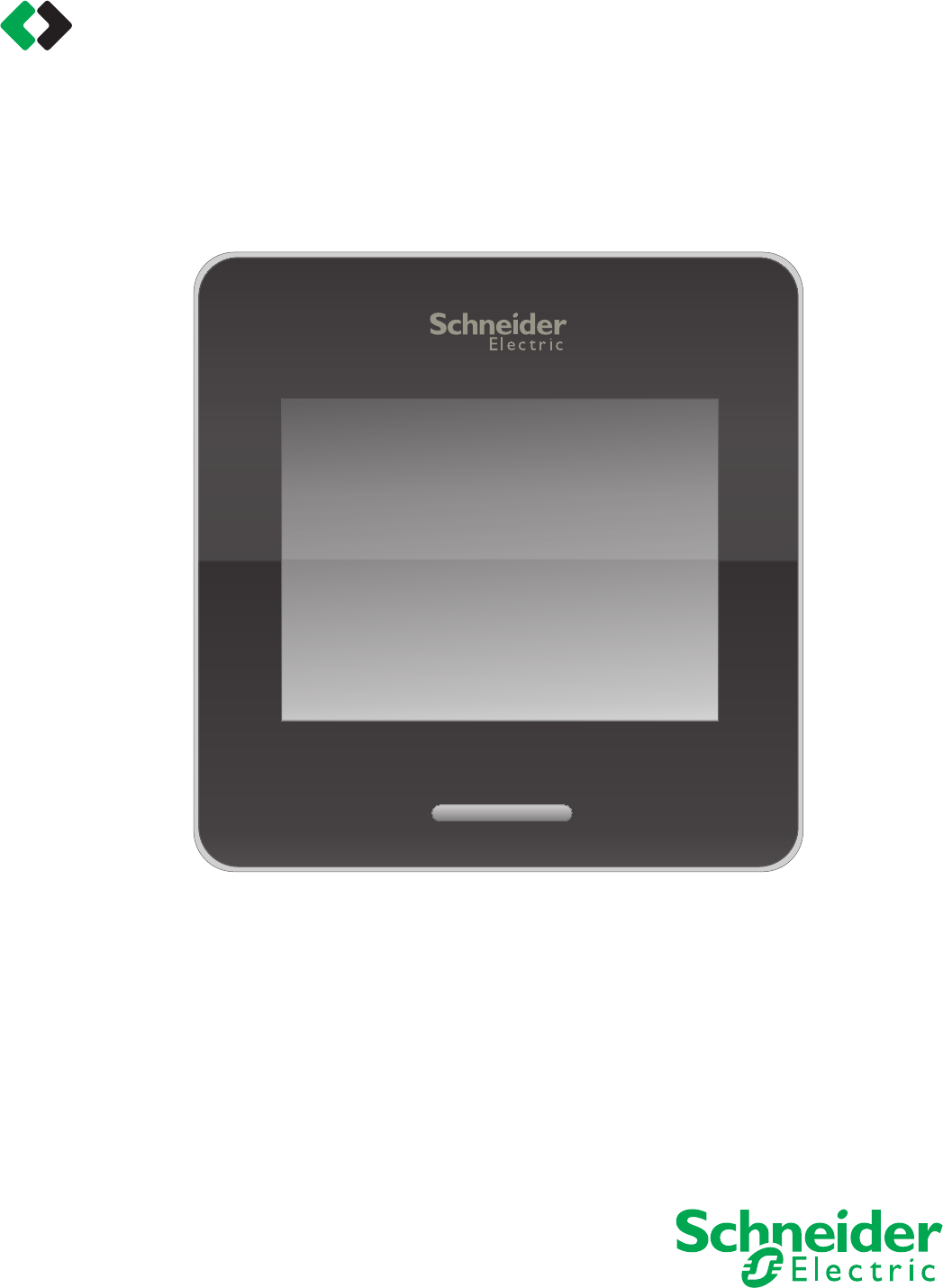

Wiser Air™ Thermostat
Technical Data Sheet
Wiser Air Room Controller Features
AT A GLANCE
Custom design
Marketing Stuff Here
Options and accessories
Marketing Stuff Here
2
Marketing Stuff Here
Introduction
Marketing Stuff Here
Application specic and programmable
Marketing Stuff Here
Touch screen with customizable user experience
Marketing Stuff Here
Selectable languages
Marketing Stuff Here
Optional passive infrared motion sensor
Marketing Stuff Here
Product Highlights
Marketing Stuff Here
Supported Networking Protocols
Marketing Stuff Here
Integration to Schneider Electric Systems
Marketing Stuff Here
Architects can custom match styling to decor
Marketing Stuff Here

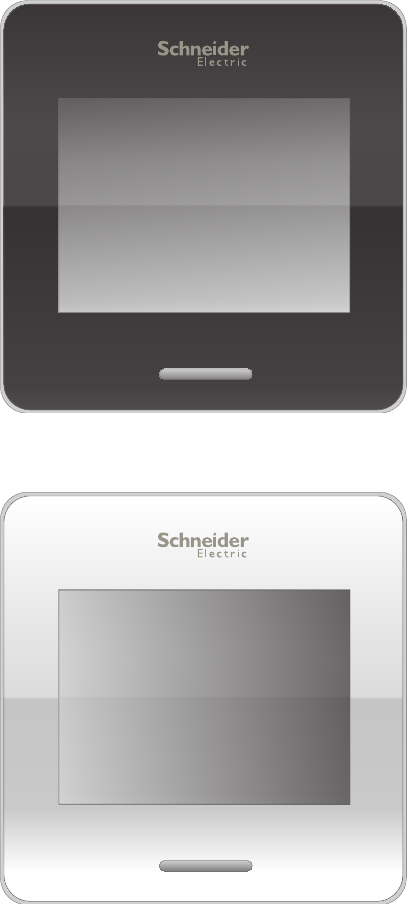

Models
Black
White
Wiser Air Room Controller Features
3
6
Wiser Air Specifications
Dimensions - Main Unit
10cm/4in (H) x 10cm/4in (W) x 3cm/1.2in (D)
Dimensions - Trim Plate
12cm/4.8in (H) x 16cm/6.3in (W) x 0.3cm/0.1in (D)
Power Requirements
Input: 24Vac ±15%, 50/60Hz
Device consumption: 6 VA
Maximum rating: 100 VA, 4.17 A
Class 2 circuits only
Output Ratings
Maximum total output: 94 VA
Relay rating: 24 Vac 50/60Hz, 1.0 Amp., in-rush =
3.0 Amp; pins G, W, W2, Y, Y2, U, O/B
Class 2 circuits only
Operating Conditions
0 °C - 50 °C ( 32 °F - 122 °F )
0% - 75% R.H. non-condensing
Storage Conditions
-30 °C - 50 °C ( -22 °F - 122 °F )
0% - 75% R.H. non-condensing
Indoor, Dry, Pollution Degree 2
Temperature Sensor Resolution
± 0.1 °C ( ± 0.2 °F )
Temperature Control Accuracy
±0.5 ° C ( ± 0.9 °F )@ 21 °C ( 70 °F ) typical
calibrated
Humidity Sensor and Calibration
Single point calibrated bulk polymer type sensor
Humidity Sensor Precision
Reading range from 10-90 % R.H. non-condensing
10 to 20% precision: 10%
20% to 80% precision: 5%
80% to 90% precision: 10%
Humidity Sensor Stability
Less than 1.0 % yearly (typical drift)
Dehumidication Setpoint Range
30% - 95% R.H.
Occ, Stand-By and Unocc Cooling
Setpoint Range
12.0 - 37.5 °C ( 54 - 100 °F )
Occ, Stand-By and Unocc Heating
Setpoint Range
4.5 °C - 32 °C ( 40 °F - 90 °F )
Room and Outdoor Air Temperature
Display Range
-40 °C - 50 °C ( -40 °F - 122 °F )
Proportional Band for Room Temperature
control
Cooling and Heating: Default: 1.8°C ( 3.2°F )
Remote Temperature Sensor Require-
ments
10 K NTC type 2 thermistor
Wire Gauge
18 - 22 AWG
Approximate Shipping Weight
0.34 kg (0.75 lb)
Safety Standards All Models
LVD Directive 2006/95/EC
EN 60730-1
UL 873, UL 916
CSA C22.2 No. 24-93
EMC Standards All Models
EMC Directive 2004/108/EC
EN 60730-1
FCC 15 Subpart B
ICES-003
Radio Standards (Wireless Models)
R&TTE Directive 1999/5/EC
ETSI EN 300 328 V1.8.1
ETSI EN 301 489-1 V1.9.2
ETSI EN 301 328 V1.8.1
FCC 15 Subpart C
RSS 210
THIS DEVICE COMPLIES WITH PART 15 OF THE FCC
RULES. OPERATION IS SUBJECT TO THE FOLLOWING
TWO CONDITIONS: (1) THIS DEVICE MAY NOT CAUSE
HARMFUL INTERFERENCE, AND (2) THIS DEVICE MUST
ACCEPT ANY INTERFERENCE RECEIVED, INCLUD-
ING INTERFERENCE THAT MAY CAUSE UNDESIRED
OPERATION.
Specifications
Check with your local government for
instruction on disposal of these products.

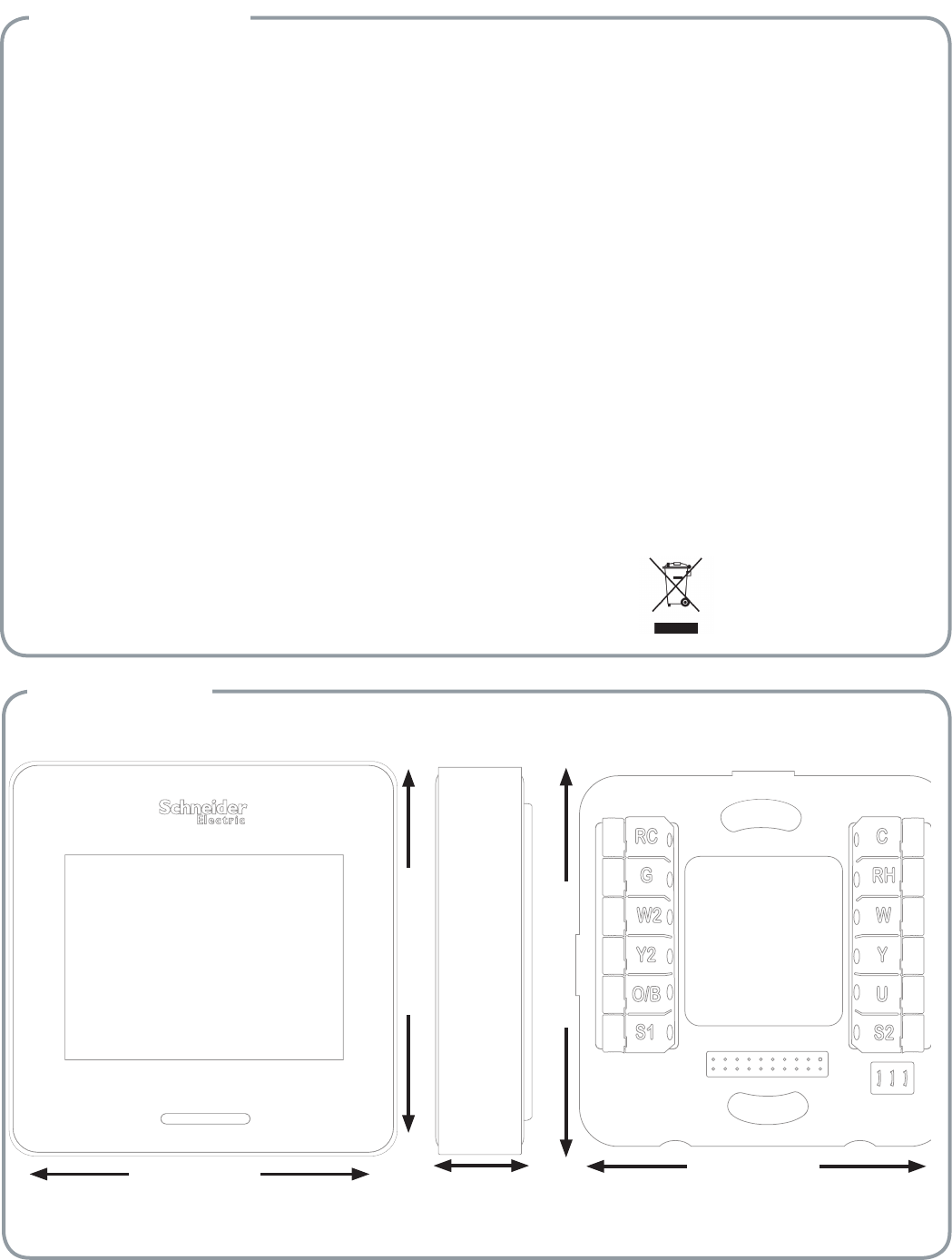

Dimensions
7.5cm (3”)
7.8cm (3.1”)
3cm (1.2”)
RC
G
W2
Y2
O/B
S1
C
RH
W
Y
U
S2
10cm (4”)
10cm (4”)
© 2015 Schneider Electric. All rights reserved.
7
Regulatory Compliance
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
• this device may not cause harmful interference
• this device must accept any interference received, including interference that may cause undesired operation.
This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions:
• this device may not cause interference
• this device must accept any interference, including interference that may cause undesired operation of the device.
Changesormodicationsnotapprovedbythemanufacturercouldvoidtheuser’sauthoritytooperatetheequipment.
ThisequipmentcomplieswithFCCradiationexposurelimitssetforthforanuncontrolledenvironment.Inordertoavoidthe
possibilityofexceedingtheFCCradiofrequencyexposurelimits,humanproximitytotheantennashallnotbelessthan20cm
during normal operation.
ThisequipmentcomplieswithICRSS-102radiationexposurelimitssetforthforanuncontrolledenvironment.Thisequipment
should be installed and operated with minimum distance 20cm between the radiator & your body.
Electricalequipmentshouldbeinstalled,operated,serviced,andmaintainedonlybyqualiedpersonnel.
NoresponsibilityisassumedbySchneiderElectricforanyconsequencesarisingoutoftheuseofthismaterial.
Schneider Electric www.schneider-electric.com/buildings
SDS-WISER WISER AIR May 2015
