Remote

Model

Available

(Two

Section

Model

Only)

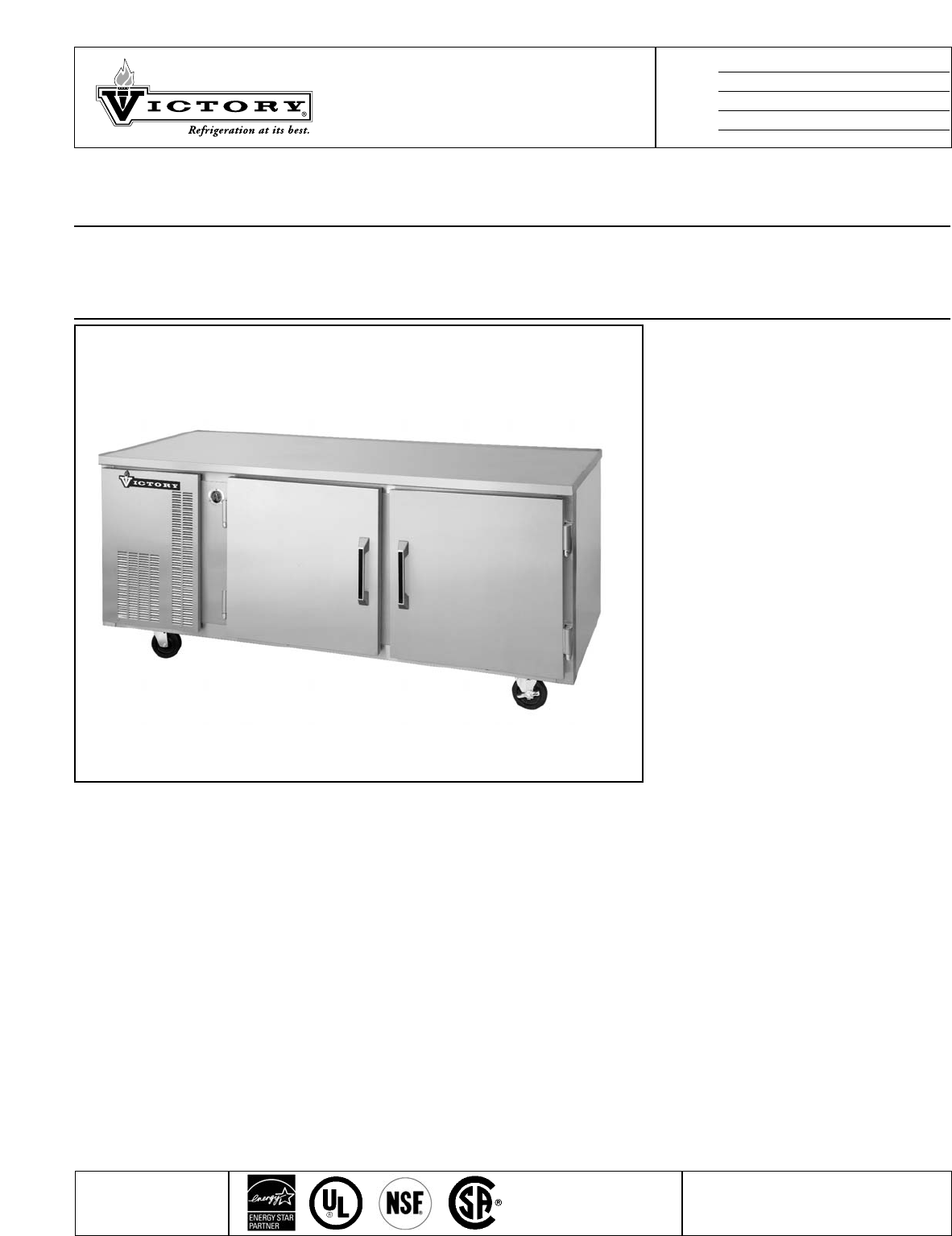

Undercounter Freezers

Cabinet:

The cabinet front and doors are constructed

of heavy gauge polished stainless steel to

maintain an attractive appearance after

years of heavy use. Foamed-in-place

polyurethane insulation throughout the

cabinet and doors ensures the ultimate in

energy efficiency.

Doors:

The self-closing doors are securely mounted

on rugged cam-lift hinges, which have a

lifetime guarantee. Each door has self-

adjusting magnetic gaskets for positive

sealing action. Humidity control wires

located around the door jamb prevent

condensation from forming on the cabinet

front and are concealed by a high impact,

non-conductive thermal breaker strip. The

interior door liner is constructed of stainless

steel, which is easy to clean.

Shelving:

The heavy-duty wire shelve(s) are adjustable

in one-inch increments. A wide door opening

allows the use of a variety of optional plan

slide types for 12”x20”, 18”x26”, and

14”x18” pans and trays.

Refrigeration System:

All components of the self-contained refrigeration

system are contained within a side-mounted

housing and concealed behind a louvered

grille. All condensate water is disposed of

automatically by the energy efficient condensate

evaporator, no plumbing is required.

Standard Features

• Dial Thermometer

• Stainless Steel Case Front, Door(s) and Sides

• Lifetime Heavy-Duty Cam Lift Hinges

• Adjustable Wire Shelve(s)

• Adjustable Stainless Steel Legs

• Safety Grip Handle(s)

• Self-Adjusting Magnetic Door Gaskets

• Plasticized Fin Coil

• Condensate Automatically Evaporated

• Energy Efficient Refrigeration System with

Automatic Defrost

• Environmentally Friendly R-404A Refrigerant

Optional Features and Accessories

• Stainless Steel Top and Back

• Adjustable Stainless Steel Wire Shelves

• Zinc Plate Wire Pan Slides

• Stainless Steel Wire Pan Slides

• 5" Diameter Heavy-Duty Swivel Casters

• Remote Model (Two Section Model Only)

Note: UFS models are not available with

draw options.

UFS MODELS —

Stainless Steel

Exterior and

Interior.

UFS-1-S7

UFS-2-S7

UFS-22-SS7

Stainless

Steel

Tops

are

Optional

Victory Refrigeration, Inc. I 110 Woodcrest Road I Cherry Hill, NJ 08003 USA I Phone: 856.428.4200 I Fax: 856.428.7299 I E-mail: sales@victory-refrig.com

Victory Refrigeration specification sheets

are available online at www.victory-refrig.com.

Approvals:

Project:

Location:

Item #:

Quantity:

Victory participates in the KCL CADalog, the most current source of CAD symbols for foodservice designers worldwide. Symbols include

standard equipment in plan, side, front and 3-D views, layered for FEDA/FCSI recommended guidelines.

Continuous product development may necessitate specification changes and design without notice.

Victory

Refrigeration,

Inc. Undercounter

Freezers

FOR REMOTE MODELS– Substitute an “R” for the “S” in suffix. For

example: Model UFS-1D-S7 (self-contained) would be UFS-1D-R7

remote cabinet. Air circulating fans, expansion valve and plasticized

coil are provided. Condensing units not supplied. The following units

are recommended with

1/2

” O.D. Suction line,

1/4

” O.D. Liquid line.

Dimensional tolerance ± 1/4” Metric dimensions (MM)

REMOTE REFRIGERATION

Cond. Unit BTUH Cabinet Amps

Two Section

1/2

H.P. 2160 115/60/1 5.4

Copyright January 2004

Printed in U.S.A. 010435

PART OF AGA FOODSERVICE GROUP

NOTE: If cabinet is located directly against

wall and/or under low ceiling, a minimum

clearance of 2” is required.

We reserve the right to change

specifications and product design

without notice. Such revisions do not

entitle the buyer to corresponding

changes, improvements, additions or

replacements for previously purchased

equipment.

Crated dim. & wts.

Ht. Width Depth Cu. Ft. Lbs

One Section 34 1/456 1/438 3/443.1 470

Two Section 34 1/483 1/438 3/463.9 525

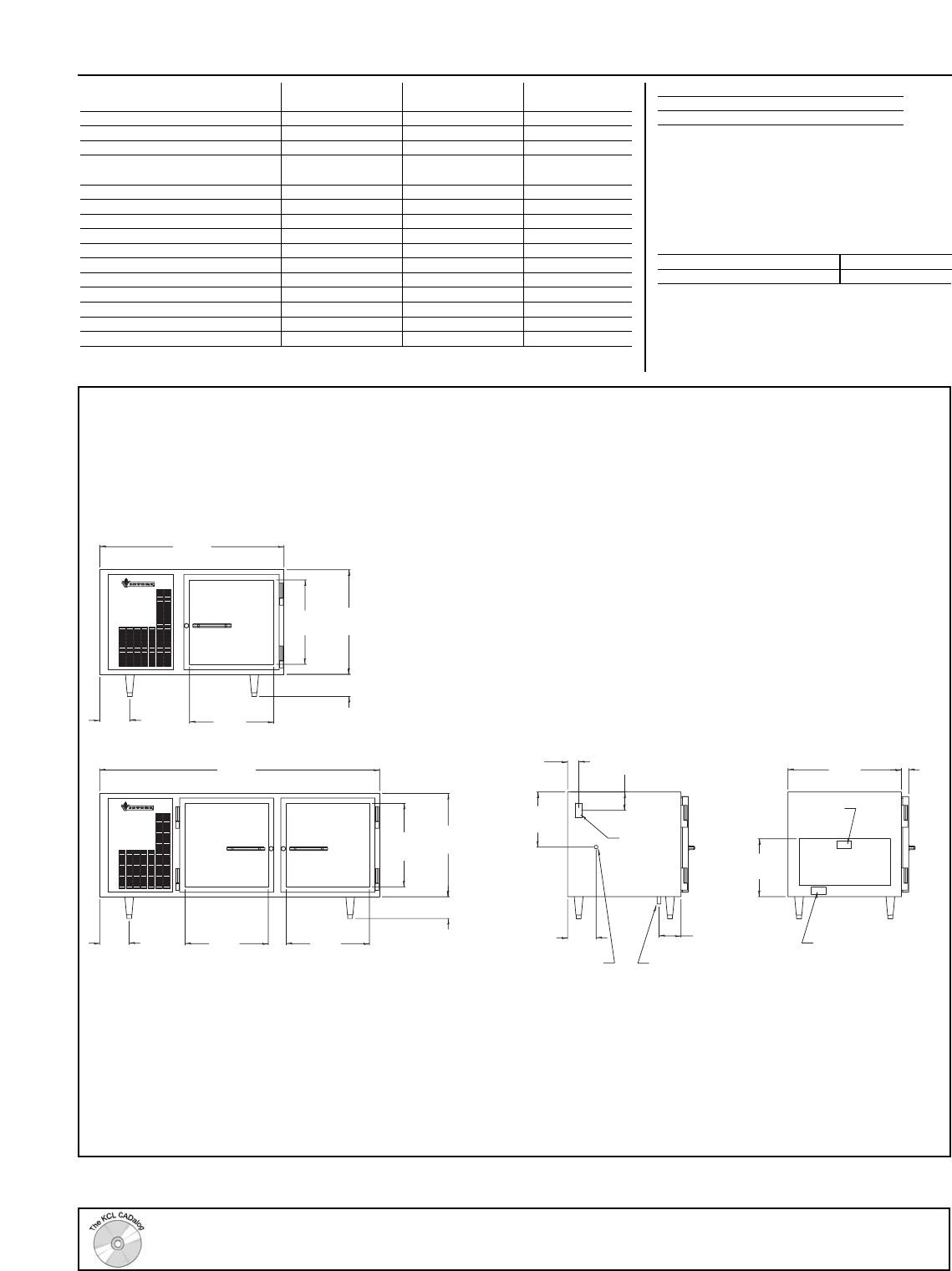

CHARACTERISTICS ONE TWO TWO SECTION

SECTION SECTION REMOTE

Width, Overall 50 1/877 1/460 1/2

Depth, Overall (incl. door) 32 7/832 7/832 7/8

Height, Overall (incl. adj. legs) 34 1/234 1/234 1/2

Height, Case with

Stainless Steel Top (incl. adj. legs) 35 1/435 1/435 1/4

Depth, Door(s) Open 90º 55 3/455 3/455 3/4

Clear Door Opening, Height/Width 23 x 22 23 x 22 23 x 22

Capacity Net (cubic feet) 8.4 18.3 18.3

No. of Door(s) 1 2 2

No. of Shelves 2 4 4

Shelf Area (square feet) 8.5 18.6 18.6

Cabinet Voltage 115/60/1 115/60/1 115/60/1

Feed Wires 2 2 2

Condensing Unit Voltage 115/60/1 115/60/1 ------

Condensing Unit Size (HP) 1/31/2------

Total Amperes 11.6 15.5 ------

REMOTE

LEFT END SIDE VIEW

SELF CONTAINED

LEFT END SIDE VIEW

7.75

(197)

15.00

(381)

5.00

(127)

3.00

(76)

MACHINE

COMPARTMENT

15.75

(400)

23.00

(584)

22.25

(565)

2.00

(51)

30.87

(784)

6.00(152)

28.50

(724)

50.12

(1273)

6.00

(152)

8.12

(206)

ELEC.

CONN.

REFRIGERATION

LINE CONN.

CONDENSATE

VAPORIZER

ELEC.

CONN.

DRAIN

CONN.

23.00

(584)

22.25

(565)

22.25

(565)

6.00 (152)

28.50

(724)

77.25

(1962)

8.12

(206)
