HIGH DEFINITION PLASMA DISPLAYS
Models VP-6500VHD and VP-6500VHDa
VERSION 1.0
OWNER’S OPERATING MANUAL
Vidikron PlasmaView Owner’s Operating Manual iii
PRELIMINARY
THREE YEAR LIMITED WARRANTY
For Plasma Displays
Congratulations on your purchase of a Vidikron video product and welcome to the Vidikron family! With proper installation, setup
and care, you should enjoy many years of unparalleled video performance.
This is a LIMITED WARRANTY as defined in the Magnuson-Moss Warranty Act. Please read it carefully and retain it with your other
important documents.
SERVICE LABOR: Vidikron will pay for service labor by a Vidikron Authorized Service Center when needed as a result of a
manufacturing defect for a period of three (3) years from the effective date of delivery to the end user (excluding the plasma glass
panel).
PARTS (not including plasma glass panel): Vidikron will provide new or rebuilt replacement parts for the parts that fail due to
defects in materials or workmanship for a period of three (3) years from the effective date of delivery to the end user. Such
replacement parts are then subsequently warranted for the remaining portion (if any) of the original warranty period.
PLASMA GLASS PANEL: Vidikron will pay for service labor by a Vidikron Authorized Service Center when needed as a result of a
manufacturing defect for a period of one (1) year from the effective date of delivery to the end user. In addition, Vidikron will
provide new or rebuilt replacement parts for the parts that fail due to defects in materials or workmanship for a period of one (1)
year from the effective date of delivery to the end user. Such replacement parts are then subsequently warranted for the remaining
portion (if any) of the original warranty period.
Image burn-in on plasma display panels is specifically excluded from coverage under this Limited Warranty. Image burn-in is the
result of misuse of the product and therefore cannot be repaired under the terms of this Limited Warranty.
Normal viewing material such as television/satellite broadcasts, videotape or DVDs (not put into pause for extended periods of
time) will not cause damage to your display under normal conditions. Many DVD players are also equipped with screen savers for
this reason.
TO AVOID IMAGE RETENTION (Burn-in): Please ensure that still images are left on your plasma display panel for no more than a
few minutes. Also ensure that images displayed in the 4:3 aspect ratio mode (black or gray stripes, but no picture information is
present on the left and right edges of the screen) are used as infrequently as possible. This will prevent permanent image burns on
your plasma display panel, which can be seen permanently under certain conditions once burn-in has occurred.
The types of images to avoid include video games, still images and computer screens with stationary tool bars and icons. (This is
why computers are equipped with screen savers – to prevent still images from burning into the monitor’s phosphors after being
displayed continuously for an extended period of time).
This Limited Warranty only covers failure due to defects in materials and workmanship that occur during normal use and does not
cover normal maintenance. This Limited Warranty does not cover cabinets or any appearance items; failure resulting from
accident, misuse, abuse, neglect, mishandling, misapplication, faulty or improper installation or setup adjustments; improper
maintenance, alteration, improper use of any input signal; damage due to lightning or power line surges, spikes and brownouts;
damage that occurs during shipping or transit; or damage that is attributed to acts of God. In the case of remote control units,
damage resulting from leaking, old, damaged or improper batteries is also excluded from coverage under this Limited Warranty.
WHAT IS COVERED UNDER THE TERMS OF THIS LIMITED WARRANTY:
WHAT IS NOT COVERED UNDER THE TERMS OF THIS LIMITED WARRANTY:
iv Vidikron PlasmaView Owner’s Operating Manual
PRELIMINARY
CAUTION: THIS LIMITED WARRANTY ONLY COVERS VIDIKRON PRODUCTS PURCHASED FROM VIDIKRON AUTHORIZED DEALERS.
ALL OTHER PRODUCTS ARE SPECIFICALLY EXCLUDED FROM COVERAGE UNDER THIS WARRANTY. MOREOVER, DAMAGE
RESULTING DIRECTLY OR INDIRECTLY FROM IMPROPER INSTALLATION OR SETUP IS SPECIFICALLY EXCLUDED FROM COVERAGE
UNDER THIS LIMITED WARRANTY. IT IS IMPERATIVE THAT INSTALLATION AND SETUP WORK BE PERFORMED ONLY BY AN
AUTHORIZED VIDIKRON DEALER TO PROTECT YOUR RIGHTS UNDER THIS WARRANTY. THIS WILL ALSO ENSURE THAT YOU ENJOY
THE FINE PERFORMANCE OF WHICH YOUR VIDIKRON PRODUCT IS CAPABLE WHEN INSTALLED AND CALIBRATED BY VIDIKRON
AUTHORIZED PERSONNEL.
Vidikron limits its obligations under any implied warranties under state laws to a period not to exceed the warranty period. There
are no express warranties. Vidikron also excludes any obligation on its part for incidental or consequential damages related to the
failure of this product to function properly. Some states do not allow limitations on how long an implied warranty lasts, and some
states do not allow the exclusion or limitation of incidental or consequential damages. So the above limitations or exclusions may
not apply to you. This warranty gives you specific legal rights, and you may also have other rights that vary from state to state.
This warranty begins on the effective date of delivery to the end user. For your convenience, keep the original bill of sale as
evidence of the purchase date.
Please fill out and mail your warranty registration card. It is imperative that Vidikron knows how to reach you promptly if we should
discover a safety problem or product update for which you must be notified.
Repairs made under the terms of this Limited Warranty covering your Vidikron video product will be performed at the location of
the product, during usual working hours, providing location of product is within normal operating distance from a Vidikron
Authorized Service Center. In some instances it may be necessary for the product to be returned to the Vidikron factory for repairs.
If, solely in Vidikron’s judgment, location of product to be repaired is beyond normal operating distance of the closest Vidikron
Authorized Service Center, or the repair requires the unit be returned to the Vidikron factory, it is the owner’s responsibility to
arrange for shipment of the product for repair. These arrangements must be made through the selling Vidikron Dealer. If this is not
possible, contact Vidikron directly for a Return Authorization number and shipping instructions. Vidikron will return product
transportation prepaid in the United States, unless no product defect is discovered. In that instance, shipping costs will be the
responsibility of the owner.
© Copyright 2007 Vidikron, a Runco International Company. This document contains proprietary information protected by
copyright, trademark and other intellectual property laws. All rights are reserved. No part of this manual may be reproduced by any
mechanical, electronic or other means, in any form, without prior written permission of the manufacturer.
Vidikron, Vision, DVSI, Imagix, CineWide, AutoScope, V2 Aperture Control, CSMS and IntelliWide are trademarks of Runco, LLC. All
other trademarks and registered trademarks used in this document are the property of their respective owners.
THX and the THX logo are trademarks of THX Ltd. which may be registered in some jurisdictions. All rights reserved.
Vidikron products are manufactured under one or more of the following patents: US. Patent 6755540 and Other Patents Pending.
RIGHTS, LIMITS AND EXCLUSIONS:
EFFECTIVE WARRANTY DATE:
IMPORTANT – WARRANTY REGISTRATION:
CONTACT A VIDIKRON AUTHORIZED SERVICE CENTER TO OBTAIN SERVICE:
COPYRIGHT AND TRADEMARKS:
Vidikron PlasmaView Owner’s Operating Manual v
PRELIMINARY
To locate the name and address of the nearest Vidikron Authorized Service Center, or for additional information about this Limited
Warranty, please call or write:
VIDIKRON
Attn: Customer Service Department
2900 Faber Street
Union City, CA 94587
Ph: (510) 324-5900
Fax: (510) 324-5905
Toll Free: (888) 4VIDIKRON
VIDIKRON PRODUCT INFORMATION
RETAIN THIS INFORMATION FOR YOUR RECORDS
_________________________________________________________ ________________________________________
Model Purchased Date
____________________________________________________________________________________________________________
Serial Number
____________________________________________________________________________________________________________
Vidikron Authorized Dealer Name
____________________________________________________________________________________________________________
Address
____________________________________________ __________________ ________________________
City State/Province Postal Code
____________________________________________ _______________________________________________________
Phone Fax
ADDITIONAL INFORMATION:
vi Vidikron PlasmaView Owner’s Operating Manual
PRELIMINARY
Thank you for your purchase of this quality Vidikron video product! It has been designed to provide you with the quality of video
that is expected in a home theater. For the best performance, please read this manual carefully as it is your guide through the
menus and operation.
CAUTION
To turn off main power, be sure to remove the plugs from power outlets. The power outlet socket should be installed as near to the
equipment as possible, and should be easily accessible.
WARNING
TO PREVENT FIRE OR SHOCK HAZARDS, DO NOT EXPOSE THIS UNIT TO RAIN OR MOISTURE. ALSO DO NOT USE THIS UNIT’S
POLARIZED PLUG WITH AN EXTENSION CORD RECEPTACLE OR OTHER OUTLETS, UNLESS THE PRONGS CAN BE FULLY INSERTED.
REFRAIN FROM OPENING THE CABINET AS THERE ARE HIGH-VOLTAGE COMPONENTS INSIDE. REFER SERVICING TO QUALIFIED
SERVICE PERSONNEL.
WARNING
This equipment has been tested and found to comply with the limits for a Class ‘B’ digital device, pursuant to Part 15 of FCC Rules.
These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a
commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in
accordance with the Installation Manual, may cause harmful interference to radio communications. Operation of this equipment in
a residential area may cause harmful interference, in which case the user will be required to correct the interference at his own
expense.
DOC Compliance Notice
This Class B digital apparatus meets all requirements of the Canadian Interference-Causing Equipment Regulations.
Please read and follow the safety precautions listed below to ensure the equipment is free from damage, and to ensure that no
injury will occur as a result of improper use.
• Do not insert any object, especially metal or liquids, into the plasma display.
• Do not place any objects containing water or any other liquid on top of the plasma display.
• Do not place the units in direct sunlight, near heaters or in extremely dusty or humid locations.
• Do not install this system outdoors or otherwise exposed to the elements.
• Do not place heavy objects on top of the plasma display.
• If the power cord is damaged or frayed in any way, electrical shock and/or fire may result. Do not place objects on the power
cord, and keep the cord away from heat-emitting devices. Should the power cord become damaged in any way, please contact
your Vidikron Dealer for a replacement cord.
• Do not remove the cover of the plasma display for any reason. If any problems arise with the unit, please contact a Vidikron
Dealer or Vidikron for service. Removing the covers will void the warranty.
Safety Precautions
WARNING
This symbol is intended to alert the user to the presence of
uninsulated “dangerous voltage” within the product’s enclosure that
may be of sufficient magnitude to constitute a risk of electric shock.
This symbol is intended to alert the user to the presence of important
operating and maintenance (servicing) instructions in the literature
accompanying the appliance.
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
CAUTION:
TO REDUCE THE RISK OF ELECTRIC SHOCK
DO NOT REMOVE COVER (OR BACK)
NO USER SERVICEABLE PARTS INSIDE.
REFER SERVICING TO QUALIFIED
SERVICE PERSONNEL.
Vidikron PlasmaView Owner’s Operating Manual vii
1Table of Contents
PRELIMINARY
THREE YEAR LIMITED WARRANTY .......................................................................................... iii
Safety Precautions ................................................................................................................... vi
1. Introduction ........................................................................................................................ 1
About This Manual ............................................................................................................................................ 1
Target Audience......................................................................................................................................... 1
If You Have Comments About This Manual... .................................................................................. 1
Textual and Graphic Conventions ....................................................................................................... 1
Using This Manual ............................................................................................................................................. 2
Description, Features and Benefits ............................................................................................................. 3
Key Features and Benefits....................................................................................................................... 3
Parts List ....................................................................................................................................................... 4
2. Controls and Functions ...................................................................................................... 5
PlasmaView at a Glance .................................................................................................................................. 5
Controls and Indicators ........................................................................................................................... 5

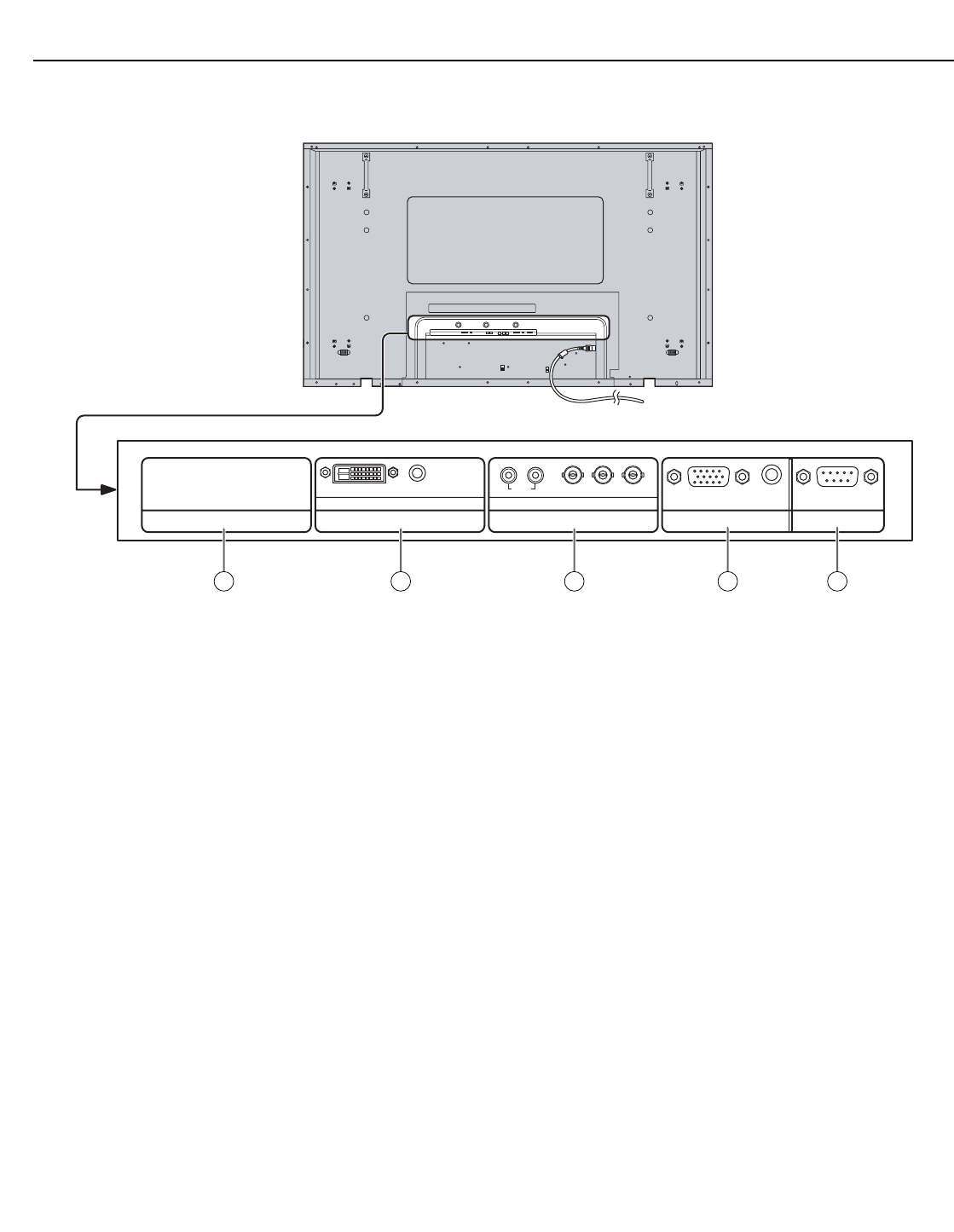

Connectors .................................................................................................................................................. 6
VHD Controller Front Panel ........................................................................................................................... 7
VHD Controller Rear Panel ............................................................................................................................. 8
Outputs.......................................................................................................................................................... 8
Inputs ............................................................................................................................................................. 8

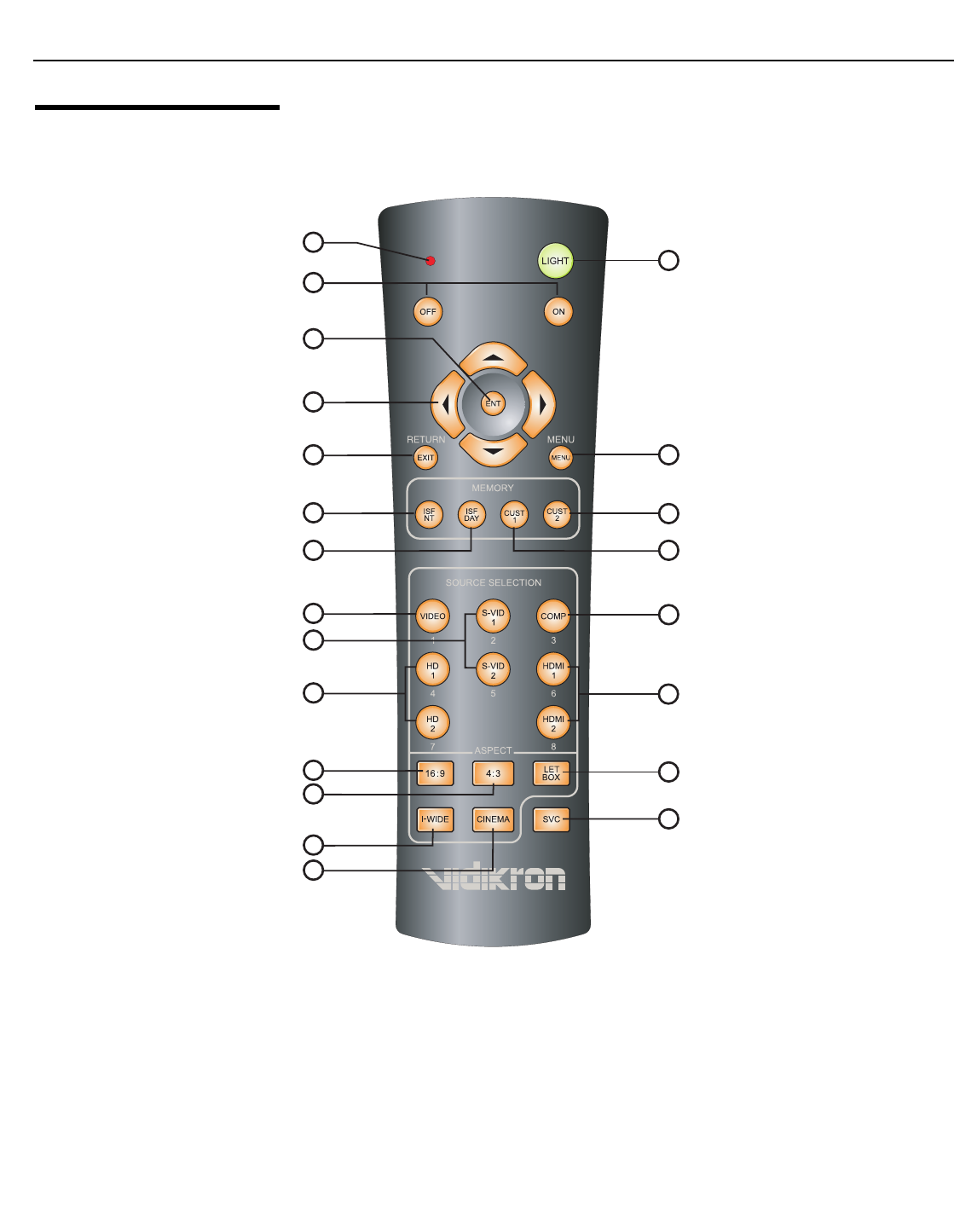

VHD Controller Remote Control ................................................................................................................. 10
3. Installation ........................................................................................................................13
Remote Control ................................................................................................................................................13
Notes on Batteries ...................................................................................................................................13
Notes on Remote Control Operation................................................................................................13
Quick Setup .......................................................................................................................................................15
Installation Considerations ..........................................................................................................................16
High-Altitude Operation .......................................................................................................................16
Mounting the PlasmaView on a Wall or Table Stand..................................................................16
Ambient Light ...........................................................................................................................................17
Ventilation ..................................................................................................................................................17
Other Considerations .............................................................................................................................18
Table of Contents
viii Vidikron PlasmaView Owner’s Operating Manual
PRELIMINARY
Connections to the PlasmaView and VHD Controller ........................................................................19
Connecting the PlasmaView to the VHD Controller ...................................................................19
Connecting Source Components to the VHD Controller ..........................................................21
RS-232 Controller Connection ............................................................................................................25
Connecting 12-Volt Trigger Outputs to External Equipment..................................................25
Connecting an External IR Receiver to the VHD Controller......................................................26
4. Operation .......................................................................................................................... 27
Turning on the Power ....................................................................................................................................27
Setting the Computer Display Properties ...............................................................................................28
Using the VHD Controller Menus ...............................................................................................................29
Main Menu ................................................................................................................................................31
Input Source .............................................................................................................................................31
Aspect Ratio ..............................................................................................................................................31
Picture .........................................................................................................................................................33
Input Position............................................................................................................................................36
ISF Presets...................................................................................................................................................37
Information ................................................................................................................................................37
Calibration ..................................................................................................................................................38
Service..........................................................................................................................................................40
5. Maintenance and Troubleshooting ................................................................................ 45
Cleaning ..............................................................................................................................................................45
Cleaning the Display Panel Body and Remote Control..............................................................45
Cleaning the Screen................................................................................................................................45
Cleaning the Vents ..................................................................................................................................45
Troubleshooting Tips .....................................................................................................................................46
6. Serial Communications ....................................................................................................49
RS-232 Connection and Port Configuration ..........................................................................................49
Serial Command Syntax ................................................................................................................................49
7. Specifications .................................................................................................................... 55
PlasmaView Specifications ...........................................................................................................................55
VHD Controller Specifications .....................................................................................................................56
PlasmaView Dimensions ...............................................................................................................................57
Vidikron PlasmaView Owner’s Operating Manual ix
PRELIMINARY
1List of Figures
2-1. PlasmaView Front-Panel Controls and Indicators. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
2-2. PlasmaView Rear Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
2-3. VHD Controller Front Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
2-4. VHD Controller Rear Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
2-5. VHD Controller Remote Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
3-1. Available Range of the Remote Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
3-2. Ventilation Requirements for Enclosure Mounting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
3-3. Connecting the PlasmaView to the VHD Controller. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
3-4. RS-232 Connection from the VHD Controller to the PlasmaView . . . . . . . . . . . . . . . . . . . . . . . . . 20
3-5. HDMI Source Connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
3-6. Digital (DTV) RGB Connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
3-7. Analog RGB Connections. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
3-8. Composite, S-Video and Component Video Connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
3-9. RS-232 Control System Connection. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
3-10. Connecting 12-Volt Trigger Outputs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
3-11. External IR Receiver Connection. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
4-1. VHD Controller OSD Menu Structure for PlasmaView. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
4-2. Typical PLUGE Pattern for Adjusting Brightness . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
4-3. Typical Gray Bar Pattern for Adjusting Contrast . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
4-4. Typical Color Bar Pattern for Adjusting Color Saturation and Tint . . . . . . . . . . . . . . . . . . . . . . . . 35
4-5. Typical Test Pattern for Adjusting Sharpness . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
7-1. PlasmaView Model VP-6500VHD Dimensions (with Optional Table Stand) . . . . . . . . . . . . . . . 57
List of Figures
x Vidikron PlasmaView Owner’s Operating Manual
PRELIMINARY
Notes:
Vidikron PlasmaView Owner’s Operating Manual 1
PRELIMINARY
1.1
About This Manual
This Owner’s Manual describes how to install, set up and operate the Vidikron PlasmaView
High-Definition Plasma Display (Model VP-6500VHD or VP-6500VHDa).
Throughout this manual, the Vidikron PlasmaView High-Definition Plasma Display is referred
to simply as the “PlasmaView.” Except where otherwise indicated, the information in this
manual applies to both PlasmaView models.
Target AudienceVidikron has prepared this manual to help home theater installers and end users get the
most out of the PlasmaView.
Vidikron has made every effort to ensure that this manual is accurate as of the date it was
printed. However, because of ongoing product improvements and customer feedback, it
may require updating from time to time. You can always find the latest version of this and
other Vidikron product manuals on-line, at www.Vidikron.com.
If You Have Comments About
This Manual...
Vidikron welcomes your comments about this manual. Send them to info@Vidikron.com.
Textual and Graphic
Conventions
Text Conventions: The following conventions are used in this manual, in order to clarify the
information and instructions provided:
• Remote control button identifiers are set in upper-case bold type; for example, “Press EXIT
to return to the previous menu.”
• Computer input (commands you type) and output (responses that appear on-screen) is
shown in monospace (fixed-width) type; for example: “To change the aspect ratio to 16:9,
type 16:9 <Enter>.”
• All keys with functional names are initial-capped, set in bold type and enclosed in angle
brackets. These keys are the following: <Enter>, <Spacebar>, <Control>, <Esc>
and <Tab>.
•<Enter> indicates that you may press either the RETURN or ENTER key on your computer
keyboard if it has both keys.
In addition to these conventions, underlining, boldface and/or italics are occasionally used to
highlight important information, as in this example:
1Introduction
A carriage return must be used after each command or string.
Note
Introduction
2 Vidikron PlasmaView Owner’s Operating Manual
PRELIMINARY
Graphic Conventions: These symbols appear in numerous places throughout the manual,
to emphasize points that you must keep in mind to avoid problems with your equipment or
injury:
1.2
Using This Manual
Use the following table to locate the specific information you need in this manual.
TIPS highlight time-saving short cuts and helpful guidelines for using
certain features.
NOTES emphasize text with unusual importance or special significance.
They also provide supplemental information.
CAUTIONS alert users that a given action or omitted action can degrade
performance or cause a malfunction.
WARNINGS appear when a given action or omitted action can result in
damage to the equipment, or possible non-fatal injury to the user.
DANGER appears when a given action can cause severe injury or death.
Tip
Note
Caution
WARNING
DANGER!
If you need... ... Turn to page:
Information about obtaining service iv
General information about the PlasmaView
High-Definition Plasma Display
3
Installation instructions 13
First-time configuration instructions 27
Advanced configuration instructions 38
Troubleshooting tips 46
Specifications for the PlasmaView High-Definition
Plasma Display
55
Introduction
Vidikron PlasmaView Owner’s Operating Manual 3
PRELIMINARY
1.3
Description, Features and
Benefits
The new Vidikron VP-6500VHD plasma monitor establishes a higher threshold for flat panel
display products. This is our largest and highest-resolution plasma ever, at 65 inches diagonal
and 1920 x 1080 (1080p) native resolution.
In addition, the VP-6500VHD takes picture quality to a whole new level boasting our
brightest picture, best contrast ratio, deepest black levels and most spot-on high definition
colorimetry ever! In addition, sophisticated 16-bit digital video processing, a new milestone,
results in 4096 steps of graduation for seamless images, completely void of the primitive
“solarization” and “stair stepping” characteristics previously plaguing digital flat panel
displays.
Discrete multiple aspect ratio control includes IntelliWide™ for viewing 4:3 content in
widescreen without appreciable picture degradation, as well as ISF(ccc) calibration modes to
easily maintain ISF standards. The automation interface includes RS-232 control with discrete
aspect ratio, input and power on/off selection.
The included VHD Digital Video Controller/Processor provides a pure digital signal path from
input to output as well as a broad array of video input choices, all available from its position
in the equipment rack, with only digital video and control cables running to the display itself.
Finally, the VP-6500VHD not only represents a leap forward in high definition flat-panel
technology, but our engineering advances in plasma design ensure that it will enjoy a long
life in any installation, with operation extending to as much as 60,000 hours. At less than
4-1/2 inches thin, the VP-6500VHD provides unlimited installation flexibility as well.
For high-altitude installations, Vidikron also offers the VP-6500VHDa with industry-leading
high-altitude compliance to over 9000 feet mean sea level (MSL). The VP-6500VHDa shares all
other features and specifications with the VP-6500VHD.
Key Features and BenefitsThe PlasmaView offers these key features and benefits:
• 16:9 Native Resolution: 1920 x 1080
• Multiple Aspect Ratios with IntelliWide™ Mode
• Includes the new VHD video controller/processor
• 65-inch diagonal image area
• Only 4-1/2 inches thin
• Model VP-6500VHDa is high-altitude compliant to 9000 feet
• Exceptional detail and artifact-free video enhancement
• Imagix™ video processing with 3:2 film detection circuitry
Introduction
4 Vidikron PlasmaView Owner’s Operating Manual
PRELIMINARY
Parts List Your PlasmaView is shipped with the following items. If any items are missing or damaged,
please contact your Vidikron dealer or Vidikron Customer Service at (888) 4VIDIKRON.
• PlasmaView High-Definition Plasma Display
• AC Power Cords (2)
•Remote Control Unit and two (2), AAA-size batteries
• RJ-11 Telephone Cable, 50 feet (15.24 meters)
• Serial Port Adapter, RJ-11 Female to DB-9 Female
• Rack-mount hardware for the VHD Controller
•Cable Ties (2)
• Warranty information and registration card
• Vidikron PlasmaView Owner’s Operating Manual (this document)
Optional Accessories:
• Wall Mount Kit (Vidikron part number VIHK-000315)
• Table Stand (Vidikron part number VIHK-000320)
➤
Vidikron PlasmaView Owner’s Operating Manual 5
PRELIMINARY
2.1
PlasmaView at a Glance
Controls and IndicatorsFigure 2-1 shows the PlasmaView front-panel controls and indicators.
Figure 2-1. PlasmaView Front-Panel Controls and Indicators
1. DISPLAY STAND
Optional accessory for table-top installations.
2. POWER BUTTON
Connects or disconnects the display panel from the AC power source.
3. STANDBY/ON INDICATOR
- Lights green to indicate normal operation;
- Lights red to indicate that the PlasmaView is in standby mode.
4. REMOTE CONTROL SENSOR
Receives the signals from the remote control.
2Controls and Functions
1
3
2 4
Controls and Functions
6 Vidikron PlasmaView Owner’s Operating Manual
PRELIMINARY
Connectors Figure 2-2 shows the rear-panel connector locations on the PlasmaView.
Figure 2-2. PlasmaView Rear Panel
1. SLOT 1
Not used.
2. SLOT 2 (DVI-D input)
HDCP-compliant digital video input. Connect the HDMI output from the VHD
Controller to this input. (The audio input is not used. Connect the audio outputs from
your sources to an external audio receiver.)
3. SLOT 3
Not used.
4. PC IN
Not used.
5. RS-232C (9-pin, male D-Sub)
Connect the RS-232 OUT port on the VHD Controller to this input.
➤
SERIALPC IN
AUDIO
SLOT1 SLOT3
P
R
/C
R
/R P
B
/C
B
/B
Y/G
AUDIO
RL
COMPONENT/RGB IN
SLOT2
AUDIO
DVI-D IN
1 2 3 4 5
Controls and Functions
Vidikron PlasmaView Owner’s Operating Manual 7
PRELIMINARY
2.2
VHD Controller Front
Panel
Figure 2-3 shows the controls and indicators on the VHD Controller front panel; the
paragraphs that follow describe them.
Figure 2-3. VHD Controller Front Panel
1. POWER BUTTON
Press once to toggle from standby mode to on mode. Press it again to return to standby
mode. For a discrete on or off command, you can use the direct access buttons on the
remote control.
2. IR SENSOR
Receives IR commands from the remote.
3. VACUUM FLUORESCENT DISPLAY
Can be used instead of the On-Screen Display (OSD). Displays currently-selected menu
or – if no menu is selected – the current source, signal format (NTSC or PAL), input
resolution and aspect ratio.
Component SD NTSC 480i
16:9 VP6500
1 2 3
Controls and Functions
8 Vidikron PlasmaView Owner’s Operating Manual
PRELIMINARY
2.3
VHD Controller Rear Panel
Figure 2-4 shows the rear connector panel on the VHD Controller.
Figure 2-4. VHD Controller Rear Panel
Outputs 1. HDMI OUT
Connect this to the SLOT 2 (DVI-D) input on the PlasmaView (see Figure 2-2).
Inputs 2. HDMI 1 / HDMI 2 (Digital)
Two, HDCP-compliant digital video inputs for connecting a DVD player or HD tuner with
a DVI or HDMI output.
3. HD1 / HD2 (5 x Analog BNCs)
Two inputs (five BNCs per input) for connecting either RGB or component
high-definition television signals. The VHD Controller automatically detects the signal
format: RGB(HV) or YPrPb, 480p, 720p, 480i, 576i or 1080i.
4. COMPONENT VIDEO (RCA connectors)
Standard Definition (480i/576i) Component (YPrPb) input. This is the input for
component video from sources such as DVD players.
5. COMPOSITE VIDEO INPUT
Standard composite video input for connecting a VCR, laser disc player or other
composite video source.
6. S-VIDEO 1 / S-VIDEO 2
Two, standard S-Video inputs for connecting a DVD player, satellite receiver or Super
VHS (S-VHS) VCR.
7. 12-VOLT (750 mA) TRIGGER OUTPUTS
Connection for up to three (3), 12-volt trigger-controlled devices such as retractable
screens or screen masks.
Pb Pr Y
Video
3
IR
RS-232 Control
S-Video 1
S-Video 2
HD1
HD2
12
R/Pr G/Y B/Pb
R/Pr G/Y B/Pb H V
HDMI 1 HDMI 2HDMI Out
HV
TRIGGERS
RS-232 Out
CAUTION:
TO REDUCE THE RISK OF ELECTRIC
SHOCK, DO NOT REMOVE COVER. NO USER-
SERVICEABLE PARTS INSIDE. REFER SERVICING
TO QUALIFIED SERVICE CENTER.
AVI S: RISQUE DE CHOC ELECTRIQUE-NE PAS OUVRIR
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
!
WARNING:
TO REDUCE THE RISK OF FIRE
OR ELECTRIC SHOCK, DO NOT EXPOSE
THIS APPLIANCE TO RAIN OR MOISTURE.
100-230VAC 50-60 Hz, 165 Watts Max
INPUTS
SYSTEM CONTROL INTERFACE
Component Video
Serial No
Video Processor / Controller
Model
Made In USA
124510 11 12 13
8
6
79
3
➤
➤
For best results, do not run your DVD player in progressive mode.
Tip
Controls and Functions
Vidikron PlasmaView Owner’s Operating Manual 9
PRELIMINARY
8. ComLink (RS-232) OUTPUT
Connect this to the ComLink (RS-232) input on the projector, using the provided
communication cable.
9. IR
Wired input from a wired remote control or infrared receiver. It is a 3.5-mm, mini phono
jack, wired as follows:
Ring = +5V
Tip = IR Input
Sleeve = Ground
10. RS-232 CONTROL PORT
A female, 9-pin D-sub connector for interfacing with a PC or home theater
automation/control system.
11. POWER INPUT (100 to 240 VAC)
Connect the VHD Controller to power here.
12. MAIN AC FUSE
This is the main AC input fuse (5mm x 20mm, 500 mA, 250V slow-blow).
13. MAIN POWER SWITCH
Disconnects or applies power to the VHD Controller.
When an external remote control or infrared receiver is connected to the
wired IR input, the IR sensor on the front of the VHD Controller is disabled.
Note
Controls and Functions
10 Vidikron PlasmaView Owner’s Operating Manual
PRELIMINARY
2.4
VHD Controller Remote
Control
Figure 2-5 shows the VHD Controller remote control, and the paragraphs that follow describe
its functionality.
Figure 2-5. VHD Controller Remote Control
1
2
7
10
14
19
22
16
11
4
3
5
6
8
12
17
18
20
21
13
9
15
Controls and Functions
Vidikron PlasmaView Owner’s Operating Manual 11
PRELIMINARY
1. IR OUTPUT INDICATOR
Lights when a button is pressed to indicate that an IR signal is being transmitted.
2. LIGHT
Press to illuminate the buttons.
3. ON / OFF
Press to turn the projector on or off.
4. ENT (Enter)
Press to select a highlighted menu item or confirm a changed setting.
5. Cursor Buttons ( , , , )
Use these buttons to select items or settings, adjust settings or switch display patterns.
When no menu is present on-screen, the UP and DOWN buttons toggle through the
available aspect ratios, in this order:
UP Button = 16:9 - 4:3 - Letterbox - IntelliWide - Cinema
DOWN Button = Cinema - IntelliWide - Letterbox - 4:3 - 16:9
Likewise, the LEFT and RIGHT buttons toggle through the different source inputs, in this
order:
LEFT Button = HDMI 2 - HDMI 1 - HD/RGB2 - HD/RGB 1 - Component SD - S-Video 2 -
S-Video 1 - Composite
RIGHT Button = Composite - S-Video 1 - S-Video 2 - Component SD - HD/RGB 1 - HD/RGB
2 - HDMI 1 - HDMI 2
6. RETURN/EXIT
Press this button to exit the current menu and return to the previous one, or to cancel an
operation.
7. MENU
Press this button to access the OSD controls.
On some remote control units, this button is where the RETURN/EXIT
button (item #6) appears here.
On some remote control units, the ENT (Enter) button (item #4) is in this
location.
Note
Note
Controls and Functions
12 Vidikron PlasmaView Owner’s Operating Manual
PRELIMINARY
Memory Preset Buttons:
8. ISF NT (Night)
Press to recall settings for the current input from the “ISF Night” memory preset.
9. ISF DAY
Press to recall settings for the current input from the “ISF Day” memory preset.
10. CUST 2
Press to recall settings for the current input from the “Custom 2” or “White Enhance”
memory preset.
11. CUST 1
Press to recall settings for the current input from the “Custom 1” or “Black Enhance”
memory preset.
12. VIDEO (1)
Press to select Composite video input as the source or to enter the numeric character “1.”
13. S-VID 1 (2) / S-VID 2 (5) (S-Video)
Press to select an S-Video input or to enter the numeric character “2” or “5.”
14. COMP (Component) (3)
Press to select Component SD (480i/576i) video input as the source or to enter the
numeric character “3.”
15. HD 1 (4) / HD 2 (7)
Press to select a HD (RGBHV or YPbPr component) input or to enter the numeric
character “4” or “7.”
16. HDMI 1 (6) / HDMI 2 (8)
Press to select a Digital Video input or to enter the numeric character “6” or “8.”
Aspect Ratio Selection Buttons:
Use these buttons to select an aspect ratio directly or to enter numeric characters, as follows:
17. 16:9 (9)
For viewing 16:9 DVDs or HDTV programs in their native aspect ratio.
18. 4:3 (0)
Scales the input signal to fit 4:3 display mode in the center of the screen.
19. LETBOX (Letterbox)
For viewing LaserDisc movies or non-anamorphic DVDs on a 16:9 screen.
20. I-WIDE (IntelliWide)
Enlarges a 4:3 image horizontally in a NON-linear fashion to fit 16:9 full screen display.
21. CINEMA
For viewing 2.35:1 source material.
22. SVC
Not used.
Vidikron PlasmaView Owner’s Operating Manual 13
PRELIMINARY
3.1
Remote Control
To install batteries in the remote control:
1. Press down the tab on the cover and pull the cover in the direction of the arrow.
2. Insert the included batteries. Ensure that the polarities correctly match the and
markings inside the battery compartment.
3. Insert the lower tab of the cover into the opening, and press down the cover until it clicks
in place.
Notes on Batteries• When installing batteries, make sure that the battery polarities are correct.
• Do not mix an old battery with a new one or different types of batteries.
• If you will not use the remote control for a long time, remove the batteries to avoid
damage from battery leakage.
Notes on Remote Control
Operation
The remote control can be used to control the PlasmaView within the ranges shown in Figure
3-1.
Figure 3-1. Available Range of the Remote Control
3Installation
Component SD NTSC 480i
16:9 V85
Approx.
7m/ 23ft
HD
1
HD
2
S-VID
2
S-VID
1
HDMI
1
HDMI
2
VIDEO
ISF
DAY
ISF
NT
CUST
1
CUST
2
MEMORY
RETURN
EXIT
MENU
COMP
SOURCE SELECTION
ANA 4x3 LET
BOX
I-WIDE CINEMA
LIGHT
OFF ON
SVC
ASPECT
123
456
78
ENT
Installation
14 Vidikron PlasmaView Owner’s Operating Manual
PRELIMINARY
• Do not drop the remote control or expose it to moisture or high temperature.
• The remote control may malfunction under a fluorescent lamp. If that occurs, move the
plasma display away from the fluorescent lamp.
• Make sure that there is nothing obstructing the infrared beam between the remote
control and the IR receiver on the plasma display.
• If the effective range of the remote control decreases, or it stops working, replace the
batteries with new ones.
• Ambient conditions may possibly impede the operation of the remote control. If this
happens, point the remote control at the plasma display and repeat the operation.
The signal from the remote control can be reflected by walls or other
surfaces.
Note
Installation
Vidikron PlasmaView Owner’s Operating Manual 15
PRELIMINARY
3.2
Quick Setup
Table 3-1 gives a quick overview of the PlasmaView installation process. The sections
following this one provide detailed instructions.
Installation should be performed by a qualified custom video installation
specialist.
Table 3-1. Installation Overview
Step Procedure For Details, refer to
page...
1Mount the PlasmaView on a wall or table stand 16
2Connect the VHD Controller to the PlasmaView 19
3Connect signal sources to the VHD Controller 21
4Connect external controller to VHD Controller RS-232 port
(optional)
25
5Apply power to the PlasmaView 27
6If using the PlasmaView with a computer, adjust computer
display properties
28
7
Display calibration: adjust the following for analog inputs;
save settings when finished:
• Aspect ratio
• Brightness
• Contrast
• Color level
• Tint
• Sharpness
• White Balance
31 through 40
8Repeat Step 7 for digital inputs 41
Note
Installation
16 Vidikron PlasmaView Owner’s Operating Manual
PRELIMINARY
3.3
Installation Considerations
Proper installation of your PlasmaView will ensure the highest possible picture quality.
Whether you are installing the PlasmaView temporarily or permanently, you should take the
following into account to ensure that it performs optimally.
High-Altitude Operation Due to the design of all plasma glass panels made by every manufacturer, and the interaction
between ambient air pressure and the plasma gases contained inside of the panel, reliable
operation of your plasma display cannot be assured during operation at certain high-altitude
locations.
Vidikron has found the VP-6500VHD to operate reliably at altitudes of up to 6000 MSL (mean
sea level). The VP-6500VHDa has been found to operate reliably at altitudes of up to 9000
MSL.
At higher elevations, each panel may react differently, depending upon the altitude, air
pressure, humidity and other meteorological factors. If you are planning to use this product
at a location above 9000 feet, please contact Vidikron technical support for further
information.
Mounting the PlasmaView on
a Wall or Table Stand
To install the PlasmaView, you will need either an optional table stand or wall-mounting kit.
The PlasmaView cannot be installed on its own.
If you do decide to wall-mount the PlasmaView, ensure that the wall-mount bracket is
installed according to the instructions included with it. The wall must be capable of
supporting a redundant weight factor three (3) times the weight of the display, or be
reinforced.
Vidikron recommends that this be done by a custom installation specialist.
You can attach your optional mounts or stand to the PlasmaView in either of two ways:
• While it is upright.
➤
➤
Use only a Vidikron-approved wall-mount kit (Vidikron part number
VIHK-000315 or equivalent) or table stand (Vidikron part number
VIHK-000320 or equivalent) that is specifically designed for your display.
Note
Installation
Vidikron PlasmaView Owner’s Operating Manual 17
PRELIMINARY
• As it lies flat with the screen face
down. Place the protective sheet,
which was wrapped around the
plasma monitor when it was
packaged, between the screen and
your work surface to avoid
scratching or otherwise damaging
the screen surface.
Ambient LightIn general, minimize or eliminate light sources directed at the display. Contrast ratio in your
images will be noticeably reduced if light directly strikes the display, such as when a shaft of
light from a window or floodlight falls on the image. Images may then appear washed out
and less vibrant.
VentilationIf you are mounting the PlasmaView in an enclosure, leave at least 2 inches (50 mm) of space
on all sides between it and surrounding objects, as shown in Figure 3-2. This allows heat to
disperse, maintaining the proper operating temperature.
Figure 3-2. Ventilation Requirements for Enclosure Mounting
50
mm
(2")
50
mm
(2") 50
mm
(2")
Wall
Wall
50
mm
(2")
50
mm
(2")
Installation
18 Vidikron PlasmaView Owner’s Operating Manual
PRELIMINARY
Other Considerations Other considerations and tips that can help improve your installation, avoid damage and
prolong operating life:
• Keep the ambient temperature constant and below 35°C (95°F). Keep the display away
from heating and/or air conditioning vents. Changes in temperature may cause drifts in
the display circuitry, which may affect performance.
• Keep the PlasmaView away from devices that radiate electromagnetic energy such as
motors and transformers. Common sources of these include slide projectors, speakers,
power amplifiers and elevators.
• Handle the unit carefully when installing or carrying it. Use the built-in handles; DO NOT
touch or hold the screen face.
• Set the unit away from heat, excessive dust, and direct sunlight.
• Protect the inside of the unit from liquids and small metal objects. In case of accident,
unplug the power cord and have it serviced by an authorized Service Center.
• Do not hit or scratch the panel surface as this causes flaws on the surface of the screen.
• For correct installation and mounting it is strongly recommended to use a trained,
authorized dealer.
• To avoid sulfurization, it is strongly recommended not to place the unit in a dressing room
in a public bath or hot spring bath.
➤
Installation
Vidikron PlasmaView Owner’s Operating Manual 19
PRELIMINARY
3.4
Connections to the
PlasmaView and VHD
Controller
Proceed as follows to connect the PlasmaView to the VHD Controller, your video sources,
external controller(s) – if present – and AC power.
When connecting your equipment:
• Turn off all equipment before making any connections.
• Use the correct signal cables for each source.
• Ensure that the cables are securely connected. Tighten the thumbscrews on connectors
that have them.
Connecting the PlasmaView
to the VHD Controller
Connect the VHD Controller to the PlasmaView as shown in Figure 3-3 and described in the
sections that follow.
Figure 3-3. Connecting the PlasmaView to the VHD Controller
Pb Pr Y
Video
3
IR
RS-232 Control
S-Video 1
S-Video 2
HD1
HD2
12
R/Pr G/Y B/Pb
R/Pr G/Y B/Pb H V
HDMI 1 HDMI 2HDMI Out
HV
TRIGGERS
RS-232 Out
CAUTION: TO REDUCE THE RISK OF ELECTRIC
SHOCK, DO NOT REMOVE COVER. NO USER-
SERVICEABLE PARTS INSIDE. REFER SERVICING
TO QUALIFIED SERVICE CENTER.
AVIS: RISQUE DE CHOC ELECTRIQUE-NE PAS OUVRIR
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
!
WARN ING:
TO REDUCE THE RISK OF FIRE
OR ELECTRIC SHOCK, DO NOT EXPOSE
THIS APPLIANCE TO RAIN OR MOISTURE.
100-230VAC 50-60 Hz, 165 Watts Max
INPUTS
SYSTEM CONTROL INTERFACE
Component Video
SDI
Option
Serial No
Video Processor / Controller
Model
Made In USA
SERIALPC IN
AUDIO
SLOT1 SLOT3
P
R
/C
R
/R P
B
/C
B
/B
Y/G
AUDIO
RL
COMPONENT/RGB IN
SLOT2
AUDIO
DVI-D IN
Optional Terminal
Board Insert Slot
(covered)
HDMI OUT RS-232
OUT
Installation
20 Vidikron PlasmaView Owner’s Operating Manual
PRELIMINARY
Digital Video Connection: The PlasmaView has a DVI input, labeled DVI-D IN (SLOT 2).
Connect the HDMI output from the VHD Controller to this input, using a DVI-to-HDMI cable
or a DVI cable with a DVI-to-HDMI adapter.
RS-232 Connection: Connect the RS-232 output from the VHD Controller to the SERIAL
input on the PlasmaView. Use a standard, modular telephone cable with RJ11 plugs at both
ends. On the PlasmaView end, use the provided RJ11-to-DB9 adapter. This adapter is wired as
shown in Figure 3-4.
Figure 3-4. RS-232 Connection from the VHD Controller to the PlasmaView
3
4
2, 5
XMT DATA RCV DATA
REQUEST TO SEND
SIG GND
3
2
8
7
5
RCV DATA XMT DATA
CLEAR TO SEND
NO CONNECTION
1, 6 1, 9
SIG GND
To/From
VHD
Controller
PlasmaView
RJ-11 Male
DB-9 Female
1 5
6 9
SERIAL
Installation
Vidikron PlasmaView Owner’s Operating Manual 21
PRELIMINARY
Connecting Source
Components to the VHD
Controller
Connect your video sources to the VHD Controller as shown and described in the sections
that follow.
HDMI Connections: See Figure 3-5.
Figure 3-5. HDMI Source Connections
Use the HDMI inputs whenever possible. This ensures the highest video
quality because the signal is carried in the digital domain throughout the
entire signal path, from source component output into the projector.
Tip
HD1
HD2
G/Y
INPUTS
HVR/Pr B/Pb
G/Y H VR/Pr B/Pb
Component Video
Pb Pr Y
Video S-Video 2
S-Video 1
IR12 3
TRIGGERS
HDMI 1 HDMI 2
HDMI Source
(HD-DVD/BD/DVD Player or
HD Tuner with
HDMI or DVI out)
Installation
22 Vidikron PlasmaView Owner’s Operating Manual
PRELIMINARY
Digital (DTV) RGB Connections: See Figure 3-6.
Figure 3-6. Digital (DTV) RGB Connections
HD1
HD2
G/Y
INPUTS
HVR/Pr B/Pb
G/Y H VR/Pr B/Pb
Component Video
Pb Pr Y Video S-Video 2
S-Video 1
12 3
TRIGGERS
HDMI 1 HDMI 2
DTV or Progressive
Component (YPbPr)
Source
Red/Pr Green/Y Blue/Pb Horiz Vert
Installation
Vidikron PlasmaView Owner’s Operating Manual 23
PRELIMINARY
Analog (Computer) RGB Connections: See Figure 3-7.
Figure 3-7. Analog RGB Connections
1. Refer to PlasmaWall Specifications on page 55 for a list of computer
signals compatible with the PlasmaView. Use with signals other than
those listed may cause some functions not to work.
2. Some Macintosh computers may require a Macintosh video adapter.
Contact your nearest authorized service center or dealer.
Note
HD1
HD2
G/Y
INPUTS
HVR/Pr B/Pb
G/Y H VR/Pr B/Pb
Component Video
Pb Pr Y Video S-Video 2
S-Video 1
12 3
TRIGGERS
HDMI 1 HDMI 2
Personal Computer
Red Green Blue Horiz Vert
Installation
24 Vidikron PlasmaView Owner’s Operating Manual
PRELIMINARY
Composite/S-Video/Component Video Connections: See Figure 3-8.
Figure 3-8. Composite, S-Video and Component Video Connections
HD1
HD2
G/Y
INPUTS
HVR/Pr B/Pb
G/Y H VR/Pr B/Pb
Component Video
Pb Pr Y Video S-Video 2
S-Video 1
12 3
TRIGGERS
HDMI 1 HDMI 2
DVD Player, VCR,
Satellite Receiver,
Laser Disc etc.
Pb Pr Y
Installation
Vidikron PlasmaView Owner’s Operating Manual 25
PRELIMINARY
RS-232 Controller
Connection
Use a standard, 9-pin RS-232 cable to connect a PC or home theater control/automation
system (if present) to the RS-232 Control port on the VHD Controller; see Figure 3-9.
For more information about using this connection, refer to Serial Communications on
page 49.
Figure 3-9. RS-232 Control System Connection
Connecting 12-Volt Trigger
Outputs to External
Equipment
If your home theater contains equipment that responds to 12-Volt triggers, connect it to the
12-Volt trigger outputs as shown in Figure 3-10.
Figure 3-10. Connecting 12-Volt Trigger Outputs
Pb Pr Y
Video
3
IR
RS-232 Control
S-Video 1
S-Video 2
12
TRIGGERS
RS-232 OutComponent Video
1
2
345
7
89 6
to Automation/
Control System
or PC
2 Transmit Data
3 Receive Data
5 Ground
(none of the other pins are used)
Pb Pr Y
Video
3
IR
RS-232 Control
S-Video 1
S-Video 2
12
TRIGGERS
RS-232 OutComponent Video
to 12-Volt
trigger-activated
equipment
3.5-mm
mini plug
Tip = +12V
Sleeve = Ground
Installation
26 Vidikron PlasmaView Owner’s Operating Manual
PRELIMINARY
Connecting an External IR
Receiver to the VHD
Controller
If infrared signals from the remote control cannot reach the VHD Controller due to excessive
distance or obstructions such as walls or cabinet doors, you can connect an external IR
receiver to the VHD Controller to extend the range of the remote control. See Figure 3-11.
Figure 3-11. External IR Receiver Connection
➤
When an external IR receiver is connected to the wired IR input, the
built-in IR sensor on the VHD Controller is disabled.
Video
3
IR
RS-232 Control
S-Video 1
S-Video 2
12
TRIGGERS
RS-232 Out
CAUTION:
TO REDUCE THE RISK OF ELECTRIC
SHOCK, DO NOT REMOVE COVER. NO USER-
SERVICEABLE PARTS INSIDE. REFER SERVICING
TO QUALIFIED SERVICE CENTER.
AVIS: RISQUE DE CHOC ELECTRIQUE-NE PAS OUVRIR
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
!
WARNING:
TO REDUCE THE RISK OF FIRE
OR ELECTRIC SHOCK, DO NOT EXPOSE
THIS APPLIANCE TO RAIN OR MOISTURE.
100-230VAC 50-60 Hz, 165 Watts Max
SYSTEM CONTROL INTERFACE
Made In USA
Ring = +5V
Tip = IR Input
Sleeve = Ground
(3.5-mm
mini phono
plug)
IR Receiver
Remote
Control
Note
Vidikron PlasmaView Owner’s Operating Manual 27
PRELIMINARY
4.1
Turning on the Power
1. Turn on your source components.
2. Plug the female end
of the power cord
into the AC receptacle
on the rear of the
PlasmaView. Connect
the other end to your
AC power source.
3. Similarly connect the VHD Controller to a nearby AC outlet.
4. Press the main power switch at the front of the PlasmaView (see Figure 2-1). The
standby/on indicator lights green.
5. Set the main power switch at the rear of the VHD Controller (see Figure 2-4) to the “on”
position.
6. Press the ON button on the remote control to turn
on the VHD Controller and PlasmaView (or press
the power button on the front of the VHD
Controller). The power indicator on the VHD
Controller lights solid blue.
7. After a brief warm-up period (approximately 10
seconds), the PlasmaView will display an image.
4Operation
LIGHT
OFF ON
Operation
28 Vidikron PlasmaView Owner’s Operating Manual
PRELIMINARY
4.2
Setting the Computer
Display Properties
To maximize image quality when using the PlasmaView with a personal computer, you may
need to adjust the display properties of your computer’s video card. To do this on a
Microsoft® Windows®-based PC:
1. Choose Settings from the Windows Start
Menu and click on “Control Panel.”
2. Double click on the Display icon.
3. Click the Settings tab on the display dialog
box.
4. Adjust the resolution to 1024x768 pixels.
5. Click the Advanced button and click the
Monitor tab on the dialog box. Set the
vertical frequency to 60Hz and click OK.
Operation
Vidikron PlasmaView Owner’s Operating Manual 29
PRELIMINARY
4.3
Using the VHD Controller
Menus
Press the MENU button on either the remote control or the VHD Controller front panel to
display the Main Menu. To select a menu item, use the UP ( ) and DOWN ( ) buttons on
either the remote control or the VHD Controller front panel to highlight it. Press ENTER to
confirm your selection.
The PlasmaView OSD menus are arranged hierarchically, as shown in Figure 4-1. Depending
on the selected input source and signal characteristics, some menu options may not be
available.
1. The native resolution of the VP-6500VHD is 1920 x 1080. Other
horizontal or vertical resolutions may be scaled upward or downward
to fit the display.
2. With most computers, you can get the best picture at 1024 x 768 @
60Hz.
To prevent image retention (burn) on your display, ALWAYS use a screen
saver and set it to the shortest possible time.
Note
WARNING
When the input signal resolution is 1080i analog (via the HD1 or HD2
input) or lower, the menus appear both on-screen and on the front-panel
display of the VHD Controller as you navigate them:
When the input signal resolution is 1080i digital or 1080p (via the HDMI1
or HDMI2 input), the menus appear on the front-panel display only.
Note
Input Source
Aspect Ratio
↑
↓
Operation
30 Vidikron PlasmaView Owner’s Operating Manual
PRELIMINARY
Figure 4-1. VHD Controller OSD Menu Structure for PlasmaView
Service
Test Video
Grey Bars 1
Grey Bars 2
Color Bars 1
Color Bars 2
Input Names Rename, Restore or Save
Remote Control Primary
Secondary
Display Device
Display Position
Left/Right, Up/Down, Width, Height
Pix By Pix
(Enable/Disable; 1080i/p sources only)
Display Image
(1080i digital or 1080p
sources only)
Brightness, Contrast
Sharpness, Color Temp.
AGC, Input Level
Red Gain, Blue Gain
Red Offset, Blue Offset
Gamma
HD Format
HD/RGB 1 Auto, RGB or YUV
HD/RGB 2
ADC Bandwidth Auto, 75 MHz, 150 MHz or 300 MHz
YPbPr Input Resolution Auto, 480i/p, 576i/p, 720p or 1080i
Triggers 1 / 2 / 3 / Save
Miscellaneous
Language (currently, English only)
Menu Mode
Timeout
Side Bar Color
Film Mode (SD src. only)
System Reset
Restore Saved Settings
Input Source
Composite
S Video 1
S Video 2
Component SD
HD/RGB 1
HD/RGB 2
HDMI 1
HDMI 2
Aspect Ratio
16:9
4:3
Letterbox
IntelliWide
Cinema
Brightness
Contrast
Color
Tint
Sharpness
Input Position
Left/Right
Up/Down
Width
Height
Overscan
ISF Presets
Recall ISF Night
Recall ISF Day
Recall/Save Custom 1
Recall/Save Custom 2
Reset Custom 1 & 2 to Factory Default
Information
(read-only)
Serial Number
Hardware
Firmware
Date
Calibration
(1080i analog and
lower-resolution sources)
ISF Night - Display Color
Gain
Offset
Gamma
Color Temp.
AGC
Input Level
ISF Night - Input Image
Brightness
Contrast
Color
Tint
Sharpness
ISF Night - Input Color
Gain
Offset
Chroma Delay
Phase
Noise Filter
ISF Day - Display Color
Gain
Offset
Gamma
Color Temp.
AGC
Input Level
ISF Day - Input Image
Brightness
Contrast
Color
Tint
Sharpness
ISF Day - Input Color
Gain
Offset
Chroma Delay
Phase
Noise Filter
Save ISF Settings Back / Confirm
Output Shift
Left/Right
Up/Down
Width
Height
Save
Splash Configure
Owner Name
ISF Calibrated
ISF Other
Vidikron/ISF Logo Splash
Screen Timers
(2 ... 60 sec.)
OSD Position Vert./Horiz., Normal/Wide,
Height
Operation
Vidikron PlasmaView Owner’s Operating Manual 31
PRELIMINARY
Main Menu The Main Menu is the starting point for accessing all display functions.
(The Calibration and Service menus are hidden and not accessible until you enter a
passcode.)
Input Source From the Main Menu, select Input Source to choose a video signal source.
The active source is indicated by an arrow (>) to its left; in this example, Composite is the
active source.
Aspect Ratio To change the aspect ratio (size and shape) of the projected image, select Aspect Ratio from
the Main Menu and press ENTER. Select the appropriate aspect ratio for your screen size and
the type of program material being viewed; refer to Table 4-1.
The currently-selected aspect ratio is indicated by a “7” to its left; in this example, 16:9 is
selected.
Vidikron Video
Input Source
Aspect Ratio
Input Position
ISF Presets
Information
Calibration
Service
Input Source
>Composite
S-Video 1
S-Video 2
Component SD
HD/RGB 1
HD/RGB 2
HDMI 1
HDMI 2
Aspect Ratio
716:9
4:3
Letterbox
IntelliWide
Cinema
The aspect ratio selection is automatically saved for each input and
resolution.
Note
Operation
32 Vidikron PlasmaView Owner’s Operating Manual
PRELIMINARY
Table 4-1. Aspect Ratio Settings
Aspect Ratio
Remote
Control
Key
Description
16:9 16:9 Select 16:9 to view 16:9 DVDs and
HDTV programs in their native
aspect ratio.
4:3 images are stretched
horizontally to fit a 16:9 screen.
4:3 4:3 4:3 scales the input signal to fit in
the center of the 16:9 screen. 4:3
is the aspect ratio used by
computer monitors, standard
television programming and
most VHS video cassettes.
Letterbox LET
BOX
Letterbox mode scales (zooms in
on) a 4:3 image linearly (by the
same amount on all sides) to fill a
16:9 display.
Letterbox is best suited for
viewing LaserDisc movies or
non-anamorphic DVDs on a 16:9
screen.
IntelliWide I-WIDE IntelliWide scales a 4:3 image
NON-linearly (more on the sides
than in the center) to fit a 16:9
screen.
Cinema CINEMA Select Cinema to view 2.35:1
source material on a 16:9 screen.
The upper and lower portions of
the screen are masked, but the
geometry of the active image
area is not changed.
4:3 Image, stretched to fill
16:9 Screen (Display)
16:9 Image on
16:9 Screen (Display)
4:3 Image on
16:9 Screen (Display)
4:3 Image on
16:9 Display
(Letterbox aspect ratio)
4:3 Image on
16:9 Screen
with IntelliWide
2.35:1 Image on
16:9 Screen
Operation
Vidikron PlasmaView Owner’s Operating Manual 33
PRELIMINARY
Picture Use the controls in the Picture Menu to calibrate the analog inputs on the PlasmaView for
optimum picture quality.
The PlasmaView has been designed to incorporate setup and calibration standards
established by the Imaging Science Foundation (ISF). The ISF has developed carefully crafted,
industry-recognized standards for optimal video performance and has implemented a
training program for technicians and installers to use these standards to obtain optimal
picture quality from Vidikron video display devices. Accordingly, Vidikron recommends that
setup and calibration be performed by an ISF-certified installation technician.
All signal types require separate processing. Therefore, you need to calibrate each VHD
Controller input separately.
Although it may be possible to obtain satisfactory picture quality using the naked eye and
regular program material, Vidikron recommends using the following calibration tools for
best results:
• External test pattern source – Ovation Multimedia, Video Essentials or AVIA test DVD (or
equivalent).
• A blue filter (provided with many test DVDs), for color level and tint adjustments.
Connect your test pattern source to the input that you are calibrating and proceed as follows.
Perform the adjustments in the order listed here.
Brightness: On your external test pattern source, select a PLUGE pattern. (PLUGE is an
acronym for “Picture Line-Up Generation Equipment.”) Figure 4-2 shows a typical PLUGE
pattern.
Figure 4-2. Typical PLUGE Pattern for Adjusting Brightness
Brightness
Contrast
Color
Tint
Sharpness
To calibrate the digital (HDMI 1 and HDMI 2) inputs, use the Display
Image controls in the Service menu. For more information, refer to
Display Device on page 41.
When you change a picture quality setting, save the change to a preset
afterwards. Otherwise, the change will be lost when a different input is
selected. (Picture quality settings are saved for each input separately.) For
information about saving settings, refer to ISF Presets on page 37.
Note
Note
Below Black
Above Black
Operation
34 Vidikron PlasmaView Owner’s Operating Manual
PRELIMINARY
PLUGE patterns vary but generally consist of some combination of black, white and gray
areas against a black background. The example above includes two vertical bars and four
shaded boxes.
Select Brightness from the Picture menu and press ENTER. Adjust the brightness so that:
• The darkest black bars disappear into the background.
• The dark gray areas are barely visible.
• The lighter gray areas are clearly visible.
• The white areas are a comfortable level of true white.
• The image contains only black, gray and white (no color).
Contrast: On your external test pattern source, select a stepped, gray-bar pattern like the
one shown in Figure 4-3.
Figure 4-3. Typical Gray Bar Pattern for Adjusting Contrast
Select Contrast and press ENTER. Adjust the contrast to a point just below which the white
rectangle starts to increase in size.
Brightness and contrast controls are interactive. A change to one may
require a subtle change to the other in order to achieve the optimum
setting.
Note
Operation
Vidikron PlasmaView Owner’s Operating Manual 35
PRELIMINARY
Color Saturation: On your external test pattern source, select a color bar pattern like the one
shown in Figure 4-4.
Figure 4-4. Typical Color Bar Pattern for Adjusting Color Saturation and Tint
Select Color and press ENTER. While looking at the color bar pattern through a blue filter,
adjust the color saturation level until the outermost (gray and blue) color bars appear to be a
single shade of blue:
Tint: Tint or “hue” is essentially the ratio of red to green in the color portion of the image.
When tint is decreased, the image appears redder; when it is increased the image appears
greener. To set the tint, select Tint and press ENTER. While looking at the color bar pattern
through a blue filter, adjust the tint level until the cyan and magenta color bars (on either
side of the green bar) appear to be a single shade of blue.
Like the brightness and contrast controls, the color and tint controls are
interactive. A change to one may require a subtle change to the other in
order to achieve the optimum setting.
gray
yellow
cyan
green
magenta
red
blue
gray
yellow
cyan
green
magenta
red
blue
Note
Operation
36 Vidikron PlasmaView Owner’s Operating Manual
PRELIMINARY
Sharpness: “Sharpness” is the amount of high-frequency detail in the image. To adjust
sharpness, select Sharpness from the Picture menu and press ENTER. On your external test
pattern source, select a pattern like the one shown in Figure 4-5. Adjust as needed, looking
for white edges around the transitions from black to gray and differently-sized lines in the
“sweep” patterns at the top and bottom. Lower the sharpness setting to eliminate them.
Figure 4-5. Typical Test Pattern for Adjusting Sharpness
Input Position Use the controls in the Input Position Menu to fine-tune the aspect ratio and image position
for the current source.
Left/Right: Select Left/Right from the Input Position menu to shift the projected image
horizontally. Use the right or up cursor button to shift the image to the right; use the left or
down button to shift it to the left.
Up/Down: Select Up/Down from the Input Position menu to shift the projected image
vertically. Use the right or up cursor button to shift the image upward; use the left or down
button to shift it downward.
Width: Select Width from the Input Position menu to change the projected image width. Use
the right or up cursor button to increase the width; use the left or down button to decrease it.
Height: Select Height from the Input Position menu to change the projected image height.
Use the right or up cursor button to increase the height; use the left or down button to
decrease it.
Input Position
Left/Right
Up/Down
Width
Height
Overscan
➤
The input position settings are automatically saved for each input and
resolution.
Note
Operation
Vidikron PlasmaView Owner’s Operating Manual 37
PRELIMINARY
Overscan: Image Overscan pushes the outside edge of the active picture area of the video
signal out beyond the edge of the display area.
Some television programs are produced based on the assumption that older television sets
may not display the outer edges of the broadcast picture area. Over scan effectively trims
away these inactive, outer edges and enlarges the remaining portion of the image to fill the
display area.
Select from 1% to 10% of Overscan, as desired.
For HDTV, DVDs and other video sources, Overscan is generally not necessary or desirable.
ISF PresetsFor each input, the PlasmaView lets you save image quality settings as presets that you can
recall at a later time. You can create up to four presets per input and resolution. Use the ISF
Presets menu to recall saved image presets, or to save image settings in the “Custom 1” or
“Custom 2” memory location. The currently-selected preset is indicated by a “7” to its left; in
the example shown here, ISF Night is selected.
You should save changes to any of the following settings to a preset; otherwise they will be
lost when a new input source or resolution is selected:
•Brightness
•Contrast
• Color saturation
•Tint
• Sharpness
To reset the Custom 1 and Custom 2 image presets to their factory defaults, select Factory
Default and press ENTER.
InformationSelect Information from the Main Menu to see information that uniquely identifies your
display: its serial number, the installed hardware and firmware versions and the firmware
version build date. Should you ever need to contact Vidikron Technical Support, this
information will help them answer your questions or resolve product performance issues.
ISF Presets
7ISF Night
ISF Day
Custom 1 Save
Custom 2 Save
Factory Default
Information
Serial Number
Hardware 0
Firmware 0100.0522
Date Jan 21 2007
Operation
38 Vidikron PlasmaView Owner’s Operating Manual
PRELIMINARY
Calibration Use the Calibration menu to perform advanced picture quality adjustments on the analog
inputs. This menu should be used by ISF-certified technicians only.
To recall the ISF Night or ISF Day settings, select “ISF Night” or “ISF Day” from the ISF Presets
menu (see above). Or, use the corresponding buttons on the remote control.
ISF Night - Display Color: Use the Display Color settings to adjust the color balance at the
display device (as opposed to the VHD Controller) for analog sources (up to 1080i). These
settings are saved independently for each input.
•Gain: Use the Gain controls to correct color imbalances in the bright areas of the image. A
good way to do this is to use a test pattern consisting mostly of solid white areas, such as
an 80 IRE “window” pattern. If the white areas contain traces of red or blue, decrease the
Gain for that color.
• Offset: Use the Offset controls in the White Balance sub-menu to correct color imbalances
in the dark areas of the image. A good way to do this is to use a test pattern consisting
mostly of dark gray areas, such as a 30 IRE “window” pattern. If the gray areas contain
traces of red or blue, decrease the Offset for that color.
•Gamma: The default gamma setting (1) is correct for almost all signals and conditions. If
excess ambient light washes out the image and it becomes difficult or impossible to see
details in dark areas, lower the gamma setting to compensate. This will improve contrast
while maintaining good details for blacks. Conversely, if the image is washed out and
unnatural, with excessive detail in black areas, increase the setting. Again, good gamma
improves contrast while maintaining good details for blacks and whites.
•Color Temp.: Select Color Temp from the Display Color menu to adjust the color
temperature. For most situations, the appropriate setting is (1). The higher setting (2)
produces a “bluer” picture; the lower one (0) a “warmer” picture with more pronounced
red and orange hues.
•AGC (Automatic Gain Control): AGC increases the brightness of dark signals
automatically. To enable AGC, set it to 1 (on). To disable it, set it to 0 (off).
•Input Level: The Input Level control allows you to adjust parts which are extremely bright
and hard to see. (This cannot be adjusted when the input signal is digital.)
ISF Night - Input Image: The Input Image controls are similar to those in the Picture menu,
but are accessible only by entering the Calibration menu passcode. This makes it possible to
restore the picture quality settings to what they were when the display was installed, simply
by recalling the “ISF Night” preset.
Calibration
ISF Night
Display Color
Input Image
Input Color
ISF Day
Display Color
Input Image
Input Color
Save ISF Settings
Output Shift
Splash Configure
OSD Position
➤
To calibrate the digital (HDMI 1 and HDMI 2) inputs, use the Display
Image controls in the Service menu. For more information, refer to
Display Device on page 41.
You must enter a passcode to access the Calibration menu.
Note
Note
Operation
Vidikron PlasmaView Owner’s Operating Manual 39
PRELIMINARY
ISF Night - Input Color: The Input Color controls are similar to those in the Display Color
menu (see above), but adjust the color balance at the VHD Controller (as opposed to the
display device). These settings are also saved independently for each input.
• Gain/Offset: These controls operate similarly to those in the ISF Night - Display Color
menu (see above), but affect the Y, Pb and Pr signal components rather than the red and
blue channels.
• Chroma Delay: use the Chroma Delay control to correct a mis-aligned image from a
Composite, S-Video or Component video source. Chroma delay in an image causes color
shifts to occur to the left of the vertical edge transitions, producing artificial shadows or a
“halo” effect. If necessary, adjust this setting to eliminate them.
•Phase: Adjust the phase if the image (usually from an RGB source) shows shimmer or
“noise.” Pixel phase adjusts the phase of the pixel sampling clock relative to the incoming
signal. The effect of this control is similar to that of a tracking control on a VCR.
For best results, use a good test pattern such as a smooth gray consisting of a clear pattern
of black and white pixels, or a similar “half on, half off” graphic image. (You may notice
that you can stabilize the image at more than one point. Use either setting in this case.)
• Noise Filter: To apply noise filtering to the input signal, select Noise Filter from the Input
Color menu. The Noise Filter is useful for clearing up noisy images from 480i video
sources.
Use the left- or right-arrow buttons to select the desired amount of noise reduction,
keeping in mind that higher settings (which reduce high frequencies) may also “soften”
the image.
ISF Day - Display Color: Refer to ISF Night - Display Color.
ISF Day - Input Image: Refer to ISF Night - Input Image.
ISF Day - Input Color: Refer to ISF Night - Input Color.
Save ISF Settings: Whenever you make a change to the ISF settings, you should always save
it. Select Save ISF Settings from the ISF Calibration menu to do this. In the event you ever
have to perform a System Reset, you can restore the saved ISF settings by selecting Restore
Saved Settings in the Service menu. (System Reset and Restore Saved Settings are described
on page 43.)
Output Shift: The controls in the Output Shift menu are similar to those in the Input Position
menu, except that they change the characteristics of the output signal. These settings are
saved independently for each aspect ratio.
Splash Configure: Use the Splash Configure menu to customize the appearance of the
start-up message that appears on the vacuum fluorescent display upon power-up.
•Owner Name/ISF Calibrated/ISF Other: You can have the PlasmaView display the
owner’s name, your name, the phrase “ISF Calibrated” and/or any other string, up to 20
characters in length.
Use the up or down cursor button to select a character. Use the right and left cursor
buttons to change the cursor position. Press MENU when you have finished entering text.
Then, check the “Splash Enable” box to have the PlasmaView display the information you
enter here when it is turned on.
Operation
40 Vidikron PlasmaView Owner’s Operating Manual
PRELIMINARY
•Vidikron/ISF Logo Splash Screen Timers: When you turn on the PlasmaView, it projects
a welcome screen with the Vidikron logo followed by one with the ISF logo. Select Splash
Timer from the Splash Configure menu to set the amount of time that these two images
appear. The range is from 2 to 60 seconds, in one-second increments.
Use the up or down cursor button to select a timer value to adjust. Use the right or left
cursor button to change the timer value. Press MENU when you have finished configuring
both timers.
OSD Position: Select OSD Position, press ENTER and use the arrow buttons to change the
size and position of the OSD controls.
Service Use the Service menu to access advanced display configuration settings. This menu should
be used by ISF-certified technicians only.
Test Video: Select Test Video from the Service Menu to access the internal test patterns on
the PlasmaView. Four patterns are available, consisting of white/gray or colored bars. These
are useful for calibrating other theater source components (DVD player, HD tuner etc.) that
have their own picture controls.
Press MENU to exit test pattern mode.
Input Names: You can give each VHD Controller input a descriptive name. For example, you
may want to change the default input name to the type of source component connected to
it: “VCR,” “DVD,” “Laptop” et cetera. Composite, S-Video and Component SD input names can
be up to 12 characters long; the others can be up to eight characters long.
To edit an input name, select Input Names from the Service menu. Press or to select an
input and press ENTER. Use the or buttons to change a character; press or to
select a character to change. When you have finished editing the input name, press MENU.
To restore the default input name, press repeatedly to highlight that input name in the
“Restore” column. Then, press ENTER.
To save input names so that they can be restored after a System Reset (described on
page 43), press repeatedly to highlight “Save.” Then, press ENTER.
Remote Control: The Remote Control menu shows you the primary and secondary infrared
(IR) codes to which the VHD Controller will respond. By default, both are set to 17. You can
change these codes if either:
• Another device in the theater (a DVD player, for example) is responding to commands
from the VHD Controller remote control (Figure 2-5) in ways that are unpredictable or
undesirable.
Service
Test Video
Input Names
Remote Control
Display Device
HD Format
Triggers
Miscellaneous
System Reset
Restore Saved Settings
➤
You must enter a passcode to access the Service menu.
Note
Input Names
Restore
Composite Composite
S-Video 1 S-Video 1
S-Video 2 S-Video 2
Component SD Component SD
HD/RGB 1 HD/RGB 1
HD/RGB 2 HD/RGB 2
HDMI 1 HDMI 1
HDMI 2 HDMI 2
Save
The button takes you from top to bottom in the left column, then from
top to bottom in the right column. To highlight “Save,” scroll through
both columns.
Note
Operation
Vidikron PlasmaView Owner’s Operating Manual 41
PRELIMINARY
• You have multiple VHD Controllers and want to control them independently, as opposed
to broadcasting commands from a single remote to all of them. In this scenario, you can
use multiple remotes programmed to use different IR codes. Or, you can use a single
remote and change the IR code as needed to address a specific device.
When you change a remote code on the VHD Controller, you must re-program your remote
control to send that same code. To do this:
1. Using a straightened paper clip or similar object, press and hold the
CODE button on the remote control for approximately three
seconds, or until the LED on the remote lights solid red.
– OR –
If your remote control unit does not have a CODE button, press and
hold the LIGHT button on the remote control for approximately
three seconds, or until the LED on the remote lights solid red.
2. Enter a new two-digit code between 00 and 31 inclusive. Use the
16:9 button for “9” and the 4:3 button for “0.” Include a leading
zero for single-digit codes; for example, enter 9 as “09.”
3. The LED turns off to confirm the code change. If you enter an invalid code, the LED
flashes for three or four seconds. Try again, entering a valid code.
Display Device: The options in the Display Device menu allow you to perform certain
adjustments at the plasma display.
•Display Position: Select Display Position from the Display Device menu to perform the
following display device adjustments (these are global, independent of any input):
• Select Left/Right or Up/Down and use the or buttons to fine-tune the displayed
image position.
• Select Width or Height and use the or buttons to fine-tune the display device
aspect ratio.
• Select Pix By Pix from the Display Position menu and set it to Enable to have the
PlasmaView map a 1920x1080 input signal to 1080p HD panel pixels, displaying 100%
of the original content. By skipping the scaling process, the PlasmaView can produce
high-definition images in their original, 1:1 pixel form.
When Pix By Pix mode is disabled, the picture source is scaled for over-scanning and
97% of the original is displayed. Use this setting to minimize or elimate image flicker.
Use the VHD Controller front-panel keypad to change its IR code. Then,
change the code sent by the remote to match as described below.
Do not change the “Type” setting in this menu.
1. Pix By Pix is available only when the input signal is 1080i or 1080p.
2. You cannot adjust the Width or Height when Pix By Pix is enabled.
Tip
Note
N
T
CODE
Note
Operation
42 Vidikron PlasmaView Owner’s Operating Manual
PRELIMINARY
•Display Image (1080i digital and 1080p signals ONLY): Select Display Image from the
Display Device menu to perform the following display device adjustments.
•Brightness
• Contrast
• Sharpness
• Color Temperature
•AGC
•Input Level
• Gain (red and blue)
• Offset (red and blue)
•Gamma
For detailed instructions for making these adjustments, refer to Calibration on page 38.
HD Format: If the characteristics of the incoming signal on the HD1 or HD2 inputs are
known, select HD Format from the Service menu and set them as described below. Doing so
can reduce the time it takes the VHD Controller to switch from HD to 480i signals or vice
versa.
This is generally not necessary unless the VHD Controller – for whatever reason – has
difficulty determining the color space (RGB or YUV), bandwidth or resolution of the incoming
HD signal. In most situations, the Auto settings work well.
• HD/RGB 1 and HD/RGB 2 (Color Space): Select Auto, RGB or YUV.
• ADC Bandwidth: Select Auto, 75 MHz, 150 MHz or 300 MHz.
• YPbPr Input Resolution: Select Auto or specify the input resolution, if known: 480i, 480p,
576i, 576p, 720p or 1080i.
Triggers: Select Triggers from the Service menu to configure the 12-volt trigger outputs. You
can assign one or more trigger outputs to each aspect ratio. Those triggers are then activated
by selecting that aspect ratio.
To save the trigger settings so that they can be restored after a System Reset (described
below), press repeatedly to highlight “Save.” Then, press ENTER.
The PlasmaView stores any changes you make to these settings in the
currently-selected ISF preset (ISF Day or ISF Night). After calibrating the
display for one ISF preset, save your settings, select the other ISF preset and
repeat the process.
Note
Operation
Vidikron PlasmaView Owner’s Operating Manual 43
PRELIMINARY
Miscellaneous: Select Miscellaneous from the Service menu to set the following options:
• Language: Select Language from the Miscellaneous menu and press the up- or
down-arrows to select the OSD language. (Currently, only English is supported.)
•Menu Mode: This is the manner in which the OSD menus appear and disappear when you
press MENU. Choose one of the following:
0 = No transition; menus abruptly appear and disappear.
1 = Menus fade in and out.
2 = “Checkerboard” dissolve; menus appear and disappear in sections.
3 = “Window shade” effect; menus are drawn on a diagonal from top left to bottom right,
and retract in the opposite direction.
• Timeout - Short/Long: These settings control how long the OSD menus stay on screen.
Select a time-out period of from 2 to 60 seconds.
• Side Bar Color: This controls the color of the inactive image area. The range is from -100
(black) to 100 (white).
The inactive image area is on either side of the active image area when using the Standard
4:3 aspect ratio (or the entire screen when no incoming video signal is present).
•Film Mode: Enable Film Mode to smooth out moving images from interlaced,
standard-definition (SD) sources. In most cases, the PlasmaView detects the proper
“pull-down” rate and vertical frequency. However, if your source is jittery and/or tearing
you may wish to enable Film Mode to ensure stable processing for that source.
System Reset: To reset ALL VHD Controller settings (including image settings) back to their
factory defaults, choose System Reset from the Service menu.
A confirmation message appears, reminding you to save your settings before you perform
the reset, so that you can restore them afterwards. If you have done this, select Confirm to
continue with the reset. Otherwise, click Back to cancel.
Restore Saved Settings: Following a System Reset, select Restore Saved Settings to apply all
previously-saved settings to the PlasmaView and VHD Controller.
This action is not undoable. Proceed with caution! Before you perform a
System Reset, save ALL settings, including “Custom” ISF Presets (page 37), ISF
Day/Night presets (page 37), Output Shift settings (page 39), Input Names
(page 40) and Trigger settings (page 42).
Caution
Operation
44 Vidikron PlasmaView Owner’s Operating Manual
PRELIMINARY
Notes:
Vidikron PlasmaView Owner’s Operating Manual 45
PRELIMINARY
5.1
Cleaning
Regular cleaning will extend the life and performance of the PlasmaView. Before cleaning, be
sure to unplug the power cord from the power outlet.
Cleaning the Display Panel
Body and Remote Control
Do not under any circumstances use solvents such as benzene or thinner to clean the
PlasmaView. Doing so may cause deterioration or peeling of paint from the display or remote
control unit.
Wipe the display and remote control gently with a soft cloth. In the case of excessive dirt
buildup, dampen a soft cloth with a diluted neutral cleaning detergent and after wringing
the cloth thoroughly, wipe the component and then dry it with a dry soft cloth.
Cleaning the ScreenAfter dusting, wipe the screen gently using the supplied cleaning cloth or another soft cloth
(cotton, flannel etc.). Do not use tissue or a rough cloth. The screen surface is easily scratched;
do not rub it or hit it with a hard object.
If you clean the surface of the screen with a wet cloth, water droplets on the surface may
enter into the product and cause a malfunction.
Cleaning the VentsAs a general rule, use a vacuum cleaner about once a month to clean the vents on the rear
panel of the display of dust buildup (set the vacuum cleaner to its weakest setting when
doing this). If not removed, accumulated dust can cause the internal temperature to increase,
resulting in possible breakdown or fire.
5Maintenance and Troubleshooting
Maintenance and Troubleshooting
46 Vidikron PlasmaView Owner’s Operating Manual
PRELIMINARY
5.2
Troubleshooting Tips
Table 5-1 provides some general guidelines for troubleshooting problems you may
encounter with the PlasmaView. If the suggested solutions fail to resolve the problem or if
you encounter an issue not described here, please contact your Vidikron dealer or Vidikron
Technical Support.
Table 5-1. Troubleshooting Chart
Symptom Possible Cause(s) Solution
The display does not turn on
after initial installation.
• The PlasmaView is not
plugged in or the AC outlet
is not active.
•The VHD Controller is not
plugged in or the AC outlet
is not active.
• The remote control
batteries have run out.
• The serial connection from
the VHD Controller to the
PlasmaView is incorrect.
• Ensure that the PlasmaView
is plugged in and that the
AC outlet is active.
• Ensure that the VHD
Controller is plugged in and
that the AC outlet is active.
• Replace the batteries.
• Ensure that the RS-232
output from the VHD
Controller is properly
connected to the RS-232C
input on the PlasmaView
(see Figure 3-3).
The PlasmaView and VHD
Controller are both on, but
there is no picture and
on-screen menus do not
appear.
• Faulty or incorrect video
connection between the
VHD Controller and the
PlasmaView.
• Ensure that the HDMI
output from the VHD
Controller is properly
connected to the DVI input
on the PlasmaView (see
Figure 3-3).
The display is on and menus
appear, but there is no picture.
• Incorrect source selection.
• Source component is not
turned on.
• Source component is
connected incorrectly or
not at all.
• Select the correct source.
• Turn on the source
component.
• Check connections from
source component to VHD
ControllerVHD Controller.
Image is too bright and/or
lacks definition in the bright
areas of the image.
• Contrast is set too high. • Lower the contrast setting.
Image appears “washed out”
and/or dark areas appear too
bright.
• Brightness is set too high. • Lower the brightness
setting.
Colors in the image are
swapped; for example, reds
appear blue or vice versa.
• The Red/Pr, Green/Y or
Blue/Pb outputs from the
source are connected to the
wrong inputs on the VHD
Controller.
• The Red, Green or Blue
(analog) outputs from the
VHD Controller are
connected to the wrong
inputs on the PlasmaView.
• Ensure that the source
outputs are connected to
the correct VHD Controller
input.
• Ensure that the VHD
Controller outputs are
connected to the correct
inputs on the PlasmaView.
Maintenance and Troubleshooting
Vidikron PlasmaView Owner’s Operating Manual 47
PRELIMINARY
RGB-HD images appear
“noisy.”
• Clock and Phase settings
need adjustment.
• Adjust Clock and Phase
settings (refer to ISF Night -
Input Color on page 39).
Computer images do not
display correctly.
•The resolution and
frequency of the video card
in the computer are not
compatible with the
PlasmaView.
• Select a compatible
resolution and vertical
frequency (refer to
PlasmaView Specifications
on page 55).
The image is too large or too
small.
• Image size needs adjusting. • Adjust the image size (refer
to Input Position on
page 36 or Display
Device - Display Position
on page 41).
Table 5-1. Troubleshooting Chart (continued)
Symptom Possible Cause(s) Solution
Maintenance and Troubleshooting
48 Vidikron PlasmaView Owner’s Operating Manual
PRELIMINARY
Notes:
Vidikron PlasmaView Owner’s Operating Manual 49
PRELIMINARY
6.1
RS-232 Connection and
Port Configuration
To interface the PlasmaView with a home theater automation/control system or a PC running
terminal emulation software, connect it to the RS-232 output of the VHD Controller as shown
in Figure 3-3. Connect your control system or PC to the RS-232 input of the VHD Controller as
shown in Figure 3-9.
Configure the RS-232 controller or PC serial port as follows: no parity, eight (8) data bits, one
(1) stop bit and no flow control. Set the baud rate to 19200, to match that of the VHD
Controller RS-232 port.
6.2
Serial Command Syntax
Serial commands to the VHD Controller take the following form:
• Commands are not case-sensitive.
• For a single command that takes no parameters, type the command followed by a
carriage return; for example, to set the aspect ratio to Letterbox, type
LETTERBOX <Enter>.
• For a single command that takes a parameter, type the command, a space or a comma
and the desired value followed by a carriage return; for example, to set the brightness to
-10, type BRIGHTNESS -10 <Enter> or BRIGHTNESS,-10 <Enter>.
• You can also send a string of multiple commands on a single line, separated by commas.
For example, COMPOSITE,BRIGHTNESS 100,16:9 <Enter> switches to the
Composite video input, sets the brightness to 100 and sets the aspect ratio to 16:9.
Command strings can be up to 255 characters long.
6Serial Communications
Avoid combining the ON or POWER 1 commands with other commands on a
single line. After sending ON or POWER 1, allow at least five (5) seconds for
the VHD Controller to power up. If you have enabled the ISF splash screen
(refer to “Splash Configure” on page 39), allow 15 seconds for the VHD
Controller to power up.
Once it does, it will accept and properly execute multiple serial commands.
Note
Serial Communications
50 Vidikron PlasmaView Owner’s Operating Manual
PRELIMINARY
Table 6-1 lists the RS-232 command set. The “Parameter (min/max)” column shows the valid
parameter ranges, or “NA” for commands that take no parameters.
When you enter a valid command, the VHD Controller executes it and acknowledges it with a
plus sign on the command line (+ >). When you enter an invalid command – one that is
misspelled or followed by values outside the valid range for that command – the VHD
Controller ignores it and returns a minus sign (- >).
Table 6-1. Serial Commands
Command Parameter
(min/max)
Value
Stored? Description
Power On/Off Commands
OFF NA NA Turns system off
ON NA NA Turns system on
POWER 0/1 NA Turns system on or off (toggles on/off state)
POWER? NA NA Returns power status
Input Selection Commands
COMPONENT NA YES Selects the Component input
COMPOSITE NA YES Selects the Composite video input
HDMI1 NA YES Selects the HDMI 1 input
HDMI2 NA YES Selects the HDMI 2 input
HD1 NA YES Selects the RGB/HD 1 input
HD2 NA YES Selects the RGB/HD 2 input
INPUT? NA NA Returns active input
SVIDEO1 NA YES Selects the S-Video 1 input
SVIDEO2 NA YES Selects the S-Video 2 input
Aspect Ratio Commands (not available on HDMI 1 or HDMI 2 inputs)
16:9 NA YES Selects the 16:9 aspect ratio
ASPECT? NA NA Returns current aspect ratio
CINEMA NA YES Selects the Cinema aspect ratio
LETTERBOX NA YES Selects the Letterbox aspect ratio
4:3 NA YES Selects the 4:3 aspect ratio
INTELLIWIDE NA YES Selects the IntelliWide aspect ratio
Serial Communications
Vidikron PlasmaView Owner’s Operating Manual 51
PRELIMINARY
Picture Adjust Commands (not available on HDMI 1 or HDMI 2 inputs)
BRIGHTNESS -100/100 YES Sets a value for brightness
BRIGHTNESS? NA NA Returns brightness setting value
CHROMADELAY -12/12 YES Sets a value for input color chroma delay
CHROMADELAY? NA NA Returns input color chroma delay setting
COLOR -100/100 YES Sets a value for color
COLOR? NA NA Returns color setting value
CONTRAST -100/100 YES Sets a value for contrast
CONTRAST? NA NA Returns contrast setting value
FILMMODE 0/1 YES Sets Film Mode off (0) or on (1)
FILMMODE? NA NA Returns Film Mode setting (0 = off; 1 = on)
FILTER 0/15 YES Sets a value for input color noise filter
FILTER? NA NA Returns input color noise filter setting
PHASE 0/3 YES Adjusts phase
PHASE? NA NA Returns phase setting value
SHARPNESS -6/6 YES Sets a value for sharpness
SHARPNESS? NA NA Returns sharpness setting value
TINT -100/100 YES Sets a value for tint
TINT? NA NA Returns tint setting value
Image Preset Commands (not available on HDMI 1 or HDMI 2 inputs)
CUSTOM1 NA YES Loads “Custom 1” image preset
CUSTOM2 NA YES Loads “Custom 2” image preset
PRESET? NA NA Returns currently-selected preset
(ISF Day, ISF Night, Custom 1 or Custom 2)
Image Preset Commands (available on all inputs)
DAY NA YES Loads “ISF Day” image preset
NIGHT NA YES Loads “ISF Night” image preset
Table 6-1. Serial Commands (continued)
Command Parameter
(min/max)
Value
Stored? Description
Serial Communications
52 Vidikron PlasmaView Owner’s Operating Manual
PRELIMINARY
Input Position Commands (not available on HDMI 1 or HDMI 2 inputs)
IHEIGHT -100/100 YES Sets the value for input height
IHEIGHT? NA NA Returns input height value
IHPOS -100/100 YES Sets a value for horizontal input position
IHPOS? NA NA Returns input horizontal position value
IVPOS -100/100 YES Sets a value for vertical input position
IVPOS? NA NA Returns input vertical position value
IWIDTH -100/100 YES Sets the value for input width
IWIDTH? NA NA Returns input horizontal width value
OVERSCAN 0/10 YES Sets the overscan percentage
OVERSCAN? NA NA Returns overscan percentage
Output Shift Commands (not available on HDMI 1 or HDMI 2 inputs)
OHEIGHT -100/100 YES Sets the value for output height
OHEIGHT? NA NA Returns output height value
OHPOS -100/100 YES Sets the value for output horizontal position
OHPOS? NA NA Returns output horizontal position value
OVPOS -100/100 YES Sets the value for output vertical position
OVPOS? NA NA Returns output vertical position value
OWIDTH -100/100 YES Sets the value for output width
OWIDTH? NA NA Returns output horizontal width value
Table 6-1. Serial Commands (continued)
Command Parameter
(min/max)
Value
Stored? Description
Serial Communications
Vidikron PlasmaView Owner’s Operating Manual 53
PRELIMINARY
Miscellaneous Commands (not available on HDMI 1 or HDMI 2 inputs)
BKGND -100/100 YES Sets the background color for 4:3 aspect ratio
(-100 = black; 100 = white)
BKGND? NA NA Returns background setting value
DATE? NA NA Returns product manufacture date
HDINPUTRES NA YES Sets YPbPr input resolution and refresh rate
for HD1/HD2, as follows:
0 = 480i
1 = 480p
2 = 576i
3 = 576p
4 = 720p / 60 Hz
5 = 1080i / 60 Hz
6 = 720p / 50 Hz
7 = 1080i / 25 Hz
Any other value = Auto
HWVER? NA NA Returns hardware version number
INRES? NA NA Returns input resolution
Miscellaneous Commands (available on all inputs)
SWVER? NA NA Returns software version number
TRIGGER 1/3 YES Assigns trigger to currently-selected aspect
ratio
Table 6-1. Serial Commands (continued)
Command Parameter
(min/max)
Value
Stored? Description
Serial Communications
54 Vidikron PlasmaView Owner’s Operating Manual
PRELIMINARY
The following serial commands are meant to emulate buttons on the remote control or VHD
Controller front panel. Each button has its own serial command, so effectively it is as if you were
using the IR remote only you’ll be doing so via serial commands. These commands provide active
OSD responses just like the IR remote.
DOWN NA NA Down-Arrow ( ) key
ENTER NA NA ENTER key
LEFT NA NA Left-Arrow ( ) key
MENU NA NA MENU
RIGHT NA NA Right-Arrow ( ) key
UP NA NA Up-Arrow ( ) key
Table 6-1. Serial Commands (continued)
Command Parameter
(min/max)
Value
Stored? Description
Vidikron PlasmaView Owner’s Operating Manual 55
PRELIMINARY
7.1
PlasmaView Specifications
Table 7-1 lists the PlasmaView specifications.
7Specifications
Table 7-1. PlasmaView Specifications
Native Resolution: 1920 x 1080
Screen Size: 56.50 in. W x 31.80 in. H (1434.0 x 807.0 mm)
65 in. (1646.0 mm) diagonal
Screen Aspect Ratio: 16:9
Available Aspect Ratios: Refer to Table 7-2
DTV Compatibility: 720p, 1080i, 1080p
Contrast Ratio: 400:1 (measured at 100 lux); 5,000:1 maximum
Data/Graphics Compatibility: VGA, SVGA, XGA, SXGA, UXGA (compressed)
Horiz. scan frequency = 15 to 110 kHz
Vert. scan frequency = 48 to 120 Hz
Inputs (from VHD Controller): (1) DVI 1.0 with HDCP
(1) RS-232 (9-pin, D-sub male)
Power Requirements: 100 to 240 VAC, 50/60Hz
Power Consumption: 790 W (1.0 W in standby), maximum
Operating Environment: 40ºF to 95ºF (5ºC to 35ºC);
20% to 80% humidity (non-condensing)
Altitude – Model VP-6500VHDa = up to 9,000 feet (2,743m)
Altitude – Model VP-6500VHD = up to 6,000 feet (1,828m)
Dimensions: See Figure 7-1
Weight (with Stand): 163.1 lbs. (73.98 kg)
Limited Warranty: Three (3) years parts and labor from the date of delivery to
the end user (except for plasma glass panel).
Plasma Glass Panel: One (1) year parts and labor from the
date of delivery to the end user.
Specifications are subject to change without notice.
Specifications
56 Vidikron PlasmaView Owner’s Operating Manual
PRELIMINARY
7.2
VHD Controller
Specifications
Table 7-2 lists the VHD Controller specifications.
Table 7-2. VHD Controller Specifications
Aspect Ratios: 4:3, Letterbox, 16:9, IntelliWide, Cinema
Video Standards: NTSC, PAL
Inputs: (1) Composite
(2) S-Video
(1) Component
(2) HD-R (Pr), G (Y), B (Pb), H, V
(2) HDMI with HDCP
Outputs: HDMI with HDCP
Control Options: - Discrete infrared remote
- Serial commands via RS-232
- Front-panel controls
RS-232 Communication
Parameters:
19200 bps, no parity, 8 data bits, 1 stop bit, no flow control
Trigger Outputs: (3) +12 VDC, each rated at 750 mA and thermal
fuse-protected
Bandwidth: 150 Mega Samples per Second (MSPS)
Power Requirements: 100 to 240 VAC (auto-sensing), 50/60 Hz, 160 Watts
Operating Environment: 41°F to 95°F (5°C to 35°C), 0% to 90% humidity
(non-condensing)
Dimensions: Width = 17.50 inches (444.5 mm)
Depth = 11.19 inches (284.1 mm)
Height = 3.75 inches (95.3 mm)
Weight: 13.0 lbs. (5.90 kg)
Regulatory Approvals: Complies with FCC, CE C-Tick
Limited Warranty: Two (2) years parts and labor from the date of delivery to the
end user.
Specifications are subject to change without notice.
Specifications
Vidikron PlasmaView Owner’s Operating Manual 57
PRELIMINARY
7.3
PlasmaView Dimensions
Figure 7-1 shows the PlasmaView dimensions (all dimensions are in inches).
Figure 7-1. PlasmaView Model VP-6500VHD Dimensions (with Optional Table Stand)
0
2.9
1.0
2.2
34.9
37.1
18.5
0
2.2
7.1
8.5
9.7
30.9
59.7
61.9
47.7
14.0
59.3
5.5
6.4 2.0
36.2
5.6
4.1
0
9.8
18.0
42.7
52.0
61.9
0
2.9
10.6
23.6
28.9
37.1
Specifications
58 Vidikron PlasmaView Owner’s Operating Manual
PRELIMINARY
Notes:
Vidikron
2900 Faber Street
Union City, CA 94587
510-324-5900
Fax 510-324-5905
1-888-4-VIDIKRON
www.vidikron.com
SERIAL NUMBER
RUMA-009830
rev. 01-25-07 v1.0
