DHW storage tanks VITOCELL

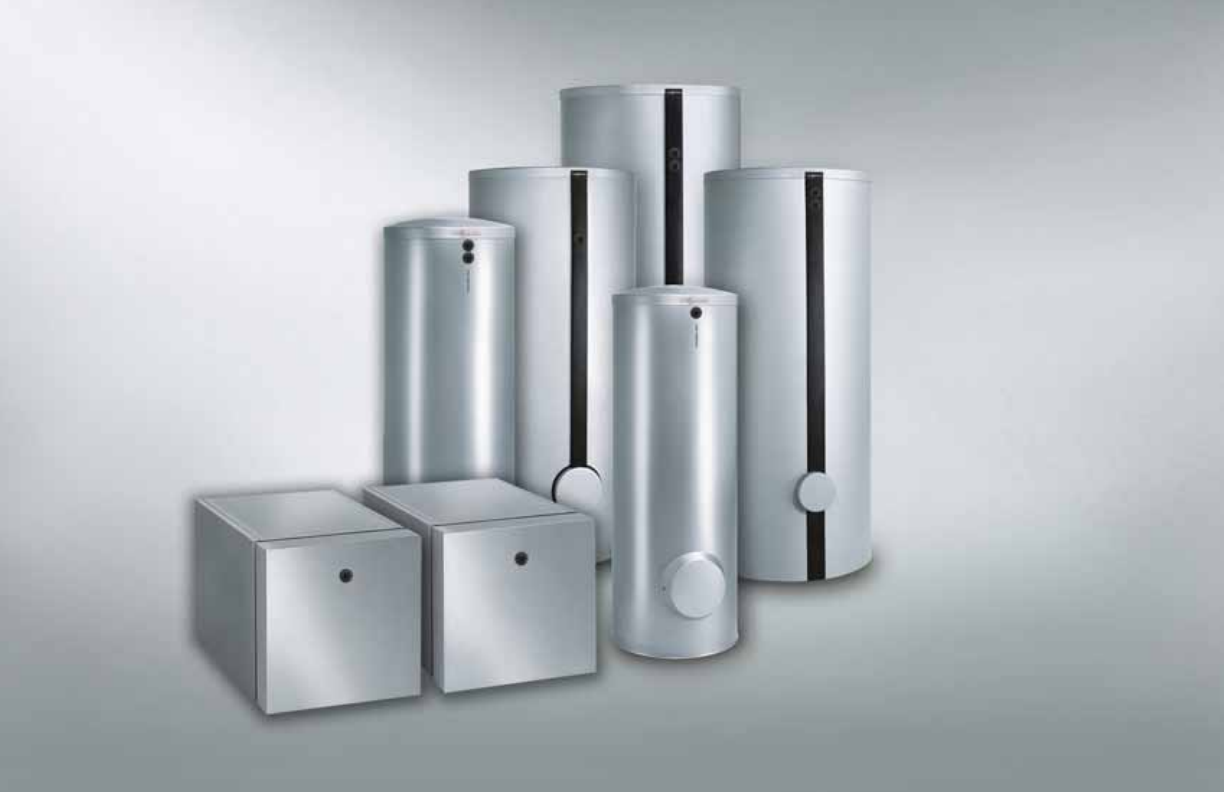

Vitocell domestic hot water storage tanks

42 to 119 USG / 160 to 450 ltr

2/3

Did you know?

You can save up to 50% in operating

cost with Viessmann indirect-fi red

domestic hot water storage tanks.

Rediscover domestic hot water comfort

With a Vitocell tank from Viessmann, you increase your comfort level and your savings

at the same time - the Vitocell line offers something for everyone.

With a new Vitocell tank from Viessmann, you

increase your comfort level and your savings

at the same time! Fast recovery rates, large

water volume, low standby losses translate

into comfort, convenience, effi ciency and

reliability. Choose Vitocell – choose peace

of mind.

Something for everyone

Tanks are available in vertical and horizontal

designs, for placement beside or underneath

a boiler, from 42 to 119 USG / 160 to 450

liters. Also, with Viessmann Integrated

System Technology, boiler, tank and control

match perfectly. Everything fi ts together,

installs quickly and arrives factory-adjusted -

fast installation and maximum system

performance are guaranteed. Find out on the

following pages how you can improve your

domestic hot water experience today.

Vitocell 300

Made of high-alloy stainless steel, the Vitocell

300 models are not only extremely hygienic,

but are known for their operational reliability

and long service life.

Vitocell 100

This series is an economical choice for

convenient and effi cient domestic hot

water production.

The Vitocell 100 models are made of steel

with a Ceraprotect two-coat enamel fi nish

and a consumable anode to protect against

corrosion.

Satisfaction guaranteed

The large heat exchanger surfaces of the

Vitocell tanks extend right to the tank bottom

and ensure an abundant supply of hot water

and even water temperatures all day long.

The heat exchanger coils are arranged for

effi cient venting and draining and facilitate

start-up and smooth operation. HCFC-free

insulation (foamed-in-place or wrap-around)

reduces standby losses and increases

operating effi ciency.

Maximum System Performance

In contrast to most conventional direct-fi red

tanks, indirect-fi red tanks from Viessmann,

such as the Vitocell line, use the heating water

from the boiler to heat the tank water. Space

heating and domestic hot water production

are integrated into one system - maximum

system performance regulated by one control,

powered by one burner!

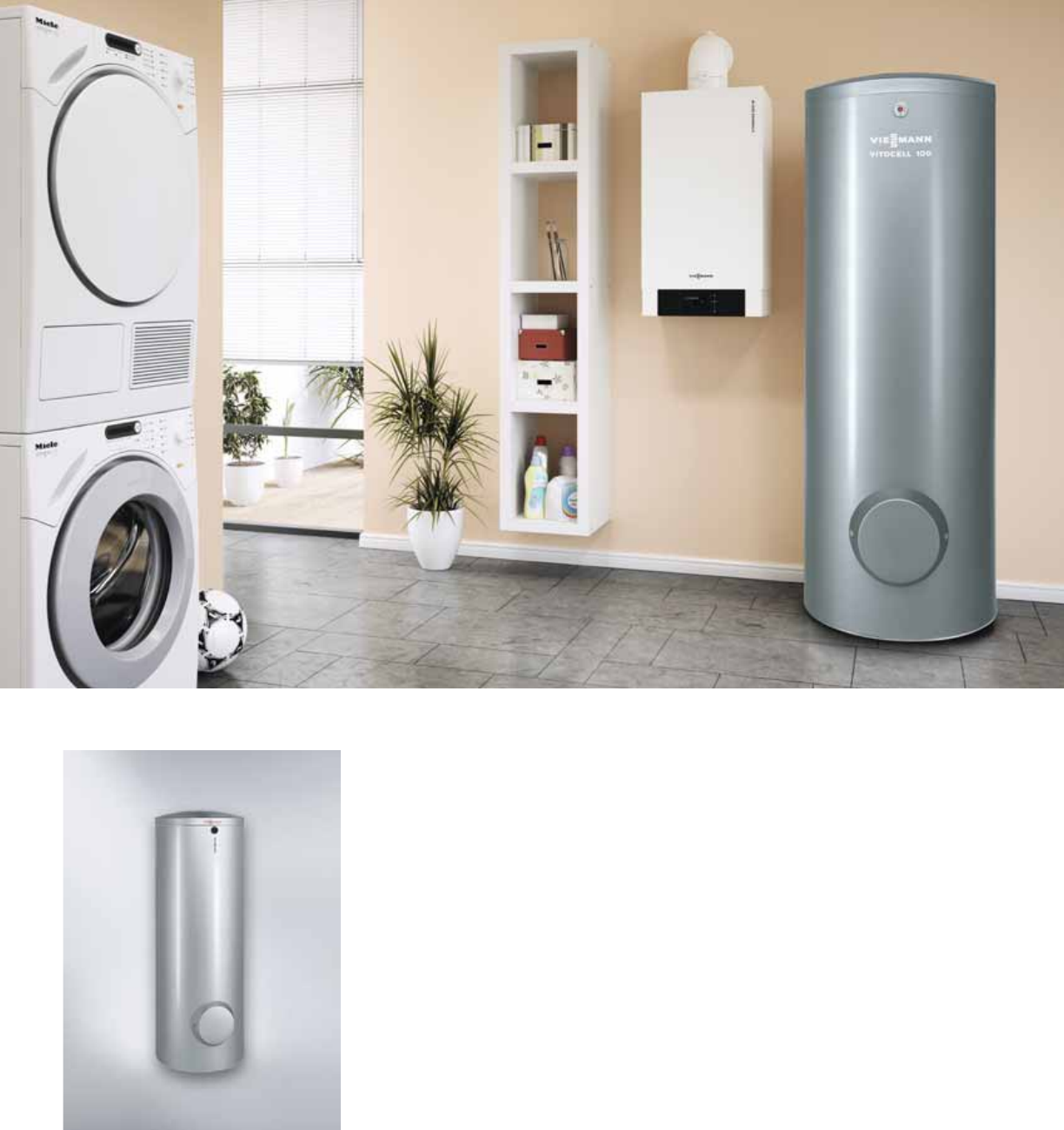

VITOCELL 100-V

High performance and quality construction for economical domestic hot water

Vertical, indirect-fi red domestic hot water tank, 42 to 119 USG

The Vitocell 100 tank series is the economical

choice for reliable and effi cient domestic hot

water production. Single-coil tanks are

available in 4 sizes from 42 to 119 USG / 160

to 450 ltr. Dual-coil tanks for use in solar

thermal applications are available in 2 sizes,

79 and 119 USG / 300 and 450 ltr.

Quality construction

The steel construction of the Vitocell 100

tanks has a two-coat enamel fi nish which

protects all interior surfaces from corrosion.

While the base layer provides a solid bond

between the steel construction and the

enamel fi nish, the second layer protects the

tank from corrosion.

For additional protection each tank comes

with a consumable anode.

Convenience

Fast recovery rates and the large heat

exchanger surfaces of the tank coil ensure an

abundant supply of hot water and even water

temperatures at all times.

For more fl exibility and to meet larger domes-

tic hot water demands, take advantage of a

multi-tank installation (Vitocell-V 100, 79 and

119 USG / 300 and 450 ltr only).

Economy

Extremely effi cient domestic hot water

production via boiler (indirect-fi red). Save up

to 50% in operating cost compared to most

conventional (direct-fi red) domestic hot water

production.

Highly-effective HCFC-free foamed-

in-place or wrap-around insulation reduces

standby losses and operating cost.

Solar tank

Discover new ways of domestic hot water

production! With the Vitocell-B 100 dual-coil

tank you can have it two ways - via solar

collector and/or the heating boiler. Find out

more on pages 8/9.

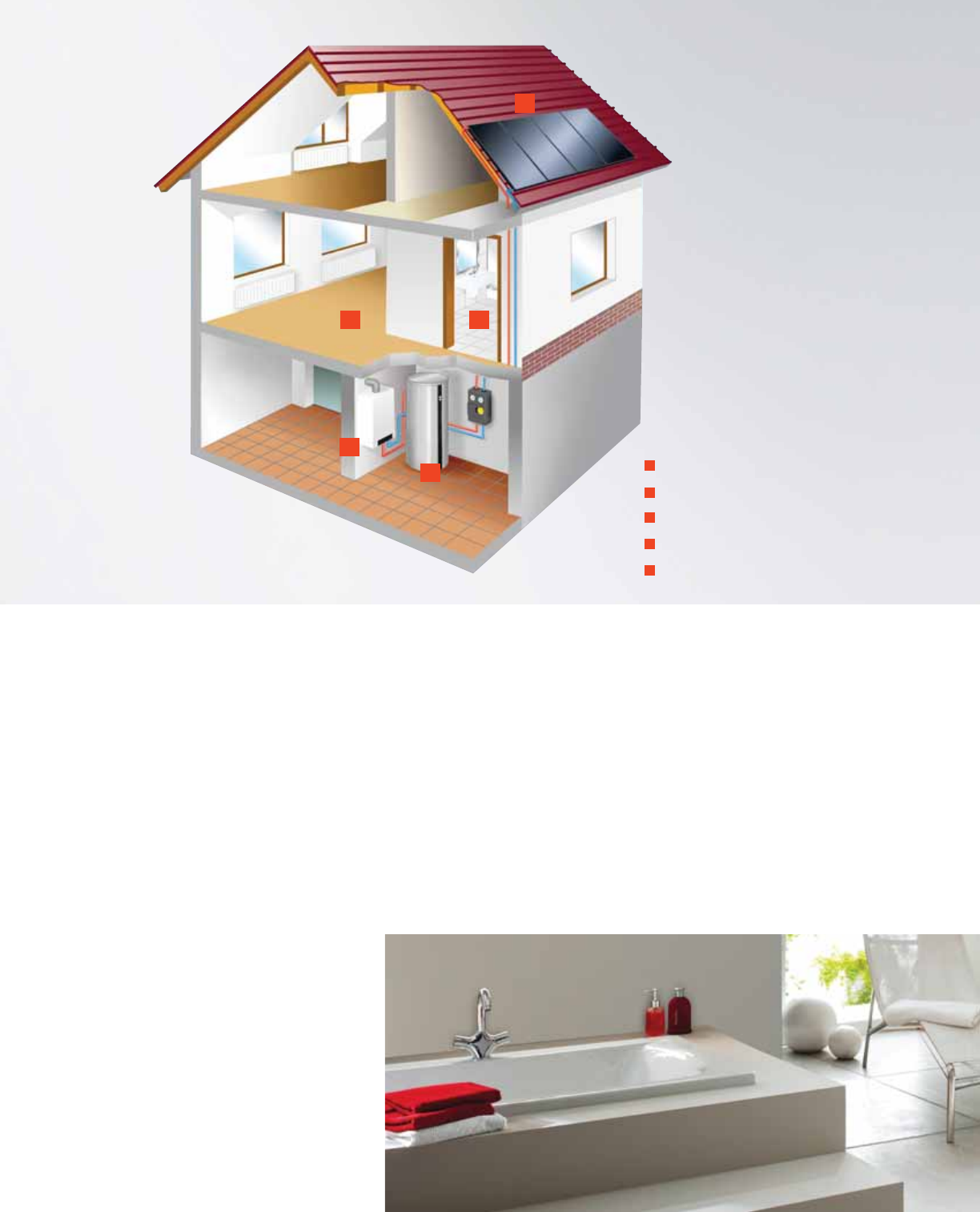

2

1

3

2

1

3

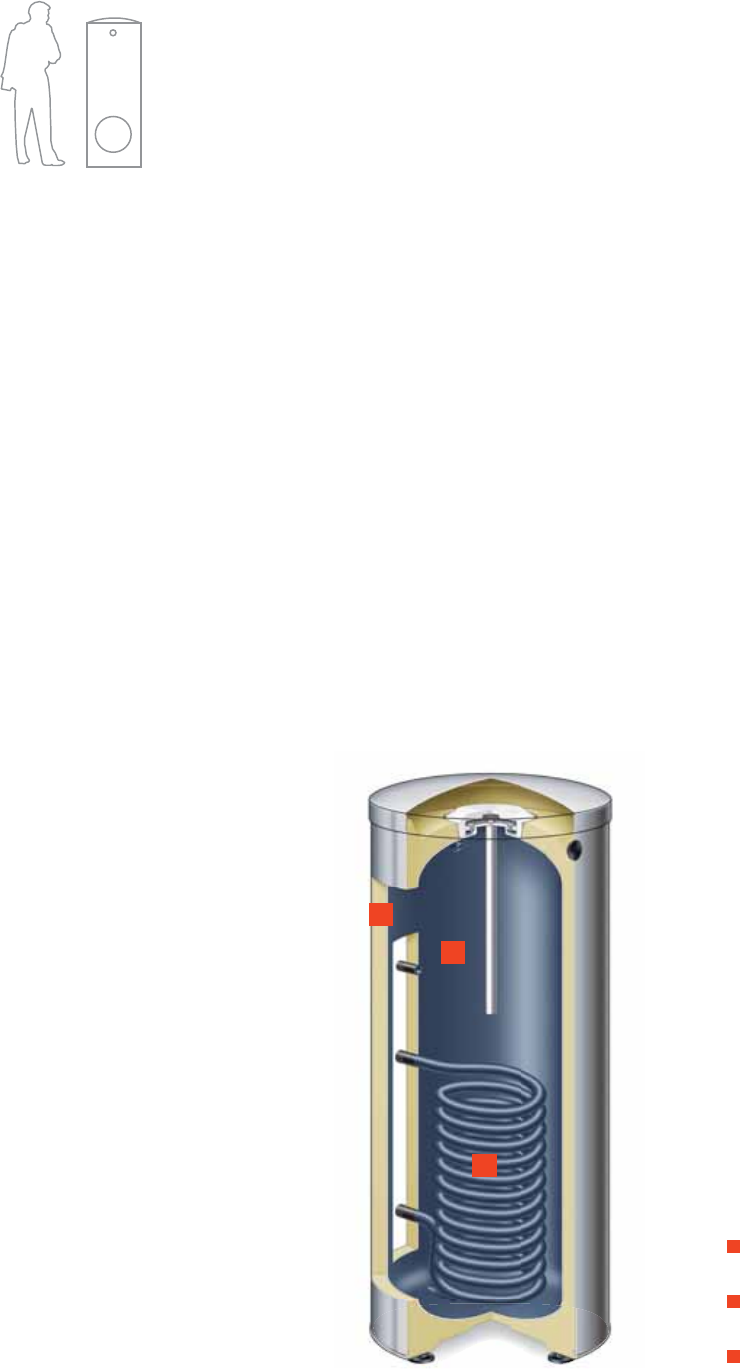

Heat exchanger coil : heat is transferred

from the boiler to the tank water

Magnesium anode : provides additional

active corrosion protection

HCFC-free, foamed-in-place insulation

Vitocell 100-V single-coil tank

4/5

Specifi cations

Four single-coil tank sizes from 42 to 119 USG / 160 to 450 ltr

Two dual-coil tank sizes from 79 and 119 USG / 300 and 450 ltr

Vitocell 100-V, 119 USG / 450 ltr is supplied with removable soft

polyester fi ber (PET) insulation for easy handling.

Benefi ts at a glance

Large heat exchanger surfaces for fast recovery rates and a

constant and reliable DHW supply.

Tank coil extends to tank bottom which guarantees even and

consistent water temperatures at all times.

Quality steel construction and Viessmann Ceraprotect

permanent two-coat enamel fi nish for operational reliability

and long service life.

Magnesium anode provides additional active corrosion protection.

Save up to 50% of your operating costs with extremely effi cient

indirect hot water production by a condensing boiler.

Highly effective, HCFC-free insulation keeps standby losses and

operating cost to a minimum.

Ideal for small spaces with zero clearance to combustibles.

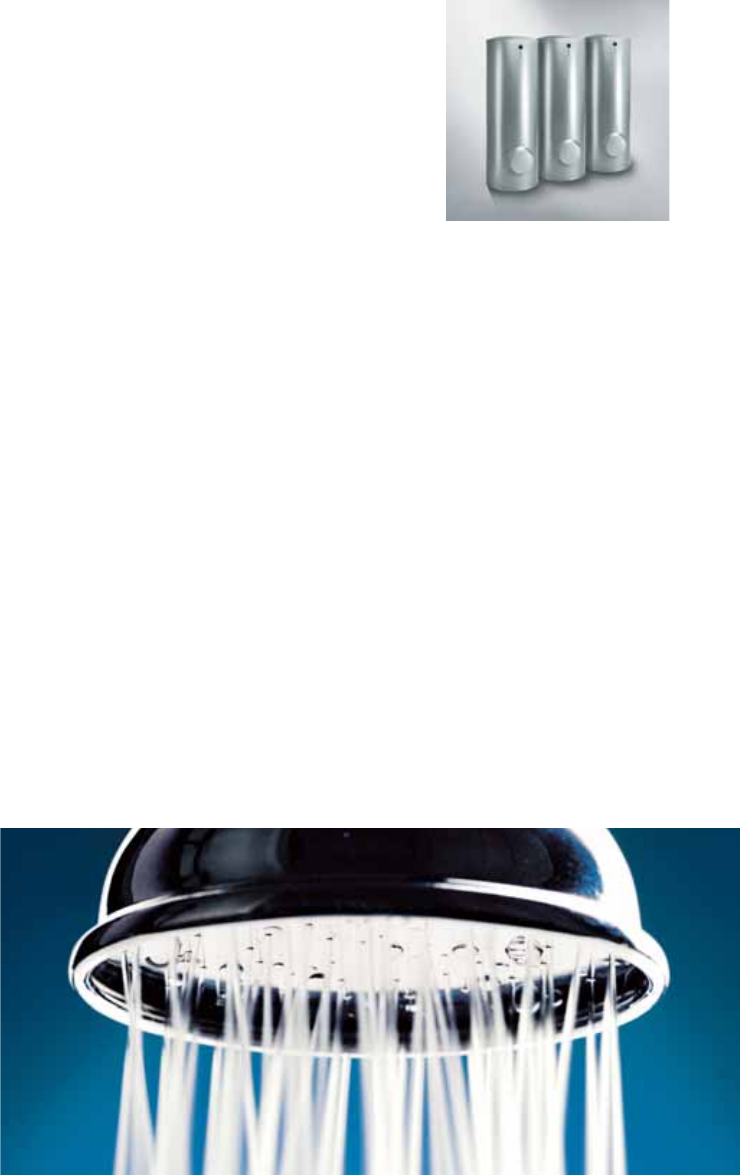

Satisfy large DHW demands by connecting multiple Vitocell 100-V

tanks (79 and 119 USG) to form a tank battery.

The Vitocell 300 is the leading tank series

in the Vitocell line of domestic hot water

storage tanks. It’s extremely durable,

effi cient, hygienic and provides all the hot

water you need.

Available in vertical and horizontal designs,

from 42 to 119 USG / 160 to 450 liters.

Long Service Life

Both tank and heat exchanger are made of

SA240-316 Ti high-performance stainless

steel, a material known for its durability,

hygiene, acid resistance and aesthetic

appearance. There is minimal wear - no

corrosion protection is needed - and this

maximizes your cost savings.

Comfort

Fast recovery rates due to large heat exchanger

surfaces of the tank coil ensure an abundant

supply of hot water and even water tempera-

tures at all times. To meet the requirements of

multiple-family housing you have the option of

combining several Vitocell 300 tanks into ‘tank

batteries’ - beside each other when room is

available, or stacked (horizontal design) when

space is at a premium.

Effi ciency

Extremely effi cient domestic hot water

production via condensing boiler (indirect-fi red).

Save up to 50% in operating cost compared to

most conventional (direct-fi red) domestic hot

water production. Highly effective HCFC-free

foamed-in-place or wrap-around insulation

reduces standby losses and operating cost.

Solar tank

Discover new ways of domestic hot water

production! With the Vitocell-B 300 dual-coil

tank you can have it two ways - via solar

collector and/or the heating boiler. Find out

more on pages 8/9.

VITOCELL 300-V/-H

Comfort, convenience and reliability for abundant supply of domestic hot water

Vertical and horizontal, indirect-fi red domestic hot water tank, 42 to 119 USG

2

1

3

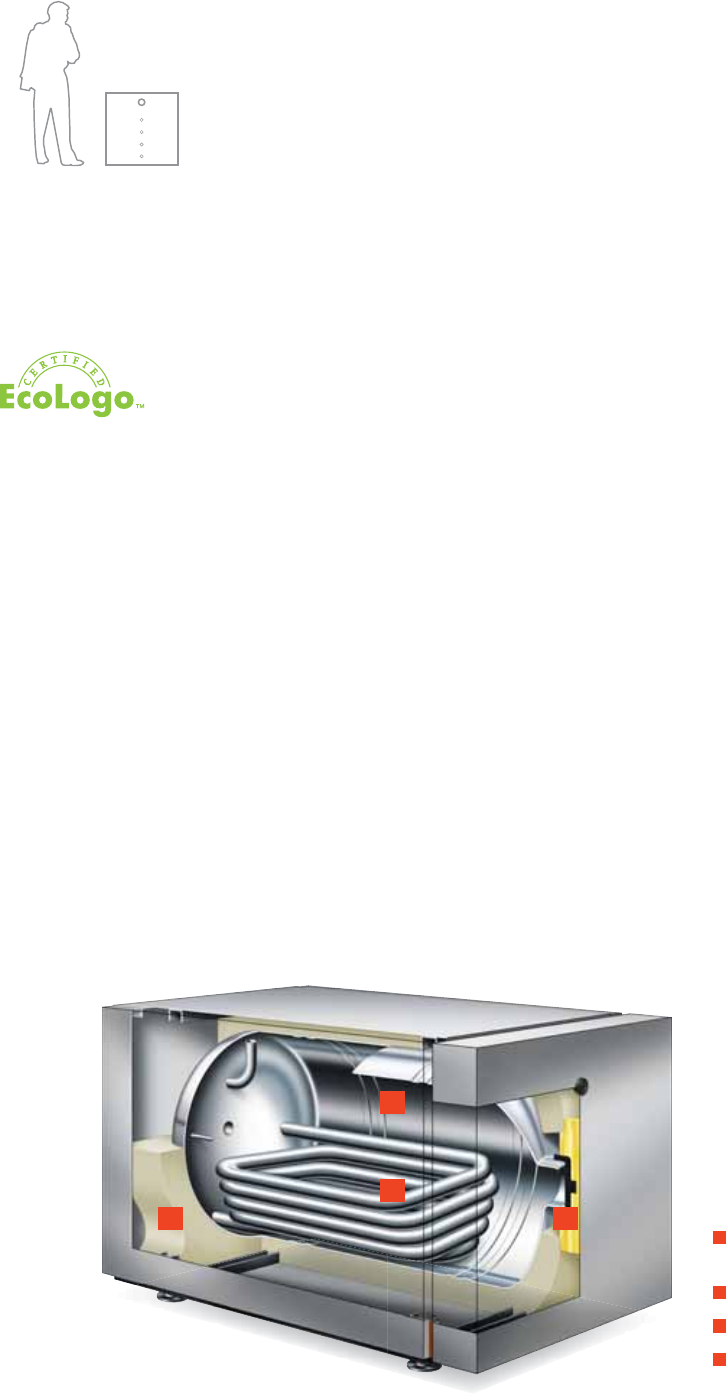

Stainless steel heat exchanger coil extends

to tank bottom to heat entire water volume

Foamed-in-place HCFC-free insulation

316Ti Stainless steel construction

Clean-out opening

Vitocell 300-H horizontal tank

4

2

1

3

4

The Vitocell 300 is EcoLogo

certifi ed. By choosing the

Vitocell 300, you are helping

to promote cleaner air and

a healthier environment.

6/7

Benefi ts at a glance

Peace of mind with lifetime warranty for residential installations.

Large heat exchanger surfaces for fast recovery rates and a constant

and reliable DHW supply.

Tank coil extends to tank bottom guaranteeing even and consistent

water temperatures at all times.

High alloy stainless steel construction provides operational reliability

and a long service life.

Scale and corrosion resistant, the Vitocell 300 is ideal for areas with

poor water quality.

Save up to 50% of your operating with extremely effi cient indirect

hot water production by a condensing boiler.

Highly effective (HCFC-free) insulation keeps standby losses and

operating cost at a minimum.

Satisfy large DHW demands by connecting multiple Vitocell 300

DHW tanks to form a tank battery. Horizontal tanks can be stacked.

Ideal for small spaces with zero clearance to combustibles.

Specifi cations

Three vertical single-coil tank sizes from 53 to 119 USG / 200 to 450 ltr

Four horizontal single-coil tank sizes from 42 to 119 USG / 160 to 450 ltr

Two vertical dual-coil tank sizes from 79 to 119 USG / 300 and 450 ltr

Tank body and heat exchanger coil constructed of SA240-316 Ti

stainless steel

VITOCELL 300-B/100-B

Solar thermal sytems are ideal for integration with your indirect-fi red DHW tank

Vertical, indirect-fi red dual-coil DHW tank, 79 to 120 USG

2

1

3

4

2

1

3

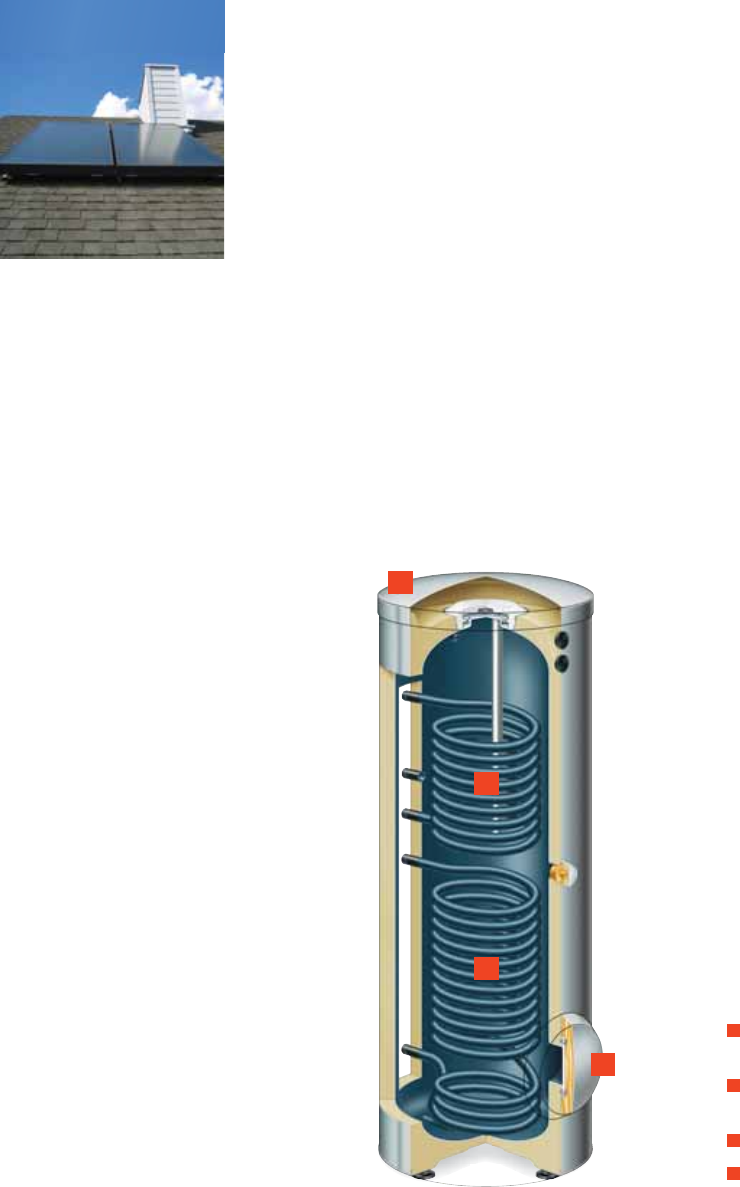

Lower coil : Heat is transferred from the

solar collectors to the tank water

Upper coil : Additional heat supplied by

the high-effi ciency boiler

Stainless steel construction (Vitocell 300)

Clean-out opening

Vitocell 100-B dual-coil solar tank

4

Integrating indirect-fi red domestic hot

water (DHW) heating with your gas-fi red

condensing boiler can save as much as

50% in operating costs when compared

to conventional direct-fi red hot water

production.

Our complete line of DHW storage tanks

offers high-quality construction and fast

recovery rates for an abundant supply of

DHW at all times. Plus, with thick thermal

insulation, your DHW is guaranteed to stay

hot. In addition to vertical and horizontal

DHW storage tanks, choose from economi-

cal enamel-lined or premium stainless steel

construction for a variety of applications.

Your economical choice

The Vitocell 100 Series meets all demands for

comfortable and economical DHW heating.

With steel construction, Ceraprotect enamel

coating and a magnesium anode, the Vitocell

100 ensures operational reliability and a long

service life. Single-coil tanks are available in 4

sizes from 42 to 119 USG. Dual-coil tanks for

use in solar thermal applications are available

in 2 sizes, 79 and 119 USG.

Your premium choice

Vitocell 300 tanks are made from corrosion-

resistant, high-alloy stainless steel to satisfy

the most stringent hygiene standards. With its

premium-quality construction, the Vitocell 300

offers long-term, reliable operation and comes

with a lifetime warranty. Vitocell 300 tanks

meet the stringent standards required to carry

the Environmental Choice logo. Single-coil

tanks are available in 7 sizes from 42 to 119

USG. Dual-coil tanks are available in 2 sizes,

79 and 119 USG.

Solar hot water heating

Our dual-coil solar tank allows both the solar

collectors and gas-fi red condensing boiler to

produce your home’s DHW. Solar heat is

transferred using the lower coil, while back-

up heat is supplied by the heating boiler, as

required, via the upper coil (see illustration).

By using solar energy to help generate your

home’s DHW, you can lower your heating bill

further without compromising your hot

water supply.

Vitosol 200-F fl at plate

solar collectors

How it works

The tank has two coils. Via the bottom coil,

heat is transferred from the solar collectors to

the tank water. On days when the heat transfer

from the solar collectors is too low, the boiler

uses the top coil to supply additional heat to

the tank water.

Integration with an indirect-fi red hot

water tank

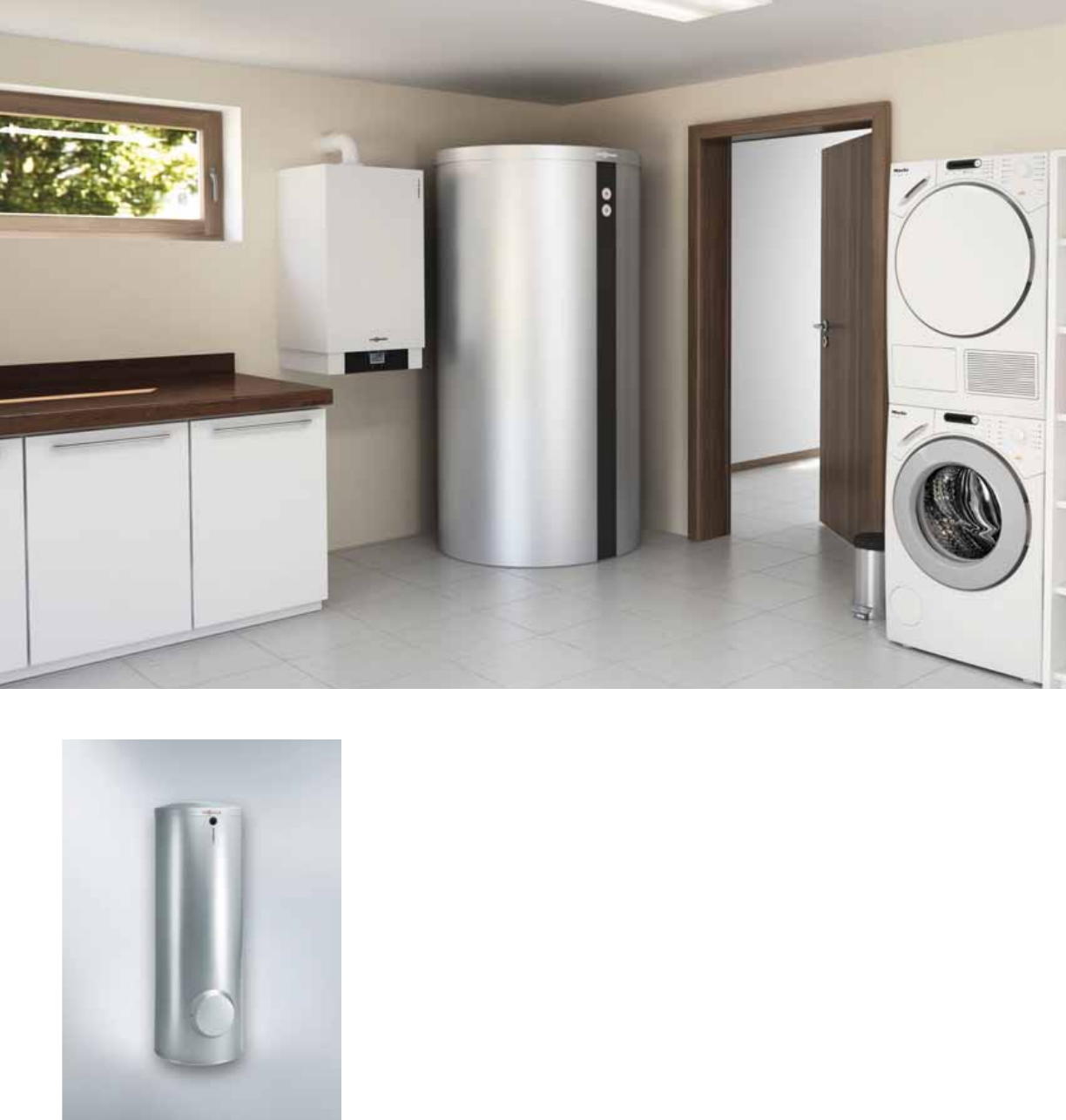

If your home uses a hot water based heating

system, you have the option of an integrated

single-tank system. Using a dual-coil storage

tank, both the solar collectors and gas-fi red

condensing boiler contribute to DHW

production.

High performance solar systems

Built on more than 30 years of experience,

our high-performance fl at plate and vacuum

tube solar collectors and system components

deliver superior year-round performance in a

variety of applications. Plus, for residential

installations, we offer complete solar system

packages that simplify ordering and installation.

2

1

3

4

5

High-performance solar thermal collectors

Dual-coil storage tank

High-effi ciency gas-fi red condensing boiler

Reliable supply of domestic hot water

Hot water space heating system

2

1

3

4

5

8/9

Technical Specifications

Model CVA CVA CVA CVA CVB* CVB*

Capacity USG 42 53 79 119 79 119

ltr 160 200 300 450 300 450

Dimensions Width 23 23 25 33.5 25 33.5

(inches) Depth 24 24 27.75 35.25 28 36

Height 47 55.5 68.75 77 69 77

Weight lbs 190 214 333 399 353 452

Vitocell 100-V and Vitocell 100-B indirect-fired vertical DHW storage tank

Model EHA EHA EHA EHA

Capacity USG 42 53 92 119

ltr 160 200 350 450

Dimensions Width 25.25 25.25 32.75 35.75

(inches) Depth 42.25 48.25 62.5 65

Height 25.75 25.75 31 35

Weight lbs 168 185 379 421

Vitocell 300-H indirect-fired horizontal DHW storage tank

*Bivalent, dual-coil hot water production via solar collector and boiler.

Model EVI EVI EVI EVB* EVB*

Capacity USG 53 79 119 79 119

ltr 200 300 450 300 450

Dimensions Width 23 25 36 25 36.5

(inches) Depth 25.5 27.75 38.5 27.75 38.5

Height 56 70 69.5 70 68.5

Weight lbs 168 220 245 251 275

Vitocell 300-V and Vitocell 300-B indirect-fired vertical DHW storage tank

*Bivalent, dual-coil hot water production via solar collector and boiler.
