VITOLA 200

Oil-/Gas-fired hot water heating boiler with cast

iron/steel biferral heating surfaces for modulating

boiler water temperatures without low limit

Rated input: 83 to 300 MBH/24 to 88 kW

®

®

®This trademark is registered with the U.S. Patent and Trademark Office.

2

3

Introducing a new generation of

oil-/gas-fired hot water heating boilers

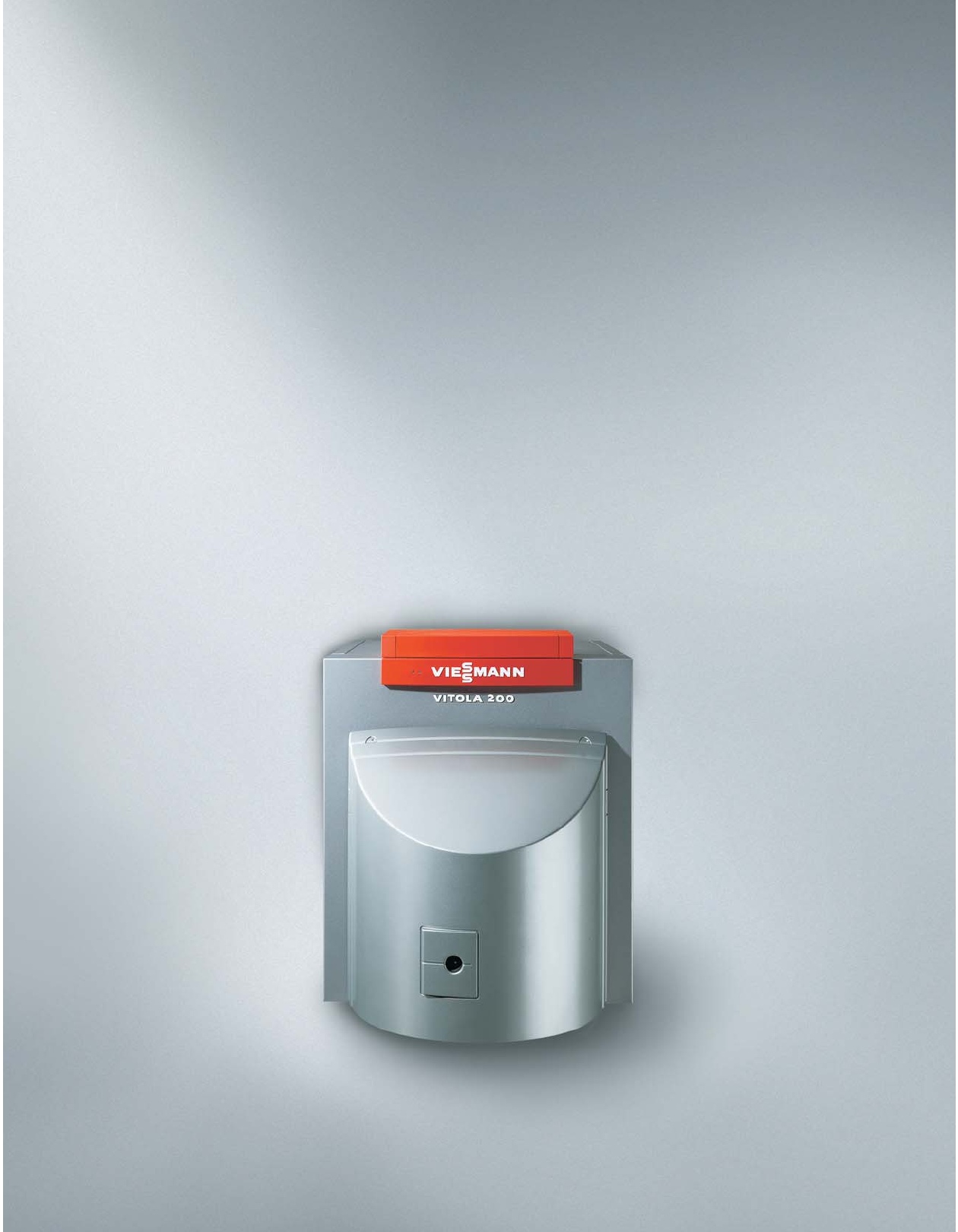

VITOLA 200

Oil and gas are precious and

indispensable natural resources. This

puts modern oil and gas heating

technology before tough challenges

with respect to economizing and

environmental friendliness.

Expectations of customers have also

increased with respect to user-

friendliness and quality, calling for an

innovative product line. The Vitola

200 oil-/gas-fired boilers from

Viessmann offer modern and future-

oriented solutions in every way.

The platform strategy

The Vitola 200 oil-/gas-fired boilers

are part of the new Vitotec Program

by Viessmann, delivering a

systematic modular technology

strategy. This means: all system

modules are built upon a uniform

base chassis. In this way common

components and uniform, easy-to-

follow installation steps were

developed. Installation, operation,

maintenance and service are

drastically simplified and reduced.

With our new Fastfix installation

system, our heating boilers are

installed quickly – saving time and

money.

High quality and economical

operation

High quality and top performance –

this is what the Vitola 200 offers.

With its biferral heat exchanger

surface, the Vitola 200 sets a new

standard, which has written heating

history. The heat exchanger surface

has a decisive advantage compared

to conventional heating surfaces.

Switches off when no heat is

required

Most heating boilers have to be

operated throughout the year at a

constant base temperature – during

the transitional months and even in

the summer, when the heating boiler

is only used for domestic hot water

heating. This is not the case with the

Vitola 200. Thanks to the biferral

heat exchanger surface, specifically

designed for modulating boiler water

temperatures without low limit, the

boiler water temperature can be

adjusted automatically to outside

temperatures. If no heat is needed,

the boiler even turns itself off,

reducing fuel consumption.

This makes for a cleaner

environment

The Vitola 200 offers reduced energy

consumption and reduced emissions.

The low-emission Viessmann burner

contributes significantly to the

conservation of the environment. Due

to the optimized combustion chamber

geometry, nitrogen oxide emissions

are significantly reduced.

Operation at the push of a button

Your heating comfort continues

effortlessly with our new generation

of smart controls. With the push of a

button you can adjust any function in

a fast and secure fashion. The

illuminated display of the Vitotronic

control provides a clear

understanding of the heating system

operation. Furthermore, the operating

settings can be adjusted individually

and are user-friendly.

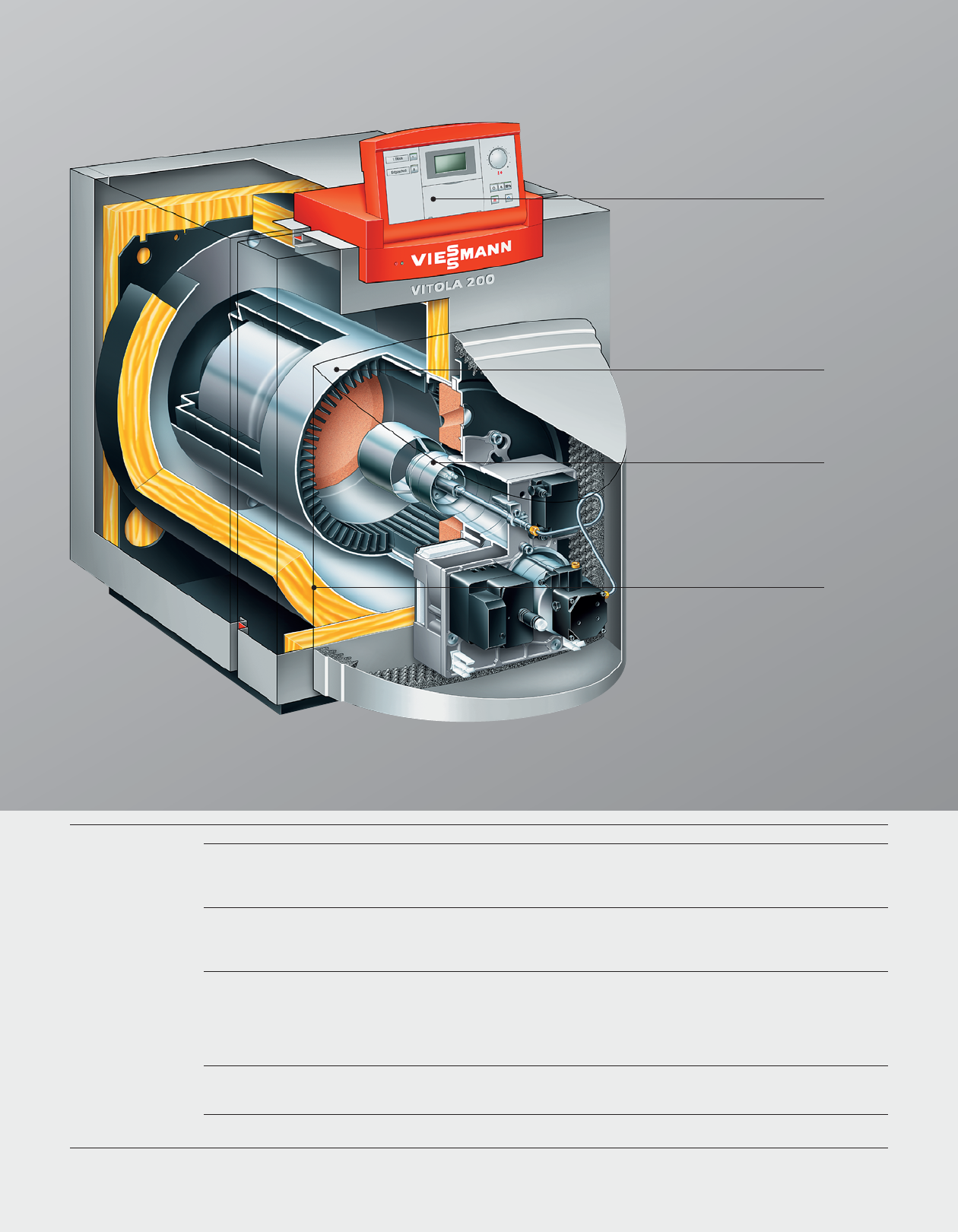

200

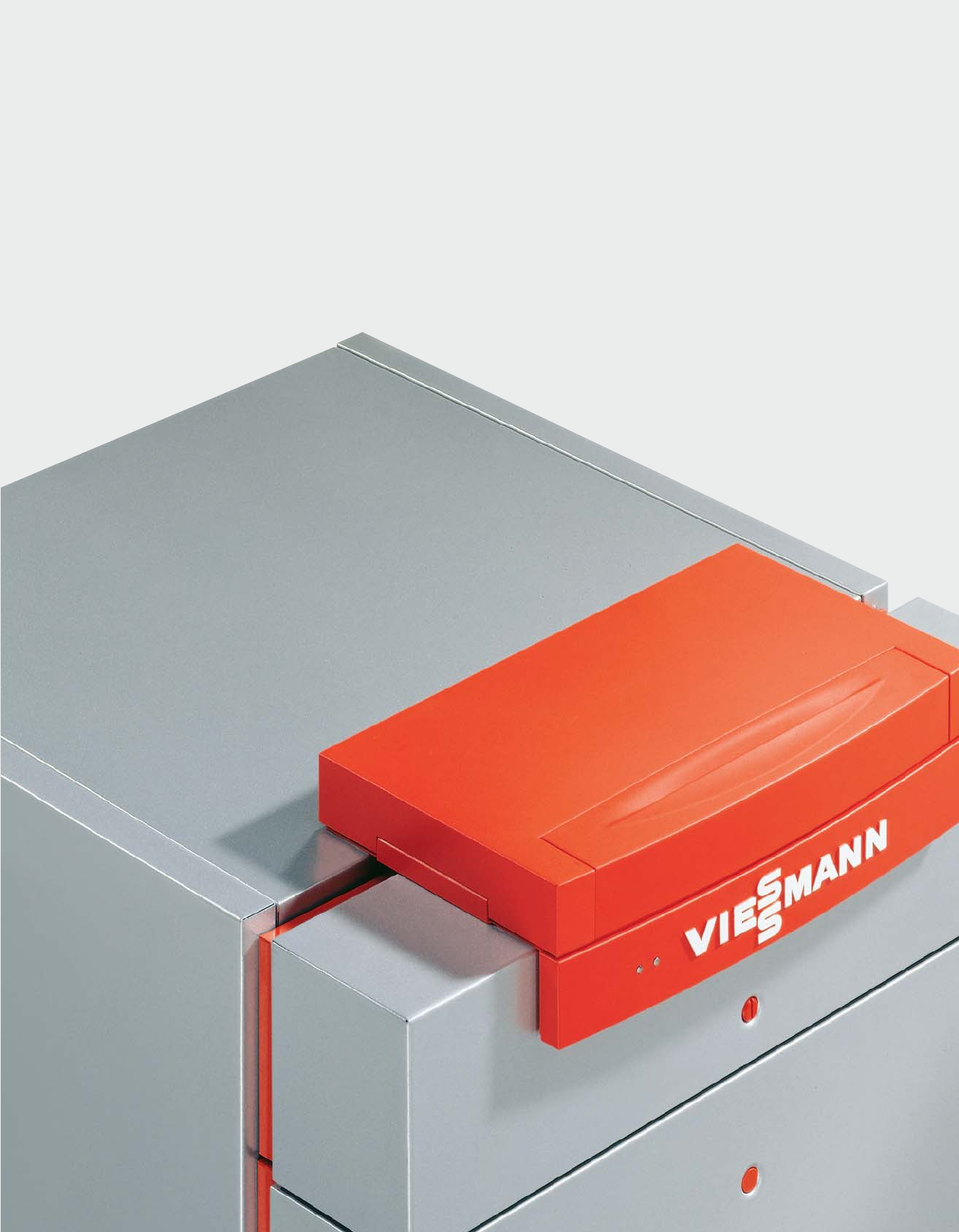

Vitotronic 200

digital control unit

Vitoflame 200 oil burner

Biferral sandwiched

heat exchanger surface

Highly effective

insulation

VITOLA 200 Model VB2- 18 22 33 40 50 63

Rated input oil MBH 83 107 135 170 219 300

kW 24 31 39 50 64 88

Rated output oil MBH 72 92 116 146 189 258

kW 21 27 34 43 55 76

Rated input gas MBH 90 116 146 185 238 300

kW 26 34 42 54 69 88

Rated output gas MBH 75 97 122 154 198 249

kW 22 28 35 45 57 73

Total dimensions* Length inches 43¾ 46¼ 52¾ 53¼ 58½ 63

mm 1112 1178 1340 1350 1489 1603

Width inches 25¼ 26¼ 27½ 30½ 30½ 30½

mm 639 667 701 776 776 776

Height inches 32¾ 33½ 34 37 38½ 38½

mm 830 850 865 940 975 975

Weight lbs 381 434 542 697 866 941

(incl. insulation, kg 173 197 246 316 393 427

burner and boiler control)

Boiler water USG 18.5 23.2 31.2 37.0 52.6 59.0

content ltrs 70 88 118 140 199 223

*Total dimensions with Viessmann Vitoflame 200 burner installed.

Dimensions may vary depending on burner type. Please refer to Technical Data Manual of burner for applicable dimensions.

Burner may not be exactly as illustrated.

4

5

The benefits at a glance:

•High-quality oil-/gas-fired low

temperature heating boiler, input

range 83 to 300 MBH/24 to 88 kW.

•Specifically designed for

modulating boiler water temperatures

without low limit. The biferral heat

exchanger surface made of cast iron

and steel provides high operational

reliability and a long service life.

•Low-emission Viessmann burner

and optimized combustion chamber

geometry.

•Extremely economical and

environmentally friendly through

modulating boiler water temperature;

the boiler switches off completely

when no heat is required.

•

Reliable heat transfer due to wide

water jackets and large water content.

•Highly effective boiler insulation for

negligible standby losses.

Biferral heat exchanger surface

•A boiler base for easier service

access and cleaner burner operation.

•Easy maintenance and service

access due to the horizontal

configuration of the combustion

chamber.

•Two supply and return water

connections for ease of piping.

•Easy installation and start-up: all

Viessmann oil/gas burners are factory

tested and adjusted to the rated

input.

•If required, the flue gas

temperature can be increased with

minor adjustments to the combustion

chamber.

•New Fastfix installation system –

up to 50% installation time savings.

•A.F.U.E. rating:

- Oil up to 87.4%

- Liquid propane up to 86%

- Natural gas up to 84.5%

Vitoflame 200 low emission burner

200

6

7

VITOTRONIC controls

VITOCELL DHW tanks

Vitotronic is a new generation of

smart controls that think along –

from installation to operation, from

maintenance to service, Vitotronic

controls 100, 200 and 300 offer the

right solution for every need.

Everything in sight –

everything under control

The clear operating platform of all

Vitotronic controls was designed in

accordance with the latest ergonomic

research. The Vitotronic 200/300

controls are easily adjustable to any

desired operating position. A plain

text supported LCD display makes

adjustments child’s play.

After adjustments are made, the

control is simply pushed back into

the housing, where it blends

seamlessly into the Vitotronic design.

An LED light display indicates the

operating status.

At the touch of a button:

warm – or cold

Whether you are expecting guests or

are ready to depart for an evening or a

holiday trip, with the Vitotronic 200 or

300 controls you can adjust your

heating system with the touch of a

button – for example with the party or

economy buttons, which temporarily

change the operating mode. The

holiday program will lower the heating

system temperature to save energy

while you are away for longer periods

of time.

Comfort comes first

For those who would like more

convenience operating their heating

system – the Vitotrol remote control

can easily be added to the Vitotronic

control system. Vitotrol allows

remote operation from your living

area.

Vitotronic 200 control

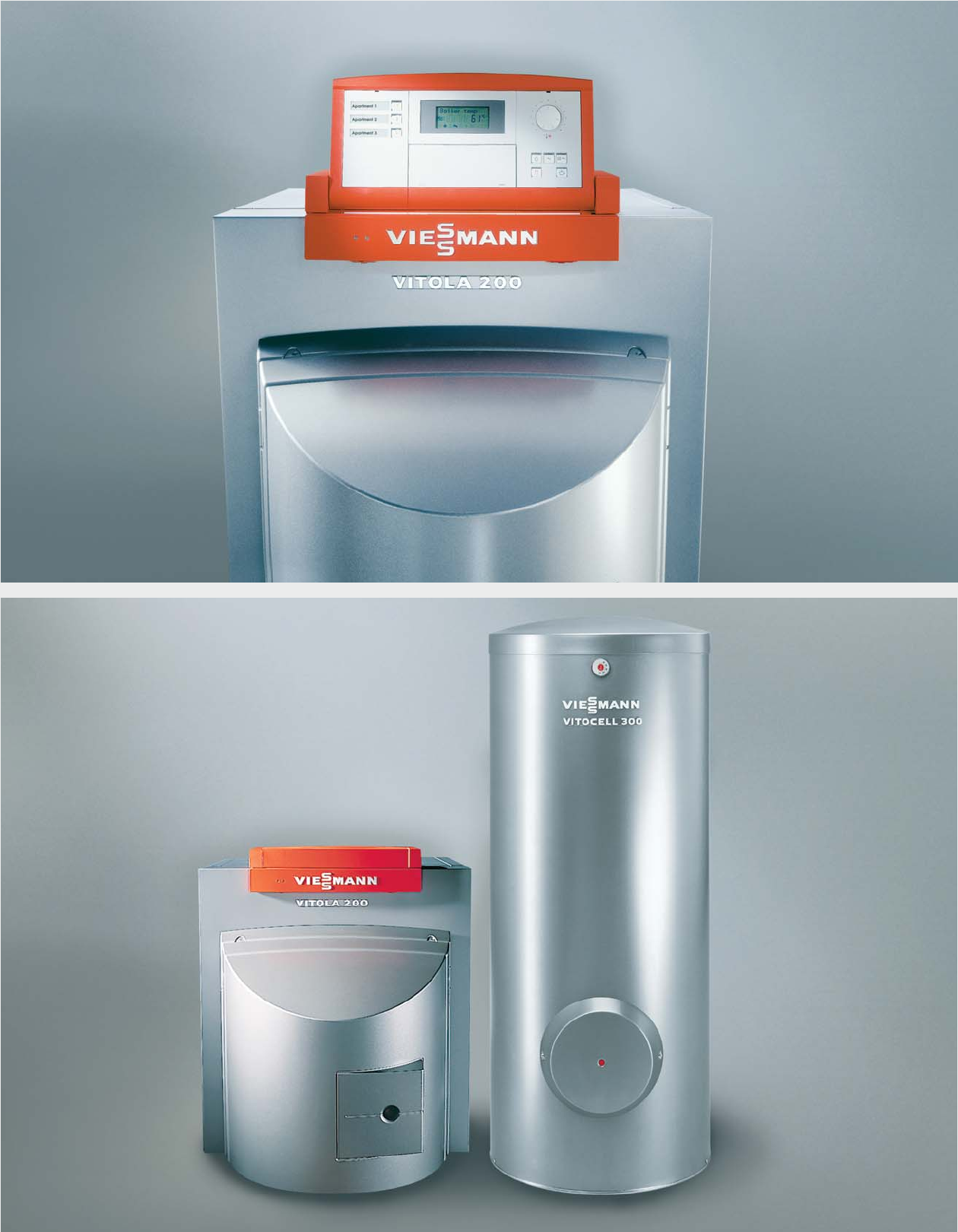

The most effective domestic hot

water heating system is the

combination of a hot water heating

boiler and an indirect-fired domestic

hot water storage tank. High and

steady flow rates, low standby losses

and high draw rates stand for

comfort, economy and reliability. It

also stands for the new Vitocell tank

series, providing the right solution for

every need – from 42 to 120

USG/160 to 450 liters, with single or

dual heat exchanger coils, for tank

placement below or beside (page 6)

the heating boiler.

Vitocell 100

The Vitocell 100 domestic hot water

storage tanks with Ceraprotect two-

coat enamel finish meet all demands

for comfortable, economical domestic

hot water heating and take a leading

position in the market for enameled

domestic hot water storage tanks

combined with a hot water heating

boiler. The Ceraprotect two-coat

enamel finish, together with a

consumable anode, protects the tank

against corrosion.

Vitocell 300

The Vitocell 300 domestic hot water

storage tanks made of corrosion-

resistant high-alloy stainless steel

satisfy the most stringent hygienic

requirements and expectations.

Stainless steel is a material which is

used for its outstanding hygienic

properties in kitchens, laboratories,

hospitals and in the food processing

industry. Even after many years of

use, the homogeneous surface of

high-alloy stainless steel remains

completely hygienic.

1

65

3

4

2

Burner may not be exactly as illustrated.

8

9

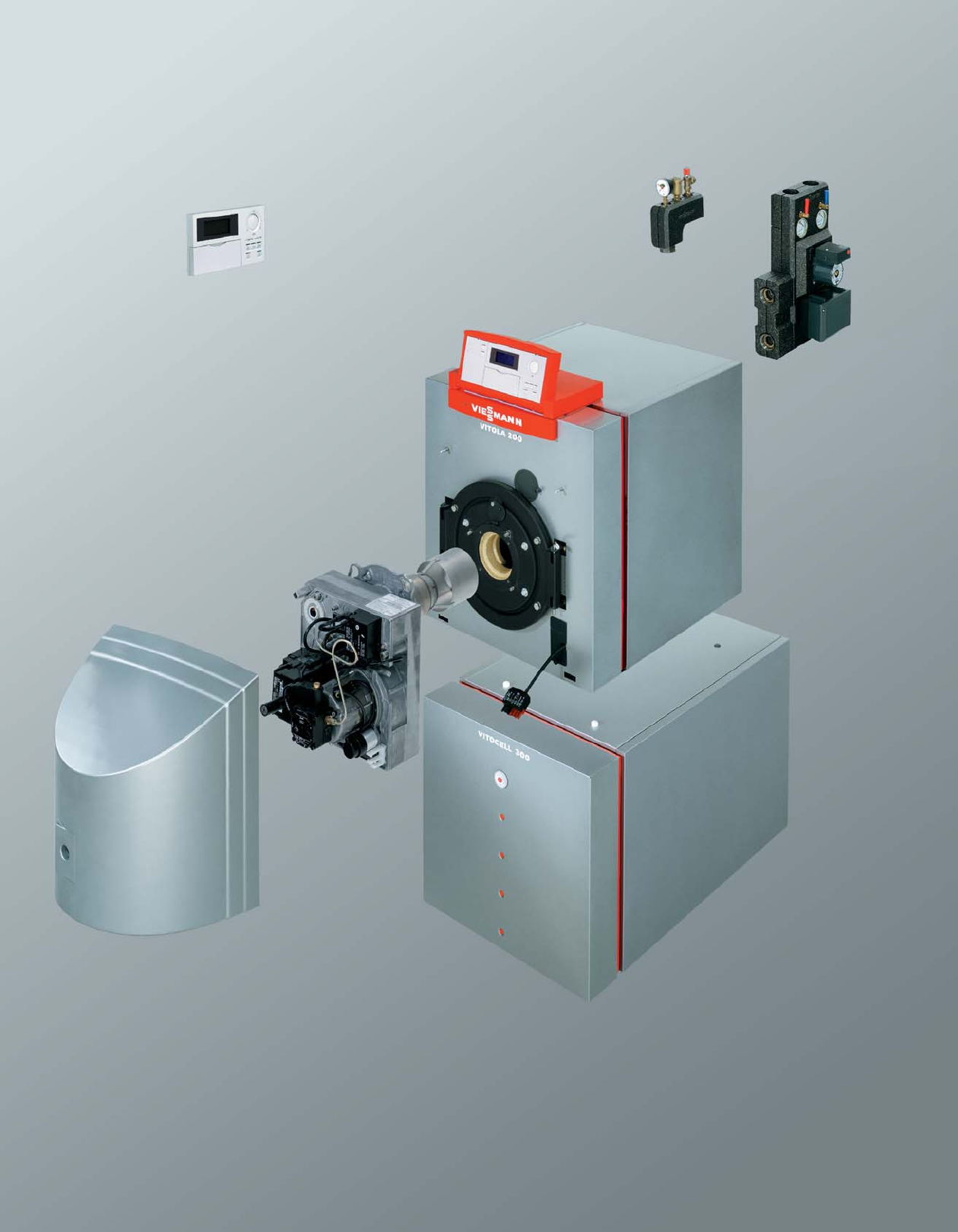

Every single component of our

heating technology follows the

Vitotec building block principle. This

guarantees a smooth functioning of

the entire heating system. All boilers,

burners and controls harmonize

perfectly.

Controls

The Vitotronic controls 100, 200 and

300 (Fig. 1) meet the demands of

every heating system application –

from the basic to the sophisticated.

Platform

All Vitola 200 boilers have a common

base chassis. This simplifies the

installation, operation, maintenance

and service considerably.

Burners

All Viessmann burners (Fig. 2) are

factory tested at operating

temperature and are adjusted to the

rated boiler input.

Domestic hot water tanks

The comprehensive Vitocell domestic

hot water tank program (Fig. 3) offers

economical hot water comfort for

every need.

Remote control

For Vitotronic 200/300 controls,

adjustable Vitotrol remote controls

(Fig. 4) are available. They allow easy

control of the heating system from

your living area.

Accessories

The Divicon mixing valve station

(Fig. 5) comes completely assembled

and can be easily installed.

A safety header (Fig. 6) with pressure

relief valve, pressure gage and air

vent including molded insulation

shells, completes the accessory

package.

Progressive heating technology is system

technology

Vitotec:

Technology Function Design

The new Vitotec program is the

successful synthesis of advanced,

state-of-the-art technology and

future-oriented innovations. The

Vitotec program combines

technological progress with

functionality and design. All

innovations are consistently targeted

to providing benefits for the user –

both the heating contractor and the

system operator.

Good design is less design

The Vitotec design is the result of a

strictly functional approach in which

all elements are reduced to the

essential. The new “Vitosilver” color

finish – in combination with the

accent color “Vitorange”, symbolizing

heat – unites Viessmann innovation

with Viessmann tradition.

One name – all products

First unity of form, now unity of

name. All product names contain the

component “Vito”, indicating not only

their affiliation with the Vitotec

program – but also system

compatibility. The second part of the

name signifies the product group. The

different program levels are

differentiated by numbers such as

100, 200 or 300.

Platform strategy

The new unity of Vitotec lies in its

constructional design and follows a

well-established technical principle.

With the Vitotec program, Viessmann

has implemented a modular

technology strategy based on one

common platform, whereby different

functional modules are positioned on

one base chassis to build different

models. This permits the use of many

identical parts, uniform and easy-to-

follow installation steps, and a

reduced number of universal spare

parts. Maintenance, servicing and

operation are considerably simplified

through a uniform design and

standardization.

Operation made easy

The new Vitotronic controls are also

designed on the building block

principle. Four modules, two base

chassis with motherboards and safety

controls, and two operating units

(fixed or in drawer form) make up the

complete control program.

The heating contractor is a

Viessmann expert

Vitotec is more than a product line. It

contains a comprehensive training,

service and maintenance package for

the heating contractor. This ensures

that the heating contractor will not

only be familiar with the latest

technology, but will also be trained

extensively at our Viessmann

Academy for the constantly changing

demands of the heating industry. As

a result, the heating contractor will

be a Viessmann specialist.

The new Vitotec program offers you

a diverse, yet uniform product range

for every need – and once more

confirms our philosophy:

“Viessmann – more than heat”.

Viessmann meets

all your heating

needs with a

diverse, yet

completely

harmonized

product range.

Viessmann

With more than 8,000 employees around

the world, the Viessmann Group is one of

the leading manufacturers of heating

technology worldwide. Viessmann

represents competence and innovation and

offers you a wide variety of high-tech

heating products, each a design-matched

component in the progressive Viessmann

system technology. Despite their diversity,

Viessmann products have one thing in

common: a high standard of quality

throughout the entire product line that

translates into operational reliability, energy

savings, environmental friendliness and

operational comfort.

Viessmann innovations lead the industry

not only in conventional heating

technology, but also in the area of

renewable energy sources such as solar

and heat pump technology.

All of our products are developed in

accordance with our philosophy to achieve

the greatest value at all times – for our

customers and our business partners.

Contact the Viessmann office in Canada or

U.S.A. for the name of the Viessmann

Sales Representative closest to you.

North American and

Canadian Head Office

Viessmann Manufacturing

Company Inc.

Waterloo, ON Canada

Tel. (519) 885-6300

Fax (519) 885-0887

www.viessmann.ca

U.S. Head Office

Viessmann Manufacturing

Company (U.S.) Inc.

Warwick, RI U.S.A.

Tel. (401) 732-0667

Fax (401) 732-0590

www.viessmann-us.com

Viessmann Sales Center

Langley, BC Canada (604) 533-9445

Viessmann Sales Offices

Waterloo, ON Canada (226) 338-7038

Toronto, ON Canada (416) 657-4333

Stoney Creek, ON Canada (905) 664-4426

Reno, NV U.S.A. (775) 849-0725

Chicago, IL U.S.A. (773) 248-4809

Technical information subject to change without notice.

5167 402 11/08 Printed in Canada

Oil-fired
