User Manual
User Guide
802.11g Wireless Router
WR100
ViewSonic Wireless Router i
Copyright © ViewSonic Corporation, 2004. All rights are reserved.
ViewSonic and the three birds logo are registered trademarks of ViewSonic Corporation.
UPnP™ is a trademark of UPnP™ Implementers Corporation (UIC).
The ‘Wi-Fi CERTIFIED’ logo is a certification mark of the Wi-Fi Alliance.
Broadcom and the pulse logo are trademarks of Broadcom Corporation and/or its affiliates in the United
States and certain other countries.
Microsoft, Windows, the Microsoft Internet Explorer logo graphic, and the Windows logo are either
registered trademarks or trademarks of Microsoft Corporation in the United States and/or other countries.
Corporate names and trademarks are the property of their respective companies.
Disclaimer: ViewSonic Corporation shall not be liable for technical or editorial errors or omissions
contained herein; nor for incidental or consequential damages resulting from furnishing this material, or the
performance or use of this product.
In the interest of continuing product improvement, ViewSonic Corporation reserves the right to change
product specifications without notice. Information in this document may change without notice.
No part of this document may be copied, reproduced, or transmitted by any means, for any purpose
without prior written permission from ViewSonic Corporation.
Product Registration
To meet your future needs and to receive additional product information as it becomes available, register
your ViewSonic® product at: www.viewsonic.com.
For Your Records
Model Name:
Model Number:
Document Number:
Serial Number:
Purchase Date:
WR100
VS10276
A-WR100-1_CD 07-21-04
__________________
__________________
ViewSonic Wireless Router ii
Table of Contents
Product Registration......................................................................................................... i
For Your Records............................................................................................................. i
Overview .......................................................................................................................... 1
Finally, networking made easy......................................................................................... 1
Chapter 1: Getting Started
Freedom of a wireless network.............................................................................................. 2
Package Contents ................................................................................................................. 3
Safety Notice ......................................................................................................................... 4
Front of router........................................................................................................................ 6
Chapter 2: Product Description
Back of router ........................................................................................................................ 7
Chapter 3: Setting up the wireless router
Configuring the wireless router using Web-based utility screens .......................................... 14
Wireless................................................................................................................................. 19

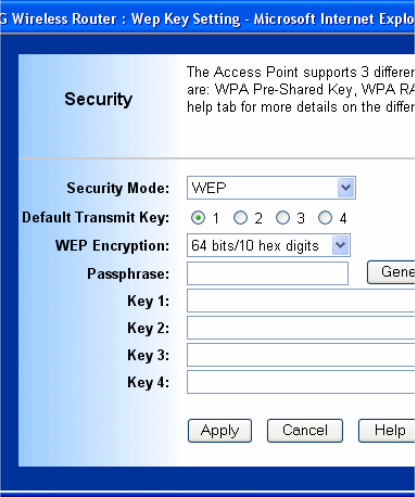

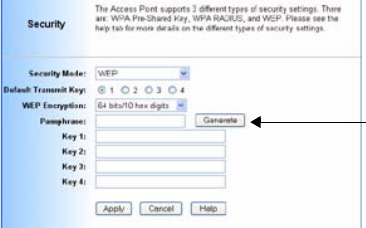

Security.................................................................................................................................. 21

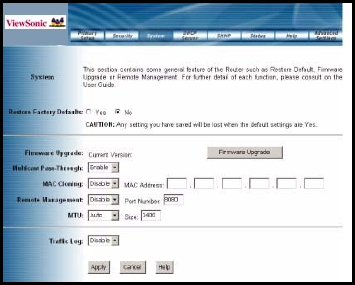

System................................................................................................................................... 24
DHCP Server ......................................................................................................................... 30

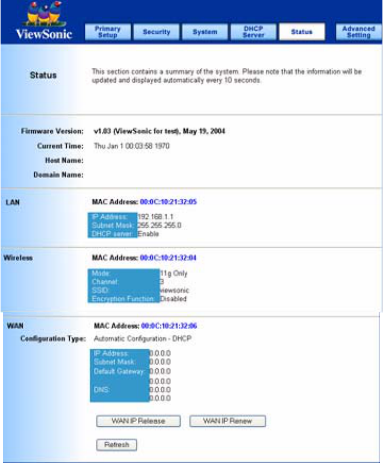

Status..................................................................................................................................... 33

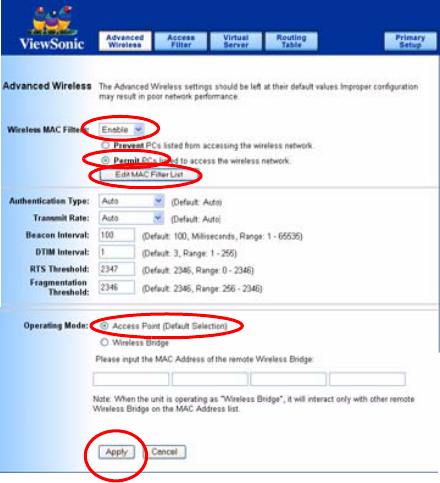

Advanced Wireless ................................................................................................................ 34

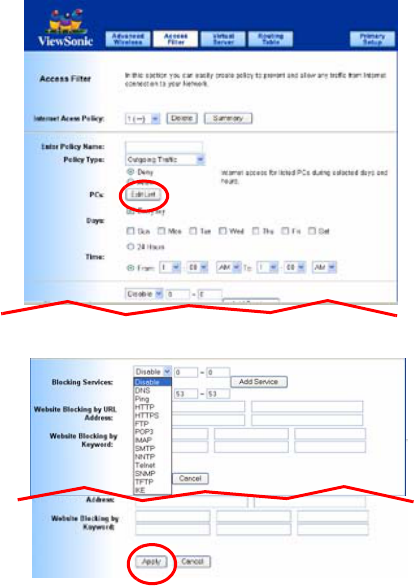

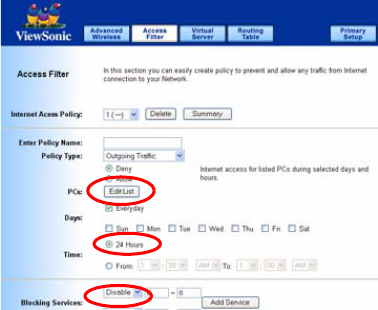

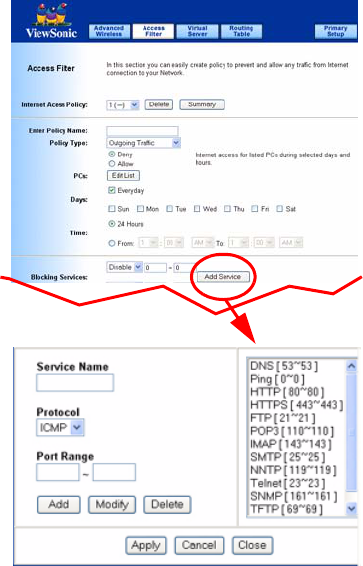

Access Filters ........................................................................................................................ 38
Virtual Server ......................................................................................................................... 44

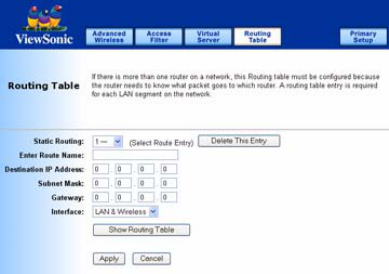

Routing Table ........................................................................................................................ 47
Operating Mode ............................................................................................................... 47
ViewSonic Wireless Router iii
Table of Contents, continued
Dynamic Routing (RIP) .................................................................................................... 47
Static Routing, Destination IP Address, Subnet Mask, Gateway, and Interface .............. 48
Appendix
Specifications......................................................................................................................... 51
Wireless Security & Glossary ................................................................................................ 52
Troubleshooting..................................................................................................................... 73
Compliances .......................................................................................................................... 77
Cleaning & Maintenance........................................................................................................ 80
Customer Support.................................................................................................................. 81
Limited Warranty.................................................................................................................... 82
ViewSonic Wireless Router 1
Overview
Congratulations on purchasing the ViewSonic Wireless Router!
Finally, networking made easy.
Networking your home or small business is easy with ViewSonic’s
WR100 Wireless Router. The WR100 functions as the CENTRAL
GATEWAY IN YOUR HOME OR OFFICE NETWORK, allowing you
to share your broadband, files and printers with any PC in your
office or home. The WR100 boasts a stylish, compact design that
offers high performance wireless 802.11g, 802.11b and wired
Ethernet connectivity. HIGH-LEVEL SECURITY FEATURES
include Virtual Private Network (VPN) support, parental controls,
firewall, and strong wireless security. The WR100 Wireless
Network Router is the cost-effective, and security-conscious
networking solution for your home or office.
Chapter 1: Getting Started
This chapter provides an Overview of the ViewSonic WR100
Wireless Router, Package Contents, and Safety Notice.
ViewSonic Wireless Router 2
Freedom of a wireless network.
•Create a wireless network for your home or office
Create a local area network (LAN) with the WR100 Wireless
Router and share a single high-speed broadband connection,
files, printers and other peripherals among all your computers.
•Robust security keeps your data secure
Network Address Translation (NAT) and Stateful Packet
Inspection (SPI) firewall ensures your networked data is safe from
Internet intruders. Wireless security includes 64-bit/128-bit Wired
Equivalency Privacy (WEP), 256-bit Wi-Fi Protected Access™
(WPA) and Medium Access Controller (MAC) address filtering.
•Superior performance and speed Zero waiting time.
Transfer data at up to 10 times the speed of standard 802.11b
wireless networks. Share your files, videos, music and pictures
almost instantly with the 125* high speed mode within your
network.
* When operating at highest speeds, this WiFi device achieves an
actual throughput of up to 34 Mbps, which is the equivalent
throughput of a system following 802.11g protocol and operating
at a signaling rate of 125 Mbps. This mode requires the same
technology from the client devices.
•Easy set up
User-friendly set up wizard on the Network Companion CD makes
installation a snap.
Using the router with a ViewSonic Wireless Network Adapters enables you to
connect notebooks and/or desktop PCs to your high-speed network in your
home or office. Enjoy the flexibility and freedom of a wireless network in your
home or small business with a ViewSonic Wireless Router.
ViewSonic Wireless Router 3

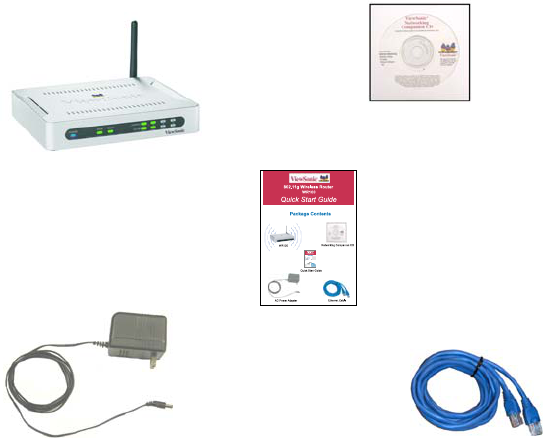

Package Contents
Check to make sure all of the items shown below are included in
the package.
For information on optional accessories and products, go to
www.viewsonic.com.
Wireless WR100 Router
Network Companion CD
Quick Start Guide
AC Power Adapter Ethernet LAN Cable
(6 feet)
ViewSonic Wireless Router 4
Safety Notice
To ensure safe operation, following these simply rules:
•Place device in a safe, secure location.
•Read the user guide thoroughly before installing the device.
•The device should only be repaired by authorized and qualified
personnel. Do not try to open or repair the device yourself as
this voids the warranty.
•Do not place the device in a damp, wet, or humid location like a
bathroom.
•Do not expose the device to direct sunlight or other heat
sources. The housing and electronic components may be
damaged by direct sunlight or heat sources.
ViewSonic Wireless Router 6
This chapter describes the parts of the router on the Front and Back panels.
Front of router
POWER LED
ON – Blue
WAN LED
Modem (cable or DSL)
ON (green)
WLAN LED
Link/Act LEDs
LED on indicates an
active connection to
Port 1, 2, 3, and/or 4
10/100 LEDs
Blinking LEDs indicate
data is transferring
Antenna
Chapter 2: Product Description
ViewSonic Wireless Router 7

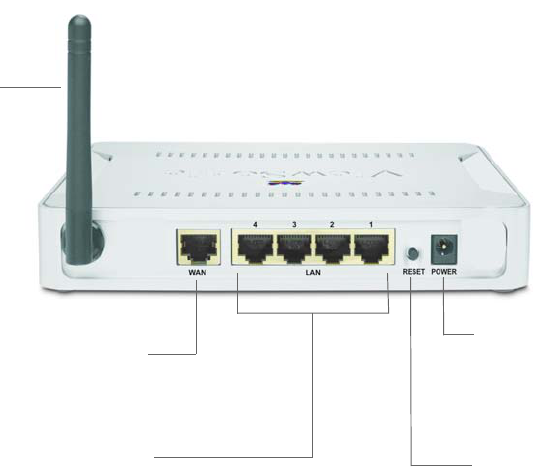

Back of router
WAN port
To modem (DSL or cable)
LAN ports: 1,2,3,4.
10/100Mbps. Connect up to four PCs. LEDs
on the front of the router indicate which
Ethernet port is active.
RESET button
Resets the router back to
factory default settings
DC-in power jack to AC power
wall outlet or power strip with
purge suppress
Antenna
ViewSonic Wireless Router 8

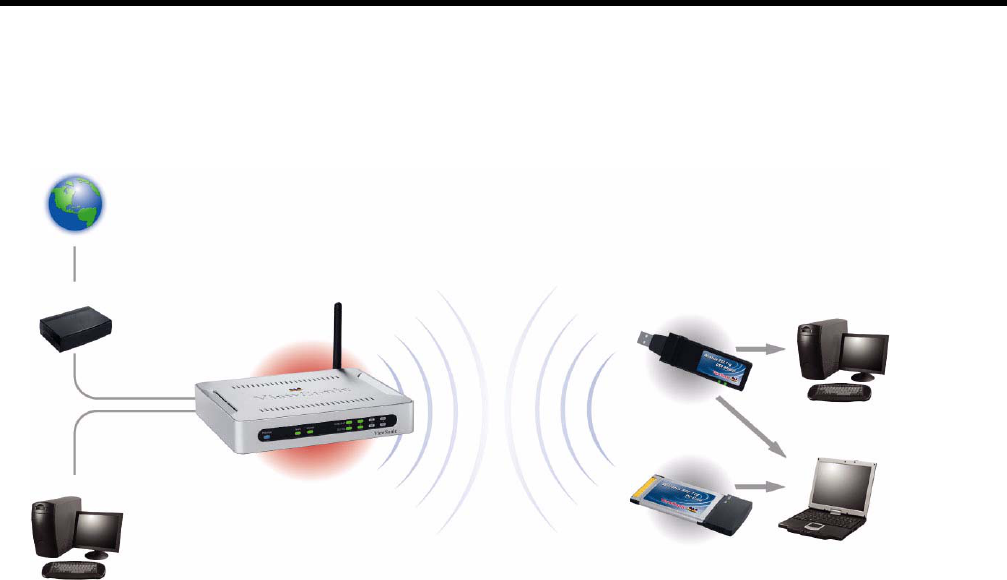

This chapter shows how to set up the ViewSonic wireless router to
work with multiple devices in three steps: 1. Connect the wireless
router.. 2. Configure your PC (by CD or manually). 3. Configure the
wireless router. A typical setup may look like the following:
Internet
Modem
PC Wired
WR100
Wireless router
USB 2.0
Adapter PC
PC Card Laptop
Chapter 3: Setting up the wireless router
ViewSonic Wireless Router 9

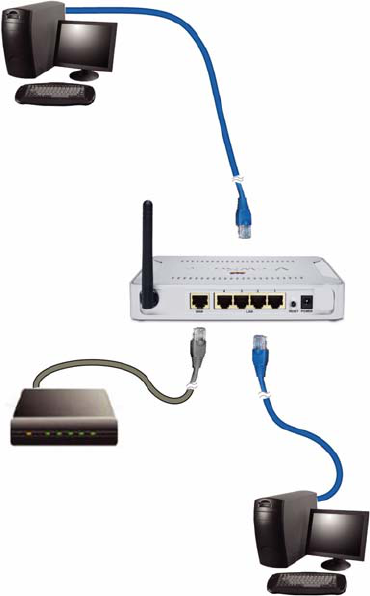

Step 1. Connect the wireless router.
1Make sure you have all the setup information from your Internet
Service Provider (ISP) and/or Network IT Administrator.
2Make sure that all network hardware is turned off, including the
router, computer(s), and modem (cable or DSL).
3Connect one end of an Ethernet cable to one of the LAN ports
(labeled 1, 2, 3, or 4 on the back of the router). Plug the other
end of the cable to the Ethernet port on your computer. To
connect more computers or network devices to the router,
repeat this step.
Optional: Connect another Ethernet cable from yoru modem
(cable or DSL) to the WAN port on the back of the router.
4Connect your modem to the WAN port of the router. Make sure
the modem (cable or DSL) power is on.
Ethernet cable
to computer
Modem
(DSL or cable)
Additional
computer
ViewSonic Wireless Router 10

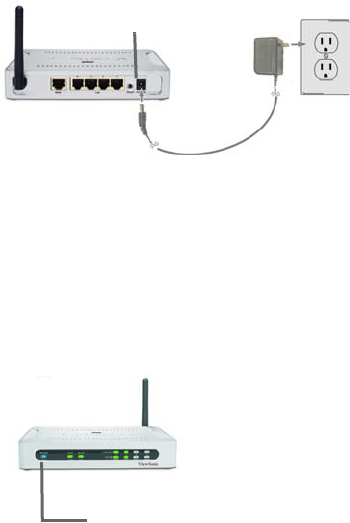

5Connect the power adapter from the power jack on the back of
the router to an AC wall outlet as shown or to a power strip with
surge protection. The Power LED on the front of the router
turns blue.
Power jack
Power cord
AC power
wall outlet
Power LED: blue - ON
All other LEDs: green
Back of WR100
Front of WR100
ViewSonic Wireless Router 11
Step 2 Configure your PC
Make sure that your computer is set to DHCP (Dynamic Host
Configuration Protocol) to obtain an IP address automatically. By
default, your computer should already be set to Obtain an IP
Address Automatically. But, if you’ve changed these settings and
want to obtain an IP Address automatically now, do the following:
For Windows 2000 or XP

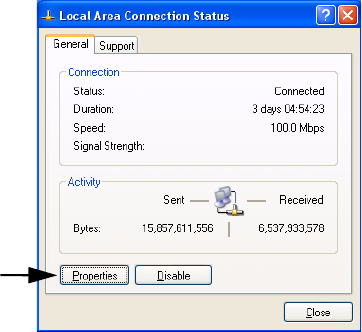

1Click the Windows Start button > Control Panel > Network
and Internet Connections > Local Area Connection. The
Local Area Connection screen appears as shown on the right.
2Click Properties. The Local Area Connection Properties
screen appears on the next page.
ViewSonic Wireless Router 12

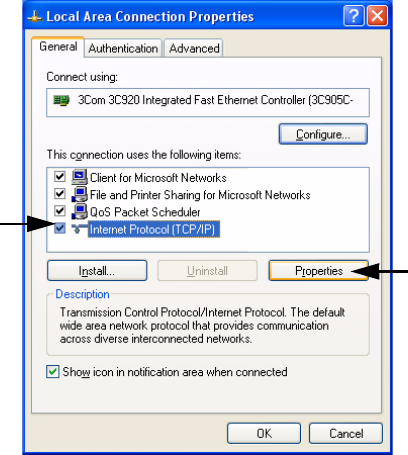

3Check the box next to Internet Protocol (TCP/IP) if it isn’t
already checked by default. Highlight Internet Protocol (TCP/
IP) if it isn’t already highlighted automatically. Click Properties.
The Internet Protocol (TCP/IP) Properties screen appears.
ViewSonic Wireless Router 13

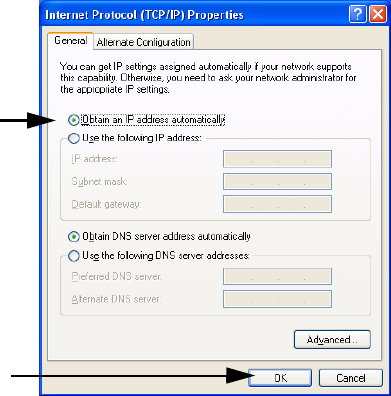

4Select Obtain an IP address automatically. Click OK > OK >
Close to complete the PC configuration.
5Restart your computer if prompted to do so.
ViewSonic Wireless Router 14

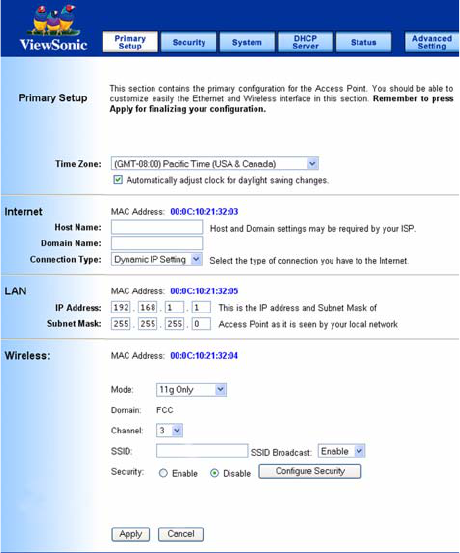

Configuring the wireless router
using Web-based utility screens
You only need to configure the router once on any computer that
you already have set up. Default settings in the table on the right
may be helpful during the configuration process.
1Open your web browser. In the address field, enter
http://192.168.1.1 and press Enter. A log on window appears
like the one shown on the next page.
*Wireless Router
Basic Settings Default
Internet Configuration Type Automatic
Configuration-DHCP
Router* IP Address 192.168.1.1
Router Subnet Mask 255.255.255.0
Router Password admin (lowercase)

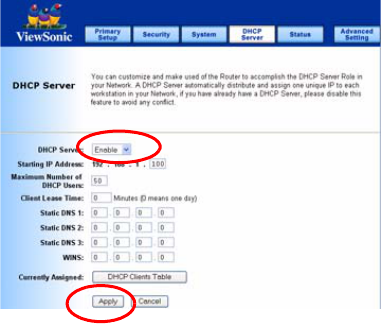

DHCP Settings
DHCP Server Enable
DHCP Starting IP Address 192.168.1.100
Number of DHCP Client
Users 50
2.4GHz Wireless Setting
SSID viewsonic
Channel 6
WEP (Encryption) Disable
ViewSonic Wireless Router 15
Leave the User name field empty. In the Password field, enter
the default password “admin” in all lower case letters. (Later on,
for added security, change the password to your own using the
password tab with the Password tab of the web-based utility.)
Click OK. The Primary Setup screen appears as shown on the
next page.
ViewSonic Wireless Router 16
2If requested by your ISP (usually cable ISPs), complete the
Host Name and Domain Name fields. Otherwise, leave them
blank. Click the down arrow next to the Connection Type
field. A drop-down menu appears with several connection types
as described below. Select a Connection Type. The Primary
Setup screen offers different features depending on the
connection type you select. Click Apply.
Connection Type:
Automatic Configuration - DHCP. If you are connecting
through DHCP or a dynamic IP address from your ISP, keep
this default setting.
Static IP. If your ISP assigns you a static IP address, select
Static IP from the drop-down menu. Complete the Internet IP
Address, Subnet Mask, Default Gateway, and DNS fields.
Enter at least one DNS address.
PPPoE. If you are connecting through PPPoE, select PPPoE
from the dropdown menu. Complete the User Name and
Password fields.
PPTP. PPTP is a service used in Europe only. If you are using a
PPTP connection, check with your ISP for the necessary setup
information.
ViewSonic Wireless Router 17
3To configure the router for your wireless network, select one of
the following network modes:
2.4GHz Wireless Mode
Mixed: If you have Wireless-G and 802.11b devices in
your network, then keep the default setting,
Mixed.
G-Only: If you have only Wireless-G devices, select G-
Only.
Disable: To disable wireless networking for 54g and
802.11b, select Disable.
4Customize the SSID and Channel settings as needed. For
added security, change the default SSID (viewsonic) to a
unique name and enable WEP encryption (recommended).To
enable WEP encryption, click the Security tab from the
Primary Setup screen. The Security screen appears.
ViewSonic Wireless Router 18
5Click Enable next to WEP. Click Edit WEP Settings. A screen
like the one on the right appears. Customize the WEP
encryption settings as needed. To save your settings, click
Apply.
6On the Setup screen, click Apply to save your settings. Close
the web browser.
7Restart your computer(s) to get the router’s new settings if
prompted.
8Test the setup by opening your web browser from any computer
and entering http://www.viewsonic.com. The ViewSonic web
site should appear.
For more detailed information, see the Troubleshooting section in
this guide. If needed, contact ViewSonic for additional assistance.
For contact information, see the Appendix – Customer Support.
THIS PAGE
NEEDS WORK.
ViewSonic Wireless Router 19
Wireless
This section provides the Wireless Network settings for your
WLAN.
SSID: The service set identifier (SSID) or network name. It is case
sensitive and must not exceed 32 characters, which may be any
keyboard character. You shall have selected the same SSID for all
the wireless routers that will be communicating with mobile
wireless stations.
Domain: The displaying information is related with each domain
regulation.
Channel: Select the appropriate channel from the list provided to
correspond with your network settings. You shall assign a different
channel for each wireless router to avoid signal interference.
Security: There are 3 types of security to be selected. To secure
your Wireless Networks, it’s strongly recommended that you
enable this feature.
WEP: Make sure that all wireless devices on your network are
using the same encryption level and key. WEP keys must consist of
the letters "A" through "F" and the numbers "0" through "9."
TBD. Writer to fix a screen
showing Security ENABLED
add “viewsonic”, change
channel numer to a shadow,
ViewSonic Wireless Router 20
Important Notice: In order to make the correct use of the WPA,
make sure that your current wireless router’s driver, and Wireless
Utility can support the WPA. The WPA needs 802.1x authentication
(when RADIUS mode is chosen), though the Operating System
must also support 802.1x protocol. For Microsoft’s OS family, only
Windows XP has incorporated this by default. Other operating
systems must install a third-party client software such as Funk
ODySSey.
WPA-Preshared key: There are two encryption options for WPA
Pre-Shared Key; TKIP and AES.
•TKIP stands for Temporal Key Integrity Protocol. TKIP uses a
stronger encryption method and incorporates Message Integrity
Code (MIC) to provide protection against hackers.
•AES stands for Advanced Encryption System, which uses a
symmetric 128-Bit block data encryption.
To use WPA Pre-Shared Key, enter a password in the WPA Shared
Key field between 8 and 63 characters long. You may also enter a
Group Key Renewal Interval time between 0 and 99,999 seconds.

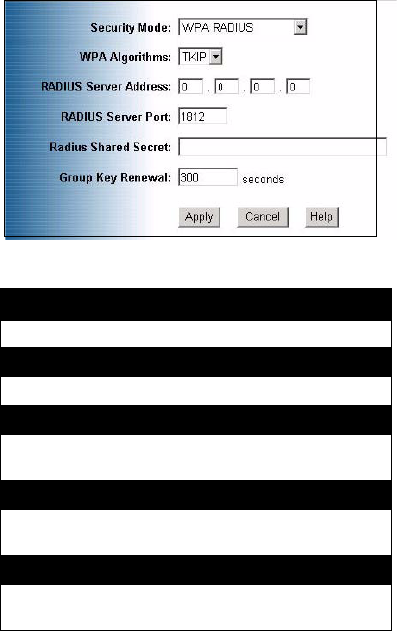

WPA RADIUS: WPA RADIUS uses an external RADIUS server to
perform user authentication. To use WPA RADIUS, enter the IP
address of the RADIUS server, the RADIUS Port (default is 1812)
and the shared secret from the RADIUS server.
Click Apply to save your settings.
TBD
WPA Algorithms
Choose your algorithm method: TKIP or AES.
Radius Server Address
Input your RADIUS Server IP address.
RADIUS Server Port
Input the Authentication port of your RADIUS
server; the default port being used is 1812
RADIUS Shared Key
The RADIUS server accepts the authentication if
both Shared Keys match.
Group Key Renewal
Input the period of renewal time; the default
selection is 300 seconds
ViewSonic Wireless Router 21
Security
Wireless router Password: Change the password for the
Wireless router by typing the password in the Enter New
Password field. Then, type it again into the Re-enter field to
confirm. Click the Apply button to save the setting.
Use the default password (“admin”) when you first open the
configuration pages. After you have configured these settings, set
a new password for the Wireless router (using the Security screen).
This increases security by protecting the Wireless router from
unauthorized changes.
VPN Pass-Through: Virtual Private Networking (VPN) is typically
used for work-related networking. For VPN tunnels, the Wireless
router supports IPSec Pass-Through, L2TP Pass-Through, and
PPTP Pass-Through.
•IPSec - Internet Protocol Security (IPSec) is a suite of protocols
used to implement secure exchange of packets at the IP layer.
To allow IPSec tunnels to pass through the Wireless router,
IPSec Pass-Through is enabled by default. To disable IPSec
Pass-Through, uncheck the box next to IPSec.
•L2TP - Layer 2 Tunneling Protocol is a protocol used to tunnel
Point-to-Point Protocol (PPP) over the Internet. To allow L2TP
tunnels to pass through the Wireless router, L2TP Pass-
Through is enabled by default. To disable L2TP Pass-Through,
uncheck the box next to L2TP.
ViewSonic Wireless Router 22
•PPTP - Point-to-Point Tunneling Protocol is the method used to
enable VPN sessions to a Windows NT 4.0 or 2000 server. To
allow PPTP tunnels to pass through the Wireless router, PPTP
Pass-Through is enabled by default. To disable PPTP Pass-
Through, uncheck the box next to PPTP.
Web Filters: Using the Web Filters feature, you may enable up to
four different filters.
•Proxy - Use of WAN proxy servers may compromise network
security. Denying Proxy will disable access to any WAN proxy
servers. To enable proxy filtering, click the box next to Proxy.
•Java - Java is a programming language for websites. If you
deny Java, you run the risk of not having access to Internet
sites created using this programming language. To enable Java
filtering, click the box next to Java.
•ActiveX - ActiveX is a programming language for websites. If
you deny ActiveX, you run the risk of not having access to
Internet sites created using this programming language. To
enable ActiveX filtering, click the box next to ActiveX.
•Cookies - A cookie is data stored on your PC and used by
Internet sites when you interact with them. To enable cookie
filtering, click the box next to Cookies.
DMZ: The DMZ hosting feature allows one local user to be
exposed to the Internet for use of a special-purpose service such
as Internet gaming or videoconferencing. DMZ hosting forwards all
the ports at the same time to one PC. The Port Forwarding feature
is more secure because it only opens the ports you want to have
ViewSonic Wireless Router 23
opened, while DMZ hosting opens all the ports of one computer,
exposing the computer so the Internet can see it.
Any PC whose port is being forwarded must have its DHCP client
function disabled and should have a new static IP address
assigned to it because its IP address may change when using the
DHCP function.
1To expose one PC, select Enable.
2Enter the computer's IP address in the DMZ Host IP
Address field.
3Click the Apply button.
Block WAN ICMP Request: By enabling the Block WAN Request
feature, you can prevent your network from being "pinged," or
detected, by other Internet users. The Block WAN Request feature
also reinforces your network security by hiding your network ports.
Both functions of the Block WAN Request feature make it more
difficult for outside users to work their way into your network. This
feature is enabled by default. Select Disable to disable this feature.
* Check all the settings and click Apply to save them.
ViewSonic Wireless Router 24
System
Restore Factory Default: Click the Yes button to reset all
configuration settings to factory default values.
IMPORTANT: Any settings you have saved will be lost when the
default settings are restored. Click the No button to disable the
Restore Factory Defaults feature.
Click the Apply button to save the setting.
Firmware Upgrade: Click the Upgrade button to load new firmware
onto the Wireless router. If the wireless router is not experiencing
difficulties, then there is no need to download a more recent
firmware version, unless that version has a new feature that you
want to use.
Note: When you upgrade the wireless router’s firmware, you may
lose its configuration settings, so make sure you write down the
wireless router’s settings before you upgrade its firmware.
TBD
ViewSonic Wireless Router 25

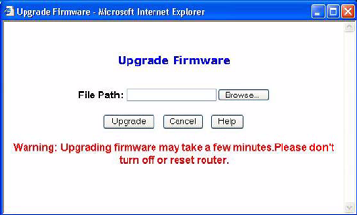

To upgrade the Wireless router’s firmware:
1Download the firmware upgrade file from the internet.
2Extract the firmware upgrade file.
3Click the Upgrade button.
4On the Firmware Upgrade screen, click the Browse button
to locate the firmware upgrade file.
5Double-click the firmware upgrade file.
6Click the Upgrade button, and follow the on-screen
instructions.
IMPORTANT! Do not power off the wireless router or press the
Reset button while the firmware is being upgraded.
ViewSonic Wireless Router 26
MAC Cloning: The Wireless router’s MAC address is a 12-digit
code assigned to a unique piece of hardware for identification.
Some ISPs require that you register the MAC address of your
network card/adapter, which was connected to your cable or DSL
modem during installation. If your ISP requires MAC address
registration, find your wireless router’s MAC address by following
the instructions for your PC’s operating system.
For Windows 98 and Millennium:
1Click the Start button on your PC and select Run.
2Type “winipcfg“ in the field provided and press the OK key.
3Select the Ethernet Adapter you are using.
4Click More Info.
5Write down your Ethernet MAC address.
ViewSonic Wireless Router 27
For Windows 2000 and XP:
1Click the Start button and select Run.
2Type cmd in the field provided, and press the OK key.
3At the command prompt, run ipconfig /all, and look at your
wireless router’s physical address.
4Write down your wireless router’s MAC address.
To clone your network wireless router’s MAC address onto the
wireless router and avoid calling your ISP to change the registered
MAC address, follow these instructions.
1Select Enable.
2Enter your wireless router's MAC address in the MAC
Address field.
3Click the Apply button.
To disable MAC address cloning, keep the default setting, Disable.
Remote Management: This feature allows you to manage your
wireless router from a remote location.
Internet. To disable this feature, keep the default setting, Disable.
To enable this feature, select Enable, and use the specified port
(default is 8080) on your PC to remotely manage the wireless
router. Also, change the wireless router’s default password to one
of your own, if you haven’t already. A unique password increases
security.
ViewSonic Wireless Router 28
To remotely manage the wireless router, enter http://
xxx.xxx.xxx.xxx:8080 (the x’s represent the wireless router’s
Internet IP address, and 8080 represents the specified port) in your
web browser’s address field. You will be asked for the wireless
router’s password. After successfully entering the password, you
will be able to access the wireless router’s web-based utility.
IMPORTANT: If the Remote Management feature is enabled,
anyone who knows the wireless router’s Internet IP address and
password will be able to alter the wireless router’s settings.
MTU: MTU is the Maximum Transmission Unit. It specifies the
largest packet size permitted for Internet transmission. Keep the
default setting, Auto, to have the wireless router select the best
MTU for your Internet connection, To specify a MTU size, select
Manual, and enter the value desired (default is 1400). You should
leave this value in the 1200 to 1500 range.
Traffic Log: The wireless router can keep logs of all incoming or
outgoing traffic for your Internet connection. This feature is
disabled by default. To keep activity logs, select Enable.
To keep a permanent record of activity logs as a file on your PC’s
hard drive, Log viewer software must be used. In the Send Log to
field, enter the fixed IP address of the PC running the Log viewer
software. The wireless router will send updated logs to that PC.
To see a temporary log of the wireless router’s most recent
incoming traffic, click the Incoming Access Log button. To see a
temporary log of the wireless router’s most recent outgoing traffic,
ViewSonic Wireless Router 29
click the Outgoing Access Log button. Click the Apply button to
save the setting.
ViewSonic Wireless Router 30
DHCP Server
The DHCP Server screen allows you to configure the settings for
the wireless router's Dynamic Host Configuration Protocol (DHCP)
server function. The wireless router can be used as a DHCP server
for your network. A DHCP server automatically assigns an IP
address to each computer on your network. If you choose to enable
the wireless router's DHCP server option, you must configure your
entire network PCs to connect to a DHCP server, the wireless
router.
If you disable the wireless router's DHCP server function, you must
configure the IP Address, Subnet Mask, and DNS for each network
computer (note that each IP Address must be unique).
DHCP Server: Select the Enable option to enable the wireless
router's DHCP server option.
If you already have a DHCP server on your network or you do not
want a DHCP server, then select Disable from the options.
ViewSonic Wireless Router 31
Starting IP Address: Enter a numerical value for the DHCP server
to start with when issuing IP addresses. Because the wireless
router's default IP address is 192.168.1.1, the Starting IP Address
must be 192.168.1.2 or greater, but smaller than192.168.5.253.
The default Starting IP Address is 192.168.1.100.
Maximum Number of DHCP Users: Enter the maximum number of
PCs that you want the DHCP server to assign IP addresses to. The
absolute maximum is 253 - possible if 192.168.1.1 is your starting
IP address. The default is 50.
Client Lease Time: The Client Lease Time is the amount of time a
network user will be allowed connection to the wireless router with
their current dynamic IP address.
Enter the amount of time, in minutes, that the user will be "leased"
this dynamic IP address. The default is 0 minutes, which means
one day.
Static DNS 1-3: The Domain Name System (DNS) is how the
Internet translates domain or website names into Internet
addresses or URLs. Your ISP will provide you with at least one
DNS Server IP Address. If you wish to utilize another, enter that IP
Address in one of these fields. You can enter up to three DNS
Server IP Addresses here. The wireless router will utilize these for
quicker access to functioning DNS servers.
WINS: The Windows Internet Naming Service (WINS) manages
each PC’s interaction with the Internet. If you use a WINS server,
enter that server’s IP Address here. Otherwise, leave this blank.
ViewSonic Wireless Router 32
Currently Assigned: Click the DHCP Clients Table button to see a
list of PCs assigned IP addresses by the wireless router. For each
PC, the list shows the client hostname, MAC address, IP address,
and the amount of DHCP client lease time left. Click the Refresh
button to display the most current information.
* Click Apply to save your settings.
ViewSonic Wireless Router 33
Status
This screen displays the wireless router's current status and
settings. This information is read-only.
This page will auto re-flash every five seconds to keep most update
information.
Host Name: The Host Name is the name of the wireless router.
This entry is necessary for some ISPs.
Domain Name: The Domain Name is the name of the wireless
router's domain.his entry is necessary for some ISPs.
WAN IP Release: Click the WAN IP Release button to delete the
wireless router's current Internet IP address.
WAN IP Renew: Click the WAN IP Renew button to get a new
Internet IP address for the wireless router.
*Click the Refresh button to refresh the wireless router's status and
settings.
ViewSonic Wireless Router 34
Advanced Wireless
Wireless MAC Filters: This function allows the administrator to
have access control by entering the MAC address of client stations.
1When you select Enable, two new options appear under
Wireless MAC Filters: Prevent or Permit.
2Select Prevent or Permit.
3Click on Edit MAC Filter List to add the client stations. The
MAC list shown on the next page.
ViewSonic Wireless Router 35

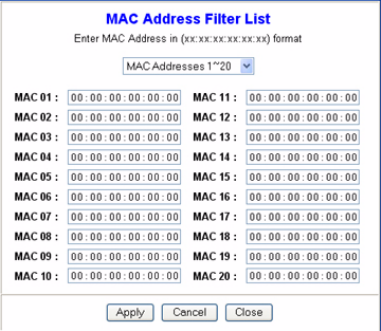

The list could store up to 40 different MAC addresses. When
entering an address, use the format shown under the title of the
screen.
ViewSonic Wireless Router 36
Authentication Type:
Auto: Auto is the default authentication algorithm.It will change its
authentication type automatically to fulfill client’s requirement.
Open System: Open System authentication is not required to be
successful while a client may decline to authenticate with any
particular other client.
Shared Key: Shared Key is only available if the WEP option is
implemented. Shared Key authentication supports authentication of
clients as either a member of those who know a shared secret key
or a member of those who do not. IEEE 802.11 Shared Key
authentication accomplishes this without the need to transmit the
secret key in clear. Requiring the use of the WEP privacy
mechanism.
Transmission Rate: The rate of data transmission should be set
depending on the speed of your wireless network. You can select
from a range of transmission speeds, or you can select AUTO to
have the wireless router automatically use the fastest possible data
rate and enable the Auto-Fallback feature. Auto-Fallback will
negotiate the best possible connection speed between the wireless
router and a wireless client. The default setting is AUTO.
DTIM Interval: This value indicates the interval of the Delivery
Traffic Indication Message (DTIM). A DTIM field is a countdown
field informing clients of the next window for listening to broadcast
and multicast messages. When the Access Point has buffered
broadcast or multicast messages for associated clients, it sends
ViewSonic Wireless Router 37
the next DTIM with a DTIM Interval value. Access Point Clients
hear the beacons and awaken to receive the broadcast and
multicast messages.
Beacon Interval: The Beacon Interval value indicates the
frequency interval of the beacon. Enter a value between 20 and
1000. A beacon is a packet broadcast by the wireless router to
synchronize the wireless network. The default value is 100.
RTS Threshold: This value should remain at its default setting of
2346. Should you encounter inconsistent data flow, only minor
modifications are recommended. If a network packet is smaller
than the preset RTS threshold size, the RTS/CTS mechanism will
not be enabled. The wireless router sends Request to Send (RTS)
frames to a particular receiving station and negotiates the sending
of a data frame. After receiving an RTS, the wireless station
responds with a Clear to Send (CTS) frame to acknowledge the
right to begin transmission.
Fragmentation Threshold: This value specifies the maximum size
for a packet before data is fragmented into multiple packets. It
should remain at its default setting of 2346. If you experience a
high packet error rate, you may slightly increase the Fragmentation
Threshold. Setting the Fragmentation Threshold too low may result
in poor network performance. Only minor modifications of this
value are recommended.
AP Mode or Wireless Bridge Mode: wireless router can operate
in two modes. When the AP Mode is selected, the device operates
ViewSonic Wireless Router 38
as a normal Access Point. Proving every wireless client station a
join network point. The Wireless Bridge Mode will be able to join
different wireless router wirelessly by input the destination MAC
Address.
* Click Apply to save your settings.
Access Filters
The Access Filter screen allows you to block or allow specific kinds
of Internet usage. You can set up Internet access policies for
specific PCs and set up filters by using network port numbers.
ViewSonic Wireless Router 39
Add service to list
ViewSonic Wireless Router 40
INTERNET ACCESS POLICY
This feature allows you to customize up to ten (10) different
Internet Access Policies for particular PCs, which are identified by
their IP or MAC addresses. For each policy's designated PCs, the
wireless router can do one or more of the following:
•Block or allow Internet access or inbound traffic during the days
and time periods specified
•Block designated services
•Block websites with specific URL addresses
•Block websites that use specific keywords in their URL
addresses.
To create or edit a policy, do the following:
1Select the policy's number (1-10) in the drop-down menu.
2Enter a name in the Enter Policy Name field.
3Select Internet Access or Inbound Traffic from the Policy Type
drop-down box, depending on the kind of access you want to
control. Select Internet Access to control your network PCs'
access to the Internet. Select Inbound Traffic to control
Internet PCs' access to your local area network.
IMPORTANT! The screen's settings will vary depending on
which Policy Type you select.
ViewSonic Wireless Router 41
4Select Deny or Allow, depending on how you want to
control access for specific PCs.
5Click the Edit List button next to PCs or Internet PCs.
A. On the List of PCs or List of Internet PCs screen, specify
PCs by IP address or MAC address. Enter the appropriate
IP addresses into the IP fields. If you have a range of IP
addresses to filter, complete the appropriate IP Range
fields. Enter the appropriate MAC addresses into the MAC
fields.
B. Click the Apply button to save your changes. Click the
Cancel button to cancel your unsaved changes. Click the
Close button to return to the Internet Filter screen.
6Set the days when access will be filtered. Keep the default
setting, Everyday, or select the appropriate days of the week.
7Set the time when access will be filtered. Keep the default
setting, 24 Hours, or check the box next to From and use the
drop-down boxes to designate a specific time period.
IMPORTANT! Access for the listed PCs is controlled during the
selected days and times. Any blocked services or websites are
blocked at all times.
8In the Blocking Services drop-down boxes, select the services
you want to block (the default setting is None). In the Blocking
Services fields, the range of ports for this service will appear. If
ViewSonic Wireless Router 42
you want to change the range of ports, enter the new numbers
in the Blocking Services fields, or edit the service’s settings.
To add a service or edit a service's settings
A. Click the Add Service button.
B. To create a new service, enter the name of the service in
the Service Name field. To edit a service's settings, select
the service from the box on the right of the screen.
C. From the Protocol drop-down menu, select the protocol
type for this service: ICMP, UDP, TCP, or UDP & TCP.
D. In the Port Range fields, enter the range of ports for this
service.
E. To add a service, click the Add button. To edit the settings
for a service, click the Modify button.
F. To delete a service, select the service from the box on the
right of the screen. Click the Delete button.
G. Click the Apply button to save your changes. Click the
Cancel button to undo your changes. Click the Close
button to close the Add Service window.
9If you want to block websites with specific URL addresses,
enter each URL address in a Website Blocking by URL Address
field. You can enter up to four URL addresses. (This feature is
not available if you chose Inbound Traffic for the Policy Type.)
10 If you want to block websites that use specific keywords as part
of their URL addresses, enter each keyword in a Website
ViewSonic Wireless Router 43
Blocking by Keyword field. You can enter up to six keywords.
(This feature is not available if you chose Inbound Traffic for the
Policy Type.)
11 Click the Apply button to save your settings for an Internet
Access Policy. Click the Cancel button to cancel your unsaved
changes.
12 To create or edit additional policies, repeat steps 1-11.
Delete
To delete an Internet Access Policy, select the policy's number, and
click the Delete button.
Summary
To see a summary of all the policies, click the Summary button.
The Internet Policy Summary screen will show each policy's
number, Name, Type, Days, and Time of Day. To delete a policy,
click its box, and then click the Delete button. Click the Close
button to return to the Internet Filter screen.
ViewSonic Wireless Router 44

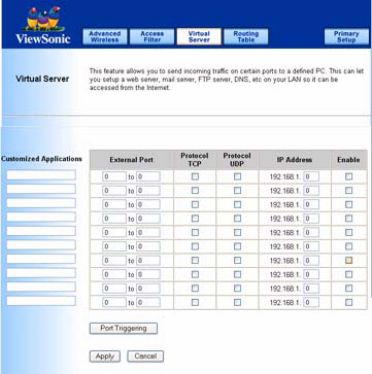

Virtual Server
The Virtual Server screen sets up public services on your network,
such as web servers, ftp servers, e-mail servers, or other
specialized Internet applications. (Specialized Internet applications
are any applications that use Internet access to perform functions
such as videoconferencing or online gaming. Some Internet
applications may not require any forwarding.)
When users send this type of request to your network via the
Internet, the wireless router will forward those requests to the
appropriate PC. Any PC whose port is being forwarded must have
its DHCP client function disabled and must have a new static IP
address assigned to it because its IP address may change when
using the DHCP function.
ViewSonic Wireless Router 45
Customized Applications
Enter the name of the public service or other Internet application in the field provided.
External Port
Enter the numbers of the External Ports (the port numbers seen by users on the Internet).
TCP Protocol
Click this checkbox if the application requires TCP.
UDP Protocol
Click this checkbox if the application requires UDP.
IP Address
Enter the IP Address of the PC running the application.
Enable
Click the Enable checkbox to enable port forwarding for the application.
Port Triggering
ViewSonic Wireless Router 46
Check all the settings and click Apply to save them.
Port Triggering is used for special Internet applications whose outgoing ports differ from the incoming ports. For this feature, the wireless
router will watch outgoing data for specific port numbers. The wireless router will remember the IP address of the
computer that sends a transmission requesting data, so that when the requested data returns through the wireless router,
the data is pulled back to the proper computer by way of IP address and port mapping rules. Click the Port Triggering
button to set up triggered ports, and follow these instructions:
1Enter the Application Name of the trigger.
2Enter the Outgoing Port Range used by the application. Check with the Internet application for the port number(s) needed.
3Enter the Incoming Port Range used by the application. Check with the Internet application for the port number(s) needed.
4Click the Apply button to save your changes. Click the Cancel button to cancel your unsaved changes. Click the Close button
to return to the Port Forwarding screen.
ViewSonic Wireless Router 47
Routing Table
On the Routing Table screen, you can set the routing mode and
settings of the wireless router. Gateway mode is recommended for
most users.
Operating Mode
Operating Mode
The default setting is Gateway. Choose the correct working mode.
Keep the default setting, Gateway, if the wireless router is hosting
your network's connection to the Internet (Gateway mode is
recommended for most users). Select wireless router if the wireless
router exists on a network with other routers.
Dynamic Routing (RIP)
Dynamic Routing (RIP)
IMPORTANT! This feature is not available in Gateway mode. The
default setting is Disable.
Dynamic Routing enables the wireless router to automatically adjust
to physical changes in the network's layout and exchange routing
tables with other wireless routers. The wireless router determines
the network packets' route based on the fewest number of hops
between the source and destination.
To enable the Dynamic Routing feature, select Enable. To disable
the Dynamic Routing feature for all data transmissions, keep the
default setting, Disable.
ViewSonic Wireless Router 48
Static Routing, Destination IP Address,
Subnet Mask, Gateway, and Interface
Static Routing, Destination IP Address, Subnet Mask, Gateway, and
Interface
1To set up a static route between the wireless router and another
network, select a number from the Static Routing drop-down list. (A
static route is a pre-determined pathway that network information must
travel to reach a specific host or network.)
2Enter the following data:
•Destination IP Address - The Destination IP Address is the
address of the network or host that you want to assign a static route.
•Subnet Mask - The Subnet Mask determines which portion of an IP
address is the network portion, and which portion is the host portion.
•Gateway - This is the IP address of the gateway device that allows
for contact between the wireless router and the network or host.
3Depending on where the Destination IP Address is located, select LAN
& Wireless or Internet (WAN) from the Interface drop-down menu.
4To save your changes, click the Apply button. To cancel your unsaved
changes, click the Cancel button.
5For additional static routes, repeat steps 1-4.
Delete This Entry
ViewSonic Wireless Router 49
To delete a static route entry:
1From the Static Routing drop-down list, select the Entry Number of
the static route.
2Click Delete This Entry.
3To save a deletion, click Apply button. To cancel a deletion, click the
Cancel button.
Show Routing Table
Click the Show Routing Table button to view all of the valid route
entries in use. The Destination IP address, Subnet Mask, Gateway,
and Interface will be displayed for each entry. Click the Refresh
button to refresh the data displayed.
•Destination LAN IP - The Destination IP Address is the
address of the network or host to which the static route is
assigned.
•Subnet Mask - The Subnet Mask determines which portion of
an IP address is the network portion, and which portion is the
host portion.
•Gateway - This is the IP address of the gateway device that
allows for contact between the wireless router and the network
or host.
•Interface - This interface tells you whether the Destination IP
Address is on the LAN & Wireless (internal wired and wireless
networks), the WAN (Internet), or Loopback (a dummy network
in which one PC acts like a network—necessary for certain
software programs).
* Click Apply to save your settings.
ViewSonic Wireless Router 50
Appendix
The Appendix has the following sections:
•Specification
•Wireless Security & Glossary
•Troubleshooting
•Compliances
•Cleaning & Maintenance
•Customer Support
•Limited Warranty
ViewSonic Wireless Router 51
Specifications
WLAN standards IEEE 802.11g: 54, 48, 36, 24, 18, 12, 9, 6 Mbps
IEEE 802.11b: 11, 5.5, 2, 1 Mbps
Ports WAN: 1
LAN: 4
Main Board Memory Flash: 4MB
SDRAM: 8MB
Antenna Single external antennas
LED Status LEDs: Power, Standby, Ethernet & Wireless
Link/Activity
Networking Interface Ethernet: IEEE 802.3 10-base T, IEEE 802.3u
100-base T
Wireless: IEEE 802.11g (2.4Ghz-DSSS)
Channels 1-11 United States, Canada
Output Power Max 100 mW (after antenna)
Coverage Area Up to 100 meters indoors
Up to 400 meters indoors
Wireless Security 64/128 bit WEP Encryption, WPA (Windows XP
SP1 and Windows 2000 SP4 only)
Integrated VPN Router supports VPN (L2TP and IPSec) traffic.
Router also supports reverse VPN functionality.
Physical Dimensions 180 mm x 30 mm x 148 mm
7.08” x 1.18” x 5.83”
Weight Net: TBD lb. (TBD kg)
Gross: TBD lb. (TBD kg)
ViewSonic Wireless Router 52
Wireless Security & Glossary
10BaseT. An IEEE standard (802.3) for operating 10 Mbps
Ethernet networks (LANs) with twisted pair cabling and a wiring
hub.
802.11 standard. 802.11 or IEEE 802.11 is a type of radio
technology used for wireless local area networks (WLANs). It is a
standard that has been developed by the IEEE (Institute of
Electrical and Electronic Engineers), http://standards.ieee.org. The
IEEE is an international organization that develops standards for
hundreds of electronic and electrical technologies. The
organization uses a series of numbers, like the Dewey Decimal
system in libraries, to differentiate between the various technology
families.
The 802 subgroup (of the IEEE) develops standards for local and
wide area networks with the 802.11 section reviewing and creating
standards for wireless local area networks.
Wi-Fi, 802.11 is composed of several standards operating in
different radio frequencies: 802.11b is a standard for wireless LANs
operating in the 2.4 GHz spectrum with a bandwidth of 11 Mbps;
802.11a is a different standard for wireless LANs, and pertains to
systems operating in the 5 GHz frequency range with a bandwidth
of 54 Mbps. Another standard, 802.11g, is for WLANS operating in
the 2.4 GHz frequency but with a bandwidth of 54 Mbps.
ViewSonic Wireless Router 53
802.11a. An IEEE specification for wireless networking that
operates in the 5 GHz frequency range (5.725 GHz to 5.850 GHz)
with a maximum 54 Mbps data transfer rate. The 5 GHz frequency
band is not as crowded as the 2.4 GHz frequency, because the
802.11a specification offers more radio channels than the 802.11b.
These additional channels can help avoid radio and microwave
interference.
802.11b. International standard for wireless networking that
operates in the 2.4 GHz frequency range (2.4 GHz to 2.4835 GHz)
and provides a throughput of up to 11 Mbps. This is a very
commonly used frequency. Microwave ovens, cordless phones,
medical and scientific equipment, as well as Bluetooth devices, all
work within the 2.4 GHz frequency band.
802.11g. Similar to 802.11b, but this standard provides a
throughput of up to 54 Mbps. It also operates in the 2.4 GHz
frequency band but uses a different radio technology in order to
boost overall bandwidth.
Access point. A wireless LAN transceiver or “base station” that
can connect a wired LAN to one or many wireless devices. Access
points can also bridge to each other. There are various types of
access points and base stations used in both wireless and wired
networks. These include bridges, hubs, switches, routers and
gateways. The differences between them are not always precise,
because certain capabilities associated with one can also be added
to another. For example, a router can do bridging, and a hub may
ViewSonic Wireless Router 54
also be a switch. But they are all involved in making sure data is
transferred from one location to another.
A bridge connects devices that all use the same kind of protocol. A
router can connect networks that use differing protocols. It also
reads the addresses included in the packets and routes them to the
appropriate computer station, working with any other routers in the
network to choose the best path to send the packets on. A wireless
hub or access point adds a few capabilities such as roaming and
provides a network connection to a variety of clients, but it does not
allocate bandwidth. A switch is a hub that has extra intelligence: It
can read the address of a packet and send it to the appropriate
computer station. A wireless gateway is an access point that
provides additional capabilities such as NAT routing, DHCP,
firewalls, security, etc.
Ad-Hoc mode. A client setting that provides independent peer-to-
peer connectivity in a wireless LAN. An alternative set-up is one
where PCs communicate with each other through an AP.
Applet. An application or utility program that is designed to do a
very specific and limited task.
Backbone. The central part of a large network that links two or
more subnetworks and is the primary path for data transmission for
a large business or corporation. A network can have a wired
backbone or a wireless backbone.
ViewSonic Wireless Router 55
Bandwidth. The amount of transmission capacity that is available
on a network at any point in time. Available bandwidth depends on
several variables such as the rate of data transmission speed
between networked devices, network overhead, number of users,
and the type of device used to connect PCs to a network. It is
similar to a pipeline in that capacity is determined by size: the wider
the pipe, the more water can flow through it; the more bandwidth a
network provides, the more data can flow through it. Standard
802.11b provides a bandwidth of 11 Mbps; 802.11a and 802.11g
provide a bandwidth of 54 Mbps.
Bits per second (bps). A measure of data transmission speed
over communication lines based on the number of bits that can be
sent or received per second. Bits per second—bps—is often
confused with bytes per second—Bps. While "bits" is a measure of
transmission speed, "bytes" is a measure of storage capability. 8
bits make a byte, so if a wireless network is operating at a
bandwidth of 11 megabits per second (11 Mbps or 11 Mbits/sec), it
is sending data at 1.375 megabytes per second (1.375 MBps).
Bluetooth wireless technology. A technology specification for
linking portable computers, personal digital assistants (PDAs) and
mobile phones for short-range transmission of voice and data
across a global radio frequency band without the need for cables or
wires. Bluetooth is a frequency-hopping technology in the 2.4 GHz
frequency spectrum, with a range of 30 feet.
Bridge. A product that connects a local area network (LAN) to
another local area network that uses the same protocol (for
ViewSonic Wireless Router 56
example, wireless, Ethernet or token ring). Wireless bridges are
commonly used to link buildings in campuses.
Broadband. A comparatively fast Internet connection. Services
such as ISDN, cable modem, DSL and satellite are all considered
broadband as compared to dial-up Internet access. There is no
official speed definition of broadband but services of 100Kbps and
above are commonly thought of as broadband.
Bus adapter. A special adapter card that installs in a PC's PCI or
ISA slot and enables the use of PC Card radios in desktop
computers. Some companies offer one-piece PCI or ISA Card
radios that install directly into an open PC or ISA slot.
Cable modem. A kind of converter used to connect a computer to
a cable TV service that provides Internet access. Most cable
modems have an Ethernet out-cable that then attaches to the
user's Wi-Fi gateway.
Client. Any computer connected to a network that requests
services (files, print capability) from another member of the
network.
Client devices. Clients are end users. Wi-Fi client devices include
PC Cards that slide into laptop computers, mini-PCI modules
embedded in laptop computers and mobile computing devices, as
well as USB radios and PCI/ISA bus Wi-Fi radios. Client devices
usually communicate with hub devices like access points and
gateways.
ViewSonic Wireless Router 57
Collision avoidance. A network node characteristic for proactively
detecting that it can transmit a signal without risking a collision.
Crossover cable. A special cable used for networking two
computers without the use of a hub. Crossover cables may also be
required for connecting a cable or DSL modem to a wireless
gateway or access point. Instead of the signals transferring in
parallel paths from one set of plugs to another, the signals
"crossover." If an eight-wire cable was being used, for instance, the
signal would start on pin one at one end of the cable and end up on
pin eight at the other end. They "cross-over" from one side to the
other.
ViewSonic Wireless Router 58
CSMA/CA (Carrier Sense Multiple Access with Collision
Avoidance). The principle medium access method employed by
IEEE 802.11 WLANs. It is a "listen before talk": method of
minimizing (but not eliminating) collisions caused by simultaneous
transmission by multiple radios. IEEE 802.11 states collision
avoidance method rather than collision detection must be used,
because the standard employs half duplex radios—radios capable
of transmission or reception—but not both simultaneously. Unlike
conventional wired Ethernet nodes, a WLAN station cannot detect
a collision while transmitting. If a collision occurs, the transmitting
station will not receive an ACKnowledge packet from the intended
receive station. For this reason, ACK packets have a higher priority
than all other network traffic. After completion of a data
transmission, the receive station will begin transmission of the ACK
packet before any other node can begin transmitting a new data
packet. All other stations must wait a longer pseudo randomized
period of time before transmitting. If an ACK packet is not received,
the transmitting station will wait for a subsequent opportunity to
retry transmission.
CSMA/CD (Carrier Sense Multiple Access/Collision Detection). A
method of managing traffic and reducing noise on an Ethernet
network. A network device transmits data after detecting that a
channel is available. However, if two devices transmit data
simultaneously, the sending devices detect a collision and
retransmit after a random time delay.
DC power module. Modules that convert AC power to DC.
Depending on manufacturer and product, these modules can range
ViewSonic Wireless Router 59
from typical "wall wart" transformers that plug into a wall socket and
provide DC power via a tiny plug to larger, enterprise-level Power
Over Ethernet systems that inject DC power into the Ethernet
cables connecting access points.
DHCP (Dynamic Host Configuration Protocol). A utility that enables
a server to dynamically assign IP addresses from a predefined list
and limit their time of use so that they can be reassigned. Without
DHCP, an IT Manager would have to manually enter in all the IP
addresses of all the computers on the network. When DHCP is
used, whenever a computer logs onto the network, it automatically
gets an IP address assigned to it.
Dial-up. A communication connection via the standard telephone
network, or Plain Old Telephone Service (POTS).
Diversity antenna - A type of antenna system that uses two
antennas to maximize reception and transmission quality and
reduce interference.
DNS (Domain Name System, or Service, or Server). A program
that translates URLs to IP addresses by accessing a database
maintained on a collection of Internet servers. The program works
behind the scenes to facilitate surfing the Web with alpha versus
numeric addresses. A DNS server converts a name like
mywebsite.com to a series of numbers like 107.22.55.26. Every
website has its own specific IP address on the Internet.
ViewSonic Wireless Router 60
DSL (Digital Subscriber Lines). Various technology protocols for
high-speed data, voice and video transmission over ordinary
twisted-pair copper POTS (Plain Old Telephone Service) telephone
wires.
Encryption key. An alphanumeric (letters and/or numbers) series
that enables data to be encrypted and then decrypted so it can be
safely shared among members of a network. WEP uses an
encryption key that automatically encrypts outgoing wireless data.
On the receiving side, the same encryption key enables the
computer to automatically decrypt the information so it can be read.
ESSID (Extended Service Set ID). The identifying name of an
802.11 wireless network. When you specify your correct ESSID in
your client setup you ensure that you connect to your wireless
network rather than another network in range. (See SSID.) The
ESSID can be called by different terms, such as Network Name,
Preferred Network, SSID or Wireless LAN Service Area.
Ethernet. International standard networking technology for wired
implementations. Basic 10BaseT networks offer a bandwidth of
about 10 Mbps. Fast Ethernet (100 Mbps) and Gigabit Ethernet
(1000 Mbps) are becoming popular.
Firewall. A system that secures a network and prevents access by
unauthorized users. Firewalls can be software, hardware or a
combination of both. Firewalls can prevent unrestricted access into
a network, as well as restrict data from flowing out of a network.
ViewSonic Wireless Router 61
Gateway. In the wireless world, a gateway is an access point with
additional software capabilities such as providing NAT and DHCP.
Gateways may also provide VPN support, roaming, firewalls,
various levels of security, etc.
HotSpot. A place where you can access Wi-Fi service. This can be
for free or for a fee. HotSpots can be inside a coffeeshop, airport
lounge, train station, convention center, hotel or any other public
meeting area. Corporations and campuses are also implementing
HotSpots to provide wireless Internet access to their visitors and
guests. In some parts of the world, HotSpots are known as
CoolSpots.
Hub. A multiport device used to connect PCs to a network via
Ethernet cabling or via WiFi. Wired hubs can have numerous ports
and can transmit data at speeds ranging from 10 Mbps to
multigigabyte speeds per second. A hub transmits packets it
receives to all the connected ports. A small wired hub may only
connect four computers; a large hub can connect 48 or more.
Wireless hubs can connect hundreds.
HZ (Hertz). The international unit for measuring frequency,
equivalent to the older unit of cycles per second. One megahertz
(MHz) is one million hertz. One gigahertz (GHz) is one billion hertz.
The standard US electrical power frequency is 60 Hz, the AM
broadcast radio frequency band is 535—1605 kHz, the FM
broadcast radio frequency band is 88—108 MHz, and wireless
802.11b LANs operate at 2.4 GHz.
ViewSonic Wireless Router 62
IEEE (Institute of Electrical and Electronics Engineers), New York,
www.ieee.org. A membership organization that includes engineers,
scientists and students in electronics and allied fields. It has more
than 300,000 members and is involved with setting standards for
computers and communications.
IEEE802.11. A set of specifications for LANs from The Institute of
Electrical and Electronics Engineers (IEEE). Most wired networks
conform to 802.3, the specification for CSMA/CD based Ethernet
networks or 802.5, the specification for token ring networks. 802.11
defines the standard for wireless LANs encompassing three
incompatible (non-interoperable) technologies: Frequency Hopping
Spread Spectrum (FHSS), Direct Sequence Spread Spectrum
(DSSS) and Infrared. WECA’s focus is on 802.11b, an 11 Mbps
high-rate DSSS standard for wireless networks.
Infrastructure mode. A client setting providing connectivity to an
AP. As compared to Ad-Hoc mode, whereby PCs communicate
directly with each other, clients set in Infrastructure Mode all pass
data through a central AP. The AP not only mediates wireless
network traffic in the immediate neighborhood, but also provides
communication with the wired network. See Ad-Hoc and AP.
Internet appliance. A computer that is intended primarily for
Internet access, is simple to set up and usually does not support
installation of third-party software. These computers generally offer
customized web browsing, touch-screen navigation, e-mail
services, entertainment and personal information management
ViewSonic Wireless Router 63
applications. An Internet appliance can be Wi-Fi enabled or it can
be connected via a cable to the local network.
IP (telephony). Technology that supports voice, data and video
transmission via IP-based LANs, WANs, and the Internet. This
includes VoIP (Voice over IP).
IP address. A 32-bit number that identifies each sender or receiver
of information that is sent across the Internet. An IP address has
two parts: an identifier of a particular network on the Internet and
an identifier of the particular device (which can be a server or a
workstation) within that network.
IPX-SPX (Internetwork Packet Exchange-Sequenced Packet
Exchange). IPX is a networking protocol used by the Novell
NetWare operating systems. Like UDP/IP, IPX is a datagram
protocol used for connectionless communications. Higher-level
protocols, such as SPX and NCP, are used for additional error
recovery services. SPX is a transport layer protocol (layer 4 of the
OSI Model) used in Novell Netware networks. The SPX layer sits
on top of the IPX layer (layer 3) and provides connection-oriented
services between two nodes on the network. SPX is used primarily
by client/server applications. Whereas the IPX protocol is similar to
IP, SPX is similar to TCP. Together, therefore, IPX-SPX provides
connection services similar to TCP/IP.
ISA (Industry Standard Architecture). A type of internal computer
bus that allows the addition of card-based components like
ViewSonic Wireless Router 64
modems and network adapters. ISA has been replaced by PCI and
is not very common anymore.
ISO Network Model (International Standards Organization). A
network model developed by the ISO that consists of seven
different levels, or layers. By standardizing these layers, and the
interfaces in between, different portions of a given protocol can be
modified or changed as technologies advance or systems
requirements are altered. The seven layers are:
•Physical
•Data Link
•Network
•Transport
•Session
•Presentation
•Application
The IEEE 802.11 Standard encompasses the physical layer (PHY)
and the lower portion of the data link layer. The lower portion of the
data link layer is often referred to as the Medium Access Controller
(MAC) sublayer.
ISS (Internet Security Services). A special software application that
allows all PCs on a network access to the Internet simultaneously
through a single connection and Internet Service Provider (ISP)
account.
LAN (Local Area Network). A system of connecting PCs and other
devices within the same physical proximity for sharing resources
ViewSonic Wireless Router 65
such as an Internet connections, printers, files and drives. When
Wi-Fi is used to connect the devices, the system is known as a
wireless LAN or WLAN.
MAC (Medium Access Controller). Every wireless 802.11 device
has its own specific MAC address hard-coded into it. This unique
identifier can be used to provide security for wireless networks.
When a network uses a MAC table, only the 802.11 radios that
have had their MAC addresses added to that network's MAC table
will be able to get onto the network.
Mapping. Assigning a PC to a shared drive or printer port on a
network.
NAT (Network Address Translation). A network capability that
enables a houseful of computers to dynamically share a single
incoming IP address from a dial-up, cable or xDSL connection.
NAT takes the single incoming IP address and creates new IP
address for each client computer on the network. NAT provides a
type of firewall by hiding internal IP addresses.
Network name. Identifies the wireless network for all the shared
components. During the installation process for most wireless
networks, you need to enter the network name or SSID. Different
network names are used when setting up your individual computer,
wired network or workgroup.
NIC (Network Interface Card). An expansion board you insert into a
computer so the computer can be connected to a network. A NIC is
ViewSonic Wireless Router 66
a type of PC adapter card that either works without wires (Wi-Fi) or
attaches to a network cable to provide two-way communication
between the computer and network devices such as a hub or
switch. Most office wired NICs operate at 10 Mbps (Ethernet), 100
Mbps (Fast Ethernet) or 10/100 Mbps dual speed. High-speed
Gigabit and 10 Gigabit NIC cards are also available. See PC Card.
PC Card. A removable, credit-card-sized memory or I/O device
that fits into a Type 2 PCMCIA standard slot, PC Cards are used
primarily in PCs, portable computers, PDAs and laptops. PC Card
peripherals include Wi-Fi cards, memory cards, modems, NICs,
hard drives, etc.
PCI (Peripheral Component Interconnect). A high-performance I/O
computer bus used internally on most computers. Other bus types
include ISA and AGP. PCIs and other computer buses enable the
addition of internal cards that provide services and features not
supported by the motherboard or other connectors.
PCMCIA (Personal Computer Memory Card International
Association). Expansion cards now referred to as “PC Cards” were
originally called “PCMCIA Cards” because they met the standards
created by the PCMCIA.
ViewSonic Wireless Router 67
Peer-to-peer network. A wireless or wired computer network that
has no server or central hub or router. All the networked PCs are
equally able to act as a network server or client, and each client
computer can talk to all the other wireless computers without
having to go through an access point or hub. However, since there
is no central base station to monitor traffic or provide Internet
access, the various signals can collide with each other, reducing
overall performance.
PHY (Physical Layer). The lowest layer within the OSI Network
Model. It deals primarily with transmission of the raw bit stream
over the PHYsical transport medium. In the case of wireless LANs,
the transport medium is free space. The PHY defines parameters
such as data rates, modulation method, signaling parameters,
transmitter/receiver synchronization, etc. Within an actual radio
implementation, the PHY corresponds to the radio front end and
baseband signal processing sections.
Proxy server. Used in larger companies and organizations to
improve network operations and security, a proxy server is able to
prevent direct communication between two or more networks. The
proxy server forwards allowable data requests to remote servers
and/or responds to data requests directly from stored remote
server data.
Range. How far will your wireless network stretch? Most Wi-Fi
systems will provide a range of a hundred feet or more. Depending
on the environment and the type of antenna used, Wi-Fi signals
can have a range of up to mile.
ViewSonic Wireless Router 68
Residential gateway. A wireless device that connects multiple
PCs, peripherals and the Internet on a home network. Most Wi-Fi
residential gateways provide DHCP and NAT as well.
RJ-45. Standard connectors used in Ethernet networks. Even
though they look very similar to standard RJ-11 telephone
connectors, RJ-45 connectors can have up to eight wires, whereas
telephone connectors have only four.
Roaming. Moving seamlessly from one AP coverage area to
another with no loss in connectivity.
Router. A device that forwards data packets from one local area
network (LAN) or wide area network (WAN) to another. Based on
routing tables and routing protocols, routers can read the network
address in each transmitted frame and make a decision on how to
send it via the most efficient route based on traffic load, line costs,
speed, bad connections, etc.
Server. A computer that provides its resources to other computers
and devices on a network. These include print servers, Internet
servers and data servers. A server can also be combined with a
hub or router.
SSID (Service Set Identifier). A 32-character unique identifier
attached to the header of packets sent over a WLAN that acts as a
password when a mobile device tries to connect to the BSS. (Also
called ESSID.) The SSID differentiates one WLAN from another, so
all access points and all devices attempting to connect to a specific
ViewSonic Wireless Router 69
WLAN must use the same SSID. A device will not be permitted to
join the BSS unless it can provide the unique SSID. Because an
SSID can be sniffed in plain text from a packet, it does not supply
any security to the network. An SSID is also referred to as a
Network Name because essentially it is a name that identifies a
wireless network.
SSL (Secure Sockets Layer). Commonly used encryption scheme
used by many online retail and banking sites to protect the financial
integrity of transactions. When an SSL session begins, the server
sends its public key to the browser. The browser then sends a
randomly generated secret key back to the server in order to have
a secret key exchange for that session.
Subnetwork or Subnet. Found in larger networks, these smaller
networks are used to simplify addressing between numerous
computers. Subnets connect to the central network through a
router, hub or gateway. Each individual wireless LAN will probably
use the same subnet for all the local computers it talks to.
Switch. A type of hub that efficiently controls the way multiple
devices use the same network so that each can operate at optimal
performance. A switch acts as a networks traffic cop: rather than
transmitting all the packets it receives to all ports as a hub does, a
switch transmits packets to only the receiving port.
TCP (Transmission Control Protocol). A protocol used along with
the Internet Protocol (IP) to send data in the form of individual units
(called packets) between computers over the Internet. While IP
ViewSonic Wireless Router 70
takes care of handling the actual delivery of the data, TCP takes
care of keeping track of the packets that a message is divided into
for efficient routing through the Internet. For example, when a web
page is downloaded from a web server, the TCP program layer in
that server divides the file into packets, numbers the packets, and
then forwards them individually to the IP program layer. Although
each packet has the same destination IP address, it may get routed
differently through the network. At the other end, TCP reassembles
the individual packets and waits until they have all arrived to
forward them as a single file.
TCP/IP (Transmission Control Protocol/Internet Protocol).The
underlying technology behind the Internet and communications
between computers in a network. The first part, TCP, is the
transport part, which matches the size of the messages on either
end and guarantees that the correct message has been received.
The IP part is the user's computer address on a network. Every
computer in a TCP/IP network has its own IP address that is either
dynamically assigned at startup or permanently assigned. All TCP/
IP messages contain the address of the destination network as well
as the address of the destination station. This enables TCP/IP
messages to be transmitted to multiple networks (subnets) within
an organization or worldwide.
UPnP. A networking architecture that provides compatibility among
networking equipment, software and peripherals of the 400+
vendors that are part of the Universal Plug and Play Forum. UPnP
works with wired or wireless networks and can be supported on
ViewSonic Wireless Router 71
any operating system. UPnP boasts device-driver independence
and zero-configuration networking.
USB (Universal Serial Bus). A high-speed bidirectional serial
connection between a PC and a peripheral that transmits data at
the rate of 12 megabits per second. The new USB 2.0 specification
provides a data rate of up to 480 Mbps, compared to standard USB
at only 12 Mbps. 1394, FireWire and iLink all provide a bandwidth
of up to 400 Mbps.
VoIP (VoiceOver Internet Protocol). Voice transmission using
Internet Protocol to create digital packets distributed over the
Internet. VoIP can be less expensive than voice transmission using
standard analog packets over POTS (Plain Old Telephone
Service).
VPN (Virtual Private Network). A type of technology designed to
increase the security of information transferred over the Internet.
VPN can work with either wired or wireless networks, as well as
with dial-up connections over POTS. VPN creates a private
encrypted tunnel from the end user's computer, through the local
wireless network, through the Internet, all the way to the corporate
servers and database.
WAN (Wireless Area Network). A communication system of
connecting PCs and other computing devices across a large local,
regional, national or international geographic area. Also used to
distinguish between phone-based data networks and Wi-Fi. Phone
ViewSonic Wireless Router 72
networks are considered WANs and Wi-Fi networks are considered
Wireless Local Area Networks (WLANs).
WEP (Wired Equivalent Privacy). Basic wireless security provided
by Wi-Fi. In some instances, WEP may be all a home or small-
business user needs to protect wireless data. WEP is available in
40-bit (also called 64-bit), or in 108-bit (also called 128-bit)
encryption modes. As 108-bit encryption provides a longer
algorithm that takes longer to decode, it can provide better security
than basic 40-bit (64-bit) encryption.
Wi-Fi (Wireless Fidelity). An inter-operability certification for
wireless local area network (LAN) products based on the Institute
of Electrical and Electronics Engineers (IEEE) 802.11 standard.
WLAN (Wireless Local Area Network). Also referred to as LAN. A
type of local-area network that uses high-frequency radio waves
rather than wires to communicate between nodes.
WPA-Enterprise (Wi-Fi Protected Access™ – Enterprise). It is Wi-
Fi’s encryption method that protects unauthorized network access
by verifying network users through a server.
WPA-Personal (Wi-Fi Protected Access™ – Personal). It is Wi-Fi’s
encryption method that protects unauthorized network access by
using a set-up password.
ViewSonic Wireless Router 73
Troubleshooting
Basic Functions
1If you are using a cable or DSL modem and are
experiencing problems connecting to the Internet, do
the following:
•Power off your cable or DSL modem, PC, and the router.
•Power on your modem and wait a few minutes until the
modem has established a connection with your ISP.
•Power on the router.
•Power on your PC and attempt to connect to the Internet.
For most users, the router's default values should be
satisfactory. Some users may need to enter additional
information in order to connect to the Internet through
their ISP or broadband (cable or DSL) carrier. For
example, some cable providers require a specific MAC
address for connection to the Internet. To learn more
about this, click the Advanced tab and then the MAC
Address Clone tab.
ViewSonic Wireless Router 74
2My Wireless Access Point Router will not turn on. No
LED’s light up.
•The power is not connected.
•Connect the power adapter to your AP and plug it into the
power outlet.
IMPORTANT! Only use the power adapter that came with your
AP. Using any other adapter may damage your AP Router.
3LAN Connection Problems I can’t access my router.
•Make sure your router is powered on.
•There is no network connection.
•The computer you are using does not have a compatible
IP Address. Be sure that the IP Address used on your
computer is set to the same subnet as the router. For
example, if the router is set to 192.168.1.1, change the IP
address of your computer to 192.168.1.15 or another
unique IP Address that corresponds to the 192.168.1.X
subnet.
•Press the Reset button located on the rear of the router to
revert to the default settings.
ViewSonic Wireless Router 75
4I can’t connect to other computers on my LAN.
•The IP Addresses of the computers are not set correctly.
Make sure that each computer has a unique IP Address. If
using DHCP through the AP Router, makes sure that each
computer is enable DHCP function and restart the
computer.
•Network cables are not connected properly. Make sure
that the Link LED is on. If it is not, try a different network
cable.
•Windows network settings are not set correctly. Check
each computer for correct network settings.
ViewSonic Wireless Router 76
Wireless Troubleshooting
1I can’t access the Wireless AP Router from a wireless
network card.
•Out of range. Make sure that your computer is within
range and free from any strong electrical devices that may
cause interference.
•IP Address is not set correctly. Make sure that the Mode,
SSID, Channel and encryption settings are set the same
on each wireless adapter.
•Check your IP Address to make sure that it is compatible
with the Wireless AP Router.
2What if I forgot my password.
x
x
x
x
x
TBD
3What picture formats can I show with my ViewSonic
Wireless Media Gateway?
•.JPG, GIF, TIF, and BMP
ViewSonic Wireless Router 77
Compliances
FCC Interference Statement
FCC (Federal Communication Commission) Interference
Statement
Class B Regulations
USA
This equipment complies with the limits for a class B digital
device as specified in Part 15 of FCC Rules which provide
reasonable protection against harmful interference in a
residential area. This equipment generates and uses radio
frequency energy, and if not installed and used in
accordance with the instructions, may cause harmful
interference to radio communications. However, there is no
guarantee that interference will not occur in a particular
installation. In the unlikely event that there is interference to
radio or television reception (which can be determined by
turning the equipment off and on), the user is encouraged to
try to correct the interference by one or more of the following
measures:
•Reorienting or relocating the receiving antenna (radio or
television).
ViewSonic Wireless Router 78
•Relocating the equipment with respect to the receiver.
•Consult your dealer or an experienced radio/television
technician.
•Any changes or modifications to the equipment not
expressly approved by the manufacturer could void the
user's authority to operate this equipment.
•Use of a shielded interface cable is required to comply
with the Class B limits of Part 15 of FCC rules.
This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions: (1) This
device may not cause harmful interference, and (2) this
device must accept any interference received, including
interference that may cause undesired operation.
FCC Caution: Any changes or modifications not expressly
approved by the party responsible for compliance could void
the user's authority to operate this equipment.
Canada
This digital apparatus does not exceed the Class B limits for
radio noise emissions from digital apparatus as set out in the
interference-causing equipment standard entitled “Digital
Apparatus,” ICES-003 of the Department of
Communications.
IMPORTANT NOTE:
FCC Radiation Exposure Statement:
This equipment complies with FCC radiation exposure limits
set forth for an uncontrolled environment. This equipment
should be installed and operated with minimum distance
20cm between the radiator & your body.
This transmitter must not be co-located or operating in
conjunction with any other antenna or transmitter.
Canada (IC):
To prevent radio interference to the licensed service, this
device is intended to be operated indoors and away from
windows to provide maximum shielding. Equipment (or its
transmit antenna) that is installed outdoors is subject to
licensing.
ViewSonic Wireless Router 79
Cet appareil numérique respecte les limites de bruits
radioélectriques applicables aux appareils numériques de
Classe B prescrites dans la norme sur le matériel brouilleur:
“Appareils Numériques,” NMB-003 édictée par le ministère
des Communications.
This product is in compliance with the standards
that the Wi-Fi Alliance has certified.
ViewSonic Wireless Router 80
Cleaning & Maintenance
•To clean the Wireless Media Gateway, make sure the
Wireless Media Gateway is turned off.
•Clean the Wireless Media Gateway in a well-vented room.
Allow enough room for air to circulate through the air
holes on the Wireless Media Gateway. Do not pile or stack
things on top of or around the unit to prevent air from
circulating. This increases the chance of over-heating.
•Never spray or pour any liquid directly onto the Wireless
Media Gateway. Do not immerse in water or any liquid.
•Wipe the Wireless Media Gateway with a clean, soft, lint-
free cloth to remove dust and other particles. Dust often.
•If still not clean, apply a small amount of non-ammonia,
non-alcohol based glass cleaner onto a clean, soft, lint-
free cloth, and wipe the screen.
•Do not attempt to use the Wireless Media Gateway in a
metal closet that prevents the antenna from sending and
receiving signals.
ViewSonic Wireless Router 81
Customer Support
Before contacting ViewSonic Customer Support, check the
Troubleshooting section for possible solutions to any setup
problems you have. For Customer Support or product service, you
will need to provide the product serial number.
Country/Region Website T = Telephone
F = FAX
United States www.viewsonic.com/support T: (800) 688-6688
F: (909) 468-1202
Canada www.viewsonic.com/support T: (866) 463-4775
F: (909) 468-1202
ViewSonic Wireless Router 82
Limited Warranty
Wireless Router Products
What the warranty covers:
ViewSonic® warrants its Wireless Router products to be free from defects in material and
workmanship during the warranty period. If a ViewSonic Wireless Router product proves to be
defective in material or workmanship during the warranty period, ViewSonic will, at its sole
option, repair or replace the product with a like product. Replacement product or parts may
include remanufactured or refurbished parts or components.
VIEWSONIC AND ITS SUPPLIERS DISCLAIM ALL WARRANTIES AND CONDITIONS, EITHER
EXPRESS OR IMPLIED, INCLUDING, BUT NOT LIMITED TO, IMPLIED WARRANTIES OF
MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE, AND NONINFRINGEMENT.
ANY SOFTWARE THAT MAY BE INCLUDED WITH THIS PRODUCT IS PROVIDED FREE OF
CHARGE AND ON AN "AS IS" BASIS, WITHOUT WARRANTY OF ANY KIND, INCLUDING
WITHOUT LIMITATION ANY WARRANTIES THAT IT IS FREE OF DEFECTS, MERCHANTABLE,
FIT FOR A PARTICULAR PURPOSE, NON-INFRINGING, OR COMPATIBLE WITH ANY OTHER
SOFTWARE. FOR YOUR SPECIFIC RIGHTS AND DUTIES, PLEASE SEE THE END-USER
LICENSE AGREEMENT (EULA) CONTAINED WITHIN THE SOFTWARE FOR YOUR PRODUCT.
How long the warranty is effective:
ViewSonic Wireless Router products are warranted for one (1) year for all parts and one (1) year
for all labor from the date of the first consumer purchase.
Who the warranty protects:
This warranty is valid only for the first consumer purchaser.
What the warranty does not cover:
1. Software
2. Any product on which the serial number has been defaced, modified or removed.
3. Damage, deterioration or malfunction resulting from:
a. Accident, misuse, neglect, fire, water, lightning, or other acts of nature, unauthorized
product modification, or failure to follow instructions supplied with the product.
b. Repair or attempted repair by anyone not authorized by ViewSonic.
c. Damage to or loss of any programs, data or removable storage media.
d. Software or data loss occurring during repair or replacement.
e. Any damage of the product due to shipment.
f. Removal or installation of the product.
g. Causes external to the product, such as electrical power fluctuations or failure.
h. Use of supplies or parts not meeting ViewSonic's specifications.
i. Normal wear and tear.
j. Any other cause which does not relate to a product defect.
4. Removal, installation, and set-up service charges.
(Page 1 of 2)
ViewSonic Wireless Router 83
How to get service:
1. For information about receiving service under warranty, contact ViewSonic Customer
Support. You will need to provide your product's serial number.
2. To obtain service under warranty, you will be required to provide (a) the original dated sales
slip, (b) your name, (c) your address, (d) a description of the problem, and (e) the serial
number of the product.
3. Take or ship the product freight prepaid in the original container to an authorized ViewSonic
service center or ViewSonic.
4. For additional information or the name of the nearest ViewSonic service center, contact
ViewSonic.
Limitation of implied warranties:
THERE ARE NO WARRANTIES, EXPRESS OR IMPLIED, WHICH EXTEND BEYOND THE
DESCRIPTION CONTAINED HEREIN INCLUDING THE IMPLIED WARRANTY OF
MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE.
Exclusion of damages:
VIEWSONIC'S LIABILITY IS LIMITED TO THE COST OF REPAIR OR REPLACEMENT OF
THE PRODUCT. VIEWSONIC SHALL NOT BE LIABLE FOR:
1. DAMAGE TO OTHER PROPERTY CAUSED BY ANY DEFECTS IN THE PRODUCT,
DAMAGES BASED UPON INCONVENIENCE, LOSS OF USE OF THE PRODUCT, LOSS
OF DATA, LOSS OF TIME, LOSS OF PROFITS, LOSS OF BUSINESS OPPORTUNITY,
LOSS OF GOODWILL, INTERFERENCE WITH BUSINESS RELATIONSHIPS, OR
OTHER COMMERCIAL LOSS, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH
DAMAGES.
2. ANY OTHER DAMAGES, WHETHER INCIDENTAL, CONSEQUENTIAL OR OTHERWISE.
3. ANY CLAIM AGAINST THE CUSTOMER BY ANY OTHER PARTY.
Effect of state law:
This warranty gives you specific legal rights, and you may also have other rights which vary from
state to state. Some states do not allow limitations on implied warranties and/or do not allow the
exclusion of incidental or consequential damages, so the above limitations and exclusions may
not apply to you.
ViewSonic Wireless Router Products Warranty (V1.0)
Release Date: June 3, 2004
(Page 2 of 2)
