ViewSonic N4200w
Contents
Compliance Information.............................................................................................1
Declaration of RoHS Compliance ..............................................................................2
Important Safety Instructions .....................................................................................3
Copyright Information ................................................................................................4
Product Registration ..................................................................................................4
Cleaning the LCD Display..........................................................................................5
Disclaimer..................................................................................................................5
Getting Started
Package Contents .....................................................................................................6
The wall type is installed............................................................................................7
Move loudspeaker secure..........................................................................................8
View of the Product ...................................................................................................9
Remote Control .......................................................................................................12
Installation ...............................................................................................................14
RS232 Module.........................................................................................................21
Basic Operation .......................................................................................................24
OSD Functions
OSD style and operation tips ...................................................................................26
OSD Operation ........................................................................................................26
Other Information
Specifications ..........................................................................................................35
Troubleshooting.......................................................................................................36
Customer Support ...................................................................................................38
Limited Warranty .....................................................................................................39
Downloaded From TV-Manual.com Manuals
1 ViewSonic N4200w
Compliance Information
FCC Statement
This device complies with part 15 of FCC Rules. Operation is subject to the following two
conditions: (1) this device may not cause harmful interference, and (2) this device must accept
any interference received, including interference that may cause undesired operation.
This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment generates,
uses, and can radiate radio frequency energy, and if not installed and used in accordance with
the instructions, may cause harmful interference to radio communications. However, there is
no guarantee that interference will not occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct the interference by
one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
• Consult the dealer or an experienced radio/TV technician for help.
Warning: You are cautioned that changes or modifications not expressly approved by the
party responsible for compliance could void your authority to operate the equipment.
Following information is only for EU-member states:
The mark shown to the right is in compliance with the Waste Electrical and Electronic
Equipment Directive 2002/96/EC (WEEE).
The mark indicates the requirement NOT to dispose the equipment as unsorted
municipal waste, but use the return and collection systems according to local law.
Downloaded From TV-Manual.com Manuals
ViewSonic N4200w 2
Declaration of RoHS Compliance
This product has been designed and manufactured in compliance with Directive 2002/95/EC
of the European Parliament and the Council on restriction of the use of certain hazardous
substances in electrical and electronic equipment (RoHS Directive) and is deemed to comply
with the maximum concentration values issued by the European Technical Adaptation
Committee (TAC) as shown below:
Substance Proposed Maximum
Concentration
Actual
Concentration
Lead (Pb) 0.1% < 0.1%
Mercury (Hg) 0.1% < 0.1%
Cadmium (Cd) 0.01% < 0.01%
Hexavalent Chromium (Cr6+) 0.1% < 0.1%
Polybrominated biphenyls (PBB) 0.1% < 0.1%
Polybrominated diphenyl ethers (PBDE) 0.1% < 0.1%
Certain components of products as stated above are exempted under the Annex of the RoHS
Directives as noted below:
Examples of exempted components are:
1. Mercury in compact fluorescent lamps not exceeding 5 mg per lamp and in other lamps not
specifically mentioned in the Annex of RoHS Directive.
2. Lead in glass of cathode ray tubes, electronic components, fluorescent tubes, and electronic
ceramic parts (e.g. piezoelectronic devices).
3. Lead in high temperature type solders (i.e. lead-based alloys containing 85% by weight or
more lead).
4. Lead as an allotting element in steel containing up to 0.35% lead by weight, aluminium
containing up to 0.4% lead by weight and as a cooper alloy containing up to 4% lead by
weight.
Downloaded From TV-Manual.com Manuals
3 ViewSonic N4200w
Important Safety Instructions
1. Read these instructions completely before using the equipment.
2. Keep these instructions in a safe place.
3. Heed all warnings.
4. Follow all instructions.
5. Do not use this equipment near water.
6. Clean with a soft, dry cloth. If further cleaning is required, see “Cleaning the Display” in
this guide for further instructions.
7. Do not block any ventilation openings. Install the equipment in accordance with the
manufacturer’s instructions.
8. Do not install near any heat sources such as radiators, heat registers, stoves, or other
devices (including amplifiers) that produce heat.
9. Do not attempt to circumvent the safety provisions of the polarized or grounding-type
plug. A polarized plug has two blades with one wider than the other. A grounding type
plug has two blades and a third grounding prong. The wide blade and the third prong are
provided for your safety. If the plug does not fit into your outlet, consult an electrician
for replacement of the outlet.
10. Protect the power cord from being tread upon or pinched, particularly at the plug, and the
point where if emerges from the equipment. Be sure that the power outlet is located near
the equipment so that it is easily accessible.
11. Only use attachments/accessories specified by the manufacturer.
12. Use only with the cart, stand, tripod, bracket, or table specified by the
manufacturer, or sold with the equipment. When a cart is used, use
caution when moving the cart/ equipment combination to avoid injury
from tipping over.
13. Unplug this equipment when it will be unused for long periods of time.
14. Refer all servicing to qualified service personnel. Service is required when the unit has
been damaged in any way, such as: if the power-supply cord or plug is damaged, if liquid
is spilled onto or objects fall into the unit, if the unit is exposed to rain or moisture, or if
the unit does not operate normally or has been dropped.
Downloaded From TV-Manual.com Manuals
ViewSonic N4200w 4
Copyright Information
Copyright © ViewSonic® Corporation, 2006. All rights reserved.
ViewSonic, the three birds logo, OnView, ViewMatch, and ViewMeter are registered
trademarks of ViewSonic Corporation.
Disclaimer: ViewSonic Corporation shall not be liable for technical or editorial errors or
omissions contained herein; nor for incidental or consequential damages resulting from
furnishing this material, or the performance or use of this product.
In the interest of continuing product improvement, ViewSonic Corporation reserves the right
to change product specifications without notice. Information in this document may change
without notice.
No part of this document may be copied, reproduced, or transmitted by any means, for any
purpose without prior written permission from ViewSonic Corporation.
Product Registration
To meet your future needs, and to receive any additional product information as it becomes
available, please register your product on the Internet at: www.viewsonic.com.
For Your Records
Product Name: N4200w-2
ViewSonic LCD Display
Model Number: VS10945-1M
Document Number: N4200w-2M_UG_ENG Rev. 1A 12-13-06
Serial Number:
Purchase Date:
Product disposal at end of product life
ViewSonic is concerned about the preservation of our environment. Please dispose of this
product properly at the end of its useful life. Your local waste disposal company may provide
information about proper disposal.
The lamp in this product contains mercury. Please dispose of properly in accordance with
environmental laws of your location.
Downloaded From TV-Manual.com Manuals
5 ViewSonic N4200w
Cleaning the LCD Display
y Make sure the LCD Display is turned off.
y Never spray or pour any liquid directly onto the screen or case.
To clean the screen:
1 Wipe the screen with a clean, soft, lint-free cloth. This removes dust and other particles.
2 If still not clean, apply a small amount of non-ammonia, non-alcohol based glass cleaner onto a clean, soft,
lint-free cloth, and wipe the screen.
To clean the case:
1 Use a soft, dry cloth.
2 If still not clean, apply a small amount of non-ammonia, non-alcohol based, mild non-abrasive detergent
onto a clean, soft, lint-free cloth, then wipe the surface.
Disclaimer
ViewSonic® does not recommend the use of any ammonia or alcohol-based cleaners on the LCD display screen
or case. Some chemical cleaners have been reported to damage the screen and/or case of the LCD display.
ViewSonic will not be liable for damage resulting from use of any ammonia or alcohol-based cleaners.
Downloaded From TV-Manual.com Manuals
ViewSonic N4200w 6
Getting Started
Congratulations on your purchase of a ViewSonic® LCD display.
Important! Save the original box and all packing material for future shipping needs.
Package Contents
Your LCD display package includes:
y LCD Display
y VGA Cable
y Quick Start Guide
y Power Cable
y Universal Remote Control with batteries
y ViewSonic User Guide
Downloaded From TV-Manual.com Manuals
7 ViewSonic N4200w
The wall type is installed
Use only approved wall-mounting brackets advised by ViewSonic or your local distributor.
To install the wall-mounting brackets to LCD display and fix LCD display to the wall safely,
please use the following guidelines:
1. Cut off the power.
2. Set the LCD display on a table or work surface, screen-down with a towel or woolen
blanket between the screen and the surface to protect the display.

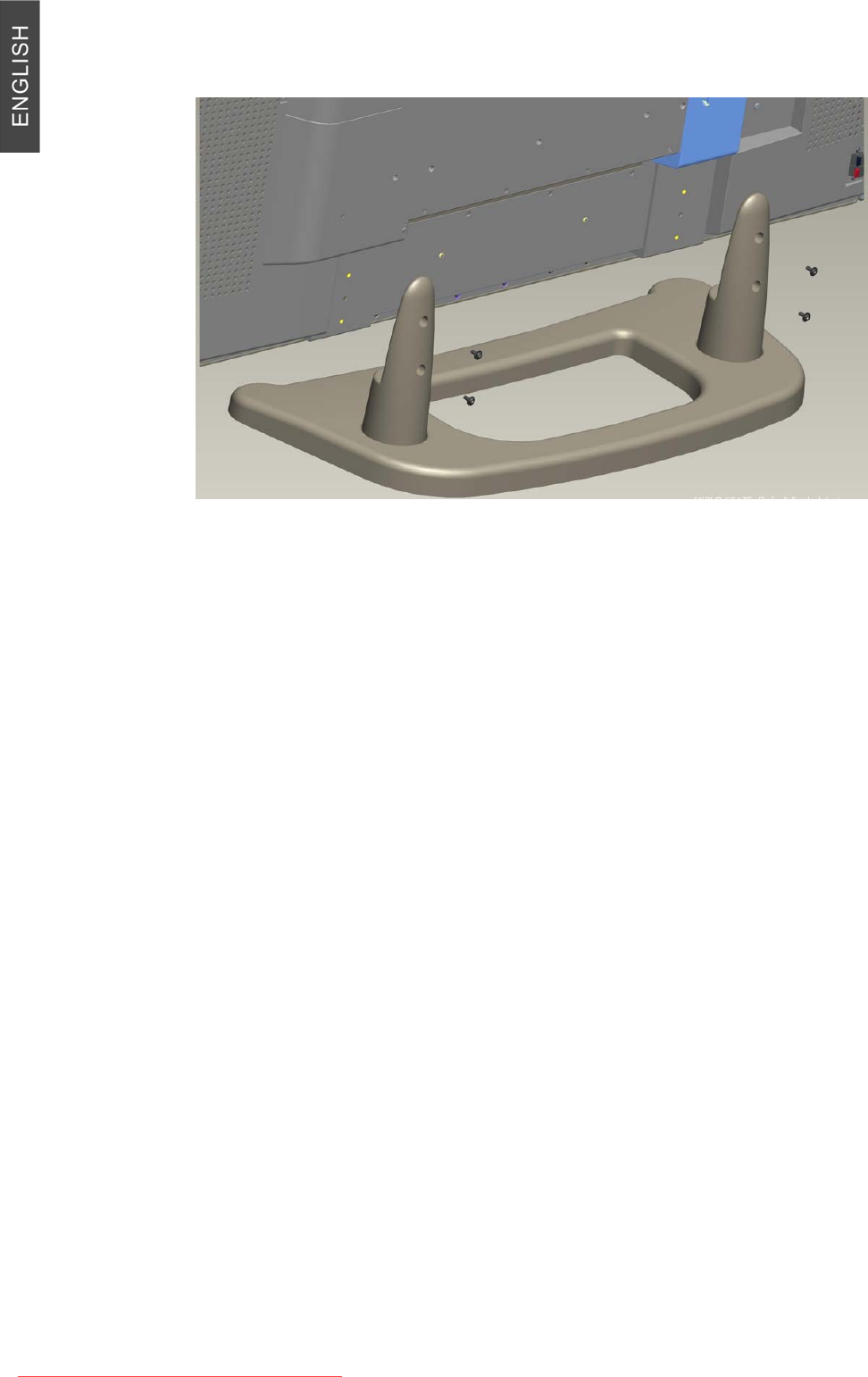

3. Disassemble 6 screws in the base.
4. According to the wall type instruction, fix LCD display to the wall.
Downloaded From TV-Manual.com Manuals
ViewSonic N4200w 8

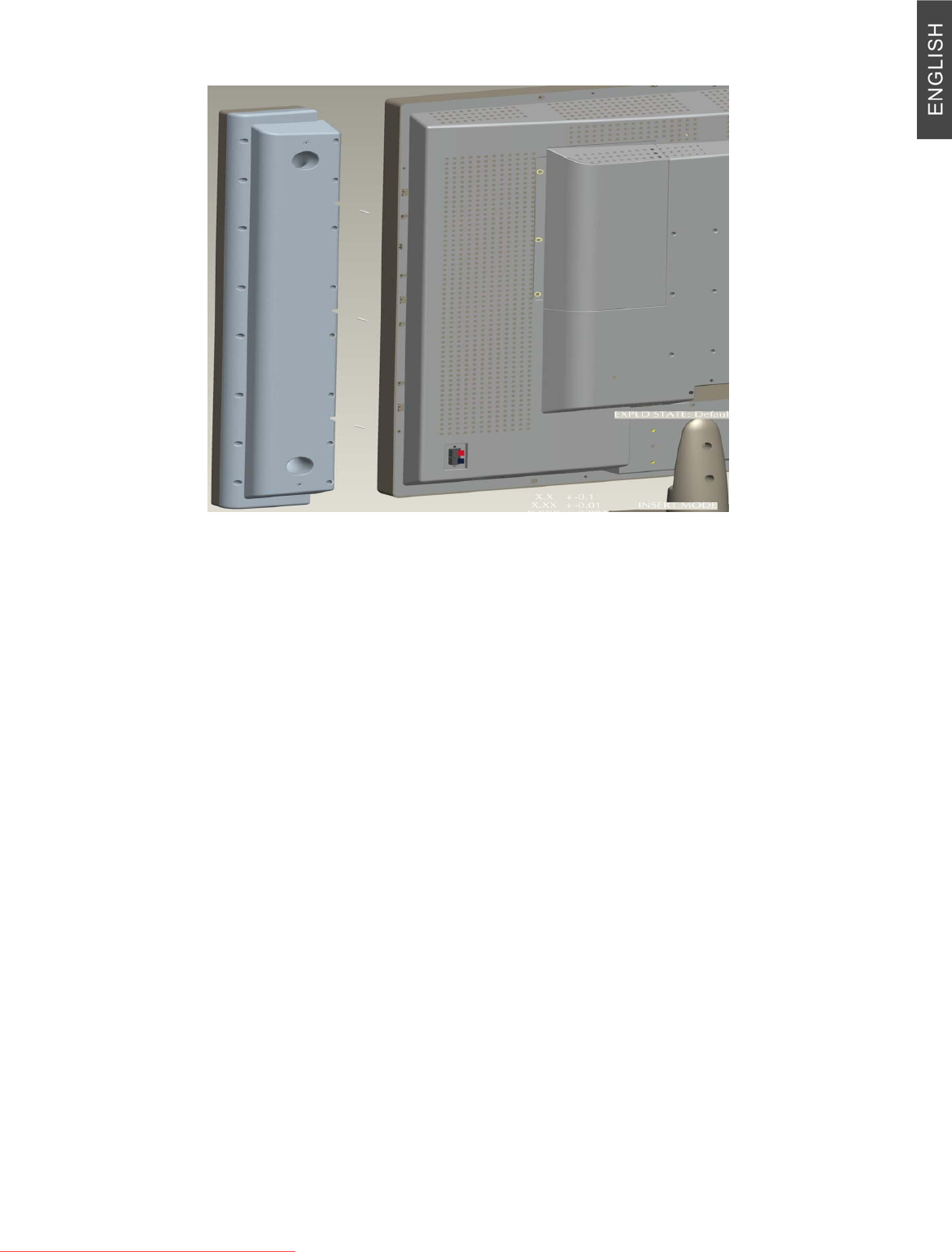

Move loudspeaker secure
To detach the loudspeakers from the LCD display, please read the following guidelines:
1. Cut off the power.
2. Disassemble 6 screws of the back loudspeaker(3 screws on each side).
3. Exert oneself outward, remove the loudspeaker
Downloaded From TV-Manual.com Manuals
9 ViewSonic N4200w

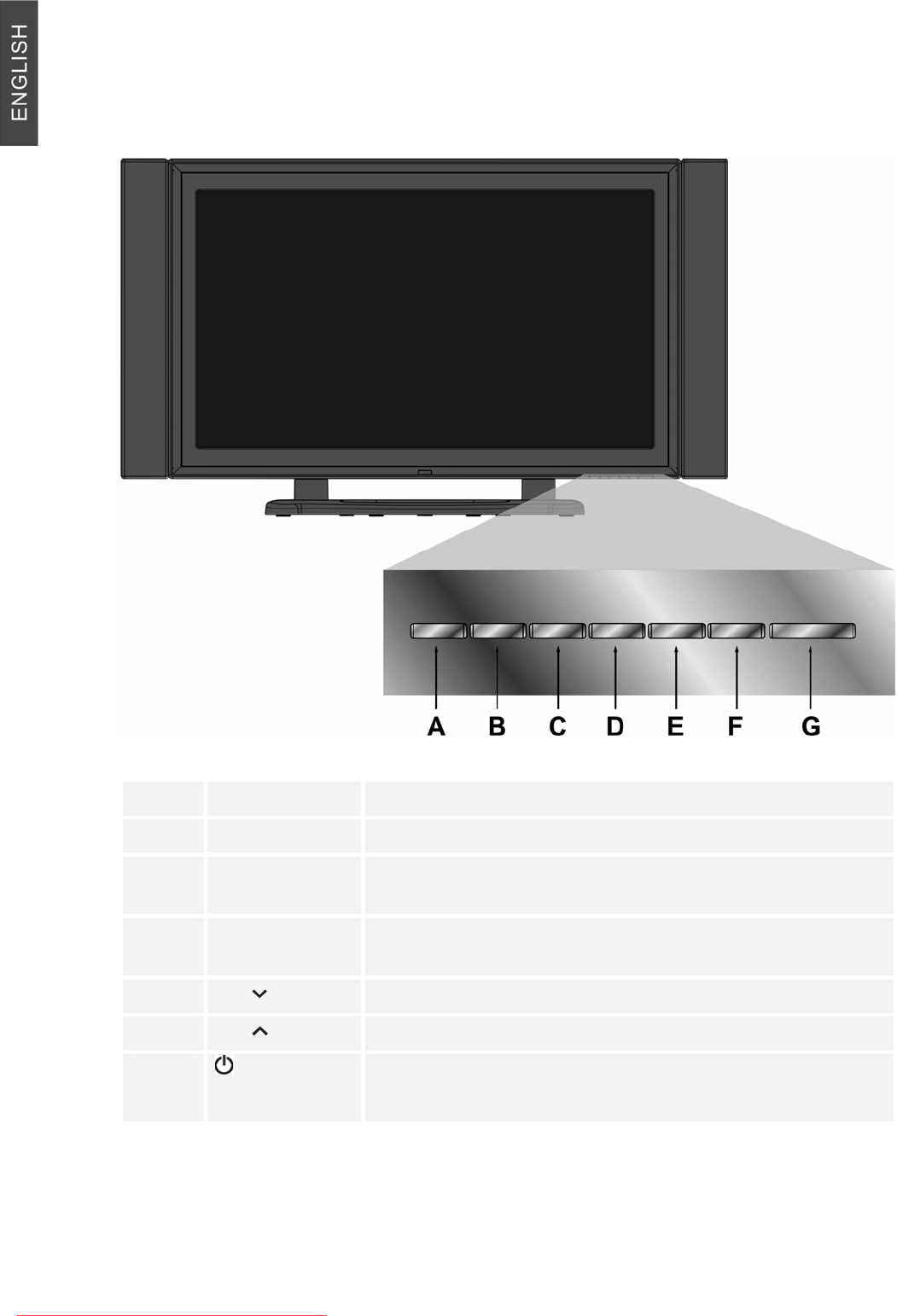

View of the Product

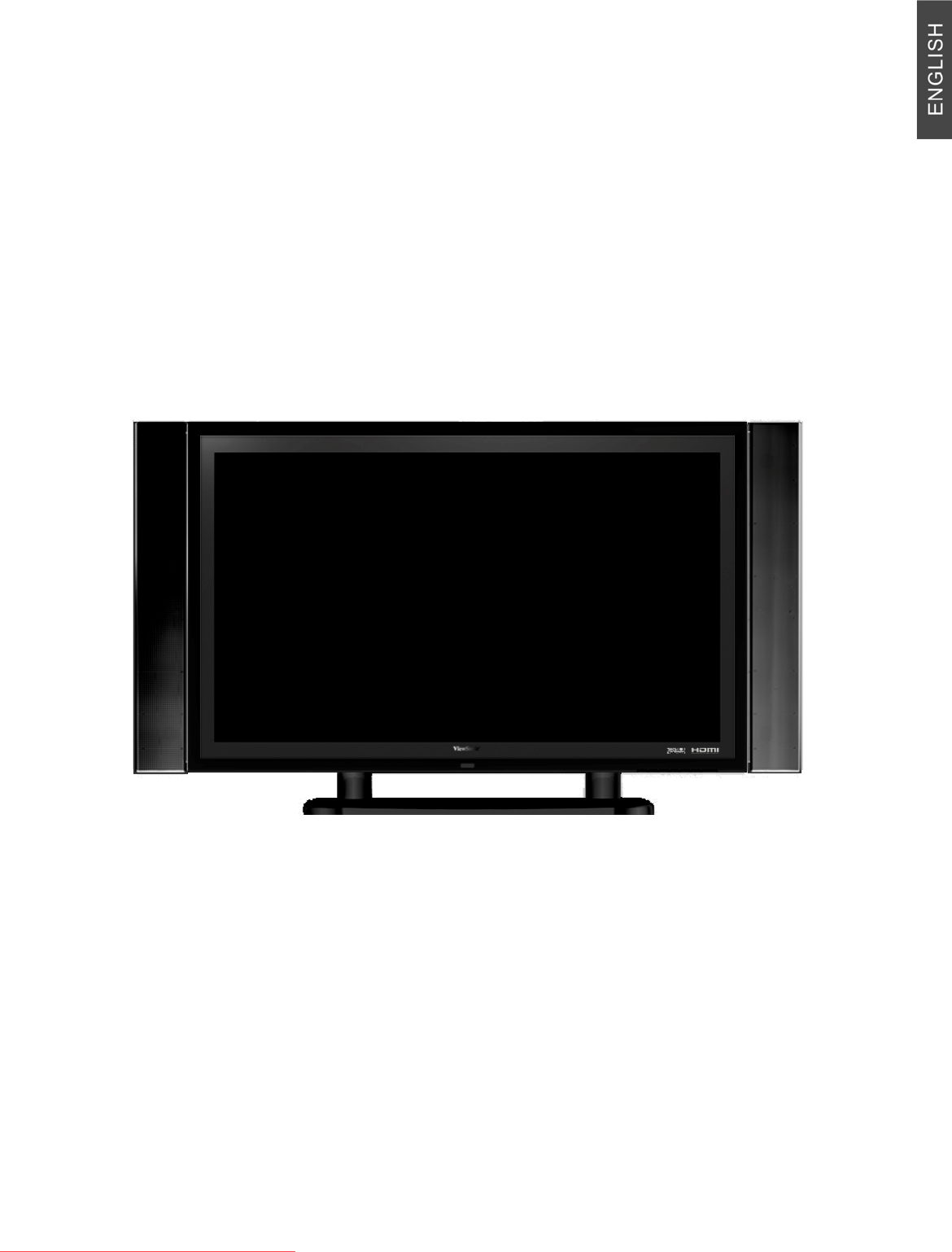

Front
A INPUT Select input sources
B MENU Turn OSD menu ON/OFF
C VOL
-
Decrease volume or adjust a highlighted control decreasingly
while in OSD menu
D VOL + Increase volume or adjust a highlighted control increasingly
while in OSD menu
E CH Channel down/ Scroll down
F CH Channel up/ Scroll up
G POWER Turn the power ON/OFF
Downloaded From TV-Manual.com Manuals
ViewSonic N4200w 10

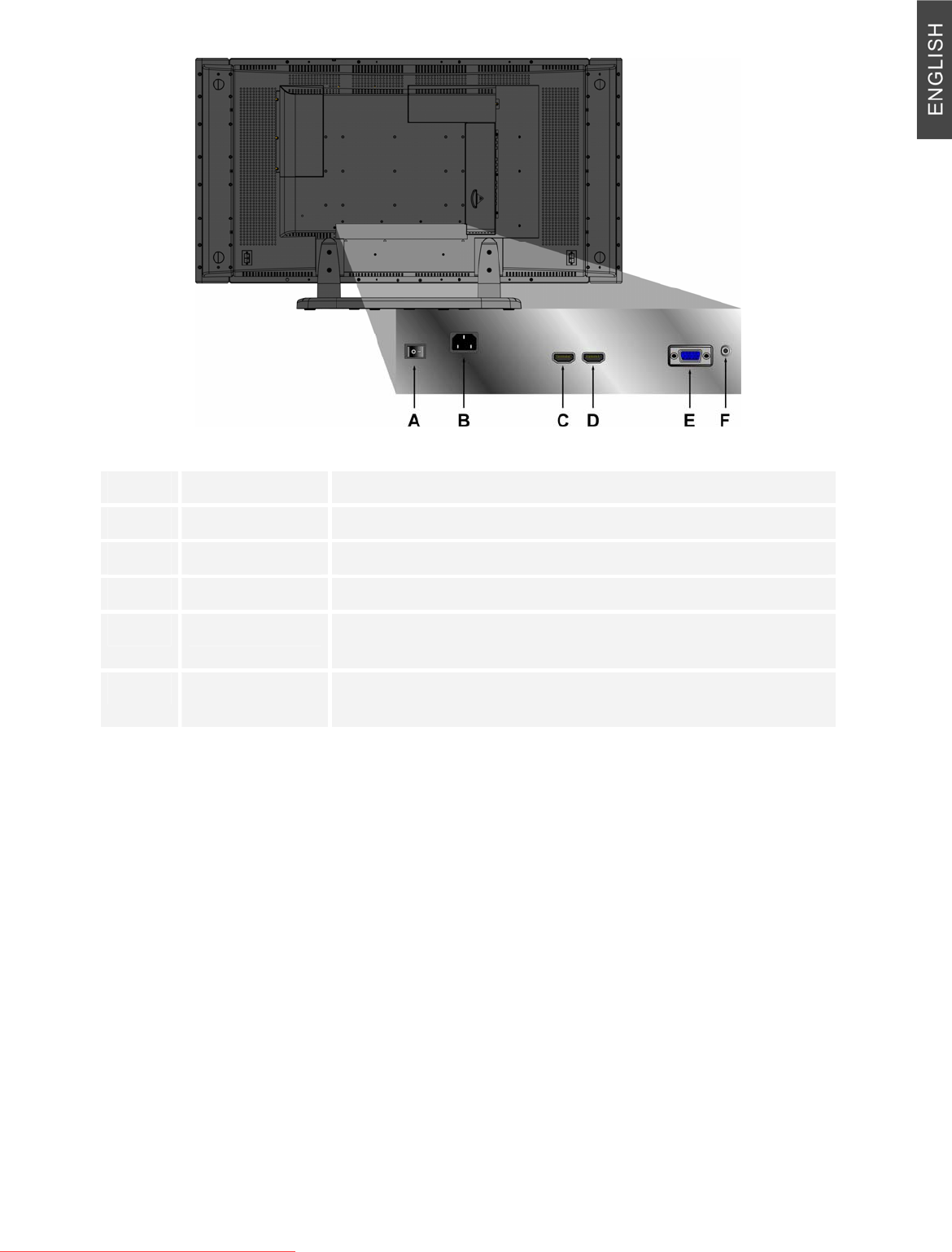

Back
A POWER S/W Power S/W
B AC IN Using cable provided, connect a power source.
C HDMI(1)
Have one HDMI cable terminals of your DVD player.
D HDMI(2) Have one HDMI cable terminals of your DVD player.

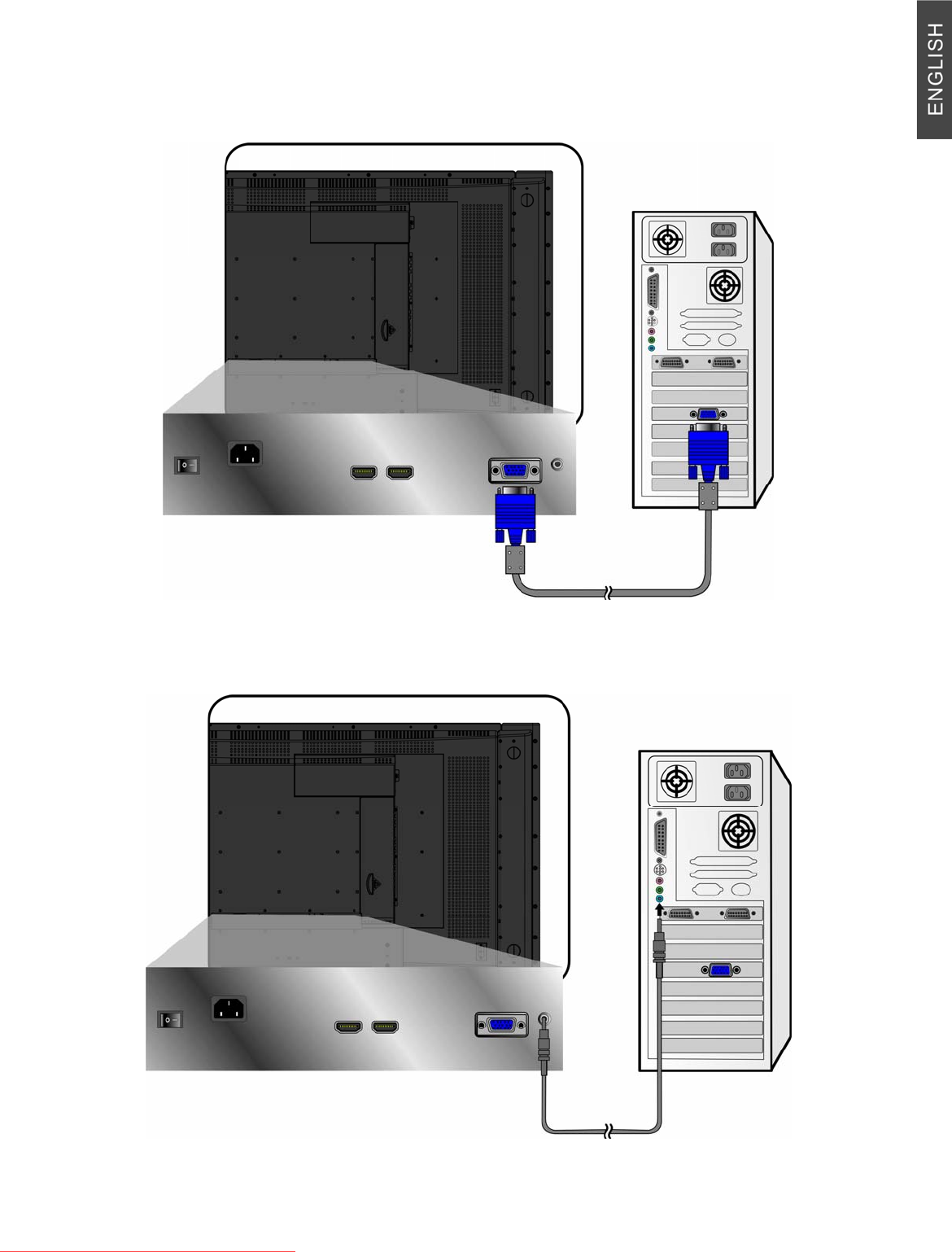

E VGA Connect the VGA cable output of PC to the VGA
terminal input.
F PC STEREO Connect the Audio in cable from audio output of your PC
to the audio input terminal.
Downloaded From TV-Manual.com Manuals
11 ViewSonic N4200w

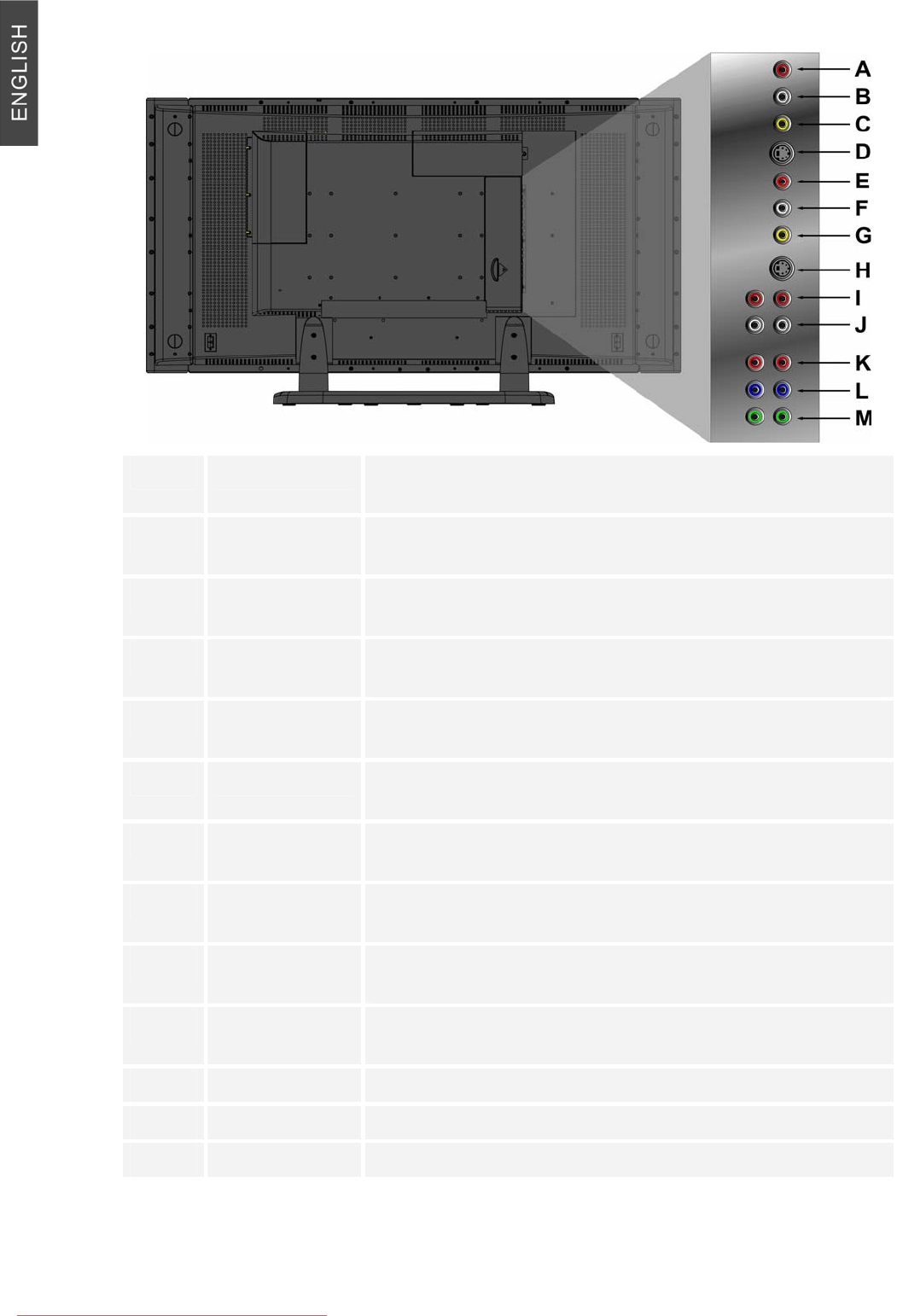

Component
A R Connect Video/Audio cable from compatible devices into the
side jack.
B L Connect Video/Audio cable from compatible devices into the
side jack.
C VIDEO Connect the external video device such as VCR, DVD, and
video game into this jack.
D S-V1 Connect the external video device such as VCR, DVD, and
video game into this jack.
E R Connect Video/Audio cable from compatible devices into the
side jack.
F L Connect Video/Audio cable from compatible devices into the
side jack.
G VIDEO Connect the external video device such as VCR, DVD, and
video game into this jack.
H S-V2 Connect the external video device such as VCR, DVD, and
video game into this jack.
I R Connect Audio cable from compatible devices into the
side jack.
J L Connect Audio cable from compatible devices into the
side jack.
K Pr/Cr Connect the external video device into this jack.
L Pb/Cb Connect the external video device into this jack.
M Y Connect the external video device into this jack.
Downloaded From TV-Manual.com Manuals
13 ViewSonic N4200w
E UP/DOWN/LEFT/
RIGHT/ ENTER button
UP/DOWN for OSD function select and LEFT/ RIGHT
for function adjust
VOL- and VOL+ button=adjust the volume when there
is no OSD menu display. CH﹀ and CH＾ = change
the OSD menu display (For certain models)
F MUTE button Mute On/Off
G FREEZE When the program information you want to capture,
press button. Press again, and the picture is released
H DISPLAY Display the sources and time
I SLEEP Set timer to turn off the Display
J PIP/POP (Guide) Activate PIP feature (Activate Guide)
K PIP/SOUR Press to toggle the Sub picture between PIP
L PIP/POS Change the display position of the Sub Picture in PIP
mode
M PIP/SWAP Toggles between input sources for the Main and Sub
N SRS Enable/Disable Surround Sound
O WIDE Change Aspect Ratio
P Menu Display menu or exit OSD menu
Q MTS No function
R Channel No function
S POWER Power ON/OFF
Downloaded From TV-Manual.com Manuals
ViewSonic N4200w 14
Installation
1. Insert Remote Control Batteries
1 Remove the battery cover by pulling then lifting the knob on the cover.
2 Insert the batteries, corresponding to the (+) and (-) markings on the battery
compartment.
3 Reattach the battery cover.
CAUTION
y Only use the specified AAA batteries.
y Do not mix new and old batteries. This may result in cracking or leakage, which may
pose a risk of fire or lead to personal injury.
y Insert batteries according to (+) and (-) markings. Inserting the batteries incorrectly
may result in cracking or leakage, which may pose a risk of fire or lead to personal
injury.
y Dispose of the battery in accordance with local laws and regulations.
y Keep the battery away from children and pets.
y When the remote control will not be used for an extended period, remove the
batteries.
Downloaded From TV-Manual.com Manuals
15 ViewSonic N4200w
2. Connect AV, S-Video, YCbCr, YPbPr, HDMI to Video Devices
Connect Video/Audio cables from compatible devices into the back panel of N4200W.

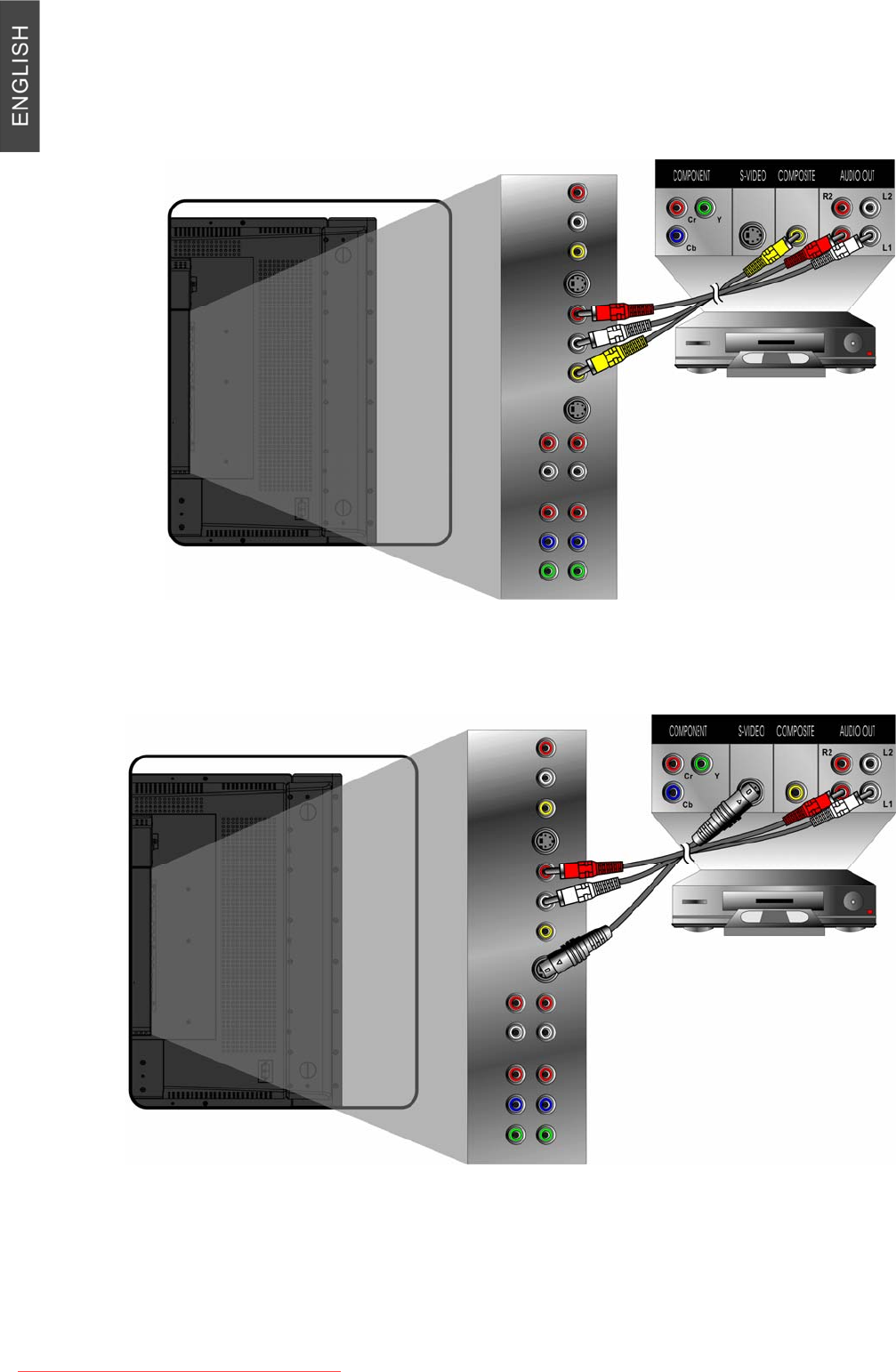

AV model:
S-Video model:
RCA A/V Cable
(Cable not supplied)
VCR
S-Video Cable
(Cable not supplied)
Audio in Cable
(Cable not supplied)
VCR
Downloaded From TV-Manual.com Manuals
17 ViewSonic N4200w
HDMI model:
Connect the HDMI cable from DVI output of your DVD player to the HDMI terminal input
of N4200W.
HDMI cable
Note: To receive the sound from DVD, please turn on Sound Menu of OSD for selecting
HDMI audio to HDMI. However, the input source should be in HDMI.
DVD Player
HDMI Cable (Cable not supplied)
(Cable not supplied)
Downloaded From TV-Manual.com Manuals
ViewSonic N4200w 18
3. Connect to the PC
VGA (15pin D-Sub):
Connect the VGA cable from VGA output of PC to the VGA terminal input of N4200W.
PC up to 1280 x 1024 , or 1360 x 768 is the preferred resolution.
PC Audio in:
Connect the Audio In cable (green) from audio output of your PC to the audio input terminal
(green) of N4200W.
PC
PC
PC Audio in Cable
(Cable not supplied)
VGA 15 Pin Cable
Downloaded From TV-Manual.com Manuals
19 ViewSonic N4200w

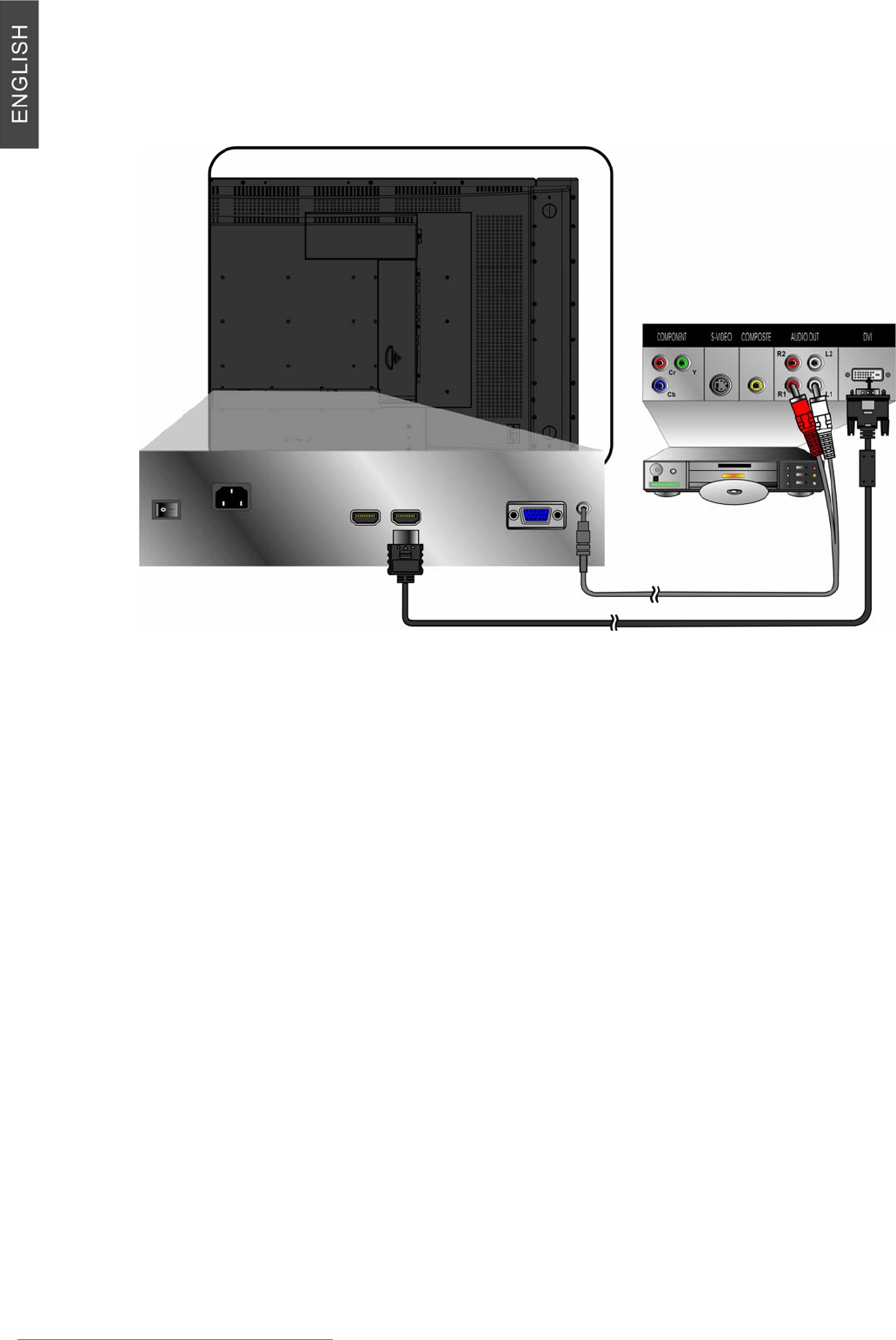

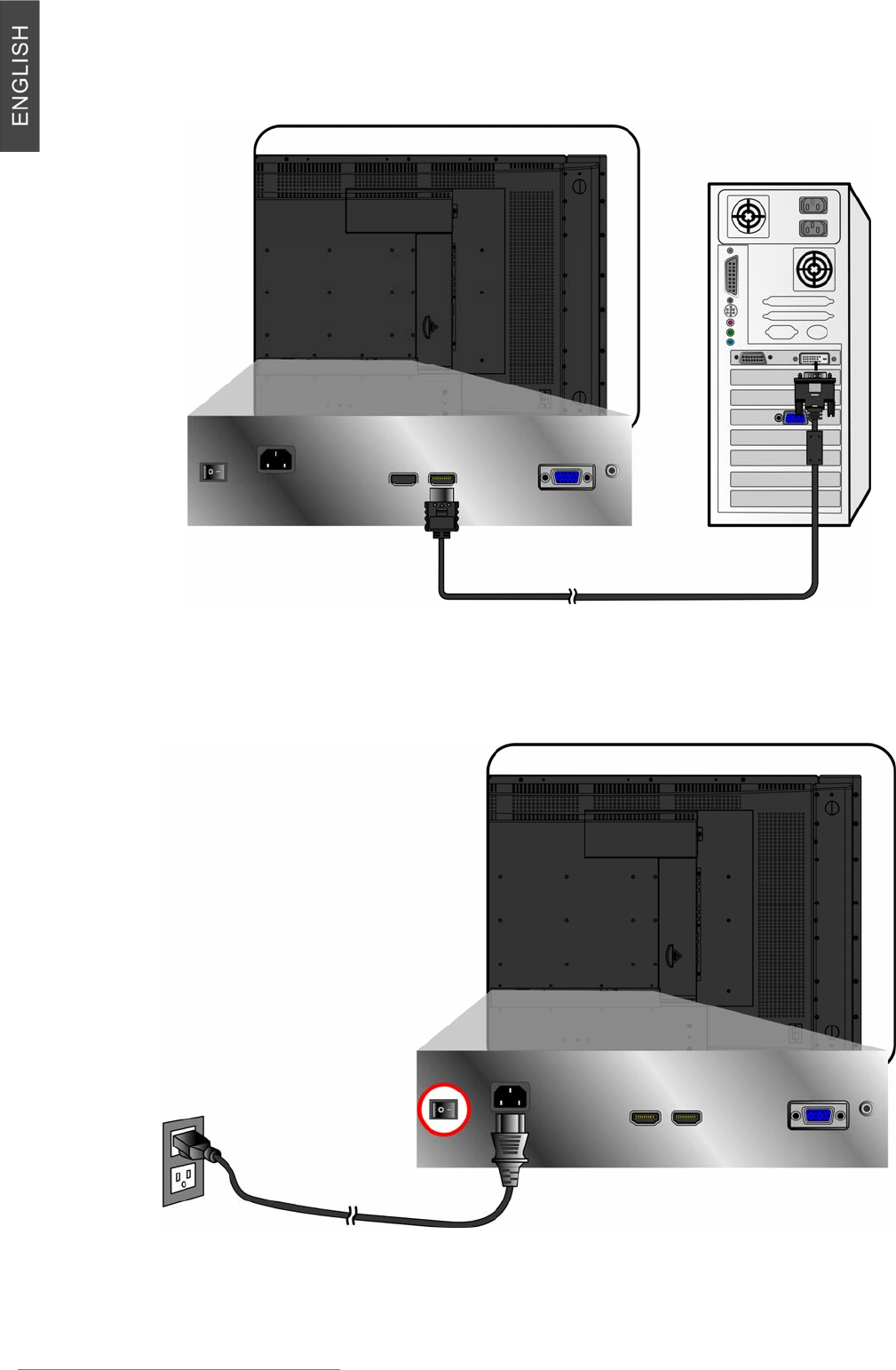

HDMI:
Connect the HDMI cable from DVI output of PC to the HDMI terminal input of N4200W.
4. Connect power cable
Connect the power cord to the N4200W then to a properly grounded AC outlet. Turn on the
AC Switch on the back of N4200W
PC
HDMI Cable (Cable not supplied)
AC wall socket
AC Switch
Switch to ON
Downloaded From TV-Manual.com Manuals
21 ViewSonic N4200w
RS232 Module
Besides the basic operations performed via remote control or those buttons on the LCD
Display, RS232 module also allows you to realize easy control of the system for simple
functions.

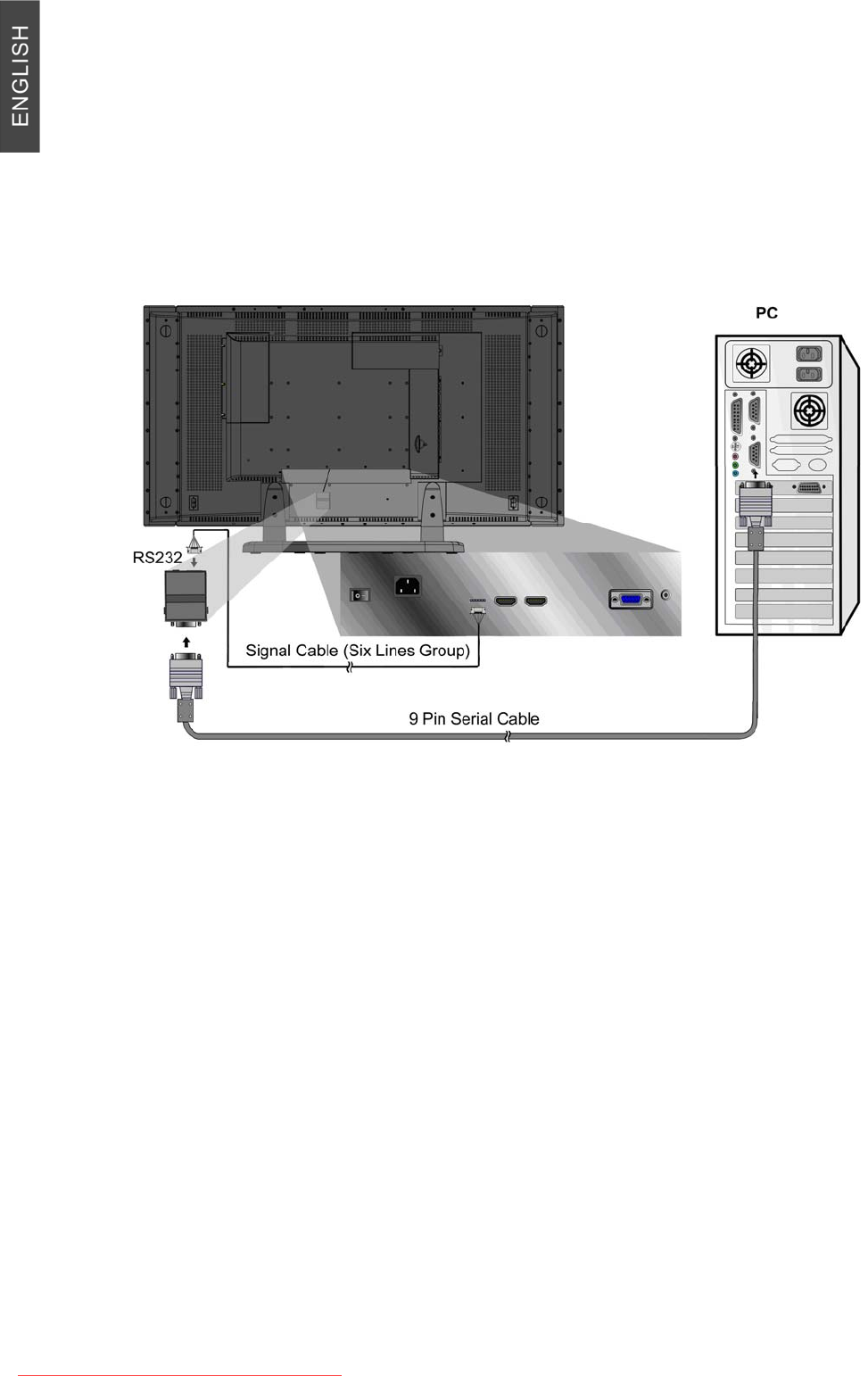

Connection to Display and PC
RS232 module is installed onto the back of the cabinet and connected with signal cables
(six lines group) from the module to the back panel of N4200w as factory setting. The
signal line is connected from the Debug port of RS232 to that of the Display.
Connect Signal cable from COM port of PC to that of RS232 module.
RS232 Operation
Note: The RS232 user should be familiar with PC and general PC operations.
System Environment
Proper operations of RS232 module for the control of LCD DISPLAY functions are carried
out through hyper terminal function in Windows operation system.
Downloaded From TV-Manual.com Manuals
ViewSonic N4200w 22
New Terminal Creation
Power on your PC and boot in the operational system normally. (Take WinXP as example
hereinafter)
Presetting
Double click My Computer icon on desktop and open the window.
Right click and select Property item in the pop-up menu.
Select Hardware label in the System Property window, and click the Device Manager Button
(D).
Click and expand the Port（COM and LPT）folder and select the communication port to be
used in the Device Manager window.
Double click the corresponding icon and enter into the Port Setting label in the new
window.
Set the parameters respectively on the label as 9600, 8 bits, No parity, 1 and Stop bit.
（Hard Code）
Click OK buttons and exit the windows.
Creation
Note: If there is no hyper terminal already created, follow the hereinafter procedures to finish
the creation operation.
Open Hyper Terminal submenu item in Start Menu on desktop following the procedures
as described hereinafter: Start Menu ＞ All Programs ＞ Accessories ＞
Communication ＞ Hyper Terminal, and click it.
Input the name (N) of the new hyper terminal connection and select the icon (I)
corresponding in Connection Description window, and click OK button to exit.
Select the port used practically (N) in the Connection window, including COM1, COM2
or TCP/IP, and click OK button to exit.
Adjust the parameter setting in the port property window, complying with the description
of HARD CODE. Click OK button and exit.
Click the Property item (R) in File Menu (F) of the main interface of the hyper terminal
created and select the setting label. Set the Terminal Emulation (E) as VT100. Click the
ASCII Code Setting button (A) and click the item Display the Characters Input (E) in the
ASCII Code Transmission field of the ASCII Code Setting window. Click OK buttons
and exit.
Then, the new hyper terminal is created, and you can input commands properly to conduct
easy control of the system for certain functions with RS232 module’s correct connection with
N4200w and the PC.
Downloaded From TV-Manual.com Manuals
23 ViewSonic N4200w
Operation
To realize certain function of the system, you need to input the corresponding commands
properly in the hyper terminal window.
Note: As for the detailed commands for the functions, please refer to the command list
attached additionally.
Downloaded From TV-Manual.com Manuals
ViewSonic N4200w 24
Basic Operation
To operate the function of your LCD Display, you can use your remote control or those
buttons on your LCD Display to set input source, change channels, or adjust volume.
Turning on the LCD Display
Before using the LCD Display:
1. Insert the power plug.
2. Connect external equipment properly.
3. Turn on the Main AC Power Switch, located on the rear of the cabinet. (If the LCD
Display will not be used for a long period of time, please turn it off)
Power On/Off
To turn the LCD Display on/off :
Press the POWER button under the LCD Display or press the Power button on your remote
control to turn on/off the Display. The power LED indicator lights up when the LCD Display
is on.
Select input source
To select the required input sources. Use ▲▼to move the cursor bar, and select by pressing
OK.
VOLUME Adjusting
Press VOL-/+ to adjust the volume.
To silence the volume, press MUTE.
If you want to restore volume, press MUTE again.
VOLUME
Downloaded From TV-Manual.com Manuals
ViewSonic N4200w 26
OSD Functions
OSD style and operation tips
OSD Operation
Press the “Menu” button on your remote control or right side of the LCD Display to open the
OSD Main Menu.
Press ▲ or ▼ button to select the sub menu, and press◄ or ► to enter the sub menu.
Press ▲ or ▼ to select the function you would like to adjust, and then press ◄ or ► to adjust
it or execute the function.
Press the “Menu” button on your remote control or right side of the LCD Display again to
close the OSD Main Menu.
(For PC mode) The 4 icons at the top of the OSD Main menu stand for the 4 sub menus
(Picture, Adjust, Audio, Setup).

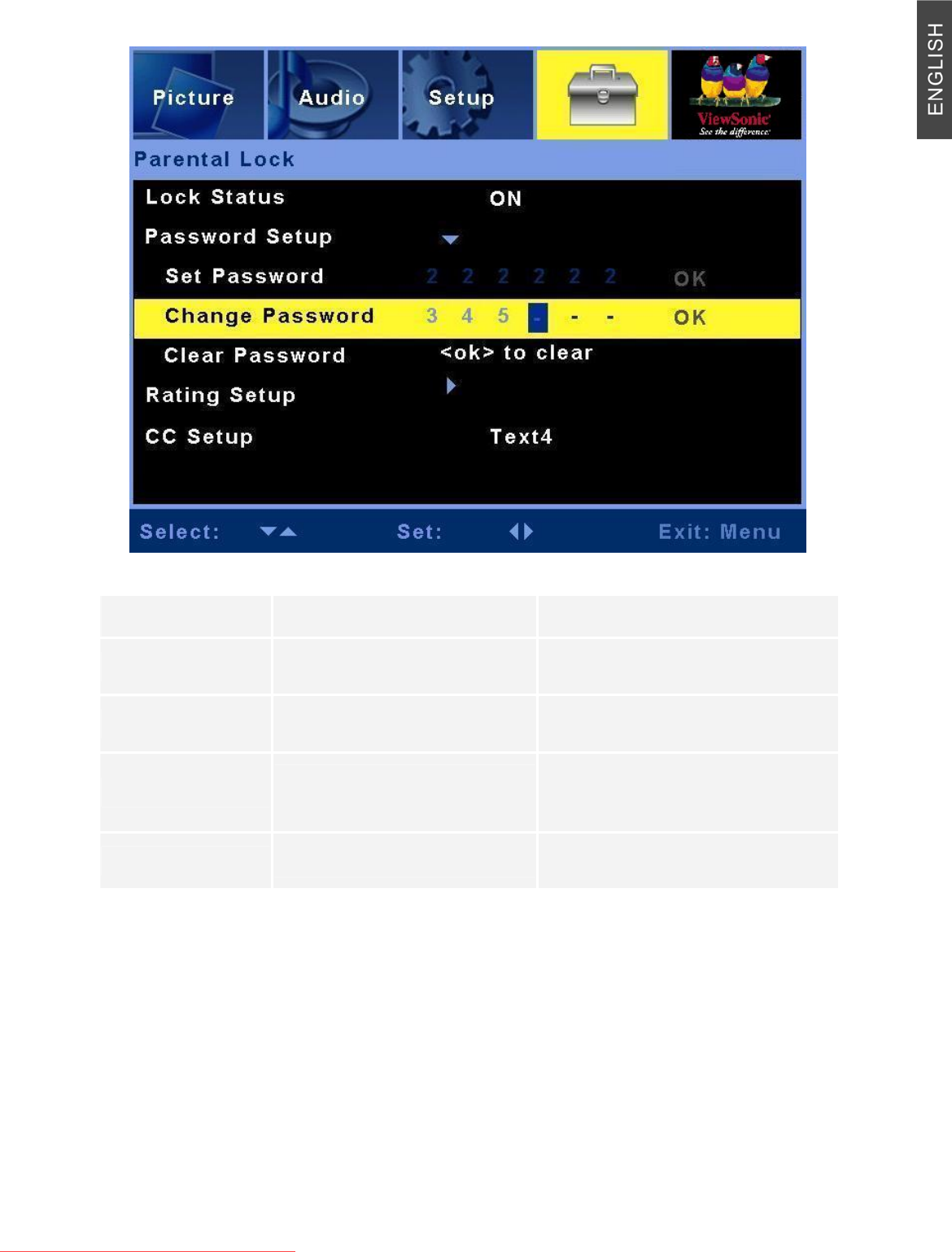

(For AV mode) The 4 icons at the top of the OSD Main menu stand for the 4 sub menus
(Picture, Audio, Setup, Parental)
Downloaded From TV-Manual.com Manuals
27 ViewSonic N4200w
PC mode

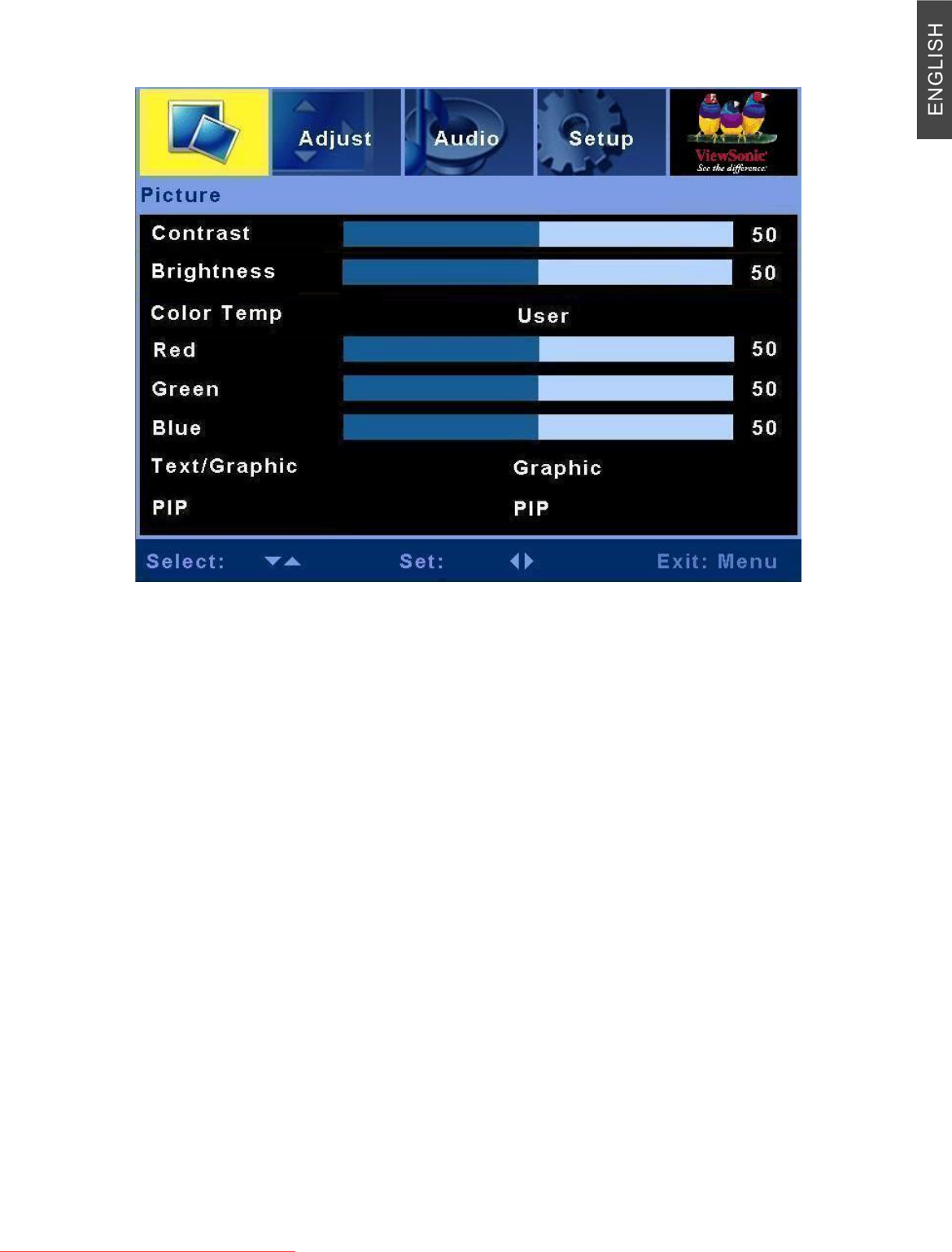

Picture menu
Item Description Operation
Contrast Adjust the contrast level.
► to increase the contrast.
◄ to decrease the contrast.
Brightness Adjust the brightness level.
► to brighten the display.
◄ to darken the display.
Color Temp
Some default color temp set is
here. Options: STD , Warm, Cold
and user
►or ◄ to select color temp.
User You can adjust Red, Green, Blue
to change color temp.
► to increase the color temp.
◄ to decrease the color temp.
Text/Graphic Select Graphic or Text ►or◄ to select Graphic or Text.
PIP Select single or Multi-picture
functions
►or◄ to select Single, PBP, PIP.
(HDMI input is not supported in
sub picture)
Downloaded From TV-Manual.com Manuals
ViewSonic N4200w 28

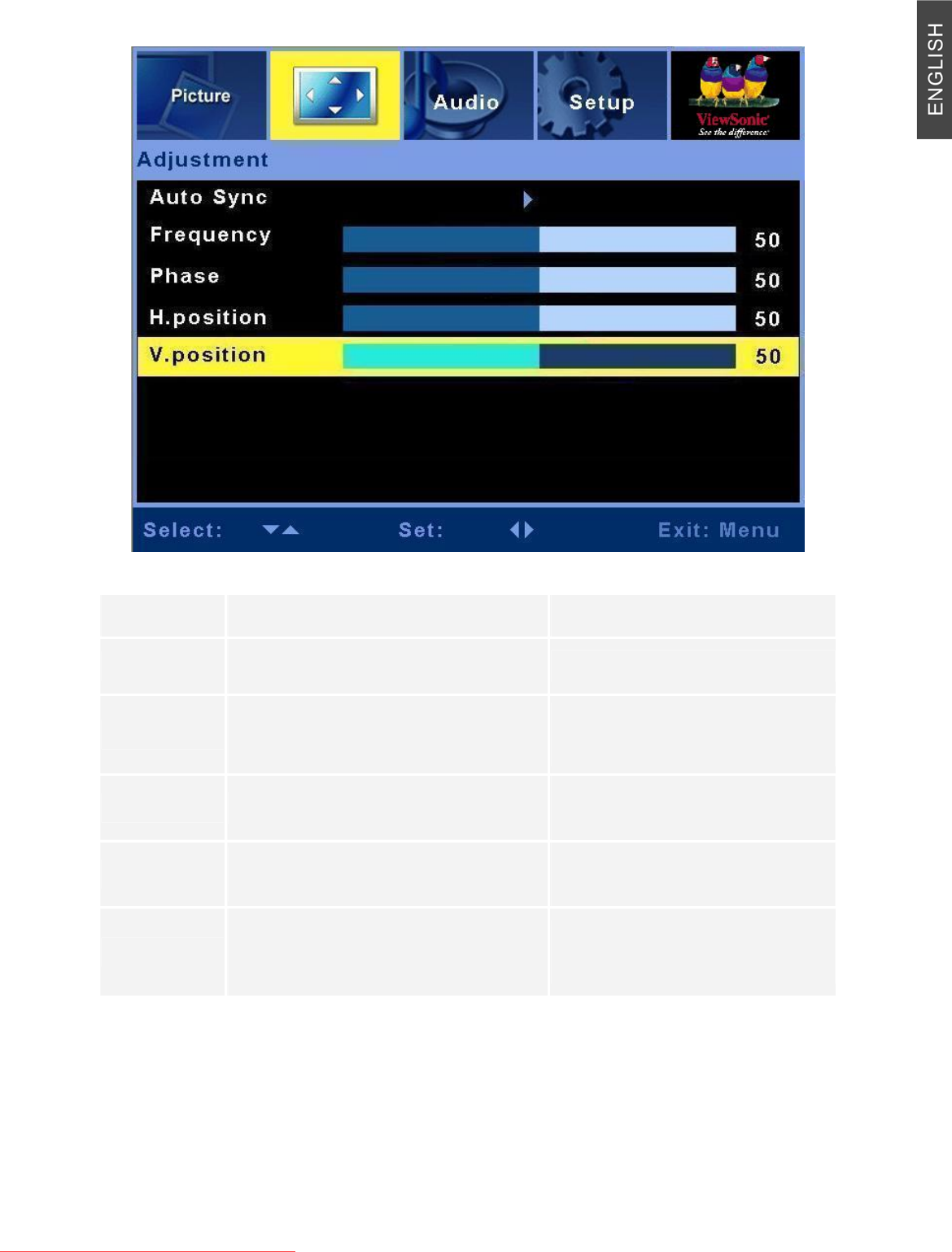

Adjustment menu
Item Description Operation
Auto Sync This function auto search the best
setting of current input ► to select Auto Sync.
Frequency
Adjust the delay time between
horizontal synchronous signal and
video
► to increase the delay time
◄ to decrease the delay time.
Phase Adjust the delay time
► to increase the delay time
◄ to decrease the delay time.
H.position Adjust the horizontal position of
the main and sub picture in PIP.
► to move toward the right.
◄ to move toward the left.
V. position
Adjust the vertical position of the
main and sub picture in PIP.
► to move upward.
◄ to move downward.
Downloaded From TV-Manual.com Manuals
29 ViewSonic N4200w

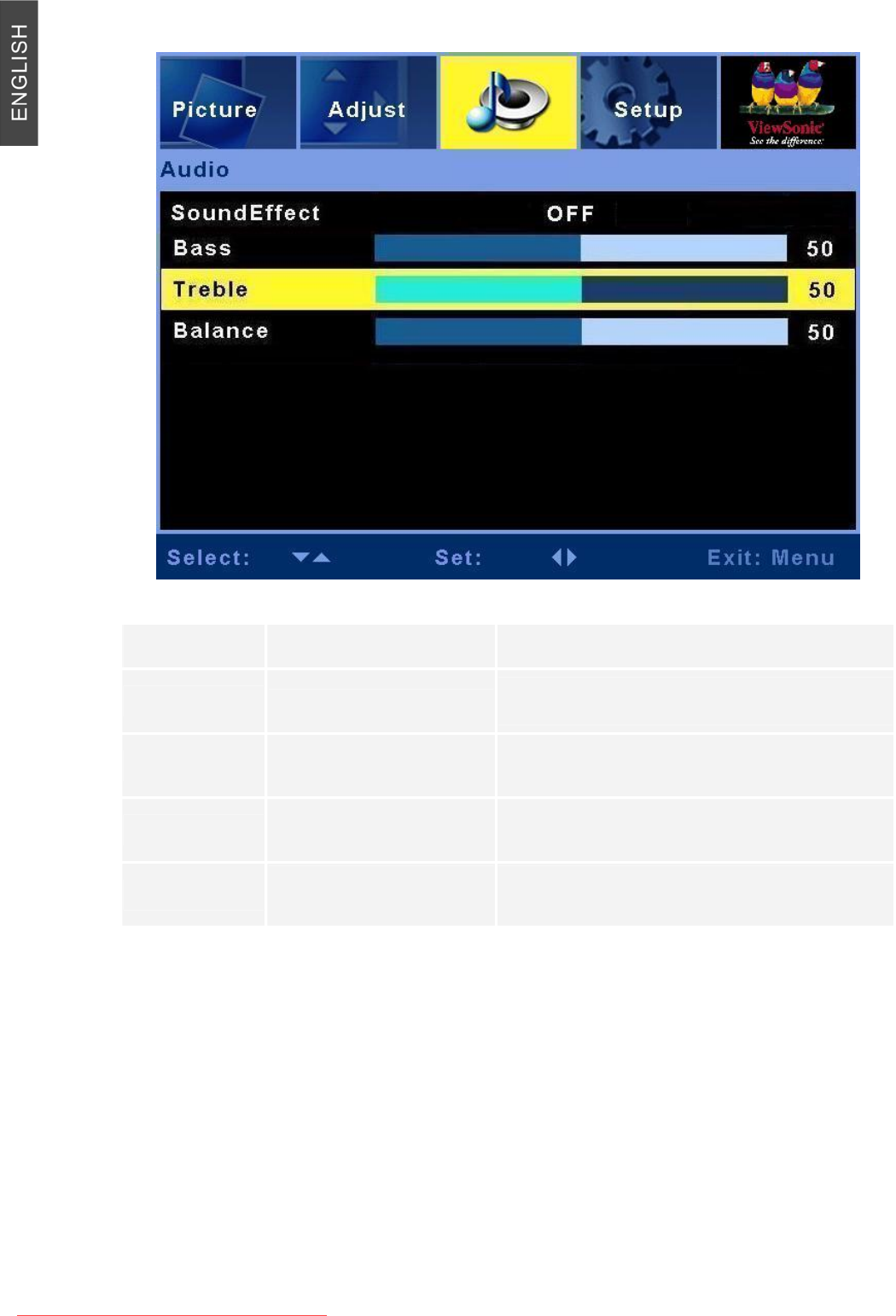

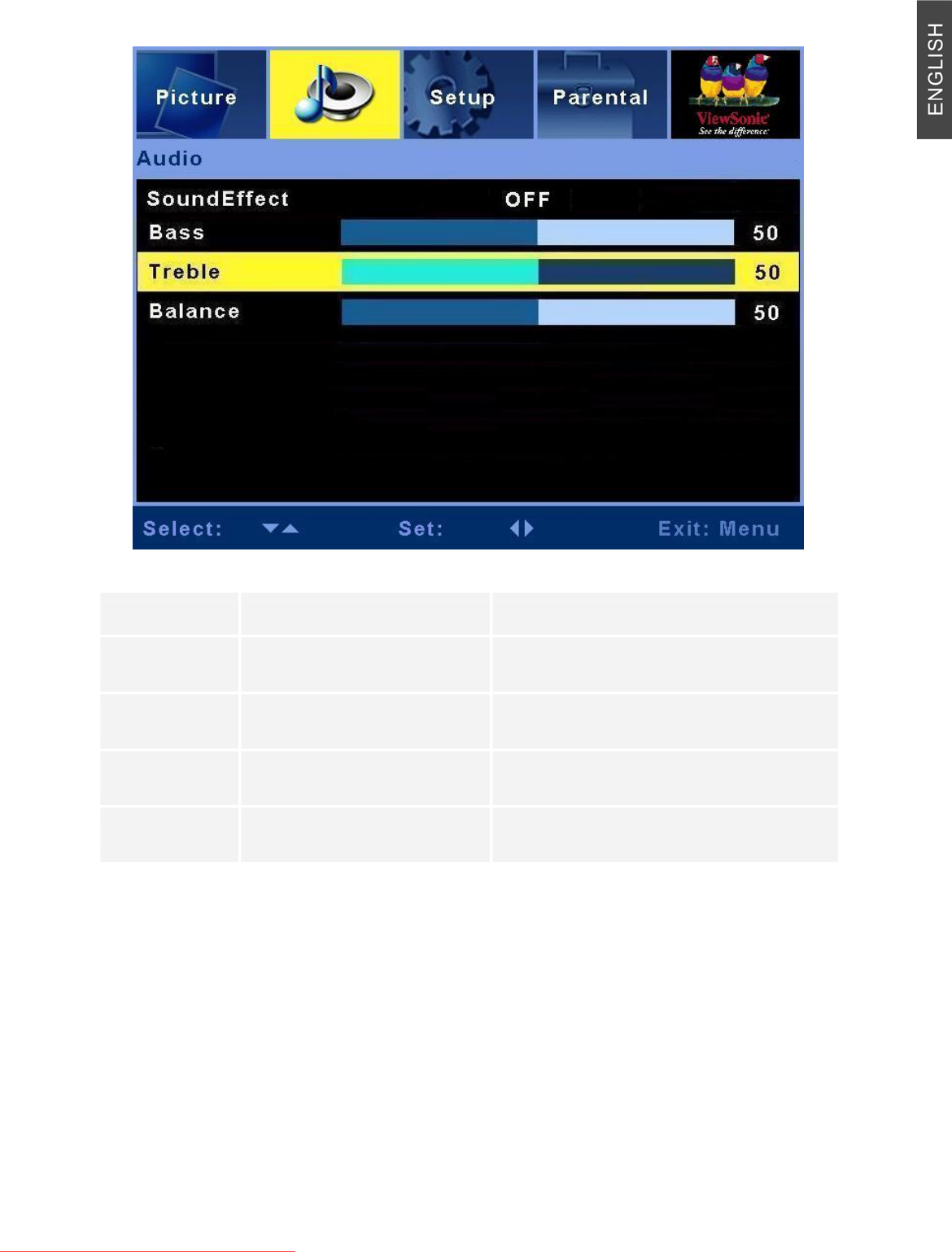

Audio menu
Item Description Operation
SoundEffect Select Sound Effect ►or◄ to select SRS Trusurround or
OFF.
Bass Adjust the bass. ► to increase lower-pitched sound.
◄ to decrease lower-pitched sound.
Treble Adjust the treble. ► to increase higher-pitched sound.
◄ to decrease higher-pitched sound.
Balance Adjust the left and right
audio balance.
► to emphasize the right speaker.
◄ to emphasize the left speaker.
Downloaded From TV-Manual.com Manuals
ViewSonic N4200w 30

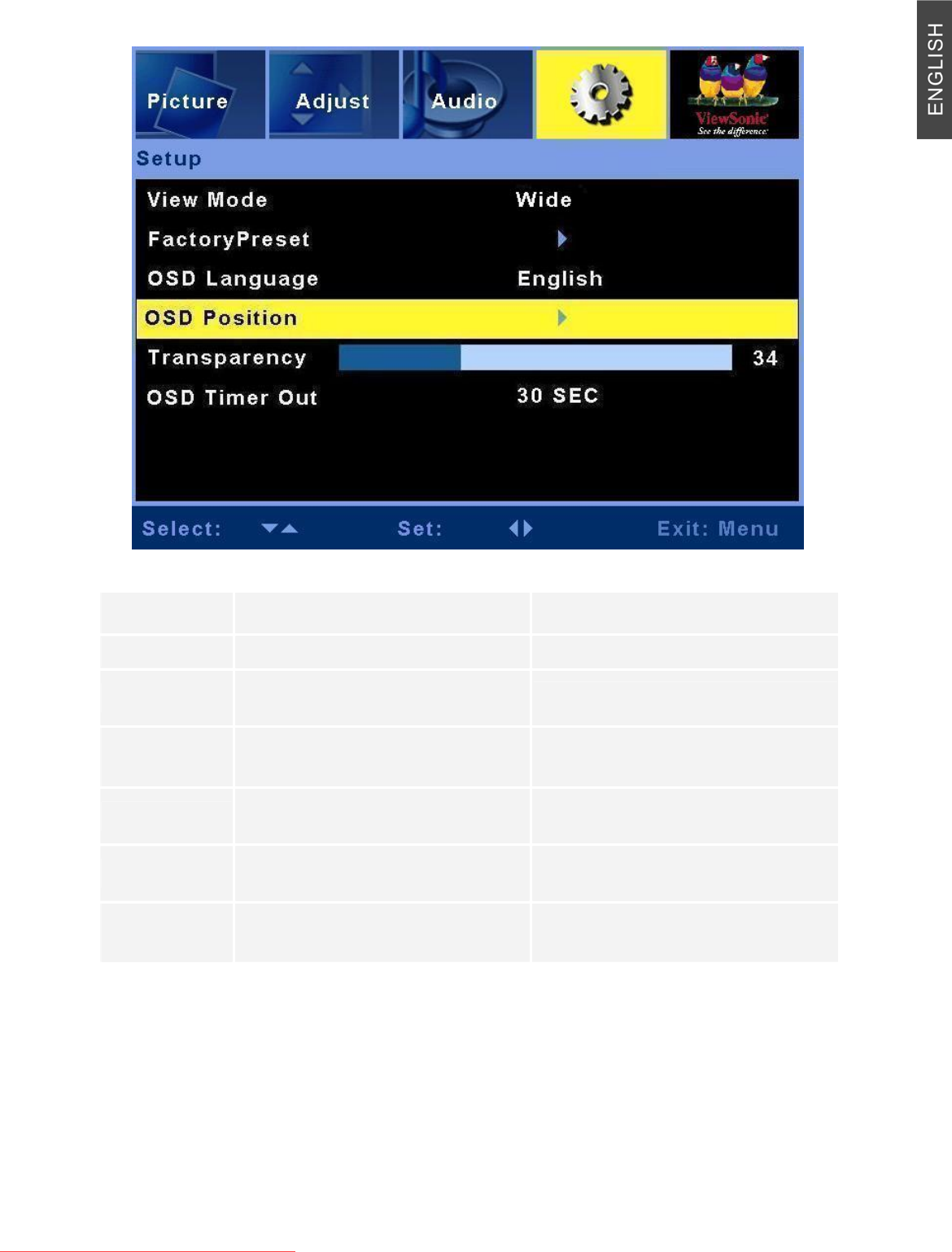

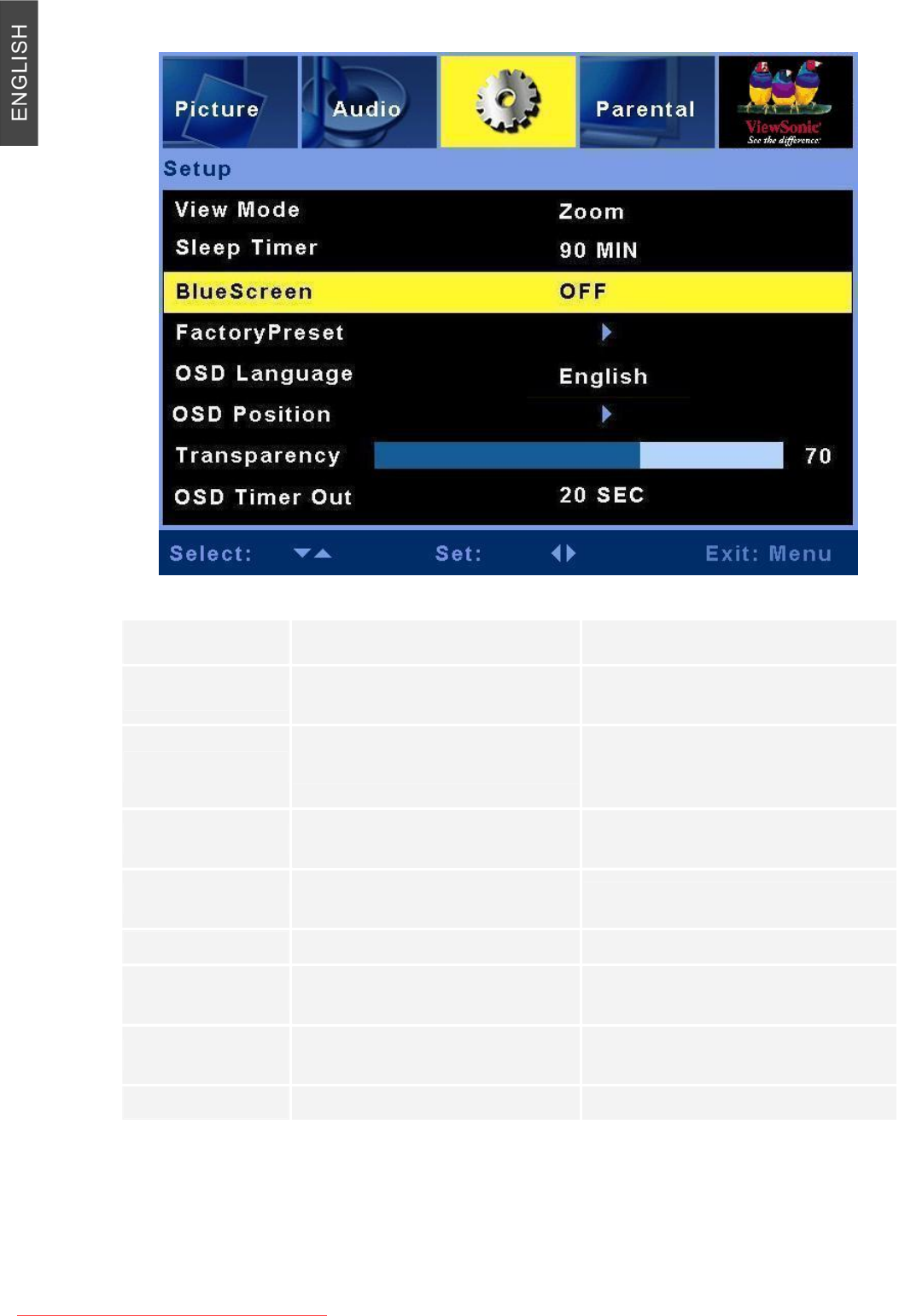

Setup menu
Item Description Operation
View Mode To adjust the picture ratio ►or◄ to select Normal/Wide
FactoryPreset To recover the original status
before shipping out the factory Press► for setup.
OSD
Language To select the OSD language ►or◄ to select OSD language.
OSD Position To select the OSD position on
the Display
►or◄ to select five kinds of
OSD position on the Display.
Transparency Adjust OSD’s transparency
level.
► to increase the transparency
◄ to decrease the transparency.
OSD Timer
Out Adjust OSD show time. ►or◄ to select show time.
Downloaded From TV-Manual.com Manuals
31 ViewSonic N4200w

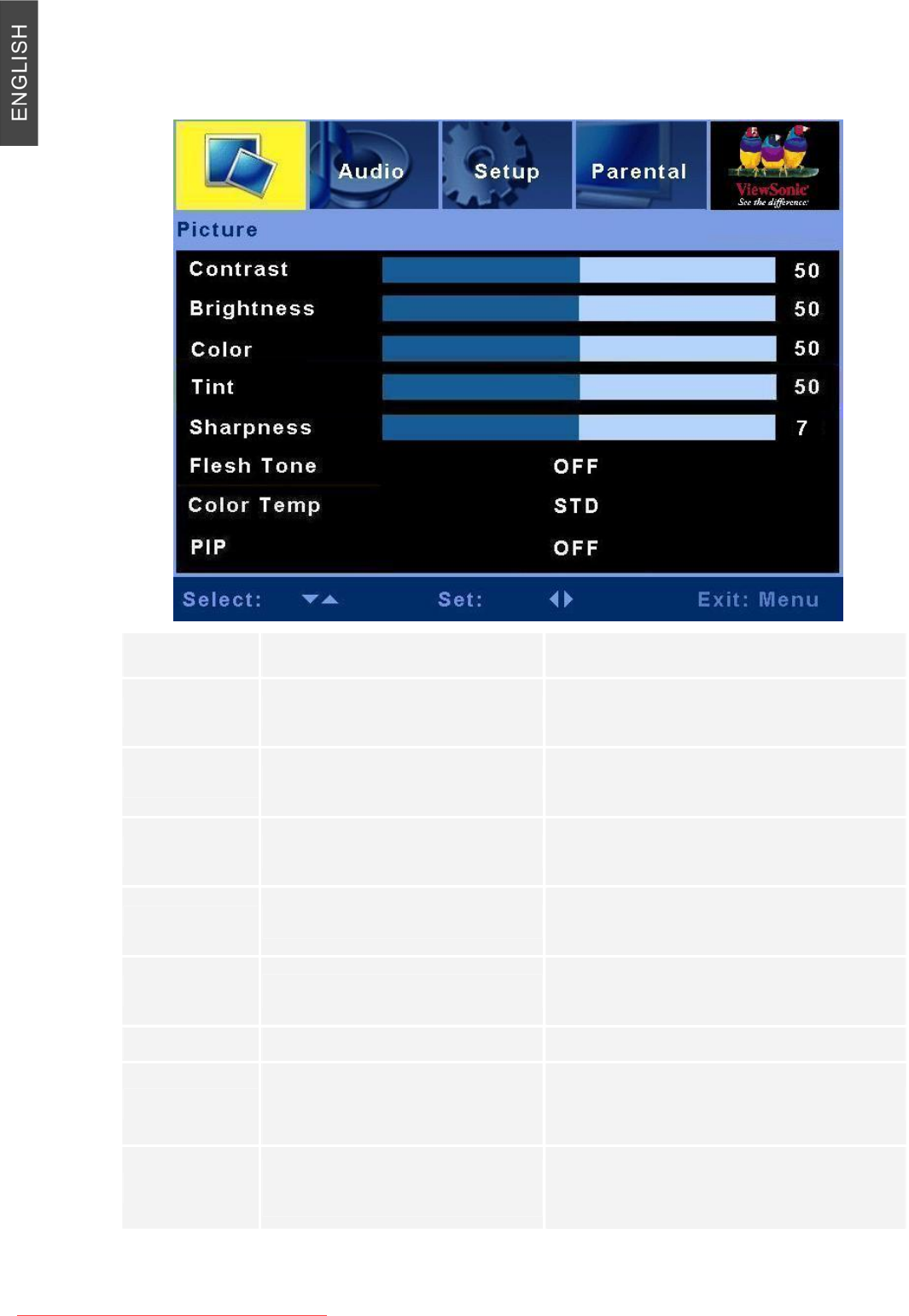

AV mode
Picture menu
Item Description Operation
Contrast Adjust the contrast level.
► to increase the contrast.
◄ to decrease the contrast.
Brightness Adjust the brightness level.
► to brighten the display.
◄ to darken the display.
Color Adjust the color saturation
►to increase the color saturation.
◄to decrease the color saturation.
Tint Adjust the Hue
►to increase the Hue.
◄to decrease the Hue.
Sharpness Adjust the picture sharpness.
► to sharpen the display.
◄ to soften the display.
Flesh Tone Adjust the image color ►or◄ to select ON or OFF.
Color Temp
Some default color temp set
is here. Options: STD, Warm
and Cold
►or ◄ to select color
PIP Select OFF or Multi-picture
functions
►or◄ to select OFF, PBP, PIP.
(HDMI input is not supported in sub
picture)
Downloaded From TV-Manual.com Manuals
ViewSonic N4200w 32
Audio menu
Item Description Operation
SoundEffect To select sound effect ►or◄ to select SRS Trusurround or
OFF
Bass Adjust the bass. ► to increase lower-pitched sound.
◄ to decrease lower-pitched sound.
Treble Adjust the treble. ► to increase higher-pitched sound.
◄ to decrease higher-pitched sound.
Balance Adjust the left and right
audio balance.
► to emphasize the right speaker.
◄ to emphasize the left speaker.
Downloaded From TV-Manual.com Manuals
33 ViewSonic N4200w
Setup menu
Item Description Operation
View Mode To adjust the picture ratio ►or◄ to select
Smart/4:3/16:9/Zoom/Wide
Sleep Timer To select sleep timer
►or◄ to select 30 MIN, 60 MIN,
90MIN, 120 MIN, 150 MIN or
OFF.
BlueScreen To select background color
when no input. ►or◄ to select ON or OFF.
FactoryPreset To recover the original status
before shipping out the factory Press► for setup.
OSD Language To select the OSD language ►or◄ to select OSD language.
OSD Position To select the OSD position on
the Display
►or◄ to select five kinds of
OSD position on the Display.
Transparency Adjust OSD’s transparency
level.
► to increase the transparency
◄ to decrease the transparency.
OSD Timer Out Adjust OSD show time. ►or◄ to select show time.
Downloaded From TV-Manual.com Manuals
ViewSonic N4200w 34
Parental Lock
Item Description Operation
Lock Status Adjust the Parental Lock
status ►or◄ to select on or off.
Password Setup Setup the Parental Lock
password
press►, then enter the number
as the password you hope.
Rating Setup Setup the film rating
classification
press►, then select the
classification you want and
press OK.
CC Setup To select Close caption ►or◄ to select Text1~4,
CC1~4, or OFF.
Downloaded From TV-Manual.com Manuals
35 ViewSonic N4200w
Other Information
Specifications
LCD Type 42.02” view able
Color Filter 0.681 mm (H) x 0.227 (V) mm pixel pitch
Glass surface RGB vertical stripe
Anti-Glare
Input signal RGB RGB analog (0.7/1.0 Vp-p, 75 ohms)
Separate Sync,
fh:30-80 kHz, fv:50-75 Hz
Video D-sub x 1 ,HDMI x 2, YPbPr/YCbCr x 2, S-Video x 2,
CVBS x 2
Audio Mini-stereo (Φ3.5mm x 1 ), RCA (L/R) x 4
Compatibility PC Up to 1360 x 768 Non-interlaced
Resolution 1360 x 768 @ 60 Hz
Speaker Output 10W x 2
Power Voltage 90-240 VAC, 50/60 Hz
Display area Full Scan 930.25mm (H) x 523.01 mm (V)
36.62 inch (H) x 20.59 inch (V)
Operating Temperature 32° F to + 104° F (0° C to + 40° C)
conditions Humidity 85% (no condensation)
Altitude To 10,000 feet (3,000m)
Storage Temperature -4° F to + 122° F (-20° C to + 50° C 240h)
conditions Humidity 85% (no condensation)
Altitude To 40,000 feet (12,000m)
Dimensions Physical 1243 mm (W) x 739 mm (H) x 304mm (D)
48.93 inch (W) x 29.09 inch (H) x 11.96 inch (D)
Weight Net 33kg (72.68 lb)
Regulations FCC, UL, cUL, NOM
Power saving On <240 W LED Green
modes Passive Off <3 W LED Red
Pre-test Timing Mode (Pre-adjusted to GTF 1360 x 768@60Hz)
Warning: Do not set the graphics card in your computer to exceed these refresh rates; doing so may result in
permanent damage to the LCD display.
Note: Product Specification is subject to change without notice.
Downloaded From TV-Manual.com Manuals
ViewSonic N4200w 36
Troubleshooting
No power
y Make sure the LCD Display is properly connected.
y Make sure the AC power cord is properly connected.
y Make sure the AC power is ON, DC power button is ON.
y Plug another electrical device (like a radio) to the power outlet to verify that the outlet is
supplying the proper voltage.
Poor or no picture
y Make sure that connection to other components is correct.
y Make sure that setup has been done correctly after connections.
y Make sure the correct input is selected and the input signal is compatible.
Strange color, light color, or color misalignment
y Ensure that the video cable is securely connected.
y The picture may appear dim in a brightly lit room.
y Adjust brightness and contrast.
y Check the input signal setting.
No Sound
y Check your audio connections
y The MUTE button may have been pressed, try pressing this button again.
y Check your audio settings, your Display audio may be set to minimum.
y Press the Volume + (Up) button on the remote control.
Remote control unit does not operate
y Make sure batteries are inserted correctly.
y Batteries could be weak or dead. Replace batteries.
y Is a fluorescent light illuminated near the remote control sensor?
y The path of the remote control beam may be blocked. Make sure the path is clear and that
the remote control is aimed at the remote control sensor on the Display.
y Press only one button at a time and it is the correct one for the operation you want to
perform.
Unit cannot be operated
y External influences such as lightning or static electricity may cause improper operation.
In this case, operate the unit after first turning on the power of the LCD Display and the
AVC System, or unplug the AC cord for 1 to 2 minutes, then replug again.
Power is cut off suddenly
y Is the sleep timer set?
y The internal temperature of the unit has increased. Remove any objects blocking the vent
or clean as necessary.
Downloaded From TV-Manual.com Manuals
ViewSonic N4200w 38
Customer Support
For technical support or product service, see the table below or contact your reseller.
NOTE: You will need the product serial number.
Contry/
Region Web site T = Telephone
F = FAX Email
United
States
www.viewsonic.com
/support/
T = (800) 688 6688
F = (909) 468 1202 Service.us@viewsonic.com
Canada www.viewsonic.com
/support/ T = (866) 463 4775 Service.ca@viewsonic.com
Downloaded From TV-Manual.com Manuals
39 ViewSonic N4200w
Limited Warranty
VIEWSONIC® LCD DISPLAY
What the warranty covers:
ViewSonic warrants its products to be free from defects in material and workmanship, under normal use, during
the warranty period. If a product proves to be defective in material or workmanship during the warranty period,
ViewSonic will, at its sole option, repair or replace the product with a like product. Replacement product or parts
may include remanufactured or refurbished parts or components.
How long the warranty is effective:
ViewSonic LCD displays are warranted for 1 year for all parts excluding the light source and 1 year for labor
from the date of the first customer purchase.
Who the warranty protects:
This warranty is valid only for the first consumer purchaser.
What the warranty does not cover:
1. Any product on which the serial number has been defaced, modified or removed.
2. Damage, deterioration or malfunction resulting from:
a. Accident, misuse, neglect, fire, water, lightning, or other acts of nature, unauthorized product modification,
or failure to follow instructions supplied with the product.
b. Repair or attempted repair by anyone not authorized by ViewSonic.
c. Any damage of the product due to shipment.
d. Removal or installation of the product.
e. Causes external to the product, such as electric power fluctuations or failure.
f. Use of supplies or parts not meeting ViewSonic’s specifications.
g. Normal wear and tear.
h. Any other cause which does not relate to a product defect.
3. Any product exhibiting a condition commonly known as “image burn-in” which results when a static image is
displayed on the product for an extended period of time.
4. Removal, installation, and set-up service charges.
5. When you mount it on the wall, the following must be noticed:
a. The accessories attached with this product are applicable for this product only.
b. When the product is mounted on the wall, holes and fixed screws will remain in the wall body.
c. Wall face may discolor when this product has been mounted on the wall for a long time.
How to get service:
1. For information about receiving service under warranty, contact ViewSonic Customer Support (please refer to
Customer Support page). You will need to provide your product’s serial number.
2. To obtain warranted service, you will be required to provide (a) the original dated sales slip, (b) your name, (c)
your address, (d) a description of the problem, and (e) the serial number of the product.
3. Take or ship the product freight prepaid in the original container to an authorized ViewSonic service center or ViewSonic.
4. For additional information or the name of the nearest ViewSonic service center, contact ViewSonic.
Limitation of implied warranties:
There are no warranties, express or implied, which extend beyond the description contained herein including the
implied warranty of merchantability and fitness for a particular purpose.
Exclusion of damages:
ViewSonic’s liability is limited to the cost of repair or replacement of the product. ViewSonic shall not be liable for:
1. Damage to other property caused by any defects in the product, damages based upon inconvenience, loss of
use of the product, loss of time, loss of profits, loss of business opportunity, loss of goodwill, interference with
business relationships, or other commercial loss, even if advised of the possibility of such damages.
2. Any other damages, whether incidental, consequential or otherwise.
3. Any claim against the customer by any other party.
Effect of state law:
This warranty gives you specific legal rights, and you may also have other rights which vary from state to state.
Some states do not allow limitations on implied warranties and/or do not allow the exclusion of incidental or
consequential damages, so the above limitations and exclusions may not apply to you.
Sales outside the U.S.A. and Canada:
For warranty information and service on ViewSonic products sold outside of the U.S.A. and Canada, contact
ViewSonic or your local ViewSonic dealer. The warranty period for this product in mainland China (Hong Kong,
Macao and Taiwan Excluded) is subject to the terms and conditions of the
Maintenance Guarantee Card.
4.3: ViewSonic LCD Warranty LTV_LW01 Rev. 1B 06-30-06
Downloaded From TV-Manual.com Manuals
