User Manual

WPG-300

Wireless Presentation Gateway

User Guide

Model No. VS16124

IMPORTANT: Please read this User Guide to obtain important information on installing

and using your product in a safe manner, as well as registering your product for future

service. Warranty information contained in this User Guide will describe your limited

coverage from ViewSonic Corporation, which is also found on our web site at http://

www.viewsonic.com in English, or in specic languages using the Regional selection

box in the upper right corner of our website. “Antes de operar su equipo lea cu

idadosamente las instrucciones en este manual”

Thank you for choosing ViewSonic

With over 25 years as a world leading provider of visual solutions, ViewSonic

is dedicated to exceeding the world’s expectations for technological

evolution, innovation, and simplicity. At ViewSonic, we believe that our

products have the potential to make a positive impact in the world, and

we are confident that the ViewSonic product you have chosen will serve

you well.

Once again, thank you for choosing ViewSonic !

Compliance Information

Please read before proceeding

• Use only the batteries and power adapter provided by the manufacturer. The use

of unauthorized accessories may void your warranty.

• Do not store your device in temperatures higher than 50°C (122°F).

• The operating temperature for this device is from 0°C (32°F) to 35°C (95°F).

FCC Compliance Statement

The following statement applies to all products that have received FCC approval.

Applicable products bear the FCC logo, and/or an FCC ID in the format FCC ID:

GSS-VS16124 on the product label.This device complies with part 15 of the FCC

Rules. Operation is subject to the following two conditions: (1) This device may

not cause harmful interference, and (2) This device must accept any interference

received, including interference that may cause undesired operation. This

mobiledevice has been tested and found to comply with the limits for a Class B

digital device, pursuant to Part 15 of the FCC Rules. These limits are designed

to provide reasonable protection against harmful interference in a residential

installation. This equipment generates, uses and can radiate radio frequencyenergy

and, if not installed and used in accordance with the instructions, may cause

harmful interferenceto radio communications. However, there is no guarantee that

interference will not occur in a particular installation. If this equipment does cause

harmful interference to radio or television reception, which can be determined

by turning the equipment off and on, the user is encouraged to try to correct the

interference by one or more of the following measures

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from that to which the

receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help.

Changes or modications not expressly approved by the party responsible for

compliance could void theuser’s authority to operate the equipment.The antenna(s)

used for this transmitter must not be colocated or operating in conjunction with any

otherantenna or transmitter.

The device was tested and complies to measurement standards and procedures

specied in FCC OET Bulletin 65, Supplement C

FCC SAR Information

This equipment complies with FCC radiation exposure limits set forth for an

uncontrolled environment. End users must follow the specic operating instructions

for satisfying RF exposure compliance.

This transmitter must not be co-located or operating in conjunction with any other

antenna or transmitter. This equipment should be installed and operated with a

minimum distance of 20 centimeters between the radiator and your body.

The users manual or instruction manual for an intentional or unintentional radiator

shall caution the user that changes or modications not expressly approved by

the party responsible for compliance could void the user's authority to operate the

equipment.

CE Conformity for European Countries

The device complies with the EMC Directive 2004/108/EC and Low Voltage

Directive 2006/95/EC.

Following information is only for EU-member states:

The mark shown to the right is in compliance with the Waste Electrical and

Electronic Equipment Directive 2012/19/EU (WEEE).

The mark indicates the requirement NOT to dispose the equipment as

unsorted municipal waste, but use the return and collection systems

according to local law.

If the batteries, accumulators and button cells included with this equipment,

display the chemical symbol Hg, Cd, or Pb, then it means that the battery has

a heavy metal content of more than 0.0005% Mercury, or more than 0.002%

Cadmium, or more than 0.004% Lead.

European Union Regulatory Conformance

The equipment complies with the RF Exposure Requirement 1999/519/EC, Council

Recommendation of 12 July 1999 on the limitation of exposure of the general

public to electromagnetic elds (0-300 GHz). This equipment meets the following

conformance standards: EN301489-1, EN301489-17, EN60950-1, EN300328.

We, hereby, declare that this Wi-Fi radio is in compliance with the essential

requirements and other relevant provisions of Directive 1999/5/EC.

iii

IC Warning Statement

This device complies with Industry Canada license- exempt RSS standard(s).

Operation is subject to the following two conditions: (1) this device may not cause

interference, and (2) this device must accept any interference, including interference

that may cause undesired operation of the device.

Le présent appareil est conforme aux CNR d’Industrie Canada applicables aux

appareils radio exempts de licence. L’exploitation est autorisée aux deux conditions

suivantes : ( 1 ) l’appareil ne doit pas produire de brouillage, et ( 2) l’utilisateur de

l’appareil doit accepter tout brouillage radioélectrique subi, méme si le brouillage est

susceptible d’en compromettre le fonctionnement.

Country Code Statement

For ptoduct available in the USA/Canada market, only channe 1~11 can be operated.

Selection of other channels is not possible.

Pour les produits disponibles aux États-Unis/Canada du marché, seul le canal 1 à 11

peuvent être exploités. Sélection d’autres canaux n’est pas possible.

For MPE Statement – Mobile device

IMPORTANT NOTE:

IC Radiation Exposure Statement:

This equipment complied with IC RSS-102 radiation exposure limits set forth for an

uncontrolled environment. This equipment should be installed and operated with

minimum distance 20cm between the radiator & your body.

Cet équipement est conforme aux limites d’exposition aux rayonnements IC établies

pour un environnement non contrôlê. Cet équipement doit être installé et utilize avec

un minimum de 20cm de distance entre la source de rayonnement et votre corps.

Declaration of RoHS2 Compliance

This product has been designed and manufactured in compliance with Directive

2011/65/EU of the European Parliament and the Council on restriction of the use

of certain hazardous substances in electrical and electronic equipment (RoHS2

Directive), and is deemed to comply with the maximum concentration values issued

by the European Technical Adaptation Committee (TAC) as shown below:

Substance

Proposed Maximum

Concentration

Actual Concentration

Lead (Pb) 0.1% < 0.1%

Mercury (Hg) 0.1% < 0.1%

Cadmium (Cd) 0.01% < 0.01%

Hexavalent Chromium (Cr6+) 0.1% < 0.1%

Polybrominated biphenyls (PBB) 0.1% < 0.1%

Polybrominated diphenyl ethers (PBDE) 0.1% < 0.1%

Certain components of products as stated above are exempted under the Annex III

of the RoHS2 Directives as noted below:

Examples of exempted components are:

1. Mercury in cold cathode uorescent lamps and external electrode uorescent

lamps (CCFL and EEFL) for special purposes not exceeding (per lamp):

(1) Short length (≦500 mm): maximum 3.5 mg per lamp.

(2) Medium length (＞500 mm and ≦1,500 mm): maximum 5 mg per lamp.

(3) Long length (＞1,500 mm): maximum 13 mg per lamp.

2. Lead in glass of cathode ray tubes.

3. Lead in glass of uorescent tubes not exceeding 0.2% by weight.

4. Lead as an alloying element in aluminium containing up to 0.4% lead by weight.

5. Copper alloy containing up to 4% lead by weight.

6. Lead in high melting temperature type solders (i.e. lead-based alloys containing

85% by weight or more lead).

7. Electrical and electronic components containing lead in a glass or ceramic other

than dielectric ceramic in capacitors, e.g. piezoelectronic devices, or in a glass or

ceramic matrix compound.

Contents

Compliance Information

FCC Compliance Statement ................................................................................... i

CE Conformity for European Countries ................................................................. ii

IC Warning Statement .......................................................................................... iii

Declaration of RoHS2 Compliance .......................................................................iv

Product Registration ............................................................................................vii

For Your Records ................................................................................................vii

General

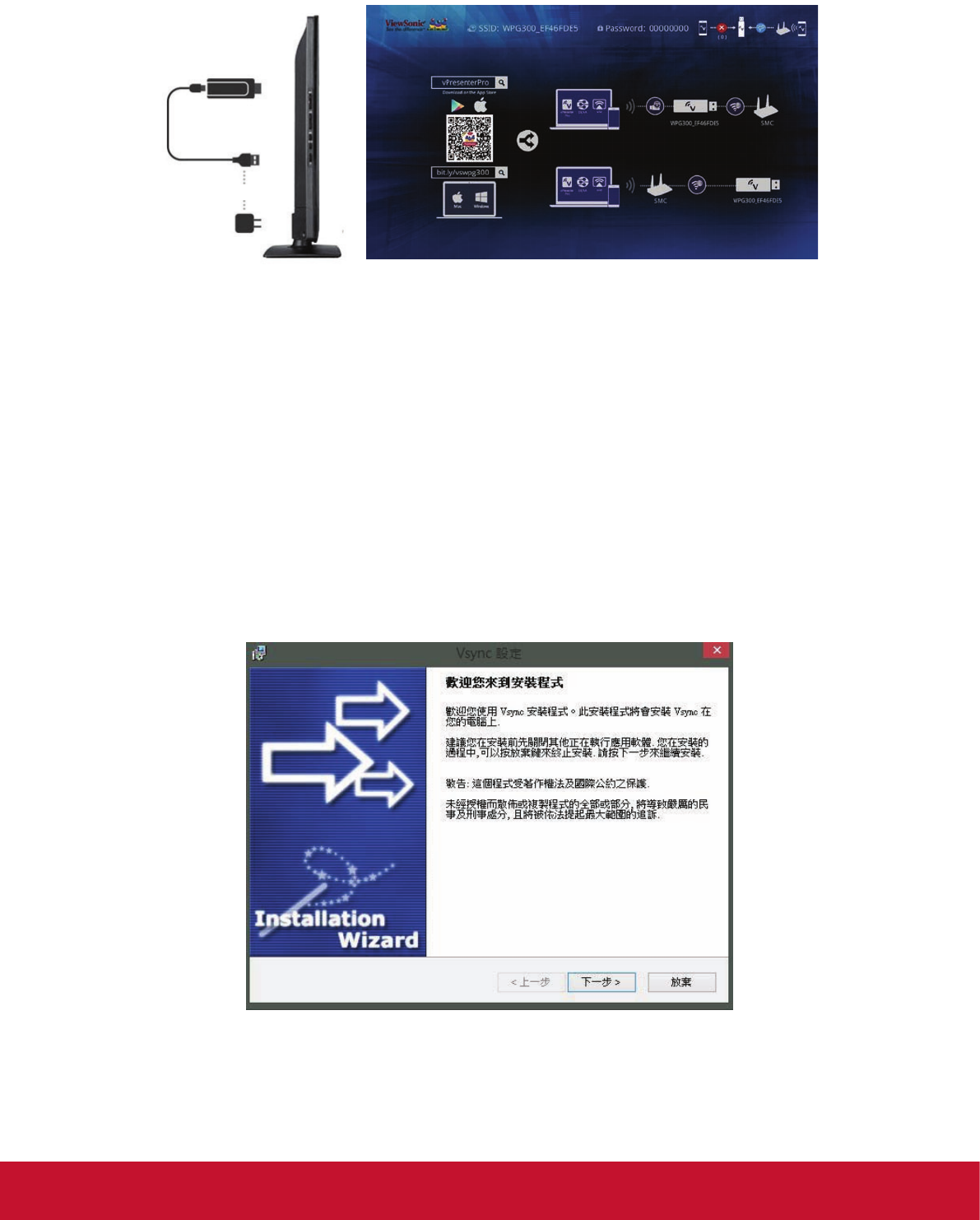

Hardware Installation .............................................................................................1

App (iOS/Android) .................................................................................................2

iOS System requirements ..........................................................................................................2

Android OS System requirements .............................................................................................2

Start up ......................................................................................................................................2

Download ...................................................................................................................................2

Device Connection ....................................................................................................................3

App starts (below photos are based on iOS version) ................................................................3

App Features .............................................................................................................................5

Special Features..................................................................................................11

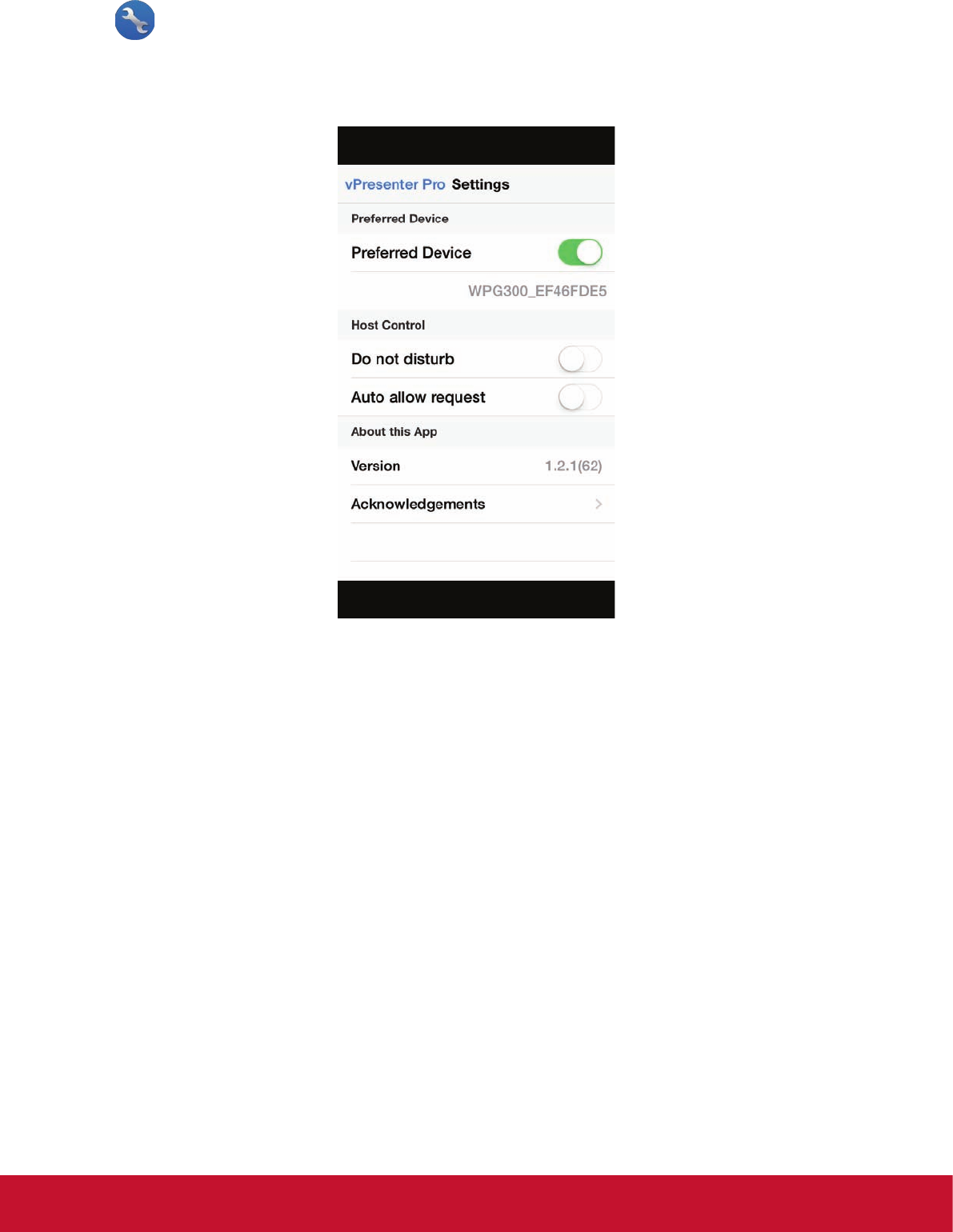

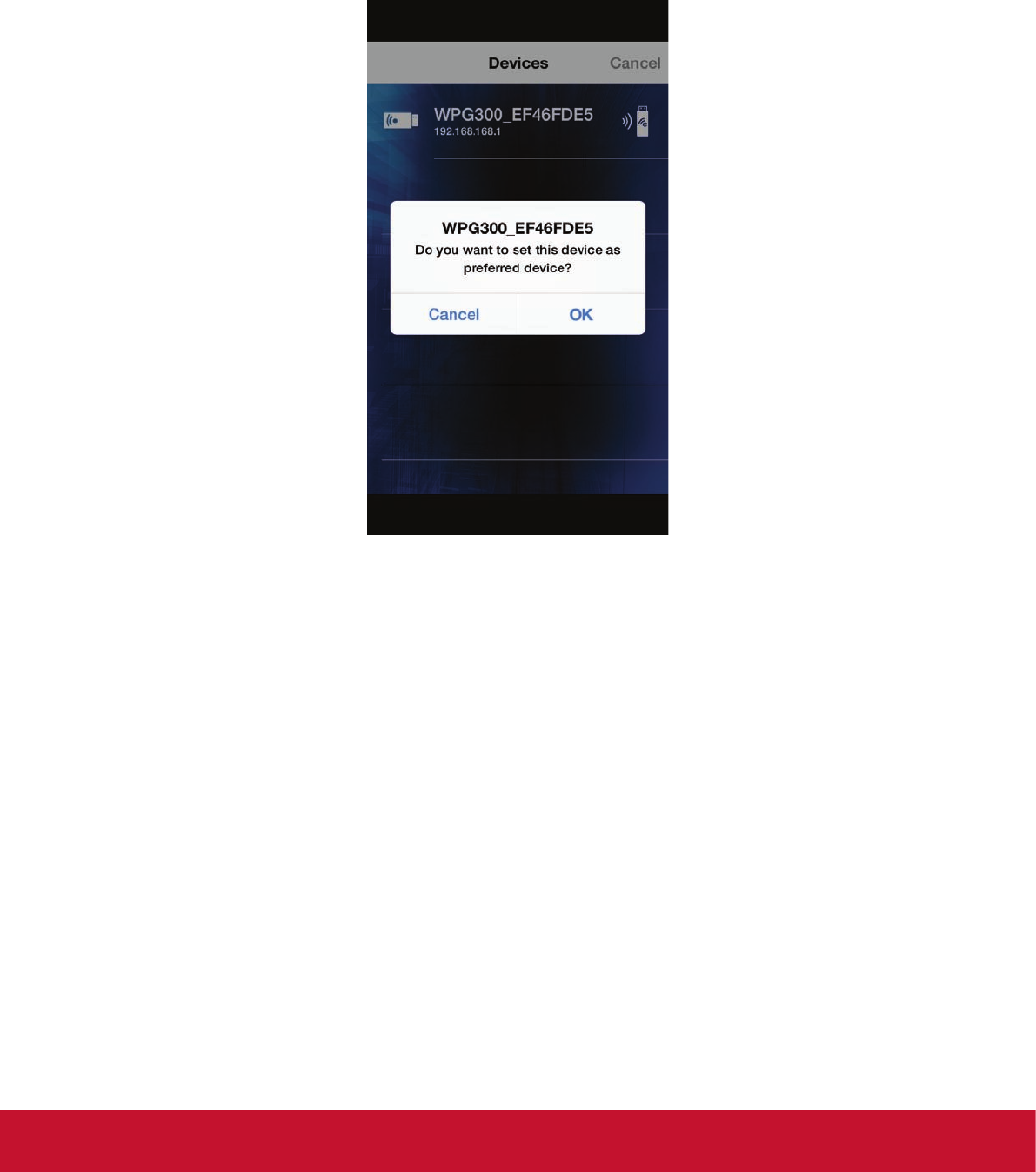

Preferred Device ......................................................................................................................11

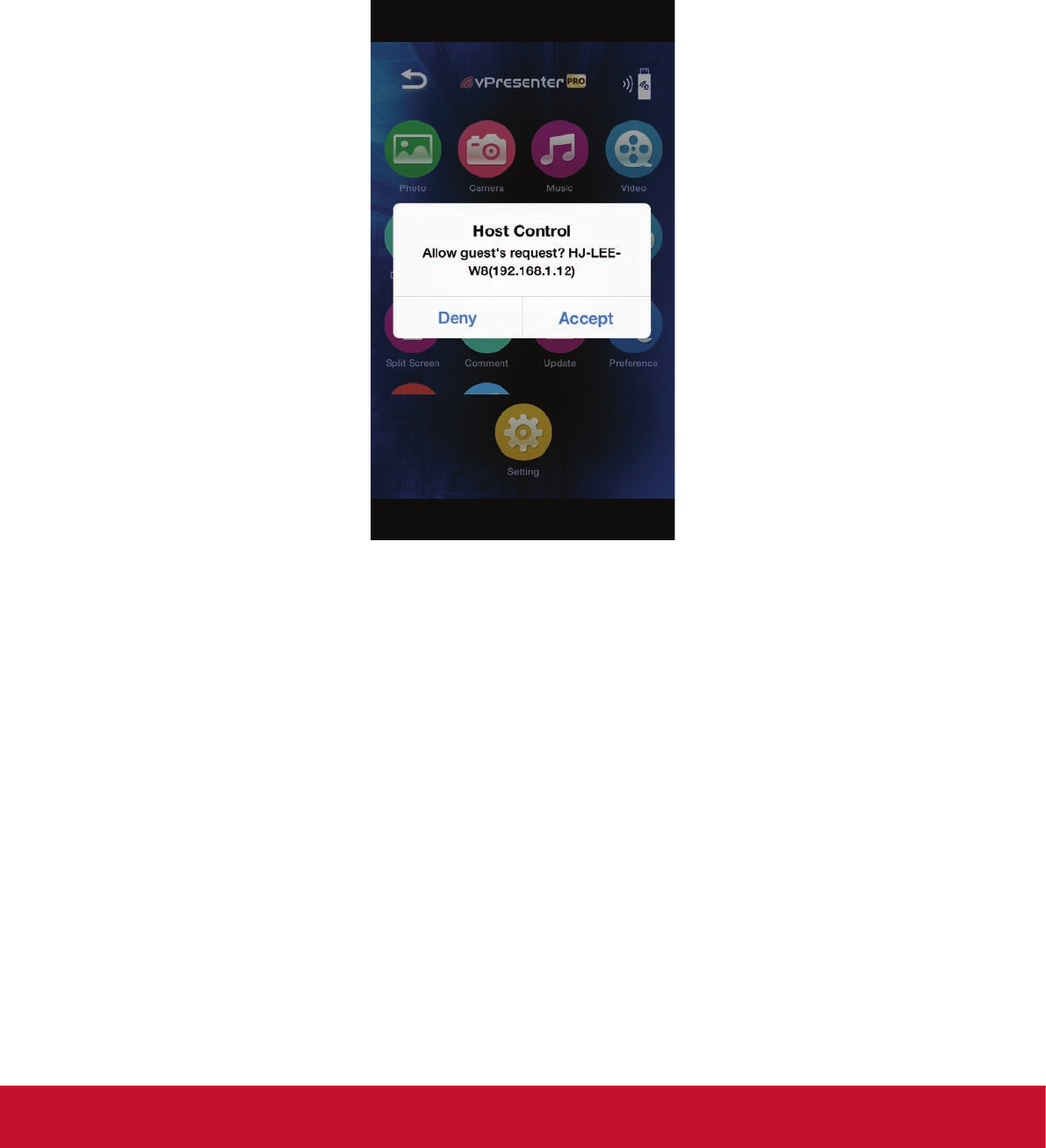

Host control .............................................................................................................................12

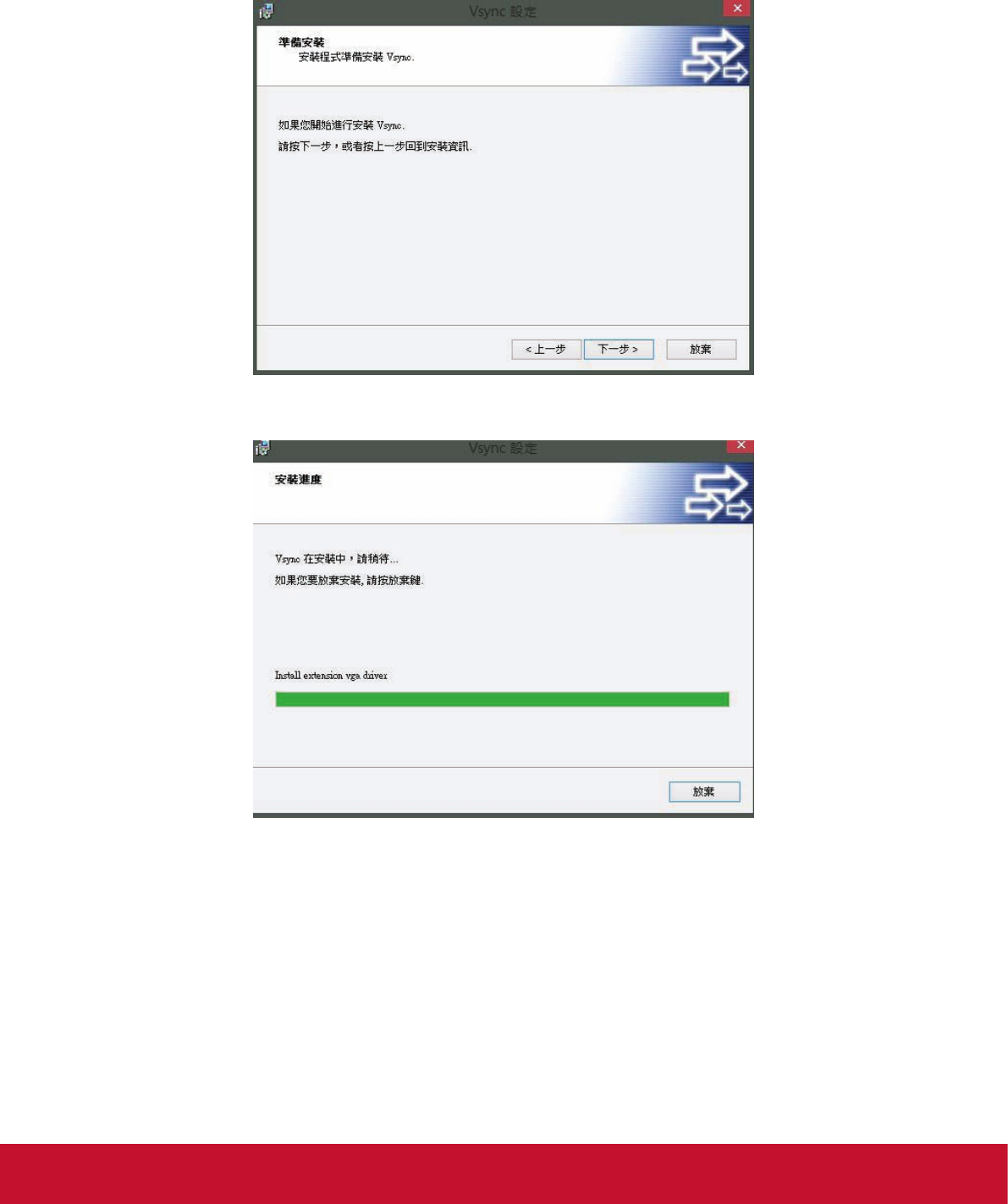

Installation (Windows) .........................................................................................17

Download and Install ...............................................................................................................18

Next .........................................................................................................................................18

Install progress ........................................................................................................................19

Request from Guest ................................................................................................................23

Denied by Host ........................................................................................................................23

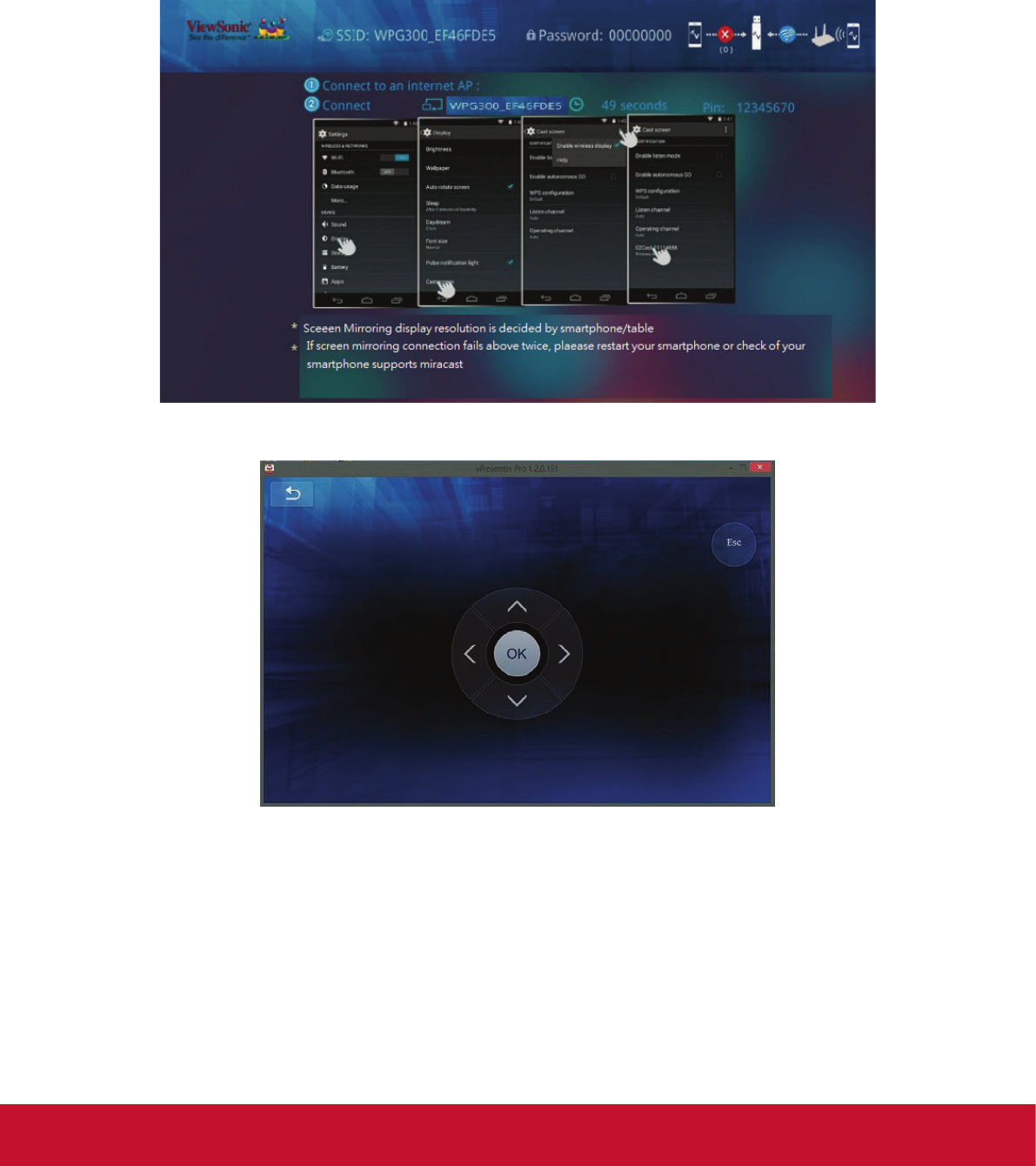

Mirror the complete screen ......................................................................................................24

Make vPresenter Pro devide as an extension screen .............................................................24

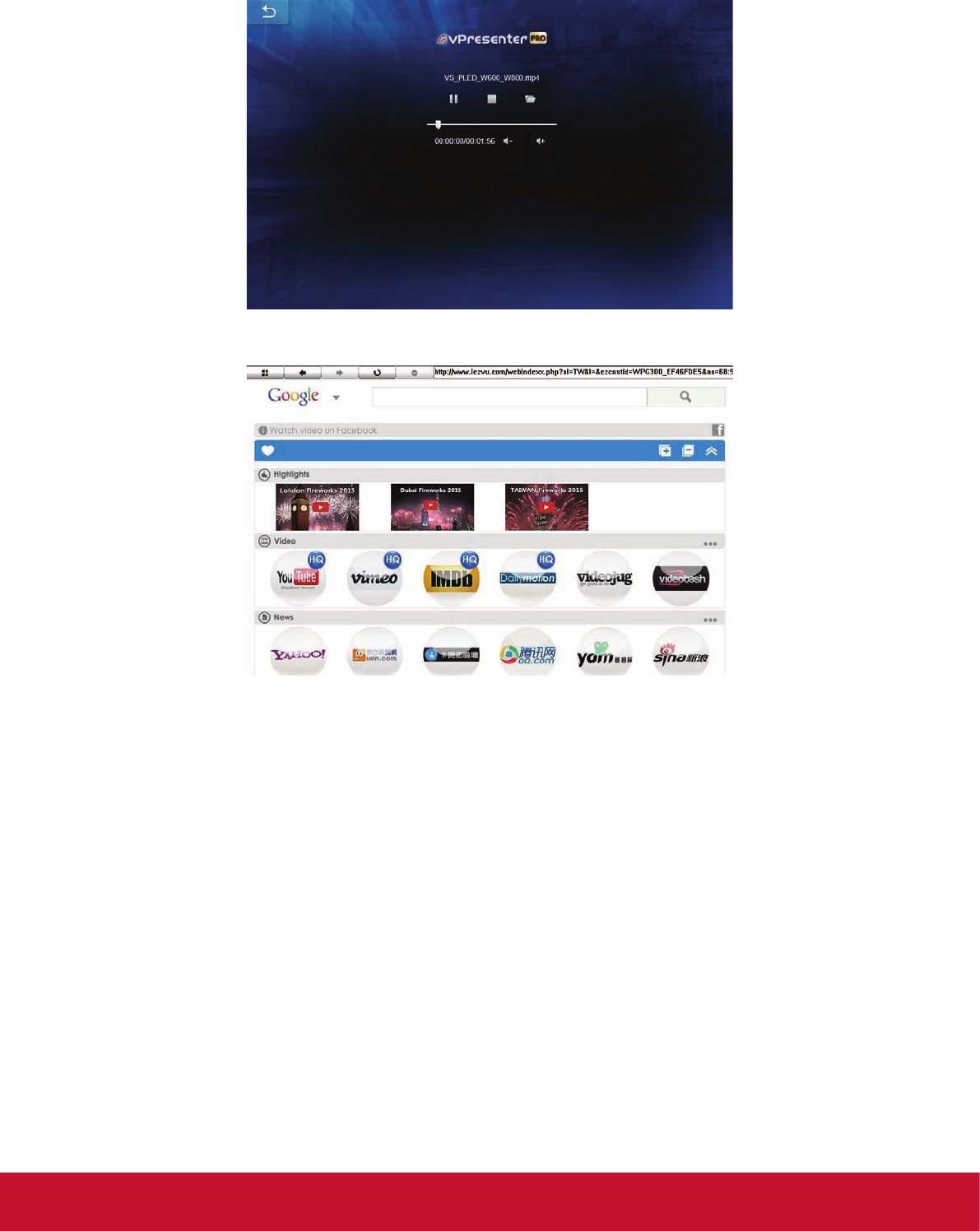

Web Browser ...........................................................................................................................27

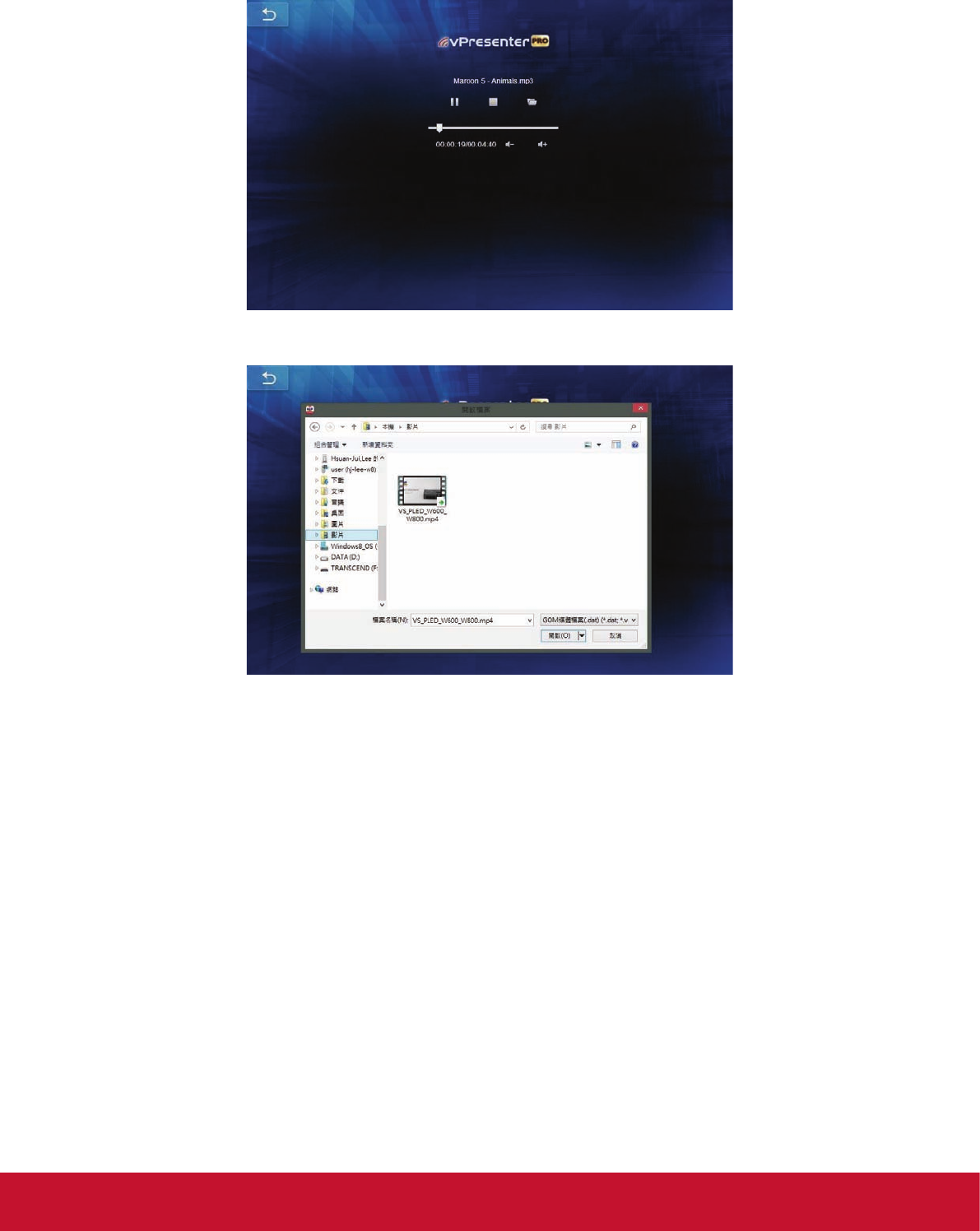

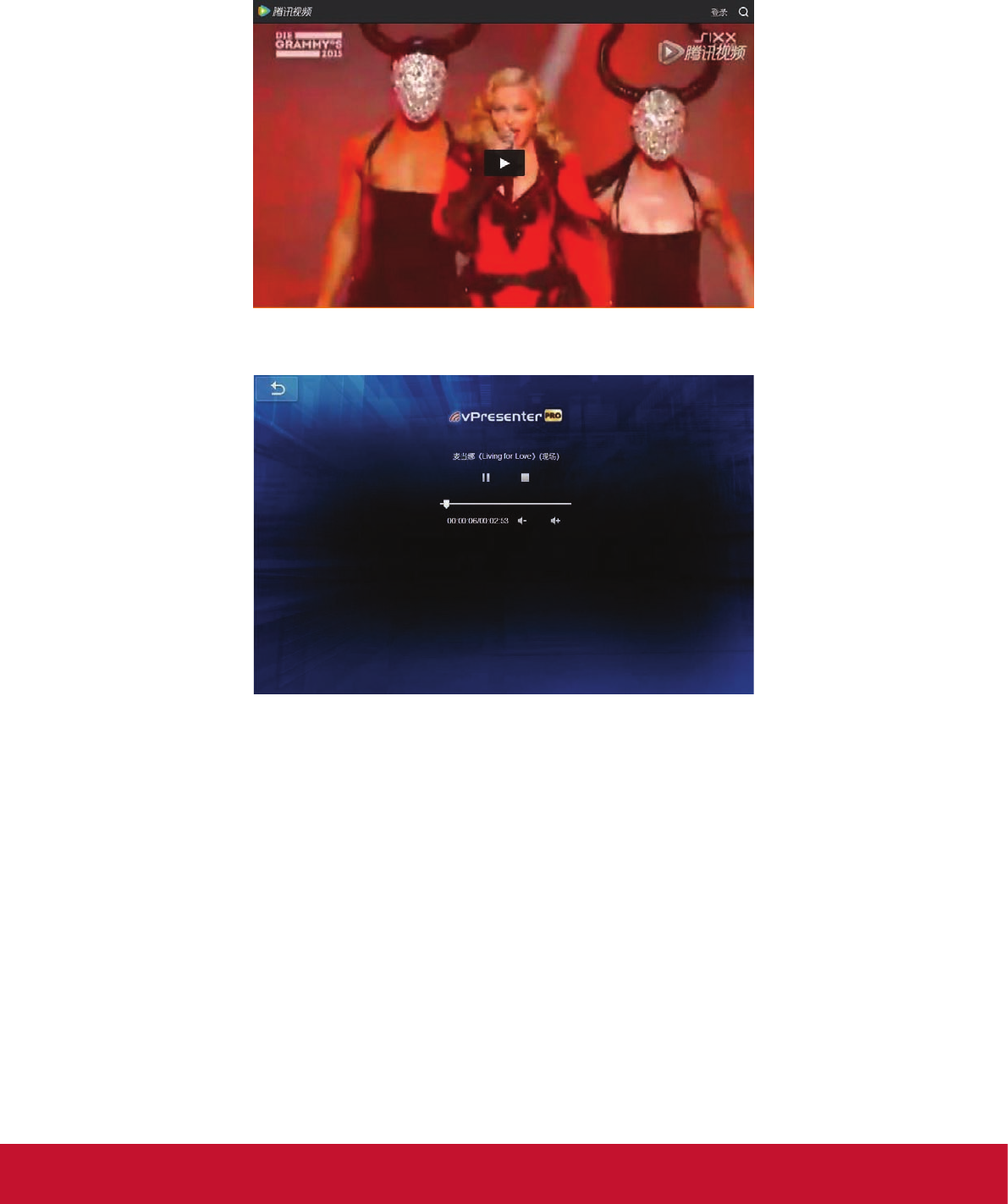

Online Video ............................................................................................................................28

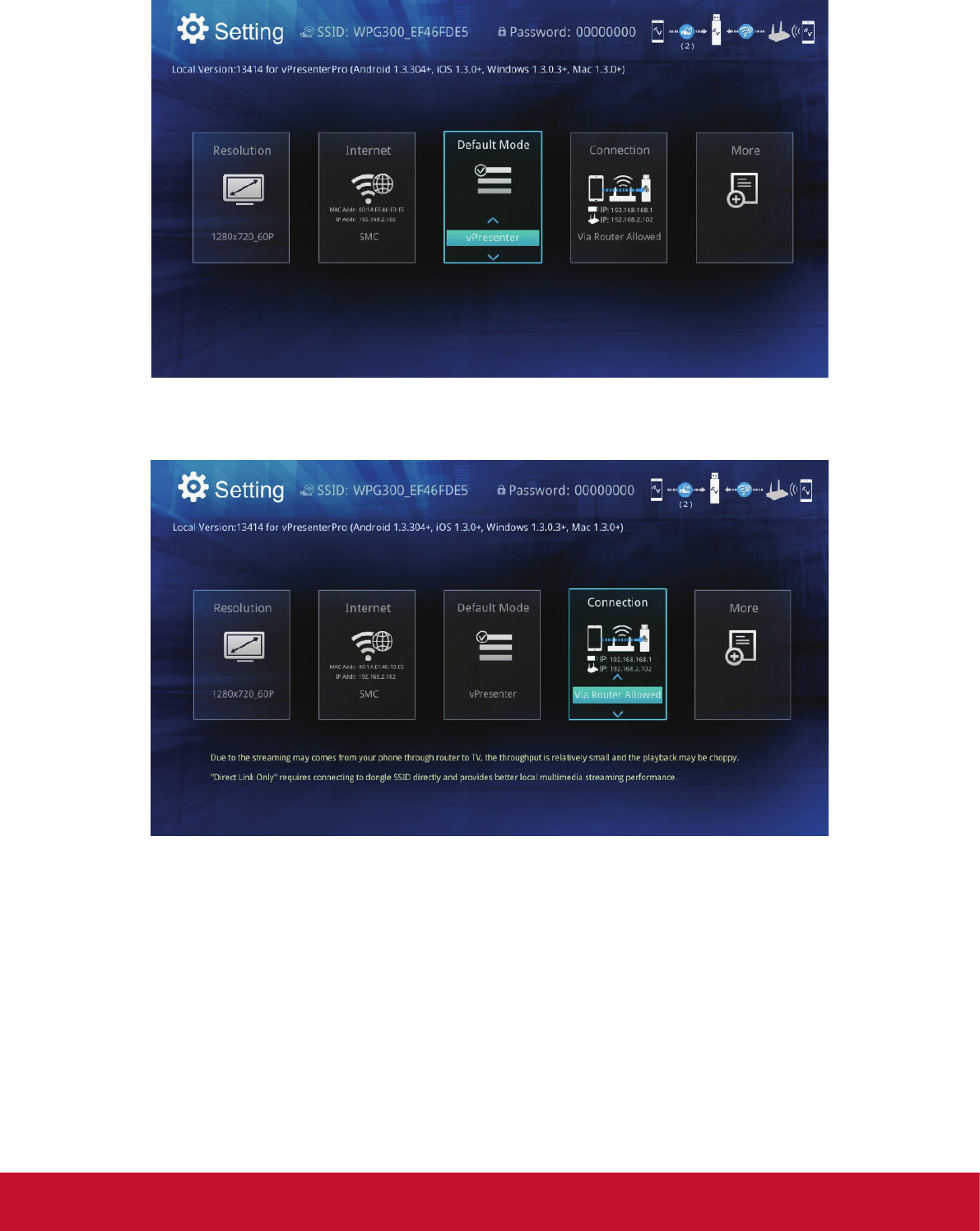

Setting .....................................................................................................................................31

Connection ..............................................................................................................................36

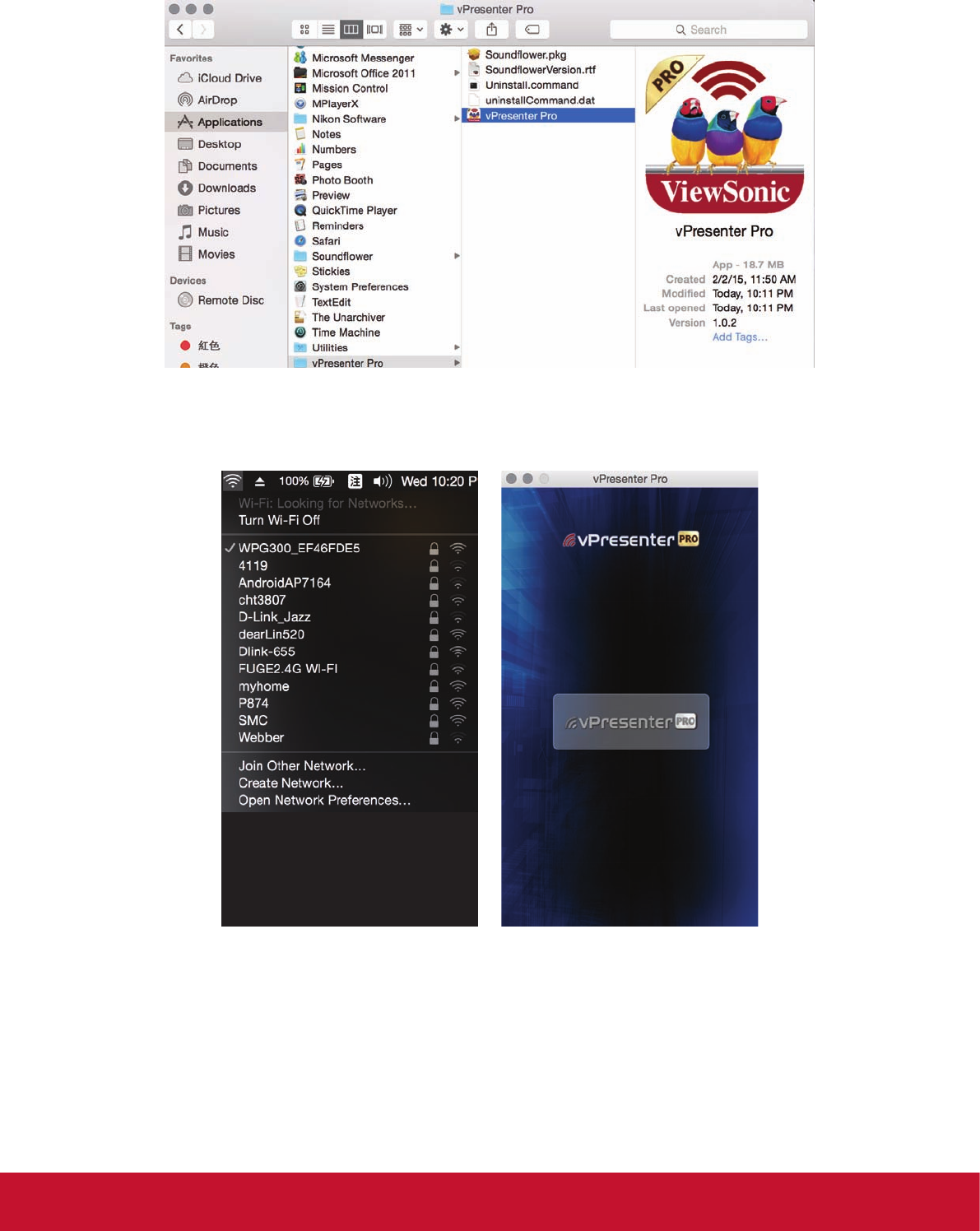

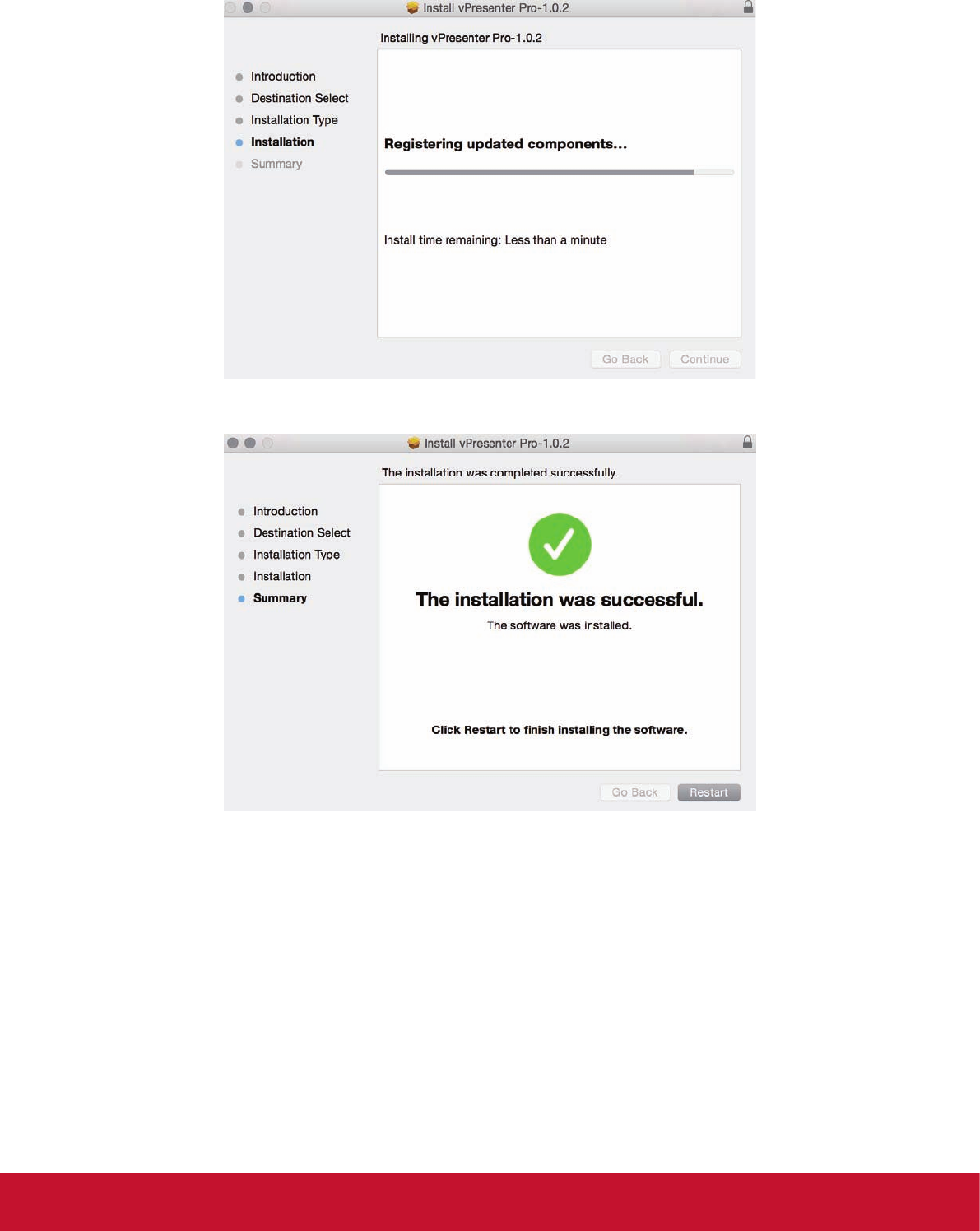

Installation (Mac) .................................................................................................37

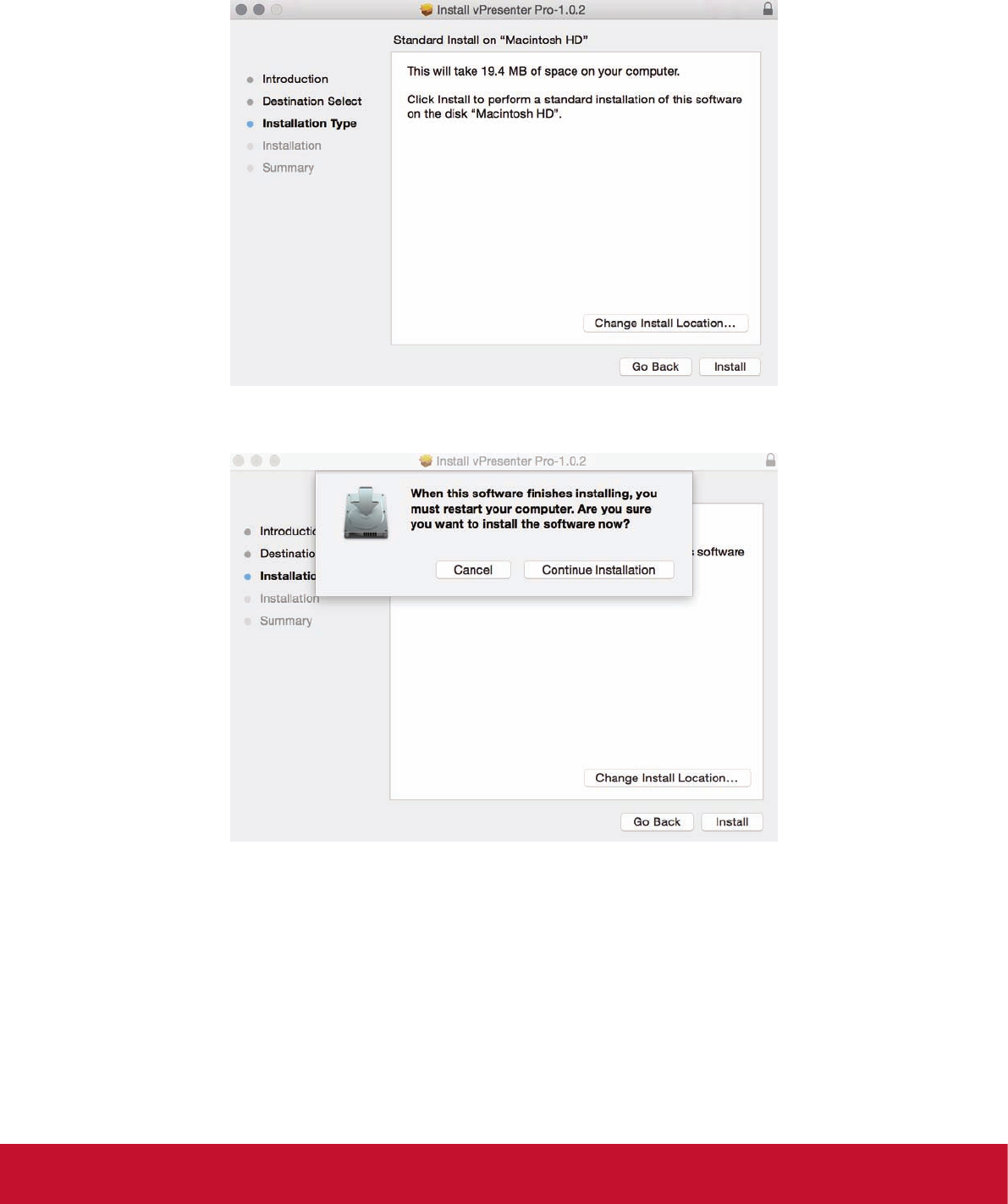

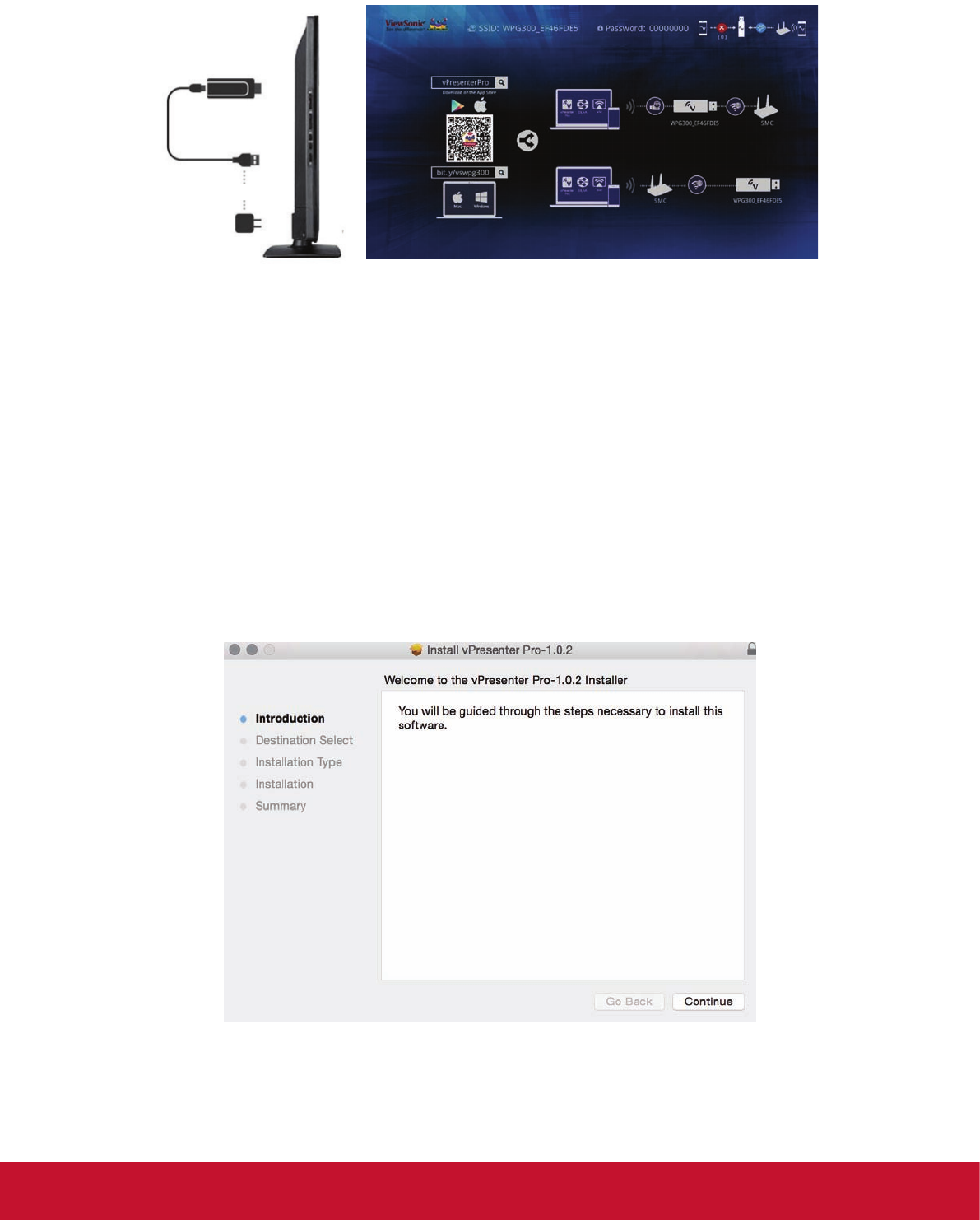

Download and Install ...............................................................................................................38

Next .........................................................................................................................................38

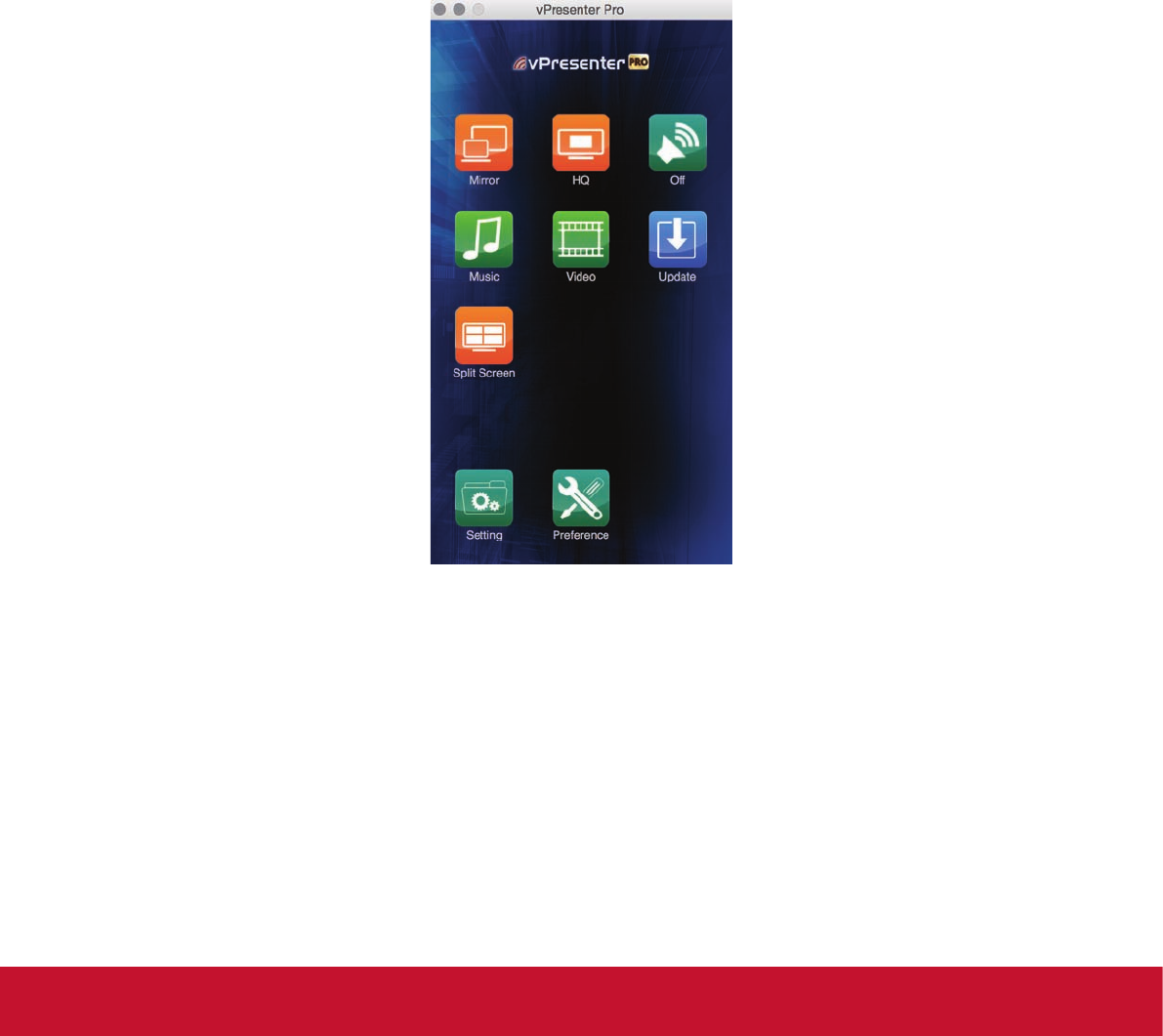

Mirror .......................................................................................................................................46

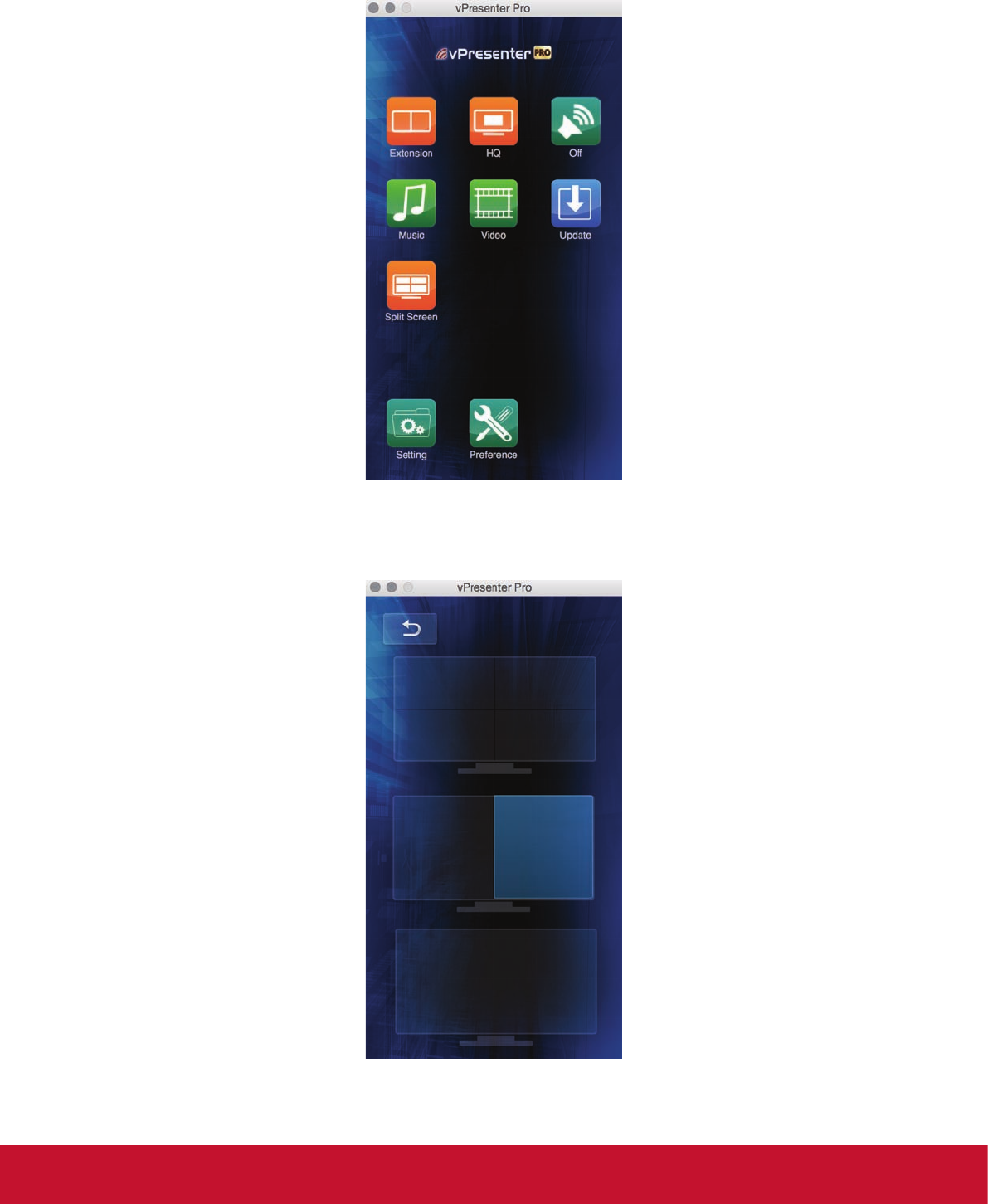

Extension .................................................................................................................................46

Split screen ..............................................................................................................................47

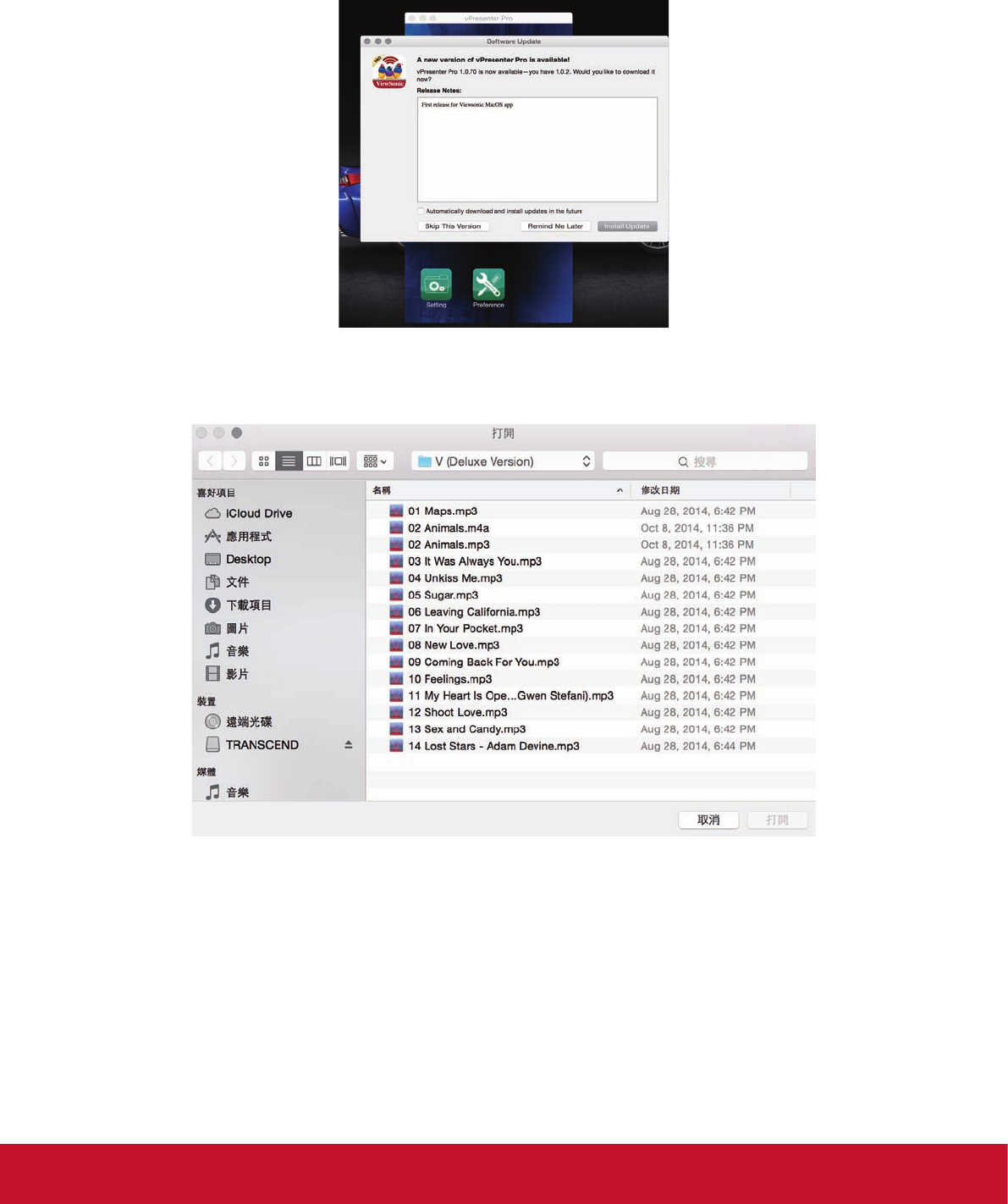

Update .....................................................................................................................................47

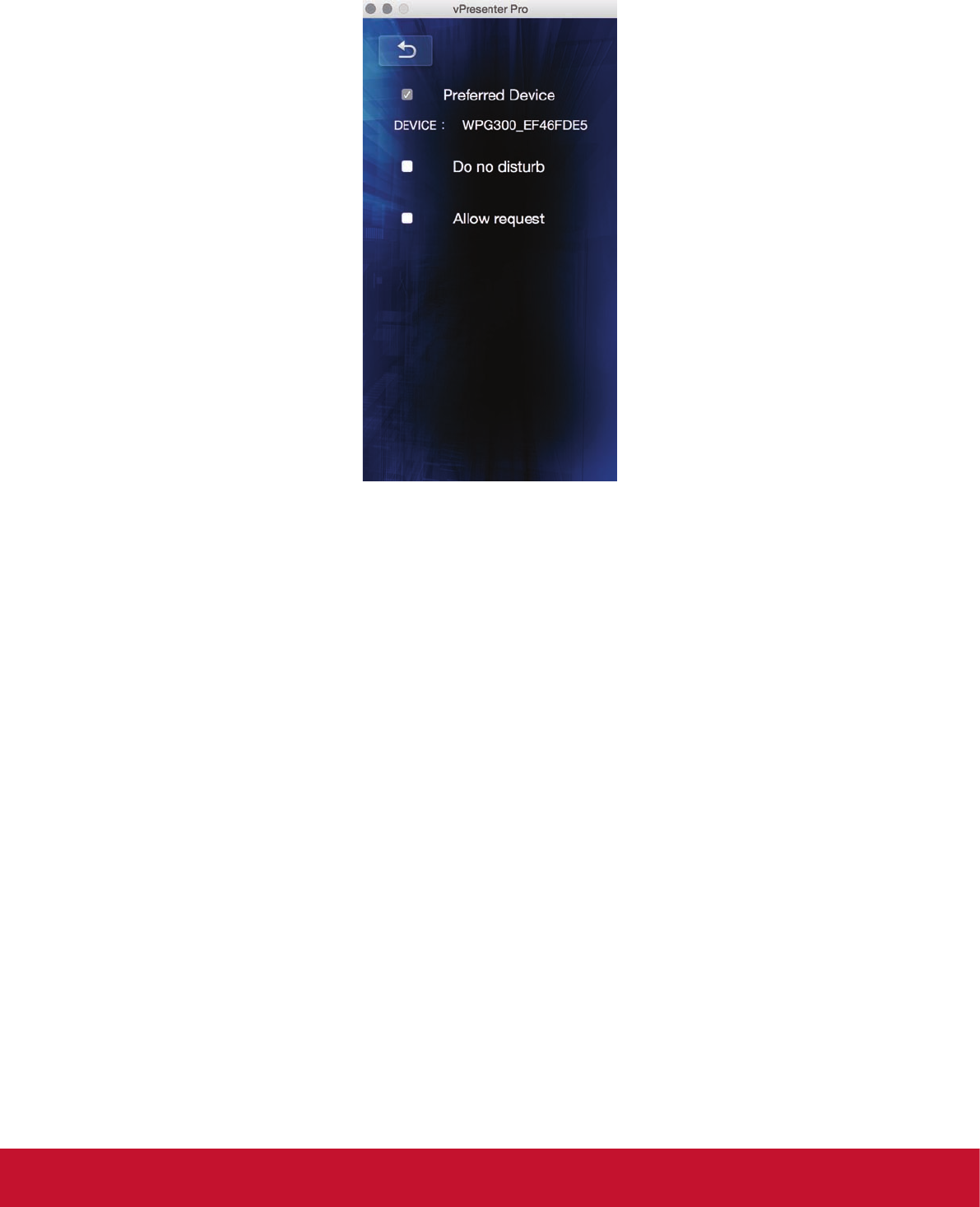

Setting .....................................................................................................................................50

Connection ..............................................................................................................................55

Other Information

Customer Support ...............................................................................................56

Limited Warranty .................................................................................................57

Mexico Limited Warranty .....................................................................................59

vii

ViewSonic and the three birds logo are registered trademarks of ViewSonic

Corporation.

VESA is a registered trademark of the Video Electronics Standards Association.

DPMS, DisplayPort, and DDC are trademarks of VESA.

ENERGY STAR® is a registered trademark of the U.S. Environmental Protection

Agency (EPA).

As an ENERGY STAR® partner, ViewSonic Corporation has determined that this

product meets the ENERGY STAR® guidelines for energy efficiency.

Disclaimer: ViewSonic Corporation shall not be liable for technical or editorial errors

or omissions contained herein; nor for incidental or consequential damages resulting

from furnishing this material, or the performance or use of this product.

In the interest of continuing product improvement, ViewSonic Corporation reserves

the right to change product specifications without notice. Information in this

document may change without notice.

No part of this document may be copied, reproduced, or transmitted by any means,

for any purpose without prior written permission from ViewSonic Corporation.

Product Registration

To meet your future needs, and to receive any additional product information as it

becomes available, please register your product on the Internet at:

www.viewsonic.com.

For Your Records

Product Name:

Model Number:

Document Number:

Serial Number:

Purchase Date:

WPG-300

Wireless Presentation Gateway

VS16124

WPG-300_UG_ENG Rev. 1A 12-12-14

Proper product disposal is necessary at the end of product life

ViewSonic respects the environment and is committed to working and living green.

Thank you for being part of a Smarter, Greener Computing effort.

Please visit the ViewSonic website to learn more.

USA & Canada: http://www.viewsonic.com/company/green/recycle-program/

Europe: http://www.viewsoniceurope.com/uk/support/recycling-information/

Taiwan: http://recycle.epa.gov.tw/recycle/index2.aspx

General

“vPresenter Pro” is a new product based on successful wireless app vPresenter,

and adds some new features for commercial/educational application. It supports

Multi-users Display under our new Host Control System and Content Broadcasting

function. There are still more new features to be added soon, please download and

enjoy our vPresenter Pro features with your vPresenter Pro hardware!

Hardware Installation

LED Indicator

HDMI port + DC power

MHL port

The vPresenter Pro dongle is compatible with MHL 2.0 interface, so there are 2 ways

to connect with vPresenter Pro dongle with your receiver devices like TV, Monitor

or Projector. Use the switch to choose HDMI output or MHL output, please be noted

your MHL device must provide 900mA power, and if you use HDMI out, you will need

external 5V/1A DC power to bring up the dongle.

MHL MHL

Plug into MHL port directly to use it

directly.

*Requires 900mA from MHL port

Use external DC power, and make sure

you’re your USB DC power can provide

1A current.

App (iOS/Android)

• iOS System requirements

iOS iOS 7 and above

Device All iPhone model after iPhone 4

All iPad model after iPad 2

All iPod touch after iPod touch 4th generation

Resolution

support

• iPhone: 480x320~1136x640

• iPad: 1024x768~2048x1536

Storage At least 40MB free space needed

• Android OS System requirements

Phone/Pad Android 4.0 ICS model with 1GB RAM

Resolution WVGA ~ 1080p

Storage At least 40MB free space needed

• Start up

1. After booting up successfully, you will see the main menu, it shows the

download & connect methods, SSID & password, and network link status.

• Download

2. You can use QR code scanner app to scan the QR code on display, then

you will be redirected to download our app:

3. Or you can search the App name “vPresenter Pro” in App Store or Google

Play.

• Device Connection

1. Before you start the app, please connect your iOS device’s WiFi with

vPresenter Pro SSID (ex: vPresenterPro_xxxxxxxx)

2. Once you’ve connected to vPresenterPro, the on-screen link status will be

updated and show how many devices are linking to it directly.

• App starts (below photos are based on iOS version)

1. When you execute the app, if you are not linking to vPresenter Pro, you can

only use several functions in offline mode.

2. Click “vPresenterPro” icon, the device will be listed, you can select the

device you like to cast if there are more than one.

* Note: vPresenter Pro app only works with vPresenter Pro hardware now, it’s not compatible

with normal vPresenter product.

3. In the first time of app launching, there will be a pop up WiFi router list so

that you can link with your WiFi router through vPresenter Pro device to

keep internet surfing.

* Note: After setting up your internet, sometimes the connection between vPresenter Pro and

your mobile phone might be disconnected because of different WiFi router channel.

Please remember to reconnect again.

4. There is another link mode, Infrastructure mode, which allows you to link

with vPresenter Pro through router. However, the performance may not as

good as direct link, and you will need to enter the setting to enable it if need

it.

* Please be noted vPresenter Pro app will only works with vPresenter Pro hardware device.

• App Features

Link Mode Indication

Main Features

Direct link (peer to peer)

Link through router

Photo Viewer

• You will have to allow vPresenter Pro to share your camera roll and enable the

location service before using Photo function.

• In Photo viewer, you can select photo and it will be displayed on your TV. You can

also use gesture control to zoom in/out or change photos.

• We developed a practical tool called “Sketch” , you can draw on the photo you

picked, and save it if you like.

Document Viewer

• The document viewer can support MS-office, PDF, and Apple’s iWorks. Before you

start to cast, please remember to sync the document files to your iOS device through

iTunes.

• The document viewer supports sketch as well, that means you can make some note

on the document, and save the page to camera roll.

* Please be noted some documents may not be displayed the same as shown on PC.

Live Camera

• Live camera is a real object camera which allows you to stream the image from

mobile device’s camera, and take a snap shot to edit.

• You can adjust image quality, switch from Front/Rear camera. You can enable

Sketch and save the current image to album.

Video Player

• There are 2 sources to video streaming. One is to sync the video you like through

iTunes (iTunes File Syncing), or you can select video from your recorded video

(Camera Roll)

• Please be noted iOS will compress the recorded video before streaming to save the

bandwidth, you can decide if you want to save it in vPresenter Pro app for future use.

• You can also sync subtitle file to vPresenter Pro, just make sure the filename is the

same with your video and sync through iTunes, it will be automatically shown with

video playing.

* It only supports MPEG1/2/4/H.264, and RMVB video formats. For subtitle, we support srt,

smi, ssa and cdg formats with UTF-8 coding.

Music Player

• The music player allows you to stream music through WiFi, and we can support

playlist.

• There are multiple music formats supporte: ape, flac, ogg, mp3, wma, wav, rm, m4a,

aac, ra, aif, aiff, mka

* Please be noted vPresenter Pro can’t access your iTunes music library due to iOS limitation,

so you must use iTunes to sync the audio you like to our app.

Web Browser

• vPresenter Pro comes with a built-in browser, and we also categorize several

popular websites for you.

• The web page will dynamically change with different country setting in your device.

• Sketch function is also supported.

Cloud Storage

• We will link to your personal Dropbox and *Google Drive account to let you access

your cloud storage anywhere. All content will be shown for you to download and

display.

• You can enable sketch function if you download and decode a document file.

* iOS version doesn’t support Google Drive yet.

Cloud Media

• Cloud media is a shortcut for all major web video sites, you can link to Youtube,

Vimeo and other on-line video sites with the existing shortcuts.

Setting

• In setting function, you can setup vPresenter Receiver’s configurations including

output resolution, change SSID password, setup router connection for internet

surfing, boot up mode priority and update the latest FW over the air.

• We also added a new linking mode to allow you link with dongle through router,

however, please be noted the performance may be impacted if you choose to link

through router due to distance or router performance.

Special Features

• Preferred Device

• We added a special mode “Preferred device” which will remember your device ID.

You can save the current hardware to preferred device, and the app will find the

preferred device and link to it directly next time.

• Host control

• When you are the first user link to vPresenter Pro and open the app, you will become

the “Host”.

• Host has the authority to control the display, that means Host role can use all

features without limitation

• The next or later coming users will be treated as “Guest”, some functions will be

disabled under Guest mode, and you will need to get Host’s permission to display.

* Once the current host quits from app, the second user will become host automatically.

AirView

Host

Guest

• You can enable AirView function to see the current display content on vPresenter

Pro hardware, this is a great tool for display sharing.

• This function will not need Host’s permission to enable.

* This feature doesn’t support video or audio streaming.

Preference

• Except Preferred device setting, you can also enable/disable the inquiry from guests,

or automatically allow all display requests from guests without showing pop-up

message.

Split Screen

• vPresenter Pro device will allow max. 4 users to display on screen together, but

only Host can decide the position he wants, other guest’s screens will be placed

automatically after the request is allowed.

Screen Mirroring (Only for Windows and Android)

• Screen Mirroring is fully compatible with Miracast, you can click the Screen Mirroring

button in vPresenter app, and the receiver will be switched to Miracast mode.

• Once you turn it on, there will be a 60seconds countdown for your mobile phone to

connect with the receiver. Please select your Miracast function in your mobile phone

setting page.

• We also recommend you link your smart phone to your home network at the same

time to keep internet connection.

Installation (Windows)

HDMI

USB

Power adaptor

1. Please plug vPresenter Pro into TV’s HDMI connector and connect USB

adapter to it. If your TV supports MHL, please switch to MHL and no need to

plug USB adapter.

2. Switch TV’s input source to HDMI/MHL input, and you will see the main

menu after booting up.

You will see some information on main screen.

1. The WiFi SSID: vPresenterPro_xxxxxxxx, Password: xxxxxxxx

2. The download address for Windows and Mac OS: bit.ly/vswpg300

3. The QR code for iOS and Android platform. You can also search vPresenter

Pro in AppStore.

4. The QR code for iOS and Android platform. You can also search vPresenter

Pro in Google Play.

• Download and Install

Please download from our website, and double click the app to install, follow the

instruction to install.

• Next

• Install progress

Please reboot after the installing is down. Click next.

There will be an instruction to ask you to reboot.

Double click to execute the app, it will check if your computer’s WiFi is connecting

with vPresenter Pro’s SSID. There are 2 ways to find vPresenter Pro device.

1. Connect computer’s WiFi to vPresenter Pro SSID.

2. Enable the “through router” in the vPresenter Pro setting, then you can

discover vPresenter Pro device through router instead of direct link.

When you link to an vPresenter Pro device and you didn’t set up preferred device,

there will be a pop-up inquiry to ask if you want to save it as preferred device.

If you select “yes”, then next time you will enter this device automatically without

selecting from device list manually.

If you select “no”, then it will skip this and leave the preferred device blank in

preference.

This photo shows the major features of Main screen. It indicates the direct link mode

with host control function.

LQ mode: This mode will increase frame rate but with lower image quality. Use this

mode for Video watching is recommended.

HQ mode: This mode will keep as higher image quality as possible but will reduce

frame rate. It is suitable for presentation or photo browsing.

Audio On/Off: Turn on the audio streaming with Mirror/Extension mode.

This photo shows the major features of Main screen. It indicates that you are linking

to vPresenter Pro hardware through home router mode with host control function.

The Guest mode GUI, some features will be grey out, and most features will require

host’s allowance.

• Request from Guest

When some guest wants to display his content, he will send a request to you, if you

allow it, it will become split screen display mode. Please be noted the Video/Music

are not supported in split display mode.

• Denied by Host

• Mirror the complete screen

• Make vPresenter Pro devide as an extension screen

You can select the music files to be played on vPresenter Pro device.

You can control the volume, and play/pause in this control screen.

Video file list, you can push the video to screen.

You can control the volume, and play/pause in this control screen.

• Web Browser

There are some common web sties, which are gathered in the first page.

Browse news in Google News list.

• Online Video

Select the video channel you like and it will be casted to vPresenter Pro device.

Please be noted not all video sites are supported like Flash video sites.

Select the video you like to play.

After selecting the video, a pop-up display will be shown, You can control the

volume, and play/pause in this control screen.

This will let your app to receive the current displaying content on vPresenter pro,

however, due to the bandwidth limitation, it only supports still pictures like photo,

web, office files and live cam now, not including the videos.

The host can control the split screen and switch position, the function will be disabled

under guest mode.

This is the “Screen Mirror” function which is also called Miracast. It will allow your

Android4.2 or Win8.1 devices to do Miracast to vPresenter Pro device. When you

click Screen Mirroring and turn it on, the screen will be a 60 seconds count down, if

you didn’t connect with Miracast mode, it will return to vPresenter Pro mode.

You will have to link your device’s WiFi with home router if you want to keep internet

surfing during screen mirroring.

Instruction for Miracast.

• Setting

The setting page is a WiFi remote controller for you to input or control the device.

The keyboard will pop-up automatically if it needs input.

The Resolution is adjustable to 1080p@60p max., The default timing is 720P and

changes with the TV’s resolution matching. After changing the output resolution, it

will reboot to take affected.

The hardware will be rebooted when you apply the new resolution.

You can change the password for your vPresenter Pro WiFi.

This internet connection setting allows you to connect with home router to keep

internet surfing.

Our device will scan the WiFi routers nearby.

Input the router’s password and link with it. Sometimes the WiFi between your

mobile device with vPresenter Pro will be disconnected in this step, this is because

of external router’s WiFi channel is different with vPresenter Pro. Please reconnect

with it again to continue.

The language setting for your choice. In normal case, it will be automatically changed

with your phone language.

Confirm to apply the new language setting.

You can change the priority mode after booting up, like vPresenter first or Miracast

first.

• Connection

Via Router Allowed mode,vPresenter has enabled router control,you can connect

vPresenter dongle and vPresenter APP to the same router.on this mode, wifi

performance depend on your home router.

• Connection

Direct link only mode,on this mode,vPresenter APP must connect to vPresenter-

xxxxxx network to get a high wifi performance.

FW update will check the latest version on server, it must working with internet

capability.

Installation (Mac)

HDMI

USB

Power adaptor

1. Please plug vPresenter Pro into TV’s HDMI connector and connect USB

adapter to it. If your TV supports MHL, please switch to MHL and no need to

plug USB adapter.

2. Switch TV’s input source to HDMI/MHL input, and you will see the main

menu after booting up.

You will see some information on main screen.

1. The WiFi SSID: vPresenterPro_xxxxxxxx, Password: xxxxxxxx

2. The download address for Windows and Mac OS: bit.ly/vswpg300

3. The QR code for iOS and Android platform. You can also search vPresenter

Pro in AppStore.

4. The QR code for iOS and Android platform. You can also search vPresenter

Pro in Google Play.

• Download and Install

Please download from our website, and double click the app to install, follow the

instruction to install.

• Next

Please reboot after the installing is down. Click next.

There will be an instruction to ask you to reboot.

You can see the vPresenter Pro app after rebooting.

Please link your Mac with vPresenter Pro’s WiFi SSID before opening vPresenter

Pro app, if you enabled “Via Router” in setting, you can also find vPresenter Pro

under the same WiFi network.

The vPresenter Pro device will be listed and you can select it to use App functions.

When you link to an vPresenter Pro device and you didn’t set up preferred device,

there will be a pop-up inquiry to ask if you want to save it as preferred device.

If you select “yes”, then next time you will enter this device automatically without

selecting from device list manually.

If you select “no”, then it will skip this and leave the preferred device blank in

preference.

This photo shows the major features of Main screen. It indicates the direct link mode

with host control function.

LQ mode: This mode will increase frame rate but with lower image quality. Use this

mode for Video watching is recommended.

HQ mode: This mode will keep as higher image quality as possible but will reduce

frame rate. It is suitable for presentation or photo browsing.

Audio On/Off: Turn on the audio streaming with Mirror/Extension mode.

The Guest mode GUI, some features will be grey out, and most features will require

host’s allowance.

When some guest wants to display his content, he will send a request to you, if you

allow it, it will become split screen display mode. Please be noted the Video/Music

are not supported in split display mode.

Request from Guest. If you accept it then the guest will be displayed on screen, if

not, it will be rejected.

When you link to an vPresenter Pro device and you didn’t set up preferred device,

there will be a pop-up inquiry to ask if you want to save it as preferred device.

1. If you select “yes”, then next time you will enter this device automatically

without selecting from device list manually.

2. If you select “no”, then it will skip this and leave the preferred device blank in

preference.

3. You can turn on “Do not disturb” mode, so that all other devices linking to

vPresenter Pro will not be able to send display request to host side.

4. In the preference, if you select “Auto allow request” then all other linked

devices will not have to send request to host to display, it will be allowed to

display automatically.

5. In the default setting, the “Do not disturb” and “Auto allow request” are both

disabled, in this case, all linked devices will need to send display request

and wait for host’s permission to display on screen.

• Mirror

Mirror the complete screen.

• Extension

Make vPresenter Pro devide as an extension screen.

• Split screen

The host can control the split screen and switch position, the function will be disabled

under guest mode.

• Update

It will show the new version information and allow you to update the app.

You can select the music files to be played on vPresenter Pro device.

You can control the volume, and play/pause in this control screen.

Video file list, you can push the video to screen.

You can control the volume, and play/pause in this control screen.

• Setting

The setting page is a WiFi remote controller for you to input or control the device.

The keyboard will pop-up automatically if it needs input.

The Resolution is adjustable to 1080p@60p max., The default timing is 720P and

changes with the TV’s resolution matching. After changing the output resolution, it

will reboot to take affected.

The hardware will be rebooted when you apply the new resolution.

You can change the password for your vPresenter Pro WiFi.

This internet connection setting allows you to connect with home router to keep

internet surfing.

Our device will scan the WiFi routers nearby.

Input the router’s password and link with it. Sometimes the WiFi between your

mobile device with vPresenter Pro will be disconnected in this step, this is because

of external router’s WiFi channel is different with vPresenter Pro. Please reconnect

with it again to continue.

The language setting for your choice. In normal case, it will be automatically changed

with your phone language.

Confirm to apply the new language setting.

You can change the priority mode after booting up, like vPresenter first or Miracast

first.

• Connection

Via Router Allowed mode, vPresenter has enabled router control, you can connect

vPresenter dongle and vPresenter APP to the same router.on this mode, wifi

performance depend on your home router.

• Connection

Direct link only mode,on this mode,vPresenter APP must connect to vPresenter-

xxxxxx network to get a high wifi performance.

FW update will check the latest version on server, it must working with internet

capability.

Other Information

Customer Support

For technical support or product service, see the table below or contact your reseller.

NOTE: You will need to provide the product serial number.

Country/Region Website T= Telephone

C = CHAT ONLINE Email

Australia

New Zealand www.viewsonic.com.au AUS= 1800 880 818

NZ= 0800 008 822 service@au.viewsonic.com

Canada www.viewsonic.com T (Toll-Free)= 1-866-463-4775

T (Toll)= 1-424-233-2533 service.ca@viewsonic.com

Europe www.viewsoniceurope.com www.viewsoniceurope.com/uk/support/call-desk/

Hong Kong www.hk.viewsonic.com T= 852 3102 2900 service@hk.viewsonic.com

India www.in.viewsonic.com T= 1800 419 095 service@in.viewsonic.com

Korea ap.viewsonic.com/kr/ T= 080 333 2131 service@kr.viewsonic.com

Latin America

(Argentina) www.viewsonic.com/la/ C= http://www.viewsonic.com/
