Users Manual

ViewStick 2

Wireless Presentation Gateway

User Guide

Model No. VS16704

IMPORTANT: Please read this User Guide to obtain important information on installing

and using your product in a safe manner, as well as registering your product for future

service. Warranty information contained in this User Guide will describe your limited

coverage from ViewSonic Corporation, which is also found on our web site at http://

www.viewsonic.com in English, or in specic languages using the Regional selection

box in the upper right corner of our website. “Antes de operar su equipo lea cu

idadosamente las instrucciones en este manual”

Thank you for choosing ViewSonic

With over 25 years as a world leading provider of visual solutions,

ViewSonic is dedicated to exceeding the world’s expectations for

technological evolution, innovation, and simplicity. At ViewSonic, we

believe that our products have the potential to make a positive impact

in the world, and we are confident that the ViewSonic product you have

chosen will serve you well.

Once again, thank you for choosing ViewSonic !

Compliance Information

Please read before proceeding

• Use only the batteries and power adapter provided by the manufacturer. The use

of unauthorized accessories may void your warranty.

• Do not store your device in temperatures higher than 50°C (122°F).

• The operating temperature for this device is from 0°C (32°F) to 35°C (95°F).

FCC Notice

The following statement applies to all products that have received FCC approval.

Applicable products bear the FCC logo, and/or an FCC ID in the format FCC ID:

GSS-VS16704 on the product label.This device complies with part 15 of the FCC

Rules. Operation is subject to the following two conditions: (1) This device may

not cause harmful interference, and (2) This device must accept any interference

received, including interference that may cause undesired operation. This

mobiledevice has been tested and found to comply with the limits for a Class B

digital device, pursuant to Part 15 of the FCC Rules. These limits are designed

to provide reasonable protection against harmful interference in a residential

installation. This equipment generates, uses and can radiate radio frequencyenergy

and, if not installed and used in accordance with the instructions, may cause

harmful interferenceto radio communications. However, there is no guarantee that

interference will not occur in a particular installation. If this equipment does cause

harmful interference to radio or television reception, which can be determined

by turning the equipment off and on, the user is encouraged to try to correct the

interference by one or more of the following measures

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from that to which the

receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help.

Changes or modifications not expressly approved by the party responsible for

compliance could void theuser’s authority to operate the equipment.The antenna(s)

used for this transmitter must not be colocated or operating in conjunction with any

otherantenna or transmitter.

The device was tested and complies to measurement standards and procedures

specified in FCC OET Bulletin 65, Supplement C

FCC SAR Information

This equipment complies with FCC radiation exposure limits set forth for an

uncontrolled environment. End users must follow the specific operating instructions

for satisfying RF exposure compliance.

This transmitter must not be co-located or operating in conjunction with any other

antenna or transmitter. This equipment should be installed and operated with a

minimum distance of 20 centimeters between the radiator and your body.

The users manual or instruction manual for an intentional or unintentional radiator

shall caution the user that changes or modifications not expressly approved by

the party responsible for compliance could void the user's authority to operate the

equipment.

CE Conformity for European Countries

The device complies with the EMC Directive 2014/30/EU and Low Voltage

Directive 2014/35/EU, R&TTE Directive 1999/5/EC.

Following information is only for EU-member states:

The mark shown to the right is in compliance with the Waste Electrical and

Electronic Equipment Directive 2012/19/EU (WEEE).

The mark indicates the requirement NOT to dispose the equipment as

unsorted municipal waste, but use the return and collection systems

according to local law.

If the batteries, accumulators and button cells included with this equipment,

display the chemical symbol Hg, Cd, or Pb, then it means that the battery has

a heavy metal content of more than 0.0005% Mercury, or more than 0.002%

Cadmium, or more than 0.004% Lead.

European Union Regulatory Conformance

The equipment complies with the RF Exposure Requirement 1999/519/EC, Council

Recommendation of 12 July 1999 on the limitation of exposure of the general

public to electromagnetic fields (0-300 GHz). This equipment meets the following

conformance standards: EN301489-1, EN301489-17, EN55022/24, EN60950-1,

EN300328, EN301893.

We, hereby, declare that this Wi-Fi radio is in compliance with the essential

requirements and other relevant provisions of Directive 1999/5/EC.

iii

Declaration of RoHS2 Compliance

This product has been designed and manufactured in compliance with Directive

2011/65/EU of the European Parliament and the Council on restriction of the use

of certain hazardous substances in electrical and electronic equipment (RoHS2

Directive) and is deemed to comply with the maximum concentration values issued

by the European Technical Adaptation Committee (TAC) as shown below:

Substance Proposed Maximum

Concentration Actual Concentration

Lead (Pb) 0.1% < 0.1%

Mercury (Hg) 0.1% < 0.1%

Cadmium (Cd) 0.01% < 0.01%

Hexavalent Chromium (Cr6+) 0.1% < 0.1%

Polybrominated biphenyls (PBB) 0.1% < 0.1%

Polybrominated diphenyl ethers (PBDE) 0.1% < 0.1%

Certain components of products as stated above are exempted under the Annex III

of the RoHS2 Directives as noted below:

Examples of exempted components are:

1. Mercury in cold cathode fluorescent lamps and external electrode fluorescent

lamps (CCFL and EEFL) for special purposes not exceeding (per lamp):

(1) Short length (≦500 mm): maximum 3.5 mg per lamp.

(2) Medium length (＞500 mm and ≦1,500 mm): maximum 5 mg per lamp.

(3) Long length (＞1,500 mm): maximum 13 mg per lamp.

2. Lead in glass of cathode ray tubes.

3. Lead in glass of fluorescent tubes not exceeding 0.2% by weight.

4. Lead as an alloying element in aluminium containing up to 0.4% lead by weight.

5. Copper alloy containing up to 4% lead by weight.

6. Lead in high melting temperature type solders (i.e. lead-based alloys containing

85% by weight or more lead).

7. Electrical and electronic components containing lead in a glass or ceramic other

than dielectric ceramic in capacitors, e.g. piezoelectronic devices, or in a glass or

ceramic matrix compound.

ViewSonic®, the three birds logo, OnView®, ViewMatch™, and ViewMeter® are

registered trademarks of ViewSonic® Corporation.

Disclaimer: ViewSonic® Corporation shall not be liable for technical or editorial errors

or omissions contained herein; nor for incidental or consequential damages resulting

from furnishing this material, or the performance or use of this product.

In the interest of continuing product improvement, ViewSonic® Corporation reserves

the right to change product specifications without notice. Information in this

document may change without notice.

No part of this document may be copied, reproduced, or transmitted by any means,

for any purpose without prior written permission from ViewSonic® Corporation.

Product Registration

To meet your future needs, and to receive any additional product information as it

becomes available, please register your product on the Internet at: www.viewsonic.

com.

For Your Records

Product Name:

Model Number:

Document Number:

Serial Number:

Purchase Date:

ViewStick 2

Wireless Presentation Gateway

VS16704

ViewStick 2_UG_ENG Rev. 1A 06-30-16

Product disposal at end of product life

ViewSonic respects the environment and is committed to working and living green.

Thank you for being part of Smarter, Greener Computing. Please visit ViewSonic

website to learn more.

USA & Canada: http://www.viewsonic.com/company/green/recycle-program/

Europe: http://www.viewsoniceurope.com/uk/support/recycling-information/

Taiwan: http://recycle.epa.gov.tw/recycle/index2.aspx

Contents

Compliance Information

Please read before proceeding ..............................................................................i

FCC Notice .............................................................................................................i

FCC SAR Information ............................................................................................ii

CE Conformity for European Countries ................................................................. ii

Following information is only for EU-member states: ............................................ii

European Union Regulatory Conformance............................................................ii

Declaration of RoHS2 Compliance ....................................................................... iii

Product Registration ............................................................................................. iv

For Your Records .................................................................................................iv

Chapter 1: Product Introduction

1-1 Package Contents ...........................................................................................1

1-2 Hardware Recommendation............................................................................2

1-3 Highlights.........................................................................................................2

1-4 Hardware Setup/Installation ............................................................................3

Chapter 2: ViewStick 2 administration setting

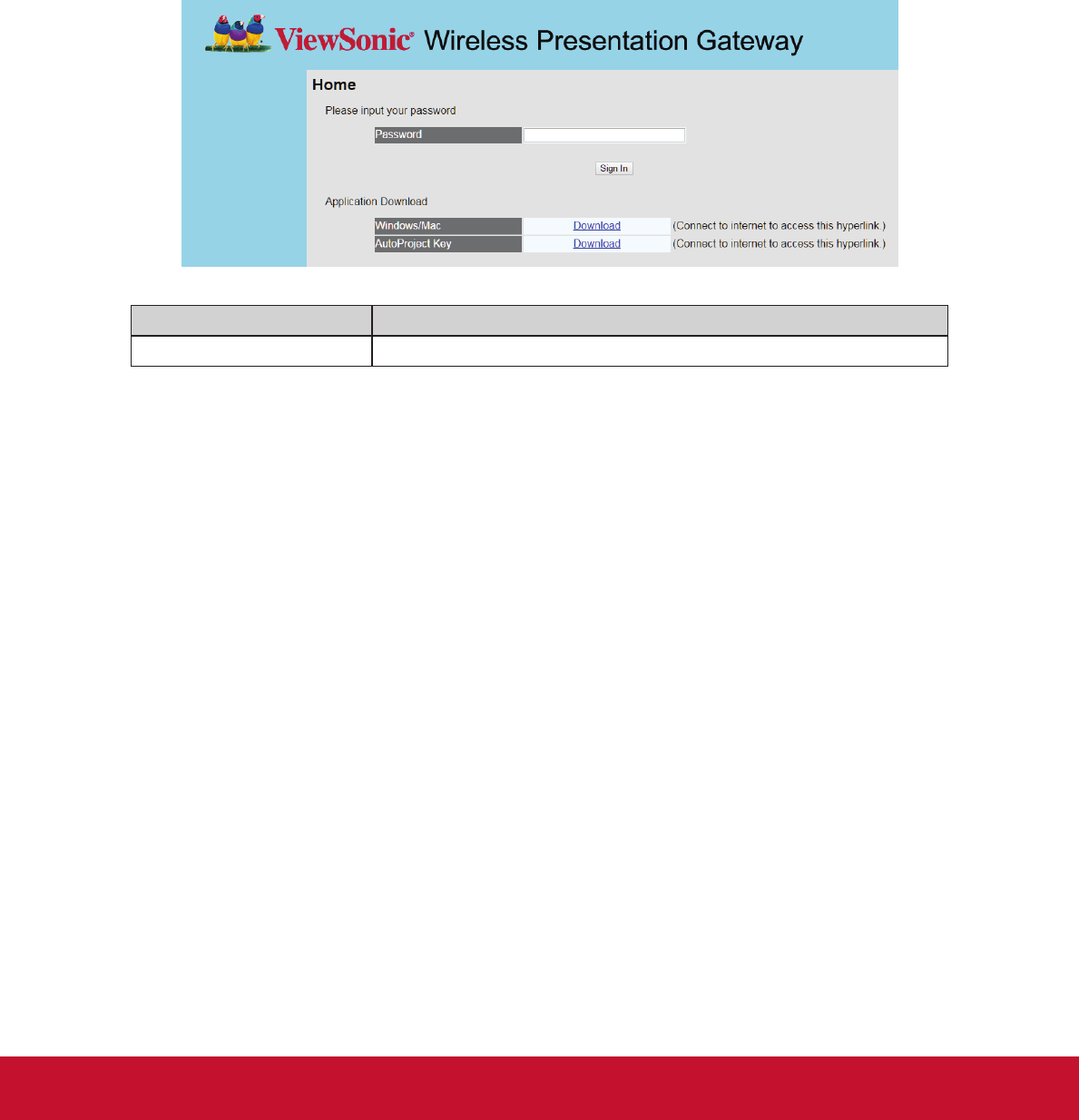

2-1 Connect to Web Configuration Menu ..............................................................4

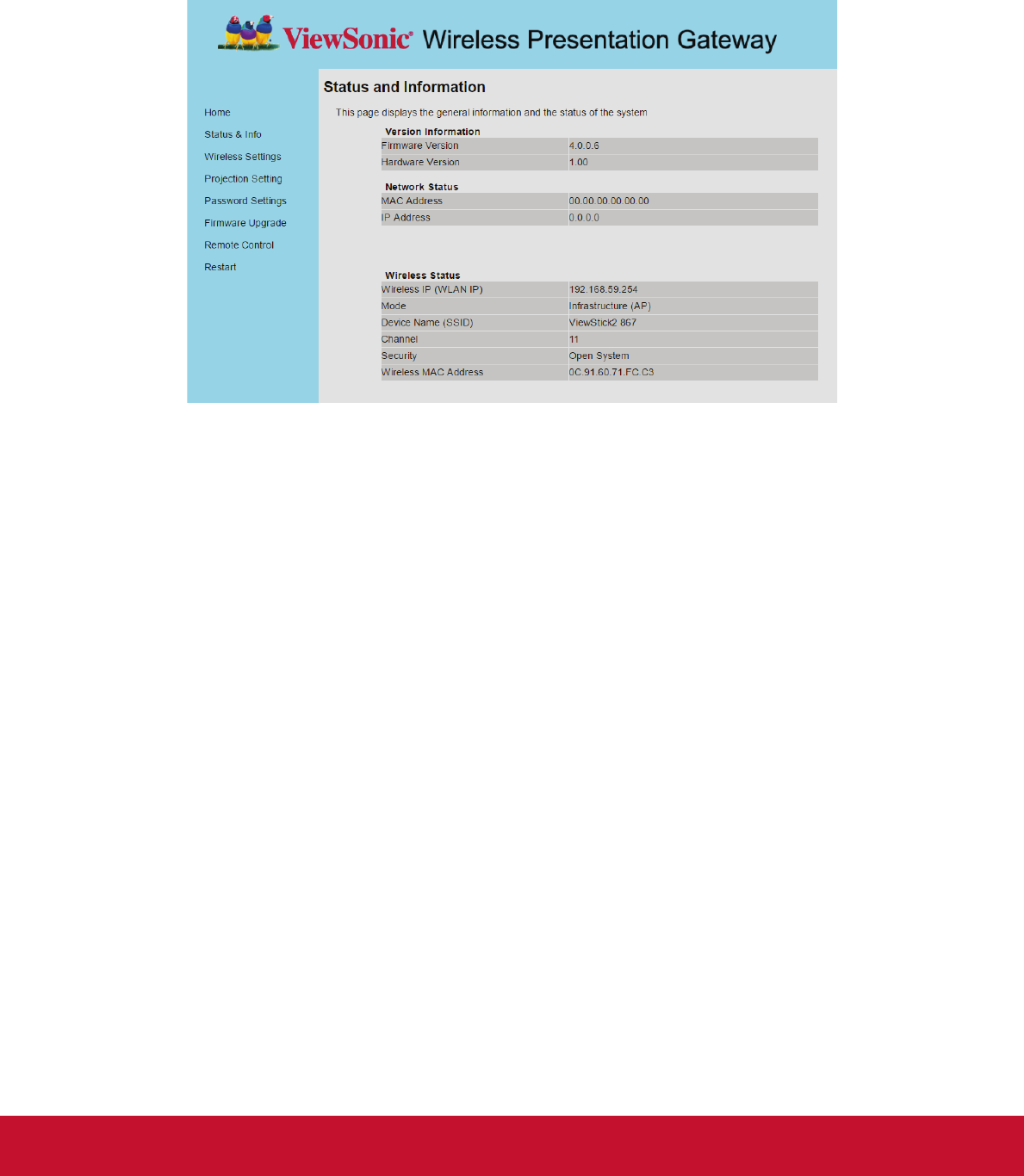

2-2 Status & Info ....................................................................................................5

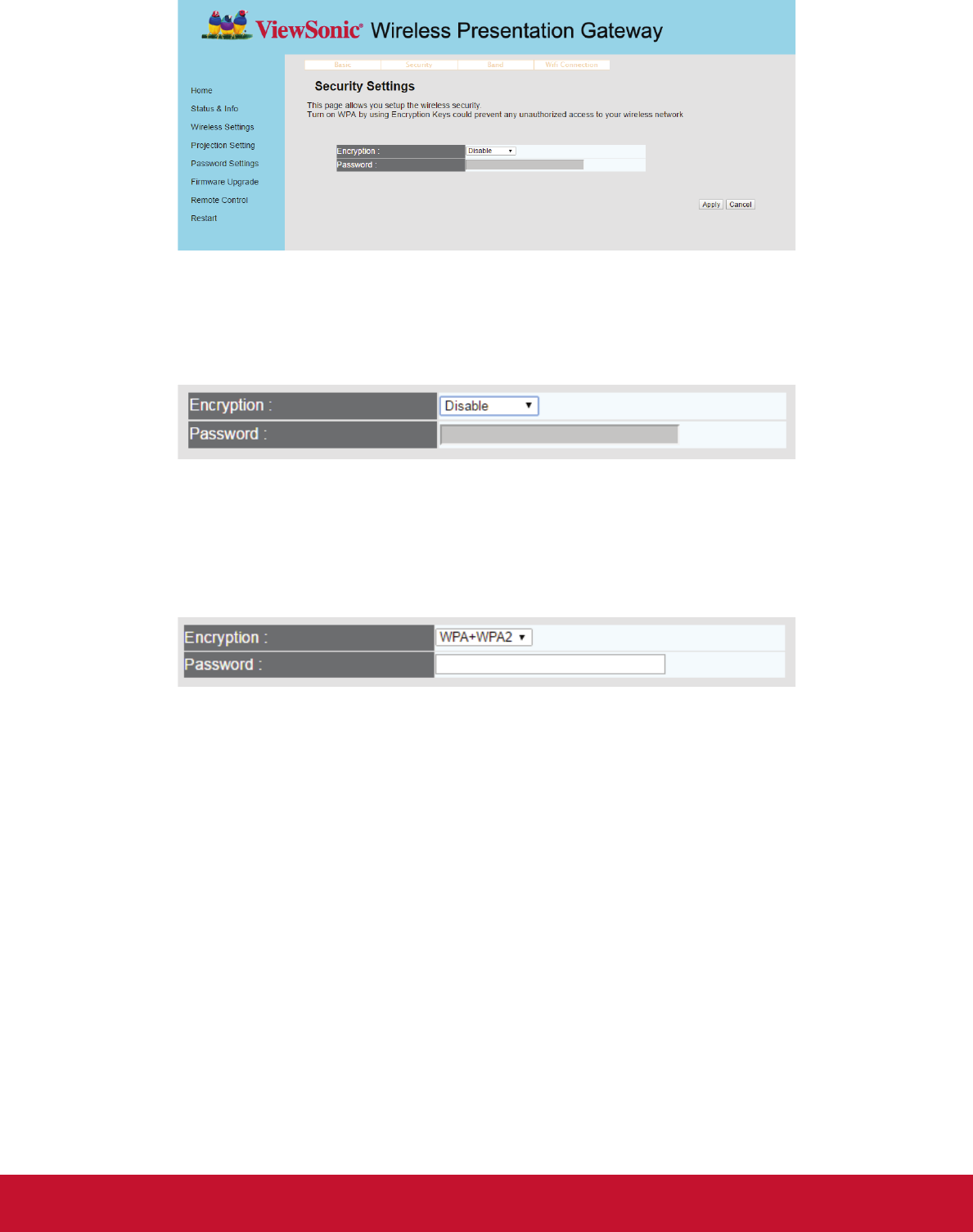

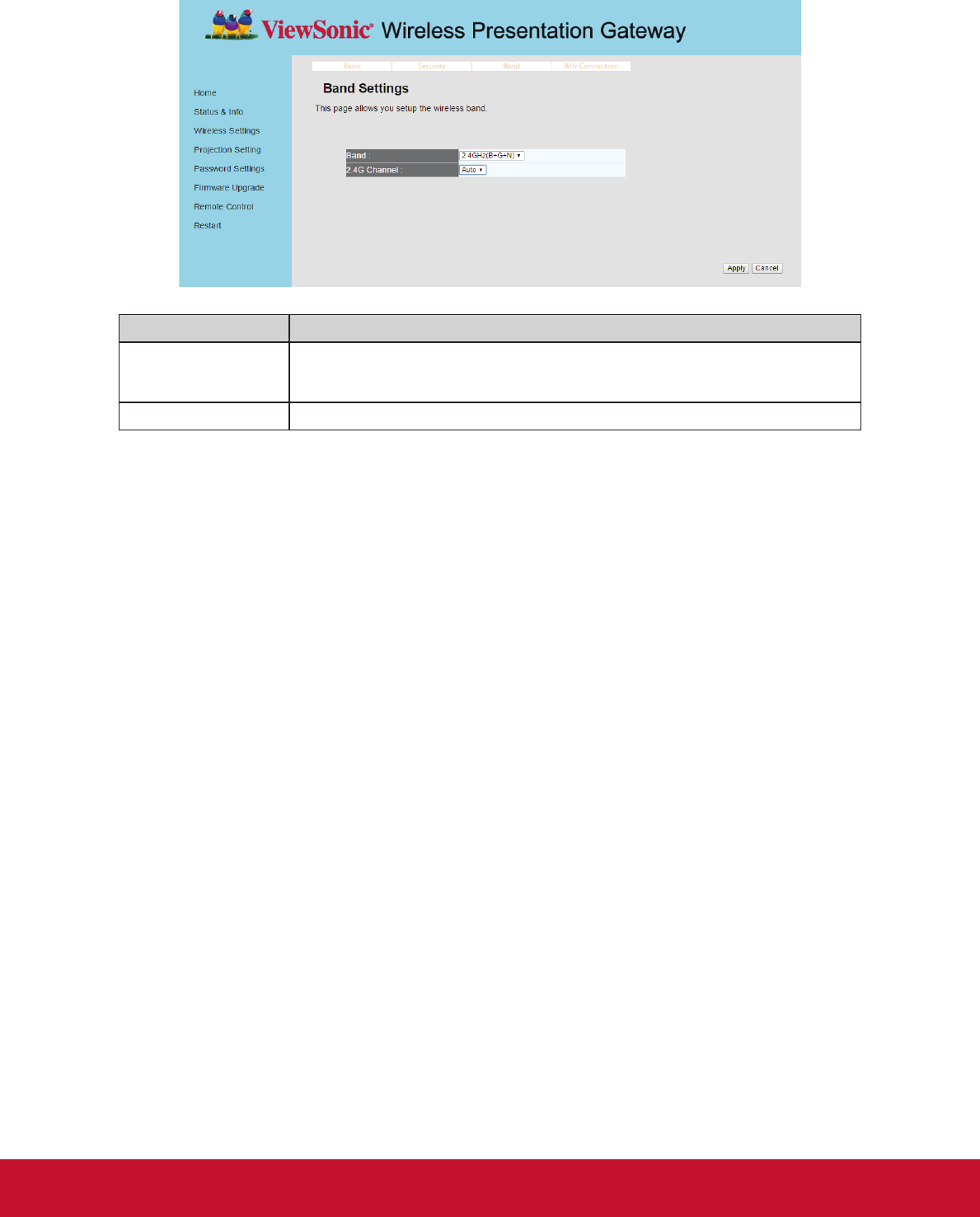

2-3 Wireless Settings.............................................................................................6

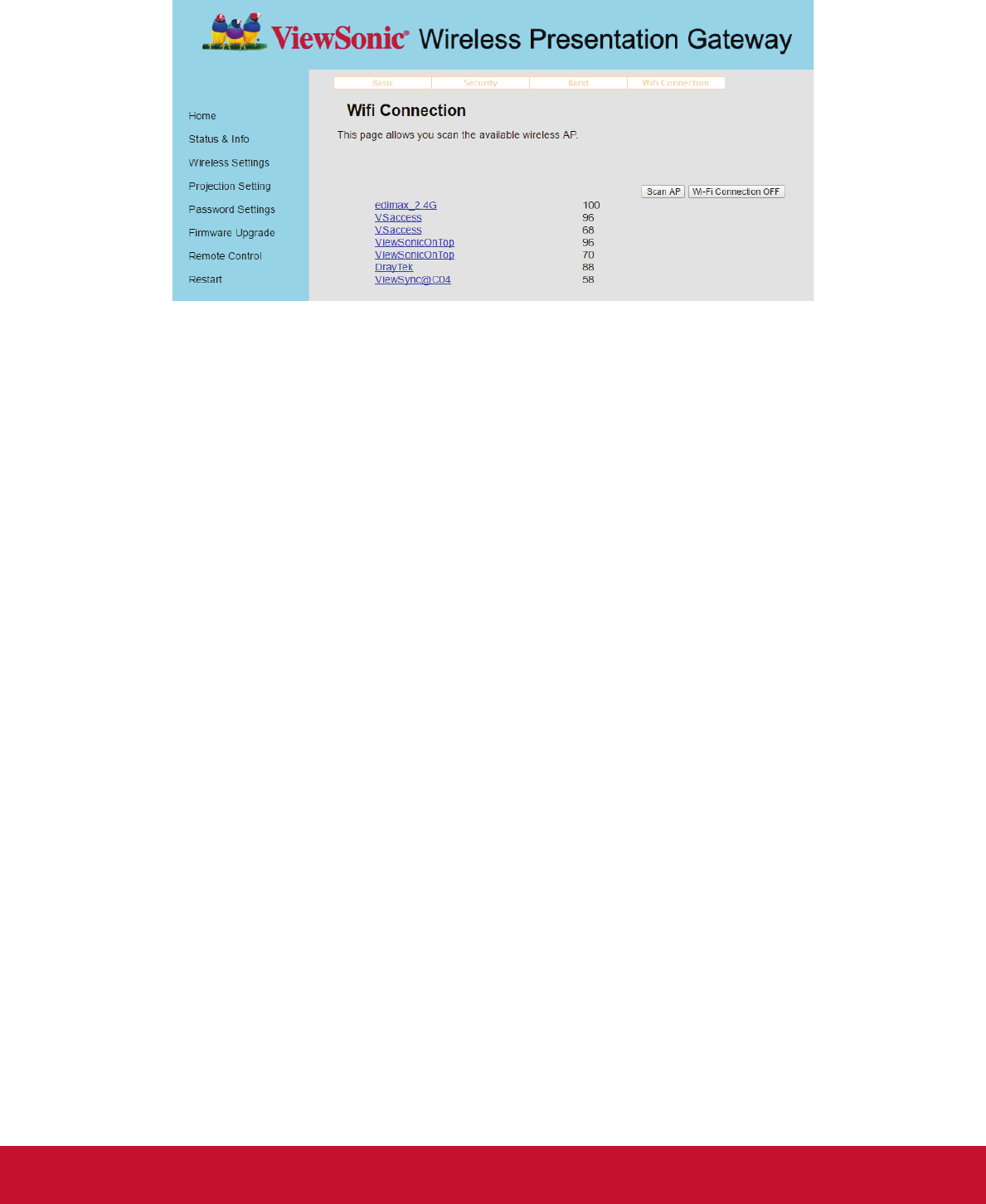

2-4 WiFi connection setting ...................................................................................9

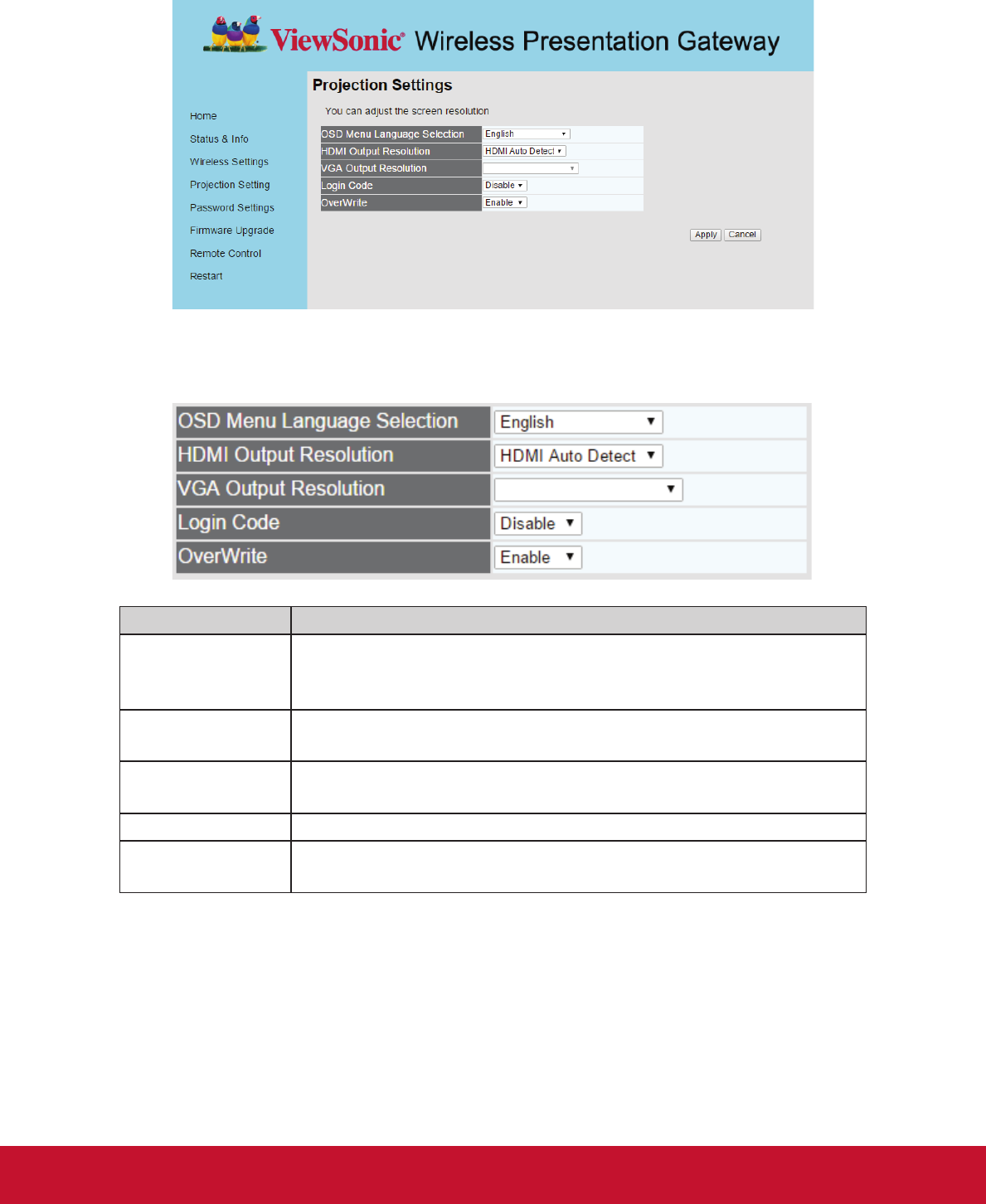

2-5 Projection Setting ..........................................................................................10

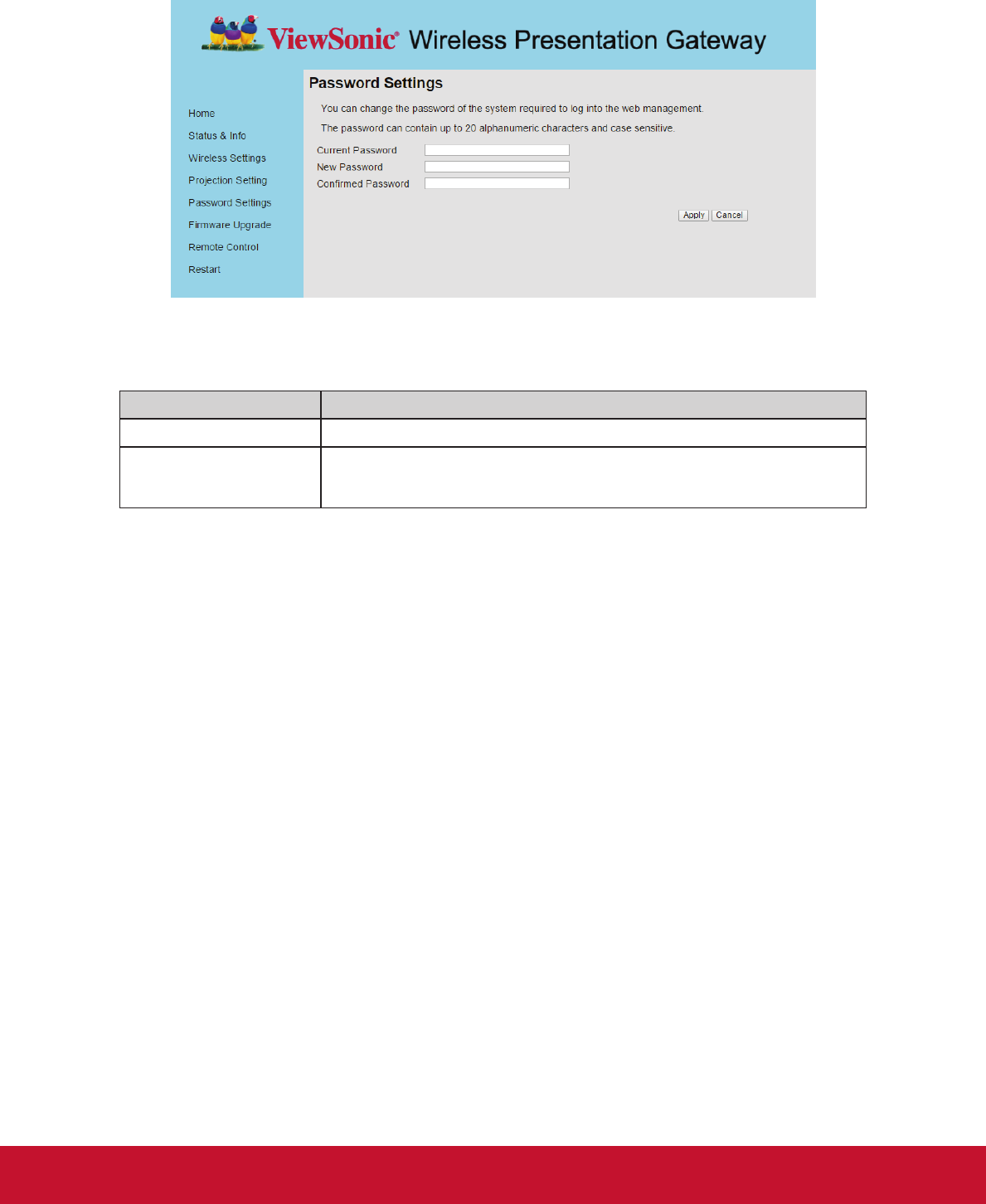

2-6 Password Setting ..........................................................................................11

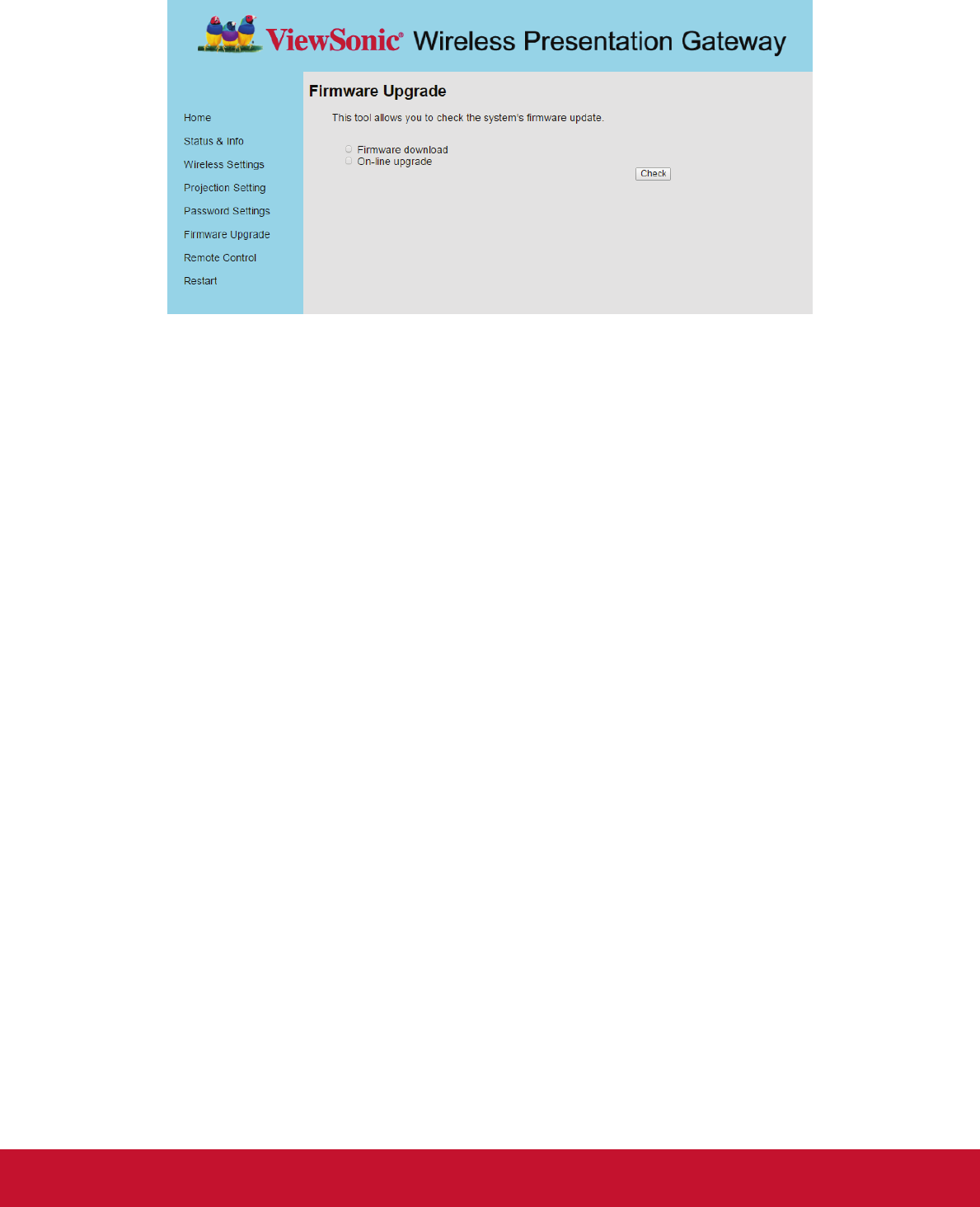

2-7 Firmware Upgrade.........................................................................................12

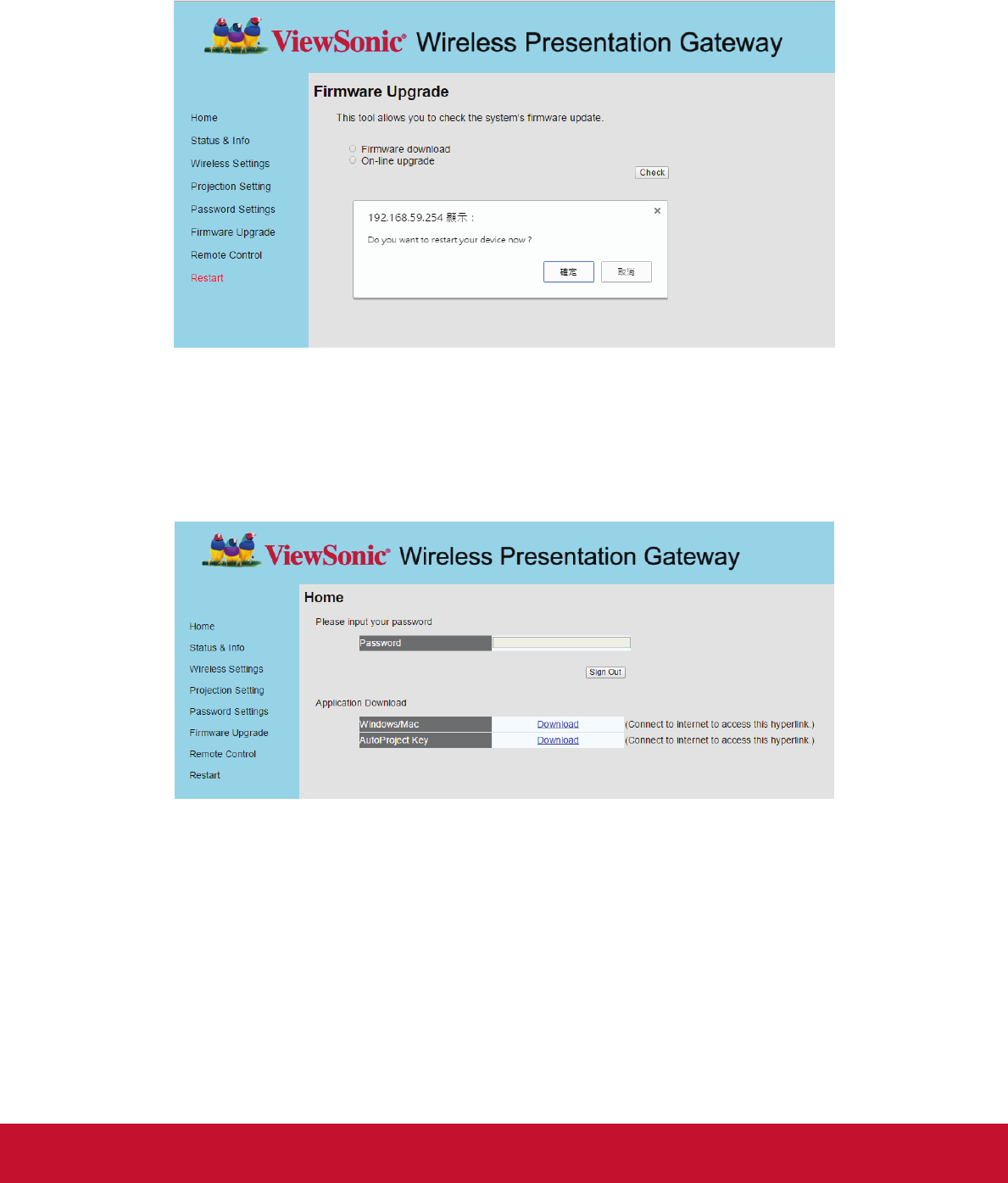

2-8 Restart ...........................................................................................................13

2-9 Logout ...........................................................................................................13

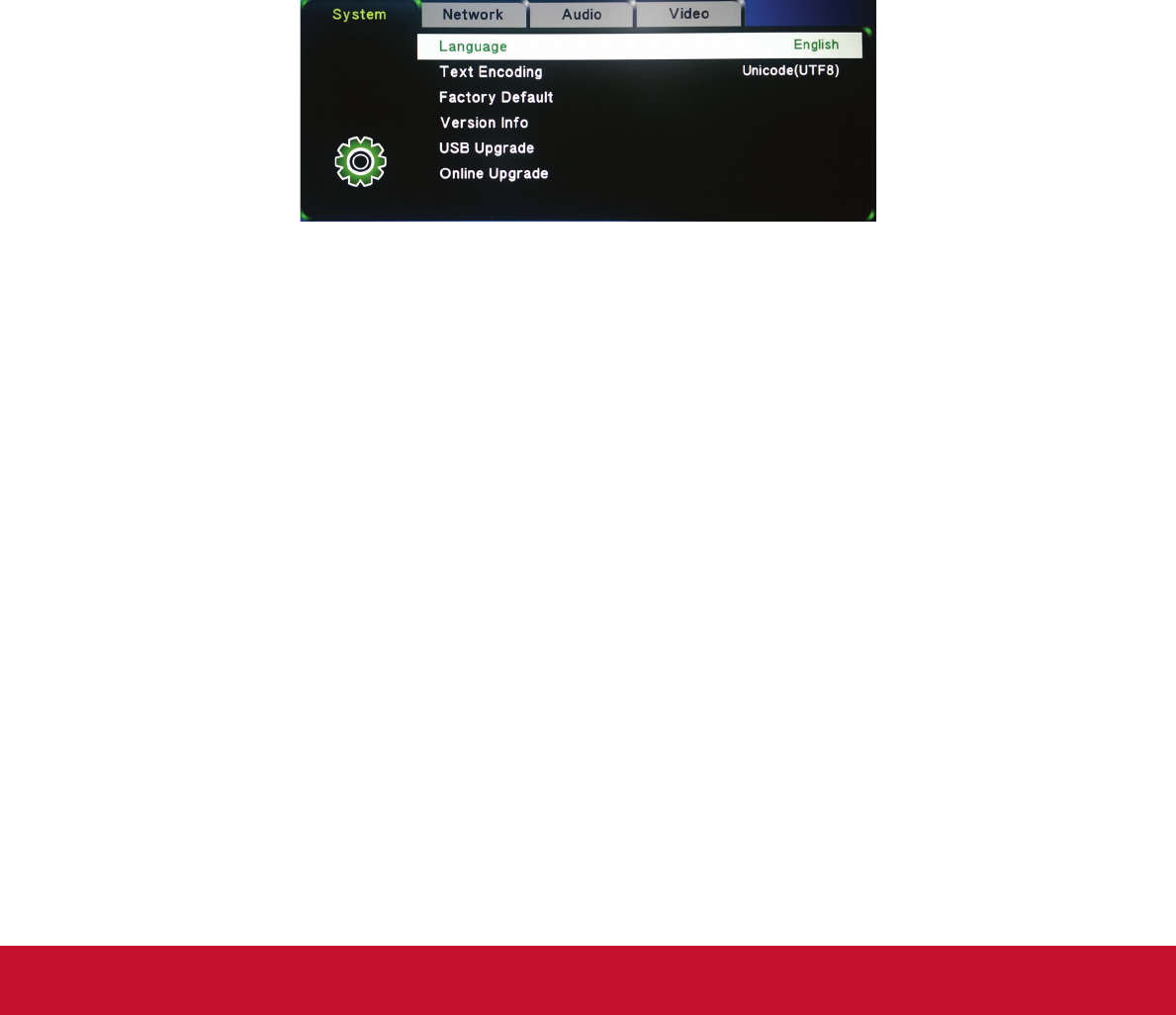

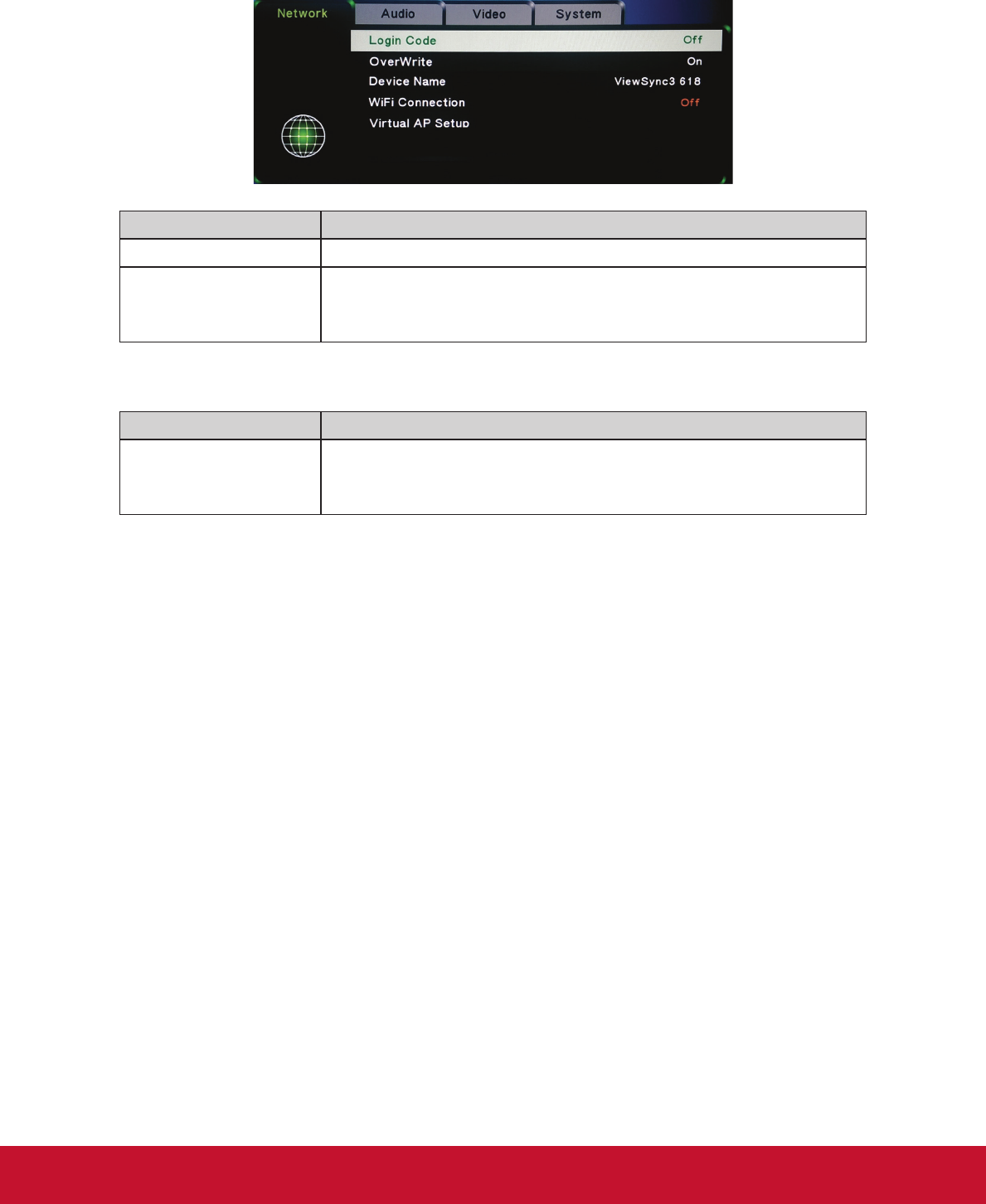

2-10 OSD Menu...................................................................................................14

2-11 Network Setting ...........................................................................................15

Chapter 3: WiFi Projection

3-1 Normal mode, user can freedom of playing ..................................................20

3-2 Moderator Mode ............................................................................................25

FAQ: ...................................................................................................................26

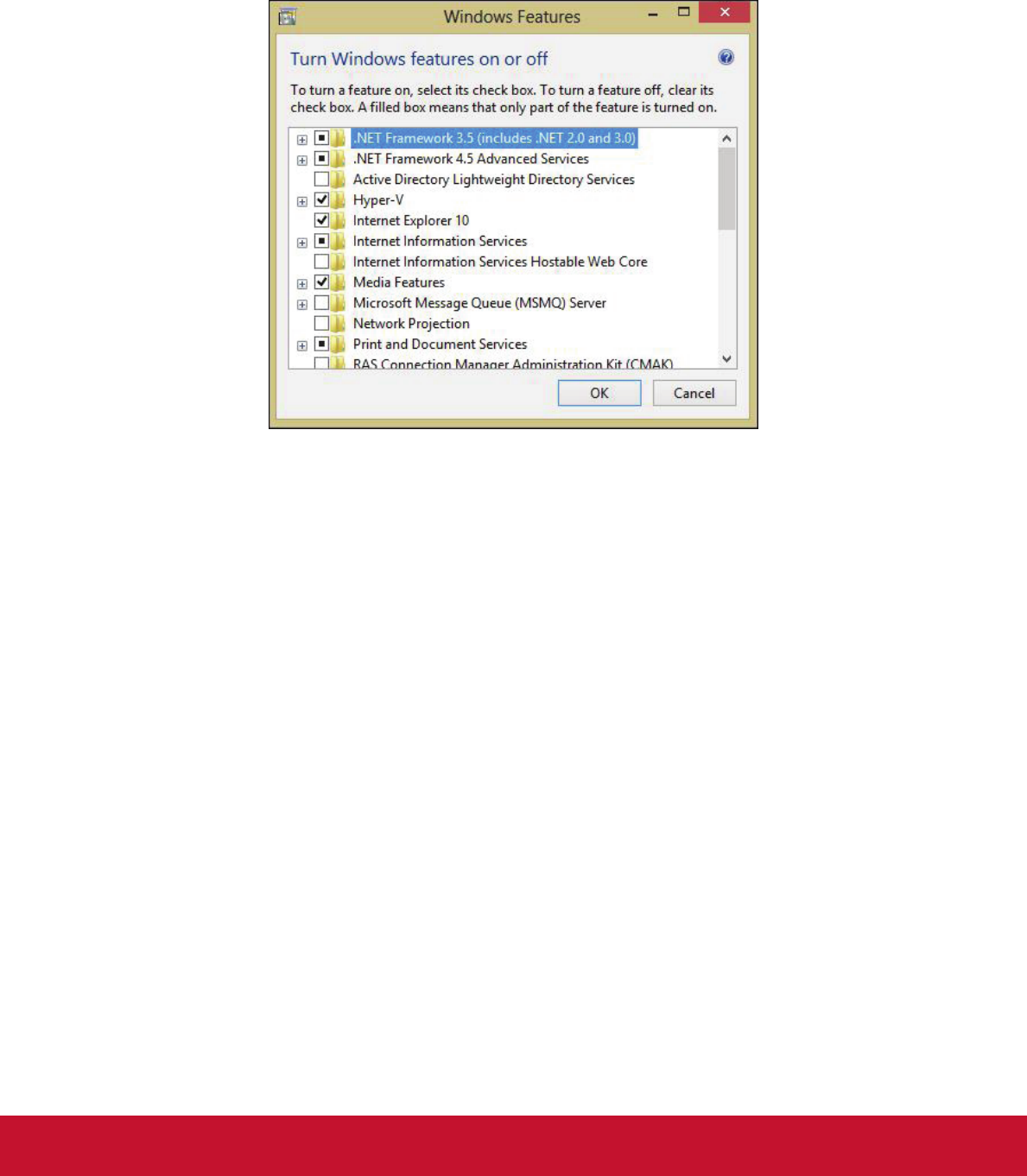

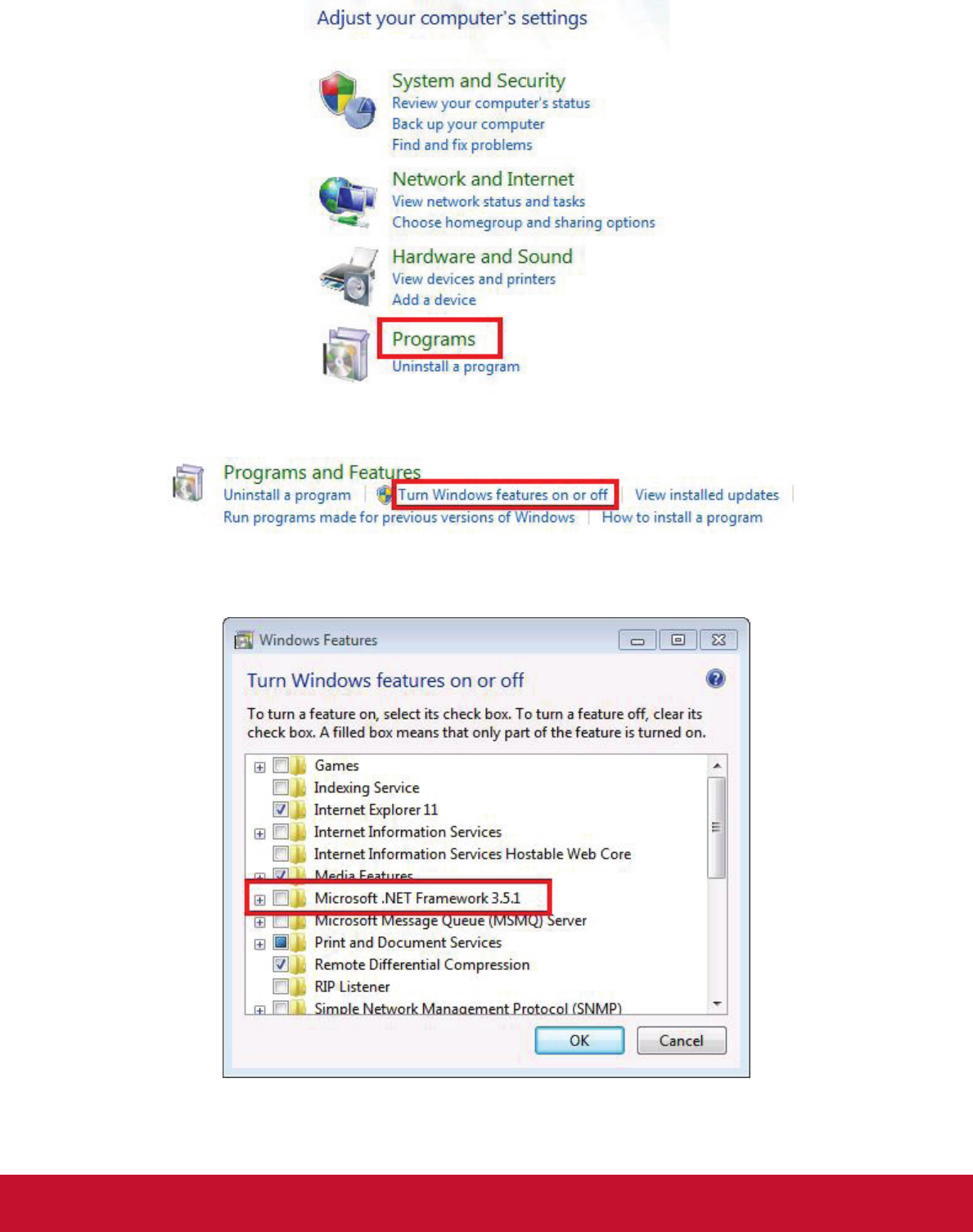

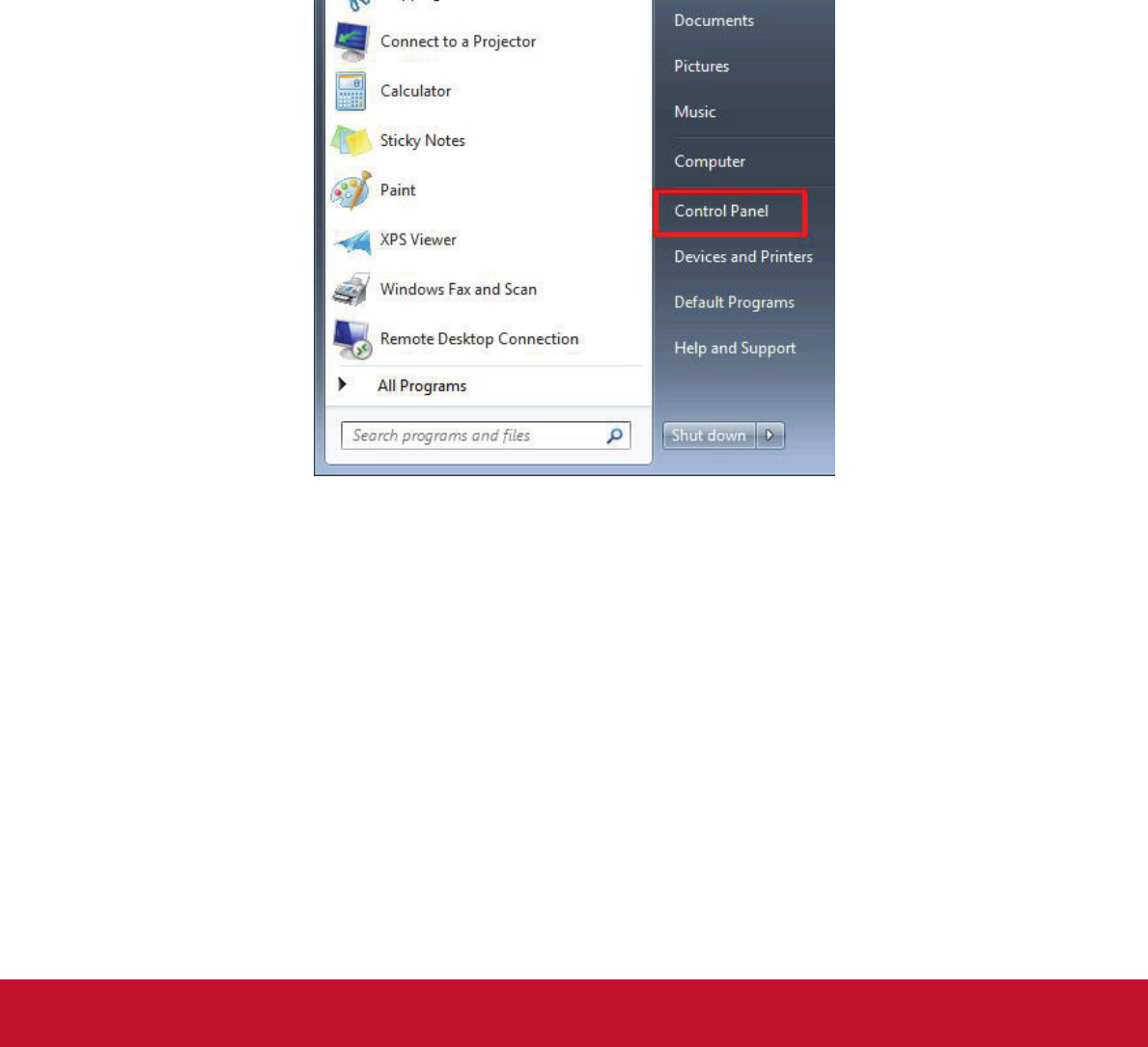

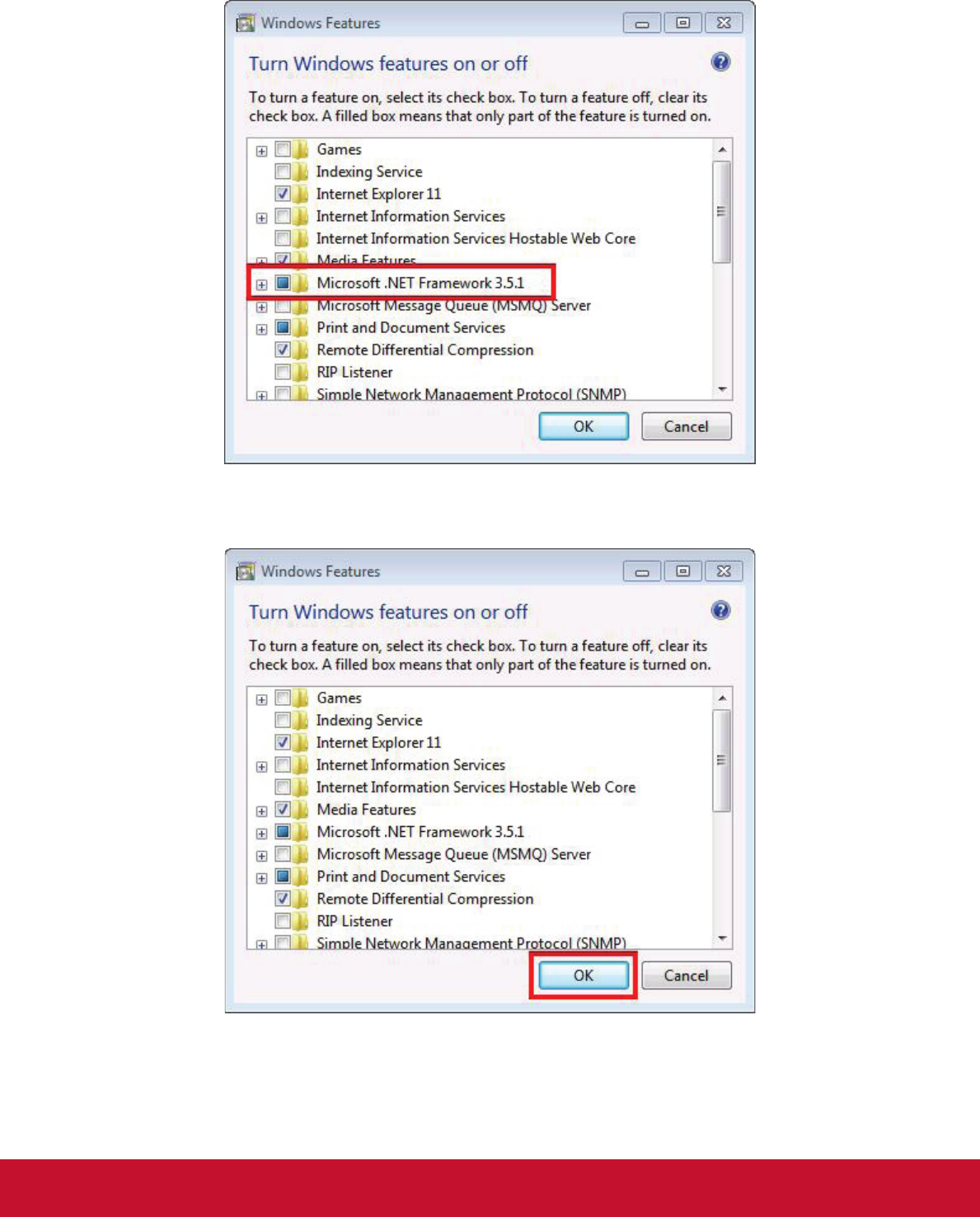

Windows 7 ...........................................................................................................27

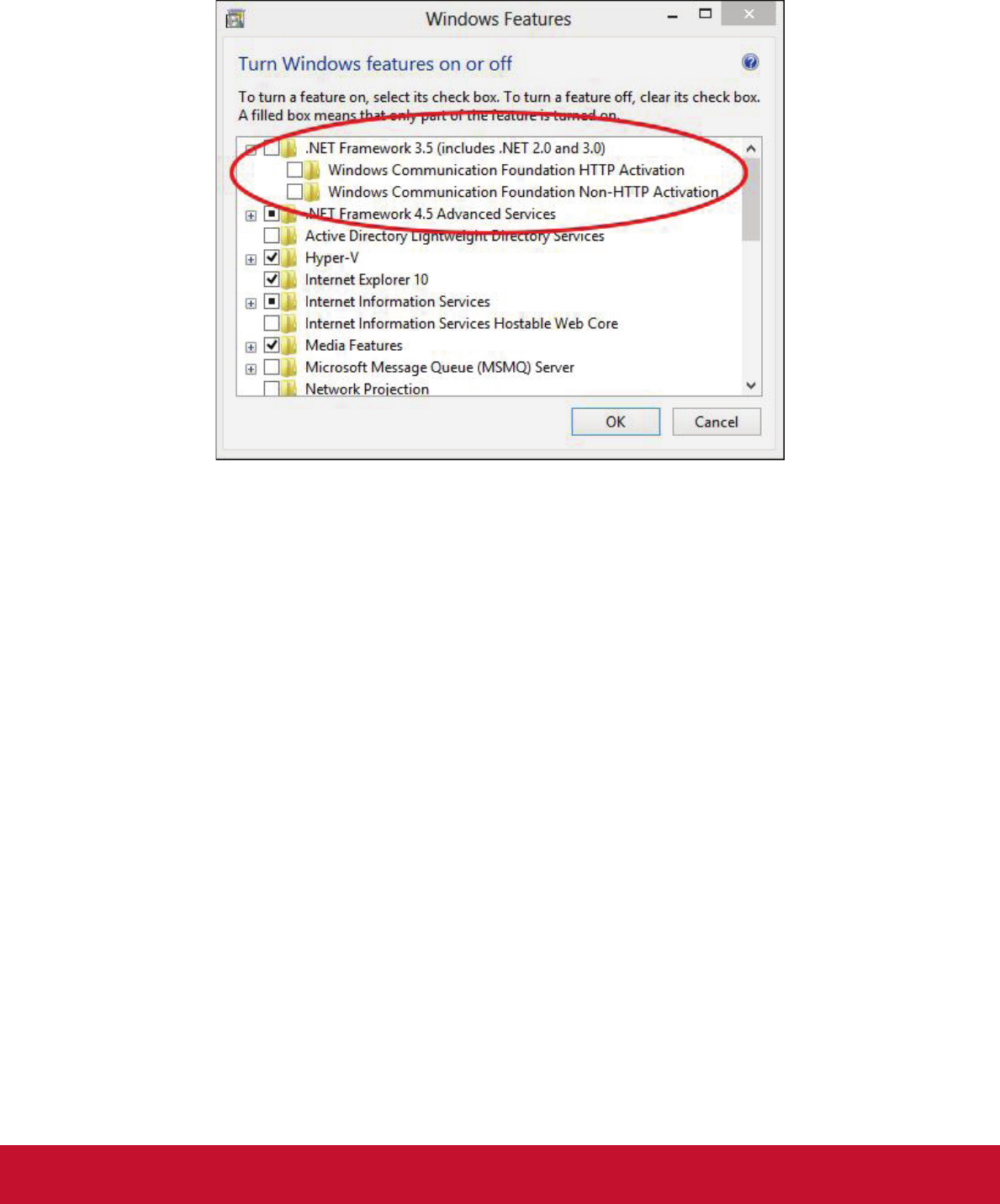

Windows 8 ...........................................................................................................30

Chapter 4: Using ViewStick 2 on Mobile, Mobile APP

4-1 AirPlay ...........................................................................................................34

4-2 iOS/Android APP ...........................................................................................34

Appendix A: Support resolution ...........................................................................35

Appendex B: ViewSync 3 Support Media Format ...............................................35

Customer Support

Chapter 1: Product Introduction

Congratulations on your purchase of ViewSonic Wireless Presentation Gateway

ViewStick 2.

This section introduces you to the ViewStick 2 (referred to as the ViewStick 2 in this

user guide).

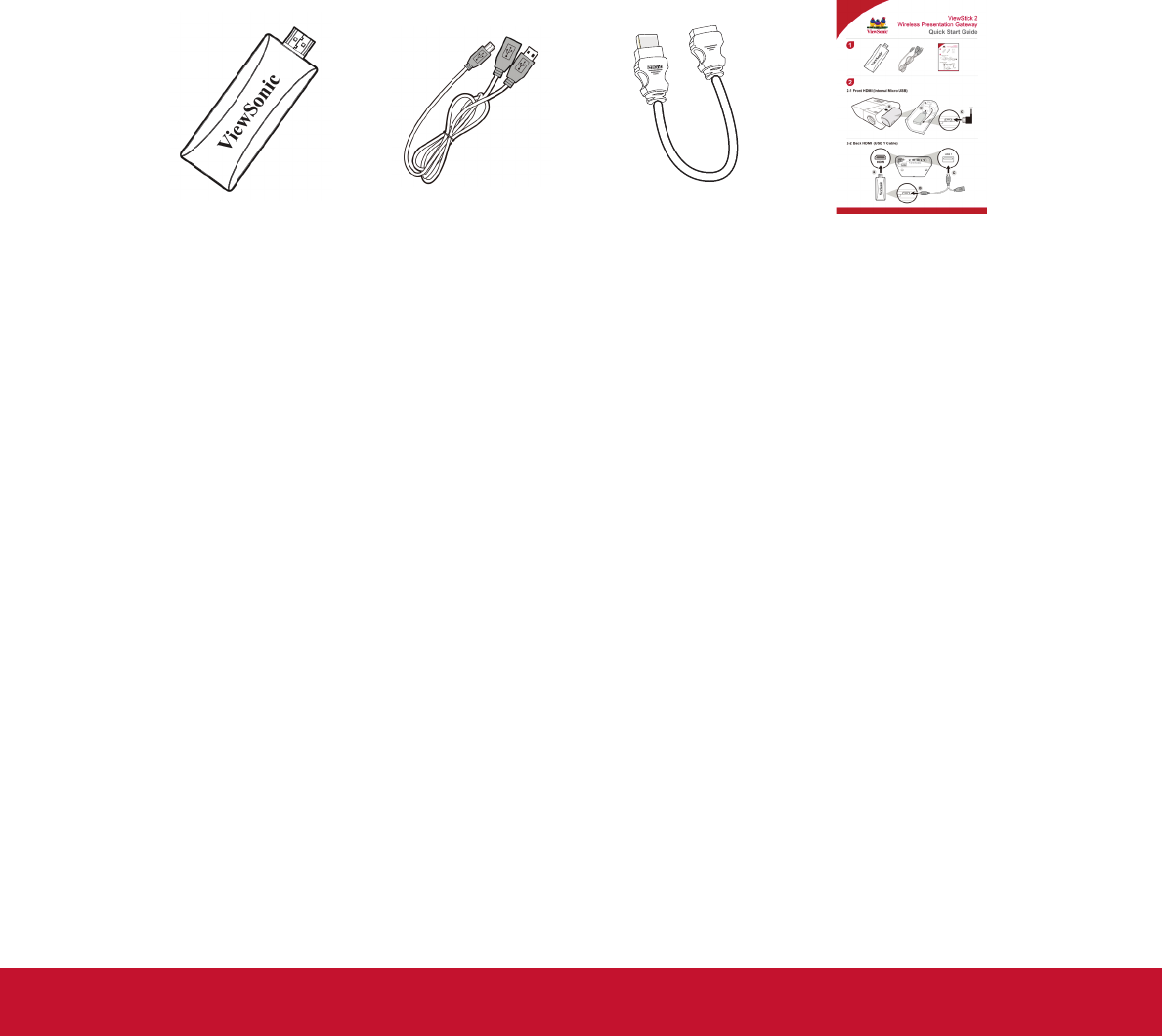

1-1 Package Contents

1. ViewStick 2

2. USB Y Cable

3. Quick Installation Guide

4. HDMI Extender

1-2 Hardware Recommendation

ViewStick 2 supports real time WiFi Projection, play back functions.

1. WiFi Presentation Mode (HDMI)

ViewStick 2 is designed to able to stream contents from PC (Windows 7 /

Window 8 / Windows 10 / Mac OS X 10.7/10.8/10.9/10.10/10.11) and Mobile

(iOS 8 or later / Android 5.0 or later) to your HDMI support Display through this

device.

2. PC or Notebook

• CPU: Core 2 Duo 2.0GHz or better

• Memory: 2.0 GB or better

• Network: 802.11g/n Wi-Fi

• Software: ViewStick 2 Utility. (Windows 7 above / OS X 10.7 above)

3. Mobile, Mobile APP

- AirPlay: iOS 9

- Android: 5.0 or later with ViewStick 2 Utility

- iOS: 8 or later with ViewStick 2 Utility

1-3 Highlights

Thanks again for choosing the product. This product allows multiple users to connect

to the same projector by wireless network and avoiding the hassle of using VGA or

HDMI cable.

Features

• 802.11 b/g/n Wireless compatibility

• 802.11n 2.4GHz singal band statndard

• Wireless multimedia streaming up to Full HD 1080p

• PC content, movies, photo’s apps and more all on your big screen

• Compatible with Windows, Mac, iOS and Android devices

• Network security

• USB display on Media Streaming mode

1-4 Hardware Setup/Installation

1. Front HDMI (Internal Micro USB)

2. Back HDMI (USB Y Cable)

Chapter 2: ViewStick 2 administration

setting

2-1 Connect to Web Configuration Menu

Please key IP address in browser, default is 192.168.59.254, The basic standby

screen shows IP information Default pass word is “admin”.

Item Description

Application download Download application

Remark: AutoProject key software download only for Client mode setting

download link is: "http://www.viewsonicglobal.com/vsweb.us/viewsync3/

apj_new_version.zip"

2-2 Status & Info

Displays system information, like system software version and IP address. Many

useful information can be obtained here when you need help about system

configuration and firmware upgrade.

2-3 Wireless Settings

Congures wireless network settings.

1. ‘Basic’ Settings

Displays and configures the wireless settings.

Item Description

Device Name

(SSID)

Input the Device Name of presentation gateway here.

"ViewStick 2 XXX", XXX would be different from every

upgrade.”.

Click ‘Apply’ button to save the settings.

NOTE: When the configuration settings are changed, you must restart the network

connection. You can restart the network connection by clicking “Restart” on

the main menu.

2. “Security” Setting

Encryption: Disabled

Disables wireless encryption.

Encryption: WPA +WPA2

Enable WPA + WPA2 encryption. Wireless clients must support WPA encryption and

know the encryption passphrase you set here.

NOTE: When the configuration settings are changed, you must restart the network

connection. You can restart the network connection by clicking “Restart” on

the main menu.

3. Band Setting

Item Description

Band Select the wireless band. Available options are:

2.4GHz (B+G+N) - 802.11b, 802.11g, and 802.11n clients.

2.4G Channel Auto,1,6,11

2-4 WiFi connection setting

PS:

If setup WiFi connection successful, ViewStick 2 will become WiFi Client mode.

Your PC or phone need to link the same WiFi AP router for WiFi projection or media

streaming.

2-5 Projection Setting

Displays and congures the projection setting.

Item Description

OSD Menu

Language

Selection

Select the displaying language.

HDMI Output

Resolution Select HDMI output resolution for projection.

VGA Output

Resolution No VGA output on this device.

Over write User can interrupt and replace the current presenter by play

another transmitter.

NOTE: When the configuration settings are changed, you must restart the network

connection. You can restart the network connection by clicking “Restart” on

the main menu.

2-6 Password Setting

Displays and congures the password setting.

Item Description

Current Password Input current password here. Default pass word is “admin”.

New Password /

Confirmed Password

New Password: Enter new password.

Confirmed Password: Enter new password again.

Click ‘Apply’ button to save the settings.

NOTE: When the configuration settings are changed, you must restart the network

connection. You can restart the network connection by clicking “Restart” on

the main menu.

2-7 Firmware Upgrade

Select ‘Firmware download’, ViewStick 2 will check and download the latest rmware

automatically once ViewStick 2 connects to Internet.

Select 'On-lin Upgrade', ViewStick 2 will check and upgrade latest firmware

automatically once ViewStick 2 connects to Internet.

Note:

It’s necessary to connect to Internet first to check latest firmware.

2-8 Restart

Restart ViewStick 2 when the device is not working properly or to apply changes

made on web configuration menu.

Click ‘OK’ to restart the ViewStick 2, or click ‘Cancel’ to abort.

2-9 Logout

If you wish to logout from web conguration menu, click ‘Sign Out’.

2-10 OSD Menu

Click “Web Page” in software menu.

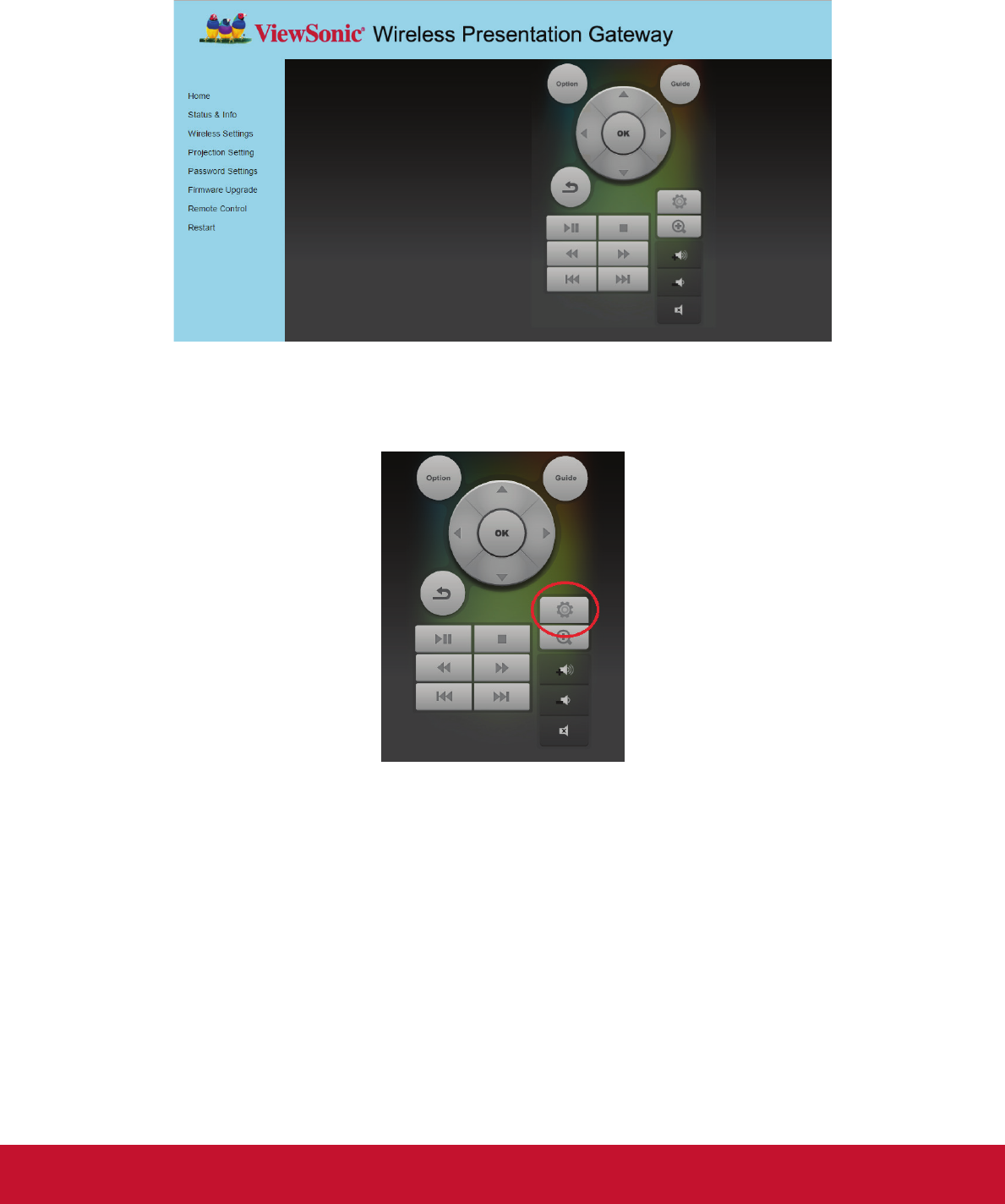

Click “Remote Control” on web conguration menu and will show below virtual

remote control on the web page.

Click “Setting ICON” on virtual remote page and will show below menu on the

screen.

2-11 Network Setting

Item Description

Overwrite

Enable or disable replace function by other users. if

overwrite is enable, if you are presenting, you can be

relabceable by other person.

Device Name

Item Description

Device Name (SSID)

Input the Device Name of presentation gateway here.

"ViewStick 2 XXX", XXX would be different from every

upgrade.

WiFi Connection

Click WiFi connection button. Then there will show the Wireless AP list on the

screen. Please choose the AP you want to connect. The function is to bridge to

Internet via another Wireless AP.

Virtual AP Setup

Item Description

Wireless Security

Open System

Disables wireless encryption.

WPA Key

Enable WPA + WPA2 encryption. Wireless clients

must support WPA encryption and know the encryption

passphrase you set here.

Save Change Save the configuration.

2.4G Preferred

Channe

Auto,1,6,11

Choose the channel of 2.4G.

Network setting

1. AP Mode

• Default setting, after factory reset will return to AP mode.

• User WiFi direct link to ViewStick 2, no internet access)

• Performance is better than Client mode.

2. Client mode by WiFi

• Setting WiFi Connection on Menu,

Web Page --> Wireless Settings --> Wifi Connection

• User links to ViewStick 2 via WiFi Router

Audio Setting

You can adjust the advanced audio setting such as Night mode, HDMI Audio output

format, SPDIF output format, Surround sound setting and Lip Sync setting in this

page.

Video Setting

You can adjust Aspect Ratio, TV out video format, and other video setting in the

video setup page.

System Setting

You can set the OSD language, reset to Factory default, check the detail firmware

version, and do the firmware upgrade in the system setup page.

USB Upgrade

1. Name image file as "install.img"

2. Place install.img in UFD

3. Plug UFD into ViewStick 2 with Y Cable

4. 4. Choose USB Upgrade

Note:

1. Main firmware version is shown on the startup screen.

2. Language selection is for OSD menu only, not for startup page.

Chapter 3: WiFi Projection

3-1 Normal mode, user can freedom of playing

1. Method 1: AutoProject Key

1.1 Plug in AutoProject key, select AutoProject disk device

1.2 Same Rule on MAC user, software is on MAC folder

2. Method 2: Download Software from ViewStick 2 server

2.1 WiFi Link to ViewStick 2

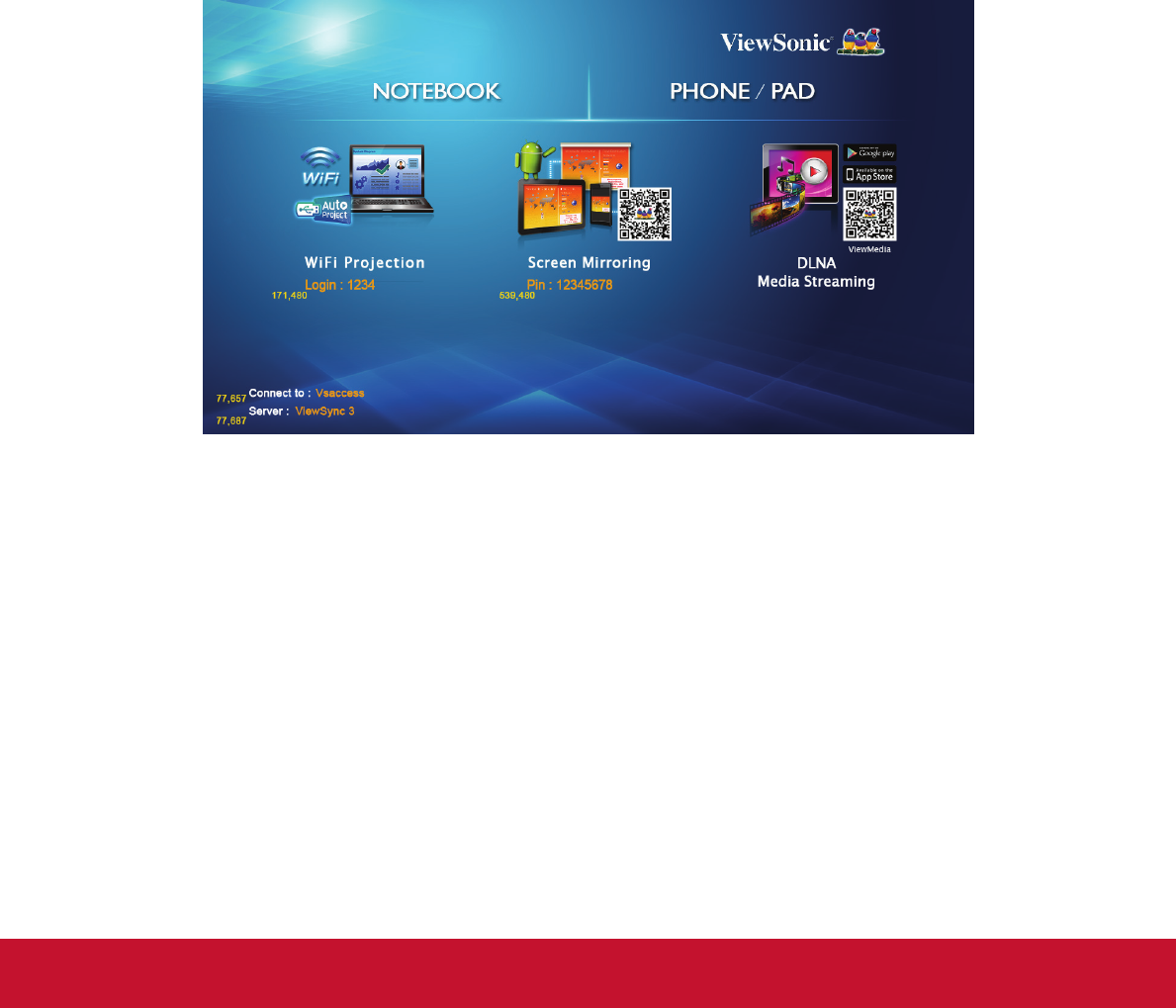

2.2 Key in IP address on IE, will show download page as following (basic

standby screen show IP address, if direct link to ViewStick 2, default IP is

192.168.59.254.)

2.3 WiFi Link to Internet, download software.

2.4 Unzip install software follow instruction.

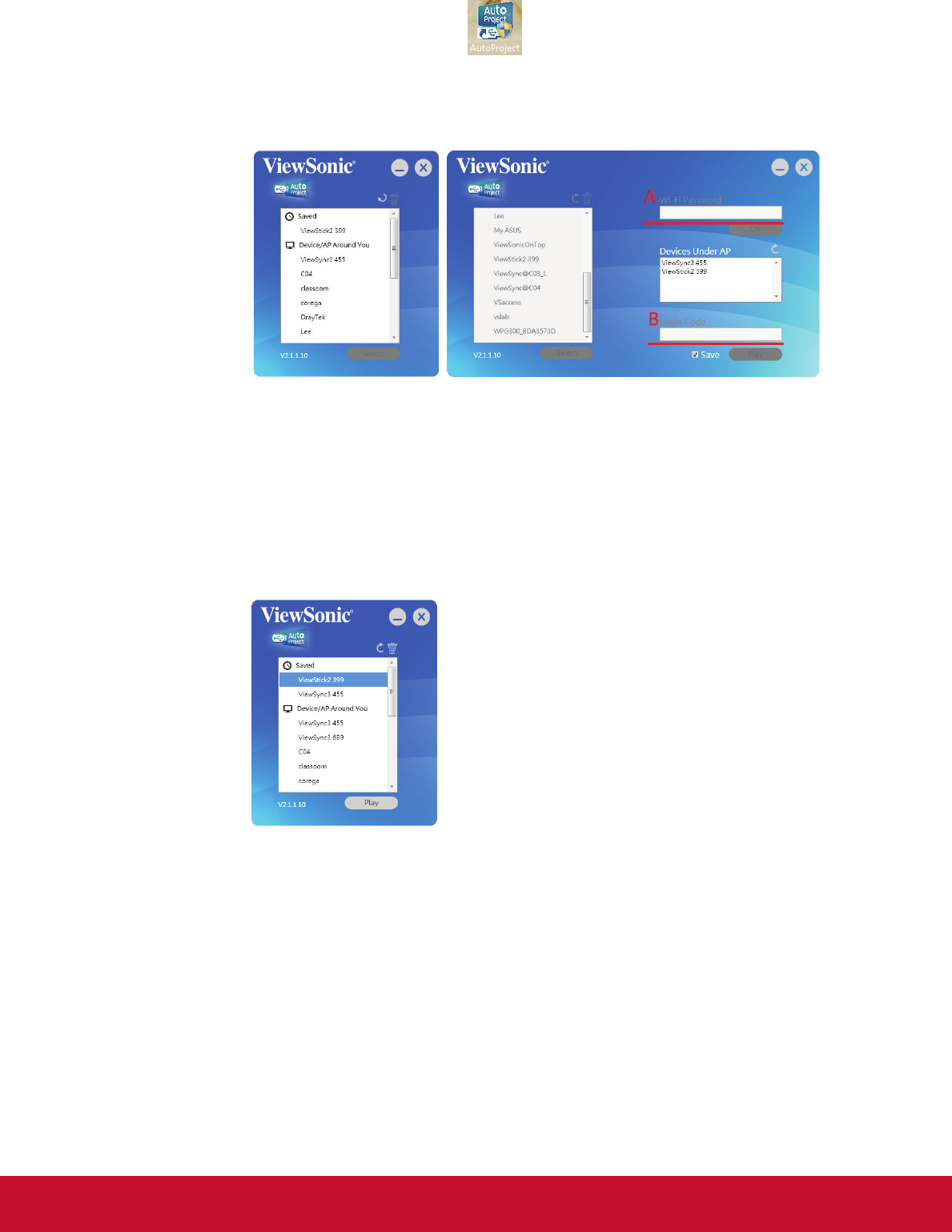

2.5 Perform AutoProject on desktop

2.5.1 Default setting (WiFi Direct link)

2.5.1.1 Select ViewStick 2

If ViewStick 2 has set WPA security, it is needed to key password on

step A.

If ViewStick 2 set Login code, it is needed to key Login code before

Play to ViewStick 2 on step B

2.5.1.2 Next time, ViewStick 2 will be listed on Saved column, it will

AutoProject to ViewStick 2 directly

2.6 If ViewStick 2 link to WiFi router by WiFi (Ex. link to edimax_2.4G WiFi

router”).

2.6.1 Select edimax_2.4G and select ViewStick. Click Play button

If DreyTek wifi router set WPA security, it is need to key password on

step A.

If ViewStick 2 set Login code, it is needed to key Login code before

Play to ViewStick 2 on step B

2.6.2 Next time, ViewStick 2 will be saved , it will auto select correct WiFi

Router and link to ViewSync directly

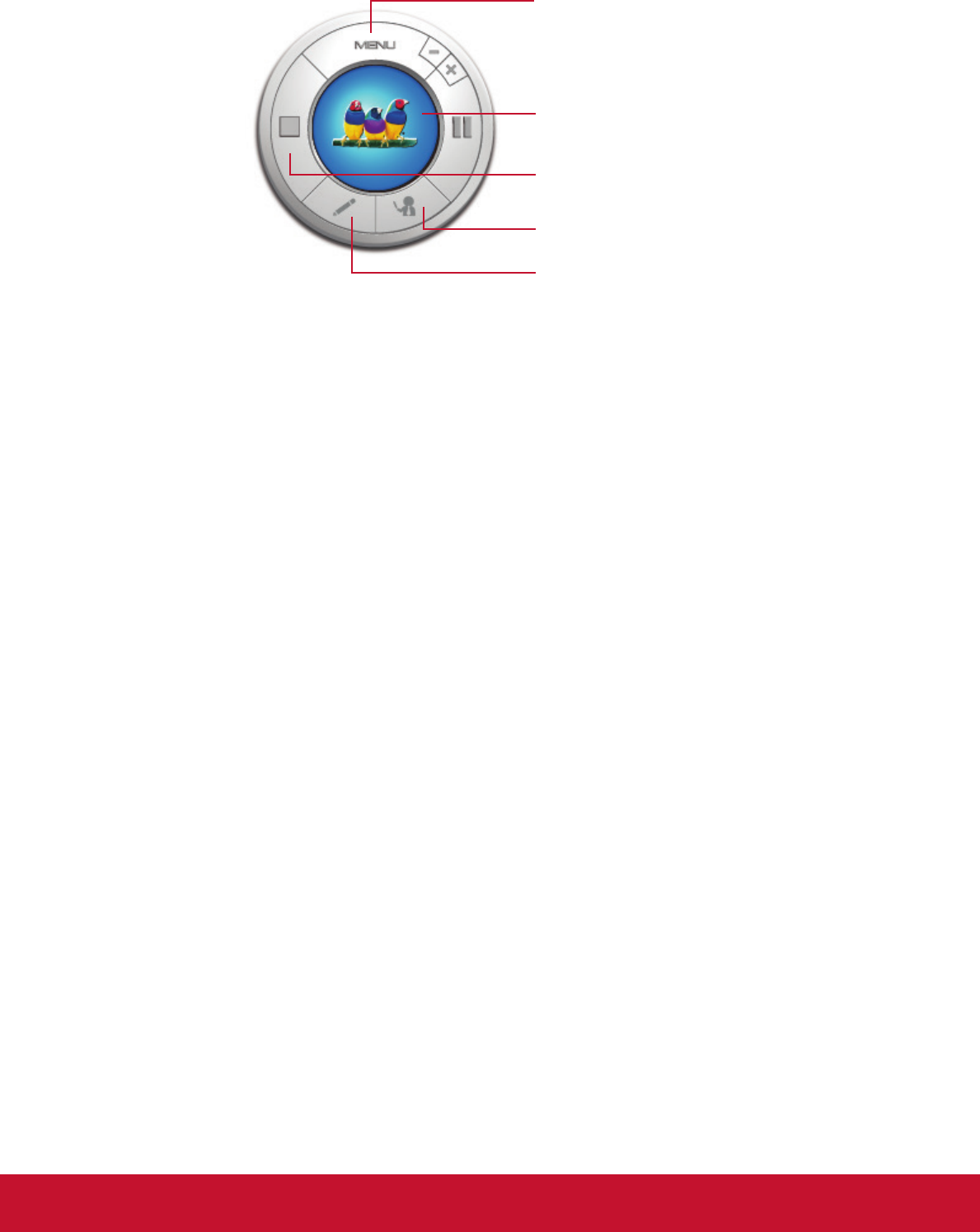

3. AutoProject software standby UI

(1) Menu

(2) Play/Pause

(3) Stop

(4) Enable Moderator

(5) Annotator

3.1 Menu

3.1.1 Display Mode: Mirror Mode /Extend Mode

3.1.2 HDMI/VGA resolution

3.1.3 Aspect Ratio: Auto / 4:3 / 16:9 / 16:10

3.1.4 Web Page: Click will link to Web page setting

3.1.5 Setting:

3.1.5.1 Enable Auto adjust resolution

ViewStick 2 software will auto adjust laptop resolution to

match Display/Projector native resolution. If graphics card

can not support, Laptop will keep original resolution.

3.1.5.2 Enable Auto Save

Software will remember setting.

3.1.5.3 USB Keyboard/Mouse Back control:

For Mirror mode only, if Keyboard and Mouse plug in

ViewStick 2 USB port. It can back control computer who has

projected to ViewStick 2.

3.1.5.4 Enable Remote Cursor (Disable Computer Mouse cursor)

ViewStick 2 will generate a virtual cursor to replace original

Mouse cursor. Cursor just is controlled by Mouse that plug-

in ViewStick 2. Mouse in Computer can not move virtual

cursor if this function is enable.

3.1.5.5 Enable Auto Scale Down

If Laptop native resolution is over 1920x1080, please enable

this function.

3.1.5.6 Power Point Presentation Mode

To get better picture performance for the slide show.

3.1.5.7 Auto Play

Direct play after login.

3-2 Moderator Mode

Moderator control by Software.

• It is unavailable to launch moderator mode by connecting to ViewStick 2.

FAQ:

1. Question: if I lost AutoProject key. How to make New/Another AutoProject

Key?

Answer:

• Download Software

• Unzip to USB disk

• Reanme USB disk name to “AutoProject”

2. Question: why can I not play screen

Answer:

• If Laptop native resolution over 1920x1080, please select “Enable Auto Scale

down” on software setting of Menu.

3. Question: when I install ViewStick 2 software, I meet the problem which

show .Net Framework not ready

Answer: please follow the below process to enable it.

4. Question: when I play screen to ViewStick 2, I meet resoltion is

incorrection.

Answer: Please disable Auto Adjust resolution on setting of AutoProject

software menu.

5. Question: When I play screen to ViewStick 2, Screen is black

Answer: some of Notebook cannot support hardware encode, please disable

powerpoint presentation mode on setting of AutoProject software menu.

Windows 7

How To Install Microsoft .NET Framework 3.5.1 on Windows 7

Microsoft .NET Framework version 3.5.1 is included with Windows 7. Follow the

steps below to enable it.

If you try to run .NET 3.5 installer downloaded from the Microsoft website on Window

7, you will receive the following error: You must use "Turn Windows features on or

off" in the Control Panel to install or configure Microsoft .NET Framework 3.5 SP1.

Instead of running the installer, follow instructions on this page.

Note: The same steps work for Windows 8 and Windows 10.

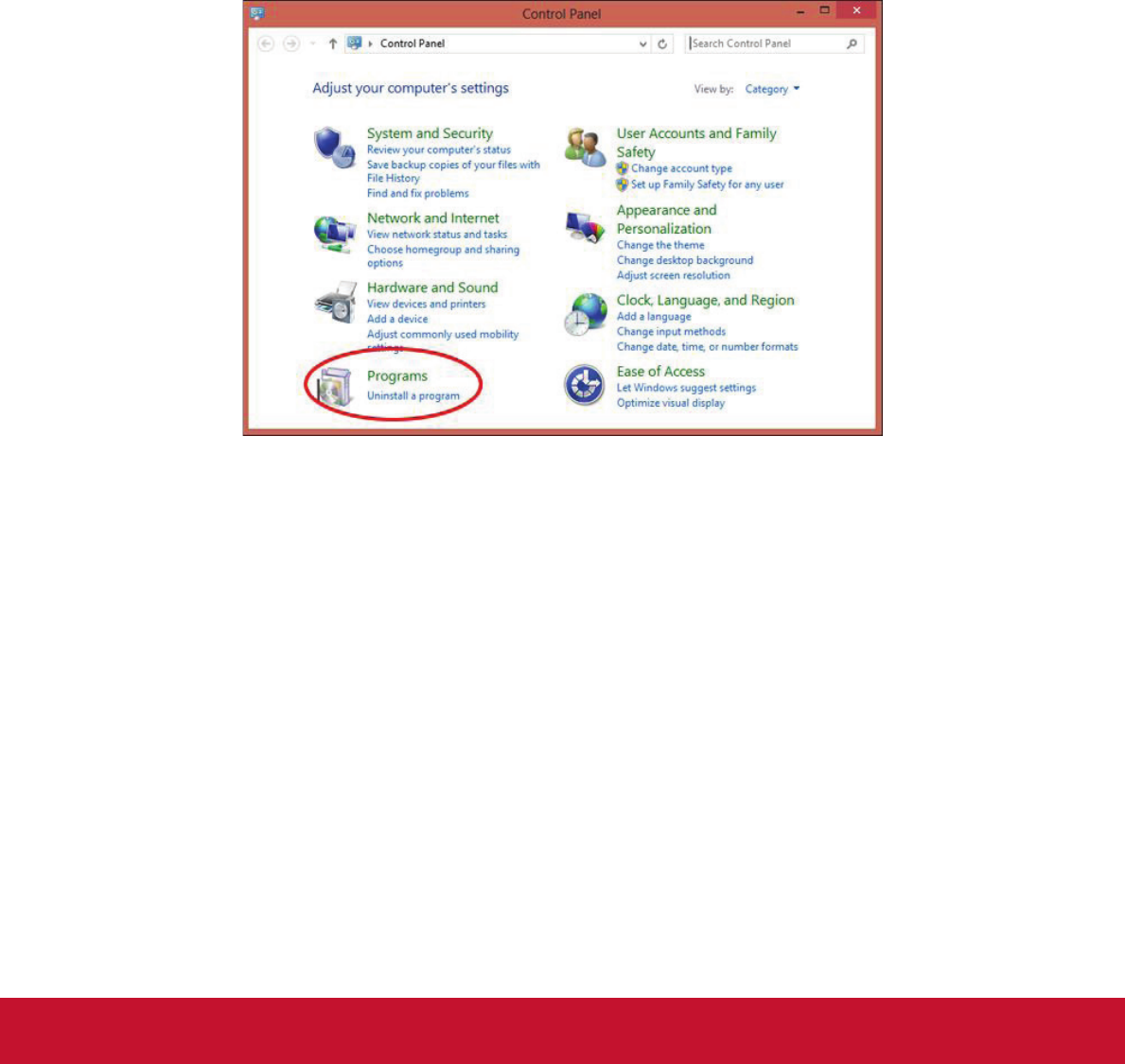

1. Click Start -> Control Panel

2. Click Programs

3. Click Turn Windows features on or off

4. Click the checkbox next to Microsoft .NET Framework 3.5.1

5. You will see the checkbox become filled

6. Click OK

7. Wait for Windows to complete the operation. If it asks you to connect to

Windows Update to download required files, click Yes.

Windows 8

How to enable .NET Framework 3.5 on Windows 8 in Offline Mode Problem

Description

Windows 8 does not include .NET 3.5 (include .NET 2.0 and 3.0) by default. But if

the user is upgrading from Windows 7 to Windows 8, .NET Framework 3.5 is fully

enabled. The user can make sure this feature is enabled by check in Program and

Features.

These is list of steps that the user can do to check it :

Step 1:

Go to Settings. Choose Control Panel then choose Programs.

Step 2:

Click Turn Windows features on or off, and the user will see window as image below.

The User can enable this feature by click on .NET Framework 3.5 (include .NET 2.0

and 3.0) select it and click OK. After this step, it will download the entire package

from internet and install the .NET Framework 3.5 feature.

But if the user does not have an internet connection, this steps can not be applied.

Solutions

The user still can enable this feature in offline mode if the user has Windows 8 DVD

or ISO image.

How To Do

The following are the steps to enable .NET Framework 3.5 (include .NET 2.0 and

3.0) feature in offline mode :

Step 1:

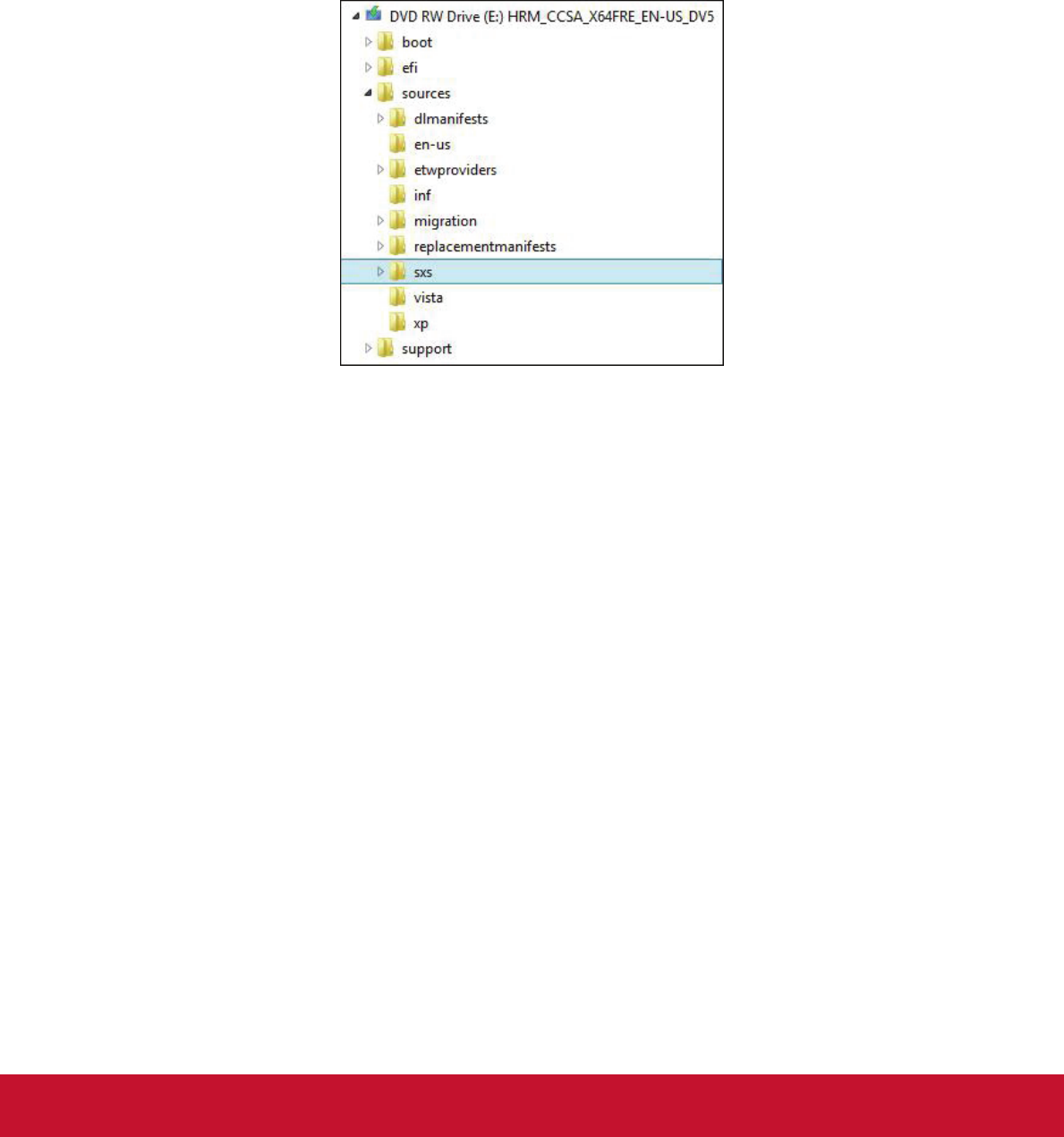

Insert Windows 8 DVD or mount ISO image. The source of this feature can be found

in folder E:\sources\sxs. (In this case E: the user’s drive letter on which the user

has loaded Windows 8 Media.)

Step 2:

Open CMD.EXE with Administrative Privileges.

Step 3:

Run the following command Dism.exe /online /enable-feature /

featurename:NetFX3 /All /Source:E:\sources\sxs /LimitAccess, and hit Enter.

After completing the installation of .NET Framework 3.5 you can see that the feature

is enabled.

Chapter 4: Using ViewStick 2 on Mobile,

Mobile APP

4-1 AirPlay

1. Connect WiFi to ViewStick 2.

2. Refer to airplay rule from APPLE.

https://support.apple.com/en-us/HT204289

4-2 iOS/Android APP

1. Download ViewStick 2 utility. vsweb.us/viewstick2

2. Refer to user guide on web page.

Appendix A: Support resolution

Interface Output resolution

HDMI NTSC, PAL, 480p, 576p, 720p@50Hz, 720p@60Hz,

1080i@50Hz, 1080i@60hz, 1080p@50Hz, 1080p@60Hz

Appendex B: ViewSync 3 Support Media Format

Video Format

Format File extension

AVI avi

MPEG-1 mpg, mpeg

MPEG-2 mpg, mpeg

MPEG-TS m2t, tts

MPEG-4 mp4, mp4v, mpeg4, m4v

3GP 3gp, 3gpp

3GP2 3g2, 3gpp2

MOV mov

WMV wmv

DVR-MS dvr, dvr-ms

Audio Format

Format File extension

MP3 mp3

LPCM pcm, wav, l16

WMA wma

WAV wav

MP4 mp4

AAC aac

OGG ogg, oga, ogv

Audio Format

Format File extension

GIF gif

JPG jpg, jpeg

BMP bmp

PNG png
