Vigil Health Solutions ZPTX Mini Pendant Transmitter (ZPTX) User Manual Description

Vigil Health Solutions Inc Mini Pendant Transmitter (ZPTX) Description

manual

W
Wi
ir
re
el
le
es
ss
s
M
Mi
in
ni
i-
-P
Pe
en
nd
da
an
nt
t
Operating Instructions
Page 1 of 3
Revised: 2011-12-6
Vigil Health Solutions Inc. 2102 - 4464 Markham Street * Victoria, BC * Canada * V8Z 7X8. Phone: (250) 383.6900 * (877) 850.1122 Fax: (250) 383.6999 Web: www.vigil.com
© Vigil Health Solutions Inc.
Description
The Vigil Wireless Mini-Pendant is typically used by residents to alert staff that they are in need of assistance. The Mini-Pendant
can be worn by the resident using a key fob attachment for easy carrying in pocket or purse or can be worn with a lanyard or
breakaway necklace. The Mini-Pendant is water-resistant and has replaceable batteries.
Operating Instructions
***Pendants must be added to the Vigil software and tested prior to giving it to a resident. Refer to the Vigil
Software User’s Manual for instructions. ***
How to Create a Pendant Call:
Simply push the call area (textured area on the front of the pendant)
The LED light will flash blue 10 times (quicker at the beginning and then
gradually slower) to indicate the call has been received by Vigil wireless
system. It can take up to 2 seconds for your resident to see the blue
flash.
A message will be sent to phones or pagers and the Vigil software and
show as: W Pendant Call, Room #, Resident Name, Location
How to Respond to a Pendant Call:
Read the message on your pager, phone or the Active Calls screen and look at the closest receiver location given.
On your pager/phone the last message will be the strongest
On your Active Call screen the first message will be the strongest.
When responding to Pendant calls consider your resident’s behavior pattern first and use the messages as one of your
tools when locating them.
The call must be cancelled from the pendant.
How to Cancel a Pendant Call:
You can only cancel a pendant call from the actual pendant that created the call
Push and hold the left side of the pendant with one hand and then press and release the call button on the front.
The LED light will flash green once to indicate you’ve canceled the call
If you do not see the green light or if you see a blue light, you have not canceled the call. Repeat the steps above.
NOTE: If you see the LED light flash red on the pendant when the call area is pressed or when canceling an active call, it
means the signal did not go through. Try canceling the call again.

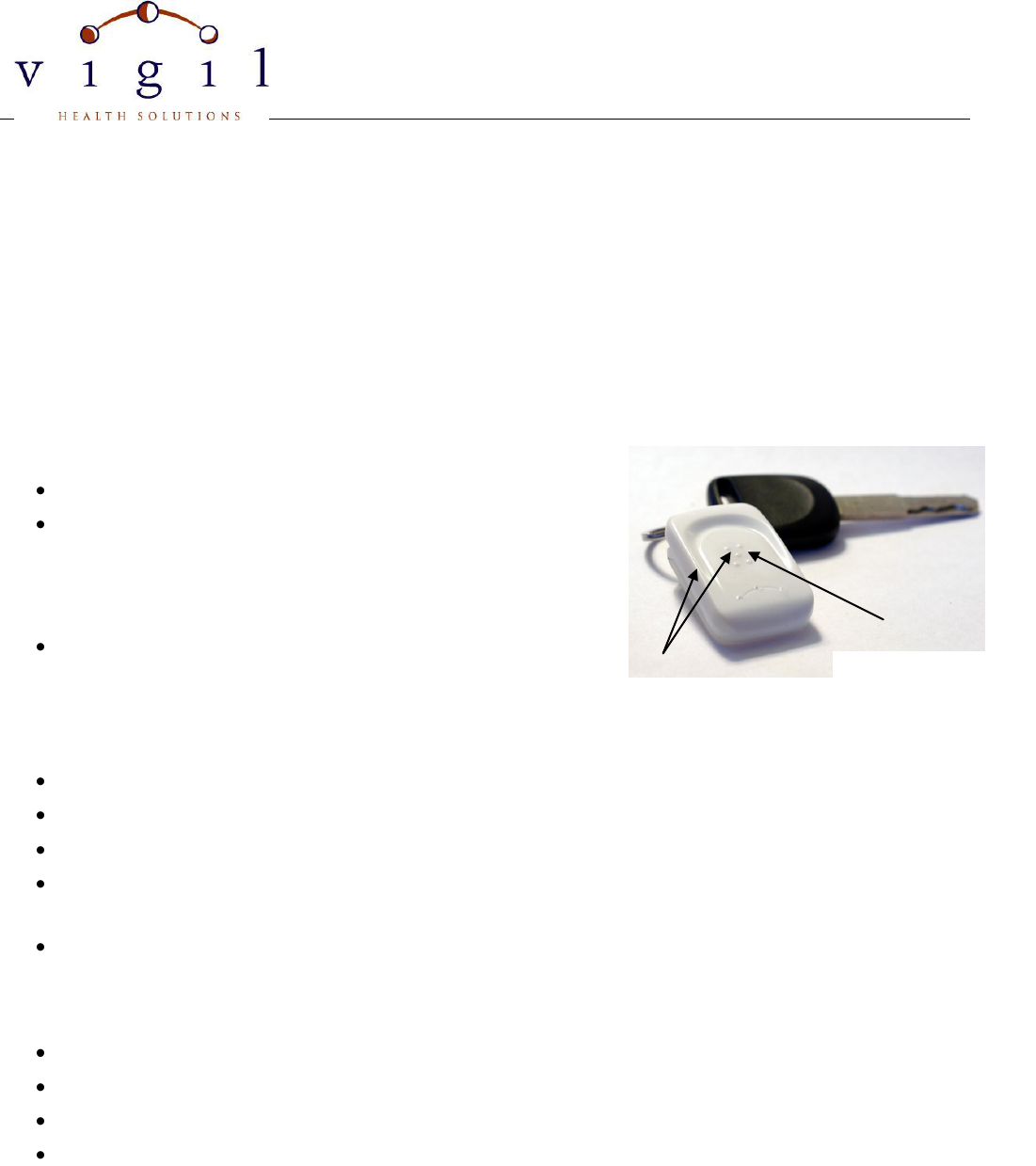

PRESS FRONT TO
CREATE A CALL
PRESS FRONT AND
SIDE TO RESET
W
Wi
ir
re
el
le
es
ss
s
M
Mi
in
ni
i
P
Pe
en
nd
da
an
nt
t
Page 2 of 3
Revised: 2011-12-6
Vigil Health Solutions Inc. 2102 - 4464 Markham Street * Victoria, BC * Canada * V8Z 7X8. Phone: (250) 383.6900 * (877) 850.1122 Fax: (250) 383.6999 Web: www.vigil.com
© Vigil Health Solutions Inc.
How to Change the Battery:
1. Remove the battery cover on the back of the pendant
2. Pull the battery holder tab away from the battery to release the battery
3. Place the new battery in the battery holder tab with the word Sanyo facing you
and press down to snap the new battery into place.
4. Replace battery cover as per diagram on the right*. Ensure the entire battery
cover is in place to keep the pendant water resistant.
5. Check to make sure you cancel a call if one has been raised during the battery
change
Always use the recommended battery: Sanyo CR2025 3volts
System Requirements
The Vitality Care System operates on the Vigil Integrated Care Management System™ platform offering you all of the
functionality and reporting of the Vigil system. The Vitality Care System can be added to your existing Vigil system or can be
installed as a stand-alone system. The Vitality Care System requires:
Software version 3.3 or higher
2.4GHz wireless receivers (ZRX)
CAT5 cabling between to the receivers
Repeaters or power supplies as required
Technical
The Vitality Care System is based on the IEEE 802.15-4-2003 wireless standard and communicates on the widely used
Controller Area Network (CAN) data protocol. The wireless devices communicate on a 2.4GHz frequency and use transceiver
technology to ensure that each signal is received and acknowledged by the network.
Pendant Specifications
FCC/IC Statements
FCC ID UI6-ZPTX
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause
harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired
operation.
PHYSICAL
ELECTRICAL
Height
45mm (1.77”)
Operating Voltage
3V
Width
27mm (1.06”)
Wireless
2.4GHz DSSS Transceiver
Depth
11mm (0.43”)
Weight
11g (0.4 oz)
Physical
Resistant to temporary immersion in water
Enclosure
Polypropylene
Battery Type
Coin cell
Accessories
Decorative break away neck chain, lanyard or
key ring
Battery Life
1 yr average use, two calls per day, in wireless
coverage area
Temperature Ratings
Operating:
Storage/Transport
-0 C to 50 C (32 F to 122 F)
-55 C to 85 C (-67 F to 185 F)
This way up
W
Wi
ir
re
el
le
es
ss
s
M
Mi
in
ni
i-
-P
Pe
en
nd
da
an
nt
t
Operating Instructions
Page 3 of 3
Revised: 2011-12-6
Vigil Health Solutions Inc. 2102 - 4464 Markham Street * Victoria, BC * Canada * V8Z 7X8. Phone: (250) 383.6900 * (877) 850.1122 Fax: (250) 383.6999 Web: www.vigil.com
© Vigil Health Solutions Inc.
Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the
equipment.
This portable transmitter with its antenna complies with FCC/IC RF exposure limits for general population/uncontrolled exposure.
IC: 6706A-ZPTX
This Device complies with Industry Canada License-exempt RSS standard(s). Operation is subject to the following two conditions: (1)
this device may not cause interference, and (2) this device must accept any interference, including interference that may cause
undesired operation of the device.
Cet appareil est conforme avec les norme(s) exemption de licences RSS d’Industrie Canada. Opération est sujet au deux conditions
suivantes. (1) Cet appareil ne peut causer d'interférences, et (2) cet appareil doit accepter toute interférence, y compris les
interférences qui peuvent causer un mauvais fonctionnement de l'appareil.
