X-9
vehicular
gate operator
installation instructions and
safety information
CLASS I, CLASS II, CLASS III and CLASS IV
LISTED 18TC
UL 325
UL 991
Viking Access Systems
T 800.908.0884 • F 949.753.1640
631 Wald - Irvine, CA 92618
vikingaccess.com
revision BØ february 2007
TECHNICAL SUPPORT 1 800 908 0884
i
PARTS DIAGRAMPARTS DIAGRAM
1
9
4
5
12
2
6
10
11 (2)
7
8
3
Item Description
Part No.
1 Cover, Plastic VAX9PC
2 Motor/Gear Unit VAX9
3 Chassis, Motor/Gear VAX9CH
4 Strain Relief VAX9ST
5 Arm Assembly, Articulated VAX9AA
6 Holder, Limit Switch
7 Limit Switch (2) VAX9LS
8 Cam, Limit Switch VAX9LCS
9 Terminal Block VAX9TB
10
Key Release VAX9KR
11 Thumb Screw VAX9TS
12 Positive Stop Extension VAX9PSE
Weight 40 lb.
Overall Dimensions
14.724"
13.975"
19.685"
7.874"
4.33" 4.33"
5.12"
.985"
Gear/Motor Unit
Can Be Mounted
Left or Right
5.90"
1.50"
.394"
2.36"
2.36"2.36"
WARNING - For Installation
By Qualified Personnel Only.
TECHNICAL SUPPORT 1 800 908 0884 1
TABLE OF CONTENTSTABLE OF CONTENTS
Parts Diagram/Parts List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .i
Important Safety Information
Important Safety Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
Important Installation Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2-3
Maintenance/General Safety Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
Terminology . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
Photo Beam (non-contact sensor) Installation . . . . . . . . . . . . . . . . . . . . . . . . . .6

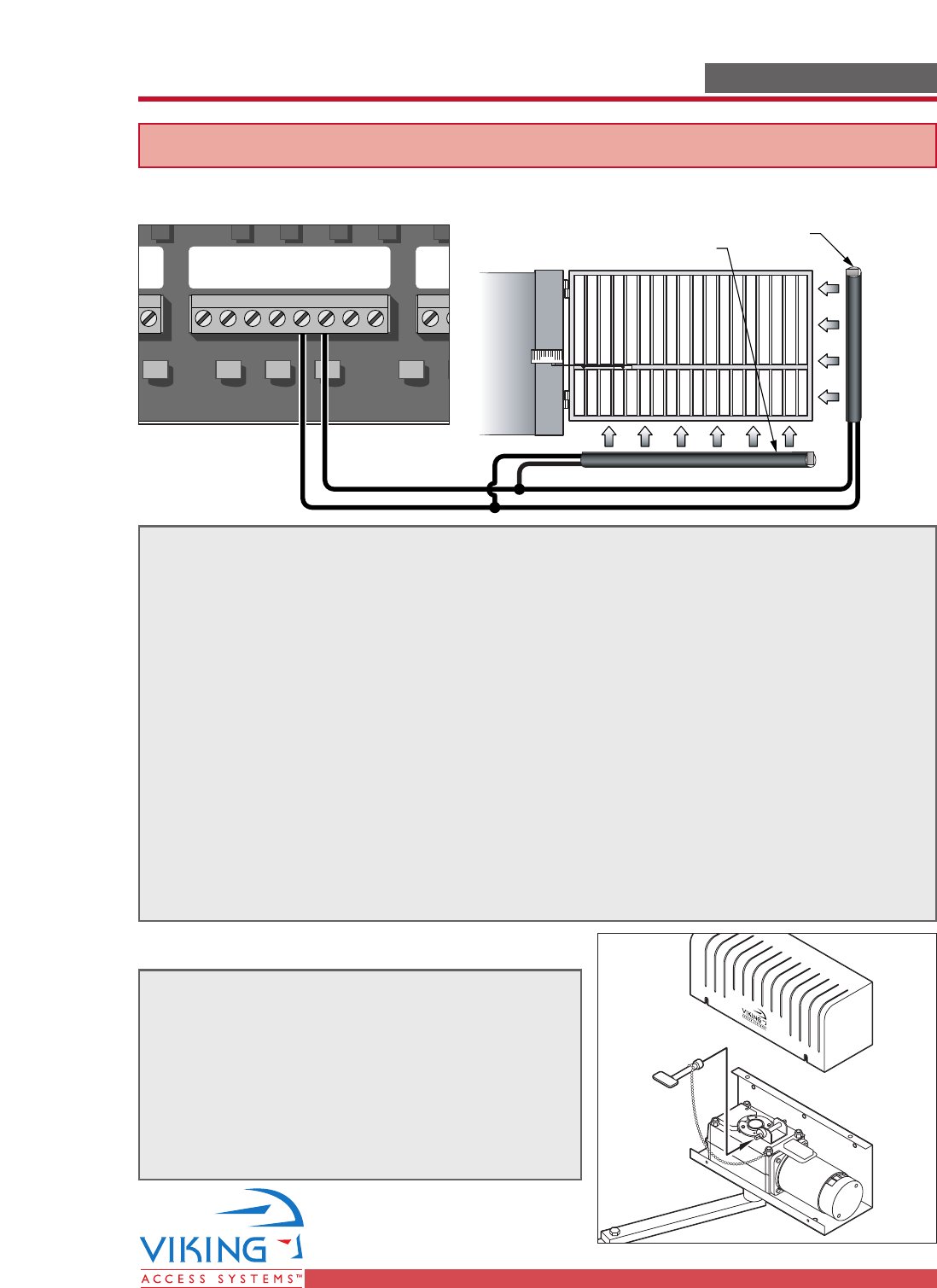

Edge Sensor (contact sensor) Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
Manual Release . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
Audible Alarm Reset Switch Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8
Warning Placard Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8
Important Installation Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9
Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9
Plan of Installation – Open Inside . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10
Plan of Installation – Open Outside . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11
Gate Operator Installation
Step 1 through 7 – Operator Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13

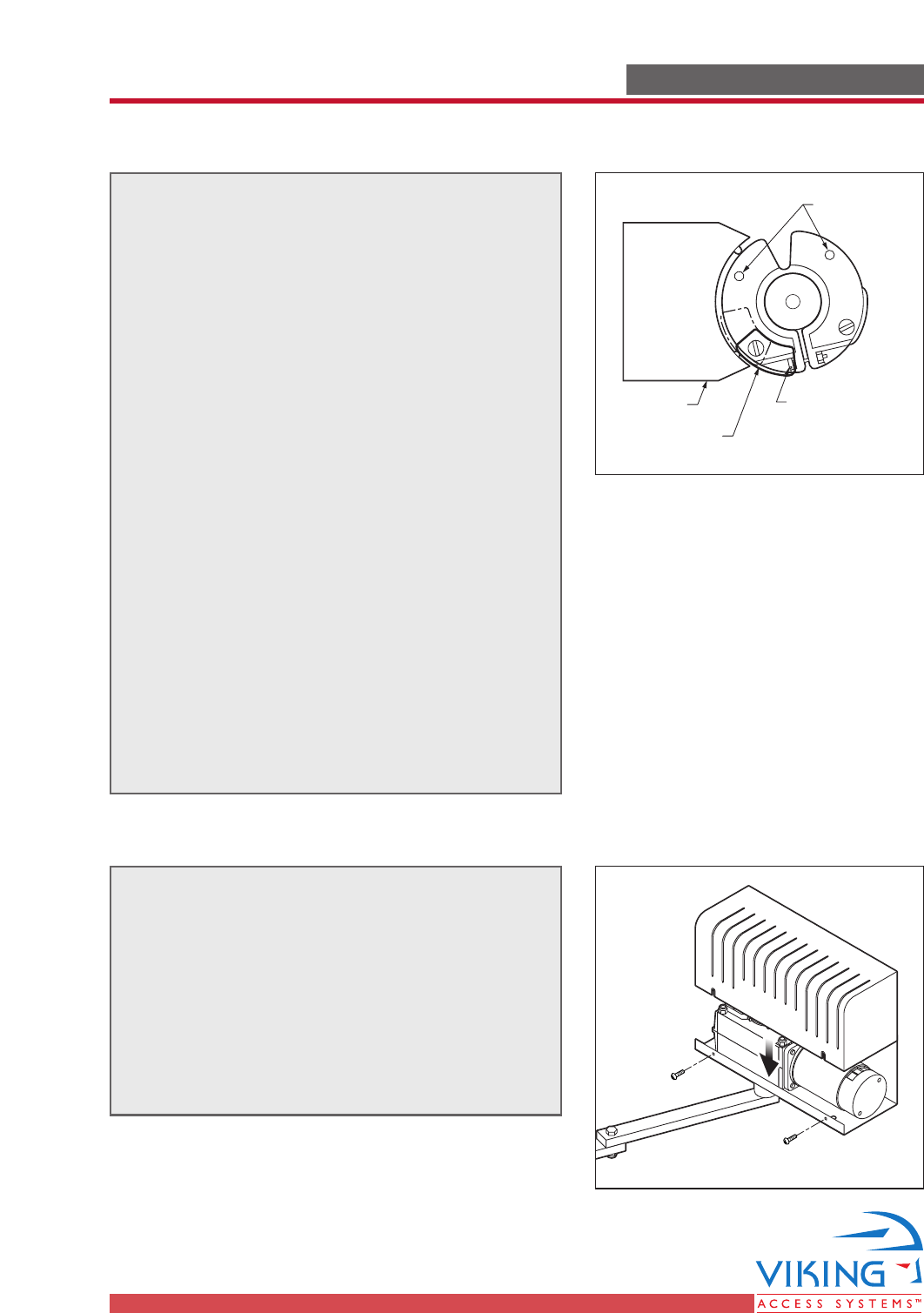

Step 8 through 9 – Limit Switch Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14
Opening/Closing Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15

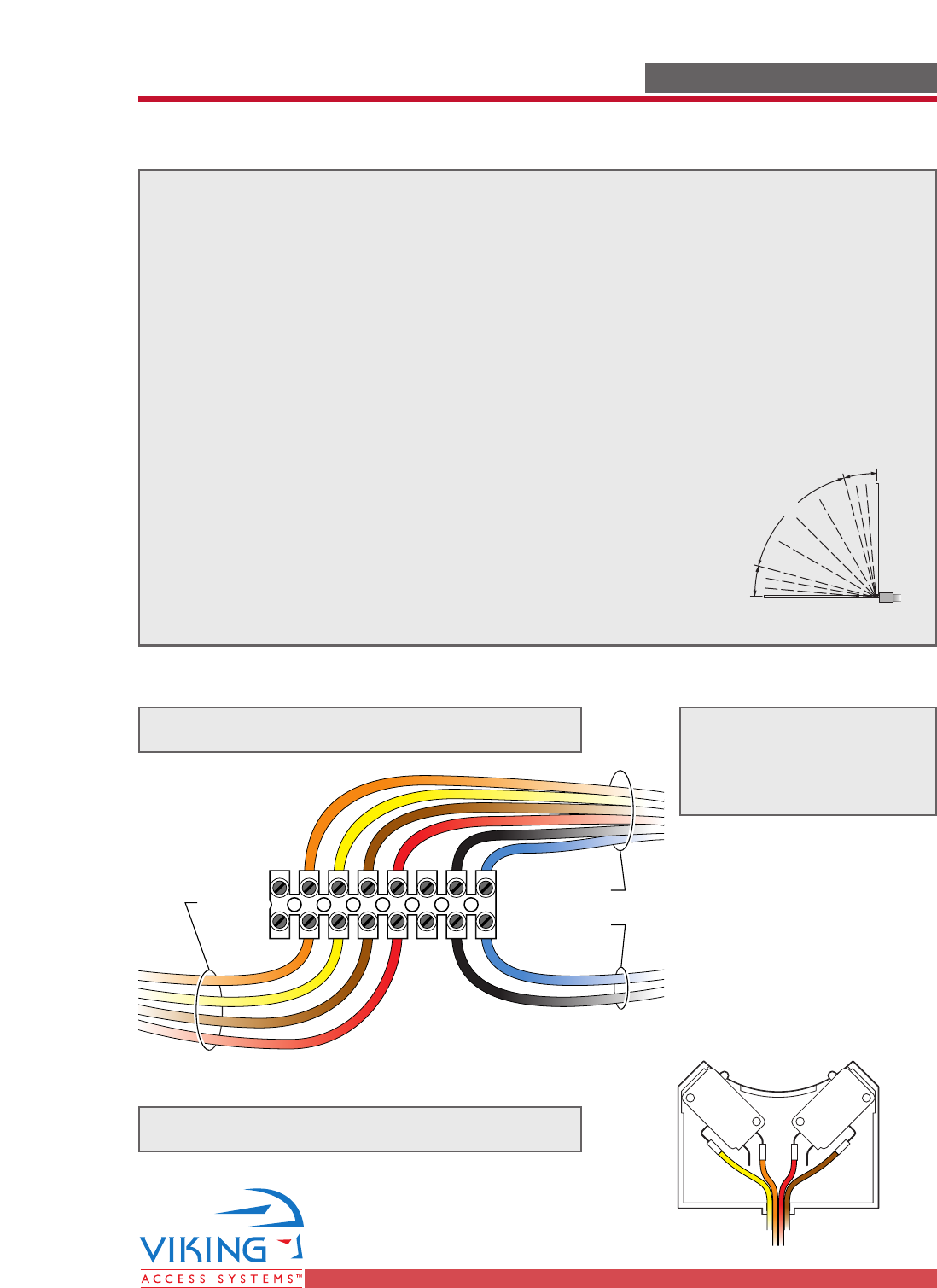

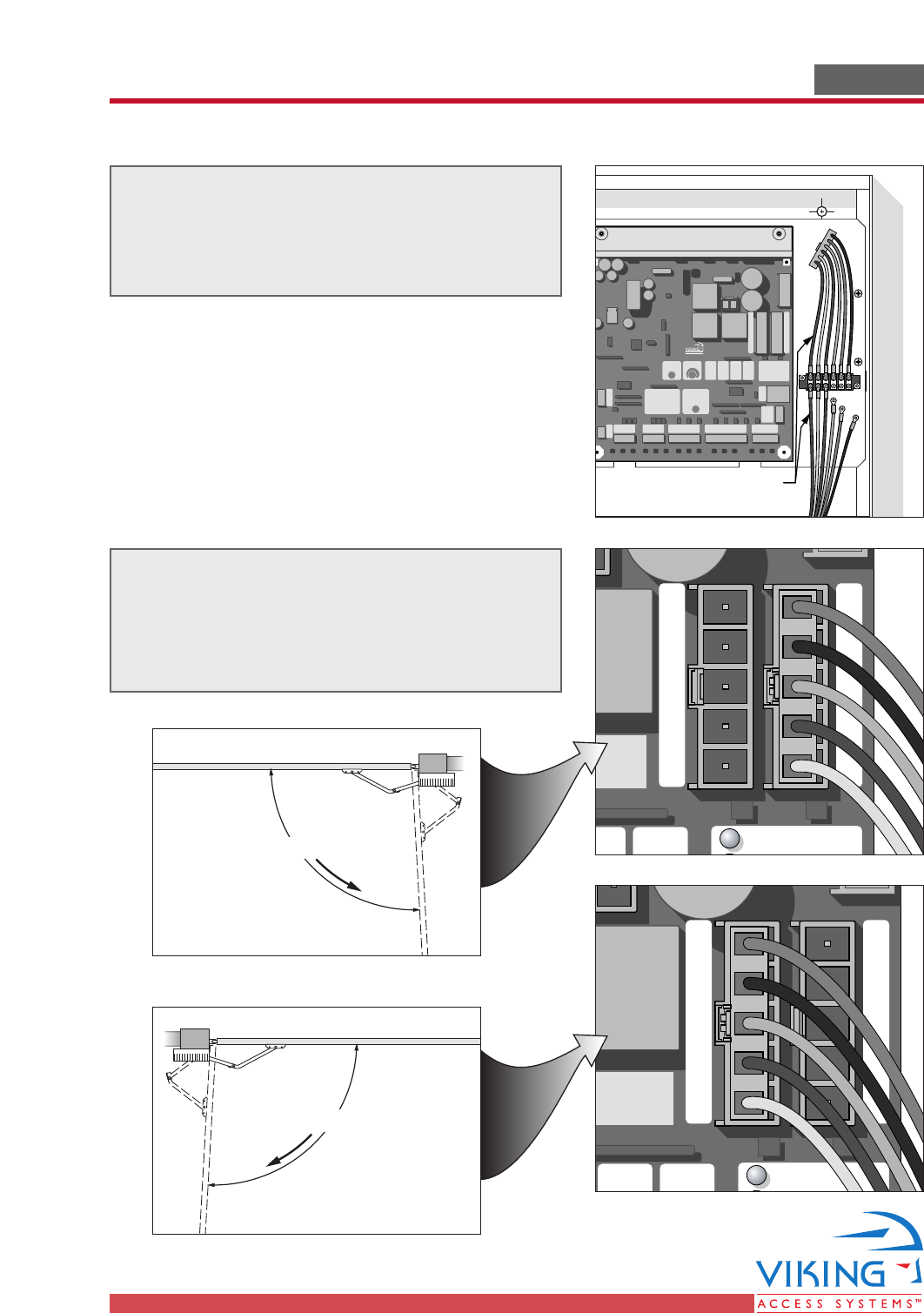

Reference Wiring Diagram; Limit Switch Connections . . . . . . . . . . . . . . . . . . . .15

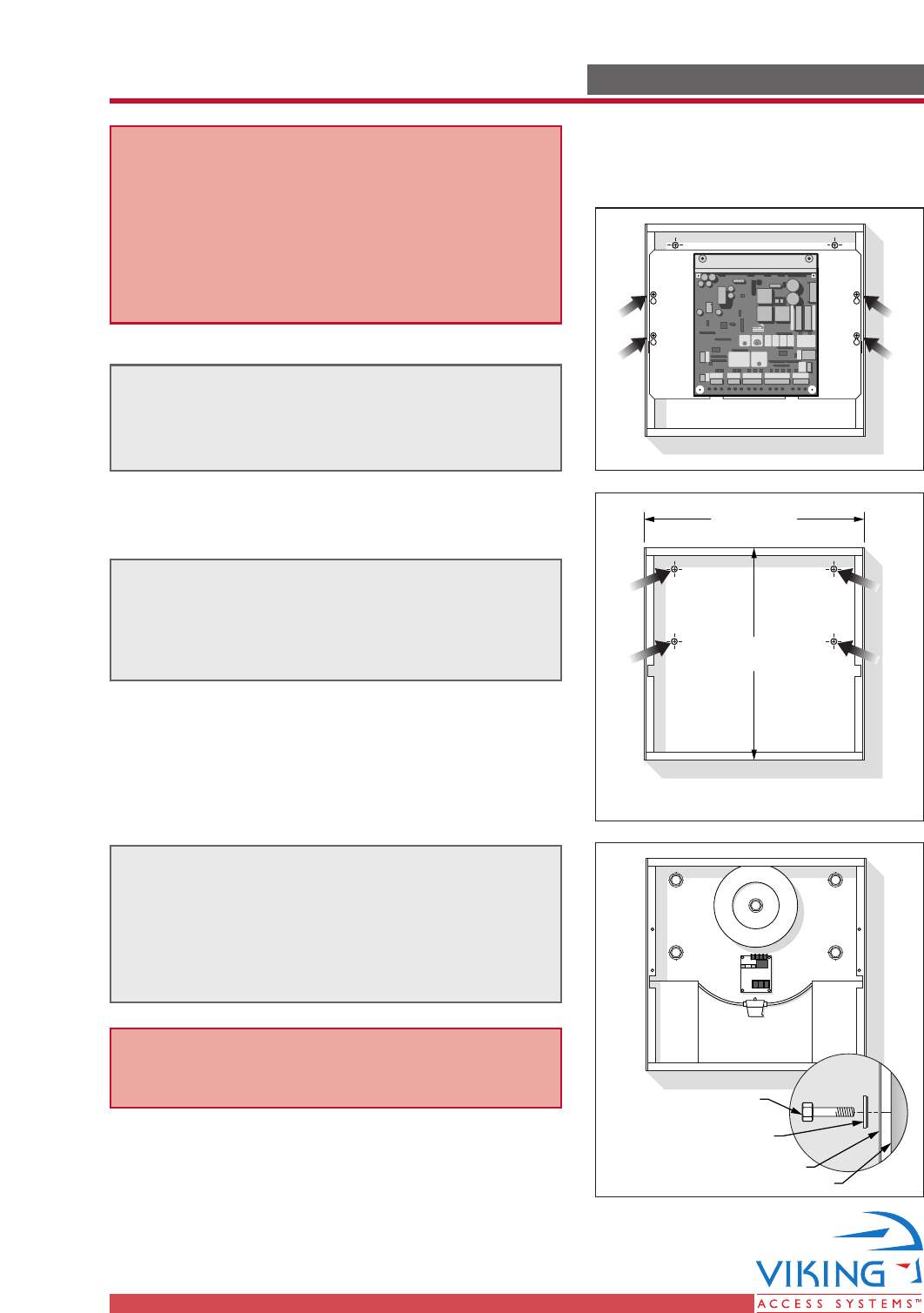

Control Box Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16
Electrical Installation
Electrical Installation (120/220 VAC) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17
Single Unit Connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18
Master/Slave Connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19

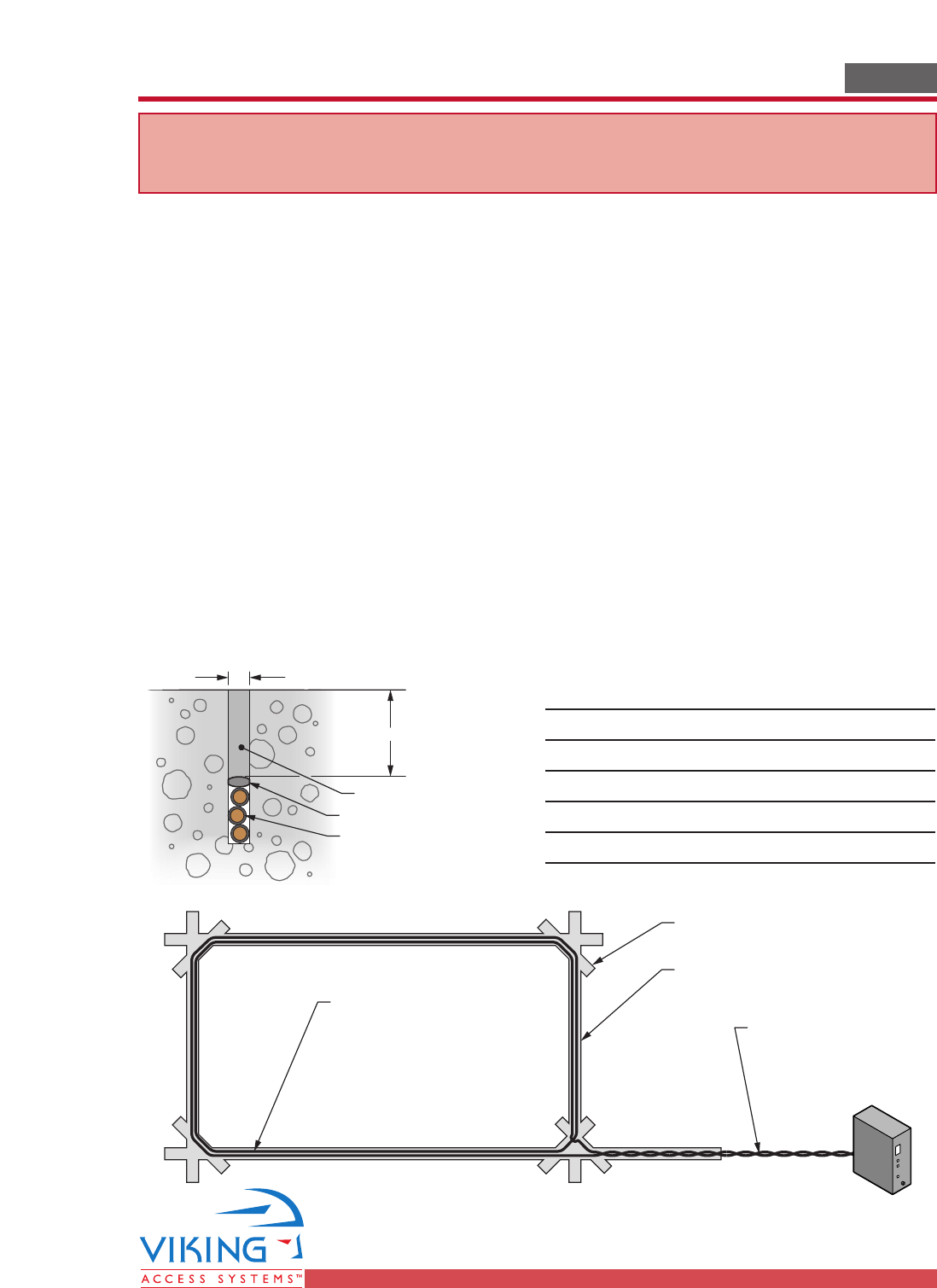

Vehicular Loop Detector Installation
Loop Layout Diagrams . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20
Installation Guidelines . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21
Accessory Connections

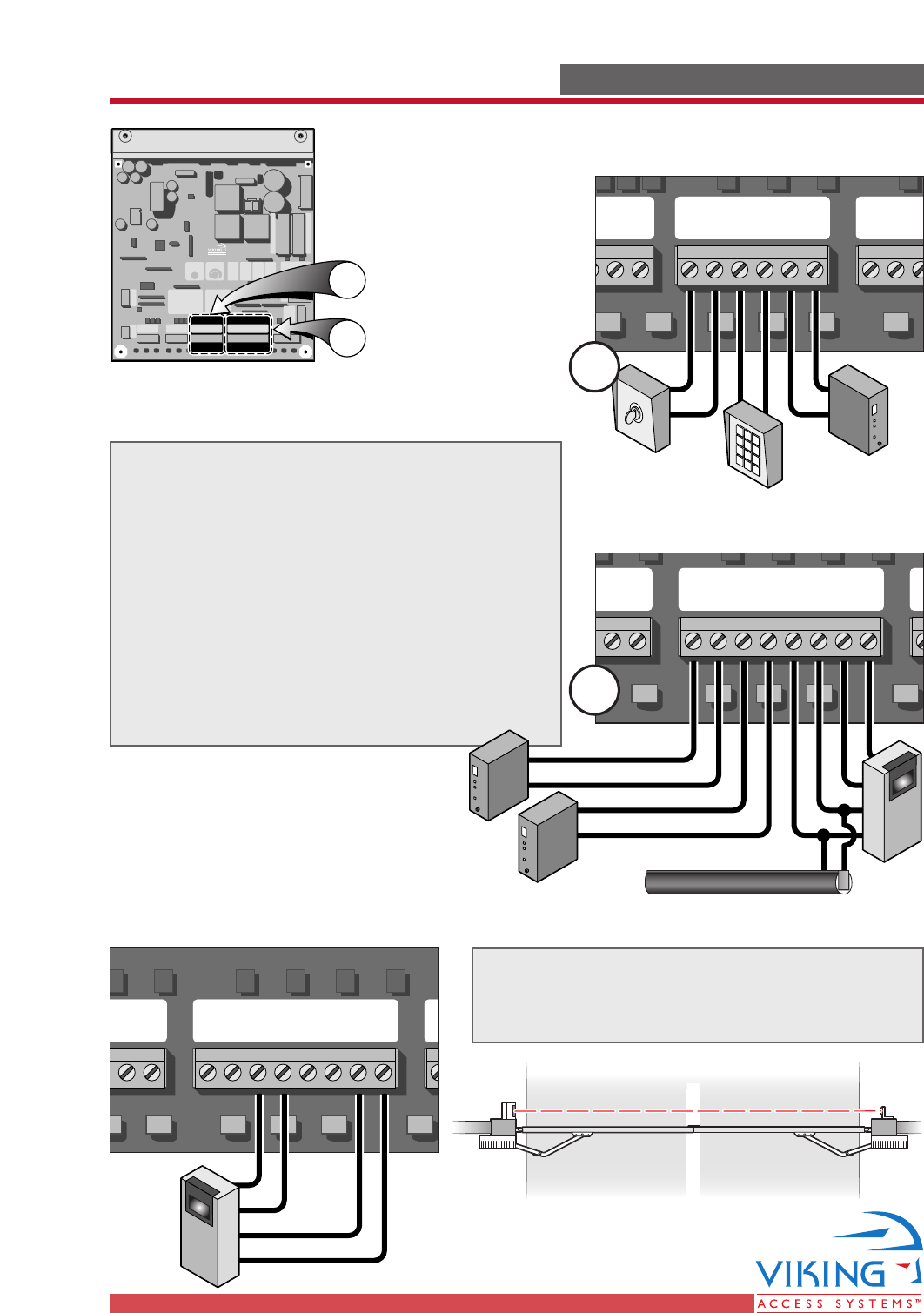

Open Commands; Safety Connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .22
Radio Receiver; Hold Open Timer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .23
Viking Electromagnetic Lock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .24
Magnetic Lock; Solenoid; Guard Station . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .25
Special Features

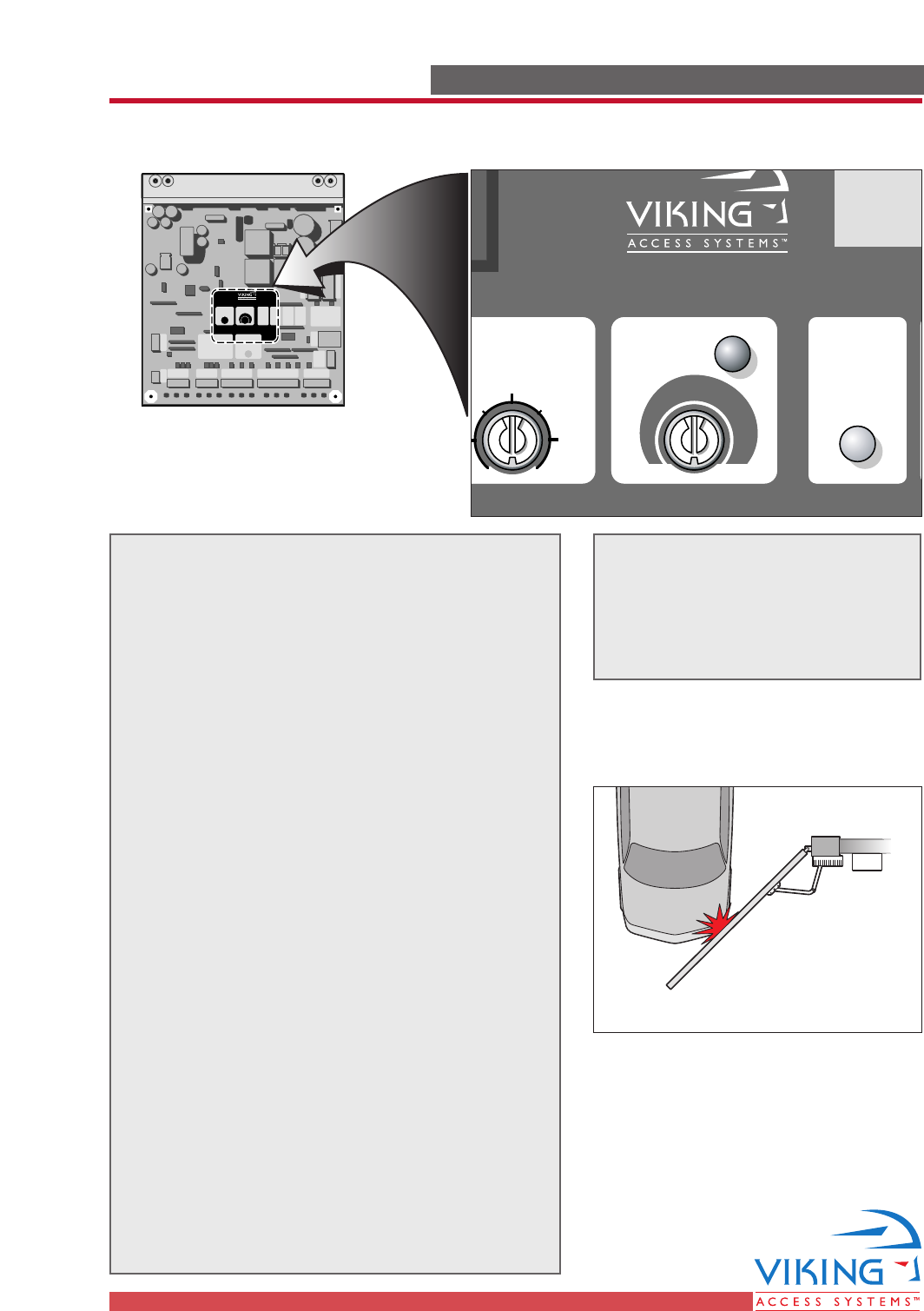

Intelligent Obstruction Sensor (Primary Entrapment Protection) . . . . . . . . . . . . .26

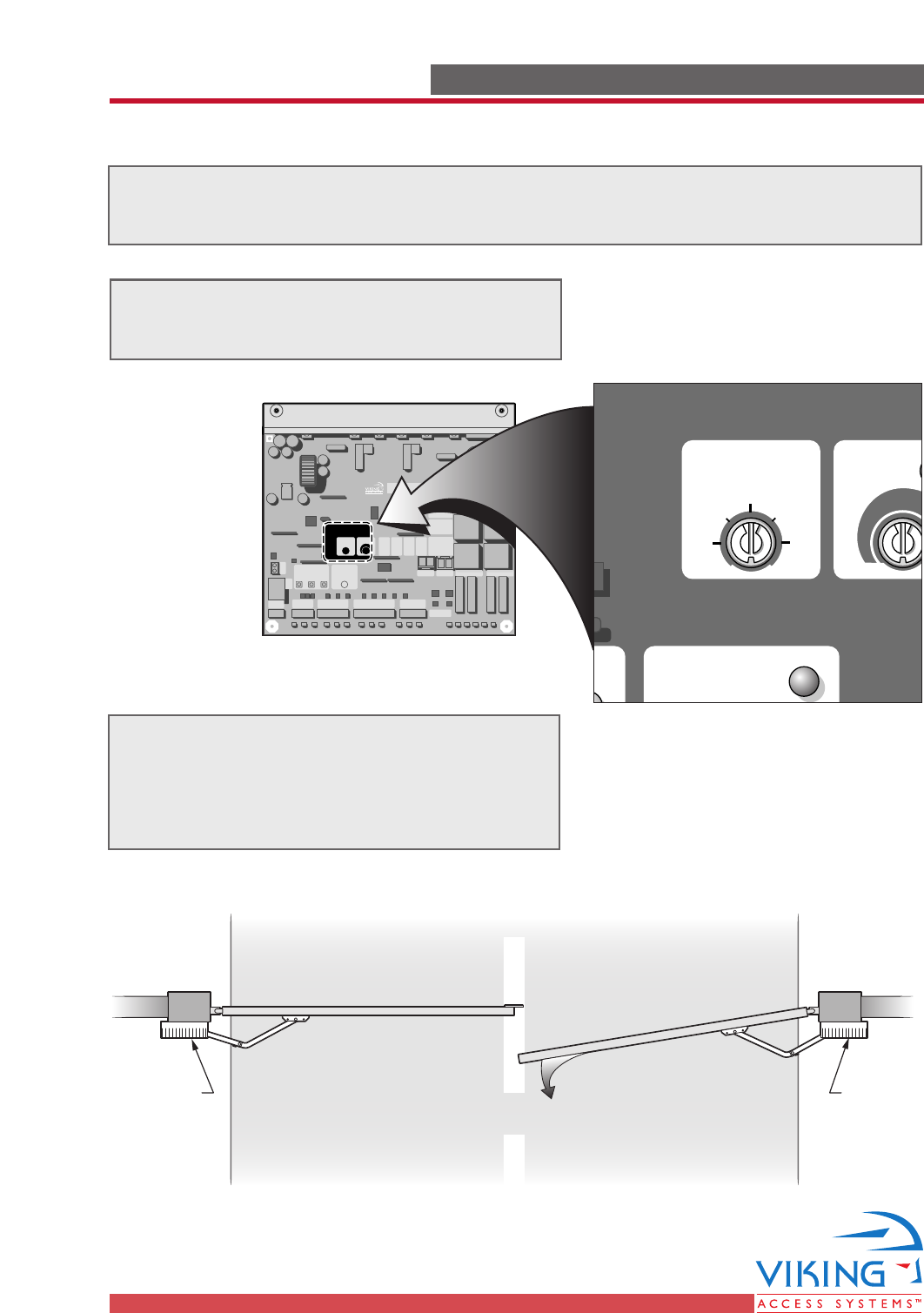

Gate Overlap Setting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .28

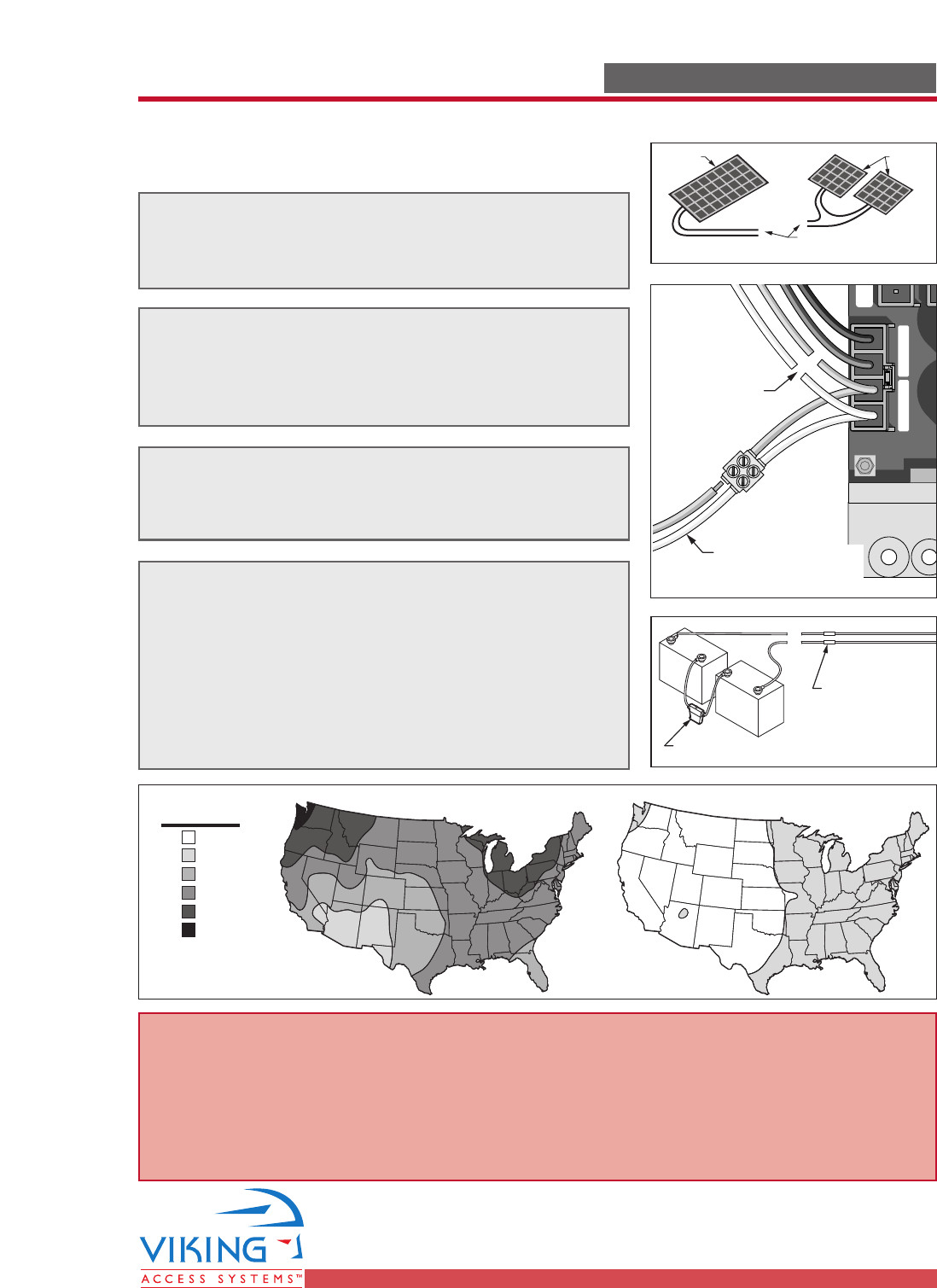

Solar Panel Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .29
Viking Hinge . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .30
Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .31-33
TECHNICAL SUPPORT 1 800 908 0884
2
WARNING - Not following these instructions may cause severe injury or death to persons.
IMPORTANT SAFETY INFORMATIONIMPORTANT SAFETY INFORMATION
IMPORTANT SAFETY INSTRUCTIONS
WARNING – To reduce the risk of severe injury or death:
1. READ AND FOLLOW ALL INSTRUCTIONS.
2. Never let children operate or play with gate controls. Keep the remote control away from children.
3. Always keep people and objects away from the gate. NO ONE SHOULD CROSS THE PATH OF
THE MOVING GATE.
4. Test the gate operator monthly. The gate MUST reverse on contact with a rigid object or when
an object activates the non-contact sensors. After adjusting the force or the limit of travel,
retest the gate operator. Failure to adjust and retest the gate operator properly can increase the
risk of injury or death.
5. Use the manual release only when the gate is not moving.
6. KEEP GATES PROPERLY MAINTAINED. Read the owner’s manual. Have a qualified service per-
son make repairs to gate hardware.
7. The entrance is for vehicles only. Pedestrians must use separate entrance.
8. Every gate operator installation M
MU
US
ST
Thave secondary protection devices
against entrapment, such as edge sensors and photo beams more in particularly
in places where the risk of entrapment is more likely to occur.
9. SAVE THESE INSTRUCTIONS.
IMPORTANT INSTALLATION INSTRUCTIONS
1. Install the gate operator only when:
a) The operator is appropriate for the construction of the gate and the usage Class of the gate
(refer to page 5),
b) All openings of a horizontal slide gate are guarded or screened from the bottom of the gate
to a minimum of 4 feet (1.22 m) above the ground to prevent a 2-1/4 inch (57.2 mm)
diameter sphere from passing through the openings anywhere in the gate, and in that
portion of the adjacent fence that the gate covers in the open position,
c) ALL EXPOSED PINCH POINTS ARE ELIMINATED OR GUARDED, AND
d) GUARDING IS SUPPLIED FOR EXPOSED ROLLERS.
2. The operator is intended for installation only on gates used for vehicles. Pedestrians must be
supplied with a separate access opening. The pedestrian access opening shall be designed to
promote pedestrian usage. Locate the gate such that persons will not come in contact with the
vehicular gate during the entire path of travel of the vehicular gate.
3. The gate must be installed in a location so that enough clearance is supplied between the gate
and adjacent structures when opening and closing to reduce the risk of entrapment. Swinging
gates shall not open into public access areas.
4. The gate must be properly installed and work freely in both directions prior to the installation
of the gate operator. Do not over-tighten the operator clutch or pressure
relief valve to compensate for a damaged gate.
5. The gate operator controls must be placed so that the user has full view
of the gate area when the gate is moving AND AWAY FROM THE GATE
PATH PERIMETER,
TECHNICAL SUPPORT 1 800 908 0884 3
WARNING - Not following these instructions may cause severe injury or death to persons.
IMPORTANT SAFETY INFORMATIONIMPORTANT SAFETY INFORMATION
6. Controls intended for user activation must be located at least six feet (6’) away from any mov-
ing part of the gate and where the user is prevented from reaching over, under, around or
through the gate to operate the controls. Outdoor or easily accessible controls shall have a secu-
rity feature to prevent unauthorized use.
7. The Stop and/or Reset button must be located in the line-of-sight of the gate. Activation of the
reset control shall not cause the operator to start.
8. All warning signs and placards must be installed where visible in the area of the gate. A minimum
of two placards shall be installed. A placard is to be installed in the area of each side of the
gate and be visible to persons located on the side of the gate on which the placard is installed.
9. For gate operators utilizing a non-contact sensor (Photo beam or like) in
accordance with section 31.1.1 of the UL325 standard:
a) See instructions on the placement of non-contact sensors for each Type of
application (refer to page 6),
b) Care shall be exercised to reduce the risk of nuisance tripping, such as when
a vehicle, trips the sensor while the gate is still moving, and
c) One or more non-contact sensors shall be located where the risk of entrapment
or obstruction exists, such as the perimeter reachable by a moving gate or
barrier (refer to page 6).
d) Use only Omron E3K-R10K4 photoelectric eye to comply with UL325
10.
For a gate operator utilizing a contact sensor (Edge sensor or like) in
accordance with section 31.1.1 of the UL325 standard:
a) One or more contact sensors shall be located where the risk of entrapment or
obstruction exists, such as at the leading edge, trailing edge, and post mounted
both inside and outside of a vehicular horizontal slide gate (refer to page 7).
b) One or more contact sensors shall be located at the bottom edge of a vehicular
vertical lift gate.
c) One or more contact sensors shall be located at the pinch point of a vehicular
vertical pivot gate.
d) A hardwired contact sensor shall be located and its wiring arranged so that the
communication between the sensor and the gate operator is not subjected to
mechanical damage.
e) A wireless contact sensor such as one that transmits radio frequency (RF)
signals to the gate operator for entrapment protection functions shall be
located where the transmission of the signals are not obstructed or impeded
by building structures, natural landscaping or similar obstruction. A wireless
contact sensor shall function under the intended end-use conditions.
f) One or more contact sensors shall be located on the inside and outside leading
edge of a swing gate. Additionally, if the bottom edge of a swing gate is greater
than 6 inches (152 mm) above the ground at any point in its arc of travel, one
or more contact sensors shall be located on the bottom edge (refer to page 7).
g) One or more contact sensors shall be located at the bottom
edge of a vertical barrier (arm).
h) Use only Miller Edge Model MGR20 or MGS20 edge sensor
to comply with UL325
IMPORTANT INSTALLATION INSTRUCTIONS Continued
TECHNICAL SUPPORT 1 800 908 0884
4
WARNING - Not following these instructions may cause severe injury or death to persons.
IMPORTANT SAFETY INFORMATIONIMPORTANT SAFETY INFORMATION
GENERAL SAFETY PRECAUTIONS
The following precautions are an integral and essential part of the product and must be supplied to the user.
Read them carefully as they contain important indications for the safe installation, use and maintenance.
• These instruction must be kept and forwarded to all possible future users of the system.
• This product must be used only for that which it has been expressly designed.
• Any other use is to be considered improper and therefore dangerous.
• The manufacturer cannot be held responsible for possible damage caused by improper, erroneous or
unreasonable use.
• Avoid operating in the proximity of the hinges or moving mechanical parts.
• Do not enter the path of the moving gate while in motion.
• Do not obstruct the motion of the gate as this may cause a situation of danger.
• Do not allow children to play or stay within the the path of the moving gate.
• Keep remote control or any other control devices out of the reach of children, in order to avoid possible
involuntary activation of the gate operator.
•In case of break down or malfunctioning of the product, disconnect from the main power source. Do not
attempt to repair or intervene directly, contact only qualified personnel for repair.
• Failure to comply with the above may create a situation of danger.
•All cleaning, maintenance or repair work must be carried out by qualified personnel.
• In order to guarantee that the system works efficiently and correctly it is important to have the manufacturer’s
instructions on maintenance of the gate and operator carried out by qualified personnel.
• In particular, regular checks are recommended in order to verify that the safety devices are operating correctly.
All installation, maintenance and repair work must be documented and made available to the user.
Installer:
_____________________________________________________ ____________
Signature Date
Contact: _________________________________________________________
_________________________________________________________
MAINTENANCE
Remove the Power Harness from the Control Board (refer to page 17)
• Clean and lubricate the turning pins and gate hinges using the recommended lubricant.
• Check that all mounting hardware of the gate operator is properly tighten.
• Ensure that the gate moves freely.
• Check for corroded parts and replace if necessary.
• Check the battery for the following:
Battery connections must be free of corrosion.
Battery voltage must be 26 VDC (fully charged battery).
Reconnect the Power Harness for the Control Board (refer to page 17)
• Check and confirm the proper operation of all safety devices (photoelectric eye, edge sensors or like).
• Check and confirm the operation of all installed accessories.
• Check and confirm the operation of all special features such as the Intelligent Obstruction Sensor, Hold
Open Timer (refer to page 20 to 27)
• Check and confirm the operation of the manual release (refer to page 7)
• Verify battery backup functionally by turning off the power source (120 VAC and 220 VAC). DO NOT
FORGET TO TURN ON THE POWER SOURCE AFTER VERIFICATION.
TECHNICAL SUPPORT 1 800 908 0884 55
UL325 Gate Operator Classification
TERMINOLOGYTERMINOLOGY
GLOSSARY
RESIDENTIAL VEHICULAR GATE OPERATOR
CLASS I – A vehicular gate operator (or system) intended for use
in a home of one-to four single family dwelling, or a garage or
parking area associated therewith.
COMMERCIAL/GENERAL ACCESS VEHICULAR GATE OPERATOR
CLASS II – A vehicular gate operator (or system) intended for use
in a commercial location or building such as a multi-family hous-
ing unit (five or more single family units), hotel, garages, retail
store, or other building servicing the general public.
INDUSTRIAL/LIMITED ACCESS VEHICULAR GATE OPERATOR
CLASS III – A vehicular gate operator (or system) intended for
use in an industrial location or building such as a factory or
loading dock area or other locations not intended to service the
general public.
RESTRICTED ACCESS VEHICULAR GATE OPERATOR
CLASS IV – A vehicular gate operator (or system) intended for
use in a guarded industrial location or building such as an air-
port security area or other restricted access locations not servic-
ing the general public, in which unauthorized access is prevented
via supervision by security personnel.
Install the gate operator only when:
The operator is appropriate for the construction of the gate and the Usage
Class of the gate.
TECHNICAL SUPPORT 1 800 908 0884
6
IMPORTANT SAFETY INFORMATIONIMPORTANT SAFETY INFORMATION
Gate in Open Position
Photo Beam Unit Reflector
Potential Entrapment
Area (Shaded)
Radio Station
Mag.
Lock
Mag. Lock
Safety ConnectorOpen CommandsGuard StationMaster/Slave
Brake
UL
Siren
Radio
Rec.
UL
Sensor
OPEN RIGHT
24V BAT 24VAC
OPEN LEFT
Safety
Loop
Center
Loop
Obstruction
Sensor Charger
Power
Low Battery
Motor Sensor
Hold Open
Timer
Stop
Overlap Delay
Close Open
Obstruction
Sensor
min. MAX
Overlap
Delay
1.5
0
3
Radio StationLoop ConnectorOpen CommandsGuard StationMaster/Slave
GND
Close
Stop
Open
GND
Close
Stop
Open
Gnd
Fire
Gnd
Strike
Gnd
Exit
Gnd
Center
Gnd
Reopen
Gnd
UL
Gnd
+28v
Gnd
Radio
Gnd
+28v
+28v
Mag.
Lock
Fail
Safe/Secure
MAG. LOCK
N.C.
COM
N.O.
Charger
Power
Low Battery
Motor Sensor
Hold Open
Timer
Stop
Close
Open
30
60
Off 1
Radio
Rec.
UL
Sens
Safety
Loop
Center
Loop
Brake
Siren
11
(C1)(C1)
33
(NC1)(NC1) 24VDC24VDC
1
(C1)
3
(NC1) 24VDC
Turn Switch 
to 'Light On' 
Position
24 VDC Power Connections
24 VDC Power Connections
Omron 
Model
E3K-R10
Shown
Connection '3' (NC1)
Connection '1' (C1)
WARNING - Not following these instructions may cause severe injury or death to persons.

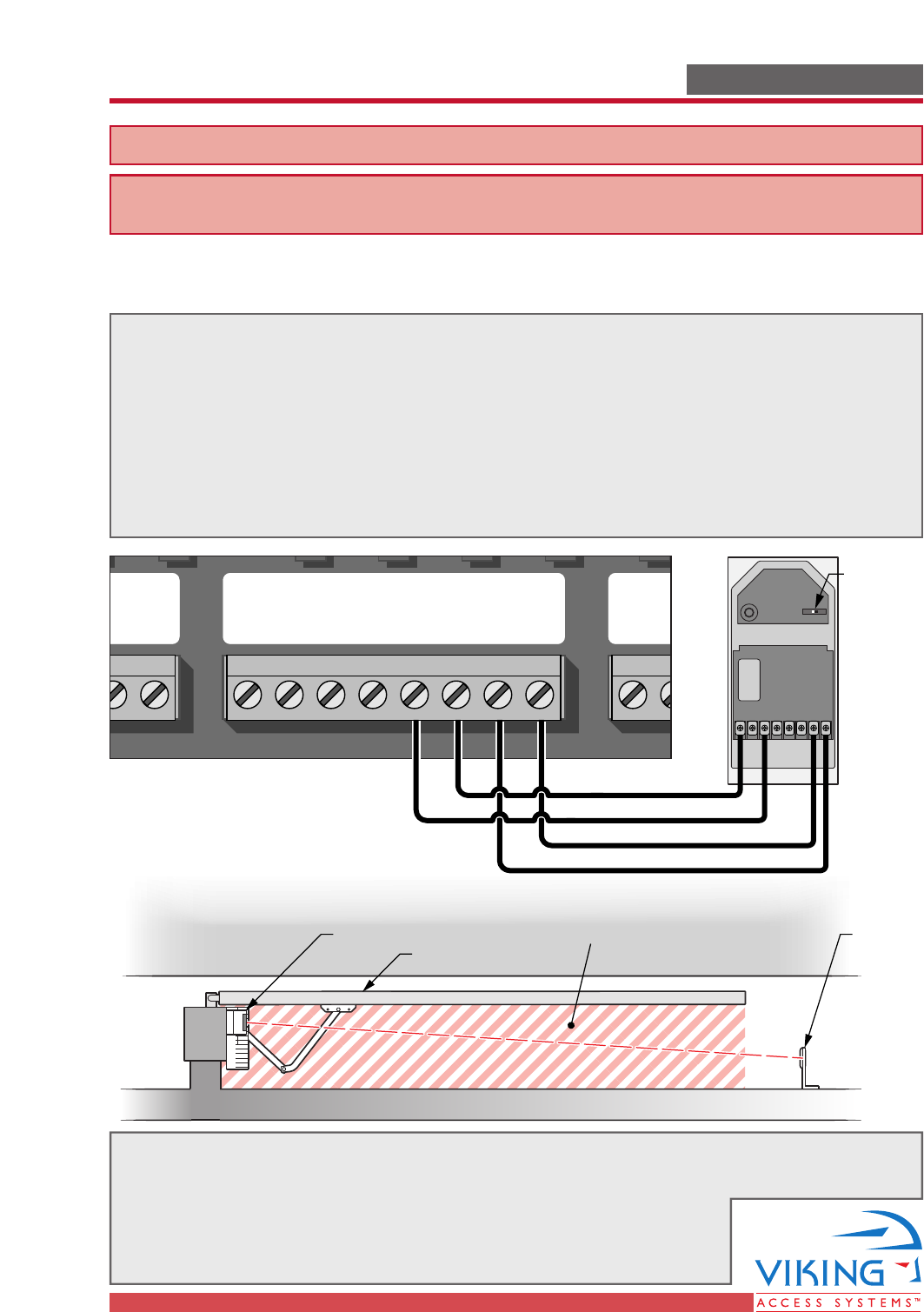

Photo Beam (non-contact sensor) Installation
Secondary Entrapment Protection
Photo beams or like must be installed to reduce the risk of entrapment.
Use only Omron E3K-R10K4 photoelectric eye to comply with UL325
Make the electrical connections of the photoelectric sensor as described here in this page.
Care shall be exercised to reduce the risk of nuisance tripping, such as when a
vehicle, trips the sensor while the gate is still moving, and
One or more non-contact sensors shall be located where the risk of entrapmentor
obstruction exists, such as the perimeter reachable by a moving gate or barrier.
NOTE - This type of installation DOES NOT reverse the gate all the way back to its limits when the photo-beam
is obstructed. This installation is only to protect against entrapment and to comply with UL325.
One or more non-contact sensors shall be located where the risk of entrapment or
obstruction exists, such as the perimeter reachable by a moving gate or barrier.
Consult the installation manual for the UL325 device (photo
beam or like) for detail information about the usage,
installation and maintenance
TECHNICAL SUPPORT 1 800 908 0884 7
Radio Station
Mag.
Lock
Mag. Lock
Safety ConnectorOpen CommandsGuard StationMaster/Slave
Brake
UL
Siren
Radio
Rec.
UL
Sensor
OPEN RIGHT
24V BAT 24VAC
OPEN LEFT
Safety
Loop
Center
Loop
Obstruction
Sensor Charger
Power
Low Battery
Motor Sensor
Hold Open
Timer
Stop
Overlap Delay
Close Open
Obstruction
Sensor
min. MAX
Overlap
Delay
1.5
0
3
Radio StationLoop ConnectorOpen CommandsGuard StationMaster/Slave
GND
Close
Stop
Open
GND
Close
Stop
Open
Gnd
Fire
Gnd
Strike
Gnd
Exit
Gnd
Center
Gnd
Reopen
Gnd
UL
Gnd
+28v
Gnd
Radio
Gnd
+28v
+28v
Mag.
Lock
Fail
Safe/Secure
MAG. LOCK
N.C.
COM
N.O.
Charger
Power
Low Battery
Motor Sensor
Hold Open
Timer
Stop
Close
Open
30
60
Off 1
Radio
Rec.
UL
Sens
Safety
Loop
Center
Loop
Brake
Siren
WARNING - Not following these instructions may cause severe injury or death to persons.
IMPORTANT SAFETY INFORMATIONIMPORTANT SAFETY INFORMATION
Edge Sensor (contact sensor) Installation
Manual Release
When manual operation is required:
Remove the cover, locate the chained key and
turn the key to push the locking-pin down.
At end of operations, lock the geared motor again
by releasing locking-pin.
Attention: Lock and release operations MUST
be performed with motor NOT RUNNING.
Edge sensor or like must be installed to reduce the risk of entrapment.
Use only Miller Edge 3-sided activation type MGR20 or MDS20 to comply with UL325
One or more contact sensors shall be located on the inside and outside leading edge
of a swing gate. Additionally, if the bottom edge of a swing gate is greater than 6
inches (152 mm) above the ground at any point in its arc of travel, one or more
contact sensors shall be located on the bottom edge.
1. A hardwired contact sensor shall be located and its wiring arranged so that the
communication between the sensor and the gate operator is not subjected to
mechanical damage.
2. A wireless contact sensor such as one that transmits radio frequency (RF) signals
to the gate operator for entrapment protection functions shall be located where
the transmission of the signals are not obstructed or impeded by building
structures, natural landscaping or similar obstruction. A wireless contact sensor
shall function under the intended end-use conditions.
TECHNICAL SUPPORT 1 800 908 0884
8
Audible Alarm Reset Switch Installation
WARNING - Not following these instructions may cause severe injury or death to persons.
IMPORTANT SAFETY INFORMATIONIMPORTANT SAFETY INFORMATION
Warning Placard Installation
Manual Stop
Button
5'
Minimum
STOP
Radio Station
Mag.
Lock
Mag. Lock
Safety ConnectorOpen CommandsGuard StationMaster/Slave
Brake
UL
Siren
Radio
Rec.
UL
Sensor
OPEN RIGHT
24V BAT 24VAC
OPEN LEFT
Safety
Loop
Center
Loop
Obstruction
Sensor Charger
Power
Low Battery
Motor Sensor
Hold Open
Timer
Stop
Overlap Delay
Close Open
Obstruction
Sensor
min. MAX
Overlap
Delay
1.5
0
3
Radio StationLoop ConnectorOpen CommandsGuard StationMaster/Slave
GND
Close
Stop
Open
GND
Close
Stop
Open
Gnd
Fire
Gnd
Strike
Gnd
Exit
Gnd
Center
Gnd
Reopen
Gnd
UL
Gnd
+28v
Gnd
Radio
Gnd
+28v
+28v
Mag.
Lock
Fail
Safe/Secure
MAG. LOCK
N.C.
COM
N.O.
Charger
Power
Low Battery
Motor Sensor
Hold Open
Timer
Stop
Close
Open
30
60
Off 1
Radio
Rec.
UL
Sens
Safety
Loop
Center
Loop
Brake
Siren
COM
N.O.
STOP
Manual Reset for the Audible Alarm
UL325 standard requires an audible alarm to go off after two consecutive events
detected by the primary entrapment protection of the gate operator (obstruction sensor).
The audible alarm will continue to sound for 5 minutes or until a stop command
gets actuated.
The Stop command can be actuated in two different forms
1. Using the Built in Stop switch on the Control Box or
2. Using an External Stop button within the sight of the gate, away from moving
parts of the gate and out of reach of children.
3. Controls intended for user activation must be located at least six feet (6’) away
from any moving part of the gate and where the user is prevented from reaching
over, under, around or through the gate to operate the controls. Outdoor or easily
accessible controls shall have a security feature to prevent unauthorized use.
4. The Stop and/or Reset button must be located in the line-of-sight of the gate.
Activation of the reset control shall not cause the operator to start.
All Warning Signs and Placards must be installed where visible in the area
of the gate. A minimum of two placards shall be installed. A placard is
to be installed in the area of each side of the gate and be visible.
TECHNICAL SUPPORT 1 800 908 0884 9
IMPORTANT INSTALLATION INFORMATIONIMPORTANT INSTALLATION INFORMATION
Specifications
This is NOT a pedestrian gate operator
14’ maximum gate length
600 pounds maximum gate weight
Do NOT Install the gate operator to lift gates
Locate Control Buttons:
1. Within sight of the gate,
2. At a minimum height of 5 feet so
small children are not able to
reach it, and
3. Away from all moving parts of
the gate.
Maximum Gate Length: 14 feet
Maximum Gate Weight: 600 lbs.
Maximum Aperture Angle: 130 deg.
Power Requirements: 120 VAC Single Phase at 2 Amps
Or
220 VAC Single Phase at 1 Amp
Maximum Operating Temperature: -20°C (-4°F) to
70°C (158°F)
600 lb.
MAX.
14'-0"
CLOSE
STOP
OPEN
ControlControl
ButtonsButtons
Control
Buttons
CAUTION -
FOR USE WITH GATES OF A MAXIMUM OF 14 FT IN LENGTH AND 600 LBS. IN WEIGHT.
WARNING - TO REDUCE THE RISK OF SEVERE INJURY OR DEATH TO PERSONS:
TECHNICAL SUPPORT 1 800 908 0884
10
PLAN OF INSTALLATION - OPEN INSIDEPLAN OF INSTALLATION - OPEN INSIDE
Inside
Outside
Inside
Outside
Gate in Closed Position
Gate in Closed Position
90°
Opening
A: 15-3/4" Max.
C:
23-1/2"
C:
19-1/2"
F:
15-1/2"
Min.
Gate in Open Position
F:
15-1/2"
Min.
7-1/4"
Max.
12 0°
Opening
Gate in Open Position
G:
4.33"
Ref.
H:
2.55"
Ref.
G:
4.33"
Ref.
H:
2.55"
Ref.
The gate must be installed in a location so that enough clearance is supplied
between the gate and adjacent structures when opening and closing to reduce the
risk of entrapment.
Swinging gates shall not open into public access areas.
Note: Varying from the dimensions shown
may severely affect the speed and
performance of the gate operator.
Figure B – Up to 120° Opening
Open Inside Plans of Installation
Figure A – 90° Opening
TECHNICAL SUPPORT 1 800 908 0884 11
The gate must be installed in a location so that enough clearance is supplied
between the gate and adjacent structures when opening and closing to reduce the
risk of entrapment.
Swinging gates shall not open into public access areas.
PLAN OF INSTALLATION – OPEN OUTSIDEPLAN OF INSTALLATION – OPEN OUTSIDE
Inside
Outside
Gate in Closed Position
C:
19-1/2"
90°
A:
11-3/4"
Max. G: 4.33"
Ref.
H:
2.55"
Ref.
Gate in Open
Position
Figure C
Open Outside Plan of Installation
Note: Varying from the dimensions shown
may severely affect the speed and
performance of the gate operator.
TECHNICAL SUPPORT 1 800 908 0884
12 16

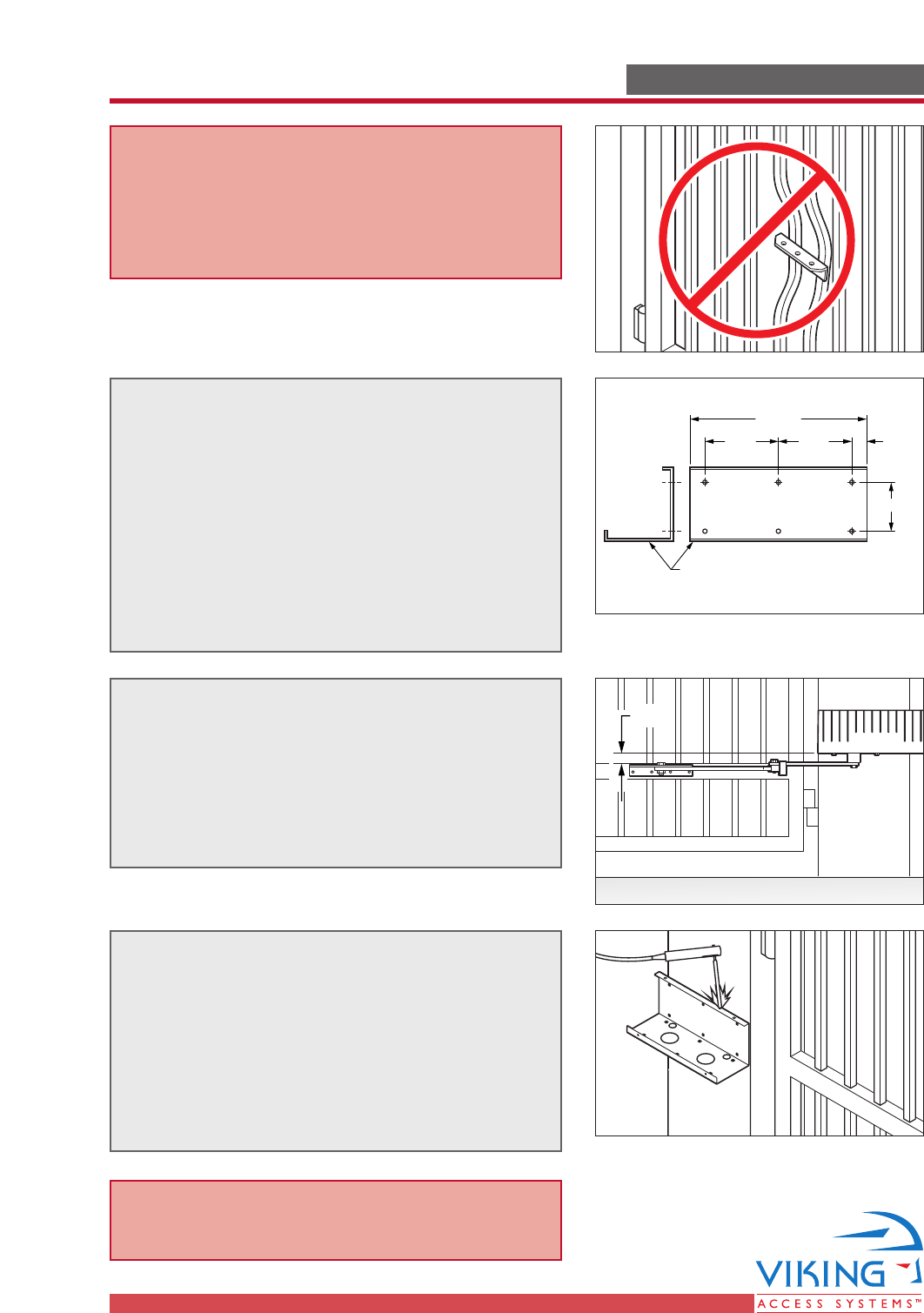

STEP 1
Check the integrity of the gate structure and
sufficiently sturdy such as pivot points are
properly lubricated and surfaces are free of
rust.
a) Remove the Motor/Gear Assembly from its
package. NOTE - The cover is not secured.
b) Disassemble the geared motor from the
mounting chassis.
STEP 2
Position the pivot bracket in accordance with
figure A, B or C on page 10 or 11 and the
drawing at the right.
Tack weld the bracket in place. For non-ferrous
gates the bracket can be bolted in place.
STEP 3
Chassis Installation:
Chassis can be welded to the gatepost. In the
case of a non-ferrous post, anchoring the
chassis may require an additional embedded
bracket or special anchoring hardware to
ensure the longevity of the installation.
14.173"
5.90"
3.937"
5.90" 1.181"
Motor/Gear Chassis
1-1/2"
GATE OPERATOR INSTALLATIONGATE OPERATOR INSTALLATION
CAUTION - If mounting bar is not welded to
a frame member that runs the full length
of the gate, the gate operator may
damage the gate. Do not weld the bar or
backing plate to a few pickets.
Note: Depending on type of anchor used, it
may be required to enlarge the holes in
the mounting chassis.
TECHNICAL SUPPORT 1 800 908 0884 1317
STEP 6
With the cover off, perform the Manual
Release procedure as shown at the bottom of
page 7. The gate can now be moved
manually.
Ensure that the gate and gate operator move
freely.
Once it is determined the operator will work
properly, remove the operator and complete
the welding process.
Check Operation
Through Entire
Range of
Movment
STEP 4
Remount the geared motor on the chassis
accordingly.
STEP 5
Attach the Articulated Arms with the
Positive Stop Extension to the Pivot Bracket
and the Motor/Gear Assembly.
NOTE - Additional holes are provided in the
Pivot Bracket to assist with proper
installation
STEP 7
Remount the gate operator. Lubricate the
moving parts (the bushings on the
articulated arm) and tighten the self-locking
nuts in such a way as to not restrict arm
movement. Leave the cover off until the
Limit Switches have been adjusted.
GATE OPERATOR INSTALLATIONGATE OPERATOR INSTALLATION
TECHNICAL SUPPORT 1 800 908 0884
14 18
STEP 8
A. Loosen the screws on the limit switch
cams and position the cams to the desired
locations. There are additional holes
provided in case of a wide or tight angle
of opening or closing.
B. Move the gate manually and ensure that
the limit switch gets actuated at the
desired open and closed position. The
limit switch will click when engaged by
the limit cam.
C. Retighten the screws on the limit switch
holders once the proper position has been
determined.
CAUTION – DO NOT OVERTIGHTEN
SCREWS!
D. Run the unit 2 full cycles without
interruption (from limit to limit) to
execute a “Learn Cycle.”
E. Fine-tune the adjustment of the Limit
Switch Cams.
Position Cam
to Suit
Tighten Clamping 
Screw Securely 
Before Adjusting 
Cams
Limit Switch
Holder
Additional Cam
Mounting Holes
Note: Leave cover off until after the installation
of the control box and the electrical
installation. Verify that the operator opens
and closes to the desired position under
power. Make any adjustments as necessary.
STEP 9
Replace the cover and secure it with screws
provided after finishing final adjustments.
Limit Switch Setup
GATE OPERATOR INSTALLATIONGATE OPERATOR INSTALLATION
O
r
a
n
g
e
Y
e
l
l
o
w
B
l
u
e
B
l
a
c
k
B
r
o
w
n
R
e
d
To Limit
Switches To Motor
Wire Lead
From Control Box
TECHNICAL SUPPORT 1 800 908 0884 15
The Limit Switches are wired as shown
Limit Switch Connections
NC
N0 COM
NC
N0
COM
Yellow
Orange
Brown
Red
Connect the lead wires as shown
To have the gate operator slow down prior to reaching its limits use the following steps:
1. Setup the limit switches manually at the desired open and close position.
2. Allow the gate operator to run a full open and close cycle (from limit to limit)
without interruption.
Note: During the first full open and close cycle: The gate operator doesn’t slow
down prior to reaching its limits. During subsequent cycles: The gate operator will
slow down prior to reaching its limits.
3. Verify that the gate opens and closes to the desired position.
To change the open or close limit position(s) the following steps MUST BE taken:
A.Reset the gate operator by performing one of the following steps:
i. Disconnect the Power Harness Connector (see page 17) or
ii. Disconnect the Motor/Limit Harness Connector
(see page 18 or 19) or
iii.Actuate both limits at the same time
B. Repeat steps 1,2 and 3.
Reference Wiring Diagram
Opening/Closing Setup:
GATE OPERATOR INSTALLATIONGATE OPERATOR INSTALLATION
Fast
Slow
Slow
Note: Use this wiring
diagram as a guide to
connect the wires to the
motor unit.
TECHNICAL SUPPORT 1 800 908 0884 1516
CONTROL BOX INSTALLATIONCONTROL BOX INSTALLATION
2. Position the control box in the desired
place and mark the mounting holes.
Prepare the holes to receive the
anchors/fasteners.
15" Standard
17" Industrial
Depth:
6.5" Standard
6.5" Industrial
14" Standard
16" Industrial
1. Remove the control board mounting plate.
The plate is held in the box by four
screws.
3. Position the control box and secure it to
the mounting surface using the sealed
washers provided (place the rubber side
of the washers against the inside of the
control box).
Mounting Surface
Control Box
Sealed Washer
(Supplied with Unit)
Mounting Fastener
(Customer Supplied)
WARNING - If the control box is not
mounted properly it may fall, causing
damage and/or injury. The control box
weight is approximately 40 lbs. Be sure
that the substrate being mounted to and
the fasteners being used are appropriate
to support the weight of the control box.
Note: Depending on type of anchor used, it
may be necessary to enlarge the
mounting holes in the control box.
TECHNICAL SUPPORT 1 800 908 0884 17

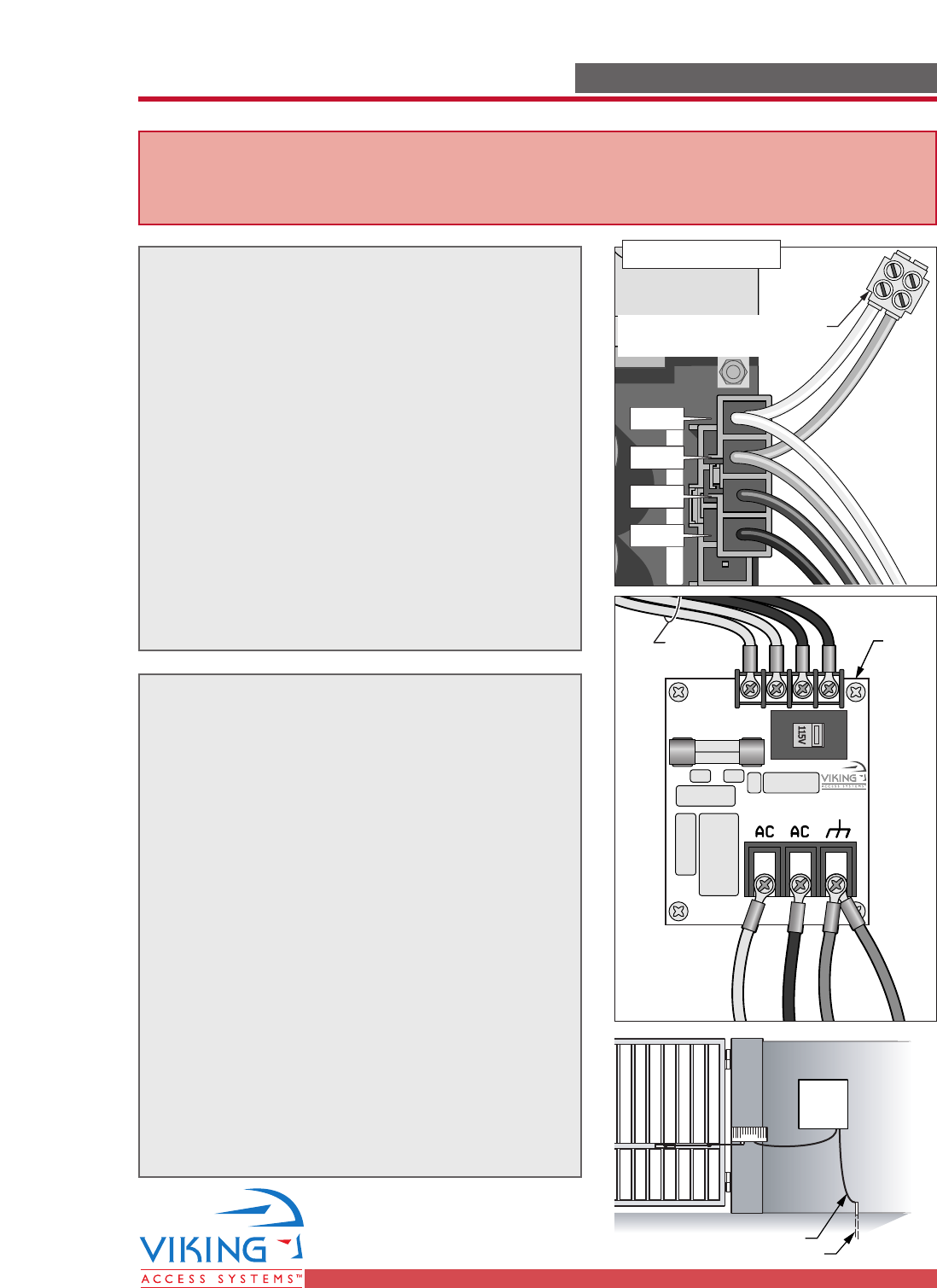

ELECTRICAL INSTALLATIONELECTRICAL INSTALLATION
Tips for proper ground installation
A good ground in a gate operator
installation will minimize or prevent damage
to the operator cause by natural events such
as lightning strikes.
The following will provide a guideline for
proper grounding:
1. Use a ground rod to provide a ground
reference.
2. Consult your city code and be aware of
under-ground services in the site of the
gate operator to prevent inconveniences.
3. Use always a single bonding point for
grounding.
4. All ground wires must be as short and as
thick as possible.
5. Prevent unnecessary turns or loops in all
ground wires.
Ground Rod
Earth Ground
Caution – Do not connect the power harness to the board
until the installation is ready for verification.
The X-9 Gate Operator requires a single phase
AC line to operate and charge the batteries.
1. Turn off the main switch or breaker for
the power line being used.
2. Move the selector switch on the Incoming
Voltage Selector to the proper position
(115 for 110 to 120VAC, 230 for 200 to 240VAC).
3. Connect the incoming power wires to the
terminals as shown in the illustration.
4. Turn on the main switch or breaker once
the installation is ready for performance
check and adjustments.
5. To verify that there is AC power to the
system, check that the ‘Charger’ LED on the
Control Board is on.
N
e
u
t
r
a
l
H
o
t
P
o
w
e
r
G
r
o
u
n
d
E
a
r
t
h
G
r
o
u
n
d
To
Transformer
EMI
Board
3A FUSE
Part # VAEMI
Radio Station
Mag.
Lock
Mag. Lock
Safety ConnectorOpen CommandsGuard StationMaster/Slave
Brake
UL
Siren
Radio
Rec.
UL
Sensor
OPEN RIGHT
24V BAT 24VAC
OPEN LEFT
Safety
Loop
Center
Loop
Obstruction
Sensor Charger
Power
Low Battery
Motor Sensor
Hold Open
Timer
Stop
Overlap Delay
Close Open
Obstruction
Sensor
min. MAX
Overlap
Delay
1.5
0
3
Radio StationLoop ConnectorOpen CommandsGuard StationMaster/Slave
GND
Close
Stop
Open
GND
Close
Stop
Open
Gnd
Fire
Gnd
Strike
Gnd
Exit
Gnd
Center
Gnd
Reopen
Gnd
UL
Gnd
+28v
Gnd
Radio
Gnd
+28v
+28v
Mag.
Lock
Fail
Safe/Secure
MAG. LOCK
N.C.
COM
N.O.
Charger
Power
Low Battery
Motor Sensor
Hold Open
Timer
Stop
Close
Open
30
60
Off 1
Radio
Rec.
UL
Sens
Safety
Loop
Center
Loop
Brake
Siren
Power Harness
Auxiliary Power Connection.
See page 29 for further details.
Black
Red
Green
White
TECHNICAL SUPPORT 1 800 908 0884
18

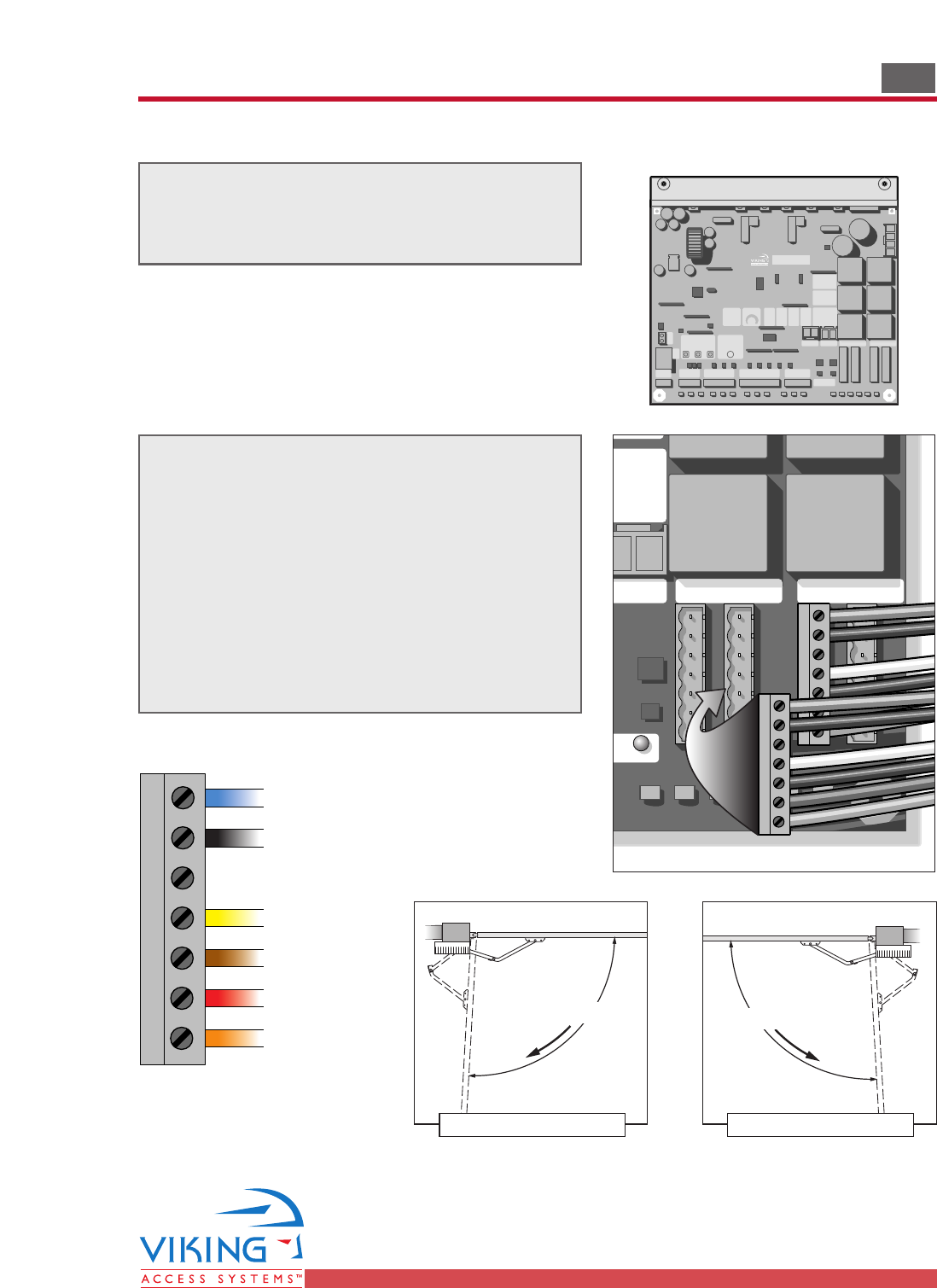

Connect the wires from the motor unit to
the terminal block mounted next to the
control board. Match wire colors to the
terminal block.
Single Unit Connections
ELECTRICAL INSTALLATION – SINGLE UNITELECTRICAL INSTALLATION – SINGLE UNIT
Match 
Colors
Connect the wire harness to the “OPEN
RIGHT” connector if the gate opens towards
the right side. Connect the wire harness to
the “OPEN LEFT” connector if the gate opens
towards the left side.
Radio Station
Mag.
Lock
Mag. Lock
Safety ConnectorOpen CommandsGuard StationMaster/Slave
Brake
UL
Siren
Radio
Rec.
UL
Sensor
OPEN RIGHT
OPEN LEFT
Safety
Loop
Center
Loop
Obstruction
Sensor Charger
Power
Low Battery
Motor Sensor
Hold Open
Timer
Stop
Overlap Delay
Close Open
Obstruction
Sensor
min. MAX
Overlap Delay
1.5
03
Radio StationSafety ConnectorOpen CommandsGuard StationMaster/Slave
GND
Close
Stop
Open
GND
Close
Stop
Open
Gnd
Fire
Gnd
Strike
Gnd
Exit
Gnd
Center
Gnd
Safety
Gnd
UL
Gnd
+28v
Gnd
Radio
Gnd
+28v
+28v
Mag.
Lock
Mag. Lock
N.O.
COM
N.C.
Charger
Power
Low Battery
Motor Sensor
Hold Open
Timer
StopClose Open
Limit Limit
30sec
60sec off
1sec
Radio
Rec.
UL
Sensor
Safety
Loop
Center
Loop
Brake
UL
Siren
Radio Station
Mag.
Lock
Mag. Lock
Safety ConnectorOpen CommandsGuard StationMaster/Slave
Brake
UL
Siren
Radio
Rec.
UL
Sensor
OPEN RIGHT
OPEN LEFT
Safety
Loop
Center
Loop
Obstruction
Sensor Charger
Power
Low Battery
Motor Sensor
Hold Open
Timer
Stop
Overlap Delay
Close Open
Obstruction
Sensor
min. MAX
Overlap Delay
1.5
03
Radio StationSafety ConnectorOpen CommandsGuard StationMaster/Slave
GND
Close
Stop
Open
GND
Close
Stop
Open
Gnd
Fire
Gnd
Strike
Gnd
Exit
Gnd
Center
Gnd
Safety
Gnd
UL
Gnd
+28v
Gnd
Radio
Gnd
+28v
+28v
Mag.
Lock
Mag. Lock
N.O.
COM
N.C.
Charger
Power
Low Battery
Motor Sensor
Hold Open
Timer
StopClose Open
Limit Limit
30sec
60sec off
1sec
Radio
Rec.
UL
Sensor
Safety
Loop
Center
Loop
Brake
UL
Siren
Open
Open
TECHNICAL SUPPORT 1 800 908 0884 19
Using the connectors provided insert the
wires from the motor units as shown in the
diagram below. Insert the connectors in the
proper receptacles on the Master/Slave
Control Board. The ‘Slave’ gate opens first
using the Overlap Delay (see page 28). If the
gate opens in a clockwise direction, connect
to the ‘Outside’ receptacle, if the gate opens
in a counter-clockwise direction, connect to
the ‘Inside’ receptacle
Master/Slave Connections
ELECTRICAL INSTALLATION – MASTER/SLAVEELECTRICAL INSTALLATION – MASTER/SLAVE
MAG
LOCK
Mag. Lock
UL
Siren
Radio
Rec.
UL
Sensor
Safety
Loop
Center
Loop
Obstruction
Sensor Charger
Brake
Fail Safe/Secure
Slave
Fail Safe/Secure
Master Master Open Slave Open
Master Slave
Power
Low Battery
Slave
Limit Open
Limit Close
Slave
Limit Open
Limit Close
Hold Open
Timer
Stop
Overlap Delay
Close Open
Inside
Outside
Inside
Outside
Radio StationSafety ConnectorOpen CommandsGuard Station
Close
Stop
Open
Gnd
Fire
Gnd
Strike
Gnd
Exit
Gnd
Center
Gnd
Safety
Gnd
UL
Gnd
+28v
Gnd
Radio
Gnd
+28v
+28v
N.O.
COM
N.C.
Black
Blue
Free
Yellow
Brown
Orange
Red
A Master/SlaveControl Board is available,
when required, to run two gate operators in
synchronous mode.
Open
Open
Connect to ‘Outside’ Connect to ‘Inside’
Inside
Outside
Exit Loop
Inside Reopen Loop
Center Loop
Outside
Reopen Loop
Inside
Outside
5'
5' 5'
AA
5'
Gate in Open Position
Inside
Reopen
Loop
Center
Loop
Outside
Reopen
Loop
Exit
Loop
Make Even
with Open Gate
TECHNICAL SUPPORT 1 800 908 0884
20
VEHICULAR LOOP DETECTOR INSTALLATIONVEHICULAR LOOP DETECTOR INSTALLATION
Dimension A– 5’ for Single Gate Operator
6’ for Master/Slave Gate Operator
TECHNICAL SUPPORT 1 800 908 0884 21
VEHICULAR LOOP DETECTOR INSTALLATIONVEHICULAR LOOP DETECTOR INSTALLATION
Twist Wire Outside the 
Loop 6 Twists/Foot
Until Its Connection 
to the Loop Detector
1/8" to 1/4" Saw Slot
Provide Additional Saw Cuts
to Eliminate Sharp Corners
Continuously Wind Wire
in Loop Slot for the 
Required Number of Loops
(2 Loops Shown)
Guidelines for Vehicular Loop Detector Installation
1. Prevent sharp corners in the geometry of the loop sensor.
2. Install the appropriate number of turns for your loop geometry based on the loop perimeter. Use
Table C (below) as a guide.
3. Use XLP (cross-linked-polyethylene) type of wire. This wire reduces the effects of moisture and
other environmental events in altering the functionality of the vehicular loop detector.
4. Twist the lead wire at least 6 turns per foot.
5. Use BACKER-ROD to minimize damage to the loop detector wire prior to using the sealant.
6. Place the loop detector wire and adjust the sensitivity of the vehicular loop detector unit in a
way to minimize the effects of the gate over the loop detector wire.
IMPORTANT – Some of the following parameters may affect the proper functionality of the
vehicular loop detector (consult the installation manual and the manufacturer of the
vehicular loop detector).
• Gate size,
• Number of turns in the loop sensor wire;
• Distance from the loop sensor wire to the gate either at the open or close position.
1" Min.
Backer-Rod
Vehicular Loop 
Detector Wire 
(3 Turns Shown)
Sealant
Saw Cut
Table C – Recommended Number of Turns
Perimeter in Feet Number of Turns
10 5
20 4
30-40 3
50-100 2
W
WA
AR
RN
NI
IN
NG
G–
–C
Co
on
ns
su
ul
lt
t t
th
he
e i
in
ns
st
ta
al
ll
la
at
ti
io
on
n i
in
ns
st
tr
ru
uc
ct
ti
io
on
ns
s f
fr
ro
om
m t
th
he
e l
lo
oo
op
p d
de
et
te
ec
ct
to
or
r m
ma
an
nu
uf
fa
ac
ct
tu
ur
re
er
r.
. T
Th
he
e f
fo
ol
ll
lo
ow
wi
in
ng
g
s
st
ta
at
te
em
me
en
nt
ts
s a
ar
re
e p
pr
ro
ov
vi
id
de
ed
d a
as
s a
a g
gu
ui
id
de
e b
bu
ut
t d
di
if
ff
fe
er
re
en
nt
t r
re
eq
qu
ui
ir
re
em
me
en
nt
ts
s m
ma
ay
y b
be
e r
re
eq
qu
ui
ir
re
ed
d b
by
y t
th
he
e
v
ve
eh
hi
ic
cu
ul
la
ar
r l
lo
oo
op
p d
de
et
te
ec
ct
to
or
r m
ma
an
nu
uf
fa
ac
ct
tu
ur
re
er
r.
.
ACCESSORY CONNECTIONSACCESSORY CONNECTIONS
TECHNICAL SUPPORT 1 800 908 0884
22
Vehicle loop detectors must be installed to
decrease the possibility of vehicle
entrapment on the gate (see page 20).
The SECONDARY ENTRAPMENT
PROTECTION like the edge sensor and
the photoelectric beam MUST BE PART
OF EVERY SINGLE INSTALLATION to
prevent pedestrian or animal
entrapment (see pages 6 and 7).
The edge sensor and/or the photoelectric
beam must be UL325 compliant devices.
Open Commands
Radio Station
Mag.
Lock
Mag. Lock
Safety ConnectorOpen CommandsGuard StationMaster/Slave
Brake
UL
Siren
Radio
Rec.
UL
Sensor
OPEN RIGHT
24V BAT 24VAC
OPEN LEFT
Safety
Loop
Center
Loop
Obstruction
Sensor Charger
Power
Low Battery
Motor Sensor
Hold Open
Timer
Stop
Overlap Delay
Close Open
Obstruction
Sensor
min. MAX
Overlap
Delay
1.5
0
3
Radio StationLoop ConnectorOpen CommandsGuard StationMaster/Slave
GND
Close
Stop
Open
GND
Close
Stop
Open
Gnd
Fire
Gnd
Strike
Gnd
Exit
Gnd
Center
Gnd
Reopen
Gnd
UL
Gnd
+28v
Gnd
Radio
Gnd
+28v
+28v
Mag.
Lock
Fail
Safe/Secure
MAG. LOCK
N.C.
COM
N.O.
Charger
Power
Low Battery
Motor Sensor
Hold Open
Timer
Stop
Close
Open
30
60
Off 1
Radio
Rec.
UL
Sens
Safety
Loop
Center
Loop
Brake
Siren
Exit
Loop
Detector
Fire
Override Keypad
FIRE
Safety Connections
Radio Station
Mag.
Lock
Mag. Lock
Safety ConnectorOpen CommandsGuard StationMaster/Slave
Brake
UL
Siren
Radio
Rec.
UL
Sensor
OPEN RIGHT
24V BAT 24VAC
OPEN LEFT
Safety
Loop
Center
Loop
Obstruction
Sensor Charger
Power
Low Battery
Motor Sensor
Hold Open
Timer
Stop
Overlap Delay
Close Open
Obstruction
Sensor
min. MAX
Overlap
Delay
1.5
0
3
Radio StationLoop ConnectorOpen CommandsGuard StationMaster/Slave
GND
Close
Stop
Open
GND
Close
Stop
Open
Gnd
Fire
Gnd
Strike
Gnd
Exit
Gnd
Center
Gnd
Reopen
Gnd
UL
Gnd
+28v
Gnd
Radio
Gnd
+28v
+28v
Mag.
Lock
Fail
Safe/Secure
MAG. LOCK
N.C.
COM
N.O.
Charger
Power
Low Battery
Motor Sensor
Hold Open
Timer
Stop
Close
Open
30
60
Off 1
Radio
Rec.
UL
Sens
Safety
Loop
Center
Loop
Brake
Siren
Center
Loop
Detector
Reopen
Loop
Detector
Photo
Beam
Edge Sensor
1
2
Connection Locations
(Single Unit Board shown)
2
1
As an alternative to the Outside Reopen Loop,
a photo beam unit can be used as shown.
Reopen Photo Beam
Radio Station
Mag.
Lock
Mag. Lock
Safety ConnectorOpen CommandsGuard StationMaster/Slave
Brake
UL
Siren
Radio
Rec.
UL
Sensor
OPEN RIGHT
24V BAT 24VAC
OPEN LEFT
Safety
Loop
Center
Loop
Obstruction
Sensor Charger
Power
Low Battery
Motor Sensor
Hold Open
Timer
Stop
Overlap Delay
Close Open
Obstruction
Sensor
min. MAX
Overlap
Delay
1.5
0
3
Radio StationLoop ConnectorOpen CommandsGuard StationMaster/Slave
GND
Close
Stop
Open
GND
Close
Stop
Open
Gnd
Fire
Gnd
Strike
Gnd
Exit
Gnd
Center
Gnd
Reopen
Gnd
UL
Gnd
+28v
Gnd
Radio
Gnd
+28v
+28v
Mag.
Lock
Fail
Safe/Secure
MAG. LOCK
N.C.
COM
N.O.
Charger
Power
Low Battery
Motor Sensor
Hold Open
Timer
Stop
Close
Open
30
60
Off 1
Radio
Rec.
UL
Sens
Safety
Loop
Center
Loop
Brake
Siren
Photo
Beam
Inside
Outside
TECHNICAL SUPPORT 1 800 908 0884 23
ACCESSORY CONNECTIONSACCESSORY CONNECTIONS
When connecting the Radio Receiver carefully verify the proper connections.
The maximum voltage that the control board provides for external accessories is the
maximum voltage of the battery, which is about 28 volts.
In the event of an electrical short the board will protect itself by shutting down and
will remain shut down until the short is corrected.
Radio Receiver
Radio Station
Mag.
Lock
Mag. Lock
Safety ConnectorOpen CommandsGuard StationMaster/Slave
Brake
UL
Siren
Radio
Rec.
UL
Sensor
OPEN RIGHT
24V BAT 24VAC
OPEN LEFT
Safety
Loop
Center
Loop
Obstruction
Sensor Charger
Power
Low Battery
Motor Sensor
Hold Open
Timer
Stop
Overlap Delay
Close Open
Obstruction
Sensor
min. MAX
Overlap
Delay
1.5
0
3
Radio StationLoop ConnectorOpen CommandsGuard StationMaster/Slave
GND
Close
Stop
Open
GND
Close
Stop
Open
Gnd
Fire
Gnd
Strike
Gnd
Exit
Gnd
Center
Gnd
Reopen
Gnd
UL
Gnd
+28v
Gnd
Radio
Gnd
+28v
+28v
Mag.
Lock
Fail
Safe/Secure
MAG. LOCK
N.C.
COM
N.O.
Charger
Power
Low Battery
Motor Sensor
Hold Open
Timer
Stop
Close
Open
30
60
Off 1
Radio
Rec.
UL
Sens
Safety
Loop
Center
Loop
Brake
Siren
The control board provides two modes of
operation that a radio receiver can control
the gate:
Open-Stop-Close
1. By having the radio receiver connected as
illustrated and with the Hold Open Timer
OFF (see below):
Every command of the radio transmitter
will control the gate as follow:
a) First command opens the gate,
b) Second command stops the gate and
c) Third command closes the gate
d) Any subsequent commands will continue
in the same order to control the gate.
This type of configuration is not
recommended for a commercial
installations.
Open Only
2. By having the radio receiver connected as
illustrated and with the Hold Open Timer
ON (see below):
Each command of the radio transmitter is
ALWAYS AN OPEN COMMAND to the gate.
External
Accessories
COM
NO
Gnd
+24VDC
Radio Station
Mag.
Lock
Mag. Lock
Safety ConnectorOpen CommandsGuard StationMaster/Slave
Brake
UL
Siren
Radio
Rec.
UL
Sensor
OPEN RIGHT
24V BAT 24VAC
OPEN LEFT
Safety
Loop
Center
Loop
Obstruction
Sensor Charger
Power
Low Battery
Motor Sensor
Hold Open
Timer
Stop
Overlap Delay
Close Open
Obstruction
Sensor
min. MAX
Overlap
Delay
1.5
0
3
Radio StationLoop ConnectorOpen CommandsGuard StationMaster/Slave
GND
Close
Stop
Open
GND
Close
Stop
Open
Gnd
Fire
Gnd
Strike
Gnd
Exit
Gnd
Center
Gnd
Reopen
Gnd
UL
Gnd
+28v
Gnd
Radio
Gnd
+28v
+28v
Mag.
Lock
Fail
Safe/Secure
MAG. LOCK
N.C.
COM
N.O.
Charger
Power
Low Battery
Motor Sensor
Hold Open
Timer
Stop
Close
Open
30
60
Off 1
Radio
Rec.
UL
Sens
Safety
Loop
Center
Loop
Brake
Siren
2
1
Hold Open Timer
1
2
Connection Locations
(Single Unit Board shown)
The Hold Open Timer function holds the gate at
the open position for a predetermined amount
of time, prior to closing automatically.
Set the Timer to the desired time, from 1 to
60 seconds.
If this feature is not needed, turn the Trim
Pot clockwise to the “off” position.
Note: The Hold Open Timer affects the “radio
receiver command” and the sequence of
operation for the gate (see page 23).
TECHNICAL SUPPORT 1 800 908 0884
24
M
M-
-2
2
™
VIKING ELECTROMAGNETIC LOCKVIKING ELECTROMAGNETIC LOCK
This Magnetic Lock is an OPTIONAL ACCESORY available from
Viking Access Systems. Please order part number VA-MAG13.
Mounting Plate/Juction Box
(Weld to Post)
Mounting Plate
(Weld to Gate)
Set Screw
(Locks Floating Plate
Mounting Screw)
Floating Plate
Mounting Screw
24 Volt DC Transformer
(Supplied with Lock Kit)
Cover
Plate
Cover Plate
Mounting
Screw (4)
Magnetic Lock
Mounting Screw (4)
Mounting Screw
Weather Cover (4)
Flexible Washer
Spacer (0 to 3)
Use to adjust
gap between
Floating Plate and
Magnetic Lock
Guide Pin (2)
Use long or short pin
depending on number
of spacers used
Floating Plate
3.000" to
3.125"
(example)
10.625"
7.5"
2.100"
Mounting Plate/
Juction Box
Mounting Plate
Magnetic Lock
Floating Plate
Standard Features
• Mounting base with electrical box
• 24VDC Plug-in transformer
• 12VDC or 24VDC operation
• 500mA at 12VDC operation
• 250mA at 24VDC operation
• 1300 pounds of holding force
External supply for the magnetic
lock must be provided. This will
prevent rapid drainage of the bat-
tery in the event of power failure.
Relay Contact 10A-250VAC
Connection Location
Radio Station
Mag.
Lock
Mag. Lock
Safety ConnectorOpen CommandsGuard StationMaster/Slave
Brake
UL
Siren
Radio
Rec.
UL
Sensor
OPEN RIGHT
OPEN LEFT
Safety
Loop
Center
Loop
Obstruction
Sensor Charger
Power
Low Battery
Motor Sensor
Hold Open
Timer
Stop
Overlap Delay
Close Open
Obstruction
Sensor
min.MAX
Overlap Delay
1.5
03
Radio Station Loop Connector Open Commands Guard Station Master/Slave
GND
Close
Stop
Open
GND
Close
Stop
Open
Gnd
Fire
Gnd
Strike
Gnd
Exit
Gnd
Center
Gnd
Reopen
Gnd
UL
Gnd
+28v
Gnd
Radio
Gnd
+28v
+28v
Mag.
Lock
Fail Safe/Secure
Mag. Lock
N.C.
COM
N.O.
Charger
Power
Low Battery
Motor Sensor
Hold Open
Timer
Stop CloseOpen
LimitLimit
30sec
60secoff
1sec
Radio
Rec.
UL
Sensor
Safety
Loop
Center
Loop
Brake
UL
Siren
Obstruction
Sensor
min. MAX
Overlap
Delay
1.5
0
3
Mag.
Lock
Fail
Safe/Secure
Hold Open
Timer
Stop
Close
Open
30
60
Off 1
Radio
Rec.
UL
Sens
Safety
Loop
Center
Loop
Brake
Siren
Green
Black
White
Red
Green
Black
White
Red
24VDC Transformer
(Supplied with Lock Kit)
24VDC
Magnetic
Lock
4-wire Cable
(Supplied with
Lock Kit)
Magnetic
Lock
4-wire Cable
(Supplied with
Lock Kit)
12VDC
Transformer
12VDC
TECHNICAL SUPPORT 1 800 908 0884 2524
The guard station provides control of the
gate operator to open, stop and close the
gate.
All three switches must be Normally Open
type of switch, and can share the same
common (ground).
Place the control switch box within sight of
the gate, away from moving parts of the
gate and out of reach of children.
Guard Station
Radio Station
Mag.
Lock
Mag. Lock
Safety ConnectorOpen CommandsGuard StationMaster/Slave
Brake
UL
Siren
Radio
Rec.
UL
Sensor
OPEN RIGHT
24V BAT 24VAC
OPEN LEFT
Safety
Loop
Center
Loop
Obstruction
Sensor Charger
Power
Low Battery
Motor Sensor
Hold Open
Timer
Stop
Overlap Delay
Close Open
Obstruction
Sensor
min. MAX
Overlap
Delay
1.5
0
3
Radio StationLoop ConnectorOpen CommandsGuard StationMaster/Slave
GND
Close
Stop
Open
GND
Close
Stop
Open
Gnd
Fire
Gnd
Strike
Gnd
Exit
Gnd
Center
Gnd
Reopen
Gnd
UL
Gnd
+28v
Gnd
Radio
Gnd
+28v
+28v
Mag.
Lock
Fail
Safe/Secure
MAG. LOCK
N.C.
COM
N.O.
Charger
Power
Low Battery
Motor Sensor
Hold Open
Timer
Stop
Close
Open
30
60
Off 1
Radio
Rec.
UL
Sens
Safety
Loop
Center
Loop
Brake
Siren
N.O.
N.O.
N.O.
COM
CLOSE
STOP
OPEN
2
External supply for the magnetic lock must
be provided. This will prevent rapid drainage
of the battery in the event of power failure.
Relay Contact 10A-250VAC
External supply for the solenoid connection
must be provided. This will prevent rapid
drainage of the battery in the event of
power failure.
Relay Contact 10A-250VAC
Magnetic Lock
Solenoid Connection
ACCESSORY CONNECTIONSACCESSORY CONNECTIONS
Radio Station
Mag.
Lock
Mag. Lock
Safety ConnectorOpen CommandsGuard StationMaster/Slave
Brake
UL
Siren
Radio
Rec.
UL
Sensor
OPEN RIGHT
24V BAT 24VAC
OPEN LEFT
Safety
Loop
Center
Loop
Obstruction
Sensor Charger
Power
Low Battery
Motor Sensor
Hold Open
Timer
Stop
Overlap Delay
Close Open
Obstruction
Sensor
min. MAX
Overlap
Delay
1.5
0
3
Radio StationLoop ConnectorOpen CommandsGuard StationMaster/Slave
GND
Close
Stop
Open
GND
Close
Stop
Open
Gnd
Fire
Gnd
Strike
Gnd
Exit
Gnd
Center
Gnd
Reopen
Gnd
UL
Gnd
+28v
Gnd
Radio
Gnd
+28v
+28v
Mag.
Lock
Fail
Safe/Secure
MAG. LOCK
N.C.
COM
N.O.
Charger
Power
Low Battery
Motor Sensor
Hold Open
Timer
Stop
Close
Open
30
60
Off 1
Radio
Rec.
UL
Sens
Safety
Loop
Center
Loop
Brake
Siren
Radio Station
Mag.
Lock
Mag. Lock
Safety ConnectorOpen CommandsGuard StationMaster/Slave
Brake
UL
Siren
Radio
Rec.
UL
Sensor
OPEN RIGHT
24V BAT 24VAC
OPEN LEFT
Safety
Loop
Center
Loop
Obstruction
Sensor Charger
Power
Low Battery
Motor Sensor
Hold Open
Timer
Stop
Overlap Delay
Close Open
Obstruction
Sensor
min. MAX
Overlap
Delay
1.5
0
3
Radio StationLoop ConnectorOpen CommandsGuard StationMaster/Slave
GND
Close
Stop
Open
GND
Close
Stop
Open
Gnd
Fire
Gnd
Strike
Gnd
Exit
Gnd
Center
Gnd
Reopen
Gnd
UL
Gnd
+28v
Gnd
Radio
Gnd
+28v
+28v
Mag.
Lock
Fail
Safe/Secure
MAG. LOCK
N.C.
COM
N.O.
Charger
Power
Low Battery
Motor Sensor
Hold Open
Timer
Stop
Close
Open
30
60
Off 1
Radio
Rec.
UL
Sens
Safety
Loop
Center
Loop
Brake
Siren
2 1
1
1
Connection Locations
(Single Unit Board shown)
Viking Access Systems can supply an
excellent Magnetic Lock unit (part number
VA-MAG13). See page 24 for more details.
TECHNICAL SUPPORT 1 800 908 0884
26 25
Radio Station
Mag.
Lock
Mag. Lock
Safety ConnectorOpen CommandsGuard StationMaster/Slave
Brake
UL
Siren
Radio
Rec.
UL
Sensor
OPEN RIGHT
24V BAT 24VAC
OPEN LEFT
Safety
Loop
Center
Loop
Obstruction
Sensor Charger
Power
Low Battery
Motor Sensor
Hold Open
Timer
Stop
Overlap Delay
Close Open
Obstruction
Sensor
min. MAX
Overlap
Delay
1.5
0
3
Radio StationLoop ConnectorOpen CommandsGuard StationMaster/Slave
GND
Close
Stop
Open
GND
Close
Stop
Open
Gnd
Fire
Gnd
Strike
Gnd
Exit
Gnd
Center
Gnd
Reopen
Gnd
UL
Gnd
+28v
Gnd
Radio
Gnd
+28v
+28v
Mag.
Lock
Fail
Safe/Secure
MAG. LOCK
N.C.
COM
N.O.
Charger
Power
Low Battery
Motor Sensor
Hold Open
Timer
Stop
Close
Open
30
60
Off 1
Radio
Rec.
UL
Sens
Safety
Loop
Center
Loop
Brake
Siren
The Obstruction Sensor detects obstructions
in the path of the traveling gate. The Trim
Pot for the Obstruction Sensor adjusts the
sensitivity level that triggers the Sensor.
When the Obstruction Sensor detects an
obstruction it will:
1. Stop the gate’s movement and reverse it
momentarily.
2. Bring the gate to a resting position.
3.
Disable the Hold Open Timer feature until the
Gate Operator receives a new command.
If another obstruction is detected before the
gate reaches either limit it will:
1. Stop the gate’s movement.
2. Bring the gate to a resting position.
3. Disable the Gate Operator.
UL325 standard requires an audio alarm to
go off after two consecutive entrapment
events
sensed by the Inherent Entrapment
Protection of the Gate Operator.
The audio alarm will sound for a period of 5
minutes or until the “Stop” Button is
pressed (see page 8 for remote installation
of a “Stop” Button).
Intelligent Obstruction Sensor
(Primary Entrapment Protection)
SPECIAL FEATURESSPECIAL FEATURES
Turning the Trim Pot clockwise
increases the sensitivity.
Turning the Trim Pot counter-
clockwise decreases the sensitivity.
Trim Pot Location
(Single Unit Board shown)
TECHNICAL SUPPORT 1 800 908 0884 2727
TECHNICAL SUPPORT 1 800 908 0884
28 28
SPECIAL FEATURESSPECIAL FEATURES
Inside
Outside
Opens First Slave UnitMaster Unit
MAG
LOCK
Mag. Lock
UL
Siren
Radio
Rec.
UL
Sensor
Safety
Loop Charger
Brake
Fail Safe/Secure
Slave
Fail Safe/Secure
Master Master Open Slave Open
Master Slave
Power
Low Battery
Slave
Limit Open
Limit Close
Slave
Limit Open
Limit Close
Inside
Outside
Inside
Outside
Radio StationSafety ConnectorOpen CommandsGuard Station
Close
Stop
Open
Gnd
Fire
Gnd
Strike
Gnd
Exit
Gnd
Center
Gnd
Safety
Gnd
UL
Gnd
+28v
Gnd
Radio
Gnd
+28v
+28v
N.O.
COM
N.C.
Obstruction
Sensor
Overlap Delay
1.5
Center
Loop
Hold Open
Timer
StopClose Open
Limit Limit
30sec
60sec off
1sec
03
A Master/Slave control board is required to
operate two gates with a single controller.
Gate Overlap Setting
Setting the Overlap Delay Pot to any value
other than zero will cause the master unit to
delay in opening.
The time delay can be set for up to 3 seconds.
Setting the Overlap Delay Pot to “0” will cause the master and the slave units to
open and close at the same time
Trim Pot Location
(Master/Slave Unit Board shown)
TECHNICAL SUPPORT 1 800 908 0884 29
SOLAR PANEL INSTALLATIONSOLAR PANEL INSTALLATION
For Viking Vehicular Gate Operators
STEP 1
Use a 24V solar panel or two solar panels of 12V
in series with a total capacity of 40 Watts..
STEP 3
Replace the existing batteries with a battery pack
of 33AHr or greater.
STEP 2
Connect the solar panel cables to the power
harness as shown. Make sure you cut the wires
coming from the toroidal transformer.
STEP 4
Refer to the maps provided to get an idea about the
number of cycles the gate will be operated per day.
This figure is for a single gate operator with just:
a) One Radio reiver,
b) One low voltage low current loop detector and
c) One low voltage, low current photo cell
Radio Station
Mag.
Lock
Mag. Lock
Safety ConnectorOpen CommandsGuard StationMaster/Slave
Brake
UL
Siren
Radio
Rec.
UL
Sensor
OPEN RIGHT
24V BAT 24VAC
OPEN LEFT
Safety
Loop
Center
Loop
Obstruction
Sensor Charger
Power
Low Battery
Motor Sensor
Hold Open
Timer
Stop
Overlap Delay
Close Open
Obstruction
Sensor
min. MAX
Overlap
Delay
1.5
0
3
Radio StationLoop ConnectorOpen CommandsGuard StationMaster/Slave
GND
Close
Stop
Open
GND
Close
Stop
Open
Gnd
Fire
Gnd
Strike
Gnd
Exit
Gnd
Center
Gnd
Reopen
Gnd
UL
Gnd
+28v
Gnd
Radio
Gnd
+28v
+28v
Mag.
Lock
Fail
Safe/Secure
MAG. LOCK
N.C.
COM
N.O.
Charger
Power
Low Battery
Motor Sensor
Hold Open
Timer
Stop
Close
Open
30
60
Off 1
Radio
Rec.
UL
Sens
Safety
Loop
Center
Loop
Brake
Siren
Connect Leads from
Solar Panel(s), Polarity 
is not important
Cut the Leads
to the Toroidal
Transformer
+
–
+
+
–
–
Reuse Existing
Battery Fuse Holder
Connect New
Batteries to
Existing Leads
Observing Polarity
Red Wire
Black Wire
+
–
+
–
Connect To Gate
Operator Input Block
24 VDC
Panel
12 VDC
Panels
2
*With a 40 Watt (24VDC) Panel System.
5
8
10
12
14
Number of
Cycles per Day*
January July
NOTE –
1. Remember that the sun is your only source of energy.
2. The greater capacity of the batteries, the longer the system will operate on
cloudy days.
3. If more spcific information is needed, please consult with Viking Access Systems.
For more information regarding solar energy refer to http:/www.nrel.gov.
TECHNICAL SUPPORT 1 800 908 0884
30
(Installed)
1.563"
2.375"
3.187"
6.563"
Hinge Pin
(0.780" Diameter)
Bronze Bushing
Set Screw
(Can be removed
to add lubrication)
H
H-
-4
4
™
VIKING HINGEVIKING HINGE
Standard Features
• Self-lubricating oil impregnated bronze bushing
• Port for adding a Zirk fitting
• 3000 lbs. capacity per pair
• Heat-treated stainless steel pin
These Hinges are OPTIONAL ACCESORIES available
from Viking Access Systems. Please order part
number VA-HD.
TECHNICAL SUPPORT 1 800 908 0884 3129
Gate does not run – Motor Sensor indicator comes ON
TROUBLESHOOTINGTROUBLESHOOTING
Check all motor connections to
be fully engaged. Refer to page
18 and 19.
Ensure that the motor
connections are:
a) Properly connected;
b) Tight enough and;
c) Match color code.
Refer to page 15.
Check that all motor cable
connections, junctions and
extensions are properly
connected and color-coded.
Refer to page 15.
Check the 15 Amp fuse in the
control board
Gate does not run – Motor Sensor indicator is OFF
Check all motor connections to
be fully engaged. Refer to 15.
Check that limit switches are
connected to the common and
the normally close position
refer to page 15.
Check that the stop command
is not active. Refer to page 8
and 25
Gate does not run – Power failure
Check the 15 Amp battery fuse.
Refer to page 16
Check the battery connections
and cables.
Check the voltage of the
battery.
Gate does not run – Obstruction sensor ON and audio alarm is SOUNDING
Ensure that the gate path is
clear of obstructions.
Note: To stop the audio alarm,
use the stop command. Refer
to page 8 and 25.
If necessary, adjust the trim pot
for the obstruction sensor.
Refer to page 26
Gate runs, stops and reverse momentarily – Obstruction sensor ON and audio alarm OFF
Ensure that the gate path is
clear of obstructions.
Check for proper functionality
and lubrication of the gate and
hardware (hinges and the like).
Adjust the trim pot of the
obstruction sensor. Refer to
page 26.
Gate ignores the limit switches
Check that the open limit
switch and close limit switch
are in the corresponding place.
Refer to page 15.
Check that all motor cable
connections, junctions and
extensions are properly
connected and color-coded.
Refer to 15.
Ensure that the motor cable is
away from sources of electrical
interference, such as
a) Electric motors
b) Electric fences
c) Power lines
Check that the UL command
(photo beam and/or edge
sensor) is not active. Refer to
page 6, 7 and 22.
Check that the vehicular loop
detectors are working properly.
Refer to page 20, 21 and 22.
Check that the radio command
is not active. Refer to page 23.
Ensure that you external acces-
sories are working properly.
Check the 4 Amps fuse in the
control board
Ensure that you power cables are
adequate in voltage and properly
connected. Refer to page 17.
Check that the limit switch is
not faulty
Check that wires to the limit
switch are not shorted.
Note: To minimize effects
cause by electrical interference
use twisted pairs of cables with
the shield grounded.
Se habla Español
TECHNICAL SUPPORT 1 800 908 0884
32 29
TROUBLESHOOTINGTROUBLESHOOTING
Gate does not open or close
Check all motor connections to
be fully engaged. Refer to page
15.
Check that limit switches are
connected to the common and
the normally close position
refer to page 15.
Check that the stop command
is not active. Refer to page 8
and 25.
Check that the UL command
(photo beam and/or edge
sensor) is not active. Refer to
page 6, 7 and 22.
Check that the vehicular loop
detectors are working properly.
Refer to page 20, 21 and 22.
Check that the radio command
is not active. Refer to page 23.
Ensure that you external
accessories are working
properly
Automatic close does not function
Check that the trim pot of the
hold open timer is set to the
proper time delay. Refer to
page 23.
Note: Hold open timer closes
the gate automatically once the
gate reaches the limit open.
The time delay to close is set
by the trim pot.
To turn this system off turn the
trim pot all the way clockwise.
Verify proper functionality of:
Photo beam(s)
Loop Detectors
Radio Receiver
that may prevent closing the
gate.
Gate opens in the opposite desired direction
Verify your motor cable is
connected to the proper
connector. Refer to page 18
and 19.
Check that all motor cable
connections, junctions and
extensions are properly
connected and color-coded.
Refer to 15.
On a Master/Slave installation, one gate runs in the opposite direction
Check the motor and limit
switch wiring. Refer to page 15
and 19.
Verify that one unit is
connected as open inside and
one unit is connected as open
outside. Refer to page 19.
TECHNICAL SUPPORT 1 800 908 0884 33
TROUBLESHOOTINGTROUBLESHOOTING
Check that your external
devices are working properly
Check that your wires from
your accessories are:
a) Not shorting together
b) Not shorting a power line
c) Not shorting to metal or
earth ground.
Check the incoming high
voltage power supply.
Check the proper selection of
power supply (120/220 VAC).
Refer to page 17.
Verify the EMI board by
reading high voltage across the
(4) blue and red wires at the
terminal block connections.
Gate opens after few second delay
Set the overlap delay trim pot
to 0. Refer to page 28.
Note: Overlap trim pot is
normally recommended to use
in overlapping gates. Refer to
page 28.
L-3 unit runs slower than normal
Set the overlap delay trim pot
to 0. Refer to page 28.
Note: Overlap trim pot is
normally recommended to use
in overlapping gates. Refer to
page 28.
Gate opens. Closes or stops on its own
‘Charger’ LED off. Gate does not run - alarm sounds upon any input command
Check the 4 Amp fuse on the
control board.
Check the 3 Amp fuse on the
EMI control board. Refer to
page 17.
Make sure the incoming AC
line is properly connected.
Refer to page 17.
Battery voltage reads zero or very low
Ensure the batteries are connected as follows:
a) Left battery - Black terminal connected to the black wire from the harness (jacketed wire)
b) Left battery - Red terminal connected to the red wire from fuse holder
c) Right battery - Black terminal connected to the red wire from fuse holder
d) Right battery - Red terminal connected to the red wire from the harness (jacketed wire)
X-9
vehicular
gate operator
installation instructions and
safety information
CLASS I, CLASS II, CLASS III and CLASS IV
LISTED 18TC
UL 325
UL 991
Viking Access Systems
T 800.908.0884 • F 949.753.1640
631 Wald - Irvine, CA 92618
vikingaccess.com
UL325 and UL991 listed by Underwriter Laboratories (UL).
Accessible manual release via key operated mechanism.
Easy solution for complex installations.
Elegant design,appealing to any architectural project.
Opening up to 130°.
Operation speed of 10 to 13 seconds per 90°.
100% duty cycle under very wide temperature range.
Very low power consumption.
800 cycles of operation on backup battery (500 lb. gate and 12’ length).
Intelligent speed control with smooth start and stop, self-adjust system.
Modulated speed regulator prevents exceeding operating speed that may
reduce the service life of the gate operator and/or installation.
Intelligent obstruction detection with adjustable sensitivity
Overlap delay holds one gate momentarily by an adjustable time while the
other gate is operating (Master/Slave installation with overlap gates)
Built-in protection against lightning strikes or similar electrical surges.
Inherent overload protection in the regulated power supply for external
accessories with multiple devices of protection.
Modular connectors for easy installation.
LED indicators for verification of operation.
Solar panel and low voltage wiring compatibility.
24 VAC auxiliary power.

Navigation menu
