Viper Design VDLC52 Low power Bluetooth device User Manual Users Guide

Viper Design, LLC Low power Bluetooth device Users Guide

User Manual

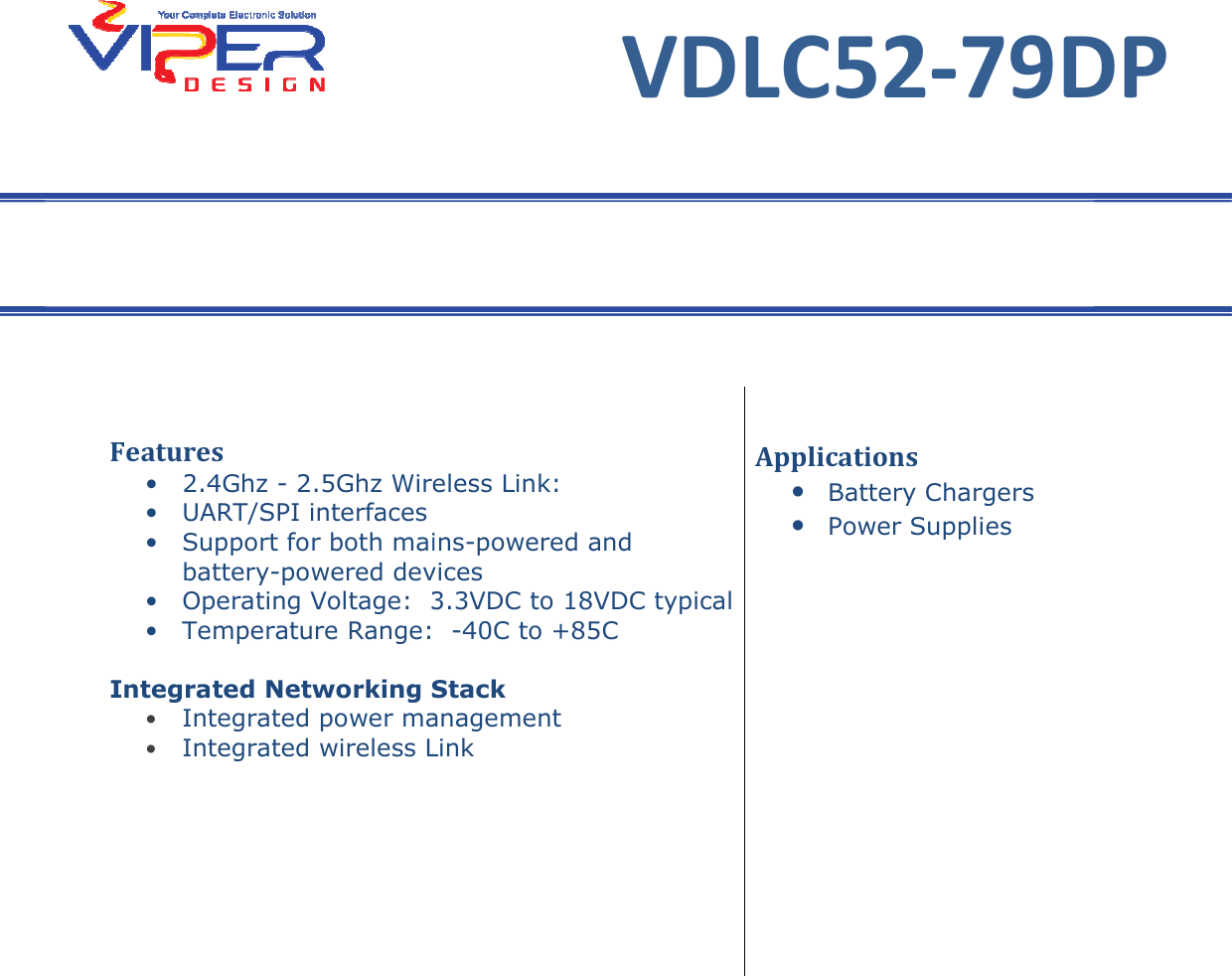

   Features • 2.4Ghz - 2.5Ghz Wireless Link• UART/SPI interfaces • Support for both mainsbattery-powered devices• Operating Voltage:  3.3V• Temperature Range:   Integrated Networking Stack• Integrated power management• Integrated wireless Link   VDLC52-79DP Users GuideVDLC52 2.5Ghz Wireless Link: UART/SPI interfaces  Support for both mains-powered and devices Operating Voltage:  3.3VDC to 18VDC typical Temperature Range:  -40C to +85C Stack Integrated power management Integrated wireless Link Applications• Battery Chargers• Power SuppliesUsers Guide VDLC52-79DP   Applications Battery Chargers Power Supplies

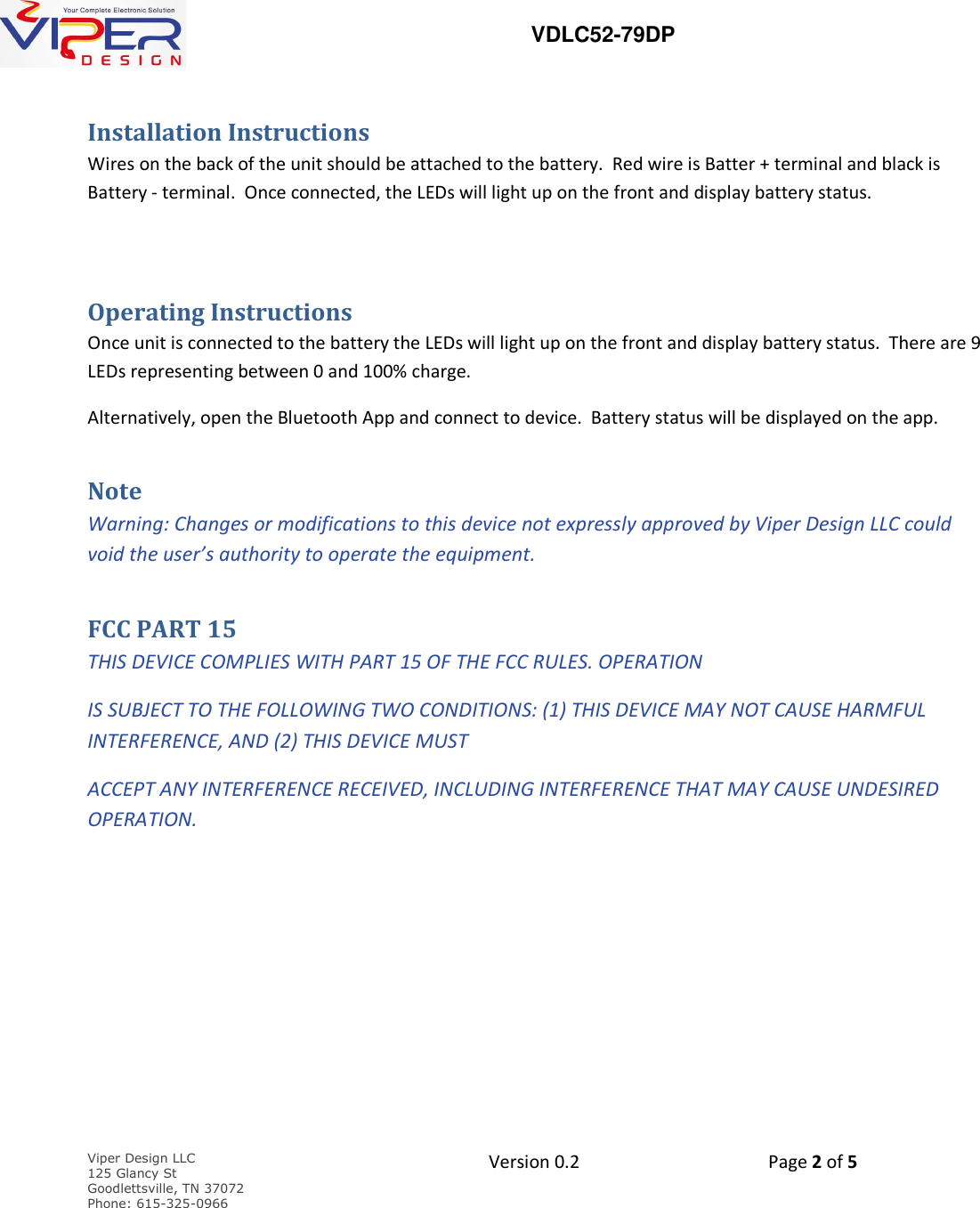

  VDLC52-79DP    Viper Design LLC 125 Glancy St  Goodlettsville, TN 37072 Phone: 615-325-0966  Version 0.2    Page 2 of 5     Installation Instructions Wires on the back of the unit should be attached to the battery.  Red wire is Batter + terminal and black is Battery - terminal.  Once connected, the LEDs will light up on the front and display battery status.  Operating Instructions Once unit is connected to the battery the LEDs will light up on the front and display battery status.  There are 9 LEDs representing between 0 and 100% charge.   Alternatively, open the Bluetooth App and connect to device.  Battery status will be displayed on the app. Note Warning: Changes or modifications to this device not expressly approved by Viper Design LLC could void the user’s authority to operate the equipment. FCC PART 15 THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES. OPERATION IS SUBJECT TO THE FOLLOWING TWO CONDITIONS: (1) THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE, AND (2) THIS DEVICE MUST  ACCEPT ANY INTERFERENCE RECEIVED, INCLUDING INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION.

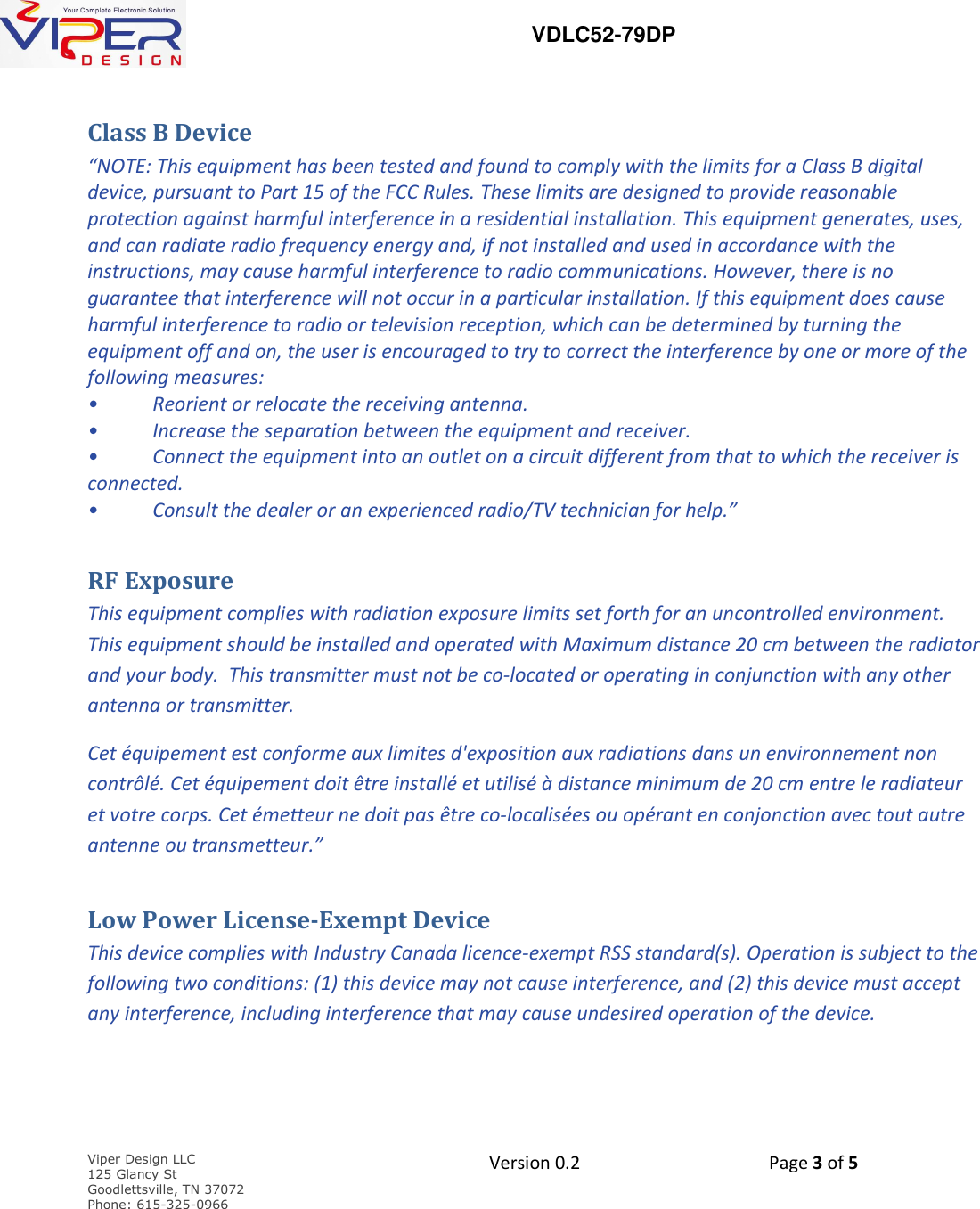

  VDLC52-79DP    Viper Design LLC 125 Glancy St  Goodlettsville, TN 37072 Phone: 615-325-0966  Version 0.2    Page 3 of 5     Class B Device   “NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: •  Reorient or relocate the receiving antenna. •  Increase the separation between the equipment and receiver. •  Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. •  Consult the dealer or an experienced radio/TV technician for help.” RF Exposure This equipment complies with radiation exposure limits set forth for an uncontrolled environment.   This equipment should be installed and operated with Maximum distance 20 cm between the radiator and your body.  This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. Cet équipement est conforme aux limites d'exposition aux radiations dans un environnement non contrôlé. Cet équipement doit être installé et utilisé à distance minimum de 20 cm entre le radiateur et votre corps. Cet émetteur ne doit pas être co-localisées ou opérant en conjonction avec tout autre antenne ou transmetteur.” Low Power License-Exempt Device This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device.

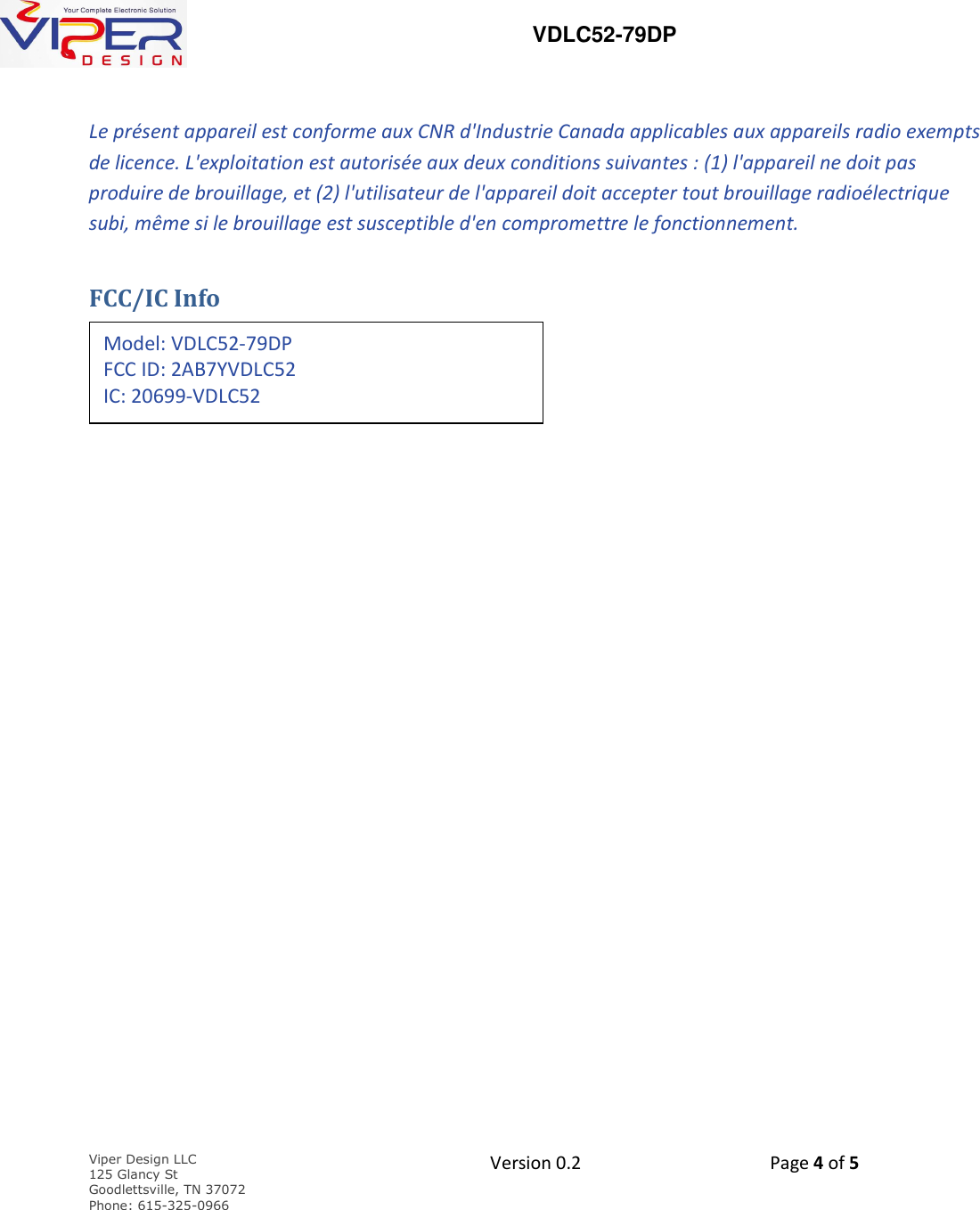

  VDLC52-79DP    Viper Design LLC 125 Glancy St  Goodlettsville, TN 37072 Phone: 615-325-0966  Version 0.2    Page 4 of 5     Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de licence. L'exploitation est autorisée aux deux conditions suivantes : (1) l'appareil ne doit pas produire de brouillage, et (2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en compromettre le fonctionnement. FCC/IC Info         Model: VDLC52-79DP FCC ID: 2AB7YVDLC52 IC: 20699-VDLC52

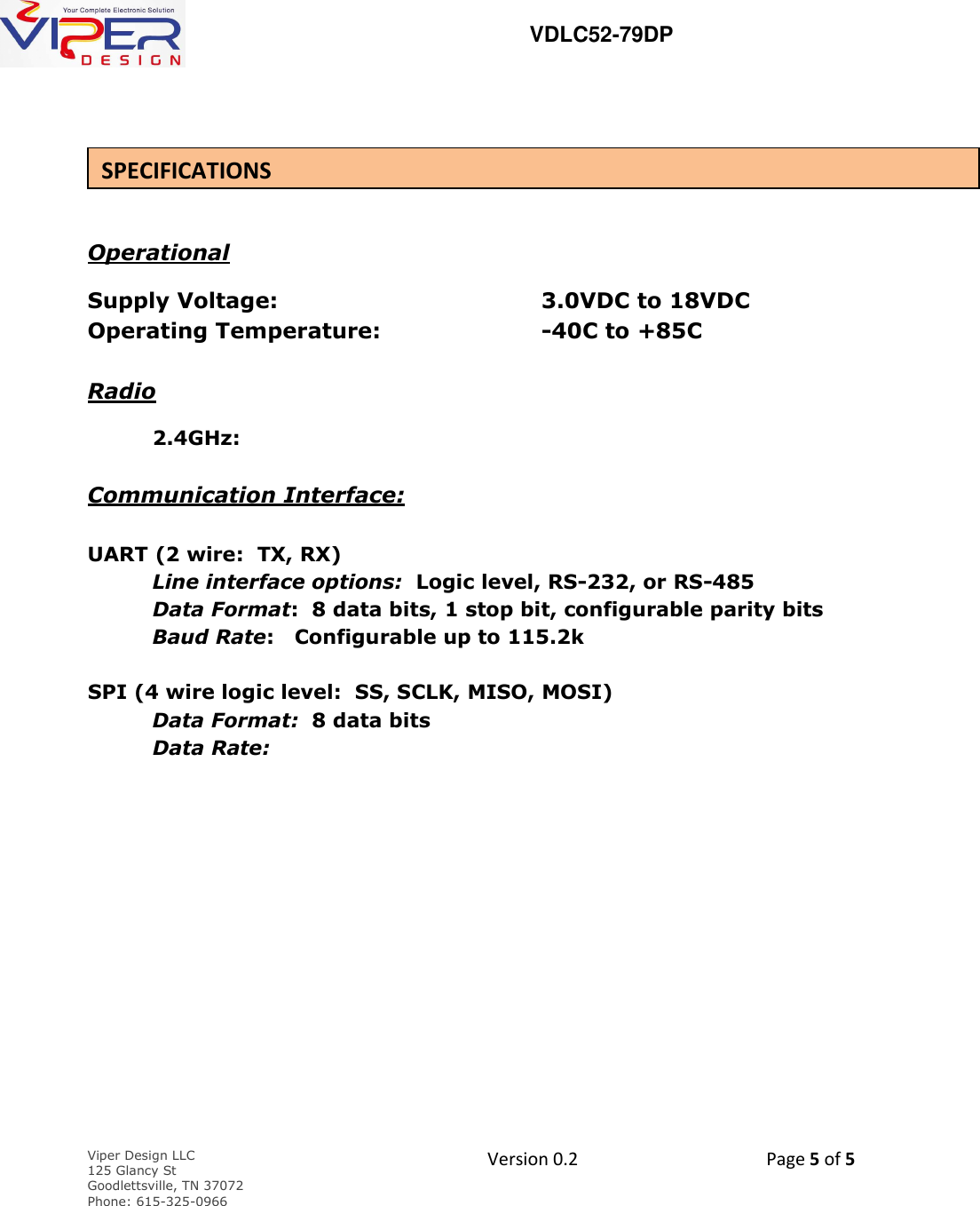

  VDLC52-79DP    Viper Design LLC 125 Glancy St  Goodlettsville, TN 37072 Phone: 615-325-0966  Version 0.2    Page 5 of 5        Operational Supply Voltage:         3.0VDC to 18VDC Operating Temperature:      -40C to +85C    Radio      2.4GHz:             Communication Interface:  UART (2 wire:  TX, RX)  Line interface options:  Logic level, RS-232, or RS-485        Data Format:  8 data bits, 1 stop bit, configurable parity bits      Baud Rate:   Configurable up to 115.2k     SPI (4 wire logic level:  SS, SCLK, MISO, MOSI)      Data Format:  8 data bits      Data Rate:            SPECIFICATIONS
