Vision Automobile Electronics Co ZBRG433 Z-Wave Bridge User Manual Z Bridge CT Clamp Bridge

Vision Automobile Electronics Industrial Co Ltd Z-Wave Bridge Z Bridge CT Clamp Bridge

Users Manual

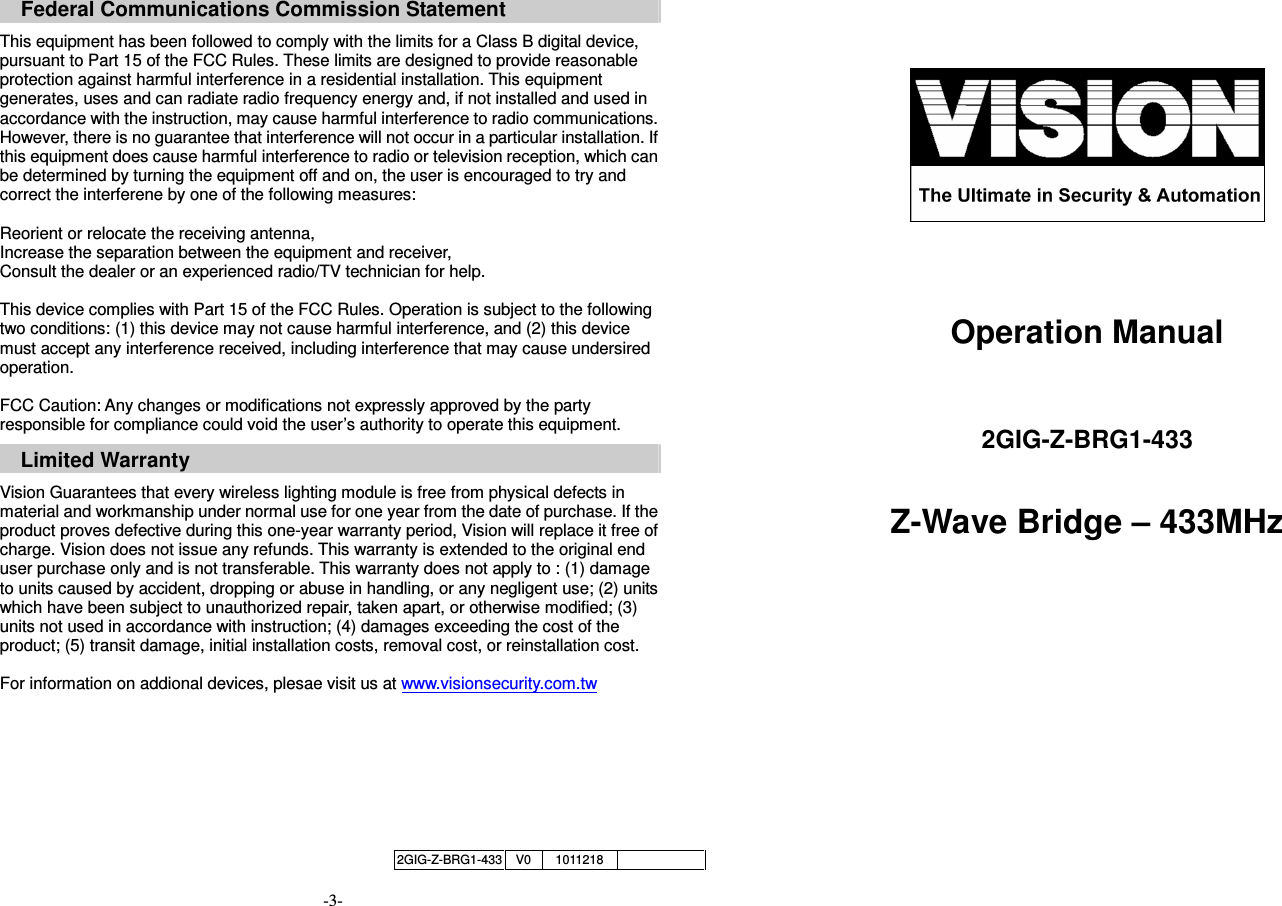

     Federal Communications Commission Statement  This equipment has been followed to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instruction, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try and correct the interferene by one of the following measures:  Reorient or relocate the receiving antenna, Increase the separation between the equipment and receiver, Consult the dealer or an experienced radio/TV technician for help.  This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undersired operation.  FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate this equipment.  Limited Warranty  Vision Guarantees that every wireless lighting module is free from physical defects in material and workmanship under normal use for one year from the date of purchase. If the product proves defective during this one-year warranty period, Vision will replace it free of charge. Vision does not issue any refunds. This warranty is extended to the original end user purchase only and is not transferable. This warranty does not apply to : (1) damage to units caused by accident, dropping or abuse in handling, or any negligent use; (2) units which have been subject to unauthorized repair, taken apart, or otherwise modified; (3) units not used in accordance with instruction; (4) damages exceeding the cost of the product; (5) transit damage, initial installation costs, removal cost, or reinstallation cost.  For information on addional devices, plesae visit us at www.visionsecurity.com.tw        -3-      Operation Manual   2GIG-Z-BRG1-433  Z-Wave Bridge – 433MHz     2GIG-Z-BRG1-433 V0 1011218

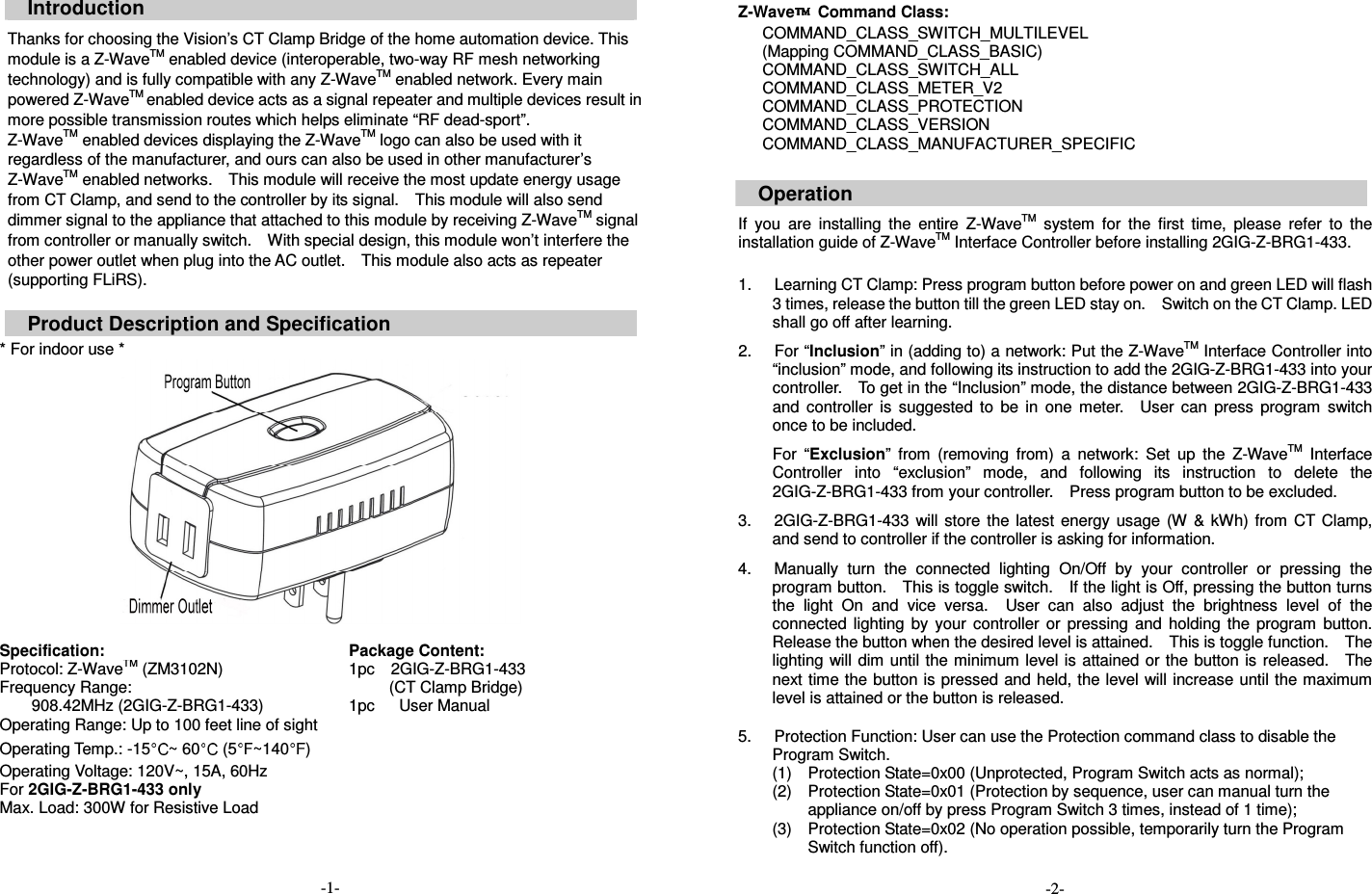

 Introduction  Thanks for choosing the Vision’s CT Clamp Bridge of the home automation device. This module is a Z-WaveTM enabled device (interoperable, two-way RF mesh networking technology) and is fully compatible with any Z-WaveTM enabled network. Every main powered Z-WaveTM enabled device acts as a signal repeater and multiple devices result in more possible transmission routes which helps eliminate “RF dead-sport”. Z-WaveTM enabled devices displaying the Z-WaveTM logo can also be used with it regardless of the manufacturer, and ours can also be used in other manufacturer’s Z-WaveTM enabled networks.    This module will receive the most update energy usage from CT Clamp, and send to the controller by its signal.    This module will also send dimmer signal to the appliance that attached to this module by receiving Z-WaveTM signal from controller or manually switch.    With special design, this module won’t interfere the other power outlet when plug into the AC outlet.    This module also acts as repeater (supporting FLiRS).  Product Description and Specification  * For indoor use *   Specification: Package Content: Protocol: Z-WaveTM (ZM3102N) Frequency Range:   908.42MHz (2GIG-Z-BRG1-433) Operating Range: Up to 100 feet line of sight Operating Temp.: -15 ~ 60  (5 ~140 ) Operating Voltage: 120V~, 15A, 60Hz For 2GIG-Z-BRG1-433 only Max. Load: 300W for Resistive Load                                            -1- 1pc    2GIG-Z-BRG1-433 (CT Clamp Bridge) 1pc      User Manual  Z-Wave   Command Class:       COMMAND_CLASS_SWITCH_MULTILEVEL   (Mapping COMMAND_CLASS_BASIC)       COMMAND_CLASS_SWITCH_ALL       COMMAND_CLASS_METER_V2       COMMAND_CLASS_PROTECTION       COMMAND_CLASS_VERSION       COMMAND_CLASS_MANUFACTURER_SPECIFIC   Operation  If  you  are  installing  the  entire  Z-WaveTM  system  for  the  first  time,  please  refer  to  the installation guide of Z-WaveTM Interface Controller before installing 2GIG-Z-BRG1-433.  1.  Learning CT Clamp: Press program button before power on and green LED will flash 3 times, release the button till the green LED stay on.    Switch on the CT Clamp. LED shall go off after learning. 2.  For “Inclusion” in (adding to) a network: Put the Z-WaveTM Interface Controller into “inclusion” mode, and following its instruction to add the 2GIG-Z-BRG1-433 into your controller.    To get in the “Inclusion” mode, the distance between 2GIG-Z-BRG1-433 and  controller  is  suggested  to  be  in  one  meter.    User  can  press  program  switch once to be included. For  “Exclusion”  from  (removing  from)  a  network:  Set  up  the  Z-WaveTM  Interface Controller  into  “exclusion”  mode,  and  following  its  instruction  to  delete  the 2GIG-Z-BRG1-433 from your controller.    Press program button to be excluded. 3.  2GIG-Z-BRG1-433  will store  the  latest  energy usage  (W  & kWh)  from  CT  Clamp, and send to controller if the controller is asking for information. 4.  Manually  turn  the  connected  lighting  On/Off  by  your  controller  or  pressing  the program button.    This is toggle switch.    If the light is Off, pressing the button turns the  light  On  and  vice  versa.    User  can  also  adjust  the  brightness  level  of  the connected  lighting  by  your  controller  or  pressing  and  holding  the  program  button.   Release the button when the desired level is attained.    This is toggle function.    The lighting will dim until the minimum level is  attained or the button is  released.    The next time the button is pressed and held, the level will increase until the maximum level is attained or the button is released.  5.  Protection Function: User can use the Protection command class to disable the     Program Switch. (1)  Protection State=0x00 (Unprotected, Program Switch acts as normal); (2)  Protection State=0x01 (Protection by sequence, user can manual turn the appliance on/off by press Program Switch 3 times, instead of 1 time); (3)  Protection State=0x02 (No operation possible, temporarily turn the Program Switch function off).    -2-

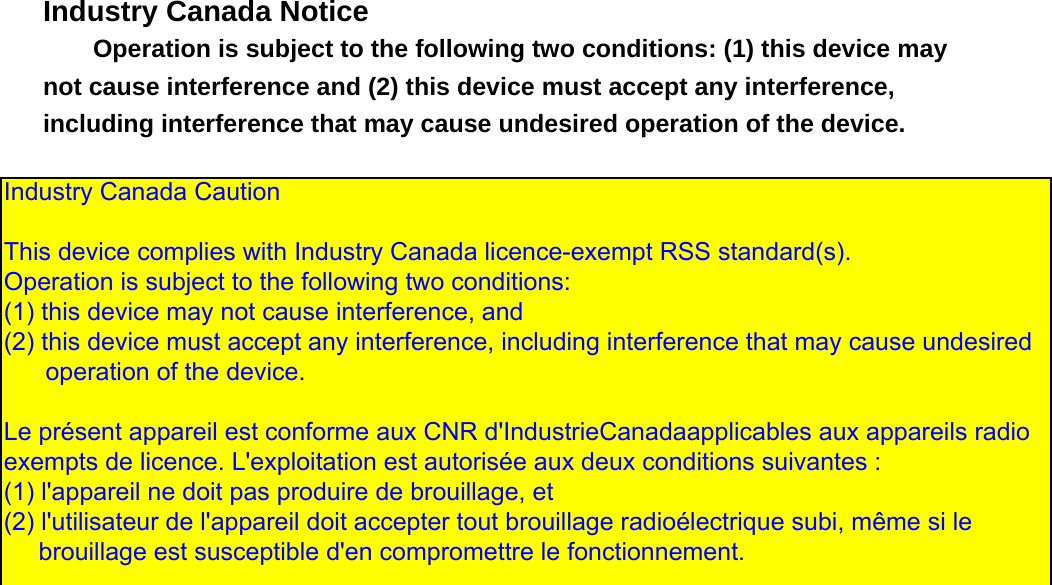

  Industry Canada Notice Operation is subject to the following two conditions: (1) this device may not cause interference and (2) this device must accept any interference, including interference that may cause undesired operation of the device.                    Industry Canada Caution  This device complies with Industry Canada licence-exempt RSS standard(s).  Operation is subject to the following two conditions:  (1) this device may not cause interference, and  (2) this device must accept any interference, including interference that may cause undesired       operation of the device.   Le présent appareil est conforme aux CNR d'IndustrieCanadaapplicables aux appareils radio exempts de licence. L'exploitation est autorisée aux deux conditions suivantes :  (1) l'appareil ne doit pas produire de brouillage, et  (2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le      brouillage est susceptible d'en compromettre le fonctionnement.
