User manual

Federal Communications Commission Statement
This equipment has been followed to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment
generates, uses and can radiate radio frequency energy and, if not installed and used in
accordance with the instruction, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the
user is encouraged to try and correct the interferene by one of the following measures:
Reorient or relocate the receiving antenna,
Increase the separation between the equipment and receiver,
Consult the dealer or an experienced radio/TV technician for help.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following
two conditions: (1) this device may not cause harmful interference, and (2) this device
must accept any interference received, including interference that may cause undersired
operation.
FCC Caution: Any changes or modifications not expressly approved by the party
responsible for compliance could void the user’s authority to operate this equipment.
Limited Warranty
Vision Guarantees that every wireless lighting module is free from physical defects in
material and workmanship under normal use for one year from the date of purchase. If
the product proves defective during this one-year warranty period, Vision will replace it
free of charge. Vision does not issue any refunds. This warranty is extended to the
original end user purchase only and is not transferable. This warranty does not apply to :
(1) damage to units caused by accident, dropping or abuse in handling, or any negligent
use; (2) units which have been subject to unauthorized repair, taken apart, or otherwise
modified; (3) units not used in accordance with instruction; (4) damages exceeding the
cost of the product; (5) transit damage, initial installation costs, removal cost, or
reinstallation cost.
For information on addional devices, plesae visit us at www.visionsecurity.com.tw
-3-
Operation Manual
ZL 7101 US
ZL 7101 CN
ZL 7101 JP
Lamp Dimmer Module
ZL 7201 US
ZL 7201 CN
ZL 7201 JP
Appliance On/Off Module
(Power Plug In Type)
ZL7101/ZL7201
V1
1020717
6B1Z-72001
Introduction
Thanks for choosing the Vision’s lighting control of the home automation device. This
module is a Z-WaveTM enabled device (interoperable, two-way RF mesh networking
technology) and is fully compatible with any Z-WaveTM enabled network. Every main
powered Z-WaveTM enabled device acts as a signal repeater and multiple devices result
in more possible transmission routes which helps eliminate “RF dead-sport”.
Z-WaveTM enabled devices displaying the Z-WaveTM logo can also be used with it
regardless of the manufacturer, and ours can also be used in other manufacturer’s
Z-waveTM enabled networks. This module will send dimmer (ZL 7101) or On/Off (ZL
7201) signal to the appliance that attached to this module by receiving Z-WaveTM signal
from controller or manually switch. With special design, this module won’t interfere the
other power outlet when plug into the AC outlet. This module also acts as repeater
(supporting FLiRS).

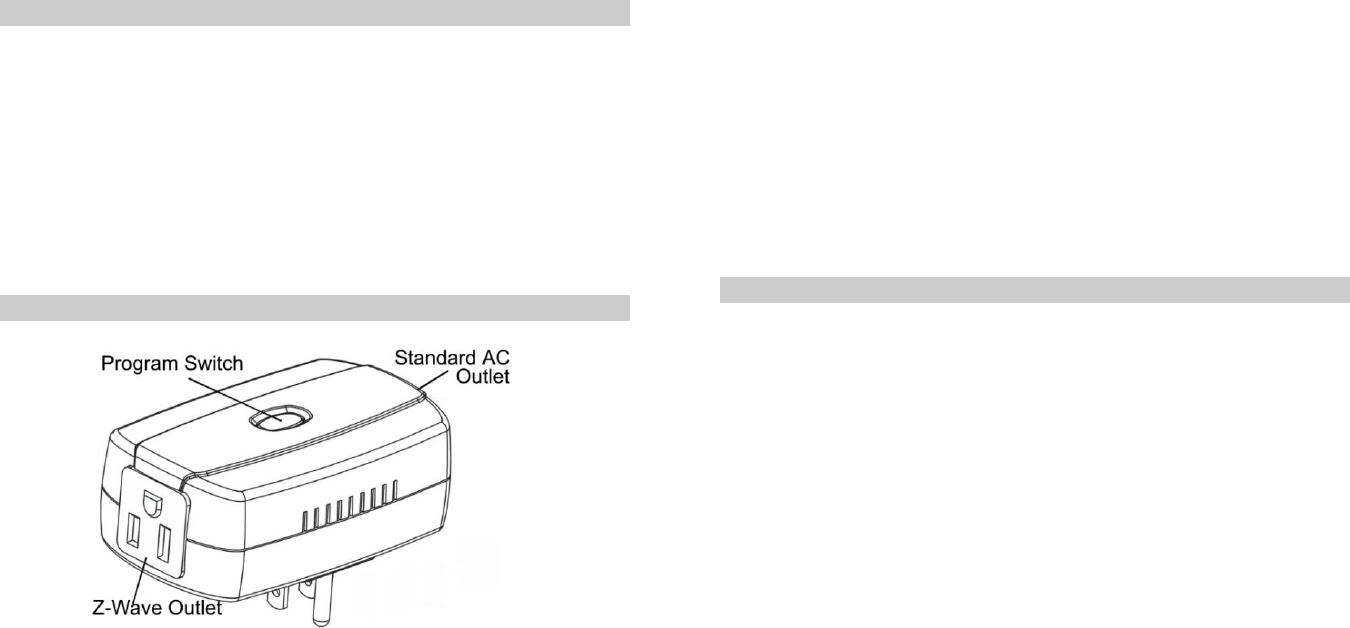

Product Description and Specification
* For indoor use *
Specification:
Protocol: Z-WaveTM (ZM3102N/ZM4102AH)
Frequency Range:
908.42MHz (ZL 7101 / ZL 7201 US)
868.42MHz (ZL 7101 / ZL 7201 CN)
920-928 MHz (ZL 7101 / ZL 7201 JP)
Operating Range: Up to 100 feet line of sight
Operating Temp.: -15°C~ 60°C (5°F~140°F)
Operating Voltage:
100~240VAC
-1-
For ZL7101 only
Resistive Load: 300W for 110VAC
600W for 220VAC
For ZL7201 only
Resistive Load: 1800W for 110VAC
3600W for 220VAC
Z-Wave™ Command Class:
COMMAND_CLASS_MANUFACTURER_SPECIFIC
COMMAND_CLASS_PROTECTION
COMMAND_CLASS_SWITCH_ALL
COMMAND_CLASS_SWITCH_BINARY (for ZL 7201 only)
COMMAND_CLASS_SWITCH_MULTILEVEL (for ZL 7101 only)
COMMAND_CLASS_VERSION
Operation
If you are installing the entire Z-WaveTM system for the first time, please refer to the
installation guide of Z-WaveTM Interface Controller before installing ZL 7101 & ZL 7201.
1. For “Inclusion” in (adding to) a network: Put the Z-WaveTM Interface Controller into
“inclusion” mode, and following its instruction to add the ZL 7101 or ZL 7201 into
your controller. To get in the “Inclusion” mode, the distance between ZL 7101 or ZL
7201 and controller is suggested to be in one meter. By power up to get included for
first time, or press program button once to be included.
For “Exclusion” from (removing from) a network: Set up the Z-WaveTM Interface
Controller into “exclusion” mode, and following its instruction to delete the ZL 7101
or ZL 7201 from your controller. Press program button to be excluded.
2. Manually turn the connected lighting On/Off by your controller or pressing the
program button. This is toggle switch. If the light is OFF, pressing the button
turns the light ON and vice versa.
3. For ZL 7101 only: Adjust the brightness level of the connected lighting by your
controller or pressing and holding the program button. Release the button when
the desired level is attained. This is a toggle function. The lighting will dim until the
minimum level is attained or the button is released. The next time the button is
pressed and held, the level will increase until the maximum level is attained or the
button is released.
4. Protection Function: User can use the Protection command class to disable the
Program Switch. Protection State=0x00 (Unprotected, Program Switch acts as
normal); Protection State=0x01(Protection by sequence, user can manual turn the
appliance on/ff by press Program Switch 3 times, instead of 1 time); Protection
State=0x02(no Operation Possible, temporarily turn the Program Switch function
off).
-2-
