5. Visual feedback message definitions:
Valid Programming: one long beeps and lights green.
Invalid Programming: one long beeps and lights red.
Lock error: three long beeps and lights red flash.
Low battery warning:
Beeps and lights red flash 5 seconds. Please replace with good quality alkaline batteries.
Note: Please re-enter Year-Month-Date-Hour-Minute after batteries are complete dead.
Federal Communications Commission Statement
This equipment has been followed to comply with the limits for a Class B digital device, pursuant to
Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in accordance with the instruction, may cause harmful
interference to radio communications. However, there is no guarantee that interference will not occur
in a particular installation. If this equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment off and on, the user is encouraged to try
and correct the interferene by one of the following measures:
Reorient or relocate the receiving antenna,
Increase the separation between the equipment and receiver,
Consult the dealer or an experienced radio/TV technician for help.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) this device may not cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause undersired operation.
FCC Caution: Any changes or modifications not expressly approved by the party responsible for
compliance could void the user’s authority to operate this equipment.
Limited Warranty
Vision Guarantees that every wireless deadbolt door lock is free from physical defects in material and
workmanship under normal use for one year from the date of purchase. If the product proves
defective during this one-year warranty period, Vision will replace it free of charge. Vision does not
issue any refunds. This warranty is extended to the original end user purchase only and is not
transferable. This warranty does not apply to : (1) damage to units caused by accident, dropping or
abuse in handling, or any negligent use; (2) units which have been subject to unauthorized repair,
taken apart, or otherwise modified; (3) units not used in accordance with instruction; (4) damages
exceeding the cost of the product; (5) transit damage, initial installation costs, removal cost, or
reinstallation cost.
For information on addional devices, plesae visit us at www.visionsecurity.com.tw
-3-
Operation Manual
ZM 1701 EU
ZM 1701 US
ZM 1701 BR
ZM 1701 IN
Wireless Electronic Deadbolt Door Lock
(Real Time Version)
ZM1701
V0
1020613
6B1Z-17001
Introduction
Thanks for choosing the Vision’s wireless deadbolt door lock of the home security device.
This deadbolt lock is a Z-WaveTM enabled device (interoperable, two-way RF mesh
networking technology) and is fully compatible with any Z-WaveTM enabled network.
Every main powered Z-WaveTM enabled device acts as a signal repeater and multiple
devices result in more possible transmission routes which helps eliminate “RF
dead-sport”.
Z-WaveTM enabled devices displaying the Z-WaveTM logo can also be used with it
regardless of the manufacturer, and ours can also be used in other manufacturer’s
Z-waveTM enabled networks. This deadbolt lock monitors who and when the door is
opened and closed and send Z-WaveTM signal to the controller. User can also control
which user code can only unlock the door at certain period of time. It is Security Enable
Z-WaveTM deadbolt lock and a Security Enabled Z-Wave Controller must be used to fully
utilize the product.
Product Description and Specification
* For outdoor use *
* For indoor use *

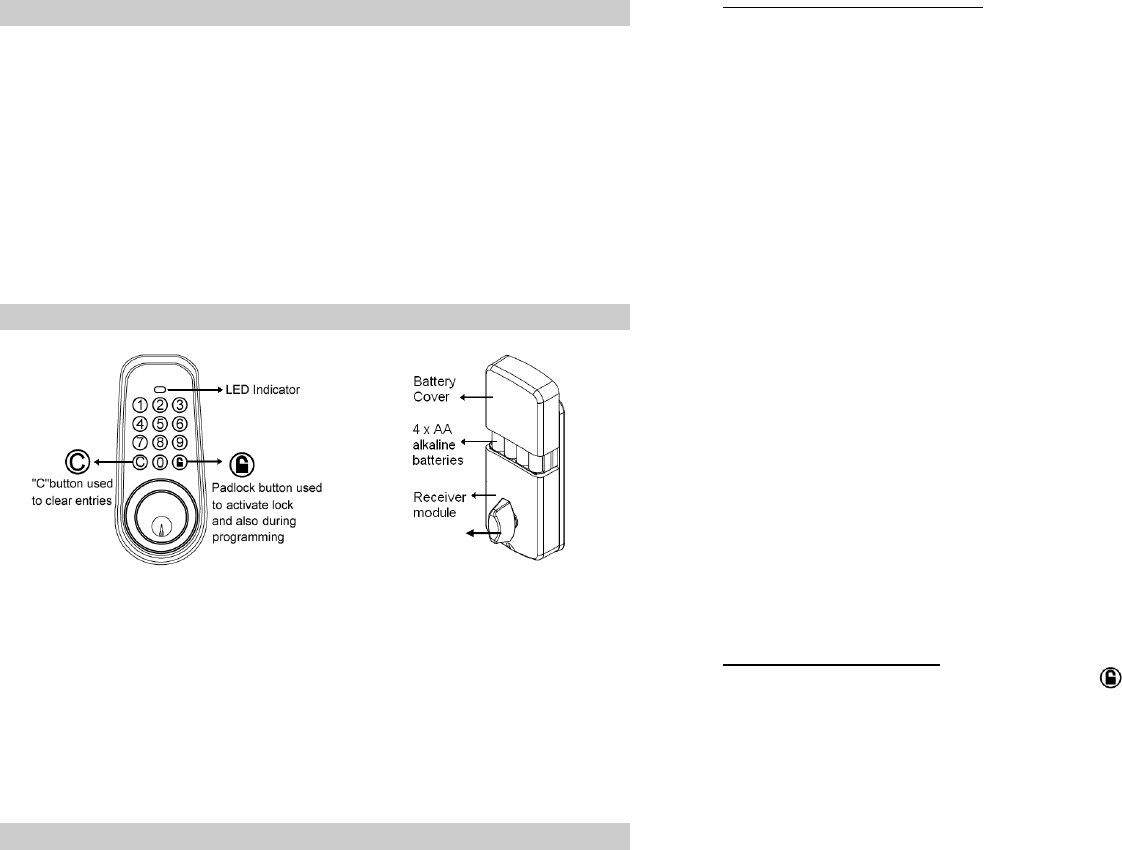

Package Content:
1pc
2pcs
1pc
1pc
1pc
4pc
ZM 1701
Door Key
Operation Manual
Installation Manual
Drilling Template
AA Energizer Battery
Operation
-1-
Operating with Z-WaveTM Network:
If you are installing the entire Z-WaveTM system for the first time, please refer to the
installation guide of Z-WaveTM Interface Controller before installing ZM 1701.
1. Remove battery cover and observe the correct polarity before insert the batteries.
2. For “Inclusion” in (adding to) a network: Put the Z-WaveTM Interface Controller into
“inclusion” mode, and following its instruction to add the ZM 1701 into your controller.
To get in the “Inclusion” mode, the distance between ZM1701 and controller is
suggested to be in one meter. Press Keypads © manually turn
the Turn Piece from inside to be included. User shall hear one long beep sound and
controller shall indicate device is successfully inclusion into network. Inclusion will
take approximately 2 minutes, please wait the Inclusion finished before doing next
step.
For “Exclusion” from (removing from) a network: Set up the Z-WaveTM Interface
Controller into “exclusion” mode, and following its instruction to delete the ZM 1701
from your controller. Press Keypads ©manually turn the Turn
Piece from inside to be excluded.
For “Association”: the Z-Wave™ Interface Controller set “Association”, and
following its instruction to associate the ZM1701 with other device. Support one
group (5 nodes). ZM1701 will report back every time lock and unlock status.
3. How to setup the user code, how to delete user code or delete all user code, please
follow the Z-WaveTM Interface controller’s instruction.
4. ZM 1701 supports the following class command:
COMMAND_CLASS_ASSOCIATION
COMMAND_CLASS_BASIC,
COMMAND_CLASS_BATTERY,
COMMAND_CLASS_DOOR_LOCK
COMMAND_CLASS_DOOR_LOCK_LOGGING
COMMAND_CLASS_USER_CODE,
COMMAND_CLASS_MANUFACTURER_SPECIFIC
COMMAND_CLASS_SCHEDULE_ENTRY_LOCK,
COMMAND_CLASS_SECURITY
COMMAND_CLASS_VERSION
COMMAND_CLASS_TIME_PAPAMETERS
Note: BASIC_SET not mapping & BASIC_GET mapping DOOR_LOCK_OPERATION_
GET (for door lock status report)
Operation the deadbolt lock:
1. Press © and enter a valid user code and press to unlock the door. User shall
hear one beeps and lights green. If code is invalid, user shall hear one beeps and
lights red.
2. If user press invalid code during process, please press © to start over.
3. ZM 1701 Electronic Deadbolt Lock supports up to 13 sets of User code (including
Master code). Each number combination can be 4 digits to 10 digits.
4. ZM 1701 Electronic Deadbolt Lock supports up to 50 schedule slots (year, month, day,
time) to Entry lock for all user in the system.
-2-
