Visonic Inc. Infant Protection Bracelet Introduction
Visonic >
Users Manual V11
Infant Protection Bracelet
User Guide
Part Numbers: 5-BTC00433-A, 5-BTC00433
Elpas
Active RFID Solutions
Page 1 of 4
BTC03U01
General Overview
The Elpas Infant Protection Bracelet from Visonic Technologies (VT) is a rechargeable
miniature, unified active long-range Radio Frequency (RFID) and Infrared device. The
bracelet provides 24/7 infant protection by tracking the real-time location of newborns in
maternity wards and by generating mother-baby mismatch alarms.
The Infant Protection Bracelet is comprised of a
rechargeable tag and a disposable, anti-tamper,
adjustable band made of skin-safe non-latex
materials that can be retightened should the baby
loose weight. When worn by the newborn, the
bracelet automatically transmits removal alert
notifications for keeping facility personnel informed
of deliberate or accidental tampering and/or removal
of the baby from the protected area.
The bracelet’s all-in-one, dual technology transmitter
continuously emits low power, beacon type radio
frequency (RF) messages as well as safe, supplemental infra-red (IR) messages that
identifies the exact real-time location of the new born infant This same RF/IR technologies
also continuously broadcasts the operational status of the tag (such as whether the tag is
moving or at rest, it’s battery state and the condition of its tamper wire). The bracelet's
onboard magnetic low frequency (LF) receiver adds chokepoint area detection so whenever
the new born infant nears a prohibited exit/entrance covered by an Elpas LF Exciter a
security intervention alarm is raised.
Made of tough ABS thermoplastic, the Elpas Infant Protection Bracelet is shower and bath
proof as well as temperature stable. Small in size and weight (39.4mm long, 31.5mm wide
and 14.8mm thick) is rechargeable and includes LED visual indicators that illuminate
whenever the bracelet transmits and/or when a low battery condition exists.
CAUTION: It is important that you read, understand, and follow the
instructions in this document. If you have questions, call your local Visonic
Technologies support representative.
This document is intended for trained system integrators, field service or
maintenance engineers that need to troubleshoot problems in the EIRIS
system, or configurations and processes.
Tamper Transmissions
Transmission Rate: Single burst of 4 IR/RF transmissions (each lasting @ 2ms) and the total burst time
not exceeding 1 second.
Event Transmission Rates in LF Zones
Moving Bracelet
LF Response Time: Onboard LF receiver activates every 0.6 seconds to check if the tag is in a LF zone.
Transmission Rate: Continuous bursts of 4 messages (each lasting @ 2ms), with intervals of 400ms.
Transmitted Message Type: IR/RF Data Message includes ID code of LF Exciter.
Motionless Bracelet
LF Response Time: Onboard LF receiver activates every 15 seconds to check if the tag is in a LF zone.
Transmission Rate when in LF: Continuous bursts of 4 messages (each lasting @ 2ms),
with intervals of 400ms.
Transmitted Message Type: IR/RF Data Message includes ID code of LF Exciter.
Comments on IR Signaling
Attaining the maximum IR reception range depends mainly on direct line of sight between the transmitter
and the receiver. Nevertheless, certain environments allow the signal to reach the receiver in a roundabout
path, by reflection or refraction of the infrared radiation. Tiled floors (uncarpeted), walls, smooth ceilings
(not too high) can reflect IR signals reasonably well, and allowing them to be received even when the
radiating source is pointed away from the receiver. With good indirect reflection path, a range of 5 - 6m
(15 - 18ft) is expected (with poor reflection, the range gets even shorter). The user is therefore strongly
advised to point the transmitter directly at the nearest receiver or, if the location of the nearest receiver is
unknown, to press the transmit button several times while pointing the transmitter in different directions.
It is strongly recommended not install IR receiver outdoors, facing direct sunlight, or near fluorescent
lamps, to prevent interference to IR reception.
The installer is encouraged to test the reception range in the various zones and to install additional
receivers if necessary.
Comments on Radio Signaling
Some limitations have to be considered.
A. Receivers may be blocked by radio signals occurring on or near their operating frequencies,
regardless of the code selected.
B. A receiver can only respond to one transmitted signal at a time.
C. Wireless equipment should be tested regularly (at least once a week) to determine if there are
sources of interference and to protect against faults.
Infant Protection Bracelet – User Guide ___________________________________________________________________________________________
Page 2 of 4
BTC03U01

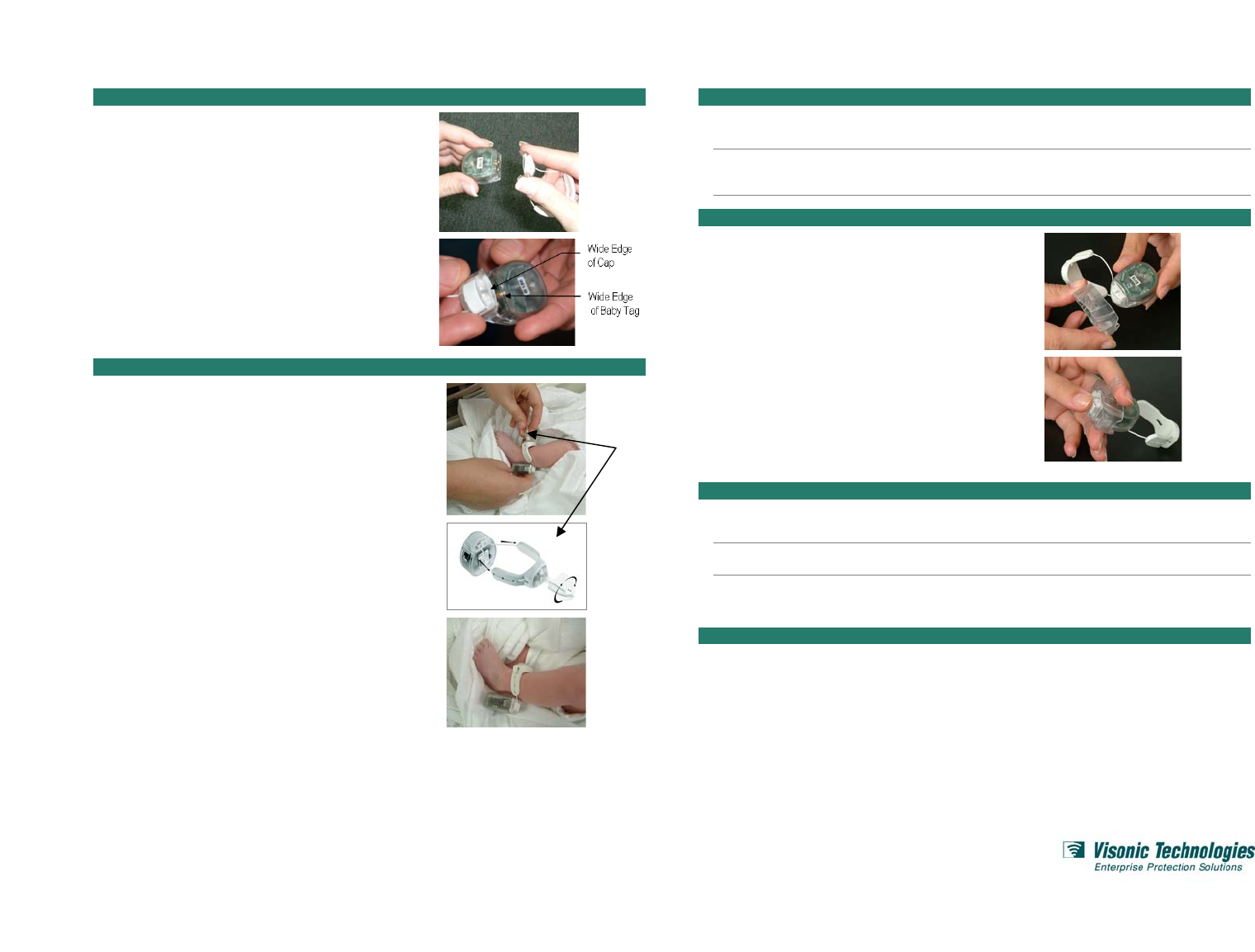

Preparing the Bracelet for Usage
1. Hold the tag with the back side face down in one
hand, and the disposable tamper band in the other.
2. Place the snap-on cap on the tag. Make sure to
match the wide edge of the cap to the wide edge
of the tag. Then verify that the tag is active.
Attaching the Bracelet
1. Place the bracelet around the baby’s ankle such that
the cap part of the disposable tamper band is always
on top.
2. Using the grip key, adjust the band length as
needed to obtain a snug fit around the baby's ankle.
Then remove the grip key by turning it counter-
clockwise
3. Finally position the bracelet on the baby's ankle as
shown here
Removing the Bracelet
1. Using baby-safe scissors cut one of the two tamper wires (around the ankle) as close as
possible to the tag.
NOTE: It is highly recommended to perform a match test between the Mother tag and Infant
Protection Bracelet before removing the bracelet and releasing the mother with the baby
(Refer to the Nurse Station BabyMatch III Users Guide for more information).
Removing the Disposable Tamper Band
2. Push the tag gently through the Extractor Tool
until it clicks into place.
3. Press on the cap and release the tag with your
other hand, thereby removing the disposable
tamper band from the Rechargeable Tag. Then
safely discard the Disposable Kit.
Cleaning and Disinfection Procedures
1. Clean the Rechargeable Tag (with the snap-on cap attached) by using the appropriate
antibacterial solution.
NOTE: Do not remove the used snap-on cap prior to cleaning (this allows the contacts to remain free
of cleaning solutions, shorts, etc).
2. Remove the used Disposable Tamper Band and with a soft cloth or a wipe, clean the top
part of the Rechargeable Tag.
Tag Recharging
1. Check that the LEDs are OFF before inserting tag in Battery Charger’s cradle. If the
green LED is ON, wait 5 seconds for it to turn OFF.
2. Snap the tag into the Charger to lock it into position. If the Rechargeable Tag is placed
incorrectly in the Charger, it will not snap into place.
3. Refer to the Charger’s user guide for additional Instructions.
Infant Protection Bracelet – User Guide ___________________________________________________________________________________________
Page 3 of 4
BTC03U01
Specifications
Electrical
Radio Transmission Rates:
▪ IR: In-motion / Motionless / While Charging
▪ RF: In-motion / Motionless / While Charging
Every 7.5 seconds / 15 seconds / 120 seconds
Supervision message every 15 seconds/15 seconds/120 seconds,
each lasting @ 2ms.
RF Transmission Rate
upon entry into LF area Burst of 4 messages (each lasting @ 2ms), with intervals of 400ms
Tamper Transmission Rate Burst of 4 messages (each lasting @ 2ms), with intervals of 400ms
Electrical Power Source One Lithium Ion rechargeable battery pack
Battery Life Approximately 1 week between recharges
Status Indications Low battery condition: Pulsating red LED
RF and IR transmissions: Pulsating green LED
Badge ID code Unique factory programmed ID
General
Construction Polymer plastic
Physical Dimensions 39.4 X 31.5 X 14.8 mm (1.55 x 1.24 x 0.582 inches)
Weight (assembled) 20 grams (0.75 ounces) approximate
Temperature & Humidity Temp: -10°C to 70°C (14°F to 158°F), Humidity: 20% to 80% non-condensing
Tag Housing IP66 water rated enclosure
Bracelet Configuration IP55 water rated configuration
Warranty One year limited warranty (excluding battery)
Compliance Standards EN 300 220-3, EN301 489-03, EN50130-4:95+A1(98) +A2(03), EN60950-1:01,
EN 60601-1/2,FCC Part 15.231 Level C, FCC ID#: GSA-BTC00433 (433.92 MHz)
Ordering Details 5-BTC09433
Part Information
5-BTC00433-A Rechargeable Tag, IR/RF/LF. 433MHz, 7.5/15/60
5-BTC00433 Pack of 10 Rechargeable Tags, includes 2 extractors
5-BTC09433 Dummy Rechargeable Tag
Accessories
5-CRG90001 Charger, 6 position, European standard
5-CRG90001-1 Charger, 6 position, US standard
5-CRG90001-2 Charger, 6 position, UK standard
5-BTC90001-1 Disposable Tamper Band, Pediatric,
24cm maximum diameter, (25 units)
5-BTC90001 Disposable Tamper Band, Infant,
16cm maximum diameter, (50 units)
5-BTC90003 Extractor, Infant (10 units)
5-BTC90006 Grip key w/lanyard (set of 5)
Standards Compliance
This device complies with Part 15 of the FCC Rules; and its operation is subject to
the following two conditions:
• This device may not cause harmful interference
• This device must accept any interference received, including interference
that may cause undesired operation.
For a Class B digital device or peripheral, the instructions furnished the user shall
include the following or similar statement, placed in a prominent location in the
text of the manual:
NOTE: This equipment has been tested and found to comply with the limits for a
Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates uses and can radiate radio
frequency energy and, if not installed and used in accordance with the instructions,
may cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation.
If this equipment does cause harmful interference to radio or television reception,
which can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the following
measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to
which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
Warning!
Changes or modifications to this equipment not expressly approved by the party
responsible for compliance (Visonic Technologies Ltd.) could void the user’s
authority to operate the equipment.
Infant Protection Bracelet – User Guide ___________________________________________________________________________________________
Page 4 of 4
BTC03U01
W.E.E.E. Product Recycling Declaration
For information regarding the recycling of this product you must contact the company from which you orignially purchased it. If you are
discarding this product and not returning it for repair then you must ensure that it is returned as identified by your supplier. This product is not
to be thrown away with everyday waste.
Directive 2002/96/EC Waste Electrical and Electronic Equipment
Infant Protection Bracelet – User Guide_V11 Modifications Reserved Printed Nov. 2007
Product Warranty
Visonic Technologies Ltd., and its affiliates, (hereinafter collectively referred to as "the Manufacturer")
warrants its products (hereinafter referred to as "the Product”) to be free of defects in materials and
workmanship under normal operating conditions and use for a period of one year from the date of
shipment by the Manufacturer. The Manufacturer's obligations shall be limited within the warranty period,
at its option, to repair or to replace the defective Product or any defective component or part thereof. To
exercise this warranty, the product must be returned to the manufacturer freight prepaid and insured.
This warranty does not apply to repairs or replacement caused by improper installation, Product misuse,
failure to follow installation or operating instructions, alteration, abuse, accident, tampering, repair by
anyone other than the Manufacturer, external causes, and failure to perform required preventive
maintenance. This warranty also does not apply to any products, accessories, or attachments used in
conjunction with the Product, including batteries, which shall be covered solely by their own warranties, if
any. The Manufacturer shall not be liable for any damage or loss whatsoever, whether directly, indirectly,
incidentally, consequentially or otherwise, resulting from a malfunction of the Product due to products,
accessories, or attachments of others, including batteries, used in conjunction with the Product.
THE MANUFACTURER MAKES NO EXPRESS WARRANTIES EXCEPT THOSE STATED IN THIS STATEMENT.
THE MANUFACTURER DISCLAIMS ALL OTHER WARRANTIES, EXPRESS OR IMPLIED, INCLUDING
WITHOUT LIMITATION IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR
PURPOSE. THE MANUFACTURER’S SOLE RESPONSIBILITY FOR WARRANTY CLAIMS IS LIMITED TO
REPAIR OR TO REPLACE AS SET FORTH IN THIS STATEMENT.
The Manufacturer shall have no liability for any death, personal injury, property damage, or other loss
whether direct, indirect, incidental, consequential, or otherwise, based on a claim that the Product failed to
function. However, if the Manufacturer is held liable, whether directly or indirectly, for any loss or damage
arising under this limited warranty or otherwise, regardless of cause or origin, the Manufacturer's
maximum liability shall be limited to the purchase price of the Product, which shall be fixed as liquidated
damages and not as a penalty, and shall be the complete and exclusive liability of the Manufacturer.
The Manufacturer shall not, under any circumstances whatsoever, be liable for any inaccuracy, error of
judgment, default, or negligence of the Manufacturer, its employees, officers, agents, or any other party,
or of the purchaser or user, arising from any assistance or communication of any kind regarding the
configuration, design, installation, or creation of security system involving the Product, that being the
responsibility of the purchaser or user.
If the Manufacturer is unable to make such repair or replacement, the Manufacturer’s entire liability shall
be limited to the cost of a reasonable substitute product. The Manufacturer shall not be responsible for
any dismantling, installation, reinstallation, purchasing, shipping, insurance, or any similar charges.
The Manufacturer shall have no liability for any damages, including without limitation, any direct, indirect,
incidental, special, or consequential damages, expenses, costs, profits, lost savings or earnings, or other
damages arising out of the use of the Product or the removal, installation, reinstallation, repair or
replacement of the Product or any related events. In the event that there is any liability against the
Manufacturer, such liability shall be limited to the purchase price of the Product which amount shall be
fixed as liquidated damages.
The purchaser and user understand that this Product may be compromised or circumvented by intentional
acts; that the Product will not in all cases prevent death, personal injury, property damage, or other loss
resulting from burglary, robbery, fire or other causes; and that the Product will not in all cases provide
adequate warning or protection. The purchaser and user also understand that a properly installed and
maintained alarm may reduce the risk of events such as burglary, robbery, and fire without warning, but it
is not insurance or a guarantee that such events will not occur or that there will be no death, personal
injury, property damage, or other loss as a result of such events.
By purchasing the Product, the purchaser and user shall defend, indemnify and hold the Manufacturer, its
officers, directors, affiliates, subsidiaries, agents, servants, employees, and authorized representatives
harmless from and against any and all claims, suits, costs, damages, and judgments incurred, claimed, or
sustained whether for death, personal injury, property damage, or otherwise, because of or in any way
related to the configuration, design, installation, or creation of a security system involving the Product, and
the use, sale, distribution, and installation of the Product, including payment of any and all attorney’s fees,
costs, and expenses incurred as a result of any such events.
The purchaser or user should follow the Product installation and operation instructions and test the
Product and the entire system at least once each week. For various reasons, including but not limited to
changes in environmental conditions, electric, electronic, or electromagnetic disruptions, and tampering,
the Product may not perform as expected. The purchaser and user are advised to take all necessary
precautions for the protection and safety of persons and property.
This statement provides certain legal rights. Other rights may vary by state or country. Under certain
circumstances, some states or countries may not allow exclusion or limitation of incidental or
consequential damages or implied warranties, so the above exclusions may not apply under those
circumstances and in those states or countries. The Manufacturer reserves the right to modify this
statement at any time, in its sole discretion without notice to any purchaser or user. However, this
statement shall not be modified or varied except by the Manufacturer in writing, and the Manufacturer does not
authorize any single individual to act on its behalf to modify or vary this statement
.
Manufactured In Israel
VT World Headquarters
Tel Aviv Israel
Tel: +972 3 7681400 *
marketing@visonictech.com
VT Americas
Bloomfield, CT (USA)
Tel: 800-223-0020
vta_marketing@visonictech.com
VT United Kingdom
Beckenham Kent BR3 9BF UK
Tel: +44-870-730-0840
vtuk_marketing@visonictech.com
Visonic GmbH
D-40215 Düsseldorf, Germany
Tel: +49-(0)-221-600-696-0 *
support@visonictech.de
