Users Manual
D-300431 1
DUET
DUETDUET
DUET-
--
-AM C/O
AM C/OAM C/O
AM C/O
Dual-Technology Microwave/PIR Intrusion Detector
Installation Instructions
1. FEATURES
1. FEATURES1. FEATURES
1. FEATURES
• Combined Fresnel and cylindrical optics improves detection
range and false alarm immunity.
• Normally closed and normally open alarm outputs.
• Look-down "creep zone" lens.
• True Motion Recognition™ (TMR) algorithm (patented) for
recognition of true motion of a human body.
• DRO-stabilized MW microstrip technology.
• MW Motion Simulator simulates the effect of a human body
moving in the MW field (patent pending for MW self-test).
• Range control for adjusting the MW coverage.
• PIR self-test by applying a short heat pulse.
• Temperature compensation for the PIR section.
• Unique tamper protection mechanism.
• Programmable motion event
counter (1 or 2 events).
• Simple-to-use, three-position
vertical adjustment.
• TEST input to enable/disable
the walk test LED remotely
(per
new European standard).
• Relay output for trouble.
• Anti-masking protection.
• White light protection.
• Optional swivel brackets for
wall or ceiling installation.
MICROWAVE
DETECTOR
(HIDDEN)
LED (VISIBLE
THROUGH
LENS WHEN
ILLUMINATED)
CREEP
ZONE
LENS
PIR
SENSOR
(BEHIND
LENS)
SCREW

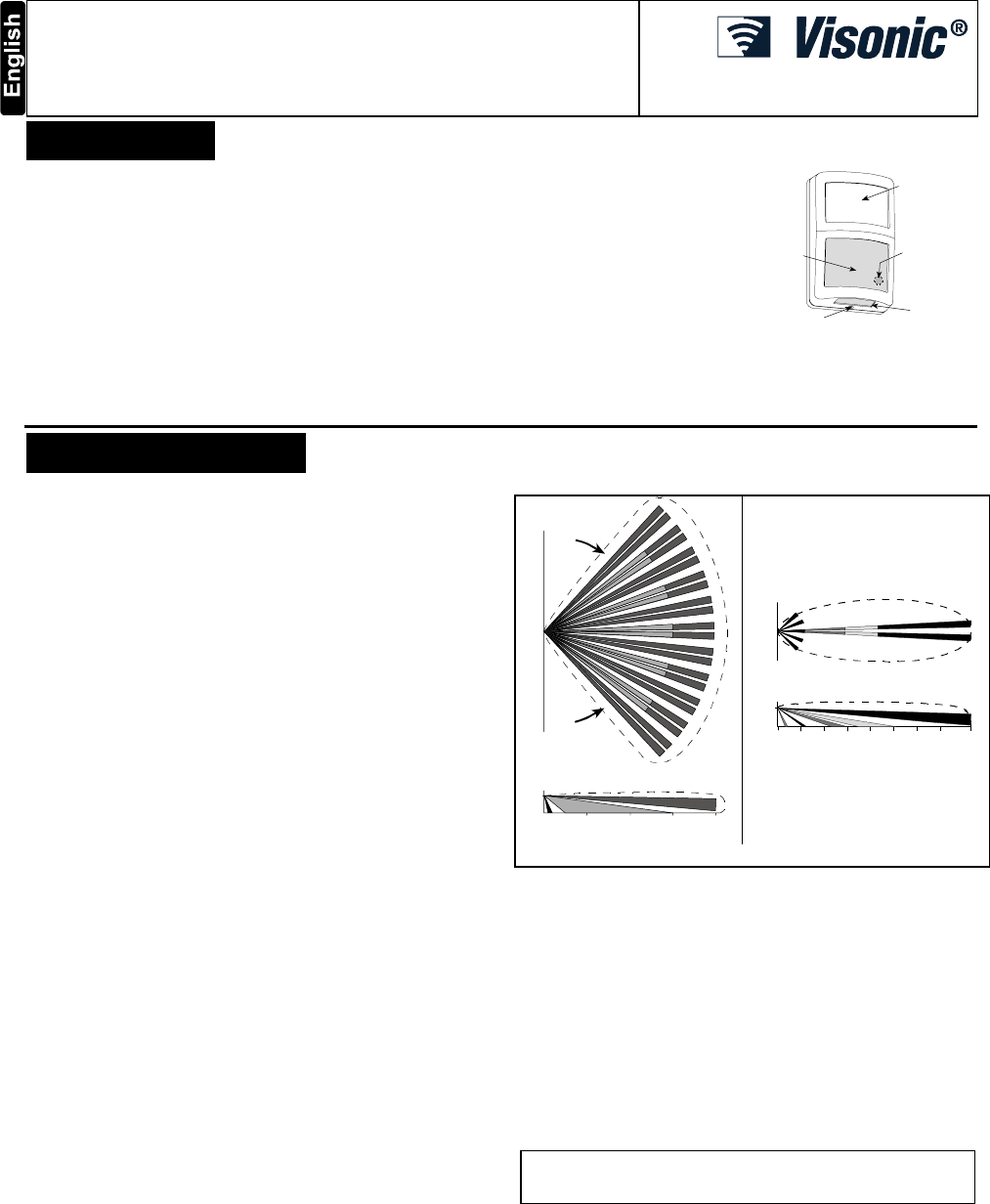

Figure 1. General View
2. SPECIFICATIONS
2. SPECIFICATIONS2. SPECIFICATIONS
2. SPECIFICATIONS
Input Voltage: 9 to 16 VDC
Current Drain @ 12 VDC: 21 mA standby, 29 mA max.
PIR SECTION
Sensor: Low noise dual-element pyroelectric type
Tripping Indication: LED flashes green for up to 5 seconds
Motion Event Verification Counter: Selectable, 1 or 2 events
Front Lens Data (see Figure 2)
Beams: 32 in two layers (10 curtain beams in bottom layer)
Max. Coverage: 20 x 20 m (60 x 60 ft) / 90° field of view
Optional Long Range Lens 34D (see figure 2)
Beams: 16
Max. Coverage: 25x3m (82x10 ft.) / 6° field of view
Vertical Adjustment: FAR, MID and NEAR, by sliding the circuit
board along a 3-position scale.
MW SECTION
Oscillator: Microstrip DRO-stabilized Doppler sensor
Frequency: 10.687 GHz (in the UK only) or 10.525 GHz (10.525
GHz for movement detector is prohibited or restricted from use in
Austria, Czech Republic, Estonia, Finland, French, Germany,
Portugal, Slovak Republic, Turkey, UK, Spain and Sweden).
Detection Range Control: Adjustable from 25% to 100%
Tripping Indication: LED lights green for up to 5 seconds
ALARM, TAMPER & TROUBLE DATA
Alarm Indication: LED lights red for 1.5 to 5 seconds if both
sensors trip
Alarm Output (NC): Solid state, N.C., 0.1 A resistive / 30 VDC;
35
Ω
max. internal resistance. Contact opens (1.5 - 5 seconds) in
case of alarm event or opens constantly in case of power failure.
NO/TRB Output: Solid state, 0.1 A resistive / 30 VDC; 35
Ω
max.
internal resistance. If DIP switch 3 is in OFF position the contact
is normally open type. The contact closes in case of alarm (1.5 -
5 seconds). If DIP switch 3 is in ON position the contact is
normally closed type. The contact opens in case of mask
detection or in case of internal circuit failure. The contact closes
constantly in case of power failure regardless of DIP switch 3
position.
Alarm Duration: 1.5 to 5 seconds
Tamper Switch: N.C., rated at 50 mA resistive / 30 VDC
Masking Detection Delay: About 60 seconds
Trouble/ Masking Indication: LED alternately flashes green and
red and if DIP switch 3 is in ON position, NO/TRB relay opens
until the detector is reset.
20 m151050
2 m
TOP VIEW
SIDE VIEW (”FAR” POSITION)
90°
CURTAINS UPPER LAYER
60 ft453015
Optional long range
Lens No. 34D
10 20 30 40 50 60 70
2m
(6.5ft)
SIDE VIEW
TOP VIEW
3 6 9 1215182182 ft
25 m
Figure 2. Coverage Pattern
MOUNTING
Form: Surface or corner (no brackets); surface, corner and ceiling
with brackets
Height: 2 - 2.6 m (6.5 - 8.5 ft) without bracket, 2 - 3.6 m (6.5 - 12
ft) with bracket.
Caution: with brackets in use, effective detection ranges may differ
from those indicated in Figures 2 and 8.
Optional Brackets: BR-1 (surface), BR-2 (corner) and BR-3 (ceiling)
ENVIRONMENTAL
RFI Protection: >30 V/m up to 1000 MHz.
Operating Temperatures: -10°C to 50°C (14°F to 122°F).
Storage Temperatures: -20°C to 60°C (-4°F to 140°F).
Standards: Complies with Part 15 of the FCC Rules. EN 50131-1
Grade 2 Class II.
This
device complies with the essential requirements and provisions
of Directive 1999/5/EC of the European Parliament and of the Council
of
9
March
1999
on
radio
and
telecommunications
terminal
equipment.
See frequency restriction under "Frequency", at the left side.
PHYSICAL
Dimensions (H X W X D): 123 x 76 x 48 mm (4-13/16 x 3 x 1-7/8 in.)
Weight: 145 g (4.5 oz).
PATENTS
U.S. Patents 5,237,330 and 5,693,943
2 D-300431
3. INSTALLATION
3. INSTALLATION3. INSTALLATION
3. INSTALLATION

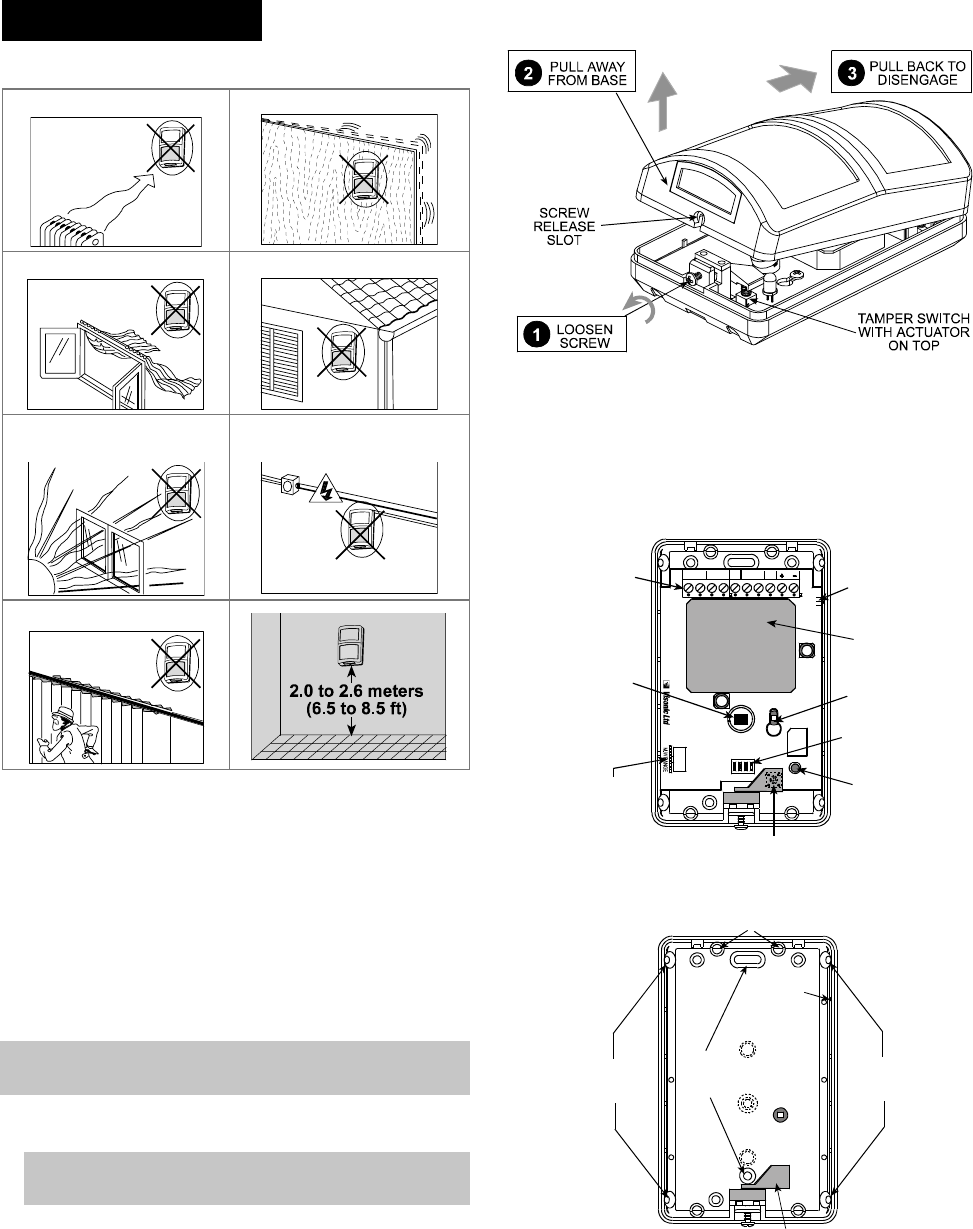

3.1 Installation Tips
To minimize false alarms:
Do not aim at heat sources
Mount on solid, stable surfaces
Do not expose to air drafts
Do not install outdoors
Prevent direct sunlight from
reaching the detector
Keep wiring away from
electrical power cables
Do not install behind partitions
In addition, a few important rules must be observed while selecting a
mounting location:
A. Microwave radiation passes through glass and non-metallic walls.
Be sure to adjust the MW range so that it does not exceed the
room limits, or else motion in the next room or moving traffic
along the outer side of the wall will cause the MW sensor to trip.
B. Large reflecting objects (especially metals) in the coverage area
can distort the microwave sensor's coverage pattern.
C. If two DUET-AM C/O units are installed in the same room or on
opposite sides of a shared wall, they should not face each other
and must be mounted at least 2 meters apart.
D. Do not install the DUET-AM C/O in places where one of the two
sensor circuits alarms constantly or intermittently, due to
environmental interference.
E. DUET-AM C/O users are advised to mount the unit in
locations where inadvertent approach to less than 1 m (3 ft)
from the detector is unlikely to occur.
3.2 Mounting
A. Remove the front cover as shown in Figure 3.
IMPORTANT: When re-mounting the cover, remember to fasten
the screw well - this will force the tamper switch actuator upon the
tamper switch and will press it fully in.
B. Loosen the vertical adjustment screw, slide the PCB up and
remove it via the “keyhole” (see Figure 4).
C. Put the PCB aside until required again.
D. Refer to Figure 5 and punch out the mounting knockouts at
the rear of the base (for surface mounting) or at the angled
sides (for corner mounting).
E.
Punch out any one of the wiring knockouts shown in Figure 5.
Figure 3. Cover Removal
F. Hold the base against the wall at the selected installation location,
mark the points for drilling and drill the holes. Insert the plastic
dowels (supplied) if necessary.
G. Pass the wires through the wiring inlets into the base and attach
the base to the wall using the screws (supplied).
H. Return the PCB to its place within the base.
I. Proceed to wire the terminal block as instructed in Para. 3.3.
ALARM TROUBLE EOL TAMP TST 12V
FAR
MID
NEAR
DUET AM
MIN
MAX
ON
1234
TERMINAL
BLOCK
PIR
SENSOR
MODE
SELECTOR
TAMPER SWITCH (HIDDEN
UNDER ACTUATOR)
DUAL
COLOR
LED
KEYHOLE
SHAPED
SLOT
MW
MODULE
VERTICAL
ADJUST.
SCALE
MW LEVEL
CONTROL
Figure 4. PCB Layout
SURFACE
MOUNTING
KNOCKOUTS
CORNER
MOUNTING
KNOCKOUTS
WIRING
KNOCKOUTS
CORNER
MOUNTING
KNOCKOUTS
POINT
TAMPER SWITCH
ACTUATOR
Figure 5. Base after PCB Removal
3.3 Wiring
Refer to the following illustrations and wire up the terminal block,
according to DIP switch 3 position.
D-300431 3

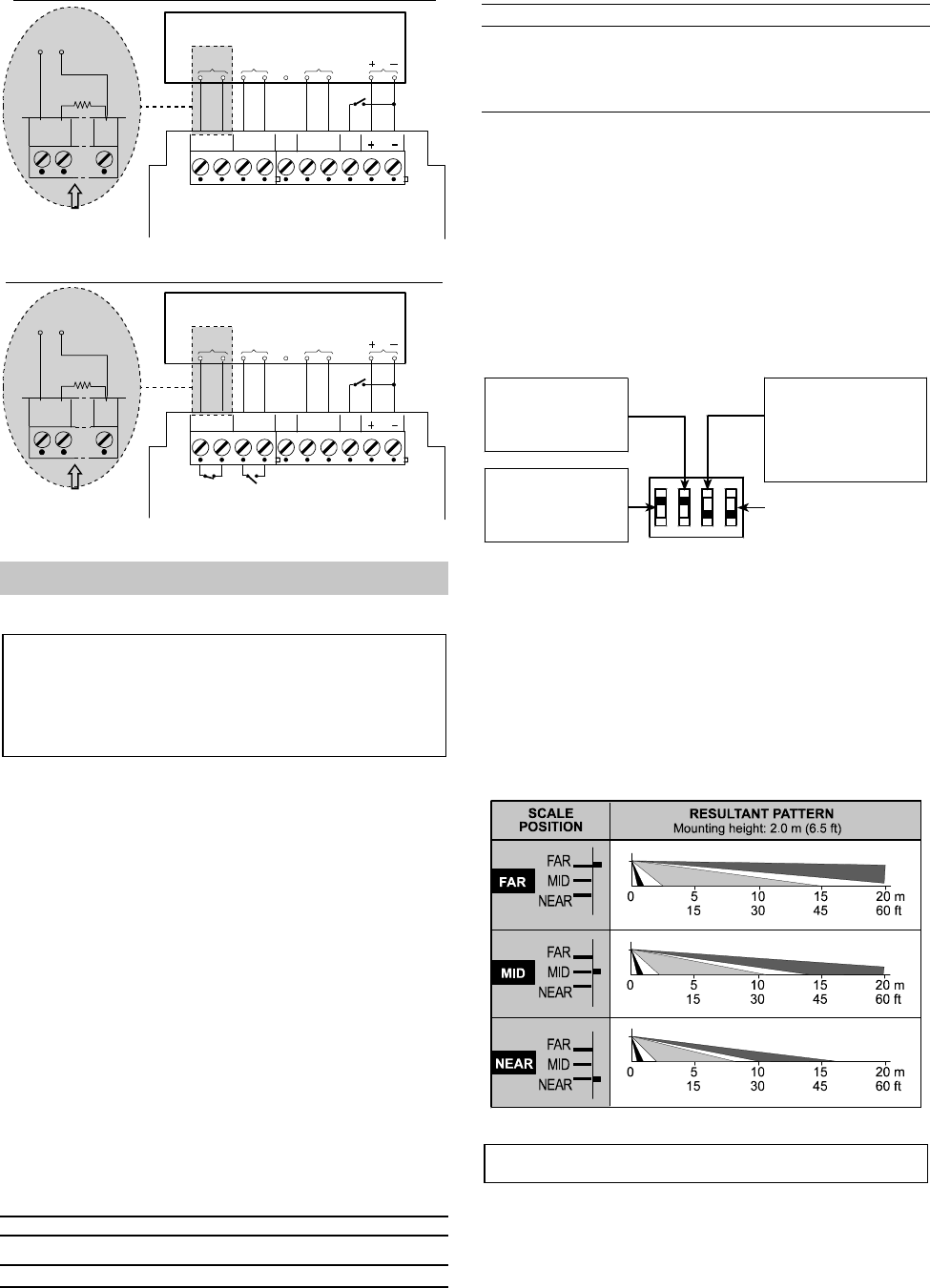

Applicable when DIP switch 3 is in ON position (anti masking ON):
EOL TAMP TST 12V
24 H
TAMPER
ZONE
ALARM SYSTEM TERMINALS
BURGLAR
ZONE
9-16 VDC
OUTPUT
24 H
TROUBLE
ZONE
DUET-AM TERMINAL BLOCK
WALK
TEST
SWITCH
USING AN E.O.L. RESISTOR
WHEN THE CONTROL PANEL
IS SET FOR E.O.L. OPERATION
NC
BURGLAR
ZONE
EOL
EOL
RESISTOR
NC NO/TRB
Applicable when DIP switch 3 is in OFF position (anti masking OFF):
NC NO/TRB EOL TAMP TST 12V
24 H
TAMPER
ZONE
ALARM SYSTEM TERMINALS
BURGLAR
ZONE N.C.
9-16 VDC
OUTPUT
DUET-AM TERMINAL BLOCK
WALK
TEST
SWITCH
USING AN E.O.L. RESISTOR
WHEN THE CONTROL PANEL
IS SET FOR E.O.L. OPERATION
NC
BURGLAR
ZONE
EOL
EOL
RESISTOR
BURGLAR
ZONE N.O.
Figure 6. Terminal Block Wiring
IMPORTANT: To comply with CE safety requirements, connect to
CE-approved control panels with current-limited DC output.
Note: Use RTV to seal the base opening(s) to prevent insects from
entering the detector.
TST INPUT LOGIC
The dual color LED may be enabled remotely for walk testing with a
test switch connected to the TST input as shown in Figure 6:
TST input grounded - LED active
TST input floating or high (+12V) - LED inactive (unless mode
switch 2 is ON).
3.4 The Power-up Process
After connecting the (+) and (–) terminals to the power source, the
DUET-AM C/O starts a 60-second warm-up period, indicated by
alternate flashing of the green and red lights.
Caution! If the alternate flashing of the red and green lights does not
stop within 60 seconds, a failure has been detected by the self-test
circuitry or, if mode switch 3 is set to ON, the unit may be masked
(refer to Para. 3.5).
3.5 What Happens in Case of Masking?
Attention! The following procedure is true only while mode switch 3
is in the ON position.
If an attempt is made to stick masking material over the lens or put
a masking object close to the lens, a trouble alert will result about 60
seconds after masking:
• The LED will flash red and green alternately;
• The TRB relay will open and will remain so until masking is
removed and the detector is reset (see Para. 3.13 for
procedure).
3.6 Visual Indications
The dual color LED is used to signal various alarm and trouble
messages as shown in Table 1 below:
Table 1. Interpreting the Visual Indications
Visual Indication
Significance
None No detection
Steady green (5 seconds) MW walk-test detection
Flashing green PIR walk-test detection
Steady red (1.5-5 seconds) Alarm: MW + PIR detection
Flashing red and - Trouble is being detected (or
green (alternately) masking if mode switch 3 is ON)
- Initial warm-up routine (stops 60
seconds after power up).
Notes:
1. During walk testing, the green light glows steadily (MW detection)
or flashes (PIR detection), depending on which one of the two
sensors discovered the movement first. Upon subsequent
discovery of the movement by the other sensor, the green light
goes off and the red light glows (alarm).
2. If the LED maintains alternate red and green flashing beyond the
warm-up period, a malfunction has been diagnosed (or, if mode
switch 3 is ON, the detector may be masked).
3.7 Mode Selector
The DIP switch mode selector is mounted on the unit’s PC board
(see Figure 4). It controls four functions as demonstrated in
Figure 7.
ON - 2 MOTION EVENTS
TRIGGER AN ALARM
OFF - 1 MOTION EVENT
TRIGGERS AN ALARM
ON
1234
NOT USED
ON - LED PERMANENTLY
ENABLED
OFF - LED DISABLED -
ENABLED VIA TST INPUT
ON - ANTI-MASKING
ENABLED. NO/TRB OUTPUT
OPERATES AS NORMALLY
CLOSED TRB OUTPUT.
OFF - ANTI MASKING
DISABLED. NO/TRB OUTPUT
OPERATES AS NORMALLY
OPEN ALARM OUTPUT.
Figure 7. DIP Switch Mode Selector
Note: Switch positions shown are factory default.
3.8 Vertical Adjustment
The vertical adjustment scale for the PIR sensor is located at the
upper right edge of the PC board (refer to Figure 4). Three positions
are available - FAR, MID and NEAR. All new DUET-AM C/O units are
set to the FAR position.
Note: For the optional long range lens No. 34D, the vertical
scale should be in FAR position.
To adjust, loosen the vertical adjustment screw, slide the PC board
along the vertical slot until the pointer indicates the required position
on the scale (see Figure 8). When done, tighten the adjustment
screw firmly.
Figure 8. Standard Lens Vertical Adjustment
Caution! With swivel brackets in use, the effective detection
ranges may differ from those indicated in Figures 2 and 8.
3.9 Setting the Motion Event Counter
If you wish to set the PIR sensor for maximum false alarm immunity, shift
DIP switch No. 1 (SW-1) to ON. In this position, two consecutive motion
events are required to trip the PIR sensor. For faster catch performance,
shift SW-1 to OFF. In this position, only one motion event is required to trip
the PIR sensor.
4 D-300431
3.10 PIR Walk Test
A. Rotate the MW RANGE control fully counterclockwise to MIN.
B. Make sure that the LED is enabled, either by setting mode switch SW-2
to ON or by grounding the TST input.
C. Mount the front cover in place.
D. Walk into the detector's field of view at the expected far edge of the
coverage area. The green light should flash for up to 5 seconds each
time your motion is detected.
Note: If the LED lights green steadily for up to 5 seconds, your
motion has been detected by the MW sensor.
E. If PIR detection is not obtained at the far end of the coverage area,
remove the front cover and re-adjust the vertical position. Replace
the cover and retest.
3.11 MW Walk Test
A. Remove the front cover.
B. Verify that the MW RANGE control is set fully counterclockwise to MIN
and enable the LED either by setting mode switch SW-2 to ON or by
grounding the TST input.
C. Start by moving into the coverage area at the far edge. The LED
should light green for up to 5 seconds each time your motion is
detected.
D. If your motion was not detected at the far edge, advance the MW
RANGE control slightly clockwise toward MAX and try again until your
motion is detected reliably at the far edge.
Caution! The MW detection range must not exceed the far edge of the
desired coverage area.
E. Walk across the coverage area at various ranges and verify that your
motion is consistently detected.
3.12 Alarm Walk Test
A. Make sure that the LED is enabled, either by setting mode switch SW-2
to ON or by grounding the TST input.
B. Install the front cover in place.
C. Walk across the detector’s field of view in different directions, at various
distances from the detector, and verify proper alarming throughout the
detector's coverage area (the LED lights red for 1.3 to 5 seconds).
D. When done, disable the LED by setting set switch SW-2 to OFF or by
disconnecting the TST input (leaving it "floating").
E. Remount the cover and fasten it to the base using the small screw at
the bottom.
Attention! To assure proper function of the detector, the range and
coverage area should be checked at least twice a year. Furthermore, it
is recommended that users perform a walk test at the far end of the
coverage pattern to assure an alarm signal prior to each time the alarm
system is armed.
3.13 Resetting after Trouble
If trouble occurs while mode switch 3 is ON, proceed as follows:
• Search for masking material on the lens or a masking object in front of
the lens and remove them, if found.
• Reset the detector by walk testing: cross its field of view at the far end,
causing it to alarm several times.
If everything is back to normal, the LED should stop flashing, and the
TRB relay should revert to the closed circuit state.
Note: If walk testing does not cause the trouble alert to stop and mode
switch 3 is ON, recheck for masking. Once masking is ruled out, the
trouble must be due to faulty PIR or MW circuitry.
4. MISCELLANEOUS COMMENTS
4. MISCELLANEOUS COMMENTS4. MISCELLANEOUS COMMENTS
4. MISCELLANEOUS COMMENTS
This device has been tested and found to comply with the limits for a
Class B digital device, pursuant to Part 15 of the FCC Rules. These limits
are designed to provide reasonable protection against harmful
interference in residential installations. This equipment generates, uses
and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to radio
and television reception. However, there is no guarantee that interference
will not occur in a particular installation. If this device does cause such
interference, which can be verified by turning the device off and on, the
user is encouraged to eliminate the interference by one or more of the
following measures:
– Re-orient or re-locate the receiving antenna.
– Increase the distance between the device and the receiver.
– Connect the device to an outlet on a circuit different from the one
which supplies power to the receiver.
– Consult the dealer or an experienced radio/TV technician.
The 315 MHz version of this device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not
cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation.
The digital circuit of this device has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against harmful interference in residential installations. This equipment generates, uses and can
radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio and television
reception. However, there is no guarantee that interference will not occur in a particular installation. If this device does cause such interference, which can be
verified by turning the device off and on, the user is encouraged to eliminate the interference by one or more of the following measures:
– Re-orient or re-locate the receiving antenna.
– Increase the distance between the device and the receiver.
– Connect the device to an outlet on a circuit different from the one which supplies power to the receiver.
– Consult the dealer or an experienced radio/TV technician.
Warning!
Chan
g
es or modifications to this e
q
ui
p
ment not ex
p
ressl
y
a
pp
roved b
y
Visonic Ltd. could void the user’s authorit
y
to o
p
erate the e
q
ui
p
ment.
WARRANTY
WARRANTYWARRANTY
WARRANTY
Visonic Ltd. and/or its subsidiaries and its affiliates ("the Manufacturer") warrants its
products hereinafter referred to as "the Product" or "Products" to be in conformance with
its own plans and specifications and to be free of defects in materials and workmanship
under normal use and service for a period of twelve months from the date of shipment by
the Manufacturer. The Manufacturer's obligations shall be limited within the warranty
period, at its option, to repair or replace the product or any part thereof. The Manufacturer
shall not be responsible for dismantling and/or reinstallation charges. To exercise the
warranty the product must be returned to the Manufacturer freight prepaid and insured.
This warranty does not apply in the following cases: improper installation, misuse,
failure to follow installation and operating instructions, alteration, abuse, accident or
tampering, and repair by anyone other than the Manufacturer.
This warranty is exclusive and expressly in lieu of all other warranties, obligations or
liabilities, whether written, oral, express or implied, including any warranty of
merchantability or fitness for a particular purpose, or otherwise. In no case shall the
Manufacturer be liable to anyone for any consequential or incidental damages for breach
of this warranty or any other warranties whatsoever, as aforesaid.
This warranty shall not be modified, varied or extended, and the Manufacturer does not
authorize any person to act on its behalf in the modification, variation or extension of this
warranty. This warranty shall apply to the Product only. All products, accessories or
attachments of others used in conjunction with the Product, including batteries, shall be
covered solely by their own warranty, if any. The Manufacturer shall not be liable for any
damage or loss whatsoever, whether directly, indirectly, incidentally, consequentially or
otherwise, caused by the malfunction of the Product due to products, accessories, or
attachments of others, including batteries, used in conjunction with the Products.
The Manufacturer does not represent that its Product may not be compromised and/or
circumvented, or that the Product will prevent any death, personal and/or bodily injury
and/or damage to property resulting from burglary, robbery, fire or otherwise, or that the
Product will in all cases provide adequate warning or protection. User understands that a
properly installed and maintained alarm may only reduce the risk of events such as
burglary, robbery, and fire without warning, but it is not insurance or a guarantee that such
will not occur or that there will be no death, personal damage and/or damage to property
as a result.
The Manufacturer shall have no liability for any death, personal and/or bodily injury
and/or damage to property or other loss whether direct, indirect, incidental,
consequential or otherwise, based on a claim that the Product failed to function.
However, if the Manufacturer is held liable, whether directly or indirectly, for any loss or
damage arising under this limited warranty or otherwise, regardless of cause or origin, the
Manufacturer's maximum liability shall not in any case exceed the purchase price of the
Product, which shall be fixed as liquidated damages and not as a penalty, and shall be the
complete and exclusive remedy against the Manufacturer.
Warning: The user should follow the installation and operation instructions and among
other things test the Product and the whole system at least once a week. For various
reasons, including, but not limited to, changes in environmental conditions, electric or
electronic disruptions and tampering, the Product may not perform as expected. The user
is advised to take all necessary precautions for his/her safety and the protection of his/her
property.
6/91
W.E.E.E. Product Recycling Declaration
For information regarding the recycling of this product you must contact the company from which you orignially purchased it. If you are discarding this product and not
returning it for repair then you must ensure that it is returned as identified by your supplier. This product is not to be thrown away with everyday waste.
Directive 2002/96/EC Waste Electrical and Electronic Equipment.
VISONIC LTD. (ISRAEL): P.O.B 22020 TEL-AVIV 61220 ISRAEL. PHONE: (972-3) 645-6789, FAX: (972-3) 645-6788
VISONIC INC. (U.S.A.): 65 WEST DUDLEY ROAD, BLOOMFIELD CT. 06002-1376. PHONE: (860) 243-0833, (800) 223-0020 FAX: (860) 242-8094
VISONIC LTD. (UK): FRASER ROAD, PRIORY BUSINESS PARK, BEDFORD MK44 3WH. PHONE: (0870) 7300800 FAX: (0870) 7300801
INTERNET:
www.visonic.com
VISONIC LTD. 2006 DUET-AM C/O D-300431 (REV. 0, 6/06)
