Supervised Wireless PowerCode Smoke Detector Installation Instructions
1. DESCRIPTION AND APPLICATIONS
The MCT-425 is photoelectric smoke detector designed to sense
smoke, but not gas, heat or flame and fitted with a Power-
Code-type UHF transmitter. It provides early warning of developing
fire by sounding an alarm with its built-in alarm horn, and by
transmitting a coded alarm signal to a PowerCode receiver or to a
compatible wireless alarm control panel.
It must be borne in mind, though, that effective pre-warning of fire
accidents is only possible if the detector is located, installed and
maintained properly as described in this manual.
WARNING: This smoke detector is designed for use in a single
residential unit only, which means that it should be used inside a
single family home or apartment. It is not meant to be used in
lobbies, hallways, basements or another apartment in multi-family
buildings, unless there are already working detectors in each
family unit. Smoke detectors, placed in common areas outside
the individual living unit, such as on porches or in hallways, may
not provide early warning to residents. In multi-family buildings,
each family living unit should obtain its own detector.
WARNING: This detector is not meant
to be used in non-residential buildings.
Warehouses, industrial or commercial
buildings and special purpose non-
residential buildings require special fire
detection and alarm systems. This
detector alone is not a suitable
substitute for complete fire detection
systems for places where many
people live or work, such as hotels or
motels. The same is true of
dormitories, hospitals, nursing homes
or group homes of any kind, even if
they were
Figure 1. General View
once single family homes. Please refer to NFPA 101, the Life
Safety Code, NFPA71, 72A, 72B, 72C, 72D and 72E for smoke
detector requirements for fire protection in buildings not defined as
"households".
WARNING: This detector, if used as a stand-alone unit, will not
alert people who are hard of hearing.
2
22
2. INSTALLATION SUMMARY
. INSTALLATION SUMMARY. INSTALLATION SUMMARY
. INSTALLATION SUMMARY
2.1 Disassembly
Separate the unit from its mounting bracket as shown in Figure 2.
Figure 2. Separating the MCT-425 from its Bracket
2.2 Setting the Function Switch
The MCT-425 has a 4-position DIP switch function selector (see
Figure 3). The switch levers are numbered 1 to 4, and each switch
allows you to select one of two options.
Set the function switches as desired. The ON position is indicated
on the switch body.
Table 1. Function selector settings
Sw- Marking Pos. Selected Option Default
SW-1 LED ON
OFF
LED will light upon transmission
LED is disabled
ON
SW-2 RST ON
OFF
“Restore” events reported
“Restore” events not reported
ON
SW-3 TRR ON
OFF
Do not use!
Always OFF
OFF
SW-4 BAT ON
OFF
Do not use!
Alkaline or Lithium battery is
being used
OFF
Battery cover
Figure 3. Function Selector and Battery Cover
2.3 Definitions of LED Light and Buzzer
The red and yellow LED light and buzzer turn on and/or off to
indicate various situations. There are several LED light and
buzzer operations.
A. When the red LED flashes every 30 seconds, this means
power on, i.e., the detector is energized.
B. When the red LED flashes and the buzzer beeps intermittently,
this means alarm for potential smoke hazard.
C. When the red LED flashes together with buzzer beeps for every
30 seconds with temporal tone 0.5 second on and 0.5 second
off intermittently, this means battery power is low.
D. The yellow LED turns on every time an RF signal is transmitted
to the control panel.
2.4 Battery Connection and Initial Test
CAUTION: The MCT-425 is fitted with cover latches that will
prevent the cover from closing if there is no battery inside.
The smoke detector is supplied with a 9V battery seated within its
holder but insulated from the battery terminals.
BRACKET DETECTOR
❷
Rotate Unit
Counter-
Clockwise
❶
Seize Bracket
❸
Pull Away
From
Bracket
Test
Button
TAMPER
2DE3642
A. Connect the snap-on battery clip to the battery terminals. The
clip will not fit if the contacts are reversed, but take care
not to make a prolonged reverse contact - the battery will
discharge rapidly through the built in protection diode!
Note: When the battery first makes contact, the alarm horn may
sound for one second. This indicates that the battery is
connected properly.
B. Push the battery firmly in until it is seated tightly within the
holder, with the snap-on clip pressed against the contact
springs.
C. Close the cover, then press the test button for about 5
seconds until the horn sounds two sequences of a loud
3-beep alarm. This means that the smoke detection
section is working properly.
2.5 Resetting the Transmitter Module
and Enrolling its PowerCode ID
A rear tamper protection switch is
mounted under the PC board.
The tamper switch actuator,
extending through a hole in the
base (see Figure 4), is pressed
against the bracket when the unit
is attached to the bracket.
Removal of the unit from the
bracket will cause the switch
contacts to open, creating a
tamper event, which will be
reported by the transmitter to the
control panel.
Battery cover

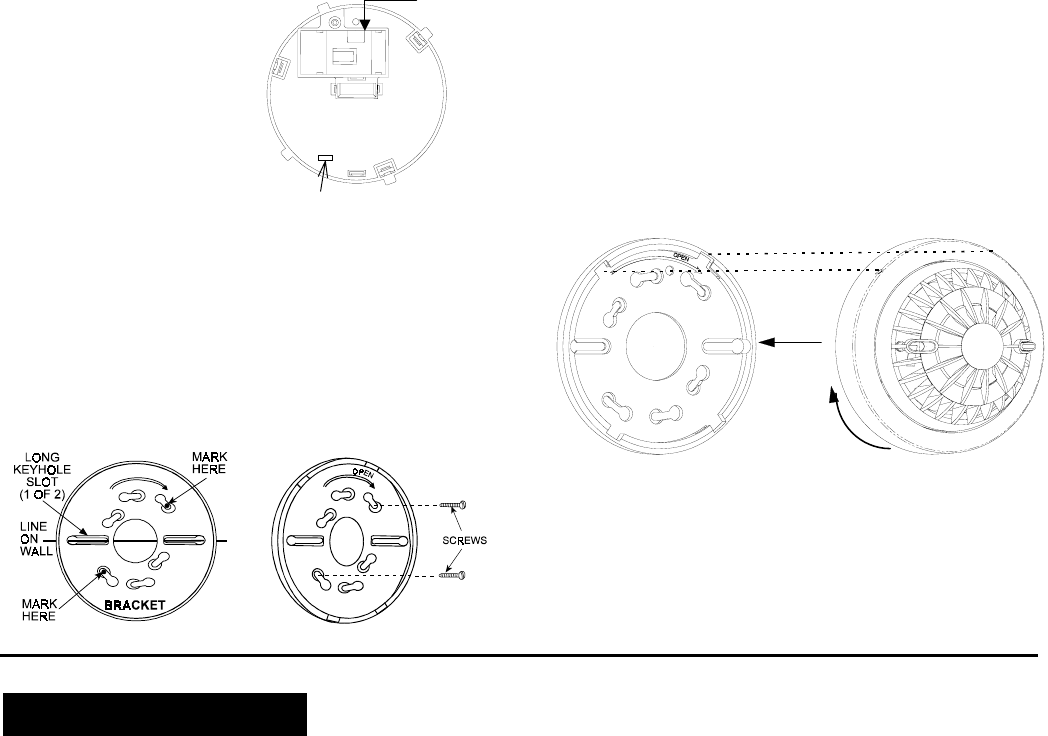

Figure 4. Rear Tamper
Refer to the control panel’s installation instructions and follow the
procedure given there for enrolling transmitter IDs in the control
panel's memory. When required to initiate a transmission for
enrollment, press the smoke detector’s test button until the built-in
horn sounds, or press the tamper switch.
Note: It is much easier to carry out this operation while holding
the MCT-425 in your hand, close to the control panel.
2.6 Mounting the Bracket in Place
Read Section 4 in this manual first, then decide where to install a
detector. Refer to Figures 5 and 6 and proceed as follows:
Figure 5. Aligning the Bracket Figure 6. Mounting the Bracket
A . At the location where you intend to install the detector, draw a
horizontal line six inches long.
B . Remove the mounting bracket from your unit by rotating it
counterclockwise (see Figure 2).
C. Place the bracket so that the two longest hole slots are
aligned on the line. in each of the keyhole slots, draw a mark
to locate a mounting plug and screw as in Figure 5.
D. Remove the bracket.
E. Using the appropriate size drill, drill two holes at the marks
and insert wall plugs.
F. Using the two screws and wall plugs (all supplied), attach the
bracket to the wall (see Figure 6).
2.7 Final Assembly and Test
Note: Unauthorized removal of the unit from the bracket will
initiate a tamper alert!
A. Press the test button until the built-in horn sounds. Verify that
the transmitted signal has been received at the control panel,
and that the control panel responds accordingly by activating
the fire alarm siren or any other warning device.
B. Attach the detector to the bracket as shown in Figure 7. Pull
outward to make sure that the detector is securely attached to
the bracket.
Note: A battery must be inserted into the detector before the
detector can be mounted onto the bracket.
Figure 7. Final Assembly
3
33
3. SPECIFICATIONS
. SPECIFICATIONS. SPECIFICATIONS
. SPECIFICATIONS
SMOKE DETECTOR
Detection Sensitivity: 2.66 ±1.11 %/ft obscuration
Alarm Sound Level: 85 dB at 3 m (10 feet)
TRANSMITTER AND CODING
Operating Frequency (MHz): 315, 433.92, 868.95, 869.2625 or
other frequency according to local requirements.
Transmitter's ID Code: 24-bit digital word, over 16 million
combinations, pulse width modulation.
Overall Message Length: 36 bits
Supervision: Automatic signaling at 60-minute intervals (US
version), 15-minute interval (UK version) or according to the local
standards.
Tamper Alerts: Tamper event (removal of the unit from its bracket)
is reported once, until the tamper switch is restored.
Transmission Indicator: Yellow LED lights upon transmission
(visible only when Switch SW-1 is ON).
ELECTRICAL DATA
Power Source: 9 Volt alkaline or lithium.
Operation Voltage: From 7.2 V to 9.5 V.
Current Drain: 28 µA standby, 20 mA in operation
Battery Life Expectancy:
Alkaline: at least 1 year (for typical use)
Lithium: at least 2 years (for typical use)
Battery Supervision: Automatic transmission of battery status
data as part of any transmitted message.
Audible Low Battery Warning: Built-in horn beeps once a
minute for up to 30 days when the battery voltage drops.
PHYSICAL DATA
Operating Temperature: 0°C to 37.8°C (32°F to 100°F).
Relative Humidity: 10% to 85%
Dimensions: 130 mm (5.12") x 75 mm (2.95")
Weight (including battery): 272 g (9.6 oz)
❷
Attach to
Bracket
❸
Rotate
Clockwise
TAMPER SWITCH ACTUATOR
Align Tabs
With Slots
❶
BRACKET DETECTOR
DE3642 3
4. SMOKE DETECTOR INSTALLATION OVERVIEW
4.1 Where to Install Smoke Detectors
Smoke detectors should be installed in accordance with the
NFPA Standard 74 (National Fire Protection Association,
Batterymarch Park, Quincy, MA 02169). For complete coverage
in residential units, smoke detectors should be installed in all
rooms, halls, storage areas, basements and attics in each family
living unit. Minimum coverage is one detector on each floor and
one in each sleeping area. For maximum protection, a smoke
detector should be located outside primary sleeping areas or on
each level of your home. Here are a few useful tips for you:
• Install a smoke detector in the hallway outside every separate
bedroom area, as in Figure 8. Two detectors are required in
homes with two bedroom areas, as in Figure 9.
• Install a smoke detector on every floor of a multi-floor home or
apartment, as shown in Figure 10.
• Install a minimum of two detectors in any household.
• Install a smoke detector inside every bedroom.
• Install smoke detectors at both ends of a bedroom hallway if
the hallway is more than 12 meters (40 feet) long.
Figure 8. Locations for Placing Smoke Detectors in a Single
Residence with only One Sleeping Area
• Install a smoke detector inside every room where one sleeps
with the door partly or completely closed, since smoke could be
blocked by the closed door and a hallway alarm may not wake
up the sleeper if the door is closed.
Figure 9. Locations for Placing Smoke Detectors in Single-Floor
Residence with More than One Sleeping Area.
Figure 10. Placing Smoke Detectors in a Multi-Floor Residence
• Install basement detectors at the bottom of the basement
stairwell.
• Install second-floor detectors at the top of the first-to-second
floor stairwell.
• Be sure no door or other obstruction blocks the path of smoke
to the detector.
• Install additional detectors in your living room, dining room,
family room, attic, utility and storage rooms.
• Install smoke detectors as close to the center of the ceiling as
possible. If this is not practical, put the detector on the ceiling,
at least 10 cm (4 inches) away from any wall or corner, as
shown in Figure 11.
• If ceiling mounting is not possible and wall mounting is
permitted by your local and state codes, put wall-mounted
detectors between 10 - 15 cm (4 - 6 inches) from the ceiling,
also see Figure 11.
• If some of your rooms have sloped, peaked, or gabled ceilings,
try to mount detectors 0.9 meter (3 feet) measured horizontally
from the highest point of the ceiling as shown in Figure 12.
Figure 11. Recommended Best
and Acceptable Locations to
Mount Smoke Detectors
Figure 12. Recommended
Location to Mount Smoke
Detectors in Rooms with
Sloped, Gabled or Peaked
Ceiling
CAUTION (As required by the California State Fire
Marshall)
"Early warning fire detection is best achieved by the
installation of fire detection equipment in all rooms
and areas of the household as follows:
(1) A smoke detector installed in each separate sleeping area (in
the vicinity, but outside the bedrooms), and (2) Heat or smoke
detectors in the living rooms, dining rooms, bedrooms, kitchens,
hallways, attics, furnace rooms, closets, utility and storage rooms,
basements and attached garages."
For your information, NFPA Standard 74, Section 2-4 reads as
follows:
"2-4.1.1 Smoke detectors shall be installed outside each separate
sleeping area in the immediate vicinity of the bedrooms and on
each additional story of the family living unit including basements
and excluding crawl spaces and unfinished attics.
The provisions of 2-4.1.1 represent the minimum number of
detectors required by this standard. It is recommended that the
householder consider the use of additional smoke detectors for
increased protection for those areas separated by a door from the
areas protected by the required smoke detectors under 2-4.1.1
above. The recommended additional areas are living room,
dining room, bedroom(s), kitchen, attic (finished or unfinished),
furnace rooms, utility room, basement, integral or attached
garage, and hallways not included in 2-4.1.1 above. However, the
use of additional detectors remains the option of the
householder." We recommend complete coverage and use of
additional smoke detectors.
4.2 Where to Install Smoke Detectors
in Mobile Homes and RVs
Mobile homes and RVs built after about 1978 were designed and
insulated to be energy-efficient. In mobile homes and RVs built
after 1978, smoke detectors should be installed as described
above. Older mobile homes and RVs may have little or no
insulation compared to current standards. Outside walls and roofs
are often made of non-insulated metal, which can transfer
thermal energy flow from outdoors. This makes the air right next
to them hotter or colder than the rest of the inside air. These
layers of hotter or colder air can keep smoke from reaching a
smoke detector. Therefore, install smoke detectors in such units
only on inside walls. Place them 10 ~ 15 cm (4 to 6 inches) from
the ceiling. If you are not sure how much insulation is in your
mobile home or RV, then install the detector on an inside wall. If
the walls or ceiling are unusually hot or cold, then install the
detector on an inside wall. Install one detector as close to the
sleeping area as possible for minimum security, or install one
detector in each room for more security. Before you install any
detector, please read the following section on "Where Not to
Install Smoke Detectors.”
4DE3642
4.3 Where Not to Install Smoke
Detectors
False alarms occur when smoke detectors are installed where
they will not work properly. To avoid false alarms, do not install
smoke detectors in the following situations:
• Combustion particles are by-products of something burning. Do
not install smoke detectors in or near areas where combustion
particles are present, such as kitchens with few windows or
poor ventilation, garages where there may be vehicle exhaust,
near furnaces, hot water heaters and space heaters.
• Do not install smoke detectors less than 6 meters (20 feet)
away from places where combustion particles are normally
present, like kitchens. If a 20-foot distance is not possible, e.g.
in a mobile home, try to install the detector as far away from the
combustion particles as possible, preferably on the wall. To
prevent false alarms, provide good ventilation in such places.
IMPORTANT: Never try to avoid false alarms by disabling the
detector.
• Do not mount smoke detectors in the path of fresh air intake.
The flow of fresh air in and out can drive smoke away from the
smoke detector; thus reducing its efficiency. Figure 13 indicates
the correct and incorrect locations concerning this problem.
• Near pain thinner fumes.
• In close proximity to an automobile exhaust pipe; this will
damage the detector.
• In damp or very humid areas or near bathrooms with showers.
Moisture in humid air can enter the sensing chamber, then
turns into droplets upon cooling, which can cause false alarms.
Install smoke detectors at least 3 meters (10 feet) away from
bathrooms.
• In very cold or very hot areas, including unheated buildings or
outdoor rooms. If the temperature goes above or below the
operating range of smoke detector, it will not work properly.
The temperature range for your smoke detector is 4°C to 38°C
(40°F to 100°F).
• In very dusty or dirty areas, dirt and dust can build up on the
detector's sensing chamber, to make it overly sensitive.
Additionally, dust or dirt can block openings to the sensing
chamber and keep the detector from sensing smoke.
• Near fresh air vents or very drafty areas like air conditioners,
heaters or fans. Fresh air vents and drafts can drive smoke
away from smoke detectors.
• Dead air spaces are often at the top of a peaked roof, or in the
corners between ceilings and walls. Dead air may prevent
smoke from reaching a detector. See Figures 11 and 12 for
recommended mounting locations.
• In insect-infested areas. If insects enter a detector's sensing
chamber, they may cause a false alarm. Where bugs are a
problem, get rid of them before putting up a detector.
• Near fluorescent lights, electrical "noise" from fluorescent lights
may cause false alarms. Install smoke detectors at least 1.5
meters (5 feet) from such lights.
Figure 13. Recommended Smoke Detector Locations to Avoid Air
Streams with Combustion Particles
WARNING: Never remove batteries to stop a false alarm. Open a
window or fan the air around the detector to get rid of the smoke.
The alarm will turn itself off when the smoke is gone. If false
alarms persist, attempt to clean the detector as described in this
manual.
WARNING: Do not stand close to the detector when the alarm is
sounding. The alarm is loud in order to wake you in an
emergency. Too much exposure to the horn at close range may
be harmful to your hearing.
5. TAKING CARE OF THE MCT-425
5.1 Battery Replacement
The MCT-425 is designed to be as maintenance-free as possible.
To keep the smoke detector in good working order, you must test it
weekly, as instructed in Para. 6.1 below.
Make sure to test detectors mounted within RVs in storage before
each trip, and at least once each week during use.
Make it a rule to replace the detector’s battery (alkaline) once a
year even if there is no indication that the battery is weak. Also
be sure to replace it immediately upon reception of a low battery
message via your control panel.
If you disregard this message, an audible reminder in the form
of once-per-minute "beep" will sound after a few days. The
low-battery "beep" should last at least 30 days before the
battery dies out completely.
NOTE: For best performance, use only alkaline or lithium
batteries as replacement batteries. Carbon zinc batteries are not
acceptable. Alkaline batteries can be purchased at any retail
store that sells batteries. The following alkaline 9V batteries are
acceptable for proper operation: Eveready #522, #1222, #216;
Duracell #MN1604; or Gold Peak #1604P, #1604S.
Replace the battery as follows:
A. Grasp the detector’s body with your hands, rotate it slightly
counterclockwise and pull it off the wall-mounted bracket.
B. Turn the unit over and remove the screw from the battery
cover (see Figure 3).
C. Remove the old battery from the snap-on battery clip, then
connect the new battery, paying close attention to correct
polarity. Then, push the battery into its holder.
D. Close the cover, re-insert the screw, and test the unit as
instructed in Para. 2.6A.
E. Re-mount the unit on the bracket as instructed in Para. 2.6B.
5.2 Cleaning
It is necessary to maintain the detector frequently to ensure it
working properly. Follow these tips for taking care of your detector:
• Use a vacuum cleaner to clean the air vents occasionally to
keep them free of dust. (Before cleaning your unit, unplug it
from the wall outlet.)
• Push the Test button on your detector to test its operating
function weekly.
NOTE: If false alarms keep occurring, check whether the detector's
location is adequate (see Para. 4.1 and 4.2). Relocate the unit if it is
not located properly. Clean as described above.
DE3642 5
6. ADDITIONAL ADVICE
6.1 Routine Testing
The detector should be tested weekly and also whenever you
suspect that it does not go into alarm. Push the test button firmly
with your finger until the horn sounds (it may take up to 20
seconds). Also verify that the control panel responds to the
transmitted fire alarm. If the detector fails, have it repaired or
replaced immediately, to ensure that it works properly.
WARNING: Never use an open flame of any kind to test your
detector. You may set fire to damage the detector as well as
your home. The built-in test switch accurately tests all
detector functions, as required by Underwriters' Labora-
tories. This is the only correct way to test the unit.
NOTE: If the alarm horn produces a loud continuous sound and
the red LED flashes when you are not testing the unit, this means
the detector has sensed smoke or combustion particles in the air.
Verify that the alarm is a result of a possible serious situation,
which requires your immediate attention.
• The alarm could be caused by a false situation. Cooking
smoke or a dusty furnace, sometimes called "friendly fires" can
cause the alarm to sound. If this happens, open a window or
fan the air away to remove the smoke or dust. The alarm will
turn off as soon as the air is completely clear.
CAUTION: Do not disconnect the battery from the detector.
This will remove your protection from fires.
• If the alarm horn begins to beep once a minute, this signal
means that the detector's battery is weak. Install a new battery
immediately. Keep fresh batteries on hand for this purpose.
6.2 Tips to Enhance Your Protection
From Fires
Putting up smoke detectors is only one step in protecting your family
from fires. You must also reduce the chances of fires starting in your
home. You must also increase your chances of escaping safely if one
does start. To have a good fire safety program you must apply the
following tips to enhance your family's protection from fires:
A . Install smoke detectors properly. Carefully follow all the
instructions in this manual. Keep your smoke detectors clean
and test them every week.
B . Remember that detectors that do not work will not alert you.
Replace your smoke detectors immediately if they are not
working properly.
C . Follow fire safety rules, and prevent hazardous situations:
• Use smoking materials properly. Never smoke in bed.
• Keep matches and cigarette lighters away from children.
• Store flammable materials in proper containers. Never use
them near open flame or sparks.
• Keep electrical appliances in good condition. Do not overload
electrical circuits.
• Keep stoves, fireplaces, chimneys, and barbecue grills grease
free. Make sure they are properly installed and away from any
combustible materials.
• Keep portable heaters and open flames such as candles away
from combustible materials.
• Do not allow rubbish to accumulate.
• Keep a supply of extra batteries on hand for your battery
powered smoke detectors.
D. Develop a family escape plan and practice it with your entire
family. Be sure to include small children in your practice.
• Draw a floor plan of your home, and find two ways to exit from
each room. There should be one way to get out of each
bedroom without opening the door.
• Explain to children what the smoke detector alarm signal
means. Teach them that they must be prepared to leave the
home by themselves if necessary. Show them how to check to
see if doors are hot before opening them. Show them how to
stay close to the floor and crawl if necessary. Show them how
to use the alternate exit if the door is hot and should not be
opened.
• Decide on a meeting place which has a safe distance from your
house. Make sure that all your children understand that they
should go and wait for you there if there is a fire.
• Hold fire drills at least every 6 months, making sure that everyone,
even small children, knows what to do to escape safely.
• Know where to go to call the Fire Department outside your home.
• Provide emergency equipment, such as fire extinguishers, and
teach your family to use this equipment properly.
6.3 More Tips on How to Face a Fire at
Home
If you have made an escape plan and practiced it with your
family, their chances of escaping safely are increased. Go over
the following rules with your children when you have fire drills.
This will help everyone remember the rules in a real emergency.
A . Don't panic and stay calm. Your safe escape may depend on
thinking clearly and remembering what you have practiced.
B . Get out of the house as quickly as possible. Follow a planned
escape route. Do not stop to collect anything or to get
dressed.
C . Feel the doors to see if they are hot. If they are not, open
them carefully. Do not open a door if it is hot. Use an
alternate escape route.
D. Stay close to the floor. Smoke and hot gases rise.
E . Cover your nose and mouth with a wet or damp cloth. Take
short, shallow breaths.
F . Keep doors and windows closed. Open them only if you have
to in order to escape.
G . Meet at your planned meeting place after leaving the house.
H . Call the Fire Department as soon as possible from outside
your house. Give the address and your name.
I . Never go back inside a burning building. Contact your local
Fire Department. They will give you more ideas about how to
make your home safer from fires and how to plan your
family's escape.
7. STATEMENTS OF COMPLIANCE
The 315 MHz version of this device complies with Part 15 of the FCC
Rules. Operation is subject to the following two conditions: (1) This
device may not cause harmful interference, and (2) This device must
accept any interference received, including interference that may
cause undesired operation.
WARNING! Changes or modifications to this unit not
expressly approved by the party responsible for compliance
could void the user's authority to operate the equipment
The digital circuit of this device has been tested and found to comply
with the limits for a Class B digital device, pursuant to Part 15 of the
FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in residential installations.
This equipment generates, uses and can radiate radio frequency
energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio and television
reception. However, there is no guarantee that interference will not
occur in a particular installation. If this device does cause such
interference, which can be verified by turning the device off and on,
the user is encouraged to eliminate the interference by one or more of
the following measures:
– Re-orient or re-locate the receiving antenna.
– Increase the distance between the device and the receiver.
– Connect the device to an outlet on a circuit different from the one
which supplies power to the receiver.
– Consult the dealer or an experienced radio/TV technician.
6DE3642
This device complies with the essential requirements and
provisions of Directive 1999/5/EC of the European Parliament and
of the Council of 9 March 1999 on radio and telecommunications
terminal equipment.
Frequency Allocations for Wireless Devices in
European (EU) Countries
• 433.92 MHz has no restriction in any EU member state.
• 315 MHz is not allowed in any EU member state
• 868.95 MHz (wide band) is allowed in all EU member states.
• 869.2625 MHz (narrow band) is not restricted in any EU
member state.
WARRANTY
Visonic Ltd. and/or its subsidiaries and its affiliates ("the Manufacturer") warrants its
products hereinafter referred to as "the Product" or "Products" to be in conformance with
its own plans and specifications and to be free of defects in materials and workmanship
under normal use and service for a period of twelve months from the date of shipment by
the Manufacturer. The Manufacturer's obligations shall be limited within the warranty
period, at its option, to repair or replace the product or any part thereof. The Manufacturer
shall not be responsible for dismantling and/or reinstallation charges. To exercise the
warranty the product must be returned to the Manufacturer freight prepaid and insured.
This warranty does not apply in the following cases: improper installation, misuse,
failure to follow installation and operating instructions, alteration, abuse, accident or
tampering, and repair by anyone other than the Manufacturer.
This warranty is exclusive and expressly in lieu of all other warranties, obligations or
liabilities, whether written, oral, express or implied, including any warranty of
merchantability or fitness for a particular purpose, or otherwise. In no case shall the
Manufacturer be liable to anyone for any consequential or incidental damages for breach
of this warranty or any other warranties whatsoever, as aforesaid.
This warranty shall not be modified, varied or extended, and the Manufacturer does not
authorize any person to act on its behalf in the modification, variation or extension of this
warranty. This warranty shall apply to the Product only. All products, accessories or
attachments of others used in conjunction with the Product, including batteries, shall be
covered solely by their own warranty, if any. The Manufacturer shall not be liable for any
damage or loss whatsoever, whether directly, indirectly, incidentally, consequentially or
otherwise, caused by the malfunction of the Product due to products, accessories, or
attachments of others, including batteries, used in conjunction with the Products.
The Manufacturer does not represent that its Product may not be compromised and/or
circumvented, or that the Product will prevent any death, personal and/or bodily injury
and/or damage to property resulting from burglary, robbery, fire or otherwise, or that the
Product will in all cases provide adequate warning or protection. User understands that a
properly installed and maintained alarm may only reduce the risk of events such as
burglary, robbery, and fire without warning, but it is not insurance or a guarantee that
such will not occur or that there will be no death, personal damage and/or damage to
property as a result.
The Manufacturer shall have no liability for any deat, personal and/or bodily injury
and/or damage to property or other loss whether direct, indirect, incidental,
consequential or otherwise, based on a claim that the Product failed to function.
However, if the Manufacturer is held liable, whether directly or indirectly, for any loss or
damage arising under this limited warranty or otherwise, regardless of cause or origin, the
Manufacturer's maximum liability shall not in any case exceed the purchase price of the
Product, which shall be fixed as liquidated damages and not as a penalty, and shall be
the complete and exclusive remedy against the Manufacturer.
Warning: The user should follow the installation and operation instructions and among
other things test the Product and the whole system at least once a week. For various
reasons, including, but not limited to, changes in environmental conditions, electric or
electronic disruptions and tampering, the Product may not perform as expected. The user
is advised to take all necessary precautions for his/her safety and the protection of his/her
property.
6/91
VISONIC LTD. (ISRAEL): P.O.B 22020 TEL-AVIV 61220 ISRAEL. PHONE: (972-3) 645-6789, FAX: (972-3) 645-6788
VISONIC INC. (U.S.A.): 10 NORTHWOOD DRIVE, BLOOMFIELD CT. 06002-1911. PHONE: (860) 243-0833, (800) 223-0020 FAX: (860) 242-8094
VISONIC LTD. (UK): FRASER ROAD, PRIORY BUSINESS PARK, BEDFORD MK44 3WH. PHONE: (0870) 7300800 FAX: (0870) 7300801
INTERNET: www.visonic.com
VISONIC LTD. 2003 MCT-425 DE3642- (REV. 0, 2/03)
