Visonic MCX610 WIRELESS REPEATER FOR POWER CODE COMMUNICATIONS User Manual 1

Visonic Ltd. WIRELESS REPEATER FOR POWER CODE COMMUNICATIONS 1

Users Manual

D-302722 1
MCX-610
Wireless Repeater for PowerCode Communications
Installation Instructions
1. INTRODUCTION
The MCX-610 is a range extender designed to relay digital data
between wireless devices and a control panel. Repeater links are
required when the control panel is beyond the range of at least
some of the devices and is therefore incapable of receiving
transmissions directly (see Figure 1).
Devices whose message transmissions need to be repeated by
the repeater must be enrolled to the repeater and to the control
panel.
Features
Supports 1way and 2way keyfob and detector devices
Mains powered
36 hours backup battery (rechargeable)
Front and back tamper protected
Enrolment and test buttons
Diagnostic of installation performance
Power fail indication (greed LED)
Activity (RF) indication (blue LED)
Compatible with PowerMaxExpress PowerMaxComplete
PowerMaxPro, PowerMax+ and PowerMax1 versions
Indoor environment
Note: MCX-610 does not support wireless sirens and repeater
chains.
MCX-610 POWERMAX
CONTROL PANEL
Keyfob
Door or window
open/close detector
Motion detector
Two-way
Keyfob
Smoke detector
Figure 1 - Repeater Configuration
The MCT-237 2way keyfob is supported by MCX-610 starting
from MCT-237 partition version and above.
2. SPECIFICATIONS
Frequency Band (MHz):
Europe: 868.95 and 433.92
USA & canada: 315
Antenna: Diversity antenna
Enrolled devices: Up to 50 devices may be enrolled to the repeater.
Communication Protocol: PowerCode
AC Power Supply: AC to AC adaptor.
120 VAC, 60 Hz / 9 VAC, 0.35 A min. (in the U.S.A.)
230 VAC, 50 Hz / 9 VAC, 0.35 A min.
For Europe: Unit shall be powered by 9VAC only by suitably
rated (min. 0.35A rated output, 49°C permitted ambient) SELV
(safety extra low voltage) Limited Power Source (LPS) AC/AC
transformer.
Backup Battery: 4.8-Volt 1300 mAh NiMH rechargeable.
Caution: Risk of explosion if battery is replaced by an incorrect
type. Dispose of used batteries according to the manufacturer's
instructions.
Current drain at 5.7 VDC: 90 mA
Battery Backup Duration (with fully charged 1300 mA/h battery)
36 hours:
LED indicator: Green LED lights when AC power on. Blue LED
lights during transmission.
Supervision: A periodic supervision message is transmitted
automatically once every 15 minutes at 433.92 and 868.95 MHz
and once every hour at 315 MHz.
Complies with Standards:
Europe CE: EN 300220, EN 301489, EN 50130-4, EN 60950
USA: CFR 47 part 15,
Canada: RSS 210
Operating Temperature: 0°C to 49°C (32°F to 120°F).
Dimensions (H x W x D): 161x161x50mm (6-7/16 x 6-7/16 x 1-3/4 in)
Weight: (with battery): 470g (16.5 oz.)
3. FUNCTION
3.1 Service Messages
In addition to repeating messages of enrolled devices, the
MCX-610 generates the following event codes automatically:
Low Battery Tamper Supervision.
3.2 Indications
Green LED: lights when AC power is available
Blue LED: lights during transmission
2 D-302722
4. INSTALLATION
4.1 Repeater's Location Selection
A. Install the repeater where good communication is assured
with the PowerMax panel or alternative target receiver and
with the transmitters deployed in the repeater's coverage area
B. Make sure the repeater is mounted as high as possible above
the floor and well away from metal chimneys, large metal
cabinets, metal doors and reinforced concrete walls, all of
which may reduce the communication range.
C. Make sure that the location you have selected is near an
electrical outlet.
D. Mount the repeater in the selected location as shown in Figure
3.
4.2 Battery Pack Insertion
Note: The rechargeable backup battery must be connected
before connecting to AC mains power.
If the backup battery is not connected or if a low battery condition
exists when the cover is opened the repeater will beep every 10
seconds.
Note: Battery replacement should be done by a service man.
TURN & PUSH
BATTERY
BATTERY CABLE
BATTERY
TEST BUTTON
CONNECT THE WIRES
OF THE AC ADAPTER
TO THE TERMINAL BLOCK
ENROLL BUTTON
AC CONNECTOR
TERMINAL BLOCK
BATTERY PACK
CONNECTOR AC ADAPTER
CONNECTOR

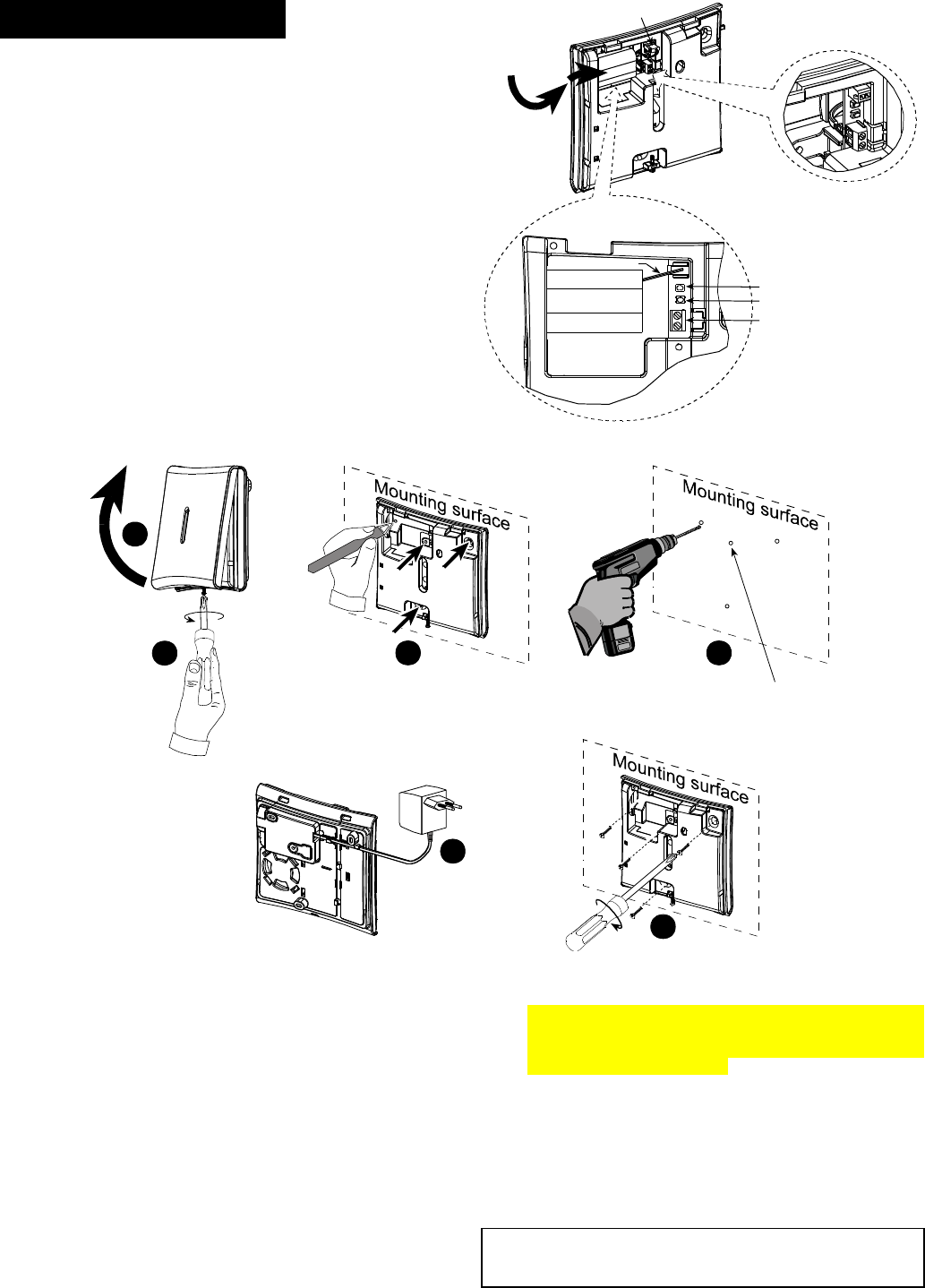

Figure 2 - Battery Pack Insertion
1
2
3
(*)
4
For back
tamper screw
6
5
AC to AC
adaptor
Figure 3 - Installation
4.3 Adding Devices
Devices whose message transmissions need to be repeated by
the repeater must be enrolled both to the repeater and to the
control panel. A total of 50 devices may be enrolled to the MCX-
610. Follow the instructions below for enrolling a device.
A. Remove the MCX-610 cover.
B. Press the repeater’s enroll button and release it (see Figure
2); the orange LED blinks for 10 sec.
Note: Do not press the enroll button for longer than 3 sec.
C. Initiate transmission from the device to be enrolled within 10
seconds. In response, the green LED will light and a "happy"
beep will sound to indicate successful enrollment of the device.
Note: For enrollment verification, the blue LED will blink when
the device is activated.
D. Repeat steps A to C for enrolling additional devices.
Notes:
i) If the device was already enrolled in the MCX-610 and
the enroll procedure is performed again for the same
device to the same MCX-610, the red LED will light and a
"sad" failure beep will sound.
ii) In the event that enrollment is performed after 50 devices
have already been enrolled, the green LED does not light
and a "sad" failure beep will sound.
iii) If no transmission has been initiated for more than 10 seconds,
the orange LED will extinguish and a double beep will sound.
iv) Device enrollment cannot be used to link repeaters.
4.4 Deleting Devices
Caution!
Deleting devices procedure must be performed without the
cover.
D-302722 3
The procedure for deleting devices enrolled to the repeater is
performed for all the devices collectively. It is not possible to
clear a specific device from the MCX-610 memory.
A. Remove the MCX-610 cover.
B. Press the repeater’s enroll button continuously. In response,
the following successive stages should be observed:
i) The orange LED blinks and the buzzer beeps at a slow rate
(3 sec.).
ii) The red LED blinks and the buzzer beeps at a slow rate
(12 sec.).
iii) The red LED blinks and the buzzer beeps at a fast rate
(5 sec.).
At the end of the procedure, the red LED will light steadily for
3 sec. and a "happy" beep will sound to indicate successful
deletion of all devices

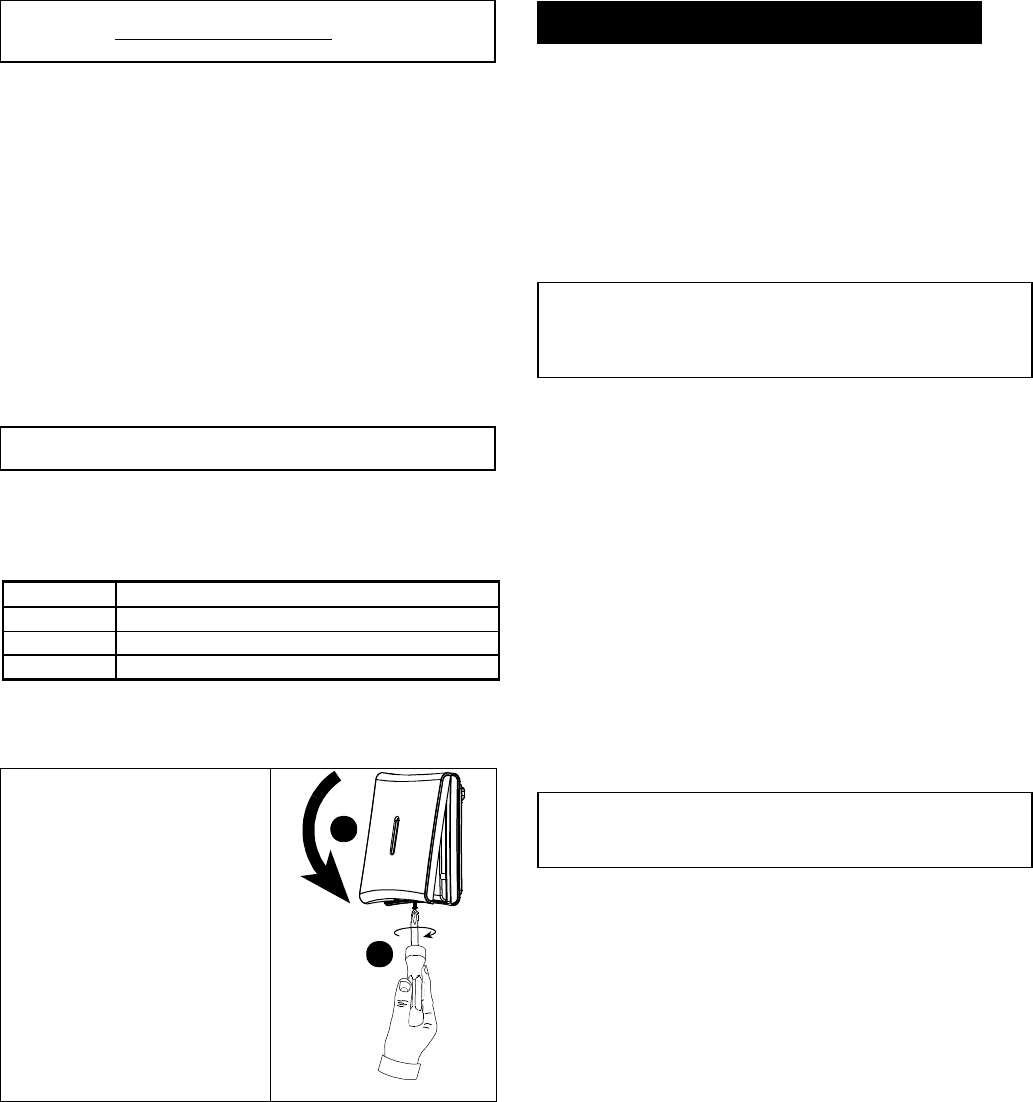

4.5 Local Diagnostics Test
This function allows you to test the signal strength of the enrolled
devices as seen by the repeater. Before testing, separate the
base from the cover (see Fig. 3).
Caution! Local diagnostic test procedure must be performed
without the cover.
Press the repeater’s test button for 5 seconds; the green LED
blinks for 10 minutes or until the tamper switch is restored.
Three reception levels are sensed and indicated as illustrated in
the table below.
Received Signal Strength Indication:
Reception
Strong
Good
Poor
IMPORTANT! Reliable reception must be assured. Therefore,
"poor" signal strength is not acceptable. If you receive a "poor"
signal from the device, re-locate it and re-test until a "good" or
"strong" signal strength is received.
4.6 Cover Closure
See figure 4.
1
2
Figure 4 - Cover Closure
5. NOTES AND WARNINGS
5.1 Product Limitations
Visonic Ltd. wireless systems are very reliable and are tested to
high standards. However there are some limitations to be
considered:
A. Receivers may be blocked by radio signals occurring on or
near their operating frequencies
B. Wireless equipment should be tested regularly to determine
whether there are sources of interference and to protect
against faults.
5.2 Compliance with Standards
Interference Prevention
This device complies with FCC Rules Part 15. Operation is
subject to two conditions: (1) This device may not cause harmful
interference, and (2) this device must accept any interference
that may be received or that may cause undesired operation.
WARNING! Changes or modifications to this unit not expressly
approved by the party responsible for compliance could void the
user's authority to operate the equipment.
The digital circuitry of this device has been tested and found to
comply with the limits for a Class B digital device, pursuant to
Part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in residential
installations. This equipment generates, uses and can radiate
radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference
to radio and television reception. However, there is no guarantee
that interference will not occur in a particular installation. If this
device does cause such interference, which can be verified by
turning the device off and on, the user is encouraged to eliminate
the interference by one or more of the following measures:
– Re-orient or re-locate the receiving antenna.
– Increase the distance between the device and the receiver.
– Connect the device to an outlet on a circuit different from the
one which supplies power to the receiver.
– Consult the dealer or an experienced radio/TV technician.
This device complies with the essential requirements and
provisions of Directive 1999/5/EC of the European Parliament and
of the Council of 9 March 1999 on radio and telecommunications
terminal equipment.
4 D-302722
WARRANTY
Visonic Limited (the “Manufacturer") warrants this product only (the "Product") to the original purchaser only (the
“Purchaser”) against defective workmanship and materials under normal use of the Product for a period of
twelve (12) months from the date of shipment by the Manufacturer.
This Warranty is absolutely conditional upon the Product having been properly installed, maintained and
operated under conditions of normal use in accordance with the Manufacturers recommended installation and
operation instructions. Products which have become defective for any other reason, according to the
Manufacturers discretion, such as improper installation, failure to follow recommended installation and
operational instructions, neglect, willful damage, misuse or vandalism, accidental damage, alteration or
tampering, or repair by anyone other than the manufacturer, are not covered by this Warranty.
The Manufacturer does not represent that this Product may not be compromised and/or circumvented or that the
Product will prevent any death and/or personal injury and/or damage to property resulting from burglary,
robbery, fire or otherwise, or that the Product will in all cases provide adequate warning or protection. The
Product, properly installed and maintained, only reduces the risk of such events without warning and it is not a
guarantee or insurance that such events will not occur.
THIS WARRANTY IS EXCLUSIVE AND EXPRESSLY IN LIEU OF ALL OTHER WARRANTIES,
OBLIGATIONS OR LIABILITIES, WHETHER WRITTEN, ORAL, EXPRESS OR IMPLIED, INCLUDING ANY
WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, OR OTHERWISE. IN
NO CASE SHALL THE MANUFACTURER BE LIABLE TO ANYONE FOR ANY CONSEQUENTIAL OR
INCIDENTAL DAMAGES FOR BREACH OF THIS WARRANTY OR ANY OTHER WARRANTIES
WHATSOEVER, AS AFORESAID.
THE MANUFACTURER SHALL IN NO EVENT BE LIABLE FOR ANY SPECIAL, INDIRECT, INCIDENTAL,
CONSEQUENTIAL OR PUNITIVE DAMAGES OR FOR LOSS, DAMAGE, OR EXPENSE, INCLUDING LOSS
OF USE, PROFITS, REVENUE, OR GOODWILL, DIRECTLY OR INDIRECTLY ARISING FROM
PURCHASER’S USE OR INABILITY TO USE THE PRODUCT, OR FOR LOSS OR DESTRUCTION OF
OTHER PROPERTY OR FROM ANY OTHER CAUSE, EVEN IF MANUFACTURER HAS BEEN ADVISED OF
THE POSSIBILITY OF SUCH DAMAGE.
THE MANUFACTURER SHALL HAVE NO LIABILITY FOR ANY DEATH, PERSONAL AND/OR BODILY
INJURY AND/OR DAMAGE TO PROPERTY OR OTHER LOSS WHETHER DIRECT, INDIRECT,
INCIDENTAL, CONSEQUENTIAL OR OTHERWISE, BASED ON A CLAIM THAT THE PRODUCT FAILED TO
FUNCTION.
However, if the Manufacturer is held liable, whether directly or indirectly, for any loss or damage arising under
this limited warranty, THE MANUFACTURER'S MAXIMUM LIABILITY (IF ANY) SHALL NOT IN ANY CASE
EXCEED THE PURCHASE PRICE OF THE PRODUCT, which shall be fixed as liquidated damages and not as
a penalty, and shall be the complete and exclusive remedy against the Manufacturer.
When accepting the delivery of the Product, the Purchaser agrees to the said conditions of sale and warranty
and he recognizes having been informed of.
Some jurisdictions do not allow the exclusion or limitation of incidental or consequential damages, so these
limitations may not apply under certain circumstances.
The Manufacturer shall be under no liability whatsoever arising out of the corruption and/or malfunctioning of
any telecommunication or electronic equipment or any programs.
The Manufacturers obligations under this Warranty are limited solely to repair and/or replace at the
Manufacturer’s discretion any Product or part thereof that may prove defective. Any repair and/or replacement
shall not extend the original Warranty period. The Manufacturer shall not be responsible for dismantling and/or
reinstallation costs. To exercise this Warranty the Product must be returned to the Manufacturer freight pre-paid
and insured. All freight and insurance costs are the responsibility of the Purchaser and are not included in this
Warranty.
This warranty shall not be modified, varied or extended, and the Manufacturer does not authorize any person to
act on its behalf in the modification, variation or extension of this warranty. This warranty shall apply to the
Product only. All products, accessories or attachments of others used in conjunction with the Product, including
batteries, shall be covered solely by their own warranty, if any. The Manufacturer shall not be liable for any
damage or loss whatsoever, whether directly, indirectly, incidentally, consequentially or otherwise, caused by the
malfunction of the Product due to products, accessories, or attachments of others, including batteries, used in
conjunction with the Products. This Warranty is exclusive to the original Purchaser and is not assignable.
This Warranty is in addition to and does not affect your legal rights. Any provision in this warranty which is
contrary to the Law in the state or country were the Product is supplied shall not apply.
Warning: The user must follow the Manufacturer’s installation and operational instructions including testing the
Product and its whole system at least once a week and to take all necessary precautions for his/her safety and
the protection of his/her property.
1/08
W.E.E.E. Product Recycling Declaration
For information regarding the recycling of this product you must contact the company from which you orignially purchased it. If you are discarding this product and not
returning it for repair then you must ensure that it is returned as identified by your supplier. This product is not to be thrown away with everyday waste.
Directive 2002/96/EC Waste Electrical and Electronic Equipment.
The technical documentation as required by the European Conformity Assessment procedure is kept at:
UNIT 6 MADINGLEY COURT CHIPPENHAM DRIVE KINGSTON MILTON KEYNES MK10 0BZ. Telephone number: 0870 7300800, Fax number: 0870 7300801
VISONIC LTD. (ISRAEL): P.O.B 22020 TEL-AVIV 61220 ISRAEL. PHONE: (972-3) 645-6789, FAX: (972-3) 645-6788
VISONIC INC. (U.S.A.): 65 WEST DUDLEY TOWN ROAD, BLOOMFIELD CT. 06002-1376. PHONE: (860) 243-0833, (800) 223-0020. FAX: (860) 242-8094
VISONIC LTD. (UK): UNIT 6 MADINGLEY COURT CHIPPENHAM DRIVE KINGSTON MILTON KEYNES MK10 0BZ. TEL: (0870) 7300800 FAX: (0870) 7300801.
TEL: (0870) 7300800 FAX: (0870) 7300801 PRODUCT SUPPORT: (0870) 7300830
VISONIC GmbH (D-A-CH): KIRCHFELDSTR. 118, D-40215 DÜSSELDORF, TEL.: +49 (0)211 600696-0, FAX: +49 (0)211 600696-19
VISONIC IBERICA: ISLA DE PALMA, 32 NAVE 7, POLÍGONO INDUSTRIAL NORTE, 28700 SAN SEBASTIÁN DE LOS REYES, (MADRID), ESPAÑA.
TEL (34) 91659-3120, FAX (34) 91663-8468. www.visonic-iberica.es
INTERNET: www.visonic.com
VISONIC LTD. 2010 MCX-610 D-302722 (Rev 1, 8/10)

Navigation menu
