D-302413 1
NEXT PG2, NEXT-K9 PG2
Wireless, PowerG, Digital PIR / Pet Immune PIR Detectors
Installation
Instructions
1. INTRODUCTION
The Next PG2 and Next-K9 PG2 are 2-way, microprocessor-
controlled, wireless digital PIR detectors.
The detectors features are as follows:
Combined Fresnel and cylindrical optics, up to 15 meters (49 ft).
The Next PG2 includes wall creep zone protection.
In Next PG2 and Next-K9 PG2, Target Specific Imaging™
(TSI) technology is used for distinction between human beings
and pets weighing up to 38 kg (85lb).
Includes a fully supervised PowerG transceiver.
The advanced True Motion Recognition™ algorithm (patented)
allows distinguishing between the true motion of an intruder and
any other disturbances which may cause false alarms.
Sophisticated frequency domain digital signal processing.
No vertical adjustment is needed.
Motion event counter determines
whether 1 or 2 consecutive motion
events will trigger an alarm.
Automatic termination of walk-test
after 15 minutes.
Microprocessor-controlled temperature
compensation.
Sealed chamber protects the optical
system.
Front cover and back tamper switches,
for improved tamper protection.
White light protection.
B
A
A. LED
B. Lens

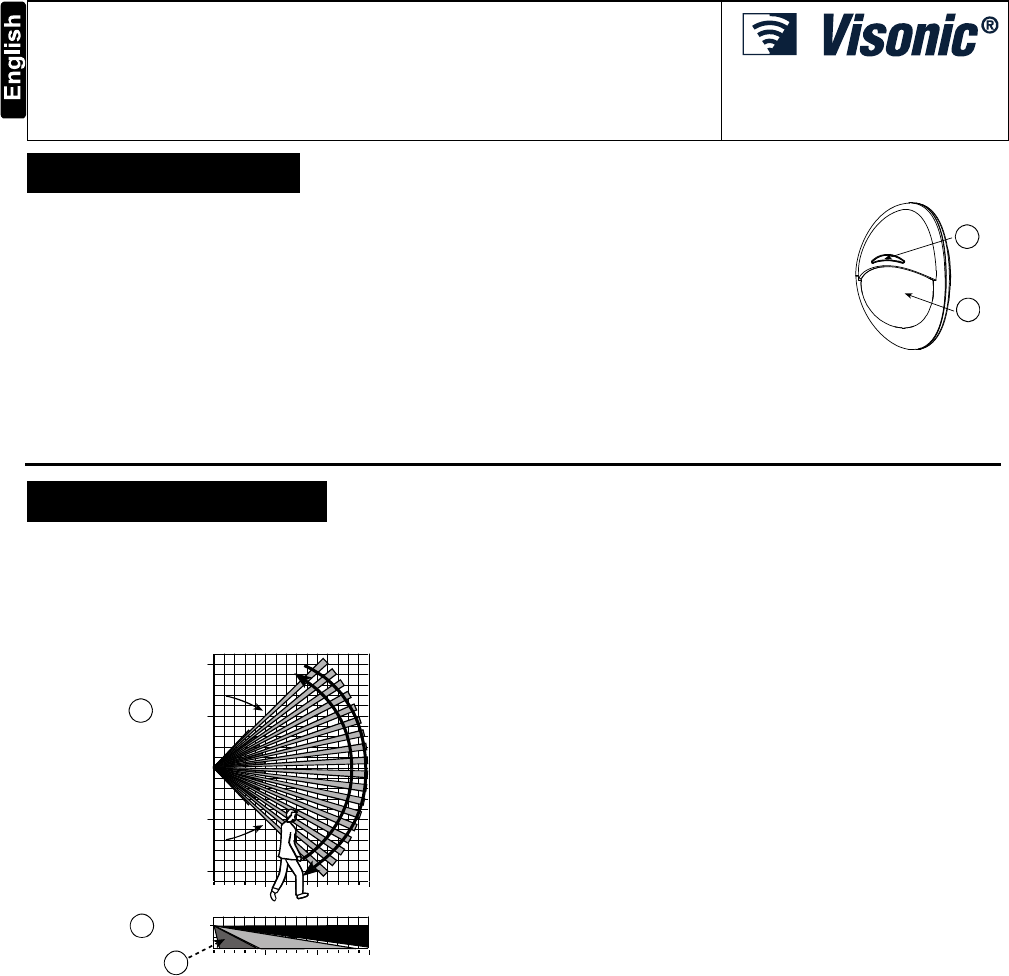

Figure 1:
External View
2. SPECIFICATIONS
GENERAL
Detector Type: Dual element low-noise pyroelectric sensor
Lens Data: No. of Curtain Beams / curtains:
Next PG2: 18 far, 18 mid, 10 close.
Next-K9 PG2: 18 far, 18 mid, 18 close
Max. Coverage: 15 x 15 m, (49 x 49 ft) / 90°
90°
5
016.4
0
15 m
49.2 ft
10
32.8
5m
16.4ft
5m
16.4ft
10m
32.8ft
10m
32.8ft
51015 m
0
2.1 m
(6.9 ft)
16.4 32.8 49.2 ft
B
A
C
A. HORIZONTAL VIEW
B. VERTICAL VIEW
C. Next PG2: 0.5-4m, Next-K9 PG2: 2-4m
Fig. 2. Coverage Pattern & Walk-test
Pet Immunity (Next-K9 PG2 only): Up to 38 kg (85 lb).
ELECTRICAL
Power Supply: Type C
Internal Battery: 3V Lithium battery, type CR-123A or equivalent.
Note: For UL installations use Panasonic, Sanyo, GP or Varta
only. Use only the above battery. Dispose of used battery
according to the manufacturer's instructions.
Nominal Battery Capacity: 1450 mA/h
Battery Life (for typical use): 6 years
FUNCTIONAL
True Motion Event Verification: 2 remote selections - 1 (OFF)
or 2 (ON) motion events
Alarm Period: 2 seconds
WIRELESS
Frequency Band (MHz): Europe: 433, 868, USA: 915
Modulation: GFSK
Antenna: Built-in helical antenna
Communication Protocol: PowerG
Supervision: Signaling at 4-min. intervals
Tamper Alert: Reported when a tamper event occurs and in any
subsequent message, until the tamper switch is restored
MOUNTING
Height: 1.8 - 2.4 m (6 - 8 ft). For Next PG2, the recommended
height is up to 2.1 m (7 ft)
Installation Options: Surface or corner
ACCESSORIES
BR-1: Surface mounted swivel bracket, adjustable 30° down and
45° left/45° right.
BR-2: BR-1 with a corner adapter
BR-3: BR-1 with a ceiling adapter
ENVIRONMENTAL
RFI Protection: >20 V/m up to 2000 MHz, excluding inband
frequencies
Operating Temperatures: -10°C to 50°C (14°F to 122°F) indoor
Storage Temperatures: -20°C to 60°C (-4°F to 140°F).
Humidity: Average relative humidity of approximate 75% non-
condensing. For 30 days per year relative humidity may vary between
85 % and 95 % non-condensing.
Compliance with Standards:
Europe: EN 300220, EN 50131-1 Grade 2, Class II. EN 301489,
EN 50130-4, EN 60950, EN 50131-2-2, EN 50131-6
USA: CFR47 Part 15
Canada: RSS 210
PHYSICAL
Size (H x W x D): 94.5 x 63.5 x 53.0 mm (3-11/16 x 2-1/2 x 2-
1/16”).
Weight (with battery): 70 g (2.5 oz).
Color: White
PATENTS
U.S. Patents 5,693,943 6,211,522 D445,709 (another patent
pending)
2 D-302413
3. ENROLLMENT
Refer to the PowerMaster-10 Installer Guide for the device enrollment procedure.
4. MODIFY DEVICE SETTINGS
This section describes how to configure the parameters of the PIR detector from the PowerMaster-10 control panel
To Modify the PIR Detector Device Settings
Refer to the PowerMaster-10 Installer Guide and perform the procedure for Adding A Wireless Device (section 4.5.2), or, Modifying a
Device (section 4.5.5). Then continue below to modify the device settings.
1.
Here you determine whether or not the alarm LED indication will be activated.
2.
3. or Select between "LED ON" and "LED OFF".
4.
5.
Here you determine whether an alarm will be activated upon continued motion (low
sensitivity) or upon a single alarm event (high sensitivity).
6.
7. or Select between "LOW sensitive" and "HIGH sensitive".
8.
9.
Here you set the activity time during disarm.
10.
11. or Select between "NOT Active", "YES – no delay", "YES + 5s delay", "
Y
ES + 15s
delay", "YES + 30s delay", "YES + 1m delay", "YES + 2m delay", "
Y
ES + 5m
delay", "YES + 10m delay", "YES + 20m delay" and "YES + 60m delay".
12.
When exiting "ZONES / DEVICES" menu, the PowerMaster-10 system displays the number of
devices that need to be updated, as follows: DEV UPDATING NNN.
For detailed instructions on Adding Devices, Deleting Devices, Replacing Devices and
Defining Defaults see the PowerMaster-10 Installer Guide.
5. LOCAL DIAGNOSTICS TEST
A. Separate the base from the cover (see Fig. 5).
B. Put back the cover to return the tamper switch to its normal
(undisturbed) position, and then secure the front cover to the
base with the case closure screw.
C. Walk-test the coverage area - see Fig. 2. Walk across the far
end of coverage pattern in both directions, The red LED lights
each time your motion is detected followed by 3 LED blinks.
The following table indicates received signal strength
indication.
LED response Reception
Green LED blinks Strong
Orange LED blinks Good
Red LED blinks Poor
No blinks No communication
Alarm LED
DISARM Activity
NOT Active
DISARM Activity
Event Counter
LED Sensitive
Event Counter
Alarm LED
DEV SETTINGS
LED ON
D-302413 3
IMPORTANT! Reliable
reception must be assured.
Therefore, "poor" signal
strength is not acceptable. If
you receive a "poor" signal from
the detector, re-locate it and re-
test until a "good" or "strong"
signal strength is received.
Note: For detailed Diagnostics
Test instructions refer to
PowerMaster-10 Installer Guide.
Rx Tx
EVENT
1
2
LED
A
A. ENROLL button

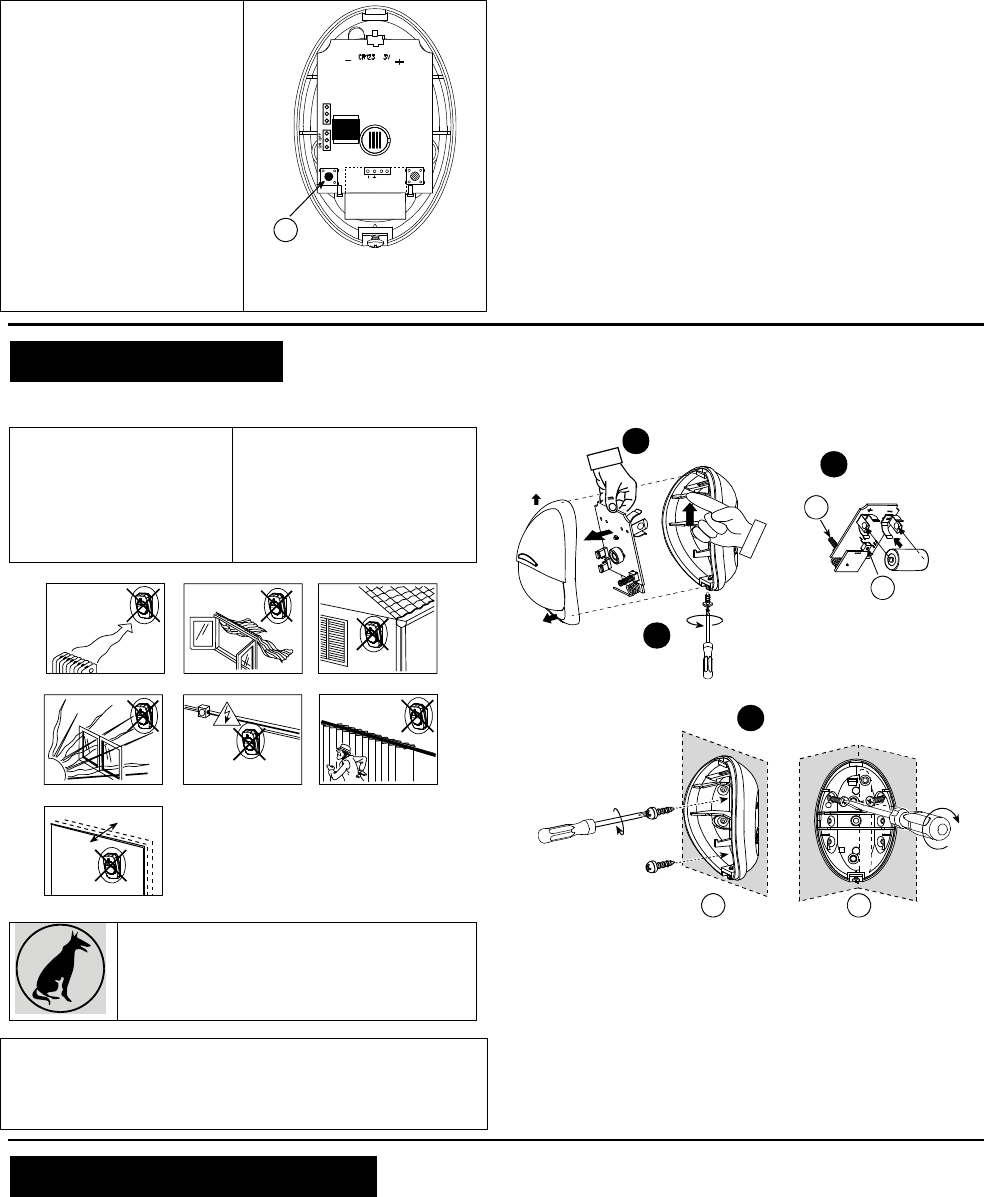

Figure 3. Device enroll
button
6. INSTALLATION
6.1 General Guidance (see Fig. 4)
1. Keep away from heat
sources.
2. Do not expose to air
drafts.
3. Do not install outdoors.
4. Avoid direct sunshine.
5. Keep wiring away from
power cables.
6. Do not install behind
partitions.
7. Mount on solid stable
surface.
1 2 3
4 5 6
7
Figure 4. General Guidelines
Important! The Next-K9 PG2 detector is immune to 38 kg (85
lb) animals moving on the floor or climbing on furniture as long
as the activity takes place below 1 m (3 ft). Above the 1 m (3 ft)
height limit, the detector is immune to 19 kg (42 lb) pets, but
the pet immunity will decrease as the pet gets closer to the
detector. It is therefore recommended to select a mounting
location that minimizes potential close proximity of animals.
WARNING! To comply with FCC RF exposure compliance
requirements, the PIR detector should be located at a distance of at
least 20 cm from all persons during normal operation. The antennas
used for this product must not be co-located or operated in
conjunction with any other antenna or transmitter
6.2 Mounting (see Fig. 5)
1
23
B
A
4
C D
1. Release screw and remove cover.
2. Push catch and remove board.
3. Insert battery.
4. Mounting
A. Front Tamper switch
B. Back Tamper switch.
C. On surface
D. In corner
Figure 5. Mounting
7. SPECIAL COMMENTS
Even the most sophisticated detectors can sometimes be defeated
or may fail to warn due to: DC power failure / improper connection,
malicious masking of the lens, tampering with the optical system,
decreased sensitivity in ambient temperatures close to that of the
human body and unexpected failure of a component part.
The above list includes the most common reasons for failure to
detect intrusion, but is by no means comprehensive. It is therefore
recommended that the detector and the entire alarm system be
checked weekly, to ensure proper performance.
An alarm system should not be regarded as a substitute for
insurance. Home and property owners or renters should be
prudent enough to continue insuring their lives and property, even
though they are protected by an alarm system.
4 D-302413
This device has been tested and found to comply with the limits for
a Class B digital device, pursuant to Part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against
harmful interference in residential installations. This equipment
generates uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause
harmful interference to radio and television reception.
However, there is no guarantee that interference will not occur in a
particular installation. If this device does cause such interference,
which can be verified by turning the device off and on, the user is
encouraged to eliminate the interference by one or more of the
following measures:
– Re-orient or re-locate the receiving antenna.
– Increase the distance between the device and the receiver.
– Connect the device to an outlet on a circuit different from the one
that supplies power to the receiver.
– Consult the dealer or an experienced radio/TV technician.
WARNING! Changes or modifications to this unit not expressly
approved by the party responsible for compliance could void the
user’s authority to operate the equipment.
This device complies with FCC Rules Part 15. Operation is
subject to two conditions: (1) This device may not cause harmful
interference, and (2) this device must accept any interference
that may be received or that may cause undesired operation.
WARRANTY
Visonic Limited (the “Manufacturer") warrants this product only (the "Product") to the original purchaser only (the
“Purchaser”) against defective workmanship and materials under normal use of the Product for a period of twelve
(12) months from the date of shipment by the Manufacturer.
This Warranty is absolutely conditional upon the Product having been properly installed, maintained and operated
under conditions of normal use in accordance with the Manufacturers recommended installation and operation
instructions. Products which have become defective for any other reason, according to the Manufacturers
discretion, such as improper installation, failure to follow recommended installation and operational instructions,
neglect, willful damage, misuse or vandalism, accidental damage, alteration or tampering, or repair by anyone
other than the manufacturer, are not covered by this Warranty.
The Manufacturer does not represent that this Product may not be compromised and/or circumvented or that the
Product will prevent any death and/or personal injury and/or damage to property resulting from burglary, robbery,
fire or otherwise, or that the Product will in all cases provide adequate warning or protection. The Product,
properly installed and maintained, only reduces the risk of such events without warning and it is not a guarantee
or insurance that such events will not occur.
THIS WARRANTY IS EXCLUSIVE AND EXPRESSLY IN LIEU OF ALL OTHER WARRANTIES, OBLIGATIONS
OR LIABILITIES, WHETHER WRITTEN, ORAL, EXPRESS OR IMPLIED, INCLUDING ANY WARRANTY OF
MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, OR OTHERWISE. IN NO CASE SHALL
THE MANUFACTURER BE LIABLE TO ANYONE FOR ANY CONSEQUENTIAL OR INCIDENTAL DAMAGES
FOR BREACH OF THIS WARRANTY OR ANY OTHER WARRANTIES WHATSOEVER, AS AFORESAID.
THE MANUFACTURER SHALL IN NO EVENT BE LIABLE FOR ANY SPECIAL, INDIRECT, INCIDENTAL,
CONSEQUENTIAL OR PUNITIVE DAMAGES OR FOR LOSS, DAMAGE, OR EXPENSE, INCLUDING LOSS
OF USE, PROFITS, REVENUE, OR GOODWILL, DIRECTLY OR INDIRECTLY ARISING FROM
PURCHASER’S USE OR INABILITY TO USE THE PRODUCT, OR FOR LOSS OR DESTRUCTION OF
OTHER PROPERTY OR FROM ANY OTHER CAUSE, EVEN IF MANUFACTURER HAS BEEN ADVISED OF
THE POSSIBILITY OF SUCH DAMAGE.
THE MANUFACTURER SHALL HAVE NO LIABILITY FOR ANY DEATH, PERSONAL AND/OR BODILY
INJURY AND/OR DAMAGE TO PROPERTY OR OTHER LOSS WHETHER DIRECT, INDIRECT, INCIDENTAL,
CONSEQUENTIAL OR OTHERWISE, BASED ON A CLAIM THAT THE PRODUCT FAILED TO FUNCTION.
However, if the Manufacturer is held liable, whether directly or indirectly, for any loss or damage arising under this
limited warranty, THE MANUFACTURER'S MAXIMUM LIABILITY (IF ANY) SHALL NOT IN ANY CASE
EXCEED THE PURCHASE PRICE OF THE PRODUCT, which shall be fixed as liquidated damages and not as a
penalty, and shall be the complete and exclusive remedy against the Manufacturer.
When accepting the delivery of the Product, the Purchaser agrees to the said conditions of sale and warranty and
he recognizes having been informed of.
Some jurisdictions do not allow the exclusion or limitation of incidental or consequential damages, so these
limitations may not apply under certain circumstances.
The Manufacturer shall be under no liability whatsoever arising out of the corruption and/or malfunctioning of any
telecommunication or electronic equipment or any programs.
The Manufacturers obligations under this Warranty are limited solely to repair and/or replace at the
Manufacturer’s discretion any Product or part thereof that may prove defective. Any repair and/or replacement
shall not extend the original Warranty period. The Manufacturer shall not be responsible for dismantling and/or
reinstallation costs. To exercise this Warranty the Product must be returned to the Manufacturer freight pre-paid
and insured. All freight and insurance costs are the responsibility of the Purchaser and are not included in this
Warranty.
This warranty shall not be modified, varied or extended, and the Manufacturer does not authorize any person to
act on its behalf in the modification, variation or extension of this warranty. This warranty shall apply to the
Product only. All products, accessories or attachments of others used in conjunction with the Product, including
batteries, shall be covered solely by their own warranty, if any. The Manufacturer shall not be liable for any
damage or loss whatsoever, whether directly, indirectly, incidentally, consequentially or otherwise, caused by the
malfunction of the Product due to products, accessories, or attachments of others, including batteries, used in
conjunction with the Products. This Warranty is exclusive to the original Purchaser and is not assignable.
This Warranty is in addition to and does not affect your legal rights. Any provision in this warranty which is
contrary to the Law in the state or country were the Product is supplied shall not apply.
Warning: The user must follow the Manufacturer’s installation and operational instructions including testing the
Product and its whole system at least once a week and to take all necessary precautions for his/her safety and
the protection of his/her property.
1/08
W.E.E.E. Product Recycling Declaration
For information regarding the recycling of this product you must contact the company from which you orignially purchased it. If you are discarding this product and not
returning it for repair then you must ensure that it is returned as identified by your supplier. This product is not to be thrown away with everyday waste.
Directive 2002/96/EC Waste Electrical and Electronic Equipment.
VISONIC LTD. (ISRAEL): P.O.B 22020 TEL-AVIV 61220 ISRAEL. PHONE: (972-3) 645-6789, FAX: (972-3) 645-6788
VISONIC INC. (U.S.A.): 65 WEST DUDLEY TOWN ROAD, BLOOMFIELD CT. 06002-1376. PHONE: (860) 243-0833, (800) 223-0020.
FAX: (860) 242-8094
VISONIC LTD. (UK): UNIT 6 MADINGLEY COURT CHIPPENHAM DRIVE KINGSTON MILTON KEYNES MK10 0BZ. TEL: (0870) 7300800
FAX: (0870) 7300801. TEL: (0870) 7300800 FAX: (0870) 7300801 PRODUCT SUPPORT: (0870) 7300830
VISONIC GmbH (D-A-CH): KIRCHFELDSTR. 118, D-40215 DÜSSELDORF, TEL.: +49 (0)211 600696-0, FAX: +49 (0)211 600696-19
VISONIC IBERICA: ISLA DE PALMA, 32 NAVE 7, POLÍGONO INDUSTRIAL NORTE, 28700 SAN SEBASTIÁN DE LOS REYES, (MADRID), ESPAÑA.
TEL (34) 91659-3120, FAX (34) 91663-8468. www.visonic-iberica.es
INTERNET: www.visonic.com
VISONIC LTD. 2010 NEXT PG2, NEXT-K9 PG2 D-302413 (REV. 0, 11/10)
