SPD-2000 NS

Supervised RFID Spatial Position Detector Installation Instructions

INTRODUCTION

The SPD-2000 NS is a fully supervised RFID spatial position detector

from Visonic Technologies (VT). The SPD-2000 NS is ideal for

protecting fine art in public instutions, museums, galleries or private

residences.

The SPD-2000 NS detector is designed to descretly and covertly

protect, location monitor and identify all types of fine art assets

including paintings, statues, antiques and ceramics in environments

where conventional security systems are not quite adequate.

Page 1 of 3

DE3650

The SPD-2000 NS is also suitable for high-risk, stationary general

asset protection; including but not limited to computers, general office

and medical equipment. When deployed as part of a 'SpiderAlert'

system, the SPD-2000 NS can provide on-going around-the-clock

asset location monitoring in near-real time (30 second intervals).

Each SPD-2000 NS detector is deployed with its own 24-bit

identification code (factory set) so that each asset is protected by a

uniquely numbered tag.

The SPD-2000 NS contains an ultra-sensitive acceleration sensor

(silicone chip mounted) that measures on two axes static (vibration)

as well as dynamic (gravity) accelerations. Thus when a protected

asset is moved without authorization, the SPD-2000 NS transmits a

real-time identifiable coded alarm message every 30 seconds while in

motion to the 'SpiderAlert' system. Each alarm transmission consists

of three messages (each message @ 300ms in duration), at 700ms

intervals. Thus the total duration of an alarm transmission is

approximately 2300ms.

The SPD-2000 NS automatically transmits an alarm restore message

when the asset is again at rest or after 10 minutes has elapsed

without detecting further acceleration changes so that the system can

handle new alarm conditions. The SPD-2000 NS returns to

generating a single supervision transmission at @ 15min. intervals for

a maximum of 5 messages/hr. Each supervison transmission consists

of a single message (@ 300ms in duration). Accordingly, total

duration of supervision transmissions /hr is @ 1500ms.

To ensure high operational reliability in security sensitive

environments, the SPD-2000 NS automatically transmits supervisory

status messages at 15 minute intervals or 60 minute intervals

depending on the enabled mode selection position of Function Switch

2 (as detailed table 1) to the 'SpiderAlert' system throughout the day.

The SPD-2000 NS is also tamper protected. Upon removing the unit's

cover, the detector automatically transmits a Tamper alarm in near-

real time (30 second intervals) as an alarm tracking transmission.

Should the SPD-2000 NS not detect further acceleration changes

after 10 minutes has elapsed, the detector returns to generating a

single transmission @ every 15 minutes, comprised of three alarm

messages the same as described above.

The SPD-2000 NS employs a

"Smart" anti-collision transmission

methodogy to overcome message

collisions from other RFID

detectors in the protected area.

Operating power is provided by single onboard commercially

available 3.0 V 1/2 AA Lithium battery. When battery voltage is low, a

“Low Battery” marker is added to the transmitted message.

A LED illuminates upon all event transmissions (except for a low

battery condition).

SPD-2000 NS Advantages:

• Quick and easy installation. The sensor attaches to

an asset using double-sided adhesive tape or via an

optional mounting bracket.

• Supports four user selectable sensitivity levels for

detecting unauthorized asset movement.

• Powered by a single, compact 3V Lithium battery,

• Small size, enables descrete, covert asset mounting.

• Optional Alarm Tracking delivers near-real time

(30 second intervals) location monitoring of the

protected asset.

SPECIFICATIONS

Movement Sensitivity: 0.075g (Gravitation accel. Constant)

Transmission Frequency (MHz): 315, 433.92, 447.375,

868.95, 869.025 or other frequencies according to local

requirements

Transmission range: Up to 60m (200 ft.) from the receiver in

open indoor spaces and 30m (100 ft.) in sub-divided rooms

(In environments that includes metals, the effective transmission

range may drop significantly.)

Overall Message Length: 36 bit pulse width modulation,

including 24-bit identification code

Supervision : Supervisory status messages transmitted

continously at 15 minute intervals or 60 minute intervals

depending on the enabled mode selection of Function

Switch 2 as detailed in Table 1.

Power Source: 3 V Lithium Thionyl Chloride (LiSOCl2)

battery, size 1/2 AA, Tadiran TL-2150, or equivalent

Nominal Battery Capacity: 1 Ah

Current Drain: 500 µA (STBY), 20 mA (transmission, including

LED)

Alarm Tracking: Automatic signaling at 30 second intervals

when the protected asset is in unauthorized motion

Battery Life: At least 2 years (typical operation)

Battery Supervision: Automatic Low battery condition marker

is automaticly added to transmitted messages

Operating Temperature: 0°C to 50°C (32°F to 122°F)

Dimensions (Height x Width x Depth): 72 x 49 x 18.5 mm

(2-13/16 x 1-15/16 x 11/16 inches)

Weight (excluding battery): 50 g (1.75 oz)

Color: Black

Compliance Standards: Meets FCC Part 15, ETS 300-220

and MPT1349

The 433.92 MHz models of this device comply with the

European Council Directive EMC 89/336/EEC & 92/31/EEC

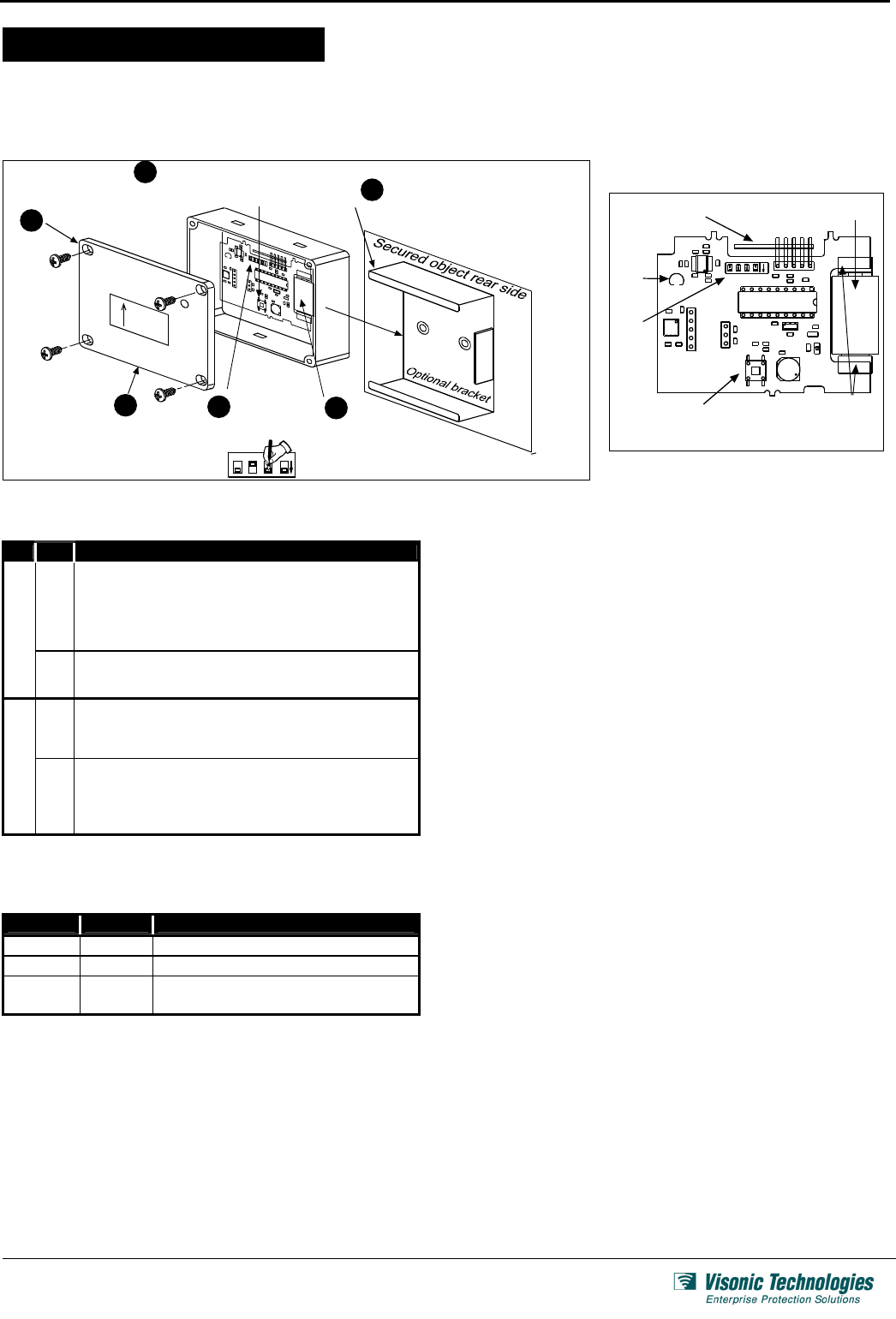

SPD-2000 NS - Installation Instructions

INSTALLATION

General Information

Fig. 3 (shown directly below) details how to prepare the

SPD-2000 NS detector prior to mounting.

Remove cover

Install/replace battery

(proper polarity)

4ON

OFF

231

Perform Function Sw. Setting

(See tables 1 & 2)

4Mount bracket (option) on the mounting

surface, with double-sided adhesive tap or

with 2 screws, and insert the assembeld

detector into the bracket.

Press Tamper sw. once (

or smooth

power-up) - verify that tamper message

is transmitted and LED is lit.

Close cover

Figure 3 :Detector Preparation Process

Battery

holder

clamps

Tamper

switch

SIP

Sw.

Sensor

card

LED

Figure 4: PCB Layout.

Table 1: Functions – Switches 1 & 2 (Mode Selection)

Page 2 of 3

Sw Pos Description

OFF

*Alarm restore Disabled: After the unauthorized

movement of the protected asset has ceased; no alarm

restore messages are transmitted and the detector

'Learns' the new location of the asset. Should the detector

sense subsequent asset movement a new alarm

message is transmitted.

Alarm restore Enabled: After any unauthorized

movement of the protected asset has ceased an alarm

restore message is transmitted.

OFF

Location Monitoring Disabled: When the protected

asset commences unauthorized motion, a single alarm

message is transmitted. Supervisory messages transmit

hourly.

Location Monitoring Enabled: When the protected

asset commences unauthorized motion. Location

monitoring messages transmit in 30 second intervals for

up to 10 minutes after movement has ceased.

Supervisory messages transmit in 15 minute intervals.

* The detector requires approximately 10 minutes to 'Learn' the location of

the protected asset.

Table 2: Sensitivity Selection Functions - Switch 3 & 4 ()

Switch 3 Switch 4 Sensitivity Level

OFF OFF 1. “Strong movement" (lowest sensitivity)

ON OFF 2. “Move”

OFF ON 3. “Slide”

ON ON 4. “Touch” (highest sensitivity)

Mounting Details

Attach the SPD-2000 NS to a corner of the asset you wish to

protect using double-side adhesive tape or by means of an

optional mounting bracket. If required, you the detector can be

affixed to either the far left or far right side of the asset as

well.

Caution: Verify that the “UP” arrow is pointing upwards

(allowed deviation: up to ± 25° in the vertical and horizontal

axes).

Field Testing

Wait 10 minutes after attaching the detector to an asset so

that the detector may 'Learn' the location of the asset. Then

move the asset to verify that alarm messages are being

transmitted by the detector and that the function LED

illuminates.

Miscellaneous Operating Information

Due to the low transmitting power and the limited range of this

RFID device (as required by the FCC and other international

regulating authorities), there are a number of operational

limitations that need to be considered considered and

handled:

• Receivers may be blocked by radio signals that occur on

or near their operating frequencies.

• A receiver can only respond to one transmitted signal at a

time.

• Wireless equipment should be regularly tested to

determine current sources of interference and to protect

against faults.

Battery Safety and Disposal

Promptly remove the worn-out battery from the detector and

dispose of according to manufactuer's instructions. For more

information, contact your local government for the disposal or

recycling practices in your area.

CAUTION: To eliminate the risk of possible explosion, do not

attempt to replace the battery with a non-specified type.

DE3650

SPD-2000 NS - Installation Instructions

STANDARDS COMPLIANCE

This device complies with Part 15 of the FCC Rules and RSS-

210 of Industry and Science Canada.

Operation is subject to the following two conditions:

(1)This device may not cause harmful interference, and

(2) This device must accept any interference received,

including interference that may cause undesired operation.

NOTE: This equipment has been tested and found to

comply with the limits for a Class B digital device, pursuant

to Part 15 of the FCC Rules. These limits are designed to

provide reasonable protection against harmful interference

in a residential installation. This equipment generates, uses

and can radiate radio frequency energy and, if not installed

and used in accordance with the instructions, may, cause

harmful interference to radio communications. Howevethere

is no guarantee that interference will not occur in a particular

installation.

However If this equipment does cause harmful interference

to radio or television reception, which can be determined by

turning the equipment off and on, the user is encouraged to

try to correct the interference by one or more of the following

measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and

receiver.

• Connect the equipment into an outlet on a circuit

different

• from that to which the receiver is connected.

• Consult the dealer or an experienced radio/TV

technician forhelp.

Warning!

Changes or modifications to this equipment not expressly

approved by the party responsible for compliance (Visonic

Technologies Ltd.) could void the user’s authority to operate

the equipment.

PRODUCT WARRANTY

Visonic Technologies Ltd., and its affiliates, (hereinafter collectively referred to as

"the Manufacturer") warrants its products (hereinafter referred to as "the Product”) to

be free of defects in materials and workmanship under normal operating conditions

and use for a period of one year from the date of shipment by the Manufacturer. The

Manufacturer's obligations shall be limited within the warranty period, at its option, to

repair or to replace the defective Product or any defective component or part thereof.

To exercise this warranty, the product must be returned to the manufacturer freight

prepaid and insured.

This warranty does not apply to repairs or replacement caused by improper

installation, Product misuse, failure to follow installation or operating instructions,

alteration, abuse, accident, tampering, repair by anyone other than the Manufacturer,

external causes, and failure to perform required preventive maintenance. This

warranty also does not apply to any products, accessories, or attachments used in

conjunction with the Product, including batteries, which shall be covered solely by

their own warranties, if any. The Manufacturer shall not be liable for any damage or

loss whatsoever, whether directly, indirectly, incidentally, consequentially or

otherwise, resulting from a malfunction of the Product due to products, accessories,

or attachments of others, including batteries, used in conjunction with the Product.

THE MANUFACTURER MAKES NO EXPRESS WARRANTIES EXCEPT THOSE

STATED IN THIS STATEMENT. THE MANUFACTURER DISCLAIMS ALL OTHER

WARRANTIES, EXPRESS OR IMPLIED, INCLUDING WITHOUT LIMITATION

IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A

PARTICULAR PURPOSE. THE MANUFACTURER’S SOLE RESPONSIBILITY FOR

WARRANTY CLAIMS IS LIMITED TO REPAIR OR TO REPLACE AS SET FORTH

IN THIS STATEMENT.

The Manufacturer shall have no liability for any death, personal injury, property

damage, or other loss whether direct, indirect, incidental, consequential, or otherwise,

based on a claim that the Product failed to function. However, if the Manufacturer is

held liable, whether directly or indirectly, for any loss or damage arising under this

limited warranty or otherwise, regardless of cause or origin, the Manufacturer's

maximum liability shall be limited to the purchase price of the Product, which shall be

fixed as liquidated damages and not as a penalty, and shall be the complete and

exclusive liability of the Manufacturer.

damage, or other loss whether direct, indirect, incidental, consequential, or otherwise,

based on a claim that the Product failed to function. However, if the Manufacturer is

held liable, whether directly or indirectly, for any loss or damage arising under this

limited warranty or otherwise, regardless of cause or origin, the Manufacturer's

maximum liability shall be limited to the purchase price of the Product, which shall be

fixed as liquidated damages and not as a penalty, and shall be the complete and

exclusive liability of the Manufacturer.

The Manufacturer shall not, under any circumstances whatsoever, be liable for any

inaccuracy, error of judgment, default, or negligence of the Manufacturer, its

employees, officers, agents, or any other party, or of the purchaser or user, arising

from any assistance or communication of any kind regarding the configuration,

design, installation, or creation of security system involving the Product, that being

the responsibility of the purchaser or user.

The Manufacturer shall not, under any circumstances whatsoever, be liable for any

inaccuracy, error of judgment, default, or negligence of the Manufacturer, its

employees, officers, agents, or any other party, or of the purchaser or user, arising

from any assistance or communication of any kind regarding the configuration,

design, installation, or creation of security system involving the Product, that being

the responsibility of the purchaser or user.

If the Manufacturer is unable to make such repair or replacement, the Manufacturer’s

entire liability shall be limited to the cost of a reasonable substitute product.

If the Manufacturer is unable to make such repair or replacement, the Manufacturer’s

entire liability shall be limited to the cost of a reasonable substitute product.

The Manufacturer shall not be responsible for any dismantling, installation, reinstallation,

purchasing, shipping, insurance, or any similar charges.

The Manufacturer shall not be responsible for any dismantling, installation, reinstallation,

purchasing, shipping, insurance, or any similar charges.

The Manufacturer shall have no liability for any damages, including without limitation, any

direct, indirect, incidental, special, or consequential damages, expenses, costs, profits,

lost savings or earnings, or other damages arising out of the use of the Product or the

removal, installation, reinstallation, repair or replacement of the Product or any related

events. In the event that there is any liability against the Manufacturer, such liability shall

be limited to the purchase price of the Product which amount shall be fixed as liquidated

damages.

The Manufacturer shall have no liability for any damages, including without limitation, any

direct, indirect, incidental, special, or consequential damages, expenses, costs, profits,

lost savings or earnings, or other damages arising out of the use of the Product or the

removal, installation, reinstallation, repair or replacement of the Product or any related

events. In the event that there is any liability against the Manufacturer, such liability shall

be limited to the purchase price of the Product which amount shall be fixed as liquidated

damages.

The purchaser and user understand that this Product may be compromised or

circumvented by intentional acts; that the Product will not in all cases prevent death,

personal injury, property damage, or other loss resulting from burglary, robbery, fire or

other causes; and that the Product will not in all cases provide adequate warning or

protection. The purchaser and user also understand that a properly installed and

maintained alarm may reduce the risk of events such as burglary, robbery, and fire

without warning, but it is not insurance or a guarantee that such events will not occur or

that there will be no death, personal injury, property damage, or other loss as a result of

such events.
