D-303089 SR-720 PG2 Installation Instructions 1
SR-720 PG2
Wireless PowerG Indoor Siren
Installation Instructions
1. INTRODUCTION
The SR-720 PG2 is a full 2-way wireless PowerG indoor siren, designed for installation in areas in which wiring action is difficult or impossible.
Features
Siren and strobe light activation: When an identified event message is received from the compatible PowerG alarm system, the siren
activates its sounder & strobe light.
Notes:
The sounder is activated for a predefined "Bell Time" (refer to the control panel Installer Guide), according to local authorities requirements, or
until the system is disarmed, whichever occurs first.
The strobe light operates as described in the control panel Installer Guide.
Tamper indication: In case of tamper while the system is armed, the siren transmits the message to the alarm system and then the alarm
system determines whether the siren should be activated or not. If the siren does not receive an acknowledge message from the alarm system,
the siren will function independently.
Low battery voltage alert: When the battery voltage is low, a low battery message is sent to the alarm system. After the low voltage message
delivery, at least 2 siren alarms are possible before the siren is totally inactive.
Power Supply: Non-rechargeable battery.
Sound Types: Burglar, fire, gas/Co and flood.
Entry/Exit: Exit delay beeps sound once the user has armed the system. Entry delay beeps sound once the user has entered the protected
area. (Entry/exit beeps can be enabled / disabled from the control panel Installer menu.)
Squawk indications: Squawk (beep) sounds can be used to indicate alarm system arming (1 squawk) and disarming (2 squawks) by a keyfob
(squawk can be enabled from the control panel User menu).
Double Tamper protection: When the siren front panel is removed or when the siren is removed from the wall, tamper alarm is sent to the
alarm system.
2-way full supervision
The siren is a fully supervised, 2-way communication device. It includes a receiver, to receive event messages
from the alarm system, and a transmitter, to periodically transmit its status signal to the alarm system.
Self-test feature
Upon pressing the self test switch, siren functional check is performed - low level sounds and flash light indicate
that the siren is serviceable.

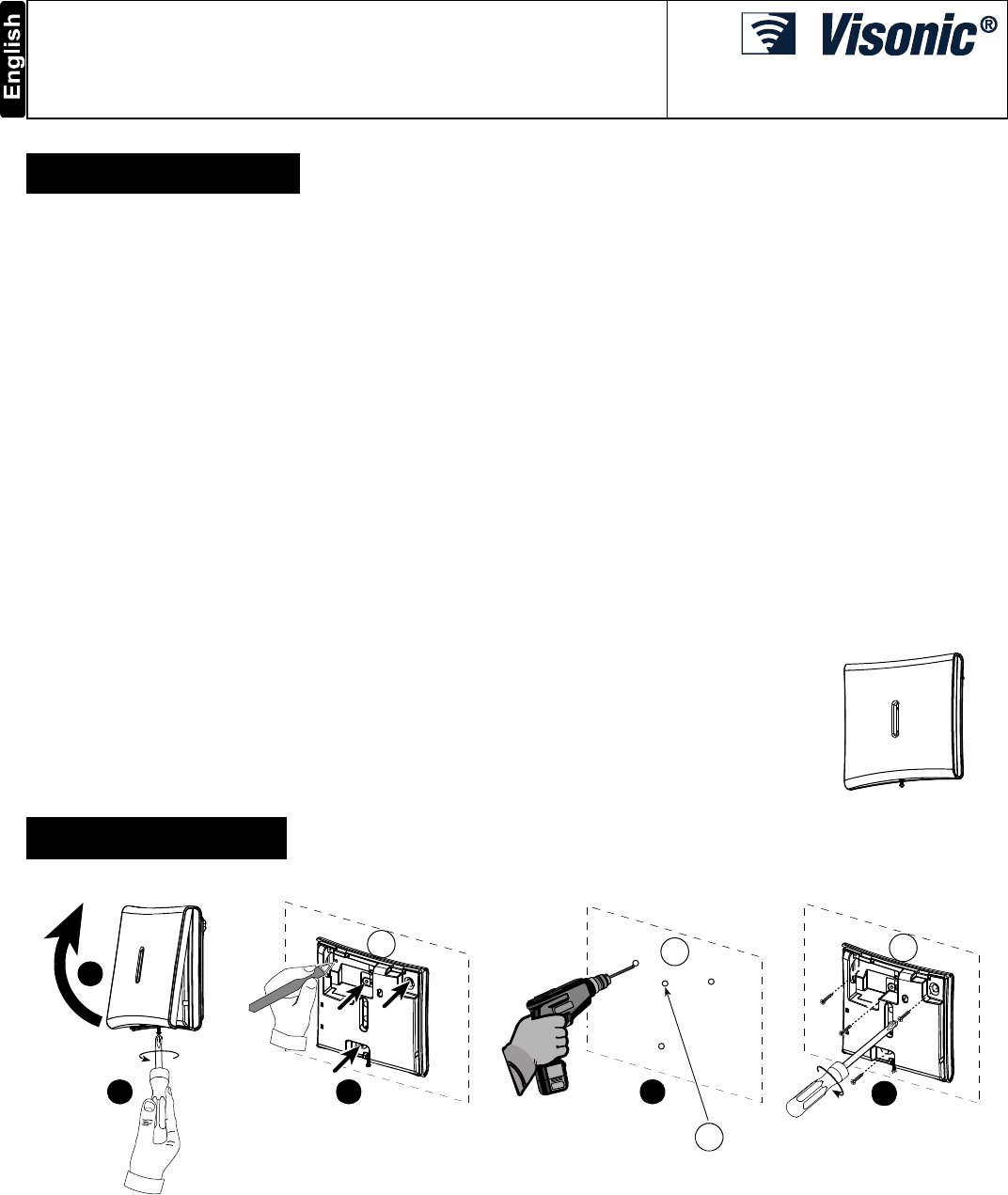

Fig. 1 - External View
2. INSTALLATION
2.1 Installation
1
2
3
(*)
45
A
B
AA
1. Open plastic cover screw.
2. Using Philips screwdriver, remove screw and remove cover.
3. Mark for drilling.
4. Drill 4 holes.
5 Fasten with 4 screws.
A. Mounting surface.
B. For back tamper screw.
Figure 2: Installation
2 D-303089 SR-720 PG2 Installation Instructions
A. Turn and push battery
B. Battery pack connector
C. Battery connector
D. Enroll button
E. Self test switch
F. Battery
G. Battery cable
Figure 3: Battery Pack Insertion
2.2 Battery Pack Insertion
A
B
C
D
G
E
F
2.3 Cover Closure
(Figure 4)
1
2
1. Put back the plastic cover
2. Secure with screw.
Figure 4 - Cover Closure
2.4. Enrollment
Refer to the PowerMaster panel's Installer Guide and follow the procedure under the "02:ZONES/DEVICES" option of the Installer Menu.
A general description of the procedure is provided in the following flow chart.
Step 1 Step 2 Step 3 Step 4 Step
5
Enter the Installer menu
and select
“02:ZONES/DEVICES”
Select "ADD NEW
DEVICE" Option
See Note [1]
Enroll the device or Enter
the device ID Select the desired Zone Number Configure Location, Zo
n
Paramet
e
means scroll and select
Notes:
[1] If the siren is already enrolled you can configure the siren parameters via the “Modify Devices” option – see Step 2.
[2] Select the "Device Settings" option and refer to section 2.5 to configure the siren parameters.
2.5. Configuring the Siren Parameters
Enter the menu and follow the configuration instructions for the SR-720 PG2 indoor siren as described in the following table.
Option Configuration Instructions
Here you determine whether or not to activate the strobe alarm, and if activated, whether to activate the strobe until
the alarm system is disarmed, or, for the programmed period of time (see "Siren Configuration" section in the
control panel Installer Guide).
Optional settings: Timer limited (default), Disabled and Until Disarmed
Here you determine whether or not to activate the exit – entry beeps, and if enabled, whether to activate in HOME or
AWAY mode.
Optional settings: Disabled (default), Disabled & Home and Enabled.
Here you determine whether or not to enable the squawk, and if enabled, whether to activate the sounder only, or, the
sounder and strobe simultaneously.
Optional settings: Disabled (default), Sounder only, Strobe only and Sounder+strobe.
Here you determine the volume level of the sounder.
Optional settings: Volume HIGH (default), Volume LOW and Volume MID.
Here you determine whether or not the siren alone will sound a tamper alarm when there is no communication
between the siren and the control panel.
Optional settings: Disabled (default) and Enabled.
AUTO TAMPER ALRM
SOUNDER VOLUME
SQUAWK
EXIT-ENTRY Beeps
STROBE ALARM
DEVICE SETTINGS
SR1.DEV SETTINGS
SR1.SET CHIME
SR1.
Z
SR1.LOCATION ID No. 400-XXXX SR1:Siren Indoor
ENTR ID:XXX-XXXX
ENROLL NOW or
MODIFY DEVICES
ADD NEW DEVICES 02.ZONES/DEVICES
D-303089 SR-720 PG2 Installation Instructions 3
3. LOCAL DIAGNOSTICS TEST
Before testing, remove the plastic cover and then open the battery cover (see Fig. 2).
A. Press the self-test button (see Fig. 3) once and release it; the following procedure should occur in turn:
The red LED will switch ON and then OFF, the green LED will switch ON and then OFF, the strobe light will switch ON and then OFF and the
piezo siren will sound to indicate that the siren is now fully operational.
B. After 2 seconds the LED blinks 3 times.
The following table indicates received signal strength indication.
ED response Reception
Green LED blinks Strong
Orange LED blinks Good
Red LED blinks Poor
No blinks No communication
IMPORTANT! Reliable reception must be assured. Therefore, "poor" signal strength is not acceptable. If you receive a "poor" signal from the
device, re-locate it and re-test until a "good" or "strong" signal strength is received.
Note: For detailed Diagnostics Test instructions refer to the control panel Installer Guide.
APPENDIX: SPECIFICATIONS
Frequency Band (MHz) Europe and rest of world: 433-434, 868-869 USA: 912-919
Communication
Protocol PowerG
Siren Type One Piezo 109 db min. Sound Pressure Level @ 1m, 1400Hz – 3200
Hz, sweep frequency 7 Hz.
Battery Type 3.6V/14.5A/H Lithium battery (EVE ER34615M/w200), Visonic
assembly cat. No. 0-9912-K.
Note: The strobe flashes 5 times and the red LED lights continuously
during first battery installation.
Note: Use only the above battery.
Caution!
Risk of explosion if battery is replaced by an
incorrect type. Dispose of used battery
according to manufacturer's instructions.
Battery Life
Expectancy 8 years (for typical use)
Strobe Light Pulsed @ 1 sec.
Operating
Temperature -10C to 60C (-14F to 140F)
Dimensions (LxWxD) 161x161x50mm (6-7/16 x 6-7/16 x 1-3/4 in)
Weight (including
battery) 470g (16.5 oz.)
Color White (with transparent lens)
Compliance with
Standards Europe: EN50131-1 Grade 2 Class 2, EN 50131-4, EN 301489, EN
50130-4, EN 50130-5, EN 300 220, EN 60950-1, EN 60950-22
Environmental IP55.
USA: This device complies with FCC Rules Part 15 and with Industry
Canada licence-exempt RSS standard(s).
WARNING!
To comply with FCC and IC RF exposure compliance requirements,
the device should be located at a distance of at least 20 cm from all
persons during normal operation. The antennas used for this product
must not be co-located or operated in conjunction with any other
antenna or transmitter.
Note: The manufacturer is not responsible for any radio or TV
interference caused by unauthorized modifications to this equipment.
Such modifications could void the user's authority to operate the
equipment.
Interference Prevention
This device complies with FCC Rules Part 15. Operation is subject to
two conditions: (1) This device may not cause harmful interference,
and (2) this device must accept any interference that may be received
or that may cause undesired operation.
The digital circuit of this device has been tested and found to comply
with the limits for a Class B digital device, pursuant to Part 15 of the
FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in residential installations. This equipment
generates, uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause
harmful interference to radio and television reception. However, there
is no guarantee that interference will not occur in a particular
installation. If this device does cause such interference, which can be
verified by turning the device off and on, the user is encouraged to
eliminate the interference by one or more of the following measures:
– Re-orient or re-locate the receiving antenna.
– Increase the distance between the device and the receiver.
– Connect the device to an outlet on a circuit different from the one
4 D-303089 SR-720 PG2 Installation Instructions
which supplies power to the receiver.
– Consult the dealer or an experienced radio/TV technician.
Changes or modifications not expressly approved by Visonic Ltd. could
void the user's authority to operate the equipment.
WARRANTY
Visonic Limited (the “Manufacturer") warrants this product only (the "Product") to the original purchaser only (the
“Purchaser”) against defective workmanship and materials under normal use of the Product for a period of twelve
(12) months from the date of shipment by the Manufacturer.
This Warranty is absolutely conditional upon the Product having been properly installed, maintained and operated
under conditions of normal use in accordance with the Manufacturers recommended installation and operation
instructions. Products which have become defective for any other reason, according to the Manufacturers
discretion, such as improper installation, failure to follow recommended installation and operational instructions,
neglect, willful damage, misuse or vandalism, accidental damage, alteration or tampering, or repair by anyone
other than the manufacturer, are not covered by this Warranty.
The Manufacturer does not represent that this Product may not be compromised and/or circumvented or that the
Product will prevent any death and/or personal injury and/or damage to property resulting from burglary, robbery,
fire or otherwise, or that the Product will in all cases provide adequate warning or protection. The Product,
properly installed and maintained, only reduces the risk of such events without warning and it is not a guarantee
or insurance that such events will not occur.
THIS WARRANTY IS EXCLUSIVE AND EXPRESSLY IN LIEU OF ALL OTHER WARRANTIES, OBLIGATIONS
OR LIABILITIES, WHETHER WRITTEN, ORAL, EXPRESS OR IMPLIED, INCLUDING ANY WARRANTY OF
MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, OR OTHERWISE. IN NO CASE SHALL
THE MANUFACTURER BE LIABLE TO ANYONE FOR ANY CONSEQUENTIAL OR INCIDENTAL DAMAGES
FOR BREACH OF THIS WARRANTY OR ANY OTHER WARRANTIES WHATSOEVER, AS AFORESAID.
THE MANUFACTURER SHALL IN NO EVENT BE LIABLE FOR ANY SPECIAL, INDIRECT, INCIDENTAL,
CONSEQUENTIAL OR PUNITIVE DAMAGES OR FOR LOSS, DAMAGE, OR EXPENSE, INCLUDING LOSS
OF USE, PROFITS, REVENUE, OR GOODWILL, DIRECTLY OR INDIRECTLY ARISING FROM
PURCHASER’S USE OR INABILITY TO USE THE PRODUCT, OR FOR LOSS OR DESTRUCTION OF
OTHER PROPERTY OR FROM ANY OTHER CAUSE, EVEN IF MANUFACTURER HAS BEEN ADVISED OF
THE POSSIBILITY OF SUCH DAMAGE.
THE MANUFACTURER SHALL HAVE NO LIABILITY FOR ANY DEATH, PERSONAL AND/OR BODILY
INJURY AND/OR DAMAGE TO PROPERTY OR OTHER LOSS WHETHER DIRECT, INDIRECT, INCIDENTAL,
CONSEQUENTIAL OR OTHERWISE, BASED ON A CLAIM THAT THE PRODUCT FAILED TO FUNCTION.
However, if the Manufacturer is held liable, whether directly or indirectly, for any loss or damage arising under this
limited warranty, THE MANUFACTURER'S MAXIMUM LIABILITY (IF ANY) SHALL NOT IN ANY CASE
EXCEED THE PURCHASE PRICE OF THE PRODUCT, which shall be fixed as liquidated damages and not as a
penalty, and shall be the complete and exclusive remedy against the Manufacturer.
When accepting the delivery of the Product, the Purchaser agrees to the said conditions of sale and warranty and
he recognizes having been informed of.
Some jurisdictions do not allow the exclusion or limitation of incidental or consequential damages, so these
limitations may not apply under certain circumstances.
The Manufacturer shall be under no liability whatsoever arising out of the corruption and/or malfunctioning of any
telecommunication or electronic equipment or any programs.
The Manufacturers obligations under this Warranty are limited solely to repair and/or replace at the
Manufacturer’s discretion any Product or part thereof that may prove defective. Any repair and/or replacement
shall not extend the original Warranty period. The Manufacturer shall not be responsible for dismantling and/or
reinstallation costs. To exercise this Warranty the Product must be returned to the Manufacturer freight pre-paid
and insured. All freight and insurance costs are the responsibility of the Purchaser and are not included in this
Warranty.
This warranty shall not be modified, varied or extended, and the Manufacturer does not authorize any person to
act on its behalf in the modification, variation or extension of this warranty. This warranty shall apply to the
Product only. All products, accessories or attachments of others used in conjunction with the Product, including
batteries, shall be covered solely by their own warranty, if any. The Manufacturer shall not be liable for any
damage or loss whatsoever, whether directly, indirectly, incidentally, consequentially or otherwise, caused by the
malfunction of the Product due to products, accessories, or attachments of others, including batteries, used in
conjunction with the Products. This Warranty is exclusive to the original Purchaser and is not assignable.
This Warranty is in addition to and does not affect your legal rights. Any provision in this warranty which is
contrary to the Law in the state or country were the Product is supplied shall not apply.
Warning: The user must follow the Manufacturer’s installation and operational instructions including testing the
Product and its whole system at least once a week and to take all necessary precautions for his/her safety and
the protection of his/her property.
1/08
The technical documentation as required by the European Conformity Assessment procedure is kept at:
UNIT 6 MADINGLEY COURT CHIPPENHAM DRIVE KINGSTON MILTON KEYNES MK10 0BZ. Telephone number: 0870 7300800, Fax number: 0870 7300801
W.E.E.E. Product Recycling Declaration
For information regarding the recycling of this product you must contact the company from which you orignially purchased it. If you are discarding this product and not
returning it for repair then you must ensure that it is returned as identified by your supplier. This product is not to be thrown away with everyday waste.
Directive 2002/96/EC Waste Electrical and Electronic Equipment.
VISONIC LTD. (ISRAEL): P.O.B 22020 TEL-AVIV 61220 ISRAEL. PHONE: (972-3) 645-6789, FAX: (972-3) 645-6788
VISONIC INC. (U.S.A.): 65 WEST DUDLEY TOWN ROAD, BLOOMFIELD CT. 06002-1376. PHONE: (860) 243-0833, (800) 223-0020.
FAX: (860) 242-8094
VISONIC LTD. (UK): UNIT 6 MADINGLEY COURT CHIPPENHAM DRIVE KINGSTON MILTON KEYNES MK10 0BZ. TEL: (0870) 7300800
FAX: (0870) 7300801. TEL: (0870) 7300800 FAX: (0870) 7300801 PRODUCT SUPPORT: (0870) 7300830
VISONIC GmbH (D-A-CH): KIRCHFELDSTR. 118, D-40215 DÜSSELDORF, TEL.: +49 (0)211 600696-0, FAX: +49 (0)211 600696-19
VISONIC IBERICA: ISLA DE PALMA, 32 NAVE 7, POLÍGONO INDUSTRIAL NORTE, 28700 SAN SEBASTIÁN DE LOS REYES, (MADRID), ESPAÑA.
TEL (34) 91659-3120, FAX (34) 91663-8468. www.visonic-iberica.es
INTERNET: www.visonic.com
VISONIC LTD. 2011 SR-720 PG2 D-303089 (REV. 1, 4/11)
