Composition Touch (R 340G)

Radio

Composition Touch (R 340G):

Radio

Stand: 06.01.2017 | BAN - OP: XXXXXX

Englisch: 04.2017

Artikel-Nr.: 181.5L6.R34.20

CMY

Description of symbols

Refers to a section within a chapter which

contains important information and safety

notes.  Such reference must always be

observed.

MEDIA A button with blue uppercase letters repre-

sent printed radio buttons visible on the

device.

Config. A button with black upper/lower case writ-

ing or a button with a symbol, individually

or in combination, represent function sur-

faces on the display and will only be visible

when the radio is turned on. For better vis-

ualization in the tables the function surfa-

ces may be represented without the button

but with the symbol enlarged.



Indicates that the section is continued on

the next page.

Indicates the end of a section.

Indicates situations in which the vehicle

must be stopped as quickly as possible.

®These symbols indicate a trade mark. How-

ever, the absence of this symbol does not

constitute a waiver of the rights concerning

any term.

™

→ Symbols of this type reference warnings

within the same section or page, indicating

potential risks of accidents and injuries, as

well as how they can be avoided.

→

→ Cross reference to information about possi-

ble damage to your vehicle within the same

section or on a given page.

DANGER

Texts with this symbol indicate extremely danger-

ous situations, which may lead to fatal or severe

injuries if you do not observe the warning.

WARNING

Texts with this symbol indicate dangerous situa-

tions which will lead to fatal or severe injuries if

you do not observe the warning.

CAUTION

Texts with this symbol indicate dangerous situa-

tions, which may lead to light or severe injuries if

you do not observe the warning.

NOTICE

Texts with this symbol indicate situations, which

may lead to damages to the vehicle or its equipment

if not observed.

Texts with this symbol are environment pres-

ervation recommendations.

Texts with this symbol contain additional in-

formation.

Volkswagen Brazil works continuously to develop

and improve all its vehicles. Please understand that

we must therefore reserve the right to alter any part

of the vehicle and its equipment or technical specifi-

cations at any time. The data provided concerning

scope of delivery, appearance, performance, dimen-

sions, weights, fuel consumption, standards and ve-

hicle functions are all correct at the time of going to

print. Some of the equipment described might not

yet be available in a particular vehicle (information

can be provided by your local Volkswagen Dealer-

ship), and some equipment may not be available in

certain countries. No legal commitment may be in-

ferred from the information, illustrations or descrip-

tions in this manual.

No part of this manual may be entirely or partially

reprinted, reproduced or translated without the

written permission of Volkswagen do Brasil.

All rights under the copyright laws are expressly re-

served by Volkswagen do Brasil. Subject to altera-

tion and amendment.

Printed in Brazil.

Manual printed in paper bleached without the

use of chlorine.

Table of Contents
About this manual  2
Introduction
Before using the unit for the first time  3
Other applicable documents   3
Overview of the convenience consumers  3
Safety recommendations   3
Instructions for use   5

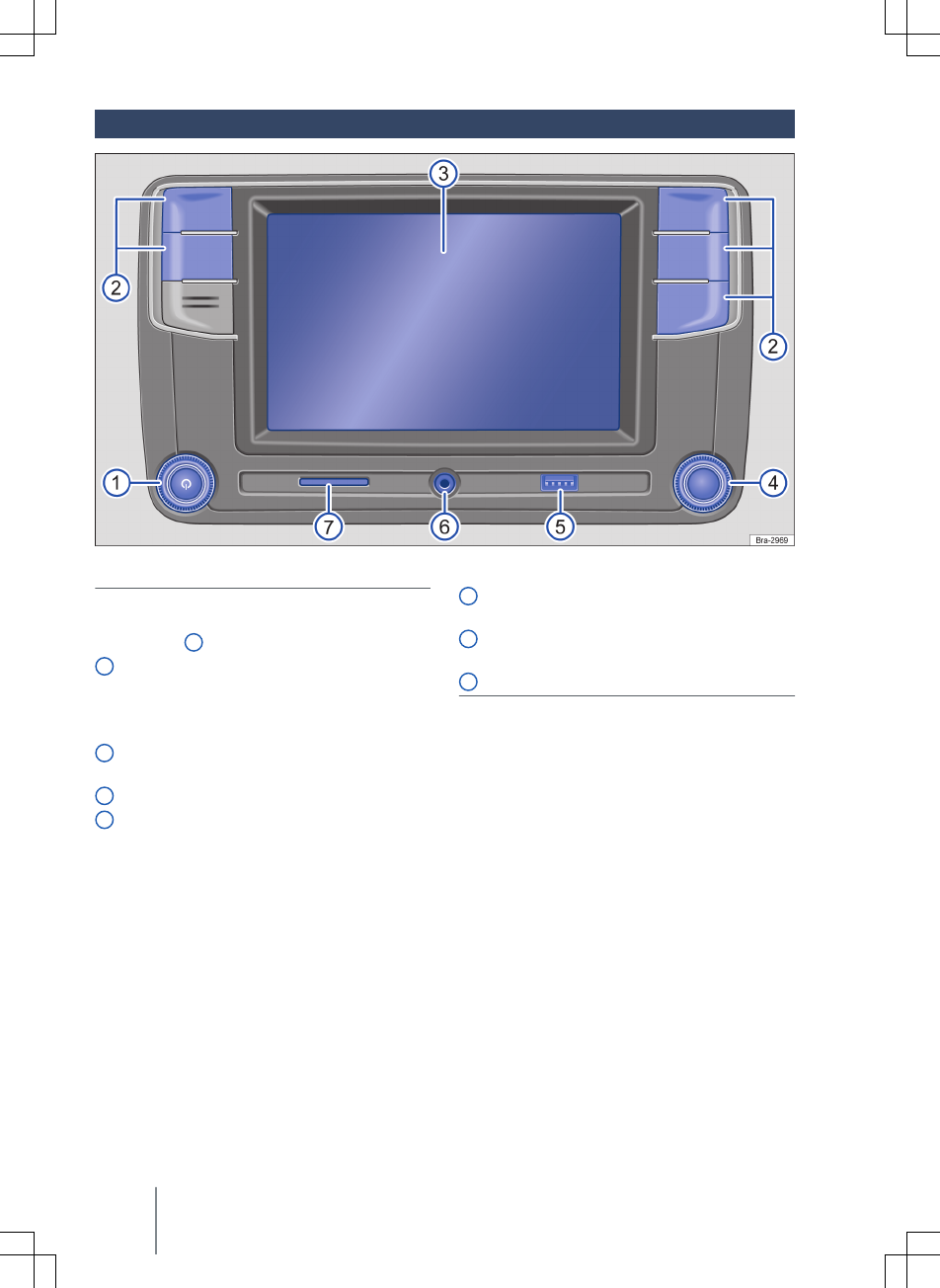

Device overview  5
Selector button  8
SD card slot  8
Basic command information   8
App-Connect
Overall information and safety guidelines   11
App-Connect settings  12
Apple CarPlay™  12
Android Auto™  13
Mirror Link™   14
Audio operation
Radio operation (RADIO)  15
Media mode  19
Wired or wireless connections  23
Phone controls (PHONE)
Introduction to phone controls  26
Phone control description  29
Settings
Menu and System SETUP) settings  35
Sound and volume settings   35
Abbreviations  37
Index  38
Table of Contents 1
181.5L6.R34.20

1815L6R3420

About this manual

Read this instruction before operating the radio.

All versions and models are described without being

identified as special versions or model variations.

Therefore, this manual may describe equipment not

available in your specific vehicle model. Please refer

to a Volkswagen Dealership for additional informa-

tion.

All details provided in this manual correspond to the

information available at the time this manual was

printed, and apply only to factory-fitted equipment.

Due to continuous technical improvement of the ve-

hicle, actual vehicle features and equipment may

differ from the indications provided in this manual.

No claims may be derived from the differing details,

illustrations or descriptions.

In case you lend or sell the vehicle to a third-party,

ensure that this manual is included and that all data

and files saved in the unit are deleted.

–An alphabetical index is included at the end of

this manual.

–A list of abbreviations detailing technical terms

and acronyms can be found at the end of the

manual.

–Directions and positionssuch as left, right, front

and rear are normally relative to the vehicle's di-

rection of travel, unless otherwise indicated.

–Illustrations assist with orientation and should be

regarded as schematic representations. 

Composition Touch (R 340G)2

Introduction

Before using the unit for the

first time

Control list

Before first use, following steps should be execu-

ted to safely operate the radio and make full use

of its features:

Observe basic safety notes  → page 3.

Get familiar with the operation of the radio.

In

System Configurations

, reset the radio to its

factory settings → page 35.

Use appropriate data storage units for media

operation → page 19. 

Other applicable documents

Apart from this manual for the use of this radio

and its components please also see the following

documents:

–Operating Manual and, if the case, posterior

records in the service wallet.

–Operating Manual of the mobile telephone

system.

–Operating Manual of the external multimedia

units.

–Instructions for a retrofitted accessory. 

Overview of the convenience

consumers

The radio may be factory equipped with the fol-

lowing components1), in part as optional equip-

ment:

Loudspeakers, installed in different fitting loca-

tions and output levels (Watt).

Multifunction steering wheel with its controls.

Media units.

1) the type and quantity of the cited compo-

nents are country and device specific and may

vary in a model series and, in addition, be differ-

ent in a special model.

The radio may be factory equipped with the fol-

lowing components1), in part as optional equip-

ment:

Cable connections to the external multimedia

units.

Wireless connection for external multimedia de-

vices.

Mobile phone interface.

Audio system, in part, subwoofer.

1) the type and quantity of the cited compo-

nents are country and device specific and may

vary in a model series and, in addition, be differ-

ent in a special model. 

Safety recommendations

Prior to first use of the device, read and follow

the safety instructions listed below to detect and

prevent possible hazards to yourself and others:

–Read this instruction with attention:

–Some function areas may contain links to third

party web pages. Volkswagen does not take

ownership of third party web pages accessible

through links and is not responsible for their

content.

–Some function areas may contain third party

information, originated by other suppliers.

Volkswagen does not take responsibility for

the accuracy, actualization or integrity for third

party information and does not infringe third

party rights.

–The radio stations or the owners of data sour-

ces are responsible for the broadcast content.

–Covered parking places, tunnels, tall buildings,

mountains or additionally operated electric

equipment, such as battery chargers, may also

interfere with the radio reception.

–Metal-coated stickers or films may hinder re-

ception in vehicles with window aerials.

WARNING

Accidents and injuries can occur if the driver is

distracted. Operating the radio may distract

drivers from the traffic.

●Always drive carefully and responsibly.

●Adjust sound volume settings to allow the

driver to hear external warnings and sounds

(e.g. emergency service sirens) 

Introduction 3

181.5L6.R34.20

●Excessively high volumes may compromise

hearing. This also occurs when vehicle occu-

pants' hearing is submitted to high volumes,

even if briefly.

WARNING

Sudden volume variations may occur when

switching or connecting an audio source.

●Reduce the master volume before connect-

ing or switching audio sources.

WARNING

Connecting, inserting, or removing data storage

units while driving may distract the driver from

his/her surroundings and cause accidents.

WARNING

External device connection cables could hinder

the driver's movement.

●Arrange connection cables so that they do

not obstruct the driver.

WARNING

Loose or unsecured external devices may be

flung through the vehicle interior and cause in-

juries in case of sudden evasive or breaking ma-

noeuvres or in the event of accidents.

●Never place or attach external devices on

doors, windscreen, on or near areas marked

with “AIRBAG” on the steering wheel, dash-

board, seat backrests, or between these

areas and vehicle occupant himself. External

devices may cause severe injuries in the

event of accidents, especially if the airbags

are triggered.

WARNING

An armrest could restrict the movement of the

driver's arms and lead to severe accidents and

injuries.

●Always keep the armrest closed while driv-

ing.

WARNING

In explosion prone places, turn mobile tele-

phones off!

WARNING

Unfavourable light conditions and a damaged

or dirty display may cause information and indi-

cations not able to be read or be correctly read

on the display.

●Indications or information on the display

must never be a reason to run a safety risk.

The display is not in condition to replace the

drivers attention.

WARNING

Radio stations may broadcast danger and cat-

astrophe warnings. The following conditions

prevent radio stations from being received:

●If your current location is in a region of poor

or no reception. Such region includes tun-

nels, urban canyons, parking garages, under-

ground passageways, mountains and valleys.

●If, in areas with sufficient signal strength,

the the bandwidths of the radio stations

present interferences or are unavailable

●When the necessary vehicle components re-

quired for radio signal reception are dam-

aged, inoperative or without sufficient elec-

tric power.

NOTICE

In environments with special prescriptions and

when the use of mobile phones is forbidden, the

mobile phone must always be turned off. The ra-

diation generated by mobile phones may cause

interference with sensitive medical devices and

technical equipment, which may result in their

failure or damage.

NOTICE

The vehicle's loudspeakers may be damaged if

the volume is too high or the sound is distorted.

NOTICE

Introduction of objects, incorrect placing and in-

troduction of data storage units of different

shapes and sizes may damage the media readers

and the radio.

●Ensure correct insertion position when insert-

ing a data storage unit .

●Insert only adequate data storage units into

the respective media reading units.

●Excessive pressure could break the SD card

slot lock. 

Composition Touch (R 340G)4

NOTICE

Foreign matter and liquids adhering to a data

storage device may damage the media reading

unit and the radio.

●Do not attach stickers or similar materials to

data storage units. Stickers may peel off and

damage the media reading unit.

●Do not use data storage units with printable

data. Residues and stickers may peel off and

damage the media reading unit.

●Use only dry, clean, adequate and non-dam-

aged SD cards. 

Instructions for use

–When using the radio, follow the specific na-

tional recommendations and legal determina-

tions.

–To operate the radio a light touch on the but-

ton or screen suffices.

–To make the best of the radio's features and

optimal operation it is important that the date

and time be correctly set.

–Some of the function surfaces and modes de-

tailed herein may not be available due to vary-

ing market-specific unit software available.

The absence of a button or function surface is

not a defect of the radio.

–Depending on the country, some functions of

the radio are no longer selectable on the dis-

play as of a certain speed threshold. This is not

a functional fault, but rather a legal obligation.

–In certain countries there may be restrictions

regarding the use of Bluetooth®1) devices. Ad-

ditional information may be obtained from lo-

cal authorities.

–The display of all indications and the execution

of the functions are only available after the

complete start up of the radio. The start up

time of the system depends on the scope of

the radio function and can last more than usu-

al especially at low and high temperatures.

–After a disconnection of the vehicle battery,

turn the ignition on before switching on the

radio.

–Upon changing the settings, displays may vary

and the unit may behave in a partially different

way from the described in this manual.

–The radio is connected to the vehicle. The sys-

tem cannot be operated through a different

vehicle.

–In order not to impair its operation, repairs and

modifications to the radio may only be per-

formed by a specialized company.

–The use of a mobile phone in the vehicle may

cause noises in the vehicle's loudspeakers.

–With the engine turned off and low battery

charge, the radio is automatically turned off.

–High speeds, poor weather and road condi-

tions, as well as a high noise level (also outside

the vehicle) and the the network quality may

impair a phone call in the vehicle.

–In some vehicles equipped with Park Pilot, the

current audio source volume is automatically

reduced when the reverse gear is selected. The

volume reduction can be configured in the ve-

hicle → Booklet Operating Manual, chap-

ter Park Pilot menu.

–Information on the radio's software and li-

cense conditions are stored in the radio:

 MENU  Config.  Copyright .

Device overview

Introduction

The radio is supplied in different versions of the

device which are distinguished from each other

by its group of functionalities, inscriptions and

button functions as well as by the lay out of the

controls.

Power management

When, with the ignition turned off and the device

on, the battery power falls below the minimum

voltage of the electrical network, an acoustic sig-

nal sounds and the message

LOW BATTERY

is dis-

played. In this case, the unit must be switched

off. 

1) Bluetooth® is a registered trademark of Bluetooth ® SIG, Inc.

Introduction 5

181.5L6.R34.20

Overview
Fig. 1  Control overview.
The unit is supplied in different variations, distin-
guished by the unit's button functions and letter-
ings → Fig. 1 2.
  Turn and touch button→ page 7:
–Press to turn the unit on or off.
–Turn to adjust the base volume of the cor-
responding active source.
Radio buttons: press to access a function
surface → page 7.
Display: touchscreen → page 8.
Settings button: the function is conditioned
to the respective operating condition.
–In all radio modes, turn to open the list of
stations, and press to start/stop the SCAN
feature → page 15.
–In media mode, turn to open the playlist
→ page 19.
–Turn to select menu options in long lists
and press to access the selected entry (e.g.
selecting a station from a list of stations).
1
2
3
4
USB port: to connect external data storage
units → page 19.
AUX-IN multimedia port: to connect external
audio sources → page 19.
SD card slot: to insert SD cards → page 8. 
5
6
7
Composition Touch (R 340G)6

Rotary and push knob 
Rotary/push knobs
The rotary and push button  → Fig. 1 1is re-
ferred to as volume control or on/off button.
The right turn and push button→ Fig. 1 4 is re-
ferred to as control.
Turning the radio manually on or off
Press the on/off button briefly  → Fig. 1 1.
Turn the radio on or off automatically
According to its version, the unit is automatically
turned off when the engine is turned off or the
ignition key is removed from the ignition lock. If
the radio is manually switched on again, it will be
automatically switched off after approximately
30 minutes (timeout).
Volume increase ore decrease
Once on, the radio starts to operate at the last
adjusted volume level, as long as the maximum
pre defined turn on volume is not surpassed
→ page 35.
–Turn the volume control  (right or clockwise
to turn up and left or counter clockwise to turn
down)
Some volume adjustments can be preset
→ page 35.
Mute
When in mute mode, the active audio source is
interrupted or muted The indication can be seen
on the display screen

.
–Turn the volume control button  counter
clockwise until audio can no longer be heard. 
Anti-theft coding
The unit is protected against theft and unauthor-
ized use by a security code (anti-theft coding) .
After its first being entered, the anti theft code is
saved to the memory of the vehicle (convenience
coding of the radio) If the anti-theft coding has
to be manually deactivated, e.g. when installing
the unit in another vehicle, please contact a
Volkswagen Dealership.
If the vehicle battery has been disconnected,
switch the ignition on before switching the unit
on. 
Radio buttons
To operate the radio buttons→ Fig. 1 2 press
them shortly or protractedly.
RADIO : turn on in radio mode and then change
the frequency band → page 15.
MEDIA : change to media mode and from there
select the media source → page 19.
PHONE : access the telephone interface. If there is
no telephone interface installed, the current au-
dio source is muted→ page 33.
APP : access the interface with App-Connect
→ page 11.
SETUP : press to show additional functions related
to the current mode (radio, media, etc.).
→ page 35. 
Display
Clean the display
To clean, turn the radio off.
To clean the display, use a soft and clean cloth,
lightly humidified with clean water or a cleaning
cloth that may be obtained at a Volkswagen
dealership →  .
Soften resistant dirt with a humidified cloth, tak-
ing care not to damage the radio.
NOTICE
Do not dry clean the display. Doing so may cause
scratches that cannot be removed.
●Do not use aggressive or solvent-based clean-
ing products. Such cleaning products may
damage the radio and leave the display “mis-
ty”.
●Exert only a light pressure when cleaning the
display. 
Introduction 7
181.5L6.R34.20

Selector button

The selector button → Fig. 1 4 can be turned or

pressed. When turned, lists are searched or radio

station lists or of media titles are opened. When

pressed marked records are accessed, configura-

tions are set and functions started or interrupted. 

SD card slot

Only 32 mm x 24 mm x 2,1 mm (1,26 x 0,94 x

0,083 inch) or 32 mm x 24 mm x 1,4 mm (1,26 x

0,94 x 0,055 inch) SD cards can be inserted into

the SD card slot → Fig. 1 7.

Only supported audio files are shown

→ page 19. Other file types are ignored.

Inserting an SD card

Insert the SD card carefully into the SD card slot

with the chamfered edge up and the inscriptions

to the left (contact surfaces downward).

If the SD card cannot be inserted, check the in-

sertion position and the SD card.

Ejecting the SD card

To prevent data loss, an inserted SD card must be

prepared for ejection by the following procedure:

 SETUP  Safely remove.   SD card .

Next, press the inserted SD card. The SD card

“jumps” into ejection position and can be re-

moved.

Unreadable SD card

When a memory card with unreadable data is in-

serted, a corresponding message is shown on the

radio's display.

Volkswagen is not responsible for SD cards

and same are not offered together with the

radio. It is necessary to have an SD card to use it

on the radio.

Do not use any SD card adapter.

An SD card with navigation data cannot be

used as storage for other files, the saved

files are not recognized by the radio. 

Basic command information

Introduction



Function surface and display

controls

Fig. 2 Schematic representation: overview of possi-

ble function surfaces on the display.

The device is equipped with a touchscreen

→ Fig. 1 3.

Active display areas with recorded functions are

referred to as “function surfaces” and operated

by brief touches or extended touches on the dis-

play. Function surfaces are described herein by

the word “function surface” and the button sym-

bol .

Function surfaces start specific functions or open

other submenus. The currently selected menu is

indicated on the title line of submenus → Fig. 2

Inactive function surfaces (grey) cannot be cur-

rently selected.

Overview of possible function surfaces and

displays

Function surfaces and displays: action and ef-

fect

The title line indicates the currently se-

lected menu and, eventually, other

function surfaces.

2Touch to open a different menu.

3Gently press to move the target over

the display in a single move. 

Composition Touch (R 340G)8

Function surfaces and displays: action and ef-

fect

OR: touch the desired display position

to move the target to such position.

Gently press to move the scroll bar over

the display in a single move, and scroll

through the lists → page 9.

Touch to gradually close some lists one

level above.



Touch to gradually close submenus until

returning to the main menu or to undo

previous entries.

Touch to open a pop-up window con-

taining additional settings.

 /



Some functions or displays are selected

through a checkbox and activated  or

deactivated  through touch.

OK Touch to confirm an entry or selection.

Touch to close a pop-up window or en-

try mask.

+ / -Touch to gradually change settings.

Gently press to move the scroll bar over

the display in a single move. 

Access list entries and search lists

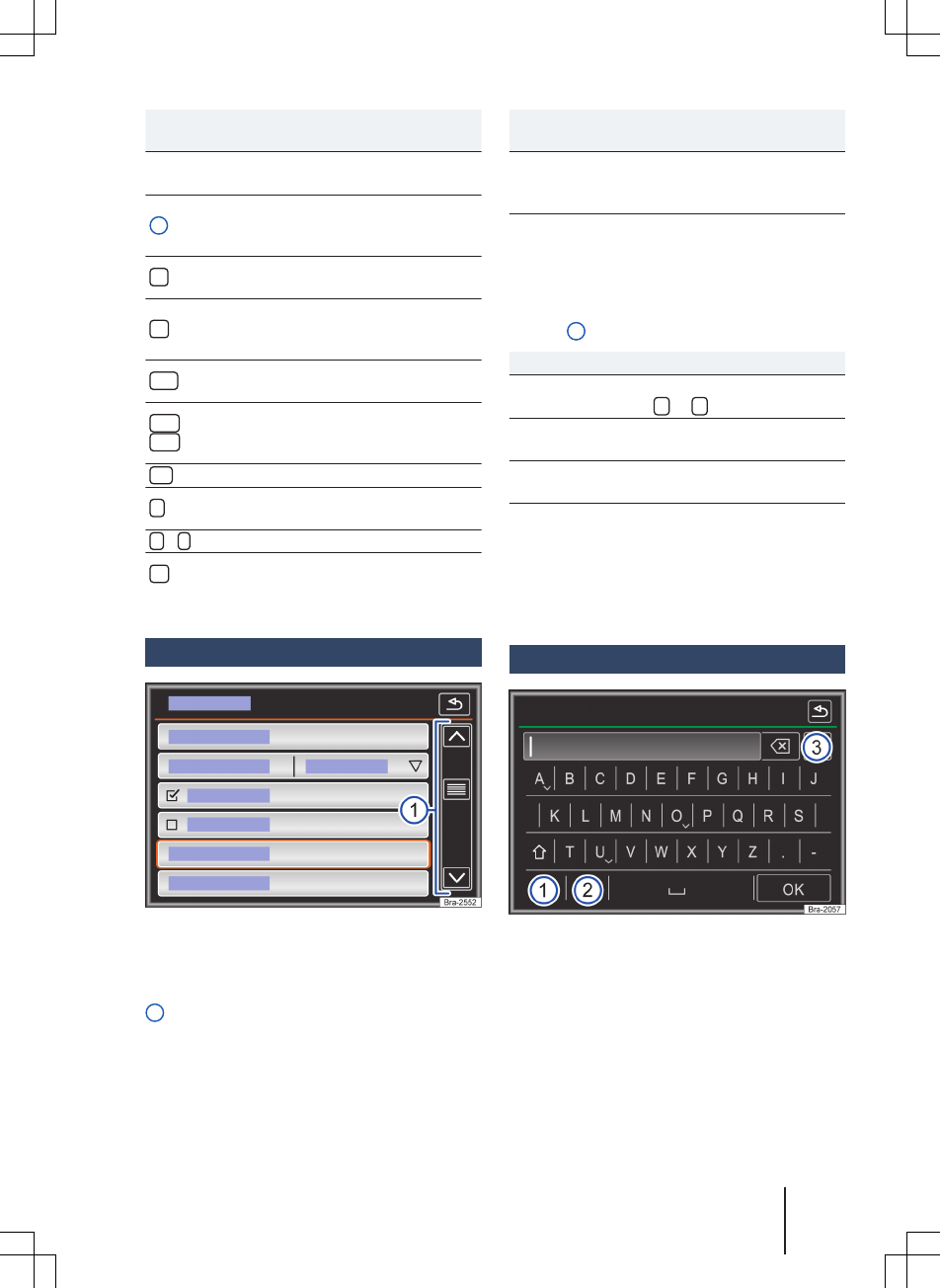

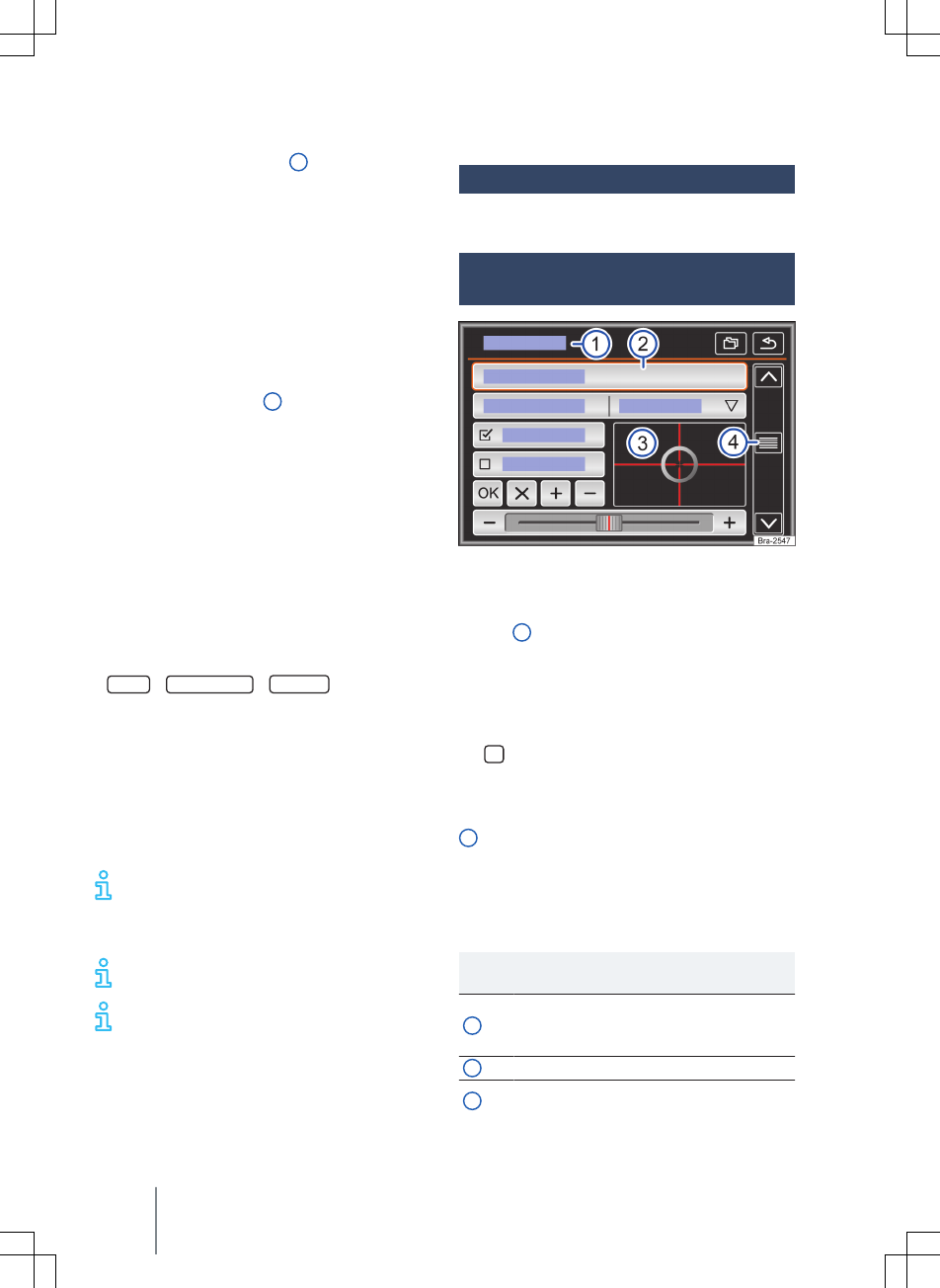

Fig. 3 Schematic representation: list entries, set-

tings menu.

List entries can be accessed by directly touching

the screen or with the selector button → Fig. 1

Selecting and accessing list entries with the

control button

Turn the control button to sequentially select

list entries through a checkbox and search the

list.

Press the control button to access the selected

list entry.

If the available entries on a list do not fit the dis-

play, function surfaces or a scrollbar are shown

on the right-hand side to scroll through entries

→ Fig. 3 1.

Search lists (scroll)

Search by list

line

Briefly touch the function sur-

face  or .

Search by list

page

Briefly touch the top or bottom

of the scroll bar.

Quick search

by list page

Touch and hold the top or bot-

tom of the scroll bar.

Quick search

in long lists

Place finger over the scroll bar

indicator and move it up or

down in a single move. Remove

the finger from the screen after

reaching the desired position. 

Entry masks with display keypad

Fig. 4 Representation: entry mask with display key-

pad.

Entry masks with display keypads are used to en-

ter memory names or search terms in long lists,

among other functions.

The function surfaces listed herein are not availa-

ble in all countries or topic areas.

The following chapters detail only the functions

not covered in this representation. 

Introduction 9

181.5L6.R34.20

The entry line with symbol entry mask (cursor) is

located on the upper left display line. All entries

are displayed in this area.

Entry masks to “enter text”

Letters, characters and special symbols can be

selected in any combination to enter free texts in

entry masks.

The currently displayed sequence of symbols is

applied by touching the function surface OK .

Entry masks to select stored entries

Only combinations of letters, characters and spe-

cial symbols corresponding to a stored entry can

be selected for the introduction mask.

If less than 99 entries can be selected, the num-

ber of remaining entries is shown through the

entry line → Fig. 4 3. Touching this function sur-

face will display all remaining entries in a list. If

less than 5 entries can be selected, the list is au-

tomatically opened.

Overview of function surfaces

Function surface: action and effect

123 : touch to open the entry mask for

special symbols and numbers.

ABC : touch to switch to the letter entry

mask.

Touch to switch to a different keypad

language. The keypad language can be

selected through the

System settings

menu.

Shows the quantity and opens the list

of entries corresponding to selectable

presets.

Let-

ters /

num-

bers

Touch to apply the entry line.

Letters

and 

Press and hold to open a pop-up win-

dow with special symbols based on the

letters.

Select the desired characters via touch.

Some special signs can also be transcri-

bed (e.g. “AE” to “Ä”).



Touch to switch between upper case

and lower case, as well as numbers and

special characters.

 Touch to insert a blank space.

OK Touch to apply the introduction line

suggestion and close the entry mask.

Function surface: action and effect



Touch to delete symbols on the entry

line, from right to left.

Press and hold to delete multiple sym-

bols.

Touch to close the entry mask. 

Additional displays and display

options

Display indications may vary from those descri-

bed herein, depending on the settings.

The time can be shown on the display status line.

All displays can only be shown after a complete

start-up process of the radio. 

Composition Touch (R 340G)10

App-Connect

Overall information and safety

guidelines

Introduction

The following interfaces are available in the App-

Connect menu:

–Apple CarPlay™1)

–Android Auto™2)

–MirrorLink™3)

To prevent the driver from distraction only spe-

cial applications may be used while driving → .

According to the mobile device used, a connec-

tion is established through the respective inter-

face.

Thereby it is possible that the functions and the

contents displayed on the mobile devices are dis-

played and controlled on the radio display.

WARNING

The use of applications while driving may dis-

tract from the surrounding traffic. Accidents

and injuries can occur if the driver is distracted.

●Always drive carefully and responsibly.

WARNING

Loose or unsecured mobile phones may be

flung through the interior and cause injuries in

case of sudden evasive or breaking manoeuvres

or in the event of accidents.

●While the vehicle is in motion, always secure

mobile devices properly outside the airbag

deployment zones or stow them away safely.

WARNING

Inadequately or inappropriately designed appli-

cations may cause damages to the vehicle, ac-

cidents and serious injuries.

●Volkswagen recommends to use only appli-

cations offered by Volkswagen for the spe-

cific vehicle.

●Protect the mobile device with its applica-

tions from misuse.

●Never alter the applications.

●Follow the owner's manual of the mobile de-

vice.

NOTICE

Mobile devices must always be turned off in lo-

cations where their use is not allowed. The radia-

tion generated by mobile devices may cause in-

terference with delicate medical and technical

equipment, which may impair or damage such

devices.

NOTICE

Volkswagen does not take responsibility for dam-

ages caused to the vehicle due to the use of low

quality or defective applications, insufficient pro-

gramming of the applications, insufficient net-

work, for loss of data during transmission or mis-

use of mobile devices.

Information on the technical conditions, the

compatible end devices, the applicable ap-

plications and availability is available through

www.vw.com.br/conectividade or the

Volkswagen dealerships.

●Or for for further information consult the mo-

bile device's owners manual or the brand's on-

line shops/sites. 

1) Apple CarPlay™ is an Apple Inc. trademark.

2) Android Auto™ is a Google Inc. trademark

3) MirrorLink™ and the Mirror Link logo are Car Connectivity Consortium LLC. trademarks

App-Connect 11

181.5L6.R34.20

App-Connect settings

App-Connect main menu

Fig. 5 App-Connect main menu.

Info : display of further information.

Config. :

App-Connect settings

Open the

App-Connect settings

In the

App-Connect

main menu, touch the

Config. function surface.

Function surface: effect

 Activate data transmission to VW Apps : the trans-

mission of data to the Volkswagen applications

is activated.

MirrorLink™

Display alignment : select display alignment.

 180 degrees rotation : touch to rotate the screen

display by 180°.

 Prefer radio keypad a): key entries will effected

over the radio keypad display and not over the

mobile device keys.

a) This function depends on the device used.

Information on the technical conditions, the

compatible end devices, the applicable ap-

plications and availability is available through

www.vw.com.br/conectividade or the

Volkswagen dealerships.

●Or for for further information consult the mo-

bile device's owners manual or the brand's on-

line shops/sites. 

Apple CarPlay™

MenuApple CarPlay™

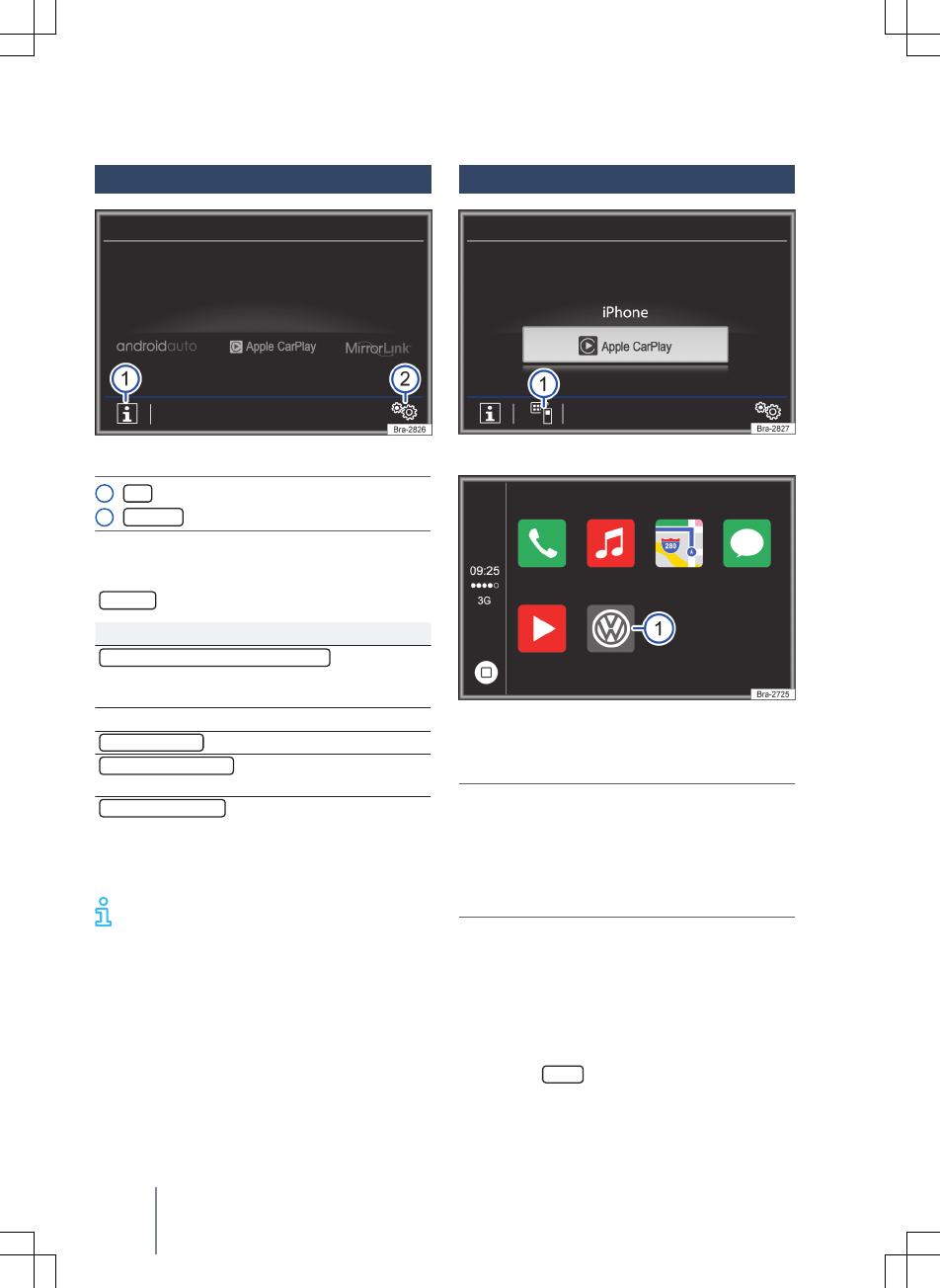

Fig. 6 Selection of the mobile device.

Fig. 7 Apple CarPlay™ menu.

Conditions Apple CarPlay™

Control list

The following conditions are required to use

Apple CarPlay™:

The mobile device must support Apple

CarPlay™.

The mobile device must be connected by a

USB cable to the radio.

Establish connection

When a mobile device is connected for the first

time follow the instructions on the radio display

and on the display of the mobile device.

–The conditions for use of the Apple CarPlay™

must be met → page 12.

–Press the MENU button. 

Composition Touch (R 340G)

–Touch the App-Connect function surface.

–Select your connected mobile device pressing

on the corresponding icon.

Disconnect connection

–During operation of the Apple CarPlay™, touch

function surface → Fig. 7 1 to access

App-Con-

nect

from the main menu.

–Touch function surface → Fig. 6 1 to turn the

active connection off.

Particularities

During an active Apple CarPlay™ connection, the

following features are valid:

–Bluetooth connection among mobile devices

and the radio are not possible.

–An active Bluetooth connection is automatical-

ly finalized.

–Telephone functions are only possible via

Apple CarPlay™. The radio functions described

in this manual are not available.

–The connected device cannot be used as a me-

dia device on the Media menu.

Voice command

–On the multifunction steering wheel or on the

mobile phone press VOICE or  briefly to

start the device's voice command feature.

–On the multifunction steering wheel or on the

mobile phone press VOICE or  for a few sec-

onds to start the connected device's voice

command feature.

Information on the technical conditions, the

compatible end devices, the applicable ap-

plications and availability is available through

www.vw.com.br/conectividade or the

Volkswagen dealerships.

●Or for for further information consult the mo-

bile device's owners manual or the brand's on-

line shops/sites. 

Android Auto™

Android Auto™ Menu

Fig. 8 Selection of the mobile device.

Fig. 9 Android Auto™ Menu

Conditions Android Auto™

Control list

The following conditions must be met to use

Android Auto™:

The mobile device must support Android

Auto™.

The mobile device must be connected by a

USB cable to the radio.

Depending on the mobile device used, an ad-

equate application must be installed to be

able to use Android Auto™ on the device.

Activate connection

When a mobile device is connected for the first

time follow the instructions on the radio display

and on the display of the mobile device.

–The conditions for use of Android Auto™ must

be met → page 13.

–Press the MENU button. 

App-Connect 13

181.5L6.R34.20

–Touch the App-Connect function surface.

–Select your connected mobile device pressing

on the corresponding icon.

Deactivate connection

–When operating Android Auto™, touch func-

tion surface → Fig. 9 1.

–Select the

Return to Volkswagen

function to ac-

cess the

App-Connect

main menu.

–Touch function surface → Fig. 6 1 to turn the

active connection off.

Particularities

During an active Android Auto™ connection, the

following features are valid:

–An active Android Auto™ device may be simul-

taneously connected to the radio via Blue-

tooth.

–Bluetooth connection among other mobile de-

vices and the radio are not possible.

–Telephone functions are possible via Android

Auto™. When the Android Auto™ device is si-

multaneously connected via Bluetooth to the

device, the phone function can also be used.

–Simultaneous phone calls via Android Auto™

and via the radio are not possible.

–An active Android Auto™ device cannot be

used as a media device on the Media menu.

Voice commands

–On the multifunction steering wheel or on the

mobile phone press VOICE or  briefly to

start the device's voice command feature.

–On the multifunction steering wheel or on the

mobile phone press VOICE or  for a few sec-

onds to start the connected device's voice

command feature.

Information on the technical conditions, the

compatible end devices, the applicable ap-

plications and availability is available through

www.vw.com.br/conectividade or the

Volkswagen dealerships.

●Or for for further information consult the mo-

bile device's owners manual or the brand's on-

line shops/sites. 

Mirror Link™

MirrorLink™ Menu

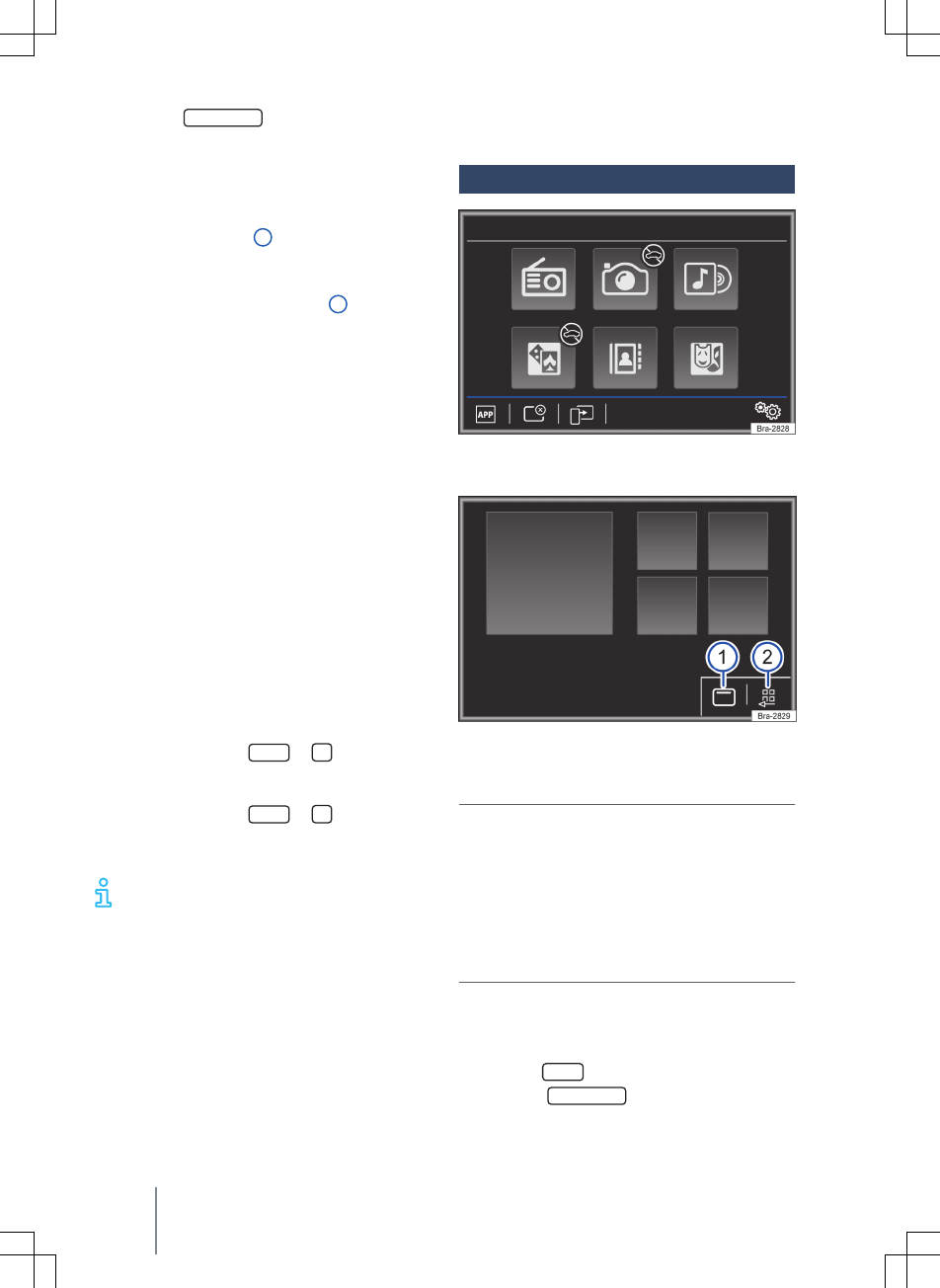

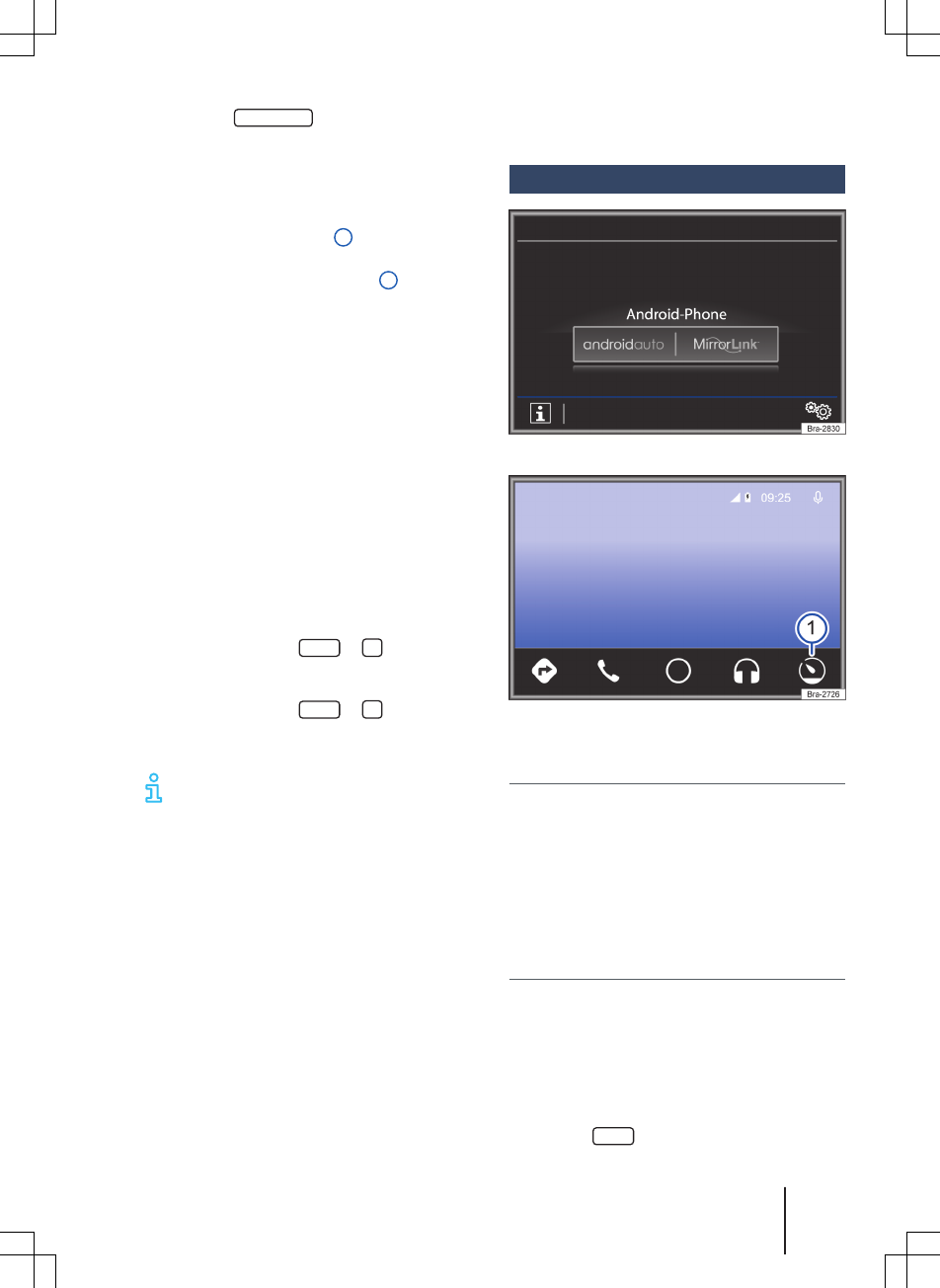

Fig. 10 Function surfaces on the compatible appli-

cations overview.

Fig. 11 Other Mirror Link™ function surfaces.

Conditions MirrorLink™

Control list

The following conditions must be met to use

Mirror Link™:

The mobile device must support MirrorLink™.

The mobile device must be connected by a

USB cable to the radio.

Depending on the mobile device used, an ad-

equate application must be installed to be

able to use MirrorLink™ on the device.

Establish a connection

–The conditions for use of MirrorLink™ must be

met → page 14.

–Press the MENU button.

–Touch the App-Connect function surface.

–Select your connected mobile device pressing

on the corresponding icon. 

Composition Touch (R 340G)

Possible function surfaces and displays

Function / display surfaces: effect / meaning

APP

Returns to the App-Connect dis-

play → Fig. 5. The MirrorLink™

connection can be broken off on

the display.



Touch to close open applications.

Then touch the applications that

are to be closed or touch the

Close all function surface to close

all open applications.



Touch to visualize the mobile de-

vice's display on the vehicle's dis-

play.

Open the MirrorLink™ → Fig. 10

settings.

Touch to exhibit the function

surfaces on the top border of the

display.

2Touch to return to the main

menu.

Information on the technical conditions, the

compatible end devices, the applicable ap-

plications and availability is available through

www.vw.com.br/conectividade or the

Volkswagen dealerships.

●Or for for further information consult the mo-

bile device's owners manual or the brand's on-

line shops/sites. 

Audio operation

Radio operation (RADIO)

Introduction

Follow the national rules and legal provisions

when using the radio.

Other additional electric devices connected to

the vehicle may interfere with the receipt of the

broadcast radio signal and cause noises in the

speakers.

Parking lots, tunnels, tall buildings or

mountains may interfere with unit signal

reception.

Metal-coated stickers or films may hinder

reception in vehicles with windscreen aer-

ials. 

Establish radio mode

After the factory settings have been reset, press

the RADIO button on the device. Select the inten-

ded frequency band pressing the RADIO button. 

Radio main menu

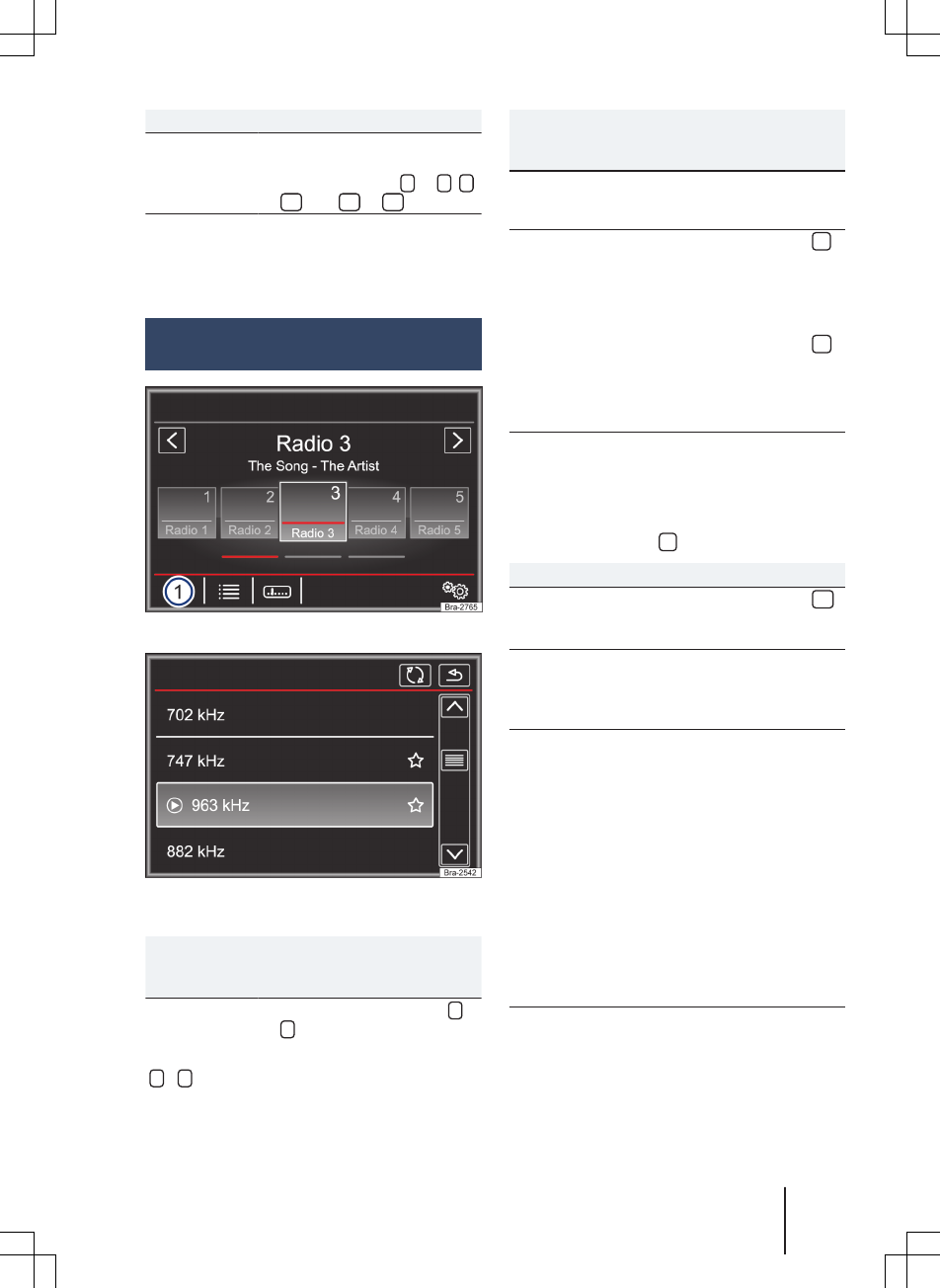

Fig. 12 RADIO main menu. 

Audio operation 15

181.5L6.R34.20

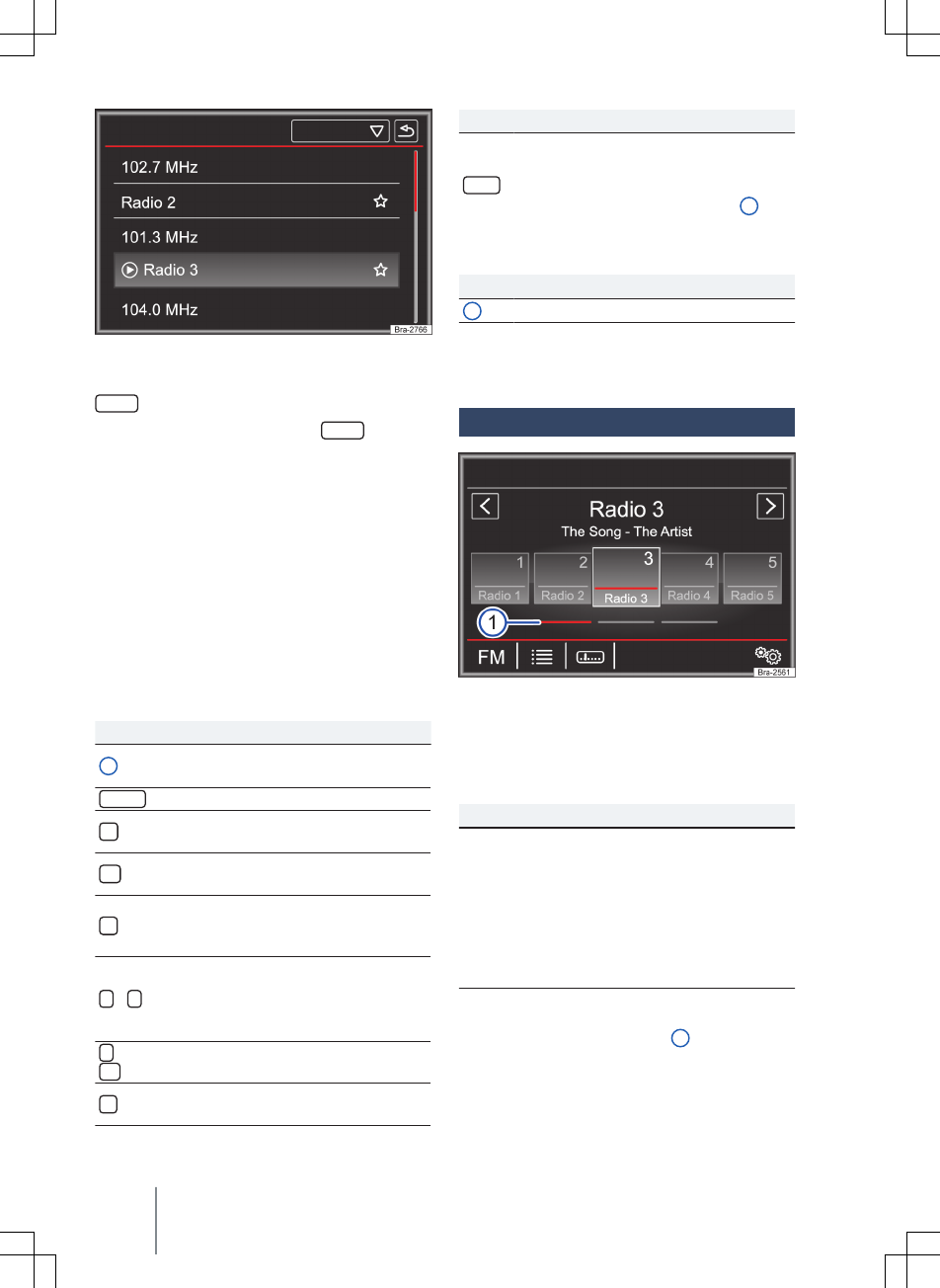

Fig. 13  Radio operation: station list.
With the radio turned on, press the radio button
RADIO  → page 7. Radio mode turns on.
To exit the main menu, press the RADIO  button
again (return to the previous main menu) or press
another radio button.
The following options are available:
–return to the memorized radio station.
–Seek next station.
–Memorize the tuned broadcasting stations.
The currently tuned in radio station is displayed
in the center of the display. For stations with RDS
the station's name can be displayed instead of its
frequency, such as
RADIO 21
, in case of good re-
ception.
Function surfaces in the FM/AM main menu
Function surface: effect
1Change the displayed station button
group by touching the function surface.
FM/AM Select the desired frequency band.
Opens the list of radio stations currently
available → page 17.
Opens the adjusted frequency scale
(frequency band) → page 17.

Opens the current frequency band set-
tings menu → page 19, Settings (FM,
AM).
< / >
Change between stored or available
stations.
Arrow button settings in menu
→ page 19, Settings (FM, AM).
1 to
12
Station buttons to store stations
→ page 16.
Update the frequency band station list
(AM) → page 17.
Function surface: effect
SCAN
Function surface that only becomes
visible with the SCAN function is selec-
ted → page 18.
Press the control button → Fig. 1 4 to
start the SCAN function.
Possible symbols and displays
Display: meaning
AStation frequency display.

Radio stations are stored in station but-
tons. 
Station buttons

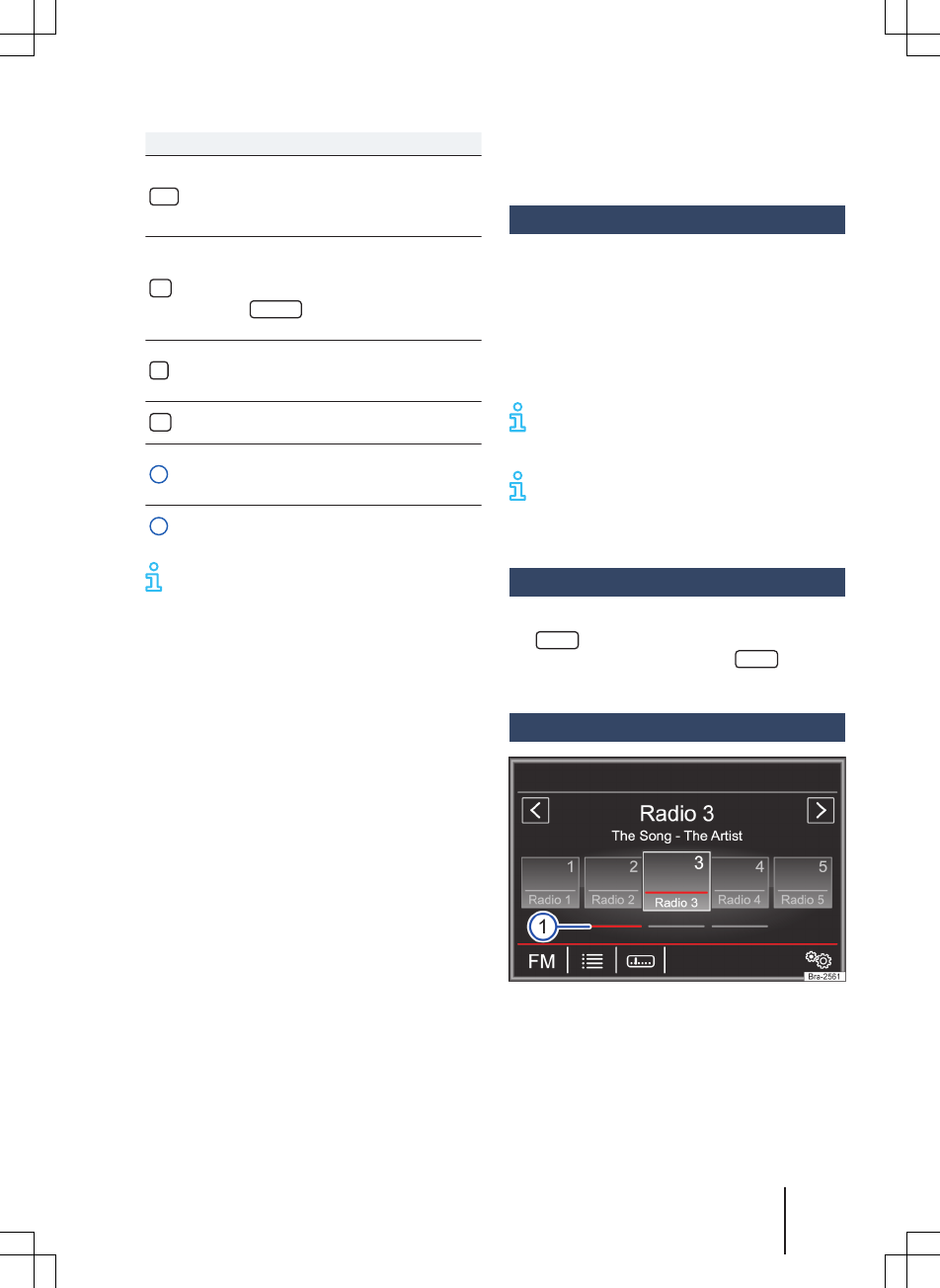

Fig. 14  RADIO main menu.
In the RADIO main menu, the currently selected
frequency band stations can be stored in 15
numbered frequency tracks. These function sur-
faces are referred to as “Station buttons”.
Station button functions → Fig. 14
Access stations
through sta-
tion buttons
Touch the station button corre-
sponding to the desired sta-
tion.
Stored stations can only be
touched after accessing
through station buttons and
when available in the current
location.
Change the
station button
group
With finger swipe over the dis-
play in the station buttons
area→ Fig. 14 1, from right to
left or from left to right. 
Composition Touch (R 340G)16

Station button functions → Fig. 14
The station buttons are dis-
played in groups of respectively
5 function surfaces ( 1 to 5, 6
to 10 , and 11  to 15 ).
Store stations
in station but-
tons
See: storing stations
→ page 18.

Specific radio indications, menus
and symbols
Fig. 15  RADIO main menu.
Fig. 16  Radio operation: radio station list with up-
date possibility (AM).
Function button areas and respective meaning
on the main menu RADIO → Fig. 15 and
→ Fig. 16:
Select the sta-
tion using the
arrow buttons
< / >
Touch the function surface <
or > → Fig. 15.
Depending on the arrow button
settings, the function switches
between stored and available
Function button areas and respective meaning
on the main menu RADIO → Fig. 15 and
→ Fig. 16:
stations. Arrow button settings
in the
Settings (FM, AM)
→ page 19 menu.
Select a station
from the radio
station list.
Touch the function surface 
→ Fig. 15 to open the station
list.
Search list and touch to select
the desired station.
Touch the function surface 
→ Fig. 16 to close the station
list. If no action is made, the
radio station list automatically
closes after a while.
Update the ra-
dio station list
The FM frequency band station
list updates automatically.
The AM frequency band station
list can also be manually upda-
ted through the function sur-
face  → Fig. 16.
Manually set the station frequency
Introduce the
frequency
band
Touch the function surface 
→ Fig. 15.
Step-by-step
instructions to
change the fre-
quency
Turn the settings knob.
OR: touch the right or left fre-
quency band arrow buttons.
Quick scan
through the
frequency
band
Touch one of the arrow buttons
on the top display area
→ Fig. 15. The next available
station is automatically selec-
ted.
OR: press and hold one of the
arrow buttons → Fig. 15 on the
top display area. After releas-
ing, the next radio station
available will be automatically
selected.
OR: press and hold the fre-
quency range and slide to move
it.
Hide the fre-
quency band
Briefly press the settings knob.
When a station is selected
through the station button, the
manual frequency selection is
also closed. If no action is
made, the frequency band au-
tomatically closes after a while. 
Audio operation 17
181.5L6.R34.20

Store stations

Store the cur-

rent station in-

to a station

button

Press and hold the desired sta-

tion button → Fig. 15 until an

audible warning is heard.

The currently played station

will be stored in this station

button.

Storing sta-

tions from the

station list in

station buttons

Touch the function surface 

→ Fig. 15 or turn the settings

knob to open the station list.

Stations stored in station but-

tons are identified in the sta-

tion list by the symbol



→ Fig. 16.

Press and hold the display to

select the desired station.

Touch the desired station but-

ton in which the station must

be stored.

An audible warning is heard

and the station is stored in the

station button. Repeat this pro-

cedure to store other stations

from the station list.

Delete stored

stations

All stations stored in the

FM, AM

Settings

menu can be deleted

separately or all at once

→ page 19. 

SCAN

Fig. 17 Radio mode: ongoing SCAN.

By selecting the SCAN function, all stations avail-

able in the current frequency band are played for

approximately 5 seconds. SCAN → Fig. 17 will be

displayed on the screen.

Starting and stopping the scan function

Starting the

scan function

Briefly press the settings knob.

OR: touch the function surface

 and select SCAN .

Close the SCAN

function.

Briefly press the settings knob.

OR: touch the function surface

SCAN → Fig. 17 to stop the au-

tomatic scan function in the

current station.

The automatic scan function is

also interrupted whenever a

station is manually selected by

the station buttons. 

Rear view camera or Parking sensor

(Park Pilot)

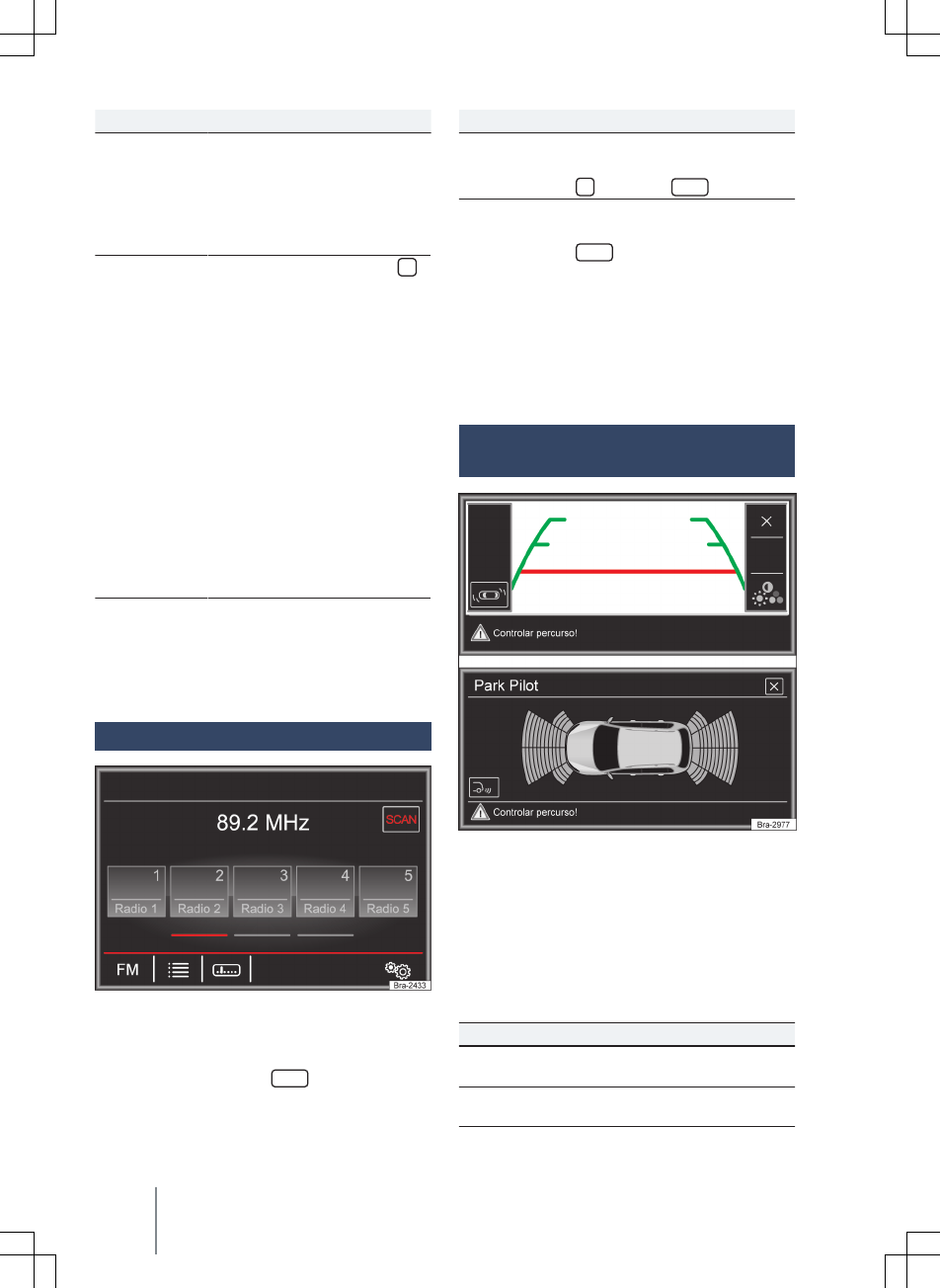

Fig. 18 Rear view camera and parking sensor

The rear view camera and the parking sensor

may not be available on all versions and/or ex-

port markets.

According to the vehicle version the external im-

age is automatically displayed with engaged re-

verse gear. The functions can be adjusted on the

menu.

Functions

Set glare, contrast and brightness.

Park Pilot display. 

Composition Touch (R 340G)18

Functions

Camera display.

Shutting down the rear view camera

and the Park Pilot

When the  function is selected on the left

bottom of the radio display, the live image

changes over to the Park Pilot image. To return

to the real external image again it is necessary to

select in function .

Settings (FM, AM)

Opening the

FM Settings

Select the FM frequency band by pressing the

RADIO button.

OR: on the RADIO main menu, touch the FM/AM

function surface and then select FM .

Touch the function surface  to open the

Settings

menu.

Function surface: effect

Scan : automatic SCAN. By selecting the SCAN

function, all stations available in the current fre-

quency band are played for approximately 5

seconds → page 18.

Sound : sound settings → page 35.

Arrow buttons : select settings for the arrow but-

tons < and >. Settings are applied to all fre-

quency bands (FM).

Memory list : the arrow buttons are used to

change all stations stored in the selected

frequency band.

Search stations : the arrow buttons are used

to change all stations available in the se-

lected frequency band.

Delete memory : deletes all or some stations stor-

ed.

 All : all stored stations are deleted.

Opening the

AM Settings

Select the AM frequency band by pressing the

RADIO button.

OR: on the RADIO main menu, touch the FM/AM

function surface and then select AM .

Touch the function surface  to open the

Settings

menu.

Function surface: effect

Scan : automatic SCAN. By selecting the SCAN

function, all stations available in the current fre-

quency band are played for approximately 5

seconds → page 18.

Sound : sound settings → page 35.

Arrow buttons : select settings for the arrow but-

tons < and >. Settings are applied to all fre-

quency bands (AM).

Memory list : the arrow buttons are used to

change all stations stored in the selected

frequency band.

Search stations : the arrow buttons are used

to change all stations available in the se-

lected frequency band.

Delete memory : deletes all or some stations stor-

ed.

 All : all stored stations are deleted. 

Media mode

Introduction

“Media sources” are referred to as audio sources

that contain audio data in different data storage

units, such as external MP3 Players or audio files.

These audio files may only be played by the re-

spective units or audio inputs of the radio system

(USB port, Bluetooth® interface, SD card or AUX-

IN multimedia port).

Copyrights

Audio and video files stored in data media are

generally subject to copyright laws, as per appli-

cable national and international standards. All

applicable legal provisions must be followed.

This product is protected by copyrights of

Microsoft Corporation. This technology may

not be reproduced or marketed without prior au-

thorization from Microsoft or one of its author-

ized affiliates.

Volkswagen takes no responsibility for

damaged or lost files. 

Audio operation 19

181.5L6.R34.20

Limitations and recommendations

regarding data carriers

Dirt, high temperatures and mechanical damage

may render a data carrier useless. Pay attention

to the data carrier manufacturers instructions.

The difference in data carrier quality from differ-

ent manufacturers may cause playback interfer-

ences.

The configuration of a data carrier or the devices

and programs used to record the data may result

in some titles or data carriers being unreadable.

Information on the best ways to create audio

files and data carriers (rate of compression, ID3-

tag etc.) can be found, for example, on the Inter-

net.

Due to the size, use (number of copies and dele-

tions), of the structure of the folders and file type

of the used data carrier the reading time may

vary substantially.

A playlist only defines a certain playback se-

quence. Files are not memorized on the playlists.

The playlists are not played back when the files

on the data carrier are not saved where the play-

list is looking for them (path related data). 

Audio data storage unit playback

sequence

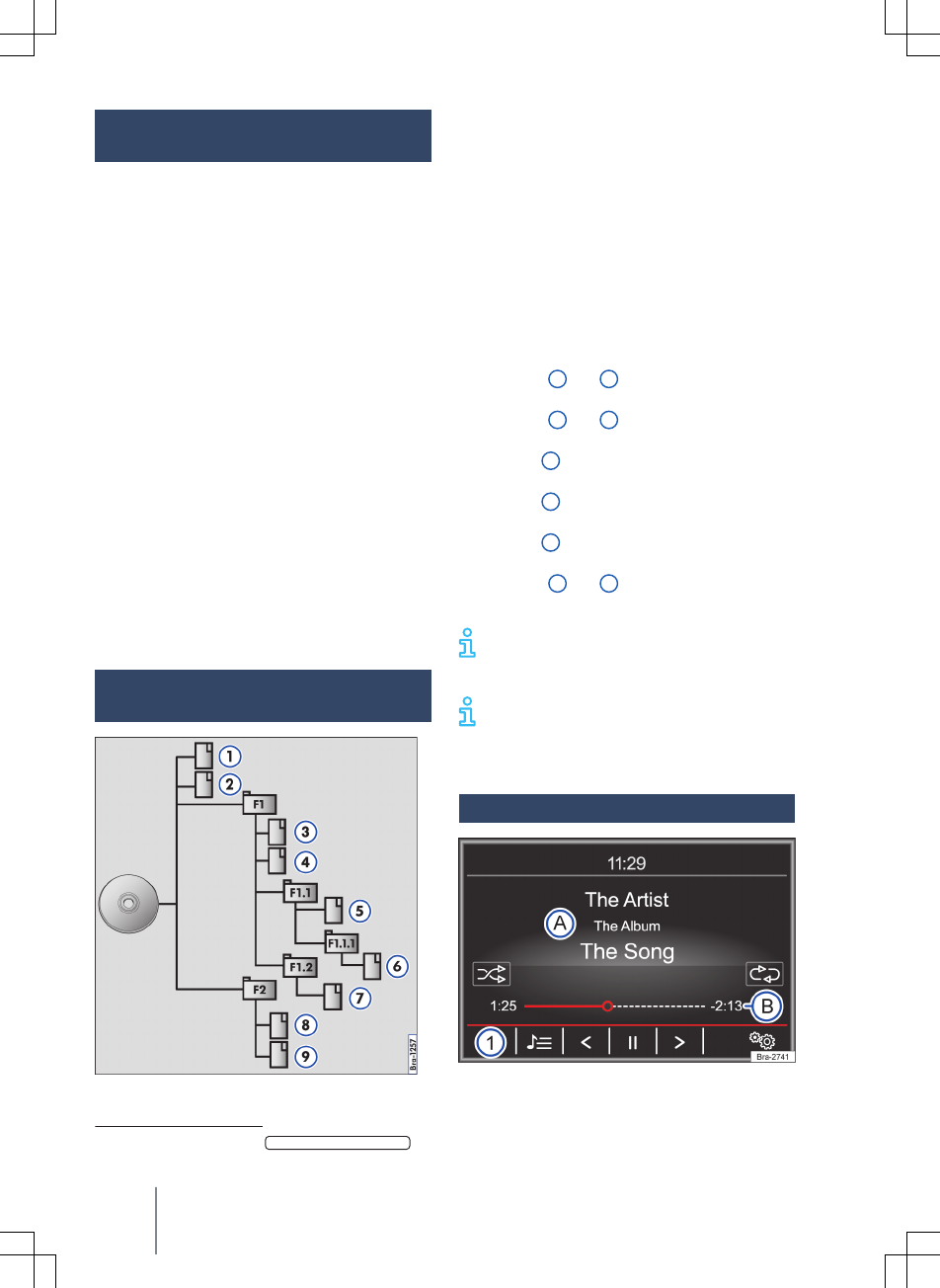

Fig. 19 Possible structure of a data storage unit.

In data storage units, audio files are often  or-

ganized into data folders  and playlists  in or-

der to define a certain playback sequence.

Tracks, folders, and playlists are classified nu-

merically and alphabetically according to the

name of the data storage unit.

The figure → Fig. 19 shows a typical data storage

unit containing tracks,  folders  and subfold-

ers.

Therefore, the tracks and folders of this data

storage unit are played and displayed in the fol-

lowing sequence 1):

Tracks 1 and 2 in the Root directory of

the CD

Tracks 3 and 4 in the first folder F1 of

the root directory (display:

 01

Track 5 in the first subfolder F1.1 of fold-

er F1 (display:

 02

Track 6 in the first subfolder F1.1.1 of

subfolder F1.1 (display:

 03

Track 7 in the second subfolder F1.2 of

folder F1 (display:

 04

Tracks 8 and 9 in the second folder F2

(display:

 05

The playback sequence can be modified by

selecting different playback modes

→ page 21.

Playlists are not played automatically, but

must rather be individually selected in the

track selection menu → page 22. 

MEDIA main menu

Fig. 20 MEDIA main menu. 

1) In the

Media settings

menu, the  Mix/Repeat, including subfolder function must be activated → page 22.

Composition Touch (R 340G)20

Different media sources can be selected and
played through the MEDIA main menu.
–Press the MEDIA  button to open the MEDIA
main menu → Fig. 20.
The last media source played is resumed.
Currently played media sources are shown in the
lower left function surface → Fig. 20 1.
The MEDIA main menu shows a message if no
media source can be selected.
MEDIA main menu function surfaces
Function surface: effect
1
Shows the currently selected media
source. Touch to select a different media
source → page 21.
SD Card : memory card → page 8.
USB : external data storage unit in the
USB port → page 23.
 BT Audio : Bluetooth® audio → page 25.
AUX : external audio source in the AUX-
IN multimedia port → page 24.
Shows the playback list → page 22.
< /
>
Changes tracks in media mode
→ page 22.
Playback is interrupted. The function sur-
face  changes to  → page 22.
Playback is resumed. The function sur-
face  changes to  → page 22.
Open the
Media settings
 menu → page 22.

Touch to switch between available modes.
: repeat current tracks.
: repeat all tracks.
All tracks in the same memory level as the
current track will be repeated. In the
Media
settings
 menu, subfolders are included if
 Mix/Repeat, including subfolder  is selected
→ page 22.

Mix function. The function surface 
changes to .
All tracks in the same memory level as the
current track will be included. In the
Media
settings
 menu, subfolders are included if
 Mix/Repeat, including subfolder  is selected
→ page 22.
MEDIA main menu symbols and displays
Display: meaning
A
Display of track information (ID3 tag text
in MP3 files).
Audio files: display of the artist name, al-
bum name and track title.
B
Track length, status bar and remaining
time (in minutes and seconds). The re-
maining track time shown for audio files
with variable bit rate (VBR) may vary.
Touch the status bar or touch and drag to
skip to a different track position. 
Change media source
–On the MEDIA main menu, press the radio's
MEDIA  button again, to go over all the availa-
ble media sources.
In the pop-up window there are currently no se-
lectable media sources shown as inactive (grey
a).
The media source currently in use is displayed on
the screen.
If no media source can be selected, such is indi-
cated on the MEDIA main menu.
If a media source previously played back is selec-
ted again, the playback starts at the point where
it was last interrupted.
Optional selectable media sources
Func-
tion
but-
ton
Media source
SD card in the SD card slot → page 8.

USB Data storage unit in the USB port
→ page 23. To know the installation lo-
cation of the slot, consult the Owners
Manual of your vehicle → Booklet Own-
ers Manual, chapter Storage compart-
ment
External audio source connected through
Bluetooth® → page 34.
External audio source in the AUX-IN mul-
timedia port → page 24.
The track information display can be disa-
bled in the Playlist → page 22. 
Audio operation 21
181.5L6.R34.20

Change the track on the MEDIA
main menu
The tracks of the media sources being played
back can be successively run through with the ar-
row buttons → page 22, Track selection from
the track list.
It is not possible with the arrow buttons to
switch to playback from a playlist. Playback from
a playlist needs to be manually started from the
track selection menu → page 22, Track selec-
tion from the track list.
MEDIA main menu controls
Action Effect
Briefly touch the
function surface <
once.
Within less than 3 sec-
onds of the track's
length, switches the be-
ginning of the previous
track.
Within more than 3 sec-
onds of the track's
length, switches to the
beginning of the current
track.
Briefly touch the
function surface >
once.
To the next track. After
the last track, it returns
to the first track of the
current data storage unit.
Press and hold the
function surface <.Fast rewind.
Press and hold the
function surface >.Fast forward.
Briefly touch the
function surface 
once.
Playback is interrupted.
The function surface 
changes to .
Briefly touch the
function surface 
once.
Playback is resumed. The
function surface 
changes to .
Track selection from the track list
To open the track list in the MEDIA main menu,
press the  function area OR turn the selector
button. The track about to be played back is
highlighted.
Search the track list and touch on the desired
track. When track information is available, the
track number and name or the names of the files
(MP3) are displayed instead of the
Title + no.
 1). The
track title list may not be supported by the
source.
Tracks, folders and playlists can also be
marked, by turning the settings knob, and
accessed/opened by pressing the knob. 
Specific media settings
Opening the
Media settings
 menu
In the MEDIA main menu, touch the  function
surface.
Function button: effect
Sound : opens the
Sound settings
 menu
→ page 35.
 Mix/Repeat, including subfolders : add subfolders to
the selected playback mode → page 20.
Bluetooth : opens the
Bluetooth settings
 menu
→ page 34.
Remove : remove the data unit (USB data storage
unit or SD card) from the system. The respective
function surface is disabled after the data stor-
age unit is successfully removed. 
Functions, indications and symbols
Function button and effect:
Open the
Source
 menu. Touch to select an-
other media source.
A
Shows the currently selected media
source. Touch to change the media
source.
SD Card : memory card → page 8.
USB : external data storage unit in the
USB port → page 23.
AUX : external audio source in the AUX-
IN multimedia port → page 24.
 BT Audio : External Media Player connec-
ted via Bluetooth® → page 25. 
1) Depending on the source.
Composition Touch (R 340G)22

Function button and effect:



Touch the function surface to open the

upper media source folder. The name of

the current folder is shown to the right of

the symbol.

Start playback from the first track.



Repeat all tracks. The function surface 

changes to .

All tracks in the same memory level as the

current track will be repeated. In the

Media

settings

menu, subfolders are included if

 Mix/Repeat, including subfolder is selected

→ page 22.



Mix function. The function surface 

changes to .

All tracks in the same memory level as the

current track will be included. In the

Media

settings

menu, subfolders are included if

 Mix/Repeat, including subfolder is selected

→ page 22.

Close the playlist. 

Playback of an SD card

–Insert the SD card carefully into the SD card

slot with the chamfered edge up and the in-

scriptions to the left of the SD card slot

→ Fig. 1 1.

–To remove the SD card → page 8, first see the

system settings and execute the

Safely remove

source

action. Briefly touch the SD card so it

“springs” out to removal position.

–Press the radio MEDIA button.

Playback is taken up from the last used media

source. To playback the SD card, press the 

button.

When navigating the folders use the  function

button and the selector button → Fig. 1 4. Press

 to go to the higher level of the folders and ro-

tate the selector button to select the desired

folder.

To change to the next or previous track, press

one of the function buttons.

Keep one of the arrow buttons pressed for a few

seconds to move the playback forward or back-

ward.

During playback of the SD card, some function

keys are available at the bottom of the display.

The active buttons are highlighted. 

Wired or wireless connections

Introduction

Some external devices can be connected to the

radio with or without wires (if existing) in the ve-

hicle.

The type and number of connections with or

without wires depend on the country and the ve-

hicle. Within a range of different models and in

special models the connections may reveal dif-

ferences.

For the wired connections use only original ca-

bles from the device or - if available - the factory

supplied cables for the respective vehicle. 

USB Connection 

The USB multimedia port is located on the front

part of the device → Fig. 1 6.

Audio files on an external data storage unit con-

nected to the USB port  can be played back

and controlled by device.

USB data manual are referred to in this manual as

external data media, which contain playable files

(e.g. MP3 player, iPods™ and pen drives).

Only supported audio files are shown. Other file

types are ignored.

Playback begins automatically if there are stored

and readable audio files in the data storage units.

The additional external data storage unit controls

(access track changes, track selection, and play-

back modes) are detailed in the respective chap-

ters → page 19.

Instructions and restrictions

The number of USB ports  and compatibility

with Apple™ devices, among other Media Players,

may vary depending on the equipment.

The typical USB voltage of 5 V is supplied

through the USB  port. 

Audio operation 23

181.5L6.R34.20

External hard drives with capacity for over 32 GB

must be reformatted into the FAT32 file system,

depending on the conditions. Programs and in-

structions to perform such formatting process

are available on the Internet, for example.

Considering the wide range of different data

storage units and various iPod™, iPad™ and

iPhone™ generations, it is impossible to ensure

that all functions will be available.

iPod™, iPad™ and iPhone™

Depending on the country and equipment ver-

sion, iPods™, iPads™ or iPhones™ may be con-

nected to the vehicle's USB port , through a

suitable USB cable, and used as audio sources.

Disconnect

Connected data storage units must be prepared

for removal before being disconnected.

–In the MEDIA main menu, touch the  func-

tion surface to open the

Media settings

menu.

–OR: press the SETUP radio button.

–Touch the function surface Remove and select

 USB . The function surface is disabled after

the data storage unit is successfully removed.

–The data storage unit may be disconnected.

Unreadable data storage unit

If a connected data storage unit contains unread-

able data, a corresponding message is shown on

the device display.

If an external Media Player is connected si-

multaneously via Bluetooth® and the USB

port  to the device, the Bluetooth® audio con-

nection is automatically disconnected after

switching to the USB port.

If a connected device cannot be recognized,

remove all connections and reconnect the

devices. Check whether the connection cable is

working, if necessary.

In case of operating faults in connected de-

vices, restart the respective device. This

usually solves the issue.

Do not use any memory card adapter, USB

extension cord, or USB-Hubs (USB distribu-

tors)!

Refer to the external data storage unit

manufacturer's operating manual. 

Connecting an external audio

source to the multimedia AUX-IN

port

The AUX-IN multimedia port → Fig. 1 6 only

supports 3.5 mm jack plugs.

The external audio source connected is played

back through the vehicle's loudspeakers and can-

not be controlled by the device.

Connected external audio sources are indicated

AUX

on the display.

Connecting an external audio source to the

AUX-IN multimedia port

–Reduce the volume on the radio.

–Connecting an external audio source to the

AUX-IN multimedia port.

–Start playback on the external audio source.

–Press the radio MEDIA button to display the

available media sources selection menu

→ page 19.

–Press the function button .

The playback volume of external audio sources

must be adjusted to the volume of remaining au-

dio sources → page 35.

Specificities regarding the use of external

audio sources in the AUX-IN multimedia port

Action Effect

Selection of another

audio source on the

device.

The external audio

source continues to

play in the background.

Stop playback on the

external audio source.

The unit stays in the

AUX

menu.

Remove the plug from

the AUX-IN multimedia

port.

The unit stays in the

AUX

menu.

When the playback of the external audio

source is finished or is disconnected from

the multimedia AUX-IN port, the radio stays on

the

AUX

menu.

There may be noise interferences if the ex-

ternal audio source is used on the vehicle's

12 V power outlet.

Read and follow the external audio source

manufacturers operating instructions. 

Composition Touch (R 340G)24

Connecting external audio sources

via Bluetooth®

Connecting an audio source via Bluetooth

In Bluetooth® audio mode audio files from a

Bluetooth® audio source connected via Blue-

tooth® can be played back (for example a smart-

phone), using the vehicle's loudspeakers (audio

Bluetooth® playback).

Requisites

–The Bluetooth® audio source must support the

Bluetooth® A2DP profile.

–In the

Bluetooth settings

menu, the

 BT Audio (A2DP/AVRCP) function must be active

→ page 34.

Start audio playback in Bluetooth®

–Enable Bluetooth® visibility in the external

Bluetooth® audio source (e.g. mobile phone).

–Lower the base volume on the radio .

–Press the radio MEDIA button.

–Touch the function surface → Fig. 20 1 and

select  BT audio .

–Touch the Search device function surface to pair

an external Bluetooth® audio source for the

first time.

–OR: select from the list of external Bluetooth®

audio sources.

–OR: pair through the

Bluetooth Settings

→ page 34.

–Follow the instructions for other procedures

on the radio display and the Bluetooth® audio

source display.

Playback of the Bluetooth® audio source must be

initiated manually, if necessary.

Whenever the Bluetooth® audio source playback

ends, the device remains in the Bluetooth® audio

mode.

Playback control

Control of the Bluetooth® audio source through

the device depends on the connected Bluetooth®

audio source.

In media readers that support the Bluetooth®

AVRCP profile, playback may be automatically in-

itiated or interrupted from the Bluetooth® audio

source, if it is switched to Bluetooth® audio play-

back or other audio sources. In addition a display

of the track or a track change is possible through

via the device.

Due to the wide variety of Bluetooth® audio

sources, some of the functions described

herein may not operate properly.

To operate the multimedia mode with the

Bluetooth® device connected, read and fol-

low the manufacturers use instructions.

Use only with devices that support Blue-

tooth® technology. For further information

on Bluetooth® products compatibility contact a

Volkswagen dealership or look up on the Inter-

net. 

Audio operation 25

181.5L6.R34.20

Phone controls (PHONE)

Introduction to phone controls

Introduction

The phone functions detailed below can be ac-

cessed through the device when there is an ac-

tive paired and connected mobile phone.

The mobile phone must support the Bluetooth®

function in order to establish a connection be-

tween the mobile phone and the device.

If no mobile phone is connected to the device,

phone control will not be available.

Instructions to use mobile phones in vehicles

without external aerial connection → Booklet Op-

erating manual.

WARNING

Using mobile phones while driving may distract

drivers and cause accidents.

●Always drive carefully and responsibly.

●Adjust sound volume settings to allow the

driver to hear external warnings and sounds

(e.g. emergency service sirens)

●In locations with partial or lack of mobile

coverage, and depending on the circumstan-

ces (tunnels, garages and underground pas-

sages) telephone call may be hindered, pre-

venting the use of mobile devices (including

emergency calls).

WARNING

If a mobile phone is not secured or not properly

secured in the vehicle, it could be flung though

the interior during a sudden driving or braking

manoeuvre, or in the event of an accident. This

can cause injuries.

●Always attach mobile phones properly and

out of airbag triggering areas while driving.

WARNING

Mobile phones can cause interference when

positioned nearby heart pacemakers.

●Keep a minimum distance of 20 centimetres

between the mobile phone's antenna and

the heart pacemaker, since the former may

interfere with the latter.

●Do not carry activated mobile phones in

chest pockets directly over heart pacemak-

ers.

●Turn off mobile phones immediately when-

ever there is suspicion of interference with

pacemakers.

NOTICE

High speed, unfavourable weather and road con-

ditions, as well as poor network connection may

hinder or interrupt mobile phone calls inside the

vehicle. 

General information

Please refer to and at the start of the

chapter on page 26.

Phone menu displays vary depending on the

functions available on the mobile phone model.

There may be differences depending on the mod-

el used.

Follow the instructions to use mobile phones in

vehicles without external aerial connection

→ Booklet Owner's Manual, chapter Vehicle pres-

ervation and maintenance.

Use only with units that support Bluetooth®

technology. Additional information about prod-

ucts that support Bluetooth® technology may be

obtained at Volkswagen Dealerships or via the

Internet.

Refer to the mobile phone and accessory suppli-

er's operating manual.

Call interruption and reception flaws may occur

in certain “transmission blackout areas”.

Most electronic devices are shielded from HF sig-

nals (high frequency). In some rare cases, howev-

er, electronic devices may not be shielded

against the HF signals of phone controls. This

may result in damages.

There may be restrictions regarding the use

of Bluetooth® devices in certain countries.

Additional information may be obtained from lo-

cal authorities. 



Composition Touch (R 340G)26

When connecting phone controls to a de-

vice via Bluetooth® technology, refer to the

respective Operating manual for additional safety

information. Use only with products that support

Bluetooth® technology. 

Special precaution areas

Please refer to and at the start of the

chapter on page 26.

Switch off mobile phones in areas with risk of ex-

plosions. Such areas are very common, although

not often identified as such → in Introduction

on page 26. Some of these areas are:

–Areas with pipes and tanks containing chemi-

cals.

–Lower decks in ships and ferries.

–Areas nearby vehicles powered by liquid gas

(e.g. propane or butane).

–Areas with chemicals or other particles such as

flours, dust, or metallic dust in the atmos-

phere.

–Any other area where the vehicle engine must

be switched off.

WARNING

Switch off mobile phones in areas with risk of

explosion.

NOTICE

Mobile phones must always be turned off in loca-

tions in which their use is prohibited. The radia-

tion generated by mobile phones may cause in-

terference with delicate medical and technical

equipment, which may hinder or damage such

devices. 



Bluetooth®

Please refer to and at the start of the

chapter on page 26.

Bluetooth®

Bluetooth® technology connects mobile phones

to the vehicle's phone controls. A single pairing

process is required in order to use the phone

controls with mobile phones equipped with Blue-

tooth®.

Some Bluetooth® mobile phones are recognized

and connected immediately upon switching on

the ignition, if such phones have been previously

connected. At the same time, the mobile phone

and its embedded Bluetooth® feature must be

activated, and all active Bluetooth® connections

with other devices must be disconnected.

Bluetooth® radio communication is free of

charge.

Bluetooth® is a registered trademark of Blue-

tooth ® SIG, Inc.

Bluetooth® Profiles

Whenever mobile phones are connected to the

phone controls, data will be exchanged through

one of the Bluetooth® profiles.

Phone use via Bluetooth® Hands-Free-Profile

(HFP):

–If mobile phones are connected via HFP with

phone controls, wireless calls can be made via

the hands-free device. In this case, the exter-

nal aerial cannot be used. Instructions to use

mobile phones in vehicles without external

aerial connection → Booklet Operating man-

ual.

Music playback via Bluetooth® Advanced Audio

Distribution Profile (A2DP):

–Bluetooth® profile to transfer audio signals

with stereo quality.

Playback control via Bluetooth® Audio Video Re-

mote Control Profile (AVRCP):

–Bluetooth® profile to display track information

and playback controls in mobile devices. 



Phone controls (PHONE) 27

181.5L6.R34.20

Pair up and connect the mobile

phone to the radio

Please refer to and at the start of the

chapter on page 26.

In order to operate a mobile phone via the radio

unit, both devices must be paired once.

Pairing must be performed while the vehicle is

stationary.

Requisites

–Ignition switched on.

–Remove the headset connection to the mobile

phone if necessary.

–The Bluetooth® function must be enabled and

visible on the phone and radio.

–The key blocking feature must be unlocked on

the mobile phone.

Follow the owner's manual of the respective mo-

bile phone.

During the pairing process, the mobile phone's

keypad must be used. The mobile phone must be

prepared for such process.

Initiate mobile phone pairing

–Press the PHONE button.

–Touch the Search phone function surface.

After the process is completed, all names of

Bluetooth® devices found are displayed.

–Select the mobile phone from the list of Blue-

tooth® devices found.

Then the device and the mobile phone will be

connected. Additional mobile phone or radio en-

tries may be required to conclude their connec-

tion.

–Confirm successful pairing in the mobile

phone, if necessary.

Depends on the mobile phone:

–Insert the PIN code displayed on the radio

screen into the mobile phone and confirm.

OR:

–Compare the PIN code shown on the radio dis-

play with the PIN code shown on the mobile

phone. If the PIN code matches, it must be

confirmed in both devices.



After successfully completing the pairing proc-

ess, the main menu PHONE is shown and the

contact list and list of calls stored in the mobile

phone are automatically loaded. Confirm on the

mobile phone, if necessary.

The duration of the loading process varies de-

pending on the amount of data stored in the mo-

bile phone. After completing the loading process,

the data of the device will be available.

Pairing and connecting mobile phones

Multiple mobile phones can be paired to the de-

vice. However, only one mobile phone can be

connected to one device at any given time.

When turning the radio on, the unit automatically

connects to the last mobile phone connected. If

it is not possible to connect to the last mobile

phone used, the phone control automatically at-

tempts to connect to the next mobile phone in

the list of paired phones.

The maximum range of a Bluetooth® connection

is approximately 10 metres. Active Bluetooth®

connections are interrupted if such range is ex-

ceeded. The connection will be automatically re-

stored as soon as the device is in reach of the

Bluetooth® range.

Refer to a Volkswagen Dealership for more

information on mobile phone connections

and pairing. 

Switching off phone controls

Please refer to and at the start of the

chapter on page 26.

–End active calls.

–Switch off the ignition.

–Remove the key from the ignition.

–Switch off the mobile phone.

If the vehicle key remains in the ignition cylinder

after switching off the ignition, phone controls

will not be switched off. Phone controls are only

switched off a few minutes later (factory set-

tings: approximately 15 minutes).

If mobile phones were connected with

phone controls, the mobile phone transmis-

sion unit remains active after switching off

phone controls. Switching of the mobile phone

may be required. 



Composition Touch (R 340G)28

Phone control description

Introduction

Some features and settings are only available

while the vehicle is stationary and are not sup-

ported by all mobile phone brands.

The range of possible settings depends on the

country, unit, and the vehicle's equipment speci-

fications.

Phone controls can recognize up to 20 devices.

Respectively, devices can be connected via the

Hands-Free-Profile (HFP) and the Advanced Au-

dio Distribution Profile (A2DP) → page 28.

User profile assignment

Connected mobile phones are stored in the

phone controls under a user profile.

Up to 4 user profiles can be assigned in phone

controls. If another mobile phone is paired, the

profile with longest idle time is automatically de-

leted.

Contact list, favourite numbers (speed dial but-

tons) and

User profile settings

menu settings are

stored in the user profile.

If a mobile phone is reconnected to the phone

controls, the respective settings and data will be

available once again.

If a mobile phone's contact list entries are

changed while connected, contact list data can

be manually updated via the

User profile settings

menu → page 34. The contact list will be auto-

matically updated upon the next mobile phone

connection (e.g. during the following vehicle

use).

WARNING

Loose or unsecured mobile phones may be

flung through the interior and cause injuries in

case of sudden evasive or breaking manoeuvres

or in the event of accidents.

●While the vehicle is in motion, always secure

mobile devices properly outside the airbag

deployment zones or stow them away safely.

Using mobile phones in the vehicle may

cause loudspeaker noises. 

PHONE main menu

Please refer to at the start of the chapter

on page 29.

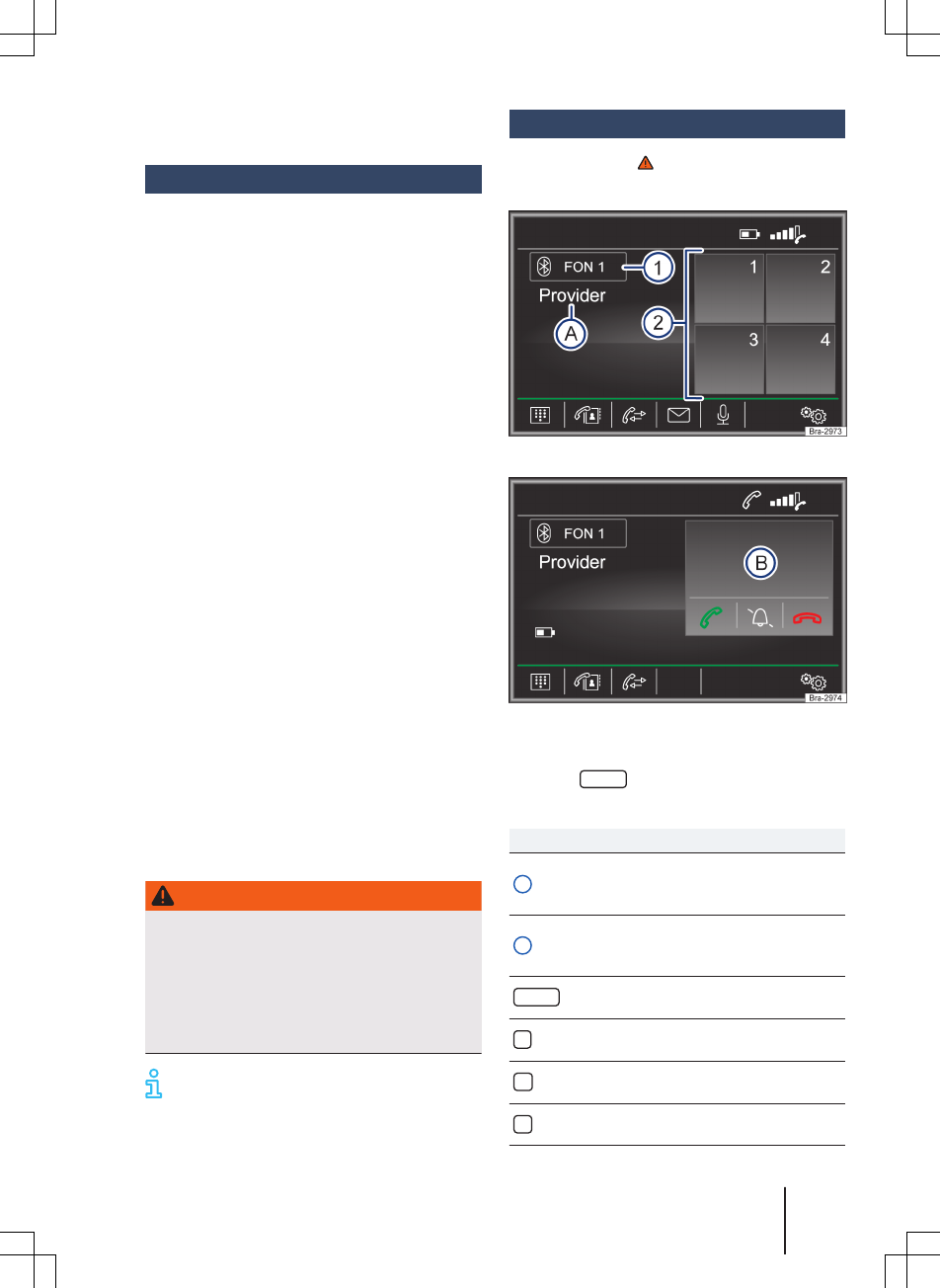

Fig. 21 PHONE main menu.

Fig. 22 Call details.

Open the PHONE main menu

Press the PHONE button.

PHONE main menu function surfaces

Function surface: effect

Name of the paired mobile phone or se-

lected user profile. Touch to connect or

pair to another mobile phone.

Favourites (speed dial buttons) to which

contact list numbers can be assigned

→ page 33.



Touch the function surface to establish

the Mirror Link™ connection.

Open a numeric keypad to enter a phone

number → page 31.

Open the contact list of the paired mobile

phone → page 31.

Open call lists of the mobile phone paired

→ page 32. 



Phone controls (PHONE) 29

181.5L6.R34.20

Function surface: effect

a) Open the message list (SMS) of the mobile

phone paired.

a) Touch the function surface to enter a

phone number through voice command.

Open the

Phone settings

menu → page 33.

Touch to answer a call.

Touch to end a call.

OR: touch to reject calls received.



Touch to mute sound during a call. Touch

the function surface  to unmute the

sound.

a) Depends on the mobile phone.

Phone control symbols and displays

Display: meaning

Name of the mobile network carrier in

which the SIM card of the paired mobile

phone is registered.

BStored name or phone number display.



Battery charge status of the connected

mobile phone.



Intensity of the mobile communication

transmission signal currently available.



Displays an active Bluetooth® connection. 

During a phone call

Please refer to at the start of the chapter

on page 29.

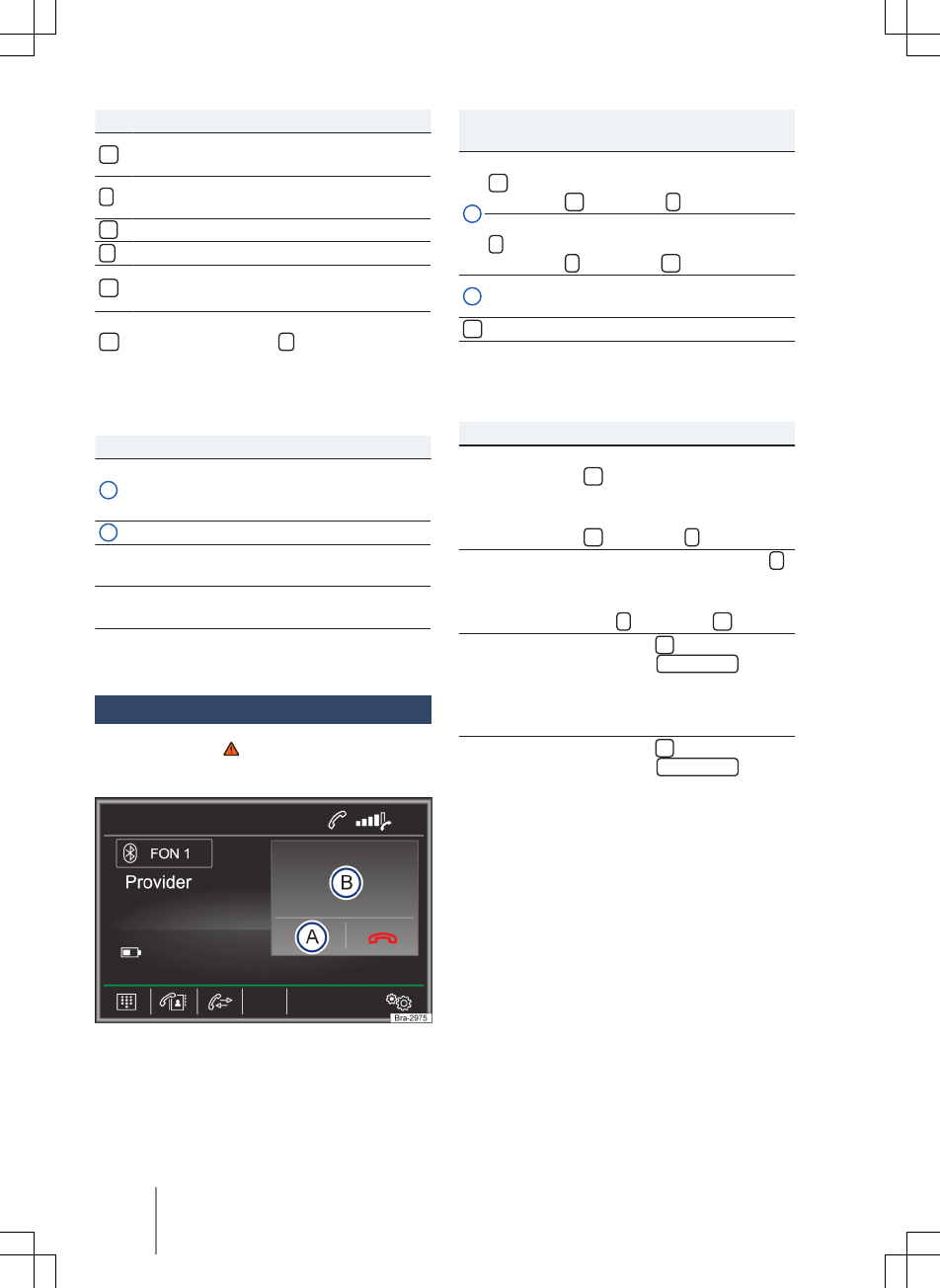

Fig. 23 During a phone call.

When a connection with the dialled phone num-

ber has been established, the PHONE main menu

display switches to Phone call → Fig. 23.



Function surfaces and displays: action and ef-

fect



Touch to switch off the mobile phone

microphone during a call (the function

surface  changes to ).



Touch to switch on the mobile phone

microphone during a call (the function

surface  changes to ).

B Display of the call duration and call num-

ber or stored name.

 Touch to end a call.



Battery charge status of the connected

mobile phone.

Functions available during a phone call

Possible functions

Mute mobile

phone micro-

phone

Touch the function surface

.

The mobile phone microphone

is muted (the function surface

 changes to ).

Unmute mobile

phone micro-

phone

Touch the function surface .

The mobile phone microphone

is unmuted (the function sur-

face  changes to ).

Starting phone

calls via mobile

phone

Touch the  function surface

and select  Hands-free .

The hands-free function is

disabled and the call is direc-

ted to the mobile phone

Starting phone

calls via the mo-

bile phone con-

trols

Touch the  function surface

and select  Hands-free .

The hands-free function is en-

abled and the call is directed

to the mobile phone controls. 

Composition Touch (R 340G)30

Enter phone number menu

Please refer to at the start of the chapter

on page 29.

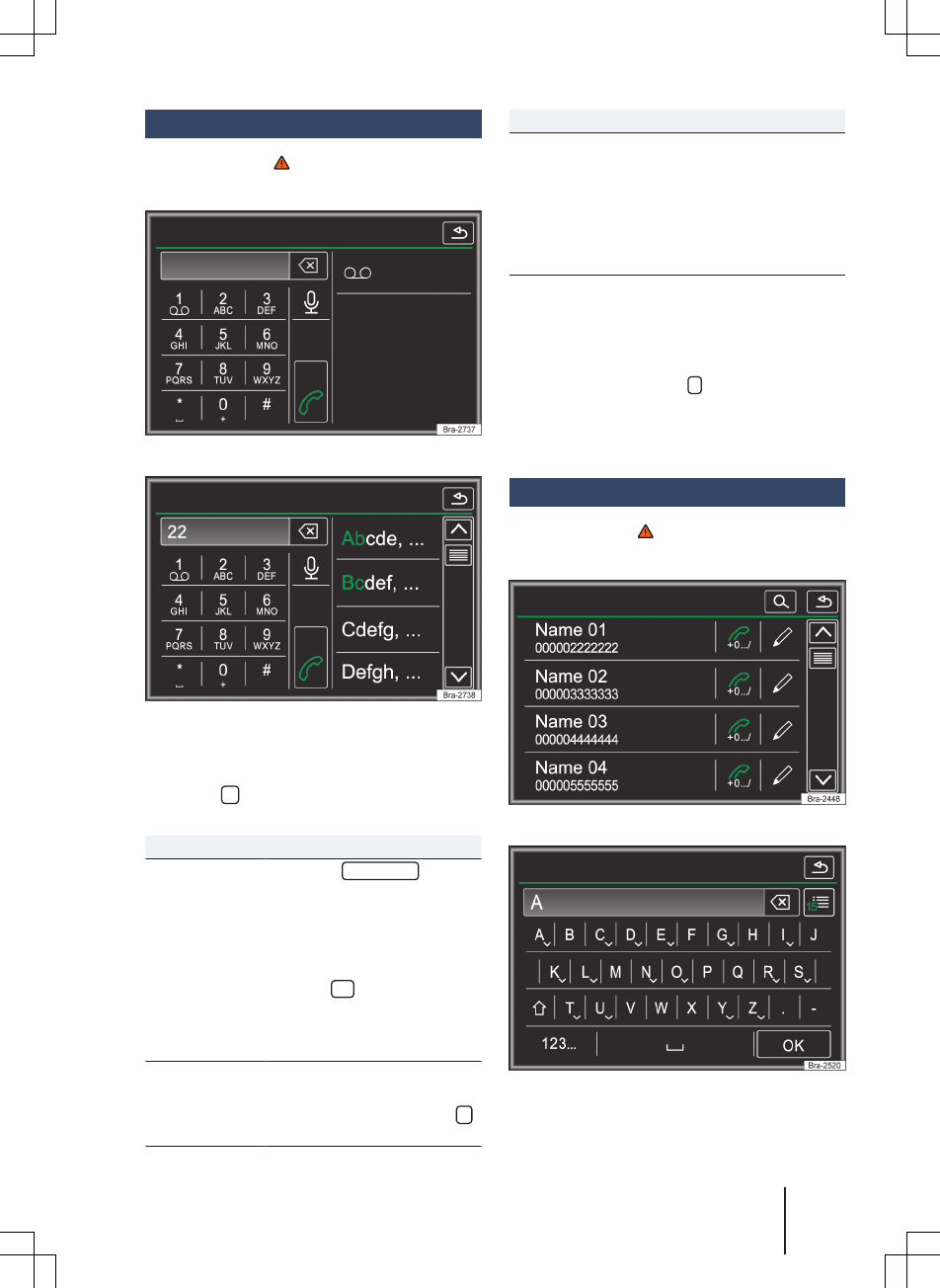

Fig. 24 Enter phone number menu.

Fig. 25 Enter phone number menu (select contact

from the list).

Enter phone number menu functions.

Touch the  functions surface to access the

Enter phone number menu.

Possible functions

Call voice mail-

box

Touch the  Voicemail func-

tion surface to establish a

connection.

If a voice mailbox number has

not been stored, enter the

calling number and confirm by

pressing OK .

Previously stored call numbers

can be changed in the

User pro-

file settings

menu → page 34.

Enter phone

number

Enter phone number via the

keypad.

Touch the function surface 

to establish a connection.



Possible functions

Select contact

from the list

Enter the first letter of the

contact name via the keypad.

Possible entries are shown in

the contact list.

Search the contact list and

touch the desired contact to

call.

Enter country

code

When entering country codes,

instead of entering the two

first digits (e.g. “

”), it is pos-

sible to enter the symbol “

”.

Touch and hold the function

surface 0 for approximately 2

seconds to enter the

charac-

ter. 

Contact Menu (contact list)

Please refer to at the start of the chapter

on page 29.

Fig. 26 Contact Menu (contact list).

Fig. 27 Search mask. 



Phone controls (PHONE) 31

181.5L6.R34.20

After the first pairing process, it may take a few

minutes until the paired mobile phone's con-

tacts1) become available on the device. This

process can take up to approximately one hour,

depending on the volume of data to be transfer-

red. Confirm the transmission process on the

mobile phone, if necessary.

Contacts can also be accessed during calls.

Opening the

Contacts

Touch the  function surface to access the

Contact list (contacts) menu.

Possible functions

Select contact

from the list

Search the list and touch the

desired contact to call.

OR: if multiple phone num-

bers are stored for the same

contact, touch the contact

and then the desired phone

number to call.

Search contacts

through the

search mask.

Touch the  → Fig. 26 func-

tion surface to open the

search mask.

Enter the desired name into

the search mask → Fig. 27.

The appropriate number of

events is shown to the right of

the search field. Touch the

function surface to switch to

list view.

Search the list and touch the

desired contact to call.

Phone menu availability varies depending

on the mobile phone used. 

Call Menu (call lists)

Please refer to at the start of the chapter

on page 29.

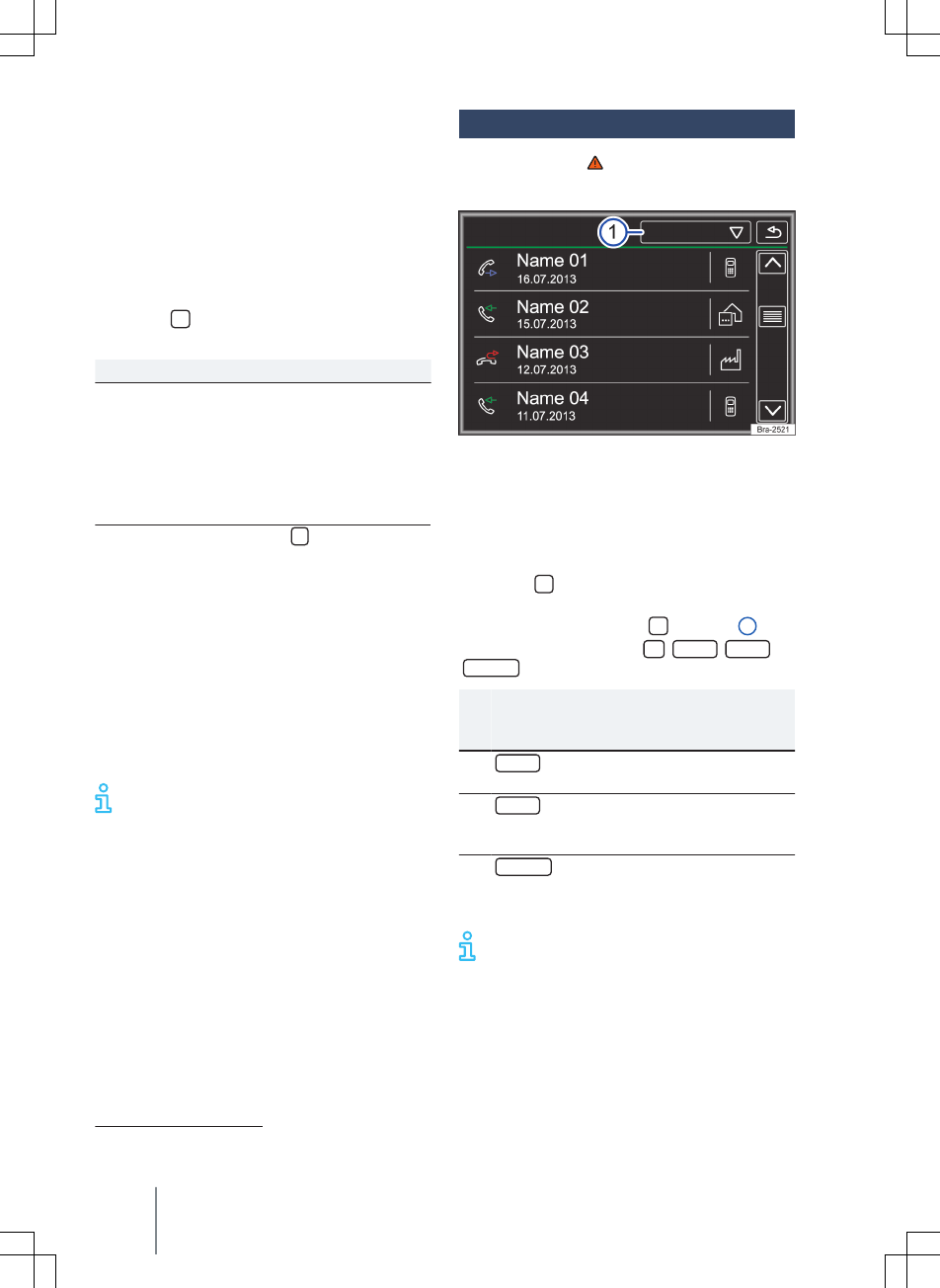

Fig. 28 Call Menu (call lists).

Whenever a phone number is stored as a contact,

the stored name will be displayed instead of the

call list number.

Opening the

Calls

Touch the  function surface to access the

Calls

menu.

Touch the function surface  → Fig. 28 1.

Select the desired call list: All , Missed , Dialled or

Received .

Dis

pla

Definition



Missed : displays the numbers of missed and

unanswered calls.



Dialled : displays phone numbers selected

via the mobile phone and the device's tele-

phone control.



Received : displays numbers of calls taken

via the mobile phone and the device's tele-

phone control.

Call list availability varies depending on the

mobile phone used. 



1) Depending on the unit model, only contacts stored in the phone memory are loaded.

Composition Touch (R 340G)32

Favourites (speed dial buttons)

Please refer to at the start of the chapter

on page 29.

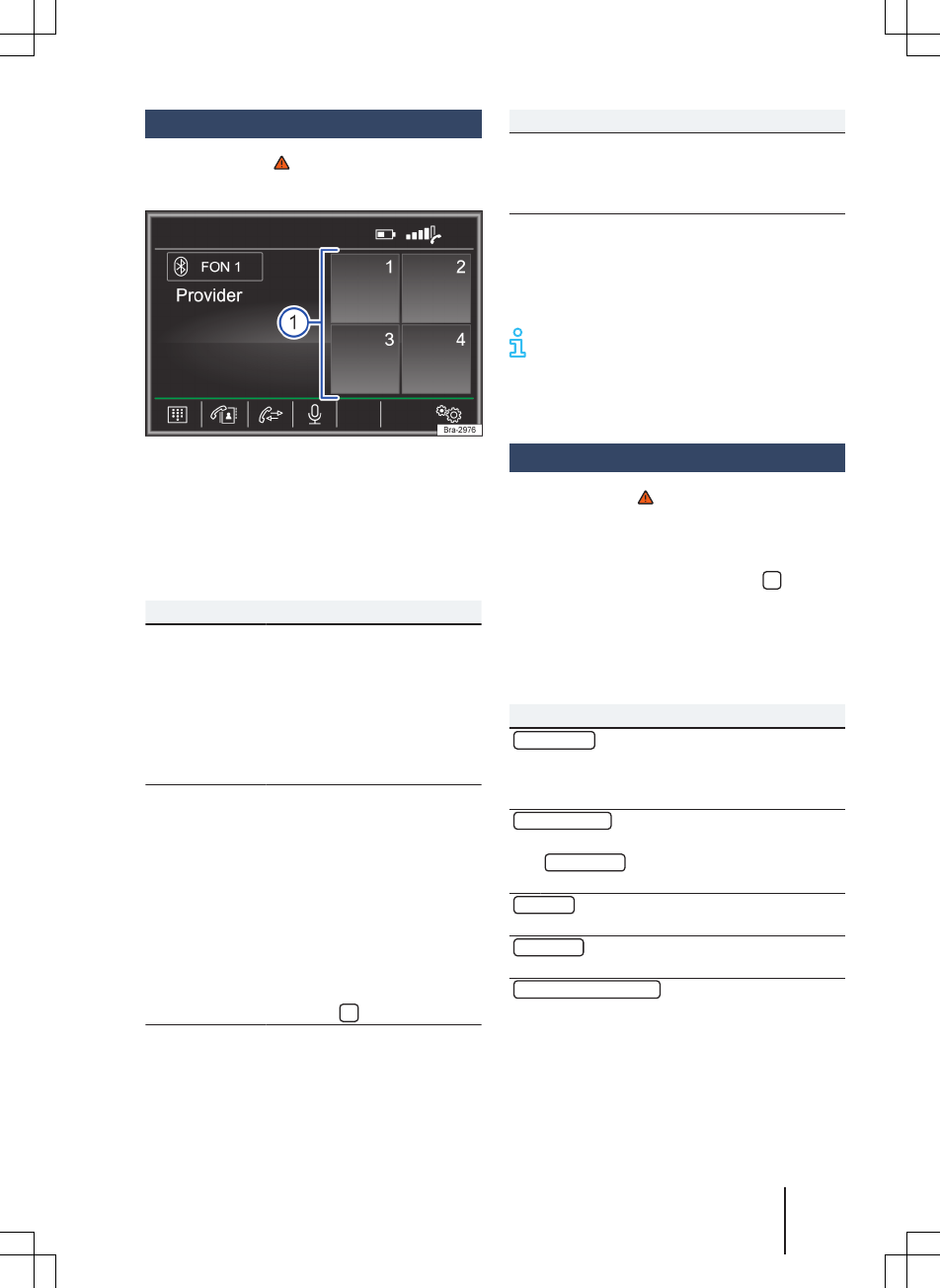

Fig. 29 PHONE main menu.

A total of 4 phone numbers from the contact list

can be stored as favourites.

All favourite numbers must be assigned manually

and then attributed to a user profile.

Favourite functions

Possible functions

Assign favourite

In the PHONE main menu,

touch one of the free function

surfaces.

Select the desired contact

from the contact list. If more

than one phone number is

stored for the desired contact,

select the desired number.

Edit favourite

In the PHONE main menu,

press and hold the favourite

entry until the Contacts menu

opens.

Select the desired contact

from the contact list. If more

than one phone number is

stored for the desired contact,

select the desired number.

To close the Contacts menu

without applying changes,

touch the  function surface.



Possible functions

Delete favourite

Favourite entries can be de-

leted in the

User profile settings

menu, under the

Manage favour-

ites

option → page 34.

Call favourite

In the PHONE main menu,

briefly touch the function sur-

face of the respective favour-

ite contact assigned to call

the stored phone number.

Contacts stored as favourites are not auto-

matically updated. If a contact stored as fa-

vourite in the mobile phone is changed, the func-

tion surface must be reassigned. 

Phone settings

Please refer to at the start of the chapter

on page 29.

Open the

Phone settings

In the PHONE main menu, touch the  func-

tion surface.

Touch the function surface in which settings

must be made.

Changes are automatically applied after closing

a menu.

Function surface: effect

 Hands-free a): the hands-free function is ena-

bled. Touch the function surface during a call to

make the call via the mobile phone or return to

the hands-free function.

Select telephone : select the unit ® from the list to

connect it.

Search phone : touch to connect a new Blue-

tooth® device.

Bluetooth : opens the

Bluetooth settings

→ page 34.

User profile : opens the

User profile settings

→ page 34.

 Mobile phone reminder : if a Bluetooth® connec-

tion with the mobile phone is established, the

message “

Don't forget your phone

” appears after

switching off the ignition.

a) Function surfaces are only enabled during phone calls. 



Phone controls (PHONE) 33

181.5L6.R34.20

Bluetooth®settings

Please refer to at the start of the chapter

on page 29.

Open the

Bluetooth settings

In the PHONE main menu, touch the  func-

tion surface.

OR: press the SETUP button.

Then, touch the Bluetooth function surface.

Touch the function surface in which settings

must be made. Changes are automatically ap-

plied after closing a menu.

Function surface: effect

 Bluetooth : touch to switch off Bluetooth ®. All

current connections will be interrupted.

Visibility : switch Bluetooth® visibility on or off.

Visible : Bluetooth® visibility enabled.

Invisible : Bluetooth® visibility disabled.

Bluetooth® visibility must be switched on

to pair external Bluetooth® devices to the

radio.

Name : shows or changes the device name. This

name is shown in other Bluetooth® devices un-

der the Bluetooth® settings.

Paired devices : shows the paired device. Discon-

nect and connect individual Bluetooth® devices

and Bluetooth® profiles.

Search devices : search active and visible Blue-

tooth® devices in range of the device. The maxi-

mum range is approximately 10 metres.

 BT Audio (A2DP/AVRCP) : if an external audio

source is to be connected to the device via

Bluetooth®, this function must be enabled

→ page 24. 

User profile settings

Please refer to at the start of the chapter

on page 29.

Open the

User profile settings

In the PHONE main menu, touch the  func-

tion surface.

Then, touch the User profile function surface.



Touch the function surface in which settings

must be made.

Changes are automatically applied after closing

a menu.

Function surface: effect

Manage favourites : edit favourites → page 33.

 All : all favourites are deleted.

Favourite: touch to delete the stored num-

ber.

Free function surface: touch to store a

contact list number as favourite.

Voicemail No. : enter or edit the voice mailbox

number.

Sort by : set the contact list sorting sequence

(

Last name

Given name

Import contacts : import the contact list of the

paired phone or update imported contact lists.

Select a ringtone a): select a ringtone from a list of

presets. The ringtone is played and stored after

exiting the submenu.

Delete other profiles : delete some or all inactive

user profiles.

a) The ringtone selected or configured in the mobile phone will

be played, depending on the mobile phone type. 

Composition Touch (R 340G)34

Settings

Menu and System SETUP)

settings

Open the

System settings

–Press the radio SETUP button → .

–Press the function button area of the mode to

which the introduction of settings is intended.

–Changes are automatically applied upon clos-

ing a menu.

Function button: effect

Sound : adjust sound and volume settings

→ page 35.

Display : display settings.

 Turn display off (in 10 s) : if the function is

enabled and the device remains idle, the

display is automatically shut down after 10

seconds. The display is switched back on by

touching the display or pressing a button.

Brightness : select the display brightness

level.

 Touchscreen sound : confirmation sound

when touching a function surface enabled.

 Display the time in Standby mode : the current

time is shown on the display while in

Standby mode.

Language : select the desired language for text or

voice controls.

Keypad a): select the keypad layout (alphabetic or

numeric layout).

Additional keypad languages a): select additional key-

pad languages.

Data transmission from mobile devices a)Settings to

control the radio via the Apps on the mobile end

devices (for example track change during media

operation).

 Enable data transmission to applications : the in-

terface protocol for applications is enabled

on the mobile end devices. Disabling this

function prevents further settings from be-

ing set.

Control through the apps

Disable : the actions are not executed

through an application.

Confirm : the actions performed through

an application must be confirmed prior

being executed on the radio.

Function button: effect

Authorize : the actions are performed

through an application without further

confirmation.

Safe removal : remove the desired data storage

unit from the system. The function surface is

disabled after the data storage unit is success-

fully removed.

Default settings : the return to default settings is

disabled as selected in the Entries and settings

applied.

Bluetooth a): Bluetooth ® settings → page 34.

System data : display of system data (unit num-

ber, hardware/software versions.)

Update software : update the software ver-

sion.

a) Depending on the unit and the country.

Operation mode of the volume increase as a

function of speed

The speed-dependant volume increase automati-

cally adjusts the volume based on the vehicle's

speed.

The volume increase is set in levels from

If a low value is set, the volume is slightly adjus-

ted at higher speeds, if the set value is high, the

volume increases sharply. At level

the volume

increase as a function of the vehicle's speed is

disabled.

WARNING

Accidents and injuries can occur if the driver is

distracted.

●Never proceed with settings while driving.

To make the best of the radio's features and

optimal operation it is important that the

date and time be correctly set. 

Sound and volume settings

Open the

Sound settings

Press the SETUP button and then select Sound .

Touch the function surface in which settings

must be made. Changes are automatically ap-

plied after closing a menu. 

Settings 35

181.5L6.R34.20

Function surface: effect

Volume : volume settings.

Max. start volume. : set the maximum switch-

on volume.

Speed-dependent volume control : set volume

adjustments based on the vehicle's speed.

The audio volume is increased automatical-

ly as the speed increases.

Entertainment dimmer : set warning volumes.

AUX volume : set the playback volume of au-

dio sources connected to the AUX-IN multi-

media port (

Low

Medium

High

). Also see

→ page 36, Adjust playback volume of ex-

ternal audio sources.

Bluetooth Audio a): establish the playback vol-

ume of audio sources connected via Blue-

tooth® (

Low

Medium

High

). Also see

→ page 36, Adjust playback volume of ex-

ternal audio sources.

iPod volume : set the playback volume of

connected iPods → page 36, Adjust play-

back volume of external audio sources.

Balance : set sound equalization.

The grid shows sound equalization inside the

vehicle. To edit sound equalization, touch the

desired position in the vehicle interior display or

use the arrow buttons to sequentially change

settings. To centre sound equalization in the ve-

hicle interior display, touch the function surface

between the arrows.

- Ed. Bass - mid - treble : set sound characteristics

(bass - mid - treble).

 Touchscreen sound : confirmation sound when

touching a function surface enabled.

a) Depending on the country and the device.

Adjust playback volume of external audio

sources

Whenever the playback volume of an external

audio source must be raised, first lower the de-

fault volume of the device.

If the connected audio source has very low vol-

ume, increase the output volume in the external

audio source. If this procedure is not sufficient,

set the on volume to

Medium

High

If the external audio source connected has dis-

torted or very high volume, lower the output

volume in the external audio source. If this pro-

cedure is not sufficient, set the on volume to

Me-

dium

Low

WARNING

Accidents and injuries can occur if the driver is

distracted.

●Never proceed with settings while driving. 

Composition Touch (R 340G)36

Abbreviations

Abbreviation Definition

Audio transmission technology via Bluetooth® common in many manufacturers (Advanced

Audio Distribution Profile).

Amplitude modulation (medium wave, MW).

Auxiliary audio input.

Audio source remote control technology via Bluetooth® common in many manufacturers

(Audio Video Remote Control Profile).

German Institute for Standardisation.

Digital Rights Management

Enhanced Other Network.

Frequency modulation (ultra short wave, UKW).

Global System for Mobil Communications.

Hands-Free-Profile.

Audio file compression format.

Personal identification number.

Subscriber Identity Module.

Universal Serial Bus

Variable bit rate.

Audio file compression format.

A2DP

AUX-IN

AVRCP

DIN

DRM

EON

GSM

HFP

MP3

SIM

USB

VBR

WMA

Abbreviations 37

181.5L6.R34.20

Index
A
AM  15
Android Auto™
activate connection  13
conditions  13
deactivate connection  14
main menu  13
particularities   14
Anti theft coding   7
App-Connect   11
main menu  12
settings   12
Apple CarPlay™
conditions  12
disconnect connection  13
establish connection   12
menu  12
particularities   13
Apps
control with apps  35
settings   35
Areas with risk of explosion
phone   27
AUX-IN
see External audio sources  24
AUX-IN multimedia port
see External audio sources  24
B
Balance  35
Bluetooth
profiles   27
settings   34
Bluetooth Audio
see external audio sources   25
Buttons   6, 8
C
Call lists  32
Call voice mailbox  31
Checkboxes  8
Clean the display   7
Connection
USB   23
without wires   23
with wires  23
Control
apps  35
Control basic information  5
RADIO  15
Control list
Before using the unit for the first time  3
conditions for Android Auto™  13
conditions for Apple CarPlay™  12
MirrorLink™ conditions  14
Controls  6
additional displays  10
checkboxes  8
display keypad  9
enter  9
entry mask  9
function surfaces  8
PHONE  26, 29
scroll  9
scroll bar   9
search lists  9
Touchscreen   8
Copyright
information  35
Copyrights   19
D
Data transmission from mobile devices
see settings  35
Date setting  35
Device overview  5
Display  6, 7
clean  7
controls  8
Display keypad  9
During a phone call  30
E
Entry mask
see Controls  9
EON  37
External audio source
adjust playback volume   36
External audio sources
AUX-IN multimedia port  24
Bluetooth audio   25
USB connection  23
External data carrier
USB connection  23
F
Fader   35
Favourites (speed dial buttons)  33
FM  15, 37
Frequency band
AM  15
change  7, 15
Composition Touch (R 340G)
38

FM  15
select  7, 15
Function surfaces   8
controls  8
MEDIA main menu  20
Mirror Link™   15
PHONE main menu  29
RADIO main menu   15
I
Ignition turned off
Post-operation (Timeout)  7
Initial settings  35
Instructions for use   5
Introduction   3
iPad  24
iPhone   24
iPod  24
K
Keypad
see Controls  9
L
LOW BATTERY  5
M
Main menu
Android Auto™   13
App-Connect   12
MEDIA  20
Mirror Link™   14
PHONE  29
RADIO  15
MEDIA
audio data structure  20
AUX-IN multimedia port  24
Bluetooth audio   25
change media source   21
Change track  22
copyrights  19
displays   20
External data carrier to USB  23
Forward and backward   22
Function buttons   22
function surfaces  20, 21
iPod, iPad, iPhone  24
Limitations  20
main menu  20
media mode  19
media source selection menu   21
Mix function  21
playback mode  21
playback sequence  20
Playlists  20
Repeat function   21
SD card  8
select data storage unit  21
Select track  22
Settings  22
symbols and displays  21
track information  21
Media sources   21
AUX-IN   21
memory cards  21
select  21
Memory card
select  21
Menu
Apple CarPlay™   12
MirrorLink™
conditions  14
Mirror Link™
disconnect   15
establish a connection   14
function surfaces  15
main menu  14
settings   12
symbols and displays  15
Mix function   21
Mobile phone interferences   5
Multimedia playback
SD card  23
Multimedia port  23
O
Open radio stations list   8
Operation
turn on and off  7
Other applicable documents  3
Overview  6
Overview of the controls  6
Overview of the convenience consumers   3
P
Parking sensor (Park Pilot)   18
Particularities
absence of functions  5
Android Auto™   14
Apple CarPlay™   13
volume reduction  5
PHONE
A2DP  27
areas with risk of explosions  27
Bluetooth profiles  27
Bluetooth settings  34
call lists   32
call voice mailbox   31
contact list  31
Index 39
181.5L6.R34.20

contacts   31
during a phone call  30
enter phone number  31
favourites (speed dial buttons)   33
function surfaces  29
general information  26
HPF   27
main menu  29
mobile phone pairing   28
operation description  27
pairing the mobile phone up  28
phone controls  26, 29
select  31
settings   33
special precaution areas   27
switching off phone controls  28
symbols and displays  30
user profile settings  34
Phone controls
see PHONE  26
Playback
AUX-IN   24
external data carrier (USB)  23
MEDIA  20
memory card   20
Track  22
Playing
RADIO  15
Pop-up window  8
Post-operation (timeout)   7
Power management  5
Pre-tuning buttons  17
R
Radio
open radio stations list  8
RADIO  15
AM settings  19
changing frequency bands   15
FM settings  19
function areas   17
function surfaces  15
main menu  15
pre-tuning buttons  17
radio operation  15
SCAN  18
settings   19
station buttons  16
symbols and displays  16
RÁDIO
indications and symbols  17
Radio buttons  7
Radio stations
pre-tuning  17
Random playback (Mix)   22
Rear view camera  18
Repeat  21, 22
Repeat function   21
Repeat function (Repeat)   22
Rotary and touch knobs  6
S
Safety recommendations   3
SCAN
radio  18
RADIO  18
Scroll  9
Scroll bar  9
SD card
eject or insert   8
prepare to remove  8
unreadable  8
SD card slot  8
Search lists   9
Selector button  8
Select (phone number)  31
Settings  35
AM  19
App-Connect   12
Apps  35
Bluetooth  34
data transmission from mobile devices  35
Factory settings   35
FM  19
Media  22
Mirror Link™   12
PHONE  33
radio  19
System  35
user profile  34
Volumes   35
Softkeys
see Function surfaces  8
Sound settings   35
Special precaution areas  27
Specificities
AUX playback  24
displays   10
Start up of the system   5
Station
SCAN  18
scanning for stations  18
Station buttons  16
Symbol entry mask  9
T
Text entry
see Controls  9
Timeout  7
Time setting   35
Composition Touch (R 340G)
40

Track list   22
Turn off
radio  7
Turn on  7
U
UKW
see FM  37
Unit code
see Anti-theft coding  7
USB
connecting an external data carrier   23
iPad controls  24
iPhone controls  24
iPod controls   24
USB connection  23
disconnect the connection  23
unreadable  23
User profile
settings   34
V
Voice command
Android Auto™   14
Apple CarPlay™   13
Volume
AUX-IN   35
Bluetooth audio   35
define external audio sources  36
Maximum volume when turning the device
on  35
Traffic information   35
volume reduction  5
Volume control   7
Index 41
181.5L6.R34.20

Visteon Electronics Germany 9178 Automotive Infotainment Unit with Bluetooth User Manual

Visteon Electronics Germany GmbH Automotive Infotainment Unit with Bluetooth Users Manual

Users Manual

Navigation menu

Namespaces

Views

Navigation
