User Manual
Interface Document for Communication between
Panasonic/Clarion Head Unit and BT Card
(Customer Shared Document)
Version: 3.4
Release Date: 21st of November, 2011
Visteon Electronics Nissan Bluetooth Voice DC UART SRD
Version 3.4 November 21st, 2011 Page 2 of 105 Visteon & Nissan Confidential
Table of Contents
1 Preface and Sign Off.............................................................................................................................. 5
1.1 Preface ........................................................................................................................................... 5
1.2 Confidentiality ................................................................................................................................. 5
1.3 Sign off for Version TBD................................................................................................................. 5
1.4 Definitions and Abbreviations ......................................................................................................... 5
2 Electrical Interface Diagram and Pin Definition ..................................................................................... 6
2.1 HW Block Diagram ......................................................................................................................... 6
2.2 Pin Definitions................................................................................................................................. 7

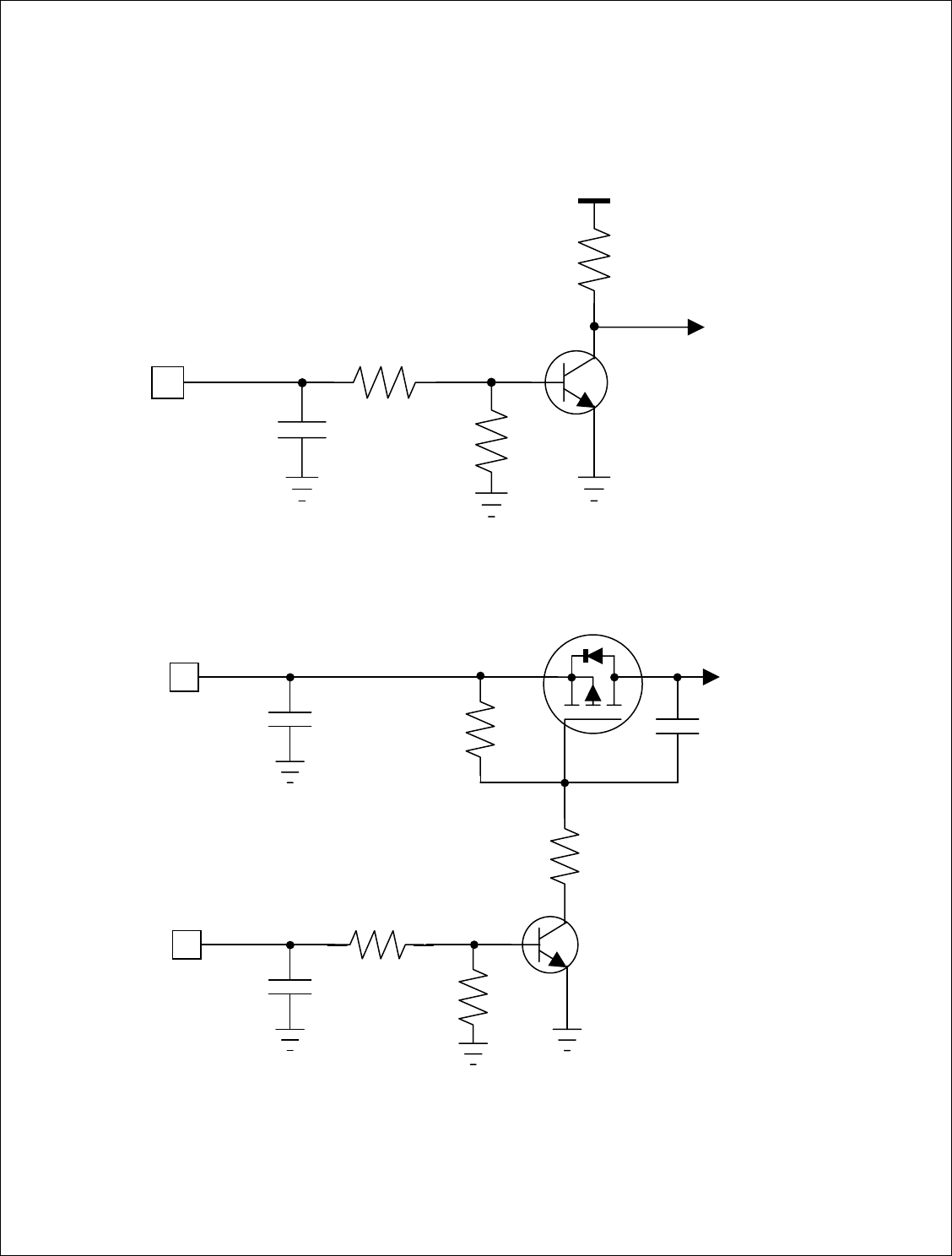

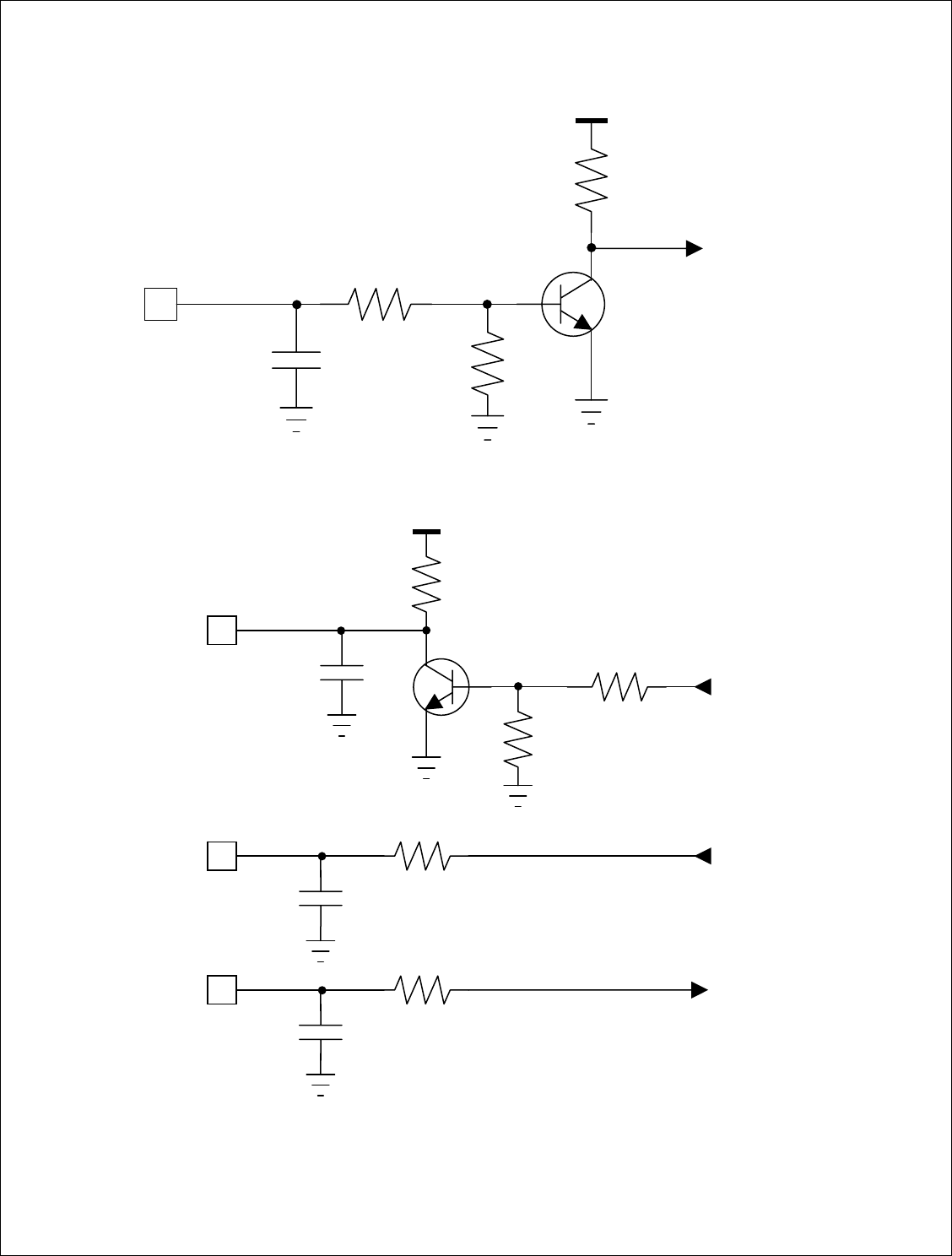

2.2.1 Reset Pin Interface Circuit....................................................................................................... 8
2.2.2 LVI Pin Interface Circuit........................................................................................................... 8
2.2.3 UART Interface Circuit ............................................................................................................ 9
2.2.4 PGM Pin interface Circuit ...................................................................................................... 10
2.2.5 3.3V Power and Enable Interface Circuit .............................................................................. 10

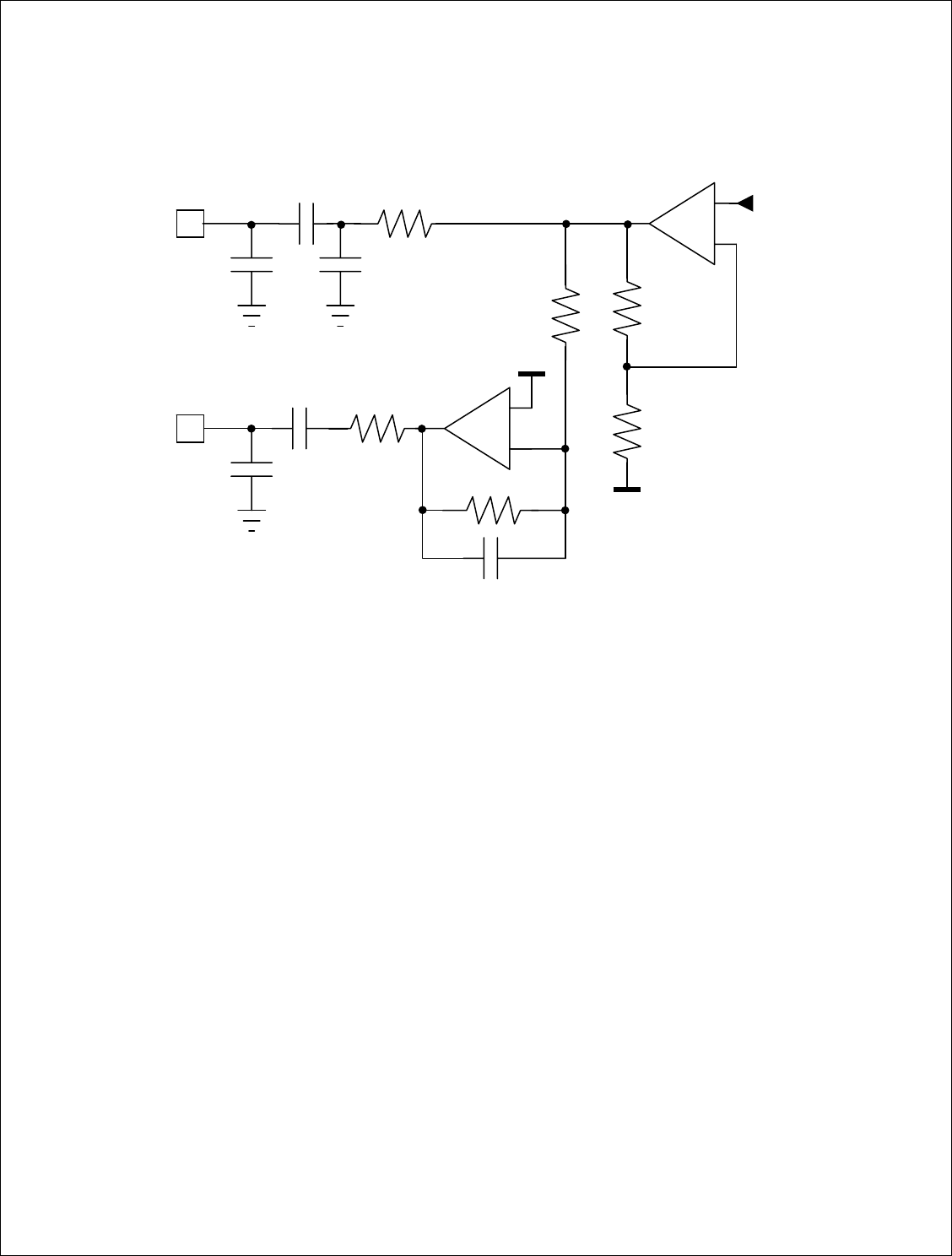

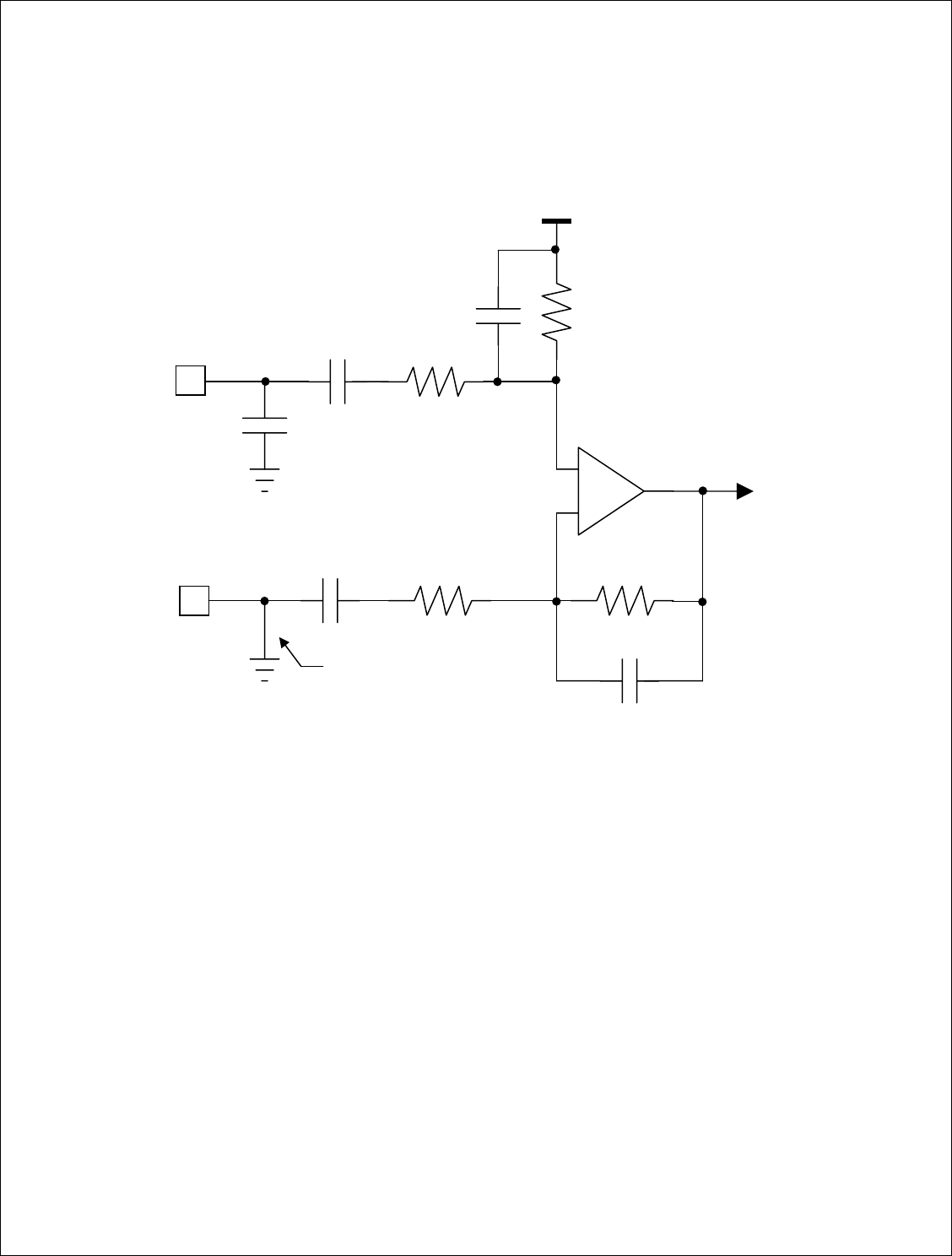

2.2.6 Microphone Interface Circuit ................................................................................................. 11
2.2.7 Audio Out Interface Circuit ....................................................................................................12
2.2.8 USB Interface Circuit............................................................................................................. 13
2.3 Hardwire Startup Diagram ............................................................................................................ 14
2.3.1 Startup ................................................................................................................................... 14
2.3.2 Shutdown............................................................................................................................... 14

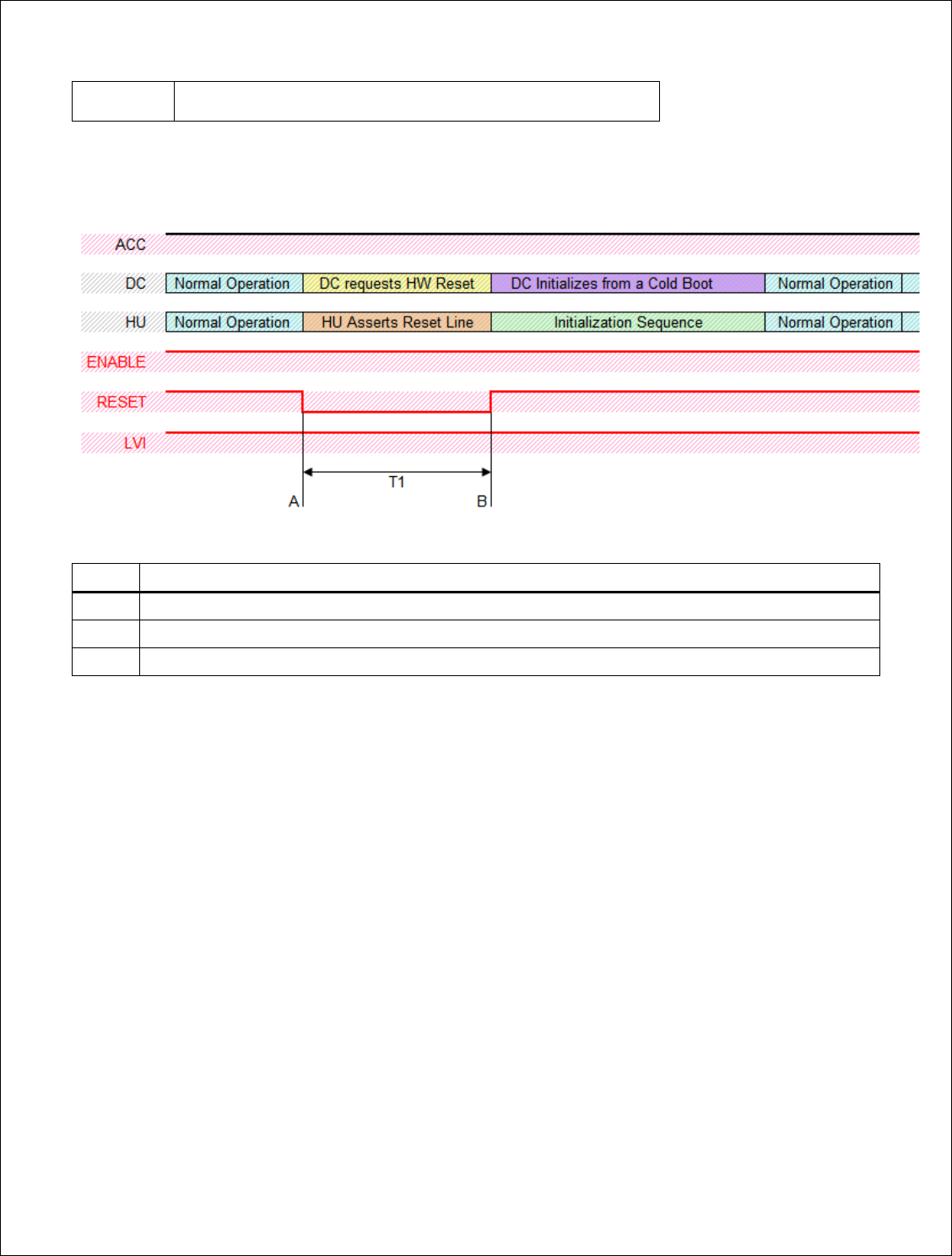

2.3.3 Reset ..................................................................................................................................... 15
2.4 Radio Mute Pin ............................................................................................................................. 15

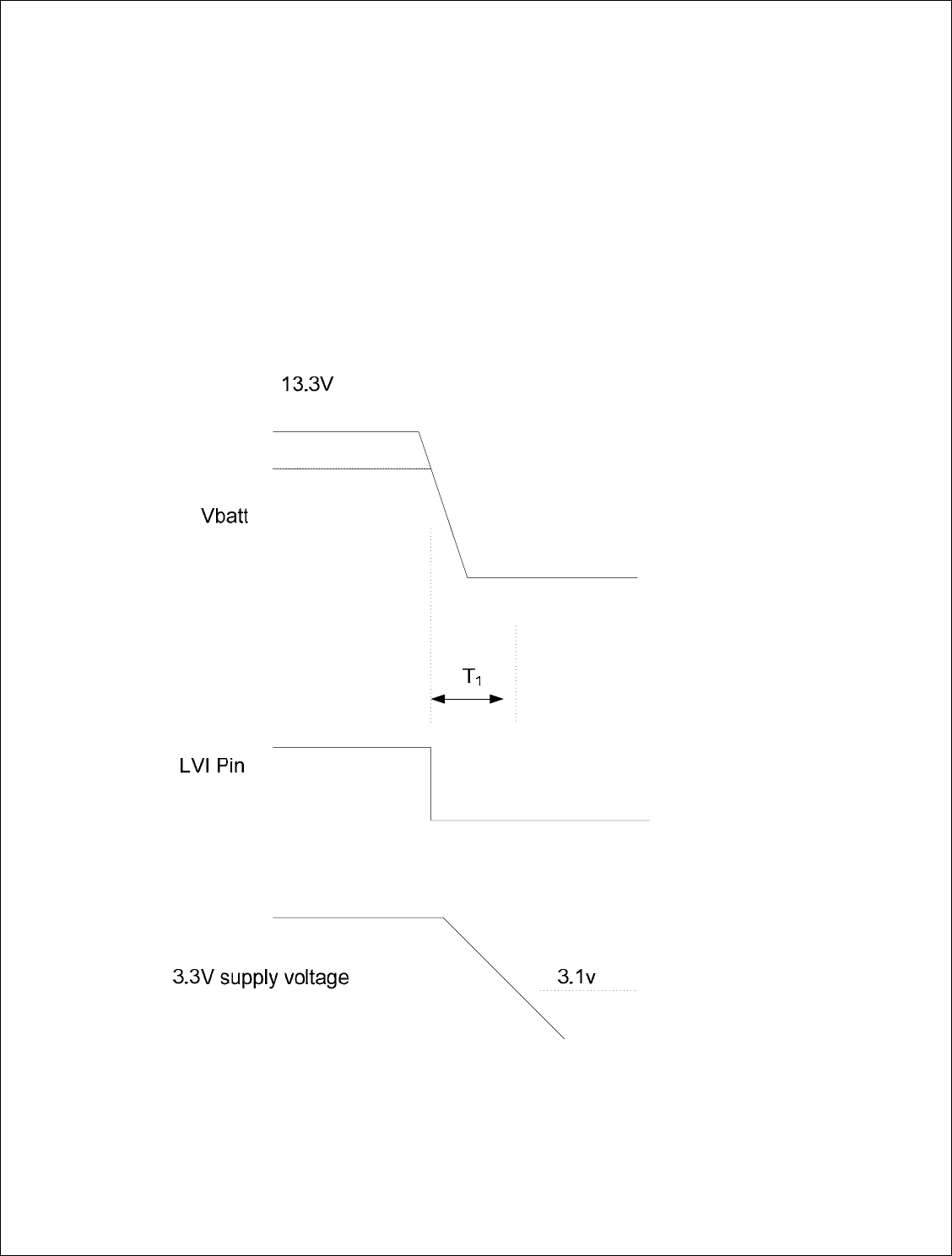

2.5 LVI Pin. ......................................................................................................................................... 16

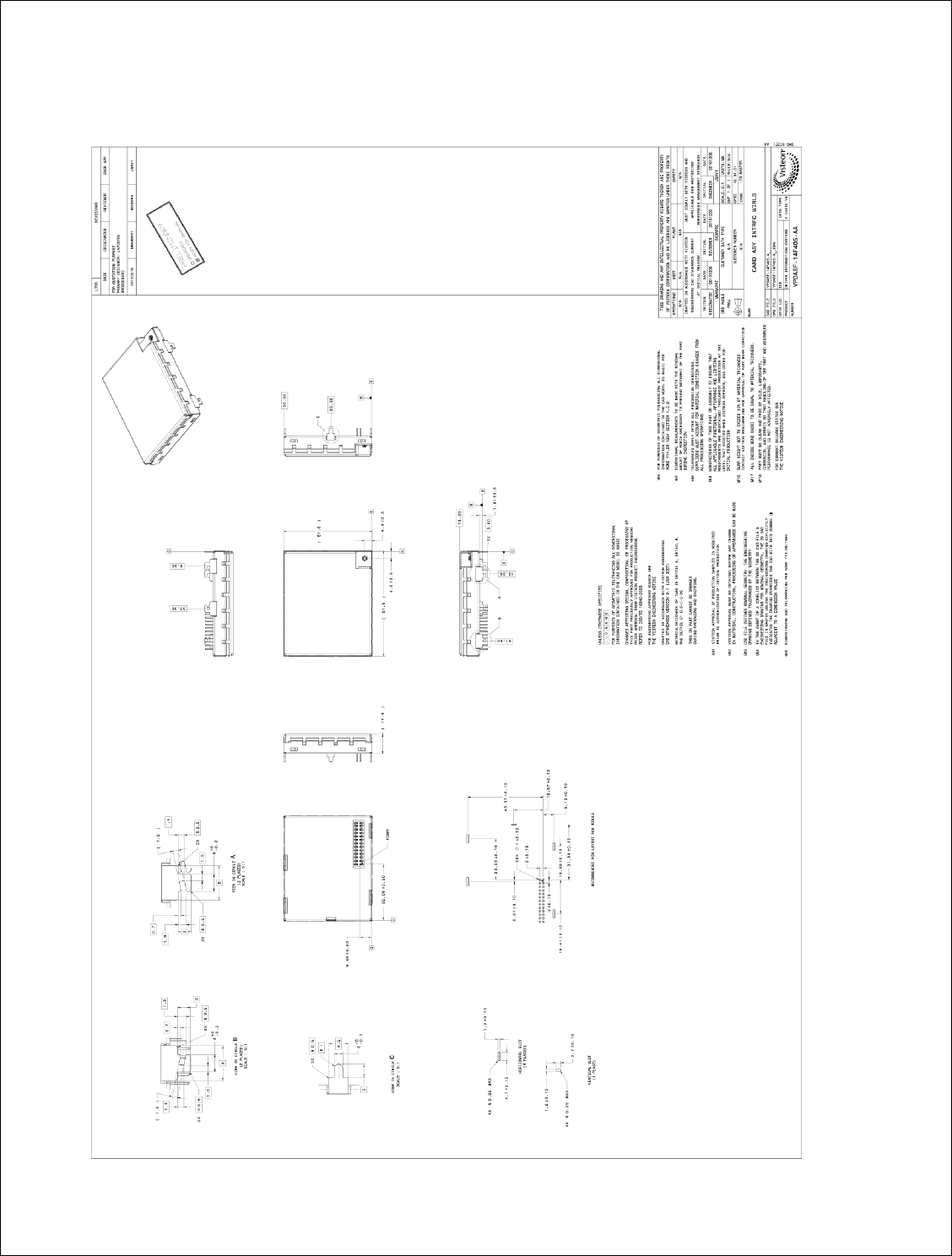

3 Mechanical Interfaces .......................................................................................................................... 17
4 UART Protocol ..................................................................................................................................... 18

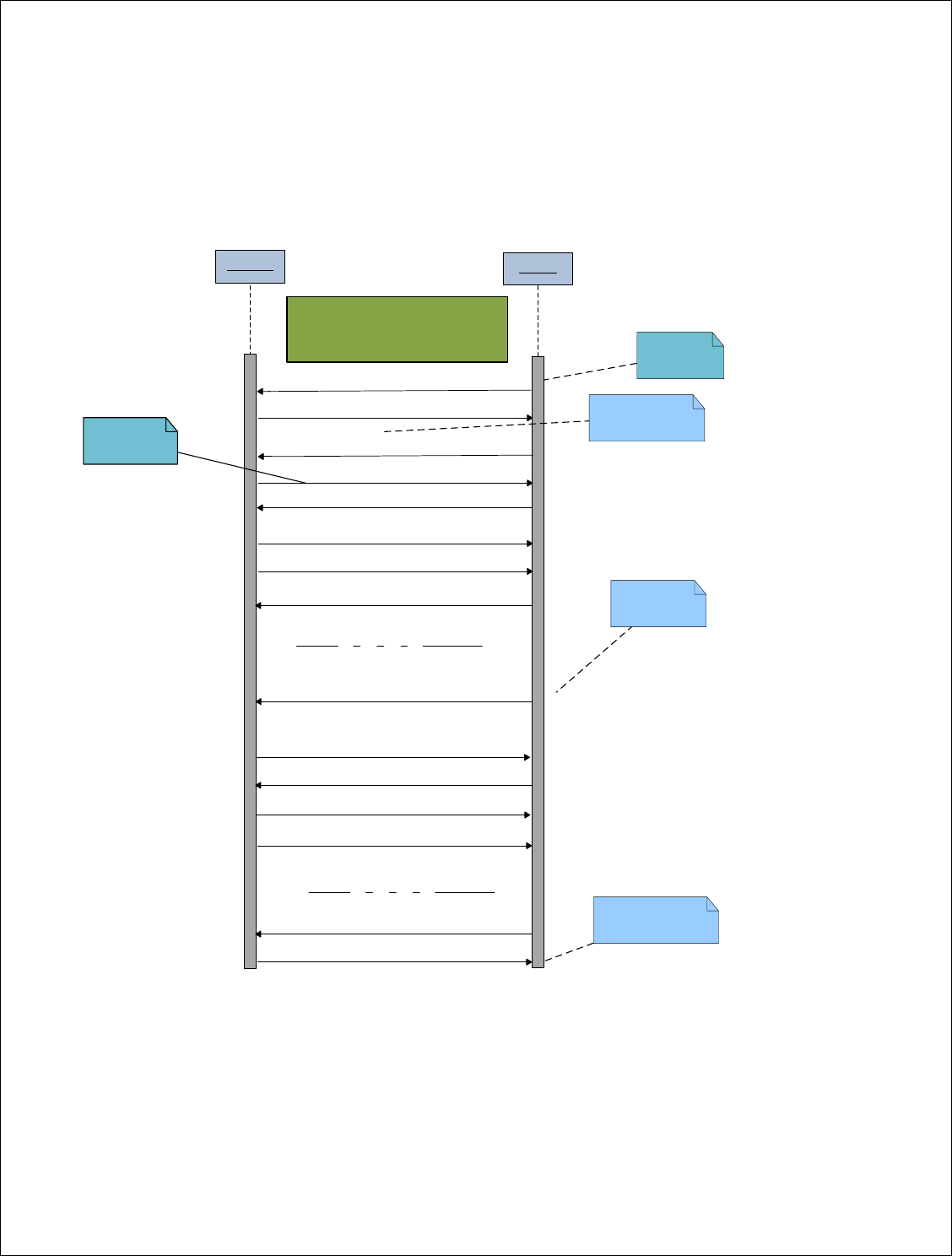

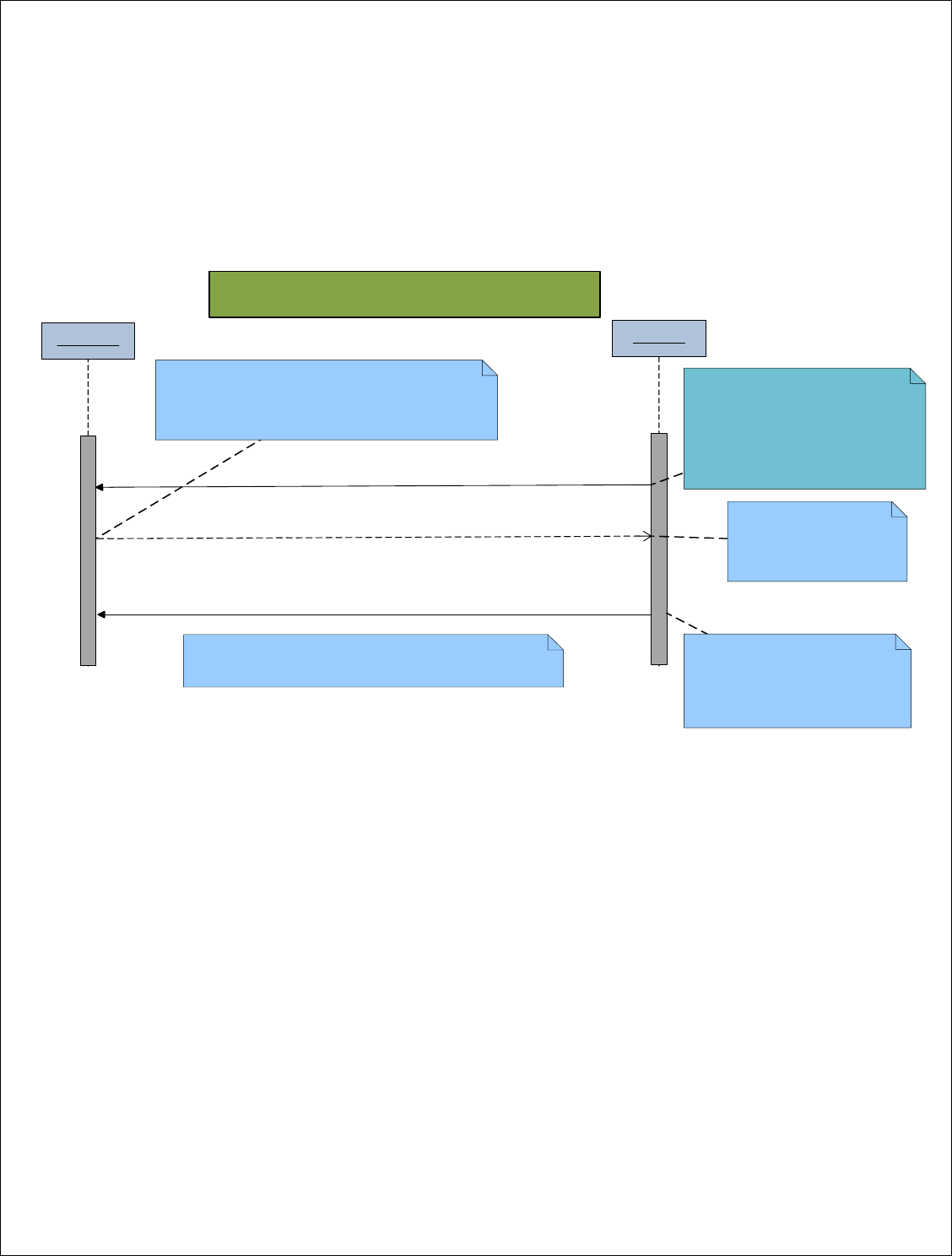

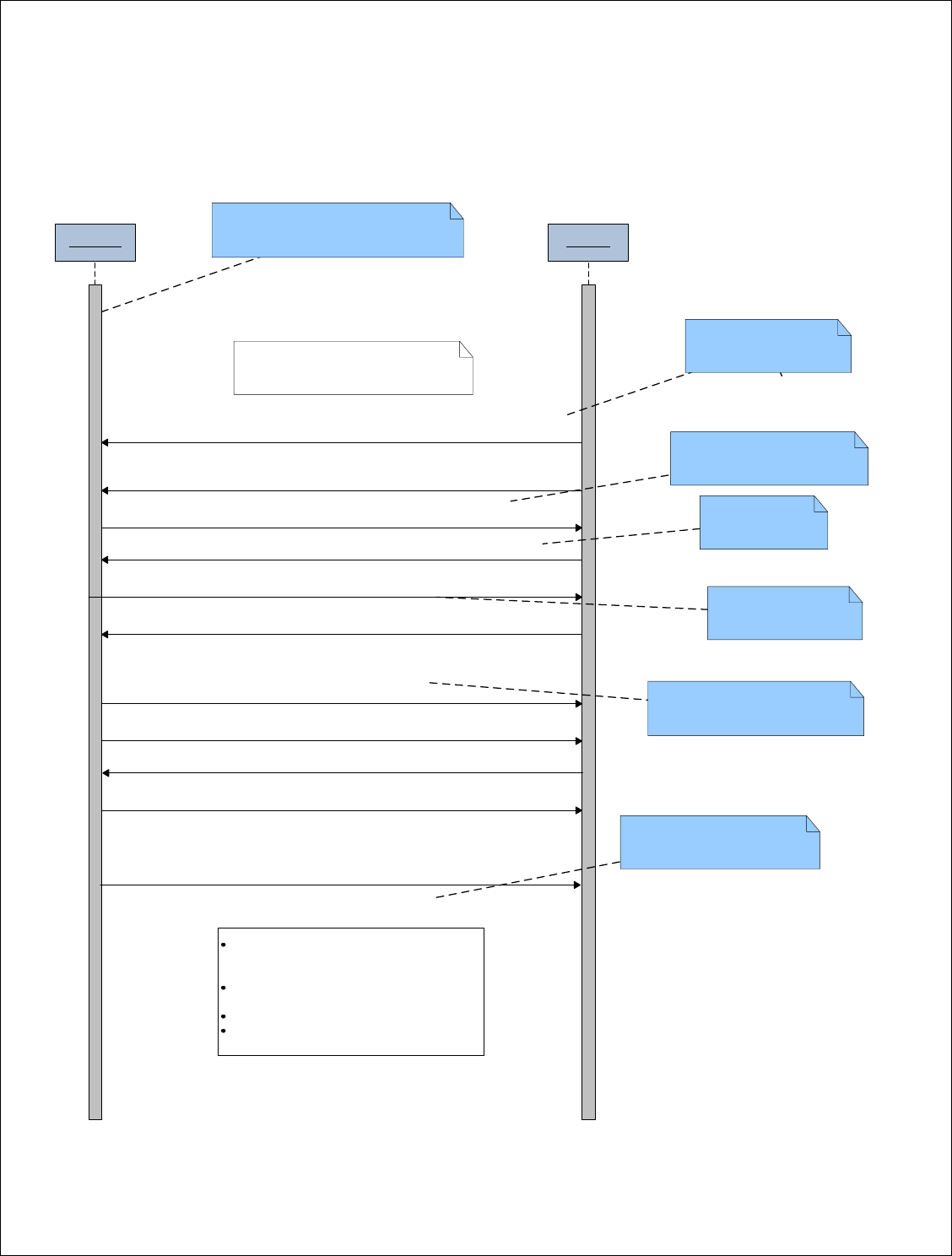

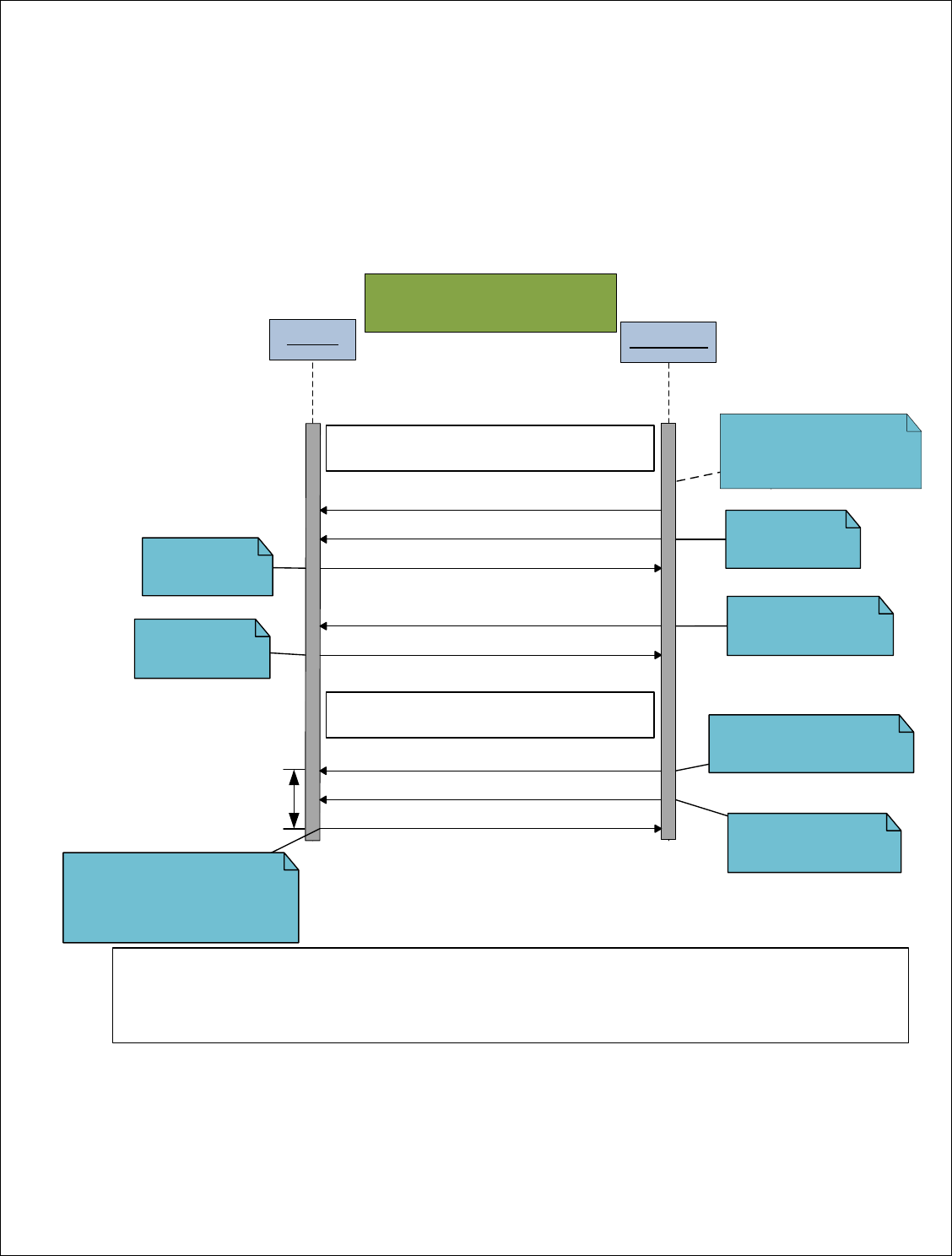

5 Sequence Diagrams ............................................................................................................................ 19
5.1 Initialization Sequence.................................................................................................................. 19
5.1.1 Request for Reset Sequence ................................................................................................20

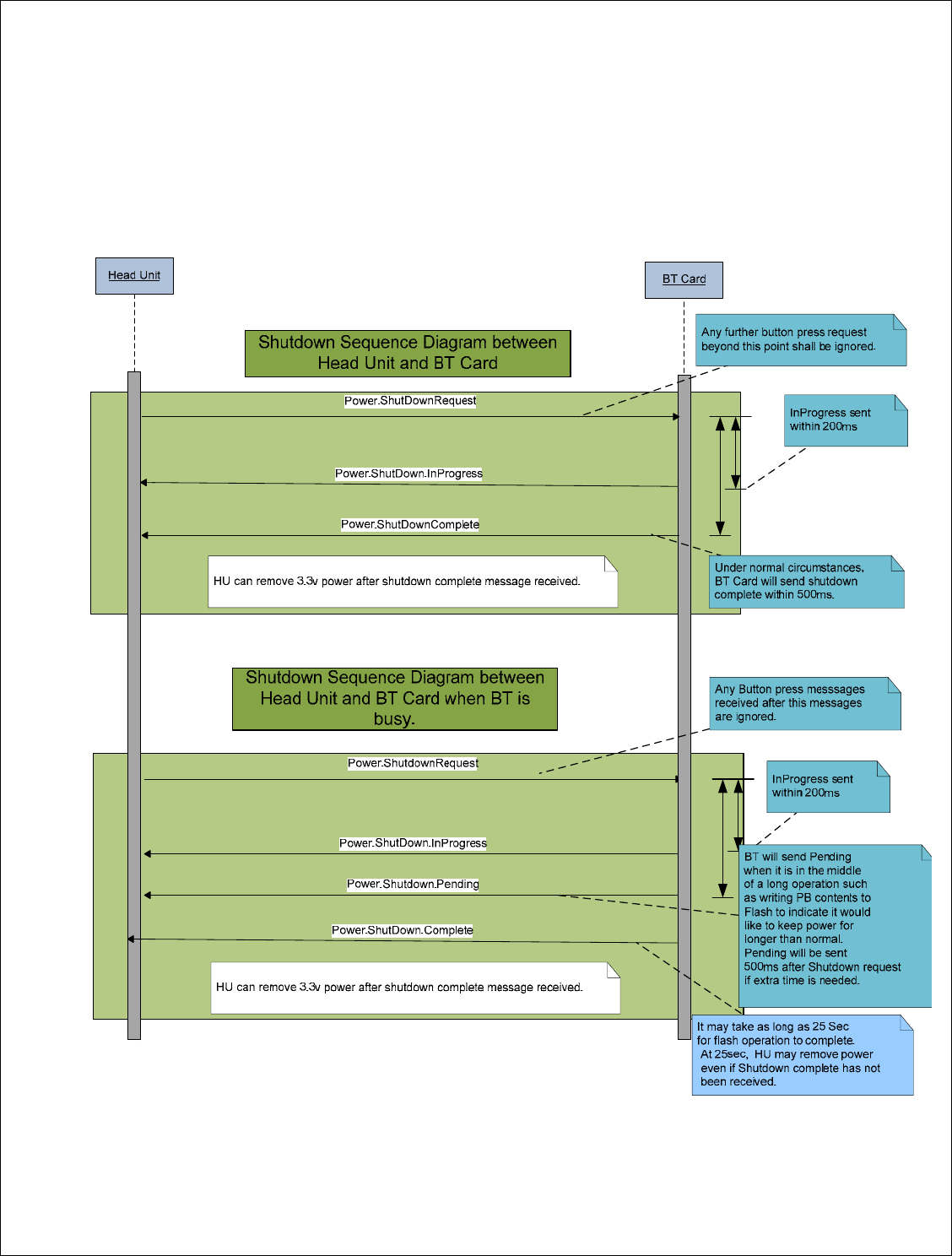

5.2 ShutDown Sequence.................................................................................................................... 21
5.2.1 Normal Sequence.................................................................................................................. 21

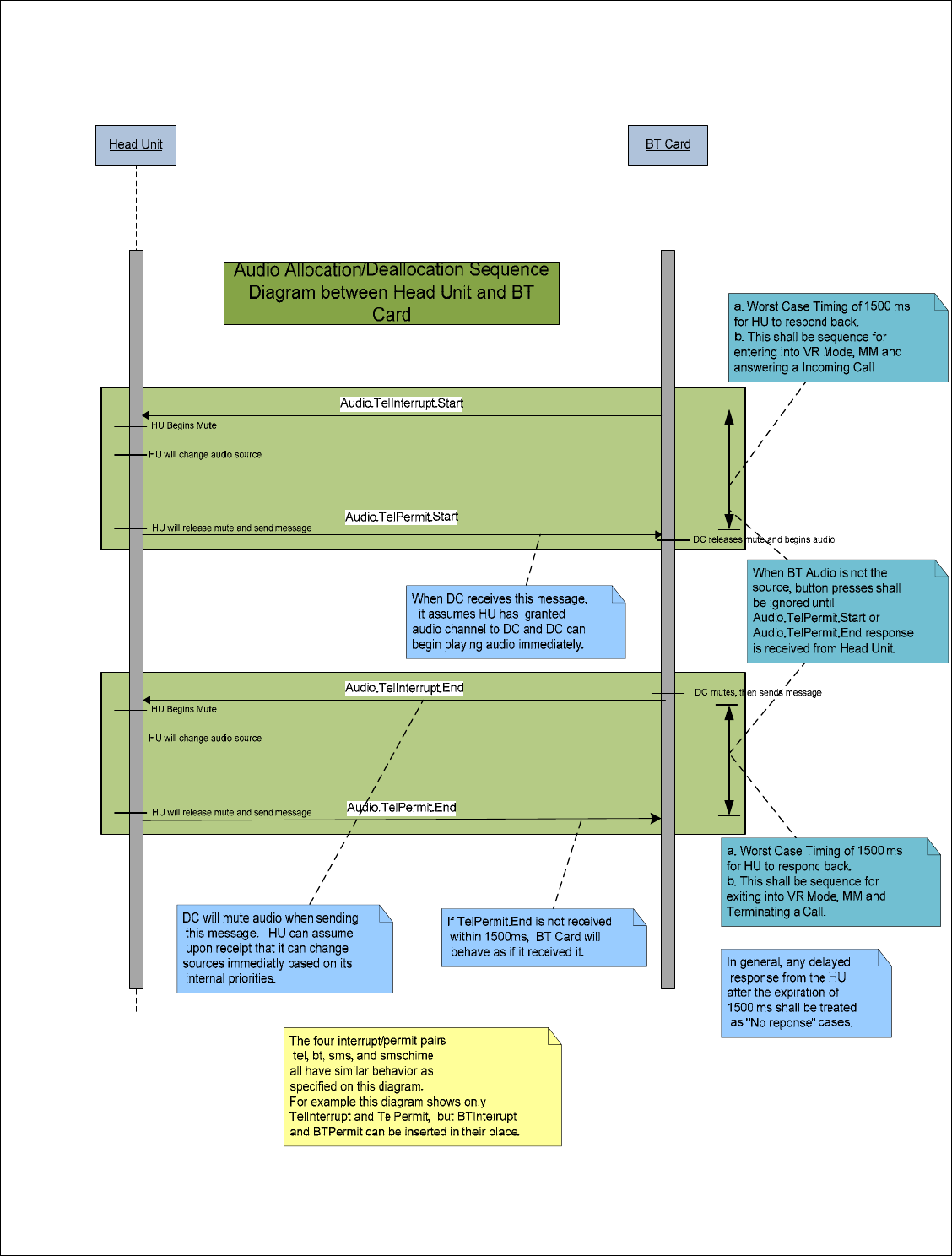

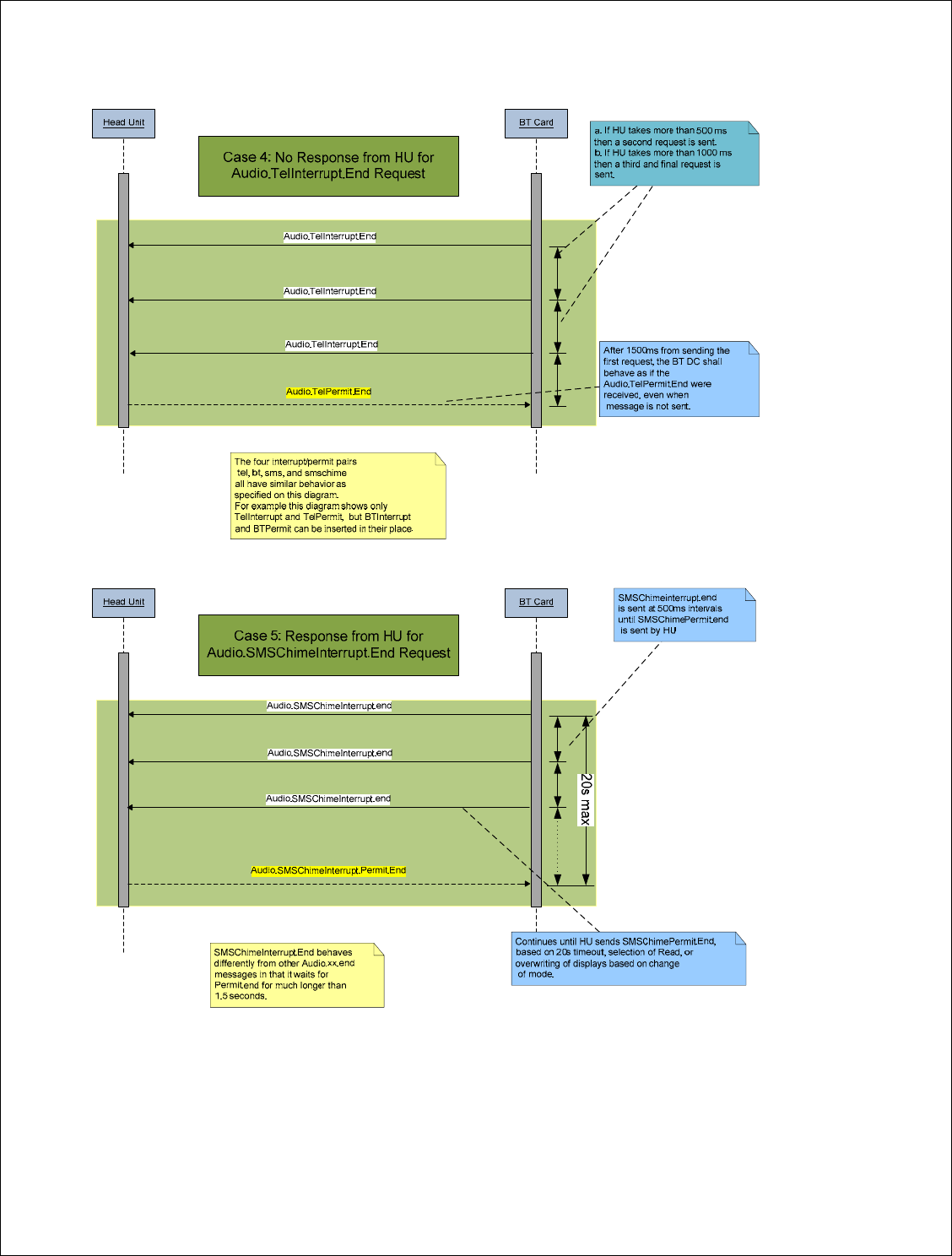

5.3 Audio Arbitration Sequences ........................................................................................................ 22

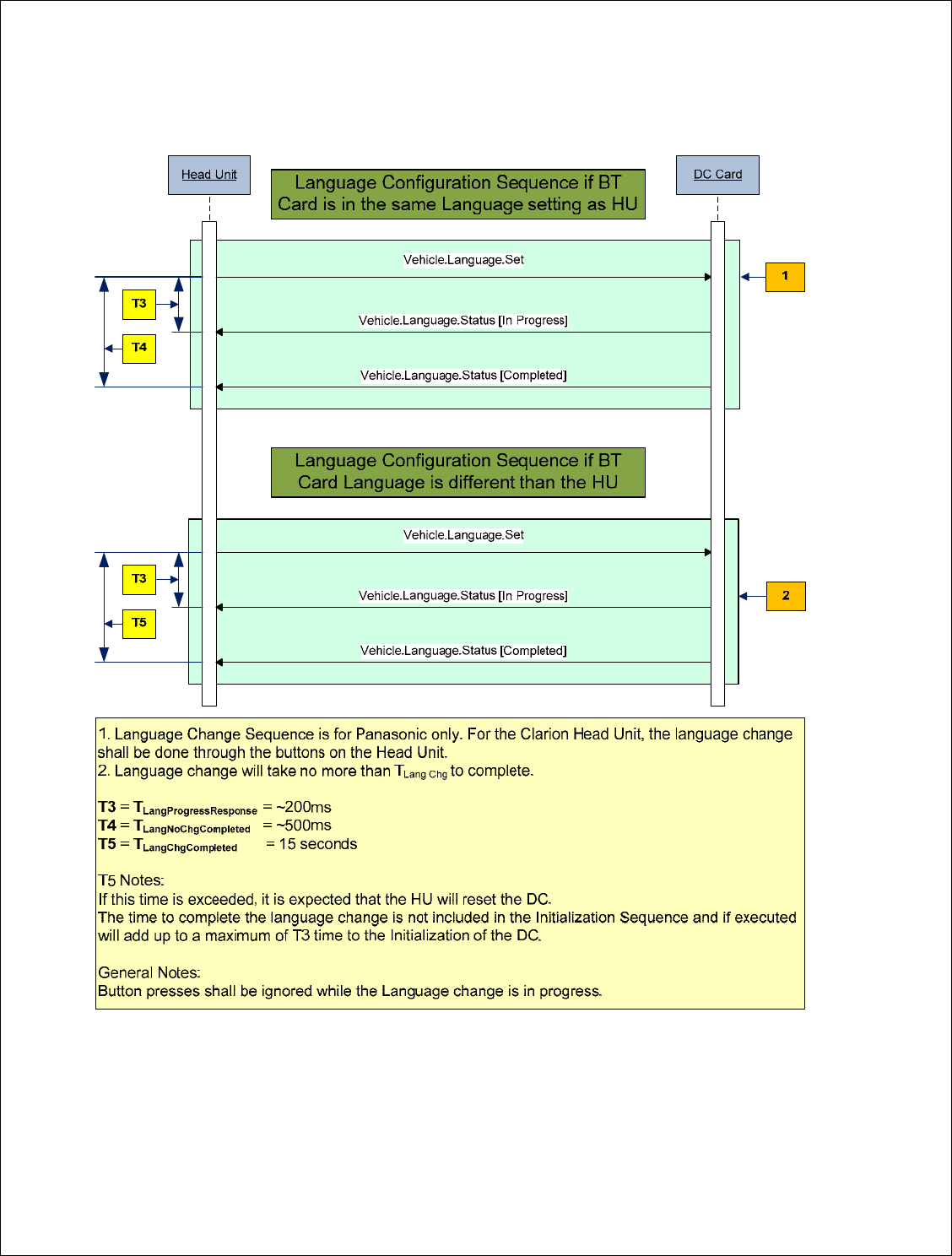

5.4 Language Change Sequence.......................................................................................................25
5.5 Other Vehicle Message Sequences ............................................................................................. 26
5.6 Other Vehicle Message Sequences ............................................................................................. 26

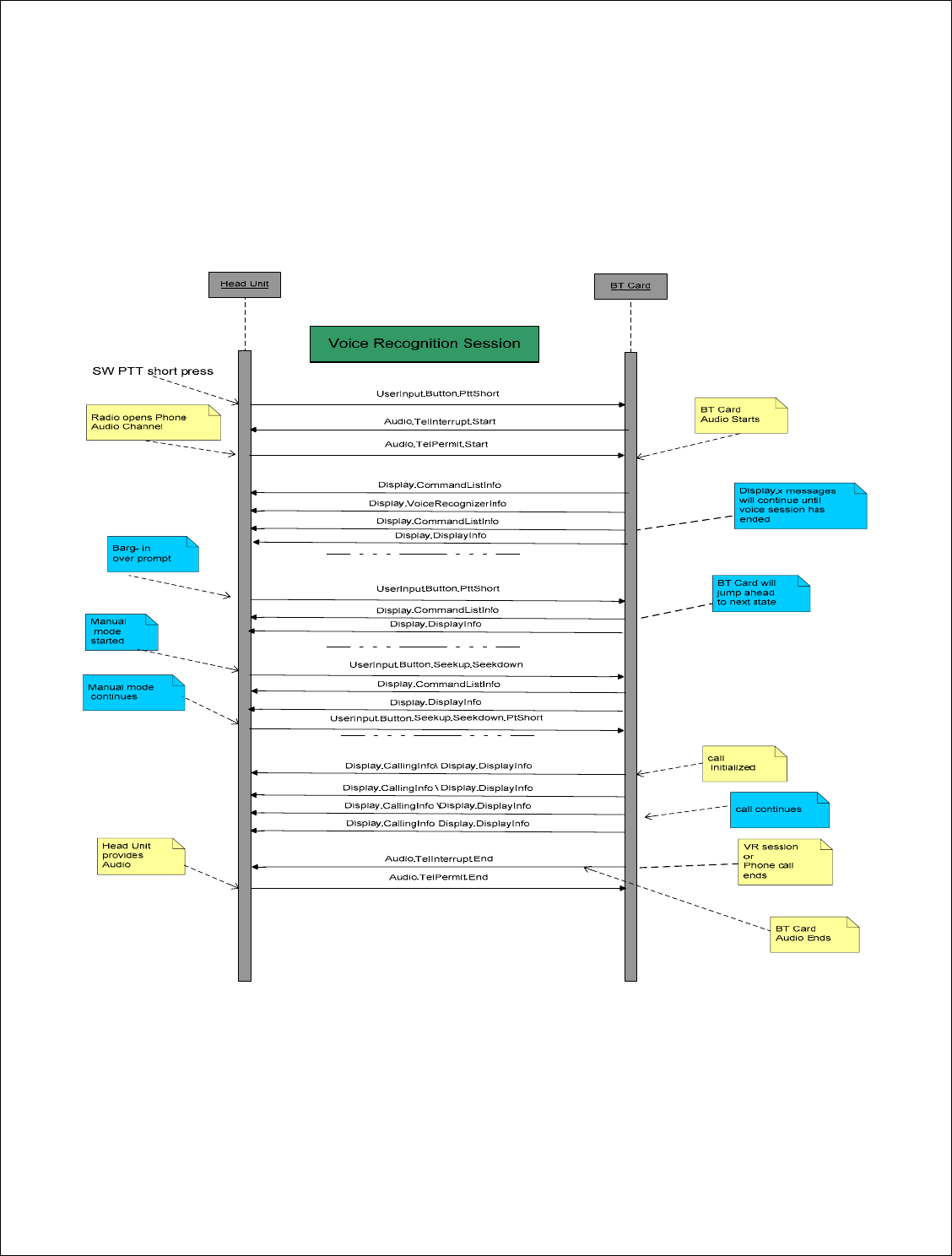

5.7 Voice Recognition Session Sequence ......................................................................................... 27

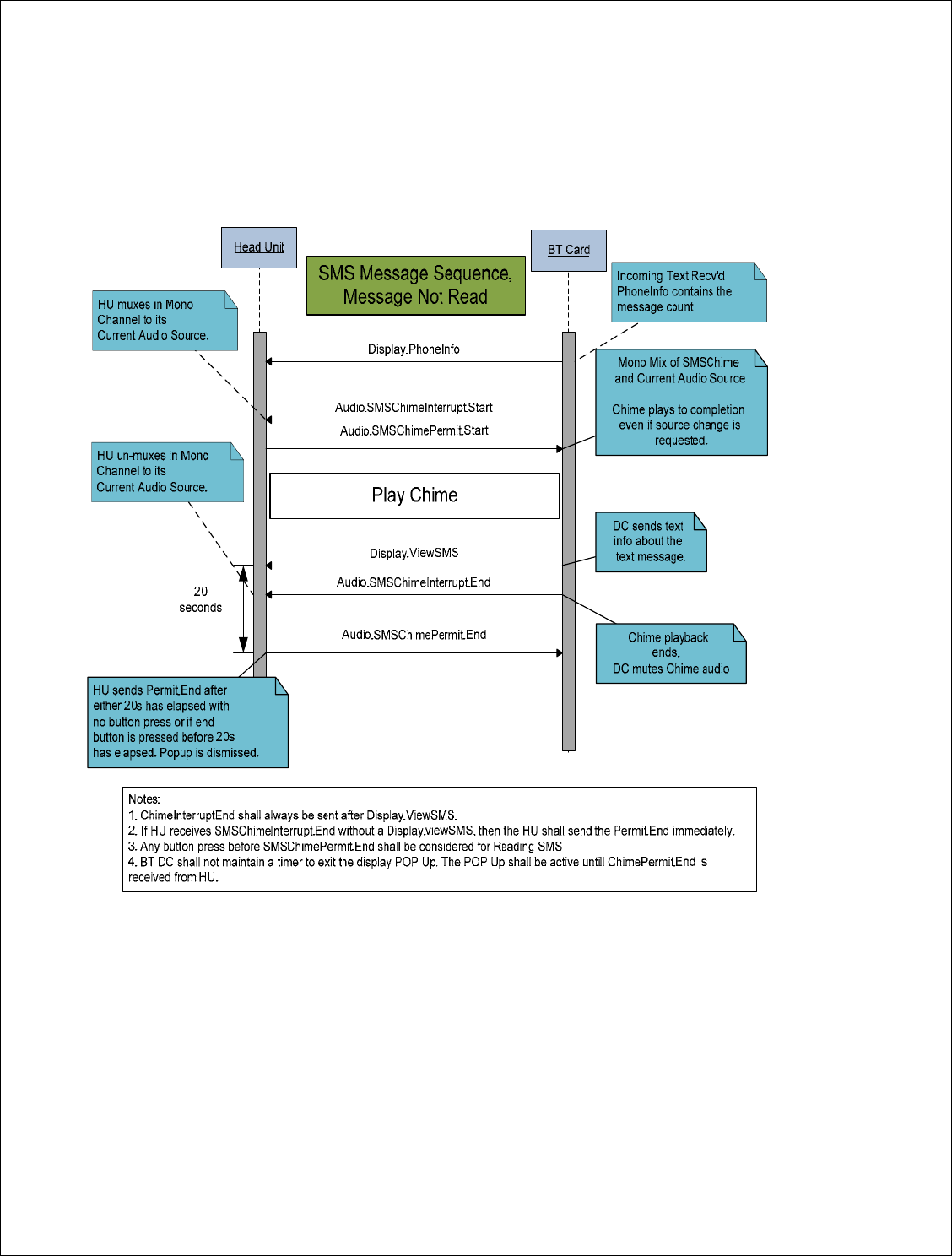

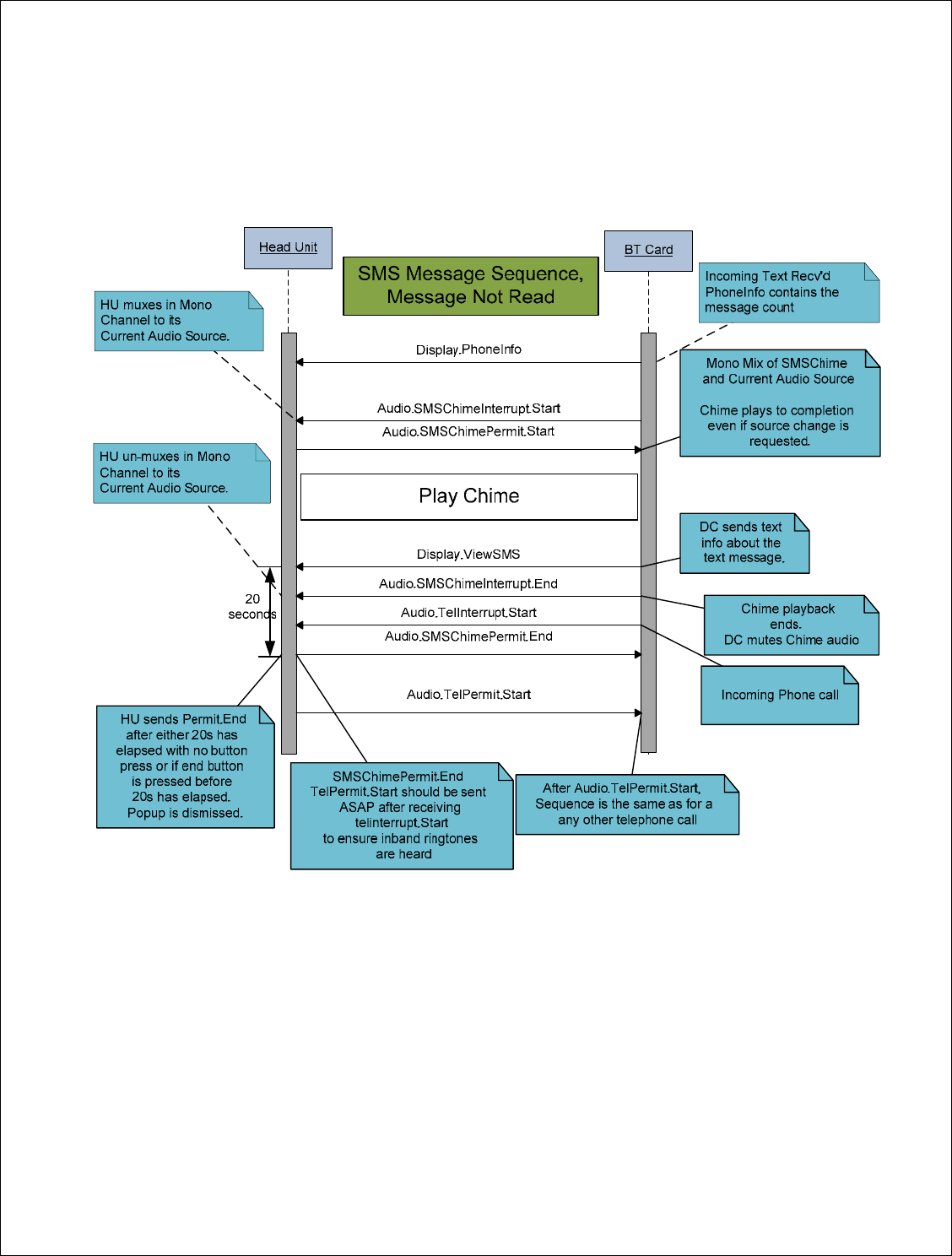

5.8 SMS Message Sequence, message not read. ............................................................................. 28
5.9 SMS Message Sequence, message read. ................................................................................... 29

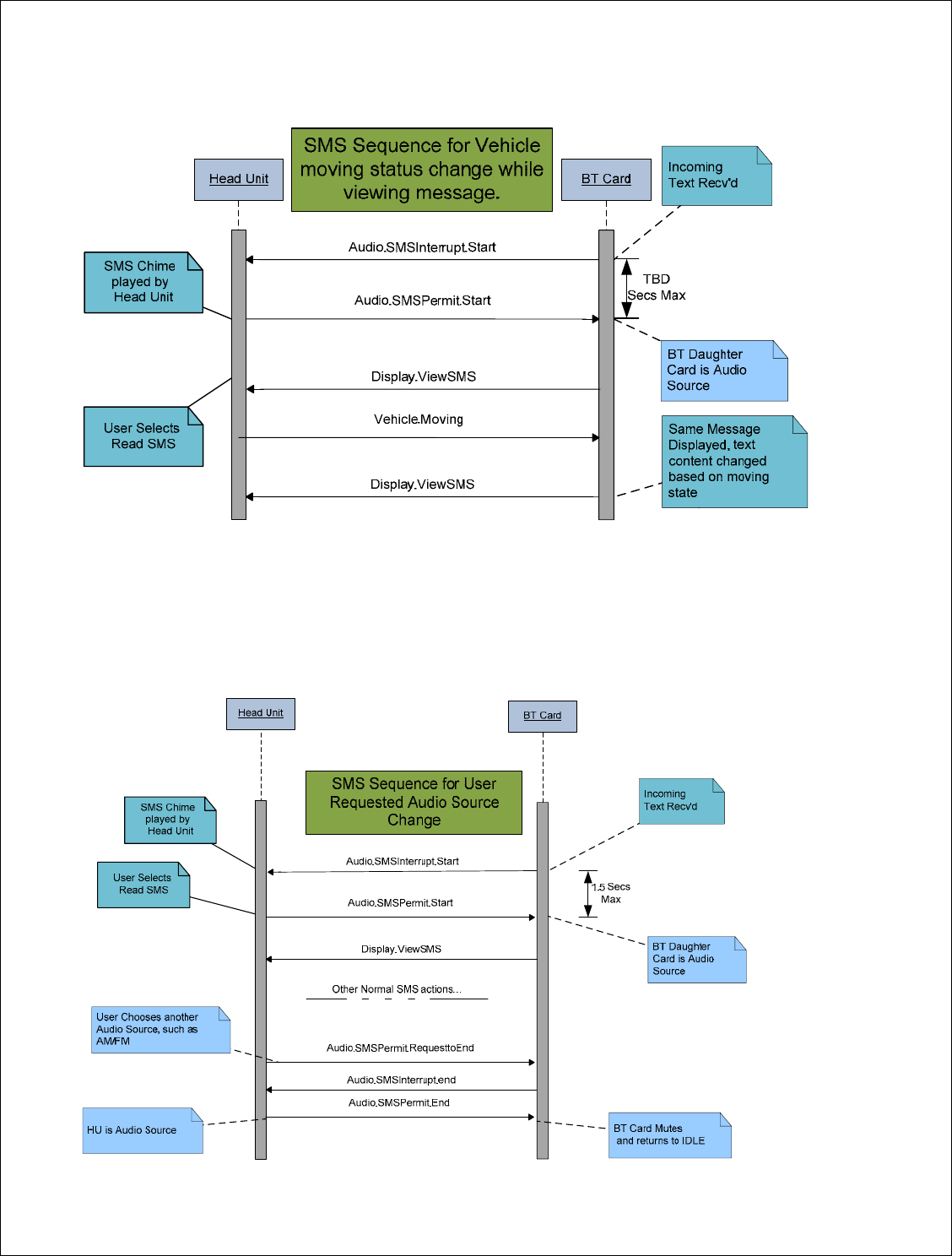

5.10 SMS Sequence when Vehicle Moving State Changes ......................................................... 30
5.11 User Cancels Read SMS by Selecting another Audio source. ............................................. 30
5.12 SMS Read ended by incoming Phone call............................................................................ 31
5.13 SMS Read interrupted by User request for BT Menu ...........................................................32
5.14 BT Menu (DA only)................................................................................................................ 33
5.15 BT Menu from BT audio source for 10STD audio. ................................................................ 34
5.16 Head Unit Requests Bluetooth Audio.................................................................................... 34
5.17 DC Ends BT Audio ................................................................................................................35

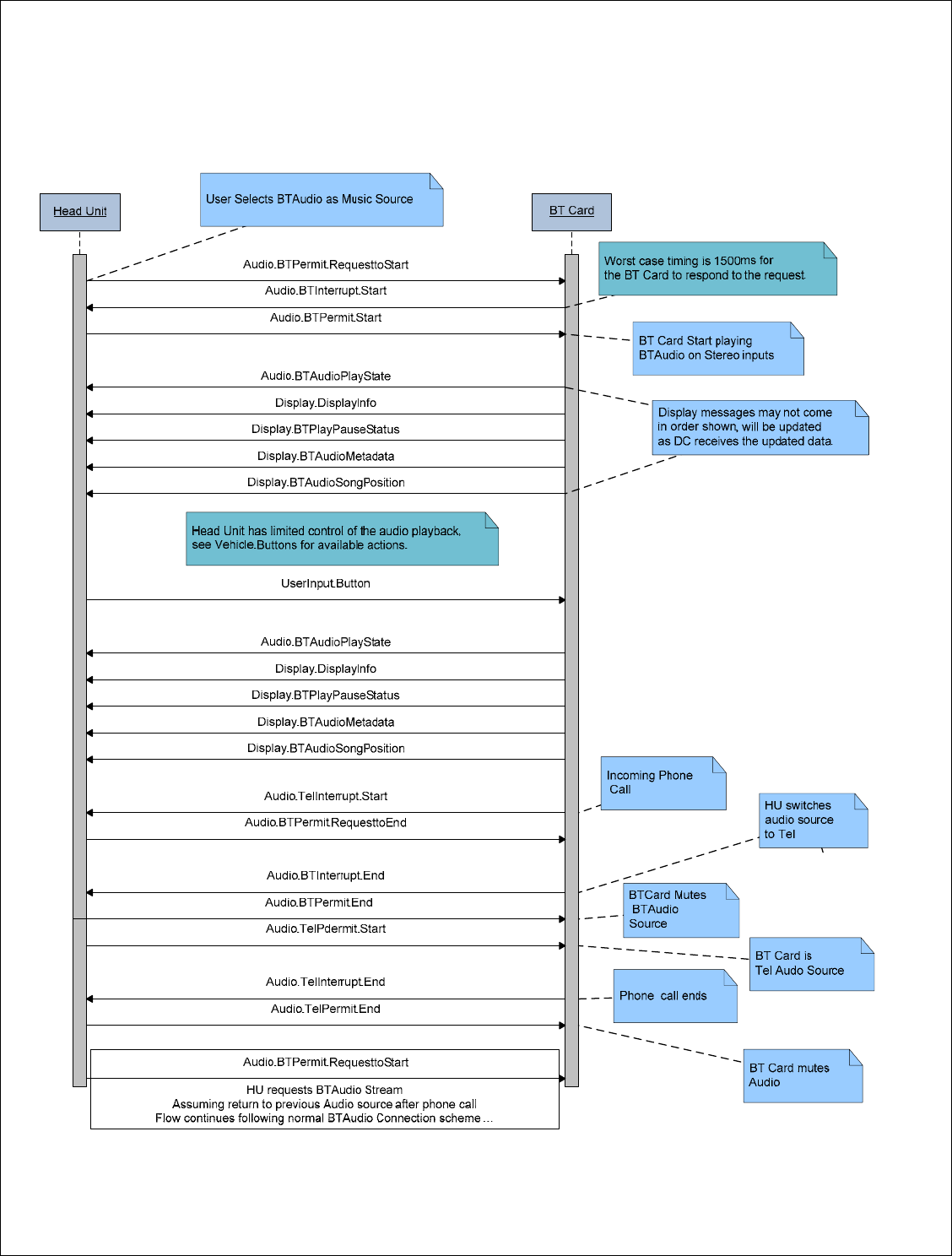

5.18 BTAudio interrupted by Phone Call....................................................................................... 36
5.19 BT Audio Interrupted by PTT press to start VR session ....................................................... 37

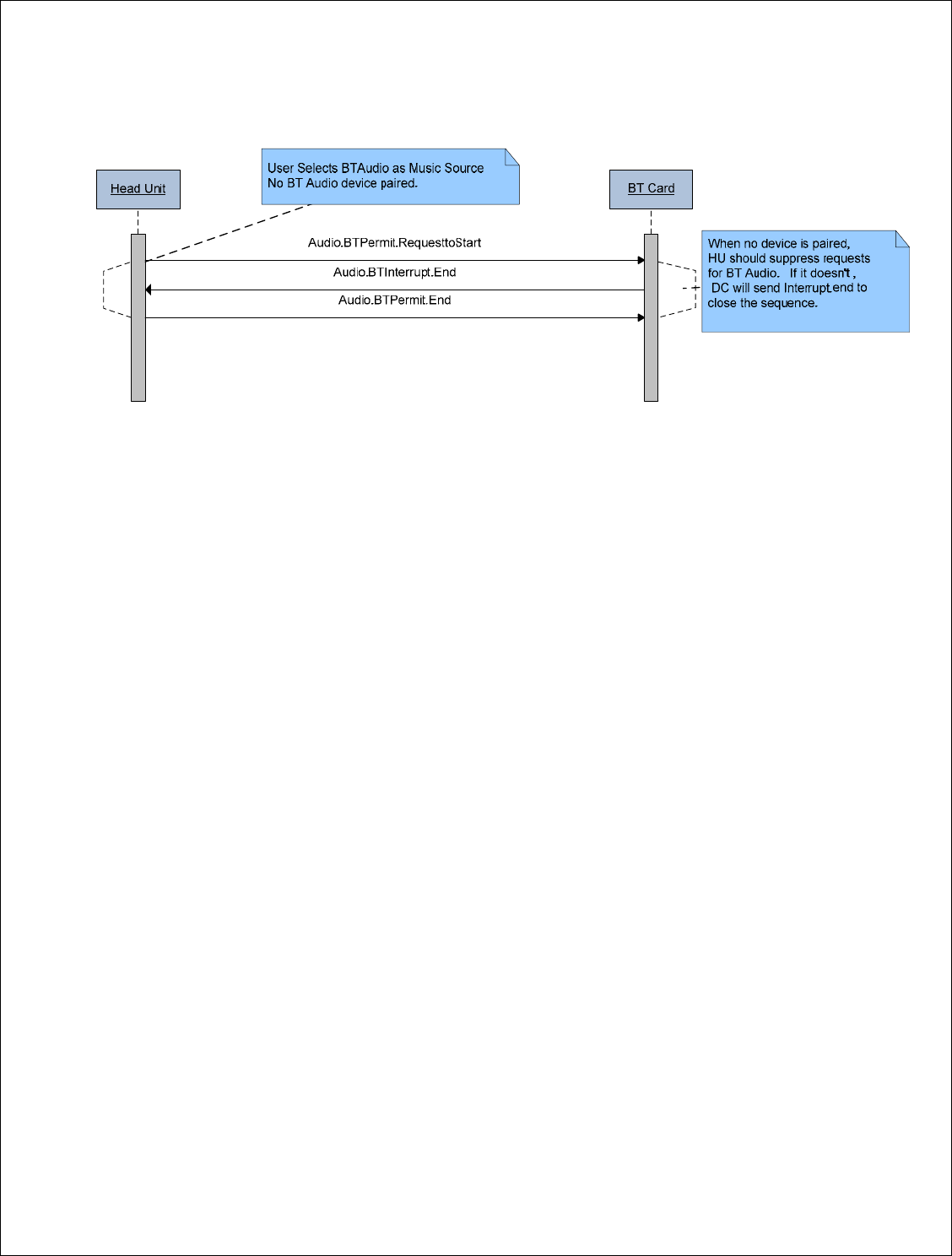

5.20 Aux mode – BT Audio mode with no BT device connected .................................................. 38

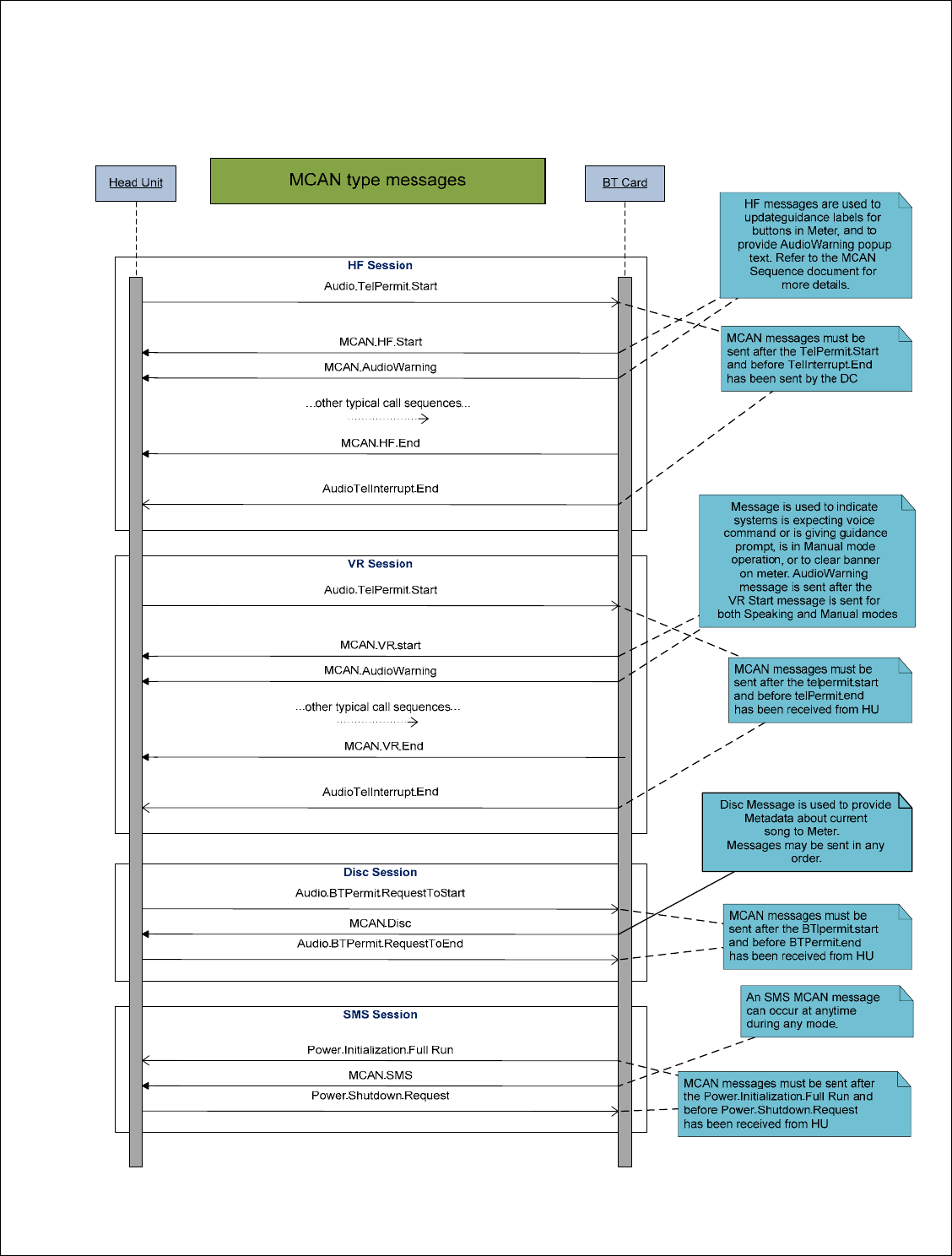

5.21 MCAN pass through messages............................................................................................. 38
5.22 SMS Sequence wile the DC is in an Active Call ................................................................... 40

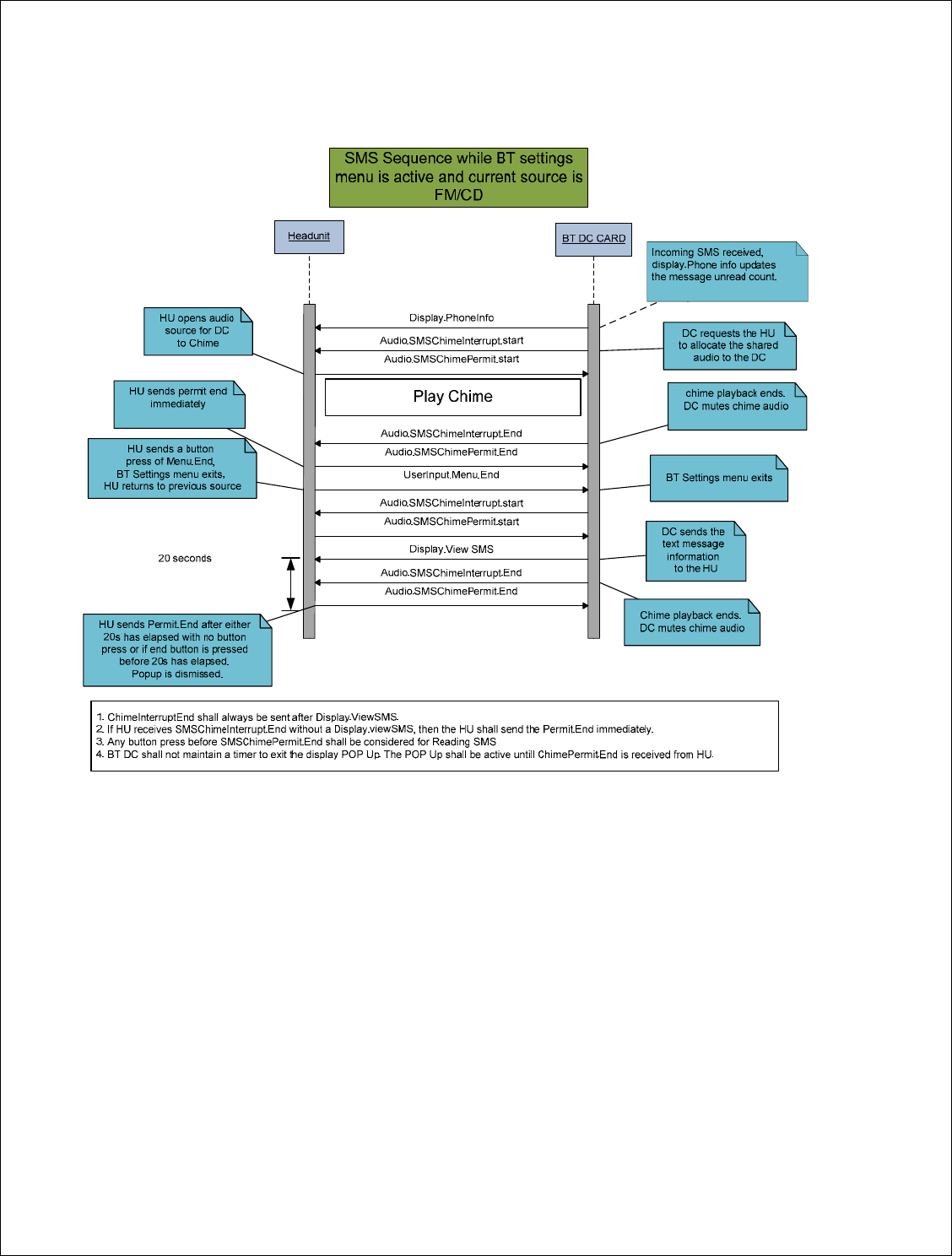

5.23 SMS Sequence while the DC is in a Setting Screen and Current Source is BT Audio.........41
5.24 SMS Sequence while the DC is in a Setting Screen and current source is FM/CD .............42
5.25 SMS Received while in a BTAudio Session.......................................................................... 43
5.26 SMS Received and Read while in a BT Audio Session ........................................................ 44
5.27 SMS Message Sequence,end interrupted by phone call ...................................................... 45
Visteon Electronics Nissan Bluetooth Voice DC UART SRD
Version 3.4 November 21st, 2011 Page 3 of 105 Visteon & Nissan Confidential
5.28 BT Audio to VR session Via BT Menu ..................................................................................46

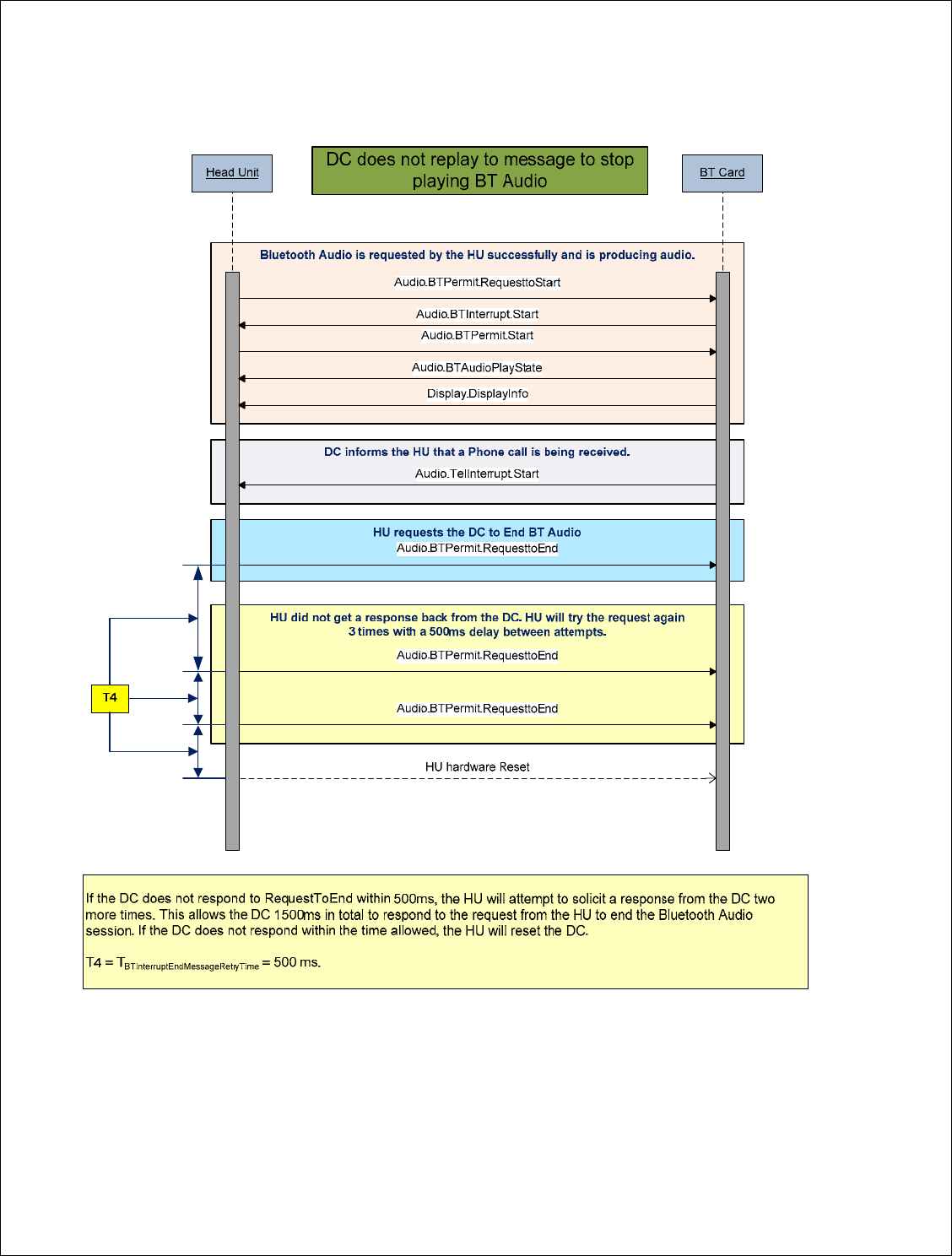

5.29 DC does not reply to message to stop playing BT Audio...................................................... 47
5.30 BT Audio Interrupted by SMS................................................................................................ 48
6 Message Details .................................................................................................................................. 49
6.1 Message types and Categories ....................................................................................................49
6.2 Message Set................................................................................................................................. 53
6.2.1 Audio Arbitration Message Set.............................................................................................. 53
6.2.2 Power Message Set ..............................................................................................................55
6.2.3 Vehicle Message Set.............................................................................................................56
6.2.4 Display Message Set.............................................................................................................60
6.2.5 Info Messages ....................................................................................................................... 69
6.2.6 HeartBeat .............................................................................................................................. 73
6.2.7 Diagnostics ............................................................................................................................ 74
6.2.8 UserInput ............................................................................................................................... 75
6.2.9 MCAN pass through messages............................................................................................. 76

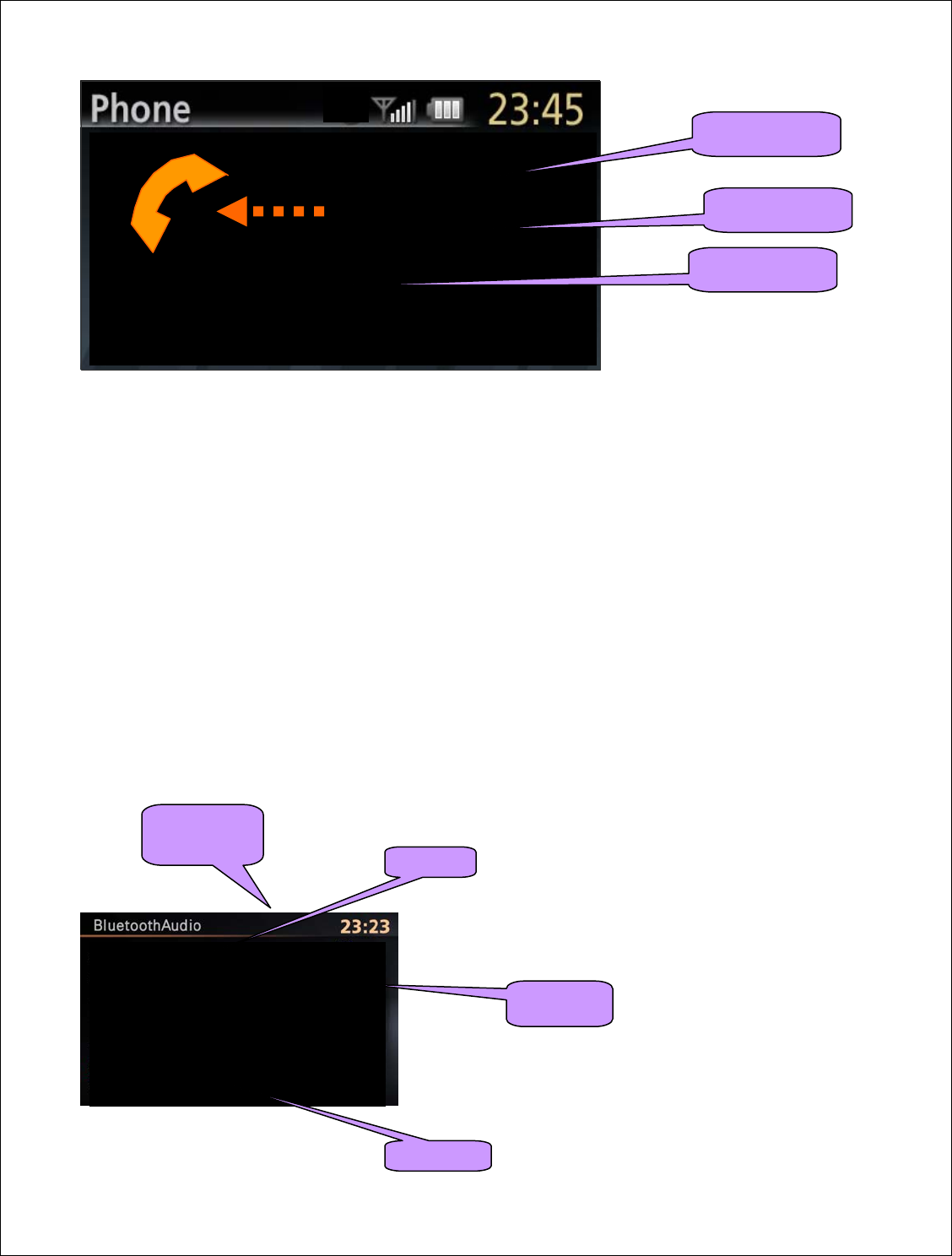

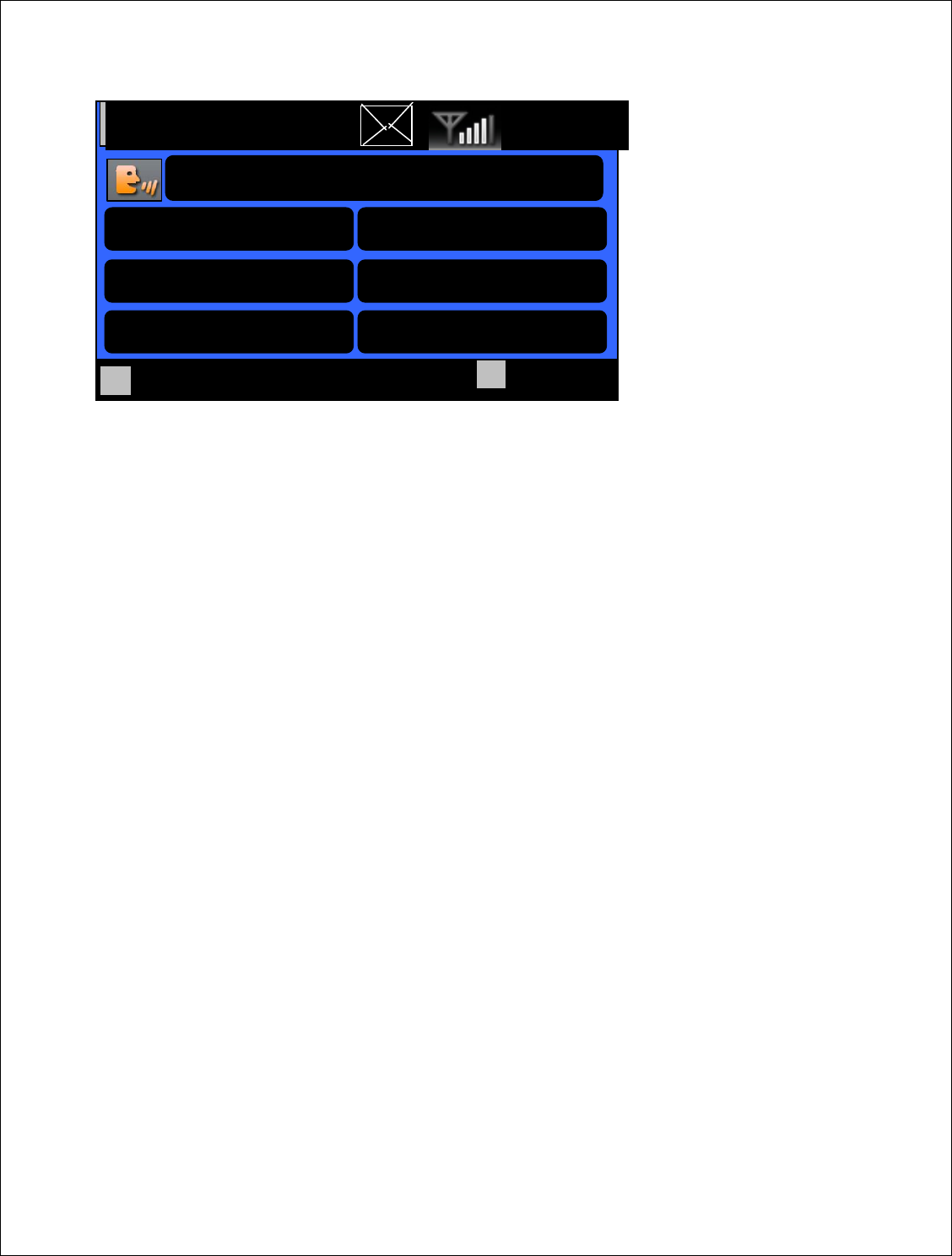

7 Graphics............................................................................................................................................... 90
7.1 TCR GENERATED ....................................................................................................................... 90
7.1.1 TCR GENERATED................................................................................................................ 90
7.2 10Std all screens .......................................................................................................................... 90
7.3 10DA BTAudio .............................................................................................................................. 92
7.4 10DA Popup screens.................................................................................................................... 93
7.5 10DA Setup screens..................................................................................................................... 94
8 Reference ............................................................................................................................................ 95
9 Revision History ................................................................................................................................... 96
10 TcSE changes v2.9 and beyond ....................................................................................................100
10.1 Release 3.0 .........................................................................................................................100
10.1.1 CQ 21558 Incorrect Message ID for MCAN msgs .............................................................. 100
10.1.2 CQ 21847 Display Info category correction ........................................................................100
10.1.3 CQ 21849 Add Clarity on byte 3 for rotary button presses .................................................100
10.1.4 CQ21420 UserInput.button byte length change.................................................................. 100
10.1.5 CQ 21642 Chime not interrupted by Source change ..........................................................100
10.1.6 CQ 21644 message count parameter clarification -- unread messages.............................100
10.1.7 CQ 19037 clarification in display categories descriptions...................................................100
10.1.8 cq 22747 correct start and end value for HF message ....................................................... 100
10.1.9 CQ 22847 missing info in interface messages....................................................................100
10.1.10 CQ 22760 missing parameter in viewsms ......................................................................100
10.1.11 Pana Oil #130 .................................................................................................................100
10.1.12 CQ21208 UART Byt length missing................................................................................100
10.1.13 Audio Voltage changed to 800mV ..................................................................................101
10.1.14 CQ24151: Pana Oil 116: Display.BTAudiodisplay listed in flows but no message is
defined. 101
10.1.15 CQ23932: CQPana OIL 136: Add byte for connected phone to Info.PhoneList message
101
10.1.16 CQ 21208 Incorrect sufunction message id.................................................................... 101
10.1.17 CQ24151: Pana Oil 116: Display msgs update ..............................................................101
10.1.18 CQ25476 Startup and Shutdown Enable, Reset and LVI pin behavior .......................... 102
10.1.19 CQ25471 Heartbeat message update ............................................................................102
10.2 Release 3.1 .........................................................................................................................102
10.2.1 cq 26217 BTAudioMenu not used.......................................................................................102
10.2.2 CQ 26210 extra text in event type for Heartbeat message.................................................102
10.2.3 CQ27272 Pana139, Playstate added to BTAudio status updates ......................................102
10.2.4 CQ 21917 Reflash Spec Message ID's Added ................................................................... 102
10.2.5 CQ 27528 SMS Flow: Added/Updated Sequences for Settings, ActiveCall and Msg Not
Read 102
10.2.6 CQ 27267 config error behavior incomplete .......................................................................103
10.2.7 CQ 25645 additional sequences needed ............................................................................ 103
Visteon Electronics Nissan Bluetooth Voice DC UART SRD
Version 3.4 November 21st, 2011 Page 4 of 105 Visteon & Nissan Confidential
10.2.8 CQ 27528 SMS : Added/Upd Sequences for Settings, ActiveCall, BT Audio and Msg Not
Read 103
10.2.9 CQ 28083 Pana 162: shorten Audio.SMSInterrupt to match Audio.................................... 103
10.2.10 cQ 28090 slide bar behavior for BT menu values added................................................103
10.2.11 CQ 28232 SMSChimeInterrupt.end behavior documented. ...........................................103
10.2.12 CQ 27848 SMS sequences not explicit for several cases..............................................103
10.3 Release 3.2 .........................................................................................................................104
10.3.1 CQ 24001 Pana126,7: BT Menu Back Button ....................................................................104
10.3.2 CQ 29517 REQ: SMS Flows call out incorrect buttons to dismiss SMS popup for Read
Request 104
10.4 Release 3.3 .........................................................................................................................104
10.4.1 CQ 29226 implement new byte in Display.BTAudioMetadata ............................................104
10.4.2 CQ 28590 Message format to send 5 latest SMS during BT Menu entry is not available..104
10.4.3 CQ 29915 UART: Need configuration ID for Panasonic Bose for EQ picking at startup....104
10.4.4 CQ 30093 0x01 not defined as text type in aw message.................................................... 104
10.4.5 CQ 30657 add clarity on timing of MCAN messages.......................................................... 104
10.4.6 CQ 31381 BTAudioMenu message should be removed from sequence............................ 104
10.4.7 CQ 30522 Add the Play Pause status message ................................................................. 104
10.4.8 CQ31420 REQ: UART Display.ViewSMS references wrong number in variable ...............105
10.4.9 CQ 32462 BT Audio interrupted by Add phone in BT menu ............................................... 105
10.4.10 CQ 33109 (33070, 33244, 32998, 31663) MCAN Behavior Update .............................. 105
10.4.11 CQ 3946 Display.ReadSMS - No such mesaage applicable for BT CARD....................105
10.4.12 CQ 32658 Reflash Timing has changed Initialization Time............................................105
10.4.13 CQ 34519 Clar148 HU beh if DC not reply to HU req DC to stop BT Audio .................. 105
10.5 Release 3.4 .........................................................................................................................105
10.5.1 CQ 35573 Display clarification for CallInfo message..........................................................105
10.5.2 CQ 33070 MCAN: BT Audio Not Available Disc message to be sent.................................105
10.5.3 CQ 35580 MCAN: Disc message sent incorrectly ..............................................................105
Visteon Electronics Nissan Bluetooth Voice DC UART SRD
Version 3.4 November 21st, 2011 Page 5 of 105 Visteon & Nissan Confidential
1 Preface and Sign Off
1.1 Preface
This specification defines the UART Protocol and message set details to be used for
communication between the HU and BT Card.
Details contained within this document include the definition of messages related to those
features, what the messages do, how the messages are used, and how status information is
reported.
1.2 Confidentiality
TBD
1.3 Sign off for Version TBD
Nissan:
Visteon: Rob Benedict
Panasonic:
Clarion:
1.4 Definitions and Abbreviations
Acronym Description
BT Blue Tooth
UART Universal Asynchronous Receiver/Transmitter
DC Daughter Card
TBD To be Determined
VR Voice recognition
IPCL Inter-processor communication link
DA Display Audio
HU Head Unit
IT-M IT Master head Unit
Visteon Electronics Nissan Bluetooth Voice DC UART SRD
Version 3.4 November 21st, 2011 Page 7 of 105 Visteon & Nissan Confidential

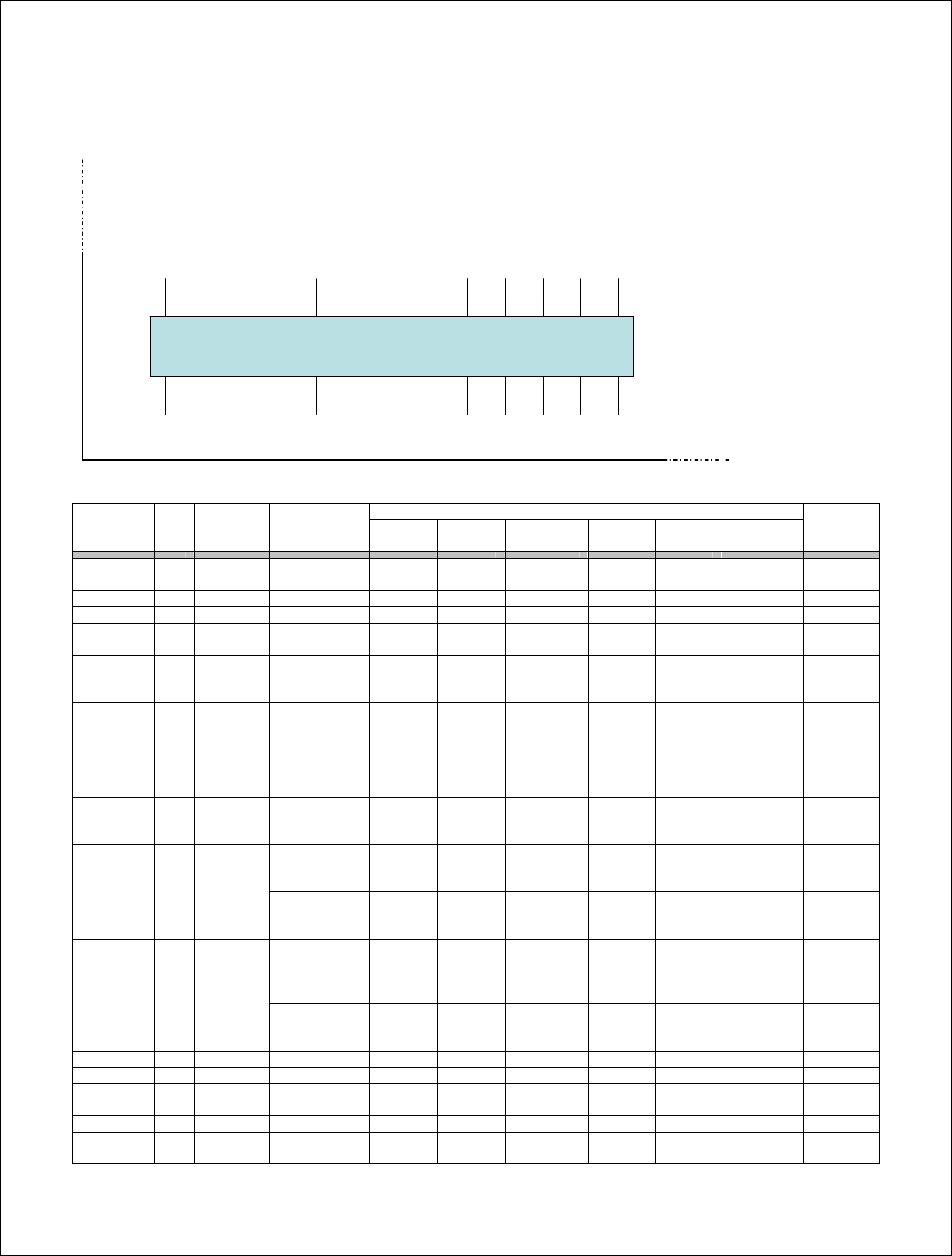

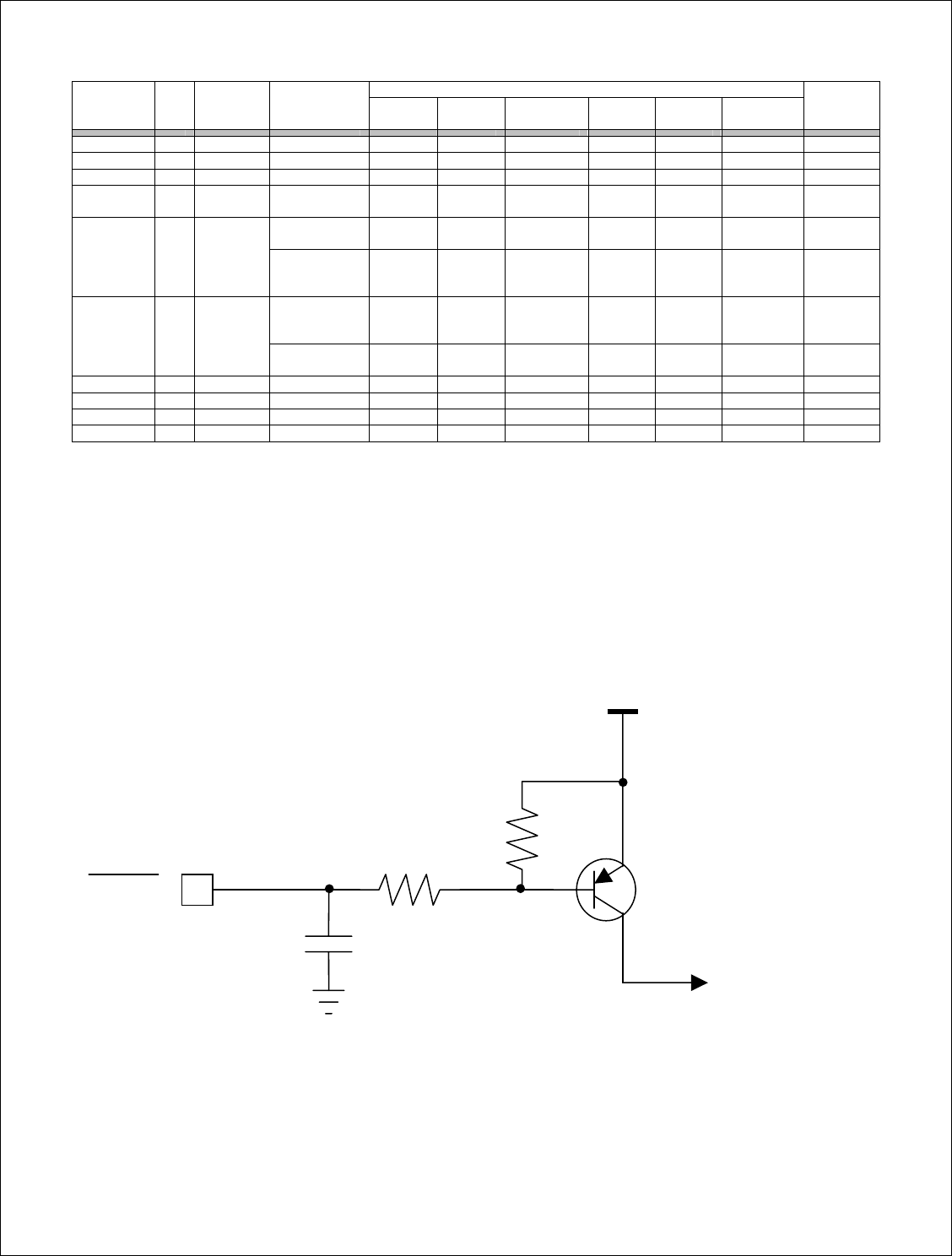

2.2 Pin Definitions
Connector: Samtec MMT-113-01-T-DV-A-P-TR. (P/N may change depending on actual pin lengths)
135791113151719212325
26 24 22 20 18 16 14 12 10 8 6 4 2
Lower Left corner of DC, as seen from Top
135791113151719212325
26 24 22 20 18 16 14 12 10 8 6 4 2
Lower Left corner of DC, as seen from Top
Electrical Characteristics Name Pin I/O
Direction Description Min
Voltage Nom
Voltage Max
Voltage Max
Current Typical
Current Frequency Remarks
Mic in+ 1 Input Mic input - - 4.72Vpp 200Hz-
6kHz
Mic in - 2 Input Mic input - -
GND 3 - Ground
NC 4 - No
Connection
Aud L+ 5 Output Differential
Analog Audio
Output
800mVrms
Aud R+ 6 Output Differential
Analog Audio
Output
800mVrms
Aud L- 7 Output Differential
Analog Audio
Output
800mVrms
Aud R- 8 Output Differential
Analog Audio
Output
800mVrms
DC enable
line High
State
1.4V 150µA Enable 9 Input
DC Enable
line Low
State
.2V 20µA
Debug TX 10 Output Serial Debug
UART Serial
Comm. High
State
3V -60µA REQ* 11 Output
UART Serial
Comm. Low
State
.3V 5mA
Debug RX 12 Input Serial Debug
EXT_PGM 13 Input Programming
DC TX 14 Output UART Serial
Comm. 38.4kbps
USB D+ 15 I/O Programming 3.3V 12MHz
DC RX 16 Input UART Serial
Comm. 38.4kbs
Visteon Electronics Nissan Bluetooth Voice DC UART SRD
Version 3.4 November 21st, 2011 Page 8 of 105 Visteon & Nissan Confidential
Electrical Characteristics Name Pin I/O
Direction Description Min
Voltage Nom
Voltage Max
Voltage Max
Current Typical
Current Frequency Remarks
USB D- 17 I/O Programming 3.3V 12MHz
GND 18 - Ground
GND 19 - Ground
NC 20 - No
Connection
Reset control
High state 3 V -32µA Reset* 21 Input
Reset
Control Low
State
1 V -340µA
Low Voltage
Indication
High State
1.4V 150µA LVI 22 Input
LVI Low
State .2V 20µA
GND 23 - Ground
GND 24 - Ground
3.3V 25 Input Power 3.135V 3.3V 3.465V
3.3V 26 Input Power 3.135V 3.3V 3.465V
2.2.1 Reset Pin Interface Circuit
2.2.2 LVI Pin Interface Circuit
3.3V
RESET
4.7K
4.7K
10nF
To LSI Reset
Circuitry
Visteon Electronics Nissan Bluetooth Voice DC UART SRD
Version 3.4 November 21st, 2011 Page 9 of 105 Visteon & Nissan Confidential
2.2.3 UART Interface Circuit
3.3V
LV
47K
4.7K
10nF
To LSI LVI
Indicator Pin
4.7K
47K
4.7K
10nF UART_REQ
Signal From LSI
UART_REQ
1nF
1nF
TX
RXD
22
Ω
22
Ω
TXD From LSI
RXD To LSI
3.3V
4.7K
Visteon Electronics Nissan Bluetooth Voice DC UART SRD
Version 3.4 November 21st, 2011 Page 10 of 105 Visteon & Nissan Confidential
Note: HU must hold these pins low when enable line is low.
2.2.4 PGM Pin interface Circuit
2.2.5 3.3V Power and Enable Interface Circuit
3.3V
PGM
10K
10K
10nF
To LSI PGM
Indicator Pin
4.7K
3.3V
(2 pins)
ENABLE
47K
4.7K
3.3V to Internal
Circuitry
4.7K
47K
10nF
10nF
0.1uF
Visteon Electronics Nissan Bluetooth Voice DC UART SRD
Version 3.4 November 21st, 2011 Page 11 of 105 Visteon & Nissan Confidential
Note: When Enable is Low, UART communication Pins 11 (REQ), 14 (TX) and 16
(RX) must also be held low.
2.2.6 Microphone Interface Circuit
MIC
51.1K
Audio To
CODEC IC
51.1K
100pF
2.2nF
2.2nF
MIC
+
_
Vref
51.1K
51.1K
270 pF
270 pF
Internal GND on
Daughter Card
Visteon Electronics Nissan Bluetooth Voice DC UART SRD
Version 3.4 November 21st, 2011 Page 12 of 105 Visteon & Nissan Confidential
2.2.7 Audio Out Interface Circuit
10
Ω
10
Ω
10nF
2.2uF
2.2uF
AUDIO
OUT +
Vref
15K
10nF
100pF
+
_
15K
270 pF
+
_
15K
2.2K
AUDIO
OUT -
Vref
Audio From
CODEC IC
Same circuitry for both Left and Right channels
Visteon Electronics Nissan Bluetooth Voice DC UART SRD
Version 3.4 November 21st, 2011 Page 13 of 105 Visteon & Nissan Confidential

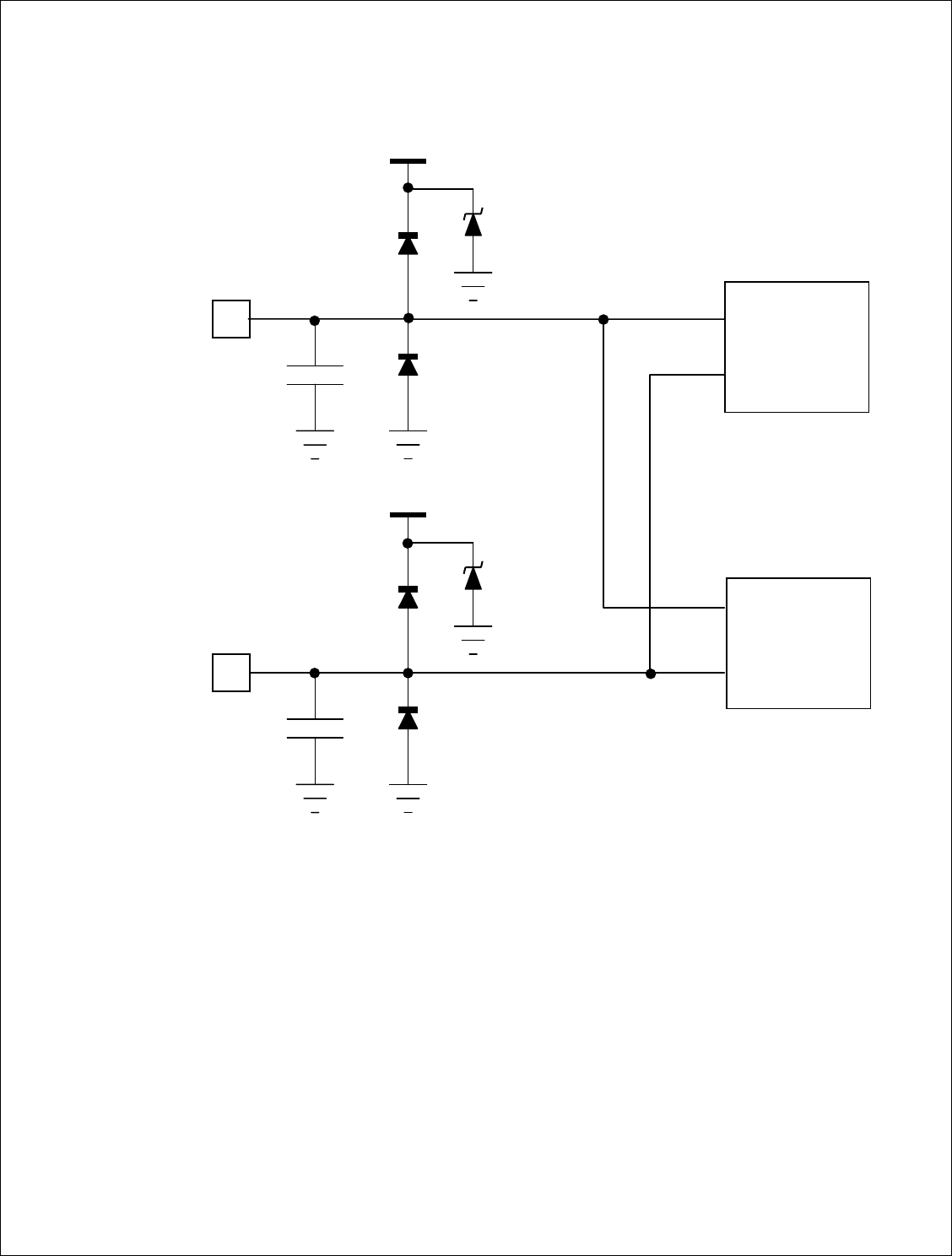

2.2.8 USB Interface Circuit
22pF
USB D +
22pF
USB D-
USB Switch
IC
USB Switch
IC
3.3V
3.3V
Visteon Electronics Nissan Bluetooth Voice DC UART SRD
Version 3.4 November 21st, 2011 Page 14 of 105 Visteon & Nissan Confidential

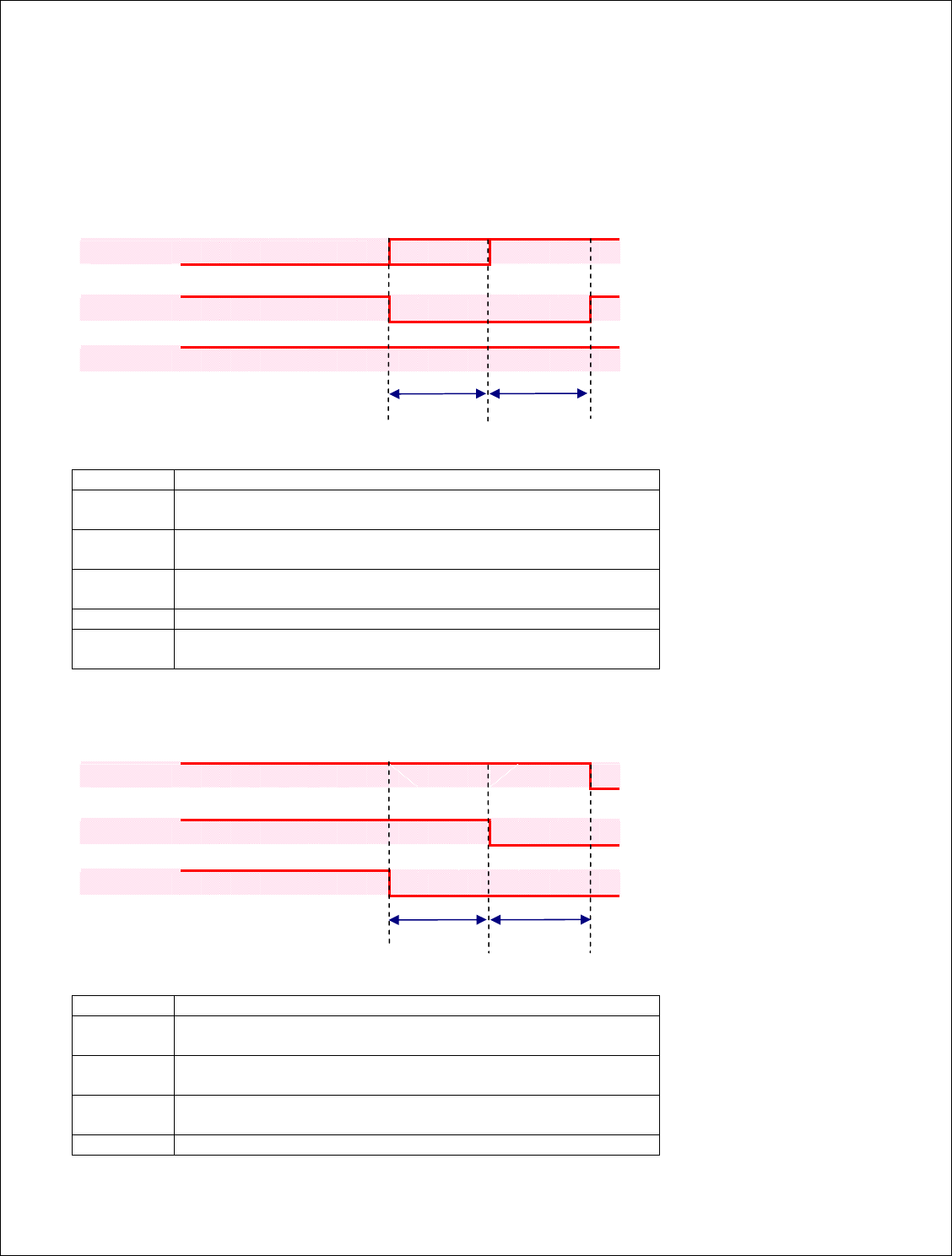

2.3 Hardwire Startup Diagram
2.3.1 Startup
ENABLE
RESET
LVI
T1 T2
A B C
Item Description
A The Head Unit has asserted the Reset line at the same time or before
the Enable line has been asserted.
B The Enable line has been asserted for >= 5ms. The regulator needs
5ms for the on board power supply to settle.
C The Head Unit releases the Reset line allowing the DC to begin the
initialization.
T1 >= 5ms
T2 >= 0ms. The Reset line can be released anytime after the Enable line
has been asserted for >= 5ms.
2.3.2 Shutdown
ENABLE
RESET
LVI
T3 T4
A B C
Item Description
A Head Unit needs to shut down before the DC has completed the
shutdown sequence. Head Unit asserts the LVI line.
B Head Unit then waits >=5ms for the DC to shutdown internal sw
components. The Head Unit asserts the Reset line.
C At this point, both the LVI and Reset lines are being asserted. The
Head Unit can now remove the Enable line at any time.
T3 >= 5ms
Visteon Electronics Nissan Bluetooth Voice DC UART SRD
Version 3.4 November 21st, 2011 Page 15 of 105 Visteon & Nissan Confidential
T4 >=0ms. The Enable line can be released anytime after the LVI line
has been asserted for >= 5ms.
2.3.3 Reset
This timing diagram is used to show the timing required to execute the sequence “Request for Reset”.
This timing diagram is used to show the timing required to execute the Reset required during any reflash
operation.
2.4 Radio Mute Pin
Not used.
Item Description
A Head Unit asserts the Reset line.
B Head Unit releases the Reset line.
T1 >= 800ms.
Visteon Electronics Nissan Bluetooth Voice DC UART SRD
Version 3.4 November 21st, 2011 Page 16 of 105 Visteon & Nissan Confidential
2.5 LVI Pin.
Discussion Point. The LVI pin is used for the HU to indicate to the DC that a low
voltage event is happening and an abrupt termination of the 3.3V power supply is
expected. T1 is the time for between LVI input is to toggled and when the 3.3V supply
drops to below 3.1V. Visteon desires this to be ≥ 20 mSec, but is it understood this is
not feasible in HU design. LVI pin is pulled low in such a way as to maximize the time
T1 before power supply and or reset line get pulled due to low battery condition at HU
power supply.
Note: Enable and Reset remain high for at least T1 seconds after LVI signal goes low.
Visteon Electronics Nissan Bluetooth Voice DC UART SRD
Version 3.4 November 21st, 2011 Page 17 of 105 Visteon & Nissan Confidential
3 Mechanical Interfaces
Visteon Electronics Nissan Bluetooth Voice DC UART SRD
Version 3.4 November 21st, 2011 Page 18 of 105 Visteon & Nissan Confidential

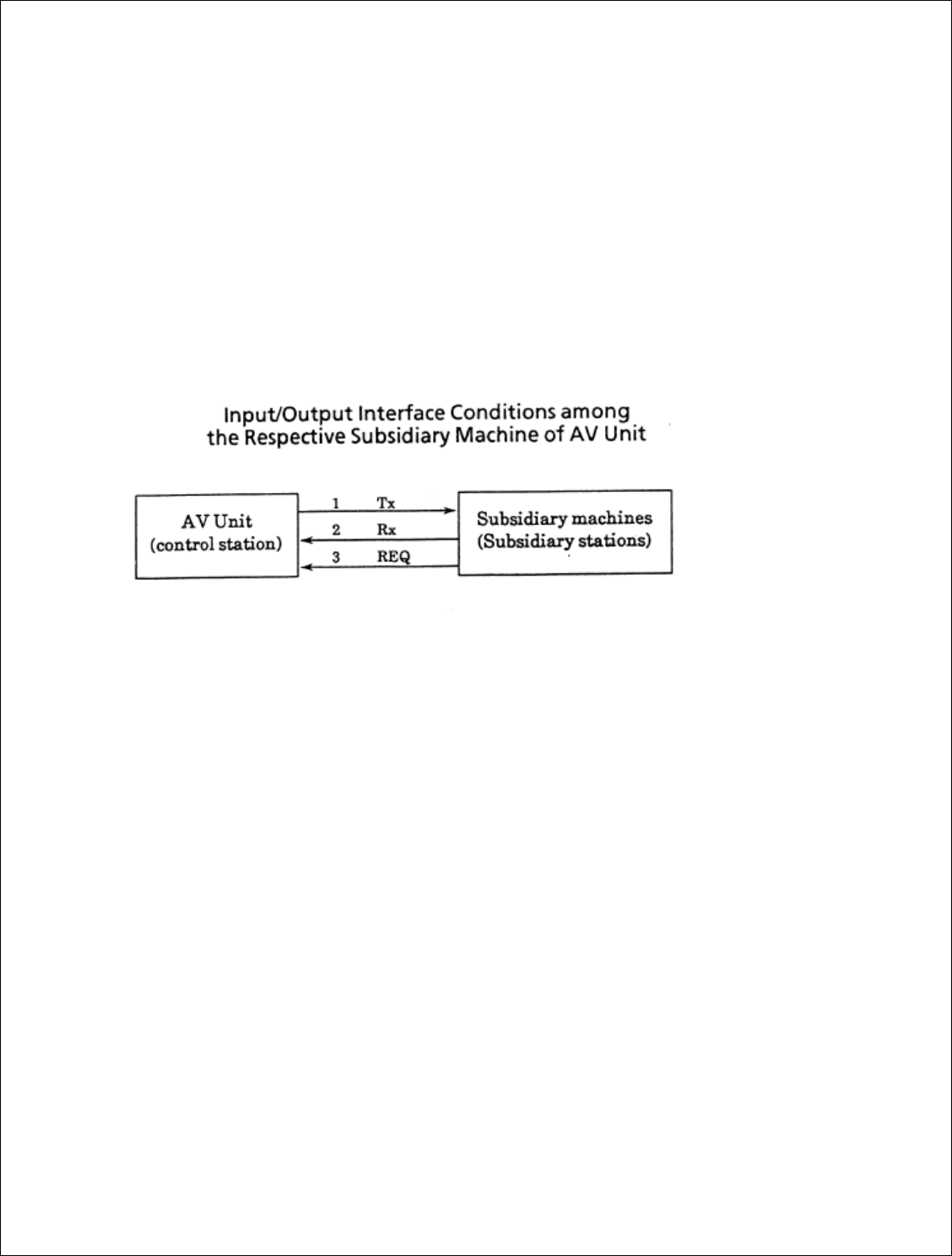

4 UART Protocol
The low level protocol is defined in the reference specification 28330 NDS00 AVC
System Comm Spec1.pdf. The HU shall be the AV Unit control station and the DC
shall be the subsidiary machine. The Protocol will be implemented without a physical
layer, and both the DC and HOos shall operate at 3.3V. Both HU and DC shall
implement all features and modes (ie conversation mode) of the protocol as defined. A
maximum Baud rate of 38.4 kbps shall be supported. While in normal operations, the
Baud rate shall be 9600 bps. 38.4 kbps shall be supported for reflash operations.
Visteon Electronics Nissan Bluetooth Voice DC UART SRD
Version 3.4 November 21st, 2011 Page 19 of 105 Visteon & Nissan Confidential

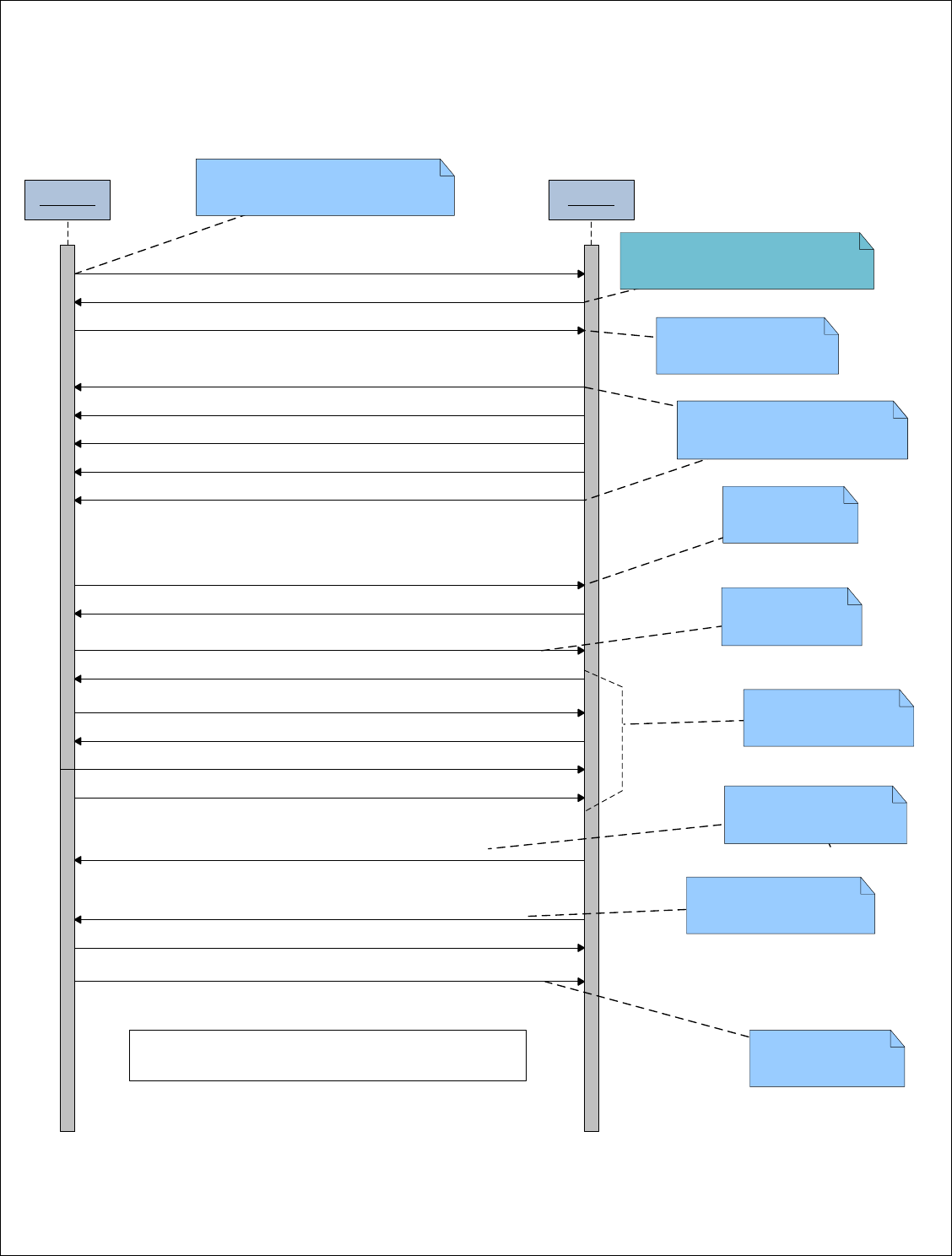

5 Sequence Diagrams
5.1 Initialization Sequence
Optional: The Language Configuration Sequence
can be called here if required.
Head Unit BT Card
HW Reset
Vehicle.Config.Get
Vehicle.Config.Set [Pin Configuration, Head Unit Id]
Power.FullRun
Initialization Sequence Diagram between
HU and MVL BT Card
Vehicle.Moving
Vehicle.TopDown
HeartBeat.HeadUnit
HeartBeat.BTCard
Info.PhoneList
Info.CustomMessageText
Vehicle.config.status
1
2
3
6
5
T1
T2
1. This indicates OS and UART are up and running. If this is not received in T1 seconds, HU should strobe reset line again.
2. When the HeartBeat.HeadUnit is received by the DC, the DC start the Vehicle Config sequence. DC will continue to send
HearBeat.BTCard messages to the Head Unit until a reply is sent.
3. The default configuration will be Panasonic if the value for Head Unit ID in the Vehicle.Config.Set message is undefined.
4. If the Language Change sequence is run, the Initialization time will increase by up to the maximum time called out in the sequence. This
needs to be added to the T2 time as it will increase the time it takes for the DC to be fully initialized and ready to be used.
5. Only after FullRun is sent will the DC be able to accept any button press messages. All button press messages will be ignored before this.
6. These messages are for the Panasonic DA only
Notes:
The Language Change sequence has been removed from the Initialization Sequence. If a Language Change is called during Initialization,
then the timing to be fully initialized and ready for button presses will increase by the Language Change timing.
Heartbeat messages are sent continuously throughout the operations of the DC.
The HU should not work off of the number of HeartBeat messages received during start up. The time out is to be used to determine the state
of the DC during initialization.
T1 = TTimeToBootToFirstHeartbeatMessage = 15 seconds.
The maximum time it will take the DC to boot up to send the first HeartBeat message (From the time that power is applied, the Enable line
asserted, Reset and LVI not asserted). If this time is exceeded, it is expected that the HU will reset the DC and perform the Mismatched Baud
Rate sequence as
T2 = TTimeToFinishInitAfterFirstHeartbeat= 6 seconds.
The maximum time it will take the DC to report that it is in the Full Run state and can begin to process button presses. If this time is exceeded,
it is expected that the HU will reset the DC.
4
Visteon Electronics Nissan Bluetooth Voice DC UART SRD
Version 3.4 November 21st, 2011 Page 20 of 105 Visteon & Nissan Confidential

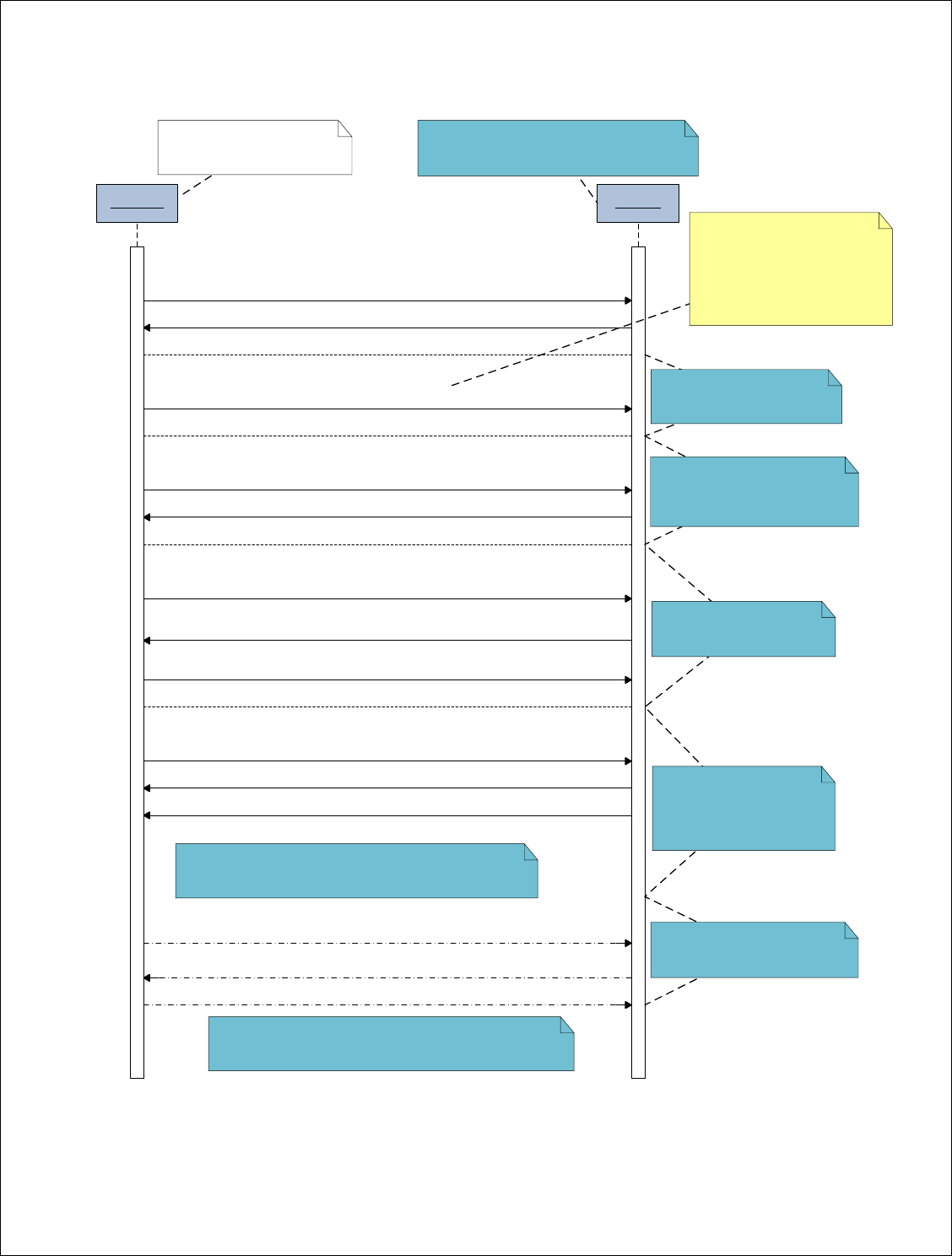

5.1.1 Request for Reset Sequence
Head Unit BT Card
HW Reset
Request for Reset Sequence
If BT Card gets stuck up in a
loop or any error happens
then BT Card shall request
for a reset upon which HU
shall perform a Reset of BT
Card and com plete initialization
Sequence shall follow.
After HW reset, flow follows Initialization sequence.
HeartBeat.BTCard is show n here for illustration as the
start of the heartbeat messages.
Power.RequestForReset
Heartbeat.BTCard
Reset Line should be
held low a m inim um
of 800 ms to ensure
DC reset occurs.
Note: Reset Line should be held low a minimum
of 800 ms when HU requests reset for at
anytime other than Startup ie: if Heartbeat
is lost
This indicates O M AP O S
is running and UART is
up and running. If this is not
received in 10 seconds,
HU should strobe reset line
again.
Visteon Electronics Nissan Bluetooth Voice DC UART SRD
Version 3.4 November 21st, 2011 Page 21 of 105 Visteon & Nissan Confidential
5.2 ShutDown Sequence
5.2.1 Normal Sequence
Visteon Electronics Nissan Bluetooth Voice DC UART SRD
Version 3.4 November 21st, 2011 Page 22 of 105 Visteon & Nissan Confidential

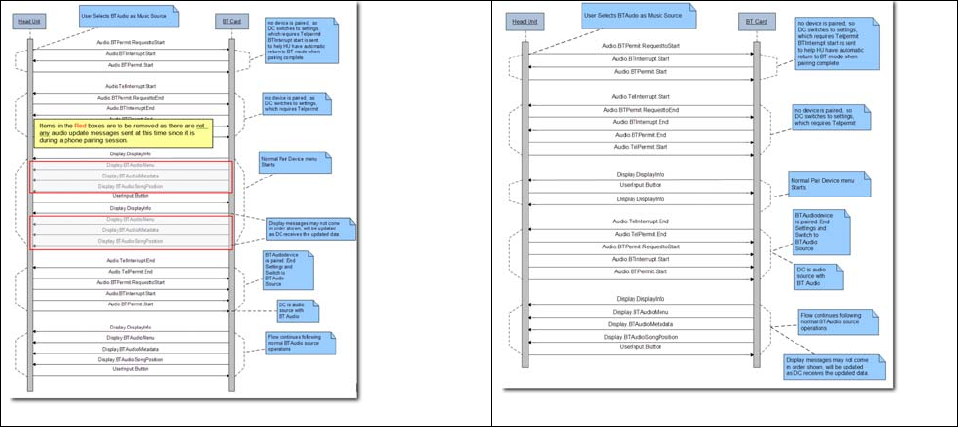

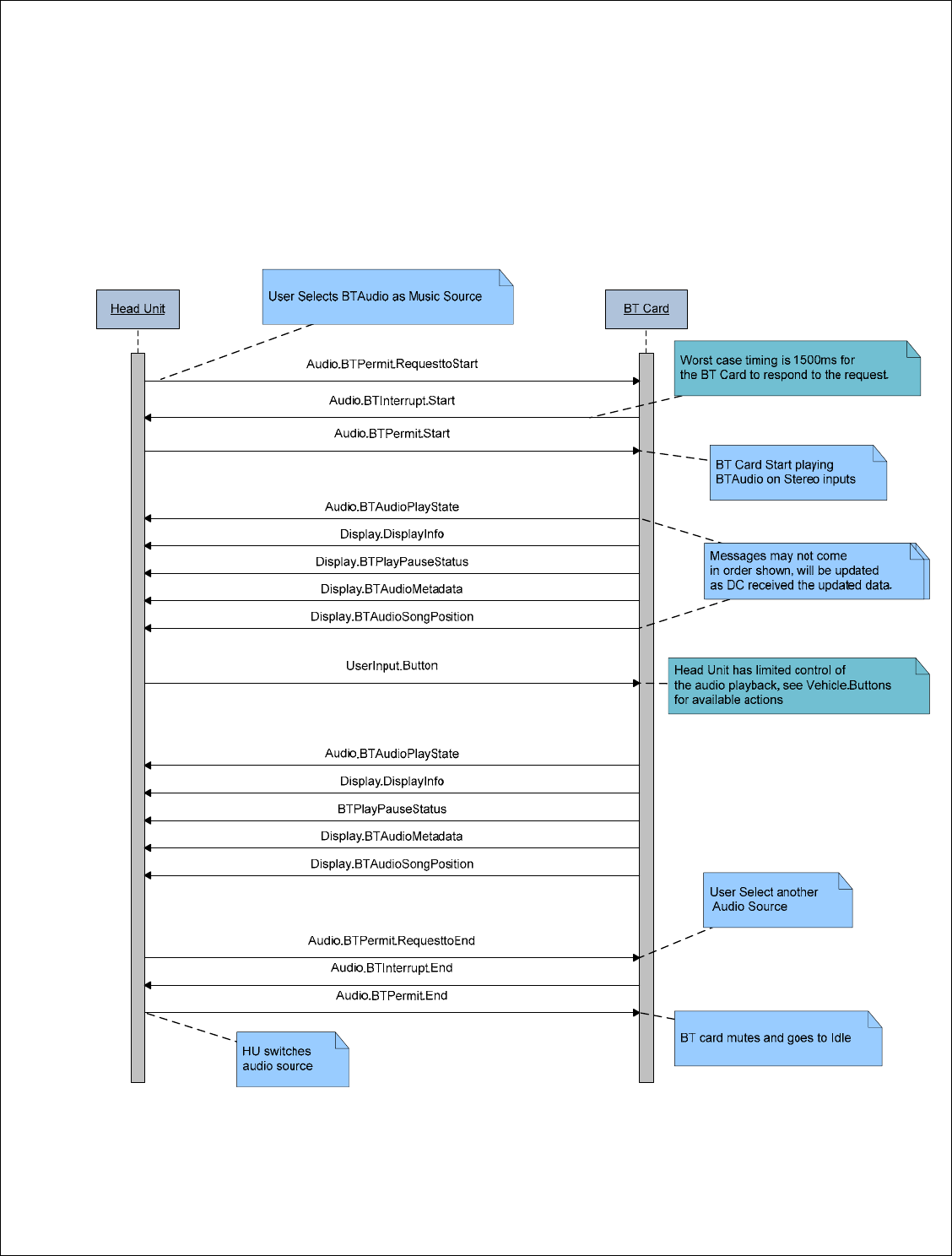

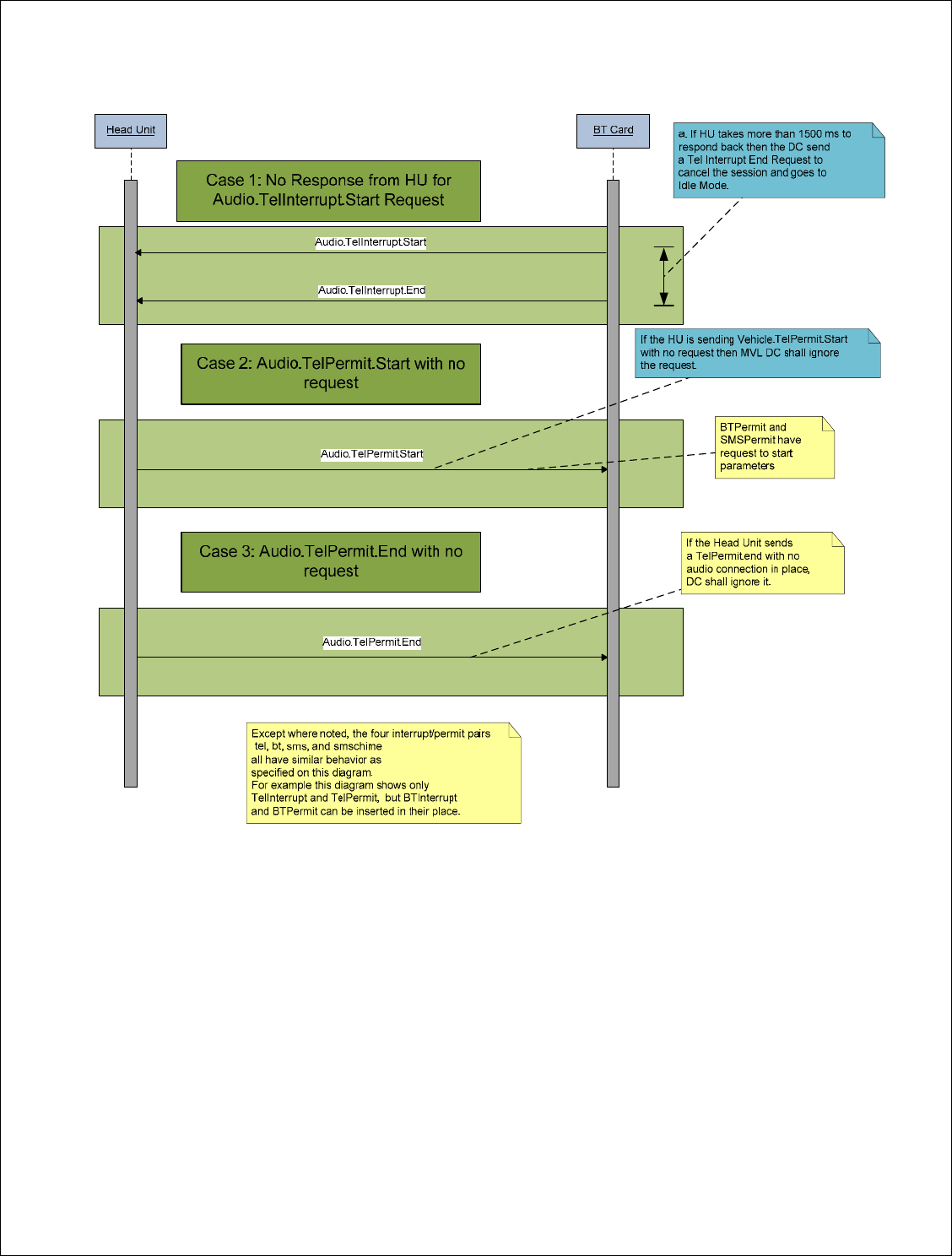

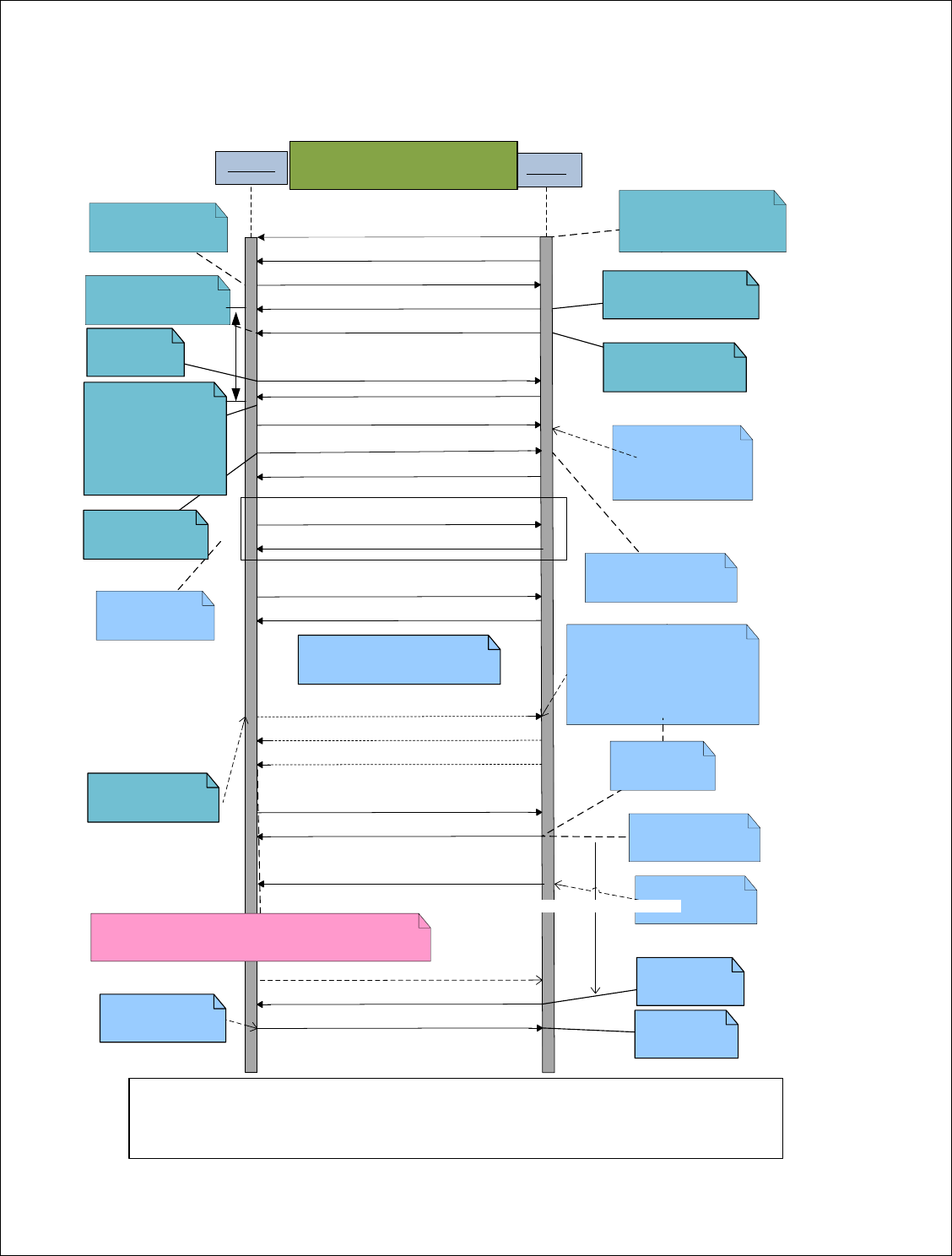

5.3 Audio Arbitration Sequences
Visteon Electronics Nissan Bluetooth Voice DC UART SRD
Version 3.4 November 21st, 2011 Page 23 of 105 Visteon & Nissan Confidential
Visteon Electronics Nissan Bluetooth Voice DC UART SRD
Version 3.4 November 21st, 2011 Page 24 of 105 Visteon & Nissan Confidential
Visteon Electronics Nissan Bluetooth Voice DC UART SRD
Version 3.4 November 21st, 2011 Page 25 of 105 Visteon & Nissan Confidential
5.4 Language Change Sequence
Visteon Electronics Nissan Bluetooth Voice DC UART SRD
Version 3.4 November 21st, 2011 Page 26 of 105 Visteon & Nissan Confidential
5.5 Other Vehicle Message Sequences
Head Unit BT Card
Vehicle.Moving
Vehicle.Moving Sequence
Vehicle.TopDown Sequence
Vehicle.TopDown
These messages are sent dynamically on a change in status asn as part of the startup sequences.

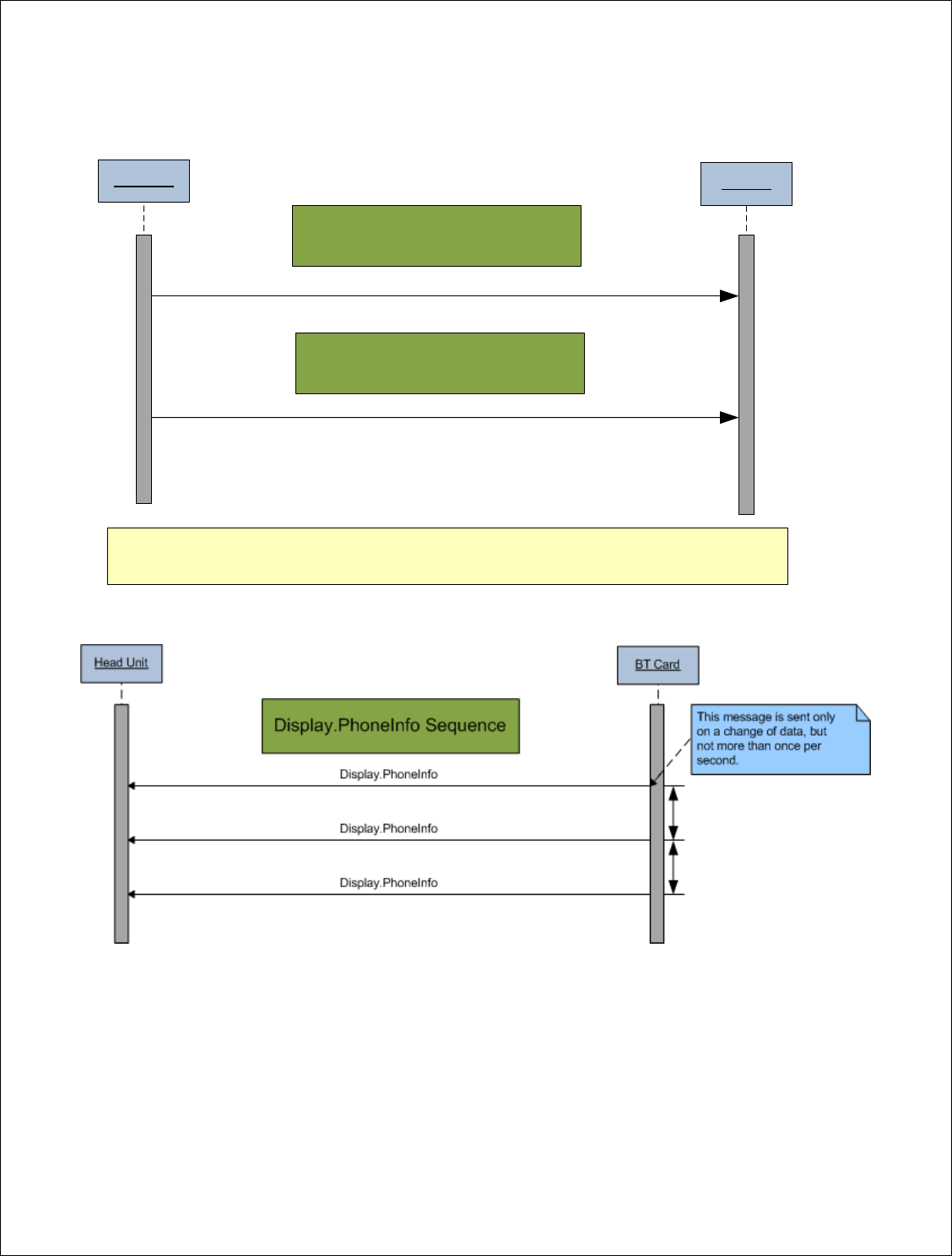

5.6 Other Vehicle Message Sequences
Visteon Electronics Nissan Bluetooth Voice DC UART SRD
Version 3.4 November 21st, 2011 Page 27 of 105 Visteon & Nissan Confidential
5.7 Voice Recognition Session Sequence
Visteon Electronics Nissan Bluetooth Voice DC UART SRD
Version 3.4 November 21st, 2011 Page 28 of 105 Visteon & Nissan Confidential
5.8 SMS Message Sequence, message not read.
Visteon Electronics Nissan Bluetooth Voice DC UART SRD
Version 3.4 November 21st, 2011 Page 29 of 105 Visteon & Nissan Confidential
5.9 SMS Message Sequence, message read.
If send fails, flow returns to
Vehicle.button.xxx above.
if retry is selected,
display.popup.sending will
become display.popup.resending
(same message different Popup
Payload.)
Head Unit BT Card
Audio.SMSInterrupt.Start
SMS Sequence,
Message Read
Audio.SMSPermit.Start
Display.ViewSMS
Mono Mix of SMSChime
and Current Audio Source
User Selects
Recieve SMS
20 Secs
Max
Vehicle.Button.PTTShort
Display.CommandListInfo
Vehicle.Button.xxx
Display.VRCustomSMSMenu
normal button presses or Voice
commands and display messages
to navigate SMS menus
User Navigates to
and selects specific
message for reply
Vehicle.Button.PTTShort
Display.Popup.sending
Display.Popup.sent
SMS text reply
sent to
Network
Handset confirms
Message Sent
DC request to be
sole audio source
because PTTShort
received before
permit end is received
Audio.SMSInterrupt.End
Audio.SMSPermit.End
HU is Audio Source
BT Card is Idle
BT Card returns to
idle if SMS Permit is not
received in 1.5 seconds
Open Questions for Nissan here
What happens if go back is selected between sending and sent?
DC plays <Sound 4>
3 seconds or button press received
Vehicle.Button.any(optional)
User chooses to
navigate through
unread messages
Audio.SMSChimeInterrupt.Start
Display.ViewSMS
Audio.SMSChimePermit.Start
Audio.SMSChimeInterrupt.End
HU muxes in Mono
Channel to its
Current Audio Source.
Chime playback
ends.
DC mutes Chime audio
HU un-muxes in Mono
Channel to its
Current Audio Source.
Vehicle.button.PTTShort
HU grants DC sole
audio source as
mono source
Audio.SMSChimePermit.End
HU sends permit end
after either 20s has
elapsed with no button
press or if end button
is pressed before 20
has elapsed, or right
after PTT short is
pressed.
BT Card Mutes
Display.xxx
Display.PhoneInfo
Incoming SMS received,
display.Phone info updates
the message unread count.
Display.ViewSMS
Vehicle.button.Seek.Seekdown
1. ChimeInterruptEnd shall always be sent after Display.ViewSMS.
2. If HU receives SMSChimeInterrupt.End without a Display.viewSMS, then the HU shall send the Permit.End immediately.
3. Any button press before SMSChimePermit.End shall be considered for Reading SMS
4. BT DC shall not maintain a timer to exit the display POP Up. The POP Up shall be active untill ChimePermit.End is received from HU.
Visteon Electronics Nissan Bluetooth Voice DC UART SRD
Version 3.4 November 21st, 2011 Page 30 of 105 Visteon & Nissan Confidential
5.10 SMS Sequence when Vehicle Moving State Changes
5.11 User Cancels Read SMS by Selecting another Audio source.
Visteon Electronics Nissan Bluetooth Voice DC UART SRD
Version 3.4 November 21st, 2011 Page 31 of 105 Visteon & Nissan Confidential
5.12 SMS Read ended by incoming Phone call.
Head Unit BT Card
Audio.SMSInterrupt.Start
Incoming
Text Recv'd
SMS Sequence for ViewSMS
terminated by incoming Call
Audio.SMSPermit.Start
Display.ViewSMS
User Selects
Read SMS
Audio.telinterrup.start
Other Normal SMS actions...
Audio.SMSPermit.RequesttoEnd
Audio.SMSPermit.End
BT Card Mutes
and returns to IDLE
Incoming Call
Audio.SMSInterrupt.End
Audio.TelPermit.Start
Other Normal Telephone actions...
Audio.TelInterrupt.End
Audio.TelPermit.End
Audio.SMSChimeInterrupt.Start
Audio.SMSChimePermit.Start Chime played by
DC
Audio.SMSChimeInterrupt.End
UserInput.Button.PTT
Audio.SMSChimePermit.End
Visteon Electronics Nissan Bluetooth Voice DC UART SRD
Version 3.4 November 21st, 2011 Page 32 of 105 Visteon & Nissan Confidential
5.13 SMS Read interrupted by User request for BT Menu
BT menu requests are ignored while reading SMS.
Visteon Electronics Nissan Bluetooth Voice DC UART SRD
Version 3.4 November 21st, 2011 Page 33 of 105 Visteon & Nissan Confidential
5.14 BT Menu (DA only)
Head Unit BT Card
UserInput.Menu.Start
Display.BTMenu
Bluetooth menus are not available during an
active Phone Call, a Voice Recognition
Session or while displaying SMS Texts.
UserInput.Menu.End
Head Unit is selecting Menus
The User has passed by
the Bluetooth settings menu.
UserInput.Button.Enter The User has has selected the
Bluetooth On/Off menu item.
Return the correct string value
for the toggled setting.
UserInput.Button.BZ.Tune Up/down
Display.BTMenu
UserInput.Button.Enter
The User has selected a
menu item indexed by the
Bezel Up/Down increments
UserInput.Button.Enter
Display.BTMenu
The User has selected the
"Delete Phone or Device"
from the menu. The BTDC
will send the list of names
and the BT Menu context.
Display.BTMenu
Info.PhoneList

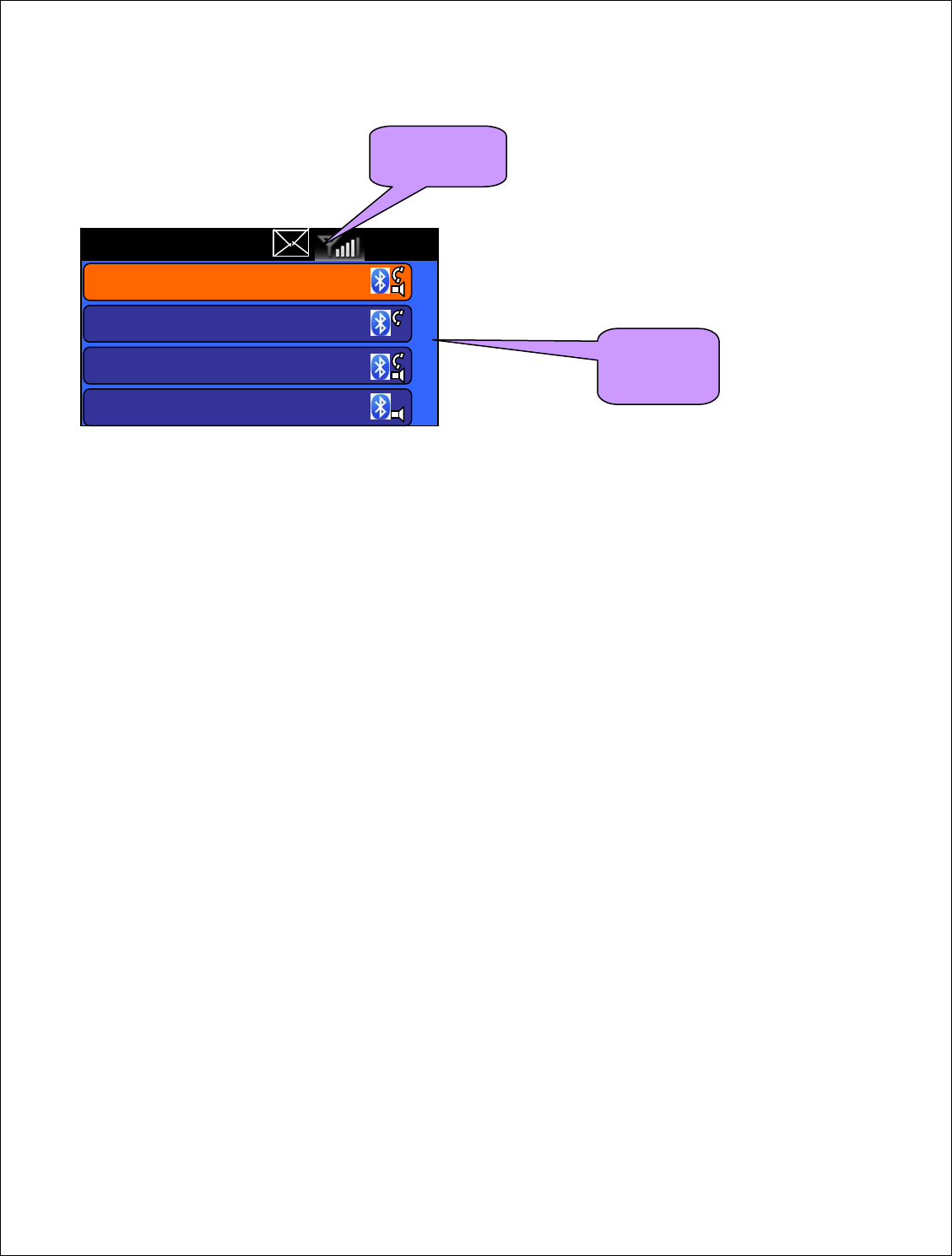

The actual list of BT Friendly Names is shown on the screen.
UserInput.Button.BZ.Tune Up/down
Display.BTMenu
If the user navigates to another
menu item, these alternate
messages will be sent.
UserInput.Button.Enter
At this point the Delete Phone flow is executed using the VR
Sequence starting at the Manual Mode part of the sequence.
menu.end may be sent at
any time following a
menu.start to allow HU
to cancel BT menu due to
actions unrelated to DC, such
as selecting another audio
source
Visteon Electronics Nissan Bluetooth Voice DC UART SRD
Version 3.4 November 21st, 2011 Page 34 of 105 Visteon & Nissan Confidential
5.15 BT Menu from BT audio source for 10STD audio.
TBD, as of 4Feb2011, Nissan is having internal discussions regarding BT settings menu HMI
behavior for 10STD audio.
5.16 Head Unit Requests Bluetooth Audio
Visteon Electronics Nissan Bluetooth Voice DC UART SRD
Version 3.4 November 21st, 2011 Page 35 of 105 Visteon & Nissan Confidential
The currently active device will begin to stream audio from its local library.
5.17 DC Ends BT Audio
Head Unit BT Card
Worst case timing is 1500ms for
the BT Card to respond to the request.
Audio.BTPermit.RequesttoStart
Audio.BTInterrupt.Start
Audio.BTPermit.Start
User Selects BTAudio as Music Source
BT Card Start playing
BTAudio on Stereo inputs
Audio.BTInterrupt.End
Audio.BTPermit.End
Event causing BT Audio
source to not be available.
(ie. Phone powering off,
BT Connection Lost,
Phone goes out of Range)
BT card mutes and goes to Idle
HU switches
audio source
Display messages may not come
in order shown, will be updated
as DC received the updated data.
Messages may not come
in order shown, will be updated
as DC received the updated data.
Display.DisplayInfo
Display.BTPlayPauseStatus
Display.BTAudioMetadata
Display.BTAudioSongPosition
Audio.BTAudioPlayState
Visteon Electronics Nissan Bluetooth Voice DC UART SRD
Version 3.4 November 21st, 2011 Page 36 of 105 Visteon & Nissan Confidential
5.18 BTAudio interrupted by Phone Call
Visteon Electronics Nissan Bluetooth Voice DC UART SRD
Version 3.4 November 21st, 2011 Page 37 of 105 Visteon & Nissan Confidential
5.19 BT Audio Interrupted by PTT press to start VR session
Head Unit BT Card
Worst case timing is 1500ms for
the BT Card to respond to the request.
Head Unit has limited control of the audio playback,
see Vehicle.Buttons for available actions.
Audio.BTPermit.RequesttoStart
Audio.BTInterrupt.Start
Audio.BTPermit.Start
User Selects BTAudio as Music Source
BT Card Start playing
BTAudio on Stereo inputs
Audio.BTPermit.RequesttoEnd
Audio.BTInterrupt.End
Audio.BTPermit.End
User initialized VR
session for phone call
BTCard Mutes
BTAudio
Source
Display.DisplayInfo
Audio.TelInterrupt.Start
Audio.TelPdermit.Start
HU switches
audio source
to Tel
BT Card is
Tel Audo Source
Phone call ends
Audio.TelInterrupt.End
Audio.TelPermit.End
BT Card mutes
Audio
UserInput.Button
Display.BTPlayPauseStatus
Display.BTAudioMetadata
Display.BTAudioSongPosition
Display.DisplayInfo
Display.BTPlayPauseStatus
Display.BTAudioMetadata
Display.BTAudioSongPosition
Display messages may not come
in order shown, will be updated
as DC received the updated data.
Display messages may not come
in order shown, will be updated
as DC receives the updated data.
Audio.BTAudioPlayState
Audio.BTAudioPlayState
HU requests BTAudio Stream
Assuming return to previous Audio source after phone call
Flow continues following normal BTAudio Connection scheme ...
Audio.BTPermit.RequesttoStart
UserInput.Button.sw ptt.press
Visteon Electronics Nissan Bluetooth Voice DC UART SRD
Version 3.4 November 21st, 2011 Page 38 of 105 Visteon & Nissan Confidential
5.20 Aux mode – BT Audio mode with no BT device connected
5.21 MCAN pass through messages
MCAN pass through messages may be sent by DC to HU at any time during VR, HF, SMS,
BTAudio, and Menu Sequences after the respective Permit.Start and before the respective
Permit.End messages have been received from the HU. The HU is responsible for receiving the
message, repackaging as an MCAN message, and sending it out on the MCAN bus. No other
Visteon Electronics Nissan Bluetooth Voice DC UART SRD
Version 3.4 November 21st, 2011 Page 39 of 105 Visteon & Nissan Confidential
processing of the messages is expected.
Visteon Electronics Nissan Bluetooth Voice DC UART SRD
Version 3.4 November 21st, 2011 Page 40 of 105 Visteon & Nissan Confidential
5.22 SMS Sequence wile the DC is in an Active Call
Headunit BT DC CARD
Incoming SMS received,
display.Phone info updates
the message unread count.
SMS Sequence while
Phone Call or Ringing
Display.View SMS
Tel.Interrupt.End
HU sends Permit.End after either
20s has elapsed with no button
press or if end button is pressed
before 20s has elapsed.
Popup is dismissed.
20 secs
Tel.Permit.End
HU returns to
previous source
Phone call ends
Audio.SMSChimeInterrupt.Start
Audio.SMSChimePermit.start
Audio.SMSChimeInterrupt.End
Audio.SMSChimePermit.End
Play Chime
Display.PhoneInfo
DC requests the HU
to allocate the shared
audio to the DC
Phone call is active or is ringing
HU opens audio
source for DC
to Chime
DC sends the text message
information to the HU
Chime playback ends.
DC mutes chime audio
1. ChimeInterruptEnd shall always be sent after Display.ViewSMS.
2. If HU receives SMSChimeInterrupt.End without a Display.viewSMS, then the HU shall send the Permit.End immediately.
3. Any button press before SMSChimePermit.End shall be considered for Reading SMS
4. BT DC shall not maintain a timer to exit the display POP Up. The POP Up shall be active untill ChimePermit.End is received from HU.
Visteon Electronics Nissan Bluetooth Voice DC UART SRD
Version 3.4 November 21st, 2011 Page 41 of 105 Visteon & Nissan Confidential
5.23 SMS Sequence while the DC is in a Setting Screen and Current
Source is BT Audio
Headunit BT DC CARD
Incoming SMS received,
display.Phone info updates
the message unread count.
SMS Sequence while BT settings
active and current source is BT
Audio
Display.View SMS
HU sends Permit.End after either
20s has elapsed with no button
press or if end button is pressed
before 20s has elapsed.
Popup is dismissed.
Display.PhoneInfo
20
secs
UserInfo.Menu.End
Audio.SMSChimeInterrupt.Start
Audio.SMSChimePermit.start
Audio.SMSChimePermit.End
Dont play chime,
DC Audio muted.
Audio.SMSChimeInterrupt.End
Don’t Play Chime
Settings screen is active
HU sends a button
press of Menu.End,
BT Settings menu exits,
HU returns to previous source
DC requests the HU
to allocate the shared
audio to the DC
DC sends the
text message
information
to the HU
Chime playback ends.
DC mutes chime audio
1. ChimeInterruptEnd shall always be sent after Display.ViewSMS.
2. If HU receives SMSChimeInterrupt.End without a Display.viewSMS, then the HU shall send the Permit.End immediately.
3. Any button press before SMSChimePermit.End shall be considered for Reading SMS
4. BT DC shall not maintain a timer to exit the display POP Up. The POP Up shall be active untill ChimePermit.End is received from HU.
Visteon Electronics Nissan Bluetooth Voice DC UART SRD
Version 3.4 November 21st, 2011 Page 42 of 105 Visteon & Nissan Confidential
5.24 SMS Sequence while the DC is in a Setting Screen and current
source is FM/CD
Visteon Electronics Nissan Bluetooth Voice DC UART SRD
Version 3.4 November 21st, 2011 Page 43 of 105 Visteon & Nissan Confidential

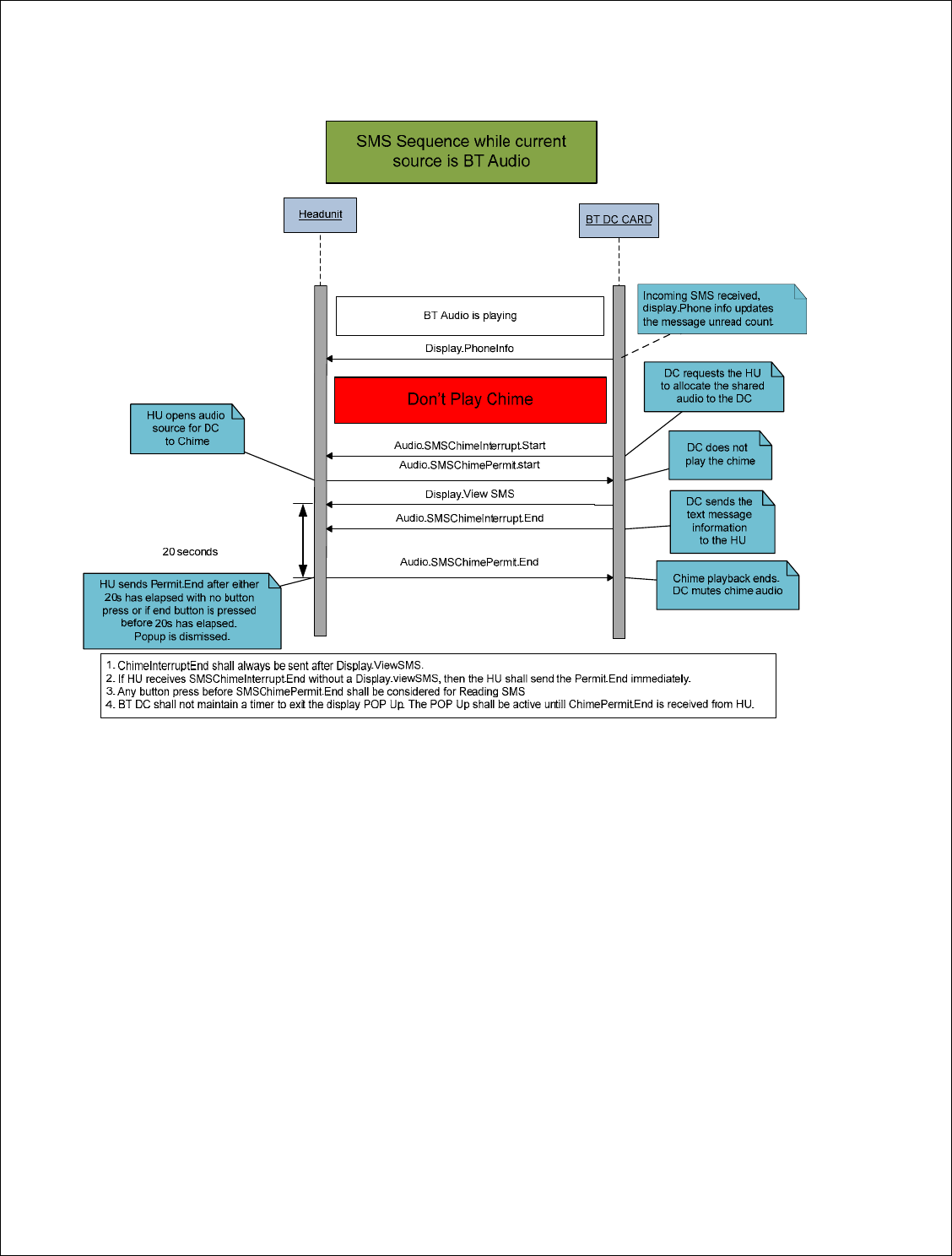

5.25 SMS Received while in a BTAudio Session
Visteon Electronics Nissan Bluetooth Voice DC UART SRD
Version 3.4 November 21st, 2011 Page 44 of 105 Visteon & Nissan Confidential
5.26 SMS Received and Read while in a BT Audio Session
Headunit BT DC CARD
Incoming SMS received,
display.Phone info updates
the message unread count.
SMS Sequence while current
source is BT Audio
Display.View SMS
HU ends chimeinterrupt
connection, then accepts
SMSInterrupt request
Display.PhoneInfo
20 seconds
Audio.SMSChimeInterrupt.Start
Audio.SMSChimePermit.start
Audio.SMSChimePermit.End
DC does not
play the chime
Audio.SMSChimeInterrupt.End
Don’t Play Chime
BT Audio is playing
DC requests the HU
to allocate the shared
audio to the DC
DC sends the
text message
information
to the HU
DC initiates
SMSInterrupt
session to read
back messages
HU opens audio
source for DC
to Chime
1. ChimeInterruptEnd shall always be sent after Display.ViewSMS.
2. If HU receives SMSChimeInterrupt.End without a Display.viewSMS, then the HU shall send the Permit.End immediately.
3. Any button press before SMSChimePermit.End shall be considered for Reading SMS
4. BT DC shall not maintain a timer to exit the display POP Up. The POP Up shall be active untill ChimePermit.End is received from HU.
UserInput.button.ppt short press
User requests
to read text by
pressing ptt
before 20s timeout
Audio.SMSInterrupt.start
Audio.SMSPermit.Start
sequence continues as in
sequence SMS Message sequence,
message read.
Visteon Electronics Nissan Bluetooth Voice DC UART SRD
Version 3.4 November 21st, 2011 Page 45 of 105 Visteon & Nissan Confidential
5.27 SMS Message Sequence,end interrupted by phone call
Visteon Electronics Nissan Bluetooth Voice DC UART SRD
Version 3.4 November 21st, 2011 Page 46 of 105 Visteon & Nissan Confidential
5.28 BT Audio to VR session Via BT Menu
Head Unit BT Card
Worst case timing is 1500ms for
the BT Card to respond to the request.
Audio.BTPermit.RequesttoStart
Audio.BTInterrupt.Start
Audio.BTPermit.Start
User Selects BTAudio as Music Source
BT Card Start playing
BTAudio on Stereo inputs
Audio.BTPermit.RequesttoEnd
Audio.BTInterrupt.End
Audio.BTPermit.End
BT Menu started
by HU
Add phone sequence ends
Display.BTMenu
Audio.TelPermit.Start
Pair phone sequence.
VR style audio rules and
displays
HU requests to
reestablish BT Audio
Audio.TelInterrupt.End
Audio.TelPermit.End
UserInput.Menu.Start
Audio.TelInterrupt.Start
Display.Commandlistinfo
Display.DisplayInfo
Display.BTPlayPauseStatus
Display.BTAudioMetadata
Display.BTAudioSongPosition
Display messages may not come
in order shown, will be updated
as DC received the updated data.
Display messages may not come
in order shown, will be updated
as DC receives the updated data.
Audio.BTAudioPlayState
Normal BT Audio connect sequence continues.
Audio.BTPermit.RequesttoStart
UserInput.Button.BZ Tune Up/Down
User navigates to
Add phone or
Replace phone
BT Audio is interrupted
VR Session Started
Visteon Electronics Nissan Bluetooth Voice DC UART SRD
Version 3.4 November 21st, 2011 Page 47 of 105 Visteon & Nissan Confidential
5.29 DC does not reply to message to stop playing BT Audio
Visteon Electronics Nissan Bluetooth Voice DC UART SRD
Version 3.4 November 21st, 2011 Page 48 of 105 Visteon & Nissan Confidential
5.30 BT Audio Interrupted by SMS
Head Unit BT Card
User Selects BTAudio as Music Source
Normal BT Audio Startup sequence as
in "Head Unit Requests Bluetooth Audio"
Audio.SMSChimePermit.Start
Audio.BTInterrupt.End
UserInput.button.PTT
User is now reading SMS texts
SMSChime sequence lets DC
know context of PTT press
Audio.ChimeInterrupt.Start
Audio.BTPermit.End
SMS Message received
SMSChimePermit.end may occur
before,during or after
BTPermit.end sequence
Received before
SMSChimePermit.end
Audio.SMSInterrupt.Start
Audio.SMSChimePermit.End
Follows SM Message Sequence, Message
Read, picking up where messages are
being read.
HU requests BTAudio Stream
To return to previous Audio source after
processing of text messages ends
Audio.BTPermit.RequesttoEnd
Display.PhoneInfo
{ Normal BT Audio Sequence here}
Audio.SMSPermit.Start
Audio.SMSChimeInterrupt.End
DC Plays Chime
Visteon Electronics Nissan Bluetooth Voice DC UART SRD
Version 3.4 November 21st, 2011 Page 49 of 105 Visteon & Nissan Confidential
6 Message Details
6.1 Message types and Categories
Message type and Category shall be used as the command byte in the NBUS message.
Message Types Message Categories Description Used
in DA
x
means
used
Used in
Standard
x means used
Appears
in sw
version
and later
0x01 Not Used
0x02 – Power 0x01 – Initialization Messages related to
Initialization
Sequence.
x X 2.3.0
0x02 – Shutdown Messages related to
Shutdown Sequence. x X 2.3.0
0x03 – Request for Reset Indicates to the Head
Unit that DC is
requesting to perform
a reset of itself.
x X 2.3.0
0x03 - Audio 0x01 – Tel_Interrupt Indicates the message
is for requesting and
releasing Audio
resource from HU.
x X 2.3.0
0x02 – Tel_Permit Indicates the message
is for responding to
DC with request and
release of Audio
Resource from HU.
x X 2.3.0
0x03 – BTInterrupt
Message used to
request for Allocation
and Deallocation of
Audio Resource from
HU with the HU
preparing for a
BlueTooth audio
session
x x 2.3.0
0x04 – BTPermit
Message used to
indicate to the
Daughter Card for
successful allocation
and Deallocation of
Audio Resource
X x 2.3.0
0x05 – SMSInterrupt
Message used to
request for Allocation
and Deallocation of
Audio Resource from
HU with the HU
preparing for a
Display.ViewSMS
message with text
X 2.3.0
Visteon Electronics Nissan Bluetooth Voice DC UART SRD
Version 3.4 November 21st, 2011 Page 50 of 105 Visteon & Nissan Confidential
Message Types Message Categories Description Used
in DA
x
means
used
Used in
Standard
x means used
Appears
in sw
version
and later
0x06 – SMSPermit
Message used to
indicate to the
Daughter Card for
successful allocation
and Deallocation of
Audio Resource
X 2.3.0
0x07 -- SMSChimeInterrupt
Message used to
request for Allocation
and Deallocation of
Audio Resource from
HU with the HU
preparing for a Mixed
Chime
X 2.3.0
0x08 - SMSChimePermit
Message used to
indicate to the
Daughter Card for
successful allocation
and Deallocation of
Audio Resource
X 2.3.0
0x04 - Display
0x01 – Phone Info
Displays the Network
Level and Battery
Signal Level.
X x 2.3.0
0x02 – VoiceRecognizerInfo
Displays the
command which has
been recognized in a
VR Session.
X 2.3.0
0x03 – Command List Info
To notify HU of the
Command List
Screen.
X 2.3.0
0x04 – PopUp Info To notify HU of the
PopUp Info Screen. x 2.3.0
0x05 – Calling Info To notify HU of the
Calling Info Screen. x 2.3.0
0x06 – DisplayInfo
To notify 1 line
display HU for the
necessary Display
Contents.
x 2.3.0
0x07 – ViewSMS To send the contents
of the SMS message. x 2.3.0
0x08 - BTAudioMenu To display BTAudio
menu items Not
used Not used 2.3.0
0x0A – BTAudioMetadata Provide metadata for
the current track for
display
x 2.3.0
0x0B – BTAudioSongPosition To provide current
position of the playing
song.
x 2.3.0
0x0C – BTMenu (Phone Settings) To notify the HU of
the Command List
Information.
x 2.3.0
Visteon Electronics Nissan Bluetooth Voice DC UART SRD
Version 3.4 November 21st, 2011 Page 51 of 105 Visteon & Nissan Confidential
Message Types Message Categories Description Used
in DA
x
means
used
Used in
Standard
x means used
Appears
in sw
version
and later
0x0D – VRCustomSMSMenu To notify the HU of
the command list
information
x 2.3.0
0x0E- BTAudioPlayState To notify HU of
Repeat and Rnd status
for BT audio source
x x 2.3.0
0x0F – PlayPauseStatus To notify the HU of
the status of Play and
Pause.
x x 3.01
0x05 Not Used
0x06 – Info
0x01 – PhoneList.Request The Head Unit needs
a list of the currently
paired phones.
2.3.0
0x02 – CustomSMSList.Request The Head Unit needs
a list of the currently
saved Custom SMS
reply messages
2.3.0
0x03 – CustomMessageSelection To notify the HU of
the Command List
Information. This
populates the special
command list values
for custom message
text menu.
x 2.3.0
0x04 – PhoneList Provides paired
phones and the types.
This populates the
command list values
for the phone list text
menu
x 2.3.0
0x05 – SavedMSG To notify the HU of
the Custom message
text Information. Each
one of these strings
will be associated
with a fixed ID that
can be found in the
Voice Prompts spec.
x 2.3.0
0x07 – HeartBeat 0x01 – BTCARD BT Daughter Card
current status sent at a
cyclic rate of
specified by previous
HB message.
x x 2.3.0
0x02 – HeadUnit The Head Unit current
status sent at a cyclic
rate specified by
previous HB message.
x x 2.3.0
Visteon Electronics Nissan Bluetooth Voice DC UART SRD
Version 3.4 November 21st, 2011 Page 52 of 105 Visteon & Nissan Confidential
Message Types Message Categories Description Used
in DA
x
means
used
Used in
Standard
x means used
Appears
in sw
version
and later
0x08 – Vehicle IO 0x01 – Configuration Indicates the message
is for setting
the Vehicle Pin
Configuration.
x x 2.3.0
0x02 – Language Indicates the message
is for setting
the new Language
Change.
x 2.3.0
0x04– Vehicle_Moving Vehicle moving or
Vehicle Stationary x x 2.3.0
0x05 – Vehicle TopDown Convertible to open or
Closed x x 2.3.0
0x09 – Diagnostics 0x01 –RXFromTester A diagnostic request
received from the
Head Unit or tester
x x 2.3.0
0x02 –TXToTester A diagnostic reply to
the Head Unit or
tester
x x 2.3.0
0x0A – UserInput 0x01 – Button Indicating the button
pressed. x x 2.3.0
0x02 – Menu A BT menu context is
Started or Ended x
TBD. Nissan
studying menu
operation
2.3.0
0x0B - MCAN 0x01 - AudioWarning Used to indicate
External Sound when
HF call is in progress
x x 2.3.0
0x02 – HF Used to indicate start
and end of HF call x x 2.3.0
0x03 – SMS Used for conveying
SMS_Info and
SMS_Menu
parameters
x 2.3.0
0x04 VR Used for conveying
VR_Info parameters x x 2.3.0
0x05 Disc Used for conveying
interrupt, Disc
source, track, group
and artist parameters
x x 2.3.0
0x0C –
ProgramRequest x x 2.4.1
0x0D –
ProgramResponse
Please see the specification called Procedure for the Bluetooth
Daughter card Programming via NBUS” for a complete and
up to date version of these messages. x x 2.4.1
0x0E
N
ot Used
0x0F
N
ot Used
Visteon Electronics Nissan Bluetooth Voice DC UART SRD
Version 3.4 November 21st, 2011 Page 53 of 105 Visteon & Nissan Confidential
6.2 Message Set
6.2.1 Audio Arbitration Message Set
6.2.1.1 Audio.TelInterrupt
Transmitter: BT Daughter Card
Description: Message used to request for Allocation and Deallocation of Audio Resource
from HU.
Byte Field Val Description
0 Type Category 0x31 3 - Audio Message Type
1 - Tel Interrupt Category
1 Data - Bit masks defined as follows:
0x01 – Start
0x02 – End
6.2.1.2 Audio.TelPermit
Transmitter: Head Unit
Description: Message used to indicate to the BT Card for successful allocation and
Deallocation of Audio Resource.
Byte Field Val Description
0 Type Category 0x32 3 - Audio Message Type
2 - Tel Permit Category
1 Data - Bit masks defined as follows:
0x01 – Start
0x02 – End
Note: When Audio is granted using TelPermit, it shall be connected as a mono source
6.2.1.3 Audio.BTInterrupt
Transmitter: BTCard
Description: Message used to request for Allocation and Deallocation of Audio Resource
from HU with the HU preparing for a BlueTooth audio session
Byte Field Val Description
0 Type Category 0x33 3 - Audio Message Type
3 – BT Interrupt Category
1 Data - Bit masks defined as follows:
0x01 – Start
0x02 – Stop
Visteon Electronics Nissan Bluetooth Voice DC UART SRD
Version 3.4 November 21st, 2011 Page 54 of 105 Visteon & Nissan Confidential
6.2.1.4 Audio.BTPermit
Transmitter: Head Unit
Description: Message used to indicate to the BT Card for successful allocation and
Deallocation of Audio Resource
Byte Field Val Description
0 Type Category 0x34 3 - Audio Message Type
4 – BT Permit Audio Category
1 Data - Bit masks defined as follows:
0x01 – Start
0x02 – Stop
0x03 – Request to start
0x04 – Request to end
Note: When Audio is connected using BT permit, it shall be connected as a Stereo
Source.
6.2.1.5 Audio.SMSInterrupt
Transmitter: BT Card
Description: Message used to request for Allocation and Deallocation of Audio Resource
from HU with the HU preparing for a Display.ReadSMS message with text
Byte Field Val Description
0 Type Category 0x35 3 - Audio Message Type
5 – SMS Interrupt Category
1 Data - Bit masks defined as follows:
0x01 – Start
0x02 – End
6.2.1.6 Audio.SMSPermit
Transmitter: Head Unit
Description: Message used to indicate to the BT Card for successful allocation and
deallocation of Audio Resource
Byte Field Val Description
0 Type Category 0x36 3 - Audio Message Type
6 - SMS Permit Category
1 Data - Bit masks defined as follows:
0x01 – Start
0x02 – End
0x03 – Request to Start
0x04 – Request to End
Visteon Electronics Nissan Bluetooth Voice DC UART SRD
Version 3.4 November 21st, 2011 Page 55 of 105 Visteon & Nissan Confidential
• When Audio is connected using SMSPermit, it shall be connected as a Mono
source.
6.2.1.7 Audio.SMSChimeInterrupt
Transmitter: BTCard
Description: Message used to request for Allocation and Deallocation of Audio Resource
from HU with the HU preparing for a SMSChime session
Byte Field Val Description
0 Type Category 0x37 3 - Audio Message Type
7 – SMSChimeInterrupt Category
1 Data - Bit masks defined as follows:
0x01 – Start
0x02 – Stop
6.2.1.8 Audio.SMSChimePermit
Transmitter: HU
Description: Message used to indicate to the BT Card for successful allocation and deallocation of
Audio Resource.
Byte Field Val Description
0 Type Category 0x38 3 - Audio Message Type
8 – BT Interrupt Category
1 Data - Bit masks defined as follows:
0x01 – Start
0x02 – Stop
6.2.2 Power Message Set
6.2.2.1 Power.Initialization
Transmitter: BT Daughter Card
Description: Message to indicate to the HU the initialization status of the Daughter Card.
Byte Field Val Description
0 Type Category 0x21 2 - Power Message
1 - Initialization Request Category
1 Data - Bit masks defined as follows:
0x01 – Init Complete – DC has initialized and is
ready for UART Communication. ( note: not used)
0x03 – Full Run – DC has completely initialized
and is ready to accept button pressed.
Visteon Electronics Nissan Bluetooth Voice DC UART SRD
Version 3.4 November 21st, 2011 Page 56 of 105 Visteon & Nissan Confidential
6.2.2.2 Power.Shutdown.Request
Transmitter: Head Unit
Description: Message used to indicate to BT Card that it needs to shutdown.
Byte Field Val Description
0 Type Category 0x22 2 - Power Message Type
2 - Shutdown Category
1 Data 0x01 Bit masks defined as follows:
0x01 – Request
6.2.2.3 Power.Shutdown.Response
Transmitter: BT Daughter Card
Description: Response message for Shutdown request from HU.
Byte Field Val Description
0 Type Category 0x22 2 - Power Message Type
2 - Shutdown Category
1 Data - Bit masks defined as follows:
0x02 – Shutdown In Progress
0x03 – Shutdown Complete
0x04 – Shutdown Pending
6.2.2.4 Power.RequestForReset
Transmitter: DC
Description: Message indicating DC is requesting that the HU reset the DC by asserting the reset line.
Byte Field Val Description
0 Type Category 0x23 2 – Power Message Type
3 – RequestforReset Category
6.2.3 Vehicle Message Set
6.2.3.1 Vehicle.Config.Get
Transmitter: BT Daughter Card
Description: Message requesting for Vehicle Pin Configuration, Head Unit Id.
Byte Field Val Description
0 Type Category 0x81 8 - Vehicle Message Type
1 - Configuration Category
1 Data 0x01 Bit masks defined as follows:
0x01 – Get
Visteon Electronics Nissan Bluetooth Voice DC UART SRD
Version 3.4 November 21st, 2011 Page 57 of 105 Visteon & Nissan Confidential
6.2.3.2 Vehicle.Config.Set
Transmitter: HU
Description: Message indicating Vehicle Pin Configuration, Head Unit Id.
Byte Field Val Description
0 Type Category 0x81 8 - Vehicle Message Type
1 - Configuration Category
1 Data 0x02 Bit masks defined as follows:
0x02 – Set
2 Data - Vehicle Pin Configuration.
3 Data - Head Unit id
0x00 = Default configuration
0x01 – Clarion = 10STD
0x02 – Panasonic = DA
0x03 – Panasonic = DA Bose
0x04-0xff Default configuration
Default configuration – DC shall behave as if configuration received is 0x02.
6.2.3.3 Vehicle.Config.Status
Transmitter: BT DC
Description: Message indicating Vehicle Pin Configuration, Head Unit Id.
Byte Field Val Description
0 Type Category 0x81 8 - Vehicle Message Type
1 - Configuration Category
1 Data 0x03 Bit masks defined as follows:
0x03 – Status
2 Data - Status Bit masks defined as follows:
0x01 – OK
0x02 – Error
Visteon Electronics Nissan Bluetooth Voice DC UART SRD
Version 3.4 November 21st, 2011 Page 58 of 105 Visteon & Nissan Confidential
6.2.3.4 Vehicle.Language.Set
Transmitter: HU
Description: Message indicating the Language of the HU.
Byte Field Val Description
0 Type Category 0x82 8 - Vehicle Message Type
2 - Language Category
1 Data 0x01 Set New Language
2 Data - Bit masks defined as follows:
0x00 – North American English
0x01 – Canadian French
0x02 – North American Spanish
0x03 – UK English
0x04 – French
0x05 – Italian
0x06 – German
0x07 – Portuguese
0x08 – Spanish
0x09 – Dutch
0x0A – Standard Arabic
0x0B – Mandarin
0x0C – Russian
0x0D - Korean
6.2.3.5 Vehicle.Language.Status
Transmitter: BT DC
Description: Message indicating whether the new Language is set in the Daughter Card.
Byte Field Val Description
0 Type Category 0x82 8 - Vehicle Message Type
2 - Language Category
1 Data 0x02 Status of new Language.
2 Data - Status Bit masks defined as follows:
0x01 – In Progress
0x02 – Completed
Visteon Electronics Nissan Bluetooth Voice DC UART SRD
Version 3.4 November 21st, 2011 Page 59 of 105 Visteon & Nissan Confidential
6.2.3.6 Vehicle.Moving
Transmitter: HU
Description: Message indicating whether the Vehicle is in Moving Condition or Idle
Condition.
Byte Field Val Description
0 Type Category 0x84 8 - Vehicle Message Type
4 – Vehicle Moving Category.
1 Data - Bit masks defined as follows:
0x00 – Vehicle Moving State
0x01 – Vehicle Idle State
6.2.3.7 Vehicle.TopDown
Transmitter: HU
Description: Message indicating whether the Vehicle is in Moving Condition or Idle
Condition. This message is sent once during initialization and thereafter at anytime
when the Status of the Top changes dynamically.
Byte Field Val Description
0 Type Category 0x85 8 - Vehicle Message Type
5 – Vehicle Top Down Status Category
1 Data - Bit masks defined as follows:
0x00 – Vehicle Top is Open.
0x01 – Vehicle Top is Closed.
Visteon Electronics Nissan Bluetooth Voice DC UART SRD
Version 3.4 November 21st, 2011 Page 60 of 105 Visteon & Nissan Confidential
6.2.4 Display Message Set
6.2.4.1 Display.PhoneInfo
Transmitter: BT Daughter Card
Description: To notify the Head Units of the network field strenth (Antenna signal) and battery level of
handset.
Byte Field Val Description
0 Type Category 0x41 4 - Display Message
1 - Phone Info Category
1 Data - Antenna Signal Info, Bit masks defined as follows:
0x07 – In Service
0x06 – Antenna Bar 5 – 80% to 100%
0x05 – Antenna Bar 4 – 60% to 79%
0x04 – Antenna Bar 3 – 40% to 59%
0x03 – Antenna Bar 2 – 20% to 39%
0x02 – Antenna Bar 1 – 1% to 19%
0x01 – Out of Range/ No Service
0x00 – No Phone Available. Phone not paired/Not
in BT Range.
2 Data - Battery Level Info, Bit masks defined as follows:
0x03 – Battery 3 – 68 – 100%
0x02 – Battery 2 – 35 – 67%
0x01 – Battery 1 - 1-34%
0x00 – None 0%
3 Data - Message count. Range from 0 to 20 {count of
unread messages}
4 Data Device type
0x00h No device connected
0x01h Phone only
0x02h BT Audio only
0x03h Phone and BT Audio
Antenna Signal Info:
The BTHFU receives from the paired phone the number of available bars and the
number of active bars.
The algorithm to determine the percentage (%) of power is active bars / available bars.
Example: A paired phone has a total of 5 available bars of which 3 are active. The
percentage is calculated as:
Percentage = (3 / 5) * 100 = 60%
Visteon Electronics Nissan Bluetooth Voice DC UART SRD
Version 3.4 November 21st, 2011 Page 61 of 105 Visteon & Nissan Confidential
Battery Level Info:
The BTHFU receives from the paired phone the number of available bars and the
number of active bars.
The algorithm to determine the percentage (%) of power is active bars / available bars.
Device Type:
Trying to use a device that is not present as reported by this parameter is not
recommended as the DC will not be able to execute the desired behavior.
6.2.4.2 Display.VoiceRecognizerInfo
Transmitter: BT Daughter Card
Description: To notify the HeadUnit of the VR Info Message.
Byte Field Val Description
0 Type Category 0x42 4 - Display Message Type
2 - VR Info Category
1 Data - Header Id
2 Data - Footer Id
3-8 Data - Command List # 1 to Command List # 6, followed
by 1 byte of
9 Data -
Highlight command No.(00h～06h),
00h：No highlight, no talking head
01h to 06h：Command List Highlight and talking
head not indicated
10 Data - Text data length (# of characters). If the text length
is 00h, no text data shall be sent.
By this data, the display will be blank.
11-74 Data - UTF-8 encoded in 8 bit Data. (1 Byte or 2Byte/1
character).
Visteon Electronics Nissan Bluetooth Voice DC UART SRD
Version 3.4 November 21st, 2011 Page 62 of 105 Visteon & Nissan Confidential
6.2.4.3 Display.CommandListInfo
Transmitter: BT Daughter Card
Description: To notify the HU of the Command List Information.
Byte Field Val Description
0 Type Category 0x43 4 - Display Message Type
3 – CMDlist info Category
1 Data - Header Id
2 Data - Footer Id
3-8 Data - Command List # 1 to Command List # 6
9 Data -
Highlight command No.(00h～06h),
00h：No highlight and talking head icon
indicated
01h to 06h：Command List Highlight and
talking head icon not indicated
10 Data - Text data length (# of characters). If the text
length is 00h, no text data shall be sent.
By this data, the display will be blank.
11-74 Data - 64 bytes of UTF-8 encoded in 8 bit Data. (1
Byte or 2Byte/1 character).
6.2.4.4 Display.PopUpInfo
Transmitter: BT Daughter Card
Description: To notify the HU of the Pop Up Information.
Byte Field Val Description
0 Type Category 0x44 4 - Display Message Type
4 - PopUp Info Category
1 Data - Header Id
2 Data - Footer Id
3 Data - Pop Up id
4 Data - Text data length (# of characters). If the text
length is 00h, no text data shall be sent.
By this data, the display will be blank.
5-68 Data - 64 bytes of UTF-8 encoded in 8 bit Data. (1
Byte or 2Byte/1 character).
Visteon Electronics Nissan Bluetooth Voice DC UART SRD
Version 3.4 November 21st, 2011 Page 63 of 105 Visteon & Nissan Confidential
6.2.4.5 Display.CallingInfo
Transmitter: BT Daughter Card
Description: To notify the HU of the Calling Information Screen.
Byte Field Val Description
0 Type Category 0x45 4 - Display Message Type
5 - Calling Info Category
1 Data - Header Id
2 Data - Footer Id
3 Data - Call Status Id
00 – Outgoing Call In Progress
01 – Incoming Call Ringing
02 – Incoming call in Progress
03 – Incoming Call on hold
04 - Incoming call in progress with Call waiting
05 - Outgoing call with call waiting
06 - Outgoing call on hold
4 Data - Location
0x00h not defined
0x01h mobile
0x02h home
0x03h office
0x04h other
5 Data - Tel Name Length
If the text length is 00h, no text data shall be
sent.
6-37 Data -
Text Data of Tel name
Text to display will be:
Outgoing Call In Progress - Active call
Incoming Call Ringing - Incoming call
Incoming call in Progress - Active call
Incoming Call on hold - Active call
Incoming call in progress with Call waiting
- - Waiting call
Outgoing call with call waiting - Waiting call
Outgoing call on hold - Active call
38-40 Data - Call Log
Hour – 0x00 to 0x3B
Minute – 0x00 to 0x3B
Second – 0x00 to 0x3B
41 Data - Tel Info Length
If the text length is 00h, no text data shall be
sent.
42-73 Data - Text Data of Tel Info
Visteon Electronics Nissan Bluetooth Voice DC UART SRD
Version 3.4 November 21st, 2011 Page 64 of 105 Visteon & Nissan Confidential
6.2.4.6 Display.DisplayInfo
Transmitter: BT Daughter Card
Description: To notify the HU of the Display Information.
Byte Field Val Description
0 Type Category 0x46 4 - Display Message Type
6 - DisplayInfo Category
1 Data - Text data length (# of characters). If the text
length is 00h, no text data shall be sent.
By this data, the display will be blank.
2-66 Data - 64 bytes of UTF-8 encoded in 8 bit Data. (1
Byte or 2Byte/1 character).
Note:
Display.DisplayInfo shall always be padded with spaces to center align the display text (same as in GEN
3).
Visteon Electronics Nissan Bluetooth Voice DC UART SRD
Version 3.4 November 21st, 2011 Page 65 of 105 Visteon & Nissan Confidential
6.2.4.7 Display.ViewSMS
Transmitter: BT Card
Description: To send the contents of the SMS message.
Byte Field Val Description
0 Type Category 0x47 4 - Display Message Type
7 – Display SMS Text Category
1 Data - Name Length
2-34 Data - Name and/or Phone Number
35-37 Data - 3 bytes: values dependent on format
method
If format method= 0
Time HH.MM.AM/PM
AM = 0x1
PM = 0x2
If format nethod = 1
Day.unused.unused where day value
0 = Sunday
1=Monday
2=Tuesday
3=Wednesday
4=Thursday
5=Friday
6=Saturday
Unused is always 00
If format method = 2
Day.month.unused
Where
Day is value 1 to 31
Month is value 1 to 12 (January to
December)
Unused is always 00
38 Time format method
0x0 time hh.mm.am/pm
0x1 Day.unused.unused
0x2 Day.month.unused
39 Data Length of SMS message
40-104 Data - SMS Text Data (UTF-8 encoded in 8 bit
Data)
105 Data - X: Message X of Y where X is the index
of the current message in the list of unread
messages
106 Data - Y: Message X of Y where Y is the total
number of unread messages (Maximum
value is 20)
107 Data - 1 byte Button Labels
0x00h Read/Ignore
0x01h Reply/Exit
Visteon Electronics Nissan Bluetooth Voice DC UART SRD
Version 3.4 November 21st, 2011 Page 66 of 105 Visteon & Nissan Confidential
6.2.4.8 Display.BTAudioMenu
Transmitter: BT Daughter Card
Description: To notify the HU of the Command List Information.
Byte Field Val Description
0 Type Category 0x48 4 - Display Message Type
8 – BTAudioMenu
1 Data - Header Id
2 – 6 Data - Command List # 1 to Command List # 5
7 Data -
Highlight command No.(00h～05h),
00h：No high light
01h to 05h：Command List High light
Note: this command is not used.
6.2.4.9 Display.BTAudioMetadata
Transmitter: BT Daughter Card
Description: Provide metadata for the current track for display
Byte Field Val Description
0 Type Category 0x4A 4 - Display Message Type
A –Metadata
1 Data 1 Byte
0x01h AVRCP 1.0
0x02h AVRCP 1.3
2 Data - 1 Byte - Length of Track Name. Use filename if track name is
Blank
3 – n Data 64 bytes of UTF-8 encoded in 8 bit Data. (1 Byte or 2Byte/1
character).
n+1 Data - 1 Byte - Length of Album Name. Use zero length if Album
name is blank
Data 64 bytes of UTF-8 encoded in 8 bit Data. (1 Byte or 2Byte/1
character).
Data - 1 Byte -- Length of Artist Name. Use zero length if Artist
name is blank
Data 64 bytes of UTF-8 encoded in 8 bit Data. (1 Byte or 2Byte/1
character).
Visteon Electronics Nissan Bluetooth Voice DC UART SRD
Version 3.4 November 21st, 2011 Page 67 of 105 Visteon & Nissan Confidential
6.2.4.10 Display.BTAudioSongPosition
Transmitter: BT Daughter Card
Description: To provide current position of the playing song.
Byte Field Val Description
0 Type Category 0x4B 4 - Display Message Type
B –SongPosition
1-3 Data - 3 Bytes, Hours, Minutes, Seconds
6.2.4.11 Display.BTMenu (Phone Settings)
Transmitter: BT Daughter Card
Description: To notify the HU of the Command List Information.
Byte Field Val Description
0 Type Category 0x4C 4 - Display Message Type
C – BT Menu
1 Data - Header Id
2 Data - Right Slidebar indicator 1 byte Range 1-Eh (1 is
top of menu, e is bottom, if value of 0 sent
there should be no menu bar. )
3 – 7 Data - Command List # 1 to Command List # 5
8 Data - First Bit Talking head icon
0 -- no talking head
1 – talking head
Next seven bits:
Highlight command No.(00h～05h),
00h：No high light
01h to 05h：Command List High light
Note: To illuminate talking head icon,
0x80h or 10000000 should be sent. Talking
head should not appear when command is
highlighted.
9 Back Button 0x00 – BackButton Not Available, At the top
level BT settings menu. If the Back Button is
received here, the DC will exit the BT Settings
menu, HU will send the Userinput.Menu->End
Menu command to the DC.
0x01 – Back Button Available, inside a BT
operation under the BT Settings menu.
DC will go back to the previous menu. The
same menu item will still be highlighted.
Visteon Electronics Nissan Bluetooth Voice DC UART SRD
Version 3.4 November 21st, 2011 Page 68 of 105 Visteon & Nissan Confidential
6.2.4.12 Display.VRCustomSMSMenu
Transmitter: BT Daughter Card
Description: To notify the HU of the Custom Message List Information.
Byte Field Val Description
0 Type Category 0x4D 4 - Display Message Type
D – VRCustomSMSMenu
1 Data - Header Id
2 Data Footer ID
3 – 5 Data - Command List # 1 to Command List # 3
6 Data - First Bit Talking head icon
0 -- no talking head
1 – talking head
Next seven bits:
Highlight command No.(00h～03h),
00h：No high light
01h to 03h：Command List High light
Note: To illuminate talking head icon,
0x80h or 10000000 should be sent. Talking
head should not appear when command is
highlighted.
7
.
Data
-
Text data length (# of characters). If the text
length is 00h, no text data shall be sent. By this
data, the display will be blank
8-72
Data
-
64 bytes of UTF-8 encoded in 8 bit Data. (1
Byte or 2Byte/1 character).
6.2.4.13 Display.BTAudioPlayState
Transmitter: BT Daughter Card
Description: To notify the HU of the play state information about the currently playing Bluetooth audio.
Byte Field Val Description
0 Type Category 0x4E 4 - Display Message Type
E – BTAudioPlayState
1 Data - Random/repeat status
0x01h - Off
0x02h – All Repeat
0x03h – Folder Repeat
0x04h – Track Repeat
0x05h – All Random
0x06h - Folder Random
Visteon Electronics Nissan Bluetooth Voice DC UART SRD
Version 3.4 November 21st, 2011 Page 69 of 105 Visteon & Nissan Confidential
6.2.4.14 Display.BTPlayPauseStatus
Transmitter: BT Daughter Card
Message Type: OnEvent.
Description: To notify the HU of the play state information about the currently playing Bluetooth audio.
Byte Field Val Description
0 Type Category 0x4F 4 - Display Message Type
F – BTPlayPauseStatus
1 Data - Play and Pause status
0x01h – BT Audio in Play state
0x02h – BT Audio Paused
6.2.5 Info Messages
6.2.5.1 PhoneList.Request
Transmitter: Head Unit
Description: The Head Unit needs a list of the currently paired phones.
Byte Field Val Description
0 Type Category 0x61 6 – Setup Message Type
1 – Request List of Paired phones from BT
Daughter Card .
6.2.5.2 CustomSMSList.Request
Transmitter: Head Unit
Description: The Head Unit needs a list of the currently paired phones.
Byte Field Val Description
0 Type Category 0x62 6 – Setup Message Type
2 – Request List of Custom SMSText replies
from BT Daughter Card .
Visteon Electronics Nissan Bluetooth Voice DC UART SRD
Version 3.4 November 21st, 2011 Page 70 of 105 Visteon & Nissan Confidential
6.2.5.3 Info.CustomMessageText
Transmitter: BT Card
Description: To notify the HU of the Custom message text Information. Each one of these strings will be
associated with a fixed ID that can be found in the Voice Prompts spec.
These are variable length strings with a 64 byte maximum size, there will be no padding of the string, the
length will define the actual sized of the string to be sent.
Byte Field Val Description
0 Type Category 0x63 6 - Info Message Type
3 – Custom SMS Category
1 Data - Custom Message 1:Text data length (# of
characters). If the text length is 00h, no text data
shall be sent.
By this data, the display will be blank.
2-N Data - Maximum of 64 bytes of UTF-8 encoded in 8 bit
Data. (1 Byte or 2Byte/1 character). This text
string can be accessed using the constant 0x90.
Data - Custom Message 2:Text data length (# of
characters). If the text length is 00h, no text data
shall be sent.
By this data, the display will be blank.
Data - Maximum of 64 bytes of UTF-8 encoded in 8 bit
Data. (1 Byte or 2Byte/1 character). This text
string can be accessed using the constant 0x91.
Data - Custom Message 3:Text data length (# of
characters). If the text length is 00h, no text data
shall be sent.
By this data, the display will be blank.
Data - Maximum of 64 bytes of UTF-8 encoded in 8 bit
Data. (1 Byte or 2Byte/1 character). This text
string can be accessed using the constant 0x92.
Visteon Electronics Nissan Bluetooth Voice DC UART SRD
Version 3.4 November 21st, 2011 Page 71 of 105 Visteon & Nissan Confidential
6.2.5.4 Info.PhoneList
Transmitter: BT Daughter Card
Description: To return the list of paired phones and the types.
Byte Field Val Description
0 Type Category 0x64 6 - Info Message Type
4 –Phone Names and Types
1 Active Phone 0 - 5 0x00 – There is not a phone currently connected to the system.
0x01 to 0x05 – The index of the phone that is currently connected.
This relates to the list below.
2 Phone Name 1:Text data length (# of characters). If the text length is
00h, no text data shall be sent.
Data - 64 bytes of UTF-8 encoded in 8 bit Data. (1 Byte or 2Byte/1
character). Selectable through Command ID 0x93h
Data 1 byte Type:
0x00h = Phone
0x01h = Bluetooth Audio source
0x02h = Both
0x03h = no device
Data - Phone Name 2:Text data length (# of characters). If the text length is
00h, no text data shall be sent.
Data - 64 bytes of UTF-8 encoded in 8 bit Data. (1 Byte or 2Byte/1
character). Selectable through Command ID 0x94h
1 byte Type:
0x00h = Phone
0x01h = Bluetooth Audio source
0x02h = Both
0x03h = no device
Data - Phone Name 3:Text data length (# of characters). If the text length is
00h, no text data shall be sent.
Data - 64 bytes of UTF-8 encoded in 8 bit Data. (1 Byte or 2Byte/1
character). Selectable through Command ID 0x95h
1 byte Type:
0x00h = Phone
0x01h = Bluetooth Audio source
0x02h = Both
0x03h = no device
Data - Phone Name 4:Text data length (# of characters). If the text length is
00h, no text data shall be sent.
Data - 64 bytes of UTF-8 encoded in 8 bit Data. (1 Byte or 2Byte/1
character). Selectable through Command ID 0x96h
1 byte Type:
0x00h = Phone
0x01h = Bluetooth Audio source
0x02h = Both
0x03h = no device
Data - Phone Name 5:Text data length (# of characters). If the text length is
00h, no text data shall be sent.
Data - 64 bytes of UTF-8 encoded in 8 bit Data. (1 Byte or 2Byte/1
character). Selectable through Command ID 0x97h
Visteon Electronics Nissan Bluetooth Voice DC UART SRD
Version 3.4 November 21st, 2011 Page 72 of 105 Visteon & Nissan Confidential
Byte Field Val Description
1 byte Type:
0x00h = Phone
0x01h = Bluetooth Audio source
0x02h = Both
0x03h = No device
6.2.5.5 Info.SavedMSG
Transmitter: BT Card
Description: To notify the HU of the Custom message text Information. Each one of these
strings will be associated with a fixed ID that can be found in the Voice Prompts spec.
These are variable length strings with a 64 byte maximum size, there will be no padding
of the string, the length will define the actual sized of the string to be sent.
Byte Field Val Description
0 Type Category 0x65 6 - Info Message Type
5 – Saved SMS Category
1 Data - Saved Message 1:Text data length (# of characters). If the text
length is 00h, no text data shall be sent.
By this data, the display will be blank.
2-N Data - Maximum of 64 bytes of UTF-8 encoded in 8 bit Data. (1 Byte or
2Byte/1 character). This text string can be accessed using the
constant 0xB9.
Data - Saved Message 2:Text data length (# of characters). If the text
length is 00h, no text data shall be sent.
By this data, the display will be blank.
Data - Maximum of 64 bytes of UTF-8 encoded in 8 bit Data. (1 Byte or
2Byte/1 character). This text string can be accessed using the
constant 0xBA.
Data - Saved Message 3:Text data length (# of characters). If the text
length is 00h, no text data shall be sent.
By this data, the display will be blank.
Data - Maximum of 64 bytes of UTF-8 encoded in 8 bit Data. (1 Byte or
2Byte/1 character). This text string can be accessed using the
constant 0xBB.
Data - Saved Message 4:Text data length (# of characters). If the text
length is 00h, no text data shall be sent.
By this data, the display will be blank.
Data - Maximum of 64 bytes of UTF-8 encoded in 8 bit Data. (1 Byte or
2Byte/1 character). This text string can be accessed using the
constant 0xBC.
Data - Saved Message 5:Text data length (# of characters). If the text
length is 00h, no text data shall be sent.
By this data, the display will be blank.
Data - Maximum of 64 bytes of UTF-8 encoded in 8 bit Data. (1 Byte or
2Byte/1 character). This text string can be accessed using the
constant 0xBD.
Visteon Electronics Nissan Bluetooth Voice DC UART SRD
Version 3.4 November 21st, 2011 Page 73 of 105 Visteon & Nissan Confidential
6.2.6 HeartBeat
6.2.6.1 HeartBeat.BTCARD
BTCard to Head Unit Heartbeat
Message Type: EventCyclic
Transmitter: BT Daughter Card
Description: BT Daughter Card current status sent at a cyclic rate defined in messsage.
Byte Field Val Description
0 Type Category 0x71 7 – HeartBeat
1 –BT DC to Head Unit
1 Data - Bit5:
0x00h = Shutdown Not in progress
0x01h = Shutdown in progress
2 Data Heartbeat length in Seconds
Note: Heartbeat length shall be 1 second. If heartbeat is lost for more than 2
minutes, HU should issue a reset.
6.2.6.2 HeartBeat.HeadUnit
HeadUnit to BTCard Heartbeat
Transmitter: Head Unit
Description: The Head Unit current status sent at a cyclic rate of 1 time per second.
Byte Field Val Description
0 Type Category 0x72 7 – HeartBeat
2 – Head Unit to BTCard
1 Data - Bit5:
0x00h = Shutdown Not in progress
0x01h = Shutdown in progress
2 Data Heartbeat Length in Seconds
Note: Heartbeat length shall be 1 second. If heartbeat is lost for more than 2
minutes, HU should issue a reset.
Visteon Electronics Nissan Bluetooth Voice DC UART SRD
Version 3.4 November 21st, 2011 Page 74 of 105 Visteon & Nissan Confidential
6.2.7 Diagnostics
6.2.7.1 Diagnostic.RxFromTester
Transmitter: Head Unit to BTCard
Message Type: Event, Spontaneaus
Description: The Head Unit or Tester will sent this message to request the BT DC to
perform a predefined diagnostic operation.
Byte Field Val Description
0 Type Category 0x91 9 – Diagnostics
1 – Diagnostic Message Received
1 Length - Length of Message (SID + PID + Data)
2 SID - Service ID (SID)
3 PID - Parameter ID (PID)
4 - ? Data Maximum Byte length of 1020 bytes. There may
not be any data as the PID ID may indicate a read
without options.
6.2.7.2 Diagnostic.TxToTester
Transmitter: BT Card to Head Unit
Message Type: Event
Description: The BT DC will respond to a Diagnostic Request from the Requester a
message formated as below, depending on the success of the operation.
6.2.7.2.1 Positive Response Frame Format
Byte Field Val Description
0 Type Category 0x92 9 – Diagnostics
2 – Diagnostic Message Sent
1 Length - Length of Message (PRSID + Data)
2 Request Service ID + $40 - Positive Response Service ID
3 Valid Parameter #1 Value -
N Valid Parameter #n-1 Value
Conditional, depending on the response values that need
to be received. Maximum Byte length 1020 bytes.
Visteon Electronics Nissan Bluetooth Voice DC UART SRD
Version 3.4 November 21st, 2011 Page 75 of 105 Visteon & Nissan Confidential
6.2.7.2.2 Negative Response Frame Format
Byte Field Val Description
0 Type Category 0x92 9 – Diagnostics
2 – Diagnostic Message Sent
1 Length - Length of Message (PRSID + Data)
2 Negative Response Service ID $7F Negative Response Service ID
3 Request Parameter ID - Parameter ID of requested action (PID)
4 Negative Response Code 1 byte. Code indicating the reason for the failed
diagnostic action request.
6.2.8 UserInput
6.2.8.1 Userinput.Button
Transmitter: HU
Description: Message indicating what button has been pressed.
Byte Field Val Description
0 Type Category 0xA1 A - Vehicle Message Type
1 - Button Category
1 Data - 1 byte affected button:
0x00h – STRG SW PTT (DA and 10STD)
0x01h – STRG SW Phone/End(DA and 10STD)
0x02h – STRG SW Up(DA and 10STD)
0x03h – STRG SW Down(DA and 10STD)
0x04h – STRG SW Enter(DA and 10STD)
0x05h – STRG SW BACK(DA and 10STD)
0x06h – Bezel Rotary Tune(DA)
0x07h – Bezel Scan (DA and 10STD)
0x08h – Bezel DISP (10Std)
0x09h – Bezel RPT/RND (10STD)
0x0ah – Bezel Back(DA)
0x0bh – Bezel seek up(DA and 10STD)
0x0ch – Bezel seek down(DA and 10STD)
0x0dh – Bezel Preset 1(DA)
0x0eh – Bezel Preset 2(DA)
0x0fh – Bezel Preset 3(DA and 10STD)
0x10h – Bezel Preset 4(DA and 10STD)
0x11h - Bezel Preset 5(DA)
0x12h – Bezel preset 6(DA)
2 1 byte for event type
0x00h – Press (also sent at 100ms intervals until
button is released)
0x01h –hold (not used)
0x02h - release
0x03h – rotary up event
0x04h – rotary down event
Visteon Electronics Nissan Bluetooth Voice DC UART SRD
Version 3.4 November 21st, 2011 Page 76 of 105 Visteon & Nissan Confidential
Note: These button shall be sent only when the HMI context of these button events requires the DC to
respond. Not all buttons are present in every head unit. Rotary up and down events are used only for
Bezel rotary tune button type.
SW Enter is handled by DC identically to SW PTT.
SW Back is handled by DC identically to SW END
6.2.8.2 Userinput.Menu
Transmitter: HU
Description: Message indicating what button has been pressed.
Byte Field Val Description
0 Type Category 0xA2 A - Vehicle Message Type
2 – Menu Category
1 Data - Bit masks defined as follows:
0x00 – Start Menu
0x01 – End Menu
6.2.9 MCAN pass through messages
6.2.9.1 AudioWarning
Transmitter: DC
Description: Message used to indicate AudioWarning message.
Byte Field Val Description
0 Type Category 0xB1 B - MCAN Message Type
1 – AudioWarning type
1 Data - 00h: interrupt disable
01h: Interrupt enable
2 Data 0x14h source Icon BT-Audio
0x00h source icon non-display
3 Data - 0xFF – Audio Warning State- External Text
0x02 – Audio Warning State - External Sound
4 Data 0x01h – char set ASCII
0x05h – char set UTF-8
5 Data 0h – 40h Length
6 - 69 Data Text body in utf-8 if length = 0, text body = 0
bytes (this text is what is displayed in the warning
-- things like “Phone connection lost” or what ever
is appropriate for the warning.
Visteon Electronics Nissan Bluetooth Voice DC UART SRD
Version 3.4 November 21st, 2011 Page 77 of 105 Visteon & Nissan Confidential
6.2.9.2 HF
Transmitter: DC
Description: Message used to indicate info and Menu parameters during a HF Call It is passed through to CAN
by HU
Byte Field Val Description
0 Type Category 0xB2 B - MCAN Message Type
2 – HF type
1 Data - 0x00h hf_info = start
0x01h hf_info = end
2 Data 0x05h char set = utf-8
3 Data Length of string
4-67 Data Text body if length = 0, text body = 0 bytes
xx Data 0x01h sw1 label = Answer(Tel)
0x02h sw1 label = Answer((VR+TEL)
xx Data 0x00h sw1 status=Not_Select
0x01h sw1 status=Select
0x02h sw1 Status= Enter
xx Data 0x01h sw2 label = Decline(Tel_END)
xx Data 0x00h sw2 status=Not_Select
0x01h sw2 status=Select
0x02h sw2 Status= Enter
Visteon Electronics Nissan Bluetooth Voice DC UART SRD
Version 3.4 November 21st, 2011 Page 78 of 105 Visteon & Nissan Confidential
6.2.9.3 SMS
Transmitter: DC
Description: Message used to indicate info and Menu parameters during SMS session. It is passed through to
CAN by HU
Byte Field Val Description
0 Type Category 0xB3 B - MCAN Message Type
3 – SMS type
1 Data - 0x00h sms_state Start
0x01h sms_state = end
0x02h sms_state = MSG_Number_Update
2 Data Msg_Number
3 Data 0x05 char set utf-8
4 Data Length of Name/Number
if length = 0, text body = 0 bytes
5-xx Data 0-64 byte Name/Number the text was received
from.
X Data SW1 Label –
0x01h = Menu(Tel)
0x02h = Menu(VR)
0x03h = Menu(VR+Tel)
0x04h = Read(Tel)
0x05h = Read(VR)
0x06h = Read(VR+Tel)
Data SW1 Status:
0x00h = Not_Select
0x01h = Select
0x02h = Enter
Data SW2 label:
0x01h = Exit(Tel_End)
0x02h = Ignore(Tel_End)
Data SW2 Status:
0x00h = Not_Select
0x01h = Select
0x02h = Enter
Visteon Electronics Nissan Bluetooth Voice DC UART SRD
Version 3.4 November 21st, 2011 Page 79 of 105 Visteon & Nissan Confidential
6.2.9.4 VR
Transmitter: DC
Description: Message used to indicate info parameters during VR session. It is passed through to CAN by HU
Byte Field Val Description
0 Type Category 0xB4 B - MCAN Message Type
4 – VR type
1 Data - VR STATE
0x00h = Start
0x01h = during
0x02h = End
2 Data On_Off
0x00h = Off
0x01h = On
0x02h = Off(Manual_Mode)
0x03h = SMS_Sending
0x04h = Off(HF_Mode)
Visteon Electronics Nissan Bluetooth Voice DC UART SRD
Version 3.4 November 21st, 2011 Page 80 of 105 Visteon & Nissan Confidential
6.2.9.5 Disc
Transmitter: DC
Description: Message used to indicate Disc parameters during BT_Audio playback. It is passed through to CAN
by HU
Byte Field Val Description
0 Type Category 0xB5 B - MCAN Message Type
5 – Disc
1 Data - Interrupt 1 byte
0x00h = Disable
0x01h = Enable
2 Data Disc_Source Update 1 byte
0x00h = Not updated
0x01h = Updated
Data Disc Source –1 byte contents/source
0x85h = 10000101 for Video / BT-Audio
0x05h = 00000101 for Audio/ BT-Audio
Data Track update
0x00h Not Updated
0x01h updated
Data Track Label
0x00h nondisplay
0x01h Track
0x02h Chapter
0x03h File
Data Track number: 3 bytes
Range from 0 – 1869Fh
Data Text Info Char set
05h - UTF-8
Data Text Length
0x0h – 0x40h
Data Text Body 0-64 Bytes ( 0 bytes if text length =
0)
Data Group Update 1 byte
0x00h Not_Updated
0x01h Updated
Data Group Label 1 Byte
0x00h Non Display
0x01h Disc
0x02h Album
0x03h Group
0x04h Folder
0x05h Title
Data Group Number 2 bytes
Range: 0h - 270Fh
Data Group Char set
05h - UTF-8
Data Group Length
0x0h – 0x40h
Data group text body 0-64 Bytes ( 0 bytes if text
length = 0)
Data Artist update 1 byte
Visteon Electronics Nissan Bluetooth Voice DC UART SRD
Version 3.4 November 21st, 2011 Page 81 of 105 Visteon & Nissan Confidential
Byte Field Val Description
0x00h Not Updated
0x01h Updated
Data Artist Label 1 byte
0x00h nonDisplay
0x01h Artist
Data Artist CharSet 1 byte
0x05h UTF-8
Data Artist Length 1byte
Range – 0-0x40h
Data Artist Text 0-64Bytes ( 0 bytes if text length = 0)
Visteon Electronics Nissan Bluetooth Voice DC UART SRD
Version 3.4 November 21st, 2011 Page 82 of 105 Visteon & Nissan Confidential
6.2.9.6 MCAN Behavior
• Sequences
o The following information is the detail that is missing from the MCAN Sequence Spec IT Master – Meter
that is provided by Nissan. Please use the Spec IT Master in conjunction with these rules below.
• Meter General Rules
o Any meter messages that also have a head unit comparable message, they should be sent is
succession to each other so that the visual cue from the User will appear that they appeared at the
same time.
o The HF, VR and SMS messages required an State=End message to dismiss this message from the
meter. SMS and HF messages can cover the VR message. When the HF or SMS message in front of it
is ended, the VR message can still be present unless it is ended also.
o Audio Warning messages do not have an End message and are just sent when required. No further
management of them is necessary.
o Disc messages do not have an End message. They are sent and the Meter will handle their display
lifetime.
• Session definition for sending MCAN NBUS messages
o VR, HF and SMS messages.
Start of the MCAN Session. The message below defines the Start of the MCAN Session. MCAN
messages sent over NBUS AFTER this message is successfully sent will be sent on the MCAN
bus for the meter to display:
• VR and HF: HU→DC – <Audio.TelPermit.Start>
• Disc: HU→DC – <Audio.BTPermit.RequesttoStart>
• SMS: DC→HU – < Power.Initialization.Full Run>
End of the MCAN Session. The message below defines the End of the MCAN Session. MCAN
messages sent over NBUS after this message is successfully sent will NOT be sent on the
MCAN bus. Any MCAN messages required to dismiss DC MCAN Meter messages must be sent
before the end of the session:
• VR and HF: DC→HU: <Audio.TelInterrupt.End >
• Disc: HU→DC <Audio.BTPermit.RequestToEnd>
• SMS: HU→DC <Power.Shutdown.Request>
o Audio Warning (AW) messages
Start of the MCAN Session. The message below defines the Start of the MCAN Session. MCAN
messages sent over NBUS AFTER this message is successfully sent will be sent on the MCAN
bus for the meter to display:
• HU→DC: <AudioTelPermit.Start>
• HU→DC: < Audio.BTPermit.RequesttoStart >
End of the MCAN Session. The message below defines the End of the MCAN Session. MCAN
messages sent over NBUS after this message is successfully sent will NOT be sent on the
MCAN bus.:
• DC→HU: <Audio.TelInterrupt.End >
• DC→HU: < Audio.BTInterrupt.End>
• MCAN VR Messaging
o The Audio Warning message shall only be sent once per VR session after the first Startmessage is
sent with the default parameters.
o A VR Session is defined as when a Speaking and/or Listening and/or Manual mode and/or
off(HF_mode) session is followed by a Clearing of VR Banners.
o The GOM module should follow the sequence in 50-4 as it does not have audio VR.
o VR Session 50-2
Speaking
• This will be sent at the start of a VR session when the DC is producing utterances of
importance.
o VR State Parameters
Visteon Electronics Nissan Bluetooth Voice DC UART SRD
Version 3.4 November 21st, 2011 Page 83 of 105 Visteon & Nissan Confidential
0x00 – Start
o On_Off Parameters
0x00 – Off
Listening
• This will be sent at the start of the User input session when the DC is listening to the user
trying to control it.
o VR State Parameters
0x00 – Start
o On_Off Parameters
0x01 – On
o Manual mode 50-3
Speaking
• This will be sent at the start of a VR session when the DC is producing utterances of
importance.
o VR State Parameters
0x00 – Start
o On_Off Parameters
0x00 – Off
Listening
• This will be sent at the start of the User input session when the DC is listening to the user
trying to control it.
o VR State Parameters
0x00 – Start
o On_Off Parameters
0x01 – On
Manual Mode
• The user has selected Manual Mode during the VR session.
o VR State Parameters
0x00 – Start
o On_Off Parameters
0x02 – Off (Manual_Mode)
o System without VR (GOM)
Speaking
• This will be sent at the start of a VR session but there shall not be any voice activation.
o VR State Parameters
0x00 – Start
o On_Off Parameters
0x04 – Off (HF_Mode)
o Clearing of VR banners
The clearing shall be done at the end of a Speaking or Listening session.
o VR State Parameters
0x01 – End
o After the first VR.Start message is sent, the DC shall send the Audio Warning message immediately
after it. It shall always be sent with the same parameters:
00h – interrupt disable
0x00h – source icon non-display
0x02h – Audio Warning State - External Sound
0x05h – char set UTF-8
0h – Length
• MCAN HF Messaging.
o The DC shall implement the sequences 30-1 (Answer Call) and 30-3 (Decline Call).
o The DC shall not implement the sequence 30-2.
o The Audio Warning message shall be sent immediately after the first MCAN.HF,Start message is sent.
o Incoming Call HF Message Parameters
Visteon Electronics Nissan Bluetooth Voice DC UART SRD
Version 3.4 November 21st, 2011 Page 84 of 105 Visteon & Nissan Confidential
HF State Parameters
• 0x00 - Start
SW1 Label Parameter:
• For systems with VR (NAM), this should always be a 0x02 (Answer VR+TEL)
• For system without VR (GOM), this should always be a 0x01 (Answer TEL)
SW2 Status Parameter:
• 0x00 Not_Select – The button is shown as clear, not selected
• 0x01 Select – This parameter will show the button as selected, white.
• 0x02 Enter – This parameter is not used.
o Incoming Call – Press of the PTT or End button.
Accept the Incoming call (30-1: Incoming Call Answer)
• HF State Parameters
o 0x00 - Start
• SW1 parameters
o Label
For systems with VR, this should always be a 0x02 (Answer VR+TEL)
For system without VR (GOM), this should always be a 0x01 (Answer TEL)
o Select
0x01 Select – This parameter will show the button as selected, white.
• SW2 Parameters
o Label
0x01 – Decline
o Select
0x00 Not_Select – The button is shown as clear, not selected
Decline the Incoming call (30-3: Incoming Call Decline)
• HF State Parameters
o 0x00 - Start
• SW1 Parameters
o Label
For systems with VR, this should always be a 0x02 (Answer VR+TEL)
For system without VR (GOM), this should always be a 0x01 (Answer TEL)
o Select
0x00 Not_Select – The button is shown as clear, not selected
• SW2 Parameter
o Label
0x01 – Decline
o Select
0x01 Select – This parameter will show the button as selected, white.
o The HF Indication End message shall be sent right after the Accept/Decline decision message is made
with the PTT or Enter button. The meter will take care of the HMI component that will allow a delay of
the messages on the screen.
o HF State Parameters
0x01 – End
o Outgoing call
VR will follow the VR of 50-2.
MM we will follow the VR of 50-3.
When the call is connected, the DC will clear the VR Banner. This could be the ringing or actual
call connected.
From Phone, if the call is originated form the handset, only the AW message will be sent.
NO HF messages in outgoing call.
• MCAN SMS Messaging
o Send the Name or Number in the text field of the message. There could be situations where the name
or number are not known at the time the SMS is received. The DC shall send an SMS indication with a
zero length Text Body if the name or number are not available. If these become available, the message
shall be sent out again with the same SW values but with the name or number present.
Visteon Electronics Nissan Bluetooth Voice DC UART SRD
Version 3.4 November 21st, 2011 Page 85 of 105 Visteon & Nissan Confidential
o Messages sent to the Meter shall be sent at the same time as messages meant to update the display
on the HU.
o 40-3: User Chooses the Ignore command
Receive SMS
SMS_State = 0x01 Start.
SW1 Parameters
o For systems with VR, this should always be a 0x06 = Read(VR+Tel).
o For system without VR (GOM), this should always be a 0x04h = Read(Tel).
o 0x00 Not_Select – The button is shown as clear, not selected.
SW2 Parameters
o 0x02h = Ignore(Tel_End)
o 0x00 Not_Select – The button is shown as clear, not selected.
SMS Ignore Operation
SMS_State = 0x01 Start.
SW1 Parameters
o For systems with VR, this should always be a 0x06 = Read(VR+Tel).
o For system without VR (GOM), this should always be a 0x04h = Read(Tel).
o 0x00 Not_Select – This parameter will show the button as selected, white.
The button is shown as clear, not selected.
SW2 Parameters
o 0x02h = Ignore(Tel_End)
o 0x01 Not_Select – The button is shown as clear, not selected. This parameter
will show the button as selected, white.
SMS.Indication.End message sent right after the last MCAN.SMS message.
SMS_State = 0x00 Start.End.
SW1 Parameters
o For systems with VR, this should always be a 0x06 = Read(VR+Tel).
o For system without VR (GOM), this should always be a 0x04h = Read(Tel).
o 0x00 Not_Select – The button is shown as clear, not selected
SW2 Parameters
o 0x00 Not_Select – The button is shown as clear, not selected.
SMS.Indication.End message sent right after reply.
o 40-4: User Chooses the Reply command
Receive SMS (Display (Read, Ignore)
SMS_State = 0x01 Start.
SW1 Parameters
o For systems with VR, this should always be a 0x06 = Read(VR+Tel).
o For system without VR (GOM), this should always be a 0x04h = Read(Tel).
o 0x00 Not_Select – The button is shown as clear, not selected
SW2 Parameters
o 0x02h = Ignore(Tel_End)
o 0x00 Not_Select – The button is shown as clear, not selected
SMS Read Operation
SMS_State = 0x01 Start.
SW1 Parameters
o For systems with VR, this should always be a 0x06 = Read(VR+Tel).
o For system without VR (GOM), this should always be a 0x04h = Read(Tel).
o 0x01 Select – This parameter will show the button as selected, white.
SW2 Parameter
o 0x00 Not_Select – The button is shown as clear, not selected
SMS Display (Reply Exit) menu
SMS_State = 0x01 Start.
SW1 Parameters
o For systems with VR, this should always be a 0x03h = Menu(VR+Tel).
o For system without VR (GOM), this should always be a 0x01h = Menu(Tel).
Visteon Electronics Nissan Bluetooth Voice DC UART SRD
Version 3.4 November 21st, 2011 Page 86 of 105 Visteon & Nissan Confidential
o 0x01 Select – This parameter will show the button as selected, white.
SW2 Parameters
o 0x01h = Exit(Tel_End)
o 0x00 Not_Select – This parameter will show the button as Not selected.
SMS Reply Operation
SMS_State = 0x01 Start.
SW1 Parameters
o For systems with VR, this should always be a 0x03h = Menu(VR+Tel).
o For system without VR (GOM), this should always be a 0x01h = Menu(Tel).
o 0x01 Select – This parameter will show the button as selected, white.
SW2 Parameters
o 0x01h = Exit(Tel_End)
SMS.Indication.End message sent right after reply.
o 40-5: User Chooses the Exit command
Same as 40-4 except the Exit is selected.
SMS Exit Operation
SMS_State = 0x01 Start.
SW1 Parameter
o For systems with VR, this should always be a 0x03h = Menu(VR+Tel).
o For system without VR (GOM), this should always be a 0x01h = Menu(Tel).
o 0x00 Not_Select – This parameter will show the button as Not selected.
SW2 Parameter
o 0x01h = Exit(Tel_End)
o 0x01 Select – This parameter will show the button as selected, white.
SMS.Indication.End message sent right after reply.
o 40-6 Message Number update
This message is sent during the initialization of the DC to inform the Meter of the current number
of unread messages. It does not require any dismissal.
If the user is updating his phone manually while connected to the system, the DC shall send this
message to the meter to update it. It does not require any dismissal.
This message does not require the SMS.End message to be sent.
SMS Message Number Update
SMS_State = 0x02 Msg_Number_Update.
Msg_Number = Number of unread SMS messages.
No Text is to be sent with this message.
SW1 Parameter
o For systems with VR, this should always be a 0x06 = Read(VR+Tel)
o For system without VR (GOM), this should always be a 0x04h = Read(Tel)
o 0x00 Not_Select – This parameter will show the button as Not selected.
SW2 Parameter
o 0x02h = Ignore(Tel_End)
o 0x00 Not_Select – This parameter will show the button as Not selected.
o SMS.Indication.End Message Definition.
SMS_State
• 0x01 = End.
SW1 Parameters
• For systems with VR, this should always be a 0x06 = Read(VR+Tel).
• For system without VR (GOM), this should always be a 0x04h = Read(Tel).
• 0x00 Not_Select – The button is shown as clear, not selected
SW2 Parameters
• 0x00 Not_Select – The button is shown as clear, not selected
• Audio Warning Message
o It shall always be sent with the same parameters:
0x00h – interrupt disable
Visteon Electronics Nissan Bluetooth Voice DC UART SRD
Version 3.4 November 21st, 2011 Page 87 of 105 Visteon & Nissan Confidential
0x00h – source icon non-display
0x02h – Audio Warning State - External Sound
0x05h – char set UTF-8
0x0h – 40h Length
• MCAN Disc Messaging
o If one of the fields in the Disc message is updated, the entire message needs to be resent with all of the
information that is available about the track even if the Update value for that text tag is “Not_Updated”.
Track updates are natural non-user actions. Therefore Interupt shall be set to Disabled.
o Disc message will not be sent periodically except for the reasons in the requirement for Scan and
FF/Rew.
o Scan, FF/RW and Track Up/Down
Require an update at a 1 second rate. This message will contain all of the information about
the track every time.
Track, FF/RW, Scan will always have the Interrupt set to Enable. These are user directed
activities.
During a FF/RW session, if the track changes before the next one second update occurs, then
the DC shall send an updated Disc message (Event) with the updated track information. The
one second cyclic timer is restarted from the Disc Event message.
When a new track number is set, only the Track Update parameter shall indicate 0x01 -
Updated.
The Group and Artist Update parameters shall stay at Not_Updated even if the information
has changed for these strings.
The message shall include the new information for Group and/or Artist.
o Natural song changes due to the end of songs or other Non-User initiated activities, the Interrupt shall
be Disabled.
o The XXXX.Update field shall indicate what parameter is updated in the message. Even though other
parameters may not be updated they shall all be sent.
o When the Interrupt is Disabled, all XXXX.Update parameters shall be set to 0x00 – Not Updated.
o Sequences not followed are:
12-3
12-4
12-7
12-8
12-10
12-11
12-12
12-15
12-16
o 12-1: The HU has changed to BT Audio
The HU will send this message with the default values in it shown on the sheet before the DC
when the BT Audio. The HU will handle the negotiation of the messages.
DC message shall be sent these values unchanging:
1. Interrupt = Enable
2. Disc_Source = 0x05h – 00000101 for Audio/ BT-Audio.
3. Text Info Char set = 05h – UTF-8.
4. Group Char set = 05h – UTF-8.
5. Artist CharSet 1 byte = 05h – UTF-8.
The BT shall send an updated message with Song data when it becomes available.
o 12-2: Change of Disc Source
This is handled by the sequence in 12-1. When BT Audio is selected, the behavior in 12-1 is
executed by the DC. When the HU changes to another audio source, the DC shall NOT send
any disc messages.
o 12-5: Track Up/Down. This message is sent when the track is changed by a user action.
Interrupt = Enable.
Track.Update = Updated,
Visteon Electronics Nissan Bluetooth Voice DC UART SRD
Version 3.4 November 21st, 2011 Page 88 of 105 Visteon & Nissan Confidential
Group.Update = Not_Updated,
Artist.Update = Not_Updated,
Track.Label = Track
Track.No = <Updated Track Number>
Track.Text_Info = <Updated Track Text, if available>
o 12-6: Fast Forward (rewind). This message is sent at the 1 second periodic rate when this action is
active.
Interrupt = Enable.
Track.Update = Updated,
Group.Update = Not_Updated,
Artist.Update = Not_Updated,
Track.Label = Track
Track.No = <Updated Track Number>
Track.Text_Info = <Updated Track Text, if available>
o 12-9: Track Up(Down) w/o text information, with user operation. This message is sent when the track is
changed by a user action.
Interrupt = Enable,
Track.Update = Updated,
Group.Update = Not_Updated,
Artist.Update = Not_Updated,
Track.Label = Track,
Track.No = <Updated Track Number>
o 12-13: Track Up with text information, w/o user operation. This is a track change that occurs when a
track ends naturally and the next track is cued automatically.
Interrupt = Disable
Track.Update = Not_Updated
Group.Update = Not_Updated
Artist.Update = Not_Updated
Track.Label = Track
Track.No = <Updated Track Number>
Track.Text_Info = <Updated Track Text, if available>
o 12-14: Track Up w/o text information, w/o user operation. This is a track change that occurs when a
track ends naturally and the next track is cued automatically.
Interrupt = Disable
Track.Update = Not_Updated
Group.Update = Not_Updated
Artist.Update = Not_Updated
Track.Label = Track
Track.No = <Updated Track Number>
o 12-17: Scan operation. This message is sent at the 1 second periodic rate when this action is active.
Interrupt = Enable
Track.Update = Updated
Group.Update = <Set to Updated if avail>
Artist.Update = <Set to Updated if avail>
Track.No = <Updated Track Number>
Track.Text_ = <Updated Track Text>
o Bluetooth audio is not available or has disconnected from the DC.
Interrupt = Disable
Disc Source Update = Not_Updated
Disc Source = 05h BT-Audio
Track Update = Not_Updated
Track.Label = nondisplay
Track.No. = 0x00 0x00 0x00
Text Info Char Set = 0x05
Text Length = 0x00
Group Update = Not_Updated
Group.Label = nondisplay
Group.No = 0x00 0x00
Visteon Electronics Nissan Bluetooth Voice DC UART SRD
Version 3.4 November 21st, 2011 Page 89 of 105 Visteon & Nissan Confidential
Group No Char Set = 0x05
Group Length = 0x00
Artist Update = Not_Updated
Artist.Label = nondisplay;
Artist Char Set = 0x05
Artist Len = 0x00
Visteon Electronics Nissan Bluetooth Voice DC UART SRD
Version 3.4 November 21st, 2011 Page 90 of 105 Visteon & Nissan Confidential
7 Graphics
7.1 TCR GENERATED
7.1.1 TCR GENERATED
7.1.1.1 Display field contents responsibility
Note: Graphics are for referencing areas only. They are not representative of actual
graphics in terms of rendering, color, or placement
.
7.2 10Std all screens
Used for all 10STD screens using DisplayInfo message
1. Text - received via DisplayInfo message
2. Phone Icons - graphic chosen by HU based on Hex value sent by DC in
PhoneInfo message.
10DA command list screen
B
l
u
e
t
o
o
t
h
A
u
d
i
o
TELBT
ANT
BAT Phone icons
Text
Visteon Electronics Nissan Bluetooth Voice DC UART SRD
Version 3.4 November 21st, 2011 Page 91 of 105 Visteon & Nissan Confidential
This screen used for Display when VRRecognizeInfo and CommandListInfo messages
received.
1. Header – Hex value sent by DC, indexed into correct language by HU
2. Head Icon – Shown when Highlight command value = 0x00h in CommandListInfo
3. Footer - Hex value sent by DC, indexed into correct language by HU
4. Command List - Hex value sent by DC, indexed into correct language by HU
5. Text Area - -UTF-8 text sent by DC.
6. Phone Icons – graphic chosen by HU based on Hex value sent by DC in PhoneInfo message.
10DA InCall Screen
Gre
20
Say Command Go Back
12:00
Call Send Text
Phonebook Read Text
Recent Calls Select Phone
Listening
Phone
Visteon Electronics Nissan Bluetooth Voice DC UART SRD
Version 3.4 November 21st, 2011 Page 92 of 105 Visteon & Nissan Confidential
This screen used for display when CallingInfo message is received.
1. Caller Information - Name from TelName data field, number from TelInfo
field
2. Call time – Time information from Call log field of CallingInfo
3. Call Status – status from Call status field of CallingInfo
4. Header – Hex value sent by DC, indexed into correct language by HU
5. Phone Icons – graphic chosen by HU based on Hex value sent by DC in
PhoneInfo message.
7.3 10DA BTAudio
Albu
m
Title
Airtist
Play condition
4Pause
3.Pla
y
Run-Time
Artis
t
4.Pause
In Call
<NAME>
XXX-XXX-XXXX
XX:XX:XX
Call time
Caller Information
Call status
Metadata
Playback
status
controls
Header and
Phone Icons
Visteon Electronics Nissan Bluetooth Voice DC UART SRD
Version 3.4 November 21st, 2011 Page 93 of 105 Visteon & Nissan Confidential
This screen used when DisplayBTAudio message is received.
1. Header – Hex value sent by DC, indexed into correct language by HU
2. Phone Icons – graphic chosen by HU based on Hex value sent by DC in
PhoneInfo message.
3. MetaData – Text send by DC
4. Playback Status- Value sent by DC
5. Controls - HU generated
7.4 10DA Popup screens
This display used when PopupInfo message received.
6. Header – Hex value sent by DC, indexed into correct language by HU
7. Phone Icons – graphic chosen by HU based on Hex value sent by DC in
PhoneInfo message.
8. Popup - Hex value sent by DC, indexed into correct language by HU
Add Phone 112:00
Please connect your device using its
Bluetooth connection. When the
device requests a PIN, enter: 1234.
Header and Phone
Icons
Popup
Question to Nissan: is this
correct? No 16 char text field?
Visteon Electronics Nissan Bluetooth Voice DC UART SRD
Version 3.4 November 21st, 2011 Page 94 of 105 Visteon & Nissan Confidential
7.5 10DA Setup screens
This menu list occurs in a Radio controlled menu. It is controlled by HU.
1. Header – This case header selected by HU.
2. Phone Icons - graphic chosen by HU based on Hex value sent by DC in
PhoneInfo message.
3. Phone list - text requested from DC by using PhoneListReply message
or CustomMessageSelection message.
4. Radio controls list management such as highlighting.
Note: 19Nov2010 Benedict: need to review custom message list HMI when update is received from Nissan to
ensure this specification can deliver intended functionality.
Select Phone 112:00
Meldrum's iPhone
Sakamoto LG
Blackberry 9000
Zune HD
Radio Header and
Phone Icons
Phone List (or
custom SMS
Reply list)
Visteon Electronics Nissan Bluetooth Voice DC UART SRD
Version 3.4 November 21st, 2011 Page 95 of 105 Visteon & Nissan Confidential
8 Reference
1. CAN Spec -
tms_infotainment_apps\Nissan_MVL_09\Docs\Requirements\GEN3_CAN_Spe
c20080703.xls
2. N_BUS Spec 28330 NDS00AVC System Comm Spec1.pdf
Visteon Electronics Nissan Bluetooth Voice DC UART SRD
Version 3.4 November 21st, 2011 Page 96 of 105 Visteon & Nissan Confidential
9 Revision History
Revision
Level Date Section /
Page Author Description of Revision
1.0 2-Nov-10 All mpalani1/ysivakum Initial draft version capturing message format,
Initialization and Shutdown sequence
1.1 9-Nov-10 All Mpalani1 Captured Audio Arbitration Sequence, Message
Categories and Types, Message Set Details for all
Messages.
1.2 10-Nov-10 All Mpalani1 Updated Review Comments from Rob and added
sequence diagrams for Other Vehicle Messages.
1.3 12Nov2010 All Benedict/Flood Added sequences, messages, updated some
previous content
1.4 15Nov2010 4.6,
4.10
4.15
5.3.7
4.12
Benedict Add direction to Topdown message
Add SMS when vehicle moving status changes
sequence
Modify BTAudio Sequence with request to end
Add type of device to heartbeat
Added flow for SMS interrupted by phone call
1.5 17Nov2010 Benedict Add Displays to BT audio flow
Adjust message content for Heartbeats
Switch order of heartbeats so DC sends First
Heartbeat message
Add Number of text messages to PhoneInfo
message
Add DisplayInfo message to flows and message
details
1.6 18Nov2010 Benedict Add LVI sequence
Replace message category descriptions with
single table
Misc comment cleanup in flows.
1.7 Benedict Remove Power.Initcomplete – not needed
because of Heartbeat
Added new section 6 with display details
Add Info.custeomSMSList.request Message and
sequence that uses it.
Adjusted some timeouts from 1.5s to 500ms.
1.8 Benedict Added circuit information in section 2.2
Added additional clarification on removing power
after 25 timeout on shutdown sequence.
Visteon Electronics Nissan Bluetooth Voice DC UART SRD
Version 3.4 November 21st, 2011 Page 97 of 105 Visteon & Nissan Confidential
Revision
Level Date Section /
Page Author Description of Revision
1.9 Benedict Update Block Diagram
Add draft pin assignments
Add electrical Char Table.
Add reference to NDS for UART section. Add
more details about UART.
Remove Header, Length and CRC fields from
each message since they are not needed when
using NBus.
Removed HU_BT_Audio_interrupt - not needed,
will use BT_Permit_requesttostart instead
Removed reference to DOW Algorithm section 9
use checksum defined by NBUS.
Added reference to NBUS spec.
Corrected some message type and category
numbers
2.0 Flood Added Diagnostic messages to the list.
2.1 12Jan2011 65.2
5.3.1
5.186.2.9,5.8,
5.18, 5.19
6.1
Benedict Change Vehicle.Request for Reset to Power.
Request for reset.
Changed message category form Vehicle to power
for request for reset. Changed
PowerInitComplete to Start of heartbeat messages
Reversed order of pending and in-progress
message, specified 500ms for when pending will
be sent.
Corrected direction of display messages to be
from DC to HU
Added UserInput Category type, changed button
from Vehicle category to UserInput category.
Corrected diagnostic message category to 0x09
instead of 0x08 which is already being used.
Changed Vehicle.button to UserInput.button in
diagrams
Added where used columns to message
categories and types
2.2 13Jan11 6.2.8 Mflood Updated the Diagnostic message format.
2.3 Added a new message UserInput.Menu to Start
and End menu context.
Added a new message Display.BTMenu to handle
the top level settings menu for BT.
Added BZ Tune Up, Down and Enter to
UserInput.Button.
Removed the messages
CustomMessageSelection and PhoneListReply
from the Display type and moved them to Info
types. Changed these messages to send only text
data with static tags found in the Voice Prompts
document.
Updated the “Get List of Paired Phones” in 5.14 to
include the changes above and provide alternate
flows.
SMSInterrupt message, the name length should
be one byte instead of two.
Visteon Electronics Nissan Bluetooth Voice DC UART SRD
Version 3.4 November 21st, 2011 Page 98 of 105 Visteon & Nissan Confidential
Revision
Level Date Section /
Page Author Description of Revision
2.4 14Jan 5.15,16,17
6.0
Benedict Removed these sections, with BT menu items
populated by hex values as in section 5.14, these
are not needed.
Corrected used in table entries for 81,4a,4b,4c,
deleted 61, 62
Removed 6.2.6.1, 6.2.6.1
2.5 6Feb2011 6.2.10
6.2.9.1
6.2.7
6.2.6.4
6.2.5
6.2.4.11
6.2.4.10
6.2.4.2,3
6.2.4.1
5.19
5.18
5.15
5.14
5.9
5.8
5.3
5.1
2.5
Benedict New section for MCAN messages
Updated Button definitions
Corrected missing state info
Added command ID definition for each phone is
list
Deleted section of setup message - not needed
due to strategy change to command ID’s for
menu’s
Added display message for 3 line custom text sms
replay menu
Added talking head icon info
Added talking head icon info
Added Device info
Added MCAN Sequence diagram
Added sequence for aux mode – bt Audio mode
with no BT audio device connected.
BT menu for 10STD – STILL TBD pending Nissan
internal discussion
Added clarification that menu.end can be sent
anytime.
Added display.customSMSMenu as explicit
possibility during this sequence.
New section for SMS with message no read
Added Clarification on when audio is granted
Added two info messages as part of start up
sequence
Reworded LVI description based on current
agreement with Nissan and HU suppliers
2.6 11Feb2011 2.3
5.3
6.2.10.5
6.2.9.1
6.2.4.10
Benedict Add details about LVI signal during startup. Add
Minimum to T3 time specification
Add details about mute for HU and DC
Add fields to disc message,
Add hold states for PTT and End, change short
and long to press and release
Add 5th command to message.
2.7 15Feb2011 6.2.9.1
6.2.10.5
Benedict Change button message to accommodate all bezel
buttons distinguish press hold and release events.
Corrected missing fields in Disc message
Visteon Electronics Nissan Bluetooth Voice DC UART SRD
Version 3.4 November 21st, 2011 Page 99 of 105 Visteon & Nissan Confidential
Revision
Level Date Section /
Page Author Description of Revision
2.8 6.2.4.10
3.0
6.2.9.1
2.3
6.2.4.5
6.2.4.13
Benedict
Added byte for slidebar indicator used on Right
side of menu screen
Added Mechanical Drawing
Added preset 1, 2,5,6 bezel back to
userinput.button. Add second byte for button type
Added clarification about when LVI state could be
set in startup sequence, C-oil 107
Added waiting and hold status info to callinfo
message
New message for repeat and random status for BT
audio source.
2.9 21Apr11 6.2.8.2.2 Mflood Update the Negative Response Diagnostic
message to return the Parameter ID instead of the
Service ID.
Visteon Electronics Nissan Bluetooth Voice DC UART SRD
Version 3.4 November 21st, 2011 Page 100 of 105 Visteon & Nissan Confidential
10 TcSE changes v2.9 and beyond
10.1 Release 3.0
10.1.1 CQ 21558 Incorrect Message ID for MCAN msgs
A listed instead of B as message type for MCAN messages
10.1.2 CQ 21847 Display Info category correction
Display info category corrected to 6 – listed incorrectly as 3 in table.
10.1.3 CQ 21849 Add Clarity on byte 3 for rotary button presses
Add note saying rotary events up and down are used only with Bezel rotary button type.
10.1.4 CQ21420 UserInput.button byte length change
Button parameter changed from 2 bytes to 1 byte.
10.1.5 CQ 21642 Chime not interrupted by Source change
10.1.6 CQ 21644 message count parameter clarification -- unread messages
Added comment in parenthesis below to message count parameter.
Message count. Range from 0 to 20 {count of unread messages}
10.1.7 CQ 19037 clarification in display categories descriptions
Update section 6.2.4.3 name of category in byte 0, typo change only
Update section 6.2.4.7 clarify meaning of X and Y in reference to message counts
10.1.8 cq 22747 correct start and end value for HF message
Change from one and two to zero and one.
10.1.9 CQ 22847 missing info in interface messages
messages missing info:
Pana oil 121 -- missing text parmater in VRCustomSMSMenu message
Pana Oil 118 - missing Audio.ChimeInterrupt. and ChimePermit messages definition
Pana Oil 116 - added message for BTAudiodisplay
remove extra parameter in BTAudioPlayState
10.1.10 CQ 22760 missing parameter in viewsms
Add byte for read/ignore reply/exit Pana Oil 123
10.1.11 Pana Oil #130
Added need to keep Uart comm. Pins low while Enable is low to prevent back powering of OMAP
10.1.12 CQ21208 UART Byt length missing
Added byte length to last byte of diagnostic messages
Visteon Electronics Nissan Bluetooth Voice DC UART SRD
Version 3.4 November 21st, 2011 Page 101 of 105 Visteon & Nissan Confidential
10.1.13 Audio Voltage changed to 800mV
10.1.14 CQ24151: Pana Oil 116: Display.BTAudiodisplay listed in flows but
no message is defined.
PanaOil116: "Display.BTAudiodisplay" message. In a UART spec, it seems No command specification. Please
check it.
The command is mislabled in the flows. The following flows are affected:
Head Unit Requests Bluetooth Audio
BTAudio interrupted by Phone Call
Aux mode – BT Audio mode with no BT device connected
Change the line “Display.BTAudiodisplay \Display.DisplayInfo” to
Display.DisplayInfo
Display.BTAudioMenu
Display.BTAudioMetadata
Display.BTAudioSongPosition
10.1.15 CQ23932: CQPana OIL 136: Add byte for connected phone to
Info.PhoneList message
Add a byte to the info.phonelist message to show the currently connected phone.
Byte Field Val Description
1 Active Phone 0 - 5 0x00 – There is not a phone currently connected to the
system.
0x01 to 0x05 – The index of the phone that is currently
connected. This relates to the list below.
10.1.16 CQ 21208 Incorrect sufunction message id
Changed Value to E from D in Val column. It was incorrectly listed as D there, but correct in description. In
BTAudioPlayState.
10.1.17 CQ24151: Pana Oil 116: Display msgs update
The current version contains audio
messages Display.BTAudioMenu,
Display.BTAudioMetaData and
Display.BTAudioSongPosition which are not required
during Phone pairing.
The updated flow is below:
Visteon Electronics Nissan Bluetooth Voice DC UART SRD
Version 3.4 November 21st, 2011 Page 102 of 105 Visteon & Nissan Confidential
10.1.18 CQ25476 Startup and Shutdown Enable, Reset and LVI pin behavior
Updated section 2.3 with updated power sequence required for DC to Startup and Shutdown correctly.
Removed section 2.5 as it was not applicable any longer as section 2.3 details the LVI pin behavior.
10.1.19 CQ25471 Heartbeat message update
The Heartbeat message shall only contain the shutdown status of the DC.
10.2 Release 3.1
10.2.1 cq 26217 BTAudioMenu not used
Marked btAudiomenu message as not used in 6.1
and 6.2.4.8
10.2.2 CQ 26210 extra text in event type for Heartbeat message
Removed extra text starting at mf section 6.2.7.1
10.2.3 CQ27272 Pana139, Playstate added to BTAudio status updates
10.2.4 CQ 21917 Reflash Spec Message ID's Added
The specification called “Procedure for Blue Tooth Daughter Card Programming via NBUS.doc” has been placed in
Enterproj. The messages have been added to the list to reserve the message ID.
10.2.5 CQ 27528 SMS Flow: Added/Updated Sequences for Settings, ActiveCall
and Msg Not Read
These two sequences have the PhoneInfo message added showing how the SMS Message number gets updated on
the header.
UART 5.8 SMS Message Sequence, message not read
Visteon Electronics Nissan Bluetooth Voice DC UART SRD
Version 3.4 November 21st, 2011 Page 103 of 105 Visteon & Nissan Confidential
UART 5.9 SMS Message Sequence, message read
This is probably already in the software but needed to be included for clarity.
Added two sequences to deal with:
UART 5.20 SMS Sequence while the DC is in a Setting Screen
UART 5.21 SMS Sequence wile the DC is in an Active Call
10.2.6 CQ 27267 config error behavior incomplete
Defined Rest of Bits in config.set message for HU to inform DC which HU it is, and defined DC behavior for all
possibilities.
Updated initialization sequence for describing default value behavior for DC if config.set isn’t 1 or 2.
10.2.7 CQ 25645 additional sequences needed
Correct sequence when BT audio requested, with No BT device connected.
Add sequence for DC disconnecting BT Audio device
Add comments in audio arbitration sequences to clarify similarities in Tel, BT, SMS, and SMSChime interrupt and
Permit messages.
10.2.8 CQ 27528 SMS : Added/Upd Sequences for Settings, ActiveCall, BT Audio
and Msg Not Read
These two sequences have the PhoneInfo message added showing how the SMS Message number gets updated on
the header, a Notes box and the change of where the timer from the HU should start:
UART 5.8 SMS Message Sequence, message not read
UART 5.9 SMS Message Sequence, message read
This is probably already in the software but needed to be included for clarity.
Added these sequences to deal with other unclear behavior:
UART 5.22 SMS Sequence wile the DC is in an Active Call
UART 5.23 SMS Sequence while the DC is in a Setting Screen with BT Audio audio
UART 5.24 SMS Sequence while the DC is in a Setting Screen with CD/Radio audio
UART 5.25 SMS Sequence while the DC is in a BT Audio audio session.
10.2.9 CQ 28083 Pana 162: shorten Audio.SMSInterrupt to match Audio
Removed Name Length, Name and/or Phone Number and Time from the Audio.SMSInterrupt message. This is
handled by the display view SMS message.
10.2.10 cQ 28090 slide bar behavior for BT menu values added
Added comment to Display.BTMenu message for Slidebar: (1 is top of menu, e is bottom, if value of 0 sent there
should be no menu bar. )
10.2.11 CQ 28232 SMSChimeInterrupt.end behavior documented.
10.2.12 CQ 27848 SMS sequences not explicit for several cases
Added sequence for BT Audio interrupted by SMS message and then the message is read.
Added Sequence for SMS message read/ignore interrupted by phone call.
Visteon Electronics Nissan Bluetooth Voice DC UART SRD
Version 3.4 November 21st, 2011 Page 104 of 105 Visteon & Nissan Confidential
Corrected 5.12 for DC playing chime.
10.3 Release 3.2
10.3.1 CQ 24001 Pana126,7: BT Menu Back Button
Provide an indicator to the HU of when the top BT menu has been reached.
10.3.2 CQ 29517 REQ: SMS Flows call out incorrect buttons to dismiss SMS
popup for Read Request
This was an error in the button definition to act upon the PTT and END buttons to remove the SMS Popup. Only
these buttons are acted upon.
10.4 Release 3.3
Document typographical errors fixed:
• “Vehicle.Config.Status” should be sent from DC. The arrow direction was reversed. This is fixed.
• Added the Reset sequence to 2.3.3 that was missing in 3.2.
• Removed unused commands from spec.
• PhoneInfo clarification warning on usage of devices not available.
10.4.1 CQ 29226 implement new byte in Display.BTAudioMetadata
Added AVRCP version selection of 1.0 or 1.3 to byte one of the Display.BTAudioMetadata message.
10.4.2 CQ 28590 Message format to send 5 latest SMS during BT Menu entry is
not available
10.4.3 CQ 29915 UART: Need configuration ID for Panasonic Bose for EQ picking
at startup
Panasonic Bose will have a Vehicle.Config.Set value of 0x03.
10.4.4 CQ 30093 0x01 not defined as text type in aw message
10.4.5 CQ 30657 add clarity on timing of MCAN messages
10.4.6 CQ 31381 BTAudioMenu message should be removed from sequence
Section 5.16 message removed from:
Head Unit Requests Bluetooth Audio
DC Ends BT Audio
BTAudio interrupted by Phone Call
BT Audio Interrupted by PTT press to start VR session
BT Audio to VR session Via BT Menu
10.4.7 CQ 30522 Add the Play Pause status message
The command was added to the following sequences with the display messages:
Head Unit Requests Bluetooth Audio
DC Ends BT Audio
BTAudio interrupted by Phone Call
Visteon Electronics Nissan Bluetooth Voice DC UART SRD
Version 3.4 November 21st, 2011 Page 105 of 105 Visteon & Nissan Confidential
BT Audio Interrupted by PTT press to start VR session
BT Audio to VR session Via BT Menu
10.4.8 CQ31420 REQ: UART Display.ViewSMS references wrong number in
variable
The Display.ViewSMS referenced an out of range value of 3 for Day.month.unused.
It is defined as 2. This is a documentation change as the sw correctly implemented the range.
10.4.9 CQ 32462 BT Audio interrupted by Add phone in BT menu
10.4.10 CQ 33109 (33070, 33244, 32998, 31663) MCAN Behavior Update
Added section to the UART spec with the information culled from Nonomura-san.
Updated MCAN Sequence to reflect the behavior in this section.
10.4.11 CQ 3946 Display.ReadSMS - No such mesaage applicable for BT
CARD
Changed in
6.1 Message details
6.2.1.5 Audio.SMSInterrupt
10.4.12 CQ 32658 Reflash Timing has changed Initialization Time
Initialization Sequence has been updated with the new timing required from the changes made due to the addition of
reflash capability.
The Language Change Sequence has been removed from the Initialization Sequence and made stand alone.
10.4.13 CQ 34519 Clar148 HU beh if DC not reply to HU req DC to stop BT
Audio
Added sequence “DC does not reply to message to stop playing BT Audio” per agreed upon behavior.
10.5 Release 3.4
Updated the Initialization Sequence to reference the Mismatched Baud Rate section of the DC Error Recover 1.3
and greater document.
10.5.1 CQ 35573 Display clarification for CallInfo message
10.5.2 CQ 33070 MCAN: BT Audio Not Available Disc message to be sent
Added section to MCAN Behavior Disc to indicate that a message is sent when there a BT Audio source that is
playing becomes unavailable of if the HU attempts to start a BT Audio session when there is not a compatible
device connected to the DC.
10.5.3 CQ 35580 MCAN: Disc message sent incorrectly
Added the text to MCAN Disc messaging that updates are with Interrupt Disabled as they are not user directed
actions. For clarity only.
