Visteon 16UP375AHU Bluetooth Car Radio User Manual
Visteon Corporation Bluetooth Car Radio
Visteon >
User Manual
The information contained in this publication was correct at the time of going to print. In the interest of
continuous development, we reserve the right to change specifications, design or equipment at any time
without notice or obligation. No part of this publication may be reproduced, transmitted, stored in a
retrieval system or translated into any language in any form by any means without our written permission.
Errors and omissions excepted.
© Ford Motor Company 2015
All rights reserved.
Part Number: 20151013234453
Introduction
About This Supplement (G1832667)..................3
Climate Control
Manual Climate Control (G1755900).................4
Audio System
Audio Unit - Vehicles With: AM/FM/Aux
In/USB/Bluetooth (G1828911).........................6
Audio Unit Clock and Date Displays
(G1829042)...........................................................20
Appendices

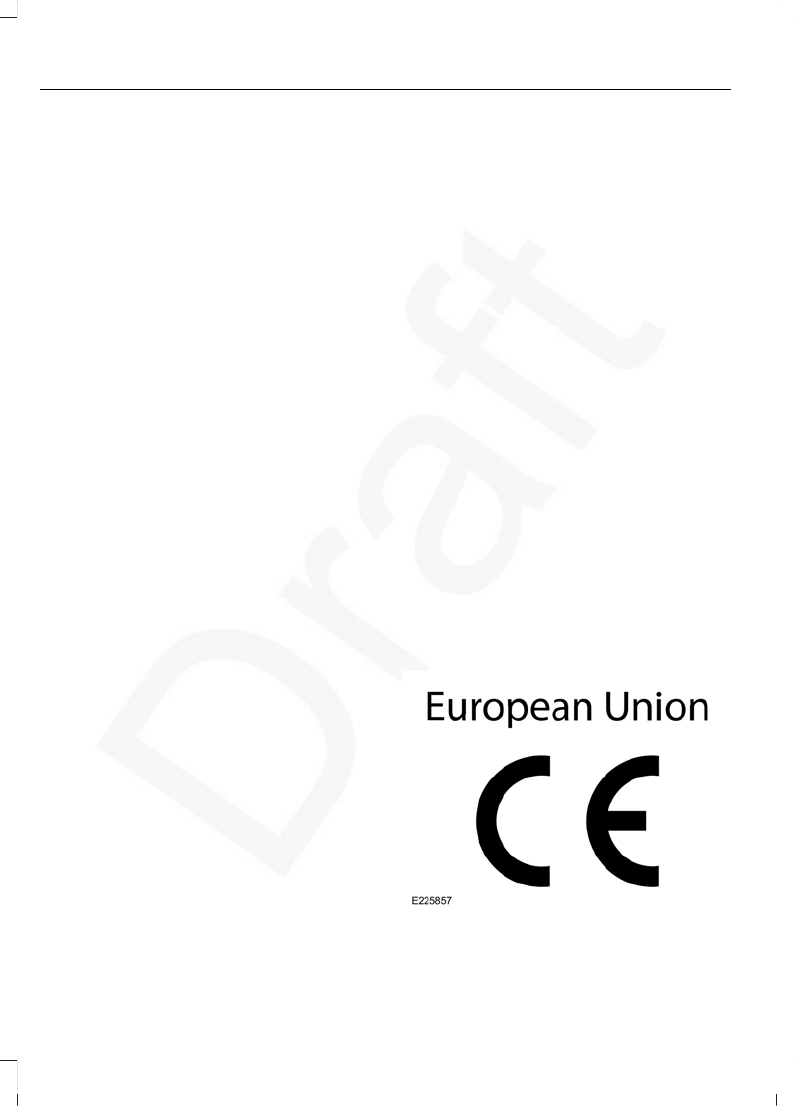

Type Approvals (G1832672).................................22
1
Ranger (TKD, TKE) , enAUS
Table of Contents
2
Ranger (TKD, TKE) , enAUS
ABOUT THIS SUPPLEMENT
(G1832667)
Your vehicle is equipped with a Ford Audio
System. Information contained in this
supplemental guide is in addition to that
which is covered in your Owner’s Manual.
Please refer to your Owner’s Manual for
further vehicle related information.
3 (G1832667)
Ranger (TKD, TKE) , enAUS
Introduction

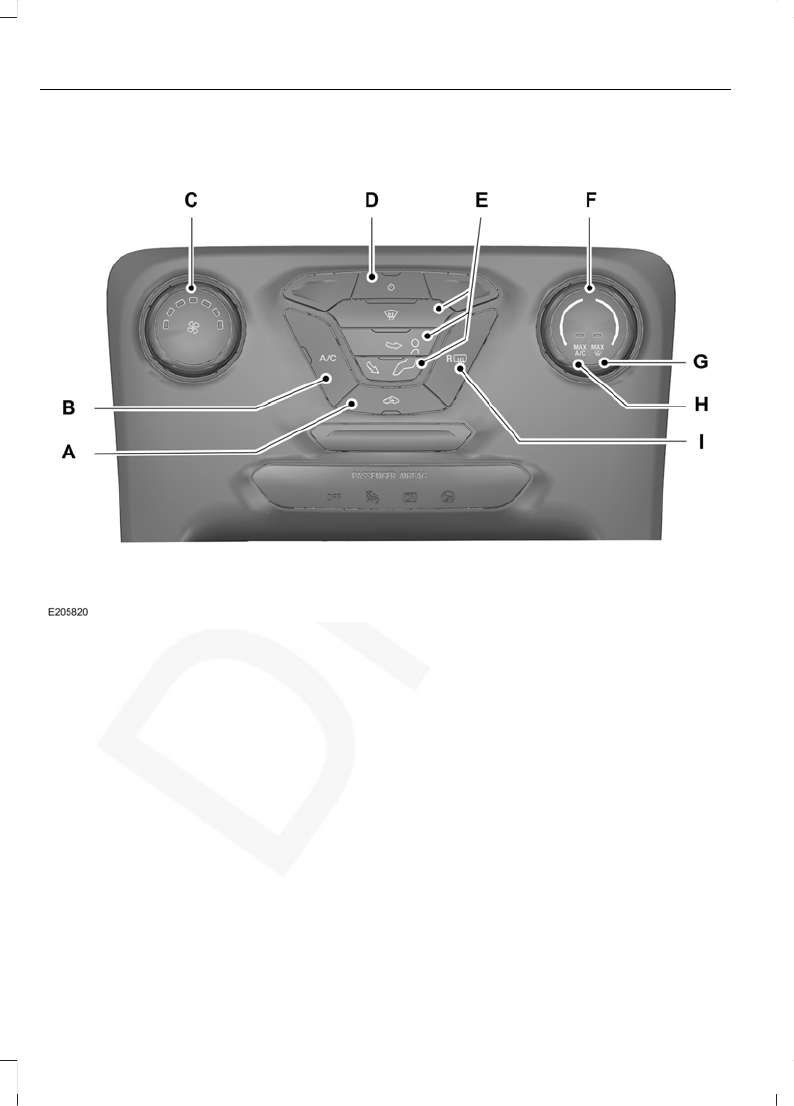

MANUAL CLIMATE CONTROL (G1755900)
Recirculated air: Press the button to switch between outside air and
recirculated air. The air currently in the passenger compartment recirculates.
This can reduce the time needed to cool the interior and reduce unwanted odors
from entering your vehicle.
A
A/C: Press the button to switch the air conditioning on or off. Air conditioning
cools your vehicle.
B
Note: In certain conditions (for example, maximum defrost), the air conditioning
compressor may continue to operate even though the air conditioning is
switched off.
Fan speed control: Adjust the volume of air circulated in the vehicle.C
Power: Press the button to switch the system on and off.D
Air distribution control: Press the buttons to turn airflow from the windshield,
instrument panel, or footwell vents on or off.
E
Note: At least one of these buttons illuminates when the system is on.
4 (G1755900)
Ranger (TKD, TKE) , enAUS
Climate Control
Temperature control: Controls the temperature of the air circulated in the
vehicle.
F
MAX defrost: Adjust the control to turn on defrost. Outside air flows through
the windshield vents, air conditioning automatically turns on, and fan
automatically adjusts to the highest speed. You can also use this setting to
defrost and clear the windshield of a thin covering of ice. The heated rear window
also automatically turns on when you select maximum defrost.
G
Note: To prevent window fogging, you cannot select recirculated air when
defrost is on.
MAX A/C: Adjust the control for maximum cooling. Recirculated air flows
through the instrument panel vents, air conditioning automatically turns on and
the fan automatically adjusts to the highest speed.
H
Heated rear window: Press the button to switch the heated rear window on
and off.
I
5 (G1755900)
Ranger (TKD, TKE) , enAUS
Climate Control
AUDIO UNIT - VEHICLES WITH:
AM/FM/AUX IN/USB/
BLUETOOTH (G1828911)
WARNING
Driving while distracted can result in
loss of vehicle control, crash and
injury. We strongly recommend that
you use extreme caution when using any
device that may take your focus off the
road. Your primary responsibility is the safe
operation of your vehicle. We recommend
against the use of any hand-held device
while driving and encourage the use of
voice-operated systems when possible.
Make sure you are aware of all applicable
local laws that may affect the use of
electronic devices while driving.
Note: Depending on your vehicle option
package, your system may look different
from what you see here.
Note: Some features may not be available
in your location. Check with an authorized
dealer.

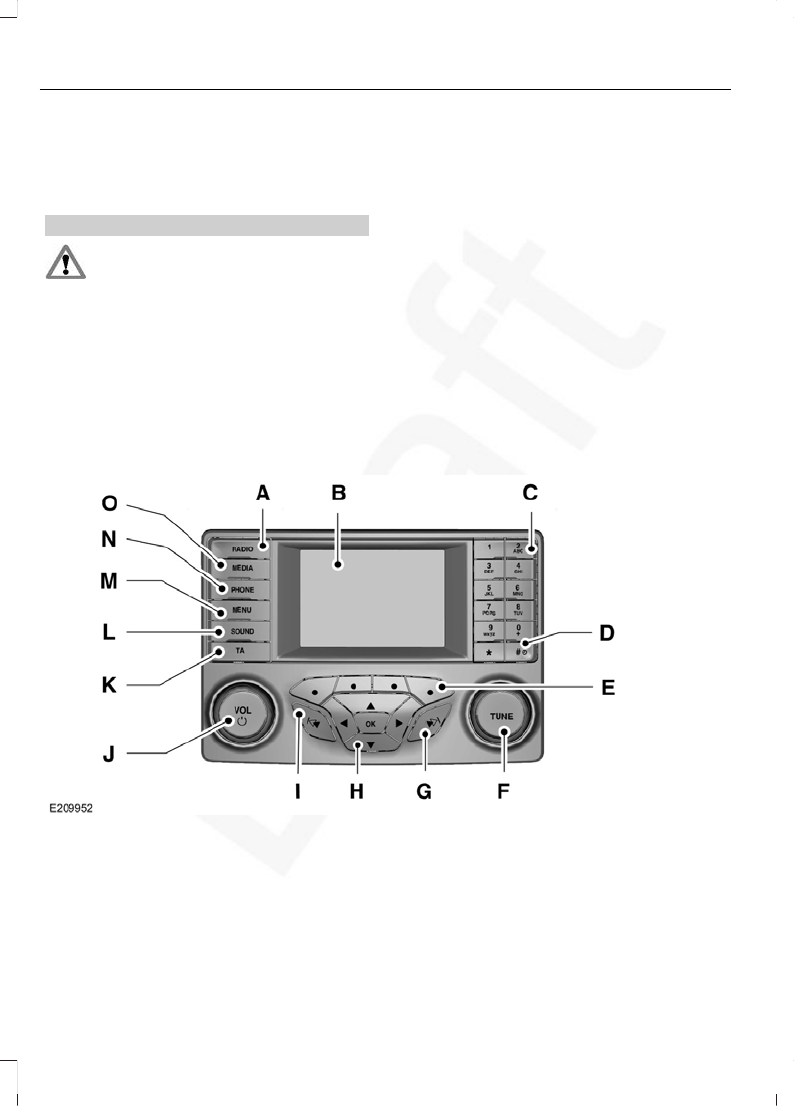

RADIO: Press this button to listen to the radio or cycle through radio frequency
bands.
A
Display screen: Shows audio information.B
6 (G1828911)
Ranger (TKD, TKE) , enAUS
Audio System
Number block (Station preset buttons): In radio mode, station preset
buttons allows you to store your favorite stations for later access. When tuned
to any station, press and hold a preset buttons until sound returns. In phone
mode, press the buttons to enter a phone number.
C
Clock: Press this button to access the clock setting. Use the center arrow
controls to change the hours and minutes. You can also set the clock by pressing
the MENU button and scrolling to Clock Settings.
D
Function buttons: Select different functions of the audio system depending
on which mode you are in (such as Radio mode).
E
TUNE: In radio mode, turn to search the frequency band in individual increments.F
Seek: In radio mode, select a frequency band and press this button. The system
stops at the next station up the band. Press and hold the button to seek
endlessly through the frequency band and release to stop on the next station.
G
Cursor arrows and OK: Use the up and down arrow buttons to select the
various settings. When you make your selection, press the left and right arrow
buttons to change the settings. Press OK to set or press MENU to exit.
H
Seek: In radio mode, select a frequency band and press this button. The system
stops at the next station up the band. Press and hold the button to seek
endlessly through the frequency band and release to stop on the next station.
I
VOL and Power: Press this button to turn the system off and on. Turn it to
adjust the volume.
J
TA: Press this button to turn Traffic Announcement on or off.K
SOUND: Press this button to access settings for Treble, Midrange, Bass, Fade
and Balance. Use the up and down arrow buttons to select the various settings.
When you make your selection, press the left and right arrow buttons to change
the settings. Press OK to set or press SOUND to exit. Sound settings can be
set for each audio source independently.
L
MENU: Press this button to access the menu where you can adjust Audio, Clock
and language settings.
M
PHONE: Press this button to access the phone features. See Ford Audio later
in this chapter.
N
MEDIA: Press this button to access your auxiliary inputs or switch between
bluetooth audio devices you plug into the input jack or USB port.
O
Note: An integrated multi-function display
shows important information about your
audio system controls.
7 (G1828911)
Ranger (TKD, TKE) , enAUS
Audio System
Descriptions for function buttons
1-4
A
Function buttons 1 to 4 are context
dependent, and change according to the
current unit mode. The description for the
function displays in the screen.
On, Off, Volume Control Knob
Press the On, Off control. This will also
operate the unit for up to one hour with the
ignition turned off.
The radio will switch off automatically
after one hour.
Sound Button
This will allow you to adjust the sound
settings (for example bass, middle and
treble).
1. Press the SOUND button.
2. Use the up and down arrow buttons to
select the required setting.
3. Use the left and right arrow buttons to
make the necessary adjustment. The
display indicates the level selected.
4. Press the OK button to confirm the
new settings.
Waveband Button
Press the RADIO button repeatedly to
select from the wavebands available.
You can use the selector to return to radio
reception when you have been listening to
another source.
Alternatively, press the up/down arrow
button to display the available wavebands.
Scroll to the required waveband and press
OK.
Station Tuning Control
Seek Tuning
Select a waveband and briefly press one
of the seek buttons. The unit will stop at
the first station it finds in the direction you
have chosen.
Manual Tuning
1. Use the TUNE dial to tune down or up
the waveband in small increments or
press and hold to increment quickly,
until you find a station you want to
listen to.
2. Press OK to continue listening to a
station.
Station Preset Buttons
This feature allows you to store your
favorite stations, they can be recalled by
selecting the appropriate waveband and
pressing one of the preset buttons.
1. Select a waveband.
2. Tune to the station required.
8 (G1828911)
Ranger (TKD, TKE) , enAUS
Audio System
3. Press and hold one of the preset
buttons until you hear a beep. When
the station has been stored, the preset
number along with the station name
or frequency is displayed for
confirmation.
You can repeat this on each waveband and
for each preset button.
Note: When you drive to another part of the
country, stations that broadcast on
alternative frequencies and are stored on
preset buttons, may be updated with the
correct frequency and station name for that
area.
Autostore Control
This will store up to a maximum of the ten
strongest signals available, either from the
AM or the FM waveband and overwrite the
previously stored stations. You can also
store stations manually in the same way
as other wavebands.
1. Press and hold function button 1 or
the RADIO button.
2. When the search is complete, sound is
restored and the strongest signals are
stored on the autostore presets.
Traffic Information Control
Many stations that broadcast on the FM
waveband have a TP code to signify that
they carry traffic program information.
Turning Traffic Announcements On and
Off
Before you can receive traffic
announcements, you must press either the
TA button. A TA display will appear to
show the feature is switched on and the
radio will tune to a station that supports
traffic program information (if available).

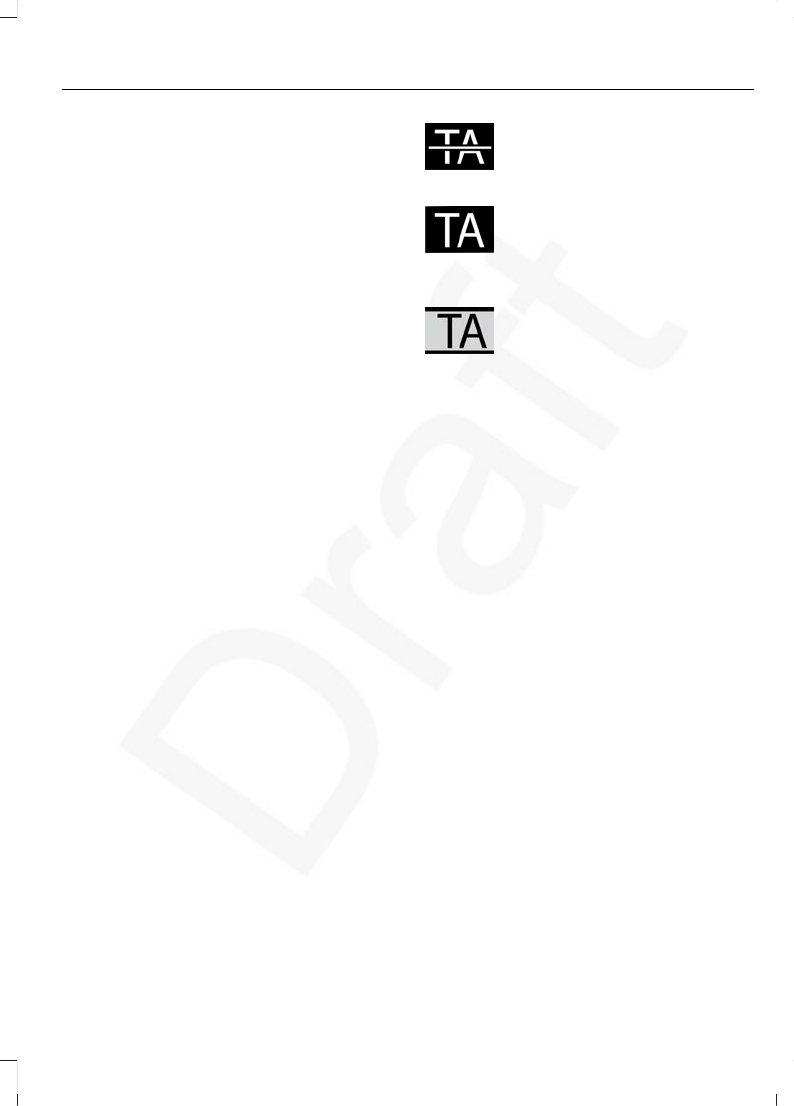

The TA icon will change state depending
on the current status of traffic program
information being received:
The TA feature is on however the
current tuned station does not
support traffic program
information.
The TA feature is on and the
current tuned station supports
traffic program information, but
is not currently broadcasting any traffic
program information.
The current tuned station is
broadcasting traffic program
information.
When traffic information is broadcast, it
will automatically interrupt normal radio
or CD playback and Traffic
announcement will appear in the display.
If a non-traffic station is selected or
recalled using a preset button, the audio
unit will remain on that station unless TA
or TRAFFIC is turned off, then on again.
Traffic Announcement Volume
Traffic announcements interrupt normal
broadcasts at a preset minimum level that
is usually louder than normal listening
volumes.
To adjust the preset volume:
•Use the volume control to make the
necessary adjustment during an
incoming traffic announcement
broadcast. The display will show the
level selected.
Ending Traffic Announcements
The audio unit will return to normal
operation at the end of each traffic
announcement. To end the announcement
prematurely, press TA during the
announcement.
Note: If you press TA at any other time it
will switch all announcements off.
9 (G1828911)
Ranger (TKD, TKE) , enAUS
Audio System
Automatic Volume Control
When available, automatic volume control
(AVC) adjusts the volume level to
compensate for engine noise and road
speed noise.
1. Press the MENU button and select
AUDIO SETTINGS.
2. Select ADAPTIVE VOL.
3. Use the left or right arrow button to
adjust the setting.
4. Press the OK button to confirm your
selection.
5. Press the MENU button to return.
Digital Signal Processing (DSP)
DSP Occupancy
This feature takes into account the
differences in distance from the various
speakers in the vehicle to each seat. Select
the sitting position for which the audio is
to be correctly enhanced.
DSP Equalizer
Select the music category that most suits
your listening preference. The audio output
will change to enhance the particular style
of music chosen.
Changing the DSP Settings
1. Press the MENU button.
2. Select AUDIO SETTINGS.
3. Scroll to the required DSP function.
4. Use the up and down arrow buttons to
select the required setting.
5. Press the OK button to confirm your
selection.
6. Press the MENU button to return.
News Broadcasts
Your audio unit may interrupt normal
reception to broadcast news bulletins from
stations on the FM waveband, radio data
system (RDS) or other enhanced network
linked stations.
The display will indicate there is an
incoming announcement, during news
broadcasts. When the audio unit interrupts
for a news broadcast the preset volume
level will be the same as traffic
announcements.
1. Press the MENU button.
2. Select AUDIO SETTINGS.
3. Scroll to NEWS and turn on or off with
the OK button.
4. Press the MENU button to return.
Alternative Frequencies
The majority of programs that broadcast
on the FM waveband have a program
identification code, it can be recognized by
audio units.
When your vehicle moves from one
transmission area to another with the
alternative frequencies tuning switched
on, this function will search for the
strongest station signal.
Under certain conditions, alternative
frequencies tuning may temporarily disrupt
normal reception.
When selected, the unit continually
evaluates signal strength and, if a better
signal becomes available, the unit will
switch to that alternative. It mutes while
it checks a list of alternative frequencies
and if necessary, it will search once across
the selected waveband for a genuine
alternative frequency.
It will restore radio reception when it finds
one or if one is not found, the unit will
return to the original stored frequency.
10 (G1828911)
Ranger (TKD, TKE) , enAUS
Audio System
1. Press the MENU button.
2. Select AUDIO SETTINGS.
3. Scroll toALTERNATIVE FREQ. and
turn on or off with the OK button.
4. Press the MENU button to return.
Regional Mode
Regional mode controls the behavior of
alternative frequencies switching between
regionally related networks of a parent
broadcaster. A broadcaster may run a fairly
large network across a large part of the
country. At various times of the day this
large network may be broken down into a
number of smaller regional networks,
typically centered on major towns or cities.
When the network is not split into regional
variants, the whole network carries the
same programming.
Regional mode ON: This prevents random
alternative frequency switches when
neighboring regional networks are not
carrying the same programming.
Regional mode OFF: This allows a larger
coverage area if neighboring regional
networks are carrying the same
programming, but can cause random
alternative frequency switches if they are
not.
1. Press the MENU button.
2. Select AUDIO SETTINGS.
3. Scroll to RDS REGIONAL and turn on
or off with the OK button.
4. Press the MENU button to return.
Ford Audio
Ford Audio is an in-vehicle
communications system that works with
your Bluetooth-enabled cell phone and
portable media player.
This allows you to:
•Make and receive calls
•Access and play music from your
media player
•Access phonebook contacts and music
•Stream music from your connected cell
phone
•Charge your USB device (if your device
supports this)
Support
For further support, see an authorized
dealer. For more information, visit the
regional Ford website.
Safety Information
WARNING
Driving while distracted can result in
loss of vehicle control, crash and
injury. We strongly recommend that
you use extreme caution when using any
device that may take your focus off the
road. Your primary responsibility is the safe
operation of your vehicle. We recommend
against the use of any hand-held device
while driving and encourage the use of
voice-operated systems when possible.
Make sure you are aware of all applicable
local laws that may affect the use of
electronic devices while driving.
11 (G1828911)
Ranger (TKD, TKE) , enAUS
Audio System
When using Ford Audio:
•Do not operate playing devices if the
power cords or cables are broken, split
or damaged. Carefully place cords and
cables where you cannot step on them
or they do not interfere with the
operation of pedals, seats,
compartments or safe driving abilities.
•Do not leave playing devices in your
vehicle during extreme conditions as it
could cause them damage. Refer to
your device's manual for further
information.
•Do not attempt to service or repair the
system. See an authorized dealer.
Privacy Information
When a cell phone is connected to the
AHU, the system creates a profile that is
linked to that cell phone. The system
creates the profile to offer you more mobile
features and to operate more efficiently.
Among other things, this profile may
contain data about your phonebook and
call history. This will include the history of
calls when your cell phone was not
connected to the system. This data is
deleted from the AHU upon removal of the
phone via the BT Phone connections menu.
If you no longer plan to use the system or
your vehicle, we recommend you delete all
paired phones If you connect a media
player, the system creates and retains an
index of supported media content. The
media player index and development log
will remain in the system unless deleted
by a battery disconnect or via diagnostic
command using special equipment. It are
only accessible in your vehicle only when
you connect your media player and cannot
be accessed via the USB port with other
devices.
Using Voice Pass Through
iPhone users can access Siri by pressing
the voice button on the steering wheel
controls. Android users can access OK
Google by pressing the voice button on the
steering wheel controls.
Helpful Hints
Make sure the interior of your vehicle is as
quiet as possible. Wind noise from open
windows and road vibrations may prevent
the system from correctly recognizing
spoken commands.
Before giving a voice command, wait for
the system announcement to finish
followed by a single beep. Any command
spoken before this does not register with
the system.
Speak naturally, without long pauses
between words.
You can interrupt the system at any time
while it is speaking by pressing the voice
button. You can also cancel a voice session
at any time by pressing and holding the
voice button.
Using Ford Audio with Your Phone
Hands-free calling is one of the main
features of Ford Audio.
At a minimum, most cell phones with
Bluetooth wireless technology support the
following functions:
•Answering an incoming call.
•Ending a call.
•Using privacy mode.
•Dialing a number.
•Redialing.
•Call waiting notification.
•Caller ID.
12 (G1828911)
Ranger (TKD, TKE) , enAUS
Audio System
Other features such as using Bluetooth
audio and automatic phonebook download
are cell phone dependent features. To
check your cell phone's compatibility, refer
to your device's manual or visit the regional
Ford website.
Pairing a Cell Phone For the First Time
Wirelessly pairing your cell phone with the
system allows you to make and receive
hands-free calls.
Note: You must switch radio on.
1. Make sure the Bluetooth feature on
your cell phone is switched on before
starting the search. Refer to your
device's manual if necessary.
2. Press the PHONE button then scroll
to BLUETOOTH devices then press
the OK button. When the audio display
indicates that no phones are paired,
select the option to add.
3. When a message to begin pairing
appears in the audio display, search for
Ford audio on your cell phone to start
the pairing process.
4. Select Ford audio on your cell phone.
5. Wait until the PIN appears on the
phone display. Compare the PIN on the
phone with the PIN shown in the audio
display and accept the request on the
phone and the vehicle display. The
display indicates when the pairing is
successful.
Note: In some cases the phone will request
to enter a PIN. Enter the four-digit PIN
provided by the system in the audio display.
The display indicates when the pairing is
successful.
Depending on your cell phone's capability
and your market, the system may prompt
you with questions such as setting the
current cell phone as the primary cell
phone (the cell phone the system
automatically tries to connect with first
when you switch the ignition on) or
downloading your phonebook.

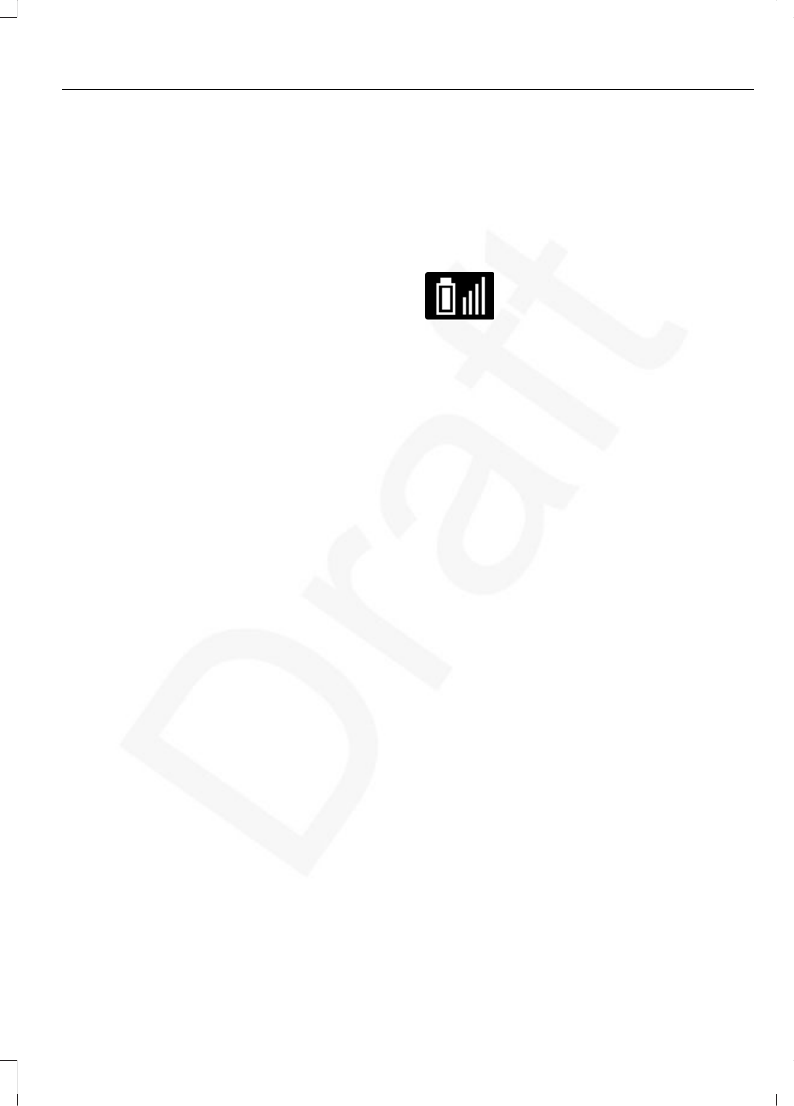

The information display may
show your cell phone's battery
charge level and signal strength.
Pairing Subsequent Cell Phones
Wirelessly pairing your cell phone with the
system allows you to make and receive
hands-free calls.
Note: You must switch the ignition and
radio on.
Note: To scroll through the menus, press
the up or down arrows on your audio system.
1. Make sure the Bluetooth feature on
your cell phone is switched on before
starting the search. Refer to your
device's manual if necessary.
2. Press the PHONE button.
3. Select the option for Bluetooth devices.
4. Press the OK button.
5. Select the option to add. This starts
the pairing process.
6. When a message to begin pairing
appears in the audio display, search for
Ford audio on your device to start the
pairing process.
7. Select Ford audio on your cell phone.
8. Wait until the PIN appears on the
phone display. Compare the PIN on the
phone with the PIN shown in the audio
display and accept the request on the
phone and the vehicle display. The
display indicates when the pairing is
successful.
13 (G1828911)
Ranger (TKD, TKE) , enAUS
Audio System
Note: In some cases the phone will request
to enter a PIN. Enter the four-digit PIN
provided by the system in the audio display.
The display indicates when the pairing is
successful.
The system may prompt you with
questions such as setting the current cell
phone as the master primary cell phone or
downloading your phonebook.
Receiving a Call
When receiving a call, you can:
•Answer the call by pressing the accept
call button on the steering wheel or by
selecting the accept call option in the
audio display pressing the OK button.
•Reject the call by pressing the reject
call button on the steering wheel or by
selecting the reject call option in the
audio and pressing the OK button.
•Ignore the call by doing nothing.
Cell Phone Options During an Active
Call
During an active call, you have extra menu
features which become available, for
example putting a call on hold.
To access this menu, choose one of the
options available at the bottom of the
audio display or select the option for more.
Action and DescriptionMenu Item
Turn your vehicle's microphone off. To turn the microphone
on, select the option again.
Mic. off
Switch a call from an active hands-free environment to your
cell phone for a more private conversation. When selected,
the audio display will indicate the call is private.
Privacy
Put an active call on hold. When selected, the audio display
will indicate the call is on hold.
Hold
Swap the active call between Line 1 or Line 2 when 2 calls are
active.
Active call
Accessing Features Through the Cell
Phone Menu
You can access your call history and
phonebook.
The system attempts to automatically
re-download your phonebook and call
history each time your cell phone connects
to the system. You must turn on the auto
download feature if your cell phone
supports it.
Note: This is a cell phone dependent
feature.
14 (G1828911)
Ranger (TKD, TKE) , enAUS
Audio System
1. Press the PHONE button to enter the
cell phone menu.
2. Select one of the options available.
Action and DescriptionMenu Item
Dial a number using the audio system numeric keypad.Dial a number
Redial the last number called (if available). Press the OK button to
select.
Redial
Access your downloaded phonebook.Phonebook
1. Press the OK button to confirm and enter. You can use the options
at the bottom of the screen to quickly access an alphabetical
category. You can also use the letters on the keypad to jump in the
list.
2. Scroll through your phonebook contacts.
3. Press the OK button again when the desired selection appears in
the audio display.
4. Press the OK button or dial button to call the selection.
Access any previously dialed, received or missed calls.Call history
1. Press the OK button to select.
2. Scroll to select either incoming calls, outgoing calls or missed calls.
Press the OK button to make your selection.
3. Press the OK button or dial button to call the selection.
Select one of 10 speed dial entries. To set a speed dial entry, go to the
phonebook and press and hold one of the numbers on the audio system
numeric keypad.
Speed Dial
Access the following option for Bluetooth device menu listings:BT Devices
Pair a new device.Add
Delete a paired device.Delete
Connect to the selected
device.
Conn.
Disconnect from the selected
device.
Discon.
Make the selected device the
favourite device.
Master
View various settings and features on your cell phone.Phone settings
15 (G1828911)
Ranger (TKD, TKE) , enAUS
Audio System
Accessing Your Cell Phone Settings
These are cell phone dependent features.
Your cell phone settings allow you to
access and adjust features such as modify
your phonebook and set up automatic
download.
1. Press the PHONE button.
2. Scroll until the phone settings option
appears, then press the OK button.
3. Scroll to select from the following
options:
Action and DescriptionMenu Item
If this option is checked, the system will use this cell phone
as the master when there is more than one cell phone paired
to the system. This option can be changed for all paired cell
phones (not only for the active one) using the Bluetooth
devices menu.
Set as master
See the cell phone name, provider name, cell phone number,
signal level and battery level. When done, press the left arrow
button to return to the cell phone status menu.
Phone status
Modify the contents of your phonebook, e.g. add, delete,
download. Press the OK button to select and scroll between
the options in the table below.
Phonebook pref.
To modify the phone book preferences,
choose from the following:
Action and DescriptionMenu Item
Press the OK button to select and download your phonebook to the
system.
Download now
When automatic download is switched off, your phonebook will not
be downloaded when your cell phone connects to the system.
Auto-download
Your phonebook, call history and text messages can only be accessed
when your paired cell phone is connected to the system.
Check or uncheck this option to automatically download your phone-
book each time your cell phone connects to the system. Downloading
times are cell phone dependent and quantity dependent.
Enabling this feature allows you to select how your contacts are
displayed. You can select:
Sorting Pref.
Last/First nameFirst/Last name
16 (G1828911)
Ranger (TKD, TKE) , enAUS
Audio System
Bluetooth Devices
This menu provides access to your
Bluetooth devices. Use the arrow buttons
to scroll through the menu options. It
allows you to add, connect and delete
devices and set a cell phone as primary.
Bluetooth Devices Menu Options
1. Press the PHONE button.
2. Scroll until the Bluetooth device option
appears, then press the OK button.
3. Scroll to select from the following
options:
Action and DescriptionMenu Item
Pair additional cell phones to the system.Add
1. Select the option to add to start the pairing process.
2. When a message to begin pairing appears in the audio
display, search for Ford audio on your cell phone. Refer
to your device's manual if necessary.
3. Select Ford Audio on your cell phone.
4. Wait until the PIN appears on the phone display. Compare
the PIN on the phone with the PIN shown in the audio
display and accept the request on the phones and the
vehicles display. The display indicates when the pairing
is successful.*
5. When the option to set the cell phone as the master cell
phone appears, select either yes or no.
6. Depending on the functionality of your cell phone, the
system may ask you extra questions (for example, if you
would like to download your phonebook). Select either
yes or no to confirm your response.
After deleting a cell phone from the list, the cell phone can
only be connected again by repeating the full pairing process.
Select the delete option and confirm when the system asks
to delete the selected device.
Delete
The system attempts to connect with the master cell phone
every time you switch the ignition on. When a cell phone is
selected as master, it appears first in the list and is marked
with an asterisk.
Master
Set a previously paired cell phone as your master cell phone.
Select the master option to confirm the master cell phone.
17 (G1828911)
Ranger (TKD, TKE) , enAUS
Audio System
Action and DescriptionMenu Item
Connect a previously paired cell phone. You can only have
one cell phone connected at a time to use the cell phone
functionality. When another cell phone is connected, the
previous cell phone will be disconnected from the telephone
services. The system allows you to use different Bluetooth
devices for the cell phone functionality and the Bluetooth
audio music playback feature at the same time.
Conn.
Disconnects the selected cell phone. Select this option and
confirm when asked to. After disconnecting a cell phone, it
can be connected again without repeating the full pairing
process.
Discon.
*In some cases the phone will request to enter a PIN. Enter the four-digit PIN provided by
the system in the audio display. The display indicates when the pairing is successful.
Media Menu Features
The media menu allows you to select how
to play your music, for example by artist,
genre, shuffle or repeat, and to find similar
music or reset the index of your USB
devices.
Press the OPTION buttons to get these
features.
Description and ActionMessage
Choose to shuffle or repeat your music. Once you make your
choice, it remains on until you switch it off.
Shuffle
Choose to shuffle or repeat your music. Once you make your
choice, it remains on until you switch it off.
Repeat track
Using Ford Audio With Your Media
Player
You can access and play music from your
media player through your vehicle's
speaker system using the system's media
menu. You can also sort and play your
music by specific categories, for example
artist or albums.
Ford Audio is capable of hosting nearly any
media player including: iPod, from device
players, and most USB drives. Ford Audio
also supports audio formats, for example
MP3, WMA, WAV and ACC.
Confirm that the USB device has been
formatted correctly and has the following
specifications:
•USB 2.0.
•File format must be FAT16/32.
Note: NTFS file format is not supported.
18 (G1828911)
Ranger (TKD, TKE) , enAUS
Audio System
The format of the audio files on the USB
device must be:
•MP3.
•Non DRM protected WMA.
•WAV.
•AAC.
Connecting Your Media Player to
the USB Port
Note: If your media player has a power
switch, make sure you switch on the device.
To Connect Using the System Menu
1. Plug the device into your vehicle's USB
port.
2. Press the MEDIA button to select USB
then an initializing message appears in
the display. Initialization can take
several minutes depending on the
content of the device. Once initialized
your music will automatically begin
playing.
Accessing Your USB Song Library
1. Plug the device into your vehicle's USB
port.
2. Press MEDIA button to select USB
playback.
Description and ActionMessage
This menu allows you to select and play your media files by
artist, album, genre, playlist and track or even to browse what
is on your USB device.
Browse USB
If there are no media files to access, the
display indicates there is no media. If there
are media files, you have the following
options to scroll through and select:
Description and ActionMessage
Play all indexed media files from your playing device one at
a time in numerical order.*
Play all
1. Press OK to select. The first track title appears in the
display.
Access your playlists from formats, ASX, M3U, WPL or MTP.*
1. Press OK to select.
2. Scroll to select the desired playlist, and then press OK.
Playlists
Search for and play a specific indexed track. *
1. Press OK to select.
2. Scroll to select the desired track, and then press OK.
Songs
19 (G1828911)
Ranger (TKD, TKE) , enAUS
Audio System
Description and ActionMessage
Sort all indexed media files by artist. Once selected, the
system lists and then plays all artists and tracks alphabetic-
ally.*
1. Press OK to select.
2. Scroll to select the desired artist, and then press OK.
Artists
Sort all indexed media files by albums.*
1. Press OK to select.
2. Scroll to select the desired albums, and then press OK.
Albums
Sort indexed music by genre type.*
1. Press OK to select.
2. Scroll to select the desired genre, and then press OK.
Genres
Browse all supported media files on your media player
connected to the USB port. You can only view media files
that are compatible with SYNC; other saved files are not
visible.
1. Press OK to select.
2. Scroll to browse indexed media files on your flash drive,
and then press OK.
Browse USB
Resets the USB index. After the new indexing is complete,
you can choose what to play from the USB song library.
Reset USB
* You can use the buttons at the bottom of the audio display to jump to a certain
alphabetical category quickly. You can also use the letters on the numeric keypad to jump
in the list.
AUDIO UNIT CLOCK AND DATE
DISPLAYS (G1829042)
Changing the Time
The clock can be set at any time when the
system is in the one hour mode or the
ignition switch is in the ACC or ON position.
Note: The time can be adjusted using the
clock button on the audio control panel.
Note: The time can be adjusted using the
cursor arrow buttons on the audio control
panel.
1. Press the MENU button.
2. Use the up and down arrow button to
select the clock settings.
3. Press OK button or right arrow button
to enter clock settings.
4. Use the up and down arrow button to
select the set time.
20 (G1829042)
Ranger (TKD, TKE) , enAUS
Audio System
5. Use the up and down arrow button to
adjust hours.
6. Use the right and left arrow button to
scroll to the minutes.
7. Use the up and down arrow button to
adjust minutes.
8. Use the OK button to save the settings.
Note: If the power supply to the unit is
interrupted (if the fuse blows or the vehicle's
battery is disconnected), the clock will need
to be reset.
21 (G1829042)
Ranger (TKD, TKE) , enAUS
Audio System
TYPE APPROVALS (G1832672)
FCC Regulatory Notices
Modification Statement
Visteon Corporation has not approved any
changes or modifications to this device by
the user. Any changes or modifications
could void the user’s authority to operate
the equipment.
Interference Statement
This device complies with Part 15 of the
FCC Rules. Operation is subject to the
following two conditions: (1) this device
may not cause interference, and (2) this
device must accept any interference,
including interference that may cause
undesired operation of the device.
Wireless Notice
This device complies with FCC radiation
exposure limits set forth for an
uncontrolled environment and meets the
FCC radio frequency (RF) Exposure
Guidelines. This transmitter must not be
co-located or operating in conjunction with
any other antenna or transmitter.
FCC Class B Digital Device Notice
This equipment has been tested and found
to comply with the limits for a Class B
digital device, pursuant to part 15 of the
FCC Rules. These limits are designed to
provide reasonable protection against
harmful interference in a residential
installation. This equipment generates,
uses and can radiate radio frequency
energy and, if not installed and used in
accordance with the instructions, may
cause harmful interference to radio
communications. However, there is no
guarantee that interference will not occur
in a particular installation. If this equipment
does cause harmful interference to radio
or television reception, which can be
determined by turning the equipment off
and on, the user is encouraged to try to
correct the interference by one or more of
the following measures:
•Reorient or relocate the receiving
antenna.
•Increase the separation between the
equipment and receiver.
•Connect the equipment into an outlet
on a circuit different from that to which
the receiver is connected.
•Consult the dealer or an experienced
radio/TV technician for help.
Bluetooth
The Bluetooth word mark and logos are
owned by the Bluetooth SIG, Inc. and any
use of such marks by Ford Motor Company
is under license. Other trademarks and
trade names are those of their respective
owners.
iPod
iPod is a trademark of Apple Inc.
European Union
22 (G1832672)
Ranger (TKD, TKE) , enAUS
Appendices
Hereby, Visteon Corporation, declares that
this Ford Audio is in compliance with the
essential requirements and other relevant
provisions of Directive 1999/5/EC. The
declaration of conformity may be
consulted at coc@ford.com.
Note: The type approval label is on the
main body of the audio unit.
23 (G1832672)
Ranger (TKD, TKE) , enAUS
Appendices
24 (G1832672)
Ranger (TKD, TKE) , enAUS
A
A/C
See: Climate Control ()...........................................4
About This Supplement (G1832667)....................3
Air Conditioning
See: Climate Control ()...........................................4
Appendices.......................................................22
Audio System.....................................................6
Audio Unit Clock and Date Displays
(G1829042)...............................................................20
Changing the Time..............................................20
Audio Unit - Vehicles With: AM/FM/Aux
In/USB/Bluetooth (G1828911).............................6
Accessing Your USB Song Library...................19
Alternative Frequencies......................................10
Automatic Volume Control...............................10
Autostore Control...................................................9
Connecting Your Media Player to the USB
Port........................................................................19
Digital Signal Processing (DSP).....................10
Ford Audio.................................................................11
Media Menu Features..........................................18
News Broadcasts..................................................10
On, Off, Volume Control Knob...........................8
Regional Mode........................................................11
Sound Button...........................................................8
Station Preset Buttons.........................................8
Station Tuning Control.........................................8
Traffic Information Control.................................9
Using Ford Audio With Your Media
Player....................................................................18
Waveband Button..................................................8
C
Climate Control.................................................4
H
Heating
See: Climate Control ()...........................................4
I
Introduction........................................................3
M
Manual Climate Control (G1755900)....................4
T
Type Approvals (G1832672)...................................22
Bluetooth.................................................................22
European Union....................................................22
FCC Regulatory Notices.....................................22
iPod............................................................................22
V
Ventilation
See: Climate Control ()...........................................4
25
Ranger (TKD, TKE) , enAUS
Index
26
Ranger (TKD, TKE) , enAUS
