IFU-02, VitalPatch IFU, Rev. F draft
IFU-02, Rev. F, XXXX Page 1 of 14
VITALCONNECT PLATFORM®
INSTRUCTIONS FOR USE, VITALPATCH®
IFU-02, Rev. F, XXXX Page 2 of 14
Device Description
The VitalConnect Platform® is a wireless physiological monitoring system. The VitalConnect Platform
was developed with an Application Programming Interface intended to allow development of user
interface applications enabling healthcare professionals to access collected vital information. The
platform consists of:
Wearable Biosensor (includes Adhesive Patch and integrated Sensor Module for VitalPatch®)
Relay Software Library
Server Software Library (Optional)
VitalPatch is a battery-operated adhesive patch with integrated sensors and wireless transceiver, worn
on the torso to record heart rate, electrocardiography (ECG), heart rate variability, R-R interval,
respiratory rate, skin temperature, fall detection, activity (including step count) and posture (body
position relative to gravity including fall detection). VitalPatch continuously gathers physiological data
from the person being monitored and then transmits encrypted data via bi-directional communication
to the relay device when in range of the relay. The encrypted wireless data provided by the Sensor
may be downloaded from the relay device for storage, or integrated into a Third-Party Relay
Application via the APIs of the Relay Software Library. In addition, the wireless data may be
transferred to an optional Secure Server where they may be stored for future analysis.
During normal operation, data are collected by VitalPatch and transmitted to the Relay immediately.
A continuous connection is needed between the Sensor and the Relay in order to facilitate continuous
data transmission. The continuous wireless transmission of the data occurs with a delay or latency of
seconds between continuous data collection and transmission. Data can be stored and downloaded
from the Relay. Data can continue to be transferred to an optional Secure Server if there is an active
server connection.
Authorized healthcare professionals can configure the system parameters via the API to generate
notification of changes in measured data. With the connection to the Secure Server, a notification is
triggered when configured physiologic data parameters are exceeded. Notification can be transmitted
to a generic display device (i.e. smartphone, tablet, PC or monitor).
VitalPatch is available in two different adhesive configurations: Gentle (Silicone adhesive) and Active
(Hydrocolloid adhesive). The Active patch provides improved adhesion in humid environments, during
physical activity, fever, and perspiration. Silicone adhesives provide lower skin stress during removal
than hydrocolloid. However, in high humidity or perspiration conditions silicone adhesives can cause
mild irritation and have reduced adhesion.
IFU-02, Rev. F, XXXX Page 3 of 14
Indications for Use
The VitalConnect Platform is a wireless remote monitoring system intended for use by healthcare
professionals for continuous collection of physiological data in home and healthcare settings. This can
include heart rate, electrocardiography (ECG), heart rate variability, R-R interval, respiratory rate, skin
temperature, activity (including step count), and posture (body position relative to gravity including
fall). Data are transmitted wirelessly from the VitalConnect Sensor for storage and analysis. The
VitalConnect Platform can include the ability to notify healthcare professionals when physiological
data fall outside selected parameters.
The device is intended for use on general care patients who are 18 years of age or older as a general
patient monitor, to provide physiological information. The data from the VitalConnect Platform are
intended for use by healthcare professionals as an aid to diagnosis and treatment. The device is not
intended for use on critical care patients.
Contraindications:
The device is not intended for use on users who have implanted defibrillators or
pacemakers.
The device is not intended as a stand-alone diagnostic monitor, but the data may be
applicable for use in diagnosis.
Warnings:
Depending on wireless connectivity, a temporary interruption of data transmission is
possible, which may impact continuous or real-time monitoring. Data will be stored on
VitalPatch for transfer once connectivity is reestablished.
The nature of silicone or hydrocolloid adhesives may cause adverse skin reactions.
Healthcare providers should advise patients to seek medical attention if either of the
following occurs:
o A severe adverse event
o An allergic reaction persisting beyond 2-3 days
Histories of skin irritations should be considered before placing the patch on a patient.
Do not place device on broken skin.
This device is not intended to replace appropriate medical supervision and safe
practices.
Clinical validation has not been performed on patients who are pregnant or
breastfeeding.
Do not use this device during an MRI scan or in a location where it will be exposed to
strong electromagnetic forces.
Precautions:
For data to be sent to a healthcare professional for review:
o The battery must have adequate power for data transmission. Notification will
indicate that the battery power is low.
IFU-02, Rev. F, XXXX Page 4 of 14
o The patch must be attached to the patient. Notification will indicate if the patch
is off the body or not properly attached.
o The patient must remain in range of their relay (i.e. smartphone, PC, tablet, body
worn cellular modem or wall mount device). Notification will indicate that the
sensor has disconnected from the relay.
o The relay must remain charged and functional for data transmission. Wireless
connectivity must be active for transmission of data from the relay to the server.
Healthcare providers must be aware if uninterrupted continuous data monitoring is
necessary for patient safety, treatment in home setting may not be appropriate. If
considered medically necessary, additional measures may be taken to ensure
appropriate care and monitoring is provided to meet the clinical need.
Data collected by VitalPatch for patients experiencing cardiac arrhythmia may indicate
slightly elevated respiratory rate values, compared to visual observation, for the
duration of the active arrhythmic episode.
If connected to other devices/system through the same user interface (i.e. mobile
phone), while connected to the VitalConnect Platform via a Bluetooth connection, please
note that performance of either or both Bluetooth connected devices/system could
potentially be affected.
Similar devices may cause signal interference during data transmission. If you experience
this affect, steer clear of interfering devices.
Do not use the device if the package has been opened, or appears used, damaged, or
expired.
Do not wear device over excessive body hair in the torso area. Excessive body hair
should be removed several hours before application.
Do not use the Silicone adhesive device when showering or bathing.
Hydrocolloid adhesive devices will adhere in moist environments. They will not be
damaged while showering. Minimize exposure directly under the shower head, excessive
contact with soap, or scrubbing. Gently dry device after showering. Submersing the
device or using in a sauna is not recommended. If submersion occurs the duration must
be less than 5 minutes and less than 18 inches in depth.
If discomfort or irritation occurs in patient, device should be removed. If using a Silicone
adhesive device, you may transfer it to another recommended torso location. Wear only
one device at a time.
If you experience mild soreness or redness after removing the device, do not apply a
new device in the same location. Choose another recommended location.
Incorrect handling, excessive force, or dropping the device may cause malfunction or
permanent damage.
Keep the device away from children and pets. The device may be a choking hazard, and
may be harmful if swallowed.
If any component of the VitalConnect Platform fails to operate after attempting all
suggested troubleshooting methods, contact your healthcare provider immediately.
Clinical validation performed in elderly population, including elderly subjects (Age 59 to
86) with a BMI (Body Mass Index) range of 13.5-59.5 kg/m2.
Dispose of VitalPatch per local laws, care facility laws or hospital laws for routine/non-
hazardous electronic waste.
IFU-02, Rev. F, XXXX Page 5 of 14
Storage and Handling
Storage temperature range: 0 – 40o C
Storage relative humidity range: 10 – 95% RH
Ensure your hands are clean and dry before handling VitalPatch. Gloves are recommended for
healthcare professionals when handling the Sensor.
System Interoperability
The VitalConnect platform is developed with an Application Programming Interface (API) intended to
allow development of user interface applications enabling healthcare professionals to access collected
vital information. Please contact VitalConnect, Inc. to obtain implementation information, including
the VitalConnect Platform Integration Manual – Developer Guide.
VitalPatch Operating Instructions

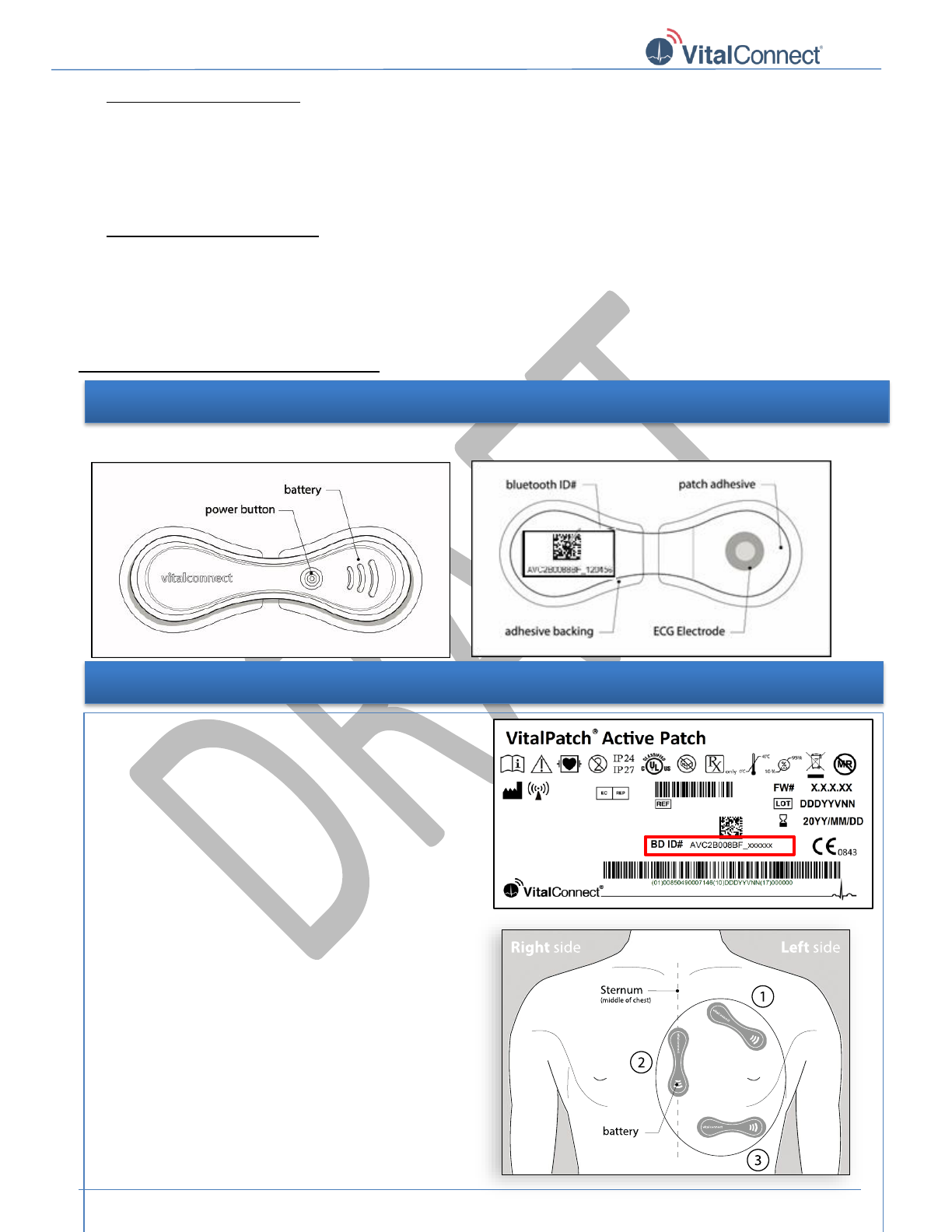

VitalPatch Overview
Top view Bottom View
Skin Preparation and Application
1. Remove from pouch
Tear open the pouch and remove the VitalPatch
carefully to avoid pressing the Power Button.
Retain the pouch or the adhesive backing with
the device Bluetooth ID #. You will need this
information to connect to your software
application after the patch is applied.
2. Prepare skin
Select a location for patch placement within the
oval region (adjust placement away from nipple
and armpit):
1) Upper chest at a 45 degree angle
2) Center of the chest on the sternum
3) Below chest on the rib cage.
For men, shave chest hair where the patch will
be applied. Use isopropyl alcohol to clean skin
and allow site to dry.
IFU-02, Rev. F, XXXX Page 6 of 14
A. Gentle VitalPatch
Grip one end of the patch and pull away from skin. Place the patch adhesive side up on a clean
and dry surface away from reach of children, pets, direct sunlight, and AC/fans, etc. Remove the
patch prior to showers and baths.
Gentle VitalPatch can be reapplied. Reapply used patch on clean and dry skin.
B. Active VitalPatch
Use of an adhesive tape remover is recommended. Gently sweep the remover pad under the
patch and pull away from skin.
Active VitalPatch cannot be reapplied.
For application of a new patch, it is recommended to use a different location within the oval
application area.
Removal and Re-application
Important: Refer to your software application provider’s user manual for more instructions on
how to connect to the VitalPatch. A connection is required to establish a start time in the data
file. After connecting, walk approximately 30 steps to automatically calibrate posture. For
calibrating your VitalPatch manually, refer to your software application provider’s user manual.
Connect

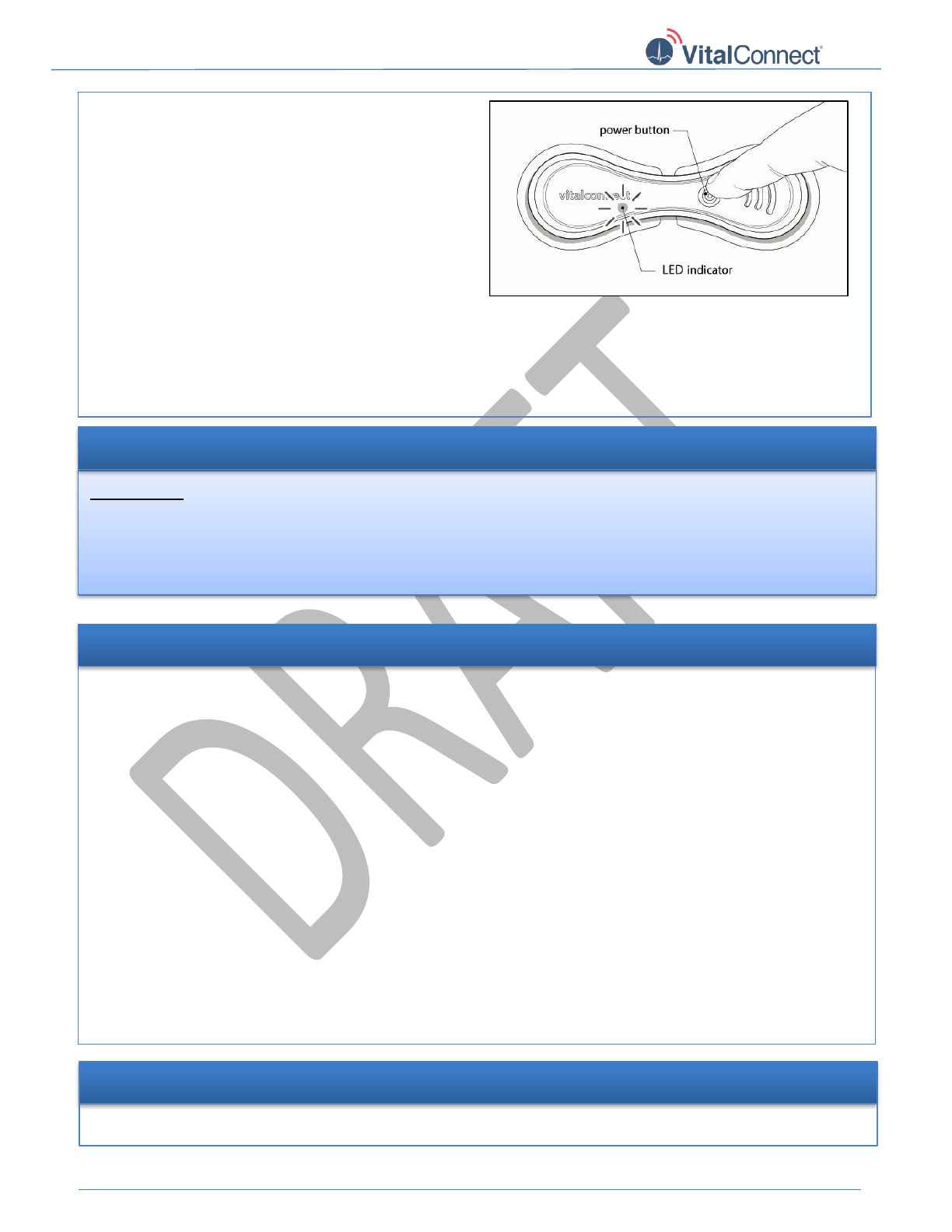

3. Power on
Locate and press the Power Button. Look for a
green light illuminating temporarily to confirm
the device is powered on.
4. Apply to Left Chest
Follow the battery orientation indicated in step 2 for proper patch placement. Remove the
adhesive backings from the patch and apply to your prepared skin. Press down on both ends of
the patch to ensure it is well adhered to your skin. Avoid exercise for at least 30 minutes after
patch application.
Disposal
Please observe local laws for disposal of battery-operated electronic products.
IFU-02, Rev. F, XXXX Page 7 of 14
It is recommended that healthcare providers advise users to replace a patch after 96 hours (4 days) of
use. To preserve data, VitalPatch must be connected to the Relay prior to the end of battery life (96
hours).
Troubleshooting
Basic troubleshooting includes the following:
- Make sure that the “VitalPatch Operating Instructions” have been followed.
- If the Patch is lifting from the skin surface, press down firmly on the areas of the Patch that
lifted to reattach it to the skin. If the problem persists, use a new patch.
- For other issues, attempt the following:
o Restart the application and reconnect to VitalPatch. Or if that does not resolve the
issue, then
o Turn off Bluetooth. Turn back on Bluetooth. Start the application and reconnect to
VitalPatch. Or if that does not resolve the issue, then
o Power down the relay. Turn back on the relay. Start the application and reconnect
to VitalPatch.
Issues that need troubleshooting may relate to the user interface application developed by
mobile healthcare professionals to use with the VitalConnect Platform. For example, messages
such as “Communication not established”, “Communication lost”, “Battery low”, “Bad Battery”,
may be generated as part of the functionalities of the user interfacing. Please refer to their
instructions for use for additional troubleshooting guidance. For additional information
regarding the proper use of the VitalConnect Platform and mobile service provider user
interface, please contact the prescribing physician, caregiver, or healthcare provider.
VitalConnect Contact Information
VitalConnect Inc.
224 Airport Parkway, Suite 300
San Jose, CA 95110
USA
Phone: (408) 963-4600
www.vitalconnect.com
European Authorized Representative
Emergo Europe
Molenstraat 15
2513 BH The Hague
The Netherlands
Phone: (31) (0) 70 345-8570
Fax: (31) (0) 70 346-7299
IFU-02, Rev. F, XXXX Page 8 of 14
Product Specifications
Measurements
Specifications
ECG Dynamic Range
-10mV to +10mV
Heart Rate (stationary and
ambulatory)
30 – 200 Beats per Minute (<±5 or 10% Beats per Minute,
whichever is greater)
Respiration Rate
• 10-30 Breaths per Minute with a mean absolute error of less
than 3 Breaths per Minute, validated by clinical studies
• 4-42 Breaths per Minute with a mean absolute error of less
than 1.5 Breaths per Minute, validated by simulation studies
Skin Temperature
150C – 500C (≤± 0.30C )
Fall Detection
Fall or No Fall (> 90% Sensitivity and >98% Specificity)
Step Count
< 5% Absolute Error Compared to Manual Count
Step count is reset to 0 after step count 65535 is reached.
Posture Detection
Lying down, Upright, Walking, Running, or Leaning (>70%
Accuracy Compared to Visual)
System Specifications
Communications
Bluetooth (BT4.1)
Max. 10 Meters (30 Feet Line of Sight)
Radio Modulation
FSK (Frequency Shift Keying)
Radio Frequency
2.4 – 2.5GHz
Transmit power
≤10dbm
Security
AES-CCM 128 Bit Encryption (Advanced Encryption Standard-CCM
mode)
Battery
Battery Type
Zinc Air
Battery Voltage
DC 1.4V
Battery Life
96 Hours
Operating Conditions
Ambient Temperature
10 – 40 o C
Humidity
10 – 95% RH
Altitude
<3000 m
Barometric Pressure
70 kPa to 102 kPa
IFU-02, Rev. F, XXXX Page 9 of 14
Electromagnetic Emission Declaration
VitalPatch is intended for use in the electromagnetic environment specified below. The end
user of VitalPatch should assure that it is used in such an environment.
Emission test
Compliance
Electromagnetic environment
RF emissions CISPR 11
Group 1
VitalPatch uses RF energy only for its internal
function. Therefore, its RF emissions are very low and
are not likely to cause any interference in nearby
electronic equipment.
RF emissions CISPR 11
Class B
VitalPatch is suitable for use in all establishments,
including domestic establishments and those directly
connected to the public low-voltage power supply
network that supplies buildings used for domestic
purposes.
FCC Compliance
FCC ID:SPO-VCI-VP2
This VitalConnect Platform complies with part 15 of the FCC Rules. Operation is subject
to the following two conditions:
(1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including interference that may
cause undesired operation (FCC Title 47, Subpart A, Part 15.19(3)).
Changes or modifications not expressly approved by the party responsible for
compliance could void the user’s authority to operate the equipment (FCC Title 47,
Subpart A, Part 15.21)
Note: This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This
equipment generates uses and can radiate radio frequency energy and, if not installed
and used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the
user is encouraged to try to correct the interference by one or more of the following
measures (FCC Title 47, Subpart B, Part 15.105(b)):
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which
the receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
IFU-02, Rev. F, XXXX Page 10 of 14
Canada License-exempt
IC ID:11013A-VCIVP2
This device complies with Industry Canada license-exempt RSS standard(s). Operation is
subject to the following two conditions: (1) this device may not cause interference, and
(2) this device must accept any interference, including interference that may cause
undesired operation of the device.
Le present appareil est conforme aux CNR d'Industrie Canada applicables aux appareils
radio exempts de licence. L'exploitation est autorisee aux deux conditions suivantes : (1)
l'appareil ne doit pas produire de brouillage, et (2) l'utilisateur de l'appareil doit accepter
tout brouillage radioelectrique subi, meme si le brouillage est susceptible d'en
compromettre le fonctionnement.
Guidance and declaration – electromagnetic immunity
(For ME equipment ME system that are not life-supporting)
VitalPatch is intended for use in the electromagnetic environment specified below. The end
user of the VitalConnect Platform (including VitalPatch) should assure that it is used in such an
environment.
Immunity
test
IEC 60601
test level
Compliance
level
Electromagnetic environment- guidance
Radiated RF
IEC 61000-4-
3
10 V/m
80 MHz to
2.5 GHz
10 V/m
Portable and mobile RF communications
equipment should be used no closer to any part
of the VitalConnect Platform than the
recommended separation distance calculated
from the equation applicable to the frequency of
the transmitter.
Recommended separation distance
𝑑 = 1.17√𝑃 80 MHz to 800 MHz
𝑑 = 2.33√𝑃 800MHz to 2.5 GHz
where P is the maximum output power rating of
the transmitter in watts (W) according to the
transmitter manufacturer and d is the
recommended separation distance in meters (m).
Field strengths from fixed RF transmitters, as
determined by an electromagnetic site surveya
should be less than the compliance level in each
frequency range b.
Interference may occur in the vicinity of
equipment marked with the following symbol:
IFU-02, Rev. F, XXXX Page 11 of 14
NOTE 1 At 80 MHz and 800 MHz, the higher frequency range applies.
NOTE 2 These guidelines may not apply in all situations. Electromagnetic propagation is affected by
absorption and reflection from structures, objects, and people.
a Field strengths from fixed transmitters, such as base stations for radio (cellular/cordless) telephones
and land mobile radios, amateur radio, AM and FM radio broadcast and TV broadcast cannot be
predicted theoretically with accuracy. To assess the electromagnetic environment due to fixed RF
transmitters, an electromagnetic site survey should be considered. If the measured field strength in the
location in which VitalConnect Platform is used exceeds the applicable RF compliance level above, the
VitalConnect Platform should be observed to verify normal operation. If abnormal performance is
observed, additional measures may be necessary, such as re-orienting or relocating the VitalConnect
Platform.
b Over the frequency range 150 kHz to 80 MHz, field strengths should be less than 3 V/m.
Guidance and declaration – electromagnetic immunity
(For ME equipment ME system that are not life-supporting)
VitalPatch is intended for use in the electromagnetic environment specified below. The end user of the
VitalConnect Platform (including VitalPatch) should assure that it is used in such an environment.
Immunity test
IEC 60601 test
level
Compliance
level
Electromagnetic environment- guidance
Electrostatic
discharge (ESD)
IEC 61000-4-2
± 8 kV contact
± 15 kV air
± 8 kV contact
± 15 kV air
Floors should be wood, concrete, or ceramic
tile. If floors are covered with synthetic
material, the relative humidity should be at
least 30 %.
Power frequency
(50/60 Hz)
magnetic field
IEC 61000-4-8
30 A/m
30 A/m
Power frequency magnetic fields should be at
levels characteristic of a typical location in a
typical commercial or hospital environment.
NOTE: UT is the a.c. mains voltage prior to application of the test level.
IFU-02, Rev. F, XXXX Page 12 of 14
Recommended separation distance between portable and mobile RF communications equipment and
VitalConnect Platform
(For ME equipment ME system that are not life-supporting)
VitalPatch is intended for use in the electromagnetic environment in which radiated RF disturbances are
controlled. The end user of the VitalConnect Platform (including VitalPatch) can help prevent
electromagnetic interference by maintaining a minimum distance between portable and mobile RF
communications equipment (transmitters) and VitalPatch as recommended below, according to the
maximum output power of the communications equipment.
Rated maximum
output power of
transmitter
W
Separation distance according to frequency of transmitter
m
80 MHz to 800 MHz
𝑑 = 1.17√𝑃
800 MHz to 2.5 GHz
𝑑 = 2.33√𝑃
0.01
0.17
0.23
0.1
0.37
0.74
1
1.17
2.33
10
3.69
7.38
100
11.67
23.33
For transmitters rated at a maximum output power not listed above, the recommended separation
distance d in meters (m) can be estimated using the equation applicable to the frequency of the
transmitter, where P is the maximum output power rating of the transmitter in watts (W) according to
the transmitter manufacturer.
VitalPatch complies with the applicable requirements and relevant provisions of the Radio Equipment
Directive 2014/53/EU (RED).
Note 1: At 80 MHz and 800 MHz, the separation distance for the higher frequency range applies.
Note 2: These guidelines may not apply in all situations. Electromagnetic propagation is affected by
absorption and reflection from structures, objects, and people
General symbols

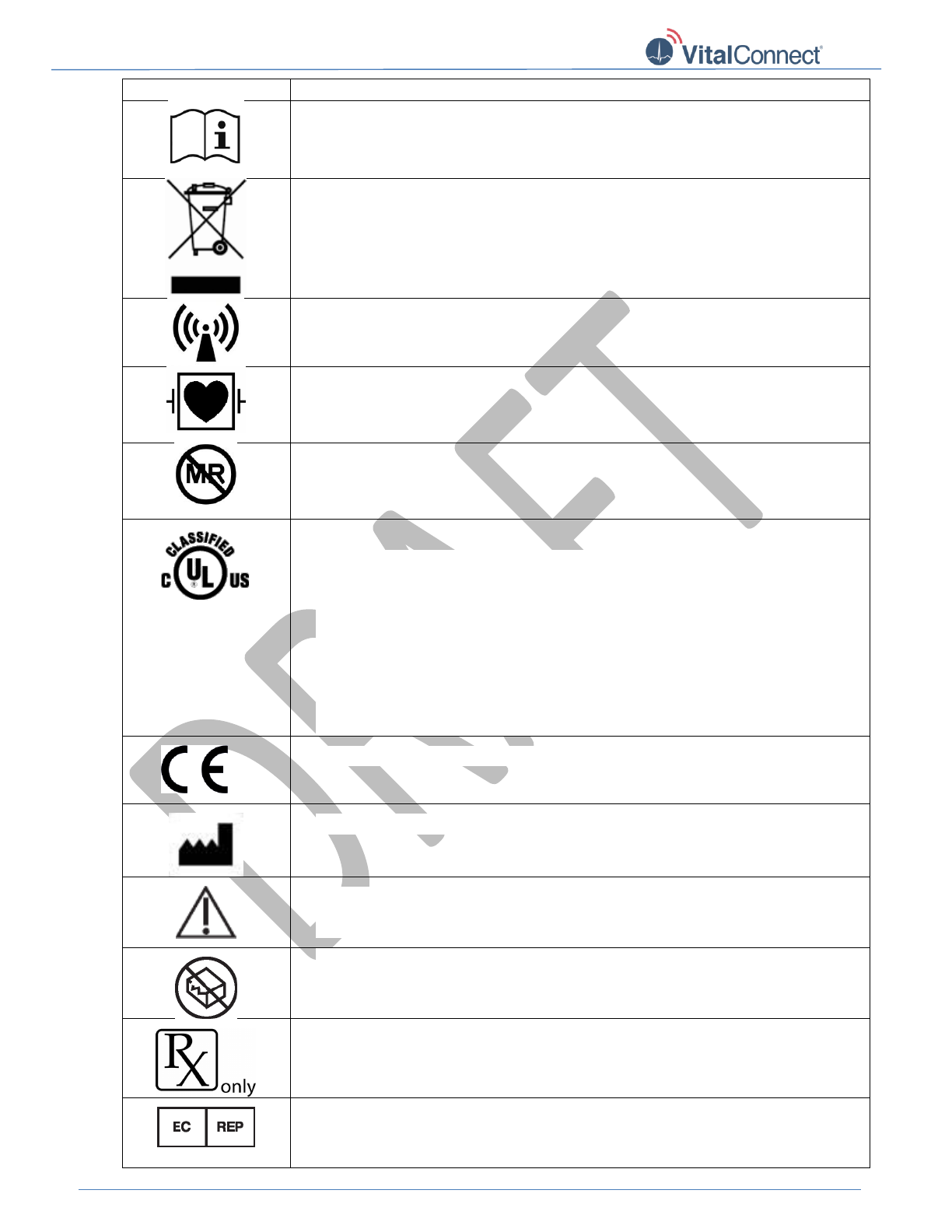

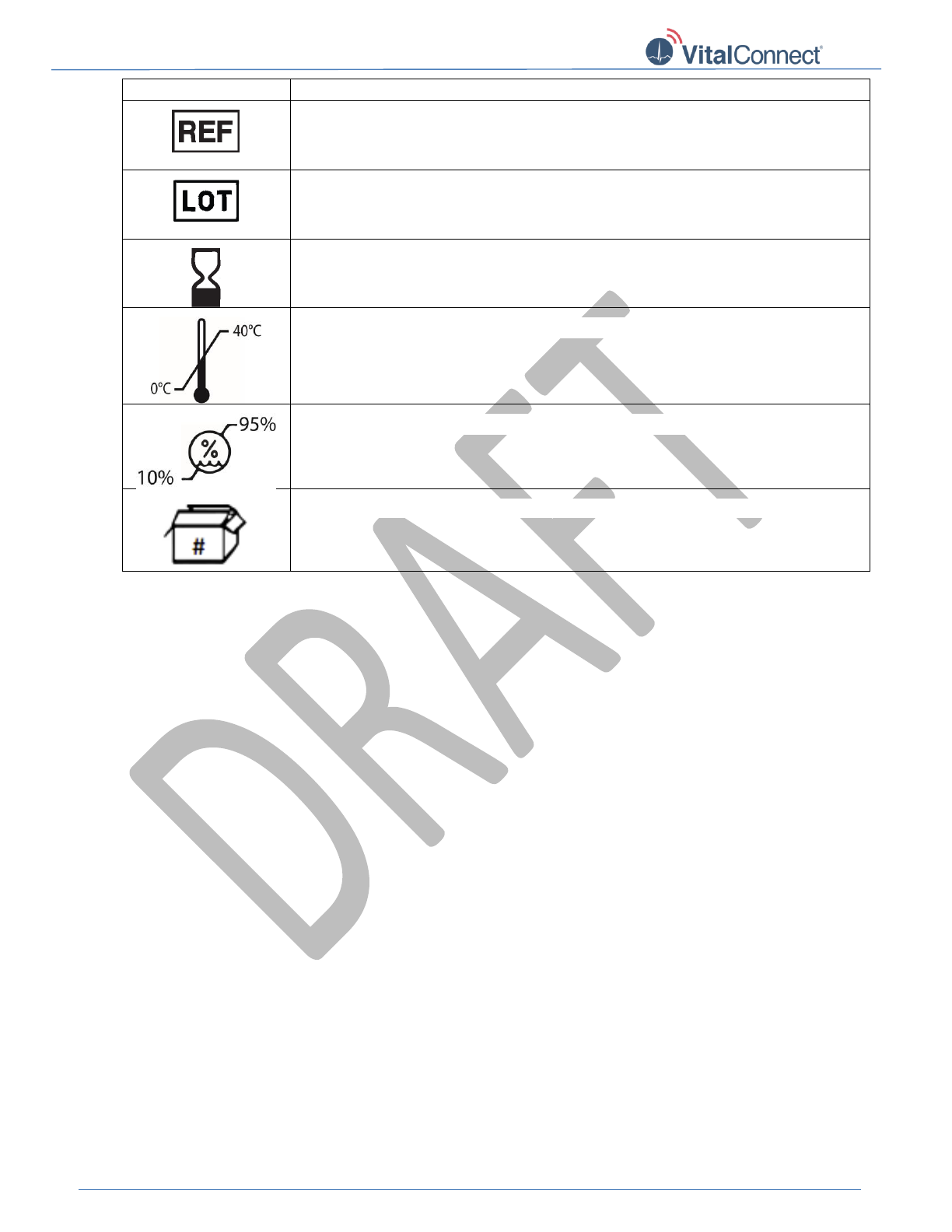

Symbol
Title
IP24
Protected against splashing water
IP27
Protected against submerging in water (up to 1 meter for 30 minutes)
Re-use is not allowed
IFU-02, Rev. F, XXXX Page 13 of 14
Symbol
Title
Read usage instructions
Properly dispose of EEE (Electrical and Electronic Equipment)
Non-ionizing radiation
Defibrillation proof type CF applied part
MR Unsafe
Underwriters Laboratories
MEDICAL — PATIENT MONITORING EQUIPMENT
AS TO ELECTRICAL SHOCK, FIRE AND MECHANICAL HAZARDS ONLY
IN ACCORDANCE WITH
ANSI/AAMI ES60601-1 (2005), "Medical Electrical Equipment - Part 1: General
Requirements for Basic Safety and Essential Performance; CAN/CSA-C22.2 No.
60601-1:08; ANSI/AAMI/IEC 60601-2-25,
"Medical Electrical Equipment - Part 2-25: Particular Requirements for the
Basic Safety and Essential Performance of Electrocardiographs" E358758
0843
CE Marking conformity
Manufacturer
Caution, consult documents
Not to be used in case package is damaged
Prescription only
Authorized Representative in the European Community
IFU-02, Rev. F, XXXX Page 14 of 14
Symbol
Title
Catalogue number
Batch code
Use by date
Temperature limits (Storage)
Humidity limits (Storage)
Contents (Numeral represents quantity of units inside)
