Vivint NM01 Vivint 2.4 GHz/5GHz WiFi Module User Manual NM01 user s manual 20170830
Vivint. Inc. Vivint 2.4 GHz/5GHz WiFi Module NM01 user s manual 20170830
Vivint >
Users Manual_rev2.pdf
8/31/2017
- 1 -
WIFI Module
Model No.: NM01
Release 0.2
2017/08/17
8/31/2017
- 2 -
1. I
NTRODUCTION
1.1. P
URPOSE
This document contains the product specification of 802.11 a/b/g/n/ ac Dual Band WiFi
Module for Vivint
2. S
PECIFICATION
2.1.
SYSTEM AND
H
ARDWARE
S
PECIFICATION
NM01
H.1 Processor
• MTK WiFi soc
H.2 System ROM
• 8MB SPI Flash
H.3 System RAM
• 128MB DDR 2
H.4 Host Interface • MII
• I
2
C
• SPI
• UARTx2
• USB
• JTAG
H.5 WiFi Interface • IPEX connector x2
H.6 Environment • Operation: Temp: 0
℃
~ 40
℃
Humidity: 20% ~ 85% non-condensing
• Storage: Temp: -25
℃
~ 70
℃
Humidity: 5% ~ 95% non-condensing
H.7 Certification • FCC/IC class B
Wireless
H.9 Frequency range • Frequency
FCC Frequency range: 2412~2462MHz,
FCC Frequency range: 5180~5240MHz, 5260~5320MHz, 5500~5700MHz,
5745~5825MHz
ISED Frequency range: 2412~2462MHz,
ISED Frequency range: 5180~5240MHz, 5260~5320MHz, 5500~5580MHz,
5660~5700MHz, 5745~5825MHz
8/31/2017
- 3 -

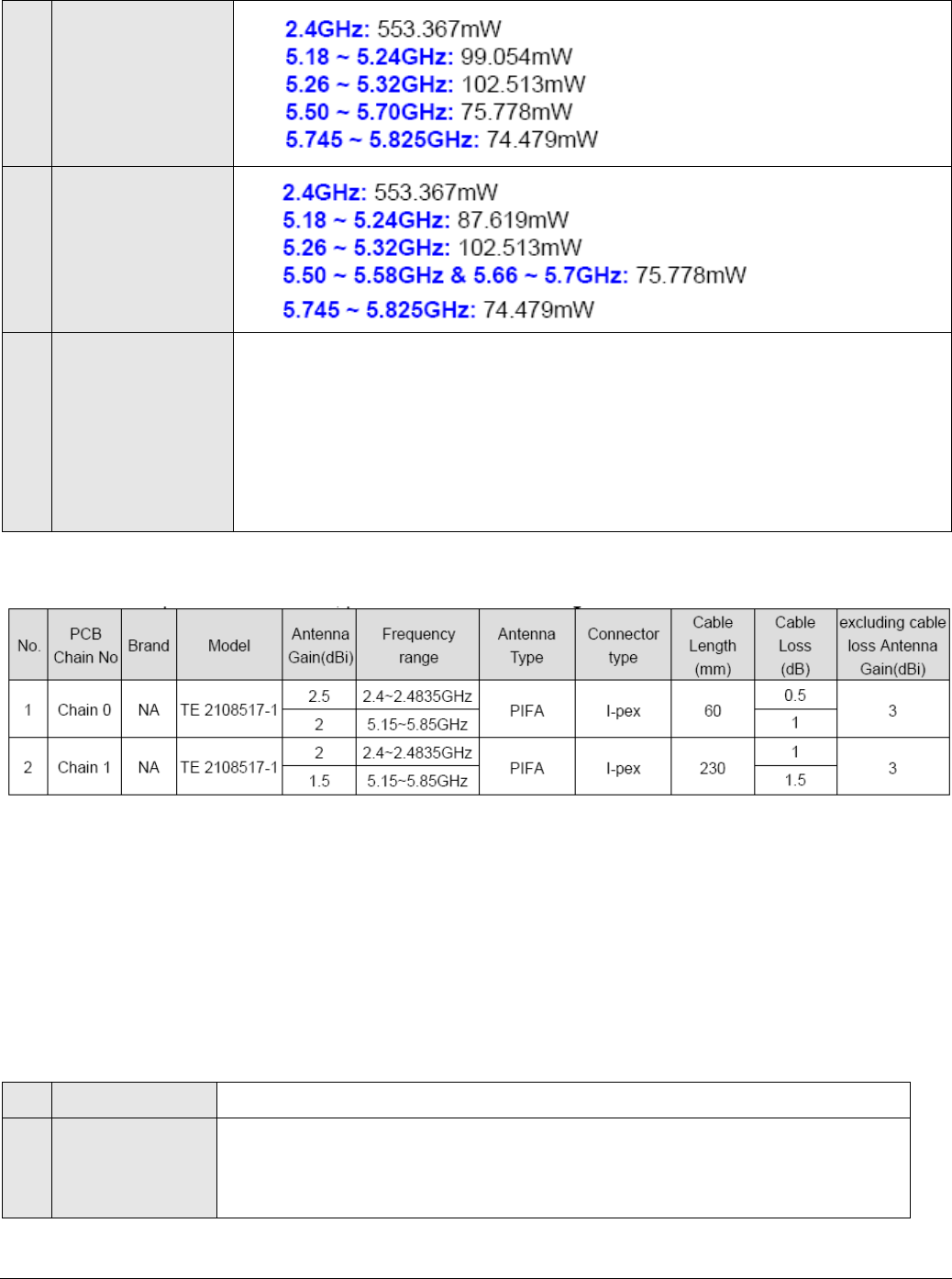

Output Power
(FCC)
Output Power
(ISED)
H.12
Sensitivity • 802.11b (2.4GHz) : -76dBm
• 802.11g (2.4GHz) : -65dBm
• 802.11n (2.4GHz) : -61dBm
• 802.11a (5GHz) : -65dBm
• 802.11n (5GHz) : -61dBm
• 802.11ac (5GHz): -51dBm

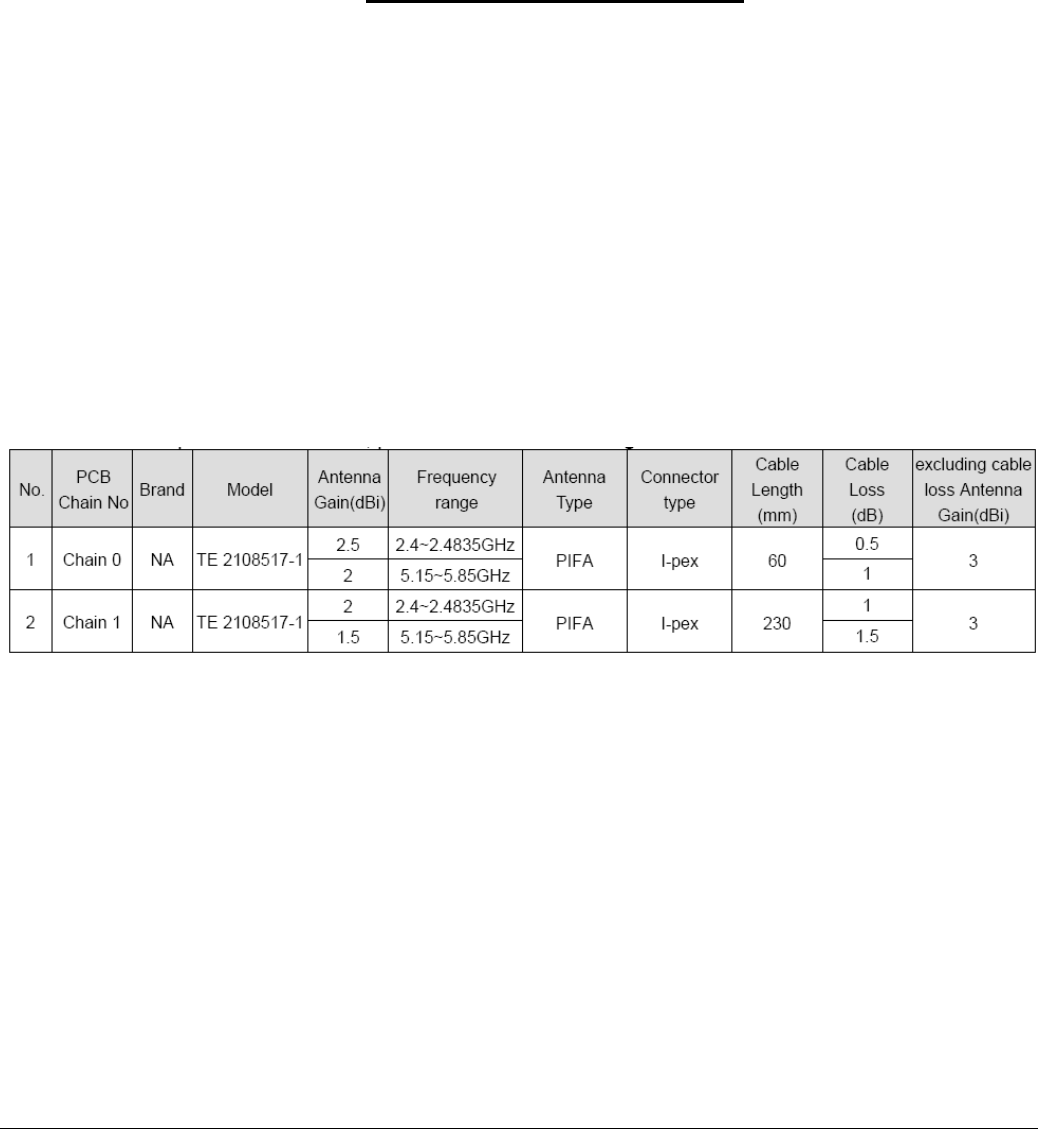

Antenna Spec.
2.2. S
OFTWARE REQUIREMENTS
F.1 OS • OpenWRT Barrier Breaker 14.07
F.2 Test features • Active Rx mode: independently selectable for 2.4 GHz and 5 GHz
• Constant Tx: unmodulated carrier independently selectable for 2.4 GHz and 5 GHz
(MTK driver will support constant Tx w/ modulated but un-modulated in test mode if
8/31/2017
- 4 -
possible).
• Constant Tx: modulated Carrier independently selectable for 2.4 GHz and 5 GHz
• Select fixed Tx Channel: all TX channels for 2.4 GHz and 5 GHz operation
• Select fixed bit rate: independently selectable for 2.4 GHz and 5 GHz transmit only
• Select fixed Tx Mode: b/g/n/ac
• Select fixed Tx power level: independently selectable for 2.4 GHz and 5 GHz
• Select communication to pass through only antenna 1 or antenna 2
• Enable/disable wired and/or wireless modes and connections
F.4 netv script
netv_manual.pdf
8/31/2017
- 5 -
3. C
ERTIFICATIONS
/T
EST
R
EPORTS
R
EQUIREMENT
EMC/RF Certificates and Test Reports (All Certification require to meet latest version)
3.1 Emission & Immunity for EMI/EMS
Required
EMI/EMC Test Report
Class
A
Class
B
Region
CE Report (EMC Directive of 2004/108/EC) for
ITE(Information Technology Equipment)
EN 55022 & EN 55024
EN 61000-3-2
EN 61000-3-3
EN
61000-4-2/3/4/5/6/8/11
(ESD/RS/FET/Surge/CS/Magentic/Dip)
Europea
n Union
FCC report
FCC CFR 47 Part 15 Subpart B & ANSI C63.4
(including ITE & Home Plug)
IC report
ICES-003 (ITE)
US
Canada
C-Tick Report
AS/NZS CISPR 22 (ITE)
New
Zealand
&
Australia
VCCI Report
V-3 & V4
JAPAN
KCC report
KN22/24 (ITE)
KOREA
Anatel
Brazil
BSMI
Taiwan
CCC
China
Others
Note: 1. All regulation will be followed the latest edition.
3.2 Radio Frequency & Human Exposure/SAR
Required
RF Test Report Categories Region
CE Report (R&TTE Directive of
1999/5/EC)
EN 300 328 for wireless 2.4GHz
802.11 ac/b/g/n
European
Union
8/31/2017
- 6 -
EN 301 893 for wireless 5 GHz + DFS
EN 50385
(Human exposure, distance between 20 cm)
EN 50371(output power less than 20 mw )
EN 62311(output power more than 20 mw )
FCC report
FCC CFR 47, Part 2,
FCC CFR 47, Part 15 Subpart C for 2.4GHz
FCC CFR 47, Part 15 Subpart E for 5 GHz +
DFS
FCC OET Bulletin 65 Supplement C.
(Human Exposure)
IEEE STD. 1528 (SAR)
802.11 ac/b/g/n
US/ FCC ID
IC report
RSS-GEN
RSS-102
RSS-247
802.11 ac/b/g/n
Canada/ IC ID
C-Tick Report
AS/NZS4771 for 2.4G & 5GHz
AS/NZS 4268 for 2.4G & 5GHz
802.11 ac/b/g/n
New Zealand
& Australia
(ACN 052 202
838 & Z567)
NCC Report
LP0002(低功率射頻電機技術規範)for 2.4G &
5GHz
802.11 ac/b/g/n
Taiwan
(XXXXXXXXX
...)
Others
Note: 1. All regulations will be followed the latest edition.
3.3 Safety
Required
Certifications Standard No. Region
cUL Listed Mark
UL file number should be under
vendor own
UL/CSA 60950-1
North/ South
America
CSA International Mark, see *)
CSA file number should be under
vendor own
IEC60950-1
UL60950-1
CSA60950-1
EN 60950-1
North/ South
America
CB Report IEC60950-1 Worldwide
8/31/2017
- 7 -
EN60950-1
CE (LVD report) EN60950-1 European Union
CCC GB4943-2001,
GB9254-1998,
GB17625.1-2003
China
Note: 1. All regulations will be followed the latest edition.
2. * The CSA international had been covered EN 60950-1, therefore CSA international report could
be replacement the LVD report.

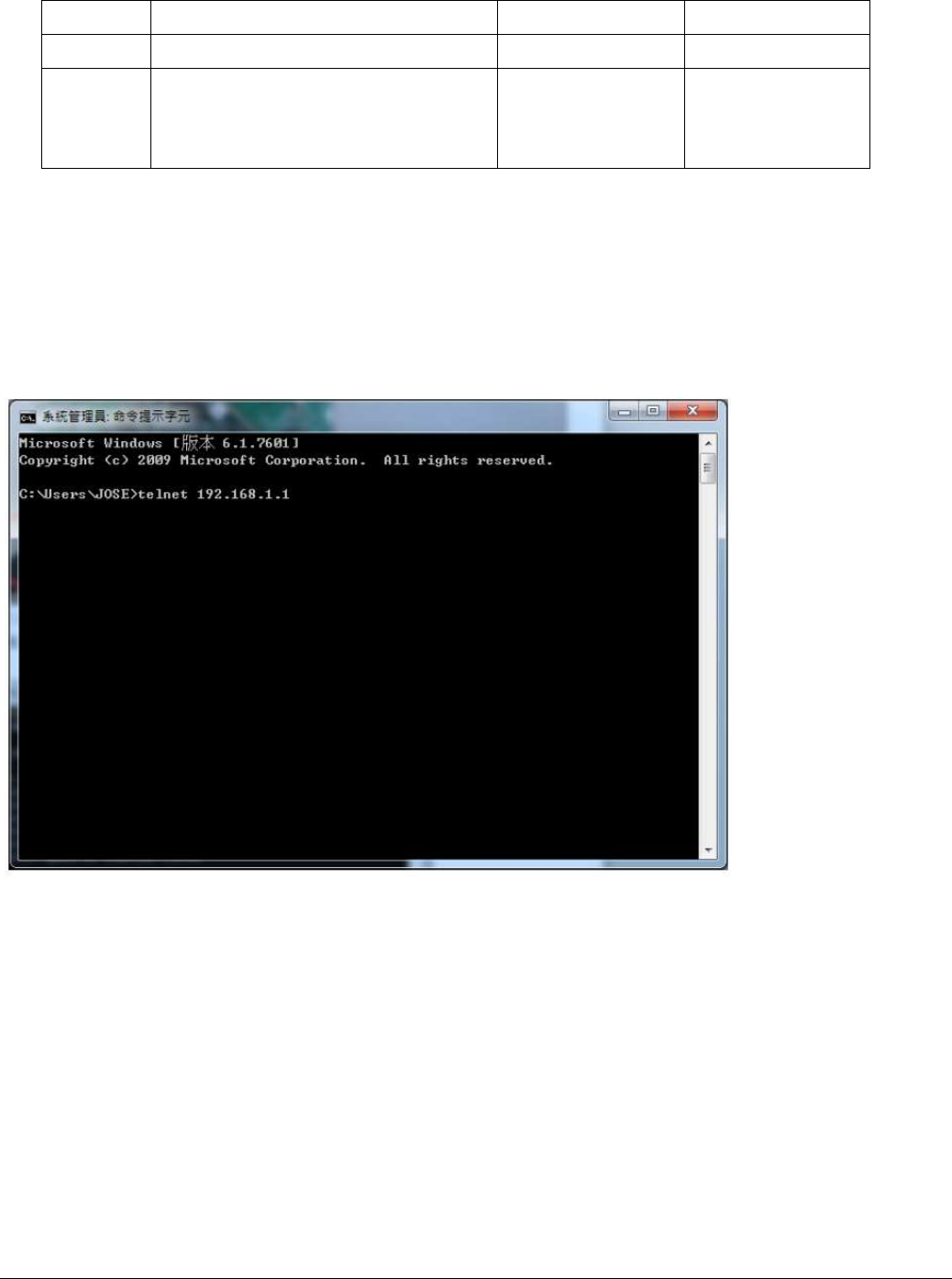

Setup Diagram
IP: 192.168.1.XX

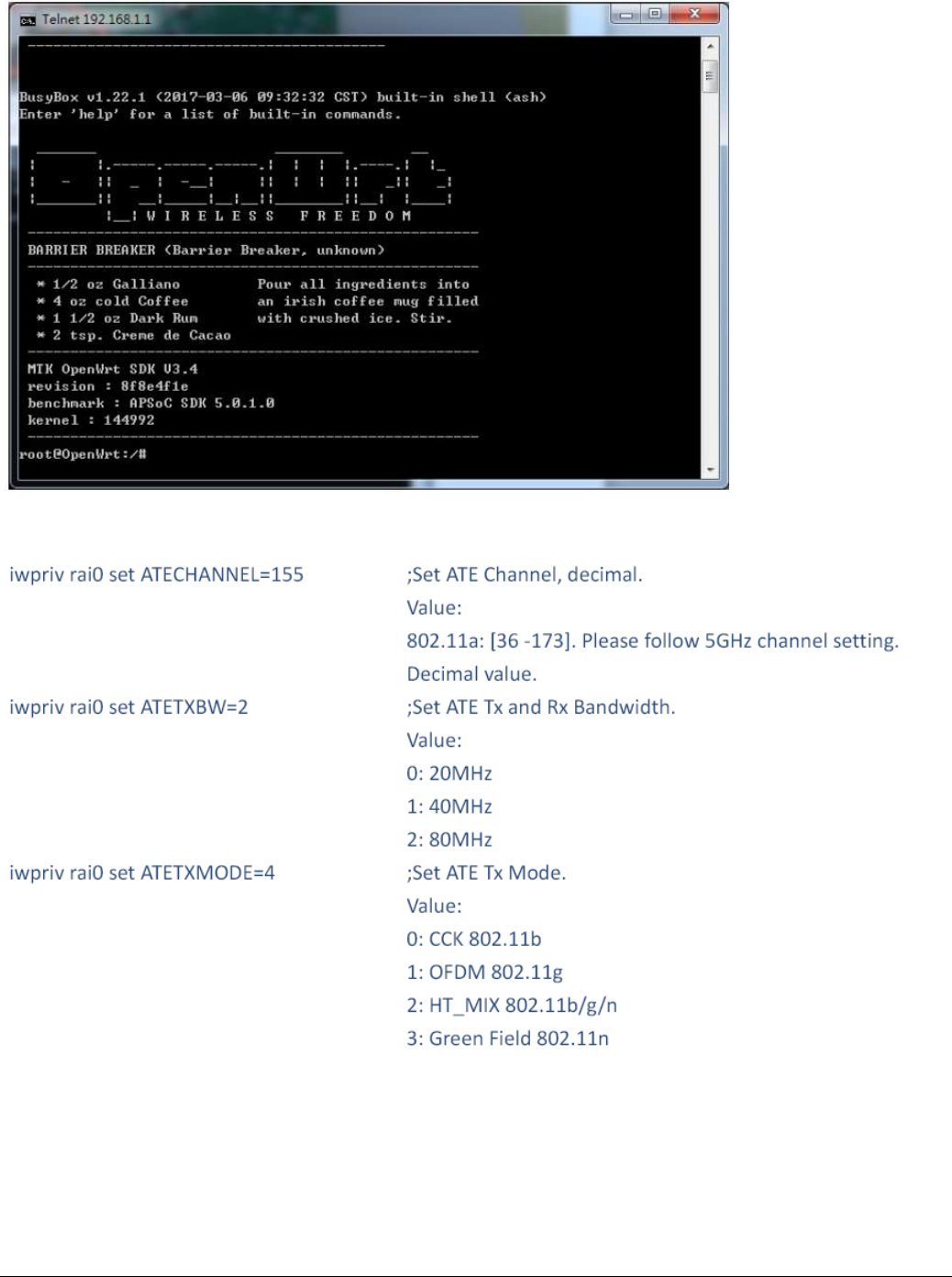

Cmd key in telnet 192.168.1.1
8/31/2017
- 8 -
8/31/2017
- 9 -
4. E
NVIRONMENTAL
I
MPACT
R
EQUIREMENT
• RoHS Compliance: All Components Compliant with RoHS Directive
5. W
ARNING
S
TATEMENT
Federal Communication Commission Interference Statement
This device complies with Part 15 of the FCC Rules. Operation is subject to the following
two conditions: (1) This device may not cause harmful interference, and (2) this device
must accept any interference received, including interference that may cause undesired
operation.
This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This
equipment generates, uses and can radiate radio frequency energy and, if not installed and
used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the user
is encouraged to try to correct the interference by one of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that
to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
FCC Caution: Any changes or modifications not expressly approved by the party
responsible for compliance could void the user's authority to operate this equipment.
This transmitter must not be co-located or operating in conjunction with any other antenna
or transmitter.
Radiation Exposure Statement:
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled
environment. This equipment should be installed and operated with minimum distance
20cm between the radiator & your body.
8/31/2017
- 10 -
This device is intended only for OEM integrators under the following conditions:
1) The antenna must be installed such that 20 cm is maintained between the antenna and
users.
2) The transmitter module may not be co-located with any other transmitter or antenna.
As long as 2 conditions above are met, further transmitter test will not be required. However,
the OEM integrator is still responsible for testing their end-product for any additional
compliance requirements required with this module installed
IMPORTANT NOTE: In the event that these conditions can not be met (for example certain
laptop configurations or co-location with another transmitter), then the FCC authorization is
no longer considered valid and the FCC ID can not be used on the final product. In these
circumstances, the OEM integrator will be responsible for re-evaluating the end product
(including the transmitter) and obtaining a separate FCC authorization.
End Product
Labeling
This transmitter module is authorized only for use in device where the antenna may be
installed such that 20 cm may be maintained between the antenna and users. The final end
product must be labeled in a visible area with the following: “Contains FCC ID:
2AAAS-NM01”. The grantee's FCC ID can be used only when all FCC compliance
requirements are met.
Manual Information To the End User
The OEM integrator has to be aware not to provide information to the end user regarding
how to install or remove this RF module in the user’s manual of the end product which
integrates this module.
The end user manual shall include all required regulatory information/warning as show in
this manual.
Industry Canada statement:
This device complies with Industry Canada’s licence-exempt RSSs. Operation is subject to the
following two conditions: (1) This device may not cause interference; and (2) This device must
8/31/2017
- 11 -
accept any interference, including interference that may cause undesired operation of the device.
Le présent appareil est conforme aux CNR d’ ISED applicables aux appareils radio exempts de
licence. L’exploitation est autorisée aux deux conditions suivantes : (1) le dispositif ne doit pas
produire de brouillage préjudiciable, et (2) ce dispositif doit accepter tout brouillage reçu, y
compris un brouillage susceptible de provoquer un fonctionnement indésirable.
Radiation Exposure Statement:
This equipment complies with ISED radiation exposure limits set forth for an uncontrolled
environment. This equipment should be installed and operated with minimum distance 20cm
between the radiator & your body.
Déclaration d'exposition aux radiations:
Cet équipement est conforme aux limites d'exposition aux rayonnements ISED établies pour un
environnement non contrôlé. Cet équipement doit être installé et utilisé avec un minimum de 20
cm de distance entre la source de rayonnement et votre corps.
This device is intended only for OEM integrators under the following conditions: (For module
device use)
1) The antenna must be installed such that 20 cm is maintained between the antenna and users.
2) The transmitter module may not be co-located with any other transmitter or antenna.
As long as 2 conditions above are met, further transmitter test will not be required. However, the
OEM integrator is still responsible for testing their end-product for any additional compliance
requirements required with this module installed.
Cet appareil est conçu uniquement pour les intégrateurs OEM dans les conditions suivantes: (Pour
utilisation de dispositif module)
1) L'antenne doit être installée de telle sorte qu'une distance de 20 cm est respectée entre
l'antenne et les utilisateurs.
2) Le module émetteur peut ne pas être coïmplanté avec un autre émetteur ou antenne.
Tant que les 2 conditions ci-dessus sont remplies, des essais supplémentaires sur l'émetteur ne
seront pas nécessaires. Toutefois, l'intégrateur OEM est toujours responsable des essais sur son
produit final pour toutes exigences de conformité supplémentaires requis pour ce module installé.
IMPORTANT NOTE:
8/31/2017
- 12 -
In the event that these conditions can not be met (for example certain laptop configurations or
co-location with another transmitter), then the Canada authorization is no longer considered valid
and the IC ID can not be used on the final product. In these circumstances, the OEM integrator
will be responsible for re-evaluating the end product (including the transmitter) and obtaining a
separate Canada authorization.
NOTE IMPORTANTE:
Dans le cas où ces conditions ne peuvent être satisfaites (par exemple pour certaines
configurations d'ordinateur portable ou de certaines co-localisation avec un autre émetteur),
l'autorisation du Canada n'est plus considéré comme valide et l'ID IC ne peut pas être utilisé sur le
produit final. Dans ces circonstances, l'intégrateur OEM sera chargé de réévaluer le produit final
(y compris l'émetteur) et l'obtention d'une autorisation distincte au Canada.
End Product Labeling
This transmitter module is authorized only for use in device where the antenna may be installed
such that 20 cm may be maintained between the antenna and users. The final end product must
be labeled in a visible area with the following: “Contains IC: 10941A-NM01”.
Plaque signalétique du produit final
Ce module émetteur est autorisé uniquement pour une utilisation dans un dispositif où l'antenne
peut être installée de telle sorte qu'une distance de 20cm peut être maintenue entre l'antenne et
les utilisateurs. Le produit final doit être étiqueté dans un endroit visible avec l'inscription suivante:
"Contient des IC: 10941A-NM01".
Manual Information To the End User
The OEM integrator has to be aware not to provide information to the end user regarding how to
install or remove this RF module in the user’s manual of the end product which integrates this
module.
The end user manual shall include all required regulatory information/warning as show in this
manual.
Manuel d'information à l'utilisateur final
L'intégrateur OEM doit être conscient de ne pas fournir des informations à l'utilisateur final quant à
la façon d'installer ou de supprimer ce module RF dans le manuel de l'utilisateur du produit final
qui intègre ce module.
8/31/2017
- 13 -
Le manuel de l'utilisateur final doit inclure toutes les informations réglementaires requises et
avertissements comme indiqué dans ce manuel.
Caution :
(i) the device for operation in the band 5150-5250 MHz is only for indoor use to reduce the
potential for harmful interference to co-channel mobile satellite systems;
(ii) the maximum antenna gain permitted for devices in the bands 5250-5350 MHz and 5470-5725
MHz
shall be such that the equipment still complies with the e.i.r.p.
limit
;
(iii)
the
maximum antenna gain permitted for devices in the band 5725-5850 MHz
shall be such
that the equipment still complies with the e.i.r.p. limits specified for point-to-point
and
non-point-to-point operation as appropriate; and
(iv)
the worst-case tilt angle(s) necessary to remain compliant with the e.i.r.p. elevation mask
requirement set forth in Section 6.2.2(3) shall be clearly indicated.
(v) Users should also be advised that high-power radars are allocated as primary users (i.e.
priority users) of the bands 5250-5350 MHz and 5650-5850 MHz and that these radars could
cause interference and/or damage to LE-LAN devices.
Avertissement:
Le guide d’utilisation des dispositifs pour réseaux locaux doit inclure des instructions précises sur
les restrictions susmentionnées, notamment :
(i) les dispositifs fonctionnant dans la bande 5150-5250 MHz sont réservés uniquement pour une
utilisation à l’intérieur afin de réduire les risques de brouillage préjudiciable aux systèmes de
satellites mobiles utilisant les mêmes canaux;
(ii)
le gain maximal d'antenne permis pour les dispositifs utilisant les bandes de 5250 à 5 350 MHz et
de
5470
à 5725 MHz doit être conforme à la limite de la p.i.r.e;
(iii)
le gain maximal d'antenne permis (pour les dispositifs utilisant la bande de 5 725 à 5 850 MHz)
doit être conforme à la limite de la p.i.r.e. spécifiée pour l'exploitation point à point et l’exploitation non
point à point, selon le cas;
(iv)
les pires angles d’inclinaison nécessaires pour rester conforme à l’exigence de la p.i.r.e.
applicable au masque d’élévation, et énoncée à la section 6.2.2 3), doivent être clairement indiqués.
8/31/2017
- 14 -
(v) De plus, les utilisateurs devraient aussi être avisés que les utilisateurs de radars de haute
puissance sont désignés utilisateurs principaux (c.-à-d., qu’ils ont la priorité) pour les bandes
5250-5350 MHz et 5650-5850 MHz et que ces radars pourraient causer du brouillage et/ou des
dommages aux dispositifs LAN-EL.
DETACHABLE ANTENNA USAGE
This radio transmitter (IC: 10941A-NM01 / Model: NM01) has been approved by ISED to operate
with the antenna type listed below with maximum permissible gain indicated. Antenna types not
included in this list, having a gain greater than the maximum gain indicated for that type, are
strictly prohibited for use with this device.
Le présent émetteur radio (IC: 10941A-NM01 / Model: NM01) a été approuvé par ISED pour
fonctionner avec les types d'antenne énumérés ci-dessous et ayant un gain admissible maximal.
Les types d'antenne non inclus dans cette liste, et dont le gain est supérieur au gain maximal
indiqué, sont strictement interdits pour l'exploitation de l'émetteur.
Approved antenna(s) list
