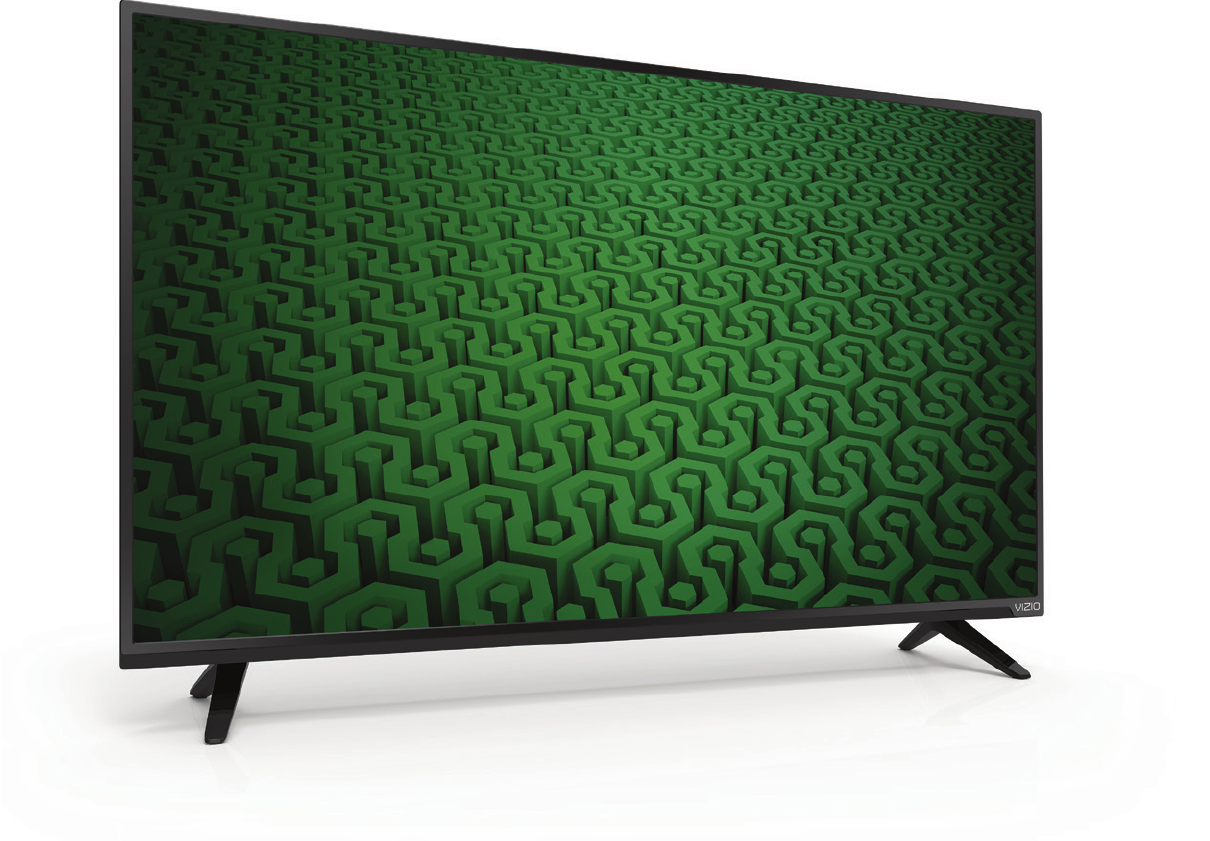

VIZIO
USER MANUAL
Model: D39h-C0
This product qualifies for ENERGY STAR in the “factory
default” setting and this is the setting in which power
savings will be achieved. Changing the factory default
picture settings or enabling other features will increase
power consumption that could exceed the limits necessary
to qualify for ENERGY STAR rating. For more information on
the ENERGY STAR program, refer to energystar.gov.
HDMI, the HDMI logo and High-Definition Multimedia
Interface are trademarks or registered trademarks of HDMI
Licensing LLC.
For DTS patents, see
http://patents.dts.com.
Manufactured under license from DTS Licensing Limited. DTS,
the Symbol, & DTS and the Symbol together are registered
trademarks, and DTS Studio Sound is a trademark of
DTS, Inc. © DTS, Inc. All Rights Reserved.
Manufactured under license from Dolby Laboratories. Dolby and
the double-D symbol are trademarks of Dolby Laboratories.
Welcome
THANK YOU FOR CHOOSING VIZIO
Congratulations on the purchase of your new VIZIO HDTV.
To get the most out of your new VIZIO product, read these
instructions before using your product and retain them for future
reference. Be sure to inspect the package contents to ensure
there are no missing or damaged parts.
PRODUCT REGISTRATION
To purchase or inquire about accessories and installation services
for your VIZIO product, visit our website at www.VIZIO.com or call
toll free at (877) 698-4946.
We recommend that you either:
• Register your VIZIO product at www.VIZIO.com
• Complete and mail the enclosed registration card
Extended Warranties
For peace of mind, and to protect your investment beyond the
standard warranty, VIZIO offers on-site extended warranty service
plans. These plans provide additional coverage during the
standard warranty period. To purchase an extended warranty
service plan, visit www.VIZIO.com.
WHEN READING THIS MANUAL
When you see this symbol, please read the
accompanying helpful tip.
IMPORTANT SAFETY INSTRUCTIONS
Your TV is designed and manufactured to operate within defined
design limits. Misuse may result in electric shock or fire. To prevent
your TV from being damaged, the following instructions should
be observed for the installation, use, and maintenance of your
TV. Read the following safety instructions before operating your
TV. Keep these instructions in a safe place for future reference.
• To reduce the risk of electric shock or component
damage, switch off the power before connecting other
components to your TV.
• Read these instructions.
• Keep these instructions.
• Heed all warnings.
• Follow all instructions.
• Do not use this apparatus near water.
• Clean only with dry cloth.
• Do not block any ventilation openings. Install in
accordance with the manufacturer’s instructions.
• Do not install near any heat sources such as radiators,
heat registers, stoves, or other apparatus (including
amplifiers) that produce heat.
• Do not defeat the safety purpose of the polarized or
grounding-type plug. A polarized plug has two blades
with one wider than the other. A grounding type plug
has two blades and a third grounding prong. The wide
blade or the third prong are provided for your safety. If
the provided plug does not fit into your outlet, consult an
electrician for replacement of the obsolete outlet.
• Protect the power cord from being walked on or pinched,
particularly at plugs, convenience receptacles, and the
point where they exit from the apparatus.
• Only use attachments/accessories specified by the
manufacturer.
• Use only with the cart, stand, tripod, bracket,
When you see this symbol, please read the
accompanying important warning or notice. It is
intended to alert you to the presence of important
operating instructions.
• Do not apply pressure or throw objects at your TV.
This may compromise the integrity of the display. The
manufacturer’s warranty does not cover user abuse or
improper installations.
• The power cord must be replaced when using different
voltage than the voltage specified. For more information,
contact your dealer.
• When connected to a power outlet, power is always
flowing into your TV. To totally disconnect power, unplug
the power cord.
• The lightning flash with arrowhead symbol within an
equilateral triangle is intended to alert the user to the
presence of un-isolated, dangerous voltage within the
inside of your TV that may be of sufficient magnitude to
constitute a risk of electric shock to persons.
• Do not overload power strips and extension cords.
Overloading can result in fire or electric shock.
• The wall socket should be installed near your TV and
easily accessible.
• Only power of the marked voltage can be used for your
TV. Any other voltage than the specified voltage may
cause fire or electric shock.
• Do not touch the power cord during lightning. To avoid
electric shock, avoid handling the power cord during
electrical storms.
• Unplug your TV during a lightning storm or when it will not
be used for long period of time. This will protect your TV
from damage due to power surges.
• Do not attempt to repair or service your TV yourself.
Opening or removing the back cover may expose you to
high voltages, electric shock, and other hazards. If repair
is required, contact your dealer and refer all servicing to
qualified service personnel.
• WARNING: Keep your TV away from moisture. Do not
expose your TV to rain or moisture. If water penetrates into
your TV, unplug the power cord and contact your dealer.
or table specified by the manufacturer, or sold
with the apparatus. When a cart is used, use
caution when moving the cart/apparatus
combination to avoid injury from tip-over.
• Unplug this apparatus during lightning storms or when
unused for long periods of time.
• Refer all servicing to qualified service personnel. Servicing
is required when the apparatus has been damaged in
any way, such as power-supply cord or plug is damaged,
liquid has been spilled or objects have fallen into the
apparatus, the apparatus has been exposed to rain
or moisture, does not operate normally or has been
dropped.
• Unplug the power cord before cleaning your TV.
• When moving your TV from an area of low temperature
to an area of high temperature, condensation may form
in the housing. Wait before turning on your TV to avoid
causing fire, electric shock, or component damage.
• A distance of at least three feet should be maintained
between your TV and any heat source, such as a radiator,
heater, oven, amplifier etc. Do not install your TV close to
smoke. Operating your TV close to smoke or moisture may
cause fire or electric shock.
• Slots and openings in the back and bottom of the
cabinet are provided for ventilation. To ensure reliable
operation of your TV and to protect it from overheating,
be sure these openings are not blocked or covered. Do
not place your TV in a bookcase or cabinet unless proper
ventilation is provided.
• Never push any object into the slots and openings on
your TV cabinet. Do not place any objects on the top of
your TV. Doing so could short circuit parts causing a fire
or electric shock. Never spill liquids on your TV.
• Your TV should be operated only from the type of power
source indicated on the label. If you are not sure of the
type of power supplied to your home, consult your dealer
or local power company.
Continuous use in this case may result in fire or electric
shock.
• Do not use your TV if any abnormality occurs. If any
smoke or odor becomes apparent, unplug the power
cord and contact your dealer immediately. Do not try to
repair your TV yourself.
• Avoid using dropped or damaged appliances. If your
TV is dropped and the housing is damaged, the internal
components may function abnormally. Unplug the power
cord immediately and contact your dealer for repair.
Continued use of your TV may cause fire or electric
shock.
• Do not install your TV in an area with heavy dust or high
humidity. Operating your TV in environments with heavy
dust or high humidity may cause fire or electric shock.
• Follow instructions for moving your TV. Ensure that the
power cord and any other cables are unplugged before
moving your TV.
• When unplugging your TV, hold the AC/DC power
adapter, not the cord. Pulling on the power cord may
damage the wires inside the cord and cause fire or
electric shock. When your TV will not be used for an
extended period of time, unplug the power cord.
• To reduce risk of electric shock, do not touch the
connector with wet hands.

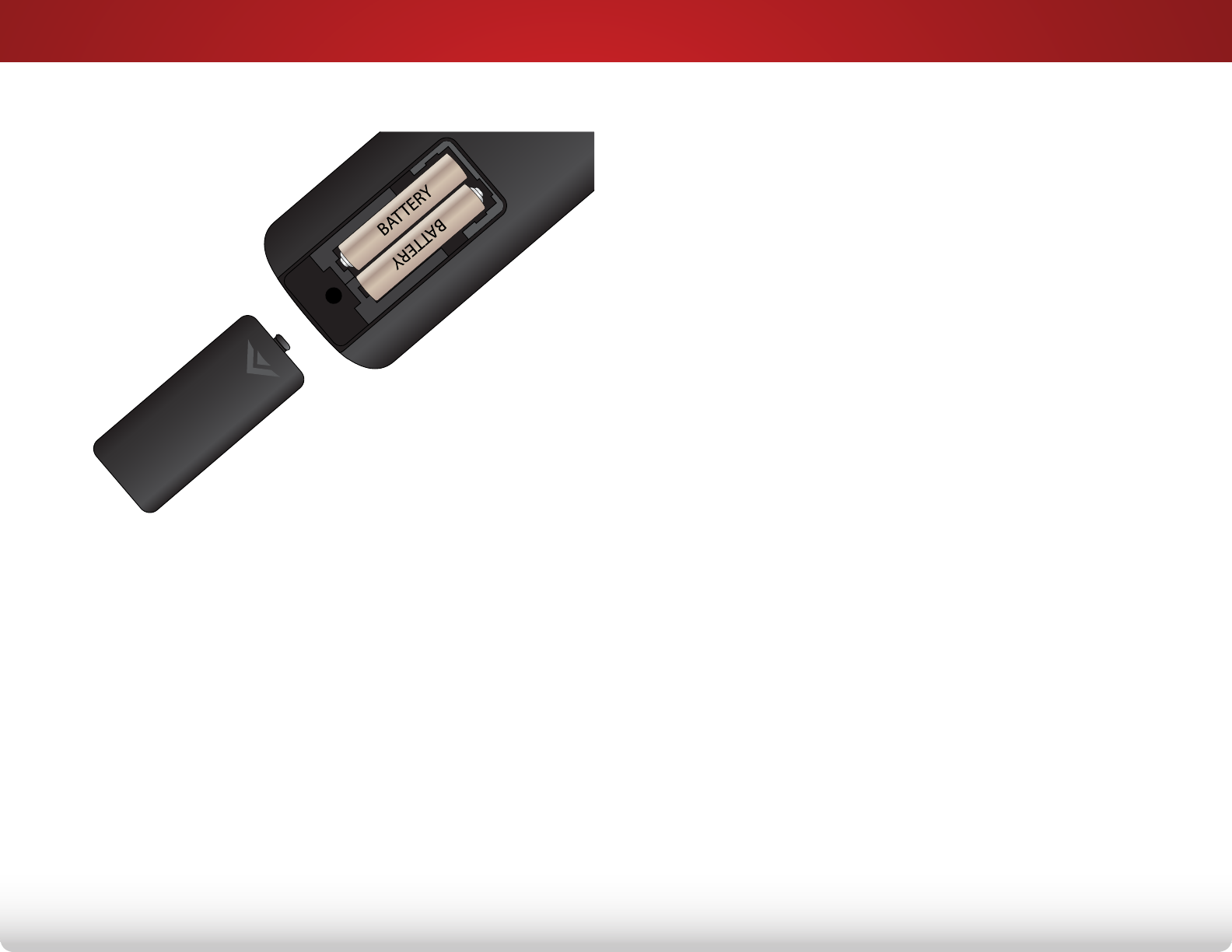

• Insert batteries in accordance with instructions. Incorrect
polarities may cause the batteries to leak which can
damage the remote control or injure the operator. Do not
expose batteries to excessive heat such as sunshine, fire
or the like.
• If any of the following occurs, contact the dealer:
- The power cord fails or frays.
- Liquid sprays or any object drops into your TV.
- Your TV is exposed to rain or other moisture.
- Your TV is dropped or damaged in any way.
- The performance of your TV changes substantially.
• This apparatus shall not be exposed to dripping or
splashing and no objects filled with liquids, such as vases,
shall be placed on the apparatus.
• The mains plug or appliance coupler is used as the
disconnect device, the disconnect device shall remain
readily operable.
• CAUTION - These servicing instructions are for use by
qualified service personnel only. To reduce the risk of
electric shock, do not perform any servicing other than
that contained in the operating instructions unless you
are qualified to do so.
• The lightning flash with arrowhead symbol within an
equilateral triangle is intended to alert the user to the
presence of uninsulated DANGEROUS VOLTAGE within the
product’s enclosure that may be of sufficient magnitude
to constitute a risk of electrical shock to persons.
h
TELEVISION ANTENNA CONNECTION
PROTECTION
If an outside antenna/satellite dish or cable system is to be
connected to the TV, make sure that the antenna or cable system
is electrically grounded to provide some protection against
voltage surges and static charges.
Article 810 of the National Electrical Code, ANSI/NFPSA 70,
provides information with regard to proper grounding of the
mast and supporting structure, grounding of the lead-in wire to
an antenna discharge unit, size of the grounding conductors,
location of antenna discharge unit, connection to grounding
electrodes, and requirements of the grounding electrode.
Ground Clamp Antenna Lead In Wire
Antenna Discharge Unit
(NEC Section 810-20)
Grounding Conductors
(NEC Section 810-21)
Ground Clamps
Power Service Grounding Electrode System
(NEC ART 250, part H)
Electric Service Equipment
Lightning Protection
For added protection of the TV during a lightning storm or when
it is left unattended or unused for long periods of time, unplug
the TV from the wall outlet and disconnect the antenna or cable
system.
Power Lines
Do not locate the antenna near overhead light or power circuits,
or where it could fall into such power lines or circuits. Remember,
the screen of the coaxial cable is intended to be connected to
earth in the building installation.
Table of Contents
1
Installing the TV .................................................3
Inspecting the Package Contents ...................3
Installing the TV ..................................3
Installing the TV Stand ......................................................3
Installing the TV on a Wall .................................................6
Controls and Connections ...............................7
Back Panel .....................................7
Side Panel ......................................8
Front Panel .....................................9
Replacing the Batteries ..................................................11
Connecting Your Devices ................................ 12
Connecting A Device ............................12

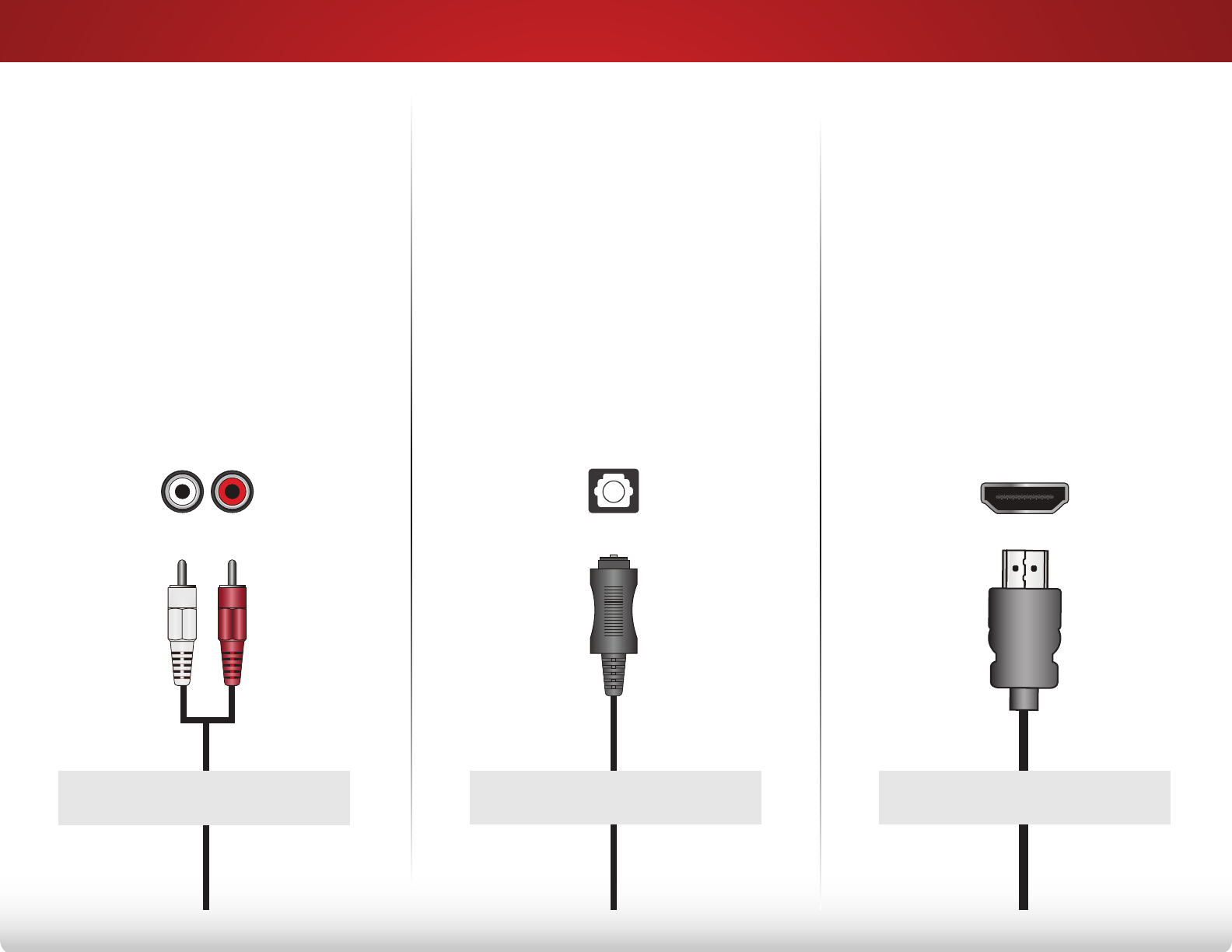

Connecting a Device - Audio and Video Cable Types ..13

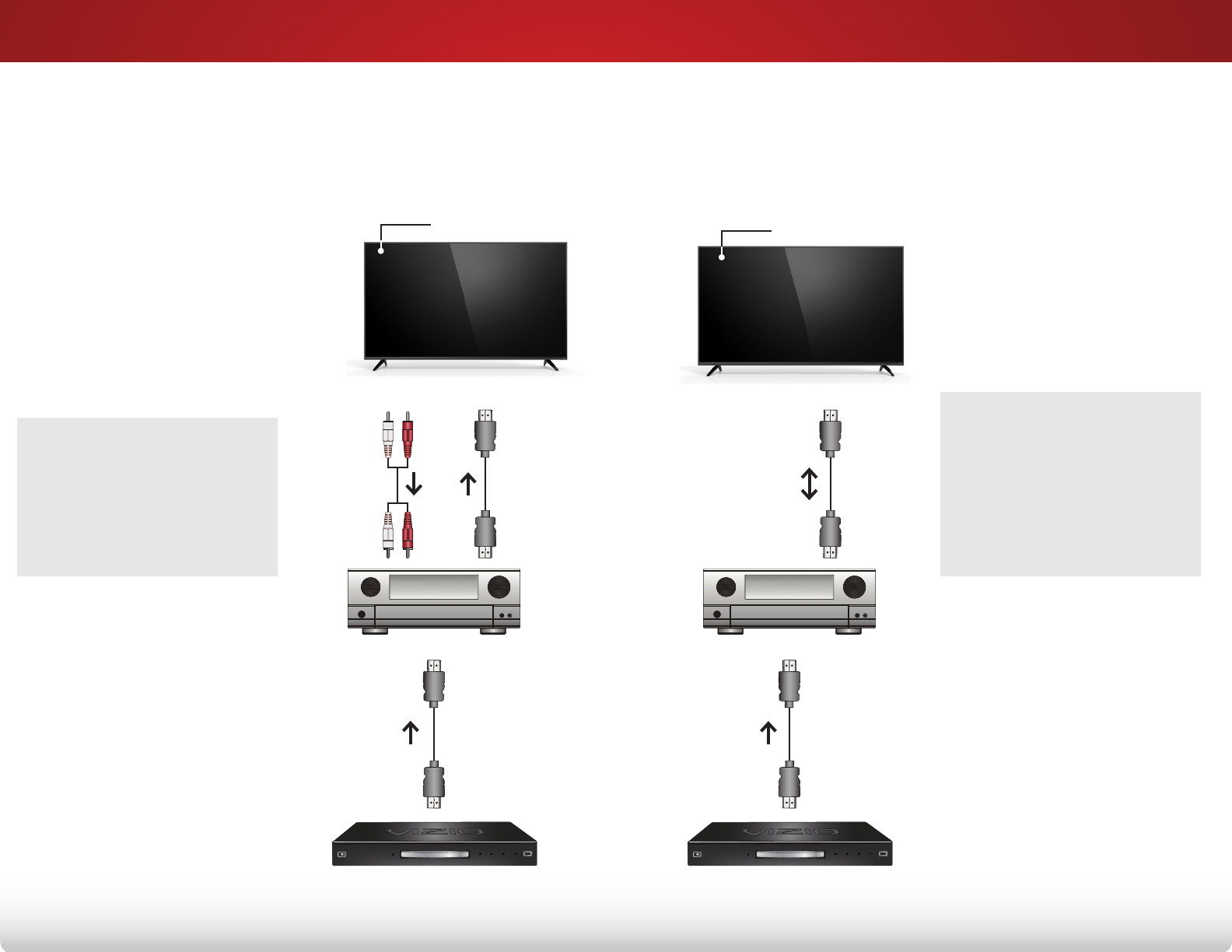

Connecting an Audio Device .....................15
Connecting an Audio Device - Audio Cable Types .....16
Connecting an Audio Device - ARC. . . . . . . . . . . . . . . . . 17
Completing the First-Time Setup .....................18
Using the On-Screen Menu .............................19

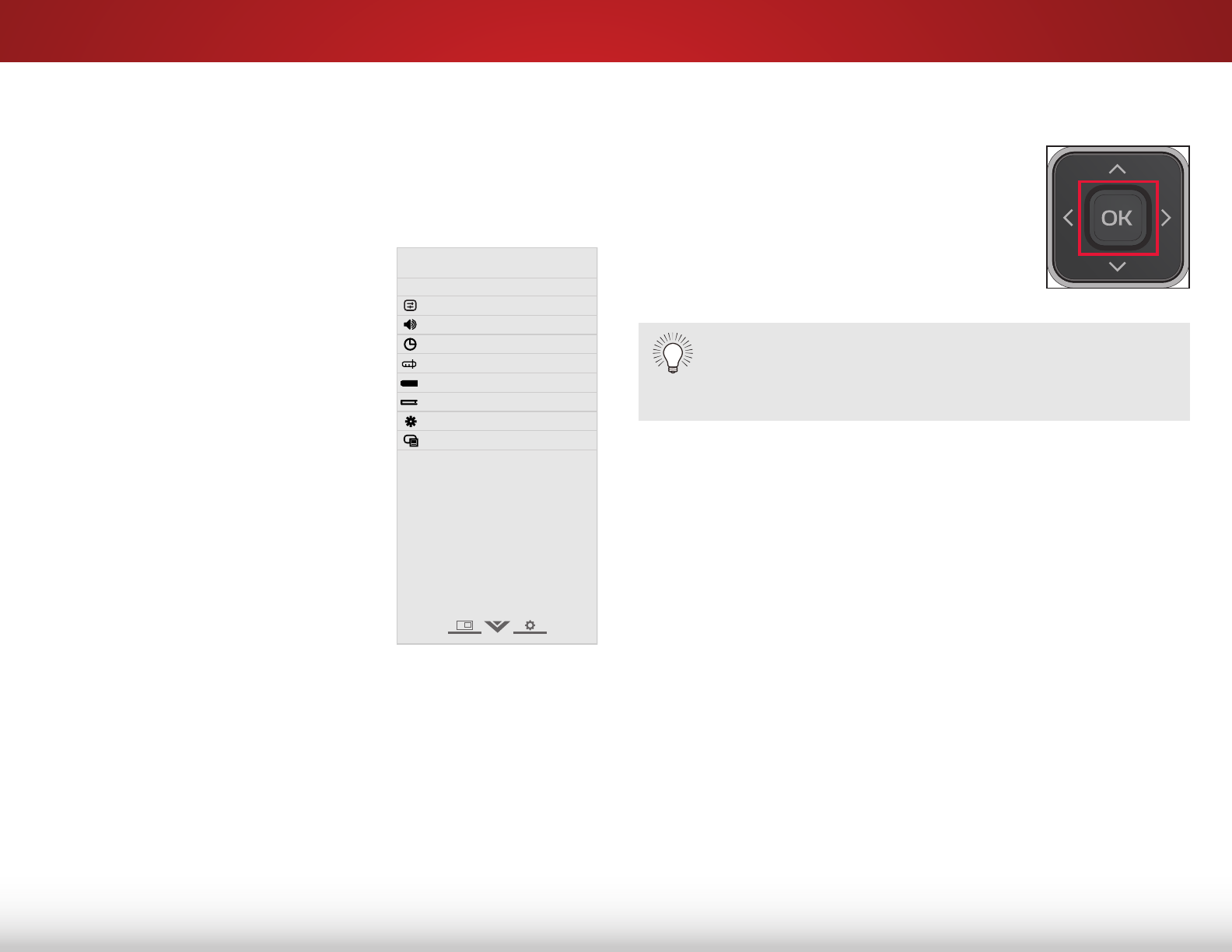

Navigating the On-Screen Menu ...................19
Changing the Input Source .......................20

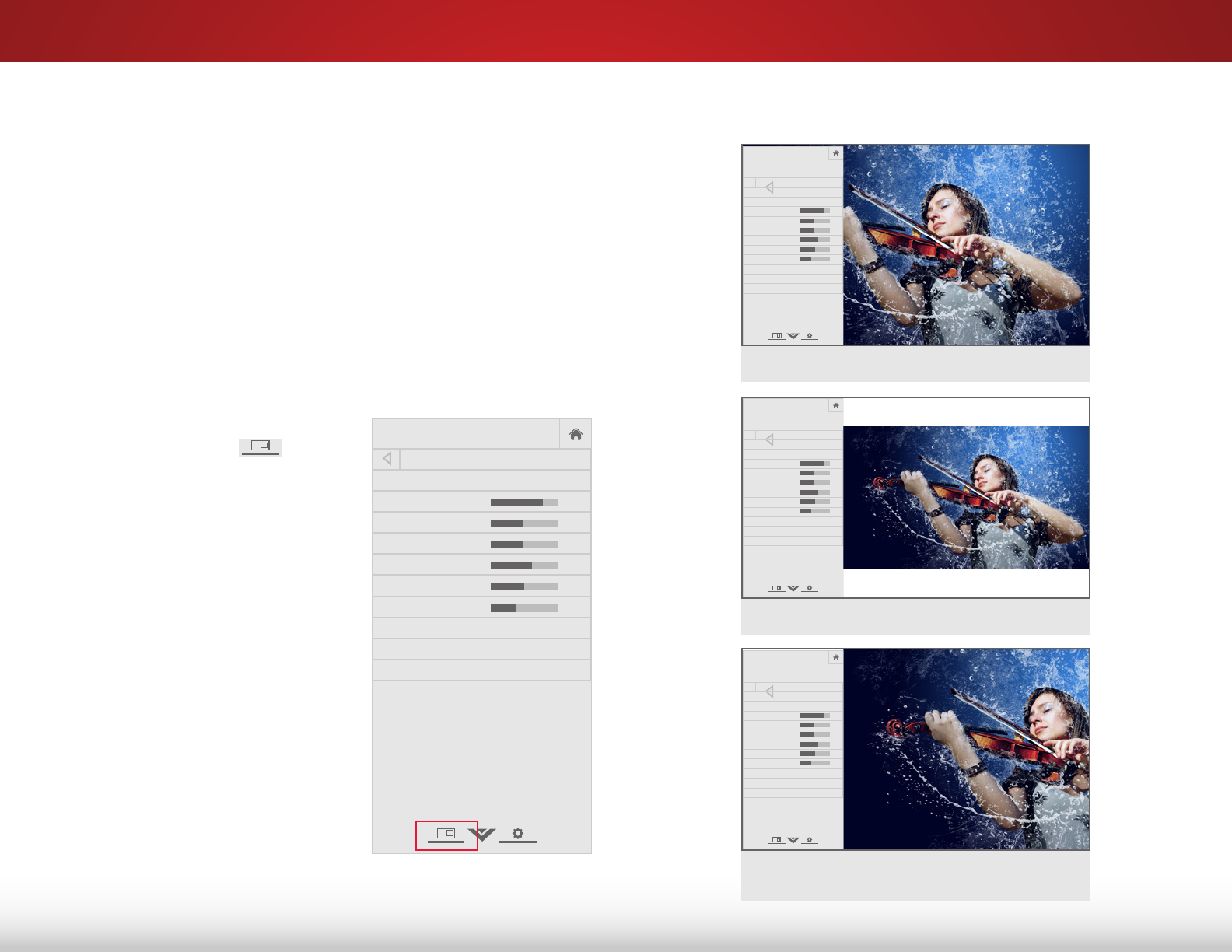

Changing the Screen Aspect Ratio .................20
Viewing Video with the Menu Open ................21
Adjusting the Picture Settings .....................22
Adjusting the More Picture Settings ...............................23
Adjusting the Picture Mode Edit Settings .......................24
Adjusting the Color Calibration Settings ........................ 25
Adjusting the Color Tuner Settings .................................25
Creating a Custom Picture Mode ..................................28
Locking and Unlocking the Custom Picture Modes ....... 29
Deleting a Custom Picture Mode ...................................29
Adjusting the Audio Settings ......................30
Changing the Equalizer Settings ....................................31
Deleting the Custom Audio Mode ..................................31
Setting Timers ..................................32
Setting the Sleep Timer ...................................................32
Setting the Auto Power Off Feature ................................. 32
Setting Up Channels ............................33
Selecting a Channel Source ..........................................33
Finding Channels ............................................................33
Adding New Channels ...................................................34
Skipping Channels..........................................................35
Listening to Alternate Audio .......................36
Changing the Analog Audio Language ........................36
Changing the Digital Audio Language ..........................36
Setting Up Closed Captioning .....................37
Changing the Appearance of Digital
Closed Captions .............................................................37
Renaming Devices on the Input Menu ..............39
Changing the TV Settings .........................40
Viewing System Information ...........................................40
Changing the On-Screen Menu Language ...................41
Setting the Time and Local Settings ...............................41
Using the Parental Controls ............................................42
Accessing the Parental Controls Menu ..........................42
Enabling or Disabling Program Ratings .......................... 42
Locking and Unlocking Channels ..................................42
Blocking and Unblocking Content by Rating ................. 43
2
Changing the Parental Control Passcode .....................43
Resetting the Content Locks ...........................................43
Setting up View Mode.....................................................44
Changing the Wide Setting ............................................44
Adjusting the CEC Settings .............................................45
Turning the Power Indicator On or Off ............................45
Using the Reset & Admin Menu ....................46
Restoring the TV to Factory Default Settings ...................46
Using the Guided Setup Menu .....................46

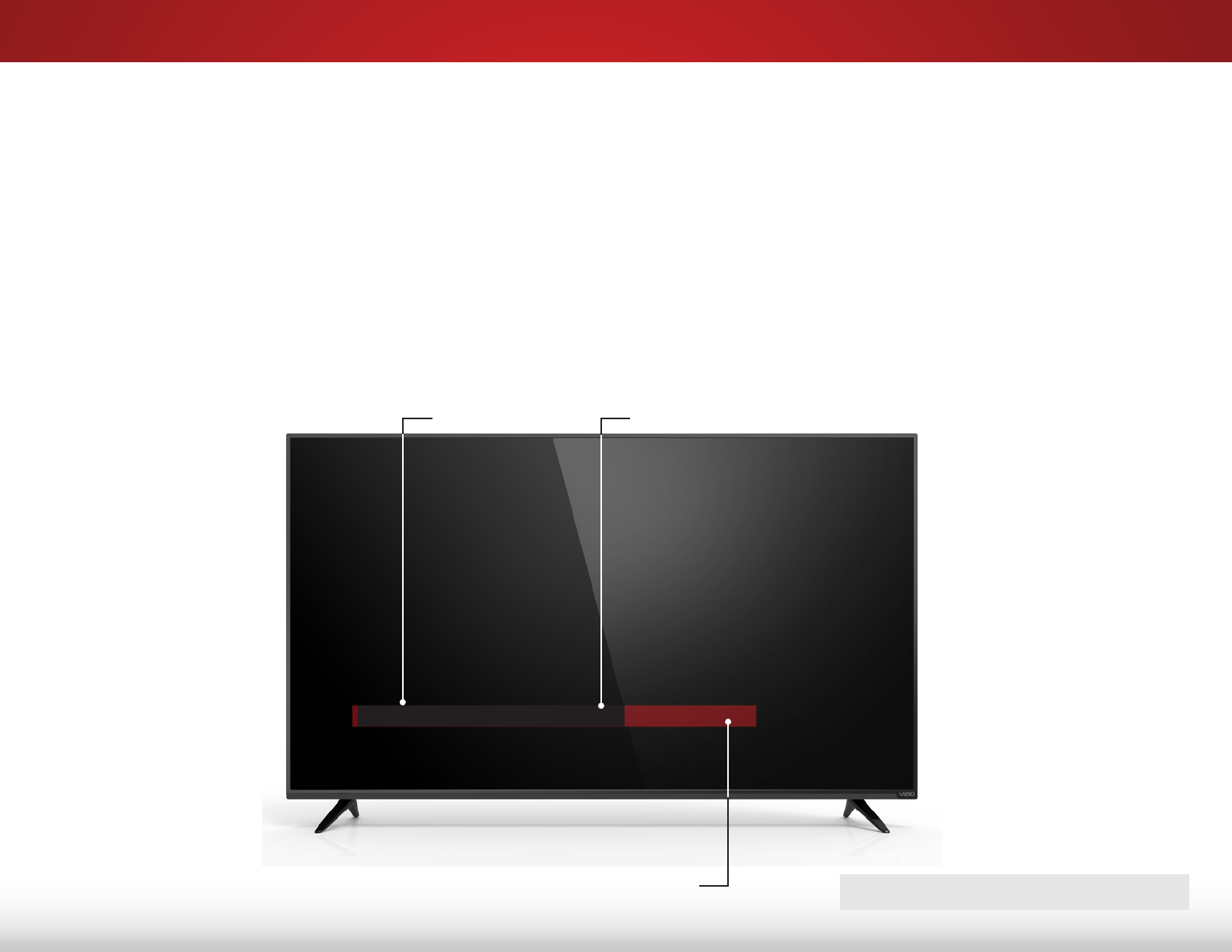

Using the Info Window ...........................47

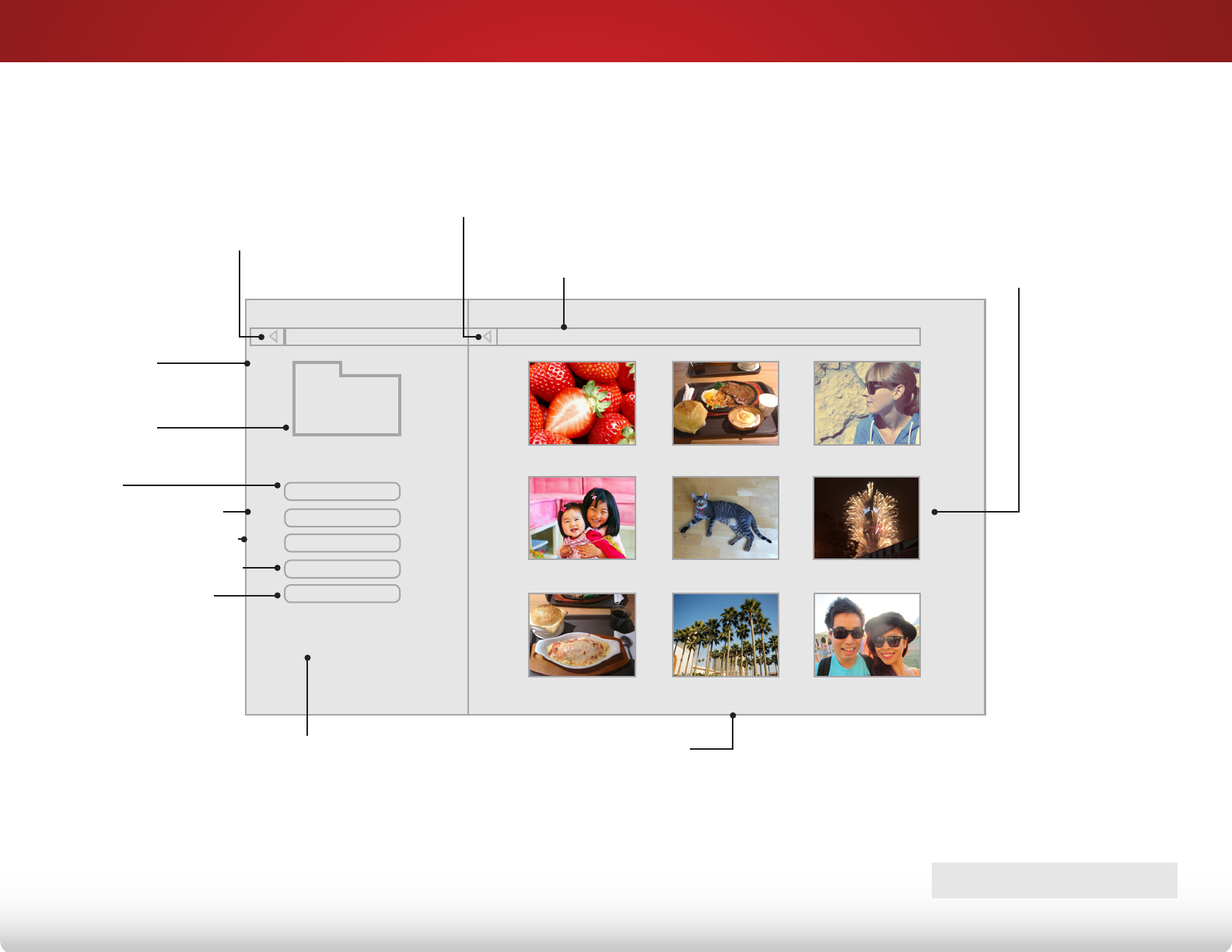

Using the USB Media Player ............................48
Using the USB Media Player .......................48
Preparing your USB Drive to Play USB Media ..................48
Playing USB Media ..........................................................48
Removing the USB Drive from the TV ............................... 48
Specifications ..................................................53
Limited Warranty .............................................. 55
Legal & Compliance .......................................56
FCC Class B Radio Interference Statement ....................56
Notice ..............................................................................56
FCC Warning ...................................................................56
3
1
Installing the TV
INSPECTING THE PACKAGE CONTENTS
Before installing your new TV, take a moment to inspect the
package contents. Use the images below to ensure nothing is
missing or damaged.
Remote control
with batteries
VIZIO LED HDTV
INSTALLING THE TV
After removing the TV from the box and inspecting the package
contents you can begin installing the TV. Your TV can be installed
in two ways:
• On a flat surface, using the included stand
• On a wall, using a VESA-standard wall mount (not
included)
Installing the TV Stand
Your TV includes a stand designed to support the weight of the
TV and keep it from falling over. However, the TV can still fall over if:
• It is placed on an uneven, unstable, or non-level surface
• It is pushed, pulled, or otherwise improperly moved
• If an earthquake occurs and the TV is not properly
secured.
Power cord
TV ON STANDS
4 x T3 30mm
Phillips screws
PACKAGE CONTENTS
Quick Start Guide
TV stands
1
4
It is recommended that two people take part in the stand installation.
Remove any plastic wrapping from the TV and the stand.
Place the TV screen-down on a clean, flat surface. To prevent scratches or damage to the screen, place the TV on a soft surface such as a
blanket and avoid any sharp edges.
INSTALLING THE STAND
1
5

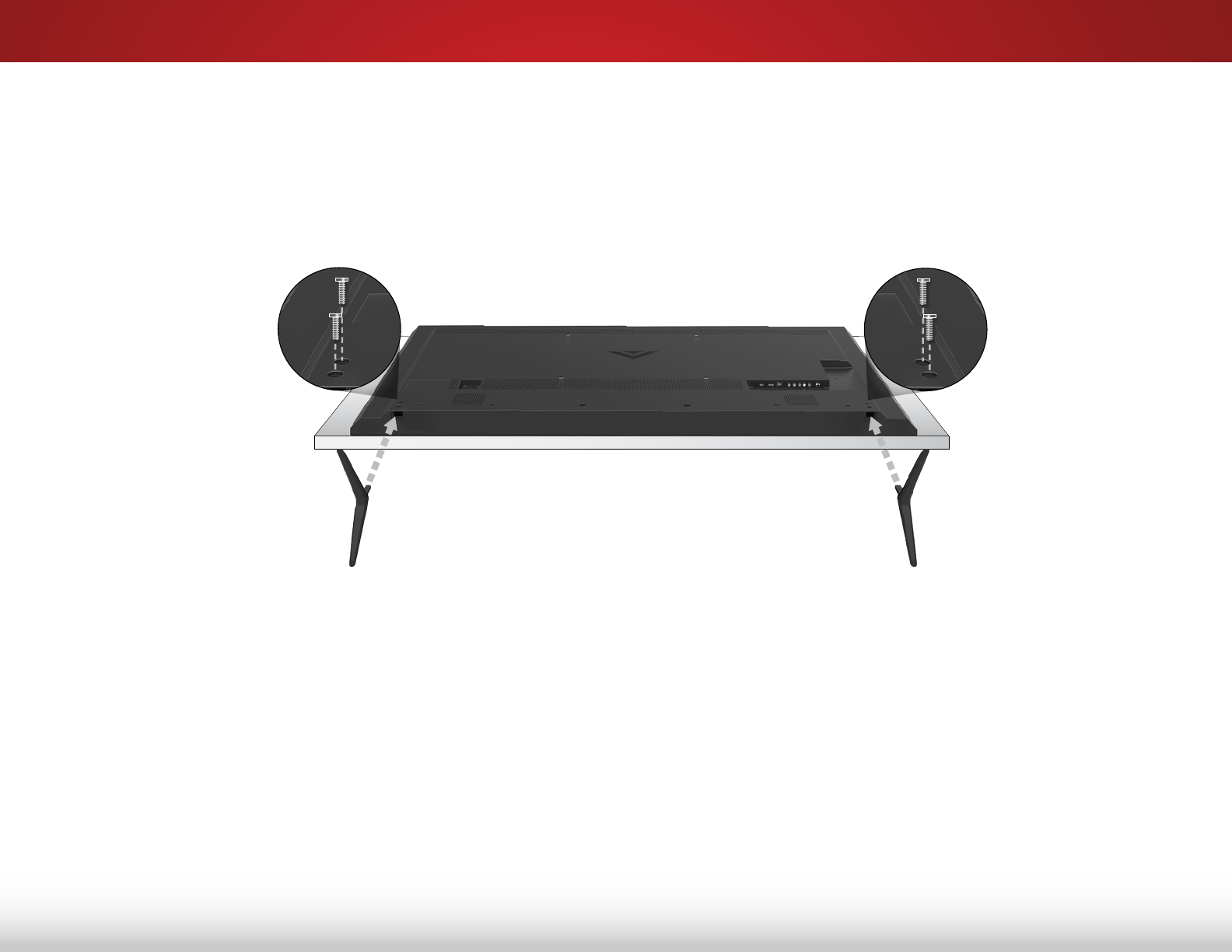

INSTALLING THE STAND
Insert the left and right stands into the base of the TV.
Insert two (2) T3 30 mm Phillips screws (included) into the back of the TV
and tighten them using a Phillips screwdriver, to secure each stand to the TV.
When you are finished, place the TV on a stable, level surface.
1
6
Installing the TV on a Wall
To mount your TV on a wall, you will need a wall mount. Consult
the information below to find the appropriate mount for your TV
model:
Installing a TV on a wall requires lifting. To prevent
injury or damage to the TV, ask someone to help you.
D39h-C0
Screw Size: M4
Hole Pattern: 100 mm (V) x 100 mm (H)
Weight w/o
Stand: 13.45 lbs
Be sure the mount you choose is capable of supporting the
weight of the TV. After you have determined that you have the
correct mount for your TV, you can begin the installation.
To install your TV on a wall:
1. Disconnect any cables connected to your TV.
2. Place the TV face-down on a clean, flat, stable surface.
Be sure the surface is clear of debris that can scratch or
damage the TV.
3. Remove the base by loosening and removing the screws.
4. Attach your TV and wall mount to the wall, carefully following
the instructions that came with your mount.
Use only with a UL-listed wall mount bracket rated for the
weight/load of this TV.
For some wall mounts, you may want to use cables
with right-angle connectors. This allows the TV to rest
closer to the wall.

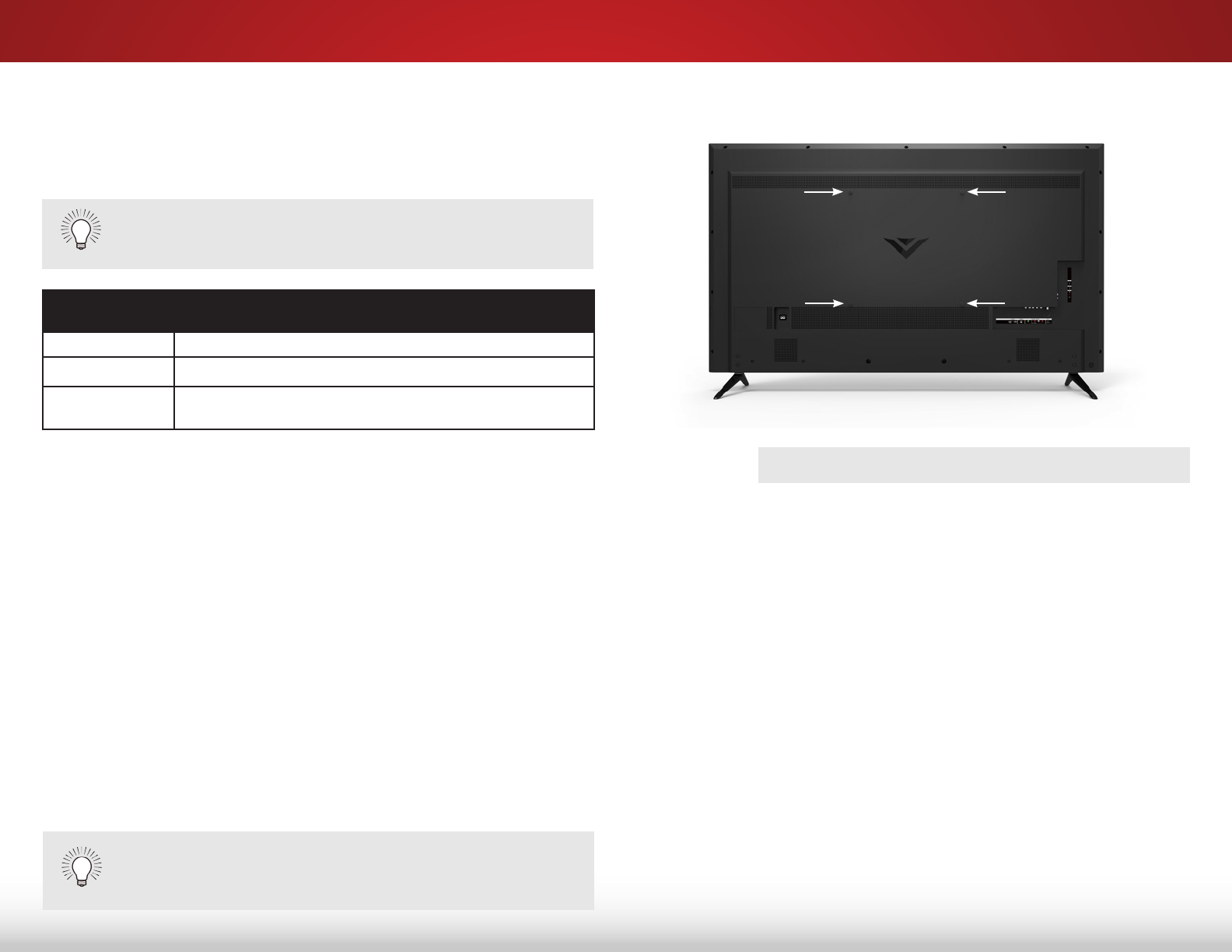

WALL MOUNT SCREW LOCATIONS
2
7
Controls and Connections

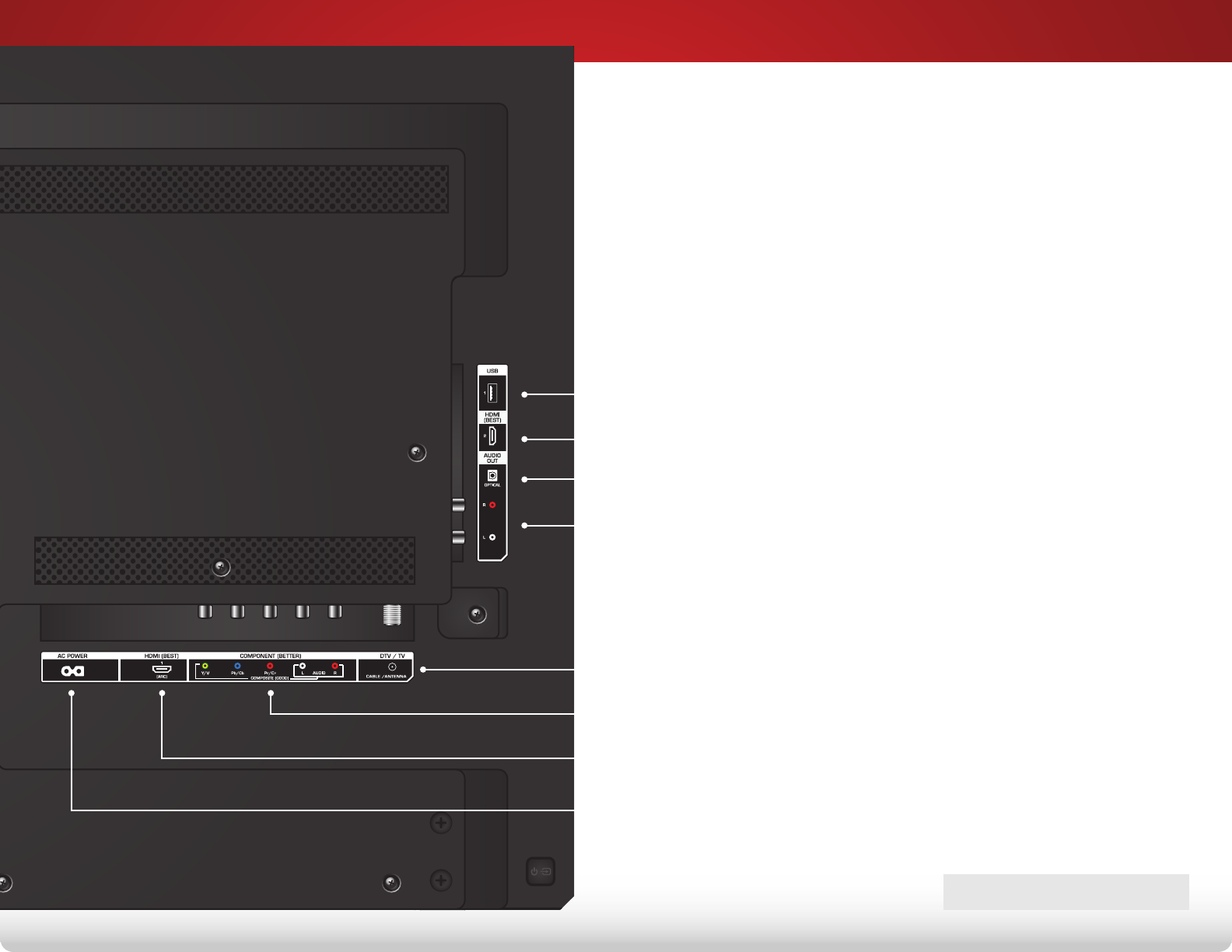

BACK PANEL
HDMI - Connect HDMI device.
Coaxial - Connect coaxial cable from cable, satellite, or antenna.
Component/Composite - Connect component or composite device.
Optical Audio Out - Connect optical/SPDIF audio device, such as
home audio receiver.
Stereo Audio Out - Connect RCA audio device, such as sound bar.
HDMI - Connect HDMI device.
USB - Connect USB thumb drive to play photo, music, or video.
AC POWER - Connect AC power cord.
2
Controls and Connections
8

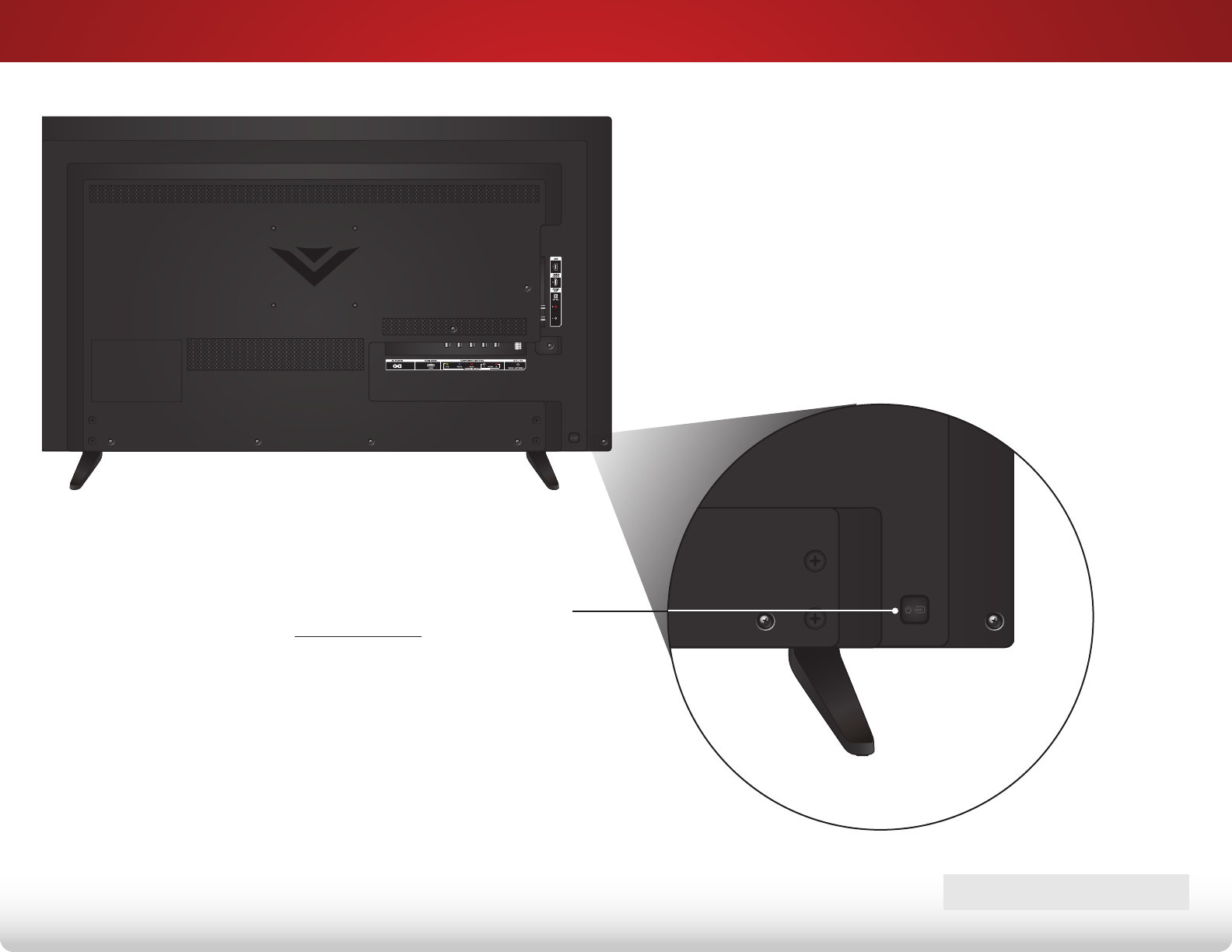

SIDE PANEL
Note:The image shown here is for illustrative purposes only and may be subject to change.
The actual number of ports and their locations may vary, depending on the model.
Power - Press once to turn on the TV.
Press and hold to turn off the TV
Input - Press once to access the INPUT menu.
2
9

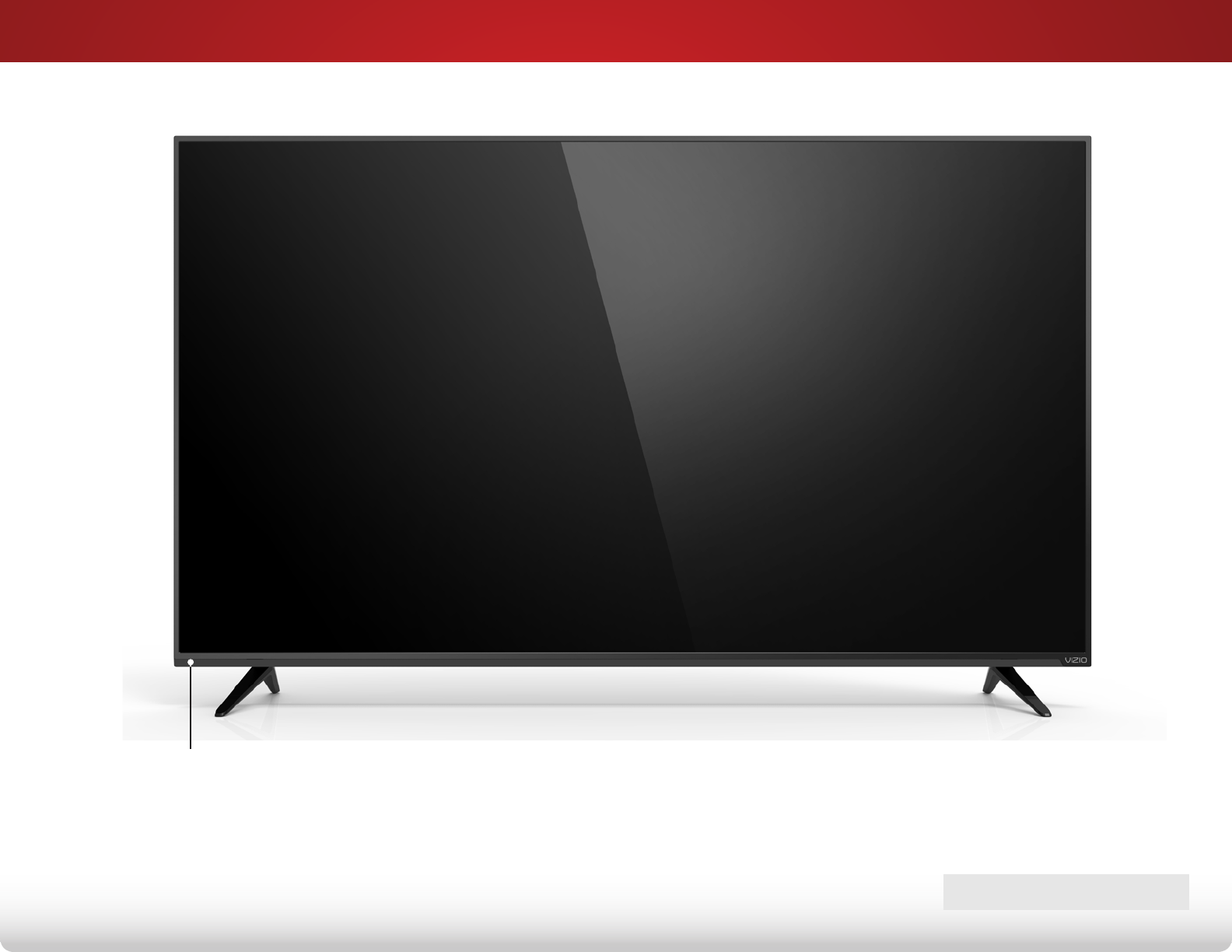

FRONT PANEL
FRONT PANEL
REMOTE SENSOR & POWER INDICATOR
When using the remote, aim it directly at this sensor.
The power indicator flashes on when the TV turns on, then goes out after several seconds.
To keep the power indicator on as long as the TV is on, see
Turning the Power Indicator On or
Off
on page 45
.
2
10

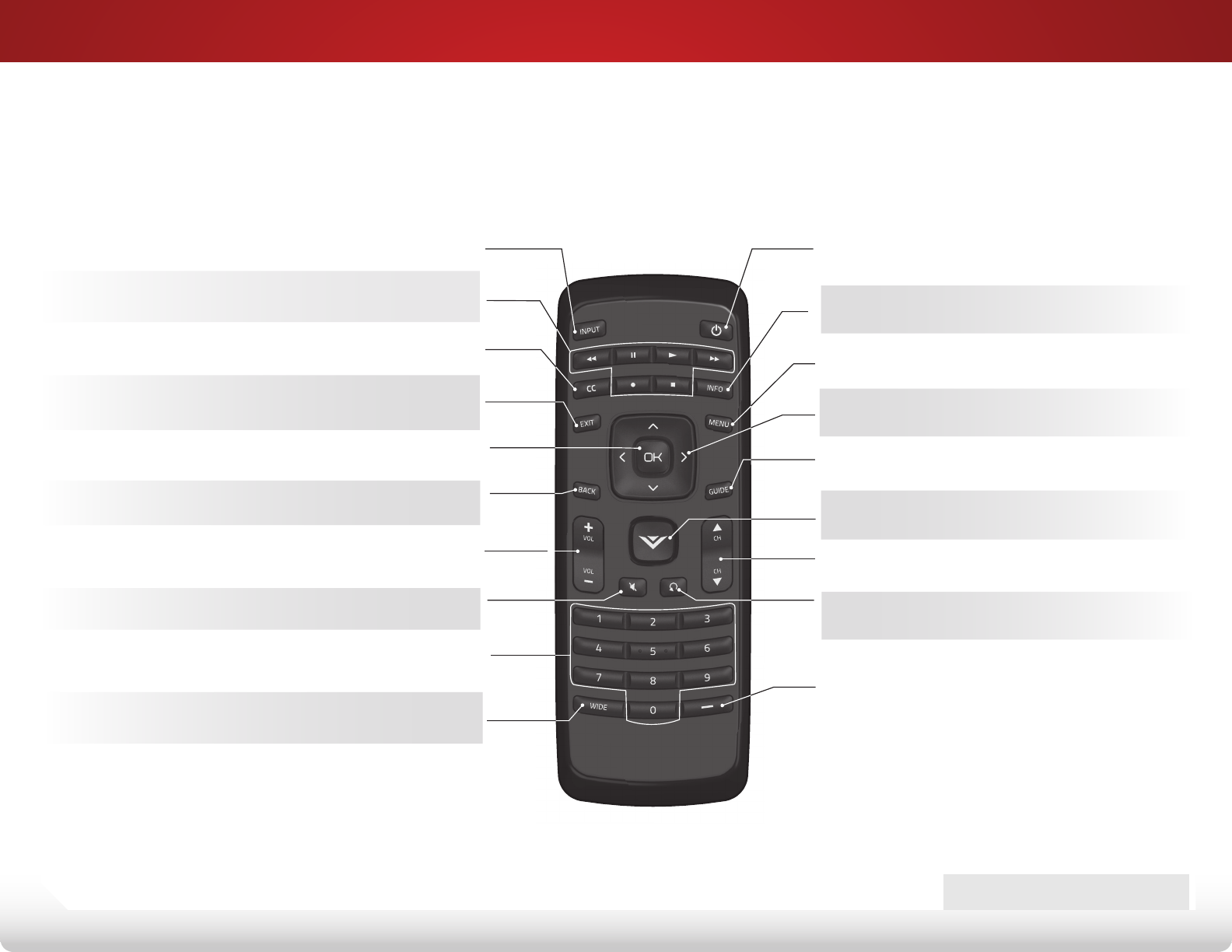

USING THE REMOTE
INPUT
Change the currently-displayed input.
ARROW
Navigate the on-screen menu.
EXIT
Close the on-screen menu.
CLOSED CAPTIONS
Open the closed caption menu.
A/V CONTROLS
Control USB media player.
WIDE
Switch the display mode.
MUTE
Turn the audio off or on.
BACK
Go to the previous on-screen menu.
POWER
Turn the TV on or off.
MENU
Display the on-screen menu.
INFO
Display the info window.
DASH
Use with number pad to manually
enter a digital sub-channel.
(For example, 18-4 or 18-5.)
CHANNEL UP/DOWN
Change the channel.
GUIDE
Display the info window.
LAST
Return to the channel last viewed.
NUMBER PAD
Manually enter a channel.
VOLUME UP/DOWN
Increase or decrease loudness of
the audio.
OK
Select the highlighted menu option.
V BUTTON
Open the USB media player.
REMOTE CONTROL
2
11
Replacing the Batteries
1. Remove the battery cover.
2. Insert two batteries into the remote control. Make sure that
the (+) and (-) symbols on the batteries match the (+) and
(-) symbols inside the battery compartment.
3. Replace the battery cover.
3
12
Connecting Your Devices

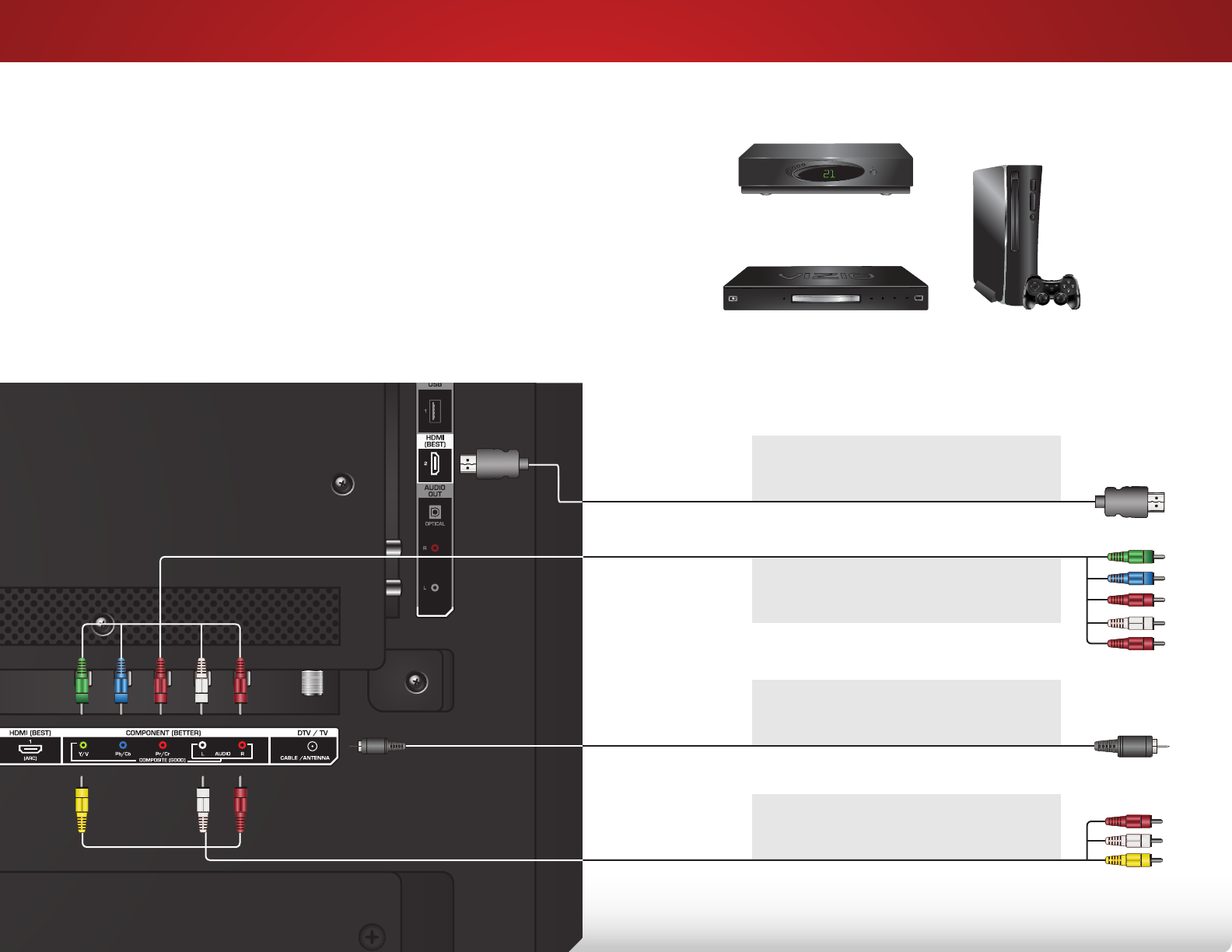

CONNECTING A DEVICE
* Maximum resolution
Game Console
Cable/Satellite Box
DVD/Blu-ray Player
Your TV can be used to display output from most devices.
1. Verify that your device has a video port that matches an
available port on the TV (HDMI, Component, etc.).
2. Turn the TV and your device off.
3. Connect the appropriate cable (not included) to the TV and
the device.
4. Turn the TV and your device on. Set the TV’s input to match
the connection you used (HDMI-1, HDMI-2, etc.).
BEST
HDMI CABLE • DIGITAL
• HD VIDEO (1080p)*
• HD AUDIO
GOOD
AV CABLE • ANALOG
• VIDEO (480i)*
• STEREO AUDIO
BETTER
COAXIAL CABLE • ANALOG
• HD VIDEO (1080i)*
• STEREO AUDIO
BETTER

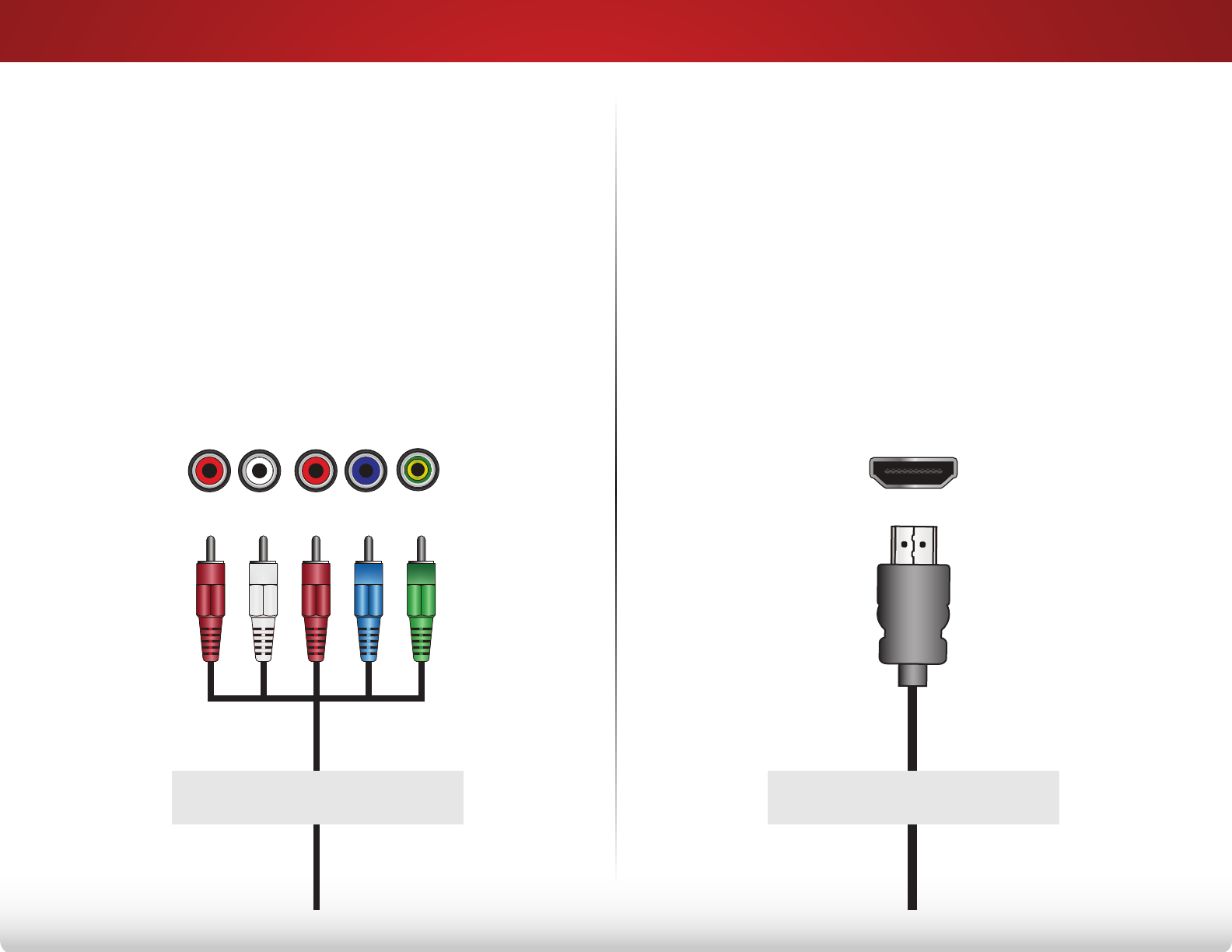

COMPONENT CABLE
• ANALOG
• HD VIDEO (1080p)*
• STEREO AUDIO
3
13
COAXIAL CABLE
Coaxial cables are the traditional way of connecting
antennas and cable television signals to your TV.
Coaxial cables carry both audio and video signals
through a single connector.
AV CABLE
AV cables (or composite cables) are the traditional
way of connecting your devices to your TV. Video
signals are sent over the yellow connector while audio
is sent over the red and white connectors.
GOOD BETTER
COMPONENT VIDEO
Y/V L R
• HD Video Resolutions up to 1080i
• Analog Connection
• Audio and Video Signals
• Video Resolutions up to 480i
• Analog Connection
• Audio and Video Signals
CONNECTING A DEVICE - AUDIO AND VIDEO CABLE TYPES
Coaxial
3
14
HDMI CABLE
HDMI is the intelligent, all-digital interface that delivers
both dazzling quality and unmatched ease of use. HDMI
technology transmits crystal-clear digital video along
with multi-channel surround audio. HDMI-connected
devices have the ability to automatically adjust
themselves for optimal viewing.
COMPONENT CABLE
Component cables are designed to carry high
definition video signals along with additional
audio connections. Colors are delivered with color
information split up three different ways over three
connectors for video (separated into red, blue and
green signals) and the left and right audio connectors
(red and white).
BETTER
COMPONENT VIDEO
R L Pr/Cr Pb/Cb Y/V
HDMI
HDMI
• HD Video Resolutions up to 1080p
• HD Audio
• Digital Connection
• Audio and Video Signals
• HD Video Resolutions up to 1080p
• Analog Connection
• Audio and Video Signals
BEST
3
15
CONNECTING AN AUDIO DEVICE
Home Audio Receiver
VIZIO Sound Bar
Your TV can output sound to an audio device, such as a receiver
or sound bar.
1. Verify that your device has an audio port that matches an
available port on the TV (optical, RCA, etc.).
2. Turn the TV and your audio device off.
3. Connect the appropriate cable (not included) to the TV and
the device.
4. Turn the TV and your device on.
BETTER
OPTICAL/SPDIF CABLE
• PCM STREAM
• DOLBY DIGITAL 5.1 CHANNEL
• DTS 5.1 CHANNEL
BEST
HDMI CABLE • CEC 2-WAY COMMUNICATION
• 2.0-5.1 DIGITAL AUDIO
• PCM, DTS, DOLBY DIGITAL
GOOD
RCA CABLE • ANALOG STEREO CONNECTION
• 2.0 CHANNEL
3
16
HDMI CABLE
HDMI technology transmits crystal-clear digital
multi-channel surround audio through a single
HDMI cable. Audio Return Channel-enabled
(ARC) TVs allow audio to be sent over an already
connected HDMI cable, eliminating the need
for a separate audio cable. See
Connecting an
Audio Device - ARC
on page 17.
OPTICAL/SPDIF CABLE
Optical/SPDIF cables transmit audio signals as
pulses of light through a cable made of plastic
fibers. Audio signals are digitally transmitted
between devices.
RCA CABLE
AV cables (or composite cables) are the
traditional way of connecting your devices to
your audio device. Audio signals are sent over
the red and white connectors.
GOOD BETTER
• CEC 2-way Communication
(Auto setup)
• PCM, DTS, Dolby Digital
• 2.0-5.1 Scaleable Lossless
Digital Audio Connection
• Audio and Video Signals
• PCM Stream (Lossless)
• Dolby Digital 5.1 Channel
• Digital Connection
• Audio Signal Only
• Quality Stereo Connection
• 2.0 Channel
• Analog Connection
• Audio Signal Only
BEST
HDMI
COMPONENT VIDEO
L R Optical/SPDIF HDMI
DIGITAL OPTICAL AUDIO
CONNECTING AN AUDIO DEVICE - AUDIO CABLE TYPES
3
17
Without HDMI ARC With HDMI ARC
CONNECTING AN AUDIO DEVICE - ARC
HDMI
HDMI
Your Home Audio Receiver
Your Blu-ray Player
RCA (Audio)
Your TV
HDMI
HDMI
Your Home Audio Receiver
Your Blu-ray Player
Your TV
With an HDMI ARC setup, the
audio connection between
your TV and home audio
receiver can be removed.
The HDMI cable will transmit
audio signal to and from
your TV with an all-digital
audio/video connection.
Built-in Tuner Built-in Tuner
Without an HDMI ARC setup,
your TV will transmit audio
signals from the built-in
tuner and VIA apps to
your home audio receiver
through a separate audio
connection.
18
4
The first time you turn on the TV, the Setup App will guide you
through each of the steps necessary to get your TV ready for use.
Before you begin the first-time setup:
• Your TV should be installed and the power cord should
be connected to an electrical outlet.
• Your devices should be connected.
• If you have a wireless network, have the wireless
password ready.
• If you are connecting to your network with an Ethernet
cable, connect it to the Ethernet port on the TV.
To complete the first-time setup:
1. Press the Power/Standby
button on the remote. The TV
powers on and the Setup App
starts.
2. Use the Arrow buttons on the
remote to highlight Home Use
and press OK.
3. Use the Arrow buttons on
the remote to highlight your
preferred language, and then
press the OK button.
Choose your mode.
Select Store Demo for in-store display.
Select Home Use for in-home use.
Seleccione "Home Use" por Modo de Casa o "Store Demo" por Demostración de Tienda.
Choisissez "Home Use" pour Mode Domicile ou "Store Demo" pour Démonstration de Magasin.
Store Demo Home Use
Completing the First-Time Setup
4. Use the Arrow buttons on the
remote to highlight your TV
source and press OK.
5. If you have cable TV, select
whether you have a cable box
or if you connect the TV directly
to a cable from the wall.
Use the Arrow and OK buttons
on the remote to select the input
your TV source is connected to.
6. When you are finished, the message “Your VIZIO TV is set up”
will appear.
The First-Time Setup is complete.
5
19
Using the On-Screen Menu
Your TV features an easy-to-use on-screen menu.
To open the on-screen menu, press the MENU button on the
remote.
From this menu, you can:
• Adjust the Picture settings
• Adjust the Audio settings
• Set the Sleep Timer
• Adjust the Channel settings
• Set up Closed Captioning
• Select input devices
• Adjust TV settings
• Access the Guided Setup
While navigating the on-screen menu, you can press
the BACK button at any time to return to the previous
menu screen. The EXIT button will close the
on-screen menu.
NAVIGATING THE ON-SCREEN MENU
To open the on-screen menu, press
the MENU button on the remote.
Use the Arrow buttons to highlight
a menu option, and press the OK
button to select that option.
Help
VIZIO
Network
Sleep
Timer
InputCC
ABC
Audio
Wide
Normal
Settings
PanoramicWideZoom
2D 3DExit
TV SETTINGS
Audio
Timers
Channels
Closed Captions
Devices
System
Guided Setup
CC
5
20
CHANGING THE INPUT SOURCE
External devices such as DVD players, Blu-ray Players, and
video game consoles can be connected to your TV. To use one
of these devices with your TV, you must first change the input
source using the Input menu.
To change the input source:
1. Press the INPUT button on
the remote. The Input menu is
displayed.
2. Use the Up/Down Arrow
buttons or the INPUT button
on the remote to highlight the
input you wish to view and
press OK. The selected input is
displayed.
You can change the input names that appear on the
Input menu to make your devices easy to recognize.
See
Renaming Devices on the Input Menu
on page
39 for more information.
Note: Inputs may vary by TV.
CHANGING THE SCREEN ASPECT RATIO
The TV can display images in five different modes: Normal, Stretch,
Panoramic, Wide, and Zoom. Each mode displays the picture
differently.
To change the screen aspect ratio:
1. Press the WIDE button on the
remote.
2. Use the Arrow buttons to
highlight the aspect ratio you
wish to view and press OK.
• Normal preserves the content’s
original aspect ratio. Since the
4:3 aspect ratio is not large
enough to fill the TV’s screen,
black bars are added to the left
and right of the display image.
• Stretch expands the display image to fill the screen.
Images may appear wider than intended. If you are
watching widescreen (1.85:1 or 2.35:1) content, black
bars will still appear on the top and bottom of the display
image. This option is only available when the TV is
displaying a 720p/1080i source.
• Panoramic expands the display image to fill the screen.
Images may appear wider than intended. If you are
watching widescreen (1.85:1 or 2.35:1) content, black
bars will still appear on the top and bottom of the display
image. This option is only available when the TV is
displaying a 480i/480p source.
• Wide stretches a 4:3 aspect ratio picture to the edges
of the screen. Since the picture is being stretched, the
display image may appear distorted. If the program
is already formatted for widescreen viewing (1.85:1 or
2.35:1), then black bars will appear on the top and
bottom of the display image.
• Zoom expands images with black bars to fit the screen.
Panoramic
Wide
Zoom
Normal
Stretch
Wide
Zoom
Normal
Note: Aspect ratio settings may
vary by Input source.
COMP
HDMI-1
HDMI-2
TV
Input Name
5
21
VIEWING VIDEO WITH THE MENU OPEN
When the on-screen menu opens, it covers the left-hand portion
of the picture. The picture can be displayed in three different
ways:
• Full-sized and centered on the screen - The left-hand
portion of the picture covered by the menu.
• Resized to fit - The entire picture is visible in the space to
the right of the menu.
• Full-sized and aligned to the right edge of the menu -
The picture extends off of the right side of the screen.
To change the position of the picture while the on-screen menu
is displayed:
1. Use the Arrow buttons on the
remote to highlight
Help
VIZIO
Network
Sleep
Timer
InputCC
ABC
Audio
Wide
Normal
Settings
PanoramicWideZoom
2D 3DExit
Resize
Video.
2. Press OK to cycle through the
three display methods.
3. Press the Up Arrow button on
the remote to the menu.
Help
VIZIO
Network
Sleep
Timer
InputCC
ABC
Audio
Wide
Normal
Settings
PanoramicWideZoom
2D 3DExit
Picture Mode Standard
Backlight 85
Brightness 50
Contrast 50
Color 59
Tint 0
Sharpness 9
More Picture
Picture Mode Edit
Color Calibration
-+
+
-
-+
-+
-+
-+
Select from preset picture modes. Standard
picture mode meets ENERGY STAR®
requirements. For the best picture, use
Calibrated mode. To reduce video delay
(lag) when gaming, use Game mode.
Help
VIZIO
Network
Sleep
Timer
InputCC
ABC
Audio
Wide
Normal
Settings
PanoramicWideZoom
2D 3DExit
Picture Mode Standard
Auto Brightness Control
Backlight 85
Brightness 50
Contrast 50
Color 59
Tint 0
Sharpness 9
More Picture
Picture Mode Edit - PicModeName
Color Calibration
-+
+
-
-+
-+
-+
-+
Select from preset picture modes. Standard
picture mode meets ENERGY STAR®
requirements. For the best picture, use
Calibrated mode. To reduce video delay
(lag) when gaming, use Game mode.
Help
VIZIO
Network
Sleep
Timer
InputCC
ABC
Audio
Wide
Normal
Settings
PanoramicWideZoom
2D 3DExit
Picture Mode Standard
Auto Brightness Control
Backlight 85
Brightness 50
Contrast 50
Color 59
Tint 0
Sharpness 9
More Picture
Picture Mode Edit - PicModeName
Color Calibration
-+
+
-
-+
-+
-+
-+
Select from preset picture modes. Standard
picture mode meets ENERGY STAR®
requirements. For the best picture, use
Calibrated mode. To reduce video delay
(lag) when gaming, use Game mode.
Help
VIZIO
Network
Sleep
Timer
InputCC
ABC
Audio
Wide
Normal
Settings
PanoramicWideZoom
2D 3DExit
Picture Mode Standard
Auto Brightness Control
Backlight 85
Brightness 50
Contrast 50
Color 59
Tint 0
Sharpness 9
More Picture
Picture Mode Edit - PicModename
Color Calibration
-+
+
-
-+
-+
-+
-+
Select from preset picture modes. Standard
picture mode meets ENERGY STAR®
requirements. For the best picture, use
Calibrated mode. To reduce video delay
(lag) when gaming, use Game mode.
FULL-SIZED AND CENTERED
RE-SIZED TO FIT
FULL-SIZED AND ALIGNED
TO RIGHT OF MENU
5
22
ADJUSTING THE PICTURE SETTINGS
Your TV display can be adjusted to suit your preferences and
viewing conditions.
To adjust the picture settings:
1. Press the MENU button on the
remote. The on-screen menu is
displayed.
2. Use the Arrow buttons on the
remote to highlight Picture and
press OK. The PICTURE menu is
displayed.
3. Use the Arrow buttons on the
remote to highlight Picture
Mode, then use the Left/Right
Arrow buttons to change the
picture mode:
• Standard sets the various
picture settings to values
that meet
ENERGY STAR® requirements.
• Calibrated sets the picture
settings to values perfect for
watching TV in a brightly-lit
room.
• Calibrated Dark sets the picture settings to values
perfect for watching TV in a dark room.
• Vivid sets the picture settings to values that produce a
When changes are made while a preset picture
mode is selected, an asterisk appears after the name
of the picture mode. These settings can be saved as
a new custom picture mode and the preset mode
can be reset to its default settings. (see Creating a
Custom Picture Mode on page 28).
brighter, more vivid picture.
• Game reduces throughput delays and optimizes the
picture settings for displaying game console output.
• Computer optimizes the picture settings for displaying
computer output.
4. To manually change each of the picture settings, use the
Up/Down Arrow buttons on the remote to highlight that
picture setting, then use the Left/Right Arrow buttons to
adjust the setting:
• Backlight - Adjusts the LED brightness to affect the overall
brilliance of the picture. Backlight cannot be adjusted
when starting from some picture modes.
• Brightness - Adjusts the black level of the picture. When
this setting is too low, the picture may be too dark to
distinguish details. When this setting is too high, the
picture may appear faded or washed out.
• Contrast - Adjusts the white level of the picture. When
this setting is too low, the picture may appear dark. When
this setting is too high, the picture may appear faded
or washed out. If the setting is too high or too low, detail
may be difficult to distinguish in dark or bright areas of
the picture.
• Color - Adjusts the intensity of the picture colors.
• Tint - Adjusts the hue of the picture. This setting is useful
in adjusting the flesh tones in the picture. If flesh appears
too orange, reduce the level of color before adjusting tint.
• Sharpness - Adjusts the edge sharpness of picture
elements. It can be used to sharpen non-HD (high
definition) content; however, it will not produce detail that
does not otherwise exist.
5. When you have finished adjusting the picture settings, press
BACK to adjust additional settings or EXIT.
Help
VIZIO
Network
Sleep
Timer
InputCC
ABC
Audio
Wide
Normal
Settings
PanoramicWideZoom
2D 3DExit
Picture Mode Standard
Backlight 85
Brightness 50
Contrast 50
Color 59
Tint 0
Sharpness 9
More Picture
Picture Mode Edit
Color Calibration
-+
+
-
-+
-+
-+
-+
Select from preset picture modes. Standard
picture mode meets ENERGY STAR®
requirements. For the best picture, use
Calibrated mode. To reduce video delay
(lag) when gaming, use Game mode.
5
23
Adjusting the More Picture Settings
To adjust the More Picture settings:
1. From the PICTURE menu, use
the Arrow buttons to highlight
More Picture, and then press
OK. The MORE PICTURE menu is
displayed.
2. Use the Arrow buttons to
highlight the setting you wish
to adjust, then press the Left/
Right Arrow buttons to change
the setting:
• Color Temperature -
Adjusts the 'warmness' and
'coolness' of the white areas
of the picture. Select Cool,
Normal, or Computer.
• Cool produces a
blue-hued picture.
• Normal is optimized for
television viewing.
• Computer optimizes the
picture for use as a
PC monitor.
• Black Detail - Adjusts the average brightness of the
picture to compensate for large areas of brightness.
Select Off, Low, Medium, or High.
• Backlight Control - Dynamically improves the contrast
ration of the picture by adusting the backlight. Select Off
or On.
• Reduce Signal Noise - Reduces background picture noise
when viewing analog sources. The function helps to correct
"speckle" noise with a slight reduction in sharpness.Select
Off, Low, Medium, or High.
• Reduce Block Noise - Reduces pixelation and distortion
for mpeg files. Select Off, Low, Medium, or High.
• Game Low Latency - Reduces video delay (lag) when
gaming. Select Off, or On. This option is not available for
devices connected using a coaxial cable.
• Picture Size & Position - Picture Size increases or
decreases the vertical and horizontal size of the
displayed picture. Picture Position adjusts the vertical
and horizontal positions of the picture to ensure the
image is centered and completely fills the screen. Use the
Left/Right Arrow buttons to adjust the horizontal position
of the displayed picture. Use the Up/Down Arrow buttons
to adjust the vertical position of the displayed picture.
Press the OK button when you are finished.
• Film Mode - Optimizes the picture for watching film.
Select Auto or Off.
• Gamma - Sets the shape of the gamma curve. Use lower
values for bright room conditions and higher values
when it is dark. Select 1.8, 2.0, 2.1, 2.2, or 2.4.
3. When you have finished adjusting the More Picture settings,
press BACK to adjust additional settings or EXIT.
Help
VIZIO
Network
Sleep
Timer
InputCC
ABC
Audio
Wide
Normal
Settings
PanoramicWideZoom
2D 3DExit
MORE PICTURE
Color Temperature Cool
Black Detail Medium
Backlight Control
Reduce Signal Noise Low
Reduce Block Noise Low
Game Low Latency
Picture Size & Position
Film Mode Auto
Gamma
5
24
Adjusting the Picture Mode Edit Settings
To adjust the Picture Mode Edit settings:
1. From the PICTURE menu, use
the Arrow buttons to highlight
More Picture > Picture Mode
Edit, and then press the OK
button. The PICTURE MODE EDIT
menu is displayed.
2. Use the Arrow buttons to
highlight the setting you wish
to adjust, then press the Left/
Right Arrow buttons to change
the setting:
• Save Picture Mode - Saves
the settings for a custom
picture mode.
• Lock Picture Mode - Prevent/
allow changes to the
currently selected custom
picture mode. Select On or
Off.
• Reset Picture Mode - Resets
the picture mode settings to
factory default values.
3. When you have finished adjusting the Picture Mode Edit
settings, press BACK to adjust additional settings or EXIT.
Help
VIZIO
Network
Sleep
Timer
InputCC
ABC
Audio
Wide
Normal
Settings
PanoramicWideZoom
2D 3DExit
PICTURE MODE EDIT
Save Picture Mode
Lock Picture Mode
Reset Picture Mode
5
25
Adjusting the Color Calibration Settings
Color Calibration Settings allow you to make precise adjustments
to the picture and to create picture modes to save groups of
picture settings.
The Color Tuner, 11 Point White Balance, and test
patterns allow technicians to manually calibrate the
TV. Calibration requires specialized training, an input
with precisely set colors, and a specialized light meter.
To adjust the color calibra picture settings:
1. From the PICTURE menu,
use the Arrow buttons to
highlight Color Calibration
and press the OK button. The
COLOR CALIBRATION menu is
displayed.
2. Use the Arrow buttons to
highlight the setting you wish
to adjust, then press the OK
button to change the setting:
• Picture Mode - Not directly
selectable (reference only).
Changes to Hue,
Saturation, and Brightness are
saved here and indicated with
an asterisk (*).
• Color Temperature - Not directly
selectable (reference only). Changes to Offset and Gain
are saved here and indicated with an asterisk (*).
• Color Tuner - Adjust the HSB color, RGB offsets, and
11-point white balance, and display calibration test
patterns.
• Reset Color Tuner/Temperature - Prevent/allow changes
to the currently selected custom picture mode.
Help
VIZIO
Network
Sleep
Timer
InputCC
ABC
Audio
Wide
Normal
Settings
PanoramicWideZoom
2D 3DExit
COLOR CALIBRATION
Picture Mode*
Color Temperature*
Color Tuner
Reset Color Temperature
Adjusting the Color Tuner Settings
The Color Tuner settings allow you to adjust the Hue, Saturation,
and Brightness (HSB) color and 11 point white balance, turn color
channels off for testing, and display color bar, flat, and ramp test
patterns.
To adjust the HSB color settings:
1. From the PICTURE menu, use the Arrow buttons to highlight
Color Calibration and press the OK button. The COLOR
CALIBRATION menu is displayed.
2. Use the Arrow buttons to highlight Color Tuner, and press the
OK button. The Color Tuner menu is displayed.
3. Use the Arrow buttons on the remote to highlight the Hue,
Saturation, Brightness, (these 3 adjust the color) Offset, or
Gain (these two adjust the color temperature) of the color
you wish to adjust. Press the OK button.
4. Use the Left/Right Arrow buttons to adjust the value. When
you are finished press the OK button to save the setting.
5. When you have finished adjusting the Color Tuner settings,
press the BACK button to adjust additional settings or EXIT.
Changes to Hue, Saturation, and Brightness are indicated with
an asterisk (*) on the Picture Mode setting.
Changes to Offset and Gain are indicated with an asterisk (*).
on the Color Temperature setting.
Color Tuner
Red Green Blue Cyan Magenta Yellow
Hue 000025 -14
Saturation -1 5-4 0-2 0
Brightness -24 0-22 000
Offset 000
Gain 000
5
26
To turn color channels off and on:
1. From the PICTURE menu, use the Arrow buttons to highlight
Color Calibration and press the OK button. The COLOR
CALIBRATION menu is displayed.
2. Use the Arrow buttons to highlight Color Tuner, and then
press the OK button. The Color Tuner menu is displayed ..
3. Use the Arrow buttons on the remote to highlight Red,
Green, or Blue.
4. Press the OK button to turn the color channel off or on. An X
appears over a color channel that has been turned off.
5. Use the Arrow buttons to highlight another color channel to
turn off or on. Only two color channels can be turned off at
the same time.
6. When you are finished with the color channels, press the
BACK button to adjust additional settings or EXIT.
Color Tuner
Red Green Blue Cyan Magenta Yellow
Hue 000025 -14
Saturation -1 5-4 0-2 0
Brightness -24 0-22 000
Offset 000
Gain 000
To adjust the 11 Point White Balance settings:
1. From the Color Tuner menu, use the Arrow buttons to
highlight Color Tuner, and then press the Left/Right Arrow
buttons until the 11 Point White Balance menu is displayed.
2. Use the Arrow buttons on the remote to highlight the Gain
and Color values you wish to adjust. Press the OK button
and use the Left/Right Arrow buttons to adjust the value.
When you are finished press the OK button to save the
setting.
3. When you are finished, press the BACK button to adjust
additional settings or EXIT.
All changes here are saved to Color Temperature.
11 Point White Balance
Gain Red Green Blue
5% 0 0 0
5
27
To show or hide the Color Bar Test Pattern:
1. Ensure that you are on an input that is displaying active
content. From the Color Tuner menu, use the Arrow buttons
to highlight Color Tuner, and then press the Left/Right Arrow
buttons until the SMPTE Test Pattern menu is displayed.
SMPTE Test Pattern
Off
2. Use the Arrow buttons on the remote to highlight Off. Use the
Left/Right Arrow buttons to highlight On to show the Color
Bar.
—or—
To hide the Color Bar Test Pattern, use the Left/Right Arrow
buttons to highlight Off.
3. When you are finished, press the BACK button to adjust
additional settings or EXIT.
To show or hide the Flat Test Pattern:
1. Ensure that you are on an input that is displaying active
content. From the Color Tuner menu, use the Arrow buttons
to highlight Color Tuner, and then press the Left/Right Arrow
buttons until the Flat Test Pattern menu is displayed.
Flat Test Pattern
Off
2. Use the Arrow buttons on the remote to highlight Off. Use
the Left/Right Arrow buttons to select the percentage
brightness for the flat test pattern. Selecting a percentage
immediately shows the flat pattern at that brightness.
—or—
To disable the Flat Test Pattern, use the Left/Right Arrow
buttons to highlight Off.
3. When you are finished, press the BACK button to adjust
additional settings or EXIT.
5
28
Creating a Custom Picture Mode
Custom picture modes allow you to save a group of custom
settings for various viewing conditions and video sources.
When changes are made while a preset picture mode is selected,
an asterisk appears after the name of the picture mode. These
settings can be saved as a new custom picture mode and the
preset mode can be reset to its default settings.
A custom picture mode only applies to the input
(HDMI-1, HDMI-2, COMP, AV, etc.) in use when it was
created. Each input can have up to six custom
picture modes.
To create a custom picture mode:
1. Set the Picture Mode to an
existing custom setting. See
Adjusting the Picture Settings
on page 22.
2. From the PICTURE menu, use
the Arrow buttons to highlight
Picture Mode Edit and press
OK. The PICTURE MODE EDIT
menu is displayed.
3. On the PICTURE MODE EDIT
menu, select Save Picture
Mode. The
SAVE PICTURE MODE menu is
displayed.
4. Use the Arrow buttons to enter
a custom name using the
on-screen keyboard.
5. Highlight Done and press OK.
6. Press the EXIT button to exit the
menu screens.
To show or hide the Ramp Test Pattern:
1. Ensure that you are on an input that is displaying active
content. From the Color Tuner menu, use the Arrow buttons
to highlight Color Tuner, and then press the Left/Right Arrow
buttons until the Ramp Test Pattern menu is displayed.
2. Use the Arrow buttons on the remote to highlight Off. Use
the Left/Right Arrow buttons to select the color for the ramp
test pattern. Selecting a color immediately shows that color
ramp.
—or—
To hide the Ramp Test Pattern, use the Left/Right Arrow
buttons to highlight Off.
3. When you are finished, press the BACK button to adjust
additional settings or EXIT.
Ramp Test Pattern
Off
Help
VIZIO
Network
Sleep
Timer
InputCC
ABC
Audio
Wide
Normal
Settings
PanoramicWideZoom
2D 3DExit
SAVE PICTURE MODE
<type custom name>
Done
a b c d e f g h i
j k l m n o p q r
s t u v w x y z 0
1 2 3 4 5 6 7 8 9
.@# .com Space
5
29
Locking and Unlocking the Custom Picture Modes
Custom picture modes can be locked with a unique PIN to
prevent accidental changes to their settings.
To lock all custom picture modes:
1. From the PICTURE menu, use
the Arrow buttons to highlight
Picture Mode Edit and
select Lock or Unlock Picture
Mode, then press OK. T h e
LOCK PICTURE MODE menu is
displayed.
2. Use the Number Pad on your
remote to enter a unique
4-digit PIN.
3. Highlight Save and then press
the OK button.
4. Press the EXIT button to exit the
menu screens.
To unlock all custom picture modes:
5. From the PICTURE menu, use
the Arrow buttons to highlight
Picture Mode Edit and
select Lock or Unlock Picture
Mode, then press OK. T h e
LOCK PICTURE MODE menu is
displayed.
6. Use the Number Pad on your remote to enter your 4-digit PIN.
7. Make any desired changes to the picture modes.
8. To relock picture modes, you must create a new 4-digit PIN.
Help
VIZIO
Network
Sleep
Timer
InputCC
ABC
Audio
Wide
Normal
Settings
PanoramicWideZoom
2D 3DExit
LOCK PICTURE MODE
Create a picture control PIN to
prevent change to all custom
picture modes.
Save
Create a 4 digit passcode using the num-
ber keys on the remote.
Deleting a Custom Picture Mode
Custom picture modes that are no longer needed can be
deleted.
To delete a custom picture mode:
1. From the PICTURE menu, use
the Arrow buttons to highlight
Picture Mode Edit and select
Lock or Unlock Picture Mode,
then press OK. The DELETE
PICTURE MODE window is
displayed.
2. Use the Left/Right Arrow buttons to highlight Delete and
press OK.
3. Press the BACK button to adjust additional settings or EXIT.
Inputs assigned to a deleted custom picture mode
become assigned to the
Calibrated
picture mode.
To delete the user created Custom 1 picture mode,
select the Delete button.
Delete Cancel
5
30
ADJUSTING THE AUDIO SETTINGS
To adjust the audio settings:
1. Press the MENU button on the
remote. The on-screen menu
is displayed.
2. Use the Arrow buttons on the
remote to highlight Audio and
press OK. The AUDIO menu
is displayed.
3. Use the Arrow buttons to
highlight the setting you wish
to adjust, then press Left/Right
Arrow buttons to change
the setting:
• TV Speakers - Turns the
built-in speakers on or off.
• Surround Sound - Surround sound uses DTS TruSurround™
to deliver an immersive surround sound experience
from the TV’s internal speakers. TruSurround completes
the entertainment experience by providing deep, rich
bass and by delivering crisp details and clear, intelligible
dialog. Select On or Off.
• Balance - Adjusts the loudness of the audio output from
the left and right speakers.
• Lip Sync - Adjusts the synchronization between the
display image and the accompanying audio track.
• Digital Audio Out - Changes the type of processing for
HDMI ARC or optical output when connected to a home
theater audio system. Select PCM or Bitstream.
Help
VIZIO
Network
Sleep
Timer
InputCC
ABC
Audio
Wide
Normal
Settings
PanoramicWideZoom
2D 3DExit
AUDIO
TV Speakers On
Surround Sound On
Balance 0
Lip Sync 0
Digital Audio Out PCM
Analog Audio Out Fixed
Equalizer
Delete Audio Mode
-+
-+
When the TV speakers are set to On, DTS signals
cannot be passed through digital audio outputs.
You must select Bitstream for audio with more than
two channels (3.0, 5.0, or 5.1, for example).
• Analog Audio Out - Sets the volume control properties
for the 3.5mm (headphone jack) connector when
connected to a home theater audio system. Select
Variable to control the headphones’ volume from
the TV’s volume controls, or select Fixed to control
the headphones’ volume from your home theater
system controls. (Some external speakers can also be
connected to the 3.5mm connector.)
• Equalizer - Adjusts the boost or attenuation of different
frequencies using either preset or custom settings. See
Changing the Equalizer Settings
on page 31.
• Delete Audio Mode - Deletes a custom audio mode
created using the Equalizer Settings. See
Deleting the
Custom Audio Mode on page 31
.
This option is cannot be selected if no custom audio
mode has been created.
4. When you have finished adjusting the audio settings, press
the BACK button to adjust additional settings or EXIT.
5
31
Deleting the Custom Audio Mode
To delete the custom audio mode that has been created:
1. Press the MENU button on the remote. The on-screen menu is
displayed.
2. Use the Arrow buttons on the remote to highlight Audio and
press OK. The AUDIO menu is displayed.
3. Use the Arrow buttons to highlight Delete Audio Mode and
press OK. The TV displays, “To delete the user created custom
audio mode, select the Delete button.”
4. Highlight Delete and press OK.
5. Press the BACK button to adjust additional settings or EXIT.
Changing the Equalizer Settings
The graphic equalizer has several pre-set modes and allows you
to create one custom mode.
To select a pre-set audio mode:
1. Press the MENU button on the remote. The on-screen menu is
displayed.
2. Use the Arrow buttons on the remote to highlight Audio and
press OK. The AUDIO menu is displayed.
3. Use the Arrow buttons to highlight Equalizer and press OK.
The Audio Mode and equalizer settings screen appears.
4. Use the Left and Right Arrow buttons to select an audio
mode (Flat, Dynamic, Center, Bass Boost, or Bright). The
equalizer bars change to reflect the mode.
5. Press the BACK button to adjust additional settings or EXIT.
To create, modify, or replace the single custom equalizer setting:
1. Press the MENU button on the remote. The on-screen menu is
displayed.
2. Use the Arrow buttons on the remote to highlight Audio and
press OK. The AUDIO menu is displayed.
3. Use the Arrow buttons to highlight Equalizer and press OK.
The Audio Mode and equalizer settings screen appears.
4. Use the Left and Right Arrow buttons to select any audio
mode as a starting point.
5. Use the Arrow buttons to highlight a frequency and then
press OK.
6. Use the Up and Down Arrow buttons to adjust the boost
(up) and attenuation (down) for the frequency.
7. Use the Left and Right Arrow buttons to select another
frequency, if desired, and adjust it.
8. Press the BACK button to adjust additional settings or EXIT.
5
32
Setting the Auto Power Off Feature
To help save energy, your TV is set by default to turn off after 10
minutes without a video or audio signal. This feature can be
deactivated.
To set the Auto Power Off feature:
1. From the TIMERS menu, use the Up/Down Arrow buttons on
the remote to highlight Auto Power Off.
2. Use the Left/Right Arrow buttons on the remote to change
whether the TV will turn off. If you don’t want the TV to turn
off when there is no signal, change the setting to Off or 10
minutes.
3. When you have finished setting the auto power off time,
press the BACK button to adjust additional settings or EXIT.
SETTING TIMERS
This TV has several timers to save energy and to turn off when you
go to sleep.
Setting the Sleep Timer
When activated, the TV’s sleep timer will turn the TV off after a set
period of time.
1. Press the MENU button on the
remote. The on-screen menu is
displayed.
2. Use the Arrow buttons on the
remote to highlight Timers and
press OK. The TIMERS menu is
displayed.
3. Use the Left/Right Arrow
buttons on the remote to
highlight the period of time
after which you want the TV to
go to sleep: 30, 60, 90, 120, or
180 minutes. If you don’t want
the sleep timer to activate,
change the setting to Off.
4. When you have finished setting
the sleep timer, press the BACK
button to adjust additional
settings or EXIT.
Help
VIZIO
Network
Sleep
Timer
InputCC
ABC
Audio
Wide
Normal
Settings
PanoramicWideZoom
2D 3DExit
TIMERS
Sleep Timer Off
Auto Power Off 10 minutes
5
33
SETTING UP CHANNELS
You can use the TV’s Channels menu to:
• Select a Channel Source
• Find channels
• Perform a partial channel scan
• Manually add channels
• Select channels to skip
• Select language for analog
and digital channels
Help
VIZIO
Network
Sleep
Timer
InputCC
ABC
Audio
Wide
Normal
Settings
PanoramicWideZoom
2D 3DExit
CHANNELS
Channel Source Antenna
Find Channels
Partial Channel Search
Add Analog Channel
Skip Channel
Analog Audio Stereo
Digital Language English
Help
VIZIO
Network
Sleep
Timer
InputCC
ABC
Audio
Wide
Normal
Settings
PanoramicWideZoom
2D 3DExit
Help
VIZIO
Network
Sleep
Timer
InputCC
ABC
Audio
Wide
Normal
Settings
PanoramicWideZoom
2D 3DExit
FIND CHANNELS
Channels Found
Digital: 0
Analog: 19
18% Complete
Cancel
Cancel the channel scan.
Selecting a Channel Source
1. On the remote control, press Input and use the Arrow button
to highlight TV (antenna icon), then press OK.
2. Press the MENU button, select Channels and press OK. The
CHANNELS menu is displayed.
3. On the CHANNELS menu, highlight Channel Source and
using the left/right Arrow buttons to select either Antenna or
Cable.
Finding Channels
The TV may need to scan for channels before it can display
programs and their associated information. A channel scan is
required for free over-the-air channels (using an antenna) and
cable channels from an out-of-the-wall connection (without a
cable box). Moving the TV to an area with different channels
requires the TV to scan for channels again.
To perform an Auto Channel Scan:
1. From the CHANNELS menu,
highlight Find Channels and
press OK. The auto channel
scan begins.
2. Wait until the channel scan is
100% complete. Highlight Done
and press OK.
3. Press the EXIT button on the
remote.
If the channel scan is cancelled,
the channels that were already
discovered are retained. A new
channel scan will clear all channels.
5
34
Adding New Channels
Occasionally, you may need to add a new range of channels or
add a new analog channel. You can do this by using the Partial
Channel Scan and Add Analog Channel options. This is quicker
than scanning all possible channels.
To add a range of new channels:
1. From the CHANNELS menu, highlight Partial Channel
Search, and press OK. The PARTIAL CHANNEL SEARCH menu
is displayed.
2. Highlight Scan Mode and select the type of channel you
are adding: Analog, Digital, or Analog/Digital.
3. Highlight From Channel and type the channel where
you want to begin the scan. (Use the left Arrow button to
backspace. Use the Number Pad on the remote to type the
channel.)
4. Highlight To Channel and enter the channel where you want
to end the scan. (Use the left Arrow button to backspace.
Use the Number Pad on the remote to enter the channel.)
5. Highlight Start and press OK. The partial channel search
begins.
6. Wait until the partial channel search is 100% complete.
Highlight Done and press OK.
7. Press the EXIT button on the remote.
To add a single new analog channel:
1. From the CHANNELS menu,
highlight Add Analog Channel
and press OK. The ADD
ANALOG CHANNEL menu is
displayed.
2. Highlight Enter Channel # and
use the Number Pad on the
remote to type the number of
the channel to be added.
3. Highlight Add Channel and
press OK. The TV scans for the
channel.
4. When the TV is done scanning
for the channel, press the EXIT
button on the remote.
Help
VIZIO
Network
Sleep
Timer
InputCC
ABC
Audio
Wide
Normal
Settings
PanoramicWideZoom
2D 3DExit
ADD ANALOG CHANNEL
Enter Channel #
Add Channel
5
35
Skipping Channels
After a channel scan is completed, you may find that some
channels are too weak to watch comfortably. There may also be
some channels you do not want to view. You can remove these
channels from the TV’s memory with the Skip Channel feature.
Channels that have been removed with the Skip
Channel feature can still be viewed if the channel
is entered using the Number Pad. If you wish to
completely block a channel from being viewed, use
the parental controls. See
Locking and Unlocking
Channels on page 42
.
To remove a channel:
1. From the CHANNELS menu,
highlight Skip Channel, and
press OK. The SKIP CHANNEL
menu is displayed.
2. For each channel you wish
to remove, use the Up/Down
Arrow buttons on the remote
to highlight the channel and
press OK. A P appears to the
right of each channel you
select.
3. When you have selected all
of the channels you wish to
remove, press BACK to adjust
additional settings or EXIT.
Help
VIZIO
Network
Sleep
Timer
InputCC
ABC
Audio
Wide
Normal
Settings
PanoramicWideZoom
2D 3DExit
SKIP CHANNEL
1Test 0
1Test 1 P
1-2 Test 2 P
2Test 3
2-2 Test 4 P
2-3 Test 5
5
36
Changing the Digital Audio Language
Some digital over-the-air (free), cable, and satellite channels
broadcast programs in more than one language. The TV’s Digital
Audio feature allows you to listen to audio in alternate languages.
Not all programs are broadcast in alternate
languages. The Digital Audio Language feature only
works when the program being viewed is being
broadcast in the language you select.
1. From the CHANNELS menu,
highlight Digital Language
and press OK. The DIGITAL
LANGUAGE menu is displayed.
2. Select your preferred language:
English, Français, or Español
and press OK.
3. Press BACK to adjust additional
settings or EXIT.
Help
VIZIO
Network
Sleep
Timer
InputCC
ABC
Audio
Wide
Normal
Settings
PanoramicWideZoom
2D 3DExit
DIGITAL LANGUAGE
English
Español
Français
LISTENING TO ALTERNATE AUDIO
Changing the Analog Audio Language
Some analog over-the-air (free) and cable channels broadcast
programs in more than one language. The TV’s Analog Audio
feature allows you to listen to audio in an alternate language
using Secondary Audio Programming (SAP).
Not all programs are broadcast in SAP. The Analog
Audio Language feature only works when the
program being viewed is being broadcast with
Secondary Audio Programming.
To use the Analog Audio feature:
1. From the CHANNELS menu,
highlight Analog Audio and
press OK. The ANALOG AUDIO
menu is displayed.
2. Select Stereo, SAP (secondary
audio programming), or Mono.
Press OK.
3. Press BACK to adjust additional
settings or EXIT.
Help
VIZIO
Network
Sleep
Timer
InputCC
ABC
Audio
Wide
Normal
Settings
PanoramicWideZoom
2D 3DExit
ANALOG AUDIO
Stereo
SAP
Mono
5
37
SETTING UP CLOSED CAPTIONING
Your TV can display closed captions for programs that include
them. Closed captions display a transcription of a program’s
dialogue.
The Closed Captions menu does not appear when
an HDMI input is selected.
To activate or deactivate closed captions:
1. Press the MENU button on the
remote. The on-screen menu is
displayed.
2. Use the Arrow buttons on the
remote to highlight Closed
Captions and press OK. The
CLOSED CAPTIONS menu is
displayed.
3. Use the Arrow buttons on the
remote to highlight Closed
Captions and then use the
Left/Right Arrow buttons to
select On or Off.
4. Use the Arrow buttons on
the remote to highlight either
Analog or Digital Closed
Captions.
5. Use the Left/Right Arrow buttons
on the remote to select the
caption channel you wish to
display, then press BACK to
adjust additional settings or EXIT.
If the program you are viewing is not being broadcast
with closed captions, the TV will not display them.
VIZIO
CLOSED CAPTIONS
Closed Captions Off
Analog Closed Captions CC1
Digital Closed Captions CS1
Digital Style
Changing the Appearance of Digital Closed Captions
Digital closed captions can be displayed according to your
preference. See the diagram on the next page for an explanation
of the parts of the closed caption area.
To change the appearance of digital closed captions:
1. From the CLOSED CAPTIONS
menu, use the Arrow buttons
to highlight Digital Style and
press OK.
2. Use the Left/Right Arrow
buttons on the remote to
select Custom and press OK.
The DIGITAL STYLE menu is
displayed.
3. Use the Up/Down Arrow
buttons on the remote to
highlight the setting you wish
to change, then use the Left/
Right Arrow buttons to change
the setting:
• Caption Style - Choose
As Broadcast to keep
default settings or Custom
to manually change each
setting.
• Text Style - Change the
font used for the closed
captioning text.
• Text Size - Make the text larger or smaller.
• Text Color - Change the color of the text.
• Text Opacity - Change the transparency of the text.
• Text Edges - Change the effects at the edges of the text,
such as raising the edges or adding drop shadows.
Help
VIZIO
Network
Sleep
Timer
InputCC
ABC
Audio
Wide
Normal
Settings
PanoramicWideZoom
2D 3DExit
DIGITAL STYLE
Caption Style Custom
Text Style As Broadcast
Text Size Large
Text Color Green
Text Opacity As Broadcast
Text Edges As Broadcast
Text Edges Color As Broadcast
Background Color Black
Background Opacity As Broadcast
Window Color Red
Window Opacity As Broadcast
Select As Braodcase to display digital captions
as sent by the caption provider. The color and
size for the caption text and background can
still be customized.
5
38
• Text Edges Color - Change the color of the text edge
effects.
• Background Color - Change the color of the
background directly behind the text.
• Background Opacity - Change the transparency of the
background directly behind the text.
• Window Color - Change the color of the closed
captioning box.
• Window Opacity - Change the transparency of the
closed captioning box.
4. When you are satisfied with the appearance of the closed
captions, press the EXIT button on the remote.
Typical choices include:
• Opaque background, transparent window—Only a strip
of background appears behind the text, expanding as
the text appears. This is the typical "As Broadcast" mode.
• Opaque background and window in the same color—
When text appears, the entire line fills with color at once.
In the example below, the closed caption text is green, the
background is black, and the window is red.
CLOSED CAPTIONS SCREEN LAYOUT
Text
Window
Background
CLOSED CAPTION TEXT SAMPLE
5
39
RENAMING DEVICES ON THE INPUT MENU
Inputs can be renamed to make them easier to recognize on the
Input menu (see
Changing the Input Source
on page 20). For
example, if you have a DVD player connected to the Component
input, you can rename that input to display “DVD Player.”
To change the name of an input:
1. Press the MENU button on the remote. The on-screen menu is
displayed.
2. Use the Arrow buttons on the remote to highlight Devices
and press the OK button. The DEVICES menu is displayed.
3. Highlight the input port that you want to name and press OK.
4. To use a preset input name:
a. Highlight the Input Port row and press OK.
b. Highlight the input name you want to use (HDMI-1,
Blu-ray, Cable Box, Computer, DVD, DVR, Game, or
Satellite) and press OK.
—or—
To enter a custom name:
a. Enter your custom name using the on-screen keyboard.
b. Highlight OK and press OK.
c. The Input Name changes to show the custom name that
you created.
5. When you have finished naming your input, press the BACK
button to adjust additional settings or EXIT.
Help
VIZIO
Network
Sleep
Timer
InputCC
ABC
Audio
Wide
Normal
Settings
PanoramicWideZoom
2D 3DExit
NAME INPUT
HDMI-1 DVD
DVD_
OK
Cancel
Select the input name from a list of
common device names (Blu-ray, Cable
Box, DVD, etc).
a b c d e f g h i
j k l m n o p q r
s t u v w x y z 0
1 2 3 4 5 6 7 8 9
.@# .com Space
Input Port
Custom Name
Input Name
5
40
CHANGING THE TV SETTINGS
Using the System menu, you can:
• View system information
• Change the on-screen
menu language
• Set the time zone and local
settings
• Set up parental controls
• Select a view mode
• Change the Wide settings
• Adjust the California Energy
Commission (CEC) settings
• Adjust when the power
indicator is illuminated
• Reset the TV settings and set
up administrative controls
Help
VIZIO
Network
Sleep
Timer
InputCC
ABC
Audio
Wide
Normal
Settings
PanoramicWideZoom
2D 3DExit
SYSTEM
System Information
Menu Language English
Time & Local Settings
Parental Controls
View Mode
Wide
CEC
Power Indicator Off
Reset & Admin
Viewing System Information
To view a summary of the TV settings:
1. Press the MENU button on the remote. The on-screen menu is
displayed.
2. Use the Arrow buttons on the remote to highlight System
and press OK. The SYSTEM menu is displayed.
3. Highlight System Information and press OK.
4. Use the Up/Down Arrow buttons to scroll through the system
information.
System information is used verify settings and the
firmware version.
5. When you are finished reviewing the system information,
press the BACK button to view or change additional settings
or EXIT.
View status information for the TV, remote,
current input and your network.
5
41
Changing the On-Screen Menu Language
Your TV can display the on-screen menu in different languages.
To change the on-screen menu language:
1. Press the MENU button on the
remote. The on-screen menu is
displayed.
2. Use the Arrow buttons on the
remote to highlight System and
press OK. The SYSTEM menu is
displayed.
3. Use the Arrow buttons on the
remote to highlight Menu
Language and press OK. The
MENU LANGUAGE menu is
displayed.
4. Highlight your preferred
language (English, Español,
or Français) and press OK. All
screens will now be displayed
in the selected language.
5. Press the BACK button to change
additional settings or EXIT.
Help
VIZIO
Network
Sleep
Timer
InputCC
ABC
Audio
Wide
Normal
Settings
PanoramicWideZoom
2D 3DExit
MENU LANGUAGE
English
Español
Français
Setting the Time and Local Settings
To ensure the correct time is displayed when you press the INFO
button, set the TV’s time zone:
1. Press the MENU button on the
remote. The on-screen menu is
displayed.
2. Use the Arrow buttons on the
remote to highlight System and
press OK. The SYSTEM menu is
displayed.
3. Use the Arrow buttons on the
remote to highlight Time &
Local Settings and press OK.
The menu headed by the local
date and time is displayed.
4. Highlight Time Zone and press
OK. The TIME ZONE menu is
displayed.
5. Highlight your time zone and press OK.
6. Highlight Daylight Saving Time and press OK. The DAYLIGHT
SAVING TIME menu is displayed. Choose On if your locale
observes daylight savings time, Off if it does not, or Auto to
have your TV detect daylight savings automatically.
7. Press the BACK button to change additional settings or EXIT.
Help
VIZIO
Network
Sleep
Timer
InputCC
ABC
Audio
Wide
Normal
Settings
PanoramicWideZoom
2D 3DExit
TIME ZONE
Alaska
Hawaii
Pacific
Mountain
Central
Eastern
Atlantic
Newfoundland
Indiana
Arizona
5
42
Using the Parental Controls
The TV’s parental controls allow you to prevent the TV from
displaying certain channels or programs without a password.
The Parental Controls menu only appears when:
• You are using the tuner to receive your TV signals, such as
when you are using an antenna for Over-the-Air signals
or when connected to cable TV directly from the wall (no
cable box).
• You have a device connected using a composite video
cable or a coaxial cable, such as a VCR, satellite or
cable box, or DVR.
Accessing the Parental Controls Menu
To access the Parental Controls menu:
1. Press the MENU button on the remote. The on-screen menu is
displayed.
2. Use the Arrow buttons on the remote to highlight System
and press OK. The SYSTEM menu is displayed.
3. Use the Arrow buttons on the remote to highlight Parental
Controls and press OK.
4. Enter your parental passcode. If you have not set a
passcode, enter the default, 0000. The PARENTAL CONTROLS
menu is displayed.
To set a custom parental passcode, see
Changing
the Parental Control Passcode
on page 43.
Enabling or Disabling Program Ratings
To manage program content according to its rating, you must
enable the Program Rating feature.
To enable or disable the Program Rating feature:
From the PARENTAL CONTROLS menu, highlight Locks and
use the left/right Arrow buttons to select On (enable) or Off
(disable).
Locking and Unlocking Channels
When a channel is locked, it will be inaccessible. Locking
a channel is a good way to prevent children from viewing
inappropriate material.
To lock or unlock a channel:
1. From the PARENTAL CONTROLS menu, highlight Channel
Locks and press OK. The CHANNEL LOCKS menu is displayed.
2. Highlight the channel you want to lock or unlock and press
OK.
3. When a channel is locked, the Lock icon appears locked.
The channel is not accessible unless the parental passcode
is entered.
4. When a channel is unlocked, the Lock icon appears
unlocked. The channel is accessible.
5
43
Blocking and Unblocking Content by Rating
A channel may sometimes broadcast programs that are meant
for children, and at other times broadcast programs that are
meant for mature audiences. You may not want to block the
channel completely using a channel lock, but you may wish to
block certain programs from being viewed.
When this is the case, you can use the TV’s Rating Block feature
to block content based on its rating.
For a list of content ratings and their definitions, visit
www.tvguidelines.org.
To block or unblock content by its rating:
1. From the PARENTAL CONTROLS menu, highlight the content
type you want to adjust and press OK:
USA TV - USA television program broadcasts.
USA MOVIE - USA movie broadcasts.
Canadian English - Canadian English television program
broadcasts.
Canadian French - Canadian French television program
broadcasts.
2. For each rating type you want to block or unblock, use the
Up/Down and Left/Right Arrow buttons on the remote to
highlight the rating type and press OK.
3. When the rating type is blocked, the Lock icon appears
locked. Content with this rating and all higher ratings
cannot be viewed.
4. When the rating type is unblocked, the Lock icon appears
unlocked. Content with this rating and all lower ratings can
be viewed.
If you want to block all unrated content, highlight Block
Unrated Shows and use the Arrow buttons on the remote to
select On.
5. When you are finished adjusting the rating level blocks, press
the EXIT button on the remote.
Changing the Parental Control Passcode
If you use the parental controls, you should change the passcode
to prevent children from accessing inappropriate material.
To change the parental control passcode:
1. From the PARENTAL CONTROLS menu, highlight Change PIN
and press OK. The CHANGE PIN menu is displayed.
2. In the New PIN field, use the Number Pad on the remote to
enter your new 4-digit parental control passcode.
3. In the Confirm PIN field, use the Number Pad on the remote
to re-enter your new 4-digit parental control passcode.
4. Write down your new parental control passcode and save it
in a secure location.
5. Press the EXIT button on the remote.
Resetting the Content Locks
To reset the content locks to the factory-default settings:
1. From the PARENTAL CONTROLS menu, highlight Reset Locks
and press OK. The TV displays, “Select Reset to restore
Parental Controls to the factory defaults.”
2. Highlight Reset and press OK.
5
44
Setting up View Mode
Your TV can display the screens in different modes.
To change the on-screen menu language:
1. Press the MENU button on the
remote. The on-screen menu is
displayed.
2. Use the Arrow buttons on the
remote to highlight System and
press OK. The SYSTEM menu is
displayed.
3. Use the Arrow buttons on the
remote to highlight View Mode
and press OK. The VIEW MODE
menu is displayed.
4. Highlight your preferred view
mode (Viewport, Overlay,
or Centered Overlay) and
press OK. All screens will now
be displayed in the selected
mode.
5. Press the BACK button to change
additional settings or EXIT.
Help
VIZIO
Network
Sleep
Timer
InputCC
ABC
Audio
Wide
Normal
Settings
PanoramicWideZoom
2D 3DExit
VIEW MODE
Viewport
Overlay
Centered Overlay
Changing the Wide Setting
To change the aspect ration:
1. Press the MENU button on the remote. The on-screen menu is
displayed.
2. Use the Arrow buttons on the remote to highlight System
and press OK. The SYSTEM menu is displayed.
3. Use the Arrow buttons on the remote to highlight Wide and
press OK. The aspect ratio options are displayed.
4. Select an aspect ratio. See
Changing the Screen Aspect
Ratio on page 20
for more information.
5
45
Adjusting the CEC Settings
The California Energy Commission (CEC) function on your
TV enables you to control HDMI-connected devices with the
included remote without any additional programming.
Not all HDMI devices support CEC. See your device’s
user manual for details.
To enable, disable, or adjust CEC settings:
1. Press the MENU button on the remote. The on-screen menu is
displayed.
2. Use the Arrow buttons on the remote to highlight System
and press OK. The SYSTEM menu is displayed.
3. Use the Arrow buttons on the remote to highlight CEC and
press OK. The CEC menu is displayed.
4. Use the Arrow and OK buttons to adjust each setting:
• CEC - To use CEC, you must select On.
• Device Discovery - Use this function to determine if your
device is connected and supports CEC.
5. Press the BACK button to change additional settings or EXIT.
Turning the Power Indicator On or Off
The Power Indicator on the front of your TV normally does not
glow when the TV is on. You can change this setting if you prefer
the light to be on.
To turn the Power Indicator Light on or off:
1. Press the MENU button on the remote. The on-screen menu is
displayed.
2. Use the Arrow buttons on the remote to highlight System
and press OK. The SYSTEM menu is displayed.
3. Highlight Power Indicator and press OK. The POWER
INDICATOR menu is displayed.
4. Use the Up/Down Arrow buttons to select On or Off, then
press OK.
5
46
USING THE RESET & ADMIN MENU
Restoring the TV to Factory Default Settings
All of the on-screen menu settings can be reset to the factory
default settings.
If you restore the TV to the factory default settings, all
changes you have made to the settings will be lost!
To restore the TV to its factory default settings:
1. Press the MENU button on the remote. The on-screen menu is
displayed.
2. Use the Arrow buttons on the remote to highlight System
and press OK. The SYSTEM menu is displayed.
3. Highlight Reset & Admin and press OK. The RESET & ADMIN
menu is displayed.
4. Highlight Reset TV to Factory Defaults and press OK.
5. If you have changed the default parental control passcode,
type it now.
The TV displays, “Select Reset to restore all TV settings to
factory defaults and clear all account information.”
6. Highlight Reset and press OK.
7. Wait for the TV to turn off. The TV will turn back on shortly
afterward and the Setup App will begin.
8. To view a demonstration of TV functions on start-up, select
Store Demo > On.
USING THE GUIDED SETUP MENU
The TV’s Setup App can be used to easily set up the TV tuner.
To use guided setup:
1. Press the MENU button on the
remote. The on-screen menu is
displayed.
2. Highlight Guided Setup and
press OK.
3. Highlight the guided setup you
want to use and press OK:
• Tuner Setup - Set up the TV
tuner.
4. Follow the on-screen
instructions. When finished,
press the BACK button to
change additional settings or
EXIT.
Help
VIZIO
Network
Sleep
Timer
InputCC
ABC
Audio
Wide
Normal
Settings
PanoramicWideZoom
2D 3DExit
GUIDED SETUP
Tuner Setup
5
47
USING THE INFO WINDOW
The Info Window can be displayed by pressing the INFO or GUIDE
button on the remote:
• Press the INFO or GUIDE button one time to display
channel, input, and display information.
• Press the INFO or GUIDE button two times to display the
program title, program rating, audio information, and the
start and end times of the program.
DIGITAL EPISODE GUIDE & INFO WINDOW
Oliver’s Holiday Surprise
1080p 6:15pm
11:00AM - 12:00PM
TV-PG-V Dolby Digital+ Stereo
Oliver wakes up one morning only to discover that his pals are missing. In this
hour-long holiday special, Oliver goes on a journey in search of his pals. Who
knows what he’ll encounter on the way?
Program Description
Program Title/Rating Information
Display Information
28-1
KCET-HD Normal
Channel/Input Information
6
48
Using the USB Media Player
USING THE USB MEDIA PLAYER
The USB Media Player allows you to connect a USB thumb drive to
your TV and play music, video, or photos.
Preparing Your USB drive to Play USB Media
To play USB media, you must first save your files on a USB thumb
drive:
• The USB thumb drive must be formatted as FAT32.
• Files on the USB thumb drive must end in a supported file
extension (.mp3, .jpg, etc.).
• The player is not designed to play media from
smartphones.
Playing USB Media
To play your USB media:
1. Connect your USB thumb drive to the USB port on the side of
the TV.
2. Press the V button on the remote.
3. Use the Arrow buttons to highlight the Multimedia app in
the V.I.A. Plus Dock and press OK. (The highlighted App is in
the center of the dock.)
4. Use the Arrow buttons to highlight the type of media to
display (Music, Video, or Photo) and press OK.
5. Use the Arrow buttons to highlight the file you want to
display. Press OK. Music or video files play, photos display.
You can display your photos in fullscreen. Select the
photo, press OK, then highlight Fullscreen and press
OK.
Removing the USB Drive from the TV
Do not remove the USB thumb drive while the TV is on.
Doing so may damage the drive.
To safely remove your USB drive from the TV:
1. Turn off the TV.
2. Disconnect your USB thumb drive from the USB port on the
side of the TV.
USB PORT
6
49
Start Slideshow
Name A-Z
Thumbnails
Settings
View:
Sort:
Photo VIZIO_2GB\Photo\root
File Name: D 1920x1080
Resolution: 1920x1080
Size: 1607270KB
USB1:
root B.jpg C.jpg
D.jpg E.jpg F.jpg
G.jpg H.jpg I.jpg
Page 1 of 1
Current Folder
Displays the folder path.
Page Information
If your USB thumb drive has more
files than can be displayed on a
single screen, the page information
is displayed here.
Back Button
Highlight and press OK to return to left column.
Connected
Sources
Displays
connected USB
devices.
Current Folder
Sort by Name or Date
View Thumbnails/Folders
Adjust Slideshow Settings
Start Fullscreen
Slideshow
Photo Information
Displays the name,
resolution, and file
size of the currently
selected photo.
PHOTO VIEWER
Browse Music
View Music Files
Back Button
Highlight this button
and press OK to return
to the previous screen.
Folder Contents
This area displays the
contents of the currently
selected folder. You can
browse files and folders
using the Arrow and OK
buttons on the remote.
VIZIO
A
Troubleshooting & Technical Support
50
Do you have questions? Find answers here:
SUPPORT.VIZIO.COM
Find help with:
•New product setup
•Connecting your devices
•Technical problems
•Product updates and more.
Live chat
support available
You can also contact our
award-winning support team:
Phone:
Email:
(877) 698-4946 (toll-free)
techsupport@VIZIO.com
Hours of Operation:
Monday - Friday: 7 am to 11 pm (CSt)
Saturday - Sunday: 9 am to 6 pm (CSt)
A
51
The TV displays “No Signal.”
• Press the INPUT button on the remote control to select a
different input source.
• If you are using an antenna or cable TV connected
directly to the TV, scan for channels. See
Finding
Channels
on page 33.
There is no power.
• Ensure the TV is plugged into a working electrical outlet.
• Ensure the power cable is securely attached to the TV.
• Press the POWER button on the remote or on the side of
the TV to turn the TV on.
The power is on, but there is no image on the screen.
• Ensure all cables are securely attached to the TV.
• Ensure all devices are connected correctly. Devices
differ; see your device’s user manual for details.
• Adjust Brightness, Contrast, or Backlight. See
Adjusting
the Picture Settings
on page 22.
• Press the INPUT button on the remote to select a
different input source.
There is no sound.
• Press VOLUME UP on the remote control.
• Press the MUTE button on the remote to ensure mute is
off.
• Check the audio settings. See
Adjusting the Audio
Settings
on page 30.
• Ensure the speakers are set to On.
• Ensure no headphones are connected to the TV.
• Check the audio connections of external devices
(Blu-ray player, game console, cable/satellite box) that
are connected to the TV.
• If you are using an antenna, the signal strength of the
channel may be low. Ensure your antenna is connected
securely to the TV and move the antenna around the
room or close to a window for the best signal.
The sound is flat or dialog is not audible.
• Turn off Sound Leveling. See
Adjusting the Audio
Settings
on page 30
.
The colors on the TV don’t look right.
• Adjust the Color and Tint settings in the Picture menu.
See
Adjusting the Picture Settings
on page 22.
• Check all cables to ensure they are securely attached.
A
52
The buttons on the remote aren’t working.
• The Red and Yellow hot key buttons below the V button
do not operate with this model.
• Ensure you are only pressing one button at a time.
• Point the remote directly at the TV when pressing a
button.
• Replace the remote batteries with new ones. See
Replacing the Batteries
on page 11
.
The image quality is not good.
• For the best image quality, view high-definition
programs using digital sources. Connect your devices
with HDMI cables.
• If you are using an antenna, the signal strength of the
channel may be low. Ensure your antenna is connected
securely to the TV and move the antenna around the
room or close to a window for the best signal.
The picture is distorted.
• Nearby electrical devices may be interfering with the
TV. Separate the TV from electrical appliances, cars, or
fluorescent lights.
• Ensure all cables are securely attached.
The display image does not cover the entire screen.
• If you are using TV, AV, or Component with 480i input,
press the WIDE button on the remote to change the
screen mode.
The TV has pixels (dots) that are always dark or always lit.
• Your HDTV is precision-manufactured using an extremely
high level of technology. However, sometimes pixels may
not display correctly. These types of occurrences are
inherent to this type of product and do not constitute a
defective product.
I see “noise” or static on the screen.
• When your TV’s digital capabilities exceed a
digital broadcast signal, the signal is up-converted
(improved) to match your TV’s display capabilities. This
up-converting can sometimes cause irregularities in the
image.
• If you are using an antenna, the signal strength of the
channel may be low. Ensure your antenna is connected
securely to the TV and move the antenna around the
room or close to a window for the best signal.
When I change input source, the display image changes size.
• The TV remembers the viewing mode on each input
source. If the viewing mode on the new input source
differs from the one on the input source you switch from,
the difference may be noticeable.
• See
Changing the Screen Aspect Ratio
on page 20
.
B
53
D39h-C0
Screen Size: 39" Class
Viewable Area: 38.50"
Dimensions w/ Stand:
w/o Stand:
34.75" x 22.68" x 8.27"
34.75" x 20.51" x 2.91"
Weight w/ Stand:
w/o Stand:
14.11 lbs
13.45 lbs
TV Type: Full Array LED
Refresh Rate: 60 Hz (Effective Refresh Rate)
Maximum Resolution: 1366 x 768 (720p)
Pixel Pitch: 0.62475 mm (H) x 0.62475 mm (V)
Dynamic Contrast Ratio: 200,000: 1
Response Time: 6.5 ms
Viewing Angle: 178°/ 178°
HDMI Inputs: 2
Component Video Inputs: 1
Composite Inputs: 1
RF Antenna Input: 1
USB 2.0 Ports: 1
Audio Outputs: RCA Stereo,
Optical Digital
OSD Language: English, Spanish, French
Specifications
B
54
D39h-C0
Remote Control Model: XRT010
Certifications: CSA-US, BETS-7/ICES-003, FCC Class B,
HDMI (CEC, ARC), Dolby Digital
Compliance:
Energy Star 6.1
COUNEE
NRCan
Voltage Range: 120V @ 60 Hz
Power-On Consumption: 36 W
Standby Power Consumption: 0.2 W
C
55
Limited Warranty
ON PARTS AND LABOR
Covers units purchased as new in United States and Puerto Rico Only.
VIZIO provides a warranty to the original purchaser of a new Product
against defects in materials and workmanship for a period of one (1)
year of non-commercial usage and ninety (90) days of commercial
use. If a Product covered by this warranty is determined to be defective
within the warranty period, VIZIO will either repair or replace the Product
at its sole option and discretion.
To obtain warranty service, contact VIZIO Technical Support via e-mail:
TechSupport@VIZIO.com or via phone at 877 MY VIZIO (877.698.4946)
from 7:00AM to 11:00PM Monday through Friday and 9:00AM to 6:00PM
Saturday and Sunday, Central Standard Time, or visit www.VIZIO.com.
PRE-AUTHORIZATION MUST BE OBTAINED BEFORE SENDING ANY PRODUCT
TO A VIZIO SERVICE CENTER. Proof of purchase in the form of a purchase
receipt or copy thereof is required to show that a Product is within the
warranty period.
Parts and Labor
There will be no charge for parts or labor during the warranty period.
Replacement parts and Products may be new or recertified at VIZIO’s
option and sole discretion. Replacement parts and Products are
warranted for the remaining portion of the original warranty or for ninety
(90) days from warranty service or replacement, whichever is greater.
Type of Service
Defective Products must be sent to a VIZIO service center to obtain
warranty service. VIZIO is not responsible for transportation costs to the
service center, but VIZIO will cover return shipping to the customer. PRE-
AUTHORIZATION IS REQUIRED BEFORE SENDING ANY PRODUCT TO A VIZIO
SERVICE CENTER FOR WARRANTY SERVICE.
Product returns to VIZIO’s service centers must utilize either the original
carton box and shipping material or packaging that affords an equal
degree of protection. VIZIO Technical Support will provide instructions for
packing and shipping the covered Product to the VIZIO service center.
Limitations and Exclusions
VIZIO’s one-year limited warranty only covers defects in materials and
workmanship. This warranty does not cover, for example: cosmetic
damage, normal wear and tear, improper operation, improper voltage
supply or power surges, signal issues, damages from shipping, acts of
God, any type of customer misuse, modifications or adjustments, as well
as installation and set-up issues or any repairs attempted by anyone
other than by a VIZIO authorized service center. Products with unreadable
or removed serial numbers, or requiring routine maintenance are not
covered. This one year limited warranty does not cover Products sold
“AS IS”, “FACTORY RECERTIFIED”, or by a non-authorized reseller.
THERE ARE NO EXPRESS WARRANTIES OTHER THAN THOSE LISTED OR
DESCRIBED ABOVE. ANY IMPLIED WARRANTIES, INCLUDING ANY IMPLIED
WARRANTY OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR
PURPOSE, SHALL BE LIMITED IN DURATION TO THE PERIOD OF TIME SET
FORTH ABOVE. VIZIO’S TOTAL LIABILITY FOR ANY AND ALL LOSSES AND
DAMAGES RESULTING FROM ANY CAUSE WHATSOEVER INCLUDING VIZIO’S
NEGLIGENCE, ALLEGED DAMAGE, OR DEFECTIVE GOODS, WHETHER SUCH
DEFECTS ARE DISCOVERABLE OR LATENT, SHALL IN NO EVENT EXCEED THE
PURCHASE PRICE OF THE PRODUCT. VIZIO SHALL NOT BE RESPONSIBLE FOR
LOSS OF USE, LOSS OF INFORMATION OR DATA, COMMERCIAL LOSS, LOST
REVENUE OR LOST PROFITS, OR OTHER INCIDENTAL OR CONSEQUENTIAL
DAMAGES. SOME STATES DO NOT ALLOW LIMITATIONS ON HOW LONG
AN IMPLIED WARRANTY LASTS OR THE EXCLUSION OF INCIDENTAL OR
CONSEQUENTIAL DAMAGES, SO THE ABOVE LIMITATIONS OR EXCLUSIONS
MAY NOT APPLY TO YOU. THIS WARRANTY GIVES YOU SPECIFIC LEGAL
RIGHTS, AND YOU MAY ALSO HAVE OTHER RIGHTS, WHICH VARY FROM
STATE TO STATE. THIS WARRANTY IS SUBJECT TO CHANGE WITHOUT NOTICE.
CHECK WWW.VIZIO.COM FOR THE MOST CURRENT VERSION.
Personal Data
If your VIZIO product is capable of storing personal data and other
information, ALL CONTENTS AND INFORMATION WILL BE DELETED IN THE
COURSE OF SOME IN-HOME AND ALL SHIP-IN WARANTY SERVICE. If this
occurs, your product will be restored to you configured as originally
purchased. You will be responsible for restoring all applicable data and
passwords. Recovery and reinstallation of user data is not covered under
this Limited Warranty. In order to protect your personal information, VIZIO
recommends that you always clear all personal information from the
unit before it is serviced, regardless of the servicer.
Zero Bright Pixel Defect Guarantee
This policy covers “zero bright pixel” defects for the duration of the limited
“ONE YEAR WARRANTY” on select new product purchases. To determine
