VIZIO

user manual

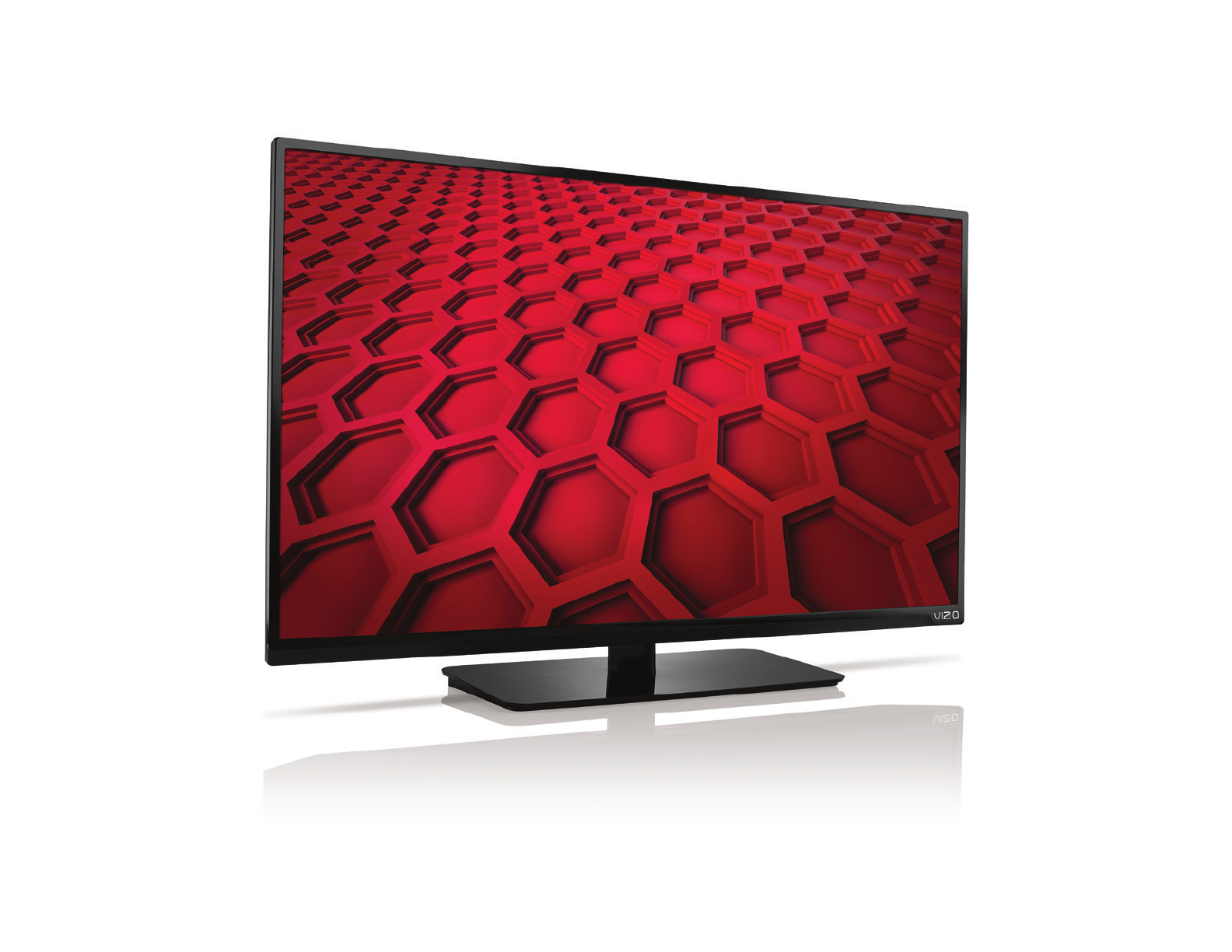

Model: E320-B0

This product qualifies for ENERGY STAR in the “factory

default” setting and this is the setting in which power

savings will be achieved. Changing the factory default

picture settings or enabling other features will increase

power consumption that could exceed the limits necessary

to qualify for ENERGY STAR rating.

Manufactured under license from Dolby Laboratories.

Dolby and the double-D symbol are trademarks of Dolby

Laboratories.

HDMI, the HDMI logo and High-Definition Multimedia

Interface are trademarks or registered trademarks of HDMI

Licensing LLC.

For DTS patents, see

http://patents.dts.com.

Manufactured under license from DTS Licensing Limited. DTS,

the Symbol, & DTS and the Symbol together are registered

trademarks, and DTS TruSurround is a trademark of

DTS, Inc. © DTS, Inc. All Rights Reserved.

Welcome

THANK YOU FOR CHOOSING VIZIO

And congratulations on your new VIZIO HDTV.

To get the most out of your new VIZIO product, read these

instructions before using your product and retain them for future

reference. Be sure to inspect the package contents to ensure

there are no missing or damaged parts.

PRODUCT REGISTRATION

To purchase or inquire about accessories and installation services

for your VIZIO product, visit our website at www.VIZIO.com or call

toll free at (877) 878-4946.

We recommend that you either:

• Register your VIZIO product at www.VIZIO.com

• Complete and mail the enclosed registration card

Extended Warranties

For peace of mind, and to protect your investment beyond the

standard warranty, VIZIO offers on-site extended warranty service

plans. These plans provide additional coverage during the

standard warranty period. To purchase an extended warranty

service plan, visit www.VIZIO.com.

WHEN READING THIS MANUAL

When you see this symbol, please read the

accompanying helpful tip.

IMPORTANT SAFETY INSTRUCTIONS

Your TV is designed and manufactured to operate within defined

design limits. Misuse may result in electric shock or fire. To prevent

your TV from being damaged, the following instructions should

be observed for the installation, use, and maintenance of your

TV. Read the following safety instructions before operating your

TV. Keep these instructions in a safe place for future reference.

• To reduce the risk of electric shock or component

damage, switch off the power before connecting other

components to your TV.

• Read these instructions.

• Keep these instructions.

• Heed all warnings.

• Follow all instructions.

• Do not use this apparatus near water.

• Clean only with a dry cloth.

• Do not block any ventilation openings. Install in

accordance with the manufacturer’s instructions.

• Do not install near any heat sources such as radiators,

heat registers, stoves, or other apparatus (including

amplifiers) that produce heat.

• Do not defeat the safety purpose of the polarized or

grounding-type plug. A polarized plug has two blades

and a third grounding prong. The wide blade or the third

prong are provided for your safety. If the provided plug

does not fit into your outlet, consult an electrician for

replacement of the obsolete outlet.

• Protect the power cord from being walked on or pinched,

particularly at plugs, convenience receptacles, and the

point where they exit from the apparatus.

• Only use attachments/accessories specified by the

manufacturer.

When you see this symbol, please read the

accompanying important warning or notice. It is

intended to alert you to the presence of important

operating instructions.

or local power company.

• Do not apply pressure or throw objects at your TV.

This may compromise the integrity of the display. The

manufacturer’s warranty does not cover user abuse or

improper installations.

• The power cord must be replaced when using different

voltage than the voltage specified. For more information,

contact your dealer.

• When connected to a power outlet, power is always

flowing into your TV. To totally disconnect power, unplug

the power cord.

• The lightning flash with arrowhead symbol within an

equilateral triangle is intended to alert the user to the

presence of un-isolated, dangerous voltage within the

inside of your TV that may be of sufficient magnitude to

constitute a risk of electric shock to persons.

• Do not overload power strips and extension cords.

Overloading can result in fire or electric shock.

• The wall socket should be installed near your TV and

easily accessible.

• Only power of the marked voltage can be used for your

TV. Any other voltage than the specified voltage may

cause fire or electric shock.

• Do not touch the power cord during lightning. To avoid

electric shock, avoid handling the power cord during

electrical storms.

• Unplug your TV during a lightning storm or when it will not

be used for long period of time. This will protect your TV

from damage due to power surges.

• Do not attempt to repair or service your TV yourself.

Opening or removing the back cover may expose you to

high voltages, electric shock, and other hazards. If repair

is required, contact your dealer and refer all servicing to

qualified service personnel.

• WARNING: Keep your TV away from moisture. Do not

expose your TV to rain or moisture. If water penetrates into

• Use only with the cart, stand, tripod, bracket,

or table specified by the manufacturer, or sold

with the apparatus. When a cart is used, use

caution when moving the cart/apparatus

combination to avoid injury from tip-over.

• Unplug this apparatus during lightning storms or when

unused for long periods of time.

• Refer all servicing to qualified service personnel. Servicing

is required when the apparatus has been damaged in

any way, such as when the power-supply cord or plug is

damaged, liquid has been spilled or objects have fallen

into the apparatus, the apparatus has been exposed to

rain or moisture, does not operate normally or has been

dropped.

• Unplug the power cord before cleaning your TV.

• When moving your TV from an area of low temperature

to an area of high temperature, condensation may form

in the housing. Wait before turning on your TV to avoid

causing fire, electric shock, or component damage.

• A distance of at least three feet should be maintained

between your TV and any heat source, such as a radiator,

heater, oven, amplifier etc. Do not install your TV close to

smoke. Operating your TV close to smoke or moisture may

cause fire or electric shock.

• Slots and openings in the back and bottom of the

cabinet are provided for ventilation. To ensure reliable

operation of your TV and to protect it from overheating,

be sure these openings are not blocked or covered. Do

not place your TV in a bookcase or cabinet unless proper

ventilation is provided.

• Never push any object into the slots and openings on

your TV cabinet. Do not place any objects on the top of

your TV. Doing so could short circuit parts causing a fire

or electric shock. Never spill liquids on your TV.

• Your TV should be operated only from the type of power

source indicated on the label. If you are not sure of the

type of power supplied to your home, consult your dealer



your TV, unplug the power cord and contact your dealer.

Continuous use in this case may result in fire or electric

shock.

• Do not use your TV if any abnormality occurs. If any

smoke or odor becomes apparent, unplug the power

cord and contact your dealer immediately. Do not try to

repair your TV yourself.

• Avoid using dropped or damaged appliances. If your

TV is dropped and the housing is damaged, the internal

components may function abnormally. Unplug the power

cord immediately and contact your dealer for repair.

Continued use of your TV may cause fire or electric

shock.

• Do not install your TV in an area with heavy dust or high

humidity. Operating your TV in environments with heavy

dust or high humidity may cause fire or electric shock.

• Follow instructions for moving your TV. Ensure that the

power cord and any other cables are unplugged before

moving your TV.

• When unplugging your TV, hold the AC/DC power

adapter, not the cord. Pulling on the power cord may

damage the wires inside the cord and cause fire or

electric shock. When your TV will not be used for an

extended period of time, unplug the power cord.

• To reduce risk of electric shock, do not touch the

connector with wet hands.

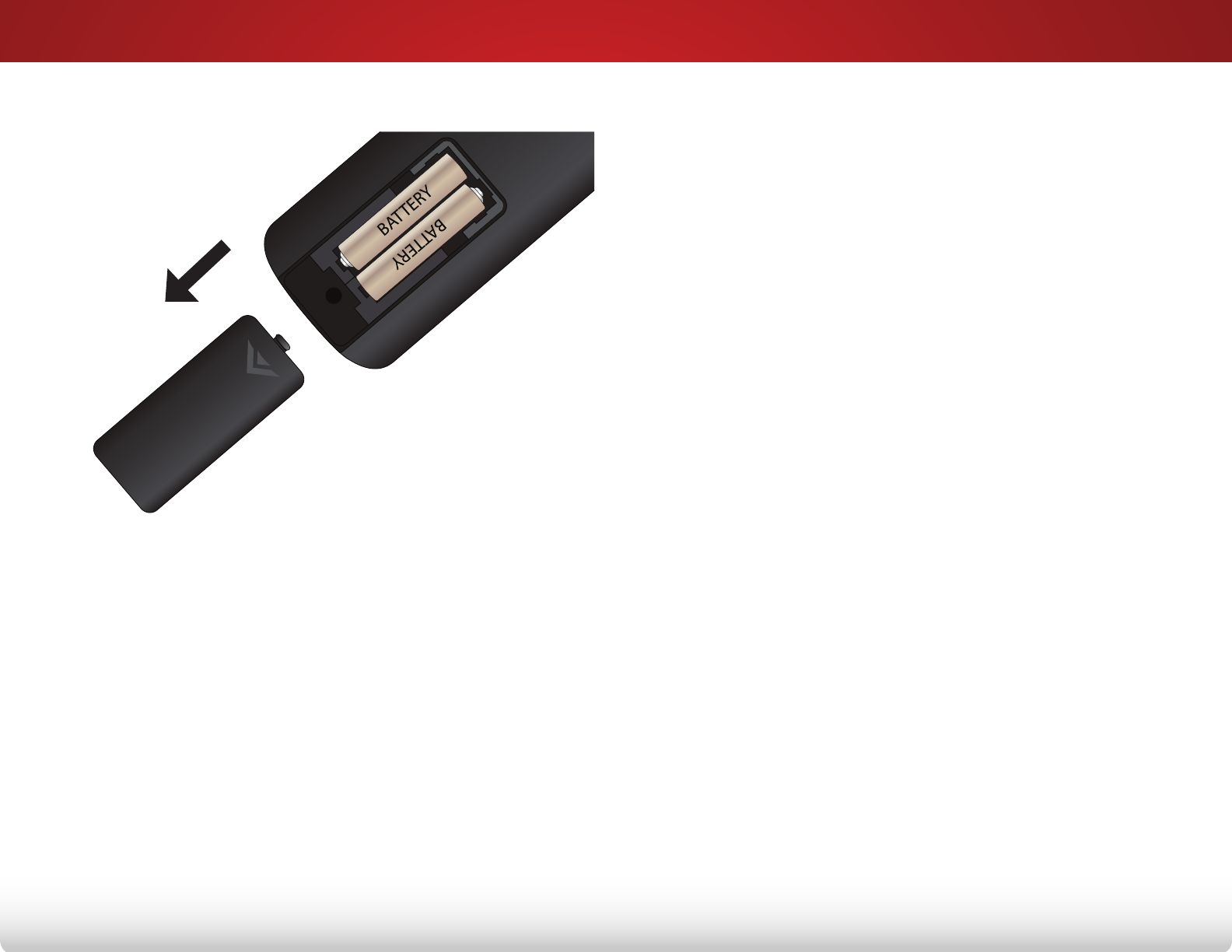

• Insert batteries in accordance with instructions. Incorrect

polarities may cause the batteries to leak which can

damage the remote control or injure the operator. Do not

expose batteries to excessive heat such as sunshine, fire

or the like.

• If any of the following occurs, contact the dealer:

- The power cord fails or frays.

- Liquid sprays or any object drops into your TV.

- Your TV is exposed to rain or other moisture.

- Your TV is dropped or damaged in any way.

- The performance of your TV changes substantially.

• This apparatus shall not be exposed to dripping or

splashing and no objects filled with liquids, such as vases,

shall be placed on the apparatus.

• The mains plug or appliance coupler is used as the

disconnect device, the disconnect device shall remain

readily operable.

• CAUTION - These servicing instructions are for use by

qualified service personnel only. To reduce the risk of

electric shock, do not perform any servicing other than

that contained in the operating instructions unless you

are qualified to do so.

• The lightning flash with arrowhead symbol within an

equilateral triangle is intended to alert the user to the

presence of uninsulated DANGEROUS VOLTAGE within the

product’s enclosure that may be of sufficient magnitude

to constitute a risk of electrical shock to persons.

h

TELEVISION ANTENNA CONNECTION

PROTECTION

If an outside antenna/satellite dish or cable system is to be

connected to the TV, make sure that the antenna or cable system

is electrically grounded to provide some protection against

voltage surges and static charges.

Article 810 of the National Electrical Code, ANSI/NFPSA 70,

provides information with regard to proper grounding of the

mast and supporting structure, grounding of the lead-in wire to

an antenna discharge unit, size of the grounding conductors,

location of antenna discharge unit, connection to grounding

electrodes, and requirements of the grounding electrode.

Ground Clamp Antenna Lead In Wire

Antenna Discharge Unit

(NEC Section 810-20)

Grounding Conductors

(NEC Section 810-21)

Ground Clamps

Power Service Grounding Electrode

System

(NEC ART 250, part H)

Electric Service Equipment

Lightning Protection

For added protection of the TV during a lightning storm or when

it is left unattended or unused for long periods of time, unplug

the TV from the wall outlet and disconnect the antenna or cable

system.

Power Lines

Do not locate the antenna near overhead light or power circuits,

or where it could fall into such power lines or circuits. Remember,

the screen of the coaxial cable is intended to be connected to

earth in the building installation.

Table of Contents

1

Installing the TV ................................................ 3

Inspecting the Package Contents .....................................3

Installing the TV ...................................................................3

Installing the TV Stand .....................................................3

Installing the TV on a Wall ................................................ 4

Controls and Connections .............................. 5

Rear Panel ..........................................................................5

Side Panel ...........................................................................6

Front Panel .......................................................................... 7

Remote Control ..................................................................8

Replacing the Batteries ...................................................9

Connecting Your Devices ................................. 10

Connecting A Device .........................................................10

Connecting a Device - Audio and Video Cable Types ...11

Connecting an Audio Device ............................................13

Connecting an Audio Device - Audio Cable Types .........14

Connecting an Audio Device - ARC ...................................15

Without HDMI ARC ............................................................15

With HDMI ARC .................................................................15

Completing the First-Time Setup ...................... 16

Using the On-Screen Menu .............................. 17

Navigating the On-Screen Menu .......................................17

Changing the Input Source ...............................................18

Changing the Screen Aspect Ratio ...................................18

Adjusting the Picture Settings ............................................19

Adjusting the Advanced Picture Settings ........................20

Adjusting the Professional Picture Settings ......................21

Adjusting the Color Tuner Settings ..................................21

Renaming the Custom Picture Mode .............................. 23

Creating a Custom Picture Mode ...................................24

Locking a Custom Picture Mode .....................................24

Deleting a Custom Picture Mode ....................................25

Adjusting the Audio Settings ..............................................26

Resetting the Audio Settings ............................................27

Activating the Sleep Timer ..................................................27

Setting the Auto Power Off Feature ..................................28

Setting Up the Tuner............................................................28

Selecting a Tuner Input ....................................................29

Scanning for Channels ....................................................29

Adding New Channels ....................................................29

Skipping Channels...........................................................30

Changing the Audio Language ...................................... 31

Setting Up Closed Captioning ...........................................32

Changing the Appearance of Digital Closed Captions . 32

Setting Up Devices ..............................................................34

Changing the TV Settings ...................................................35

Viewing System Information ............................................35

Using the Parental Controls .............................................36

Accessing the Parental Controls Menu ........................... 36

Enabling or Disabling Program Ratings ...........................36

Locking and Unlocking Channels ...................................36

Blocking and Unblocking Content by Rating ..................37

Changing the Parental Control Passcode ......................37

Resetting the Content Locks ............................................ 37

Changing the On-Screen Menu Language .................... 38

Setting the Time Zone ......................................................38

2

Adjusting the CEC Settings ..............................................39

Turning the Power Indicator On or Off ............................. 39

Using the Reset & Admin Menu ..........................................40

Restoring the TV to Factory Default Settings .................... 40

Using the Guided Setup Menu ........................................41

Using Guided Setup .........................................................41

Using the Info Window ........................................................42

Using the USB Media Player ............................. 43

Using the USB Media Player ................................................43

Connecting a USB Thumb Drive to the TV ........................43

Playing USB Media ...........................................................43

Troubleshooting & Technical Support .............. 45

Specifications ................................................... 48

Limited Warranty ............................................... 50

Legal & Compliance ........................................ 51

3

1

Installing the TV

INSPECTING THE PACKAGE CONTENTS

Before installing your new TV, take a moment to inspect the

package contents. Use the images below to ensure nothing is

missing or damaged.

VIZIO LED HDTV with Stand

INSTALLING THE TV

After removing the TV from the box and inspecting the package

contents you can begin installing the TV. Your TV can be installed

in two ways:

• On a flat surface, using the included stand

• On a wall, using a VESA-standard wall mount (not

included)

Installing the TV Stand

Your TV includes a stand designed to support the weight of the

TV and keep it from falling over. However, the TV can still fall over if:

• It is placed on an uneven, unstable, or non-level surface

• It is pushed, pulled, or otherwise improperly moved

• If an earthquake occurs and the TV is not properly

secured

Quick Start Guide

Power Cord

TV ON STAND

Remote Control

with Batteries

INPUT

EXIT

GUIDE

BACK

1

4

7

WIDE

MENU

OK

VOL

VOL

CH

CH

3

6

9

—

2

5

8

0

1 x M4 8mm

Phillips Screw

PACKAGE CONTENTS

1

4

To install the base:

1. Place the TV screen-down on a certain, flat surface. To

prevent scratches or damage to the screen, place the TV on

a soft surface, such as a blanket.

2. Align the base with the neck and tighten the hex screw into

the base with the included hex wrench.

3. Move the TV with attached stand into an upright position

and place on a flat, level, and stable surface.

4. To ensure proper ventilation, leave at least 1” of space

between the back of the TV and any other objects (walls,

etc).

Installing the TV on a Wall

To mount your TV on a wall, you will need a wall mount. Consult

the information below to find the appropriate mount for your TV

model:

Installing a TV on a wall requires lifting. To prevent

injury or damage to the TV, ask someone to help you.

E320-B0

Screw Size: M4

Screw Pitch: 0.70mm

Screw Length: 12mm

Hole Pattern: 100mm (V) x 100mm (H)

Be sure the mount you choose is capable of supporting the

weight of the TV. After you have determined that you have the

correct mount for your TV, you can begin the installation.

To install your TV on a wall:

1. Disconnect any cables connected to your TV.

2. Place the TV face-down on a clean, flat, stable surface.

Be sure the surface is clear of debris that can scratch or

damage the TV.

3. Remove the base by loosening and removing the screws.

4. Attach your TV and wall mount to the wall, carefully following

the instructions that came with your mount.

Use only with a UL-listed wall mount bracket rated for the

weight/load of this TV. See

Appendix B - Specifications

for the

weight of this TV.

2

5

ReaR Panel

Controls and Connections

Coaxial - Connect coaxial cable from cable, satellite, or antenna.

Optical Audio Out - Connect optical/SPDIF audio device, such as

home audio receiver.

Stereo Audio Out - Connect RCA audio device, such as sound bar.

Component/Composite - Connect component or composite device.

USB - Connect USB thumb drive to play photos.

HDMI - Connect HDMI device.

REAR PANEL

HDMI - Connect HDMI device.

2

6

Side Panel

SIDE PANEL

POWER - Press and hold to turn TV on or off.

INPUT - Press to change input source.

2

7

FRont Panel

REMOTE SENSOR & POWER INDICATOR

When using the remote, aim it directly at this sensor.

The power indicator flashes on when the TV turns on, then goes out after

several seconds. To keep the power indicator on as long as the TV is on,

see

Turning the Power Indicator On or Off

on page 39.

FRONT PANEL

2

8

Remote ContRol

REMOTE CONTROL

INPUT

EXIT

GUIDE

BACK

1

4

7

WIDE

MENU

OK

VOL

VOL

CH

CH

3

6

9

—

2

5

8

0

inPut

Change the currently-displayed input.

aRRow

Navigate the on-screen menu.

exit

Close the on-screen menu.

wide

Switch the display mode.

mute

Turn the audio off or on.

BaCk

Go to the previous on-screen menu.

menu

Display the on-screen menu.

daSh

Use with number pad to manually

enter a digital sub-channel.

(For example, 18-4 or 18-5.)

Channel uP/down

Change the channel.

Guide

Display the info window.

laSt

Return to the channel last viewed.

numBeR Pad

Manually enter a channel.

Volume uP/down

Increase or decrease loudness of

the audio.

ok

Select the highlighted menu option.

V Button

Open the USB photo viewer.

PoweR

Turn TV on or off.

2

9

Replacing the Batteries

1. Remove the battery cover.

2. Insert two batteries into the remote control. Make sure that

the (+) and (-) symbols on the batteries match the (+) and

(-) symbols inside the battery compartment.

3. Replace the battery cover.

3

10

Connecting Your Devices

ConneCting A DeviCe

Game Console

Cable/Satellite Box

DVD/Blu-ray Player

Your TV can be used to display output from most devices.

1. Verify that your device has a video port that matches an

available port on the TV (HDMI, Component, etc).

2. Turn the TV and your device off.

3. Connect the appropriate cable (not included) to the TV and

the device.

4. Turn the TV and your device on. Set the TV’s input to match

the connection you used (HDMI, Component, etc).

BETTER

COMPONENT CABLE

• ANALOG

• HD VIDEO (1080i)*

• STEREO AUDIO

BEST

HDMI CABLE • DIGITAL

• HD VIDEO (1080p)*

• HD AUDIO

GOOD

AV CABLE • ANALOG

• VIDEO (480i)*

• STEREO AUDIO

* Maximum Resolution

BACK OF TV

BETTER

Coaxial CABLE • ANALOG

• HD VIDEO (1080i)*

• STEREO AUDIO

3

11

COAXIAL CABLE

Coaxial cables are are the traditional way of

connectiong antennas and cable television signals

to your TV. Coaxial cables carry both audio and video

signals through a single connector.

AV CABLE

AV cables (or Composite cables) are the traditional

way of connecting your devices to your TV. Video

signals are sent over the yellow connector while audio

is sent over the red and white connectors.

GOOD BETTER

COMPONENT VIDEO

Y L R

• HD Video Resolutions up to 1080i

• Analog Connection

• Audio and Video Signals

• Video Resolutions up to 480i

• Analog Connection

• Audio and Video Signals

CONNECTING A DEVICE - AUDIO AND VIDEO CABLE TYPES

COAXIAL CABLE

Coaxial

3

12

HDMI CABLE

HDMI is the intelligent, all-digital interface that delivers

both dazzling quality and unmatched ease of use. HDMI

technology transmits crystal-clear digital video along

with multi-channel surround audio. HDMI-connected

devices have the ability to automatically adjust

themselves for optimal viewing.

COMPONENT CABLE

Component cables are designed to carry high

definition video signals along with additional

audio connections. Colors are delivered with color

information split up three different ways over three

connectors for video (separated into Red, Blue and

Green signals) and the left and right audio connectors

(Red and White).

BETTER

COMPONENT VIDEO

R L Pr/Cr Pb/Cb Y

HDMI

HDMI

• HD Video Resolutions up to 1080p

• HD Audio

• Digital Connection

• Audio and Video Signals

• HD Video Resolutions up to 1080i

• Analog Connection

• Audio and Video Signals

BEST

3

13

ConneCting An AuDio DeviCe

Home Audio Receiver

VIZIO Sound Bar

Your TV can output sound to an audio device, such as a receiver

or sound bar.

1. Verify that your device has a video port that matches an

available port on the TV (HDMI, RCA, etc).

2. Turn the TV and your audio device off.

3. Connect the appropriate cable (not included) to the TV and

the device.

4. Turn the TV and your device on.

BETTER

OPTICAL/SPDIF CABLE

• PCM STREAM

• DOLBY DIGITAL 5.1 CHANNEL

• DTS 5.1 CHANNEL

BEST

HDMI CABLE • CFC 2-WAY COMMUNICATION

• 2.0-5.1 DIGITAL AUDIO

• PCM, DTS, DOLY DIGITAL

GOOD

3.5mm CABLE • ANALOG STEREO CONNECTION

• 2.0 CHANNEL

3

14

HDMi CABLe

HDMI technology transmits crystal-clear

digital multi-channel surround audio through

a single HDMI cable. Audio Return Channel-

enabled (ARC) TVs allow audio to be sent

over an already connected HDMI cable,

eliminating the need for a separate audio cable.

See

Connecting an Audio Device - ARC

on page

15.

• CFC 2-way Communication

(Auto setup)

• PCM, DTS, Dolby Digital

• 2.0-5.1 Scaleable Lossless

Digital Audio Connection

• Audio and Video Signals

BEST

HDMI

HDMI

oPtiCAL/SPDiF CABLe

Optical/SPDIF cables transmit audio signals as

pulses of light through a cable made of plastic

fibers. Audio signals are digitally transmitted

between devices.

BETTER

• PCM Stream (Lossless)

• Dolby Digital 5.1 Channel

• DTS 5.1 Channel

• Digital Connection

• Audio Signal Only

Optical/SPDIF

DIGITAL OPTICAL AUDIO

CONNECTING AN AUDIO DEVICE - AUDIO CABLE TYPES

RCA CABLE

AV cables (or Composite cables) are the

traditional way of connecting your devices to

your audio device. Audio signals are sent over

the red and white connectors.

GOOD

• Quality Stereo Connection

• 2.0 Channel

• Analog Connection

• Audio Signal Only

COMPONENT VIDEO

L R

3

15

Without HDMI ARC With HDMI ARC

CONNECTING AN AUDIO DEVICE - ARC

HDMI

HDMI

Your Home Audio Receiver

Your Blu-Ray Player

Your TV

HDMI

HDMI

Your Home Audio Receiver

Your Blu-Ray Player

Your TV

With an HDMI ARC setup, the

audio connection between

your TV and Home Audio

Receiver can be removed.

The HDMI cable will transmit

audio signal to and from

your TV with an all-digital

audio/video connection.

Without an HDMI ARC setup,

your TV will transmit audio

signal from the built-in tuner

and VIA apps to your home

audio receiver through a

seperate audio connection.

Built-in Tuner Built-in Tuner

RCA (Audio)

4

16

Completing the First-Time Setup

The first time you turn on the TV, the Setup App will guide you

through each of the steps necessary to get your TV ready for use.

Before you begin the first-time setup:

• Your TV should be installed and the power cord should

be connected to an electrical outlet.

• Your devices should be connected.

To complete the first-time setup:

1. Press the Power/Standby

button on the remote. The TV

powers on and the Setup App

starts.

2. Use the Arrow buttons on the

remote to highlight Home Use

and press OK.

3. Use the Arrow buttons on the

remote to highlight your preferred

language and press OK.

INPUT

EXIT

GUIDE

BACK

1

4

7

WIDE

MENU

OK

VOL

VOL

CH

CH

3

6

9

—

2

5

8

0

4. Use the Arrow buttons on the

remote to highlight how your TV

is receiving signal and press OK.

Follow the on-screen

instructions to complete the

channel scan.

5. When you have finished the channel scan, highlight Exit to

Live TV and press OK.

The First-Time Setup is complete.

5

17

Using the On-Screen Menu

Your TV features an easy-to-use on-screen menu.

To open the on-screen menu, press the MENU button on the

remote. You can also open the on-screen menu by pressing the

VIA button and selecting HDTV Settings from the VIA Dock, then

pressing OK.

From this menu, you can:

• Adjust the Picture settings

• Adjust the Audio settings

• Activate the Sleep Timer

• Adjust the Tuner settings

• Set up Closed Captioning

• Name the TV Inputs

• Adjust TV Settings

• Access the Guided Setup

Help

VIZIO

Network

Sleep

Timer

InputCC

ABC

Audio

Wide

Normal


Settings

PanoramicWideZoom

2D 3DExit

TV SETTINGS


Audio

Timers

Tuner

Closed Captions

Devices

System

Guided Setup

While navigating the on-screen menu, you can press

the BACK button at any time to return to the previous

menu screen. The EXIT button will close the

on-screen menu.

NavigatiNg the ON-ScreeN MeNu

To open the on-screen menu, press

the MENU button on the remote.

Use the Arrow buttons to highlight

a menu option, and press the OK

button to select that option.

CC

5

18

chaNgiNg the iNput SOurce

External devices such as DVD players, Blu-ray Players, and video

game consoles can be connected to your TV. To use one of

these devices with your TV, you must first change the input

source in the on-screen menu.

To change the input device:

1. Press the INPUT button on

the remote. The input menu is

displayed.

2. Use the Up/Down Arrow

buttons or the INPUT button

on the remote to highlight the

input you wish to view and

press OK. The selected input is

displayed.

Note: Inputs may vary by TV.

chaNgiNg the ScreeN aSpect ratiO

The TV can display images in five different modes: Normal, Stretch,

Panoramic, Wide, and Zoom. Each mode displays the picture

differently.

To change the screen aspect ratio:

1. Press the WIDE button on the

remote.

2. Use the Arrow buttons to

highlight the aspect ratio you

wish to view and press OK.

• Normal preserves the content’s

original aspect ratio. Since the

4:3 aspect ratio is not large

enough to fill the TV’s screen,

black bars are added to the left

and right of the display image.

• Stretch expands the display image to fill the screen.

Images may appear wider than intended. If you are

watching widescreen (1.85:1 or 2.35:1) content, black

bars will still appear on the top and bottom of the display

image. This option is only available when the TV is

displaying a 720p/1080i source.

• Panoramic expands the display image to fill the screen.

Images may appear wider than intended. If you are

watching widescreen (1.85:1 or 2.35:1) content, black

bars will still appear on the top and bottom of the display

image. This option is only available when the TV is

displaying a 480i/480p source.

• Wide stretches a 4:3 aspect ratio picture to the edges

of the screen. Since the picture is being stretched, the

display image may appear distorted. If the program

is already formatted for widescreen viewing (1.85:1 or

2.35:1), then black bars will appear on the top and

bottom of the display image.

• Zoom expands images with black bars to fit the screen.

COMP

HDMI-1

HDMI-2

TV

Panoramic

Wide

Zoom

Normal

Stretch

Wide

Zoom

Normal

Note: Aspect ratio settings may

vary by Input source.

5

19

adjuStiNg the picture SettiNgS

Your TV display can be adjusted to suit your preferences and

viewing conditions.

To adjust the picture settings:

1. Press the MENU button on the

remote. The on-screen menu is

displayed.

2. Use the Arrow buttons on the

remote to highlight Picture and

press OK. The PICTURE menu is

displayed.

3. Use the Arrow buttons on the

remote to highlight Picture

Mode, then use the Left/Right

Arrow buttons to change the

picture mode:

• Standard mode sets the

various picture settings to

values that meet

ENERGY STAR® requirements.

• Calibrated mode sets the

picture settings to values

perfect for watching TV in a

brightly-lit room.

• Calibrated Dark mode sets the picture settings to values

perfect for watching TV in a dark room.

• Vivid mode sets the picture settings to values that

produce a brighter, more vivid picture.

• Game mode reduces throughput delays and optimizes

the picture settings for displaying game console output.

• Computer mode optimizes the picture settings for

displaying computer output.

Help

VIZIO

Network

Sleep

Timer

InputCC

ABC

Audio

Wide

Normal


Settings

PanoramicWideZoom

2D 3DExit


Picture Mode Standard

Auto Brightness Control Medium

Backlight 50

Brightness 50

Contrast 50

Color 50

Tint 0

Sharpness 0

Advanced Picture

Professional Picture

-+

+

-

-+

-+

-+

-+

Select Picture Mode. Standard picture mode

meets ENERGY STAR® requirements. For

the best picture, use Calibrated mode. To

reduce video delay (lag) when gaming, use

Game mode.

4. Auto Brightness Control automatically adjusts the brightness

of the TV screen according to how bright the surrounding is.

To adjust the sensitivity of the light sensor, use the Up/Down

Arrow buttons on the remote to highlight Auto Brightness

Control. Then use the Left/Right Arrow buttons to select Off,

Low, Medium, or Bright.

5. To manually change each of the picture settings, use the

Up/Down Arrow buttons on the remote to highlight that

picture setting, then use the Left/Right Arrow buttons to

adjust the setting:

• Backlight - Adjusts the LED brightness to affect the overall

brilliance of the picture. Backlight cannot be adjusted

when starting from some picture modes.

• Brightness - Adjusts the black level of the picture. When

this setting is too low, the picture may be too dark to

distinguish details. When this setting is too high, the

picture may appear faded or washed out.

• Contrast - Adjusts the white level of the picture. When

this setting is too low, the picture may appear dark. When

this setting is too high, the picture may appear faded

or washed out. If the setting is too high or too low, detail

may be difficult to distinguish in dark or bright areas of

the picture.

• Color - Adjusts the intensity of the picture colors.

• Tint - Adjusts the hue of the picture. This setting is useful

in adjusting the flesh tones in the picture. If flesh appears

too orange, reduce the level of color before adjusting tint.

• Sharpness - Adjusts the edge sharpness of picture

elements. It can be used to sharpen non-HD (high

definition) content; however, it will not produce detail that

does not otherwise exist.

6. When you have finished adjusting the picture settings, press

the EXIT button on the remote.

5

20

Adjusting the Advanced Picture Settings

To adjust the advanced picture settings:

1. From the PICTURE menu, use

the Arrow buttons to highlight

More, and then press OK.

2. Use the Arrow buttons to

highlight Advanced Picture,

and then press OK. The

ADVANCED PICTURE menu is

displayed.

3. Use the Arrow buttons to

highlight the setting you wish

to adjust, then press the Left/

Right Arrow buttons to change

the setting:

• Color Temperature -

Adjusts the 'warmness' and

'coolness' of the white areas

of the picture. Select Cool,

Normal, or Computer.

• Black Detail - Adjusts the

average brightness of the

picture to compensate for

large areas of brightness.

Select Off, Low, Medium, or

High.

• Backlight Control - Dynamically improves the contrast

ratio of the picture by adjusting the backlight. The

adjustment is controlled by the content on the screen.

Select On or Off.

• Reduce Signal Noise - Diminishes artifacts in the image

caused by the digitizing of image motion content. Select

Off, Low, Medium, or High.

• Reduce Block Noise - Reduces pixelation and distortion

for mpeg files. Select Off, Low, Medium, or High.

Help

VIZIO

Network

Sleep

Timer

InputCC

ABC

Audio

Wide

Normal


Settings

PanoramicWideZoom

2D 3DExit

ADVANCED PICTURE

Color Temperature Cool

Black Detail Medium

Backlight Control On

Reduce Signal Noise Low

Reduce Block Noise Low

Picture Position

Picture Size

Film Mode Auto

• Picture Position - Adjust the vertical and horizontal

positions of the picture to ensure the image is centered

and completely fills the screen. Use the Left/Right Arrow

buttons to adjust the horizontal position of the displayed

picture. Use the Up/Down Arrow buttons to adjust the

vertical position of the displayed picture. Press the BACK

button when you are finished.

• Picture Size - Increase or decrease the vertical and

horizontal size of the displayed picture. Use the Left/

Right Arrow buttons to adjust the horizontal size of the

displayed picture. Use the Up/Down Arrow buttons to

adjust the vertical size of the displayed picture. Press the

BACK button when you are finished.

• Film Mode - Optimizes the picture for watching film.

Select Auto or Off.

4. When you have finished adjusting the Advanced Picture

Settings, press the EXIT button on the remote.

5

21

Adjusting the Professional Picture Settings

You can manage custom picture modes and adjust professional

picture settings such as HSB, RGB offset, RGB gain, and 11 Point

white balance.

To adjust the professional picture settings:

1. From the PICTURE menu, use

the Arrow buttons to highlight

Professional Picture, and then

press OK. The PROFESSIONAL

PICTURE menu is displayed.

2. Use the Arrow buttons to

highlight the setting you wish

to adjust, then press OK to

change the setting:

• Color Tuner - Adjust the

professional HSB color and

11 point white balance.

• Rename Picture Mode -

Rename a custom picture

mode.

• Create Picture Mode -

Create a custom picture

mode.

• Lock Picture Mode - Lock a

custom picture mode with a

unique passcode.

• Delete Picture Mode - Delete a custom picture mode.

Inputs assigned to that custom picture mode will be set

to Calibrated picture mode.

Help

VIZIO

Network

Sleep

Timer

InputCC

ABC

Audio

Wide

Normal


Settings

PanoramicWideZoom

2D 3DExit

PROFESSIONAL PICTURE

Color Tuner

Rename Picture Mode

Create Picture Mode

Lock Picture Mode

Delete Picture Mode

Adjusting the Color Tuner Settings

You can adjust the professional HSB color and 11 point white

balance. Test your setting using the SMPTE, Flat, and Ramp test

patterns.

To adjust the color tuner settings:

1. From the PROFESSIONAL PICTURE menu, use the Arrow

buttons to highlight Color Tuner, and then press OK. T h e

Color Tuner menu is displayed.

2. Use the Arrow buttons on the remote to highlight Hue,

Saturation, Brightness, Offset, or Gain of the color you wish

to adjust. Press the OK button and use the Left/Right Arrow

buttons to adjust the value. When you are finished press the

OK button to save the setting.

3. Use the Arrow buttons to highlight another setting you wish

to adjust.

4. When you are finished adjusting the color tuner settings,

press the EXIT button.

Color Tuner

Red Green Blue Cyan Magenta Yellow

Hue 000025 -14

Saturation -1 5-4 0-2 0

brightness -24 0-22 000

Offset 000

Gain 000

5

22

To adjust the 11 Point White Balance settings:

1. From the Color Tuner menu, use the Arrow buttons to

highlight Color Tuner, and then press the Left/Right Arrow

buttons until the 11 Point White Balance menu is displayed.

2. Use the Arrow buttons on the remote to highlight the Gain

and Color values you wish to adjust. Press the OK button

and use the Left/Right Arrow buttons to adjust the value

When you are finished press the OK button to save the

setting.

3. When you are finished, press the EXIT button.

11 Point White Balance

Gain Red Green Blue

5% 0 0 0

To enable/disable the SMPTE Test Pattern:

1. From the Color Tuner menu, use the Arrow buttons to

highlight Color Tuner, and then press the Left/Right Arrow

buttons until the SMPTE Test Pattern menu is displayed.

2. Use the Arrow buttons on the remote to highlight Off. Use

the Left/Right Arrow buttons to highlight On to enable the

SMPTE Test Pattern.

To disable the SMPTE Test Patter, use the Left/Right Arrow

buttons to highlight Off.

3. When you are finished, press the EXIT button.

To enable/disable the Flat Test Pattern:

1. From the Color Tuner menu, use the Arrow buttons to

highlight Color Tuner, and then press the Left/Right Arrow

buttons until the Flat Test Pattern menu is displayed.

2. Use the Arrow buttons on the remote to highlight Off. Use the

Left/Right Arrow buttons to highlight On to enable the Flat

Test Pattern.

To disable the Flat Test Pattern, use the Left/Right Arrow

buttons to highlight Off.

3. When you are finished, press the EXIT button.

SMPTE Test Pattern

Off

Flat Test Pattern

Off

5

23

To enable/disable the Ramp Test Pattern:

1. From the Color Tuner menu, use the Arrow buttons to

highlight Color Tuner, and then press the Left/Right Arrow

buttons until the Ramp Test Pattern menu is displayed.

2. Use the Arrow buttons on the remote to highlight Off. Use the

Left/Right Arrow buttons to highlight On to enable the Ramp

Test Pattern.

To disable the Ramp Test Patter, use the Left/Right Arrow

buttons to highlight Off.

3. When you are finished, press the EXIT button.

Ramp Test Pattern

Off

Renaming the Custom Picture Mode

You can rename the custom picture mode from the PICTURE

menu.

To rename the custom picture mode:

1. From the PROFESSIONAL

PICTURE menu, use the Arrow

buttons to highlight Rename

Picture Mode, and then press

OK. The RENAME PICTURE MODE

menu is displayed.

2. Use the Arrow buttons to enter

a custom name using the

on-screen keyboard.

3. Highlight Save and press OK.

4. Press the EXIT button to exit the

menu screens.

Help

VIZIO

Network

Sleep

Timer

InputCC

ABC

Audio

Wide

Normal


Settings

PanoramicWideZoom

2D 3DExit

RENAME PICTURE MODE

Custom1_

Save

a b c d e f g h i

j k l m n o p q r

s t u v w x y z 0

1 2 3 4 5 6 7 8 9

.@# .com Space

5

24

Creating a Custom Picture Mode

You can create a custom picture mode.

To create a custom picture mode:

1. From the PROFESSIONAL

PICTURE menu, use the Arrow

buttons to highlight Create

Picture Mode, and then press

OK. The CREATE PICTURE MODE

menu is displayed.

2. Use the Arrow buttons to enter

a name for your custom picture

mode using the on-screen

keyboard.

3. Highlight Save and press OK.

4. Press the EXIT button to exit the

menu screens.

Help

VIZIO

Network

Sleep

Timer

InputCC

ABC

Audio

Wide

Normal


Settings

PanoramicWideZoom

2D 3DExit

CREATE PICTURE MODE

_

Save

a b c d e f g h i

j k l m n o p q r

s t u v w x y z 0

123456789

.@# .com Space

Locking a Custom Picture Mode

You can lock the custom picture mode with a unique passcode

to prevent any changes.

To lock a custom picture mode:

1. From the PROFESSIONAL

PICTURE menu, use the Arrow

buttons to highlight Lock

Picture Mode, and then press

OK. The LOCK PICTURE MODE

menu is displayed.

2. Use the Number Pad on your

remote to enter a unique 4

digit passcode.

3. Press the EXIT button to exit the

menu screens.

Help

VIZIO

Network

Sleep

Timer

InputCC

ABC

Audio

Wide

Normal


Settings

PanoramicWideZoom

2D 3DExit

LOCK PICTURE MODE

Enter the Picture Control PIN to

prevent changes.

Enter the 4 digit passcode using the number

buttons on the remote.

_

5

25

Deleting a Custom Picture Mode

You can delete a custom picture mode. Inputs assigned to the

deleted custom will be assigned to the

Calibrated

picture mode.

To lock a custom picture mode:

1. From the PROFESSIONAL

PICTURE menu, use the Arrow

buttons to highlight Delete

Picture Mode, and then press

OK. The DELETE PICTURE MODE

window is displayed.

2. Use the Left/Right Arrow buttons to highlight Delete and

press OK.

3. Press the EXIT button to exit the menu screens.

To delete the user created [your picture mode] picture mode,

select the Delete button.

Delete Cancel

5

26

adjuStiNg the audiO SettiNgS

To adjust the audio settings:

1. Press the MENU button on the

remote. The on-screen menu is

displayed.

2. Use the Arrow buttons on the

remote to highlight Audio and

press OK. The AUDIO menu is

displayed.

3. Use the Arrow buttons to

highlight the setting you wish

to adjust, then press Left/Right

Arrow buttons to change

the setting:

• TV Speakers - Turns the

built-in speakers on or off.

• Surround Sound -

Surround sound uses DTS

TruSurround™ to deliver

an immersive surround

sound experience from

the TV’s internal speakers.

TruSurround completes the

entertainment experience

by providing deep, rich

bass and by delivering crisp

details and clear, intelligible

dialog. Select On or Off.

• Balance - Adjusts the loudness of the audio output from

the left and right speakers.

• Lip Sync - Adjusts the synchronization between the

display image and the accompanying audio track.

• Digital Audio Out - Changes the type of processing for

the Optical and HDMI ARC output when connected to a

home theater audio system. Select PCM or Bitstream.

• Analog Audio Out - Sets the volume control properties

for the analog RCA (red/white) connectors when

connected to a home theater audio system. Select

Variable to control the external speakers’ volume from

the TV’s volume controls, or select Fixed to control the

external speakers’ volume from your home theater system

controls.

• Equalizer Settings - Adjusts the boost or attenuation

of different frequencies. Change the audio mode by

selecting Flat, Dynamic, Center, Bass Boost, or Bright.

• Reset Audio Mode - Restores the audio settings to the

factory defaults. See

Resetting the Audio Settings on

page 27

.

4. When you have finished adjusting the audio settings, press

the EXIT button on the remote.

Help

VIZIO

Network

Sleep

Timer

InputCC

ABC

Audio

Wide

Normal


Settings

PanoramicWideZoom

2D 3DExit

AUDIO

TV Speakers On

Surround Sound On

Balance 0

Lip Sync 0

Digital Audio Out PCM

Analog Audio Out Fixed

Equalizer Settings

Reset Audio Mode

-+

-+

5

27

Resetting the Audio Settings

To reset the audio settings to the factory default settings:

1. Press the MENU button on the remote. The on-screen menu is

displayed.

2. Use the Arrow buttons on the remote to highlight Audio and

press OK. The Audio menu is displayed.

3. Use the Arrow buttons to highlight Reset Audio Mode and

press OK. The TV displays, “Select Reset to restore factory

default audio settings.”

4. Highlight Reset and press OK.

5. Press the EXIT button on the remote.

activatiNg the Sleep tiMer

When activated, the TV’s sleep timer will turn the TV off after a set

period of time.

To use the sleep timer:

1. Press the MENU button on the

remote. The on-screen menu is

displayed.

2. Use the Arrow buttons on the

remote to highlight Timers and

press OK. The Timers menu is

displayed.

3. Use the Left/Right Arrow

buttons on the remote to

highlight the period of time

after which you want the TV to

go to sleep: 30, 60, 90, 120, or

180 minutes. If you don’t want

the sleep timer to activate,

change the setting to Off.

4. When you have finished setting

the sleep timer, press the EXIT

button on the remote.

Help

VIZIO

Network

Sleep

Timer

InputCC

ABC

Audio

Wide

Normal


Settings

PanoramicWideZoom

2D 3DExit

TIMERS

Sleep Timer Off

Auto Power Off 10 min.

5

28

Setting the Auto Power Off Feature

To help save energy, your TV is set by default to turn off after 10

minutes if no signal is being displayed on the screen. This feature

can be deactivated.

To set the Auto Power Off feature:

1. From the SLEEP TIMER menu, use the Up/Down Arrow buttons

on the remote to highlight Auto Power Off.

2. Use the Left/Right Arrow buttons on the remote to change

whether the TV will turn off. If you don’t want the TV to turn off

when there is no signal, change the setting to Off. Otherwise,

select 10 min.

3. When you have finished setting the auto power off time,

press the EXIT button on the remote.

SettiNg up the tuNer

You can use the TV’s Tuner menu to:

• Select a Tuner Input

• Perform an Auto Channel Scan

• Perform a Partial Channel Scan

• Manually Add Channels

• Select channels to skip

• Select Analog MTS modes

• Select Digital Languages

Help

VIZIO

Network

Sleep

Timer

InputCC

ABC

Audio

Wide

Normal


Settings

PanoramicWideZoom

2D 3DExit

TUNER

Tuner Mode Antenna

Auto Channel Scan

Partial Channel Search

Add Analog Channel

Skip Channel

Analog Audio Stereo

Digital Language English

5

29

Selecting a Tuner Input

Select the type of tuner input you will be using. You can select either

Antenna (Over-the-air) or Cable (Out-of-the-wall) connections.

1. From the Tuner menu, highlight Tuner Mode and press OK.

The Tuner Mode menu displays.

2. Highlight Antenna or Cable and press OK. Press EXIT.

Scanning for Channels

Before the TV can detect and display channels and their

associated information, you must scan for channels. A channel

scan may also be necessary when the TV has been moved to an

area where different free-to-air broadcast television channels are

available.

To perform an Auto Channel Scan:

1. From the Tuner Settings menu,

highlight Auto Channel Scan,

and press OK. The AUTO

CHANNEL SCAN begins.

2. Wait until the channel scan is

100% complete. Highlight Done

and press OK.

3. Press the EXIT button on the

remote.

If the channel scan is cancelled,the

channels that were already

discovered are retained. A new

channel scan will clear all channels.

Help

VIZIO

Network

Sleep

Timer

InputCC

ABC

Audio

Wide

Normal


Settings

PanoramicWideZoom

2D 3DExit

AUTO CHANNEL SCAN

Channels Found

0: Analog

0: Digital

13 % Complete

Cancel

Cancel the channel scan.

Adding New Channels

Occasionally, you may need to add a new range of channels or

add a new analog channel. You can do this by using the Partial

Channel Search and Add Analog Channel options.

To add a range of new channels:

1. From the Tuner menu, highlight Partial Channel Search, and

press OK. The PARTIAL CHANNEL SEARCH menu is displayed.

2. Highlight Scan Mode and select the type of channel you

are adding: Analog, Digital, or Analog Digital.

3. Highlight From Channel and enter the channel where

you want to begin the scan. (Use the Left Arrow button to

backspace. Use the Number Pad on the remote to enter the

channel.)

4. Highlight To Channel and enter the channel where you want

to end the scan. (Use the Left Arrow button to backspace.

Use the Number Pad on the remote to enter the channel.)

5. Highlight Start and press OK. The partial channel search

begins.

6. Wait until the partial channel search is 100% complete.

Highlight Done and press OK.

7. Press the EXIT button on the remote.

5

30

To add a single new analog channel:

1. From the Tuner menu, highlight

Add Analog Channel and

press OK. The ADD ANALOG

CHANNEL menu is displayed.

2. Highlight Enter Channel # and

use the Number Pad on the

remote to enter the number of

the channel you are adding.

3. Highlight Add Channel and

press OK. The TV scans for the

channel.

4. When the TV is done scanning

for the channel, press the EXIT

button on the remote.

Help

VIZIO

Network

Sleep

Timer

InputCC

ABC

Audio

Wide

Normal


Settings

PanoramicWideZoom

2D 3DExit

ADD ANALOG CHANNEL

Enter Channel #

Add Channel

Skipping Channels

After a channel scan is completed, you may find that some

channels are too weak to watch comfortably. There may also be

some channels you do not want to view. You can remove these

channels from the TV’s memory with the Skip Channel feature.

Channels that have been removed with the Skip

Channel feature can still be viewed if the channel

is entered using the Number Pad. If you wish to

completely block a channel from being viewed, use

the parental controls. See

Locking and Unlocking

Channels on page 36

.

To remove a channel:

1. From the Tuner menu, highlight

Skip Channel, and press OK.

The SKIP CHANNEL menu is

displayed.

2. For each channel you wish

to remove, use the Up/Down

Arrow buttons on the remote

to highlight the channel and

press OK. A P appears to the

right of each channel you

select.

3. When you have selected all

of the channels you wish to

remove, press the EXIT button

on the remote.

Help

VIZIO

Network

Sleep

Timer

InputCC

ABC

Audio

Wide

Normal


Settings

PanoramicWideZoom

2D 3DExit

SKIP CHANNEL

1Test 0

1Test 1 P

1-2 Test 2 P

2Test 3

2-2 Test 4 P

2-3 Test 5

5

31

To use the Digital Language feature:

1. From the Tuner menu, highlight

Digital Language and press

OK. The DIGITAL LANGUAGE

menu is displayed.

2. Select your preferred language:

English, Español, or Français.

Press OK.

3. Press the EXIT button on the

remote.

Help

VIZIO

Network

Sleep

Timer

InputCC

ABC

Audio

Wide

Normal


Settings

PanoramicWideZoom

2D 3DExit

DIGITAL LANGUAGE

English

Español

Français

Changing the Audio Language

Some digital free-to-air, cable, and satellite channels broadcast

programs in more than one language. The Analog Audio and

Digital Language features allow you to listen to audio from

Secondary Audio Programming (SAP). SAP allows you to listen to

broadcasts in multiple languages.

• Analog Audio works with analog channels.

• Digital Language works with digital channels.

Not all programs are broadcast in multiple languages.

The Analog Audio and Digital Language features

only works when the program being viewed is being

broadcast in the language you select.

To use the Analog Audio feature:

1. From the Tuner menu, highlight

Analog Audio and press OK.

The ANALOG AUDIO menu is

displayed.

2. Select Stereo, SAP (secondary

audio programming), or Mono.

Press OK.

3. Press the EXIT button on the

remote.

Help

VIZIO

Network

Sleep

Timer

InputCC

ABC

Audio

Wide

Normal


Settings

PanoramicWideZoom

2D 3DExit

ANALOG AUDIO

Stereo

SAP

Mono

5

32

SettiNg up clOSed captiONiNg

Your TV can display closed captions for programs that include

them. Closed captions display a transcription of a program’s

dialogue.

The Closed Captioning menu only appears when the input is an

antenna for Over-the-Air signals, cable TV directly from the wall

(no cable box), or a device with a composite video connection.

To activate or deactivate closed captions:

1. Press the MENU button on the

remote. The on-screen menu is

displayed.

2. Use the Arrow buttons on the

remote to highlight Closed

Captions and press OK. The

CLOSED CAPTION menu is

displayed.

3. Use the Up/Down Arrow buttons to highlight Captions, then

use the Left/Right Arrow buttons to turn Closed Captions On

or Off.

4. Use the Arrow buttons on the remote to highlight the type of

closed captions you wish to see:

• Analog CC for analog (NTSC) TV channels.

• Digital CC for digital (ATSC) TV channels.

5. After highlighting the type of closed captions you wish to

see, use the Left/Right Arrow buttons on the remote to select

the caption channel you wish to display, then press EXIT.

If the program you are viewing is not being broadcast

with closed captions, the TV will not display them.

Changing the Appearance of Digital Closed Captions

Digital closed captions can be displayed according to your

preference. See the diagram on the next page for an explanation

of the parts of the closed caption area.

To change the appearance of digital closed captions:

1. From the CLOSED CAPTION

menu, use the Arrow buttons to

highlight Digital CC Style and

press OK.

2. Use the Left/Right Arrow

buttons on the remote to select

Custom. The DIGITAL CC STYLE

menu appears as shown.

3. Use the Up/Down Arrow

buttons on the remote to

highlight the setting you wish

to change, then use the Left/

Right Arrow buttons to change

the setting:

• Caption Style - Choose

As Broadcast to keep

default settings or Custom

to manually change each

setting.

• Text Style - Change the

font used for the closed

captioning text.

• Text Size - Make the text larger or smaller.

• Color - Change the color of the text.

• Opacity - Change the transparency of the text.

• Background Color - Change the color of the

background directly behind the text.

• Background Opacity - Change the transparency of the

background directly behind the text.

Help

VIZIO

Network

Sleep

Timer

InputCC

ABC

Audio

Wide

Normal


Settings

PanoramicWideZoom

2D 3DExit

DIGITAL CC STYLE

Caption Style Custom

Text Style As Broadcast

Text Size As Broadcast

Text Color As Broadcast

Text Opacity As Broadcast

Background Color As Broadcast

Background Opacity As Broadcast

Window Color As Broadcast

Window Opacity As Broadcast

Help

VIZIO

Network

Sleep

Timer

InputCC

ABC

Audio

Wide

Normal


Settings

PanoramicWideZoom

2D 3DExit

CLOSED CAPTION

Captions Off

Analog closed caption CC1

Digital closed caption CS1

Digital Caption Settings

5

33

• Window Color - Change the color of the closed

captioning box.

• Window Opacity - Change the opacity of the closed

captioning box

4. When you are satisfied with the appearance of the closed

captions, press the EXIT button on the remote.

In the example below, the closed caption text is green, the

background is black, and the window is red.

Typical choices include:

• Transparent background, opaque window—The entire

window remains filled with color, while the text appears in

it. The area covered by the window stays the same until

the signal from the TV or a device moves it out of the way

of a changing picture.

• Opaque background, transparent window—Only a strip

of background appears behind the text. There is no

window to block the picture.

Closed caption text sample

Text

Window

Background (BG)

CLOSED CAPTIONS SCREEN LAYOUT

5

34

SettiNg up deviceS

To make it easier to recognize the different devices attached to

the inputs on your TV, you can rename the inputs. For example, if

you have a DVD player connected to the Component input, you

can rename that input to display “DVD Player”.

To change the name of an input:

1. Press the MENU button on the

remote. The on-screen menu is

displayed.

2. Use the Up/Down Arrow

buttons on the remote to

highlight Devices and press

OK. The DEVICES menu is

displayed.

3. Use the Up/Down Arrow

buttons on the remote to

highlight the Input you wish to

name and press OK. The NAME

DEVICE menu is displayed.

4. If you would like to use a preset

input label, highlight the input

and press OK. Highlight the

input label you want to use

and press OK.

If you would like to name the

input yourself, highlight the

field below Input Labels. Enter

your custom label using the

on-screen keyboard and press

OK.

5. When you have finished

naming your input, press the

EXIT button on the remote.

Help

VIZIO

Network

Sleep

Timer

InputCC

ABC

Audio

Wide

Normal


Settings

PanoramicWideZoom

2D 3DExit

NAME DEVICE

HDMI-1 TV

Blu-ray_

OK

Cancel

Select the input you would like to

name.

a b c d e f g h i

j k l m n o p q r

s t u v w x y z 0

1 2 3 4 5 6 7 8 9

.@# .com Space

Help

VIZIO

Network

Sleep

Timer

InputCC

ABC

Audio

Wide

Normal


Settings

PanoramicWideZoom

2D 3DExit

DEVICES

HDMI-1 Blu-ray

HDMI-2

COMP

5

35

chaNgiNg the tv SettiNgS

Using the settings menu, you can:

• View system information

• Set up parental controls

• Change the on-screen

menu language

• Set the time

• Adjust the CEC settings

• Adjust when the power

indicator is illuminated

• Reset the TV settings & set

up administrative controls

Help

VIZIO

Network

Sleep

Timer

InputCC

ABC

Audio

Wide

Normal


Settings

PanoramicWideZoom

2D 3DExit

SYSTEM

System Info

Menu Language English

Time & Local Settings

Parental Controls

CEC

Power Indicator Off

Reset & Admin

View status information for the TV,

remote, current input and your

network.

Viewing System Information

To display a summary of the TV settings:

1. Press the MENU button on the remote. The on-screen menu is

displayed.

2. Use the Arrow buttons on the remote to highlight System

and press OK. The System menu is displayed.

3. Highlight System Info and press OK.

4. Use the Up/Down Arrow buttons to scroll through the system

information.

5. When you are finished reviewing the system information,

press the EXIT button on the remote.

5

36

Using the Parental Controls

The TV’s parental controls allow you to prevent the TV from

displaying certain channels or programs without a password.

The Parental Controls menu only appears when:

• You are using an the tuner receive your TV signals, such

as when you are using an antenna for Over-the-Air

signals or when connected to cable TV directly from the

wall (no cable box).

• You have a device connected using a composite video

cable or a coaxial cable, such as a VCR, satellite or

cable box, or DVR.

Accessing the Parental Controls Menu

To access the Parental Controls menu:

1. Press the MENU button on the remote. The on-screen menu is

displayed.

2. Use the Arrow buttons on the remote to highlight System

and press OK. The SYSTEM menu is displayed.

3. Use the Arrow buttons on the remote to highlight Parental

Controls and press OK.

4. Enter your parental passcode. If you have not set a

passcode, enter the default, 0000. The Parental Controls

menu is displayed.

To set a custom parental passcode, see

Changing

the Parental Control Passcode

on page 37.

Enabling or Disabling Program Ratings

To manage program content according to its rating, you must

enable the Program Rating feature.

To enable or disable the Program Rating feature:

1. From the Parental Controls menu, highlight Rating Enable

and press OK. The RATING ENABLE menu is displayed.

2. Select On or Off and press OK.

Locking and Unlocking Channels

When a channel is locked, it will be inaccessible. Locking

a channel is a good way to prevent children from viewing

inappropriate material.

To lock or unlock a channel:

1. From the Parental Controls menu, highlight Channel Locks

and press OK. The CHANNEL LOCKS menu is displayed.

2. Highlight the channel you want to lock or unlock and press

OK.

3. When a channel is locked, the Lock icon appears locked.

The channel is not accessible unless the parental passcode

is entered.

4. When a channel is unlocked, the Lock icon appears

unlocked. The channel is accessible.

5

37

Blocking and Unblocking Content by Rating

A channel may sometimes broadcast programs that are meant

for children, and at other times broadcast programs that are

meant for mature audiences. You may not want to block the

channel completely using a channel lock, but you may wish to

block certain programs from being viewed.

When this is the case, you can use the TV’s Rating Block feature

to block content based on its rating.

For a list of content ratings and their definitions, visit

www.tvguidelines.org.

To block or unblock content by its rating:

1. From the Parental Controls menu, highlight the content type

you want to adjust and press OK:

USA - TV - USA television program broadcasts.

USA - Movie - USA movie broadcasts.

CAN - English - Canadian English television program

broadcasts.

CAN - French - Canadian French television program

broadcasts.

2. For each rating type you want to block or unblock, use the

Up/Down and Left/Right Arrow buttons on the remote to

highlight the rating type and press OK.

3. When the rating type is blocked, the Lock icon appears

locked. Content with this rating and all higher ratings

cannot be viewed.

4. When the rating type is unblocked, the Lock icon appears

unlocked. Content with this rating and all lower ratings can

be viewed.

If you want to block all unrated content, highlight Block

Unrated Shows and use the Arrow buttons on the remote to

select On.

5. When you are finished adjusting the rating level blocks, press

the EXIT button on the remote.

Changing the Parental Control Passcode

If you use the parental controls, you should change the passcode

to prevent children from accessing inappropriate material.

To change the parental control passcode:

1. From the Parental Controls menu, highlight Change PIN and

press OK. The CHANGE PIN menu is displayed.

2. In the New PIN field, use the Number Pad on the remote to

enter your new 4-digit parental control passcode.

3. In the Confirm PIN field, use the Number Pad on the remote

to re-enter your new 4-digit parental control passcode.

4. Write down your new parental control passcode and save it

in a secure location.

5. Press the EXIT button on the remote.

Resetting the Content Locks

To reset the content locks to the factory-default settings:

1. From the PARENTAL CONTROLS menu, highlight RESET LOCKS

and press OK. The TV displays, “Are you sure you want to

RESET ALL LOCKS SETTINGS to the factory defaults?”

2. Highlight Yes and press OK.

5

38

Changing the On-Screen Menu Language

Your TV can display the on-screen menu in different languages.

To change the on-screen menu language:

1. Press the MENU button on the

remote. The on-screen menu is

displayed.

2. Use the Arrow buttons on the

remote to highlight System and

press OK. The SYSTEM menu is

displayed.

3. Use the Arrow buttons on the

remote to highlight Menu

Language and press OK. The

MENU LANGUAGE menu is

displayed.

4. Highlight your preferred

language (English, Español, o r

Français) and press OK.

5. Press the EXIT button on the

remote.

Help

VIZIO

Network

Sleep

Timer

InputCC

ABC

Audio

Wide

Normal


Settings

PanoramicWideZoom

2D 3DExit

MENU LANGUAGE

English

Español

Français

Setting the Time Zone

To ensure the correct time is displayed when you press the INFO

button, set the TV’s time zone:

1. Press the MENU button on the

remote. The on-screen menu is

displayed.

2. Use the Arrow buttons on the

remote to highlight System and

press OK. The SYSTEM menu is

displayed.

3. Use the Arrow buttons on the

remote to highlight Time and

Local Settings and press OK.

The TIME & LOCAL SETTINGS

menu is displayed.

4. Highlight Time Zone and press

OK. The TIME ZONE menu is

displayed.

5. Highlight your time zone and

press OK.

6. Highlight Daylight Saving and

press OK. The DAYLIGHT SAVING

menu is displayed. Choose On

if your locale observes daylight

savings time, or Off if it does

not.

7. Highlight Postal Code. Enter your postal (ZIP) code using

the keypad on the remote, then press OK. Postal codes are

often used by V.I.A. Plus Apps to give you the most accurate

location-based information, such as weather or news.

8. Press the EXIT button on the remote.

Help

VIZIO

Network

Sleep

Timer

InputCC

ABC

Audio

Wide

Normal


Settings

PanoramicWideZoom

2D 3DExit

TIME ZONE

Alaska

Hawaii

Pacific

Mountain

Central

Eastern

Atlantic

Newfoundland

Indiana

Arizona

5

39

Adjusting the CEC Settings

The CEC function on your TV enables you to control

HDMI-connected devices with the included remote without any

additional programming.

Not all HDMI devices support CEC. See your device’s

user manual for details.

To enable, disable, or adjust CEC settings:

1. Press the MENU button on the remote. The on-screen menu is

displayed.

2. Use the Arrow buttons on the remote to highlight System

and press OK. The SYSTEM menu is displayed.

3. Use the Arrow buttons on the remote to highlight CEC and

press OK. The CEC menu is displayed.

4. Use the Arrow and OK buttons to adjust each setting:

• CEC Function - To use CEC, you must select Enable.

• System Audio Control - When system audio control is on,

you can control your device’s audio using the TV’s remote

control.

• Device Discovery - Use this function to determine if your

device is connected and supports CEC.

5. Press the EXIT button on the remote.

Turning the Power Indicator On or Off

The Power Indicator on the front of your TV normally does not

glow when the TV is on. You can change this setting if you prefer

the light to be on.

To turn the Power Indicator Light on or off:

1. Press the MENU button on the remote. The on-screen menu is

displayed.

2. Use the Arrow buttons on the remote to highlight System

and press OK. The System menu is displayed.

3. Highlight Power Indicator and press OK.

4. Use the Up/Down Arrow buttons to select On or Off, then

press OK.

5

40

uSiNg the reSet & adMiN MeNu

You can use the TV’s Reset & Admin menu to:

• Restore the TV to its factory

default settings

• Start the Store Demo

Help

VIZIO

Network

Sleep

Timer

InputCC

ABC

Audio

Wide

Normal


Settings

PanoramicWideZoom

2D 3DExit

RESET & ADMIN

Reset TV to Factory Defaults

Store Demo

Restoring the TV to Factory Default Settings

All of the on-screen menu settings can be reset to the factory

defaults.

If you restore the TV to the factory default settings, all

changes you have made to the settings will be lost!

This includes any V.I.A. Plus Apps that you have added

and any changes you have made to the settings for

those Apps.

To restore the TV to its factory default settings:

1. Press the MENU button on the remote. The on-screen menu is

displayed.

2. Use the Arrow buttons on the remote to highlight System

and press OK. The System menu is displayed.

3. Highlight Reset & Admin and press OK. The Reset & Admin

menu is displayed.

4. Highlight Reset TV to Factory Defaults and press OK.

5. Enter your parental control passcode. If you have not yet set

up a parental passcode, enter the default, 0000.

The TV displays, “Select Reset to restore all TV settings to

factory defaults and clear all account information.”

6. Highlight Reset and press OK.

7. Wait for the TV to turn off. The TV will turn back on shortly

afterward and the Setup App will begin.

5

41

uSiNg the guided Setup MeNu

Using Guided Setup

The TV’s Setup App can be used to easily set up the TV tuner or

to connect the TV with your network.

To use guided setup:

1. Press the MENU button on the

remote. The on-screen menu is

displayed.

2. Highlight Guided Setup and

press OK.

3. Highlight the guided setup you

want to use and press OK:

• Tuner Setup - Set up the TV

tuner.

4. Follow the on-screen

instructions. When finished,

press the EXIT button on the

remote.

Help

VIZIO

Network

Sleep

Timer

InputCC

ABC

Audio

Wide

Normal


Settings

PanoramicWideZoom

2D 3DExit

GUIDED SETUP

Tuner Setup

5

42

uSiNg the iNfO WiNdOW

The Info Window can be displayed by pressing the INFO or GUIDE

button on the remote:

• Press the INFO or GUIDE button one time to display

channel, input, and display information.

• Press the INFO or GUIDE button two times to display the

program title, program rating, audio information, and the

start and end times of the program.

DIGITAL EPISODE GUIDE & INFO WINDOW

Oliver’s Holiday Surprise

1080p 6:15pm

11:00AM - 12:00PM

TV-PG (V)

CC-OFF Dolby Digital+ Stereo

Oliver wakes up one morning only to discover that his pals are missing. In this hour-

long holiday special, Oliver goes on a journey in search of his pals. Who knows what

he’ll encounter on the way?

Program Description

Program Title/CC Information

28-1

KCET-HD Normal

Channel/Input Information

6

43

Using the USB Media Player

USING THE USB MEDIA PLAYER

The USB Media Player allows you to connect a USB thumb drive to

your TV and view photos.

Connecting a USB Thumb Drive to the TV

1. Turn the TV off. Connect your USB thumb drive to the USB port

on the back of the TV.

2. Press the Power/Standby button on the remote or touch the

Power control on the side of the TV to turn it on.

Playing USB Media

To play USB media, you must first save your images onto a USB

thumb drive.

Remember:

• The USB thumb drive must be formatted as FAT32.

• Files on the USB thumb drive must end in a supported file

extension (.jpg).

To play your USB media:

1. Connect your USB thumb drive to the USB port on the side of

the TV.

2. Highlight the Media App and press OK. The Media App

launches.

3. Highlight your USB device in the list and press OK.

4. Highlight the type of media you wish to display: Photo.

Press OK.

5. Use the Arrow buttons to highlight the file you want to

display. Press OK. The file plays.

You can display your photos in fullscreen. Select the

photo, press OK, then highlight Fullscreen and press

OK.

USB PORT

Do not remove the USB thumb drive while the TV is on.

Doing so may damage the drive.

6

44

Start Slideshow

Name A-Z

Thumbnails

Settings

View:

Sort:

Photo VIZIO_2GB\Photo\root

File Name: D 1920x1080

Resolution: 1920x1080

Size: 1607270KB

USB1:


root B.jpg C.jpg

D.jpg E.jpg F.jpg

G.jpg H.jpg I.jpg

Page 1 of 1

VIZIO

Folder Contents

This area displays the

contents of the currently

selected folder. You can

browse between files using

the Arrow and OK buttons

on the remote.

Current Folder

Displays the folder path.

Page Information

If your USB thumb drive has more

files than can be displayed on

a single screen, you can move

between pages by highlighting this

area and pressing Left/Right Arrow.

Back Button

Highlight and press OK to return to left column.

Connected

Sources

Displays

connected

USB devices. To

change source,

highlight it and

press OK.

Current Folder

Back Button

Highlight this button

and press OK if you

would like to return to

the previous screen.

Sort by Name

View Thumbnails/List

View Folder Settings

Start Fullscreen

Slideshow

Photo Infomation

Displays name,

resolution, and file

size for currently

selected photo.

PHOTO VIEWER

A

Troubleshooting & Technical Support

DO YOU HAVE QUESTIONS?

LET US HELP!

YOUR PRODUCT INCLUDES FREE LIFETIME TECH SUPPORT

Phone:

Email:

Web:

(877) 878-4946 (TOLL-FREE)

techsupport@VIZIO.com

www.VIZIO.com/support

Hours of operation:

Monday - Friday: 5 AM TO 8 PM (PST)

Saturday - Sunday: 7 AM TO 4 PM (PST)

The VIZIO support team is highly trained

and is based in the United States.

We can help with:

•

New Product Setup

•

Connecting Your Devices

•

Technical Problems

•

And More

We speak English • Se habla Español • Nous parlons Français

45

A

46

The TV displays “No Signal.”

• Press the INPUT button on the remote control to select a

different input source.

• If you are using cable TV, satellite, or antenna

connected directly to the TV, scan for channels. See

Scanning for Channels

on page 29.

There is no power.

• Ensure the TV is plugged into a working electrical outlet.

• Ensure the power cable is securely attached to the TV.

• Press the Power/Standby button on the remote or on

the side of the TV to turn the TV on.

The power is on, but there is no image on the screen.

• Ensure all cables are securely attached to the TV.

• Ensure all devices are connected correctly. Devices

differ; see your device’s user manual for details.

• Adjust Brightness, Contrast, or Backlight. See

Adjusting

the Advanced Picture Settings

on page 20.

• Press the INPUT button on the remote to select a

different input source.

There is no sound.

• Press Volume Up on the remote control.

• Press the MUTE button on the remote to ensure mute is

off.

• Check the audio settings. See

Adjusting the Audio

Settings

on page 26. Ensure the speakers are set to

On.

• Ensure no headphones are connected to the TV.

• Check the audio connections of external devices

(Blu-ray player, game console, cable/satellite box) that

are connected to the TV.

• If you are using an antenna, the signal strength of the

channel may be low. Ensure your antenna is connected

securely to the TV and move the antenna around the

room or close to a window for the best signal.

The colors on the TV don’t look right.

• Adust the Color and Tint settings in the Picture menu.

See

Adjusting the Picture Settings

on page 19.

• Check all cables to ensure they are securely attached.

The buttons on the remote aren’t working.

• Ensure you are only pressing one button at a time.

• Point the remote directly at the TV when pressing a

button.

• Replace the remote batteries with new ones. See

Replacing the Batteries on page 9.

A

47

The image quality is not good.

• For the best image quality, view high-definition

programs using digital sources. Connect your devices

with HDMI cables.

• If you are using an antenna, the signal strength of the

channel may be low. Ensure your antenna is connected

securely to the TV and move the antenna around the

room or close to a window for the best signal.

The picture is distorted.

• Nearby electrical devices may be interfering with the

TV. Separate the TV from electrical appliances, cars, or

fluorescent lights.

• Ensure all cables are securely attached.

The display image does not cover the entire screen.

• If you are in RGB mode (computer), ensure that H-Size

and V-Position in the on-screen menu are set correctly.

• If you are using TV, AV, or Component with 480i input,

press the WIDE button on the remote to change the

screen mode.

The TV has pixels (dots) that are always dark or always lit.

• Your HDTV is precision-manufactured using an extremely

high level of technology. However, sometimes pixels may

not display correctly. These types of occurrences are

inherent to this type of product and do not constitute a

defective product.

I see “noise” or static on the screen.

• When your TV’s digital capabilities exceed a

digital broadcast signal, the signal is up-converted

(improved) to match your TV’s display capabilities. This

up-converting can sometimes cause irregularities in the

image.

• If you are using an antenna, the signal strength of the

channel may be low. Ensure your antenna is connected

securely to the TV and move the antenna around the

room or close to a window for the best signal.

When I change input source, the volume changes.

• The TV remembers the volume level on each input

source. If the volume level on the new input source is

higher or lower than the level on the source you switch

from, the difference may be noticeable.

• Use the Volume Up/Down buttons on the remote to

adjust the volume.

When I change input source, the display image changes size.

• The TV remembers the viewing mode on each input

source. If the viewing mode on the new input source

differs from the one on the input source you switch from,

the difference may be noticeable.

• See

Changing the Screen Aspect Ratio

on page 18

.

B

48

Specifications

E320-B0

Screen Size: 32” Class

Viewable Area: 31.50”

Dimensions w/ Stand:

w/o Stand:

28.43” x 18.55” x 6.87”

28.43” x 16.83” x 2.48”

Weight w/ Stand:

w/o Stand:

9.92 lbs

9.26 lbs

TV Type: DLED

Refresh Rate: 60 Hz

Maximum Resolution: 1366 x 768

Pixel Pitch: .510 mm x .510 mm

Response Time: 7 ms

Brightness: 300 nits

Viewing Angle: 176° (H) / 176° (V)

HDMI Inputs: 2

Component Video Inputs: 1

Composite Inputs: 1 (Shared with Component)

RF Antenna Input: 1

USB 2.0 Ports: 1

Audio Outputs: Stereo RCA Output,

Optical Digital

B

49

E320-B0

OSD Language: English, Spanish, French

Ambient Light Sensor: Yes

Remote Control Model: XRT020

Certifications: CSA, CSA-US, FCC Class B,

HDMI, Dolby digital

Compliance: Energy Star

Voltage Range: 108~132V @ 50/60 Hz

Power Consumption: 29.8W

Standby Power: <1W

C

50

Limited Warranty

ON PARTS AND LABOR

Covers units purchased as new in United States and Puerto Rico Only.

VIZIO provides a warranty to the original purchaser of a new Product

against defects in materials and workmanship for a period of one (1)

year of non-commercial usage and ninety (90) days of commercial

use. If a Product covered by this warranty is determined to be defective

within the warranty period, VIZIO will either repair or replace the Product

at its sole option and discretion.

To obtain warranty service, contact VIZIO Technical Support via e-mail:

TechSupport@VIZIO.com or via phone at 877 MY VIZIO (877.698.4946)

from 5:00AM to 9:00PM Monday through Friday and 8:00AM to

4:00PM Saturday and Sunday, Pacific Time, or visit www.VIZIO.com.

PRE-AUTHORIZATION MUST BE OBTAINED BEFORE SENDING ANY PRODUCT

TO A VIZIO SERVICE CENTER. Proof of purchase in the form of a purchase

receipt or copy thereof is required to show that a Product is within the

warranty period.

Parts and Labor

There will be no charge for parts or labor during the warranty period.

Replacement parts and Products may be new or recertified at VIZIO’s

option and sole discretion. Replacement parts and Products are

warranted for the remaining portion of the original warranty or for ninety

(90) days from warranty service or replacement, whichever is greater.

Type of Service

Defective Products must be sent to a VIZIO service center to obtain

warranty service. VIZIO is not responsible for transportation costs to

the service center, but VIZIO will cover return shipping to the customer.

PRE-AUTHORIZATION IS REQUIRED BEFORE SENDING ANY PRODUCT TO A

VIZIO SERVICE CENTER FOR WARRANTY SERVICE.

Product returns to VIZIO’s service centers must utilize either the original

carton box and shipping material or packaging that affords an equal

degree of protection. VIZIO Technical Support will provide instructions for

packing and shipping the covered Product to the VIZIO service center.

Limitations and Exclusions

VIZIO’s one-year limited warranty only covers defects in materials and

workmanship. This warranty does not cover, for example: cosmetic

damage, normal wear and tear, improper operation, improper voltage

supply or power surges, signal issues, damages from shipping, acts of

God, any type of customer misuse, modifications or adjustments, as well

as installation and set-up issues or any repairs attempted by anyone

other than by a VIZIO authorized service center. Products with unreadable

or removed serial numbers, or requiring routine maintenance are not

covered. This one year limited warranty does not cover Products sold

“AS IS”, “FACTORY RECERTIFIED”, or by a non-authorized reseller.

THERE ARE NO EXPRESS WARRANTIES OTHER THAN THOSE LISTED OR

DESCRIBED ABOVE. ANY IMPLIED WARRANTIES, INCLUDING ANY IMPLIED

WARRANTY OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR

PURPOSE, SHALL BE LIMITED IN DURATION TO THE PERIOD OF TIME SET

FORTH ABOVE. VIZIO’S TOTAL LIABILITY FOR ANY AND ALL LOSSES AND

DAMAGES RESULTING FROM ANY CAUSE WHATSOEVER INCLUDING VIZIO’S

NEGLIGENCE, ALLEGED DAMAGE, OR DEFECTIVE GOODS, WHETHER SUCH

DEFECTS ARE DISCOVERABLE OR LATENT, SHALL IN NO EVENT EXCEED THE

PURCHASE PRICE OF THE PRODUCT. VIZIO SHALL NOT BE RESPONSIBLE FOR

LOSS OF USE, LOSS OF INFORMATION OR DATA, COMMERCIAL LOSS, LOST

REVENUE OR LOST PROFITS, OR OTHER INCIDENTAL OR CONSEQUENTIAL

DAMAGES. SOME STATES DO NOT ALLOW LIMITATIONS ON HOW LONG

AN IMPLIED WARRANTY LASTS OR THE EXCLUSION OF INCIDENTAL OR

CONSEQUENTIAL DAMAGES, SO THE ABOVE LIMITATIONS OR EXCLUSIONS

MAY NOT APPLY TO YOU. THIS WARRANTY GIVES YOU SPECIFIC LEGAL

RIGHTS, AND YOU MAY ALSO HAVE OTHER RIGHTS, WHICH VARY FROM

STATE TO STATE. THIS WARRANTY IS SUBJECT TO CHANGE WITHOUT NOTICE.

CHECK WWW.VIZIO.COM FOR THE MOST CURRENT VERSION.

Personal Data

If your VIZIO product is capable of storing personal data and other

information, ALL CONTENTS AND INFORMATION WILL BE DELETED IN THE

COURSE OF SOME IN-HOME AND ALL SHIP-IN WARRANTY SERVICE. If this

occurs, your product will be restored to you configured as originally

purchased. You will be responsible for restoring all applicable data and

passwords. Recovery and reinstallation of user data is not covered under

this Limited Warranty. In order to protect your personal information, VIZIO

recommends that you always clear all personal information from the

unit before it is serviced, regardless of the servicer.

Zero Bright Pixel Defect Guarantee

This policy covers “zero bright pixel” defects for the duration of the limited

“ONE YEAR WARRANTY” on select new product purchases. To determine

if this guarantee applies to your product, refer to the “DETAILS” tab of

the model’s product information page (www.VIZIO.com) or look for the

“zero bright pixel” guarantee on the box.

D

51

Legal & Compliance

FCC Class B Radio Interference Statement

NOTE: This equipment has been tested and found to comply with the limits

for a Class B digital device, pursuant to Part 15 of the FCC Rules. These

limits are designed to provide reasonable protection against harmful

interference in a residential installation. This equipment generates, uses

and can radiate radio frequency energy, and if not installed and used in

accordance with the instructions, may cause harmful interference to radio

communications. However, there is no guarantee that interference will not

occur in a particular installation. If this equipment does cause harmful

interference to radio or television reception, which can be determined by

turning the equipment off and on, the user is encouraged to try to correct

the interference by one or more of the following measures:

1. Reorient or relocate the receiving antenna.

2. Increase the separation between the equipment and receiver.

3. Connect the equipment into an outlet on a circuit different from

that to which the receiver is connected.

4. Consult the dealer or an experienced radio/TV technician for

help.

This device complies with Part 15 of the FCC Rules. Operation is subject

to the following two conditions: (1) this device may not cause harmful

interference, and (2) this device must accept any interference received,

including interference that may cause undesired operation.

Notice

1. The changes or modifications not expressly approved by the party

responsible for compliance could void the user’s authority to

operate the equipment.

2. Shielded interface cables and AC power cord, if any, must be used

in order to comply with the emission limits.

3. The manufacturer is not responsible for any radio or TV

interference caused by unauthorized modification to this

equipment. It is the responsibilities of the user to correct such

interference.

FCC warning

Changes or modifications not expressly approved by the party responsible

for compliance with the FCC Rules could void the user’s authority to operate

this equipment.

Other

Image(s) used under license from Shutterstock.com

© 2013 VIZIO INC. All rIghts reserVed.

130912OC-NC
