USER MANUAL
Model: E400-B2 & E480-B2
VIZIO
This product qualifies for ENERGY STAR in the “factory
default” setting and this is the setting in which power
savings will be achieved. Changing the factory default
picture settings or enabling other features will increase
power consumption that could exceed the limits necessary
to qualify for ENERGY STAR rating.
Manufactured under license from Dolby Laboratories.
Dolby and the double-D symbol are trademarks of Dolby
Laboratories.
HDMI, the HDMI logo and High-Definition Multimedia
Interface are trademarks or registered trademarks of HDMI
Licensing LLC.
For DTS patents, see http://patents.dts.com.
Manufactured under license from DTS Licensing Limited. DTS,
the Symbol, & DTS and the Symbol together are registered
trademarks, and DTS Studio Sound is a trademark of
DTS, Inc. © DTS, Inc. All Rights Reserved.
Welcome
THANK YOU FOR CHOOSING VIZIO
And congratulations on your new VIZIO HDTV.
To get the most out of your new VIZIO product, read these
instructions before using your product and retain them for future
reference. Be sure to inspect the package contents to ensure
there are no missing or damaged parts.
PRODUCT REGISTRATION
To purchase or inquire about accessories and installation services
for your VIZIO product, visit our website at www.VIZIO.com or call
toll free at (877) 878-4946.
We recommend that you either:
• Register your VIZIO product at www.VIZIO.com
• Complete and mail the enclosed registration card
Extended Warranties
For peace of mind, and to protect your investment beyond the
standard warranty, VIZIO offers on-site extended warranty service
plans. These plans provide additional coverage during the
standard warranty period. To purchase an extended warranty
service plan, visit www.VIZIO.com.
WHEN READING THIS MANUAL
When you see this symbol, please read the
accompanying helpful tip.
IMPORTANT SAFETY INSTRUCTIONS
Your TV is designed and manufactured to operate within defined
design limits. Misuse may result in electric shock or fire. To prevent
your TV from being damaged, the following instructions should
be observed for the installation, use, and maintenance of your
TV. Read the following safety instructions before operating your
TV. Keep these instructions in a safe place for future reference.
• To reduce the risk of electric shock or component
damage, switch off the power before connecting other
components to your TV.
• Read these instructions.
• Keep these instructions.
• Heed all warnings.
• Follow all instructions.
• Do not use this apparatus near water.
• Clean only with a dry cloth.
• Do not block any ventilation openings. Install in
accordance with the manufacturer’s instructions.
• Do not install near any heat sources such as radiators,
heat registers, stoves, or other apparatus (including
amplifiers) that produce heat.
• Do not defeat the safety purpose of the polarized or
grounding-type plug. A polarized plug has two blades
with one wider than the other. A grounding type plug
has two blades and a third grounding prong. The wide
blade or the third prong are provided for your safety. If
the provided plug does not fit into your outlet, consult an
electrician for replacement of the obsolete outlet.
• Protect the power cord from being walked on or pinched,
particularly at plugs, convenience receptacles, and the
point where they exit from the apparatus.
• Only use attachments/accessories specified by the
manufacturer.
When you see this symbol, please read the
accompanying important warning or notice. It is
intended to alert you to the presence of important
operating instructions.
source indicated on the label. If you are not sure of the
type of power supplied to your home, consult your dealer
or local power company.
• Do not apply pressure or throw objects at your TV.
This may compromise the integrity of the display. The
manufacturer’s warranty does not cover user abuse or
improper installations.
• The power cord must be replaced when using different
voltage than the voltage specified. For more information,
contact your dealer.
• When connected to a power outlet, power is always
flowing into your TV. To totally disconnect power, unplug
the power cord.
• The lightning flash with arrowhead symbol within an
equilateral triangle is intended to alert the user to the
presence of un-isolated, dangerous voltage within the
inside of your TV that may be of sufficient magnitude to
constitute a risk of electric shock to persons.
• Do not overload power strips and extension cords.
Overloading can result in fire or electric shock.
• The wall socket should be installed near your TV and
easily accessible.
• Only power of the marked voltage can be used for your
TV. Any other voltage than the specified voltage may
cause fire or electric shock.
• Do not touch the power cord during lightning. To avoid
electric shock, avoid handling the power cord during
electrical storms.
• Unplug your TV during a lightning storm or when it will not
be used for long period of time. This will protect your TV
from damage due to power surges.
• Do not attempt to repair or service your TV yourself.
Opening or removing the back cover may expose you to
high voltages, electric shock, and other hazards. If repair
is required, contact your dealer and refer all servicing to
qualified service personnel.
• Use only with the cart, stand, tripod, bracket,
or table specified by the manufacturer, or sold
with the apparatus. When a cart is used, use
caution when moving the cart/apparatus
combination to avoid injury from tip-over.
• Unplug this apparatus during lightning storms or when
unused for long periods of time.
• Refer all servicing to qualified service personnel. Servicing
is required when the apparatus has been damaged in
any way, such as when the power-supply cord or plug is
damaged, liquid has been spilled or objects have fallen
into the apparatus, the apparatus has been exposed to
rain or moisture, does not operate normally or has been
dropped.
• Unplug the power cord before cleaning your TV.
• When moving your TV from an area of low temperature
to an area of high temperature, condensation may form
in the housing. Wait before turning on your TV to avoid
causing fire, electric shock, or component damage.
• A distance of at least three feet should be maintained
between your TV and any heat source, such as a radiator,
heater, oven, amplifier etc. Do not install your TV close to
smoke. Operating your TV close to smoke or moisture may
cause fire or electric shock.
• Slots and openings in the back and bottom of the
cabinet are provided for ventilation. To ensure reliable
operation of your TV and to protect it from overheating,
be sure these openings are not blocked or covered. Do
not place your TV in a bookcase or cabinet unless proper
ventilation is provided.
• Never push any object into the slots and openings on
your TV cabinet. Do not place any objects on the top of
your TV. Doing so could short circuit parts causing a fire
or electric shock. Never spill liquids on your TV.
• Your TV should be operated only from the type of power
• WARNING: Keep your TV away from moisture. Do not
expose your TV to rain or moisture. If water penetrates into
your TV, unplug the power cord and contact your dealer.
Continuous use in this case may result in fire or electric
shock.
• Do not use your TV if any abnormality occurs. If any
smoke or odor becomes apparent, unplug the power
cord and contact your dealer immediately. Do not try to
repair your TV yourself.
• Avoid using dropped or damaged appliances. If your
TV is dropped and the housing is damaged, the internal
components may function abnormally. Unplug the power
cord immediately and contact your dealer for repair.
Continued use of your TV may cause fire or electric
shock.
• Do not install your TV in an area with heavy dust or high
humidity. Operating your TV in environments with heavy
dust or high humidity may cause fire or electric shock.
• Follow instructions for moving your TV. Ensure that the
power cord and any other cables are unplugged before
moving your TV.
• When unplugging your TV, hold the AC/DC power
adapter, not the cord. Pulling on the power cord may
damage the wires inside the cord and cause fire or
electric shock. When your TV will not be used for an
extended period of time, unplug the power cord.
• To reduce risk of electric shock, do not touch the
connector with wet hands.

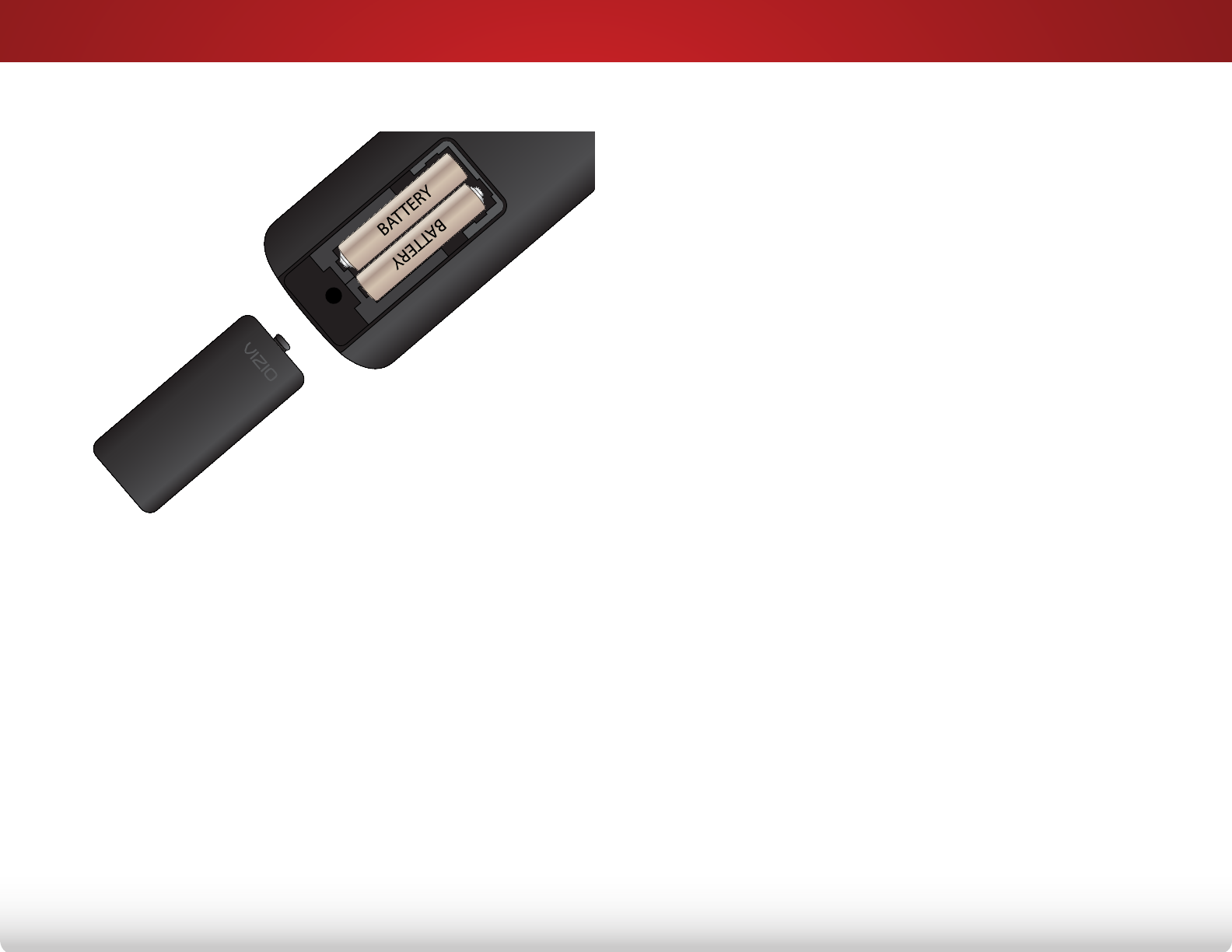

• Insert batteries in accordance with instructions. Incorrect
polarities may cause the batteries to leak which can
damage the remote control or injure the operator. Do not
expose batteries to excessive heat such as sunshine, fire
or the like.
• If any of the following occurs, contact the dealer:
- The power cord fails or frays.
- Liquid sprays or any object drops into your TV.
- Your TV is exposed to rain or other moisture.
- Your TV is dropped or damaged in any way.
- The performance of your TV changes substantially.
• This apparatus shall not be exposed to dripping or
splashing and no objects filled with liquids, such as vases,
shall be placed on the apparatus.
• The mains plug or appliance coupler is used as the
disconnect device, the disconnect device shall remain
readily operable.
• CAUTION - These servicing instructions are for use by
qualified service personnel only. To reduce the risk of
electric shock, do not perform any servicing other than
that contained in the operating instructions unless you
are qualified to do so.
• The lightning flash with arrowhead symbol within an
equilateral triangle is intended to alert the user to the
presence of uninsulated DANGEROUS VOLTAGE within the
product’s enclosure that may be of sufficient magnitude
to constitute a risk of electrical shock to persons.
h
TELEVISION ANTENNA CONNECTION
PROTECTION
If an outside antenna/satellite dish or cable system is to be
connected to the TV, make sure that the antenna or cable system
is electrically grounded to provide some protection against
voltage surges and static charges.
Article 810 of the National Electrical Code, ANSI/NFPSA 70,
provides information with regard to proper grounding of the
mast and supporting structure, grounding of the lead-in wire to
an antenna discharge unit, size of the grounding conductors,
location of antenna discharge unit, connection to grounding
electrodes, and requirements of the grounding electrode.
Ground Clamp Antenna Lead In Wire
Antenna Discharge Unit
(NEC Section 810-20)
Grounding Conductors
(NEC Section 810-21)
Ground Clamps
Power Service Grounding Electrode
System
(NEC ART 250, part H)
Electric Service Equipment
Lightning Protection
For added protection of the TV during a lightning storm or when
it is left unattended or unused for long periods of time, unplug
the TV from the wall outlet and disconnect the antenna or cable
system.
Power Lines
Do not locate the antenna near overhead light or power circuits,
or where it could fall into such power lines or circuits. Remember,
the screen of the coaxial cable is intended to be connected to
earth in the building installation.
Table of Contents
1
Installing the TV ................................................ 3
Inspecting the Package Contents .....................................3
Installing the TV ...................................................................4
Installing the TV Stand .....................................................4
Installing the TV on a Wall ................................................ 6
Controls and Connections .............................. 7
Rear Panel ..........................................................................7
Side Panel ...........................................................................8
Front Panel .......................................................................... 9
Remote Control ..................................................................10
Replacing the Batteries ...................................................11
Connecting Your Devices ................................. 12
Connecting a Device .........................................................12
Connecting a Device - Audio and Video Cable Types ...13
Connecting an Audio Device ............................................15
Connecting an Audio Device - Audio Cable Types ...........16
Connecting an Audio Device - ARC ...................................17
Completing the First-Time Setup ...................... 18
Using the On-Screen Menu .............................. 19
Navigating the On-Screen Menu .......................................19
Changing the Input Source ...............................................20
Changing the Screen Aspect Ratio ...................................20
Adjusting the Picture Settings ............................................21
Adjusting the Picture Size and Position ...........................22
Adjusting the Color Temperature ....................................22
Adjusting the Advanced Picture Settings ........................23
Resetting the Color Temperature Settings .......................23
Resetting the Picture Settings ..........................................24
Adjusting the Audio Settings ..............................................25
Resetting the Audio Settings ............................................26
Activating the Sleep Timer ..................................................26
Setting the Auto Power Off Feature ..................................27
Setting Up the Tuner............................................................27
Selecting a Tuner Input ....................................................28
Scanning for Channels ....................................................28
Adding New Channels ....................................................28
Skipping Channels...........................................................29
Changing the Audio Language ...................................... 30
Setting Up Closed Captioning ...........................................31
Changing the Appearance of Digital Closed Captions . 31
Setting Up Devices ..............................................................33
Changing the TV Settings ...................................................34
Displaying System Information ........................................34
Using the Parental Controls .............................................35
Accessing the Parental Controls Menu ........................... 35
Enabling or Disabling Program Ratings ...........................35
Locking and Unlocking Channels ...................................35
Blocking and Unblocking Content by Rating ..................36
Changing the Parental Control Passcode ......................36
Resetting the Content Locks ............................................ 36
Changing the On-Screen Menu Language .................... 37
Setting the Time Zone ......................................................37
Adjusting the CEC Settings ..............................................38
Turning the Power Indicator On or Off ............................. 38
Using the Reset & Admin Menu ..........................................39
Resetting the TV Settings ..................................................39
2
Restoring the TV to Factory Default Settings .................... 40
Using the Guided Setup Menu ........................................40
Using Guided Setup .........................................................40
Using the Info Window ........................................................41
Using the USB Media Player ............................. 42
Using the USB Media Player ................................................42
Preparing Your USB Drive to Play USB Media .................... 42
Playing USB Media ...........................................................42
Removing the USB Drive from the TV ................................42
Troubleshooting & Technical Support .............. 44
Specifications ................................................... 47
Limited Warranty ............................................... 49
Legal & Compliance ........................................ 50
3
1
Installing the TV
INSPECTING THE PACKAGE CONTENTS
Before installing your new TV, take a moment to inspect the
package contents. Use the images below to ensure nothing is
missing or damaged.
PACKAGE CONTENTS
VIZIO LED HDTV with Stand Quick Start Guide
Power Cord
Remote Control
with Batteries
7 x M4 14mm
Phillips Screws
(For E400-B2)
7 x M4 10mm
Phillips Screws
(For E480-B2)
1
4
It is recommended that two people take part in the base
installation.
Place the TV screen-down on a clean, flat surface. To prevent
scratches or damage to the screen, place the TV on a soft surface
such as a blanket.
INSTALLING THE TV
After removing the TV from the box and inspecting the package
contents you can begin installing the TV. Your TV can be installed
in two ways:
• On a flat surface, using the included stand
• On a wall, using a VESA-standard wall mount (not
included)
Installing the TV Stand
Your TV includes a stand designed to support the weight of the
TV and keep it from falling over. However, the TV can still fall over if:
• It is placed on an uneven, unstable, or non-level surface
• It is pushed, pulled, or otherwise improperly moved
• If an earthquake occurs and the TV is not properly
secured
TV ON STAND
1
5
For E480-B2
1. Align the neck with the base and snap it into place.
2. Using a Phillips screwdriver, insert three (3) M4 x 10mm
screws into the holes on the bottom of the base and tighten
them to secure it to the neck.
3. Align the neck piece with the slot in the bottom of the TV
and slide it into place as shown.
4. Using a Phillips screwdriver, insert four (4) M4 x 10mm screws
into the holes on the back of the TV and tighten them to
secure the neck to the TV.
5. When you are finished, place the TV on a stable,
level surface at least four (4) inches from the floor.
To install the base:
For E400-B2
1. Align the neck with the base and snap it into place.
2. Using a Phillips screwdriver, insert three (3) M4 x 14mm
screws into the holes on the bottom of the base and tighten
them to secure it to the neck.
3. Align the neck piece with the slot in the bottom of the TV
and slide it into place as shown.
4. Using a Phillips screwdriver, insert four (4) M4 x 14mm screws
into the holes on the back of the TV and tighten them to
secure the neck to the TV.
5. When you are finished, place the TV on a stable,
level surface at least eight (8) inches from the floor.
1
6
Installing the TV on a Wall
To mount your TV on a wall, you will need a wall mount. Consult
the information below to find the appropriate mount for your TV
model:
Installing a TV on a wall requires lifting. To prevent
injury or damage to the TV, ask someone to help you.
E400-B2 E480-B2
Screw Size: M4 M6
Screw Pitch: 0.7mm 1.0mm
Hole Pattern: 100mm (V) x 100mm (H) 200mm (V) x 200mm (H)
Be sure the mount you choose is capable of supporting the
weight of the TV. After you have determined that you have the
correct mount for your TV, you can begin the installation.
To install your TV on a wall:
1. Disconnect any cables connected to your TV.
2. Place the TV face-down on a clean, flat, stable surface.
Be sure the surface is clear of debris that can scratch or
damage the TV.
3. Remove the base by loosening and removing the screws.
4. Attach your TV and wall mount to the wall, carefully following
the instructions that came with your mount.
Use only with a UL-listed wall mount bracket rated for the
weight/load of this TV. See
Appendix B - Specifications on
page 47
for the weight of this TV.
WALL MOUNT SCREW LOCATION - E400-B2
WALL MOUNT SCREW LOCATION - E480-B2
2
7
Controls and Connections
Coaxial - Connect coaxial cable from cable, satellite, or antenna.
Optical Audio Out - Connect an optical/SPDIF audio device, such as
home audio receiver.
Stereo Audio Out - Connect an RCA audio device, such as sound bar.
HDMI - Connect an HDMI device.
Component/Composite - Connect a component or composite device.
USB - Connect a USB thumb drive to view photos.
HDMI - Connect an HDMI device.
REAR PANEL
2
8
POWER - Press and hold to turn TV off or on.
INPUT - Press to change the input source.
SIDE PANEL
2
9
FRONT PANEL
REMOTE SENSOR & POWER INDICATOR
When using the remote, aim it directly at this sensor.
The power indicator flashes on when the TV turns on, then goes out after several seconds.
To keep the power indicator on as long as the TV is on, see
“Turning the Power Indicator
On or Off” on page 38.
FRONT PANEL
2
10
REMOTE CONTROL
INPUT
Change the currently-displayed input.
ARROW
Navigate the on-screen menu.
EXIT
Close the on-screen menu.
CLOSED CAPTIONS
Open the closed caption menu.
A/V CONTROLS
Control USB media player.
WIDE
Switch the display mode.
MUTE
Turn the audio off or on.
BACK
Go to the previous on-screen menu.
POWER
Turn the TV on or off.
MENU
Display the on-screen menu.
INFO
Display the info window.
DASH
Use with number pad to manually
enter a digital sub-channel.
(For example, 18-4 or 18-5.)
CHANNEL UP/DOWN
Change the channel.
GUIDE
Display the info window.
LAST
Return to the channel last viewed.
NUMBER PAD
Manually enter a channel.
VOLUME UP/DOWN
Increase or decrease loudness of
the audio.
OK
Select the highlighted menu option.
V BUTTON
Open the USB media player.
REMOTE CONTROL
2
11
Replacing the Batteries
1. Remove the battery cover.
2. Insert two batteries into the remote control. Make sure that
the (+) and (-) symbols on the batteries match the (+) and
(-) symbols inside the battery compartment.
3. Replace the battery cover.
3
12
Connecting Your Devices
CONNECTING A DEVICE
* Maximum Resolution
Game Console
Cable/Satellite Box
DVD/Blu-ray Player
Your TV can be used to display output from most devices.
1. Verify that your device has a video port that matches an
available port on the TV (HDMI, Component, etc.).
2. Turn the TV and your device off.
3. Connect the appropriate cable (not included) to the TV and
the device.
4. Turn the TV and your device on. Set the TV’s input to match
the connection you used (HDMI-1, HDMI-2, etc.).
BACK OF TV
BEST
HDMI CABLE • DIGITAL
• HD VIDEO (1080p)*
• HD AUDIO
GOOD
AV CABLE • ANALOG
• VIDEO (480i)*
• STEREO AUDIO
BETTER
COMPONENT CABLE
• ANALOG
• HD VIDEO (1080i)*
• STEREO AUDIO
BETTER
COAXIAL CABLE • ANALOG
• HD VIDEO (1080i)*
• STEREO AUDIO
3
13
COAXIAL CABLE
Coaxial cables are the traditional way of connectiong
antennas and cable television signals to your TV.
Coaxial cables carry both audio and video signals
through a single connector.
AV CABLE
AV cables (or Composite cables) are the traditional
way of connecting your devices to your TV. Video
signals are sent over the yellow connector while audio
is sent over the red and white connectors.
GOOD BETTER
COMPONENT VIDEO
Y L R
• HD Video Resolutions up to 1080i
• Analog Connection
• Audio and Video Signals
• Video Resolutions up to 480i
• Analog Connection
• Audio and Video Signals
CONNECTING A DEVICE - AUDIO AND VIDEO CABLE TYPES
3
14
HDMI CABLE
HDMI is the intelligent, all-digital interface that delivers
both dazzling quality and unmatched ease of use. HDMI
technology transmits crystal-clear digital video along
with multi-channel surround audio. HDMI-connected
devices have the ability to automatically adjust
themselves for optimal viewing.
COMPONENT CABLE
Component cables are designed to carry high
definition video signals along with additional
audio connections. Colors are delivered with color
information split up three different ways over three
connectors for video (separated into Red, Blue and
Green signals) and the left and right audio connectors
(Red and White).
BETTER
COMPONENT VIDEO
R L Pr/Cr Pb/Cb Y
HDMI
HDMI
• HD Video Resolutions up to 1080p
• HD Audio
• Digital Connection
• Audio and Video Signals
• HD Video Resolutions up to 1080i
• Analog Connection
• Audio and Video Signals
BEST
3
15
CONNECTING AN AUDIO DEVICE
Home Audio Receiver
VIZIO Sound Bar
Your TV can output sound to an audio device, such as a receiver
or sound bar.
1. Verify that your device has an audio port that matches an
available port on the TV (HDMI or RCA).
2. Turn the TV and your audio device off.
3. Connect the appropriate cable (not included) to the TV and
the device.
4. Turn the TV and your device on.
BEST
HDMI CABLE • ARC 2-WAY COMMUNICATION
• 2.0-5.1 DIGITAL AUDIO
• PCM, DTS, DOLBY DIGITAL
GOOD
RCA CABLE • ANALOG STEREO CONNECTION
• 2.0 CHANNEL
BACK OF TV
BETTER
OPTICAL/SPDIF CABLE
• PCM STREAM
• DOLBY DIGITAL 5.1 CHANNEL
• DTS 5.1 CHANNEL
3
16
CONNECTING AN AUDIO DEVICE - AUDIO CABLE TYPES
HDMI CABLE
HDMI technology transmits crystal-clear digital
multi-channel surround audio through a single
HDMI cable. Audio Return Channel-enabled
(ARC) TVs allow audio to be sent over an already
connected HDMI cable, eliminating the need
for a separate audio cable. See
Connecting an
Audio Device - ARC
on page 17.
OPTICAL/SPDIF CABLE
Optical/SPDIF cables transmit audio signals as
pulses of light through a cable made of plastic
fibers. Audio signals are digitally transmitted
between devices.
BETTER
• ARC 2-way Communication
(Auto setup)
• PCM, DTS, Dolby Digital
• 2.0-5.1 Scaleable Lossless
Digital Audio Connection
• Audio and Video Signals
• PCM Stream (Lossless)
• Dolby Digital 5.1 Channel
• DTS 5.1 Channel
• Digital Connection
• Audio Signal Only
BEST
HDMI
Optical/SPDIF HDMI
DIGITAL OPTICAL AUDIO
GOOD
COMPONENT VIDEO
L R
RCA CABLE
AV cables (or Composite cables) are the
traditional way of connecting your devices to
your audio device. Audio signals are sent over
the red and white connectors.
• Quality Stereo Connection
• 2.0 Channel
• Analog Connection
• Audio Signal Only
3
17
Without HDMI ARC With HDMI ARC
CONNECTING AN AUDIO DEVICE - ARC
HDMI
HDMI
Your Home Audio Receiver
Your Blu-ray Player
RCA (Audio)
Your TV
HDMI
HDMI
Your Home Audio Receiver
Your Blu-ray Player
Your TV
With an HDMI ARC setup, the
audio connection between
your TV and home audio
receiver can be removed.
The HDMI cable will transmit
audio signals to and from
your TV with an all-digital
audio/video connection.
Without an HDMI ARC setup,
your TV will transmit audio
signals from the built-in
tuner to your home audio
receiver through a separate
audio connection.
Built-in Tuner Built-in Tuner
4
18
The first time you turn on the TV, the Setup app will guide you
through each of the steps necessary to get your TV ready for use.
Before you begin the first-time setup:
• Your TV should be installed and the power cord should
be connected to an electrical outlet.
• Your devices should be connected.
To complete the first-time setup:
1. Press the Power/Standby
button on the remote. The TV
powers on and the Setup App
starts.
2. Press the Right Arrow button on
the remote to highlight Home
Use, and then press OK.
3. Use the OK and Arrow
Up/Down buttons on the
remote to select your
language and country.
Completing the First-Time Setup
4. Use the OK and Arrow Up/
Down buttons on the remote to
highlight your time zone and
press OK.
5. Use the OK and Arrow Up/
Down Buttons on the remote
to set whether daylight saving
time applies in your locale.
When you are finished,
highlight Next and press OK.
6. Use the Arrow buttons on the
remote to highlight how your TV
is receiving signal and press OK.
Follow the on-screen
instructions to complete the
channel scan.
7. When you have finished the channel scan, highlight Exit to
Live TV and press OK.
The First-Time Setup is complete.
5
19
Using the On-Screen Menu
Your TV features an easy-to-use on-screen menu.
To open the on-screen menu, press the MENU button on the
remote.
From this menu, you can:
• Adjust the Picture settings
• Adjust the Audio settings
• Activate the Sleep Timer
• Adjust the Tuner settings
• Set up Closed Captioning
• Name the TV Inputs
• Adjust TV Settings
• Access the Guided Setup
Help
VIZIO
Network
Sleep
Timer
InputCC
ABC
Audio
Wide
Normal
Settings
PanoramicWideZoom
2D 3DExit
TV SETTINGS
Audio
Timers
Tuner
Closed Captions
Devices
System
Guided Setup
CC
While navigating the on-screen menu, you can press
the BACK button at any time to return to the previous
menu screen. The EXIT button will close the
on-screen menu.
NAVIGATING THE ON-SCREEN MENU
To open the on-screen menu, press
the MENU button on the remote.
Use the Arrow buttons to highlight
a menu option, and press the OK
button to select that option.
5
20
CHANGING THE INPUT SOURCE
External devices such as DVD players, Blu-ray Players, and video
game consoles can be connected to your TV. To use one of
these devices with your TV, you must first change the input
source in the on-screen menu.
To change the input device:
1. Press the INPUT button on
the remote. The input menu is
displayed.
2. Use the Up/Down Arrow
buttons or the INPUT button
on the remote to highlight the
input you wish to view and
press OK. The selected input is
displayed.
Note: Inputs may vary by TV.
CHANGING THE SCREEN ASPECT RATIO
The TV can display images in five different modes: Normal, Stretch,
Panoramic, Wide, and Zoom. Each mode displays the picture
differently.
To change the screen aspect ratio:
1. Press the WIDE button on the
remote.
2. Use the Arrow buttons to
highlight the aspect ratio you
wish to view and press OK.
• Normal preserves the content’s
original aspect ratio. Since the
4:3 aspect ratio is not large
enough to fill the TV’s screen,
black bars are added to the left
and right of the display image.
• Stretch expands the display image to fill the screen.
Images may appear wider than intended. If you are
watching widescreen (1.85:1 or 2.35:1) content, black
bars will still appear on the top and bottom of the display
image. This option is only available when the TV is
displaying a 720p/1080i source.
• Panoramic expands the display image to fill the screen.
Images may appear wider than intended. If you are
watching widescreen (1.85:1 or 2.35:1) content, black
bars will still appear on the top and bottom of the display
image. This option is only available when the TV is
displaying a 480i/480p source.
• Wide stretches a 4:3 aspect ratio picture to the edges
of the screen. Since the picture is being stretched, the
display image may appear distorted. If the program
is already formatted for widescreen viewing (1.85:1 or
2.35:1), then black bars will appear on the top and
bottom of the display image.
• Zoom expands images with black bars to fit the screen.
COMP
HDMI-1
HDMI-2
TV
Panoramic
Wide
Zoom
Normal
Stretch
Wide
Zoom
Normal
Note: Aspect ratio settings may
vary by Input source.
5
21
ADJUSTING THE PICTURE SETTINGS
Your TV display can be adjusted to suit your preferences and
viewing conditions.
To adjust the picture settings:
1. Press the MENU button on the
remote. The on-screen menu is
displayed.
2. Use the Arrow buttons on the
remote to highlight Picture and
press OK. The PICTURE menu is
displayed.
3. Use the Arrow buttons on the
remote to highlight Picture
Mode, then use the Left/Right
Arrow buttons to change the
picture mode:
• Standard mode sets the
various picture settings to
values that meet
ENERGY STAR® requirements.
• Calibrated mode sets the
picture settings to values
perfect for watching TV in a
brightly-lit room.
• Calibrated Dark mode sets the picture settings to values
perfect for watching TV in a dark room.
• Vivid mode sets the picture settings to values that
produce a brighter, more vivid picture.
• Game mode reduces throughput delays and optimizes
the picture settings for displaying game console output.
• Computer mode optimizes the picture settings for
displaying computer output.
Help
VIZIO
Network
Sleep
Timer
InputCC
ABC
Audio
Wide
Normal
Settings
PanoramicWideZoom
2D 3DExit
Picture Mode Standard
Auto Brightness Control Medium
Backlight 50
Brightness 50
Contrast 50
Color 50
Tint 0
Sharpness 0
Advanced
-+
+
-
-+
-+
-+
-+
Select from preset picture modes. Standard
picture mode meets ENERGY STAR®
requirements. For the best picture, use
Calibrated mode. To reduce video delay
(lag) when gaming, use Game mode.
4. To manually change each of the picture settings, use the
Up/Down Arrow buttons on the remote to highlight that
picture setting, then use the Left/Right Arrow buttons to
adjust the setting:
• Auto Brightness Control - The auto brightness control
detects the light levels in the room and automatically
adjusts the backlight for the best picture. Select Off, Low,
Medium, or High.
• Backlight - Adjusts the LED brightness to affect the overall
brilliance of the picture. Backlight cannot be adjusted
when starting from some picture modes.
• Brightness - Adjusts the black level of the picture. When
this setting is too low, the picture may be too dark to
distinguish details. When this setting is too high, the
picture may appear faded or washed out.
• Contrast - Adjusts the white level of the picture. When
this setting is too low, the picture may appear dark. When
this setting is too high, the picture may appear faded
or washed out. If the setting is too high or too low, detail
may be difficult to distinguish in dark or bright areas of
the picture.
• Color - Adjusts the intensity of the picture colors.
• Tint - Adjusts the hue of the picture. This setting is useful
in adjusting the flesh tones in the picture. If flesh appears
too orange, reduce the level of color before adjusting tint.
• Sharpness - Adjusts the edge sharpness of picture
elements. It can be used to sharpen non-HD (high
definition) content; however, it will not produce detail that
does not otherwise exist.
5. When you have finished adjusting the picture settings, press
the EXIT button on the remote.
5
22
Adjusting the Picture Size and Position
When displaying an image, the size and position of the display
image can be adjusted. The size and position adjustments
depend on signal source.
To adjust the picture size and position:
1. From the PICTURE menu, use
the Arrow buttons on the
remote to highlight Advanced,
then press OK.
2. Use the Arrow buttons on the
remote to highlight Size &
Position, then press OK. The SIZE
& POSITION menu is displayed.
3. Use the Arrow buttons to
highlight the setting you wish
to adjust, then press Left/Right
Arrow buttons to change
the setting:
• Horiz. Position - Adjusts
the horizontal (left/right)
position of the display
image.
• Vertical Position - Adjusts
the vertical (up/down)
position of the display
image.
• Horizontal Size - Adjusts the width of the display image.
• Vertical Size - Adjusts the height of the display image.
4. When you have finished adjusting the size and position,
press the EXIT button on the remote.
Help
VIZIO
Network
Sleep
Timer
InputCC
ABC
Audio
Wide
Normal
Settings
PanoramicWideZoom
2D 3DExit
SIZE & POSITION
Horiz. Position 32
Vertical Position 16
Horizontal Size 0
Vertical Size 0
-+
-+
-+
-+
Adjusting the Color Temperature
Adjusting the color temperature will change the “warmness” or
“coolness” of the white areas of the picture.
To adjust the color temperature:
1. From the PICTURE menu, use
the Arrow buttons to highlight
Advanced, then press OK.
2. Use the Arrow buttons on
the remote to highlight Color
Temperature, then press OK.
The COLOR TEMPERATURE menu
is displayed.
3. Use the Arrow buttons on
the remote to highlight Color
Temperature, then use the
Left/Right Arrow buttons to
change the color temperature
preset:
• Cool produces a blue-hued
picture.
• Computer optimizes the
picture for use as a PC
monitor.
• Normal is optimized for
television viewing.
• Custom allows you to
manually change each
of the color temperature
settings:
Red/Green/Blue Gain - Adjusts the amount of each
color in the display.
Red/Green/Blue Offset - Adjusts the position of each
color in the display.
4. When you have finished adjusting the color temperature,
press the EXIT button on the remote.
Help
VIZIO
Network
Sleep
Timer
InputCC
ABC
Audio
Wide
Normal
Settings
PanoramicWideZoom
2D 3DExit
COLOR TEMPERATURE
Color Temperature Normal
Red Gain 128
Green Gain 128
Blue Gain 128
Red Offset 128
Green Offset 128
Blue Offset 128
Reset Color Temperature
-+
-+
-+
-+
-+
+
-
-
5
23
Resetting the Color Temperature Settings
To reset the Color Temperature settings:
1. From the PICTURE menu, use the Arrow buttons to highlight
Advanced, and then press OK.
2. Use the Arrow buttons to highlight Color Temperature, and
then press OK. The COLOR TEMPERATURE menu is displayed.
3. Use the Arrow buttons to highlight Reset Color Temperature,
then press OK. The TV displays, “Select Reset to restore factory
default color temperature settings.”
4. Highlight Reset and press OK.
5. Press the EXIT button on the remote.
Adjusting the Advanced Picture Settings
To adjust the advanced picture settings:
1. From the PICTURE menu, use the
Arrow buttons on the remote to
highlight Advanced, then press OK.
2. Use the Arrow buttons on the
remote to highlight Advanced
Picture, then press OK. Th e
ADVANCED PICTURE menu is
displayed.
3. Use the Arrow buttons to
highlight the setting you wish
to adjust, then press Left/Right
Arrow buttons to change
the setting:
• Black Detail - Adjusts the
average brightness of the
picture to compensate for
large areas of brightness.
Select Off, Low, Medium, or
High.
• Backlight Control - Dynamically improves the contrast
ratio of the picture by adjusting the backlight. The
adjustment is controlled by the content on the screen.
Select On or Off.
• Reduce Signal Noise - Diminishes artifacts in the image
caused by the digitizing of image motion content. Select
Off, Low, Medium, or High.
• Reduce Block Noise - Reduces pixelation and distortion
for mpeg files. Select Off, Low, Medium, or High.
• Film Mode - Optimizes the picture for watching film.
Select Auto or Off.
4. When you have finished adjusting the Advanced Picture
Settings, press the EXIT button on the remote.
Help
VIZIO
Network
Sleep
Timer
InputCC
ABC
Audio
Wide
Normal
Settings
PanoramicWideZoom
2D 3DExit
ADVANCED PICTURE
Black Detail Medium
Backlight Control On
Reduce Signal Noise Low
Reduce Block Noise Low
Film Mode Auto
5
24
Resetting the Picture Settings
To reset the picture settings to the factory default settings:
1. From the PICTURE menu, use the Arrow buttons to highlight
Advanced, then press OK.
2. Use the Arrow buttons on the remote to highlight Reset
Picture Mode, then press OK. The TV displays, “Select Reset to
restore factory default picture settings.”.
3. Highlight Reset and press OK.
4. Press the EXIT button on the remote.
5
25
ADJUSTING THE AUDIO SETTINGS
To adjust the audio settings:
1. Press the MENU button on the
remote. The on-screen menu is
displayed.
2. Use the Arrow buttons on the
remote to highlight Audio and
press OK. The AUDIO menu is
displayed.
3. Use the Arrow buttons to
highlight the setting you wish
to adjust, then press Left/Right
Arrow buttons to change
the setting:
• TV Speakers - Turns the
built-in speakers On or Off.
• Surround Sound - DTS Studio Sound™ is a feature-rich
surround sound solution which delivers an immersive
surround sound experience from the TV’s internal
speakers. Additionally, Studio Sound completes the
entertainment experience by maintaining a steady
volume while watching programming and movies,
providing deep, rich bass, and delivering crisp details
and clear, intelligible dialog. Select On or Off.
• Volume Leveling - DTS TruVolume™ maintains consistent
volume levels during transitions between program
content, AV formats and input sources. Select On or Off.
• Balance - Adjusts the loudness of the audio output from
the left and right speakers.
Help
Network
Sleep
Timer
InputCC
ABC
Audio
Wide
Normal
Settings
PanoramicWideZoom
2D 3DExit
AUDIO
TV Speakers On
Surround Sound On
Volume Leveling On
Balance
Lip Sync
Digital Audio Out PCM
Analog Audio Out Fixed
Equalizer Settings
Reset Audio Mode
-+
-+
• Lip Sync - Adjusts the synchronization between the
display image and the accompanying audio track.
• Digital Audio Out - Changes the type of processing for
the Optical and HDMI ARC output when connected to a
home theater audio system. Select PCM or Bitstream.
• Analog Audio Out - Sets the volume control properties
for the analog RCA (red/white) connectors when
connected to a home theater audio system. Select
Variable to control the external speakers’ volume from
the TV’s volume controls, or select Fixed to control the
external speakers’ volume from your home theater system
controls.
• Equalizer Settings - Adjusts the boost or attenuation
of different frequencies. Change the audio mode by
selecting Flat, Dynamic, Center, Bass Boost, or Bright.
• Reset Audio Mode - Restores the audio settings to the
factory defaults. See
Resetting the Audio Settings
on
page 26.
4. When you have finished adjusting the audio settings, press
the EXIT button on the remote.
When the TV speakers are set to On, DTS signals
cannot be passed through digital audio outputs.
5
26
Resetting the Audio Settings
To reset the audio settings to the factory default settings:
1. Press the MENU button on the remote. The on-screen menu is
displayed.
2. Use the Arrow buttons on the remote to highlight Audio and
press OK. The AUDIO menu is displayed.
3. Use the Arrow buttons to highlight Reset Audio Mode and
press OK. The TV displays, “Select Reset to restore factory
default audio settings.”
4. Highlight Reset and press OK.
5. Press the EXIT button on the remote.
ACTIVATING THE SLEEP TIMER
When activated, the TV’s sleep timer will turn the TV off after a set
period of time.
To use the sleep timer:
1. Press the MENU button on the
remote. The on-screen menu is
displayed.
2. Use the Arrow buttons on the
remote to highlight Timers and
press OK. The TIMERS menu is
displayed.
3. Use the Arrow buttons on the
remote to highlight Sleep Timer.
4. Use the Left/Right Arrow
buttons on the remote to
highlight the period of time
after which you want the TV to
go to sleep: 30, 60, 90, 120, or
180 minutes. If you don’t want
the sleep timer to activate,
change the setting to Off.
5. When you have finished setting
the sleep timer, press the EXIT
button on the remote.
Help
VIZIO
Network
Sleep
Timer
InputCC
ABC
Audio
Wide
Normal
Settings
PanoramicWideZoom
2D 3DExit
TIMERS
Sleep Timer Off
Auto Power Off 10 minutes
5
27
Setting the Auto Power Off Feature
To help save energy, your TV is set by default to turn off after 10
minutes if no signal is being displayed on the screen. This feature
can be deactivated.
To set the Auto Power Off feature:
1. From the TIMER menu, use the Up/Down Arrow buttons on
the remote to highlight Auto Power Off.
2. Use the Left/Right Arrow buttons on the remote to change
whether the TV will turn off. If you don’t want the TV to turn off
when there is no signal, change the setting to Off. Otherwise,
select 10 minutes.
3. When you have finished setting the auto power off time,
press the EXIT button on the remote.
SETTING UP THE TUNER
You can use the TV’s Tuner menu to:
• Select a Tuner Input
• Perform an Auto Channel Scan
• Perform a Partial Channel Scan
• Manually Add Channels
• Select channels to skip
• Select Analog MTS modes
• Select Digital Languages
Help
VIZIO
Network
Sleep
Timer
InputCC
ABC
Audio
Wide
Normal
Settings
PanoramicWideZoom
2D 3DExit
TUNER
Tuner Mode Antenna
Auto Channel Scan
Partial Channel Search
Add Analog Channel
Skip Channel
Analog Audio Stereo
Digital Language English
5
28
Selecting a Tuner Input
Select the type of tuner input you will be using. You can select either
Antenna (Over-the-air) or Cable (Out-of-the-wall) connections.
1. From the TUNER menu, highlight Tuner Mode and press OK.
The TUNER MODE menu displays.
2. Highlight Antenna or Cable and press OK. Press EXIT.
Scanning for Channels
Before the TV can detect and display channels and their
associated information, you must scan for channels. A channel
scan may also be necessary when the TV has been moved to an
area where different free-to-air broadcast television channels are
available.
To perform an Auto Channel Scan:
1. From the TUNER menu, highlight
Auto Channel Scan, and press
OK. The CHANNEL SCAN begins.
2. Wait until the channel scan is
100% complete. Highlight Done
and press OK.
3. Press the EXIT button on the
remote.
If the channel scan is cancelled,the
channels that were already
discovered are retained. A new
channel scan will clear all channels.
Help
VIZIO
Network
Sleep
Timer
InputCC
ABC
Audio
Wide
Normal
Settings
PanoramicWideZoom
2D 3DExit
CHANNEL SCAN
Channel Scan
Digital Channels: 0
Analog Channels: 0
13% Complete
Cancel
Cancel the channel scan.
Adding New Channels
Occasionally, you may need to add a new range of channels or
add a new analog channel. You can do this by using the Partial
Channel Search and Add Analog Channel options.
To add a range of new channels:
1. From the TUNER menu, highlight Partial Channel Search,
and press OK. The PARTIAL CHANNEL SEARCH menu is
displayed.
2. Highlight Scan Mode and select the type of channel you
are adding: Analog, Digital, or Analog/Digital.
3. Highlight From Channel and enter the channel where
you want to begin the scan. (Use the Left Arrow button to
backspace. Use the Number Pad on the remote to enter the
channel.)
4. Highlight To Channel and enter the channel where you want
to end the scan. (Use the Left Arrow button to backspace.
Use the Number Pad on the remote to enter the channel.)
5. Highlight Start and press OK. The partial channel search
begins.
6. Wait until the partial channel search is 100% complete.
Highlight Done and press OK.
7. Press the EXIT button on the remote.
5
29
To add a single new analog channel:
1. From the TUNER menu, highlight
Add Analog Channel and
press OK. The ADD ANALOG
CHANNEL menu is displayed.
2. Highlight Enter Channel # and
use the Number Pad on the
remote to enter the number of
the channel you are adding.
3. Highlight Add Channel and
press OK. The TV scans for the
channel.
4. When the TV is done scanning
for the channel, press the EXIT
button on the remote.
Help
VIZIO
Network
Sleep
Timer
InputCC
ABC
Audio
Wide
Normal
Settings
PanoramicWideZoom
2D 3DExit
ADD ANALOG CHANNEL
Enter Channel #
Add Channel
Skipping Channels
After a channel scan is completed, you may find that some
channels are too weak to watch comfortably. There may also be
some channels you do not want to view. You can remove these
channels from the TV’s memory with the Skip Channel feature.
Channels that have been removed with the Skip
Channel feature can still be viewed if the channel
is entered using the Number Pad. If you wish to
completely block a channel from being viewed, use
the parental controls. See
Locking and Unlocking
Channels
on page 35.
To remove a channel:
1. From the TUNER menu, highlight
Skip Channel, and press OK.
The SKIP CHANNEL menu is
displayed.
2. For each channel you wish
to remove, use the Up/Down
Arrow buttons on the remote
to highlight the channel and
press OK. A P appears to the
right of each channel you
select.
3. When you have selected all
of the channels you wish to
remove, press the EXIT button
on the remote.
Help
VIZIO
Network
Sleep
Timer
InputCC
ABC
Audio
Wide
Normal
Settings
PanoramicWideZoom
2D 3DExit
SKIP CHANNEL
1Test 0
1Test 1 P
1-2 Test 2 P
2Test 3
2-2 Test 4 P
2-3 Test 5
5
30
To use the Digital Language feature:
1. From the TUNER menu, highlight
Digital Language and press
OK. The DIGITAL LANGUAGE
menu is displayed.
2. Select your preferred language:
English, Español, or Français.
Press OK.
3. Press the EXIT button on the
remote.
Help
VIZIO
Network
Sleep
Timer
InputCC
ABC
Audio
Wide
Normal
Settings
PanoramicWideZoom
2D 3DExit
DIGITAL LANGUAGE
English
Español
Français
Changing the Audio Language
Some digital free-to-air, cable, and satellite channels broadcast
programs in more than one language. The Analog Audio and
Digital Language features allow you to listen to audio from
Secondary Audio Programming (SAP). SAP allows you to listen to
broadcasts in multiple languages.
• Analog Audio works with analog channels.
• Digital Language works with digital channels.
Not all programs are broadcast in multiple languages.
The Analog Audio and Digital Language features
only works when the program being viewed is being
broadcast in the language you select.
To use the Analog Audio feature:
1. From the TUNER menu, highlight
Analog Audio and press OK.
The ANALOG AUDIO menu is
displayed.
2. Select Stereo, SAP (secondary
audio programming), or Mono.
Press OK.
3. Press the EXIT button on the
remote.
Help
VIZIO
Network
Sleep
Timer
InputCC
ABC
Audio
Wide
Normal
Settings
PanoramicWideZoom
2D 3DExit
ANALOG AUDIO
Stereo
SAP
Mono
5
31
SETTING UP CLOSED CAPTIONING
Your TV can display closed captions for programs that include
them. Closed captions display a transcription of a program’s
dialogue.
The Closed Captioning menu only appears when the input is an
antenna for Over-the-Air signals, cable TV directly from the wall
(no cable box), or a device with a composite video connection.
To activate or deactivate closed
captions:
1. Press the MENU button on the
remote. The on-screen menu is
displayed.
2. Use the Arrow buttons on the
remote to highlight Closed
Captions and press OK. The
CLOSED CAPTIONS menu is
displayed.
3. Use the Up/Down Arrow
buttons on the remote to
highlight Captions, then use
the Left/Right Arrow buttons to
select On or Off.
4. Use the Arrow buttons on the remote to highlight the type of
closed captions you wish to see:
• Analog Closed Captions for analog (NTSC) TV channels.
• Digital Closed Captions for digital (ATSC) TV channels.
5. After highlighting the type of closed captions you wish to
see, use the Left/Right Arrow buttons on the remote to select
the caption channel you wish to display, then press EXIT.
If the program you are viewing is not being broadcast
with closed captions, the TV will not display them.
Help
Network
Sleep
Timer
InputCC
ABC
Audio
Wide
Normal
Settings
PanoramicWideZoom
2D 3DExit
CLOSED CAPTIONS
Captions Off
Analog Closed Captions CC1
Digital Closed Captions CS1
Digital Closed Captions Style
Changing the Appearance of Digital Closed Captions
Digital closed captions can be displayed according to your
preference. See the diagram on the next page for an explanation
of the parts of the closed caption area.
To change the appearance of digital closed captions:
1. From the CLOSED CAPTIONS
menu, use the Arrow buttons
to highlight Digital Closed
Captions Style and press OK.
2. Use the Left/Right Arrow
buttons on the remote to select
Custom. The DIGITAL CLOSED
CAPTIONS STYLE menu appears
as shown.
3. Use the Up/Down Arrow
buttons on the remote to
highlight the setting you wish
to change, then use the Left/
Right Arrow buttons to change
the setting:
• Caption Style - Choose As Broadcast to keep default
settings or Custom to manually change each setting.
• Text Style - Change the font used for the closed
captioning text.
• Text Size - Make the text larger or smaller.
• Text Color - Change the color of the text.
• Text Opacity - Change the transparency of the text.
• Text Edges - Change the effects at the edges of the text,
such as raising the edges or adding drop shadows.
• Text Edges Color - Change the color of the text edge
effects.
• Background Color - Change the color of the
background directly behind the text.
Help
Network
Sleep
Timer
InputCC
ABC
Audio
Wide
Normal
Settings
PanoramicWideZoom
2D 3DExit
DIGITAL CLOSED CAPTIONS STYLE
Caption Style Custom
Text Style As Broadcast
Text Size As Broadcast
Text Color As Broadcast
Text Opacity As Broadcast
Text Edges As Broadcast
Text Edges Color As Broadcast
Background Color As Broadcast
Background Opacity As Broadcast
Window Color As Broadcast
Window Opacity As Broadcast
5
32
• Background Opacity - Change the transparency of the
background directly behind the text.
• Window Color - Change the color of the closed
captioning box.
• Window Opacity - Change the opacity of the closed
captioning box
4. When you are satisfied with the appearance of the closed
captions, press the EXIT button on the remote.
In the example below, the closed caption text is green, the
background is black, and the window is red.
Typical choices include:
• Transparent background, opaque window—The entire
window remains filled with color, while the text appears in
it. The area covered by the window stays the same until
the signal from the TV or a device moves it out of the way
of a changing picture.
• Opaque background, transparent window—Only a strip
of background appears behind the text. There is no
window to block the picture.
Closed caption text sample
Text
Window
Background (BG)
CLOSED CAPTIONS SCREEN LAYOUT
5
33
SETTING UP DEVICES
To make it easier to recognize the different devices attached to
the inputs on your TV, you can rename the inputs. For example, if
you have a DVD player connected to the Component input, you
can rename that input to display “DVD Player”.
To change the name of an input:
1. Press the MENU button on the
remote. The on-screen menu is
displayed.
2. Use the Up/Down Arrow
buttons on the remote to
highlight Devices and press
OK. The DEVICES menu is
displayed.
3. Use the Up/Down Arrow
buttons on the remote to
highlight the Input you wish to
name and press OK. The NAME
INPUT menu is displayed.
4. If you would like to use a preset
input label, highlight Input
Labels and press OK. Highlight
the input label you want to use
and press OK.
If you would like to name
the input yourself, highlight
the field below Input Labels.
Enter your custom label using
the on-screen keyboard and
highlight OK and press OK.
5. When you have finished
naming your input, press the
EXIT button on the remote.
Help
VIZIO
Network
Sleep
Timer
InputCC
ABC
Audio
Wide
Normal
Settings
PanoramicWideZoom
2D 3DExit
NAME INPUT
Input Labels HDMI-1
Blu-ray_
OK
Cancel
Select the input name from a list
of common device names (Blu-ray,
Cable Box, DVD, etc).
a b c d e f g h i
j k l m n o p q r
s t u v w x y z 0
1 2 3 4 5 6 7 8 9
.@# .com Space
Help
VIZIO
Network
Sleep
Timer
InputCC
ABC
Audio
Wide
Normal
Settings
PanoramicWideZoom
2D 3DExit
DEVICES
HDMI-1 Blu-ray
HDMI-2
COMP
5
34
CHANGING THE TV SETTINGS
Using the system menu, you can:
• View the System Information
• Set up Parental Controls
• Change the on-screen
menu language
• Set the time zone and local
settings
• Adjust the CEC settings
• Adjust the Power Indicator
settings
• Reset TV Settings & Set up
Admin Controls
Help
VIZIO
Network
Sleep
Timer
InputCC
ABC
Audio
Wide
Normal
Settings
PanoramicWideZoom
2D 3DExit
SYSTEM
System Information
Menu Language English
Time and Local Settings
Parental Controls
CEC
Power Indicator Off
Reset & Admin
Displaying System Information
To display a summary of the TV settings:
1. Press the MENU button on the remote. The on-screen menu is
displayed.
2. Use the Arrow buttons on the remote to highlight System
and press OK. The SYSTEM menu is displayed.
3. Highlight System Information and press OK.
4. Use the Up/Down Arrow buttons to scroll through the system
information.
5. When you are finished reviewing the system information,
press the EXIT button on the remote.
5
35
Using the Parental Controls
The TV’s parental controls allow you to prevent the TV from
displaying certain channels or programs without a password.
Accessing the Parental Controls Menu
To access the Parental Controls menu:
1. Press the MENU button on the remote. The on-screen menu is
displayed.
2. Use the Arrow buttons on the remote to highlight System
and press OK. The SYSTEM menu is displayed.
3. Use the Arrow buttons on the remote to highlight Parental
Controls and press OK.
4. Enter your parental passcode. If you have not set a
passcode, enter the default, 0000. The PARENTAL CONTROLS
menu is displayed.
To set a custom parental passcode, see
Changing
the Parental Control Passcode
on page 36.
Enabling or Disabling Program Ratings
To manage program content according to its rating, you must
enable the Program Rating feature.
To enable or disable the Program Rating feature:
1. From the PARENTAL CONTROLS menu, highlight Locks and
press OK. The LOCKS menu is displayed.
2. Select On or Off and press OK.
Locking and Unlocking Channels
When a channel is locked, it will be inaccessible. Locking
a channel is a good way to prevent children from viewing
inappropriate material.
To lock or unlock a channel:
1. From the PARENTAL CONTROLS menu, highlight Channel
Locks and press OK. The CHANNEL LOCKS menu is displayed.
2. Highlight the channel you want to lock or unlock and press
OK.
3. When a channel is locked, the Lock icon appears locked.
The channel is not accessible unless the parental passcode
is entered.
4. When a channel is unlocked, the Lock icon appears
unlocked. The channel is accessible.
5
36
Blocking and Unblocking Content by Rating
A channel may sometimes broadcast programs that are meant
for children, and at other times broadcast programs that are
meant for mature audiences. You may not want to block the
channel completely using a channel lock, but you may wish to
block certain programs from being viewed.
When this is the case, you can use the TV’s Rating Block feature
to block content based on its rating.
For a list of content ratings and their definitions, visit
www.tvguidelines.org.
To block or unblock content by its rating:
1. From the PARENTAL CONTROLS menu, highlight the content
type you want to adjust and press OK:
USA TV - USA television program broadcasts.
USA MOVIE - USA movie broadcasts.
CAN-ENGLISH - Canadian English television program
broadcasts.
CAN-FRENCH - Canadian French television program
broadcasts.
2. For each rating type you want to block or unblock, use the
Up/Down and Left/Right Arrow buttons on the remote to
highlight the rating type and press OK.
3. When the rating type is blocked, the Lock icon appears
locked. Content with this rating and all higher ratings
cannot be viewed.
4. When the rating type is unblocked, the Lock icon appears
unlocked. Content with this rating and all lower ratings can
be viewed.
If you want to block all unrated content, highlight Block
Unrated Shows and use the Arrow buttons on the remote to
select On.
5. When you are finished adjusting the rating level blocks, press
the EXIT button on the remote.
Changing the Parental Control Passcode
If you use the parental controls, you should change the passcode
to prevent children from accessing inappropriate material.
To change the parental control passcode:
1. From the PARENTAL CONTROLS menu, highlight Change PIN
and press OK. The CHANGE PIN menu is displayed.
2. In the New PIN field, use the Number Pad on the remote to
enter your new 4-digit parental control passcode.
3. In the Confirm PIN field, use the Number Pad on the remote
to re-enter your new 4-digit parental control passcode.
4. Write down your new parental control passcode and save it
in a secure location.
5. Press the EXIT button on the remote.
Resetting the Content Locks
To reset the content locks to the factory-default settings:
1. From the PARENTAL CONTROLS menu, highlight RESET LOCKS
and press OK. The TV displays, “Are you sure you want to
RESET ALL LOCKS SETTINGS to the factory defaults?”
2. Highlight Yes and press OK.
5
37
Changing the On-Screen Menu Language
Your TV can display the on-screen menu in different languages.
To change the on-screen menu language:
1. Press the MENU button on the
remote. The on-screen menu is
displayed.
2. Use the Arrow buttons on the
remote to highlight System and
press OK. The SYSTEM menu is
displayed.
3. Use the Arrow buttons on the
remote to highlight Menu
Language and press OK. The
MENU LANGUAGE menu is
displayed.
4. Highlight your preferred
language (English, Español, o r
Français) and press OK.
5. Press the EXIT button on the
remote.
Help
VIZIO
Network
Sleep
Timer
InputCC
ABC
Audio
Wide
Normal
Settings
PanoramicWideZoom
2D 3DExit
MENU LANGUAGE
English
Español
Français
Setting the Time Zone
To ensure the correct time is displayed when you press the GUIDE
button, set the TV’s time zone:
1. Press the MENU button on the
remote. The on-screen menu is
displayed.
2. Use the Arrow buttons on the
remote to highlight System and
press OK. The SYSTEM menu is
displayed.
3. Use the Arrow buttons on the
remote to highlight Time and
Local Settings and press OK.
The TIME AND LOCAL SETTINGS
menu is displayed.
4. Highlight Time Zone and press
OK. The TIME ZONE menu is
displayed.
5. Highlight your time zone and
press OK.
6. Highlight Daylight Saving and
press OK. The DAYLIGHT SAVING
menu is displayed. Choose On
if your locale observes daylight
savings time, or Off if it does
not.
7. Press the EXIT button on the remote.
Help
VIZIO
Network
Sleep
Timer
InputCC
ABC
Audio
Wide
Normal
Settings
PanoramicWideZoom
2D 3DExit
TIME ZONE
Alaska
Hawaii
Pacific
Mountain
Central
Eastern
Atlantic
Newfoundland
Indiana
Arizona
5
38
Adjusting the CEC Settings
The CEC function on your TV enables you to control
HDMI-connected devices with the included remote without any
additional programming.
Not all HDMI devices support CEC. See your device’s
user manual for details.
To enable, disable, or adjust CEC settings:
1. Press the MENU button on the remote. The on-screen menu is
displayed.
2. Use the Arrow buttons on the remote to highlight System
and press OK. The SYSTEM menu is displayed.
3. Use the Arrow buttons on the remote to highlight CEC and
press OK. The CEC menu is displayed.
4. Use the Arrow and OK buttons to adjust each setting:
• CEC Function - To use CEC, you must select On.
• System Audio Control - When system audio control is on,
you can control your device’s audio using the TV’s remote
control.
• Device Discovery - Use this function to determine if your
device is connected and supports CEC.
5. Press the EXIT button on the remote.
Turning the Power Indicator On or Off
The Power Indicator on the front of your TV normally does not
glow when the TV is on. You can change this setting if you prefer
the light to be on.
To turn the Power Indicator Light on or off:
1. Press the MENU button on the remote. The on-screen menu is
displayed.
2. Use the Arrow buttons on the remote to highlight System
and press OK. The SYSTEM menu is displayed.
3. Highlight Power Indicator and press OK.
4. Use the Up/Down Arrow buttons to select On or Off, then
press OK.
5
39
USING THE RESET & ADMIN MENU
You can use the TV’s Reset & Admin menu to:
• Reset the TV settings
• Restore the TV to its factory
default settings
• Start the Store Demo
Help
VIZIO
Network
Sleep
Timer
InputCC
ABC
Audio
Wide
Normal
Settings
PanoramicWideZoom
2D 3DExit
RESET & ADMIN
Reset TV Settings
Reset TV to Factory Defaults
Store Demo
Resetting the TV Settings
To reset the TV’s picture and audio settings:
1. Press the MENU button on the remote. The on-screen menu is
displayed.
2. Use the Arrow buttons on the remote to highlight System
and press OK. The SYSTEM menu is displayed.
3. Highlight Reset & Admin and press OK. The RESET & ADMIN
menu is displayed.
4. Highlight Reset TV Settings and press OK. The TV displays,
“Select Reset to restore video and audio settings to the
factory defaults.”
5. Highlight Reset and press OK.
6. Press the EXIT button on the remote.
Resetting the TV settings will reset Audio and Video
settings only.
5
40
Restoring the TV to Factory Default Settings
All of the on-screen menu settings can be reset to the factory
defaults.
If you restore the TV to the factory default settings, all
changes you have made to the settings will be lost!
To restore the TV to its factory default settings:
1. Press the MENU button on the remote. The on-screen menu is
displayed.
2. Use the Arrow buttons on the remote to highlight System
and press OK. The SYSTEM menu is displayed.
3. Highlight Reset & Admin and press OK. The RESET & ADMIN
menu is displayed.
4. Highlight Reset TV to Factory Defaults and press OK.
5. Enter your parental control passcode. If you have not yet set
up a parental passcode, enter the default, 0000.
The TV displays, “Select Reset to restore all TV settings to
factory defaults.”.
6. Highlight Reset and press OK.
7. Wait for the TV to turn off. The TV will turn back on shortly
afterward and the Setup App will begin.
USING THE GUIDED SETUP MENU
Using Guided Setup
The TV’s Setup App can be used to easily set up the TV tuner.
To use guided setup:
1. Press the MENU button on the
remote. The on-screen menu is
displayed.
2. Highlight Guided Setup and
press OK. The GUIDED SETUP
menu is displayed.
3. Highlight the guided setup you
want to use and press OK:
• Tuner Setup - Set up the TV
tuner.
4. Follow the on-screen
instructions. When finished,
press the EXIT button on the
remote.
Help
VIZIO
Network
Sleep
Timer
InputCC
ABC
Audio
Wide
Normal
Settings
PanoramicWideZoom
2D 3DExit
GUIDED SETUP
Tuner Setup
5
41
USING THE INFO WINDOW
The Info Window can be displayed by pressing the INFO or GUIDE
button on the remote:
• Press the INFO or GUIDE button one time to display
channel, input, and display information.
• Press the INFO or GUIDE button two times to display the
program title, program rating, audio information, and the
start and end times of the program.
DIGITAL EPISODE GUIDE WINDOW
Oliver’s Holiday Surprise
1080p 6:15pm
11:00AM - 12:00PM
TV-PG (V) Dolby Digital Stereo
Oliver wakes up one morning only to discover that his pals are missing. In this hour-
long holiday special, Oliver goes on a journey in search of his pals. Who knows what
he’ll encounter on the way?
Program Description
Program Title
28-1
KCET-HD Normal
Channel/Input Information
6
42
Using the USB Media Player
USING THE USB MEDIA PLAYER
The USB Media Player allows you to connect a USB thumb drive to
your TV and view photos.
Preparing Your USB Drive to Play USB Media
To play USB media, you must first save your photos onto a USB
thumb drive:
• The USB thumb drive must be formatted as FAT32.
• Files on the USB thumb drive must end in a supported file
extension (.jpg or .jpeg.).
• The player is not designed to play media from external
hard drives, MP3 players, cameras, or smartphones.
Playing USB Media
To play your USB media:
1. Connect your USB thumb drive to the USB port on the side of
the TV.
2. Use the Arrow buttons to highlight Yes and press the OK.
3.
If the dialog box disappears, press the V button on
the remote to go to the next step.
Use the Arrow buttons to highlight your USB device in the list
and press OK.
4. Use the Arrow buttons to highlight Photo and press OK.
5. Use the Arrow buttons to highlight the photo you want to
display. Press OK. The photo displays.
You can display your photos in fullscreen. Select the
photo, press OK, then highlight Fullscreen and press
OK.
Removing the USB Drive from the TV
Do not remove the USB thumb drive while the TV is on.
Doing so may damage the drive.
To safely remove your USB drive from the TV:
1. Turn off the TV.
2. Disconnect your USB thumb drive from the USB port on the
side of the TV.
USB PORT
6
43
Start Slideshow
Name A-Z
Thumbnails
Settings
View:
Sort:
Photo VIZIO_2GB\Photo\root
File Name: D 1920x1080
Resolution: 1920x1080
Size: 1607270KB
USB1:
root B.jpg C.jpg
D.jpg E.jpg F.jpg
G.jpg H.jpg I.jpg
Page 1 of 1
VIZIO
Folder Contents
This area displays the
contents of the currently
selected folder. You can
browse files and folders
using the Arrow and OK
buttons on the remote.
Current Folder
Displays the folder path.
Page Information
If your USB thumb drive has more
files than can be displayed on a
single screen, the page information
is displayed here.
Back Button
Highlight and press OK to return to left column.
Connected
Sources
Displays
connected USB
devices.
Current Folder
Sort by Name or Date
View Thumbnails/Folders
Adjust Slideshow Settings
Start Fullscreen
Slideshow
Photo Information
Displays the name,
resolution, and file
size of the currently
selected photo.
PHOTO VIEWER
Back Button
Highlight this button
and press OK to return
to the previous screen.
A
Troubleshooting & Technical Support
DO YOU HAVE QUESTIONS?
LET US HELP!
YOUR PRODUCT INCLUDES FREE LIFETIME TECH SUPPORT
Phone:
Email:
Web:
(877) 878-4946 (TOLL-FREE)
techsupport@VIZIO.com
www.VIZIO.com/support
Hours of operation:
Monday - Friday: 5 AM TO 8 PM (PST)
Saturday - Sunday: 7 AM TO 4 PM (PST)
The VIZIO support team is highly trained
and is based in the United States.
We can help with:
•
New Product Setup
•
Connecting Your Devices
•
Technical Problems
•
And More
We speak English • Se habla Español • Nous parlons Français
44
A
45
The TV displays “No Signal.”
• Press the INPUT button on the remote control to select a
different input source.
• If you are using cable TV, satellite, or an antenna
connected directly to the TV, scan for channels. See
Scanning for Channels on page 28.
There is no power.
• Ensure the TV is plugged into a working electrical outlet.
• Ensure the power cable is securely attached to the TV.
• Press the Power/Standby button on the remote or on
the side of the TV to turn the TV on.
The power is on, but there is no image on the screen.
• Ensure all cables are securely attached to the TV.
• Ensure all devices are connected correctly. Devices
differ; see your device’s user manual for details.
• Adjust Brightness, Contrast, or Backlight. See
Adjusting
the Picture Settings on page 21
.
• Press the INPUT button on the remote to select a
different input source.
There is no sound.
• Press Volume Up on the remote control.
• Press the MUTE button on the remote to ensure mute is
off.
• Check the audio settings. See
Adjusting the Audio
Settings on page 25.
• Ensure the speakers are set to On.
• Check the audio connections of external devices
(Blu-ray player, game console, cable/satellite box) that
are connected to the TV.
• If you are using an antenna, the signal strength of the
channel may be low. Ensure your antenna is connected
securely to the TV and move the antenna around the
room or close to a window for the best signal.
The sound is flat or dialog is not audible.
• Turn off Volume Leveling. See
Adjusting the Audio
Settings on page 25.
The colors on the TV don’t look right.
• Adjust the Color and Tint settings in the Picture menu.
See
Adjusting the Picture Settings
on page 21
.
• Reset the picture settings. See
Resetting the Picture
Settings on page 24.
• Check all cables to ensure they are securely attached.
A
46
The buttons on the remote aren’t working.
• Ensure you are only pressing one button at a time.
• Point the remote directly at the TV when pressing a
button.
• Replace the remote batteries with new ones. See
Replacing the Batteries on page 11.
The image quality is not good.
• For the best image quality, view high-definition
programs using digital sources. Connect your devices
with HDMI cables.
• If you are using an antenna, the signal strength of the
channel may be low. Ensure your antenna is connected
securely to the TV and move the antenna around the
room or close to a window for the best signal.
The picture is distorted.
• Nearby electrical devices may be interfering with the TV.
Move the TV away from electrical appliances, cars, and
fluorescent lights.
• Ensure all cables are securely attached.
The display image does not cover the entire screen.
• Set the TV image mode so that the picture fills the
screen. Press the WIDE button on the remote until the
screen is filled, and then press OK.
The TV has pixels (dots) that are always dark or always lit.
• Your HDTV is precision-manufactured using an extremely
high level of technology. However, sometimes pixels may
not display correctly. These types of occurrences are
inherent to this type of product and do not constitute a
defective product.
I see “noise” or static on the screen.
• When your TV’s digital capabilities exceed a
digital broadcast signal, the signal is up-converted
(improved) to match your TV’s display capabilities. This
up-converting can sometimes cause irregularities in the
image.
• If you are using an antenna, the signal strength of the
channel may be low. Ensure your antenna is connected
securely to the TV and move the antenna around the
room or close to a window for the best signal.
When I change input source, the volume changes.
• The TV remembers the volume level on each input
source. If the volume level on the new input source is
higher or lower than the level on the source you switch
from, the difference may be noticeable.
• Use the Volume Up/Down buttons on the remote to
adjust the volume.
When I change input source, the display image changes size.
• The TV remembers the viewing mode on each input
source. If the viewing mode on the new input source
differs from the one on the input source you switch from,
the difference may be noticeable.
• See
Changing the Screen Aspect Ratio on page 20.
B
47
Specifications
E400-B2 E480-B2
Screen Size: 40” Class 48” Class
Viewable Area: 40” 48”
Dimensions w/ Stand:
w/o Stand:
36.13” x 22.87” x 7.48”
36.13” x 21.19” x 2.48”
42.54” x 26.67” x 8.27”
42.54” x 24.86” x 2.48”
Weight w/ Stand:
w/o Stand:
17.18 lbs
15.42 lbs
24.23 lbs
20.93 lbs
TV Type: D-LED D-LED
Refresh Rate: 120 Hz 120 Hz
Maximum Resolution: 1920 x 1080 (1080p) 1920 x 1080 (1080p)
Pixel Pitch: 0.461 mm (H) x 0.461 mm (V) 0.549 mm (H) x 0.549 mm (V)
Dynamic Contrast Ratio: 200,000:1 200,000:1
Response Time: 8 ms 8 ms
Brightness: 300 nits 300 nits
Viewing Angle: 178° (H) / 178° (V) 178° (H) / 178° (V)
HDMI Inputs: 2 2
Component Video Inputs: 1 1
Composite Inputs: 1 (Shared with Component) 1 (Shared with Component)
RF Antenna Input: 1 1
USB 2.0 Ports: 1 1
Audio Outputs: RCA Analog Stereo Output,
Optical Digital
RCA Analog Stereo Output,
Optical Digital
B
48
E400-B2 E480-B2
OSD Language: English, Spanish, French English, Spanish, French
Remote Control Model: XRT010 XRT010
Certifications: UL/cUL, FCC Class B,
HDMI 1.4 (CEC, ARC), Dolby Digital
UL/cUL, FCC Class B,
HDMI 1.4 (CEC, ARC), Dolby Digital
Compliance: Energy Star 6.0 Energy Star 6.0
Voltage Range: 120V @ 60 Hz 120V @ 60 Hz
Power Consumption: 40.41W 49.95W
Standby Power: <1W <1W
Zero Bright Pixel Guarantee: Yes Yes
C
49
Limited Warranty
ON PARTS AND LABOR
Covers units purchased as new in United States and Puerto Rico Only.
VIZIO provides a warranty to the original purchaser of a new Product
against defects in materials and workmanship for a period of one (1)
year of non-commercial usage and ninety (90) days of commercial
use. If a Product covered by this warranty is determined to be defective
within the warranty period, VIZIO will either repair or replace the Product
at its sole option and discretion.
To obtain warranty service, contact VIZIO Technical Support via e-mail:
TechSupport@VIZIO.com or via phone at 877 MY VIZIO (877.698.4946)
from 5:00AM to 8:00PM Monday through Friday and 7:00AM to 4:00PM
Saturday and Sunday, Pacific Time, or visit www.VIZIO.com. PRE-AUTHOR-
IZATION MUST BE OBTAINED BEFORE SENDING ANY PRODUCT TO A VIZIO
SERVICE CENTER. Proof of purchase in the form of a purchase receipt or
copy thereof is required to show that a Product is within the warranty
period.
Parts and Labor
There will be no charge for parts or labor during the warranty period.
Replacement parts and Products may be new or recertified at VIZIO’s
option and sole discretion. Replacement parts and Products are
warranted for the remaining portion of the original warranty or for ninety
(90) days from warranty service or replacement, whichever is greater.
Type of Service
Defective Products must be sent to a VIZIO service center to obtain
warranty service. VIZIO is not responsible for transportation costs to the
service center, but VIZIO will cover return shipping to the customer. PRE-
AUTHORIZATION IS REQUIRED BEFORE SENDING ANY PRODUCT TO A VIZIO
SERVICE CENTER FOR WARRANTY SERVICE.
Product returns to VIZIO’s service centers must utilize either the original
carton box and shipping material or packaging that affords an equal
degree of protection. VIZIO Technical Support will provide instructions for
packing and shipping the covered Product to the VIZIO service center.
Limitations and Exclusions
VIZIO’s one-year limited warranty only covers defects in materials and
workmanship. This warranty does not cover, for example: cosmetic
damage, normal wear and tear, improper operation, improper voltage
supply or power surges, signal issues, damages from shipping, acts of
God, any type of customer misuse, modifications or adjustments, as well
as installation and set-up issues or any repairs attempted by anyone
other than by a VIZIO authorized service center. Products with unreadable
or removed serial numbers, or requiring routine maintenance are not
covered. This one year limited warranty does not cover Products sold
“AS IS”, “FACTORY RECERTIFIED”, or by a non-authorized reseller.
THERE ARE NO EXPRESS WARRANTIES OTHER THAN THOSE LISTED OR
DESCRIBED ABOVE. ANY IMPLIED WARRANTIES, INCLUDING ANY IMPLIED
WARRANTY OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR
PURPOSE, SHALL BE LIMITED IN DURATION TO THE PERIOD OF TIME SET
FORTH ABOVE. VIZIO’S TOTAL LIABILITY FOR ANY AND ALL LOSSES AND
DAMAGES RESULTING FROM ANY CAUSE WHATSOEVER INCLUDING VIZIO’S
NEGLIGENCE, ALLEGED DAMAGE, OR DEFECTIVE GOODS, WHETHER SUCH
DEFECTS ARE DISCOVERABLE OR LATENT, SHALL IN NO EVENT EXCEED THE
PURCHASE PRICE OF THE PRODUCT. VIZIO SHALL NOT BE RESPONSIBLE FOR
LOSS OF USE, LOSS OF INFORMATION OR DATA, COMMERCIAL LOSS, LOST
REVENUE OR LOST PROFITS, OR OTHER INCIDENTAL OR CONSEQUENTIAL
DAMAGES. SOME STATES DO NOT ALLOW LIMITATIONS ON HOW LONG
AN IMPLIED WARRANTY LASTS OR THE EXCLUSION OF INCIDENTAL OR
CONSEQUENTIAL DAMAGES, SO THE ABOVE LIMITATIONS OR EXCLUSIONS
MAY NOT APPLY TO YOU. THIS WARRANTY GIVES YOU SPECIFIC LEGAL
RIGHTS, AND YOU MAY ALSO HAVE OTHER RIGHTS, WHICH VARY FROM
STATE TO STATE. THIS WARRANTY IS SUBJECT TO CHANGE WITHOUT NOTICE.
CHECK WWW.VIZIO.COM FOR THE MOST CURRENT VERSION.
Personal Data
If your VIZIO product is capable of storing personal data and other
information, ALL CONTENTS AND INFORMATION WILL BE DELETED IN THE
COURSE OF SOME IN-HOME AND ALL SHIP-IN WARRANTY SERVICE. If this
occurs, your product will be restored to you configured as originally
purchased. You will be responsible for restoring all applicable data and
passwords. Recovery and reinstallation of user data is not covered under
this Limited Warranty. In order to protect your personal information, VIZIO
recommends that you always clear all personal information from the
unit before it is serviced, regardless of the servicer.
Zero Bright Pixel Defect Guarantee
This policy covers “zero bright pixel” defects for the duration of the limited
“ONE YEAR WARRANTY” on select new product purchases. To determine
if this guarantee applies to your product, refer to the “DETAILS” tab of
the model’s product information page (www.VIZIO.com) or look for the
“zero bright pixel” guarantee on the box.
D
50
Legal & Compliance
FCC Class B Radio Interference Statement
NOTE: This equipment has been tested and found to comply with the limits
for a Class B digital device, pursuant to Part 15 of the FCC Rules. These
limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses
and can radiate radio frequency energy, and if not installed and used in
accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not
occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct
the interference by one or more of the following measures:
1. Reorient or relocate the receiving antenna.
2. Increase the separation between the equipment and receiver.
3. Connect the equipment into an outlet on a circuit different from
that to which the receiver is connected.
4. Consult the dealer or an experienced radio/TV technician for
help.
This device complies with Part 15 of the FCC Rules. Operation is subject
to the following two conditions: (1) this device may not cause harmful
interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation.
Notice
1. The changes or modifications not expressly approved by the party
responsible for compliance could void the user’s authority to
operate the equipment.
2. Shielded interface cables and AC power cord, if any, must be used
in order to comply with the emission limits.
3. The manufacturer is not responsible for any radio or TV
interference caused by unauthorized modification to this
equipment. It is the responsibilities of the user to correct such
interference.
FCC warning
Changes or modifications not expressly approved by the party responsible
for compliance with the FCC Rules could void the user’s authority to operate
this equipment.
Other
Image(s) used under license from Shutterstock.com
© 2014 VIZIO INC. ALL RIGHTS RESERVED.
140127OC-NC

Navigation menu
