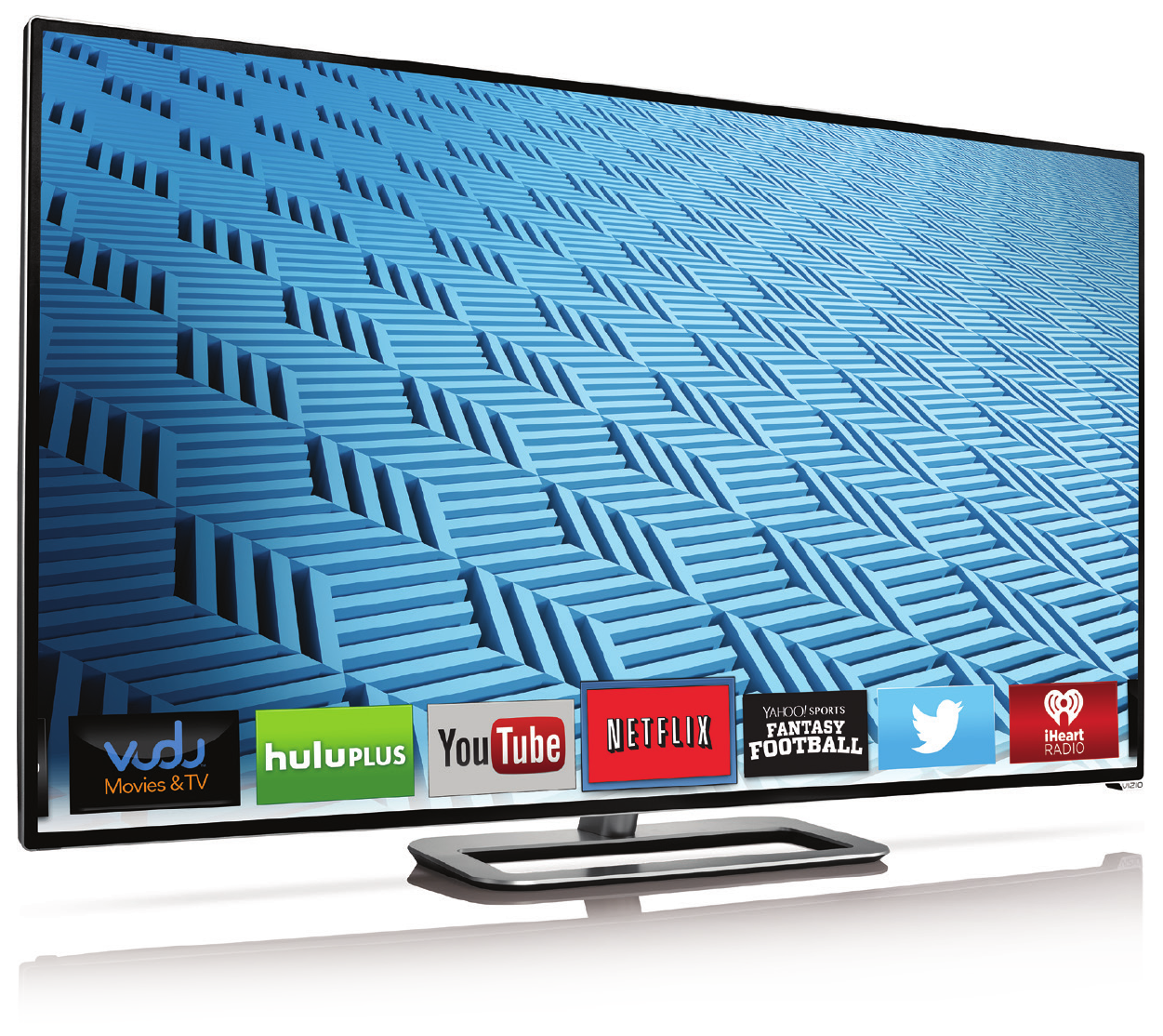

Model: M502i-B1

USER MANUAL

VIZIO

Safety & Certiﬁcation

THANK YOU FOR CHOOSING VIZIO

And congratulations on your new VIZIO HDTV.

To get the most out of your new VIZIO product, read these

instructions before using your product and retain them for future

reference. Be sure to inspect the package contents to ensure

there are no missing or damaged parts.

PRODUCT REGISTRATION

To purchase or inquire about accessories and installation services

for your VIZIO product, visit our website at www.VIZIO.com or call

toll free at (877) 878-4946.

We recommend that you either:

• Register your VIZIO product at www.VIZIO.com

• Complete and mail the enclosed registration card

Extended Warranties

For peace of mind, and to protect your investment beyond the

standard warranty, VIZIO offers on-site extended warranty service

plans. These plans provide additional coverage during the

standard warranty period. To purchase an extended warranty

service plan, visit www.VIZIO.com.

WHEN READING THIS MANUAL

When you see this symbol, please read the

accompanying important warning or notice. It is

intended to alert you to the presence of important

operating instructions.

IMPORTANT SAFETY INSTRUCTIONS

Your TV is designed and manufactured to operate within deﬁned

design limits. Misuse may result in electric shock or ﬁre. To prevent

your TV from being damaged, the following instructions should

be observed for the installation, use, and maintenance of your

TV. Read the following safety instructions before operating your

TV. Keep these instructions in a safe place for future reference.

• To reduce the risk of electric shock or component

damage, switch off the power before connecting other

components to your TV.

• Read these instructions.

• Keep these instructions.

• Heed all warnings.

• Follow all instructions.

• Do not use this apparatus near water.

• Clean only with dry cloth.

• Do not block any ventilation openings. Install in

accordance with the manufacturer’s instructions.

• Do not install near any heat sources such as radiators,

heat registers, stoves, or other apparatus (including

ampliﬁers) that produce heat.

• Do not defeat the safety purpose of the polarized or

grounding-type plug. A polarized plug has two blades

with one wider than the other. A grounding type plug

has two blades and a third grounding prong. The wide

blade or the third prong are provided for your safety. If

the provided plug does not ﬁt into your outlet, consult an

electrician for replacement of the obsolete outlet.

• Protect the power cord from being walked on or pinched,

particularly at plugs, convenience receptacles, and the

point where they exit from the apparatus.

• Only use attachments/accessories speciﬁed by the

manufacturer.

• Use only with the cart, stand, tripod, bracket,

or table speciﬁed by the manufacturer, or sold

with the apparatus. When a cart is used, use

caution when moving the cart/apparatus

combination to avoid injury from tip-over.

• Unplug this apparatus during lightning storms or when

unused for long periods of time.

• Refer all servicing to qualiﬁed service personnel. Servicing

is required when the apparatus has been damaged in

any way, such as when the power-supply cord or plug is

damaged, liquid has been spilled or objects have fallen

into the apparatus, the apparatus has been exposed to

rain or moisture, does not operate normally or has been

dropped.

• Unplug the power cord before cleaning your TV.

• When moving your TV from an area of low temperature

to an area of high temperature, condensation may form

in the housing. Wait before turning on your TV to avoid

causing ﬁre, electric shock, or component damage.

• A distance of at least three feet should be maintained

between your TV and any heat source, such as a radiator,

heater, oven, ampliﬁer etc. Do not install your TV close to

smoke. Operating your TV close to smoke or moisture may

cause ﬁre or electric shock.

• Slots and openings in the back and bottom of the

cabinet are provided for ventilation. To ensure reliable

operation of your TV and to protect it from overheating,

be sure these openings are not blocked or covered. Do

not place your TV in a bookcase or cabinet unless proper

ventilation is provided.

• Never push any object into the slots and openings on

your TV cabinet. Do not place any objects on the top of

your TV. Doing so could short circuit parts causing a ﬁre

or electric shock. Never spill liquids on your TV.

• Your TV should be operated only from the type of power

source indicated on the label. If you are not sure of the

type of power supplied to your home, consult your dealer

or local power company.



When you see this symbol, please read the

accompanying helpful tip.

• Do not apply pressure or throw objects at your TV.

This may compromise the integrity of the display. The

manufacturer’s warranty does not cover user abuse or

improper installations.

• The power cord must be replaced when using different

voltage than the voltage speciﬁed. For more information,

contact your dealer.

• When connected to a power outlet, power is always

ﬂowing into your TV. To totally disconnect power, unplug

the power cord.

• The lightning ﬂash with arrowhead symbol within an

equilateral triangle is intended to alert the user to the

presence of un-isolated, dangerous voltage within the

inside of your TV that may be of sufﬁcient magnitude to

constitute a risk of electric shock to persons.

• Do not overload power strips and extension cords.

Overloading can result in ﬁre or electric shock.

• The wall socket should be installed near your TV and

easily accessible.

• Only power of the marked voltage can be used for your

TV. Any other voltage than the speciﬁed voltage may

cause ﬁre or electric shock.

• Do not touch the power cord during lightning. To avoid

electric shock, avoid handling the power cord during

electrical storms.

• Unplug your TV during a lightning storm or when it will not

be used for long period of time. This will protect your TV

from damage due to power surges.

• Do not attempt to repair or service your TV yourself.

Opening or removing the back cover may expose you to

high voltages, electric shock, and other hazards. If repair

is required, contact your dealer and refer all servicing to

qualiﬁed service personnel.

• WARNING: Keep your TV away from moisture. Do not expose

your TV to rain or moisture. If water penetrates into your TV,

unplug the power cord and contact your dealer. Continuous

use in this case may result in ﬁre or electric shock.

• Do not use your TV if any abnormality occurs. If any

smoke or odor becomes apparent, unplug the power

cord and contact your dealer immediately. Do not try to

repair your TV yourself.

• Avoid using dropped or damaged appliances. If your

TV is dropped and the housing is damaged, the internal

components may function abnormally. Unplug the power

cord immediately and contact your dealer for repair.

Continued use of your TV may cause ﬁre or electric

shock.

• Do not install your TV in an area with heavy dust or high

humidity. Operating your TV in environments with heavy

dust or high humidity may cause ﬁre or electric shock.

• Follow instructions for moving your TV. Ensure that the

power cord and any other cables are unplugged before

moving your TV.

• When unplugging your TV, hold the AC/DC power

adapter, not the cord. Pulling on the power cord may

damage the wires inside the cord and cause ﬁre or

electric shock. When your TV will not be used for an

extended period of time, unplug the power cord.

• To reduce risk of electric shock, do not touch the

connector with wet hands.

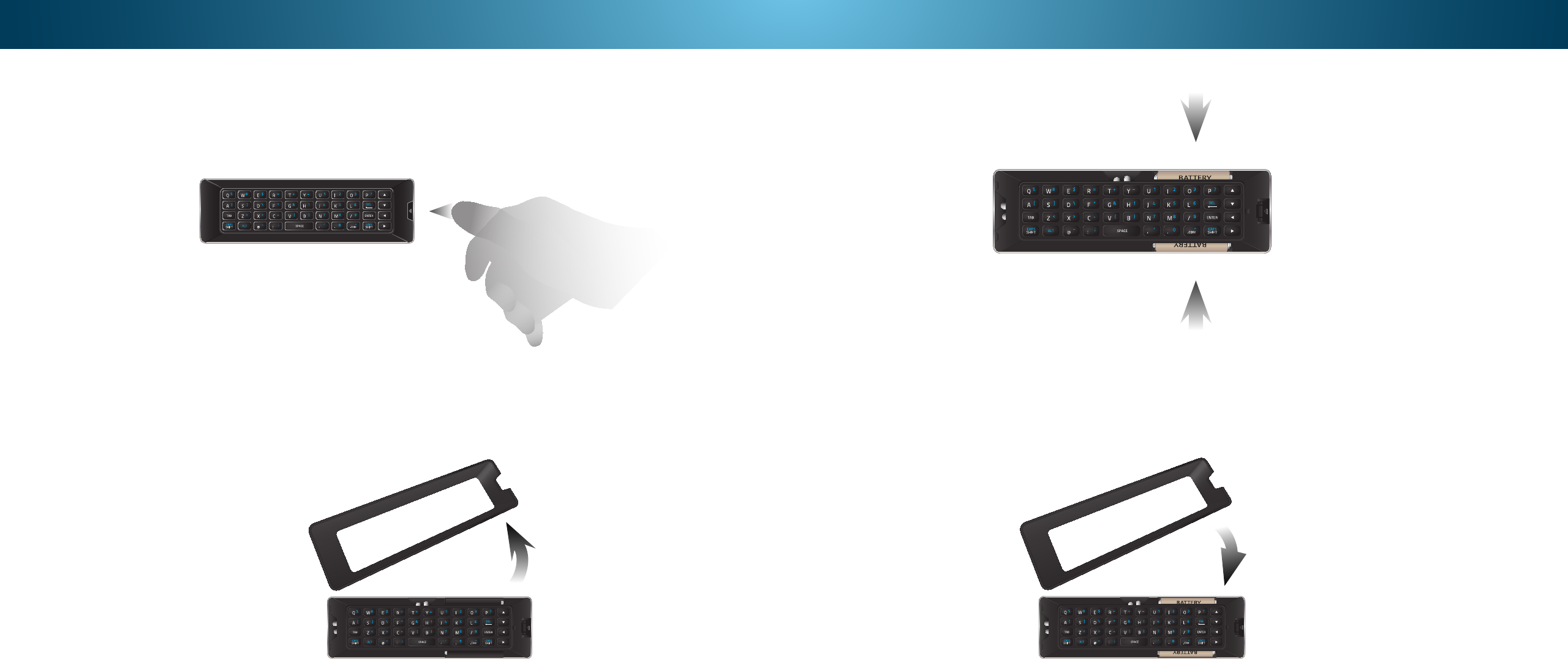

• Insert batteries in accordance with instructions. Incorrect

polarities may cause the batteries to leak which can

damage the remote control or injure the operator. Do not

expose batteries to excessive heat such as sunshine, ﬁre

or the like.

• If any of the following occurs, contact the dealer:

- The power cord fails or frays.

- Liquid sprays or any object drops into your TV.

- Your TV is exposed to rain or other moisture.

- Your TV is dropped or damaged in any way.

- The performance of your TV changes substantially.

• This apparatus shall not be exposed to dripping or

splashing and no objects ﬁlled with liquids, such as vases,

shall be placed on the apparatus.

• The mains plug or appliance coupler is used as the

disconnect device, the disconnect device shall remain

readily operable.

• CAUTION - These servicing instructions are for use by

qualiﬁed service personnel only. To reduce the risk of

electric shock, do not perform any servicing other than

that contained in the operating instructions unless you

are qualiﬁed to do so.

• The lightning ﬂash with arrowhead symbol within an

equilateral triangle is intended to alert the user to the

presence of uninsulated DANGEROUS VOLTAGE within the

product’s enclosure that may be of sufﬁcient magnitude

to constitute a risk of electrical shock to persons.

iii

Ground Clamp

Antenna Lead In Wire

Antenna Discharge Unit

(NEC Section 810-20)

Grounding Conductors

(NEC Section 810-21)

Ground Clamps

Power Service Grounding Electrode System

(NEC ART 250, part H)

Electric Service Equipment

TELEVISION ANTENNA CONNECTION

PROTECTION

If an outside antenna/satellite dish or cable system is to be

connected to the TV, make sure that the antenna or cable system

is electrically grounded to provide some protection against

voltage surges and static charges.

Article 810 of the National Electrical Code, ANSI/NFPSA 70,

provides information with regard to proper grounding of the

mast and supporting structure, grounding of the lead-in wire to

an antenna discharge unit, size of the grounding conductors,

location of antenna discharge unit, connection to grounding

electrodes, and requirements of the grounding electrode.

Lightning Protection

For added protection of the TV during a lightning storm or when

it is left unattended or unused for long periods of time, unplug

the TV from the wall outlet and disconnect the antenna or cable

system.

Power Lines

Do not locate the antenna near overhead light or power circuits,

or where it could fall into such power lines or circuits. Remember,

the screen of the coaxial cable is intended to be connected to

earth in the building installation.

This product qualiﬁes for ENERGY STAR in the “factory

default” setting and this is the setting in which power

savings will be achieved. Changing the factory default

picture settings or enabling other features will increase

power consumption that could exceed the limits

necessary to qualify for ENERGY STAR rating.

Manufactured under license from Dolby Laboratories.

Dolby and the double-D symbol are trademarks of

Dolby Laboratories.

HDMI, the HDMI logo and High-Deﬁnition Multimedia

Interface are trademarks or registered trademarks of

HDMI Licensing LLC.

For DTS patents, see http://patents.dts.com.

Manufactured under license from DTS Licensing

Limited. DTS, the Symbol, & DTS and the Symbol together

are registered trademarks, and DTS Studio Sound is a

Table Of ContentsTable Of Contents

Getting to Know Your TV ................................... 1

Inspecting the Package Contents .....................................1

Installing the TV ...................................................................2

Installing the TV Stand .....................................................2

Installing the TV on a Wall ................................................ 3

Front Panel .......................................................................... 4

Rear Panel ..........................................................................5

Remote Control Front .........................................................6

Replacing the Batteries ...................................................7

Connecting Your Devices ................................. 8

Connecting A Device .........................................................8

Connecting A Device - Audio & Video Cable Types ..........9

Connecting an Audio Device ............................................10

Connecting An Audio Device - Audio Cable Types ...........11

Connecting an Audio Device - Arc ....................................12

Connecting to Your Network ..............................................13

Connecting to a Wired Network (Best) ...........................13

Connecting to a Wireless Network ..................................13

Completing The First-Time Setup ...................... 14

Using the On-Screen Menu .............................. 17

Navigating the On-Screen Menu .......................................17

Changing the Input Source ...............................................17

Changing the Screen Aspect Ratio ...................................18

Viewing Video with the Menu Open ..................................18

Adjusting the Picture Settings ............................................19

Adjusting the Advanced Picture Settings ........................20

Adjusting the Picture Mode Management Settings ........20

Adjusting the Color Tuner Settings ..................................21

Renaming a Custom Picture Mode ................................. 23

Locking/Unlocking a Custom Picture Mode ...................23

Deleting a Custom Picture Mode ....................................24

Resetting Picture Mode ....................................................24

Adjusting the Audio Settings ..............................................25

Changing the Equalizer Settings ..................................... 25

Deleting the Custom Audio Mode ...................................26

Setting Timers ......................................................................27

Setting the Sleep Timer ....................................................27

Setting the Auto Power Off Feature ..................................27

Enabling the Screen Saver ..............................................27

Blank Screen Feature ....................................................... 27

Using the Network Connection Menu ................................28

Connecting to a Wireless Network ..................................28

Changing the Manual Setup Settings .............................28

Finding MAC Addresses for Network Setup .....................28

Connecting to a Hidden Network ...................................29

Setting Up the Tuner............................................................30

Selecting a Tuner Input .................................................... 30

Scanning for Channels ....................................................30

Adding New Channels ....................................................30

Skipping Channels...........................................................31

Listening to Alternate Audio ...............................................32

Changing the Analog Audio Language .........................32

Changing the Digital Audio Language ...........................32

Setting Up Closed Captioning ...........................................33

Changing the Appearance of Digital Closed Captions . 33

Renaming Devices on the Input Menu ..............................35

Changing the TV Settings ...................................................36

Viewing System Information ............................................36

Changing the On-Screen Menu Language .................... 36

Setting the Time and Local Settings ................................37

Using the Parental Controls .............................................37

Accessing the Parental Controls Menu ...........................37

Enabling or Disabling Program Ratings ...........................37

Locking and Unlocking Channels ...................................37

Blocking and Unblocking Content by Rating ..................38

Changing the Parental Control PIN ................................. 38

Resetting the Content Locks ............................................ 38

Changing the View Mode Settings .................................39

Adjusting the Wide Mode (Aspect Ratio) .......................39

Changing your TV Name .................................................39

Adjusting the CEC Settings ..............................................40

Turning the Power Indicator On or Off .............................40

Using the Reset & Admin Menu ..........................................41

Restoring the TV to Factory Default Settings .................... 41

Using the Guided Setup Menu ........................................42

Using Guided Setup .........................................................42

Using the Info Window ........................................................42

Using the USB Media Player ............................. 43

Using the USB Media Player ................................................43

Preparing Your USB Drive to Play USB Media .................... 43

Playing USB Media ...........................................................43

Using VIZIO Internet Apps Plus® (V.I.A. Plus) ..... 47

Using the fullscreen V.I.A. Apps Window ............................. 48

Fullscreen V.I.A. Plus Apps Window Overview .....................49

Customizing the V.I.A. Plus Apps Window ...........................50

Adding an App to the My Apps Tab ................................50

Deleting an App from the My Apps Tab ..........................50

Moving an App in My Apps .............................................50

Troubleshooting & Technical Support .............. 52

Speciﬁcations ................................................... 56

Warranty ........................................................... 57

Legal & Compliance ........................................ 58

INSPECTING THE PACKAGE CONTENTS

Before installing your new TV, take a moment to inspect the

package contents. Use the images below to ensure nothing is

missing or damaged.

Getting to Know Your TV

PACKAGE CONTENTS

Power CordVIZIO LED HDTV with Stand

Quick Start Guide

Two-Sided Remote with Keyboard

(Batteries Included)

INFO

GUIDEBACK

VOL

ENTER

1 2 3

4 5 6

7 8

EXIT

INPUT

LIST

4 x M4 14mm

Phillips Screws

5 x M4 12mm

Phillips Screws

INSTALLING THE TV

After removing the TV from the box and inspecting the package

contents you can begin installing the TV. Your TV can be installed

in two ways:

• On a ﬂat surface, using the included stand

• On a wall, using a VESA-standard wall mount (not

included)

Installing the TV Stand

Your TV includes a stand designed to support the weight of the

TV and keep it from falling over. However, the TV can still fall over if:

• It is placed on an uneven, unstable, or non-level surface

• It is pushed, pulled, or otherwise improperly moved

• If an earthquake occurs and the TV is not properly

secured

• It is recommended that two people take part in the base

installation.

• Place the TV screen-down on a clean, ﬂat surface. To

prevent scratches or damage to the screen, place the TV

on a soft surface, such as carpet, rug, or blanket.

To install the base:

1. Align the neck piece with the bottom of the TV and slide it

into place.

Insert and tighten four (4) M4 14mm Phillips screws into the

back of the TV as shown.

2. Align the base with the neck.

Insert and tighten ﬁve (5) M4 12mm Phillips screws into the

bottom of the base as shown.

3. When you are ﬁnished, place the TV on a stable,

level surface.

Installing the TV on a Wall

To mount your TV on a wall, you will need a wall mount. Consult

the information below to ﬁnd the appropriate mount for your TV

model:

Installing a TV on a wall requires lifting. To prevent

injury or damage to the TV, ask someone to help you.

M502i-B1

Screw Size: M6

Hole Pattern: 200mm (V) x 200mm (H)

Weight w/o Stand: 34.17 lbs

Be sure the mount you choose is capable of supporting the

weight of the TV. After you have determined that you have the

correct mount for your TV, you can begin the installation.

To install your TV on a wall:

1. Disconnect any cables connected to your TV.

2. Place the TV face-down on a clean, ﬂat, stable surface.

Be sure the surface is clear of debris that can scratch or

damage the TV.

3. Remove the base and neck by loosening and removing

the screws.

4. Attach your TV and wall mount to the wall, carefully following

the instructions that came with your mount.

Use only with a UL-listed wall mount bracket rated for the

weight/load of this TV.

For some wall mounts, you may want to use cables

with right-angle connectors. This allows the TV to rest

closer to the wall.

WALL-MOUNT SCREW LOCATIONS

FRONT PANEL

REMOTE SENSOR & POWER INDICATOR

When using the remote, aim it directly at this sensor.

The power indicator ﬂashes on when the TV turns on, then goes out after several seconds.

To keep the power indicator on as long as the TV is on, see

Turning the Power Indicator On or Off on page 40.

REAR PANEL

Ethernet - Connect Ethernet cable from home network.

Coaxial - Connect coaxial cable from cable, satellite, or antenna.

Optical Audio Out - Connect optical/SPDIF audio device, such as

home audio receiver.

Stereo Audio Out - Connect RCA audio device, such as sound bar.

Component/Composite - Connect component or composite device.

USB - Connect USB thumb drive to play photo, music, or video.

HDMI - Connect HDMI device.

Power/Input - Press once to turn on the TV. Press once to access the

input menu. Press and hold to turn off the TV.

REMOTE CONTROL

APP LAUNCHER

Quickly launch the pictured App.

INPUT

Change the currently

displayed input.

NUMBER PAD

Manually enter a channel.

WIDE

Change the display mode.

ARROW

Navigate the on-screen menu.

POWER

Turn TV on or off.

INFO

Display the info window.

Display the on-screen menu.

GUIDE

Display the info window.

PIC

Opens the Picture Mode menu.

V BUTTON

Open the VIZIO Internet Apps

Plus® (V.I.A. Plus) dock.

CHANNEL UP/DOWN

Change the channel.

LAST

Return to the channel last

viewed.

DASH

Use with number pad to

manually enter a digital

sub-channel.

(For example, 18-4 or 18-5.)

ENTER

Conﬁrm channel or passcode

entered using the Number Pad.

A/V CONTROLS

Control USB media player and

video streaming playback.

CLOSED CAPTIONS

Turn closed captions on and off.

EXIT

Close the on-screen menu.

VOLUME UP/DOWN

Increase or decrease loudness

of the audio.

Select the highlighted option.

BACK

Go to the previous on-screen menu.

MUTE

Turn the audio off or on.

SHIFT

Press and hold while

pressing another key to

enter a capital letter.

ALT

Press and hold while pressing

another key to enter a blue

character. For example, press ALT

and W to enter a # character.

DO NOT COVER THIS AREA

This is the transmitter.

ARROWS

Navigate the

on-screen menu.

Replacing the Batteries

1. Press in on the button on the rear of the remote. 3. Insert two AAA batteries into the remote control. Make sure

that the (+) and (-) symbols on the batteries match the (+)

and (-) symbols inside the battery compartment.

4. Replace the battery cover.2. Remove the battery cover.

2Connecting Your Devices

CONNECTING A DEVICE

Your TV can be used to display output from most devices.

1. Verify that your device has a video port that matches an

available port on the TV (HDMI, Component, etc.).

2. Turn the TV and your device off.

3. Connect the appropriate cable (not included) to the TV and

the device.

4. Turn the TV and your device on. Set the TV’s input to match

the connection you used (HDMI-1, HDMI-2, etc.).

* Maximum Resolution

BETTER

COMPONENT CABLE

• ANALOG

• HD VIDEO (1080p)*

• STEREO AUDIO

BEST

HDMI CABLE • DIGITAL

• HD VIDEO (1080p)*

• HD AUDIO

GOOD

AV CABLE • ANALOG

• VIDEO (480i)*

• STEREO AUDIO

BETTER

COAXIAL CABLE • ANALOG

• HD VIDEO (1080i)*

• STEREO AUDIO

CONNECTING A DEVICE - AUDIO & VIDEO CABLE TYPES

AV CABLE

AV cables (or Composite cables) are the

traditional way of connecting your devices

to your TV. Video signals are sent over the

yellow connector while audio is sent over

the red and white connectors.

• Video Resolutions up to 480i

• Analog Connection

• Audio and Video Signals

GOOD

COMPONENT VIDEO

Y L R

COAXIAL CABLE

Coaxial cables are the traditional way of

connecting antennas and cable television

signals to your TV. Coaxial cables carry both

audio and video signals through a single

connector.

• HD Video Resolutions up to 1080i

• Analog Connection

• Audio and Video Signals

BETTER

COAXIAL CABLE

Coaxial

COMPONENT CABLE

Component cables are designed to carry high

deﬁnition video signals along with additional

audio connections. Colors are delivered with

color information split up three different ways

over three connectors for video (separated into

Red, Blue and Green signals) and the left and

right audio connectors (Red and White).

• HD Video Resolutions up to 1080i

• Analog Connection

• Audio and Video Signals

HDMI CABLE

HDMI is the intelligent, all-digital interface

that delivers both dazzling quality and

unmatched ease of use. HDMI technology

transmits crystal-clear digital video along with

multi-channel surround audio. HDMI-connected

devices have the ability to automatically adjust

themselves for optimal viewing.

• HD Video Resolutions up to 1080p

• HD Audio

• Digital Connection

• Audio and Video Signals

BETTER

COMPONENT VIDEO

R L Pr/Cr Pb/Cb Y

HDMI

BEST

CONNECTING AN AUDIO DEVICE

Your TV can output sound to an audio device, such as a receiver

or sound bar.

1. Verify that your device has a audio port that matches an

available port on the TV (Optical, RCA, etc).

2. Turn the TV and your audio device off.

3. Connect the appropriate cable (not included) to the TV and

the device.

4. Turn the TV and your device on.

Home Audio Receiver VIZIO Sound Bar

BEST

HDMI CABLE • ARC 2-WAY COMMUNICATION

• 2.0-5.1 DIGITAL AUDIO

• PCM, DTS, DOLY DIGITAL

GOOD

RCA CABLE • ANALOG STEREO CONNECTION

• 2.0 CHANNEL

BETTER

OPTICAL/SPDIF CABLE

• PCM STREAM

• DOLBY DIGITAL 5.1 CHANNEL

• DTS 5.1 CHANNEL

CONNECTING AN AUDIO DEVICE - AUDIO CABLE TYPES

RCA CABLE

RCA cables (or Composite cables) are the

traditional way of connecting your devices to

your audio device. Audio signals are sent over

the red and white connectors.

• Quality Stereo Connection

• 2.0 Channel

• Analog Connection

• Audio Signal Only

OPTICAL/SPDIF CABLE

Optical/SPDIF cables transmit audio signals as

pulses of light through a cable made of plastic

ﬁbers. Audio signals are digitally transmitted

between devices.

• PCM Stream (Lossless)

• Dolby Digital 5.1 Channel

• DTS 5.1 Channel

• Digital Connection

• Audio Signal Only

HDMI CABLE

HDMI technology transmits crystal-clear digital

multi-channel surround audio through a single

HDMI cable. Audio Return Channel-enabled

(ARC) TVs allow audio to be sent over an already

connected HDMI cable, eliminating the need

for a separate audio cable. See

Connecting an

Audio Device - Arc

on page 12.

• CEC 2-way Communication

(Auto setup)

• PCM, DTS, Dolby Digital

• 2.0 - 5.1 Scaleable Lossless

Digital Audio Connection

• Audio and Video Signals

GOOD

COMPONENT VIDEO

L R

BETTER

Optical/SPDIF

DIGITAL OPTICAL AUDIO

BEST

HDMI

CONNECTING AN AUDIO DEVICE - ARC

Your Home Audio Receiver

WITHOUT HDMI ARC

Your TV

Without an HDMI ARC setup, your TV will transmit audio signal

from the built-in tuner and VIA apps to your home audio

receiver through a separate audio connection.

HDMI Cable

Your Blu-Ray Player

RCA (Audio)

Your Home Audio Receiver

WITH HDMI ARC

Your TV

With an HDMI ARC setup, the audio connection between

your TV and Home Audio Receiver can be removed. The HDMI

cable will transmit audio signal to and from your TV with an

all-digital audio/video connection.

HDMI Cable

Your Blu-Ray Player

CONNECTING TO YOUR NETWORK

Your TV is Internet-ready. It can be connected to your home

network with a Wired or Wireless connection.

Connecting to a Wired Network (Best)

1. Connect an Ethernet cable to your router and to the

Ethernet port on the back of the TV. See below.

2. Use the Guided Network Setup to conﬁgure the TV. See

Using

Guided Setup on page 42

Connecting to a Wireless Network

1. Ensure you have a router or modem broadcasting as

high-speed wireless signal (802.11n recommended).

2. Use the Guided Network Setup to conﬁgure the TV. See

Using

the Guided Setup Menu on page 42.

Router / ModemEthernet Cable

3Completing The First-Time Setup

The first time you turn on the TV, the Setup App will guide

you through each of the steps necessary to get your TV

ready for use.

Before you begin the first-time setup:

• Your TV should be installed and the power cord

should be connected to an electrical outlet.

• Your devices should be connected.

• If you have a wireless network, have the network

password ready.

• If you are connecting to your network with an

Ethernet cable, connect it to the Ethernet port on

the TV.

Choose your mode.

Select Store Demo for in-store display.

Select Home Use for in-home use.

Seleccione "Home Use" por Modo de Casa o "Store Demo" por Demostración de Tienda.

Choisissez "Home Use" pour Mode Domicile ou "Store Demo" pour Démonstration en Magasin.

Store Demo Home Use

Press the Power button on the remote. The TV

powers on and the Setup App starts.

Use the Arrow buttons on the remote to

highlight Home Use and press OK.

To complete the first-time setup:

Use the Arrow buttons on the remote to highlight

your language of preference and press OK.

Use the Arrow buttons on the remote to

highlight your country, and then press OK.

Select the name of your wireless network from

the list of available networks and press OK.

Enter the network password using the keyboard on

the remote, then highlight Connect and press OK.

Use the Arrow and OK buttons on the remote to

review the Terms Of Service and Privacy Policy.

When you are ﬁnished, highlight I Accept

and press OK.

Enter your E-mail Address, First Name, Last

Name, and Zip Code using the keyboard

on the remote.

Highlight Next and press OK.

Select your time zone and press OK.

If the TV Signal channel scan screen appears,

the TV will need to scan for channels, which

takes several minutes.

Use the arrow buttons on the remote to highlight

Begin Scan and press OK.

Otherwise, use the Arrow and OK buttons

on the remote to select the input your TV

source is connected to.

When you are ﬁnished, the message

“Your VIZIO TV is set up.” will appear.

The First-Time Setup is complete.

Use the Arrow buttons on the remote to highlight

your TV source and press OK.

If you have cable TV, select whether you

have a cable box or if you connect the TV

directly to a cable from the wall.

Note: Number of ports may differ by TV.

CHANGING THE INPUT SOURCE

External devices such as DVD players, Blu-ray Players, and video

game consoles can be connected to your TV. To use one of these

devices with your TV, you must ﬁrst change the input source using

the Input menu.

To change the input source:

1. Press the INPUT button on

the remote. The Input menu is

displayed.

2. Use the Up/Down Arrow buttons

or the INPUT button on the

remote to highlight the input

you wish to view and press OK.

The selected input is displayed.

You change the input names that appear on the

Input menu to make your devices easy to recognize.

See

Renaming Devices on the Input Menu

on page

35 for more information.

Note: Inputs may vary by TV.

Using the On-Screen Menu

Your TV features an easy-to-use on-screen menu.

To open the on-screen menu, press the MENU button on the

remote. You can also open the on-screen menu by pressing the

VIA button and selecting HDTV Settings from the VIA Dock, then

pressing OK.

From this menu, you can:

• Adjust the Picture settings

• Adjust the Audio settings

• Setting the Sleep Timers

• Adjust the Network settings

• Adjust the Tuner settings

• Set up Closed Captioning

• Set up Devices

• Adjust TV settings

• Access the Guided Setup

• Access the User Manual

Help

VIZIO

Network

Sleep

Timer

InputCC

ABC

Audio

Wide

Normal


Settings

PanoramicWideZoom

2D 3DExit

TV SETTINGS


Audio

Timers

Network

Tuner

Closed Captions

Devices

System

Guided Setup

User Manual

NAVIGATING THE ON-SCREEN MENU

To open the on-screen menu, press

the MENU button on the remote.

Use the Arrow buttons to highlight

a menu option, and press the OK

button to select that option.

While navigating the on-screen menu, you can

press the BACK button at any time to return to the

previous menu screen. The EXIT button will close the

on-screen menu.

COMP

HDMI-1

HDMI-2

HDMI-4

Input Name HDMI-3

CHANGING THE SCREEN ASPECT RATIO

The TV can display images in ﬁve different modes: Normal,

Stretch, Panoramic, Wide, and Zoom. Each mode displays the

picture differently. See the next page for examples. See

Adjusting

the Wide Mode (Aspect Ratio) on page 39

for an alternate

way of adjusting the screen aspect ratio.

To change the screen aspect ratio:

1. Press the button on the remote.

2. Use the Arrow buttons to

highlight the aspect ratio you

wish to view and press OK.

• Normal preserves the content’s

original aspect ratio. Since the

4:3 aspect ratio is not large

enough to ﬁll the TV’s screen,

black bars are added to the left

and right of the display image.

• Stretch expands the display image to ﬁll the screen. Images

may appear wider than intended. If you are watching

widescreen (1.85:1 or 2.35:1) content, black bars will still

appear on the top and bottom of the display image. This

option is only available when the TV is displaying a

720p/1080i source.

• Panoramic expands the display image to ﬁll the screen.

Images may appear wider than intended. If you are

watching widescreen (1.85:1 or 2.35:1) content, black

bars will still appear on the top and bottom of the display

image. This option is only available when the TV is

displaying a 480i/480p source.

• Wide stretches a 4:3 aspect ratio picture to the edges of

the screen. Since the picture is being stretched, the display

image may appear distorted. If the program is already

formatted for widescreen viewing (1.85:1 or 2.35:1), then

black bars will appear on the top and bottom of the

display image.

• Zoom expands images with black bars to ﬁt the screen.

Panoramic

Wide

Zoom

Normal

Stretch

Wide

Zoom

Normal

Note: Aspect ratio settings may

vary by Input source.

VIEWING VIDEO WITH THE MENU OPEN

When the on-screen menu opens, it covers the left-hand portion

of the picture. The picture can be displayed in three different

ways:

• Full-sized and centered on the screen (Overlay) - The

left-hand portion of the picture covered by the menu.

• Resized to ﬁt (Viewport) - The entire picture is visible in the

space to the right of the menu.

• Full-sized and aligned to the right edge of the menu

(Centered Overlay) - The picture extends off of the right

side of the screen.

To change the position of the picture while the on-screen menu

is displayed:

1. Use the Arrow buttons on the

remote to highlight

Help

VIZIO

Network

Sleep

Timer

InputCC

ABC

Audio

Wide

Normal


Settings

PanoramicWideZoom

2D 3DExit

Resize

Video.

2. Press OK to cycle through the

three display methods.

3. Press the Up Arrow button on

the remote to the menu.

4. See

Changing the View Mode

Settings

on page 39 for an

alternate method of adjusting

the video.

Help

VIZIO

Network

Sleep

Timer

InputCC

ABC

Audio

Wide

Normal


Settings

PanoramicWideZoom

2D 3DExit


Picture Mode Standard

Auto Brightness Control Medium

Backlight 85

Brightness 50

Contrast 50

Color 59

Tint 0

Sharpness 9

Advanced Picture

Picture Mode Management

Select from preset picture modes. Standard

picture mode meets ENERGY STAR®

requirements. For the best picture, use

Calibrated mode. To reduce video delay

(lag) when gaming, use Game mode.

Full-sized and aligned to right of menu

(Centered Overlay)

Resized to ﬁt (Viewport)

Help

VIZIO

Network

Sleep

Timer

InputCC

ABC

Audio

Wide

Normal


Settings

PanoramicWideZoom

2D 3DExit


Picture Mode Standard

Auto Brightness Control Off

Backlight 85

Brightness 50

Contrast 50

Color 59

Tint 0

Sharpness 9

Advanced Picture

Professional Picture

Select from preset picture modes. Standard

picture mode meets ENERGY STAR®

requirements. For the best picture, use

Calibrated mode. To reduce video delay

(lag) when gaming, use Game mode.

Full-sized and centered (Overlay)

Help

VIZIO

Network

Sleep

Timer

InputCC

ABC

Audio

Wide

Normal


Settings

PanoramicWideZoom

2D 3DExit


Picture Mode Standard

Auto Brightness Control Off

Backlight 85

Brightness 50

Contrast 50

Color 59

Tint 0

Sharpness 9

Advanced Picture

Picture Mode Management

Select from preset picture modes. Standard

picture mode meets ENERGY STAR®

requirements. For the best picture, use

Calibrated mode. To reduce video delay

(lag) when gaming, use Game mode.

Help

VIZIO

Network

Sleep

Timer

InputCC

ABC

Audio

Wide

Normal


Settings

PanoramicWideZoom

2D 3DExit


Picture Mode Standard

Auto Brightness Control Off

Backlight 85

Brightness 50

Contrast 50

Color 59

Tint 0

Sharpness 9

Advanced Picture

Picture Mode Management

Select from preset picture modes. Standard

picture mode meets ENERGY STAR®

requirements. For the best picture, use

Calibrated mode. To reduce video delay

(lag) when gaming, use Game mode.

3. Use the Arrow buttons on the

remote to highlight Picture

Mode, then use the Left/Right

Arrow buttons to change the

picture mode:

• Standard mode sets the

various picture settings to

values that meet

ENERGY STAR® requirements.

• Calibrated mode sets the

picture settings to values

ideal for watching TV in a

brightly-lit room.

• Calibrated Dark mode

sets the picture settings to

values ideal for watching TV

in a dark room.

• Vivid mode sets the picture

settings to values that

produce a brighter, more

vivid picture.

• Game mode reduces throughput delays and optimizes

the picture settings for displaying game console output.

• Computer mode optimizes the picture settings for

displaying computer output.

ADJUSTING THE PICTURE SETTINGS

Your TV display can be adjusted to suit your preferences and

viewing conditions.

To adjust the picture settings:

1. Press the MENU button on the remote. The on-screen menu is

displayed.

2. Use the Arrow buttons on the remote to highlight Picture

and press OK. The PICTURE menu is displayed.

Changes made while any preset picture mode is

selected are automatically saved as a new custom

picture mode (see Custom Picture Modes on pages

28 through 29). Automatically-created custom

picture modes are given generic names, beginning

with "Custom 1."

Help

VIZIO

Network

Sleep

Timer

InputCC

ABC

Audio

Wide

Normal


Settings

PanoramicWideZoom

2D 3DExit


Picture Mode Standard

Auto Brightness Control Medium

Backlight 85

Brightness 50

Contrast 50

Color 59

Tint 0

Sharpness 9

Advanced Picture

Picture Mode Management

Select from preset picture modes. Standard

picture mode meets ENERGY STAR®

requirements. For the best picture, use

Calibrated mode. To reduce video delay

(lag) when gaming, use Game mode.

4. To manually change each of the picture settings, use the

Up/Down Arrow buttons on the remote to highlight that

picture setting, then use the Left/Right Arrow buttons to

adjust the setting:

• Auto Brightness Control - The auto brightness control detects

the light levels in the room and automatically adjusts the

backlight for the best picture. Select Off, Low, Medium, or High.

• Backlight - Adjusts the LED brightness to affect the overall

brilliance of the picture. Backlight cannot be adjusted when

starting from some picture modes.

• Brightness - Adjusts the black level of the picture. When this

setting is too low, the picture may be too dark to distinguish

details. When this setting is too high, the picture may appear

faded or washed out.

• Contrast - Adjusts the white level of the picture. When this

setting is too low, the picture may appear dark. When this

setting is too high, the picture may appear faded or washed

out. If the setting is too high or too low, detail may be difﬁcult

to distinguish in dark or bright areas of the picture.

• Color - Adjusts the intensity of the picture colors.

• Tint - Adjusts the hue of the picture. This setting is useful in

adjusting the ﬂesh tones in the picture. If ﬂesh appears too

orange, reduce the level of color before adjusting tint.

• Sharpness - Adjusts the edge sharpness of picture elements.

It can be used to sharpen non-HD (high deﬁnition) content;

however, it will not produce detail that does not otherwise

exist.

5. When you have ﬁnished adjusting the picture settings, press

the EXIT button on the remote.

• Smooth Motion Effect - Activates Smooth Motion motion

estimation/motion compensation, which suppresses

motion judder, or “stuttering” of the image when the

camera moves across a scene horizontally. Select Off,

Low, Medium, or High.

• Clear Action - Reduces blur in scenes with fast action.

Some sensitive viewers may notice ﬂicker. Select On or Off.

• Reduce Signal Noise - Diminishes artifacts in the image

caused by the digitizing of image motion content. Select

Off, Low, Medium, or High.

• Reduce Block Noise - Reduces pixelation and distortion

for mpeg ﬁles. Select Off, Low, Medium, or High.

• Game Low Latency - Select On to reduce video delay

(lag) when gaming.

• Picture Size - Increase or decrease the vertical and

horizontal size of the displayed picture. Use the Left/

Right Arrow buttons to adjust the horizontal size of the

displayed picture. Use the Up/Down Arrow buttons to

adjust the vertical size of the displayed picture. Press the

OK button when you are ﬁnished.

• Picture Position - Adjust the vertical and horizontal

positions of the picture to ensure the image is centered

and completely ﬁlls the screen. Use the Left/Right Arrow

buttons to adjust the horizontal position of the displayed

picture. Use the Up/Down Arrow buttons to adjust the

vertical position of the displayed picture. Press the OK

button when you are ﬁnished.

• Film Mode - Optimizes the picture for watching ﬁlm.

Select Auto or Off.

• Gamma - Set the shape of the Gamma curve. Use lower

Gamma values for bright room conditions, and higher

values when it’s dark.

4. When you have ﬁnished adjusting the Advanced Picture

Settings, press the EXIT button on the remote.

Adjusting the Picture Mode Management Settings

Picture Mode Management Settings allow you to make precise

adjustments to the picture and to create picture modes to save

groups of picture settings.

The Color Tuner, 11 Point White Balance, and test

patterns allow technicians to manually calibrate the

TV. Calibration requires specialized training, an input

with precisely set colors, and a specialized light meter.

To adjust the Picture Mode Management settings:

1. From the PICTURE menu, use the

Arrow buttons to highlight Picture

Mode Management, and then

press OK. The PICTURE MODE

MANAGEMENT menu is displayed.

2. Use the Arrow buttons to

highlight the setting you wish

to adjust, then press OK to

change the setting:

• Color Tuner - Adjust the

HSB color and 11-point

white balance, and display

calibration test patterns.

• Save Picture Mode - Save a

custom picture mode.

• Rename Picture Mode -

Rename a custom picture

mode.

• Lock Picture Mode - Prevent changes to custom picture modes.

• Unlock Picture Mode - Allow changes to custom picture modes.

• Delete Picture Mode - Delete a custom picture mode.

Inputs assigned to that custom picture mode will be set

to Calibrated picture mode.

• Reset Picture Mode - Resets the picture mode settings to

factory default values. This reset only affects the current input.

Help

VIZIO

Network

Sleep

Timer

InputCC

ABC

Audio

Wide

Normal


Settings

PanoramicWideZoom

2D 3DExit

PICTURE MODE MANAGEMENT

Color Tuner

Save Picture Mode

Rename Picture Mode

Lock Picture Mode

Delete Picture Mode

Reset Picture Mode

Adjusting the Advanced Picture Settings

To adjust the advanced picture settings:

1. From the PICTURE menu, use

the Arrow buttons to highlight

More, and then press OK.

2. Use the Arrow buttons to

highlight Advanced Picture,

and then press OK. The

ADVANCED PICTURE menu is

displayed.

3. Use the Arrow buttons to

highlight the setting you wish

to adjust, then press the Left/

Right Arrow buttons to change

the setting:

• Color Temperature -

Adjusts the 'warmness' and

'coolness' of the white areas

of the picture. Select Cool,

Normal, or Computer.

• Cool produces a

blue-hued picture.

• Computer optimizes the picture for use as a

PC monitor.

• Normal is optimized for television viewing.

• Black Detail - Adjusts the average brightness of the

picture to compensate for large areas of brightness.

Select Off, Low, Medium, or High.

• Active LED Zones - Dynamically improves the contrast

ratio of the picture by adjusting the backlight. The

adjustment is controlled by the content on the screen.

Select On or Off.

Help

VIZIO

Network

Sleep

Timer

InputCC

ABC

Audio

Wide

Normal


Settings

PanoramicWideZoom

2D 3DExit

ADVANCED PICTURE

Color Temperature Cool

Black Detail Medium

Active LED Zones On

Smooth Motion Effect Medium

Clear Action Off

Reduce Signal Noise Low

Reduce Block Noise Low

Game Low Latency Off

Picture Size & Position

Film Mode Auto

Gamma 2.1

To turn color channels off and on:

1. From the PICTURE MODE MANAGEMENT menu, use the Arrow

buttons to highlight Color Tuner, and then press OK. The

Color Tuner menu is displayed.

2. Use the Arrow buttons on the remote to highlight Red,

Green, or Blue.

3. Press the OK button to turn the color channel off or on. An X

appears over a color channel that has been turned off.

4. Use the Arrow buttons to highlight another color channel to

turn off or on. Only two color channels can be turned off at

the same time.

5. When you are ﬁnished with the color channels, press the

EXIT button.

Color Tuner

Red Green Blue Cyan Magenta Yellow

Hue 000025 -14

Saturation -1 5-4 0-2 0

Brightness -24 0-22 000

Offset 000

Gain 000

To adjust the 11 Point White Balance settings:

1. From the Color Tuner menu, use the Arrow buttons to

highlight Color Tuner, and then press the Left/Right Arrow

buttons until the 11 Point White Balance menu is displayed.

2. Use the Arrow buttons on the remote to highlight the Gain

and Color values you wish to adjust. Press the OK button

and use the Left/Right Arrow buttons to adjust the value

When you are ﬁnished press the OK button to save the

setting.

3. When you are ﬁnished, press the EXIT button.

11 Point White Balance

Gain Red Green Blue

5% 0 0 0

Adjusting the Color Tuner Settings

The Color Tuner settings allow you to adjust the HSB color and

11 point white balance, turn color channels off for testing, and

display color bar, ﬂat, and ramp test patterns.

To adjust the HSB color settings:

1. From the PICTURE MODE MANAGEMENT menu, use the Arrow

buttons to highlight Color Tuner, and then press OK. The

Color Tuner menu is displayed.

2. Use the Arrow buttons on the remote to highlight the Hue,

Saturation, Brightness, Offset, or Gain of the color you wish

to adjust. Press the OK button.

3. Use the Left/Right Arrow buttons to adjust the value. When

you are ﬁnished press the OK button to save the setting.

4. When you are ﬁnished adjusting the color tuner settings,

press the EXIT button.

Color Tuner

Red Green Blue Cyan Magenta Yellow

Hue 000025 -14

Saturation -1 5-4 0-2 0

Brightness -24 0-22 000

Offset 000

Gain 000

To show or hide the Flat Test Pattern:

1. From the Color Tuner menu, use the Arrow buttons to

highlight Flat Test Pattern, and then press the Left/Right

Arrow buttons until the Flat Test Pattern menu is displayed.

Flat Test Pattern

Off

2. Use the Arrow buttons on the remote to highlight Off. Use

the Left/Right Arrow buttons to select the percentage

brightness for the ﬂat test pattern. Selecting a percentage

immediately shows the ﬂat pattern at that brightness.

—or—

To disable the Flat Test Pattern, use the Left/Right Arrow

buttons to highlight Off.

3. When you are ﬁnished, press the EXIT button.

To show or hide the Ramp Test Pattern:

1. From the Color Tuner menu, use the Arrow buttons to

highlight Color Tuner, and then press the Left/Right Arrow

buttons until the Ramp Test Pattern menu is displayed.

2. Use the Arrow buttons on the remote to highlight Off. Use

the Left/Right Arrow buttons to select the color for the ramp

test pattern. Selecting a color immediately shows that color

ramp.

—or—

To hide the Ramp Test Pattern, use the Left/Right Arrow

buttons to highlight Off.

3. When you are ﬁnished, press the EXIT button.

Ramp Test Pattern

Off

To show or hide the SMPTE Test Pattern:

1. From the Color Tuner menu, use the Arrow buttons to

highlight Color Tuner, and then press the Left/Right Arrow

buttons until the SMPTE Test Pattern menu is displayed.

SMPTE Test Pattern

Off

2. Use the Arrow buttons on the remote to highlight Off. Use the

Left/Right Arrow buttons to highlight On to show the SMPTE

Pattern.

—or—

To hide the SMPTE Test Pattern, use the Left/Right Arrow

buttons to highlight Off.

3. When you are ﬁnished, press the EXIT button.

Renaming a Custom Picture Mode

Automatically-created custom picture modes are given generic

names, beginning with "Custom 1", but you can rename custom

picture modes to make them easy to remember.

To rename a custom picture mode:

1. Set the Picture Mode to an

existing custom setting. See

Adjusting the Picture Settings

on page 19.

2. From the PICTURE MODE

MANAGEMENT menu, use the

Arrow buttons to highlight

Rename Picture Mode, and

then press OK. The RENAME

PICTURE MODE menu is

displayed.

3. Use the Arrow buttons to enter

a custom name using the

keyboard on the remote.

4. Highlight Done and press OK.

5. Press the EXIT button to exit the

menu screens.

Help

VIZIO

Network

Sleep

Timer

InputCC

ABC

Audio

Wide

Normal


Settings

PanoramicWideZoom

2D 3DExit

RENAME PICTURE MODE

Custom 1_

Done

a b c d e f g h i

j k l m n o p q r

s t u v w x y z 0

123456789

.@# .com Space

Locking/Unlocking a Custom Picture Mode

Custom picture modes can be locked/unlocked with a unique

PIN to prevent accidental changes to their settings.

To lock all custom picture modes:

1. From the PICTURE MODE

MANAGEMENT menu, use the

Arrow buttons to highlight Lock

Picture Mode, and then press

OK. The LOCK PICTURE MODE

menu is displayed.

2. Use the Number Pad on your

remote to enter a unique

4-digit PIN.

3. Highlight Save and press OK.

4. Press the EXIT button to exit the

menu screens.

Help

VIZIO

Network

Sleep

Timer

InputCC

ABC

Audio

Wide

Normal


Settings

PanoramicWideZoom

2D 3DExit

LOCK PICTURE MODE

Create a picture control PIN to prevent

changes to all custom picture modes.

Save

Create a 4 digit passcode using the num-

ber keys on the remote.

To unlock all custom picture modes:

1. From the PICTURE MODE MANAGEMENT menu, use the Arrow

buttons to highlight Unlock Picture Mode, and then press

OK. The UNLOCK PICTURE MODE menu is displayed.

2. Use the Number Pad on your remote to enter your 4-digit PIN.

3. Make any desired changes to the picture modes.

4. Relock the picture modes, if desired. You must create a new

4-digit PIN.

5. Press the EXIT button to exit the menu screens.

äêí

Deleting a Custom Picture Mode

Custom picture modes that are no longer needed can be

deleted.

To delete a custom picture mode:

1. From the PROFESSIONAL

PICTURE menu, use the Arrow

buttons to highlight Delete

Picture Mode, and then press

OK. The DELETE PICTURE MODE

window is displayed.

2. Use the Left/Right Arrow buttons to highlight Delete and

press OK.

3. Press the EXIT button to exit the menu screens.

Inputs assigned to a deleted custom picture mode

become assigned to the

Calibrated

picture mode.

To delete the user created Custom 1 picture mode,

select the Delete button.

Delete Cancel

To unlock all custom picture modes:

1. From the PICTURE MODE MANAGEMENT menu, use the Arrow

buttons to highlight Unlock Picture Mode, and then press

OK. The UNLOCK PICTURE MODE menu is displayed.

2. Use the Number Pad on your remote to enter your 4-digit PIN.

3. Make any desired changes to the picture modes.

4. Relock the picture modes, if desired. You must create a new

4-digit PIN.

5. Press the EXIT button to exit the menu screens.

Resetting Picture Mode

Reset the picture mode settings to the factory default values. This

only resets the values on the current input.

To delete a custom picture mode:

1. From the PROFESSIONAL

PICTURE menu, use the Arrow

buttons to highlight Delete

Picture Mode, and then press

OK. The DELETE PICTURE MODE

window is displayed.

2. Use the Left/Right Arrow buttons to highlight Delete and

press OK.

3. Press the EXIT button to exit the menu screens.

Select Reset to restore Standard

picture mode to factory defaults.

Reset Cancel

ADJUSTING THE AUDIO SETTINGS

To adjust the audio settings:

1. Press the MENU button on the

remote. The on-screen menu

is displayed.

2. Use the Arrow buttons on the

remote to highlight Audio and

press OK. The AUDIO menu

is displayed.

3. Use the Arrow buttons to

highlight the setting you wish

to adjust, then press Left/

Right Arrow buttons to change

the setting:

• TV Speakers - Turns the

built-in speakers on or off.

• Surround Sound - Surround sound uses DTS TruSurround™

to deliver an immersive surround sound experience from

the TV’s internal speakers. TruSurround completes the

entertainment experience by providing deep, rich bass

and by delivering crisp details and clear, intelligible dialog.

Select On or Off.

• Volume Leveling - Volume leveling uses DTS TruVolume™

to maintain consistent volume levels during transitions

between program content, AV formats, and input sources.

Select On or Off. In a few cases, volume leveling may

artiﬁcially suppress volume increases, making it difﬁcult to

hear dialog or ﬂattening sudden noises. If this occurs, turn

volume leveling off.

• Balance - Adjusts the loudness of the audio output from

the left and right speakers.

Help

VIZIO

Network

Sleep

Timer

InputCC

ABC

Audio

Wide

Normal


Settings

PanoramicWideZoom

2D 3DExit

AUDIO

TV Speakers On

Surround Sound On

Volume Leveling On

Balance 0

Lip Sync 0

Digital Audio Out PCM

Analog Audio Out Fixed

Equalizer

Delete Audio Mode

When the TV speakers are set to On, DTS signals

cannot be passed through digital audio outputs.

• Lip Sync - Adjusts the synchronization between the display

image and the accompanying audio track.

• Digital Audio Out - Changes the type of processing for

digital audio out and HDMI ARC output when connected

to a home theater audio system. Select PCM or Bitstream.

• Analog Audio Out - Sets the volume control properties for

the RCA connector when connected to a home theater

audio system. Select Variable if you are controlling the

volume with the TV’s volume controls, or select Fixed if

an external audio device (sound bar or AV receiver) will

control the volume.

• Equalizer - Adjusts the boost or attenuation of different

frequencies using either preset or custom settings. See

Changing the Equalizer Settings on page 25

• Delete Audio Mode - Deletes a custom audio mode

created using the Equalizer Settings. See

Deleting the

Custom Audio Mode on page 26.

4. When you have ﬁnished adjusting the audio settings, press

the EXIT button on the remote.

You must select Bitstream for audio with more than

two channels (3.0, 5.0, or 5.1, for example).

Changing the Equalizer Settings

The graphic equalizer has several pre-set modes and allows you

to create one custom mode.

To select a pre-set audio mode:

1. Press the MENU button on the remote. The on-screen menu is

displayed.

2. Use the Arrow buttons on the remote to highlight Audio and

press OK. The AUDIO menu is displayed.

3. Use the Arrow buttons to highlight Equalizer and press OK.

The Audio Mode and equalizer settings screen appears.

4. Use the Left and Right Arrow buttons to select an audio

mode. The equalizer bars change to reﬂect the mode.

5. Press the EXIT button on the remote.

Deleting the Custom Audio Mode

To delete the custom audio mode that has been created:

1. Press the MENU button on the remote. The on-screen menu is

displayed.

2. Use the Arrow buttons on the remote to highlight Audio and

press OK. The AUDIO menu is displayed.

3. Use the Arrow buttons to highlight Delete Audio Mode and

press OK. The TV displays, “To delete the user created custom

audio mode, select the Delete button.”

4. Highlight Delete and press OK.

5. Press the EXIT button on the remote.

To create, modify, or replace the single custom equalizer setting:

1. Press the MENU button on the remote. The on-screen menu is

displayed.

2. Use the Arrow buttons on the remote to highlight Audio and

press OK. The AUDIO menu is displayed.

3. Use the Arrow buttons to highlight Equalizer and press OK.

The Audio Mode and equalizer settings screen appears.

4. Use the Left and Right Arrow buttons to select any audio

mode as a starting point.

5. Use the Arrow buttons to highlight a frequency and then

press OK.

6. Use the Up and Down Arrow buttons to adjust the boost

(up) and attenuation (down) for the frequency.

7. Use the Left and Right Arrow buttons to select another

frequency, if desired, and adjust it.

8. Press the EXIT button on the remote.

SETTING TIMERS

Setting the Sleep Timer

When activated, the TV’s sleep timer will turn the TV off after a set

period of time.

1. Press the MENU button on the

remote. The on-screen menu is

displayed.

2. Use the Arrow buttons on the

remote to highlight Timers and

press OK. The TIMERS menu is

displayed.

3. Use the Left/Right Arrow

buttons on the remote to

highlight the period of time

after which you want the TV to

go to sleep: 30, 60, 90, 120, or

180 minutes. If you don’t want

the sleep timer to activate,

change the setting to Off.

4. When you have ﬁnished setting

the sleep timer, press the EXIT

button on the remote.

Help

VIZIO

Network

Sleep

Timer

InputCC

ABC

Audio

Wide

Normal


Settings

PanoramicWideZoom

2D 3DExit

TIMERS

Sleep Timer Off

Auto Power Off 10 minutes

Screen Saver Off

Blank Screen

Setting the Auto Power Off Feature

To help save energy, your TV is set by default to turn off after 10

minutes without a video or audio signal. This feature can be

deactivated.

To set the Auto Power Off feature:

1. From the TIMERS menu, use the Up/Down Arrow buttons on

the remote to highlight Auto Power Off.

2. Use the Left/Right Arrow buttons on the remote to change

whether the TV will turn off. If you don’t want the TV to turn off

when there is no signal, change the setting to Off. Otherwise,

select 10 minutes.

3. When you have ﬁnished setting the auto power off time,

press the EXIT button on the remote.

Enabling the Screen Saver

If there is no on-screen content when audio is streaming, the

backlight is turned off, saving energy. You can set the time before

the screen saver begins.

To set the Screen Saver:

1. From the TIMERS menu, use the Up/Down Arrow buttons on

the remote to highlight Screen Saver.

2. Use the Left/Right Arrow buttons on the remote to change

the time before the screen saver begins. If you don’t want

the screen saver to be active, change the setting to Off.

Otherwise, select 2, 10, or 20 minutes.

3. When you have ﬁnished setting the screen saver time, press

the EXIT button on the remote.

Blank Screen Feature

You can blank the screen while there is audio streaming. This

feature helps save energy and the life of the screen.

To blank the screen:

1. From the TIMERS menu, use the Up/Down Arrow buttons on

the remote to highlight Blank Screen and press OK.

Press any button on the remote to exit the blank screen.

USING THE NETWORK CONNECTION MENU

Your TV is Internet-ready, featuring both an Ethernet port and

built-in high-speed Wireless-N.

Connecting to a Wireless Network

To connect to a wireless network whose network name (SSID) is

being broadcast:

If your TV is connected to a network with an

Ethernet cable, you will not see the wireless network

connection menu. You must disconnect the Ethernet

cable to set up a wireless network connection.

1. Press the MENU button on the

remote. The on-screen menu is

displayed.

2. Use the Arrow buttons on the

remote to highlight Network

and press OK. The NETWORK

menu is displayed.

3. If you do not see your wireless

network displayed, highlight

More Access Points and press

OK. The WIRELESS ACCESS

POINTS menu, which is a list of

available wireless networks, is

displayed.

4. Highlight the name of your

wireless network (this is the

network’s SSID) and press OK.

5. Using the keyboard on the

remote, enter your network’s

password, then highlight

Connect and press OK.

6. Press the EXIT button on the remote.

Help

VIZIO

Network

Sleep

Timer

InputCC

ABC

Audio

Wide

Normal


Settings

PanoramicWideZoom

2D 3DExit

NETWORK

Wired Connection Disconnected

Wireless Access Points

More Access Points

WPS

Manual Setup

Hidden Network

Test Connection

Changing the Manual Setup Settings

Advanced users can ﬁne-tune the network settings using the

Manual Setup feature.

To change advanced network settings:

1. From the NETWORK menu,

highlight Manual Setup and

press OK. The MANUAL SETUP

menu is displayed.

2. To change the settings

manually, use the Arrow

buttons on the remote to

highlight DHCP and then use

the Left/Right Arrow buttons to

change the setting to Off.

3. Use the Arrow and OK buttons

to adjust each setting:

• IP Address - The IP address

assigned to the TV.

• Subnet Mask - The subnet

mask.

• Default Gateway - Your

network’s default gateway

address.

• Pref. DNS Server - Your

preferred domain name

server address.

• Alt. DNS Server - Your alternate domain name server

address.

4. Use the Arrow buttons on the remote to highlight Save and

press OK.

5. Press the EXIT button on the remote.

Help

VIZIO

Network

Sleep

Timer

InputCC

ABC

Audio

Wide

Normal


Settings

PanoramicWideZoom

2D 3DExit

MANUAL SETUP

DHCP Off

IP Address ____.____.____.____

Subnet Mask ____.____.____.____

Default

Gateway ____.____.____.____

Pref. DNS

Server ____.____.____.____

Alt. DNS

Server ____.____.____.____

MAC 0:0:0:0:0:0

Save

Cancel

Finding MAC Addresses for Network Setup

The security settings on your router may require you to enter the

TV's MAC address in the router's settings.

To ﬁnd the TV's MAC address:

1. From the NETWORK menu, highlight Manual Setup and press

OK. The MANUAL SETUP menu is displayed.

2. Find the MAC address for the TV at the bottom of the list. The

MAC addresses for the connections in use are displayed:

• RJ45 MAC - The Ethernet or RJ45 MAC address may

be needed to set up your network when you have

connected the TV to your network with an Ethernet (Cat

5) cable.

• Wireless MAC - The Wireless (WiFi) MAC address may be

needed to connect your TV to your network with WiFi.

Connecting to a Hidden Network

To connect to a wireless network whose network name (SSID) is

not being broadcast:

1. From the NETWORK menu,

highlight Hidden Network

and press OK. The ENTER

ACCESS POINT NAME screen is

displayed.

2. Using the keyboard on the

remote, enter your network’s

name (SSID), then highlight

Connect and press OK.

3. Using the keyboard on the

remote, enter your network’s

password, then highlight

Connect and press OK.

4. Press the EXIT button on the

remote.

Help

VIZIO

Network

Sleep

Timer

InputCC

ABC

Audio

Wide

Normal


Settings

PanoramicWideZoom

2D 3DExit

ENTER ACCESS POINT NAME

Enter your access point name. This

is used to connect to an access

point with a hidden SSID.

a b c d e f g h i

j k l m n o p q r

s t u v w x y z 0

1 2 3 4 5 6 7 8 9

.@# .com Space

Connect

Testing Your Network Connection

To test your network connection:

1. From the NETWORK menu, highlight Test Connection and

press OK.

2. The TEST CONNECTION screen displays the connection

method, network name, signal strength, and download

speed of your network connection.

3. Press the EXIT button on the remote.

äêí

SETTING UP THE TUNER

You can use the TV’s Tuner menu to:

• Select a Tuner Input

• Perform an Auto Channel Scan

• Perform a Partial Channel Scan

• Manually Add Channels

• Select channels to skip

• Select Analog MTS modes

• Select Digital Languages

Help

VIZIO

Network

Sleep

Timer

InputCC

ABC

Audio

Wide

Normal


Settings

PanoramicWideZoom

2D 3DExit

TUNER

Tuner Mode Cable

Auto Channel Scan

Partial Channel Scan

Add Analog Channel

Skip Channel

Analog Audio Stereo

Digital Language English

Help

VIZIO

Network

Sleep

Timer

InputCC

ABC

Audio

Wide

Normal


Settings

PanoramicWideZoom

2D 3DExit

Help

VIZIO

Network

Sleep

Timer

InputCC

ABC

Audio

Wide

Normal


Settings

PanoramicWideZoom

2D 3DExit

CHANNEL SCAN

Channels Found

Digital: 0

Analog: 19

18% Complete

Cancel

Cancel the channel scan.

Selecting a Tuner Input

Select the type of tuner input you will be using. You can select either

Antenna (Over-the-air) or Cable (Out-of-the-wall) connections.

1. From the TUNER menu, highlight Tuner Mode and press OK.

The TUNER MODE menu displays.

2. Highlight Antenna or Cable and press OK. Press EXIT.

Scanning for Channels

The TV may need to scan for channels before it can display

programs and their associated information. A channel scan is

required for free over-the-air channels (using an antenna) and

cable channels from an out-of-the-wall connection (without a

cable box). Moving the TV to an area with different channels

requires the TV to scan for channels again.

To perform an Auto Channel Scan:

1. From the TUNER menu, highlight

Auto Channel Scan, and press

OK. The auto channel scan

begins.

2. Wait until the channel scan is

100% complete. Highlight Done

and press OK.

3. Press the EXIT button on the

remote.

If the channel scan is cancelled,

the channels that were already

discovered are retained. A new

channel scan will clear all channels.

Adding New Channels

Occasionally, you may need to add a new range of channels or

add a new analog channel. You can do this by using the Partial

Channel Scan and Add Analog Channel options. This is quicker

than scanning all possible channels.

To add a range of new channels:

1. From the TUNER menu, highlight Partial Channel Scan, and

press OK. The PARTIAL CHANNEL SCAN menu is displayed.

2. Highlight Scan Mode and select the type of channel you

are adding: Analog, Digital, or Analog/Digital.

3. Highlight From Channel and enter the channel where

you want to begin the scan. (Use the Left Arrow button to

backspace. Use the Number Pad on the remote to enter the

channel.)

4. Highlight To Channel and enter the channel where you want

to end the scan. (Use the Left Arrow button to backspace.

Use the Number Pad on the remote to enter the channel.)

5. Highlight Start and press OK. The partial channel search

begins.

6. Wait until the partial channel search is 100% complete.

Highlight Done and press OK.

7. Press the EXIT button on the remote.

To add a single new analog channel:

1. From the TUNER menu, highlight

Add Analog Channel and

press OK. The ADD ANALOG

CHANNEL menu is displayed.

2. Highlight Enter Channel # and

use the Number Pad on the

remote to enter the number of

the channel you are adding.

3. Highlight Add Channel and

press OK. The TV scans for the

channel.

4. When the TV is done scanning

for the channel, press the EXIT

button on the remote.

Help

VIZIO

Network

Sleep

Timer

InputCC

ABC

Audio

Wide

Normal


Settings

PanoramicWideZoom

2D 3DExit

ADD ANALOG CHANNEL

Enter Channel #

Add Channel

Skipping Channels

After a channel scan is completed, you may ﬁnd that some

channels are too weak to watch comfortably. There may also be

some channels you do not want to view. You can remove these

channels from the TV’s memory with the Skip Channel feature.

Channels that have been removed with the Skip

Channel feature can still be viewed if the channel

is entered using the Number Pad. If you wish to

completely block a channel from being viewed, use

the parental controls. See

Locking and Unlocking

Channels

on page 37.

To remove a channel:

1. From the TUNER menu, highlight

Skip Channel, and press OK.

The SKIP CHANNEL menu is

displayed.

2. For each channel you wish

to remove, use the Up/Down

Arrow buttons on the remote

to highlight the channel and

press OK. A P appears to the

right of each channel you

select.

3. When you have selected all

of the channels you wish to

remove, press the EXIT button

on the remote.

Help

VIZIO

Network

Sleep

Timer

InputCC

ABC

Audio

Wide

Normal


Settings

PanoramicWideZoom

2D 3DExit

SKIP CHANNEL

1Test 0

1Test 1 P

1-2 Test 2 P

2Test 3

2-2 Test 4 P

2-3 Test 5

LISTENING TO ALTERNATE AUDIO

Changing the Analog Audio Language

Some analog over-the-air (free) and cable channels broadcast

programs in more than one language. The TV’s Analog Audio

feature allows you to listen to audio in an alternate language

using Secondary Audio Programming (SAP).

Not all programs are broadcast in SAP. The Analog

Audio Language feature only works when the

program being viewed is being broadcast with

Secondary Audio Programming.

To use the Analog Audio feature:

1. From the TUNER menu, highlight

Analog Audio and press OK.

The ANALOG AUDIO menu is

displayed.

2. Select Stereo, SAP (secondary

audio programming), or Mono.

Press OK.

3. Press the EXIT button on the

remote.

Help

VIZIO

Network

Sleep

Timer

InputCC

ABC

Audio

Wide

Normal


Settings

PanoramicWideZoom

2D 3DExit

ANALOG AUDIO

Stereo

SAP

Mono

Changing the Digital Audio Language

Some digital over-the-air (free) and cable channels broadcast

programs in more than one language. The TV’s Digital Audio

feature allows you to listen to audio in alternate languages.

Not all programs are broadcast in alternate

languages. The Digital Audio Language feature only

works when the program being viewed is being

broadcast in the language you select.

1. From the TUNER menu, highlight

Digital Language and press

OK. The DIGITAL LANGUAGE

menu is displayed.

2. Select your preferred language:

English, Español, or Français .

Press OK.

3. Press the EXIT button on the

remote.

Help

VIZIO

Network

Sleep

Timer

InputCC

ABC

Audio

Wide

Normal


Settings

PanoramicWideZoom

2D 3DExit

DIGITAL LANGUAGE

English

Español

Français

SETTING UP CLOSED CAPTIONING

Your TV can display closed captions for programs that include

them. Closed captions display a transcription of a program’s

dialogue.

To activate or deactivate closed captions:

1. Press the MENU button on the

remote. The on-screen menu is

displayed.

2. Use the Arrow buttons on the

remote to highlight Closed

Captions and press OK. The

CLOSED CAPTIONS menu is

displayed.

3. Use the Arrow buttons on the

remote to highlight Closed

Captions and then use the

Left/Right Arrow buttons to

select On or Off.

4. Use the Arrow buttons on

the remote to highlight either

Analog or Digital Closed

Captions.

5. Use the Left/Right Arrow

buttons on the remote to select

the caption channel you wish

to display, then press EXIT.

If the program you are viewing is not being

broadcast with closed captions, the TV will not

display them.

Help

VIZIO

Network

Sleep

Timer

InputCC

ABC

Audio

Wide

Normal


Settings

PanoramicWideZoom

2D 3DExit

CLOSED CAPTIONS

Closed Captions Off

Analog Closed Captions CC1

Digital Closed Captions CS1

Digital Style As Broadcast

The Closed Captions menu does not appear when

an HDMI input is selected.

Changing the Appearance of Digital Closed Captions

Digital closed captions can be displayed according to your

preference. See the diagram on the next page for an explanation

of the parts of the closed caption area.

To change the appearance of digital closed captions:

1. From the CLOSED CAPTIONS

menu, use the Arrow buttons

to highlight Digital Style and

press OK.

2. Use the Left/Right Arrow

buttons on the remote to select

Custom. The DIGITAL STYLE

menu appears as shown.

3. Use the Up/Down Arrow

buttons on the remote to

highlight the setting you wish

to change, then use the Left/

Right Arrow buttons to change

the setting:

• Caption Style - Choose

As Broadcast to keep

default settings or Custom

to manually change each

setting.

• Text Style - Change the

font used for the closed

captioning text.

• Text Size - Make the text larger or smaller.

• Text Color - Change the color of the text.

• Text Opacity - Change the transparency of the text.

• Text Edges - Change the effects at the edges of the text,

such as raising the edges or adding drop shadows.

• Text Edges Color - Change the color of the text edge

effects.

Help

VIZIO

Network

Sleep

Timer

InputCC

ABC

Audio

Wide

Normal


Settings

PanoramicWideZoom

2D 3DExit

DIGITAL STYLE

Caption Style Custom

Text Style As Broadcast

Text Size Large

Text Color Green

Text Opacity As Broadcast

Text Edges As Broadcast

Text Edges Color As Broadcast

Background Color Black

Background Opacity As Broadcast

Window Color Red

Window Opacity As Broadcast

• Background Color - Change the color of the

background directly behind the text.

• Background Opacity - Change the transparency of the

background directly behind the text.

• Window Color - Change the color of the closed

captioning box.

• Window Opacity - Change the opacity of the closed

captioning box.

4. When you are satisﬁed with the appearance of the closed

captions, press the EXIT button on the remote.

Typical choices include:

• Opaque background, transparent window—Only a strip

of background appears behind the text, expanding as

the text appears. This is the typical "As Broadcast" mode.

• Opaque background and window in the same color—

When text appears, the entire line ﬁlls with color at once.

In the example below, the closed caption text is green, the

background is black, and the window is red.

CLOSED CAPTIONS SCREEN LAYOUT

Text

Window

Background

CLOSED CAPTION TEXT SAMPLE

RENAMING DEVICES ON THE INPUT MENU

You can rename the inputs to make them easier to recognize on

the Input menu. For example, if you have a DVD player connected

to the Component input, you can rename that input to display

“DVD Player.” See

Changing the Input Source on page 17

To change the name of an input:

1. Press the MENU button on the remote. The on-screen menu is

displayed.

2. Use the Arrow buttons on the remote to highlight Devices

and press OK. The DEVICES menu is displayed.

3. Highlight the input device that you want to rename and

press OK.

4. Highlight Name Input and press OK.

5. To use a preset input name:

a. Highlight the Input Port row and press OK.

b. Highlight the input name you want to use and press OK.

—or—

To enter a custom name:

a. Enter your custom label using the keyboard on the

remote.

b. Highlight OK and press OK.

c. The Input Name changes to show the custom name that

you created.

6. When you have ﬁnished naming your input, press the EXIT

button on the remote.

Help

VIZIO

Network

Sleep

Timer

InputCC

ABC

Audio

Wide

Normal


Settings

PanoramicWideZoom

2D 3DExit

NAME INPUT

HDMI-1 DVD

DVD_

Cancel

Select the input name from a list

of common device names (Blu-ray,

Cable Box, DVD, etc).

a b c d e f g h i

j k l m n o p q r

s t u v w x y z 0

123456789

.@# .com Space

Input Port

Custom Name

Input Name

äêí

CHANGING THE TV SETTINGS

Using the System menu, you can:

• View system information

• Change the on-screen

menu language

• Set time zone and local

settings

• Set up parental controls

• Resize the video size

• Adjust wide mode

• Adjust the CEC settings

• Adjust when the power

indicator is illuminated

• Reset the TV settings & set

up administrative controls

Help

VIZIO

Network

Sleep

Timer

InputCC

ABC

Audio

Wide

Normal


Settings

PanoramicWideZoom

2D 3DExit

SYSTEM

System Information

Menu Language English

Time & Local Settings

Parental Controls

View Mode Overlay

Wide

TV Name VIZIOTV

CEC

Power Indicator Off

Reset & Admin

View status information for the TV,

current input and your network.

Viewing System Information

To view a summary of the TV settings:

1. Press the MENU button on the remote. The on-screen menu is

displayed.

2. Use the Arrow buttons on the remote to highlight System

and press OK. The SYSTEM menu is displayed.

3. Highlight System Information and press OK.

4. Use the Up/Down Arrow buttons to scroll through the system

information.

5. When you are ﬁnished reviewing the system information,

press the EXIT button on the remote.

Changing the On-Screen Menu Language

Your TV can display the on-screen menu in different languages.

To change the on-screen menu language:

1. Press the MENU button on the

remote. The on-screen menu is

displayed.

2. Use the Arrow buttons on the

remote to highlight System and

press OK. The SYSTEM menu is

displayed.

3. Use the Arrow buttons on the

remote to highlight Menu

Language and press OK. The

MENU LANGUAGE menu is

displayed.

4. Highlight your preferred

language (English, Español, o r

Français) and press OK.

5. Press the EXIT button on the

remote.

Help

VIZIO

Network

Sleep

Timer

InputCC

ABC

Audio

Wide

Normal


Settings

PanoramicWideZoom

2D 3DExit

MENU LANGUAGE

English

Español

Français

Enabling or Disabling Program Ratings

To manage program content according to its rating, you must

enable the Program Rating feature.

To enable or disable the Program Rating feature:

1. From the PARENTAL CONTROLS menu, highlight Locks and

press OK. The LOCKS menu is displayed.

2. Select On or Off and press OK.

Locking and Unlocking Channels

When a channel is locked, it will be inaccessible. Locking

a channel is a good way to prevent children from viewing

inappropriate material.

To lock or unlock a channel:

1. From the PARENTAL CONTROLS menu, highlight Channel

Locks and press OK. The CHANNEL LOCKS menu is displayed.

2. Highlight the channel you want to lock or unlock and press

OK.

3. When a channel is locked, the Lock icon appears locked.

The channel is not accessible unless the parental PIN is

entered.

4. When a channel is unlocked, the Lock icon appears

unlocked. The channel is accessible.

Using the Parental Controls

The TV’s parental controls allow you to prevent the TV from

displaying certain channels or programs without a password.

The Parental Controls menu only appears when:

• You are using the tuner to receive your TV signals, such as

when you are using an antenna for Over-the-Air signals

or when connected to cable TV directly from the wall (no

cable box).

• You have a device connected using a composite video

cable or a coaxial cable, such as a VCR, satellite or

cable box, or DVR.

Accessing the Parental Controls Menu

To access the Parental Controls menu:

1. Press the MENU button on the remote. The on-screen menu is

displayed.

2. Use the Arrow buttons on the remote to highlight System

and press OK. The SYSTEM menu is displayed.

3. Use the Arrow buttons on the remote to highlight Parental

Controls and press OK.

4. Enter your parental PIN. If you have not set a PIN, enter the

default, 0000. The PARENTAL CONTROLS menu is displayed.

To set a custom parental passcode, see

Changing

the Parental Control PIN

on page 38.

Setting the Time and Local Settings

To ensure the correct time is displayed when you press the INFO

button, set the TV’s time zone:

1. Press the MENU button on the

remote. The on-screen menu is

displayed.

2. Use the Arrow buttons on the

remote to highlight Time &

Local Settings and press OK.

The menu headed by the local

date and time is displayed.

3. Highlight Time Zone and press

OK. The TIME ZONE menu is

displayed.

4. Highlight your time zone and press OK.

5. Highlight Daylight Saving Time and press OK. The DAYLIGHT

SAVING TIME menu is displayed. Choose On if your locale

observes daylight savings time, Off if it does not, or Auto

to have the system automatically detect Daylight Savings

Settings.

6. If you are in the United States, highlight Zip Code. Enter your

Zip code using the keypad on the remote, then press OK. Zip

codes are often used by V.I.A. Plus Apps to give you the most

accurate location-based information, such as weather or

news.

7. Highlight Country and press OK. The COUNTRY menu is

displayed.

8. Highlight your country and press OK.

9. Press the EXIT button on the remote.

Help

VIZIO

Network

Sleep

Timer

InputCC

ABC

Audio

Wide

Normal


Settings

PanoramicWideZoom

2D 3DExit

TIME ZONE

Hawaii (-10)

Alaska (-9)

Paciﬁc (-8)

Mountain (-7)

Arizona (-7)

Central (-6)

Indiana (-5)

Eastern (-5)

Atlantic (-4)

Newfoundland (-3.5)

-3

Resetting the Content Locks

To reset the content locks to the factory-default settings:

1. From the PARENTAL CONTROLS menu, highlight RESET LOCKS

and press OK. The TV displays, “Are you sure you want to

RESET ALL LOCKS SETTINGS to the factory defaults?”

2. Highlight Yes and press OK.

Changing the Parental Control PIN

If you use the parental controls, you should change the PIN to

prevent children from accessing inappropriate material.

To change the parental control PIN:

1. From the PARENTAL CONTROLS menu, highlight Change PIN

and press OK. The CHANGE PIN menu is displayed.

2. In the New PIN ﬁeld, use the Number Pad on the remote to

enter your new 4-digit parental control PIN.

3. In the Conﬁrm PIN ﬁeld, use the Number Pad on the remote

to re-enter your new 4-digit parental control PIN.

4. Write down your new parental control PIN and save it in a

secure location.

5. Press the EXIT button on the remote.

Blocking and Unblocking Content by Rating

A channel may sometimes broadcast programs that are meant

for children, and at other times broadcast programs that are

meant for mature audiences. You may not want to block the

channel completely using a channel lock, but you may wish to

block certain programs from being viewed.

When this is the case, you can use the TV’s Rating Block feature

to block content based on its rating.

For a list of content ratings and their deﬁnitions, visit

www.tvguidelines.org.

To block or unblock content by its rating:

1. From the PARENTAL CONTROLS menu, highlight the content

type you want to adjust and press OK:

USA TV - USA television program broadcasts.

USA Movie - USA movie broadcasts.

Canadian English - Canadian English television program

broadcasts.

Canadian French - Canadian French television program

broadcasts.

2. For each rating type you want to block or unblock, use the

Up/Down and Left/Right Arrow buttons on the remote to

highlight the rating type and press OK.

3. When the rating type is blocked, the Lock icon appears

locked. Content with this rating and all higher ratings

cannot be viewed.

4. When the rating type is unblocked, the Lock icon appears

unlocked. Content with this rating and all lower ratings can

be viewed.

If you want to block all unrated content, highlight Block

Unrated Shows and use the Arrow buttons on the remote to

select On.

5. When you are ﬁnished adjusting the rating level blocks, press

the EXIT button on the remote.

Changing the View Mode Settings

You can resize the video content to ﬁt while the menu is open.

To change the on-screen menu language:

1. Press the MENU button on the

remote. The on-screen menu is

displayed.

2. Use the Arrow buttons on the

remote to highlight System and

press OK. The SYSTEM menu is

displayed.

3. Use the Arrow buttons on the

remote to highlight View Mode

and press OK. The VIEW MODE

menu is displayed.

4. Highlight your Viewport,

Overlay, or Centered Overlay

and press OK.

• Viewport - The entire picture

is visible in the space to the

right of the menu.

• Overlay - The left-hand

portion of the picture

covered by the menu.

• Centered Overlay - The picture extends off of the right

side of the screen.

5. Press the EXIT button on the remote. See

Viewing Video

with the Menu Open

on page 18 for an alternate way of

resizing the video content.

Help

VIZIO

Network

Sleep

Timer

InputCC

ABC

Audio

Wide

Normal


Settings

PanoramicWideZoom

2D 3DExit

VIEW MODE

Viewport

Overlay

Centered Overlay

Adjusting the Wide Mode (Aspect Ratio)

The TV can display images in ﬁve different modes: Normal,

Stretch, Panoramic, Wide, and Zoom. Each mode displays the

picture differently. See

Changing the Screen Aspect Ratio on

page 18

for an alternate way of adjusting the Wide Mode.

To change the screen aspect ratio from the SYSTEM menu:

1. Press the MENU button on the remote. The on-screen menu is

displayed.

2. Use the Arrow buttons on the remote to highlight System

and press OK. The SYSTEM menu is displayed.

3. Highlight Wide and press

OK. Use the Arrow buttons to

highlight the aspect ratio you

wish to view and press OK.

• Normal preserves the content’s

original aspect ratio. Since the

4:3 aspect ratio is not large

enough to ﬁll the TV’s screen,

black bars are added to the left

and right of the display image.

• Stretch expands the display image to ﬁll the screen. Images

may appear wider than intended. If you are watching

widescreen (1.85:1 or 2.35:1) content, black bars will still

appear on the top and bottom of the display image. This

option is only available when the TV is displaying a

720p/1080i source.

• Panoramic expands the display image to ﬁll the screen.

Images may appear wider than intended. If you are

watching widescreen (1.85:1 or 2.35:1) content, black

bars will still appear on the top and bottom of the display

image. This option is only available when the TV is

displaying a 480i/480p source.

• Wide stretches a 4:3 aspect ratio picture to the edges of

the screen. Since the picture is being stretched, the display

image may appear distorted. If the program is already

formatted for widescreen viewing (1.85:1 or 2.35:1), then

black bars will appear on the top and bottom of the

display image.

• Zoom expands images with black bars to ﬁt the screen.

Panoramic

Wide

Zoom

Normal

Changing your TV Name

Enter a custom DNLA name for your TV (Up to 10 characters long)

To create a custom name for your TV:

1. Press the MENU button on the

remote. The on-screen menu is

displayed.

2. Use the Arrow buttons on the

remote to highlight System and

press OK. The SYSTEM menu is

displayed.

3. Use the Arrow buttons on the

remote to highlight TV Name

and press OK. The TV NAME

menu is displayed.

4. Use either the onscreen

keyboard or keyboard on your

remote control to enter a name

for your TV (Name can be up to

10 characters long).

When you are ﬁnished,

highlight OK and press the OK

button.

5. Press the EXIT button on the remote.

Stretch

Wide

Zoom

Normal

Note: Aspect ratio settings may

vary by Input source.

Help

VIZIO

Network

Sleep

Timer

InputCC

ABC

Audio

Wide

Normal


Settings

PanoramicWideZoom

2D 3DExit

TV NAME

VIZIOTV_

Cancel

a b c d e f g h i

j k l m n o p q r

s t u v w x y z 0

1 2 3 4 5 6 7 8 9

.@# .com Space

äêí

Turning the Power Indicator On or Off

The Power Indicator on the front of your TV normally does not

glow when the TV is on. You can change this setting if you prefer

the light to be on.

To turn the Power Indicator Light on or off:

1. Press the MENU button on the remote. The on-screen menu is

displayed.

2. Use the Arrow buttons on the remote to highlight System

and press OK. The SYSTEM menu is displayed.

3. Highlight Power Indicator and press OK.

4. Use the Up/Down Arrow buttons to select On or Off, then

press OK.

Adjusting the CEC Settings

The CEC function on your TV enables you to control

HDMI-connected devices with the included remote without any

additional programming.

Not all HDMI devices support CEC. See your device’s

user manual for details.

To enable, disable, or adjust CEC settings:

1. Press the MENU button on the remote. The on-screen menu is

displayed.

2. Use the Arrow buttons on the remote to highlight System

and press OK. The SYSTEM menu is displayed.

3. Use the Arrow buttons on the remote to highlight CEC and

press OK. The CEC menu is displayed.

4. Use the Arrow and OK buttons to adjust each setting:

• CEC - Select Enable to use the TV remote to control CEC

devices connected to HDMI. Select ARC for plug and

play of an audio device connected to the HDMI ARC

input. The ARC setting does not support video devices

connected to the audio device (Select Enable to enable

support for these devices).

Select Disable to turn CEC on/off.

• Device Discovery - Use this function to determine if your

device is connected and supports CEC.

5. Press the EXIT button on the remote.

5. If you have changed the default parental control PIN, enter it

now.

The TV displays, “Select Reset to restore all TV settings to

factory defaults and clear all account information.”

6. Highlight Reset and press OK.

7. Wait for the TV to turn off. The TV will turn back on shortly

afterward and the Setup App will begin.

USING THE RESET & ADMIN MENU

You can use the TV’s Reset & Admin menu to restore the TV to its

factory default settings.

Restoring the TV to Factory Default Settings

All of the on-screen menu settings can be reset to the factory

defaults.

If you restore the TV to the factory default settings, all

changes you have made to the settings will be lost!

This includes any V.I.A. Plus Apps that you have

added and any changes you have made to the

settings for those Apps.

To restore the TV to its factory default settings:

1. Press the MENU button on the

remote. The on-screen menu is

displayed.

2. Use the Arrow buttons on the

remote to highlight System and

press OK. The SYSTEM menu is

displayed.

3. Highlight Reset & Admin and

press OK. The RESET & ADMIN

menu is displayed.

4. Highlight Reset TV to Factory

Defaults and press OK.

Help

VIZIO

Network

Sleep

Timer

InputCC

ABC

Audio

Wide

Normal


Settings

PanoramicWideZoom

2D 3DExit

RESET & ADMIN

Reset TV to Factory Defaults

VIZIO Privacy Policy

Smart Interactivity On

Store Demo

USING THE GUIDED SETUP MENU

Using Guided Setup

The TV’s Setup App can be used to easily set up the TV tuner,

remote control, and connected devices, or to connect the TV

with your network.

To use guided setup:

1. Press the MENU button on the

remote. The on-screen menu is

displayed.

2. Highlight Guided Setup and

press OK.

3. Highlight the guided setup you

want to use and press OK:

• Tuner Setup - Set up the TV

tuner.

• Network Setup - Connect

the TV to the Internet using

your network.

4. Follow the on-screen

instructions. When ﬁnished,

press the EXIT button on the

remote.

Help

VIZIO

Network

Sleep

Timer

InputCC

ABC

Audio

Wide

Normal


Settings

PanoramicWideZoom

2D 3DExit

GUIDED SETUP

Tuner Setup

Network Setup

USING THE INFO WINDOW

The Info Window can be displayed by pressing the INFO or GUIDE

button on the remote:

• Press the INFO or GUIDE button one time to display

channel, input, and display information.

• Press the INFO or GUIDE button two times to display the

program title, program rating, audio information, and the

start and end times of the program.

DIGITAL EPISODE GUIDE & INFO WINDOW

Oliver’s Holiday Surprise

1080p 6:15pm

11:00AM - 12:00PM

TV-PG-V Dolby D Stereo

Oliver wakes up one morning only to discover that his pals are missing. In this

hour-long holiday special, Oliver goes on a journey in search of his pals. Who

knows what he’ll encounter on the way?

Program Description

Program Title/Rating Information

Network/Display Information

28-1

KCET-HD Normal

Channel/Input Information

5Using the USB Media Player

USING THE USB MEDIA PLAYER

The USB Media Player allows you to connect a USB thumb drive to

your TV and play music, video, or photos.

Preparing Your USB Drive to Play USB Media

To play USB media, you must ﬁrst save your photos onto a USB

thumb drive:

• The USB thumb drive must be formatted as FAT32.

• Files on the USB thumb drive must end in a supported ﬁle

extension (.mp3, .jpg, etc.).

• The player is not designed to play media from external

hard drives, MP3 players, cameras, or smartphones

Playing USB Media

To play your USB media:

1. Connect your USB thumb drive to the USB port on the side of

the TV.

2. Press the V button on the remote.

3. Use the Arrow buttons to highlight the Multimedia app in

the V.I.A. Plus Dock and press OK. (The highlighted App is in

the center of the dock.)

4. Use the Arrow buttons to highlight the USB drive from the list

and press OK.

5. Use the Arrow buttons to highlight the type of media to

display (Music, Video, or Photo) and press OK.

6. Use the Arrow buttons to highlight the ﬁle you want to

display. Press OK. Music or video ﬁles play, photos display.

You can display your photos in fullscreen. Select the

photo, press OK, then highlight Fullscreen and press

OK.

Removing the USB Drive from the TV

Do not remove the USB thumb drive while the TV is

on. Doing so may damage the drive.

To safely remove your USB drive from the TV:

1. Turn off the TV.

2. Disconnect your USB thumb drive from the USB port on the

side of the TV.

Browse Photos

Artist A-Z

View:

Sort:

Music

MyFlashDrive\Audio\root\My Music

USB1: MyFlashDrive

My Music

Page 1 of 1

VIZIO

Album Art

If included on the

USB thumb drive and

associated with your music,

the album art will display

here.

Progress Bar

Displays the duration of the current-

ly-playing song. The blue bar will

lengthen as the song progresses.

Page Information

If your USB thumb drive has more

ﬁles than can be displayed on a

single screen, the page information

is displayed here.

Now Playing Information

Displays song title, album title, and artist name.

Connected

Sources

Displays

connected USB

devices.

Current Folder

Playback Controls

Use to control audio

playback. Highlight Play/

Pause, Previous, or Next

and press OK.

Toggle Music/Photos

Toggle between

viewing all content

and only viewing

folders.

MUSIC PLAYER

All

Sort by Album/Artist/

Track

Fab Apple Dream

On January Mix Comp

By Oliver

5:50 8:46

Track Album Artist Duration#

Seminal Summer January Mix Comp JCheesy 2:421

Downspin JCheesy 6:202

Fab Apple Dream Oliver 8:463

Man of the Year The Dash 4:214

Maximal Smooth Rio Steve 7:585

January Mix Comp

Back Button

Highlight this button

and press OK to return

to the previous screen.

Folder Contents/

Playlist

This area displays

the contents of the

currently selected

folder. You can browse

ﬁles and folders

using the Arrow and

OK buttons on the

remote.

Date New-Old

View:

Sort:

Video

MyFlashDrive\Video\root\My Videos

USB1: MyFlashDrive

My Videos

Page 1 of 1

VIZIO

Page Information

If your USB thumb drive has more

ﬁles than can be displayed on a

single screen, the page information

is displayed here.

Connected

Sources

Displays

connected USB

devices.

Current Folder

View All or

View Folders

VIDEO PLAYER

Folders

File Date Duration#

Family Vacation - California -00:23:431

26th Birthday Party -00:38:182

Summer 2012 -00:41:083

Greatest Trip Ever -00:05:324

Folder Contents/

Playlist

This area displays

the contents of the

currently selected

folder. You can

browse among ﬁles

using the Arrow and

OK buttons on the

remote.

Back Button

Highlight this button

and press OK to return

to the previous screen.

Sort by Date

or File Name

Start Slideshow

Name A-Z

Thumbnails

Settings

View:

Sort:

Photo VIZIO_2GB\Photo\root

File Name: D 1920x1080

Resolution: 1920x1080

Size: 1607270KB

USB1:


root B.jpg C.jpg

D.jpg E.jpg F.jpg

G.jpg H.jpg I.jpg

Page 1 of 1

VIZIO

Current Folder

Displays the folder path.

Back Button

Highlight and press OK to return to left column.

Connected

Sources

Displays

connected USB

devices.

Current Folder

View Thumbnails/Folders

Adjust Slideshow Settings

Start Fullscreen

Slideshow

PHOTO VIEWER

Browse Music

View Music Files

Back Button

Highlight this button

and press OK to return

to the previous screen.

Folder Contents

This area displays the

contents of the currently

selected folder. You can

browse ﬁles and folders

using the Arrow and OK

buttons on the remote.

Page Information

If your USB thumb drive has more

ﬁles than can be displayed on a

single screen, the page information

is displayed here.

Photo Information

Displays the name,

resolution, and ﬁle

size of the selected

photo.

Sort by Date

or File Name

6Using VIZIO Internet Apps Plus® (V.I.A. Plus)

VIZIO Internet Apps Plus® (V.I.A. Plus) delivers popular online

content to your TV. V.I.A. Plus features a selection of Apps that

allow you to watch movies and TV shows, listen to music, get

weather and news information, and more–all on demand.

A high-speed Internet connection is required to receive

product updates and to access online content.

See

Using the Network Connection Menu on page 28

if your TV

is not yet connected to your home network.

USING THE V.I.A. PLUS APP DOCK

The V.I.A. Plus App Dock is where all of your V.I.A. Apps are accessed.

To launch an App from the Dock:

1. Press the V Button on the remote.

2. Highlight a V.I.A. Plus App by

scrolling left and right using the

Left/Right Arrow buttons on the

remote. (The highlighted App is

in the center of the dock.)

3. Press the OK button on the

remote to launch the App.

V Button

Note: App location, appearance, and availability subject to change without notice.

My Apps Tab

Displays the apps

installed on your TV.

Installed Apps

The Apps displayed

here are also

available in the V.I.A.

Plus App Dock.

Note: App location, appearance, and availability subject to change without notice.

App Store Tabs

Browse through

Apps on these tabs

to run them and

add them to your

My Apps tab.

USING THE FULLSCREEN V.I.A. APPS WINDOW

The Fullscreen V.I.A. Plus Apps window allows you to add and

store Apps. The Apps on the ﬁrst page are displayed in the Dock

and Apps on additional pages can be moved to the Dock.

To open the Fullscreen V.I.A. Plus Apps Window:

1. Press the V Button on the remote twice.

2. Highlight an App by using the Arrow buttons on the remote.

3. Press the OK button on the remote to launch the App.

4. To exit from an open App or to close the App Dock, press the

Exit button on the remote.

FULLSCREEN V.I.A. PLUS APPS WINDOW OVERVIEW

The Fullscreen V.I.A. Plus Apps Window allows you to add, delete

and organize your Apps. The My Apps tab displays Apps that

are already installed on your TV. The Apps on the ﬁrst page are

displayed in the V.I.A. Plus App Dock.

The following tabs are located at the top of your Fullscreen V.I.A.

Plus Apps Window:

• My Apps: Displays apps that are installed on your TV.

• Featured: Displays apps that are recommended by Yahoo!

• Latest: Displays apps that were most recently added to

the library of apps.

• All Apps: Displays every app that is available for download.

• Categories: Displays apps sorted into categories:

Spotlight, Yahoo!, Weather, News and Finance, Movies

and TV, Photos and Video, Sports, Music, Social,

Information, Fun and Games, Shopping, and Local TV.

• Settings ( ): Displays App software information and

development settings.

Apps with a small lock icon in the right-hand corner

cannot be deleted.

You can also preview Apps without installing them.

Simply highlight the App you wish to preview and press

OK to open it.

Note: App location, appearance, and availability subject to change without notice.

CUSTOMIZING THE V.I.A. PLUS APPS WINDOW

You can add, delete, and move apps around on your My Apps

tab for a custom look and feel.

Adding an App to the My Apps Tab

To add an app to your TV:

1. Use the Arrow buttons on the remote to highlight one of the

App Store tabs (Featured, Latest, All Apps, or Categories).

1. Use the Arrow buttons to highlight the app you wish to add.

2. Press and hold the OK button until [

App Name

]

has been

added to your My Apps list

appears.

Once the app has been installed, a star appears in the top

right-hand corner of the app icon as shown below.

Moving an App in My Apps

You can organize your Apps on your My Apps tab by moving

them where you want.

To move the Apps on your My Apps tab:

1. Use the Arrow buttons on the remote to highlight the app

you wish to move.

2. Press and hold the OK button. The following options appear:

Star

Note: App location, appearance, and availability subject to change without notice.

Deleting an App from the My Apps Tab

To delete an app from your TV:

1. Use the Arrow buttons on the remote to highlight the App

you wish to delete.

2. Press and hold the OK button. The following options appear:

3. Press OK to delete the app. The following dialog box appears:

4. Use the Left/Right Arrow buttons to select Delete and press OK.

The App is removed from your My Apps tab.

Note: App location, appearance, and availability subject to change without notice.

Only the Apps on the ﬁrst page appear in the Dock.

3. Use the Arrow buttons to move the app to the desired

location and press OK to place the app.When you can

move the app, it appears as shown below.

Note: App location, appearance, and availability subject to change without notice.

Cursor showing the location that

the app will move to

ATroubleshooting & Technical Support

Find help with:

• New Product Setup

• Connecting Your Devices

• Technical Problems

• Product Updates

• And More

You can also contact our

award-winning support team at:

Phone:

Email:

(877) 878-4946 (TOLL-FREE)

techsupport@VIZIO.com

Hours Of Operation:

Monday - Friday: 7 am to 11 pm (CSt)

Saturday - Sunday: 9 am to 6 pm (CSt)

Live Chat

Support Available

Do You Have Questions? Find Answers At

SUPPORT.VIZIO.COM

Take A Moment To Register Your Product At

VIZIO.COM/PRODUCT-REGISTRATION

Customized Support

Get assistance quickly with your information on-hand.

News & Offers

Take advantage of the latest news and special offers from VIZIO.

Safety & Satisfaction

Stay up to date with important product updates and notifications.

Why Register?

The remote is not responding.

• Make sure the batteries are properly inserted matching

the - and + symbols.

• Replace the batteries with fresh ones.

The TV displays “No Signal.”

• Press the INPUT button on the remote control to select a

different input source.

• If you are using cable TV or antenna connected directly

to the TV, scan for channels. See

Scanning for Channels

on page 30

There is no power.

• Ensure the TV is plugged into a working electrical outlet.

• Ensure the power cable is securely attached to the TV.

• Press the Power/Standby button on the remote or on

the back of the TV to turn the TV on.

The power is on, but there is no image on the screen.

• Ensure all cables are securely attached to the TV.

• Ensure all devices are connected correctly. Devices

differ; see your device’s user manual for details.

• Adjust Brightness, Contrast, or Backlight. See

Adjusting

the Picture Settings on page 19

• Press the INPUT button on the remote to select a

different input source.

There is no sound.

• Press Volume Up on the remote control.

• Press the MUTE button on the remote to ensure mute is off.

• Check the audio settings. See

Adjusting the Audio

Settings on page 25.

• Check the audio connections of external devices

(Blu-ray player, game console, cable/satellite box) that

are connected to the TV.

• If you are using an antenna, the signal strength of the

channel may be low. Ensure your antenna is connected

securely to the TV and move the antenna around the

room or close to a window for the best signal.

The sound is ﬂat or dialog is not audible.

• Turn off Sound Leveling. See

Adjusting the Audio

Settings on page 25

The colors on the TV don’t look right.

• Adjust the Color and Tint settings in the Picture menu.

See

Adjusting the Picture Settings on page 19

• Select a pre-set picture mode. See

Adjusting the Picture

Settings on page 19

. VIZIO recommends selecting

Calibrated.

• Check all cables to ensure they are securely attached.

The buttons on the remote aren’t working.

• Ensure you are only pressing one button at a time.

• Point the remote directly at the TV when pressing a button.

• Replace the remote batteries with new ones. See

Replacing the Batteries on page 7.

The image quality is not good.

• For the best image quality, view high-deﬁnition

programs using digital sources. Connect your devices

with HDMI cables.

• If you are using an antenna, the signal strength of the

channel may be low. Ensure your antenna is connected

securely to the TV and move the antenna around the

room or close to a window for the best signal.

The picture is distorted.

• Move the TV away from electrical appliances, cars, and

ﬂuorescent lights.

• Ensure all cables are securely attached.

The display image does not cover the entire screen.

• If you are using TV, AV, or Component with 480i input,

press the button on the remote to change the

screen mode.

The TV has pixels (dots) that are always dark or always lit.

• Your HDTV is precision-manufactured using an extremely

high level of technology. However, sometimes pixels may

not display correctly. These types of occurrences are

inherent to this type of product and do not constitute a

defective product.

I see “noise” or static on the screen.

• When your TV’s digital capabilities exceed a

digital broadcast signal, the signal is up-converted

(improved) to match your TV’s display capabilities. This

up-converting can sometimes cause irregularities in the

image.

• If you are using an antenna, the signal strength of the

channel may be low. Ensure your antenna is connected

securely to the TV and move the antenna around the

room or close to a window for the best signal.

When I change input source, the volume changes.

• The TV remembers the volume level on each input

source. If the volume level on the new input source is

higher or lower than the level on the source you switch

from, the difference may be noticeable.

• Use the Volume Up/Down buttons on the remote to

adjust the volume.

When I change input source, the display image changes size.

• The TV remembers the viewing mode on each input

source. If the viewing mode on the new input source

differs from the one on the input source you switch from,

the difference may be noticeable.

• See

Changing the Screen Aspect Ratio on page 18.

BSpeciﬁcations

M502i-B1

Screen Size: 50"

Viewable Area: 49.50"

Dimensions w/ Stand:

w/o Stand:

44.13” x 27.71” x 9.93”

44.13” x 25.86” x 2.07”

Weight w/ Stand:

w/o Stand:

37.92 lbs

34.17 lbs

LCD Backlight: Full-Array LED

Active LED Zones: 32 Zones

Refresh Rate: 240 Hz Effective Refresh Rate

Maximum Resolution: 1920 x 1080 (1080p)

Clear Action: 720

Dynamic Contrast Ratio: 20,000,000:1

Pixel Pitch: .570 mm (H) x .570 mm (V)

Viewing Angle: 176° (H) / 176° (V)

HDMI Inputs: 4

Component Video Inputs: 1

Composite Inputs: 1 (Shared with Component)

RF Antenna Input: 1

USB 2.0 Ports: 1

Ethernet: 1

Audio Outputs: RCA Analog Stereo Output, Optical Digital

OSD Language: English, French, Spanish

Ambient Light Sensor: Yes

M502i-B1

Remote Control Model: XRT500

Certiﬁcations: UL/CUL, FCC Class B, HDMI 1.4b, Dolby Digital Plus

Compliance: Energy Star

Voltage Range: 120V @ 60 Hz

Power Consumption: 74W

Standby Power: <1W

Zero Bright Pixel Guarantee: Yes

CWarranty

ON PARTS AND LABOR

Covers units purchased as new in United States and

Puerto Rico Only. VIZIO provides a warranty to the original

purchaser of a new Product against defects in materials and

workmanship for a period of one (1) year of non-commercial

usage and ninety (90) days of commercial use. If a Product

covered by this warranty is determined to be defective

within the warranty period, VIZIO will either repair or replace

the Product at its sole option and discretion.

To obtain warranty service, contact VIZIO Technical Support

via e-mail: TechSupport@VIZIO.com or via phone at 877

MY VIZIO (877.698.4946) from 5:00AM to 9:00PM Monday

through Friday and 8:00AM to 4:00PM Saturday and Sunday,

Paciﬁc Time, or visit www.VIZIO.com. PRE-AUTHORIZATION

MUST BE OBTAINED BEFORE SENDING ANY PRODUCT TO A

VIZIO SERVICE CENTER. Proof of purchase in the form of a

purchase receipt or copy thereof is required to show that a

Product is within the warranty period.

Parts and Labor

There will be no charge for parts or labor during the

warranty period. Replacement parts and Products may

be new or recertiﬁed at VIZIO’s option and sole discretion.

Replacement parts and Products are warranted for the

remaining portion of the original warranty or for ninety (90)

days from warranty service or replacement, whichever is

greater.

Type of Service

Defective Products must be sent to a VIZIO service center

to obtain warranty service. VIZIO is not responsible for

transportation costs to the service center, but VIZIO will

cover return shipping to the customer. PRE-AUTHORIZATION

IS REQUIRED BEFORE SENDING ANY PRODUCT TO A VIZIO

SERVICE CENTER FOR WARRANTY SERVICE.

Product returns to VIZIO’s service centers must utilize either

the original carton box and shipping material or packaging

that affords an equal degree of protection. VIZIO Technical

Support will provide instructions for packing and shipping

the covered Product to the VIZIO service center.

Limitations and Exclusions

VIZIO’s one-year limited warranty only covers defects in

materials and workmanship. This warranty does not cover,

for example: cosmetic damage, normal wear and tear,

improper operation, improper voltage supply or power

surges, signal issues, damages from shipping, acts of God,

any type of customer misuse, modiﬁcations or adjustments,

as well as installation and set-up issues or any repairs

attempted by anyone other than by a VIZIO authorized

service center. Products with unreadable or removed serial

numbers, or requiring routine maintenance are not covered.

This one year limited warranty does not cover Products

sold “AS IS”, “FACTORY RECERTIFIED”, or by a non-authorized

reseller.

THERE ARE NO EXPRESS WARRANTIES OTHER THAN THOSE

LISTED OR DESCRIBED ABOVE. ANY IMPLIED WARRANTIES,

INCLUDING ANY IMPLIED WARRANTY OF MERCHANTABILITY

AND FITNESS FOR A PARTICULAR PURPOSE, SHALL BE LIMITED IN

DURATION TO THE PERIOD OF TIME SET FORTH ABOVE. VIZIO’S

TOTAL LIABILITY FOR ANY AND ALL LOSSES AND DAMAGES

RESULTING FROM ANY CAUSE WHATSOEVER INCLUDING

VIZIO’S NEGLIGENCE, ALLEGED DAMAGE, OR DEFECTIVE

GOODS, WHETHER SUCH DEFECTS ARE DISCOVERABLE OR

LATENT, SHALL IN NO EVENT EXCEED THE PURCHASE PRICE OF

THE PRODUCT. VIZIO SHALL NOT BE RESPONSIBLE FOR LOSS OF

USE, LOSS OF INFORMATION OR DATA, COMMERCIAL LOSS,

LOST REVENUE OR LOST PROFITS, OR OTHER INCIDENTAL OR

CONSEQUENTIAL DAMAGES. SOME STATES DO NOT ALLOW

LIMITATIONS ON HOW LONG AN IMPLIED WARRANTY LASTS

OR THE EXCLUSION OF INCIDENTAL OR CONSEQUENTIAL

DAMAGES, SO THE ABOVE LIMITATIONS OR EXCLUSIONS MAY

NOT APPLY TO YOU. THIS WARRANTY GIVES YOU SPECIFIC LEGAL

RIGHTS, AND YOU MAY ALSO HAVE OTHER RIGHTS, WHICH

VARY FROM STATE TO STATE. THIS WARRANTY IS SUBJECT TO

CHANGE WITHOUT NOTICE.

CHECK WWW.VIZIO.COM FOR THE MOST CURRENT VERSION.

Personal Data

If your VIZIO product is capable of storing personal data

and other information, ALL CONTENTS AND INFORMATION

WILL BE DELETED IN THE COURSE OF SOME IN-HOME AND ALL

SHIP-IN WARRANTY SERVICE. If this occurs, your product will

be restored to you conﬁgured as originally purchased. You

will be responsible for restoring all applicable data and

passwords. Recovery and reinstallation of user data is not

covered under this Limited Warranty. In order to protect your

personal information, VIZIO recommends that you always

clear all personal information from the unit before it is

serviced, regardless of the servicer.

Zero Bright Pixel Defect Guarantee

This policy covers “zero bright pixel” defects for the duration

of the limited “ONE YEAR WARRANTY” on select new product

purchases. To determine if this guarantee applies to your

product, refer to the “DETAILS” tab of the model’s product

information page (www.VIZIO.com) or look for the “zero

bright pixel” guarantee on the box.

DLegal & Compliance

FCC Class B Radio Interference Statement

NOTE: This equipment has been tested and found to comply with the limits

for a Class B digital device, pursuant to Part 15 of the FCC Rules. These

limits are designed to provide reasonable protection against harmful

interference in a residential installation. This equipment generates, uses

and can radiate radio frequency energy, and if not installed and used in

accordance with the instructions, may cause harmful interference to radio

communications. However, there is no guarantee that interference will not

occur in a particular installation. If this equipment does cause harmful

interference to radio or television reception, which can be determined by

turning the equipment off and on, the user is encouraged to try to correct

the interference by one or more of the following measures:

1. Reorient or relocate the receiving antenna.

2. Increase the separation between the equipment and receiver.

3. Connect the equipment into an outlet on a circuit different from

that to which the receiver is connected.

4. Consult the dealer or an experienced radio/TV technician for

help.

This device complies with Part 15 of the FCC Rules. Operation is subject

to the following two conditions: (1) this device may not cause harmful

interference, and (2) this device must accept any interference received,

including interference that may cause undesired operation.

Notice

1. The changes or modiﬁcations not expressly approved by the party

responsible for compliance could void the user’s authority to

operate the equipment.

2. Shielded interface cables and AC power cord, if any, must be used

in order to comply with the emission limits.

3. The manufacturer is not responsible for any radio or TV

interference caused by unauthorized modiﬁcation to this

equipment. It is the responsibilities of the user to correct such

interference.

FCC warning

Changes or modiﬁcations not expressly approved by the party responsible

for compliance with the FCC Rules could void the user’s authority to operate

this equipment.

Caution

Always use an AC/DC power adapter that is properly grounded. Use the AC

cords listed below for each area.

USA: UL

Canada: CSA

Germany: VDE

UK: BASE/BS

Japan: Electric Appliance Control Act

Open Source Software Notice

Your VIA device may contain GPL executables and LGPL libraries that are

subject to the PL2.0/LGPL2.1 License Agreements. VIZIO offers to provide

source code to you on CD-ROM for a processing fee covering the cost

of performing such distribution, such as the cost of media, shipping and

handling upon request made to VIZIO at www.VIZIO.com.

This offer is valid for a period of three (3) years from the date of the

distribution of this VIA device by VIZIO.

You can obtain a copy of the GPL, LGPL licenses from:

http://www.gnu.org/licenses/old-licenses/gpl-2.0.html

and

http://www.gnu.org/licenses/oldlicenses/lgpl-2.1.html

You can also obtain a copy of gSOAP public license from:

http://www.cs.fsu.edu/~engelen/license.html

Please visit www.VIZIO.com for attribution of copyrights to any open source

software on your VIZIO VIA device.

Permission is hereby granted, free of charge, to any person obtaining a

copy of any such software and associated documentation ﬁles (the “Open

Source Software”), to deal in the Open Source Software without restriction,

including without limitation the rights to use, copy, modify, merge, publish,

distribute, sublicense, and/or sell copies of the Open Source Software, and

to permit persons to whom the Open Source Software is furnished to do so,

subject to the following conditions:

THE SOFTWARE IS PROVIDED “AS IS”, WITHOUT WARRANTY OF ANY KIND,

EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO THE WARRANTIES OF

MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE AND NONINFRINGE-

MENT. IN NO EVENT SHALL THE AUTHORS OR COPYRIGHT HOLDERS BE LIABLE

FOR ANY CLAIM, DAMAGES OR OTHER LIABILITY, WHETHER IN AN ACTION OF

CONTRACT, TORT OR OTHERWISE, ARISING FROM, OUT OF OR IN CONNECTION

WITH THE SOFTWARE OR THE USE OR OTHER DEALINGS IN THE SOFTWARE.

VIZIO Internet Applications Disclaimer

VIZIO Internet Applications (“VIA”) affords the opportunity to access third

party Internet product offerings or services (“VIA Services”) on certain VIZIO

TVs. The VIA Services accessible herein are provided as per our agreement

with these third parties. These agreements are subject to change,

interruption, suspension (including termination) at any time and for various

reasons. VIZIO makes no warranties or representations that any particular

VIA Service will be accessible, available, function in any particular manner

or function at all.

To use these VIA Services, you must obtain access to the Internet, either

directly or through devices that access the Internet and pay any service fees

associated with such access. In addition, you must provide all equipment

necessary to make such connection to the Internet including a modem or

other Internet access device.

VIZIO or said third parties providing VIA Services reserve the right to delete

data from their servers, or prevent access to their servers or to change data

categories, product offerings or service levels for any reason that VIZIO or

said third parties deem sufﬁcient in their sole discretion at any time, without

notice. Some or all of the data or functionality of VIA Services may require

additional payment by you. However, in no event will you be charged

for any VIA Services unless those charges are made available to you in

advance. VIZIO makes no warranties or representations of any kind as to the

accuracy, currency, or completeness of any information contained on the

data servers of such third party providers of any VIA Services. Furthermore,

we do not review, control, or endorse the content, products or services of

VIA Services or their data servers.

Your rights to use the widget links to access VIA Services is governed by

the VIZIO Internet Applications Software License Agreement (“VIA Software

License Agreement”), the terms of which are available in your Product

Guide, all of which are incorporated herein by this reference. In the event

of a conﬂict between this VIZIO Internet Applications Disclaimer and the

VIA Software License Agreement, the VIA Software License Agreement shall

control.

VIZIO INTERNET APPLICATIONS SOFTWARE LICENSE AGREEMENT

THE FOLLOWING AGREEMENT EXPLAINS HOW YOU MAY USE THE VIZIO INTERNET

APPLICATIONS (“VIA”) TO ACCESS THIRD PARTY INTERNET PRODUCT OFFERINGS

AND SERVICES (“VIA SERVICES”) AND THE VIZIO SOFTWARE INSTALLED ON

YOUR VIZIO HD TV. BY USING THE VIZIO INTERNET APPLICATIONS, YOU CONSENT

AND AGREE TO BE BOUND BY ALL OF THE TERMS AND CONDITIONS BELOW

AND YOU MAY, SUBJECT TO THOSE TERMS AND CONDITIONS, USE THE VIZIO

SOFTWARE AND ACCESS THE VIA SERVICES.

VIZIO SOFTWARE LICENSE AGREEMENT

The following terms and conditions govern the use of any software on your

VIZIO HD TV:

1. General. The software, documentation and any fonts accompanying

this License Agreement whether on disk, in read only memory, on any

other media or in any other form (collectively the “VIZIO Software”) are

licensed, not sold, to you by VIZIO, Inc. (“VIZIO”) for use only under the

terms of this License Agreement, and VIZIO reserves all rights not expressly

granted to you. The rights granted herein are limited to VIZIO’s and its third

party licensors’ intellectual property rights in the VIZIO Software and do

not include any other patents or intellectual property rights. You own the

media on which the VIZIO Software is recorded or resides but VIZIO and/or

its licensor(s) retain ownership of the VIZIO Software itself. The terms of this

License Agreement will govern any software upgrades provided or made

available by or through VIZIO that replace and/or supplement the original

VIZIO Software, unless such upgrade is accompanied by a separate license

in which case the terms of that license will govern.

2. Permitted Uses and Restrictions. This License Agreement allows you to

use the VIZIO Software and, through functions solely found within the VIZIO

HD TV, this Agreement also allows you to install upgrades thereto. The VIZIO

Software may be used to access VIA Services and view materials so long

as such use is limited to materials in which you are authorized or legally

permitted to view. You may not make the VIZIO Software or VIA Services

available over a network or where it could be used by multiple televisions

at the same time. Except as and only to the extent expressly permitted in

this License Agreement or by applicable law, you may not copy, decompile,

reverse engineer, disassemble, modify, or create derivative works of the

VIZIO Software or any part thereof. THE VIZIO SOFTWARE AND VIA SERVICES

ARE NOT INTENDED FOR USE IN ANY EQUIPMENT OR ENVIRONMENT IN WHICH

THE FAILURE OF THE VIZIO SOFTWARE OR VIA SERVICES COULD LEAD TO DEATH,

PERSONAL INJURY, OR SEVERE PHYSICAL OR ENVIRONMENTAL DAMAGE.

3. Transfer. You may not rent, lease, lend, redistribute or sublicense the VIZIO

Software or access to the VIA Services. You may, however, make a one-time

permanent transfer of all of your license rights to the VIZIO Software to

another party, provided that: (a) the transfer must include the VIZIO HD TV,

including all its component parts, original media, printed materials and this

License Agreement; (b) you do not retain any copies of the VIZIO Software,

full or partial, including copies stored on a computer or other storage device;

and (c) the party receiving the VIZIO HD TV and VIZIO Software reads and

agrees to accept the terms and conditions of this License Agreement.

4. Consent to Use of Collected Data. You agree that VIZIO and its third party

providers of VIA Services may collect and use technical, non-technical and

related information, including but not limited to information about your

use of the VIZIO Software, the VIA Services, content viewed and attached

peripherals, products or services purchased, that is gathered periodically

to facilitate the provision of software updates, product support and other

services to you, including additional or different VIA Services related to

the VIZIO Software and to verify compliance with the terms of this License

Agreement. VIZIO and its third party providers of VIA Services and/or other

providers may use this information, as long as it is in a form that does not

personally identify you, to improve our products or to provide services or

technologies to you.

5. VIA Services and other Services. The VIZIO software affords the opportunity

to access third party Internet product offerings or services (“VIA Services”).

The VIA Services accessible herein are provided as per our agreement with

certain third parties. These agreements are subject to change, interruption,

suspension, removal (including termination) at any time and for various

reasons. Moreover, VIZIO or its third party providers of VIA Services reserve the

right to delete data from their servers, or prevent access to their servers or to

change data categories, product offerings or service levels for any reason

that VIZIO or said third parties deem sufﬁcient in their sole discretion at any

time, without notice. VIZIO may also impose additional or different limits on

the use of or access to certain VIA Services, in any case and without notice

or liability. VIZIO makes no warranties or representations that any particular

VIA Service will be accessible, available, function in any particular manner

or function at all.

Use of the VIA Services may require you to accept additional terms of

service or end user license agreements which will be presented to you

before you can use such Services. Some or all of the data, functionality of

VIA Services may require additional payment by you. However, in no event

will you be charged for any VIA Services unless those charges are made

available to you in advance.

6. Disclaimer as to Content on VIA Services. Certain VIA Services may include

materials from third parties or links to certain third party data servers. You

acknowledge and agree that VIZIO is not responsible for examining or

evaluating the content or accuracy of any VIA Services, their data servers

or related third-party materials. VIZIO does not warrant or endorse and does

not assume and will not have any liability or responsibility for any third-party

materials or websites, or for any other materials, products, or services of

third parties. Links to VIA Services and any associated links to other data

servers are provided solely as a convenience to you. To the extent provided,

content types or descriptions of VIA Services provided for convenience,

and you acknowledge and agree that VIZIO does not guarantee their

accuracy. You understand that by using any of the VIA Services, you may

encounter content that may be deemed offensive,

indecent, or objectionable, which content may or may not be identiﬁed as

having explicit language. Nevertheless, you agree to use the VIA Services

at your sole risk and that VIZIO shall have no liability to you for content that

may be found to be offensive, indecent, or objectionable.

You agree that you will not use any third-party materials in a manner that

would infringe or violate the rights of any other party, and that VIZIO is not

in any way responsible for any such use by you.

7. Internet Access Required. To use these VIA Services, you must obtain

access to the Internet, either directly or through devices that access the

Internet and pay any service fees associated with such access. In addition,

you must provide all equipment necessary to make such connection to the

Internet including a modem or other Internet access device.

8. Upgrades, Support. VIZIO or its third party providers may elect, but shall be

under no obligation, to provide you with customer support and/or software

upgrades, enhancements, or modiﬁcations to the VIZIO Software or VIA

Services (collectively, “Support”), in its sole discretion, and may terminate

such Support at any time without notice to you. VIZIO and its third party

providers reserve the right to charge you for any Support it provides but will

make a schedule of those charges available to you prior to your incurring

any costs.

9. Termination. This License is effective until terminated. Your rights under this

License will terminate automatically without notice from VIZIO if you fail to

comply with any term(s) of this License Agreement. Upon the termination

of this License Agreement, you shall cease all use of the VIZIO Software and

VIA Services.

10. Limited Warranty on VIZIO Media. VIZIO warrants the media on which the

VIZIO Software is recorded and delivered by VIZIO to be free from defects

in materials and workmanship under normal use for a period of ninety

(90) days from the date of original retail purchase. Your exclusive remedy

under this Section shall be, at VIZIO’s option, a refund of the purchase price

of the product containing the VIZIO Software or replacement of the VIZIO

Software which is returned to VIZIO or a VIZIO authorized representative with

a copy of the receipt. THIS LIMITED WARRANTY AND ANY IMPLIED WARRANTIES

ON THE MEDIA INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES

OF MERCHANTABILITY, OF SATISFACTORY QUALITY, AND OF FITNESS FOR A

PARTICULAR PURPOSE, ARE LIMITED IN DURATION TO NINETY (90) DAYS FROM

THE DATE OF ORIGINAL RETAIL PURCHASE. SOME JURISDICTIONS DO NOT

ALLOW LIMITATIONS ON HOW LONG AN IMPLIED WARRANTY LASTS, SO THE

ABOVE LIMITATION MAY NOT APPLY TO YOU. THE LIMITED WARRANTY SET FORTH

HEREIN IS THE ONLY WARRANTY MADE TO YOU AND IS PROVIDED IN LIEU OF

ANY OTHER WARRANTIES (IF ANY) CREATED BY ANY DOCUMENTATION OR

PACKAGING. THIS LIMITED WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS,

AND YOU MAY ALSO HAVE OTHER RIGHTS WHICH VARY BY JURISDICTION.

11. Disclaimer of Warranties. YOU EXPRESSLY ACKNOWLEDGE AND AGREE

THAT USE OF THE VIZIO SOFTWARE AND VIA SERVICES (AS DEFINED ABOVE) IS

AT YOUR SOLE RISK AND THAT THE ENTIRE RISK AS TO SATISFACTORY QUALITY,

PERFORMANCE, ACCURACY AND EFFORT IS WITH YOU. EXCEPT FOR THE LIMITED

WARRANTY ON MEDIA SET FORTH ABOVE AND TO THE MAXIMUM EXTENT

PERMITTED BY APPLICABLE LAW, THE VIZIO SOFTWARE AND VIA SERVICES

ARE PROVIDED “AS IS”, WITH ALL FAULTS AND WITHOUT WARRANTY OF ANY

KIND, AND VIZIO AND VIZIO’S THIRD PARTY PROVIDERS OF VIA SERVICES AND

THIRD PARTY LICENSORS (COLLECTIVELY REFERRED TO AS “VIZIO” FOR THE

PURPOSES OF SECTIONS 10 AND 11) HEREBY DISCLAIM ALL WARRANTIES AND

CONDITIONS WITH RESPECT TO THE VIZIO SOFTWARE AND SERVICES, EITHER

EXPRESS, IMPLIED OR STATUTORY, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED

WARRANTIES AND/OR CONDITIONS OF MERCHANTABILITY, OF SATISFACTORY

QUALITY, OF FITNESS FOR A PARTICULAR PURPOSE, OF ACCURACY, OF QUIET

ENJOYMENT, AND NON-INFRINGEMENT OF THIRD PARTY RIGHTS. VIZIO DOES

NOT WARRANT AGAINST INTERFERENCE WITH YOUR ENJOYMENT OF THE

VIZIO SOFTWARE OR VIA SERVICES, THAT THE FUNCTIONS CONTAINED IN THE

VIZIO SOFTWARE OR VIA SERVICES WILL MEET YOUR REQUIREMENTS, THAT THE

OPERATION OF THE VIZIO SOFTWARE OR VIA SERVICES WILL BE UNINTERRUPTED

OR ERROR-FREE, OR THAT DEFECTS IN THE VIZIO SOFTWARE OR VIA SERVICES

WILL BE CORRECTED. NO ORAL OR WRITTEN INFORMATION OR ADVICE

GIVEN BY VIZIO OR A VIZIO AUTHORIZED REPRESENTATIVE SHALL CREATE A

WARRANTY. SHOULD THE VIA SOFTWARE OR VIA SERVICES PROVE DEFECTIVE,

YOU ASSUME THE ENTIRE COST OF ALL NECESSARY SERVICING, REPAIR OR

CORRECTION. SOME JURISDICTIONS DO NOT ALLOW THE EXCLUSION OF

IMPLIED WARRANTIES OR LIMITATIONS ON APPLICABLE STATUTORY RIGHTS OF

A CONSUMER, SO THE ABOVE EXCLUSION AND LIMITATIONS MAY NOT APPLY

TO YOU.

12. Limitation of Liability. TO THE EXTENT NOT PROHIBITED BY LAW, IN NO EVENT

SHALL VIZIO BE LIABLE FOR PERSONAL INJURY, OR ANY INCIDENTAL, SPECIAL,

INDIRECT OR CONSEQUENTIAL DAMAGES WHATSOEVER, INCLUDING, WITHOUT

LIMITATION, DAMAGES FOR LOSS OF PROFITS, LOSS OF DATA, BUSINESS

INTERRUPTION OR ANY OTHER COMMERCIAL DAMAGES OR LOSSES, ARISING

OUT OF OR RELATED TO YOUR USE OR INABILITY TO USE THE VIZIO SOFTWARE OR

VIA SERVICES, HOWEVER CAUSED, REGARDLESS OF THE THEORY OF LIABILITY

(CONTRACT, TORT OR OTHERWISE) AND EVEN IF VIZIO HAS BEEN ADVISED OF

THE POSSIBILITY OF SUCH DAMAGES. SOME JURISDICTIONS DO NOT ALLOW

THE LIMITATION OF LIABILITY FOR PERSONAL INJURY, OR OF INCIDENTAL OR

CONSEQUENTIAL DAMAGES, SO THIS LIMITATION MAY NOT APPLY TO YOU.

In no event shall VIZIO’s total liability to you for all damages (other than

as may be required by applicable law in cases involving personal injury)

exceed the amount of twenty ﬁve dollars ($25.00). The foregoing limitations

will apply even if the above stated remedy fails of its essential purpose.

13. Export Control. You may not use or otherwise export or re-export the

VIZIO Software except as authorized by United States law and the laws of

the jurisdiction in which the VIZIO Software was obtained. In particular, but

without limitation, the VIZIO Software may not be exported or re-exported

(a) into any U.S. embargoed countries or (b) to anyone on the U.S. Treasury

Department’s list of Specially Designated Nationals or the U.S. Department

of Commerce Denied Person’s List or Entity List. By using the VIZIO Software,

you represent and warrant that you are not located in any such country

or on any such list. You also agree that you will not use these products for

any purposes prohibited by United States law, including, without limitation,

the development, design, manufacture or production of missiles, or nuclear,

chemical or biological weapons.

14. Controlling Law and Severability. This License Agreement will be

governed by and construed in accordance with the laws of the State of

California, as applied to agreements entered into and to be performed

entirely within California between California residents. This License

Agreement shall not be governed by the United Nations Convention on

Contracts for the International Sale of Goods, the application of which is

expressly excluded. If for any reason a court of competent jurisdiction ﬁnds

any provision, or portion thereof, to be unenforceable, the remainder of this

License Agreement shall continue in full force and effect.

15. Complete Agreement; Governing Language. This License Agreement

constitutes the entire agreement between the parties with respect to the

use of the VIZIO Software licensed hereunder and supersedes all prior or

contemporaneous understandings regarding such subject matter, with

the exception of any additional terms and conditions you are required to

accept if you choose to access VIA Services which will govern your use

of such VIA Services. No amendment to or modiﬁcation of this License

Agreement will be binding unless in writing and signed by VIZIO. Any

translation of this License Agreement is done for local requirements and in

the event of a dispute between the English and any non-English versions,

the English version of this License Agreement shall govern.

Other

Image(s) used under license from Shutterstock.com

140709OC-US-NC

Vizio M502i B1 User Manual To The F647d739 41e7 4dec 8f71 9a6fd44a2802

Navigation menu

Versions of this User Manual:

Views

Navigation
