VIZIO
QUICK
START
GUIDE
FULL USER MANUAL AVAILABLE AT VIZIO.COM
MODEL
nM650VSE
SMART TV
BUILT-IN WIFI
SLIM DESIGN LED
IMPORTANT SAFETY INSTRUCTIONS
h
Your TV is designed and manufactured to operate within defined design limits. Misuse may result in electric shock or fire. To prevent
your TV from being damaged, the following instructions should be observed for the installation, use, and maintenance of your TV.
Read the following safety instructions before operating your TV. Keep these instructions in a safe place for future reference.
To reduce the risk of electric shock or component damage, switch off the power before connecting other components to your TV.
• Read these instructions.
• Keep these instructions.
• Heed all warnings.
• Follow all instructions.
• Do not use this apparatus near water.
• Clean only with a dry cloth.
• Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions.
• Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that
produce heat.
• Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades and a third grounding
prong. The wide blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an
electrician for replacement of the obsolete outlet.
• Protect the power cord from being walked on or pinched, particularly at plugs, convenience receptacles, and the point where
they exit from the apparatus.
• Only use attachments/accessories specified by the manufacturer.
• Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus.
When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over.
• Unplug this apparatus during lightning storms or when unused for long periods of time.
• Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way,
such as when the power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the
apparatus has been exposed to rain or moisture, does not operate normally or has been dropped.
• Unplug the power cord before cleaning your TV.
• When moving your TV from an area of low temperature to an area of high temperature, condensation may form in the housing.
Wait before turning on your TV to avoid causing fire, electric shock, or component damage.
• A distance of at least three feet should be maintained between your TV and any heat source, such as a radiator, heater, oven,
amplifier etc. Do not install your TV close to smoke. Operating your TV close to smoke or moisture may cause fire or electric
shock.
• Slots and openings in the back and bottom of the cabinet are provided for ventilation. To ensure reliable operation of your TV
and to protect it from overheating, be sure these openings are not blocked or covered. Do not place your TV in a bookcase or
cabinet unless proper ventilation is provided.
• Never push any object into the slots and openings on your TV cabinet. Do not place any objects on the top of your TV. Doing so
could short circuit parts causing a fire or electric shock. Never spill liquids on your TV.
• Your TV should be operated only from the type of power source indicated on the label. If you are not sure of the type of power
supplied to your home, consult your dealer or local power company.
• Do not apply pressure or throw objects at your TV. This may compromise the integrity of the display. The manufacturer’s
warranty does not cover user abuse or improper installations.
• The power cord must be replaced when using different voltage than the voltage specified. For more information, contact your
dealer.
• When connected to a power outlet, power is always flowing into your TV. To totally disconnect power, unplug the power cord.
• The lightning flash with arrowhead symbol within an equilateral triangle is intended to alert the user to the presence of
un-isolated, dangerous voltage within the inside of your TV that may be of sufficient magnitude to constitute a risk of electric
shock to persons.
• Do not overload power strips and extension cords. Overloading can result in fire or electric shock.
• The wall socket should be installed near your TV and easily accessible.
• Only power of the marked voltage can be used for your TV. Any other voltage than the specified voltage may cause fire or
electric shock.
• Do not touch the power cord during lightning. To avoid electric shock, avoid handling the power cord during electrical storms.
• Unplug your TV during a lightning storm or when it will not be used for long period of time. This will protect your TV from
damage due to power surges.
• Do not attempt to repair or service your TV yourself. Opening or removing the back cover may expose you to high voltages,
electric shock, and other hazards. If repair is required, contact your dealer and refer all servicing to qualified service personnel.
• WARNING: Keep your TV away from moisture. Do not expose your TV to rain or moisture. If water penetrates into your TV, unplug
the power cord and contact your dealer. Continuous use in this case may result in fire or electric shock.
• Do not use your TV if any abnormality occurs. If any smoke or odor becomes apparent, unplug the power cord and contact your
dealer immediately. Do not try to repair your TV yourself.
• Avoid using dropped or damaged appliances. If your TV is dropped and the housing is damaged, the internal components may
function abnormally. Unplug the power cord immediately and contact your dealer for repair. Continued use of your TV may cause
fire or electric shock.
• Do not install your TV in an area with heavy dust or high humidity. Operating your TV in environments with heavy dust or high
humidity may cause fire or electric shock.
• Follow instructions for moving your TV. Ensure that the power cord and any other cables are unplugged before moving your TV.
• When unplugging your TV, hold the AC/DC power adapter, not the cord. Pulling on the power cord may damage the wires inside
the cord and cause fire or electric shock. When your TV will not be used for an extended period of time, unplug the power cord.
• To reduce risk of electric shock, do not touch the connector with wet hands.
• Insert batteries in accordance with instructions. Incorrect polarities may cause the batteries to leak which can damage the
remote control or injure the operator. Do not expose batteries to excessive heat such as sunshine, fire or the like.
• If any of the following occurs, contact the dealer:
- The power cord fails or frays.
- Liquid sprays or any object drops into your TV.
- Your TV is exposed to rain or other moisture.
- Your TV is dropped or damaged in any way.
- The performance of your TV changes substantially.
• This apparatus shall not be exposed to dripping or splashing and no objects fill with liquids, such as vases, shall be placed on
the apparatus.
• The mains plug or appliance coupler is used as the disconnect device, the disconnect device shall remain readily operable.
• CAUTION - These servicing instructions are for use by qualified service personnel only. To reduce the risk of electric shock, do
not perform any servicing other than that contained in the operating instructions unless you are qualified to do so.
The lightning flash with arrowhead symbol within an equilateral triangle is
intended to alert the user to the presence of uninsulated DANGEROUS VOLTAGE
within the product’s enclosure that may be of sufficient magnitude
to constitute a risk of electrical shock to persons.
The exclamation point within an equilateral triangle is intended to alert the user
to the presence of important operating and maintenance (servicing) instructions
in the literature accompanying the product.
DO YOU HAVE QUESTIONS?
LET US HELP!
YOUR PRODUCT INCLUDES FREE LIFETIME TECH SUPPORT
Phone:
Email:
Web:
(877) 878-4946 (TOLL-FREE)
techsupport@VIZIO.com
www.VIZIO.com/support
Hours of operation:
Monday - Friday: 5
am
TO
9
pm
(pST)
Saturday - Sunday: 8
am
TO
4
pm
(pST)
The VIZIO support team is highly trained
and is based in the United States.
We can help with:
•
New Product Setup
•
Connecting Your Devices
•
Technical Problems
•
And More
We speak English • Se habla Español • Nous parlons Français
HELP VIZIO REDUCE PAPER WASTE.
DOWNLOAD THE FULL USER MANUAL AT
VIZIO.COM/SUPPORT

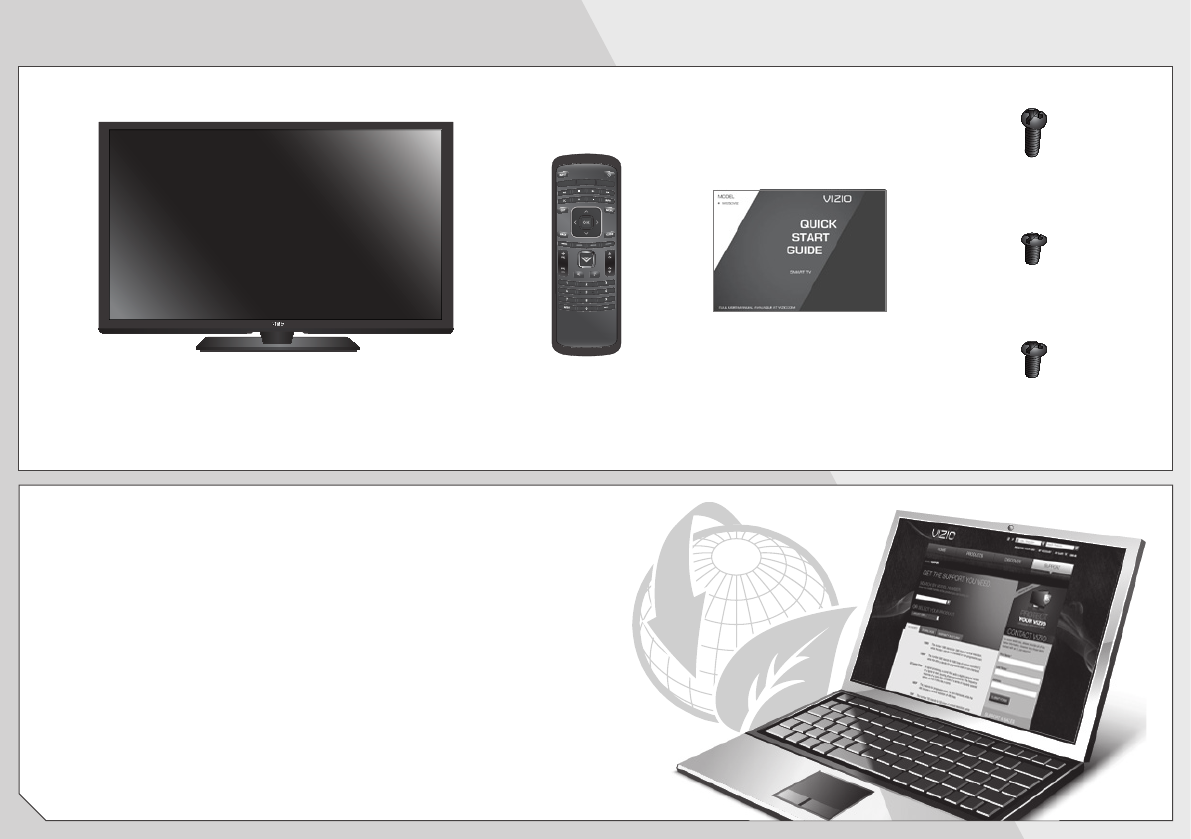

PACKAGE CONTENTS
This Quick Start GuideRemote Control
with Batteries
VIZIO LCD HDTV 4 x M5 8mm
Pan Head Screws
5 x M4 8mm
Flat Head Screws
4 x M5 16mm
Pan Head Screws

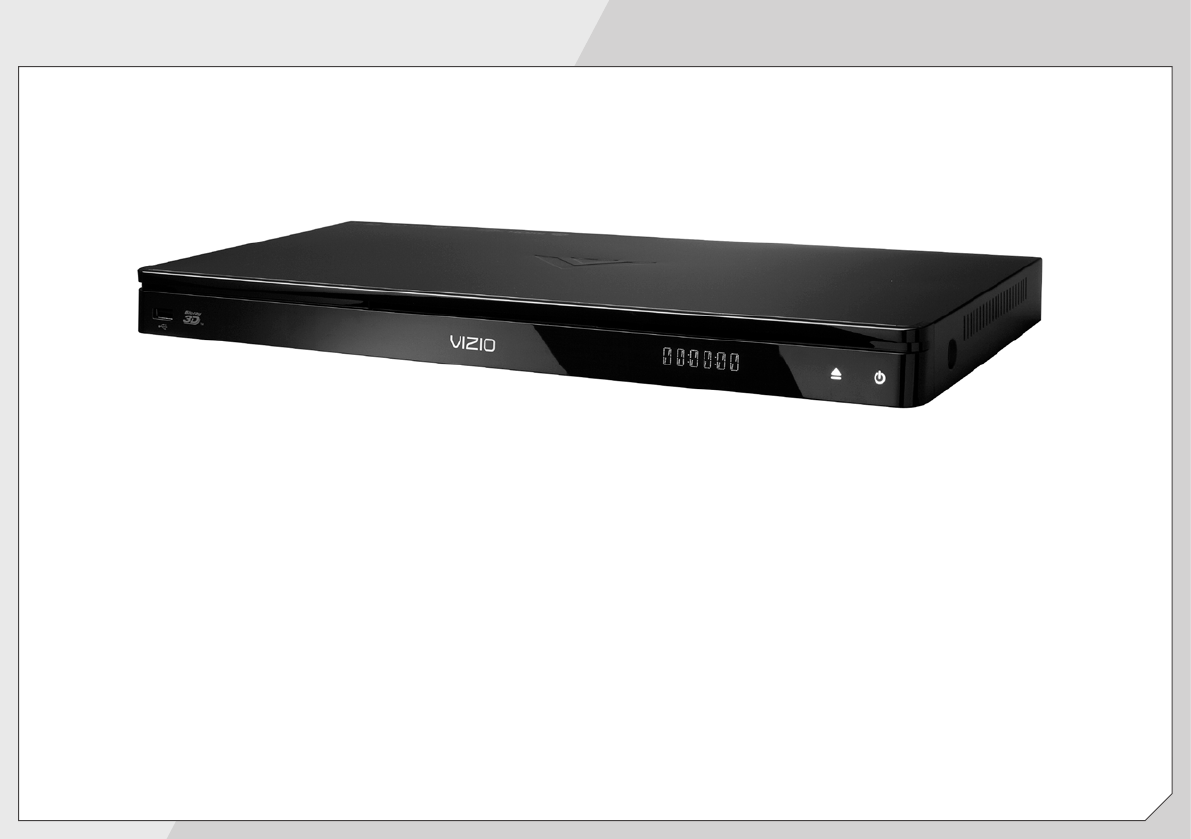

Complete your home theater experience! The VIZIO 3D Blu-ray Player with Wireless Internet Apps delivers full HD
video, 7.1 surround sound and has built-in wireless for easy access to online movies, TV, music and more.
• Exceptional Full HD 1080p performance
• Streams movies, music, and more with VIZIO Wireless Internet Apps
ULTIMATE ENTERTAINMENT
VIZIO RECOMMENDS
Available at www.VIZIO.com
This Product Sold Separately

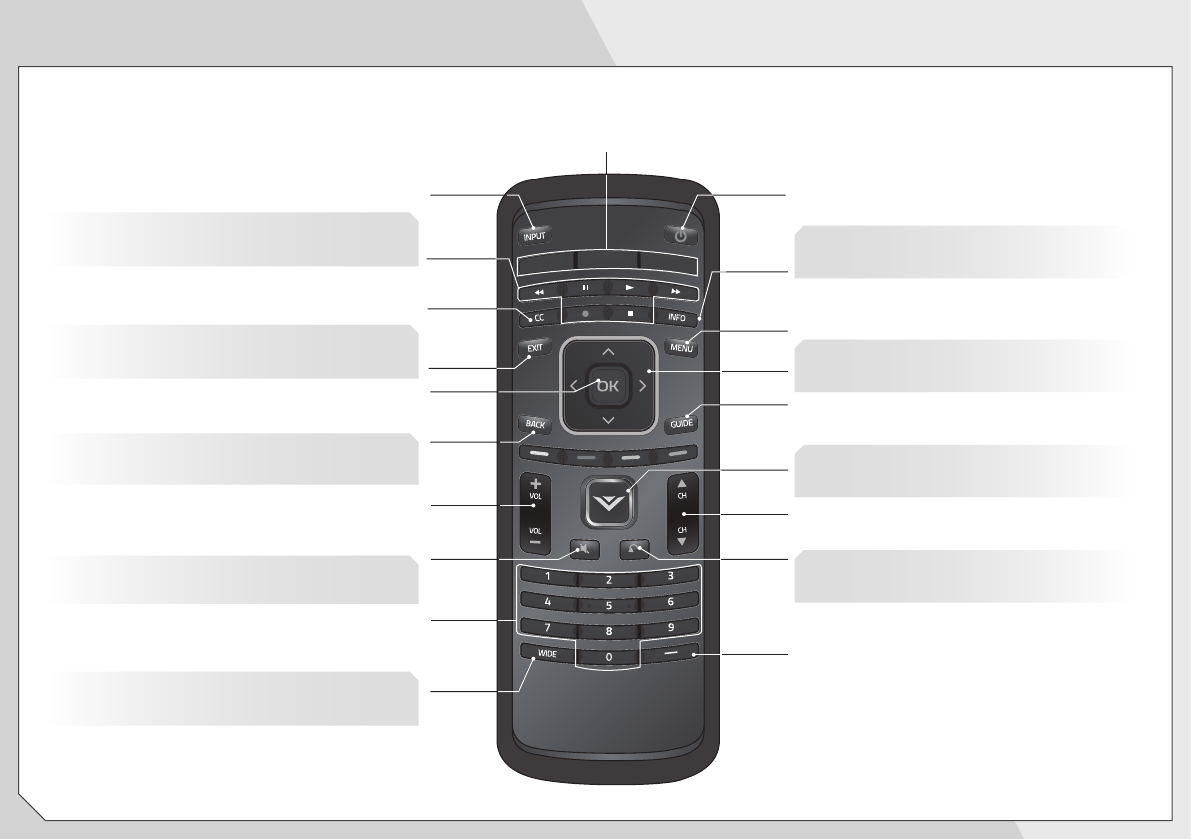

USING THE REMOTE
INPUT
Change the currently-displayed input.
ARROW
Navigate the on-screen menu.
EXIT
Close the on-screen menu.
CLOSED CAPTIONS
Open the closed caption menu.
A/V CONTROLS
Control USB media player.
WIDE
Switch the display mode.
MUTE
Turn the audio off or on.
BACK
Go to the previous on-screen menu.
POWER
Turn TV on or off.
MENU
Display the on-screen menu.
INFO
Display the info window.
DASH
Use with number pad to manually
enter a digital sub-channel. (For
example, 18-4 or 18-5.)
CHANNEL UP/DOWN
Change the channel.
GUIDE
Display the info window.
LAST
Return to the channel last viewed.
NUMBER PAD
Manually enter a channel.
VOLUME UP/DOWN
Increase or decrease loudness
of the audio.
OK
Select the highlighted menu option.

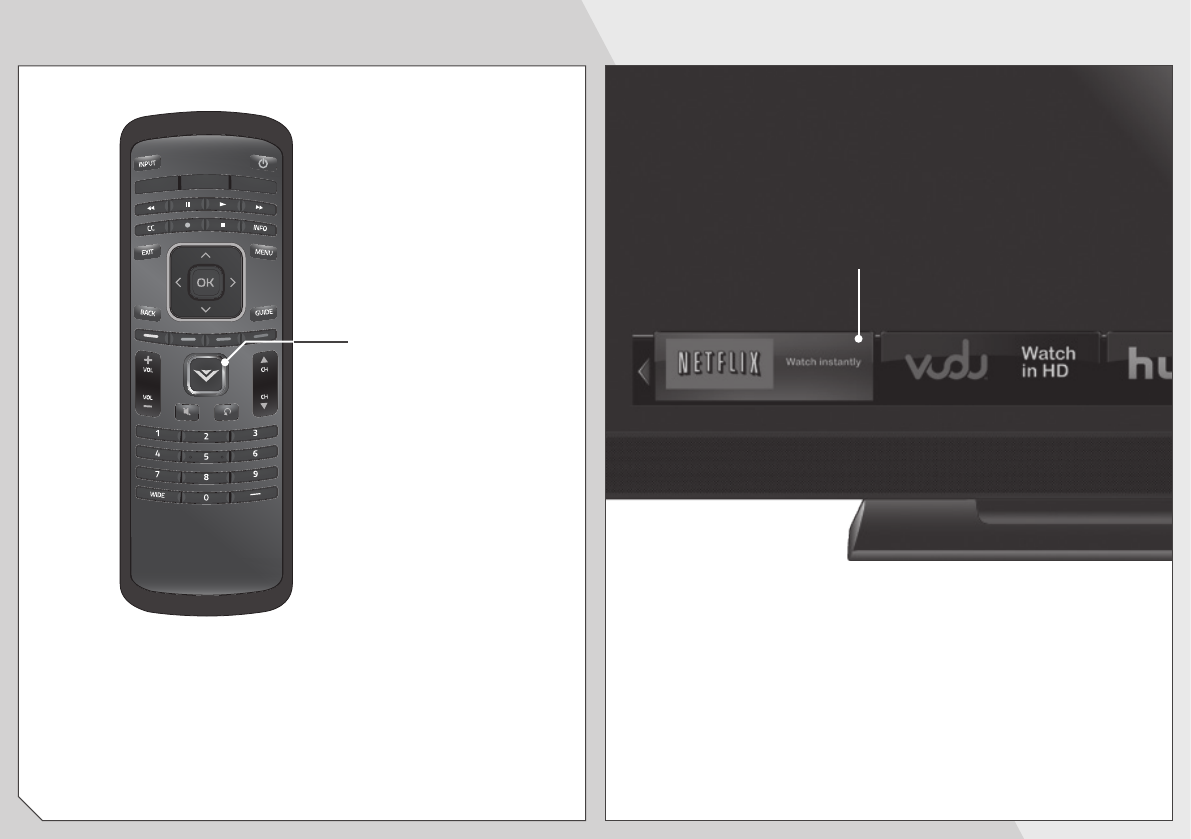

V BUTTON
Open the VIA dock.
APP LAUNCHER
Quickly launch the pictured app.

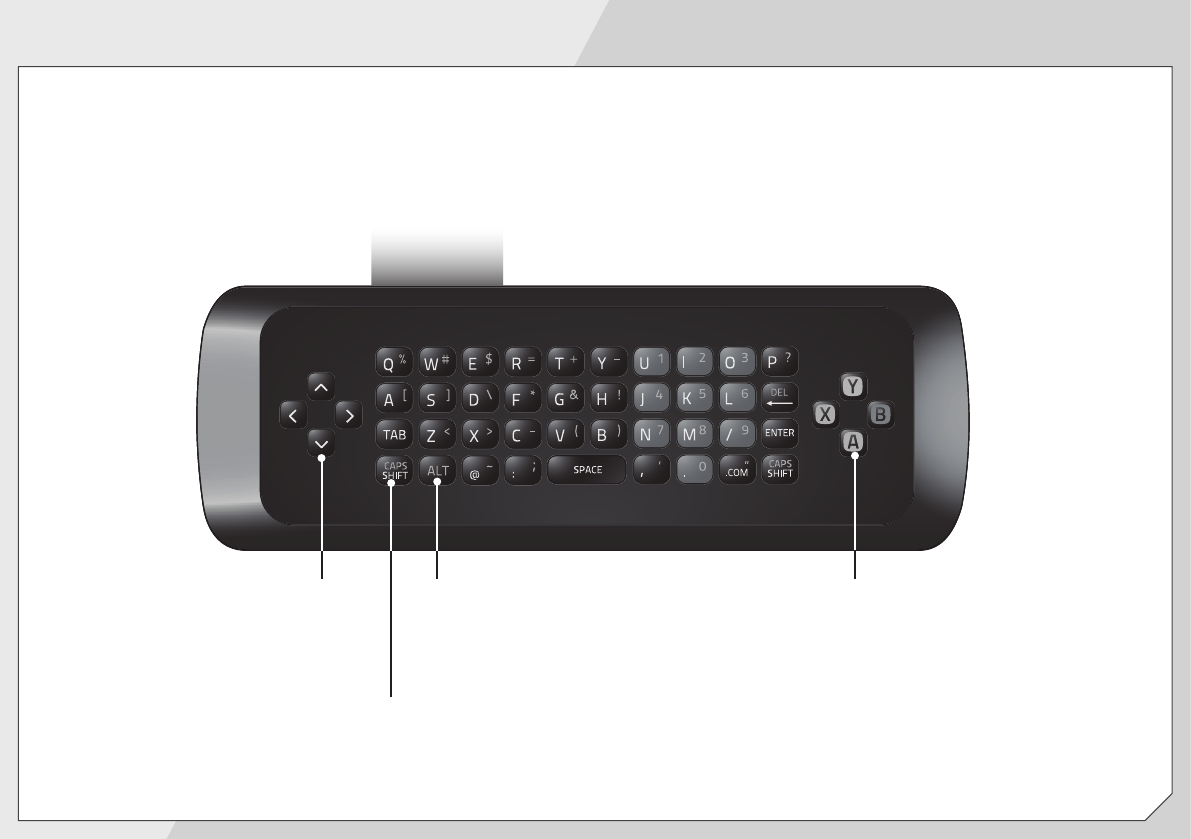

USING THE REMOTE (REAR)
SHIFT
Press and hold while pressing
another key to enter a capital letter.
ALT
Press and hold while pressing another key to
enter a blue character. For example, press
ALT and W to enter a # character.
V.I.A. SHORTCUT BUTTONS
Control VIZIO Internet Apps
DO NOT COVER THIS AREA
This is the transmitter.
ARROW
Use to navigate on-screen menus.

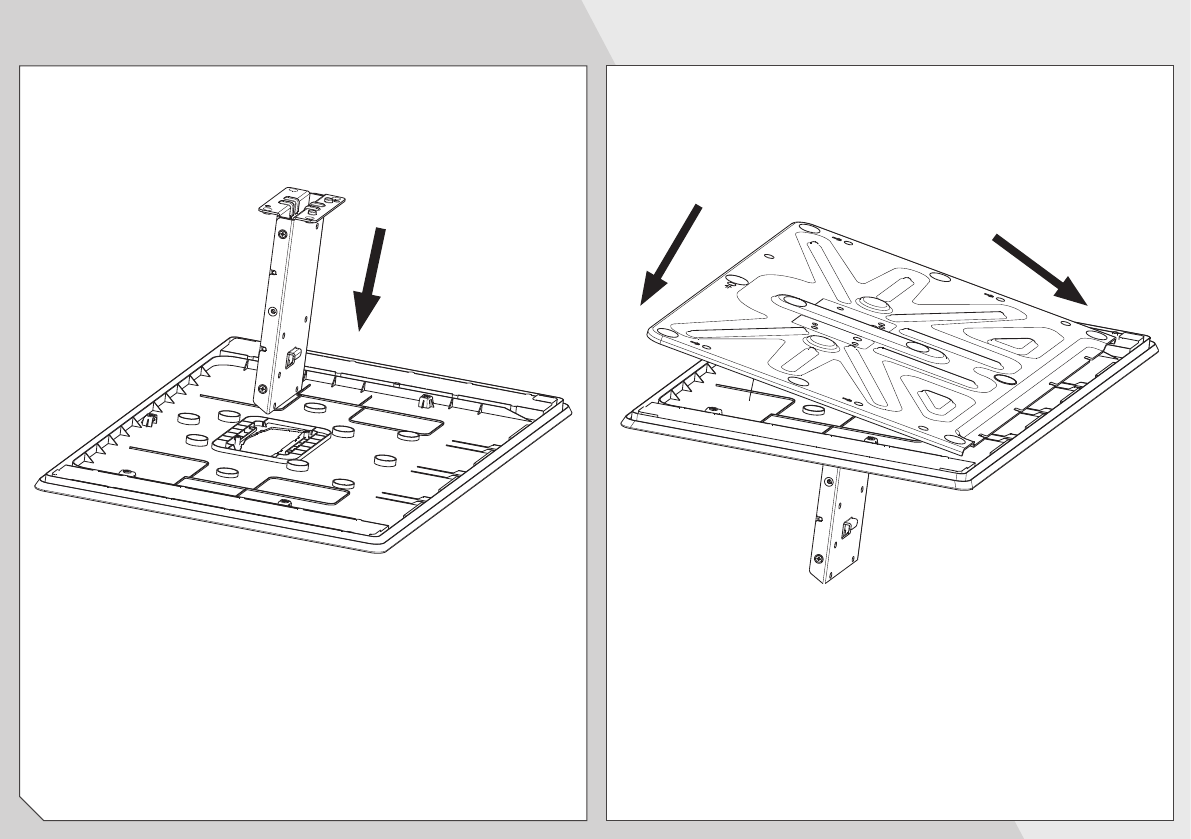

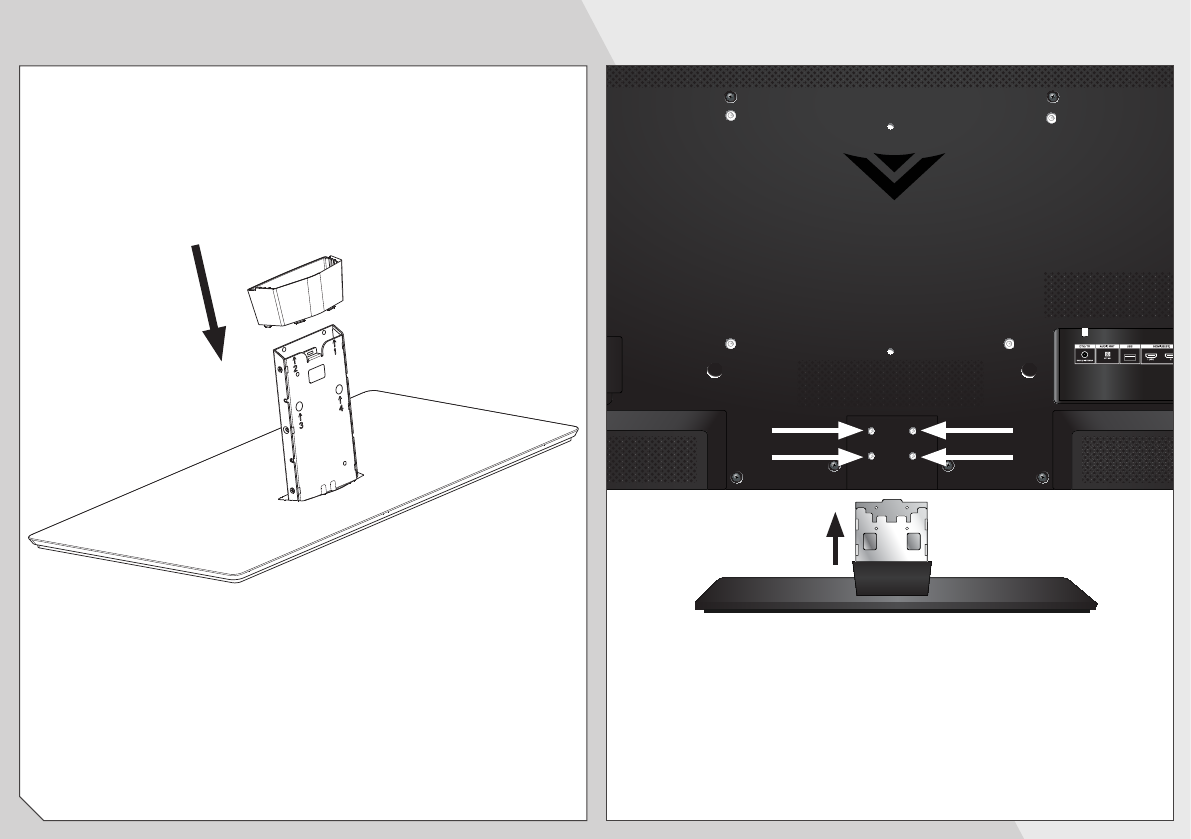

INSTALLING THE BASE
Place the base cover upside down resting on a ledge.
Then slide the neck piece downward into place.
A. Slide the base bracket into the edge with the
appropriate notch pieces.
B. Rest the entire base bracket into the cover.
1 2
A
B
This Product Sold Separately

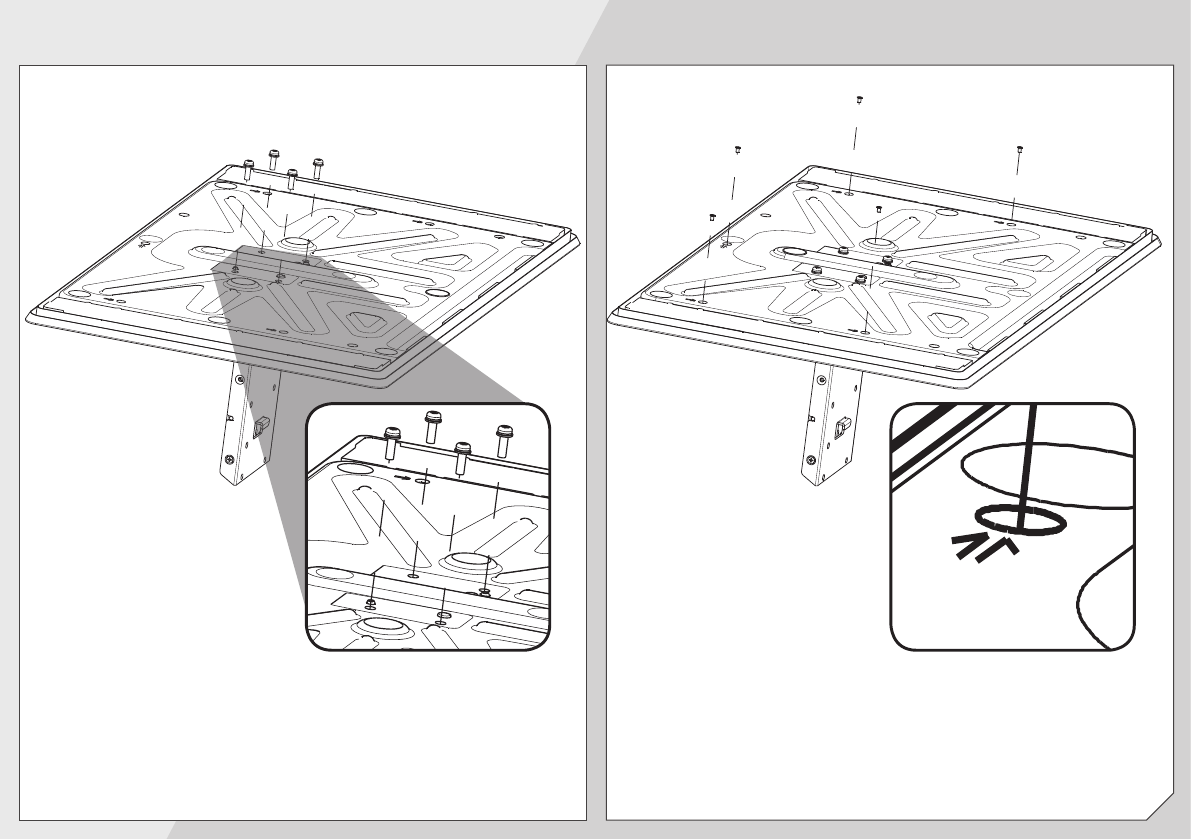

Attach the base bracket by tightening the four (4)
included M5 8mm Pan Head Screws into the center
holes as shown.
Tighten the five (5) included M4 8mm Flat Head
Screws into the holes as shown.
Holes are marked with arrows.
3 4
Slide the collar piece downward into place over the
neck.
Place the TV screen-down on a clean, flat surface. To
prevent scratches or damage to the screen, place
the TV on a soft surface, such as carpet, rug, or
blanket.
Insert the neck into the TV and tighten the four (4)
included M5 16mm Pan Head Screws.
56

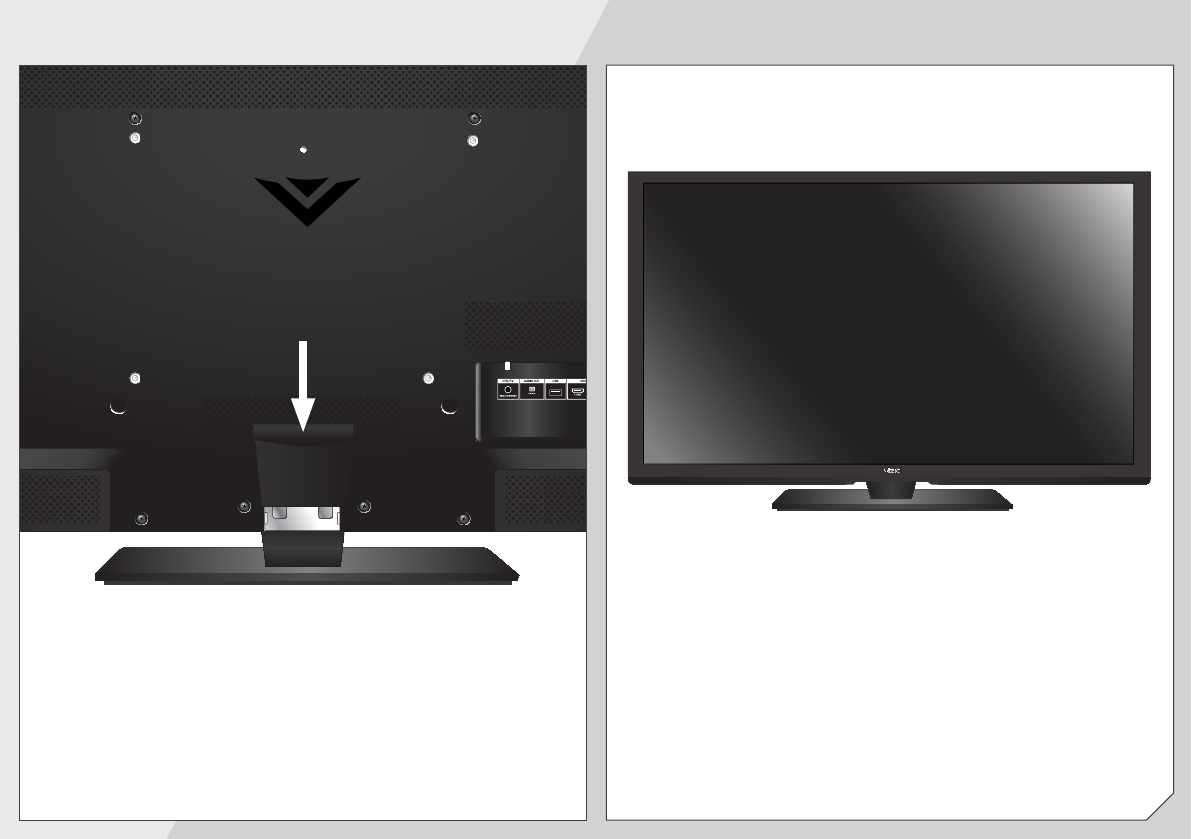

Slide the base cover into place. Place the TV on a stable, level surface.
78
AAA BATTERY
AAA BATTERY
AAA BATTERY
AAA BATTERY
12
FIRST-TIME SETUP

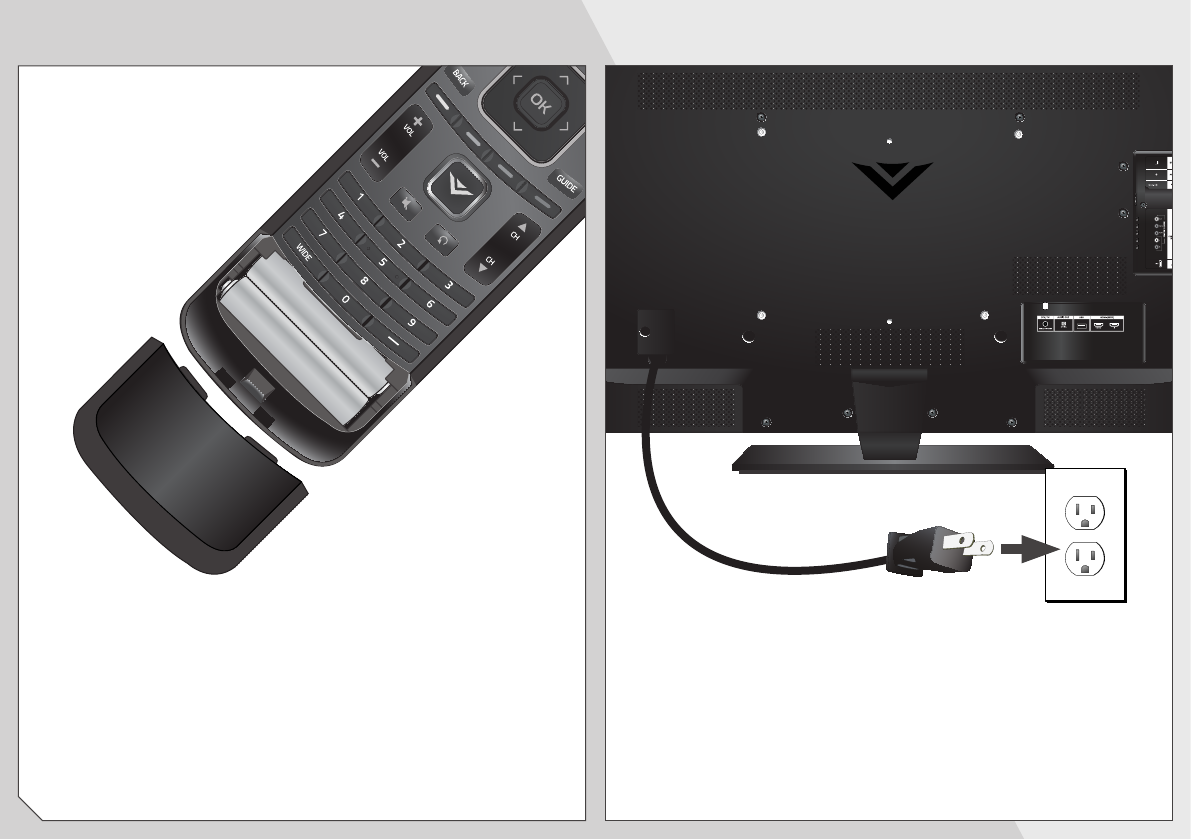

Remove the battery cover by pressing gently on the
cover and sliding away from the remote.
Insert the included batteries.
Gently slide the battery cover back into place.
Plug the power cord into an electrical outlet.
3 4

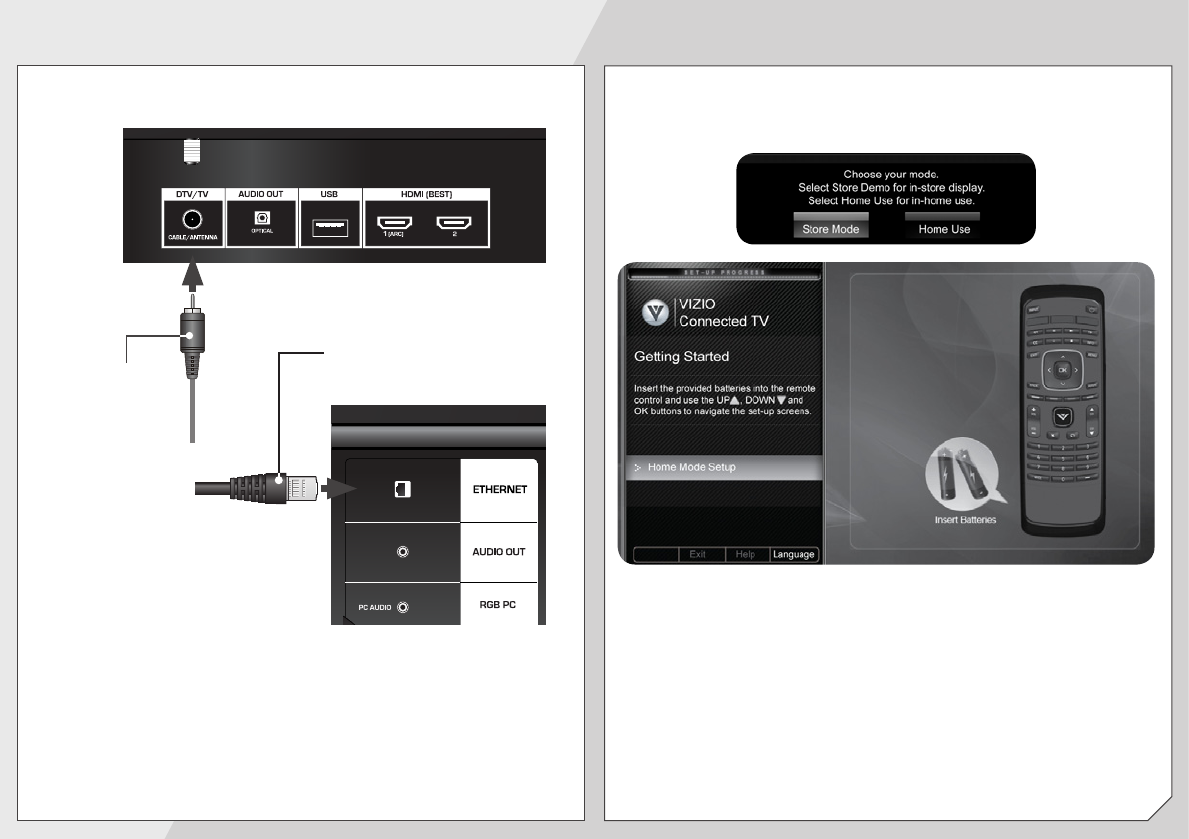

If you have an external antenna or a cable connection
that extends from a wall outlet,
connect it to the TV with an RF/Coaxial cable.
If you have a high-speed internet connection, connect
an Ethernet cable from your modem
or router to the back of the TV as shown.
Turn the TV on by pressing the
Power
button on the
remote. The
Setup App
is displayed.
Use the Arrow buttons on the remote to highlight
Home Use and press
OK
.
Use the Arrow buttons on the remote to highlight
Home Mode Setup and press
OK
.
Back of TV
Ethernet
Cable
Coaxial
Cable
5 6

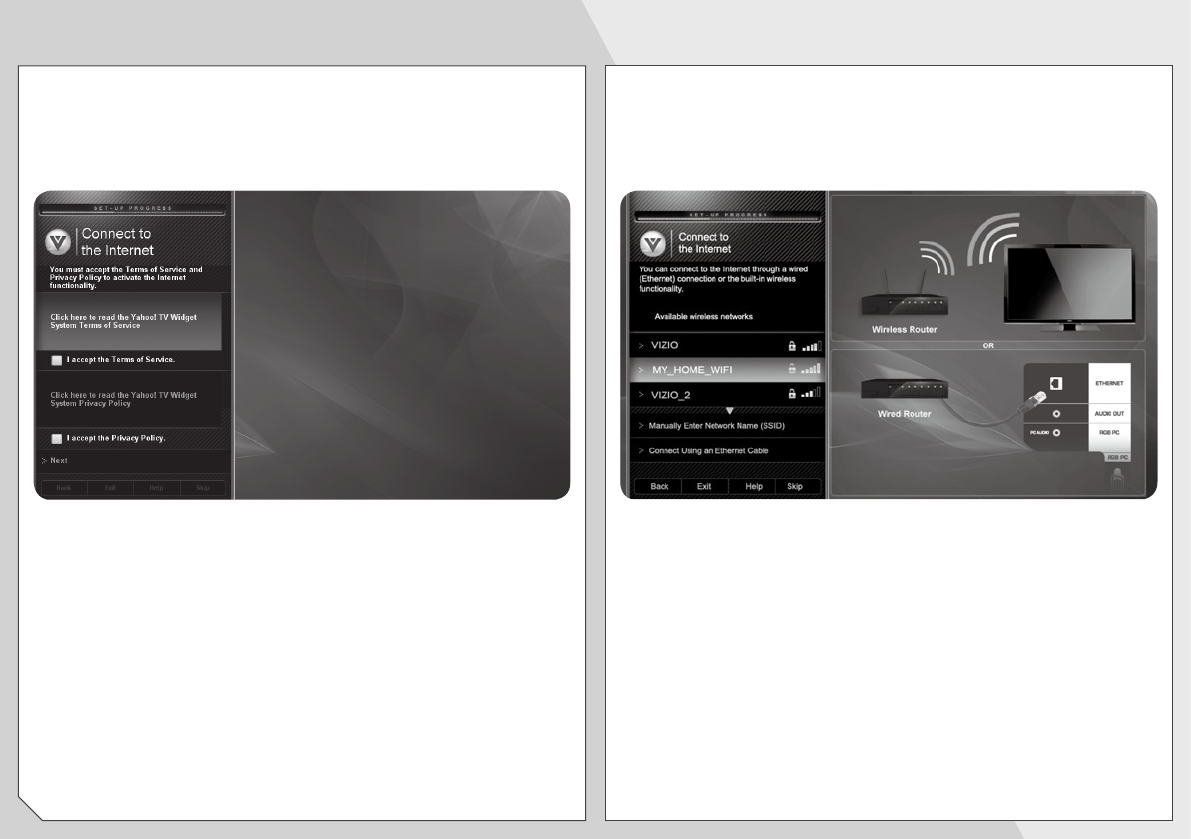

Use the
OK
and
Arrow Up/Down
buttons on the
remote to read and accept the Terms of Service and
Privacy Policy for Yahoo! TV Widgets.
When you are finished, highlight
Next
and press
OK
.
Select the name of your wireless network from the
list of available networks and press
OK
.
Enter your network key using the on-screen keyboard,
then highlight
Connect
and press
OK
.
7 8

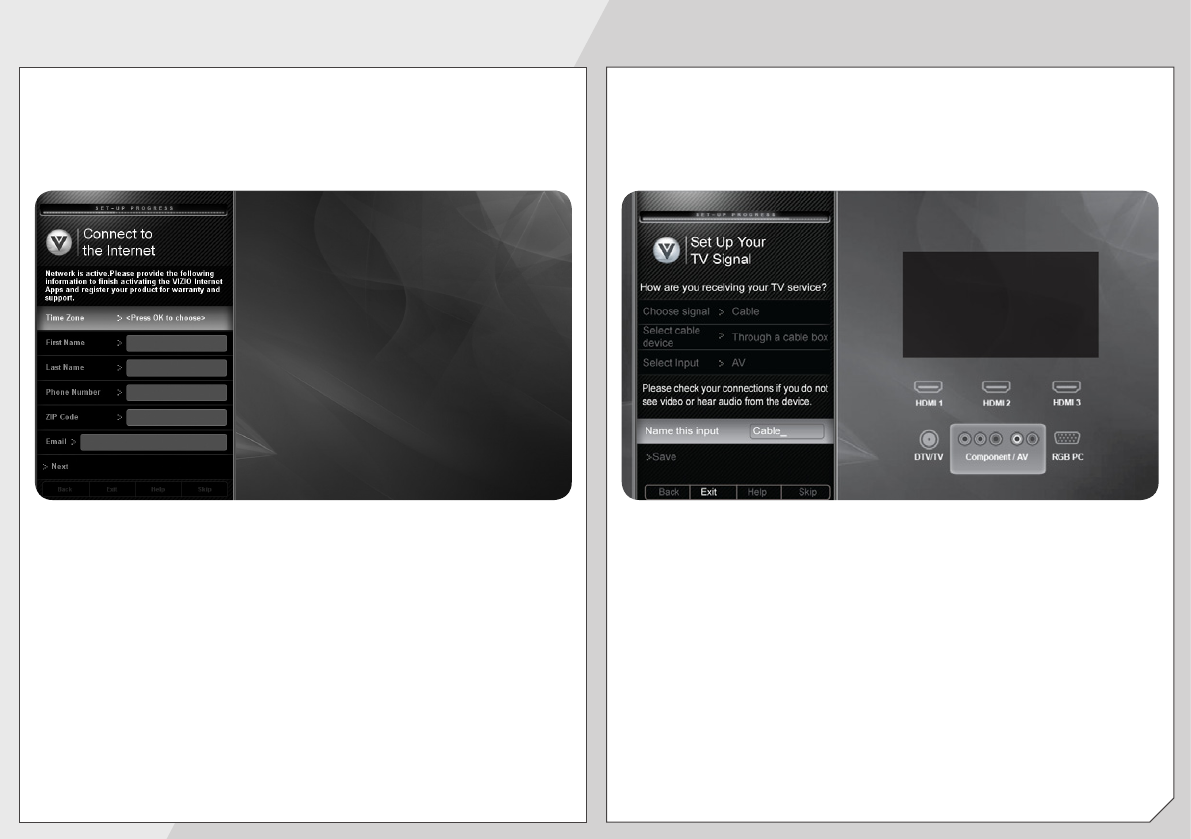

Enter your First Name, Last Name, Phone Number,
ZIP Code, and E-mail Address using the on-screen
keyboard.
Highlight Next and press
OK
.
Answer the on-screen questions about your TV
connection using the
Arrow
and
OK
buttons on the
remote.
When you have finished the channel scan, highlight
Exit to Live TV
and press
OK
.
The First-Time Setup is complete.

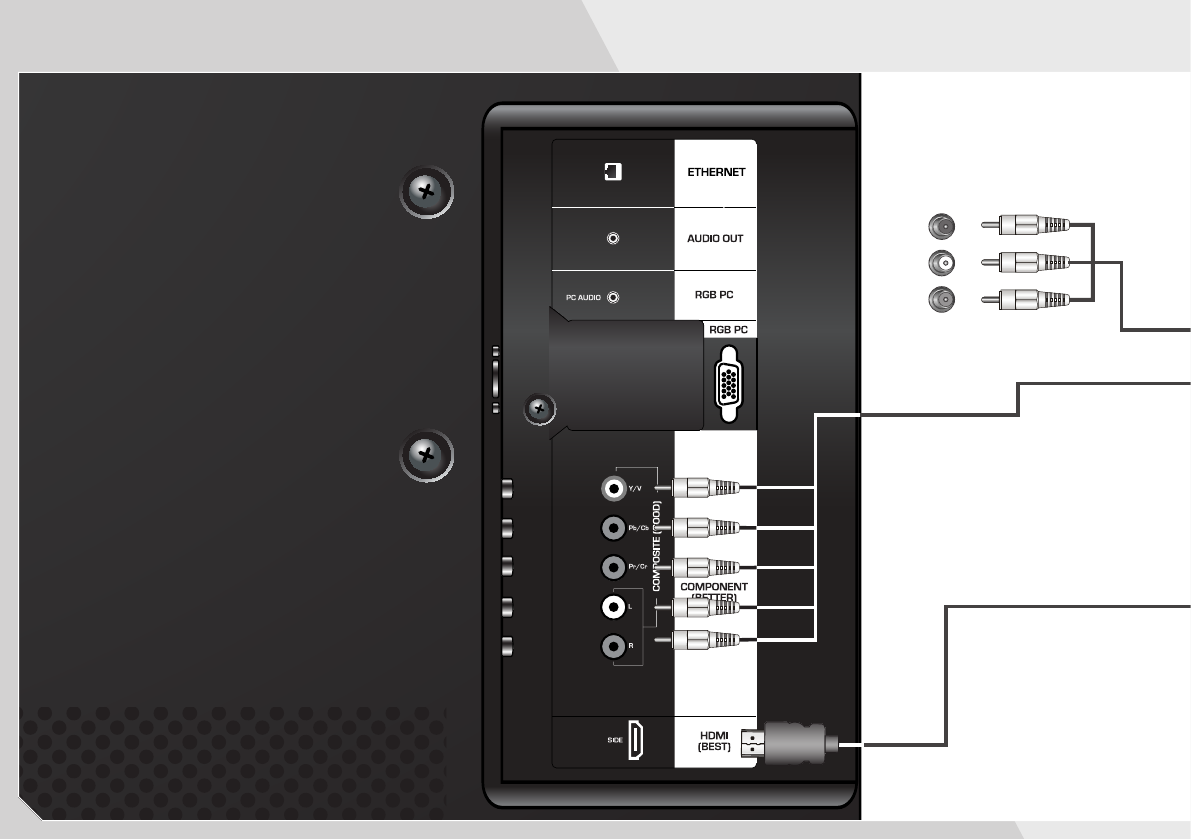

CONNECTING YOUR DEVICES

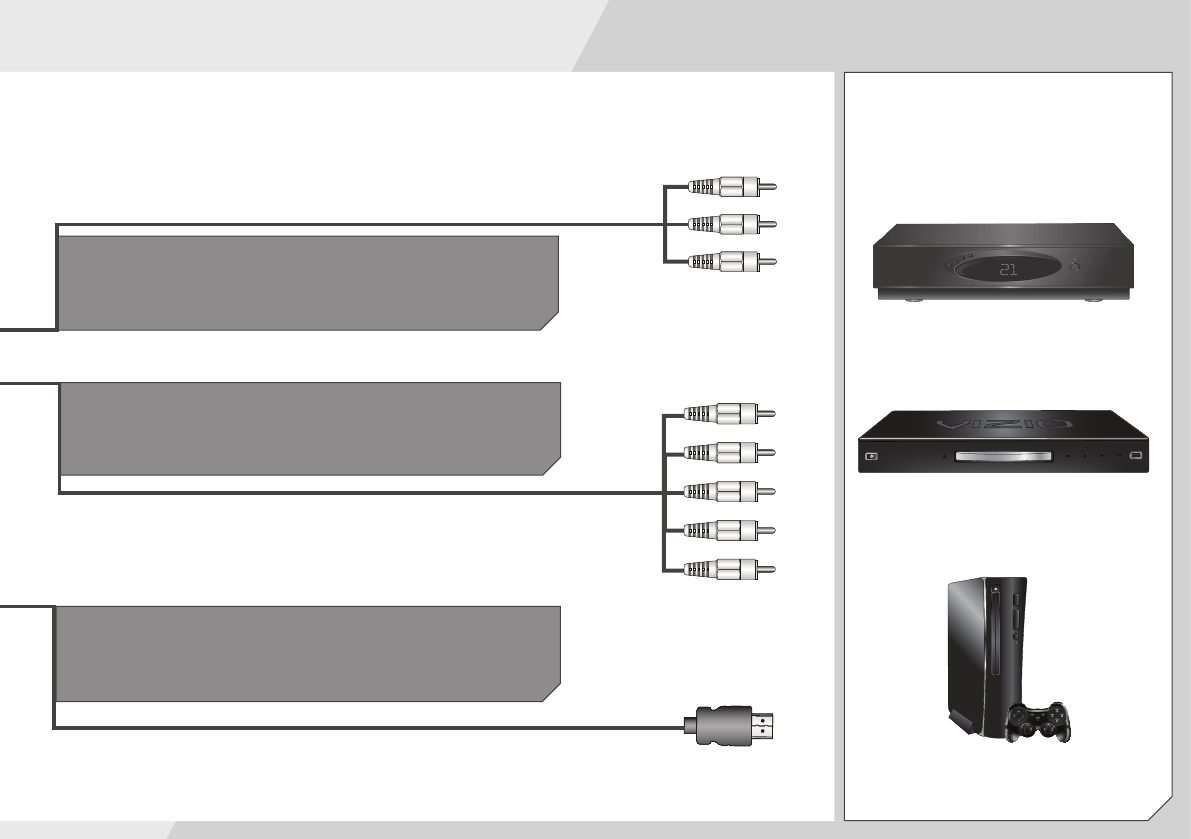

Match colored connectors
to colored ports.
BACK OF TV
R
L
Y
Connect to:
Game Consoles
Blu-ray™ or DVD Players
Cable or Satellite Boxes
Commonly-connected
devices:
BETTER
COMPONENT CABLE • ANALOG
• HD VIDEO (1080i)*
• STEREO AUDIO
Match colored
connectors
to colored ports.
* Maximum Resolution
GOOD
AV CABLE • ANALOG
• VIDEO (480i)*
• STEREO AUDIO
Choose ONE connection type for each device.
(Cables are not included.)
BEST
HDMI CABLE • DIGITAL
• HD VIDEO (1080p)*
• DIGITAL AUDIO
Highlighted App
12
Be sure your TV is connected to the Internet.
Use an Ethernet cable or connect wirelessly.
For the best V.I.A. experience, a high-speed
Internet connection is recommended.
The V.I.A Dock is displayed on the bottom of the
screen.
Use the
Arrow
buttons on the remote to highlight an
app, then press
OK
to open it.
GETTING STARTED WITH VIZIO INTERNET APPS
V.I.A.
Press this button to
open the V.I.A. Dock.
Be sure your TV is connected to the Internet.
Use an Ethernet cable or connect wirelessly.
For the best V.I.A. experience, a high-speed
Internet connection is recommended.
3
Highlight
Categories
and press
OK
. A list of app categories is displayed.
Select a category and browse
through the available apps.

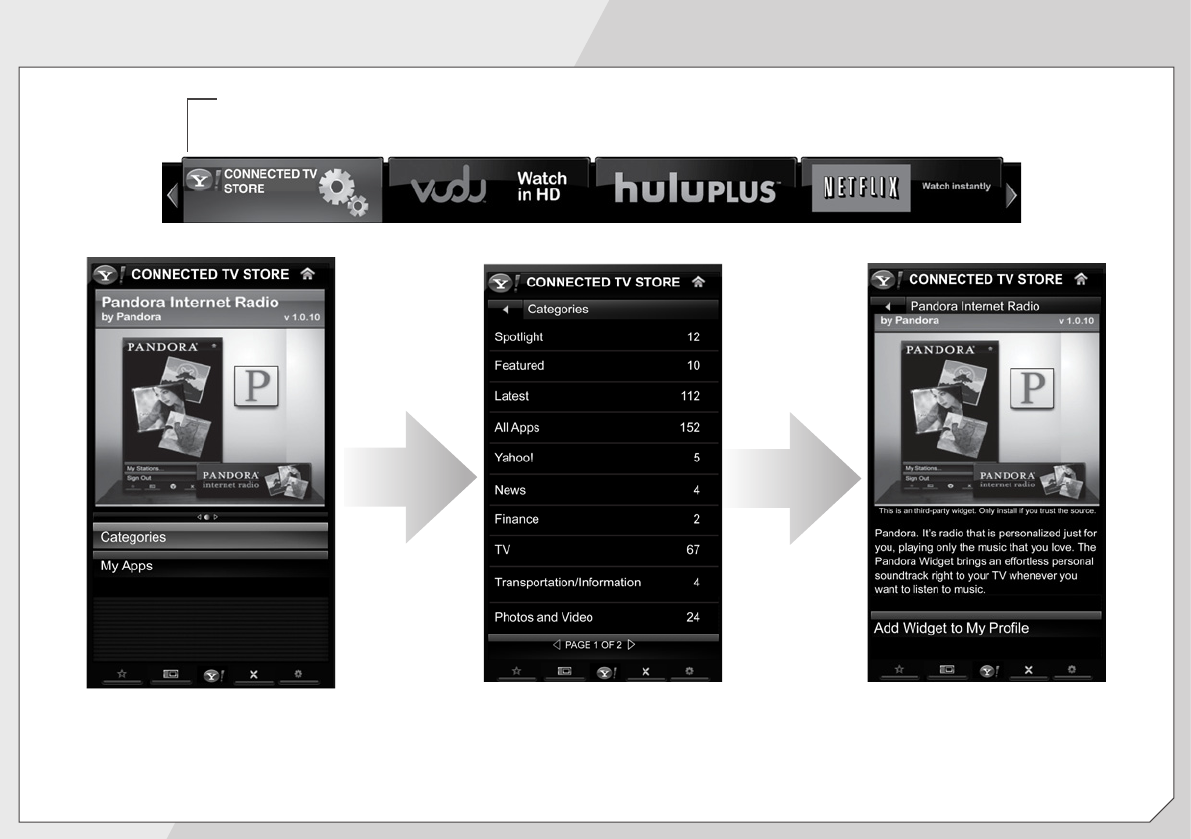

Your V.I.A Dock has many popular apps pre-loaded, but you can add more at any time.
To discover and add new apps to the Dock, open the
Connected TV Store
app.
When you’ve found an app you want
to add to the Dock, highlight
Add
Widget
to
My Profile
and press
OK
.
Available at www.VIZIO.com
This Product Sold Separately
The VIZIO Home Theater Sound Bar with Wireless Subwoofer delivers exceptional audio performance in a new sleeker,
slimmer design. This powerful sound system is also remarkably versatile. Its wireless subwoofer fits nearly anywhere in
your home theater up to 60 ft. away, and the sound bar offers either a table-stand or wall-mount option.
UPGRADE TO POWERFUL DIGITAL AUDIO
BIG SOUND
SLIM PACKAGE
HELP TOPICS
How do I return to the
Setup App?
There is a picture, but
there is no sound.
The TV displays
“No Signal.”
There are black/
gray bars on the top/
bottom/sides of the
screen.
There is no power.
• Note that some television channels add black bars to the picture.
• Set the TV to Wide or Zoom mode. Press MENU, then select Wide. Highlight Wide or
Zoom and press OK.
• Adjust the video settings of your external device
• The on-screen menu has guided setup. Press MENU, then select Help > Guided Setup.
Select the type of setup you need and press OK. The Setup App will begin.
• To reset the TV to factory defaults, press MENU > Help > Reset TV Settings. Select Yes.
Remember that all of your settings will be lost!
• Be sure the power cord is securely connected to a working electrical outlet.
• Press the POWER button on the remote or on the side of the TV.
• If the above steps do not work, try plugging the power cord into a different outlet.
• Be sure your connected devices are turned on.
• Press the INPUT button on the remote and select the input to which your device is
connected (HDMI-1, AV, Component, etc).
• Press the VOLUME UP button on the remote or on the side of the TV.
• Press the MUTE button on the remote to ensure that mute is off.
• Press MENU, then select Audio. Be sure TV Speakers is set to On.
FCC Class B Radio Interference Statement
NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy, and if not installed and used in accordance with
the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or
more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept
any interference received, including interference that may cause undesired operation.
Notice
The changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.
Shielded interface cables and AC power cord, if any, must be used in order to comply with the emission limits.
The manufacturer is not responsible for any radio or TV interference caused by unauthorized modification to this equipment. It is the responsibilities of the user to correct such interference.
FCC warning
Changes or modifications not expressly approved by the party responsible for compliance with the FCC Rules could void the user’s authority to operate this equipment.
Caution
Always use an AC/DC power adapter that is properly grounded. Use the AC cords listed below for each area.
USA: UL
Canada: CSA
Germany: VDE
UK: BASE/BS
Japan: Electric Appliance Control Act
LEGAL
/
COMPLIANCE
ON PARTS AND LABOR
Covers units purchased as new in United States and Puerto Rico Only.
VIZIO provides a warranty to the original purchaser of a new Product against defects in
materials and workmanship for a period of one (1) year of non-commercial usage and ninety
(90) days of commercial use. If a Product covered by this warranty is determined to be
defective within the warranty period, VIZIO will either repair or replace the Product at its sole
option and discretion.
To obtain warranty service, contact VIZIO Technical Support via e-mail: TechSupport@VIZIO.
com or via phone at 877 MY VIZIO (877.698.4946) from 6:00AM to 9:00PM Monday through
Friday and 8:00AM to 4:00PM Saturday and Sunday, Pacific Time, or visit www.VIZIO.com.
PRE-AUTHORIZATION MUST BE OBTAINED BEFORE SENDING ANY PRODUCT TO A VIZIO
SERVICE CENTER. Proof of purchase in the form of a purchase receipt or copy thereof is
required to show that a Product is within the warranty period.
Parts and Labor
There will be no charge for parts or labor during the warranty period. Replacement parts and
Products may be new or recertified at VIZIO’s option and sole discretion. Replacement parts
and Products are warranted for the remaining portion of the original warranty or for ninety
(90) days from warranty service or replacement, whichever is greater.
Type of Service
Defective Products must be sent to a VIZIO service center to obtain warranty service.
VIZIO is not responsible for transportation costs to the service center, but VIZIO will cover
return shipping to the customer. PRE-AUTHORIZATION IS REQUIRED BEFORE SENDING ANY
PRODUCT TO A VIZIO SERVICE CENTER FOR WARRANTY SERVICE.
Product returns to VIZIO’s service centers must utilize either the original carton box and
shipping material or packaging that affords an equal degree of protection. VIZIO Technical
Support will provide instructions for packing and shipping the covered Product to the VIZIO
service center.
Limitations and Exclusions
VIZIO’s one-year limited warranty only covers defects in materials and workmanship. This
warranty does not cover, for example: cosmetic damage, normal wear and tear, improper
operation, improper voltage supply or power surges, signal issues, damages from shipping,
acts of God, any type of customer misuse, modifications or adjustments, as well as
installation and set-up issues or any repairs attempted by anyone other than by a VIZIO
authorized service center. Products with unreadable or removed serial numbers, or requiring
routine maintenance are not covered. This one year limited warranty does not cover Products
sold “AS IS”, “FACTORY RECERTIFIED”, or by a non-authorized reseller.
THERE ARE NO EXPRESS WARRANTIES OTHER THAN THOSE LISTED OR DESCRIBED
ABOVE. ANY IMPLIED WARRANTIES, INCLUDING ANY IMPLIED WARRANTY OF MERCHANT-
ABILITY AND FITNESS FOR A PARTICULAR PURPOSE, SHALL BE LIMITED IN DURATION
TO THE PERIOD OF TIME SET FORTH ABOVE. VIZIO’S TOTAL LIABILITY FOR ANY AND ALL
LOSSES AND DAMAGES RESULTING FROM ANY CAUSE WHATSOEVER INCLUDING VIZIO’S
NEGLIGENCE, ALLEGED DAMAGE, OR DEFECTIVE GOODS, WHETHER SUCH DEFECTS ARE
DISCOVERABLE OR LATENT, SHALL IN NO EVENT EXCEED THE PURCHASE PRICE OF THE
PRODUCT. VIZIO SHALL NOT BE RESPONSIBLE FOR LOSS OF USE, LOSS OF INFORMATION
OR DATA, COMMERCIAL LOSS, LOST REVENUE OR LOST PROFITS, OR OTHER INCIDENTAL
OR CONSEQUENTIAL DAMAGES. SOME STATES DO NOT ALLOW LIMITATIONS ON HOW LONG
AN IMPLIED WARRANTY LASTS OR THE EXCLUSION OF INCIDENTAL OR CONSEQUENTIAL
DAMAGES, SO THE ABOVE LIMITATIONS OR EXCLUSIONS MAY NOT APPLY TO YOU. THIS
WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS, AND YOU MAY ALSO HAVE OTHER RIGHTS,
WHICH VARY FROM STATE TO STATE. THIS WARRANTY IS SUBJECT TO CHANGE WITHOUT
NOTICE.
CHECK WWW.VIZIO.COM FOR THE MOST CURRENT VERSION.
Personal Data
If your VIZIO product is capable of storing personal data and other information, ALL
CONTENTS AND INFORMATION WILL BE DELETED IN THE COURSE OF SOME IN-HOME
AND ALL SHIP-IN WARANTY SERVICE. If this occurs, your product will be restored to you
configured as originally purchased. You will be responsible for restoring all applicable data
and passwords. Recovery and reinstallation of user data is not covered under this Limited
Warranty. In order to protect your personal information, VIZIO recommends that you always
clear all personal information from the unit before it is serviced, regardless of the servicer.
Zero Bright Pixel Defect Guarantee
This policy covers “zero bright pixel” defects for the duration of the limited “ONE YEAR
WARRANTY” on select new product purchases. To determine if this guarantee applies to your
product, refer to the “DETAILS” tab of the model’s product information page (www.VIZIO.
com) or look for the “zero bright pixel” guarantee on the box.
LIMITED WARRANTY
VIZIO
QUICK
START
GUIDE
© 2012 VIZIO INC. ALL RIGHTS RESERVED.
120604OC-NC
